Canon iP4000pc Service Manual

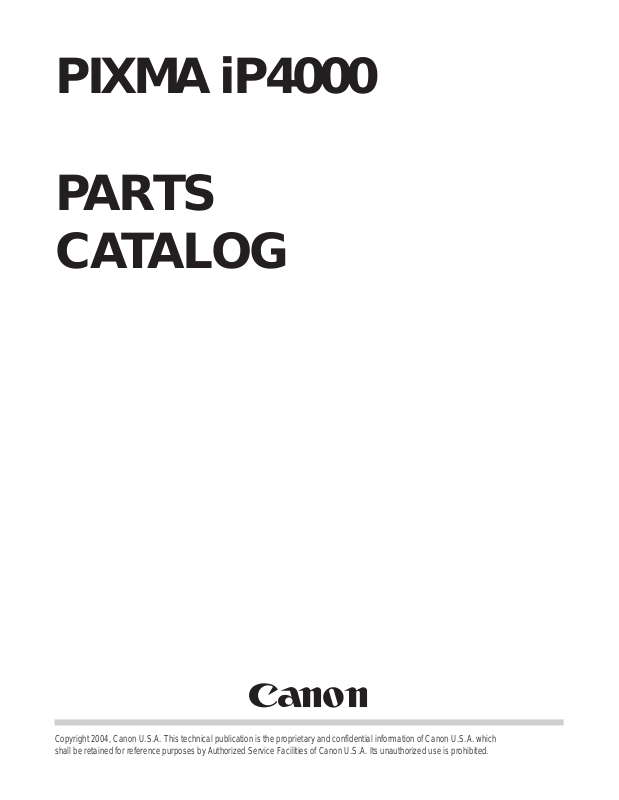

PIXMA iP4000

PARTS
CATALOG

Canon

Copyright 2004, Canon U.S.A. This technical publication is the proprietary and confidential information of Canon U.S.A. which
shall be retained for reference purposes by Authorized Service Facilities of Canon U.S.A. Its unauthorized use is prohibited.

Parts Catalog PIXMA iP4000

FIGURE 1 PRINTER, CASSETTE &

PRINT HEAD

FIGURE 2 AC ADAPTER

NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION

1 - 1 QM2-1225-000 CASSETTE UNIT

2 QC1-4286-000 COVER, CASSETTE
3 QL2-0605-000 CDR TRAY ASS’Y W/ CDR PRINTING
4 QA4-1117-000 TRAY, CD SUB W/ CDR PRINTING
5 QH2-2725-000 CORD, POWER 100V-120V
6 QY6-0049-000 PRINT HEAD

2 - 1 QK1-1093-000 AC ADAPTER: 100V-120V 50/60HZ

2 QC1-4456-000 COVER, PAPER FEED GUIDE

Copyright 2004, Canon U.S.A. This technical publication is the proprietary and confidential information of Canon U.S.A. which
shall be retained for reference purposes by Authorized Service Facilities of Canon U.S.A. Its unauthorized use is prohibited.

1 of 6

Parts Catalog PIXMA iP4000

FIGURE 3 OPERATION PANEL UNIT &

MAIN CASE UNIT

FIGURE 4 BOTTOM CASE UNIT

NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION

3 - 1 QM2-1232-000 PAPER SUPPORT UNIT

2 QC1-4261-000 EMBLEM, PIXMA
3 QM2-1234-000 ACCESS COVER UNIT
4 QC1-4216-000 COVER, MAIN CASE R
5 QC1-4217-000 COVER, MAIN CASE L
6 N/A N/A
7 QM2-1231-000 SIDE COVER BASE R
8 QC1-4231-000 COVER, SIDE (2)
9 N/A N/A

10 QC1-4230-000 BASE, SIDE COVER L

11 QC1-4255-000 COVER, I/F
12 QM2-1204-000 MAIN CASE UNIT
13 QM2-1230-000 OPERATION PANEL UNIT
14 QC1-4252-000 ARM, RELEASE (2)
15 QM2-1239-000 CDR TRAY BASE UNIT W/ CDR

QM2-1241-000 INNER COVER UNIT W/O CDR

16 QM2-1233-000 FRONT DOOR UNIT

4 - 1 QM2-1205-000 BOTTOM CASE UNIT

Copyright 2004, Canon U.S.A. This technical publication is the proprietary and confidential information of Canon U.S.A. which
shall be retained for reference purposes by Authorized Service Facilities of Canon U.S.A. Its unauthorized use is prohibited.

2 of 6
