Unpack the Printer
1
Prepare the Printer
2

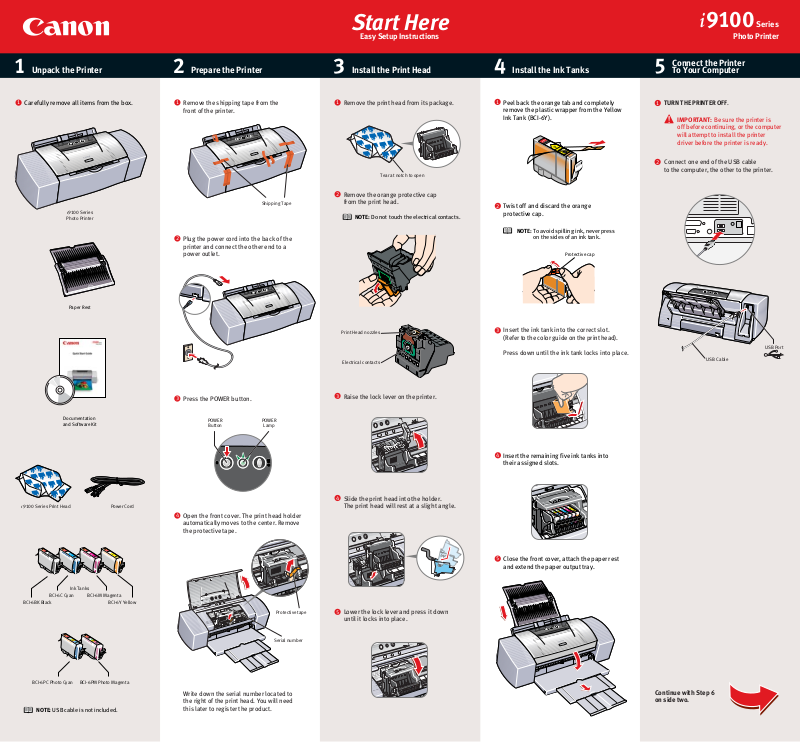

Start Here
Easy Setup Instructions
34
Install the Print Head
Install the Ink Tanks
5
i91 00 Series
Photo Printer
Connect the Printer
To Your Computer
1
Carefully remove all items from the box.
i 9100 Series
Photo Printer
1
Remove the shipping tape from the
front of the printer.
Shipping Tape
2
Plug the power cord into the back of the
printer and connect the other end to a
power outlet.
1
Remove the print head from its package.
Tear at notch to open
2
Remove the orange protective cap
from the print head.
NOTE: Do not touch the electrical contacts.
1
Peel back the orange tab and completely
remove the plastic wrapper from the Yellow
Ink Tank (BCI-6Y).
2
Twist off and discard the orange
protective cap.
NOTE: To avoid spilling ink, never press
on the sides of an ink tank.
Protective cap
1
TURN THE PRINTER OFF.
IMPORTANT: Be sure the printer is
off before continuing, or the computer
will attempt to install the printer
driver before the printer is ready.
2
Connect one end of the USB cable
to the computer, the other to the printer.
Paper Rest
Documentation
and Software Kit
3
Press the POWER button.
POWER
Button
POWER
Lamp
Print Head nozzles
Electrical contacts
3
Raise the lock lever on the printer.
Insert the ink tank into the correct slot.
3
(Refer to the color guide on the print head).
Press down until the ink tank locks into place.
4
Insert the remaining five ink tanks into
their assigned slots.
USB Port
USB Cable
i 9100 Series Print Head
Ink Tanks
BCI-6C Cyan BCI-6M Magenta
BCI-6BK Black BCI-6Y Yellow
Power Cord
4
Open the front cover. The print head holder
automatically moves to the center. Remove
the protective tape.
Protective tape
Serial number
4
Slide the print head into the holder.
The print head will rest at a slight angle.
5
Lower the lock lever and press it down
until it locks into place.
5
Close the front cover, attach the paper rest
and extend the paper output tray.
BCI-6PC Photo Cyan BCI-6PM Photo Magenta
NOTE: USB cable is not included.
Write down the serial number located to
the right of the print head. You will need
this later to register the product.
Continue with Step 6
on side two.
Install the Printer Driver (Windows®)
6
6
Install the Printer Driver (Macintosh®)
Align the Print Head
7
Windows
1
Be sure to TURN THE PRINTER OFF before
continuing.
POWER
Button
NOTE: For Windows® XP or Windows
2000, log on to Windows as a member
of the Administrators group before
continuing.
POWER
Lamp
IMPORTANT: If you see the Found
New Hardware Wizard, click Cancel.
5
When the Printer Port window appears,
TURN THE PRINTER ON. The software will
begin identifying the printer port being used.
IMPORTANT: If your computer cannot
detect a printer port, refer to the
Troubleshooting chapter in the “i9100
Quick Start Guide” for instructions.
6
When the driver installation is complete,
click Finish.
7
Register your product to ensure product
support. Follow the on-screen instructions.
Macintosh
1
Turn on your Mac and your printer and
insert the “i9100 Setup Software & User's
Guide” CD-ROM.
2
Double-click the CD-ROM icon, then the
Mac OS X folder, then the Printer Driver
folder.
3
Double-click the i9100 180.pkg icon.
8
Click Install. When a message asking for
your confirmation to proceed with the
installation, click Continue Installation.
9
When the message “The software was
successfully installed” appears, click
Restart.
10
Access your CD-ROM again. From the
Application folder, double-click on the
software to be installed.
Before using the printer, align the print head
to ensure the best quality printing.
1
Load a sheet of blank paper in the
paper rest.
2
Start the alignment procedure.
Windows:
a. For Windows XP/2000 click Start,
select Control Panel, Printers and
Other Hardware, then Printers and
Faxes.
b. Right-click the i9100 icon,
then click Printing Preferences.
NOTE: For Windows 98/Me click
Start, then select Settings,
Printers. Right-click the i9100 icon,
then click Properties.
c. Click the Maintenance tab, then
click on the Print Head Alignment
icon.
d. When asked to start print head
alignment, click OK.
2
Close any open software applications,
then insert the “i9100 Setup Software &
User's Guide” CD-ROM. The setup program
should run automatically.
NOTE: If the setup program does not run,
click Start, then Run, then type
D:\msetup.exe, where D is your CD-ROM
drive.
3
Read the License Agreement, then
click Yes to continue.
4
When the main menu appears, click Install.
When the software menu appears, click
8
Install.
4
When the “Authenticate” screen appears,
enter your administrator name and
password, then click OK.
5
When the “Welcome to the BJ printer driver
Installer” screen appears, click Continue.
6
Read the Software License Agreement
and click Continue, then click Agree.
7
Select a destination for the printer driver
to be installed. Then click Continue.
Follow the on-screen instructions. When the
11
“Installation has finished” screen appears,
click OK.
NOTE: Be sure to register your product.
The serial number is located on the
inside of the printer, to the right of the
print head.
IMPORTANT: To ensure highest
quality output, continue with Step 7
Align the Print Head.
e. Follow the on-screen instructions.
Macintosh OS X:
a. Double-click the Macintosh HD icon,
then Applications folder. Double-click
the Utilities folder, then the Print Center
icon. When the Printer List screen
appears, select i9100.
Under Printers menu, select Configure
Printer. Select i9100, and click Select.
NOTE: If you are prompted to restart
Windows, remove the CD-ROM, then click
OK. After the computer restarts, insert the
CD-ROM and continue.
9
When the software installation is complete,
click OK, then Exit.
IMPORTANT: To ensure highest quality
output, continue with Step 7 Align the
Print Head.
b. Click the down-arrow to select Test
Print.
c. Click the Print Head Alignment icon.
3
Follow the on-screen instructions.
4
Click OK (Windows) or Send (Macintosh)
when finished.
