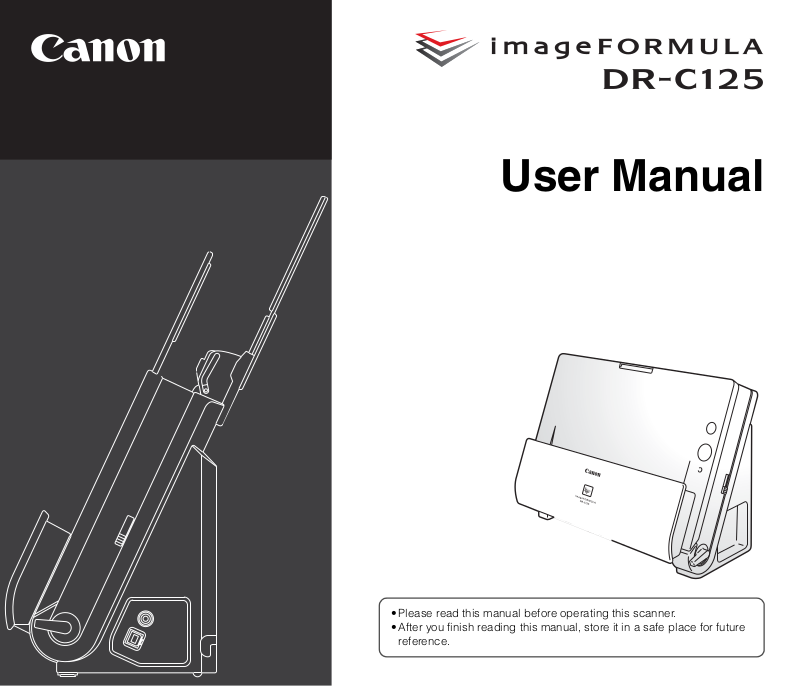

Canon DR-C125 User Manual
User Manual
• Please read this manual before operating this scanner.
• After you finish reading this manual, store it in a safe place for future
reference.
FCC REGULATIONS (For 120 V model)
Document Scanner, Model M111081
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the
equipment OFF and ON, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with Class B limits in
Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless
otherwise specified in the manual. If such changes or modifications
should be made, you could be required to stop operation of the
equipment.
Canon U.S.A. Inc.
One Canon Plaza, Lake Success NY 11042, U.S.A.
Tel. No. (516)328-5000
RADIO INTERFERENCE REGULATIONS (For 120 V
models)
This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus as set out in the interferencecausing equipment standard entitled “Digital Apparatus”, ICES-003 of
the Industry Canada.
RÈGLEMENT SUR LE BROUILLAGE RADIOÉLECTRIQUE
(For 120 V models)
Cet appareil numérique respecte les limites de bruits radioélectriques
applicables aux appareils numériques de Classe B prescrites dans la
norme sur le matériel brouilleur: “Appareils Numériques”, NMB-003
édictée par l’Industrie Canada.
International ENERGY STAR® Office Equipment Program
As an ENERGY STAR® Partner, CANON
ELECTRONICS INC. has determined that this
machine meets the ENERGY STAR
guidelines for energy efficiency.
The International ENERGY STAR
Program is an international program that promotes
energy saving through the use of computers and other office
equipment. The program backs the development and dissemination of
products with functions that effectively reduce energy consumption. It
is an open system in which business proprietors can participate
voluntarily. The targeted products are office equipment, such as
computers, monitors, printers, fax, machine, copiers, and scanners.
The standards and logos are uniform among participating nations.
®
Program
®
Office Equipment
European Union (and EEA) only.
This symbol indicates that this product is not to be disposed
of with your household waste, according to the WEEE
Directive (2002/96/EC) and your national law. This product
should be handed over to a designated collection point,
new similar product or to an authorized collection site for recycling
waste electrical and electronic equipment (EEE). Improper handling of
this type of waste could have a possible negative impact on the
environment and human health due to potentially hazardous
substances that are generally associated with EEE. At the same time,
your cooperation in the correct disposal of this product will contribute
to the effective usage of natural resources. For more information
about where you can drop off your waste equipment for recycling,
please contact your local city office, waste authority, approved WEEE
scheme or your household waste disposal service. For more
information regarding return and recycling of WEEE products, please
visit www.canon-europe.com/environment
(EEA: Norway, Iceland and Liechtenstein)
e.g., on an authorized one-for-one basis when you buy a
.
2
Für EMVG
Dieses Produkt ist zum Gebrauch im Wohnbereich, Geschäfts-und
Gewerbebereich sowie in Kleinbetrieben vorgesehen.
Model Names
The following names may be provided for the safety regulations in
each sales region of the Document Scanner.
DR-C125: Model M111081
Trademarks
• Canon and the Canon logo are registered trademarks, of Canon Inc.
in the United States and may also be trademarks or registered
trademarks in other countries.
• imageFORMULA is a trademark of CANON ELECTRONICS INC.
• Microsoft, Windows, Windows Vista, PowerPoint, and SharePoint
are registered trademarks or trademarks of Microsoft Corporation in
the United States and other countries.
• Microsoft product screen shot(s) reprinted with permission from
Microsoft Corporation.
• Macintosh and Mac OS are registered trademarks of Apple Inc. in
the United States and other countries.
• ENERGY STAR
Environmental Protection Agency.
• ISIS is a registered trademark of Emc Corporation in the United
States.
• Copyright © 1995-2011 Nuance Communications, Inc. All rights
reserved. Nuance, eCopy, and OmniPage are trademarks and/or
registered trademarks of Nuance Communications, Inc. and/or its
affiliates in the United States and/or other countries.
• Other product and company names herein may be the trademarks
of their respective owners. However, the
used in this document.
®
is a registered trademark of the United States
TM
and ® symbols are not
Disclaimers
The information in this document is subject to change without notice.
CANON ELECTRONICS INC. MAKES NO WARRANTY OF ANY
KIND WITH REGARD TO THIS MATERIAL, EITHER EXPRESS OR
IMPLIED, EXPECT AS PROVIDED HEREIN, INCLUDING WITHOUT
LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY,
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
OF USE OR NON-INFRINGEMENT. CANON ELECTRONICS INC.
SHALL NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR
EXPENSES RESULTING FROM THE USE OF THIS MATERIAL.
CANON ELECTRONICS INC. IS NOT LIABLE FOR THE STORAGE
AND HANDLING OF DOCUMENTS SCANNED WITH THIS
PRODUCT, OR THE STORAGE AND HANDLING OF RESULTING
SCANNED IMAGE DATA.
IF YOU INTEND TO DISCARD THE ORIGINALS OF SCANNED
DOCUMENTS, YOU THE CUSTOMER ARE RESPONSIBLE FOR
INSPECTING THE SCANNED IMAGES AND VERIFYING THAT
DATA IS INTACT.
THE MAXIMUM LIABILITY OF CANON ELECTRONICS INC.
UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE
OF THE PRODUCT COVERED BY THE WARRANTY.
Copyright
Copyright 2011 by CANON ELECTRONICS INC. All rights reserved.
No part of this publication may be reproduced or transmitted in any
form or by any means, electronic or mechanical, including
photocopying and recording, or by any information storage or retrieval
system without the prior written permission of CANON
ELECTRONICS INC.
3
Setup Guide
Please read first.
STEP 1 Checking the Accessories
If any of the items listed below are missing or damaged, contact your local authorized Canon dealer or service representative.
Scanner AC Adapter/Power Cord
Reference Guide
Type A/Type B (Length: 1.8 m)
Before Use
(Connected length: 2.6 m)
Warranty Card
(U.S.A. and Canada only)
Setup DiscUSB Cable
0880281099-L5T1P7-BR01
CANON CANADA INC.
6390 DIXIE RD
MISSISSAUGA ON L5T 9Z9
Registration Card
(U.S.A. and Canada only)
• Items included in this manual are subject to change without notice.
• You must keep the machine’s packaging and packing materials for storing or transporting the machine.
• A print version of Reference Guide is supplied in English.
The content of the Reference Guide can be found in other languages in the User Manual on the Setup Disc.
• The shape of the power plug varies by country and region.
Remove the scanner from the box, and remove the orange tape and protective sheets (▼) from the scanner.
4
Setup Disc Contents
Install the following software necessary for using the scanner from the
supplied Setup Disc.
• CaptureOnTouch
This is a dedicated scanning utility for this product.
• Scanner Driver
This is the scanner driver for this product.
Third-Party Software
The following software applications are also included on the supplied
Setup Disc. For details on installing these applications, refer to the
Readme.txt file.
• Presto! BizCard
Business card management software from NewSoft Technology
Corp. For Mac OS X, run the installer (BizCard/BCRInstaller) from
the Setup Disc to install.
* Presto! BizCard is a registered trademark of NewSoft Technology
Corp.
• OmniPage SE 4 (Windows only)
Optical character recognition (OCR) software from Nuance
Communications Inc. with multiple language support.
• PaperPort
File management application from Nuance Communications Inc.
that makes it easy to store, organize, and retrieve digital documents.
– A separate localized version of the installer is provided for Asian
regions (Simplified Chinese, Traditional Chinese, Korean, and
Japanese), in addition to a version for all other regions. Install the
appropriate version based on your operating environment.
– In order to receive support of this product, you need to upgrade to
a Professional version. For details on upgrading, visit the following
URL. http://www.nuance.com/partneroffer/canon
• eCopy PDF Pro Office (Windows only)
Nuance Communications PDF creation/editing software.
• Presto! PageManager (Mac OS X only)
Photo and document management software from NewSoft
Technology Corp. Run the following installer (PageManager/
PM8Installer) from the Setup Disc to install.
®
(Windows only)
• Evernote
Multi-platform document filing software from Evernote Corp.
– Files required for installing this software must be downloaded via
the Internet. For details, refer to page 7 (Windows) or page 11
(Mac OS X).
– For more information on this software, visit the following URL:
http://www.evernote.com/about/intl/en/
IMPORTANT
When scanning with third-party software, user the scanner driver of
this scanner to configure scanning conditions. For details on how to
open the scanner driver, refer to the manuals supplied with each
software application.
5
STEP 2 Installing the Software
System requirements
To use the scanner, your computer must satisfy the following system
requirements.
Computer
CPU: Intel Core 2 Duo 1.66 GHz or faster
Memory: 1 GB or more
Hard disk: 3 GB or more available space required for
installation of all software
USB interface: Hi-Speed USB 2.0
Monitor: Resolution of 1024 x 768 (XGA) or better
recommended.
Optical drive: Drive capable of reading DVDs.
Operating system
• Microsoft Windows XP Service Pack 3 or later
• Microsoft Windows XP x64 Edition Service Pack 2 or later
• Microsoft Windows Vista Service Pack 2 or later (32-bit and 64-bit
editions)
• Microsoft Windows 7 Service Pack 1 or later (32-bit and 64-bit
editions)
• Mac OS X 10.4.11, 10.5.8, 10.6.6
Other requirement
• An ISIS-compatible application (Windows only) or a TWAIN-
compatible application that is compatible with the above operating
systems.
• .NET Framework 3.5 or later (Windows only)
IMPORTANT
• If you do not know the requirements for your computer system,
contact the store where you purchased the computer or the
manufacturer of the computer for more information.
• If you use the scanner with Windows, use the latest USB 2.0 driver
made available by Microsoft. For details, consult your local
authorized Canon dealer.
• Use the USB interface provided as standard with your computer.
However, normal operation is not guaranteed with all USB
interfaces, even if present as standard equipment on the computer.
For details, consult your local authorized Canon dealer.
• Scanning speeds are lower if your computer’s standard USB
interface is USB Full-Speed (equal to USB 1.1.)
• The USB cable you are using should be the one originally included
with the scanner.
• If the CPU, memory, interface card, and other specifications do not
satisfy the installation requirements, the scanning speed may be
greatly reduced and transmission may take a long time.
• Even if the computer satisfies the recommended specifications, the
scanning speed may vary, depending on the specified scan
settings.
• The scanner drivers provided with the scanner do not necessarily
operate on all ISIS (only for Windows) or TWAIN-compatible
applications. For details, contact your application software retailer.
Precautions for Use in 64-bit Operating Systems
• The scanner driver supplied with this product supports scanning
with 32bit applications only.
• Even with 32-bit applications, not all ISIS/TWAIN compliant
applications are guaranteed to operate.
• Scanning speed may vary depending on the specifications of your
computer.
Precautions for Use in Mac OS X
On a Macintosh computer equipped with a PowerPC CPU, the
scanner driver of this product cannot be used with Classic
Environment.
The driver will not run correctly when Classic Environment is running
so use the scanner when Classic Environment is not running.
6
Installing in Windows
IMPORTANT
• Install the software before connecting the scanner to the computer.
• Log on to Windows as an Administrator.
• Close all other applications before installing the software.
1
Insert the Setup Disc into the DVD drive of the computer.
The setup menu automatically starts up when you insert the disc
into the drive. (If the menu does not start up, execute setup.exe
from the disc.)
For Windows 7/Vista
If the [User Account Control] screen appears, click [Yes] or
[Allow].
2
Click [Typical Installation].
About Installation of Third-Party Software
If you select [Custom Installation], you can choose third-party
software applications for installation.
Hint
• If you choose Evernote, the Web browser will start and display
a webpage for downloading the software during the installation.
Download and install the software following the instructions on
the webpage.
To install Evernote, you need a connection to the Internet.
• If you want to reinstall only specific software that you have
previously uninstalled, select [Custom Installation] and specify
the software.
3
Click [Install].
7
4
Click [Next].
5
Read the license agreement, and click [I accept the terms
in the license agreement] and then [Next] if you agree to
it.
6
Click [Install].
7
When the driver installation is complete, click [Finish].
8
Click [Next].
8
9
Read the license agreement, and click [Yes] if you agree
to it.
10
Click [Next].
11
Specify whether to install plug-in for Evernote and
SharePoint, and click [Next].
12
When CaptureOnTouch installation is complete, click
[Finish].
9
13
Click [Next].
14
When the User Manual installation is complete, click
[Finish].
15
Click [Exit] to finish installing the software.
Installing in Mac OS X
IMPORTANT
• Install the software before connecting the scanner to the computer.
• Close all other applications before installing the software.
1
Insert the Setup Disc into the DVD drive of the computer.
10
2
Click [DR-C125 Installer].
About Installation of Third-Party Software
If you open the folder containing the software instead of selecting
[DR-C125 Installer], you can choose third-party software
applications for installation.
Hint
• If you choose Evernote, the Web browser will start and display
a webpage for downloading the software during the installation.
Download and install the software following the instructions on
the webpage.
To install Evernote, you need a connection to the Internet.
• Evernote cannot be installed in Mac OS X 10.4.x (Tiger).
3
Click [Continue].
4
Click [Continue].
5
Read the license agreement and click [Continue] to
accept it.
6
Click [Agree].
11
7
Click [Install].
8
Enter the user name and the password with administrator
privileges, and click [OK].
9
When the installation is complete, click [Close].
12
STEP 3 Connecting to a Computer
Connect the scanner to the computer and the power supply.
IMPORTANT
• Do not connect the scanner to the computer before installing the
software.
• Before connecting the scanner to the computer, verify that the
power of the scanner is OFF. If the power is ON, turn it OFF.
AC adapter (included
with the scanner)
To the power outlet
USB cable (included
with the scanner)
To computer
USB port
Hint
You can secure the cables to the back of the scanner. Make sure
there is sufficient slack in the cable when doing so to reduce stress
on the connector.
13
STEP 4 Turning the Power ON
The power of the scanner can be turned ON and OFF with the power
button on the front of the scanner.
1
Make sure that the scanner and computer are connected
properly.
2
Press the power button.
Power button
The power button lights blue when the power turns ON.
Hint
In Windows, a balloon message such as shown below appears on the
task bar. If you wait a while, automatic scanner recognition will end
and the scanner will become ready to use.
When the scanner is properly connected to the computer, the
(CaptureOnTouch) icon appears on the taskbar (or menu bar) as
follows.
Windows taskbar
Mac OS X menu bar
If the taskbar icon appears as ( ), the scanner is not properly
connected to the computer. Check the status of the power switch and
USB cable.
Turning Off the Power
Press and hold the power button until the indicator goes out.
IMPORTANT
• After turning the scanner off, wait at least 10 seconds before turning
it back on.
• If you will not be using the scanner for an extended period, you
should disconnect the power cord from the AC outlet for safety.
Ð
This completes setup.
14
Introduction
Thank you for purchasing the Canon imageFORMULA DR-C125
Document Scanner.
Please read the following manuals carefully and familiarize yourself
with the functions of the scanner before use to ensure you sufficiently
understand the functions and make the most of the scanner’s
capabilities. After reading the manuals, store them in a safe place for
future reference.
Manuals for the Scanner
Documentation for this scanner consists of the following manuals.
● Reference Guide
This describes setup procedures for the scanner. Read this manual
when you first use the scanner.
● User Manual (this manual)
This manual contains the operating procedures of the scanner.
(PDF electronic manual only)
Hint
• The manuals for this scanner are stored on the Setup Disc as
electronic manuals in PDF format.
• If you are using Windows, the User Manual (electronic manual) will
be registered to the following location when the software is installed.
Symbols Used in This Manual
The following symbols are used in this manual to explain procedures,
restrictions, handling precautions, and instructions that should be
observed for safety.
WARNING
Indicates a warning concerning operations that may lead to death
or injury to persons if not performed correctly. To use the scanner
safely, always pay attention to these warnings.
CAUTION
Indicates a caution concerning operations that may lead to injury to
persons, or damage to property if not performed correctly. To use
the scanner safely, always pay attention to these cautions.
IMPORTANT
Indicates operational requirements and restrictions. Be sure to
read these items carefully to operate the scanner correctly, and
avoid damaging the scanner.
Hint
Indicates a clarification of an operation, or contains additional
explanations for a procedure. Reading these notes is highly
recommended.
15
Table of Contents
Setup Guide .........................................................................4
Introduction .......................................................................15
Symbols Used in This Manual.................................................... 15
Before Using the Scanner.......................... 17
Important Safety Instructions..................................... 17
Installation Location .............................................................. 17
AC Adapter............................................................................ 17
Moving the Scanner .............................................................. 18
Handling................................................................................ 18
Disposal ................................................................................ 19
When sending the scanner for repairs .................................. 19
Features of the Scanner.............................................. 20
Names and Functions of Parts ................................... 22
Basic Operation ......................................... 24
Documents ................................................................... 24
How to Place Documents............................................ 26
Switching the Feed and Eject Methods................................. 26
Placing Documents for Standard Feeding ............................ 26
Placing Documents for Bypass Feeding ............................... 29
Placing Cards........................................................................ 30
Placing Folded Documents ................................................... 32
Setting the Long Document Mode......................................... 33
Scanning in Windows................................. 35
Scanning with CaptureOnTouch (Windows)............. 35
What is CaptureOnTouch?.................................................... 35
Starting and Exiting CaptureOnTouch .................................. 35
Scan First.............................................................................. 36
Select Scan Job.................................................................... 38
Scanning with Start Button.................................................... 41
Scanner Settings................................................................... 42
Setting the Output Method .................................................... 45
Environmental Settings ......................................................... 46
Setting the Scanner Driver (Windows)....................... 48
Configuration and Functions of the Scanner Driver .............. 48
Setting Basic Scanning Conditions ....................................... 49
Scan Panel............................................................................ 57
Settings for Third Party Software .......................................... 57
Scanning in Mac OS X................................ 59
Scanning with CaptureOnTouch (Mac OS X)............. 59
What is CaptureOnTouch?....................................................59
Launching and Quitting CaptureOnTouch............................. 59
Scan First.............................................................................. 60
Select Scan Job ....................................................................62
Scanning with Start Button.................................................... 65
Scanner Settings................................................................... 65
Setting the Output Method .................................................... 68
Environmental Settings .........................................................69
Setting the Scanner Driver (Mac OS X) ...................... 71
Configuration of the Scanner Driver...................................... 71
Setting Basic Scanning Conditions ....................................... 72
Scan Panel............................................................................ 78
Maintenance .............................................. 79
Daily Maintenance........................................................ 79
Cleaning the Outside of the Scanner .................................... 79
Cleaning the Inside of the Scanner ....................................... 79
Cleaning the Scanning Glass and the Rollers ....................... 79
Adjusting the Reduction Ratio............................................... 82
Replacing Consumable Parts................................................ 83
Auto Power Off Setting.......................................................... 88
Troubleshooting ......................................... 89
Common Problems and Solutions.............................. 89
Software Troubleshooting........................................... 91
Useful tips..................................................................... 92
Clearing a Paper Jam................................................... 94
Uninstalling the Software............................................ 97
Uninstalling on Windows ....................................................... 97
Uninstalling on Mac OS X ..................................................... 97
Appendix .................................................... 98
Specifications............................................................... 98
Replacement parts................................................................ 99
Option....................................................................................99
About the Flatbed Scanner Unit 101 ..................................... 99
Dimensions.......................................................................... 100
Index.............................................................................101
16
Before Using the Scanner
Important Safety Instructions
To ensure the safe operation of this scanner, be sure to read the
safety warnings and precautions described below.
Installation Location
The performance of this scanner is affected by the environment in
which it is installed. Make sure that the location where the scanner is
installed meets the following environmental requirements.
● Provide adequate space around the scanner for operation,
maintenance, and ventilation.
100 mm
(3.94")
100 mm
(3.94")
● When scanning documents using the straight path, provide
adequate space in front of the scanner for scanned document
output.
● Avoid installing the machine in direct sunlight. If this is unavoidable,
use curtains to shade the scanner.
● Avoid locations where a considerable amount of dust accumulates.
● Avoid warm or humid locations, such as in the vicinity of a water
faucet, water heater, or humidifier. Avoid locations where ammonia
gas is emitted. Avoid locations near volatile or flammable materials,
such as alcohol or paint thinner.
● Avoid locations that are subject to vibration.
100 mm
(3.94")
● Avoid exposing the scanner to rapid changes in temperature. If the
room in which the scanner is installed is cold but rapidly heated,
water droplets (condensation) may form inside the scanner. This
may result in a noticeable degradation in scanning quality. The
following conditions are recommended for optimal scanning quality:
Room temperature: 10°C to 32.5°C (50°F to 90.5°F)
Humidity: 20% to 80% RH
● Avoid installing the scanner near equipment that generates a
magnetic field (e.g. speakers, televisions, or radios.)
AC Adapter
● Connect only to a power outlet of the rated voltage and power
supply frequency (120 V, 60 Hz or 220-240 V, 50/60 Hz depending
on your region).
● Do not connect other electrical equipment to the same power outlet
to which the scanner is connected. Also, when using an extension
cord, make sure that the extension cord is rated for the current
requirements of the scanner.
● Never try to take the AC adapter apart or modify it in any way, as
this is dangerous.
● The power cord may become damaged if it is often stepped on or if
heavy objects are placed on it.
● Do not use the power cord while it is coiled.
● Do not pull directly on the power cord. When disconnecting the
power cord, grasp the plug and remove it from the outlet.
● Keep the area around the power cord clear of objects so that the
power cord can be disconnected easily in an emergency.
● Do not use an AC adapter other than the one provided with the
scanner. Do not use the AC adapter provided with the scanner with
other products.
● If you have any questions regarding the power supply, contact your
local authorized Canon dealer or service representative for further
information.
17
Moving the Scanner
● When moving the scanner, always hold it with both hands to avoid
dropping it. The scanner weighs approximately 2.4 kg (5.3 lb).
● Make sure to disconnect the interface cable and AC adapter before
moving the scanner. If the scanner is transported with these items
connected, the plugs and connectors may be damaged.
Handling
WARNING
Note the following precautions whenever using the scanner. Failure to
do so may result in a fire or electric shock.
● Never use alcohol, benzene, paint thinner, aerosol sprays, or any
other highly flammable substance near the scanner.
● Do not cut, damage, or modify the power cord. Do not place heavy
objects on the power cord, and do not pull or excessively bend the
power cord.
● Never connect the power cord when your hands are wet.
● Do not connect the scanner to a multi plug power strip.
● Do not knot or coil the power cord as this may result in a fire or
electric shock. When connecting the power cord, make sure that the
power plug is securely and completely inserted into the power
outlet.
● Do not use a power cord or AC adapter other than the ones
provided with this scanner.
● Do not take the scanner apart or modify it.
● Never try to take the AC adapter apart or modify it in any way, as
this is dangerous.
● Do not use flammable spray near the scanner.
● When cleaning the scanner, push the power button to turn it OFF
and disconnect the power cord from the power supply.
● Clean the scanner using a slightly dampened cloth which has been
well wrung out. Never use alcohol, benzene, paint thinner, or any
other flammable substances.
● If the scanner makes strange noises, or gives off smoke, heat, or
strange odors, or the scanner does not function or other
abnormalities occur when you use the machine, immediately push
the power button to turn it off, and disconnect the power plug from
the power outlet. Then, contact your local authorized Canon dealer
or service representative to have the unit serviced.
● Do not drop the scanner, or subject it to impact or strong shock.
Should the scanner ever become damaged, immediately push the
power button to turn it OFF, and disconnect the power plug from the
power outlet. Then, contact your local authorized Canon dealer or
service representative to have the unit serviced.
● Before moving the scanner, be sure to push the power button to turn
it OFF, and disconnect the power plug from the power outlet
CAUTION
● Do not install the scanner on a surface that is unstable or tilted, or
in an area subject to excessive vibrations, as this may cause the
scanner to fall, resulting in personal injury or damage to the
scanner.
● Never place small metal objects such as staples, paper clips, or
jewelry on the scanner. These items may fall into the scanner, and
cause a fire or electric shock. Should such objects ever fall inside
the scanner, immediately push the power button to turn it OFF, and
disconnect the power plug from the power outlet. Then, contact
your local authorized Canon dealer or service representative to
have the unit serviced.
● Do not install the scanner in a humid or dusty location. Doing so
might cause a fire or electric shock.
● Do not place objects on top of the scanner. Such objects may tip or
fall over, resulting in personal injury.
● Connect only to a power outlet of the rated voltage and power
supply frequency (120 V, 60 Hz or 220-240 V, 50/60 Hz depending
on your region).
18
● When unplugging the power cord, grasp it firmly by its plug. Do not
pull directly on the power cord, as this may damage or expose the
cord’s internal wiring, resulting in a fire or electric shock.
● Leave sufficient space around the power plug so that it can be
unplugged easily. If objects are placed around the power plug, you
will be unable to unplug it in an emergency.
● Do not allow water or flammable substances (alcohol, paint thinner,
benzene, etc.) to spill into the scanner, as this may result in a fire or
electric shock.
● Push the power button to turn the scanner OFF for safety when not
using the scanner for a long period of time, such as overnight. Also,
push the power switch to turn it OFF, and disconnect the power cord
from the power outlet for safety when the machine will not be used
for an extended period of time, such as during consecutive
holidays.
● Do not wear loose clothing or jewelry that may get caught in the
scanner while you are using it. This may result in personal injury. Be
extra careful of neckties and long hair. If anything becomes caught
in the scanner, immediately disconnect the power cord to stop the
scanner.
● Be careful when loading paper into the scanner and when removing
jammed paper. It is possible to cut your hand on the edge of a sheet
of paper.
Disposal
When disposing of this scanner, be sure to follow all local ordinances
and laws or consult with the retailer who sold you the scanner.
When sending the scanner for repairs
When a request is made for repairs, the scanner needs to be sent to
the specified address. When sending the scanner, use the packing
box in which it came. Firmly secure the scanner with packaging
material when you place it in the packing box.
19
Features of the Scanner
The main features of the document scanner DR-C125 are described
below.
● Compact Design
The scanner has a compact size of 300 (W) x 336 (H) x 235 (D)
(11.81" (W) x 13.2" (H) x 9.25" (D)) mm when the document feed is
open. A newly designed feed mechanism saves space by
eliminating the need for space to eject paper at the front of the
scanner.
● Fast Document Feeding
Documents can be scanned at a speed of up to 25 pages per
minute (when scanning one-sided or two-sided documents of A4
size at 200 dpi).
● Two Eject Paths for Scanning a Variety of Documents
Use the U-turn path to scan paper of standard thickness, or use the
straight path to scan cards and other thick documents.
● High Image Quality
The 600 dpi optical resolution sensor incorporated in the scanner
enables documents to be scanned with high image quality.
● USB 2.0 Interface
The scanner supports Hi-Speed USB 2.0.
● Color/Grayscale Support
Documents can be scanned in 24-bit color or 256-level grayscale.
● Supports a Variety of Scanning Modes
The scanner supports the following scanning modes, depending on
the document type:
• Single-sided or double-sided scanning (with Skip Blank Page
function)
• Continuous or single sheet feed
● Card Scan
You can scan business or ID cards.
● Paper Size Detection
The scanner automatically detects the size of a scanned document
and eliminates any unnecessary space around the edges of the
image when storing the image, even when storing a document of
irregular size.
● Auto Color Detection
The scanner detects whether the scanned document is in color,
grayscale, or black and white (binary), and saves the image
accordingly.
● Full Auto Mode
A Full Auto Mode is provided in CaptureOnTouch and the scanner
driver to allow scanning under automatically determined conditions.
Scanning conditions such as the color mode and page size are set
automatically based on the document being scanned.
● Auto Resolution Detection
When enabled in the CaptureOnTouch or scanner driver settings,
this function detects the content of documents and determines the
scanning resolution automatically.
● Folio Scan
You can scan folded documents. The scanner will scan both sides
and combine the scanned images into a single image.
● Deskew
The scanner straightens scanned images when it detects that the
document was placed askew.
● Ultrasonic Double Feed Detection
Ultrasonic waves are used to detect pages that are fed at the same
time as well as the space between pages. Scanning stops if a
double feed is detected.
● Text Enhancement Modes
The scanner is equipped with the Advanced Text Enhancement
Mode (only for Windows), for enhancing the text of documents with
dark or uneven backgrounds, and the Advanced Text Enhancement
II mode, for enhancing the text when both the text and background
are light.
These modes may not work, depending on the type of document.
● Color Drop-out
The scanner is equipped with a Color Drop-out function that
enables you to specify a color for the scanner to omit from the
scanned image during black and white or grayscale scanning.
20
● Skip Blank Page Function
The scanner is equipped with a Skip Blank Page function that
enables you to scan a document without storing images of blank
pages, regardless of whether each page of the document is twosided or one-sided. Both sides are scanned, but saving the image
is skipped for scan images judged to be from a blank page.
● Prescan Function
The scanner is equipped with a Prescan function that allows you to
adjust the contrast and brightness of a prescanned image and then
send the adjusted image to the application software, without
needing to scan the document again.
● Scan First
Pressing Start Button starts CaptureOnTouch. You can then
perform a scan simply by following the on-screen guidance.
● Select Scan Job
You can register scanning conditions and methods for processing
scanned images as jobs, and register up to 10 jobs in
CaptureOnTouch. By simply selecting a registered job, you can
perform scanning operations in a determined order.
● Auto Start
The scanner is equipped with an auto start function, which enables
scanning to be automatically started when a document placed in the
feeder is detected.
● Sleep Mode
The scanner is designed to save energy by entering the sleep mode
when it is not scanning documents.
Hint
Some functions may not be available depending on the software you
are using.
21
Names and Functions of Parts
Front View
A
B
A Front Unit
Open this when removing paper jammed inside the scanner,
cleaning the inside of the scanner, or replacing rollers.
B Document Eject Pocket
Scanned documents are output here.
C Feed Extension Plates
Pull this out when loading long documents.
D Eject Support
Open this when loading long documents.
E Feed Support
Pull out this to support loaded documents.
C
D
E
F
G
H
I
J
K
L
F Document Feed Tray
Open this when loading documents for scanning.
G Power Button
This turns the scanner ON and OFF.
H Start Button
This starts scanning the document loaded in the document feed
tray
I Feed Selection Indicator
This indicates the way documents are currently being fed in
accordance with the position of the feed selection lever.
Lever position Indicator color
Upper (bypass feeding) Orange
Lower (standard feeding) Black
J Feed Selection Lever
This changes the way documents are fed.
K Connectors
Connectors for connecting an AC adapter and USB cable are
available. (See p. 23)
L Eject Selection Lever
Use this lever to change the way documents are ejected.
22
Connectors
C
Back View
A
B
A Power Connector
Connect the supplied AC adapter to this connector.
B USB Connector
Connect the supplied USB cable to this connector.
A
B
A OPEN Button
Press this button to open the front unit.
B Kensington Slot
Connect an anti-theft key chain or the like.
C Cable Grooves
Secure the USB cable and power cord that are connected to the
scanner along the rear of the scanner. Use these when you want
to run the cables on the side opposite the connectors.
23
Basic Operation
Documents
The scanner can scan documents ranging in size from business cards
to Legal/A4. The document sizes that this scanner can scan are
shown below.
Plain Paper
Size
Width: 50.8 mm to 216 mm (2" to 8.5")
Length: 53.9 mm to 356 mm (2.12" to 14")*
Paper thickness:
When U-turn path: 52 to 128 g/m
0.06 to 0.15 mm (0.0024" to 0.0059")
When straight path: 40 to 209 g/m
0.05 to 0.25 mm (0.002" to 0.0098")
* Setting the scanner to Long Document mode enables documents
up to 3,000 mm (118.1") long to be scanned. For details on Long
Document mode, refer to “Setting the Long Document Mode” on
p. 33.
IMPORTANT
The documents to be scanned must satisfy certain criteria. Read the
following items carefully.
• When scanning multiple documents of different sizes, place the
documents so that they cover the entire span of the feed rollers.
2
(14 to 34 lb bond)
2
(11 to 58 lb bond)
• Use the straight path when scanning documents that are 70 mm
(2.76") long or less.
• Scanning documents before the ink is dry can cause problems with
the scanner. Always make sure that the ink on a document is dry
before scanning it.
• Scanning documents that are written in pencil or similar material
may make the rollers and scanning glass dirty, which can lead to
smudges on the scanned image and transfer the dirt to subsequent
documents. Always clean the internal parts of the scanner after
scanning such documents.
• When scanning a two-sided document that is printed on thin paper,
the image on the opposite side of each page may show through. In
this case, adjust the scanning intensity in the application software
before scanning the document.
• It is recommended that thin documents are fed one sheet at a time.
• Scanning the following types of documents can cause a paper jam
or malfunction. To scan such a document, make a photocopy of the
document and then scan the photocopy.
There are creases or
fold lines.
There are curls. The surface is coated.
There are tears.
There are clips or
staples.
Carbon paper
Extremely thin document
such as semi-transparent
thin paper.
Documents with excessive
paper dust particles.
Feed rollers
• It is recommended that documents exceeding 356 mm (14") in size
are fed one sheet at a time.
Business Card
Size: 50 mm x 53.9 mm (1.97" x 2.12") or larger
Paper weight: 300 g/m
Orientation: Vertical feeding only
IMPORTANT
If a stack of business cards cannot be fed properly, reduce the
number of cards in the stack.
2
(80 lb bond) 0.35 mm (0.0138") or less
24
Card (plastic or laminated)
Size: 53.9 mm x 85.5 mm (2.12" x 3.37") (ISO standard)
Card thickness: 0.76 mm (0.03") or less
Orientation: Horizontal feeding only
Feed path: Straight path only
Embossed cards can be scanned.
CAUTION
• Use the straight path when scanning cards.
• If you place cards to be fed vertically, they may not be ejected
properly, and cards that get jammed may be damaged when you
remove them. Take care of the orientation when placing cards.
• Embossed cards may not be able to be scanned correctly,
depending on the type of embossment.
25
How to Place Documents
Switching the Feed and Eject Methods
Use the two levers on the scanner to switch the feed and eject
methods based on the type of document you are scanning.
Feed Selection Lever
Standard Feeding
Eject Selection Lever
U-turn Path Straight Path
The feed and eject methods and lever positions for each document
type are as follows.
Document type
Standard paper
and business
cards
Plastic cards, thick
paper, thin paper,
and bound or
fastened paper
Feed method (lever
position)
Standard feeding
(lower)
Bypass feeding
(upper)
Bypass Feeding
Eject method (lever
position)
U-turn path (upper) or
straight path (lower)
Straight path (lower)
Placing Documents for Standard Feeding
Ordinarily, standard feeding should be used when scanning multiple
documents of a standard size at one time. Standard feeding enables
the multiple documents to be fed while separating each page.
1
Open the document feed tray.
2
Pull out the feed support.
26
3
When scanning long documents, pull out the feed
extension plates and eject support.
4
Set the feed selection lever and the eject selection lever.
Set the feed selection lever to the standard feeding position (lower
position).
Set the eject selection lever to the U-turn path position ( ).
When scanning documents that contain both standard paper and
plastic cards, use the straight path.
5
Adjust the document guides to fit the width of the
document to be scanned.
27
6
Place the document.
Insert the document in the feed tray so that the front is facing
forward and the top is facing upward.
After inserting the document in the document feeder, align the
document guides with both edges of the document.
IMPORTANT
• When placing documents into the feed tray, take care not to cut
your hands on the edges of the paper.
• Make sure that the document does not exceed the loading limit
marks ( ) on the document guides. Up to 30 pages of ordinary
plain paper (80 g/m
• Before you place a document, check to make sure it does not
contain paper clips, staples, or other small metal objects. These
items may cause a fire or electrical shock, damage the document,
or cause a paper jam or scanner malfunction.
• Do not wear loose clothing or jewelry that may get caught in the
scanner while you are using it. This may result in personal injury. Be
extra careful of neckties and long hair. If anything gets caught in the
scanner, immediately turn OFF the power switch, and disconnect
the power cord from the power outlet to stop scanning.
• Always smooth out any folds or curls in your documents before
placing them into the feeder. If the leading edge of a document is
curled, it may cause a paper jam.
• If feeding stops due to a system error or paper jam while the
scanner is scanning, resolve the problem, make sure that the
scanned image of the last page that was successfully fed has been
stored, and then resume scanning the remaining document pages.
• After you finish scanning, close the document feed tray to prevent
damage to the scanner while it is not being used.
• Although standard feeding can be used in combination with the
straight path when scanning, multi-page documents will be ejected
in reverse order in such cases.
• If you select the [Upside-down feeding] check box in the scanner
driver settings, you can insert documents into the scanner in the
opposite orientation (see p. 52, p. 76).
2
) can be loaded at the same time.
28
Default
[Upside-down
feeding] selected
Placing Documents for Bypass Feeding
When scanning a thick document one page at a time or scanning a
document that has multiple pages fastened together, set document
feeding to bypass. This enables the placed document to be scanned
without the pages being separated, regardless of the number of
pages.
1
Set the feed selection lever and the eject selection lever.
Set the feed selection lever to the bypass position (upper
position). The feed selection indicator will light orange.
Set the eject selection lever to the straight path position ( ).
2
Adjust the document guides to fit the width of the
document.
29
3
Place the document in the document feed tray.
IMPORTANT
• With the straight path, documents are ejected at the front of the
scanner. Do not place anything that will block output near the
document eject area. Also, install the scanner on a smooth
surface to enable documents to be smoothly ejected.
Placing Cards
1
Set the feed selection lever and the eject selection lever.
Set the feed selection lever to the bypass position (upper
position). The feed selection indicator will light orange.
Set the eject selection lever to the straight path position ( ).
2
Adjust the document guides to fit the width of the card to
be scanned.
• When scanning multiple page documents that are fastened
together, such as invoices, place the documents so that the
edge that is fastened together is facing down.
30
