Operating Instructions and Parts Manual

PW1810





BUILT TO LAST

Electric Pressure Washer with Dual Detergent Tanks

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference.

Please record Model No. and Serial No. for use when contacting the manufacturer:

Model No.

______________

Purchase date

____________________

Serial No.

______________

Purchase place

____________________

For Information About This Product, call 1-800-330-0712

Description

This Campell Hausfeld Pressure Washer is powered by a heavy-duty induction motor. It includes dual detergent tanks, swivel on the hose connection and a quick connect lance with two nozzles

Two tanks make using detergent efficient and easy. Great for two-step cleaning (like wash & wax) or fill it for two completely different projects.

The lance with two nozzles (adjustable fan and turbo/rotary) fit easily in the mesh storage bag.

Also includes 25ft. high pressure hose.

Safety Guidelines

This manual contains information that is very important to know and understand. This information is provided for SAFETY and to PREVENT EQUIPMENT PROBLEMS. To help recognize this information, observe the following symbols.

Warning indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Caution indicates a potentially hazardous situation which,

if not avoided, MAY result in minor or moderate injury.

NOTE or NOTICE: Information that requires special attention.

REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.

© 2007 Campbell Hausfeld/

For parts, product & service information

IN468300AV 5/07

Scott Fetzer

visit www.chpower.com



Operating Instructions and Parts Manual

Important Safety Instructions

(licensed or certified) electrical

SAVE THESE INSTRUCTIONS

technician.



When using this product, basic precautions should always be followed, including the following:

1.Read all instructions before using the product.

2.ALWAYS disconnect power before disassembling or repairing the unit.

3.Follow all safety codes as well as the Occupational Safety and Health Act (OSHA).

4.Ensure safety devices are operating properly before each use. DO NOT remove or modify any part of the gun or unit.

5.Know how to stop this product and bleed pressure quickly. Be thoroughly familiar with the controls.

6.Stay alert – watch what you are doing.

7.Do not operate the product when fatigued or under the influence of alcohol or drugs.

8.Keep operation area clear of all persons.

9.Do not overreach or stand on unstable support. Keep good footing and balance at all times.

10.Follow the maintenance instructions specified in the manual.

11.Connect only to properly grounded outlet. Do not remove ground pin.

12.This product is provided with a ground fault circuit interrupter, GFCI, be sure to inspect cord and GFCI prior to use. Any repair or replacement of the power cord must be performed by a qualified

13.Never use an extension cord with this product.

14.The power cord on this product contains chemicals, including lead, known to the State of California to cause [cancer and] birth defects or other reproductive harm. Wash hands after handling.

15.To reduce the risk of injury, close supervision is necessary when a product is used near children.

Risk of electrocution

Connect only to properly grounded outlet. Do not remove ground pin.

Inspect cord before using - Do not use if cord is damaged.

Keep all electrical connections dry and off the ground.

Do not touch plug with wet hands.

This product is provided with a ground fault circuit interrupter built into the power cord plug. If replacement of the plug or cord is needed, use only identical replacement parts.

Do not spray electrical apparatus and wiring.

Risk of injection or sever injury

High pressure. Keep clear of nozzle. Do not discharge streams at persons or animals.

Never put hand or fingers over spray tip while operating the unit.

Never try to stop or deflect leaks with any body part.

Always engage the trigger safety latch in the safe position when spraying is stopped even if only for a few moments.

www.chpower.com

2

PW1810

Point gun in safe direction. Unit will start spraying when trigger is squeezed if “on/off” switch is in “ON” position.

Discharge pressure – When ‘on/off’ switch is in “off” position, pressure may still exist in unit. To discharge pressure, point gun is safe direction and squeeze trigger.

“ON.” Running pump dry causes damage.

Assembly Instructions:

1.Assemble handle by sliding handle into unit and secure using four enclosed screws as shown in Figures 1 and 2.

Risk of explosion

Do not spray flammable liquids.

Never use in areas containing combustible dust, liquids, or vapors.

High pressure - Gun kicks back – Hold gun with both hands.

Keep hose away from sharp objects. Bursting hoses may cause injury. Examine hose regularly and replace if damaged. Do not attempt to mend a damaged hose.

Use only detergents specifically formulated for pressure washers. Always follow detergent manufacturer’s label recommendations for proper use of detergents. Always protect eyes, skin, and respiratory system from detergent.

For either indoor or outdoor use. Store indoors and where temperature stays above freezing.

Unplug unit when not in use.

Pressure washer is not meant to pump hot water. Do not connect to hot water supply.

Never leave the unit unattended while it is plugged in.

Always turn water supply “ON” before turning pressure washer

Figure 1

Figure 2

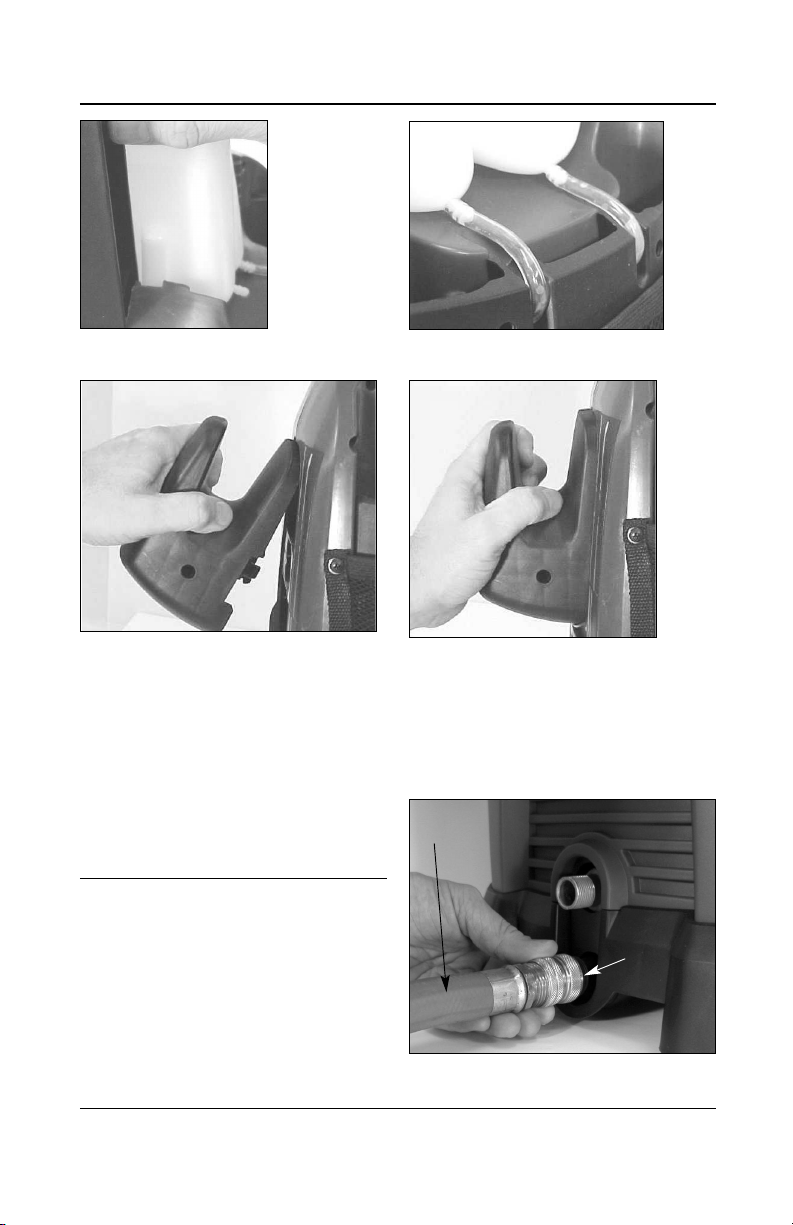

2.Slide detergent bottle “I” into left side of unit and detergent bottle “II” into right side of unit and attach detergent tube to hose barb on bottle as shown in Figures 3 and 4.

Note: After attaching detergent tubes, make sure tubes are smooth and not kinked.

www.chpower.com

3

Operating Instructions and Parts Manual

Figure 3

Figure 4



















Figure 5

Figure 6



3.Attach hose and cord hangers on side of unit by inserting tab on top of hanger into unit and pushing firmly as shown in Figures 5 and 6.

Garden Hose Connection

1.Attach swivel adapter to inlet fitting on the unit (this may already be attached to the pump).

2.Attach garden hose to swivel adapter as seen in Figure 7.

Garden

Hose

Swivel

Adapter

Figure 7 - Garden Hose Connection

www.chpower.com

4

PW1810

PRESSURE WASHER INFORMATION

Specifications:

Maximum pressure . . . . . . . . . .1800 psi Maximum capacity . . . . . . . . . .1.6 gpm Voltage . . . . . . . . . . . . . . . . . . . . .120 V Current . . . . . . . . . . . . . . . . . . .13 amps

Maximum water inlet

temperature . . . . . . . . . . . . . . . . .100°F Unit weight . . . . . . . . . . . . . . . . . .51 lbs

REVIEW SAFETY INSTRUCTIONS BEFORE OPERATING THIS UNIT!

Pre-operation Instructions

System Connection

1.Insert quick connect lance into gun and turn clockwise to positive stop as shown in Figure 8.

2.Ensure that the power switch is in the “OFF” position.

3.Attach the high-pressure hose and gun assembly to pump outlet. Use wrench to tighten hose to gun.

4.Connect garden hose as explained under Garden Hose Connection Instructions.

5.Plug the power cord into a grounded 120V outlet, that is on a dedicated circuit. Press the reset button on the GFCI plug adapter. This must be done each time the unit is plugged into an outlet.

6.Turn water on.

7.If operating the unit on an inclined plane such as a driveway or hill, the front of the unit must face toward the descent as shown in Figure 9.

8.Depress and hold the trigger on the gun for one minute to release pressure and remove any air trapped in the system.

9.Release the trigger and firmly insert either the quick connect adjustable fan nozzle or the quick connect turbo nozzle into the quick connect lance.

10.Squeeze the gun trigger and turn the “ON/OFF” switch to the “ON” position.

11.To exchange a quick connect nozzle engage the gun trigger lock in the safe position. Pull sliding collar on lance away from nozzle and remove nozzle from lance (refer to

Figure 10).

Figure 8



Nozzle attaches

Bayonet tabs

here



Collar

Lance

Figure 10

Figure 9



www.chpower.com

5

Operating Instructions and Parts Manual

Quick Connect Nozzles

Adjustable Fan Nozzle

General-purpose nozzle. Cleans wide surfaces like siding, decks and fences. Spray pattern can vary from 0° high impact to 60° wide fan by twisting the nozzle. Adjust pressure from high to low by extending nozzle 1/2".

Note: Nozzle must be at minimum pressure to suction detergent. To select detergent, turn selector knob on front of unit to either “I” or “II.”

Turbo Nozzle

Excellent for deep cleaning tough surfaces such as stained concrete or siding. Combines the

power of a narrow, high-impact stream with the efficiency of a 25° fan pattern.

Due to their increased cleaning power, these nozzles can cause damage to vehicles, woodwork, paint, loose cement, and other soft materials. Use with caution.

HOW TO AVOID DAMAGING SURFACES

Directions for Use

Damage to cleaning surfaces occurs because the impact force of the water exceeds the durability of the surface. You can vary the impact force by controlling the nozzle’s fan pattern, the nozzle’s angle to the cleaning surface, and the nozzle’s distance from the cleaning surface. Never use a narrow high impact stream or a turbo nozzle on a surface that is susceptible to damage. Avoid spraying windows with a narrow high impact stream or turbo nozzle. Doing so may break the window. The surest way to avoid damaging surfaces is to follow these steps:

1.Before triggering the gun, adjust the nozzle to a wide fan pattern.

2.Place the nozzle approximately 4-5 feet away from the cleaning surface. Then hold the nozzle at a 45° angle to the cleaning surface. Trigger the gun.

3.Vary the fan pattern spray angle and the distance to the cleaning surface until optimum cleaning efficiency is achieved without damaging the surface.

NOZZLE CLEANING

INSTRUCTIONS

A clogged or partially clogged nozzle can cause a significant reduction of water coming out of the nozzle and cause the unit to pulsate while spraying.

www.chpower.com

6

PW1810

To clean out the nozzle:

Turn off unit.

Turn off water supply. Relieve any pressure trapped in the hose by squeezing trigger 2-3 times.

Separate quick connect nozzle from lance.

Rotate nozzle to the narrow stream setting. This opens up the fan blades.

Using the included tip cleaner, or an un-folded paper clip, insert wire into the nozzle hole and move back and forth until debris is dislodged (refer to Figure 11).

Nozzle

Tip Cleaner

Figure 11

Remove additional debris by back-flushing water through the nozzle. To do this, remove nozzle from lance, place end of a garden hose (with water running) to tip of nozzle pushing water and debris out the back opening of the nozzle.

DETERGENTS

The use of detergents can dramatically reduce cleaning time and assist in the removal of difficult stains. Some detergents have been customized for pressure washer use on specific cleaning tasks. These detergents are approximately as thick as water. The use of thicker detergents, such as dish soap, will clog the chemical injection system and prevent the application of the detergent.

The cleaning power of detergents comes from applying them to a surface and giving the chemicals time to break down the dirt and grime. Detergents work best when applied at low pressure.

The combination of chemical action and high pressure rinsing is very effective. On vertical surfaces, apply the detergent starting at the bottom and work your way upward. This will prevent the detergent from sliding down and causing streaks. High pressure rinsing should also progress from the bottom to top. On particularly tough stains, it may be necessary to use a brush in combination with detergents and high pressure rinsing.

Operation

The following cleaning procedure will help you to organize your cleaning task, and ensure that you achieve the most beneficial results in the shortest amount of time.

1. Surface Preparation

Before starting a pressure washer cleaning job, it is important to prepare the surface that is to be cleaned. This is done by clearing the area of furniture, and making sure that all windows and doors are closed tight. In addition, you should make sure that all plants and trees adjacent to the cleaning area are protected by a drop cloth.

2. Initial High Pressure Rinse

The next step is to spray the cleaning surface with water to clear off any dirt or grime that may have collected on the surface. This will allow your detergent to attack the deep down dirt that has worked its way into the cleaning surface. Before triggering the gun, adjust the nozzle to a wide fan pattern and slowly adjust to the desired spray pattern. This will help

www.chpower.com

7

Operating Instructions and Parts Manual

you avoid applying too much concentrated spray to the surface which could cause damage.

3. Detergent Application

Note: Use only detergents formulated for pressure washers. Test detergent in an inconspicuous area before use.

1.Unscrew caps from detergent bottles and fill bottles with detergent.

Note: Bottles operate independently and can be filled with different detergents.

2.Replace caps on bottles.

3.Select detergent to be used by turning detergent selector knob on front of unit to either “I” or “II.”

4.Slide adjustable fan nozzle to low pressure position and apply detergent so that it thoroughly covers the cleaning surface. Apply from bottom to top to prevent detergent from sliding down and streaking. Wait a couple of minutes for the detergent to break down dirt and grime. This is a good time to use a brush to lightly scrub heavily soiled areas. Never allow detergent to dry on cleaning surface.

Note: Detergent injection may not work with extension hose or replacement hoses longer than 25 feet.

5.To rinse or return to high pressure, release trigger and slide nozzle to high pressure position.

4.Final Rinse

Start final rise at bottom and work upward. Make sure you thoroughly rinse the surface and that all detergent has been removed.

5.Shutdown

1.Be sure all detergent is flushed from system.

2.Turn off motor.

3.Turn off water supply.

4.After motor and water supply are turned off, trigger gun to depressurize system.

5.After each use, wipe all surfaces of the pressure washer with a clean, damp cloth.

NEVER turn water supply off before turning motor off. Serious damage could occur to the pump and/or motor.

NEVER disconnect high pressure discharge hose from machine while system is pressurized. To depressurize, turn motor off, turn water supply off and squeeze gun trigger 2–3 times.

www.chpower.com

8









PW1810







Troubleshooting Chart











Symptom

Possible Cause(s)

Corrective Action(s)











Pressure washer does

1.

Unit is pressurized

1.

Squeeze trigger on gun

not start up

2.

GFCI has tripped

2.

Push reset button on









plug



3.

Plug is not well

3.

Check plug, socket and





connected or electric



fuses





socket is faulty







4.

Extension cord too

4.

Remove extension cord





long or wire size too









small







5.

Main voltage supply

5.

Check that main supply





too low



voltage is adequate



6.

Thermal safety switch

6.

Switch off unit and allow





has tripped



motor to cool down











Pump does not reach

1.

Water inlet filter is

1.

Clean water inlet filter

necessary pressure



clogged







2.

Pump sucking air from 2.

Check that connections





hose connections



and locking ring are









properly tightened



3.

Nozzle worn or not

3.

Call 1-800-330-0712





correct size







4.

Unloader clogged or

4.

Call 1-800-330-0712





worn







5.

Valves clogged or

5.

Call 1-800-330-0712





worn















Fluctuating

1.

Pump sucking in air

1.

Check that hoses and

pressure







connections are tight



2.

Clogged nozzle

2.

Clean with tip cleaner









(see page 6 and 7)



3.

Valves dirty, worn or

3.

Call 1-800-330-0712





stuck







4.

Water seals worn

4.

Call 1-800-330-0712











Motor stops

1.

Extension cord too

1.

Remove extension cord

suddenly



long or wire size too









small







2.

Thermal safety switch

2.

Check that main supply





has tripped due to



voltage corresponds to





overheating



specifications











No detergent suction

1.

Lance nozzle not in

1.

Slide lance nozzle into





low pressure position



low pressure position









(see page 6)



2.

Using high pressure

2.

Remove high pressure





extension hose or high



extension hose or use





pressure hose is too



high pressure hose short-





long



er than 25 feet



3.

Injector clogged on

3.

Call 1-800-330-0712





pump















Unit begins to smoke



Overheated, overloaded



Turn off unit and call





or damaged motor



1-800-330-0712

www.chpower.com

9

Operating Instructions and Parts Manual

For replacement parts or technical assistance, call 1-800-330-0712

Address any correspondence to:

Please provide following

Campbell Hausfeld

information:

Attn: Customer Service

- Model number

100 Mundy Memorial Drive

- Serial number (if any)

Mt. Juliet, TN 37122 U.S.A.

- Part description and number



as shown in parts list

6

1

4



5

19

3



2

7

11

10

9

8

12

12

15

13

16

16 17

15 18 14

www.chpower.com

10







PW1810

















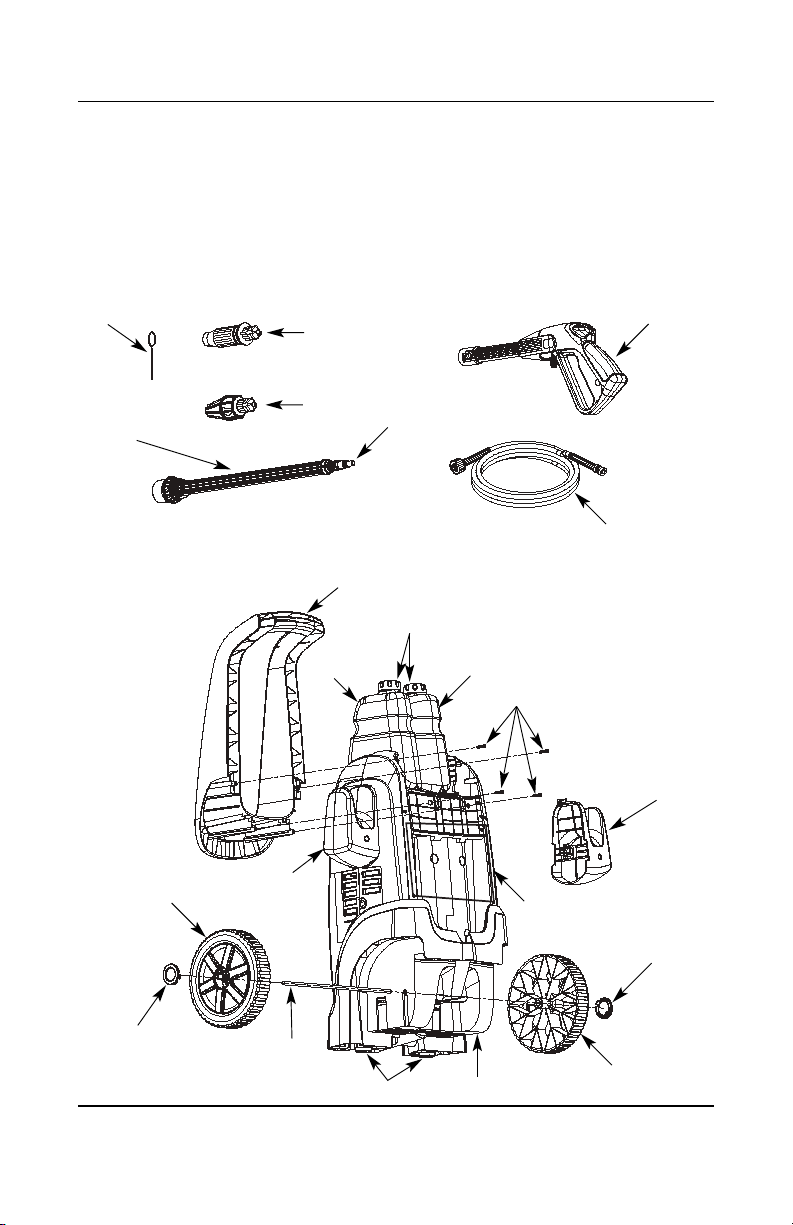

Ref



Part



No.

Description

Number

Qty.

1

Gun

PM344400SV

1

2

Hose

PM344420SV

1

3

Quick connect lance

PM343311SV

1

4

Quick connect fan nozzle

PM343316SV

1

5

Quick connect turbo nozzle

PM343313SV

1

6

Tip cleaner

PM008500AV

1

7

Handle

PM344401SV

1

8

Hardware pack

PM344402SV

1

9

Left detergent bottle “I”

PM344403SV

1

10

Right detergent bottle “II”

PM344404SV

1

11

Detergent bottle cap

PM344405SV

2

12

Hanger

PM344406SV

2

13

Mesh bag

PM344407SV

1

14

Base

PM344408SV

1

15

Wheel

PM344409SV

2

16

Hub cap

PM344410SV

2

17

Axle

PM344411SV

1

18

Rubber foot

PM344412SV

2

19

O-ring

PM232200SV

1

www.chpower.com

11

Operating Instructions and Parts Manual

Limited Warranty

1.DURATION: From the date of purchase by the original purchaser as follows: One Year.

2.WHO GIVES THIS WARRANTY (WARRANTOR): Campbell Hausfeld / Scott Fetzer Company, 100 Mundy Memorial Drive, Mt. Juliet, TN, 37122, Telephone: (800) 330-0712

3.WHO RECEIVES THIS WARRANTY (PURCHASER): The original purchaser (other than for purposes of resale) of the Campbell Hausfeld pressure washer.

4.WHAT PRODUCTS ARE COVERED UNDER THIS WARRANTY: Any Campbell Hausfeld Pressure Washer supplied or manufactured by the Warrantor.

5.WHAT IS COVERED UNDER THIS WARRANTY: Substantial defects on material and workmanship which occur within the duration of the warranty period with the exceptions noted below. Warrantor will also cover normal wear items for a period of 90 days from the date of original purchase against defects in material and workmanship. These wear items include high pressure hoses, water and oil seals, o-rings, valves, lances, and spray tips.

6.WHAT IS NOT COVERED UNDER THIS WARRANTY:

A.Implied warranties, including those of merchantability and FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED FROM THE DATE OF ORIGINAL PURCHASE AS STATED IN THE DURATION. If this pressure washer is used for commercial, industrial or rental purposes, the warranty will apply for ninety (90) days from the date of purchase. Some States do not allow limitation on how long an implied warranty lasts, so the above limitations may not apply to you.

B.ANY INCIDENTAL, INDIRECT, OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY DEFECT, FAILURE, OR MALFUNCTION OF THE CAMPBELL HAUSFELD PRESSURE WASHER. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

C.Any failure that results from shipping damage, accident, purchaser’s abuse, neglect or failure to install and operate pressure washer in accordance with instructions provided in the owner’s manual(s) supplied with product.

D.Pre-delivery service, i.e. assembly, oil or lubricants and adjustment.

E.Items or service normally required to maintain the pressure washer.

F.Gasoline engine and components are expressly excluded from coverage under this limited warranty. Such components should be returned by the purchaser to the original manufacturer or to its authorized repair stations for service.

G.Additional items not covered under the warranty:

1.Motor brushes (Electric models only).

2.Cosmetic defects that do not interfere with functionality.

3.Rusted components.

4.Pump wear or valve damage caused by using improper oil, oil contamination or by failure to follow proper oil maintenance guidelines.

7.RESPONSIBILITIES OF WARRANTOR UNDER THIS WARRANTY: Repair or replace, at Warrantor’s option, pressure washer or component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period.

8.RESPONSIBILITIES OF PURCHASER UNDER THIS WARRANTY:

A.Provide dated proof of purchase and maintenance records.

B.Deliver or ship the Campbell Hausfeld pressure washer or component to nearest Campbell Hausfeld Authorized Service Center. Freight costs, if any, must be borne by the purchaser.

C.Use reasonable care in the operation and maintenance of the pressure washer as described in the owner’s manual(s).

9.WHEN WARRANTOR WILL PERFORM REPAIR OR REPLACEMENT UNDER THIS WARRANTY: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.

This Limited Warranty applies in the U.S., Canada and Mexico only and gives you specific legal rights. You may also have other rights which vary from state to state or country to country.

www.chpower.com

12

Manuel d’instructions et pièces de rechange

PW1810





BUILT TO LAST

Pulvérisateur de Lavage Électrique avec Réservoir de Détergent Double

Si’il vous plaît lire et conserver ces instructions. Lire attentivement avant de monter, installer, utiliser ou de procéder à l’entretien du produit décrit. Se protéger ainsi que les autres en observant toutes les instructions de sécurité, sinon, il y a risque de blessure et / ou dégâts matérials ! Conserver ces instructions comme référence.

Veuillez inscrire le numéro de modèle et le numéro de série à utiliser en contactant le fabricant :

N° de modèle______________

Date d’achat

____________________

N° de série ______________

Lieu d’achat

____________________

Pour obtenir de l’information sur le produit, veuillez appeler le 1-800-330-0712.

Description

Ce Pulvérisateur de Lavage Campbell Hausfeld est actionné par un moteur à induction de service intensif. Est équipé avec deux réservoirs de détergent, une connexion de tuyau pivotante et une lance de connexion rapide avec deux buses.

Les deux réservoirs facilitent l’utilisation efficace du détergent. Fantastique pour le nettoyage en deux étapes (comme lavage et cirage) ou pour l’utilisation en deux projets complètement différents.

La lance avec les deux buses (à fente ajustable et turbo/rotative) entre facilement dans le sac de rangement en mailles. Inclut aussi un tuyau haute pression de 8 m.

Directives de Sécurité

Ce manuel contient de l’information très importante qui est fournie pour la SÉCURITÉ et pour ÉVITER LES PROBLÈMES D’ÉQUIPEMENT.

Rechercher les symboles suivants pour cette information.

Avertissement indique une situation hasardeuse potentielle qui PEUT résulter en perte de vie ou blessures graves.

Attention indique une situation hasardeuse potentielle qui PEUT résulter en blessures.

REMARQUE ou NOTICE :

L’information qui exige une attention spéciale.

MÉMENTO : Gardez votre preuve datée d’achat à fin de la garantie ! Joignez-la à ce manuel ou classez-la dans un dossier pour plus de sécurité.

© 2007 Campbell Hausfeld/

IN468300AV 5/07

Scott Fetzer



Manuel d’instructions et pièces de rechange

Importantes instructions de sécurité

CONSERVER CES INSTRUCTIONS

En utilisant ce produit, il faut suivre les précautions de base, y compris ce qui suit :

1.Lire toutes les instructions avant d’utiliser le produit.

2.TOUJOURS couper le courant avant de démonter ou de réparer l’appareil.

3.Suivre tous les codes de sécurité en plus de l’Occupational Safety and Health Act (OSHA).

4.S’assurer que les dispositifs de sécurité fonctionnent correctement avant chaque utilisation. NE PAS retirer ou modifier toute pièce du pistolet ou de l’appareil.

5.Il faut savoir comment arrêter l’appareil et purger la pression rapidement. Bien se familiariser avec les commandes.

6.Il faut être vigilant et savoir ce qu’on fait.

7.Ne pas faire fonctionner le produit fatigué ou sous l’influence de drogues ou d’alcool.

8.Garder les personnes loin de l’aire de fonctionnement.

9.Ne pas se pencher ou se tenir debout sur un support instable. Garder bon pied et bon équilibre en tout temps.

10.Suivre les instructions d’entretien présentées dans le manuel.

11.Brancher l’appareil seulement à une prise mise à la terre correctement. Ne pas retirer la broche de terre.

12.Ce produit est fourni avec un disjoncteur de fuite à la terre et il faut s’assurer d’inspecter le cordon et le disjoncteur avant d’utiliser l’appareil. Tout travail d’entretien et de réparation du cordon doit être effectué par un technicien électrique qualifié (agréé ou certifié).

13.Ne jamais utiliser de rallonge avec ce produit.

14.Le cordon de ce produit contient des produits chimiques, y compris du plomb, qui de l’avis de l’État de

Californie peut causer le cancer et des anomalies congénitales ou d’autres problèmes pour la

reproduction. Se laver les mains après toute manipulation.

15.Pour réduire les risques de blessures, il faut une supervision étroite lorsqu’un produit est utilisé près d’enfants.

Risque d’électrocution.

Brancher l’appareil seulement à une prise mise à la terre correctement. Ne pas retirer la broche de terre.

Inspecter le cordon avant d’utiliser l’appareil - Ne pas utiliser si le cordon est endommagé.

Garder toutes les connexions électriques sèches et loin du sol.

Ne pas toucher la fiche avec les mains humides.

Ce produit est fourni avec un disjoncteur de fuite à la terre intégré à la fiche du cordon. S’il faut remplacer la fiche ou le cordon, utiliser seulement des pièces de rechange identiques.

Ne pas pulvériser d’appareils électriques et de câblage.

Risque d’injection ou de blessure grave.

Haute pression. Rester loin de l’embout. Ne pas décharger de jets vers les personnes ou les animaux.

Ne jamais mettre la main ou les doigts sur les embouts de pulvérisation tandis que l’appareil est en marche.

Ne jamais essayer d’arrêter ou de détourner les fuites avec toute partie du corps.

Toujours engager le verrou de sécurité de la gâchette en position sans danger même si on arrête seulement pendant quelques moments.

Pointer le pistolet dans une direction sans danger. L’unité commencera à pulvériser lorsque la gâchette est pressée si l’interrupteur

14 Fr

PW1810

« marche/arrêt » est à la position «ON» (Pulvérisateur à pression (marche)).

Pression de décharge - lorsque l’interrupteur ‘marche/arrêt’ est à la position ‘arrêt’, il pourrait y avoir encore de la pression. Pour décharger la pression, pointer le pistolet dans une direction sans danger et presser la gâchette.

Risque d’explosion

Ne pas pulvériser de liquides inflammables.

Ne jamais utiliser dans les endroits contenant de la poussière, des liquides ou des vapeurs combustibles.

Haute pression – le pistolet a un recul

– Tenir le pistolet des deux mains.

Garder le tuyau loin d’objets tranchants. Les tuyaux qui éclatent peuvent causer des blessures. Examiner régulièrement les tuyaux et les remplacer s’ils sont endommagés. Ne jamais essayer de réparer un tuyau endommagé.

Décharge de fluide chaud de l’embout de nettoyage à vapeur. Ne pas toucher ou décharger de vapeur vers les personnes.

Ne pas bloquer la soupape de sûreté rouge sur le pistolet à vapeur avec toute partie du corps. Si l’embout à vapeur se bloque, de l’eau chaude se déchargera de la soupape de sûreté rouge.

Convient pour l’utilisation à l’intérieur et à l’extérieur. Ranger à l’intérieur et

àun endroit où la température reste sous le point de congélation.

Débrancher l’appareil lorsqu’il n’est pas utilisé.

Le pulvérisateur à pression n’est pas conçu pour pomper l’eau chaude. Ne pas brancher à l’alimentation d’eau chaude.

Ne jamais laisser l’appareil sans supervision tandis que l’appareil est en marche.

Toujours mettre l’alimentation d’eau

à« ON » (marche) avant de mettre l’appareil en marche (ON). Faire tourner la pompe à sec cause de graves dommages.

Ne pas essayer d’utiliser l’appareil pour réchauffer l’espace.

Instructions de Montage:

1.Assembler la poignée en la glissant dans l’appareil et la fixant à l’aide de quatre vis (fournies) tel qu’illustré dans les figures 1 et 2.

2.Glisser la bouteille de détergent « I » du côté gauche de l’appareil et la bouteille de détergent « II » du côté

Utiliser seulement des détergents spécifiquement formulés pour les pulvérisateurs à pression. Toujours suivre les recommandations des étiquettes du fabricant de détergent pour la bonne utilisation des détergents. Toujours se protéger les yeux, la peau et le système respiratoire du détergent.

Figure 1

droit de l’appareil et fixer le tube de détergent à la barbelure de tuyau sur la bouteille tel qu’illustré dans les figures 3 et 4.

Remarque : après avoir fixé les tubes de détergent, s’assurer que les tubes soient lisses et non pas coudés.

15 Fr

+ 33 hidden pages
