Page 1
Vacuum Pump V-600
Operation Manual
11593885A en
Page 2
Imprint
Product Identification:
Operation Manual (Original) Vacuum Pump V-600
11593885
Publication date: 05.2016
BÜCHI Labortechnik AG
Meierseggstrasse 40
Postfach
CH-9230 Flawil 1
E-Mail: quality@buchi.com
BUCHI reserves the right to make changes to the manual as deemed necessary in the light of experience, especially with respect to structure, illustrations and technical detail.
This manual is copyrighted. Information from it may not be reproduced, distributed, or used for competitive purposes, nor made available to third parties. The manufacture of any component with the aid of this
manual without prior written agreement is also prohibited.
Page 3
BÜCHI Labortechnik AG Contents
Operation Manual Vacuum Pump V-600 iii
Contents
1 About this document........................................................................................................... 6
1.1 Warning notices in this document........................................................................................................ 6
1.2 Symbols............................................................................................................................................... 6
1.2.1 Warning symbols .....................................................................................................................6
1.2.2 Mandatory directive symbols ...................................................................................................7
1.2.3 Other symbols..........................................................................................................................7
1.3 Available languages............................................................................................................................. 7
1.4 Trademarks.......................................................................................................................................... 7
2 Safety....................................................................................................................................8
2.1 Intended use........................................................................................................................................ 8
2.2 Use other than that intended ............................................................................................................... 8
2.3 Staff qualification ................................................................................................................................. 8
2.4 Residual risks ...................................................................................................................................... 9
2.4.1 Dangerous vapors.................................................................................................................... 9
2.4.2 Faults during operation ............................................................................................................ 9
2.4.3 Hot surfaces.............................................................................................................................9
2.5 Personal protective equipment .......................................................................................................... 10
2.6 Modifications...................................................................................................................................... 10
3 Product description........................................................................................................... 11
3.1 Description of function ....................................................................................................................... 11
3.2 Configuration ..................................................................................................................................... 11
3.2.1 Front view ..............................................................................................................................11
3.2.2 Rear view ............................................................................................................................... 12
3.2.3 Connections ........................................................................................................................... 13
3.2.4 Internal view...........................................................................................................................15
3.2.5 Type plate .............................................................................................................................. 16
3.3 Specifications supplied ...................................................................................................................... 16
3.4 Technical data ................................................................................................................................... 17
3.4.1 Vacuum Pump V-600.............................................................................................................17
3.4.2 Ambient conditions.................................................................................................................17
3.4.3 Materials ................................................................................................................................17
4 Transport and storage ......................................................................................................18
4.1 Transport ........................................................................................................................................... 18
4.2 Storage .............................................................................................................................................. 18
Page 4
Contents BÜCHI Labortechnik AG
iv Operation Manual Vacuum Pump V-600
5 Installation.......................................................................................................................... 19
5.1 Important considerations prior to commissioning .............................................................................. 19
5.2 Installation site................................................................................................................................... 20
5.3 Securing against earthquakes ........................................................................................................... 21
5.4 Connecting laboratory equipment...................................................................................................... 22
5.5 Connecting the silencer ..................................................................................................................... 23
5.5.1 Connecting silencer directly to V-600 ....................................................................................23
5.5.2 Connecting the silencer to the outlet of the secondary condenser ........................................ 24
5.6 Connecting a Woulff bottle................................................................................................................. 25
5.6.1 Connecting the Vacubox via a Woulff bottle .......................................................................... 25
5.7 Connecting a secondary condenser .................................................................................................. 27
5.8 Connecting a secondary cold trap ..................................................................................................... 28
5.9 Fitting an Interface I-300.................................................................................................................... 29
5.10 Fitting a VacuBox............................................................................................................................... 30
5.11 Connecting the vacuum pump to the power supply........................................................................... 31
5.12 Connecting communication cables to the V-600 ............................................................................... 32
5.13 Assembling the BUCHI distillation system......................................................................................... 33
5.13.1 Overview: setting up communication connections................................................................. 34
5.13.2 Overview: setting up coolant tubing connections...................................................................35
5.13.3 Overview: setting up vacuum tubing connections..................................................................36
5.14 Operating the Vacuum Pump V-600 with 2 Rotavapor systems........................................................ 37
6 Operation............................................................................................................................ 39
6.1 Operating V-600 without Interface I-300/I-300 Pro............................................................................ 39
6.2 Operating V-600 with Interface I-300/I-300 Pro................................................................................. 39
7 Cleaning and servicing .....................................................................................................40
7.1 Cleaning............................................................................................................................................. 40
7.1.1 Important considerations when cleaning................................................................................ 40
7.1.2 Cleaning the pump.................................................................................................................40
7.1.3 Cleaning the casing ...............................................................................................................41
7.1.4 Cleaning glass components...................................................................................................41
7.1.5 Cleaning internal pump tubing ............................................................................................... 41
7.1.6 Cleaning the diaphragm.........................................................................................................42
7.2 Servicing............................................................................................................................................ 42
7.2.1 Notes on servicing .................................................................................................................42
7.2.2 Dismantling and reassembling pump head............................................................................43
7.2.3 Replacing the diaphragm....................................................................................................... 47
7.2.4 Replacing the non-return valve.............................................................................................. 48
7.2.5 Replacing connecting tubes...................................................................................................50
7.2.6 Replacing O-rings .................................................................................................................. 53
7.2.7 Removing non-return valve from elbow connector ................................................................54
7.2.8 Fitting GL14 union nut with tube seal..................................................................................... 55
8 Help with faults ..................................................................................................................56
8.1 Faults, possible causes and remedies............................................................................................... 56
8.2 Customer service............................................................................................................................... 57
9 Taking out of service and disposal.................................................................................. 58
9.1 Taking out of service.......................................................................................................................... 58
9.2 Disposal............................................................................................................................................. 58
Page 5
BÜCHI Labortechnik AG Contents
Operation Manual Vacuum Pump V-600 v
10 Appendix ............................................................................................................................59
10.1 Solvent table...................................................................................................................................... 59
10.2 Spare parts and accessories ............................................................................................................. 61
10.3 Health and safety approval................................................................................................................ 62
10.4 Health and safety............................................................................................................................... 63
Page 6
1 | About this document BÜCHI Labortechnik AG
6/65 Operation Manual Vacuum Pump V-600
1 About this document
These operating instructions describe the Vacuum Pump V-600 at the time supplied.
They are an integral part of the product and contain important information that is necessary for safe operation and maintenance.
These operating instructions apply to all variants of the Vacuum Pump V-600 and are
intended primarily for laboratory staff.
u To ensure safe and trouble-free operation, read these operating instructions be-
fore starting up the device and follow the guidance they contain.
u Keep the operating instructions somewhere near to the device.
u Pass on the operating instructions to any subsequent owner or user.
BÜCHI Labortechnik AG accepts no liability whatsoever for any faults or damage that
result from the failure to follow these operating instructions.
u If you still have any questions after reading these operating instructions, please
contact BÜCHI Labortechnik AG Customer Service. Contact details for your local
agents can be found on the back cover of these operating instructions or on the Internet at http://www.buchi.com.
1.1 Warning notices in this document
Warning notices warn you of dangers that can occur when handling the device. There
are four danger levels, each identifiable by the signal word used.
Signal word Meaning
DANGER Indicates a danger with a high level of risk which could result in
death or serious injury if not prevented.
WARNING Indicates a danger with a medium level of risk which could result in
death or serious injury if not prevented.
CAUTION Indicates a danger with a low level of risk which could result in mi-
nor or medium-severity injury if not prevented.
IMPORTANT Indicates a danger that could result in damage to property.
1.2 Symbols
The following symbols may be displayed in this instruction manual or on the device:
1.2.1 Warning symbols
Symbol Meaning Symbol Meaning
General warning Corrosive substance
Dangerous electrical voltage Flammable substance
Biological hazard Potentially explosive atmos-
phere
Breakable items Dangerous gases
Page 7
BÜCHI Labortechnik AG About this document | 1
Operation Manual Vacuum Pump V-600 7/65
Symbol Meaning Symbol Meaning
Hot surface Health-harming or irritant
substances
Risk of hand injury Strong magnetism
1.2.2 Mandatory directive symbols
Symbol Meaning Symbol Meaning
Wear safety goggles Wear protective clothing
Wear protective gloves Heavy load, do not lift with-
out assistance
1.2.3 Other symbols
NOTE
This symbol draws attention to useful and important information.
R This character draws attention to a requirement that must be met before the in-
structions below are carried out.
u This character indicates an instruction that must be carried out by the user.
5 This character indicates the result of a correctly carried out instruction.
1.3 Available languages
These operating instructions were originally produced in German and have been
translated into several other languages. The translations are available on the enclosed CD or can be obtained as a PDF file via http://www.buchi.com.
1.4 Trademarks
Product names and registered or unregistered trademarks that are used in this instruction manual are used only for identification and remain the property of the owner
in each case.
For example, Rotavapor® is a registered trademark of BÜCHI Labortechnik AG.
Page 8
2 | Safety BÜCHI Labortechnik AG
8/65 Operation Manual Vacuum Pump V-600
2 Safety
2.1 Intended use
The Vacuum Pump V-600 has been designed and built as an item of laboratory
equipment. Its intended use is the evacuation of laboratory apparatus. This is done by
means of a PTFE-diaphragm pump – with or without regulation by a vacuum controller.
PTFE-diaphragm pumps are used primarily for the following applications:
Evacuating distillation apparatus, in particular rotary evaporators (Rotavapor®)
Vacuum filtration
Vacuum-drying cabinets
Drying kilns
2.2 Use other than that intended
Use of any kind other than that referred to and any application that does not comply
with the technical specifications constitutes use other than that intended. The operator alone is liable for any damage brought about by use of the device in a manner
other than that intended.
In particular, the following applications are not permissible:
Use in areas which require explosion-safe apparatus.
Pumping of liquids and solid particles.
Processing samples which could be caused to explode or ignite by impact, friction,
heat or sparks (e.g. explosives).
Use for analysis (e.g. Kjeldahl).
Generation of positive pressure (pressurizing a system).
Operation at ambient temperatures >40 °C.
2.3 Staff qualification
Unqualified persons are unable to identify risks and are therefore exposed to greater
dangers.
The device may only be operated by suitably qualified laboratory staff.
These operating instructions are aimed at the following target groups:
Users
Users are persons that meet the following criteria:
They have been instructed in the use of the device.
They are familiar with the contents of these operating instructions and the applica-
ble safety regulations and apply them.
They are able on the basis of their training or professional experience to assess
the risks associated with the use of the device.
Page 9
BÜCHI Labortechnik AG Safety | 2
Operation Manual Vacuum Pump V-600 9/65
Operator
The operator (generally the laboratory manager) is responsible for the following aspects:
The device must be correctly installed, commissioned, operated and serviced.
Only suitably qualified staff may be assigned the task of performing the operations
described in these operating instructions.
The staff must comply with the locally applicable requirements and regulations for
safe and hazard-conscious working practices.
Safety-related incidents that occur while using the device should be reported to the
manufacturer (quality@buchi.com).
BUCHI service technicians
Service technicians authorized by BUCHI have attended special training courses and
are authorized by BÜCHI Labortechnik AG to carry out special servicing and repair
measures.
2.4 Residual risks
The device has been developed and manufactured using the latest technological advances. Nevertheless, risks to persons, property or the environment can arise if the
device is used incorrectly.
Appropriate warnings in this manual serve to alert the user to these residual dangers.
2.4.1 Dangerous vapors
Distillation can produce dangerous vapors that are capable of causing life-threatening
toxic effects.
u Do not inhale any vapors produced during distillation.
u Ensure that vapors are removed by a suitable fume hood.
u Only use the device in well ventilated areas.
u If vapors escape from joints or connections, check the seals concerned and re-
place them if necessary.
u Do not distill any unknown fluids.
u Observe the safety data sheets for all fluids used.
2.4.2 Faults during operation
If a device is damaged, sharp edges or exposed electrical wires can cause injuries.
u Regularly check device for visible damage.
u If faults occur, switch off the device immediately, unplug the power cord and in-
form the operator.
u Do not continue to use devices that are damaged.
2.4.3 Hot surfaces
The surfaces of the device can become very hot. If touched they can cause skin
burns.
u Do not touch hot surfaces or else wear suitable protective gloves.
Page 10
2 | Safety BÜCHI Labortechnik AG
10/65 Operation Manual Vacuum Pump V-600
2.5 Personal protective equipment
Depending on the application, hazards due to heat and/or corrosive chemicals may
arise.
u Always wear appropriate personal protective equipment such as safety goggles,
protective clothing and gloves.
u Make sure that the personal protective equipment meets the requirements of the
safety data sheets for all chemicals used.
2.6 Modifications
Unauthorized modifications may impair safety and lead to accidents.
u Use only genuine BUCHI accessories, spare parts and consumables.
u Technical modifications to the device or accessories should only be carried out
with the prior written approval of BÜCHI Labortechnik AG and only by authorized
BUCHI technicians.
BUCHI accepts no liability whatsoever for damage arising as a result of unauthorized
modifications.
Page 11
BÜCHI Labortechnik AG Product description | 3
Operation Manual Vacuum Pump V-600 11/65
3 Product description
3.1 Description of function
The Vacuum Pump V-600 is intended for evacuating laboratory apparatus to a terminal vacuum of 1.5mbar (±1mbar). It can be operated either as a standalone device
or combined with optional accessories (see Chapter3.3 "Specifications supplied",
page16).
Once switched on, the Vacuum Pump V-600 runs in continuous mode unless it is
connected to the Interface I-300/I-300 Pro unit. In unregulated continuous mode, the
pump runs at a maximum speed of 1500 rpm and generates a terminal vacuum of
1.5mbar (±1mbar). The time required for evacuation depends on the size (volume)
of the vessel.
When operating as a standalone unit, the Vacuum Pump V-600 automatically
switches to energy saving mode after 1 hour of operation. In energy saving mode, the
Vacuum Pump V-600 runs at 80% of maximum speed but still generates the same
terminal vacuum of 1.5mbar (±1mbar). After 2 hours of operation, the speed reduces to 50% of maximum while still maintaining the same terminal vacuum.
3.2 Configuration

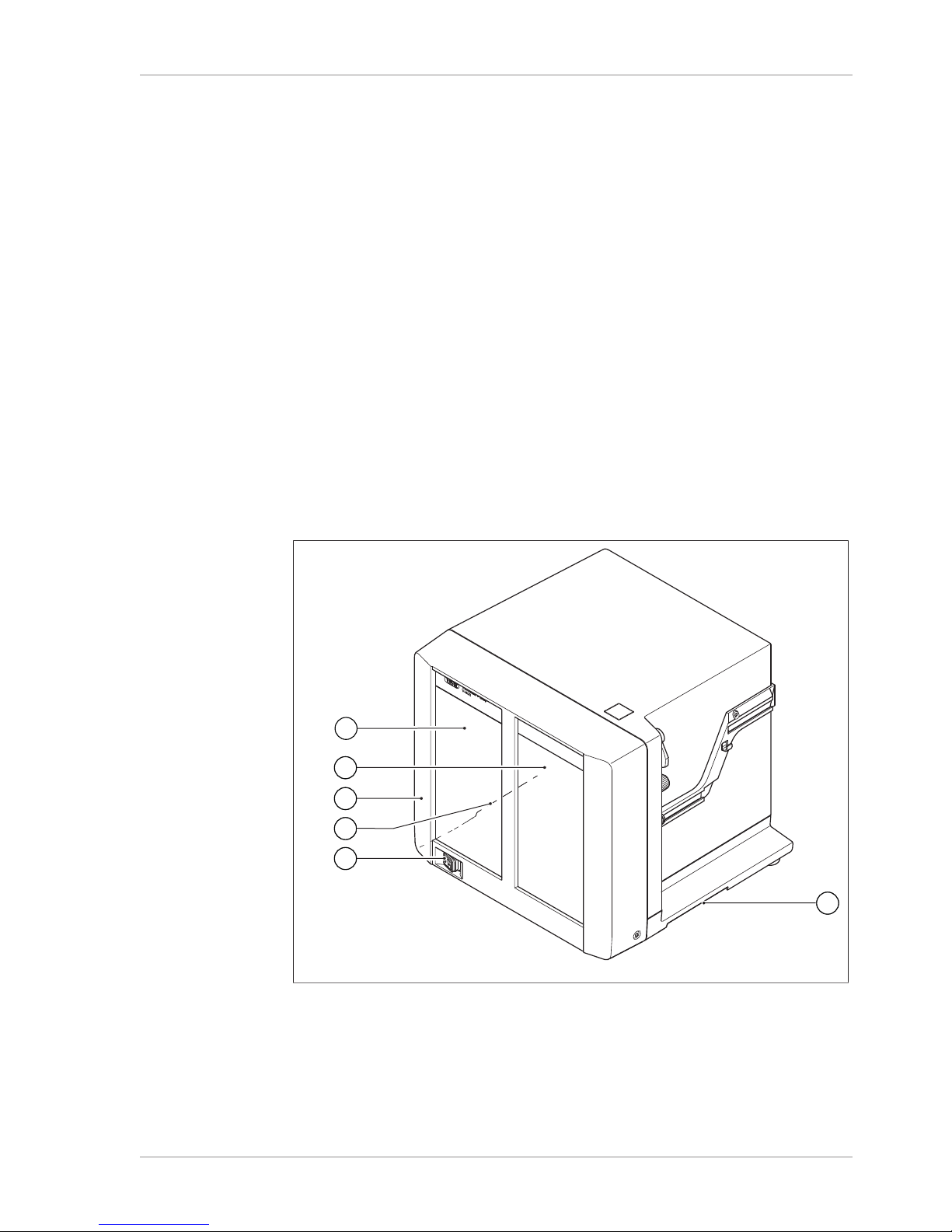

3.2.1 Front view
1
1
4
3
3
2
Fig.1: Design of V-600
1 Inspection window 3 Recessed grip
2 Casing front 4 On/Off master switch
Page 12
3 | Product description BÜCHI Labortechnik AG
12/65 Operation Manual Vacuum Pump V-600
3.2.2 Rear view
1
2
4
3
5
6
7
8
9

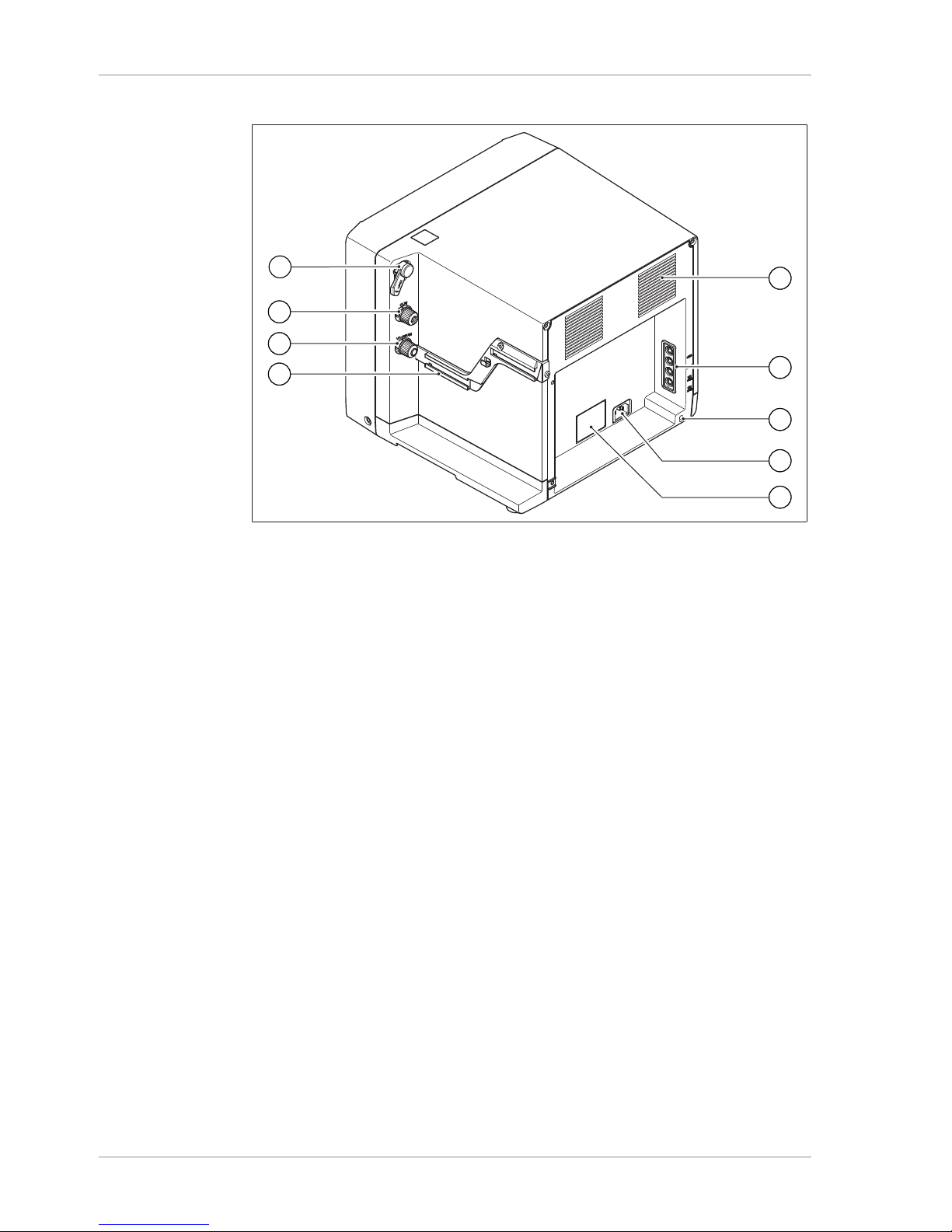

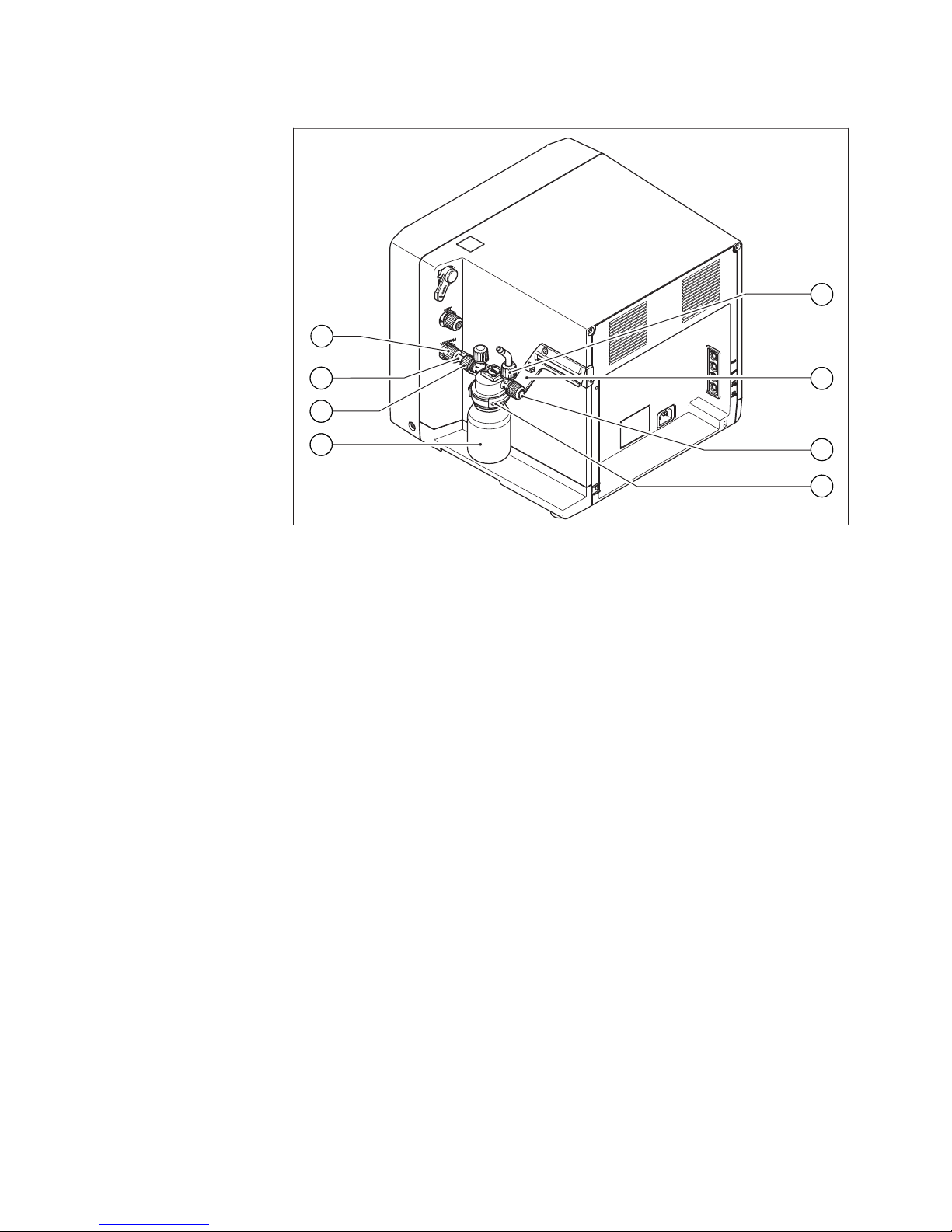

Fig.2: Rear view of V-600
1 Gas ballast 5 Ventilation slots
2 Pump outlet 6 Connection panel for communication
cables (see Chapter5.12 "Connecting communication cables to the
V-600", page32)
3 Pump intake (vacuum) 7 Lashing eye (for securing against fall-
ing during earthquakes)
4 Mounting rail for accessory compo-
nents
8 Power supply connection
9 Type plate
Page 13
BÜCHI Labortechnik AG Product description | 3
Operation Manual Vacuum Pump V-600 13/65

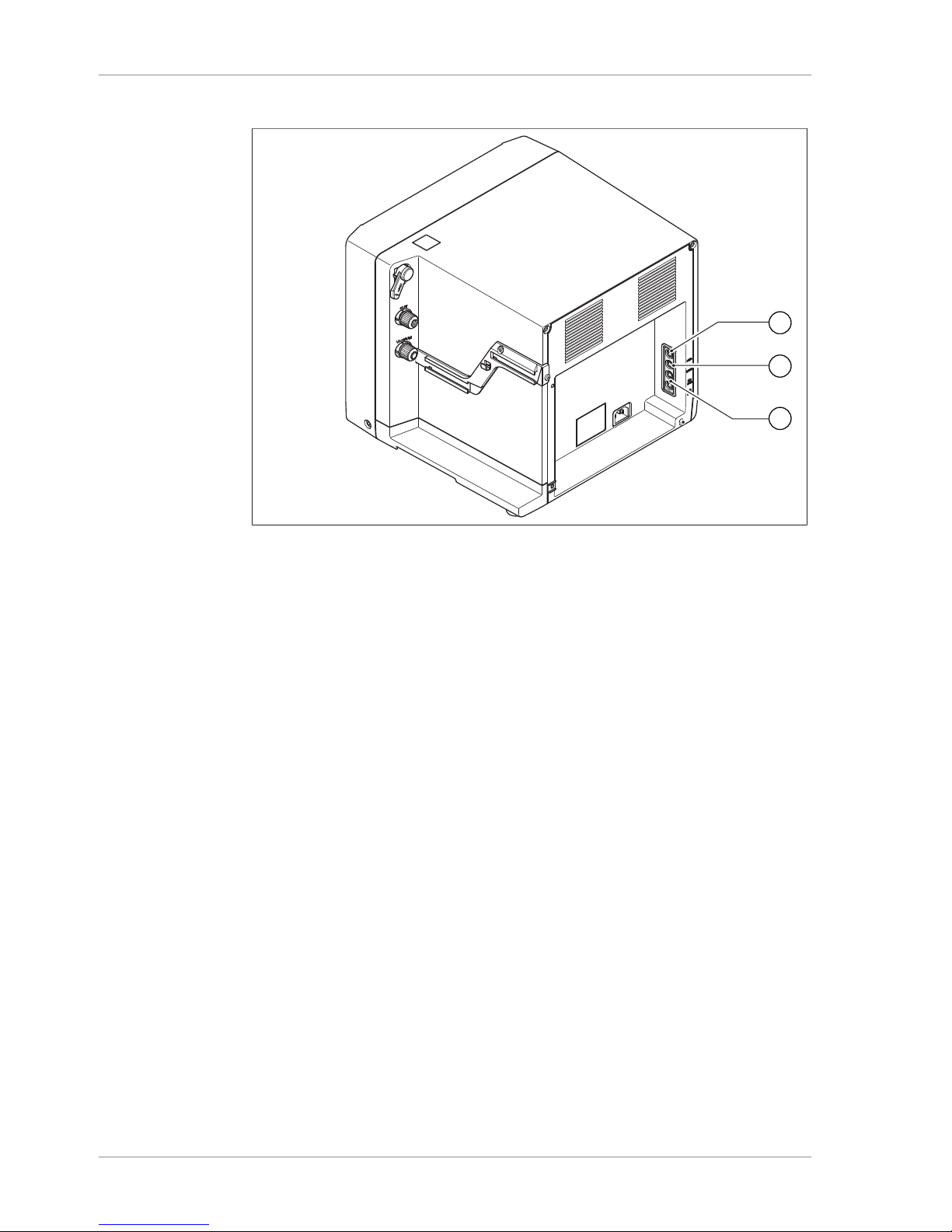

3.2.3 Connections

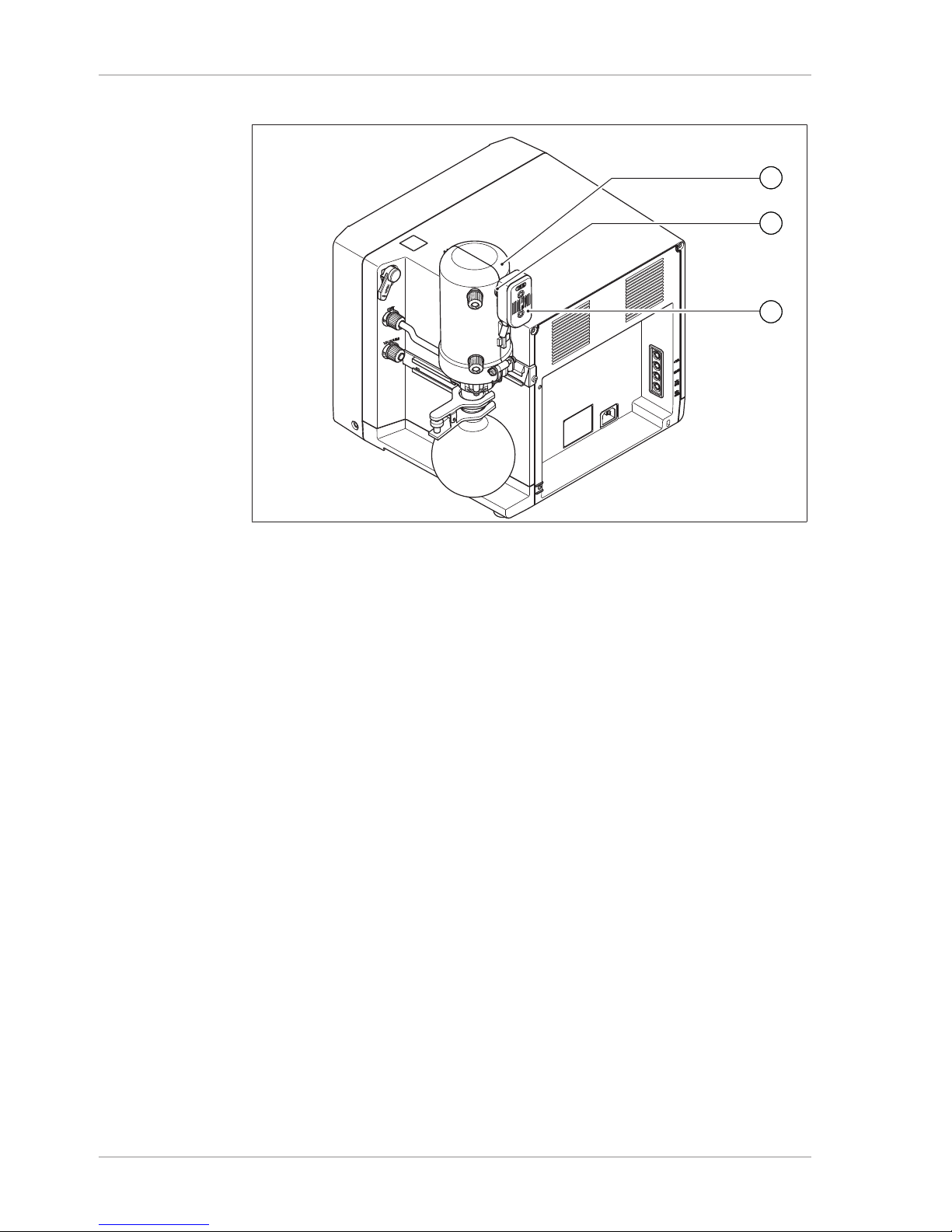

2
1
3

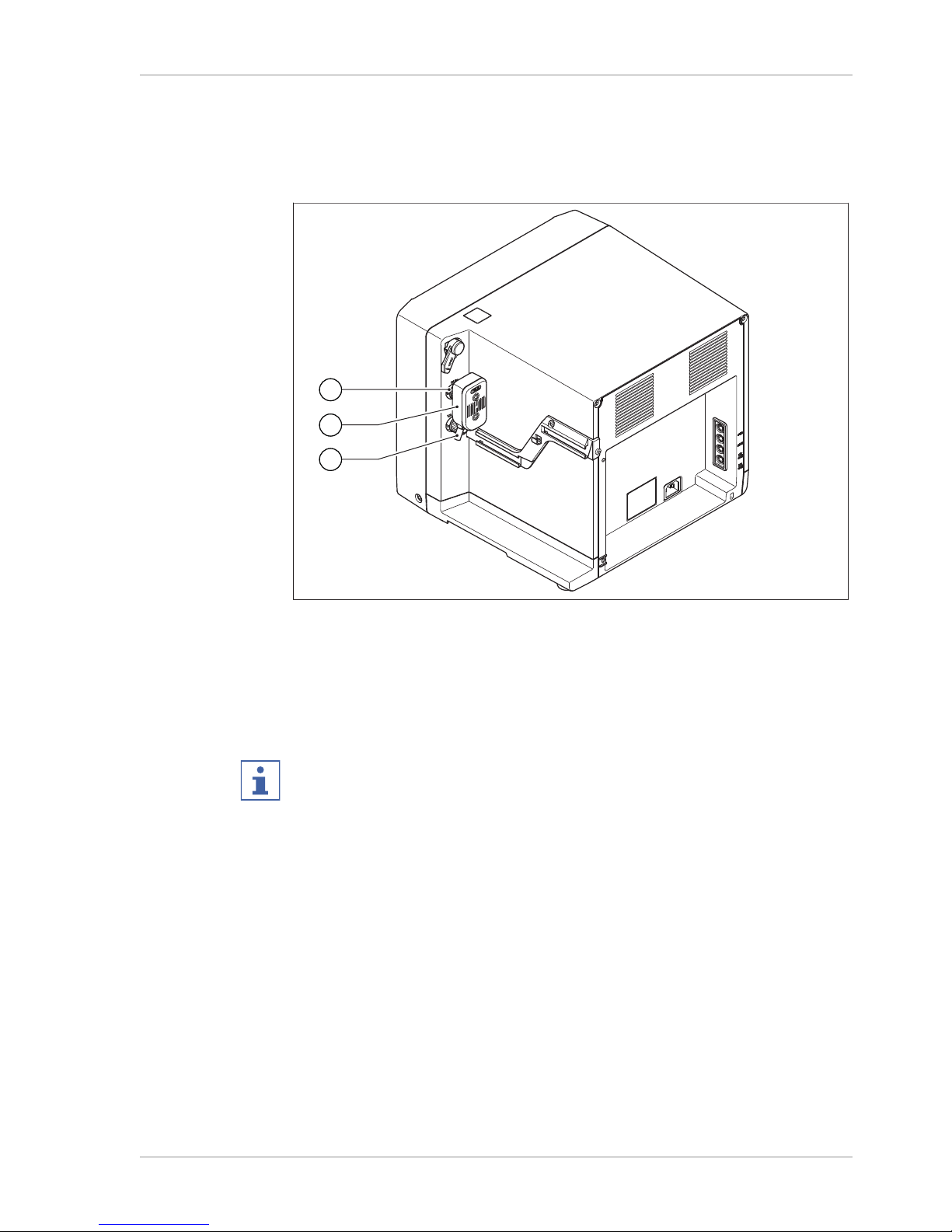

Fig.3: Connections on the V-600
1 Connection for alternative pump con-
troller (CTRL)
3 Standard BUCHI communication
ports (COM)
2 Fill level sensor connection (LEVEL)
Standard BUCHI communication port (COM)
The standard BUCHI communication port is used to connect the Interface I-300/I-300
Pro to the Vacuum Pump V-600. For more information, see Chapter5.13.1 "Overview: setting up communication connections", page34.
Connection for alternative pump controllers (CTRL)
The CTRL socket offers the following options:
Digital ON/OFF control of the pump via legacy devices (V-850 / V-855,
V-800 / V-805) or via the VacuBox.
Operation of two Rotavapor systems with only one Vacuum Pump V-600, see
Chapter5.14 "Operating the Vacuum Pump V-600 with 2 Rotavapor systems",
page37.
Control of pump speed by different-make products with analog 0–10 V signal.
Page 14
3 | Product description BÜCHI Labortechnik AG
14/65 Operation Manual Vacuum Pump V-600

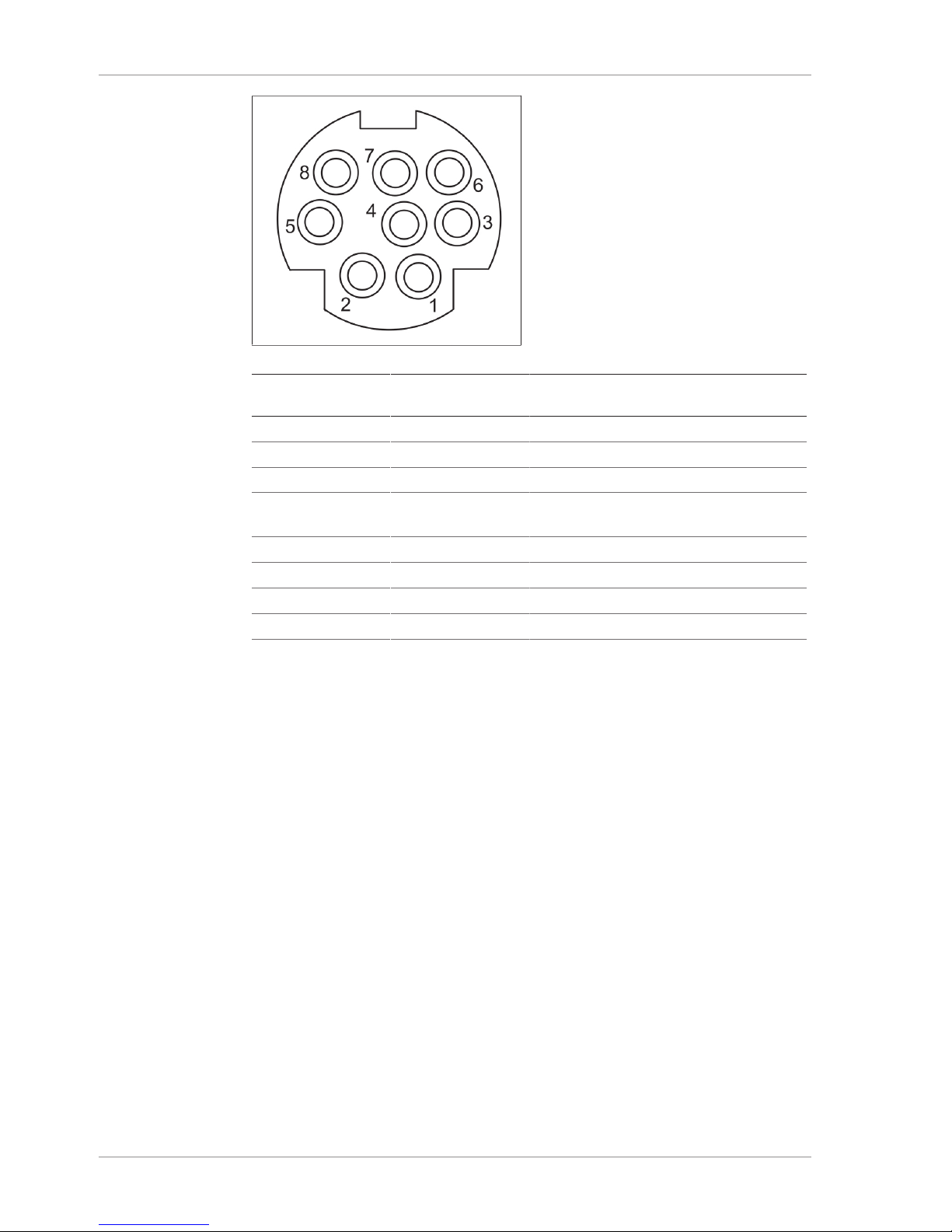

Fig.4: 8-pin MiniDin pin assignment, view of socket
Pin
8-pin notation
Symbol Description
1 DGND Digital ground
2 Detection DIGIN Digital input detection
3 nc not connected
4 AIN 0 – 10 V Analog Input 0 – 10 V (max. -0.2 V ... 12
V)
5 nc not connected
6 nc not connected
7 Detection AIN Analog input detection
8 DIGIN PWM Digital input ON/OFF
Connection for fill level sensor (LEVEL)
A fill-level sensor can be connected to the Vacuum Pump V-600 as an option. The filllevel sensor measures the fill level of the receiving flask if a secondary condenser or
a secondary cold trap is connected to the V-600. If the relevant level is exceeded in
the receiving flask, a message appears on the display of the Interface I-300/I-300 Pro.
Page 15
BÜCHI Labortechnik AG Product description | 3
Operation Manual Vacuum Pump V-600 15/65

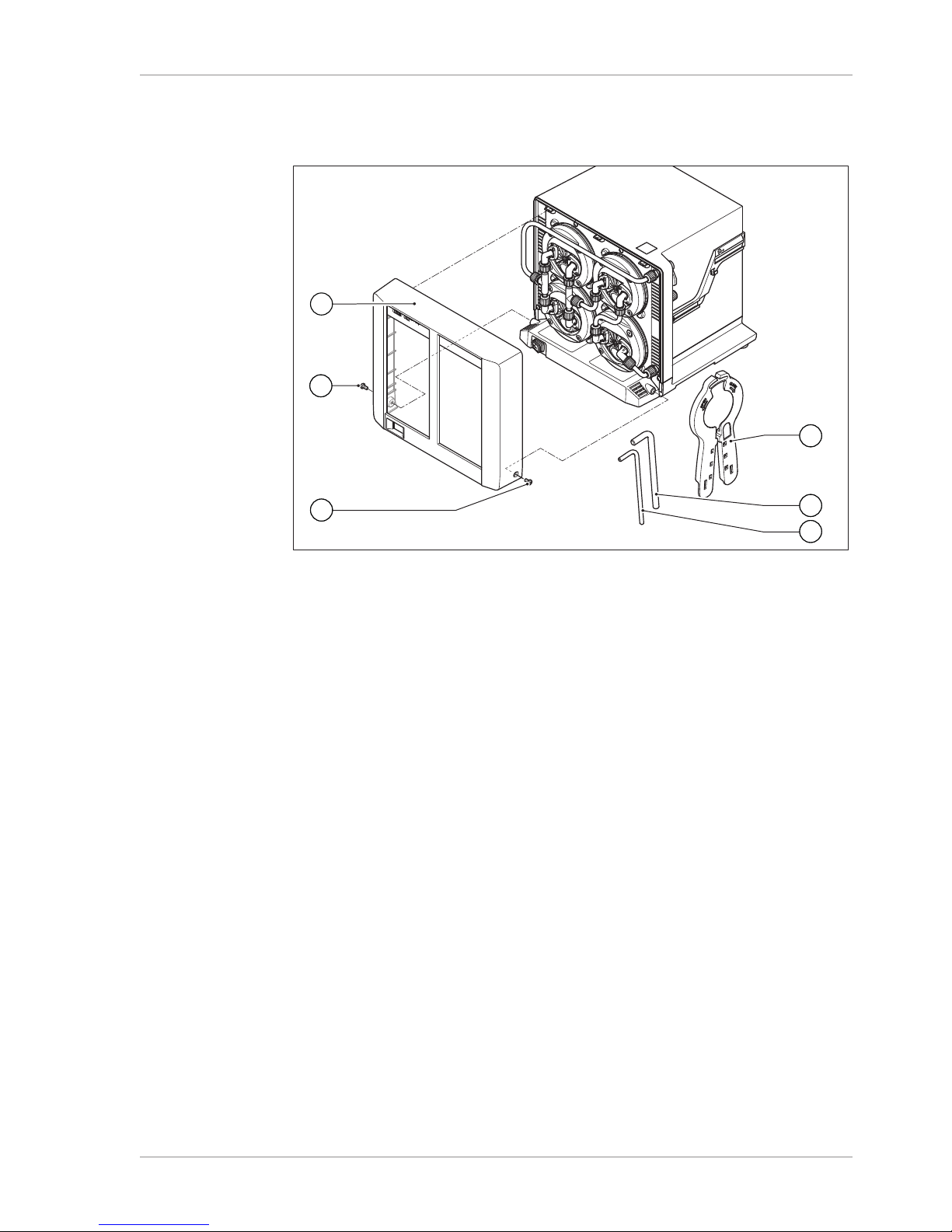

3.2.4 Internal view
1
2
3
8
9
7
6
5
4
2

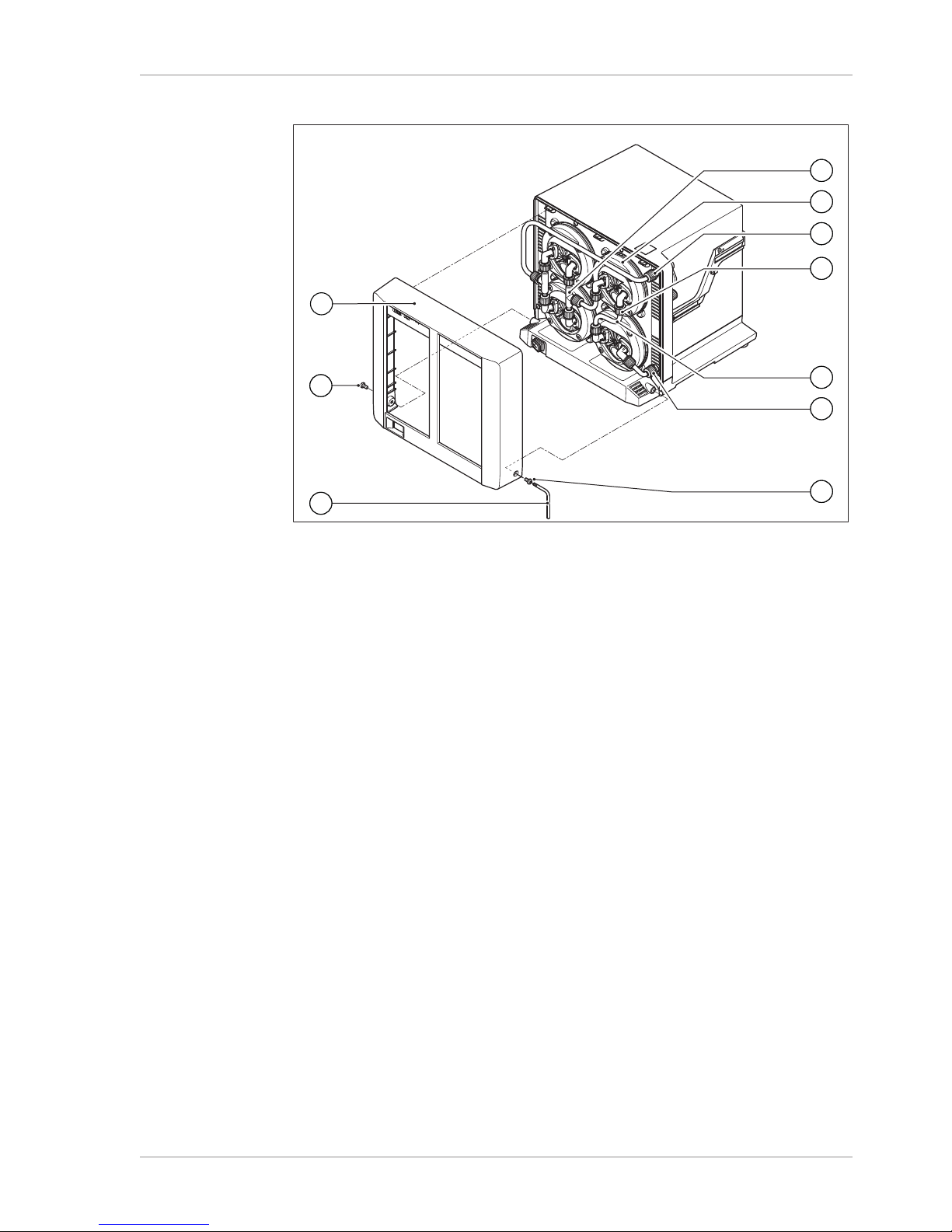

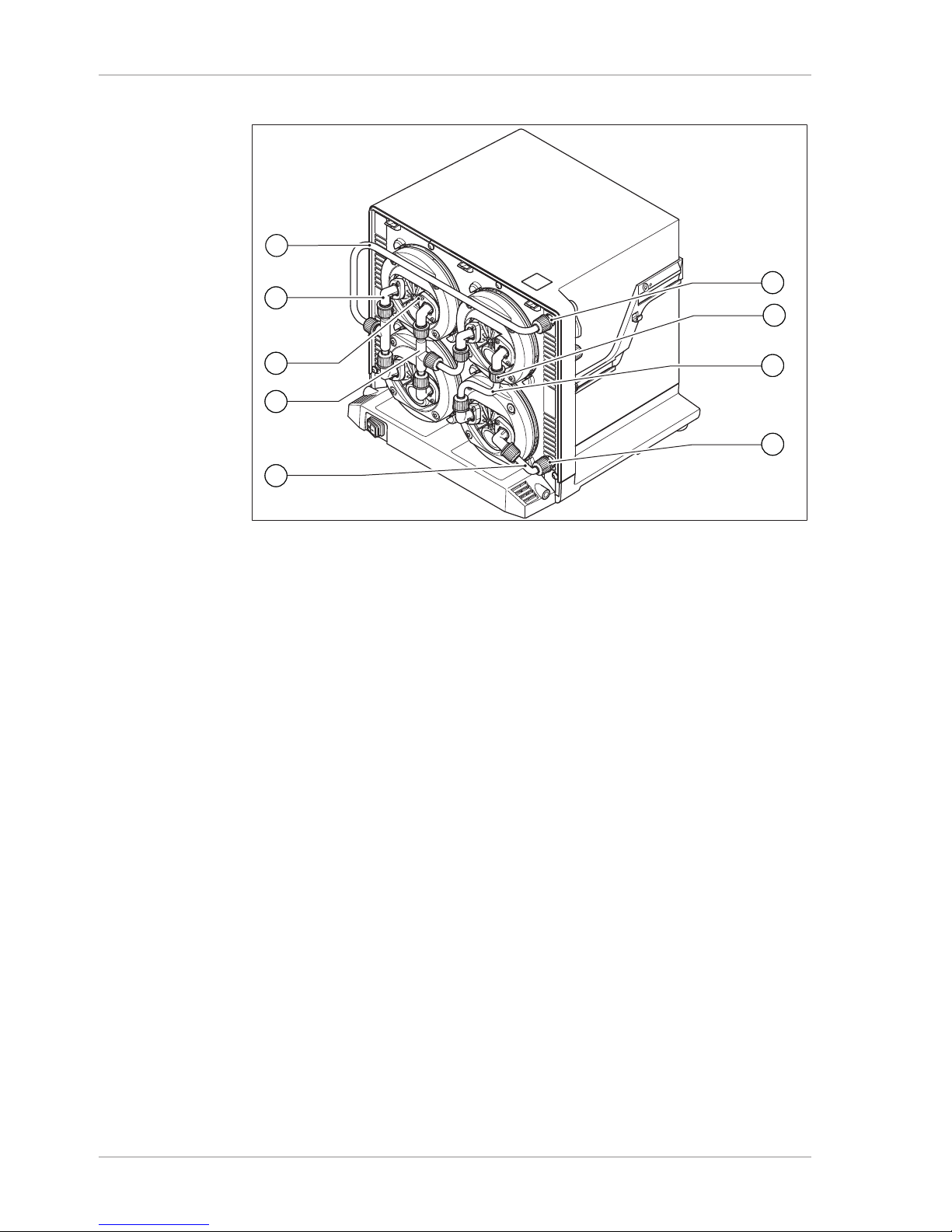

Fig.5: Internal view of V-600 showing pump heads
1 Casing front 6 Connection (pump intake)
2 Fixing screws for casing front 7 GL14 union nut
3 Torx key 8 Pump-head connecting tube
4 T-piece 9 Connection (pump outlet)
5 Pump head fixing ring
Page 16
3 | Product description BÜCHI Labortechnik AG
16/65 Operation Manual Vacuum Pump V-600

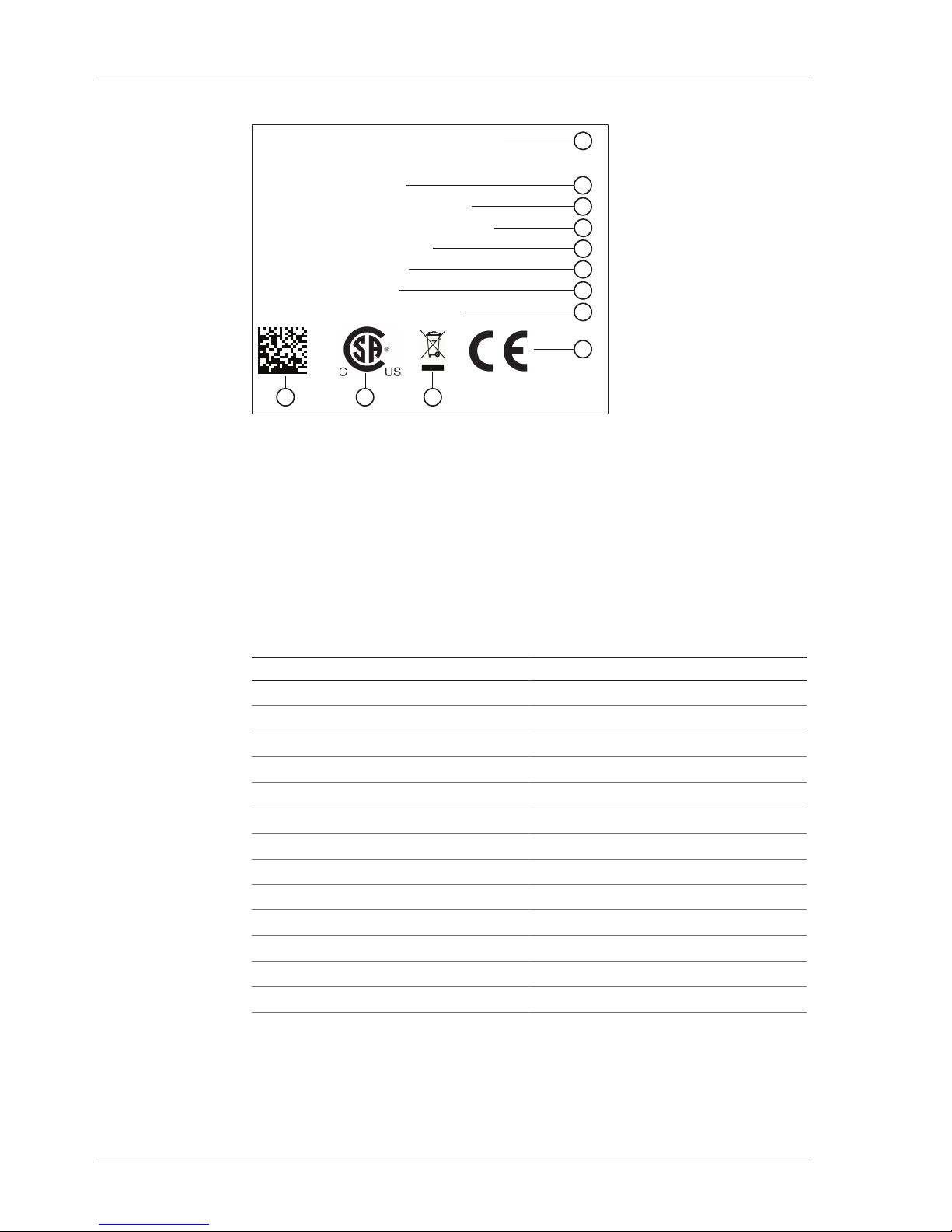

3.2.5 Type plate
BÜCHI Labortechnik AG
CH-9230 Flawil/Switzerland
Type: V-600
SN: 1000000000
Volt: 100 – 240 VAC
Frequ.: 50/60 Hz
Power: 360 W
Built: 2016
Made in Switzerland
3
7
2
1
5
4
6
8
9
1011
9
Fig.6: Type plate (example)
1 Company name and address 7 Year of manufacture
2 Device name 8 Country of manufacture
3 Serial number 9 Approvals
4 Power supply voltage 10 Symbol for "Do not dispose of as
household waste"
5 Frequency 11 Product code
6 Power consumption
3.3 Specifications supplied
V-600
Vacuum Pump V-600 1
Vacuum tubing (2 m) 1
Power cord 1
Silencer 1
Tubing connections (set) 1
Interface I-300 *
Woulff bottle *
Secondary cold trap *
Secondary condenser *
Communication cables 1
Diaphragm grips 1
Torx key Tx10 1
Torx key Tx25 1
The components marked * are optional.
Page 17
BÜCHI Labortechnik AG Product description | 3
Operation Manual Vacuum Pump V-600 17/65
3.4 Technical data
3.4.1 Vacuum Pump V-600
Dimensions (W x H x D) 330 x 321 x 291 mm
Weight 13.9 kg
Power supply voltage 100 − 240 VAC, 50/60 Hz
Power consumption 360 W
Power consumption in energy saving
mode (80%)
190 W
Power consumption in energy saving
mode (50%)
120 W
Terminal vacuum (absolute) 1.5 mbar (± 1 mbar)
Vacuum capacity (to DIN) 3.1 m3/h
Vacuum connection GL14
Noise level 40 - 64 dBA (depending on Operating
mode)
Overvoltage category II
Pollution degree 2
Enclosure rating IP21
Approvals CE/CSA/CUS
Maximum speed 1500 rpm
3.4.2 Ambient conditions
Max. altitude above sea level 2000 m
Ambient temperature 5 – 35 °C
Maximum relative humidity 80 % for temperatures up to 31 °C
decreasing linearly to 50 % at 40 °C
The Vacuum Pump V-600 may only be used in indoor areas.
3.4.3 Materials
Component Material
Pump heads PEEK
Drive unit body Aluminum
Casing PBT
Diaphragms EPDM/PTFE
Valve plate PEEK
Valve body PEEK
Pump-head connecting tube FEP
Vacuum tubing Norprene
Non-return valve O-rings FKM
Page 18
4 | Transport and storage BÜCHI Labortechnik AG
18/65 Operation Manual Vacuum Pump V-600
4 Transport and storage
4.1 Transport
IMPORTANT
Risk of breakage due to incorrect transportation
u Make sure that all parts of the device are safely packed in such a way as to pre-
vent breakage, ideally in the original box.
u Avoid sharp movements during transit.
u After transportation, check the device for damage.
u Damage that has occurred in transit should be reported to the carrier.
u Keep packing for future transportation.
4.2 Storage
u Make sure that the ambient conditions are complied with (see Chapter3.4 "Tech-
nical data", page17).
u Wherever possible, store the device in its original packaging.
u After storage, check the device, all glass components, seals and tubing for dam-
age and replace if necessary.
Page 19
BÜCHI Labortechnik AG Installation | 5
Operation Manual Vacuum Pump V-600 19/65
5 Installation
5.1 Important considerations prior to commissioning
WARNING
Risk of irritation of mucous membranes and poisoning from inhalation
of hazardous gases and vapors.
In the process of evacuation it is possible that hazardous substances may be pumped
out at the same time and released into the atmosphere. In addition, it is possible for
such substances to collect as condensation at leaking connections.
u Operate the pump inside a fume hood.
u Direct vapors from the pump outlet into the fume hood.
u If necessary, wear a face mask and safety goggles.
u If necessary, only handle pump and accessories with protective gloves.
WARNING
Risk of fire or explosion from flammable solvent vapors.
In the process of evacuation, it is possible for solvent vapors to get into the inside of
the pump and catch fire or explode due to the electric current.
u Follow the guidance notes for the solvents used.
u Connect a Woulff bottle upstream of the pump intake.
u Operate the pump inside a fume hood.
CAUTION
Health risks when handling corrosive substances.
u When working with strong acids or caustic solutions, always wear personal protec-
tive equipment (safety goggles, protective clothing, protective gloves).
Page 20
5 | Installation BÜCHI Labortechnik AG
20/65 Operation Manual Vacuum Pump V-600
5.2 Installation site
IMPORTANT
Risk of property damage from falling equipment (e.g. in an earthquake)
u Secure the Vacuum Pump against falling by means of the lashing eye on the rear
of the device, see Chapter3.2.2 "Rear view", page12.
The installation site must meet the following requirements:
Firm and level surface: at least 330 mm x 330 mm (W x D)
Height: at least 300 mm
Set up inside a fume hood or
feed the pump outlet into the fume hood
Sufficient clearance on all sides of the device (approx. 10 cm) in order to ensure air
circulation
Clear air outlet at the rear (ventilation slots must be kept clear)
The V-600 is intended for use in laboratory environments. See Chapter3.4.2 "Ambient conditions", page17.
Page 21
BÜCHI Labortechnik AG Installation | 5
Operation Manual Vacuum Pump V-600 21/65
5.3 Securing against earthquakes
The Vacuum Pump V-600 has an earthquake fixing to protect the device against falling.
1
Fig.7: Lashing eye for securing against falling during earthquakes
1 Lashing eye
u Thread a strong cord or a wire through the lashing eye (1).
u Tie the strong cord or a wire to a fixed point.
Page 22
5 | Installation BÜCHI Labortechnik AG
22/65 Operation Manual Vacuum Pump V-600
5.4 Connecting laboratory equipment
1
2

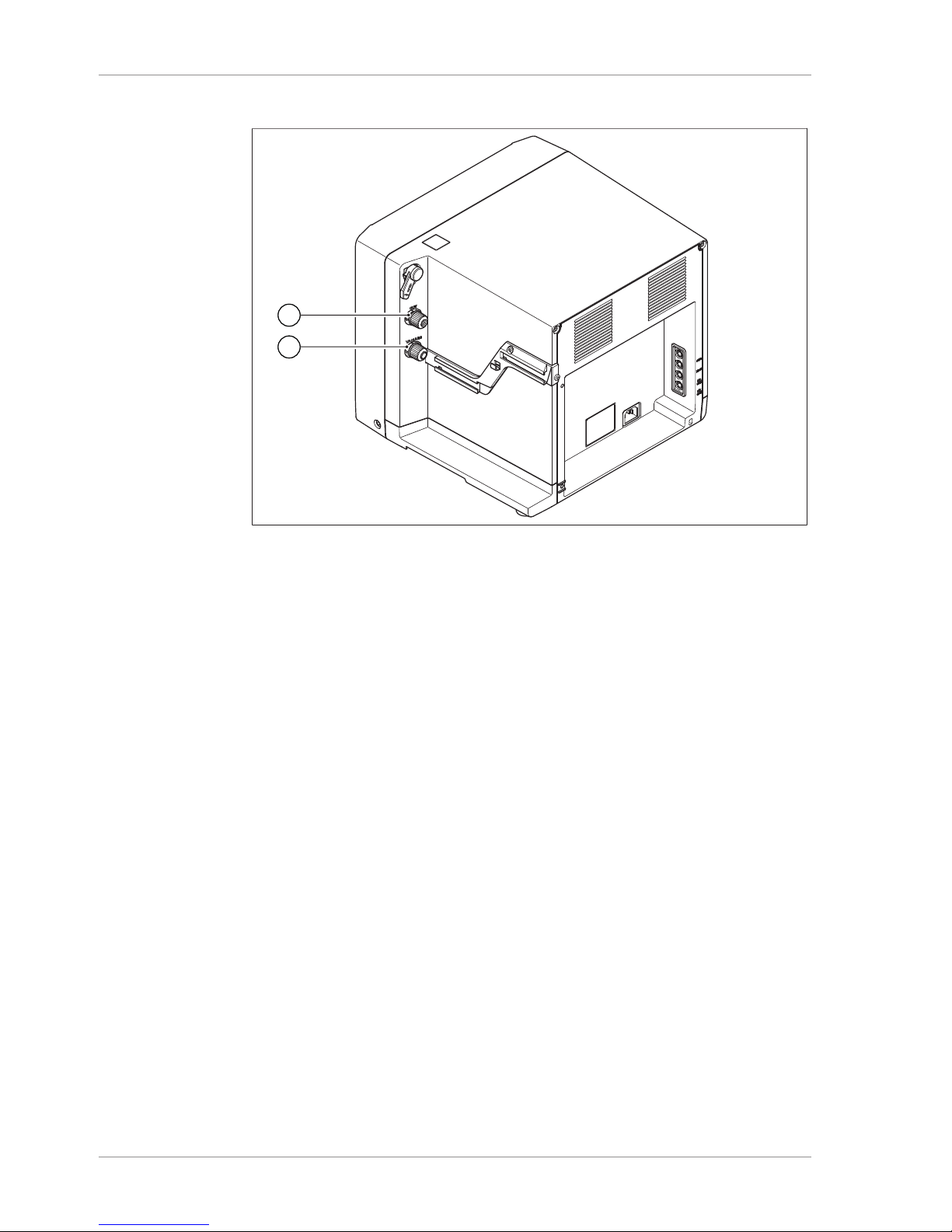

Fig.8: Connections for laboratory equipment on the V-600
1 Pump outlet 2 Pump intake (vacuum)
The laboratory apparatus to be evacuated is connected to the pump intake (2) of the
V-600 using a tube with a GL14 connection.
u Connect the tube to the pump intake (2) using the GL14 union nut.
If vapors are to be expected during evacuation, we recommend the following:
u Connect a Woulff bottle upstream of the pump intake (see Connecting a Woulff
bottle).
u Connect the tubing to the Woulff bottle inlet using a GL14 union nut and tube seal.
u Connect the laboratory equipment to be evacuated to the tube connected to the
Woulff bottle inlet.
For details of connecting the V-600 to other laboratory equipment, see Chapter5.13.3
"Overview: setting up vacuum tubing connections", page36.
Page 23
BÜCHI Labortechnik AG Installation | 5
Operation Manual Vacuum Pump V-600 23/65
5.5 Connecting the silencer
The silencer can be connected directly to the V-600 or to the outlet of a secondary
condenser.
5.5.1 Connecting silencer directly to V-600
1
2
3
Fig.9: Silencer on pump outlet of V-600
1 GL14 union nut on silencer inlet 3 Silencer outlet
2 Silencer
u Fit the silencer (2) on the pump outlet.
u Slide the GL14 union nut forward on the silencer inlet (1) and screw it onto the
GL14 thread of the pump outlet.
NOTE
A tube can be connected to the silencer outlet (3) to direct the exhaust air into a fume
hood.
Page 24
5 | Installation BÜCHI Labortechnik AG
24/65 Operation Manual Vacuum Pump V-600
5.5.2 Connecting the silencer to the outlet of the secondary condenser
3
1
2
Fig.10: Silencer on outlet of secondary condenser
1 Secondary condenser 3 Silencer
2 GL14 union nut
Precondition:
R A secondary condenser (1) is mounted on the pump outlet of the V-600 and con-
nected up, see Connecting a secondary condenser.
u Fit the silencer (3) on the secondary condenser outlet.
u Slide the GL14 union nut forward and tube seal on the silencer inlet (2) and screw
it onto the GL14 thread of the secondary condenser outlet.
Page 25
BÜCHI Labortechnik AG Installation | 5
Operation Manual Vacuum Pump V-600 25/65
5.6 Connecting a Woulff bottle
1
2
4
3
5
6
7
8
Fig.11: Woulff bottle on pump inlet of V-600
1 Pump intake (vacuum) 5 Woulff bottle inlet
2 Vacuum connecting tube 6 Mounting rail on V-600
3 Woulff bottle outlet 7 Outlet for VacuBox connection
4 Woulff bottle glass component 8 Woulff bottle holder
The Woulff bottle is fixed to a mounting rail on the V-600 and is connected to the
pump intake.
u Fit the holder (8) around the neck of the Woulff bottle.
u Fit a short section of vacuum tubing (2) to the outlet of the Woulff bottle (3).
u Slide a GL14 union nut with tube seal over the unattached end of the vacuum
tube.
u Position the Woulff bottle in front of the pump inlet (1) of the V-600. Slide the
holder into the lower slot of the mounting rail (6). When doing so, make sure that
the outlet of the Woulff bottle with connecting tube attached is facing the pump inlet.
u Insert connecting tube (2) in the pump inlet (1) and screw GL14 union nut onto the
thread of the pump inlet.
5.6.1 Connecting the Vacubox via a Woulff bottle
If the Vacuum Pump V-600 is to be controlled via an Interface I-300, the Woulff bottle
must be connected to the VacuBox by a connecting tube.
Page 26
5 | Installation BÜCHI Labortechnik AG
26/65 Operation Manual Vacuum Pump V-600
1
2
4
5
3
Fig.12: Woulff bottle tubing connections
1 Vacuum connection on VacuBox 4 Woulff bottle inlet
2 VacuBox 5 Vacuum connection on cooling con-
denser
3 Outlet for VacuBox connection
Precondition:
R Woulff bottle is mounted on and connected to the V-600.
R VacuBox (2) is mounted on the Vacuum Pump V-600, see Chapter5.10 "Fitting a
VacuBox", page30.
u Fit a connecting tube to the outlet of the Woulff bottle (3) and the vacuum connec-
tion of the VacuBox (1).
u If necessary, fit a connecting tube to the inlet of the Woulff bottle (4) and the vac-
uum connection of the cooling condenser (5).
u Connect the communication cable, see Chapter5.12 "Connecting communication
cables to the V-600", page32.
NOTE
In a BUCHI distillation system, the VacuBox and Woulff bottle can alternatively be
mounted on the Rotavapor instead of on the Vacuum Pump V-600. What is important
is that the VacuBox and Woulff bottle are as close as possible to each other (on the
same device) as otherwise there is a vacuum control lag. If the VacuBox and Woulff
bottle are mounted on and connected to the Rotavapor, the relevant sections of the
operating instructions for the Rotavapor R-300 must be followed.
Page 27
BÜCHI Labortechnik AG Installation | 5
Operation Manual Vacuum Pump V-600 27/65
5.7 Connecting a secondary condenser
1
2
4
5
3
6
9
10
7
8
11

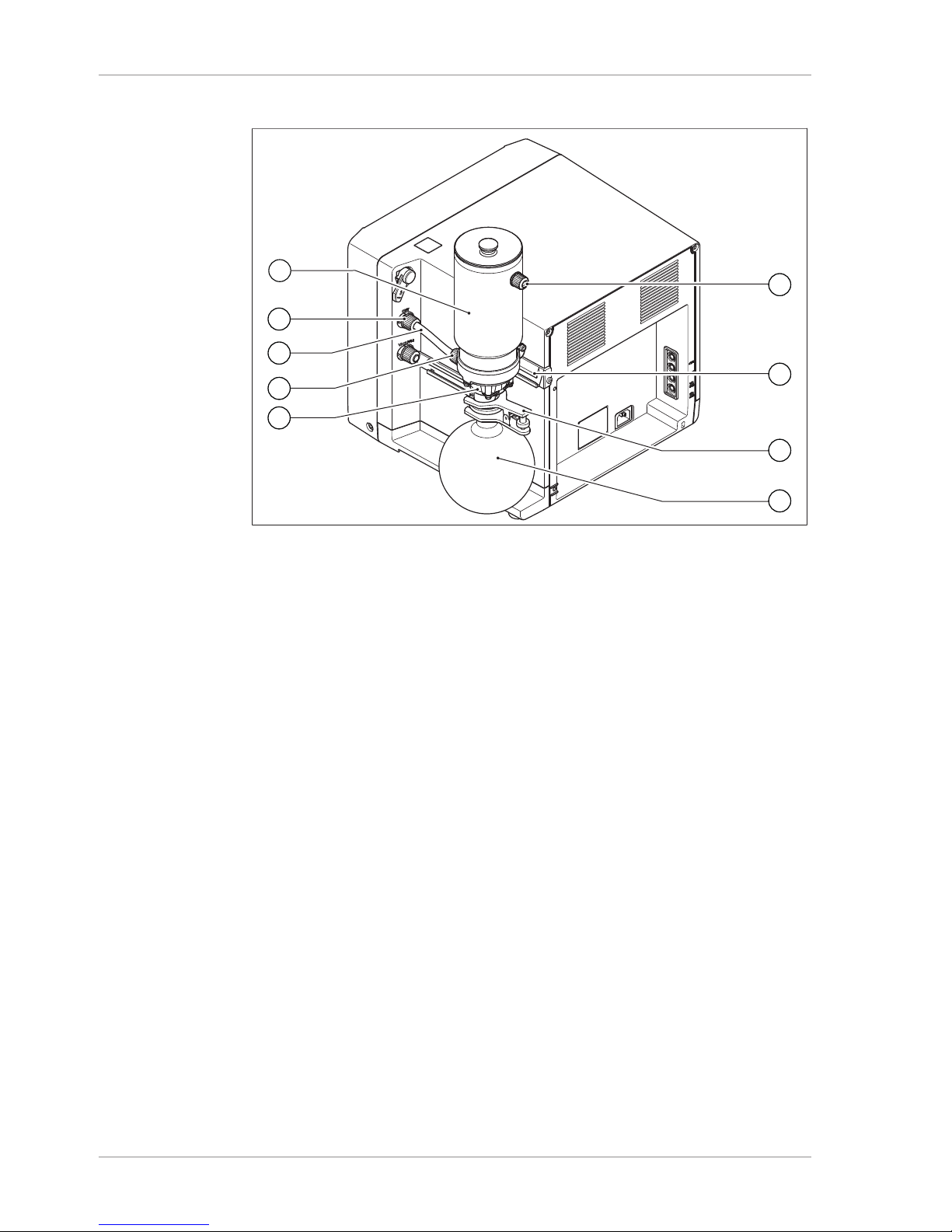

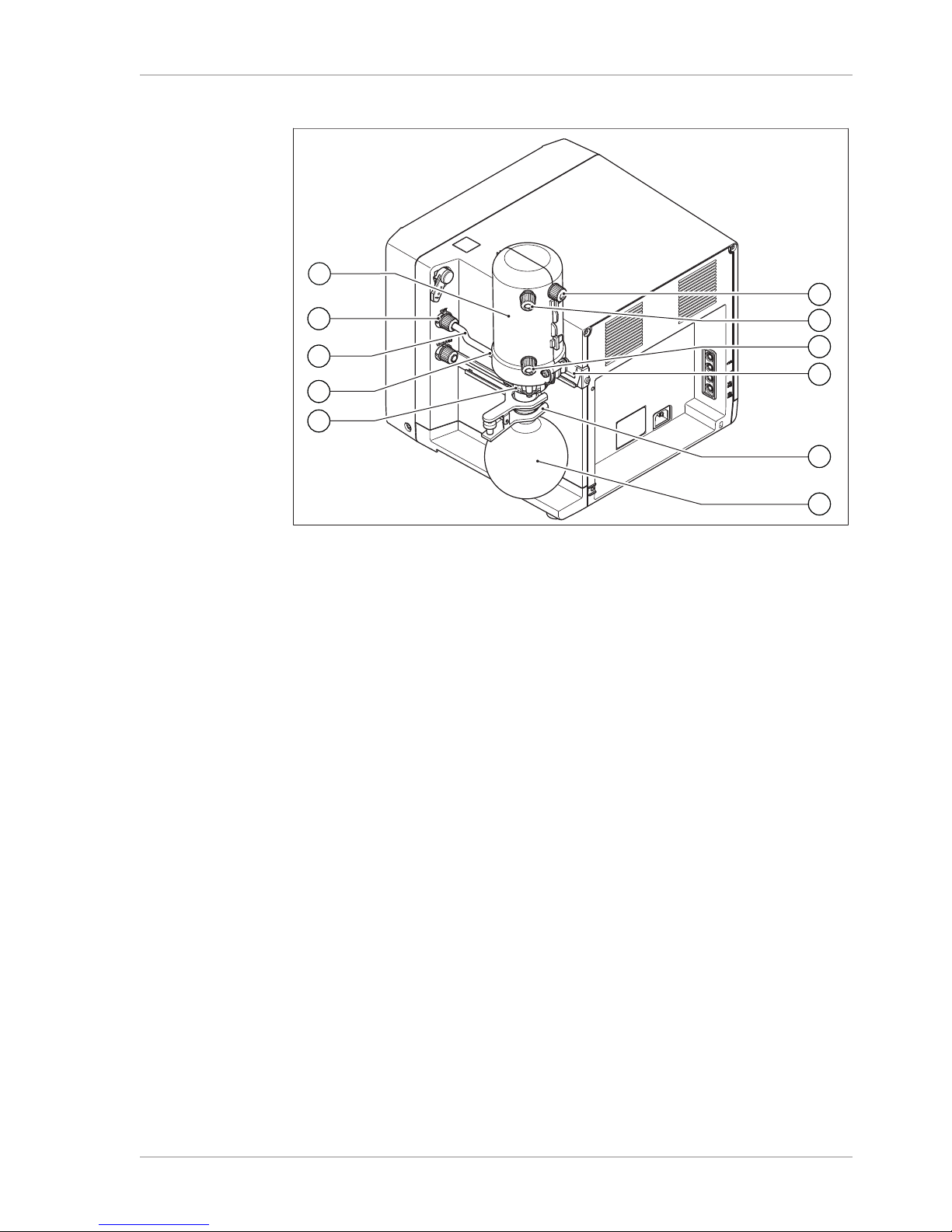

Fig.13: Secondary condenser connected to pump outlet of V-600
1 Secondary condenser 7 Coolant outlet
2 Pump outlet with GL14 union nut 8 Coolant inlet
3 Connecting tube 9 Mounting rail on V-600
4 Secondary condenser inlet 10 Ball joint clamp
5 Holder for secondary condenser 11 Receiving flask
6 Secondary condenser outlet
The secondary condenser is fixed to a mounting rail on the V-600 (9) and is connected to the pump outlet (2).
u Fit a short connecting tube (3) to the secondary condenser inlet (4).
u Loosely screw a GL14 union nut together with tube seal onto the thread of the
pump outlet (2), Chapter7.2.8 "Fitting GL14 union nut with tube seal", page55.
NOTICE!If incorrectly fitted, the tube seals may be damaged.
u Position the secondary condenser in front of the pump outlet of the V-600. Slide
the holder into the upper slot of the mounting rail (7). When doing so, make sure
that the inlet of the secondary condenser with connecting tube attached is facing
the pump outlet.
u Insert the connecting tube into the threaded pump outlet connector, taking care
not to damage the tube seal when doing so.
u Tighten the GL14 union nut.
u Fit receiving flask (11) onto the bottom outlet of the secondary condenser and fix
with the aid of a catchpot clip (10).
u Optional feature: From the outlet of the secondary condenser (6), feed another
connecting tube directly into a fume hood.
Page 28
5 | Installation BÜCHI Labortechnik AG
28/65 Operation Manual Vacuum Pump V-600
5.8 Connecting a secondary cold trap
1
2
4
5
3
6
7
8
9
Fig.14: Secondary cold trap and holder
1 Secondary cold trap 6 Secondary cold trap outlet
2 Pump outlet with GL14 union nut 7 Mounting rail on V-600
3 Connecting tube 8 Ball joint clamp
4 Secondary cold trap inlet 9 Receiving flask
5 Holder for secondary cold trap
The secondary cold trap is fixed to a mounting rail on the V-600 in the same way as
the secondary condenser (see Chapter5.7 "Connecting a secondary condenser",
page27) and is connected to the pump outlet.
u Fit a short connecting tube (3) to the secondary cold trap inlet (4).
u Loosely screw a GL14 union nut together with tube seal onto the thread of the
pump outlet (2), Chapter7.2.8 "Fitting GL14 union nut with tube seal", page55.
NOTICE!If incorrectly fitted, the tube seals may be damaged.
u Position the secondary cold trap in front of the pump outlet of the V-600. Slide the
holder into the upper slot of the mounting rail (7). When doing so, make sure that
the inlet of the secondary cold trap with connecting tube attached is facing the
pump outlet.
u Insert the connecting tube into the threaded pump outlet connector, taking care
not to damage the tube seal when doing so.
u Tighten the GL14 union nut.
u Fit receiving flask (9) onto the bottom outlet of the secondary cold trap and fix with
the aid of a ball joint clamp (8).
u From the outlet (6) of the secondary cold trap, feed another connecting tube di-
rectly into a fume hood.
Page 29
BÜCHI Labortechnik AG Installation | 5
Operation Manual Vacuum Pump V-600 29/65
5.9 Fitting an Interface I-300
2
1
3
4
5
5
6
7

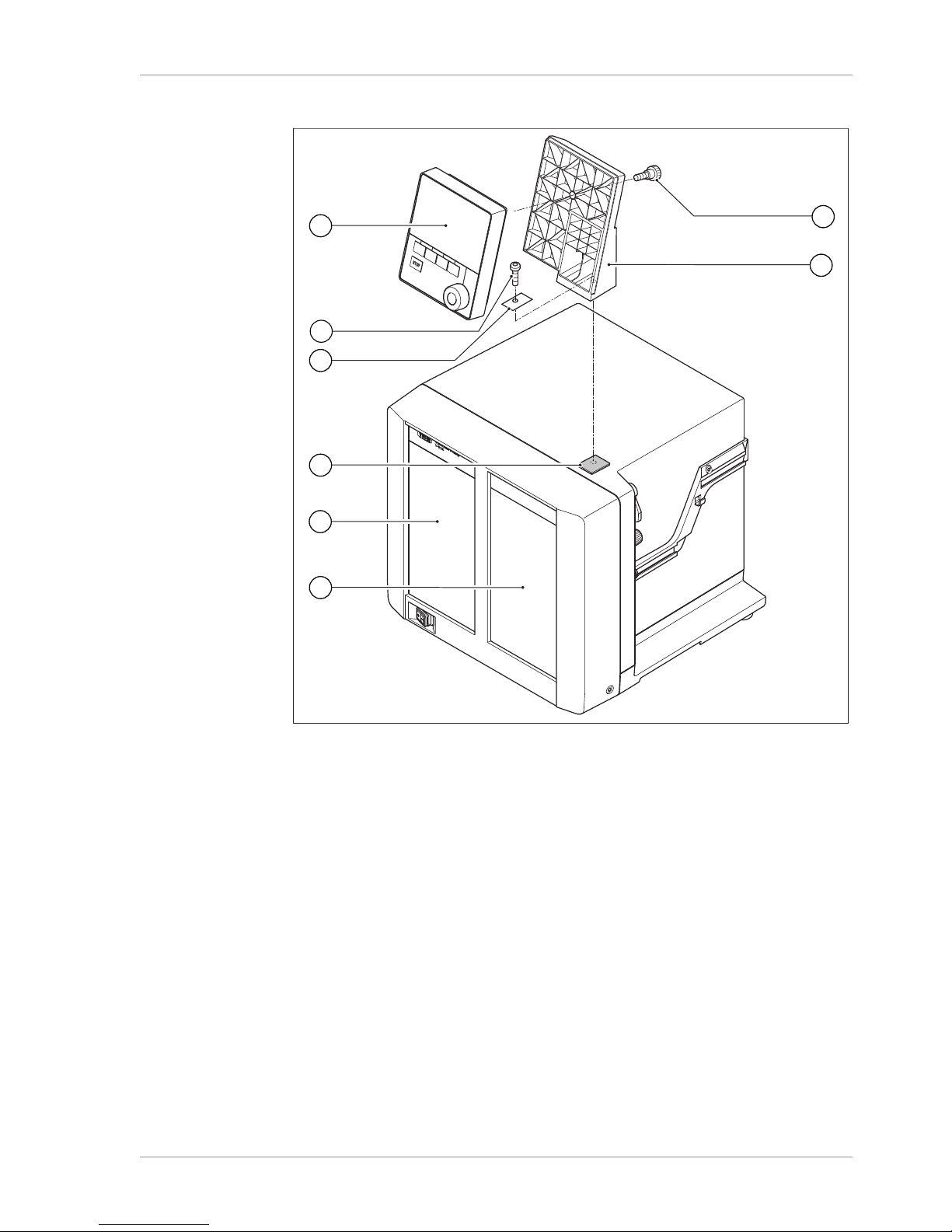

Fig.15: Holder for fitting the Interface I-300
1 Interface I-300 5 Casing front of V-600
2 Fixing screw for holder 6 Knurled-head screw
3 Metal plate 7 Holder
4 Rubber plug and threaded hole
Tools required:
Torx key Tx25
The Interface I-300 can be mounted on the top of the Vacuum Pump V-600 using a
holder.
u Remove the rubber plug (4) from the top panel of the vacuum pump. Use a screw-
driver if necessary.
Underneath the rubber plug is a threaded hole for a screw.
u Position the holder (7) over the threaded hole (4) and fix it in place using the screw
(2) supplied. When doing so, pass the screw through the hole in the metal plate
(3).
u Feed the communication cable through the holder from the rear and connect it to
the COM port on the back of the interface unit.
Page 30
5 | Installation BÜCHI Labortechnik AG
30/65 Operation Manual Vacuum Pump V-600
u Position the interface unit (1) on the holder and fix it in place using a knurled-head
screw (6) inserted from the back.
5.10 Fitting a VacuBox
Fitting and connection of a VacuBox to the V-600 are necessary if the pump is to be
controlled via an Interface I-300/I-300 Pro. For details, see Chapter5.13 "Assembling
the BUCHI distillation system", page33.
3
2
2
1

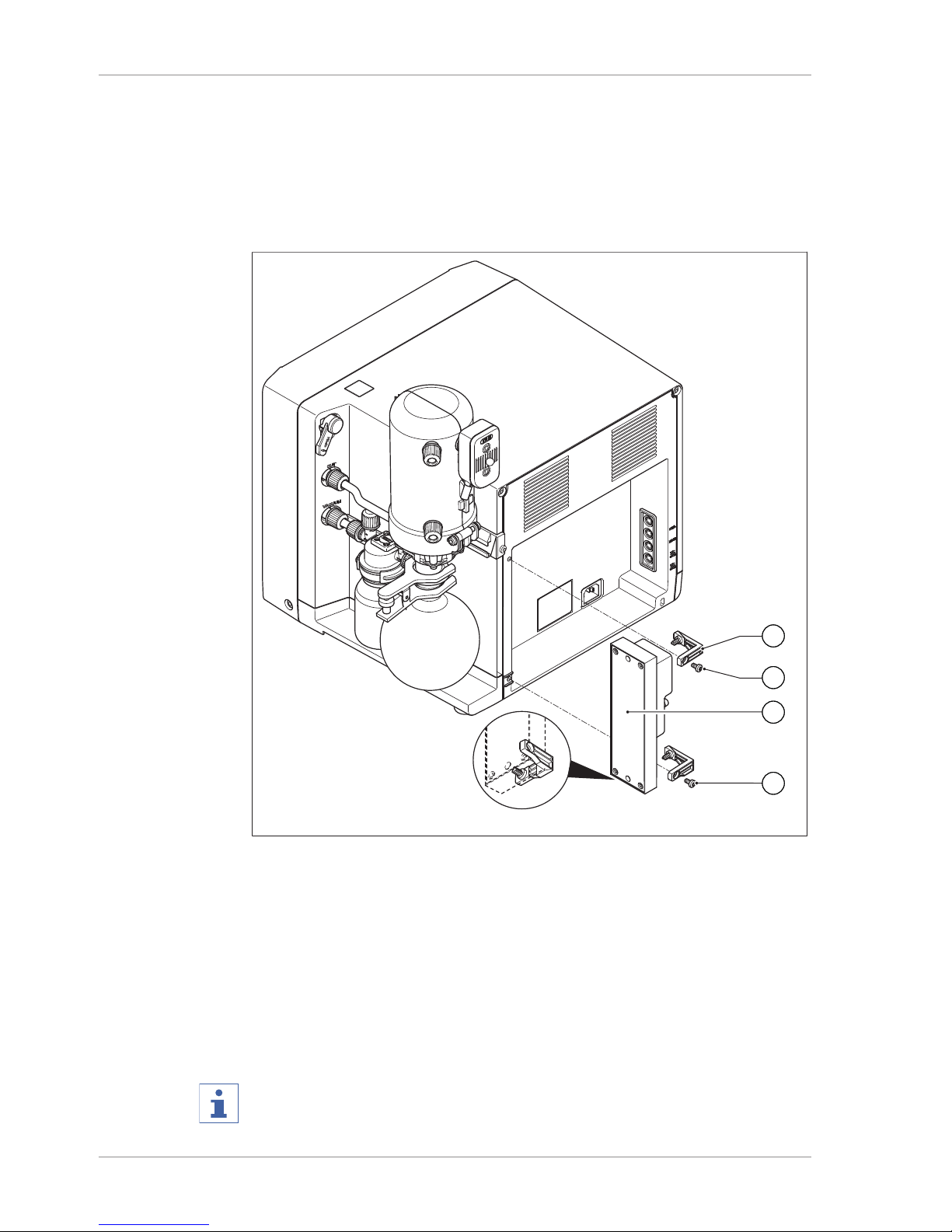

Fig.16: VacuBox on V-600
1 Fixing brackets 3 VacuBox
2 Screws
Tools required:
Torx key Tx10
u Press fixing brackets (1) into the holes in the top and bottom of the VacuBox. The
wider of the two fixing brackets has to be fitted at the bottom.
u Position the VacuBox (3) on the rear of the V-600 on the left inner face of the re-
cess.
u Fix each fixing bracket to the casing of the V-600 with a screw (2).
NOTE
If a VacuBox is fitted, a Woulff bottle is a compulsory requirement.
Page 31
BÜCHI Labortechnik AG Installation | 5
Operation Manual Vacuum Pump V-600 31/65
5.11 Connecting the vacuum pump to the power supply
1

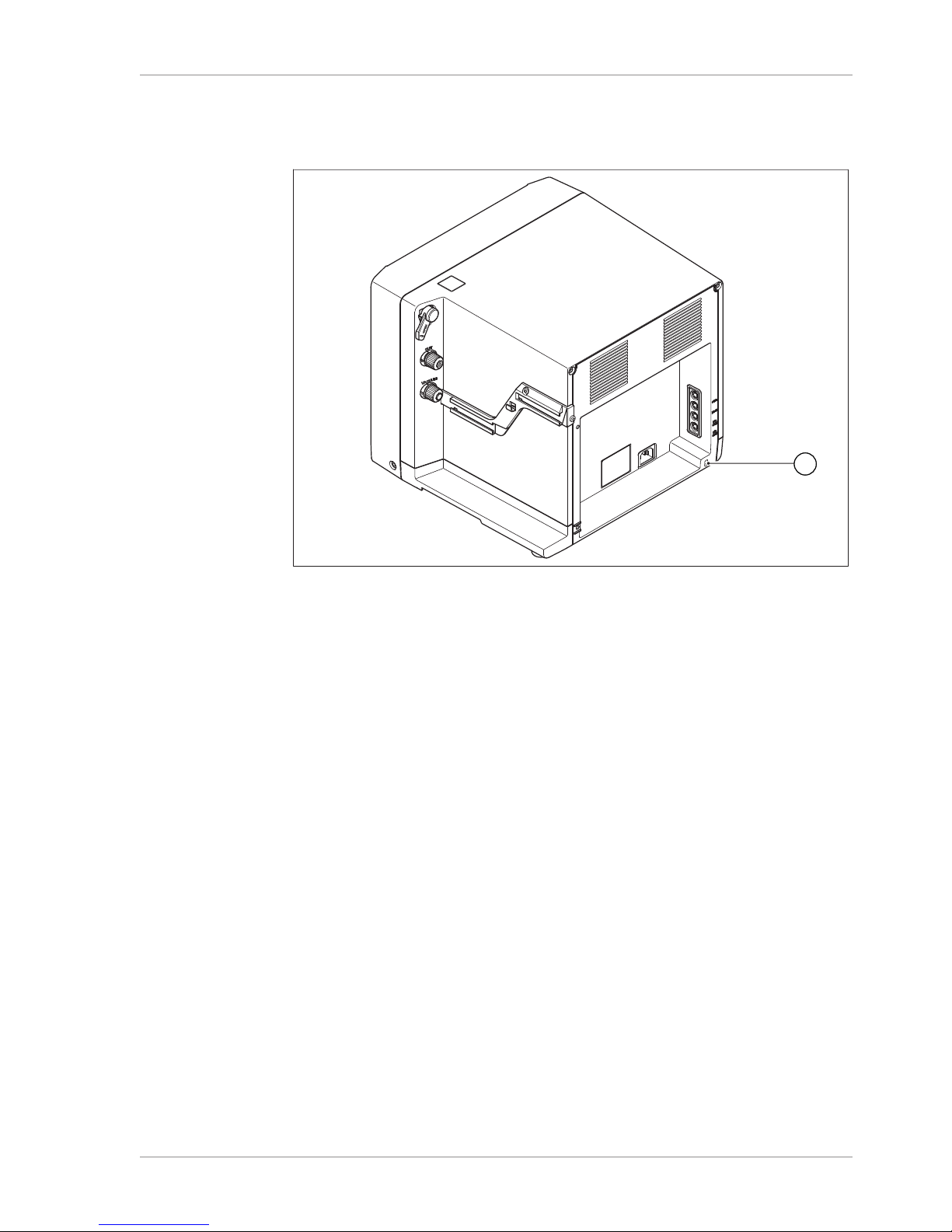

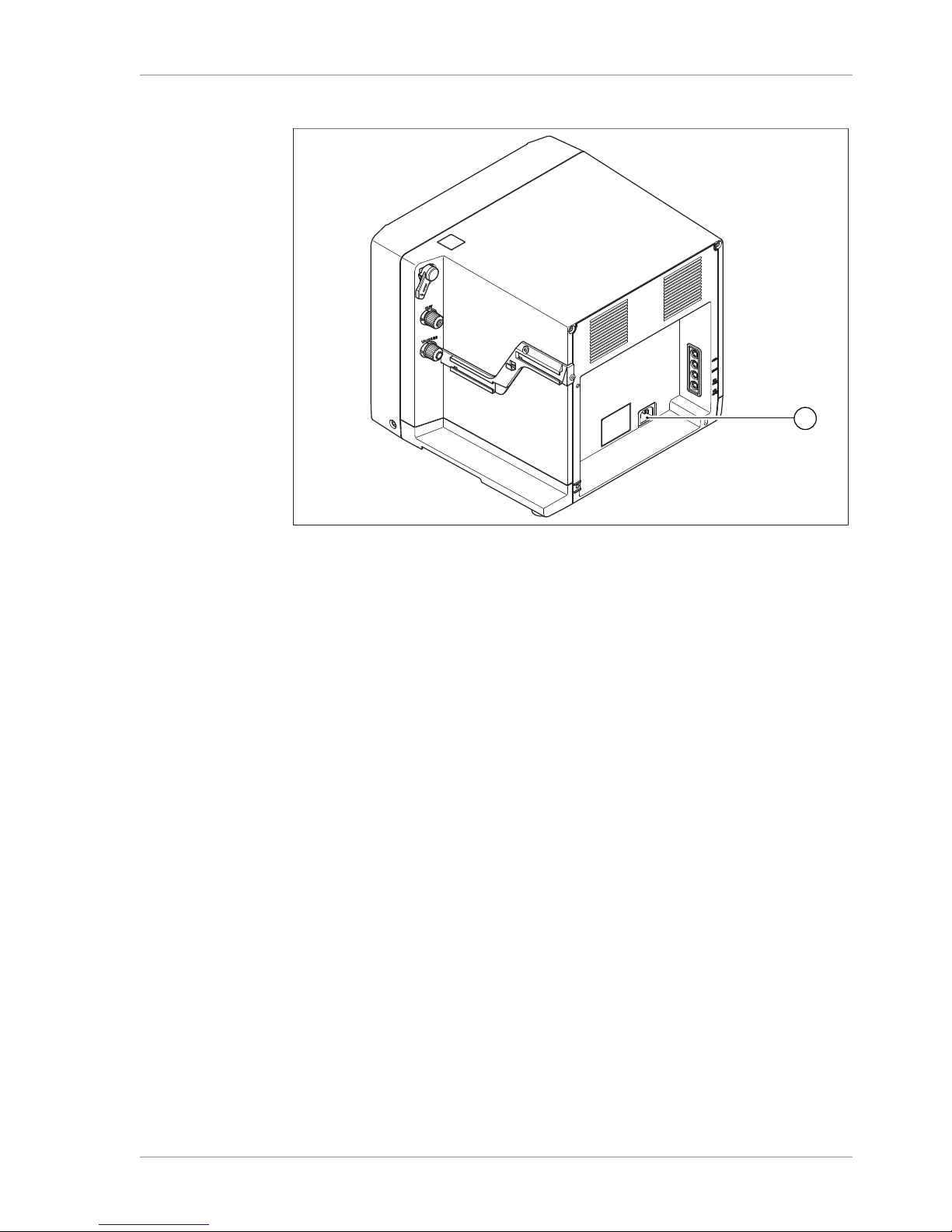

Fig.17: Electrical connections on the V-600
1 Power supply connection
u Plug the power cord into the power supply socket (1) on the pump and then into a
mains power socket. Make sure that the available power supply matches the rating indicated on the type plate.
Page 32
5 | Installation BÜCHI Labortechnik AG
32/65 Operation Manual Vacuum Pump V-600
5.12 Connecting communication cables to the V-600
1
2
3

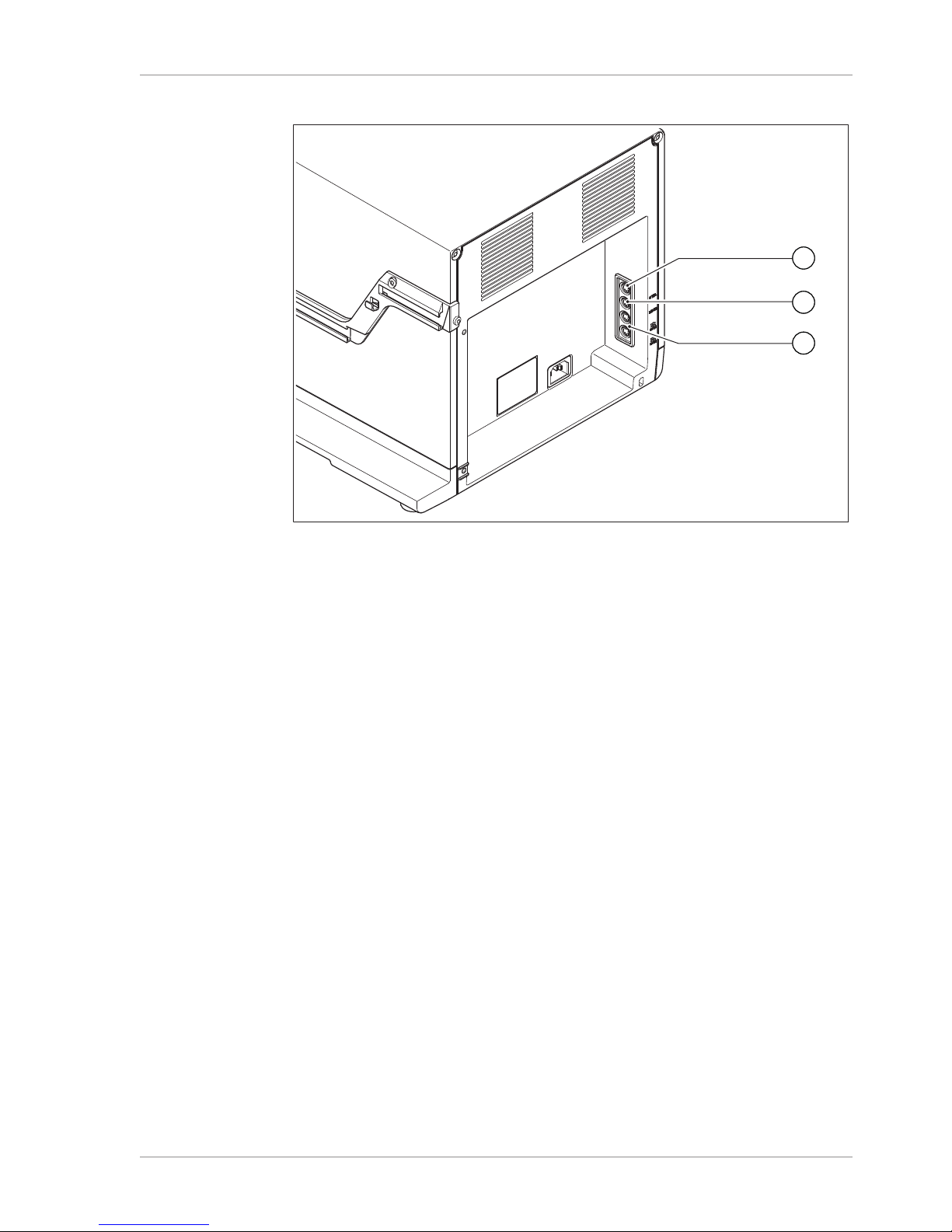

Fig.18: Communication connections on V-600
1 Connection for alternative pump con-
troller (CTRL)
3 Standard BUCHI communication
ports (COM)
2 Fill level sensor connection (LEVEL)
u Plug the communication cable for connection to other BUCHI laboratory equip-
ment into one of the two standard BUCHI communication ports (3).
u Plug the communication cable into the green communication port on the other item
of laboratory equipment. For details of connecting the equipment via the communication ports see Chapter5.13.1 "Overview: setting up communication connections", page34.
Page 33
BÜCHI Labortechnik AG Installation | 5
Operation Manual Vacuum Pump V-600 33/65
5.13 Assembling the BUCHI distillation system
In order to use the Vacuum Pump to best effect, we recommend that it is used together with the following equipment:
3
4
5
1
3
4
5

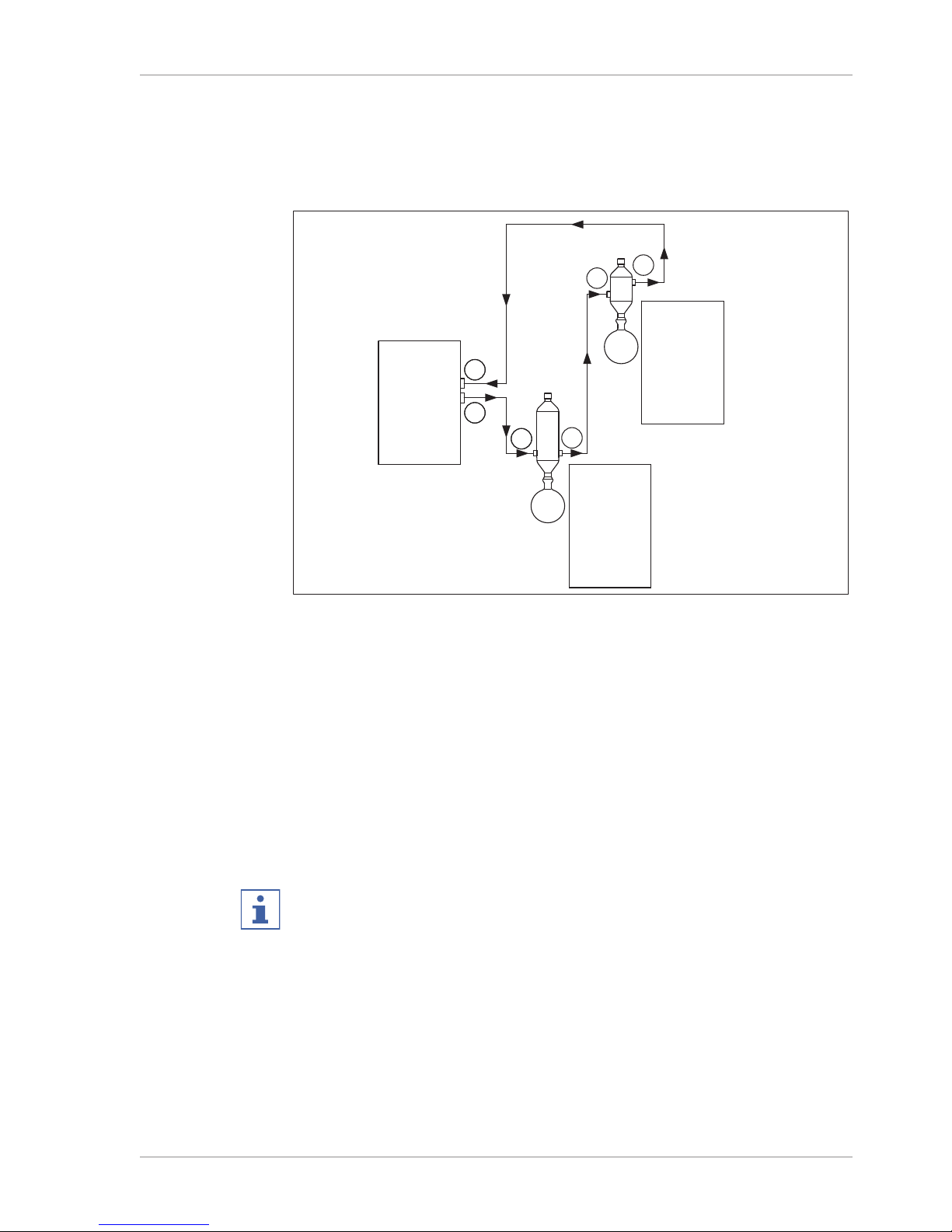

Fig.19: Typical application (example)

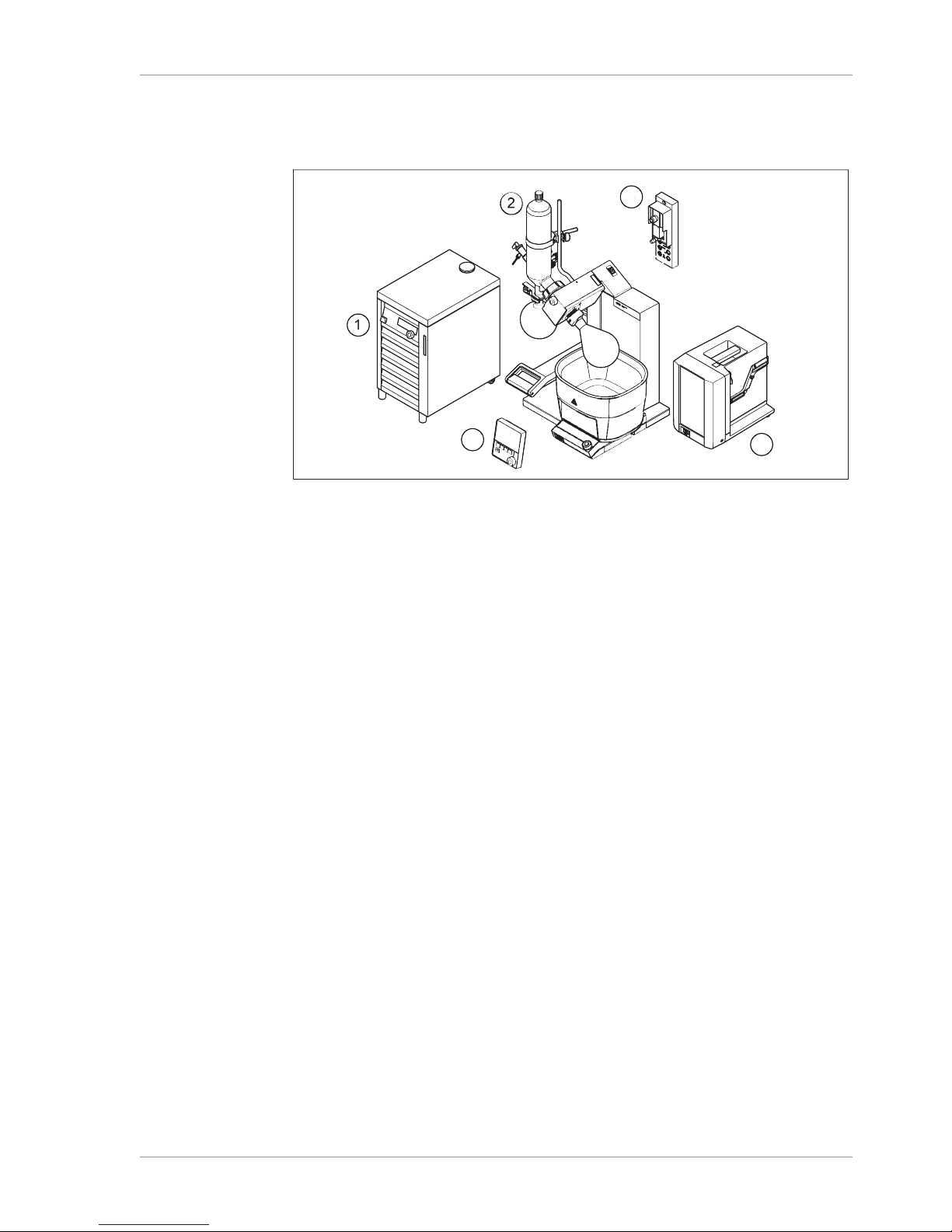

1 Recirculating Chiller F-3xx 4 Vacuum Pump V-300/V-600
2 Rotavapor R-300 with heating bath
B-305 or B-301
5 Interface I-300
3 VacuBox
The F-3xx is a recirculating chiller with a sealed circulation system. It is available in
various capacity ratings.
The Interface I-300/I-300 Pro together with the VacuBox can be used to control and
monitor the vacuum. It can control the Rotavapor, the Vacuum Pump V-300/V-600
and the Recirculating Chiller F-3xx.
The Vacuum Pump V-300/V-600 is a diaphragm pump designed for evacuating laboratory apparatus. It can be operated either as a standalone device or combined with
optional accessories such as an interface unit and a secondary condenser to form a
complete vacuum system. The laboratory equipment to be evacuated is connected to
the vacuum pump and the VacuBox by means of vacuum tubing. See Chapter5.13.3
"Overview: setting up vacuum tubing connections", page36.
Data communication between the laboratory equipment takes place via the communication ports. See Chapter5.13.1 "Overview: setting up communication connections",
page34.
The coolant circulates around the distillation system through a separate circulation
system. See Chapter5.13.2 "Overview: setting up coolant tubing connections",
page35.
Page 34
5 | Installation BÜCHI Labortechnik AG
34/65 Operation Manual Vacuum Pump V-600
5.13.1 Overview: setting up communication connections
The laboratory apparatus can be connected in any order. Important: as well as the
Interface I-300/I-300 Pro, a VacuBox also has to be connected.
Below is an example of the connections between the laboratory apparatus.
Vacu
Box
Recirculating
Chiller F-3XX
Interface I-300/
I-300 Pro
Rotavapor
R-300
Vacuum Pump
V-300 / V-600

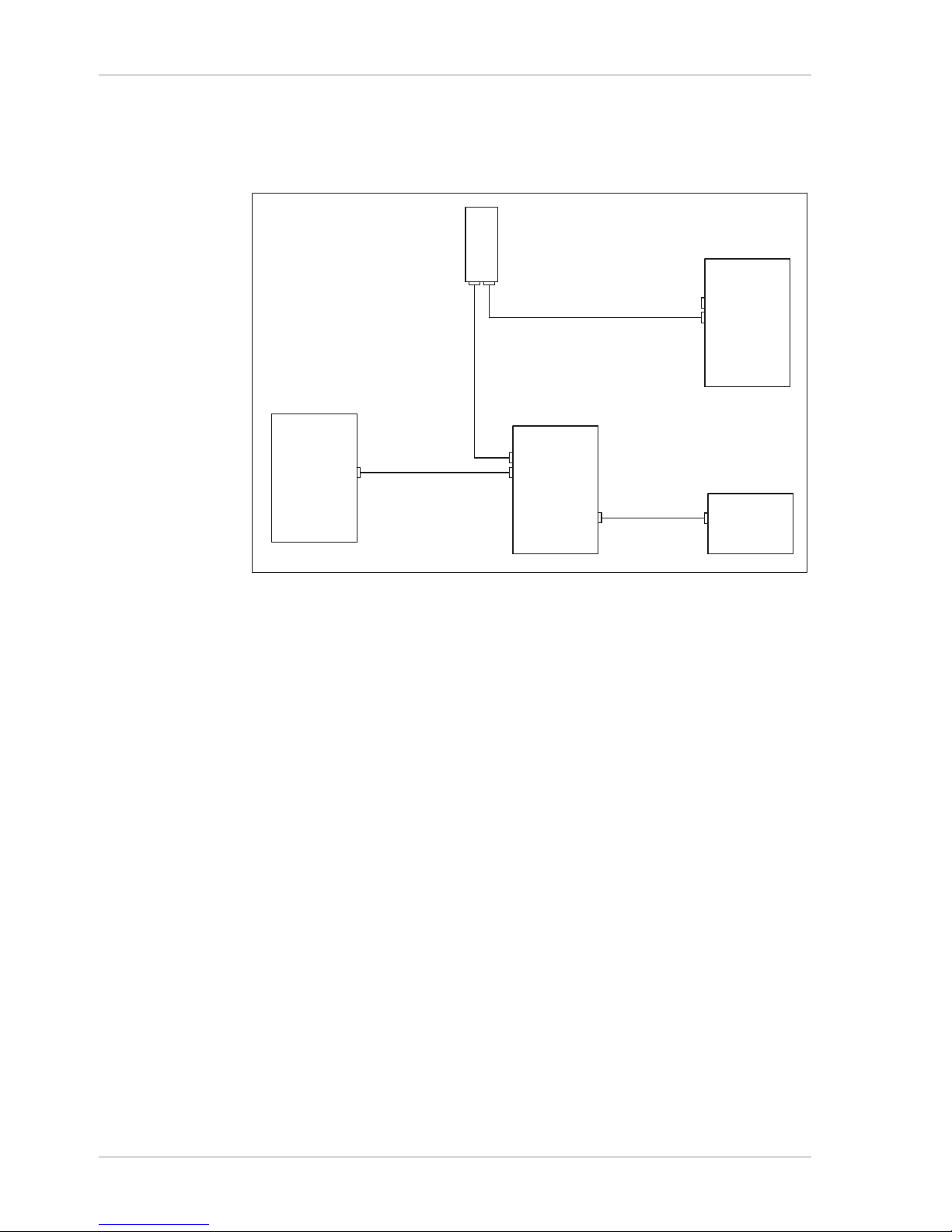

Fig.20: Schematic diagram of communication connections between the BUCHI laboratory
equipment (example)
u Connect the Recirculating Chiller F-3xx to the Rotavapor R-300.
u Connect the Rotavapor R-300 to the VacuBox.
u Connect the VacuBox to the Vacuum Pump V-300/V-600.
u Connect Rotavapor to the Interface I-300/I-300 Pro.
Page 35
BÜCHI Labortechnik AG Installation | 5
Operation Manual Vacuum Pump V-600 35/65
5.13.2 Overview: setting up coolant tubing connections
The tubing connections between the various items of BUCHI laboratory equipment
form a sealed circulation system. The starting and finishing point is always the recirculating chiller (F-3xx).
Below is an example of the tubing connections between the laboratory apparatus.
Recirculating
Chiller F-3XX
Rotavapor
R-300
Vacuum Pump
V-300 / V-600
2
3
6
4
1
5

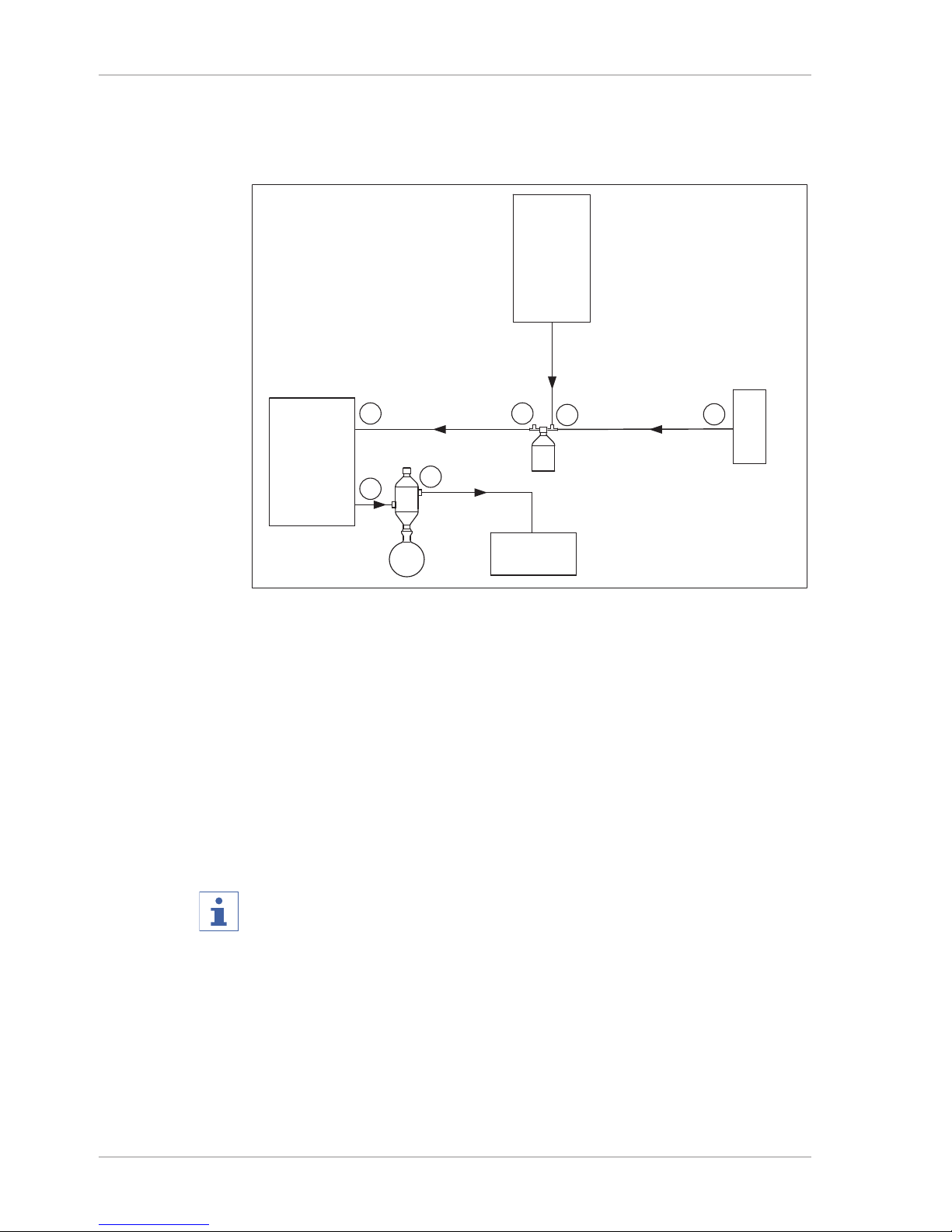

Fig.21: Coolant tubing connections in a BUCHI distillation system (example)
1 Inlet on Recirculating Chiller F-3xx 4 Condenser outlet on Rotavapor
R-300
2 Outlet on Recirculating Chiller F-3xx 5 Secondary condenser inlet on Vac-
uum Pump V-300/V-600
3 Condenser inlet on Rotavapor R-300 6 Secondary condenser outlet on Vac-
uum Pump V-300/V-600
u Connect a tube between the outlet of the recirculating chiller (2) and the inlet of
the condenser on the Rotavapor R-300 (3).
u Connect a tube between the outlet of the condenser on the Rotavapor R-300 (4)
and the inlet of the secondary condenser on the Vacuum Pump V-300/V-600 (5).
u Connect a tube between the outlet of the secondary condenser on the Vacuum
Pump V-300/V-600 (6) and the inlet of the recirculating chiller (1).
NOTE
Use GL14 hose barbs for the tubing connections.
Secure tubes with spring clips where necessary.
Page 36
5 | Installation BÜCHI Labortechnik AG
36/65 Operation Manual Vacuum Pump V-600
5.13.3 Overview: setting up vacuum tubing connections
The vacuum tubing connections in a typical BUCHI distillation system lead from the
Rotavapor R-300 via a Woulff bottle to the Vacuum Pump V-300/V-600. The vacuum
is measured by means of the VacuBox, which is also connected to the Woulff bottle.
Vacu
Box
Rotavapor
R-300
Vacuum Pump
V-300 / V-600
Extraction
device
5
6
3
2
1
4
Fig.22: Coolant tubing connections in a BUCHI distillation system
1 Secondary condenser outlet 4 Woulff bottle outlet (PUMP)
2 Vacuum Pump V-300/V-600 outlet 5 Woulff bottle inlet (CONTR)
3 Vacuum Pump V-300/V-600 inlet 6 VacuBox vacuum connection
u Connect a tube between the Rotavapor R-300 and the top inlet of the Woulff bot-
tle.
u Connect a tube between the outlet of the Woulff bottle marked PUMP (4) and the
pump inlet (3).
u Connect the secondary condenser to the pump outlet (2).
u For measuring and controlling the vacuum, connect a tube between the inlet of the
Woulff bottle marked CONTR (5) and the VacuBox (6).
The pressure is measured in the VacuBox. The current working pressure can be indicated and controlled by means of the Interface I-300/I-300 Pro.
NOTE
The VacuBox and Woulff bottle can be mounted either on the Rotavapor R-300 or
the Vacuum Pump V-300/V-600. What is important is that the VacuBox and Woulff
bottle are as close as possible to each other (on the same device) as otherwise there
is a vacuum control lag.
Page 37
BÜCHI Labortechnik AG Installation | 5
Operation Manual Vacuum Pump V-600 37/65
5.14 Operating the Vacuum Pump V-600 with 2 Rotavapor systems
It is possible to simultaneously operate 2 Rotavapor systems with only one Vacuum
Pump V-600. This involves using the alternative pump control connection (CTRL) on
the V-600, see Chapter3.2.3 "Connections", page13.
NOTE
The pump speed is then no longer controlled.
The following equipment and accessories are required:
2x Rotavapor
2x Interface I-300/I-300 Pro
2x Valve unit
2x VacuBox
1x Y-cable
2x Standard BUCHI communication cable
1x Vacuum Pump V-600
If an R-300 is not used: 2x mains adaptor and lead
Page 38
5 | Installation BÜCHI Labortechnik AG
38/65 Operation Manual Vacuum Pump V-600
VacuBox
VacuBox
Valve Unit
Valve Unit
V-600
I-300 /
I-300 Pro
I-300 /
I-300 Pro
Rotavapor
R-300
Rotavapor
R-300
1
D
B
B
1
2
1
3
1
3
4
4
6
5
2
A
A
D
C

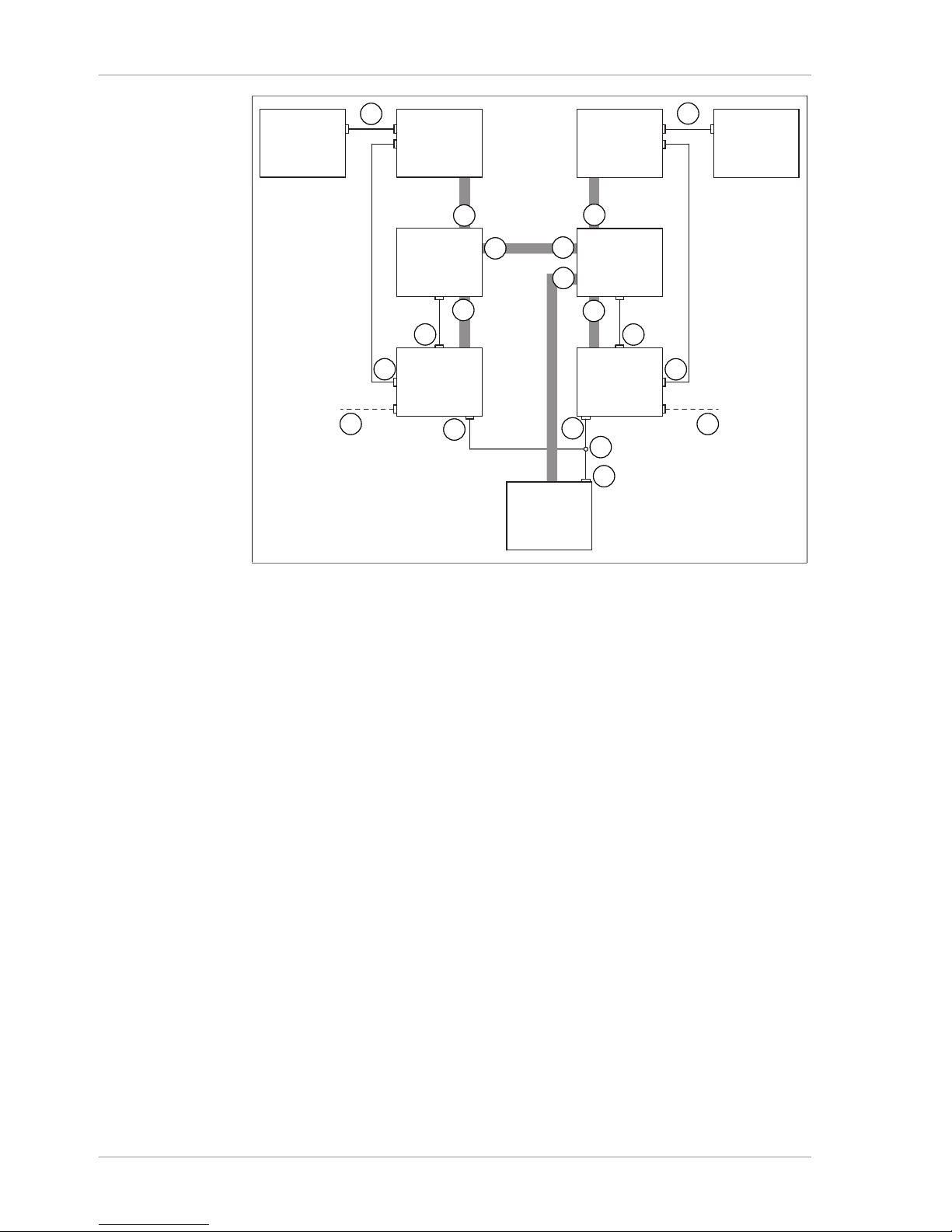

Fig.23: Schematic diagram of connections when using 2 Rotavapor systems
1 Standard BUCHI communication
ports (COM)
A Woulff bottle inlet (1)
2 Connection for valve unit (VALVE) B Woulff bottle inlet (CONTR)
3 Optional feature: Mains adaptor and
lead
C Woulff bottle inlet (2)
4 Connection for Y cable on VacuBox
(CW)
D Woulff bottle outlet (PUMP)
5 Y cable (8-pin MiniDIN CTRL)
6 Connection for alternative pump con-
troller (CTRL) on V-600
u Connect up each set of 1 Rotavapor R-300, 1 Interface I-300/I-300 Pro and 1 Vac-
uBox via the standard BUCHI communication ports (1).
u Connect vacuum tubing from each valve unit to one Rotavapor R-300 and one
VacuBox. To do so, use the CONTR inlets (B) for the Woulff bottle.
u Connect each valve unit to one VacuBox using the connection marked VALVE (2).
u Connect a tube between the two valve units. To do so, use the outlets (PUMP) for
the Woulff bottle.
u Plug a Y cable (5) into the CW connections (4) of the two VacuBoxes and connect
it to the Vacuum Pump V-600 using the CTRL connection (5).
u Connect a tube between one valve unit and the Vacuum Pump V-600. Use the
connection marked PUMP on the valve unit for this purpose.
u If a Rotavapor R-300 is not used, connect each VacuBox to the external power
supply by means of a mains adaptor (3).
Page 39
BÜCHI Labortechnik AG Operation | 6
Operation Manual Vacuum Pump V-600 39/65
6 Operation
CAUTION
Risk of implosion of damaged glass components
Risk of injury from glass splinters and escaping fluids
u Always inspect all glass components for damage every time they are to be used.
CAUTION
Potential danger of inactive cooling during distillation
Risk of burns if solvent vapors are ignited
u Always monitor the function of the cooling system.
6.1 Operating V-600 without Interface I-300/I-300 Pro
If not controlled by an Interface I-300/I-300 Pro, the Vacuum Pump V-600 runs in continuous mode and switches to energy saving mode after one hour, see Chapter3.1
"Description of function", page11.
u To start the pump, switch on the master switch on the front of the V-600.
6.2 Operating V-600 with Interface I-300/I-300 Pro
The Vacuum Pump V-600 can also be externally controlled by an Interface I-300/
I-300 Pro. Control encompasses the following parameters and functions:
Setting the required vacuum
Timer
More information on overall control of distillation processes comprising the V-600 and
other laboratory equipment can be found in the operating instructions for the Interface
I-300/I-300Pro.
Page 40
7 | Cleaning and servicing BÜCHI Labortechnik AG
40/65 Operation Manual Vacuum Pump V-600
7 Cleaning and servicing
NOTE
Users may only carry out the servicing and cleaning operations described in this section.
Any servicing and repair work which involves opening up more than the casing front
may only be carried out by authorized service technicians.
u Use only genuine BUCHI consumables and spare parts in order to ensure correct
operation of the device and preserve the warranty.
u Before carrying out any servicing work, switch off the device and disconnect it
from the power cable.
7.1 Cleaning
7.1.1 Important considerations when cleaning
WARNING
Risk of fatal injury from electric shock.
If the pump is opened up while it is running there is a risk of dangerous electric
shocks.
u Before carrying out any cleaning or servicing work, always shut down the device
and disconnect the power cable.
7.1.2 Cleaning the pump
The pump only needs to be cleaned if the terminal vacuum is no longer achieved, dirt
is visible through the inspection window or after using certain chemicals. Daily cleaning of the pump is not necessary.
u Detach tubing connections to other laboratory equipment.
u If present, remove Woulff bottle from pump intake and secondary condenser or
cold trap from pump outlet and clean them.
u Hold several paper towels in front of the pump outlet.
u Switch on the Vacuum Pump V-600 and allow it to run.
u Spray 5 to 10 mL of acetone or ethanol into the pump intake.
u Hold your finger over the pump intake for a short time so that a vacuum is created.
u Remove your finger from the pump intake again.
u Allow the pump to run until there is no more liquid inside the pump heads.
u If necessary, repeat the process of flushing with acetone/ethanol and evacuating.
u Switch off the pump and reconnect the tubing.
NOTE
If the procedure described above is insufficient, carry out the following steps:
4 Clean the casing, see Chapter7.1.3 "Cleaning the casing", page41.
4 Clean the glass components, see Chapter7.1.4 "Cleaning glass components",
page41.
4 Clean the tubing, see Chapter7.1.5 "Cleaning internal pump tubing", page41.
4 Clean the diaphragms, see Chapter7.1.6 "Cleaning the diaphragm", page42.
Page 41
BÜCHI Labortechnik AG Cleaning and servicing | 7
Operation Manual Vacuum Pump V-600 41/65
7.1.3 Cleaning the casing
IMPORTANT
Risk of acid damage
The casing of the unit is made of plastic. Acid may damage the material.
u Immediately remove any drops of acid with a damp cloth.
u Use a damp cloth to clean the device.
u To clean the casing, only use ethanol or soapy water.
7.1.4 Cleaning glass components
On the front of the V-600 there is an inspection window made of glass. That inspection window may mist over or become dirty from vapors.
u Remove the casing front, see Chapter7.2.2 "Dismantling and reassembling pump
head", page43.
u Rinse inspection window in front cover with water and a conventional cleaning
agent (e.g. mild soap and water solution).
u Wipe inspection window dry with a cloth.
u Refit front cover and screw in place.
The accessories (Woulff bottle, secondary cold trap, secondary condenser) consist
mainly of glass and must always be inspected before and after use and cleaned as
necessary.
As the glass components are under vacuum when in use, they are subjected to high
stress.
u Secondary cold trap and secondary condenser: disconnect all tubing and remove
from the vacuum pump.
u Woulff bottle: unscrew the glass part from the holder.
u Check the glass components for cracks, chips and other signs of damage.
u Replace any damaged glass components.
u Rinse out glass components with water and a conventional cleaning agent (e.g.
mild soap and water solution).
u Wherever possible, clean glass components by hand.
NOTE
Inserting a thin copper wire into the coil of the secondary condenser reduces algae
growth.
7.1.5 Cleaning internal pump tubing
After evacuation, there may still be residual fluid from condensed vapors in the tubing
inside the pump. The pump can largely dry itself out when running idle. See Chapter7.1.2 "Cleaning the pump", page40.
To clean the connecting tubing inside the pump between the two pump heads it is
necessary to open up the pump.
Precondition:
R Pump has been shut down.
u Remove the casing front and take out the pump-head connecting tube (see Chap-
ter7.2.5 "Replacing connecting tubes", page50.
u Rinse out the pump-head connecting tube with acetone. If necessary, remove
residues inside the tubing with a suitable implement.
Page 42
7 | Cleaning and servicing BÜCHI Labortechnik AG
42/65 Operation Manual Vacuum Pump V-600
u Refit the pump-head connecting tube (see Chapter7.2.5 "Replacing connecting
tubes", page50).
u Refit the casing front.
u Switch on the pump and allow it to run in continuous mode until the inside of the
tubing is dried out.
7.1.6 Cleaning the diaphragm
u Remove the diaphragm, see Replacing the diaphragm.
u Clean the diaphragm with a cloth and a little acetone.
7.2 Servicing
7.2.1 Notes on servicing
WARNING
Risk of fatal injury from electric shock.
If the pump is opened up while it is running there is a risk of dangerous electric
shocks.
u Before carrying out any cleaning or servicing work, always shut down the device
and disconnect the power cable.
IMPORTANT
Risk of pump damage and loss of warranty entitlement.
Unauthorized opening up of any casing components apart from the casing front may
permanently impair the function of the pump.
u Only allow authorized BUCHI service technicians to open up the rear part of the
pump.
Page 43
BÜCHI Labortechnik AG Cleaning and servicing | 7
Operation Manual Vacuum Pump V-600 43/65
7.2.2 Dismantling and reassembling pump head
The four pump heads and the connecting parts (T-pieces and pump-head connecting
tubes) are located behind the casing front (1).
1
2
2
3
4
5
Fig.24: Casing front of V-600
1 Casing front 4 Torx key Tx10 (supplied)
2 Fixing screws 5 Torx key Tx25 (supplied)
3 Diaphragm grips (supplied)
Tools required:
Torx key Tx25
Precondition:
R Pump has been shut down.
R Connections between the pump and other laboratory equipment have been dis-
connected.
u Using a Torx key (5), unscrew the two fixing screws (2) at the sides.
u Remove casing front (1).
Page 44
7 | Cleaning and servicing BÜCHI Labortechnik AG
44/65 Operation Manual Vacuum Pump V-600
Step 1: Removing connecting components
1
2
5
3
4
6
7
8
9
Fig.25: Elbow connectors, connecting tubes and T-pieces inside V-600
1 Connecting tube between pump head
and pump intake connection
6 Connection for pump intake
2 Elbow connector 7 GL14 union nut
3 Fixing screw for connector 8 Pump-head connecting tube
4 T-piece 9 Connection for pump outlet
5 Connecting tube between pump head
and pump outlet connection
The V-600 has four pump-head connecting components as follows:
Connecting tube (1) and T-piece between left-hand pump heads and pump intake
connection
Connecting tube and T-piece (4) between left-hand pump heads and right upper
pump head
Connecting tube (8) between right upper pump head and right lower pump head
Connecting tube (5) between right lower pump head and pump outlet connection
Removing connecting components between left-hand pump heads and pump
intake connection
Tools required:
Torx key Tx10
u Unscrew the fixing screws (3) from the two elbow connectors (2) on the left-hand
pump heads.
u Unscrew and pull back the GL14 union nut on the connection for the pump intake
(6).
u Remove the entire connecting component together with elbow connectors.
Page 45
BÜCHI Labortechnik AG Cleaning and servicing | 7
Operation Manual Vacuum Pump V-600 45/65
Removing connecting component between right-hand pump head and pump
intake connection
Tools required:
Torx key Tx10
u Unscrew the fixing screws (3) for the elbow connector (2) on the pump head.
u Unscrew and pull back the GL14 union nut on the connection for the pump outlet
(9).
u Remove the entire connecting component together with elbow connector.
Removing connecting component between left and right-hand pump heads
Tools required:
Torx key Tx10
u Unscrew the fixing screws (3) of the elbow connectors (2) on the left-hand pump
heads and the elbow connector on the right-hand upper pump head.
u Remove the three elbow connectors including the entire connecting component.
Removing connecting tube between the two right-hand pump heads
Tools required:
Torx key Tx10
u Unscrew the fixing screws (3) from the two elbow connectors (2).
u Remove the two elbow connectors together with the connecting tube.
Step 2: dismantling pump head
3
2
1

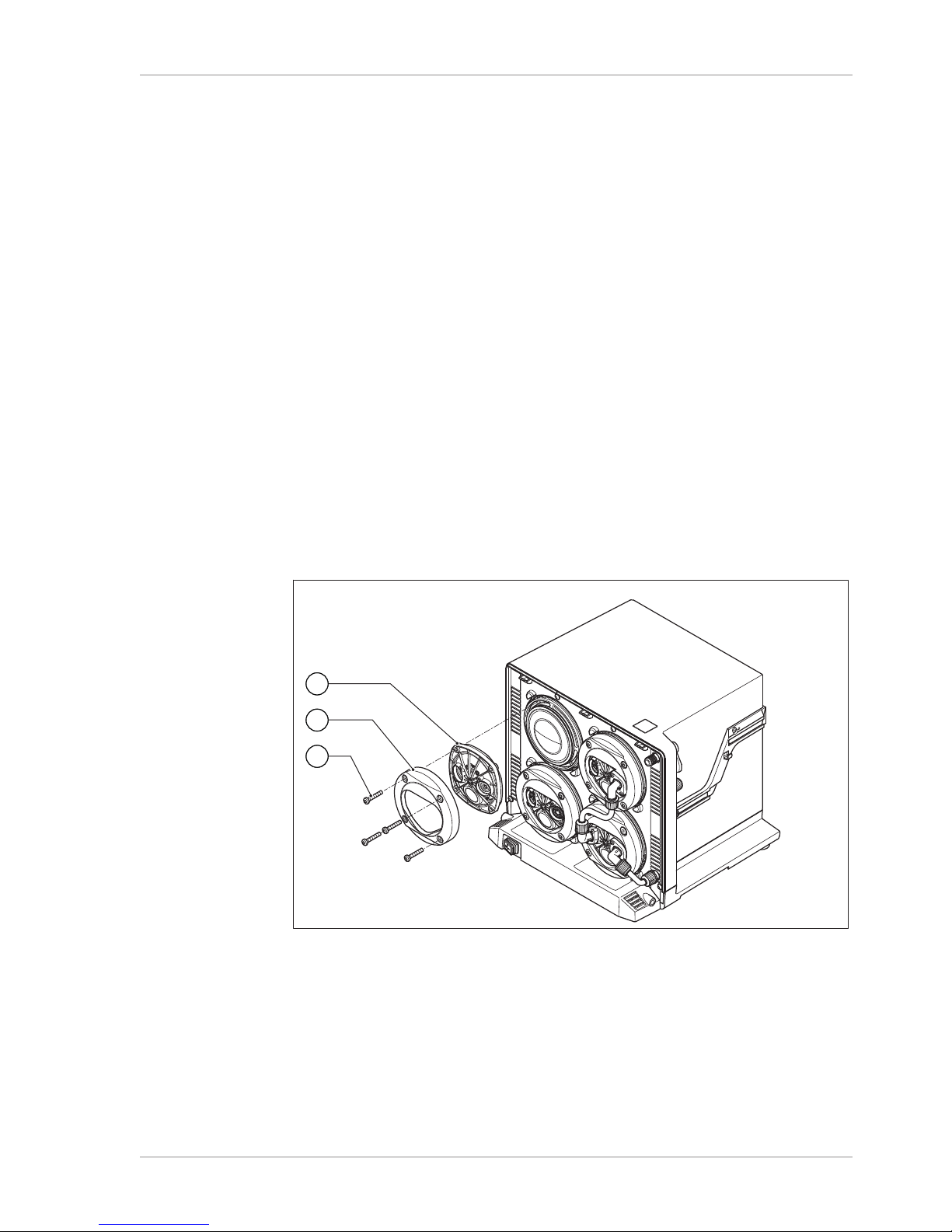

Fig.26: Pump heads and diaphragms of V-600
1 Pump head 3 Torx-head screws
2 Fixing ring
Tools required:
Torx key Tx25
u Using a Torx key, unscrew the four Torx-head screws (3).
u Remove the fixing ring (2) and pump head (1).
Page 46
7 | Cleaning and servicing BÜCHI Labortechnik AG
46/65 Operation Manual Vacuum Pump V-600
5 Behind the pump head is the pump diaphragm. To replace the diaphragm, see
Chapter7.2.3 "Replacing the diaphragm", page47.
Step 3: Reassembling and refitting the pump head
u Fit the pump head over the diaphragm.
u Position the fixing ring on the pump head and fix in place with four Torx-head
screws.
u Refit the connecting components between the pump heads.
u Refit the connecting component between pump head and pump intake or outlet
connection.
u Refit casing front.
Page 47
BÜCHI Labortechnik AG Cleaning and servicing | 7
Operation Manual Vacuum Pump V-600 47/65
7.2.3 Replacing the diaphragm
Diaphragms must be replaced if they are defective or dirty and previous cleaning has
not successfully remedied the problem.
1

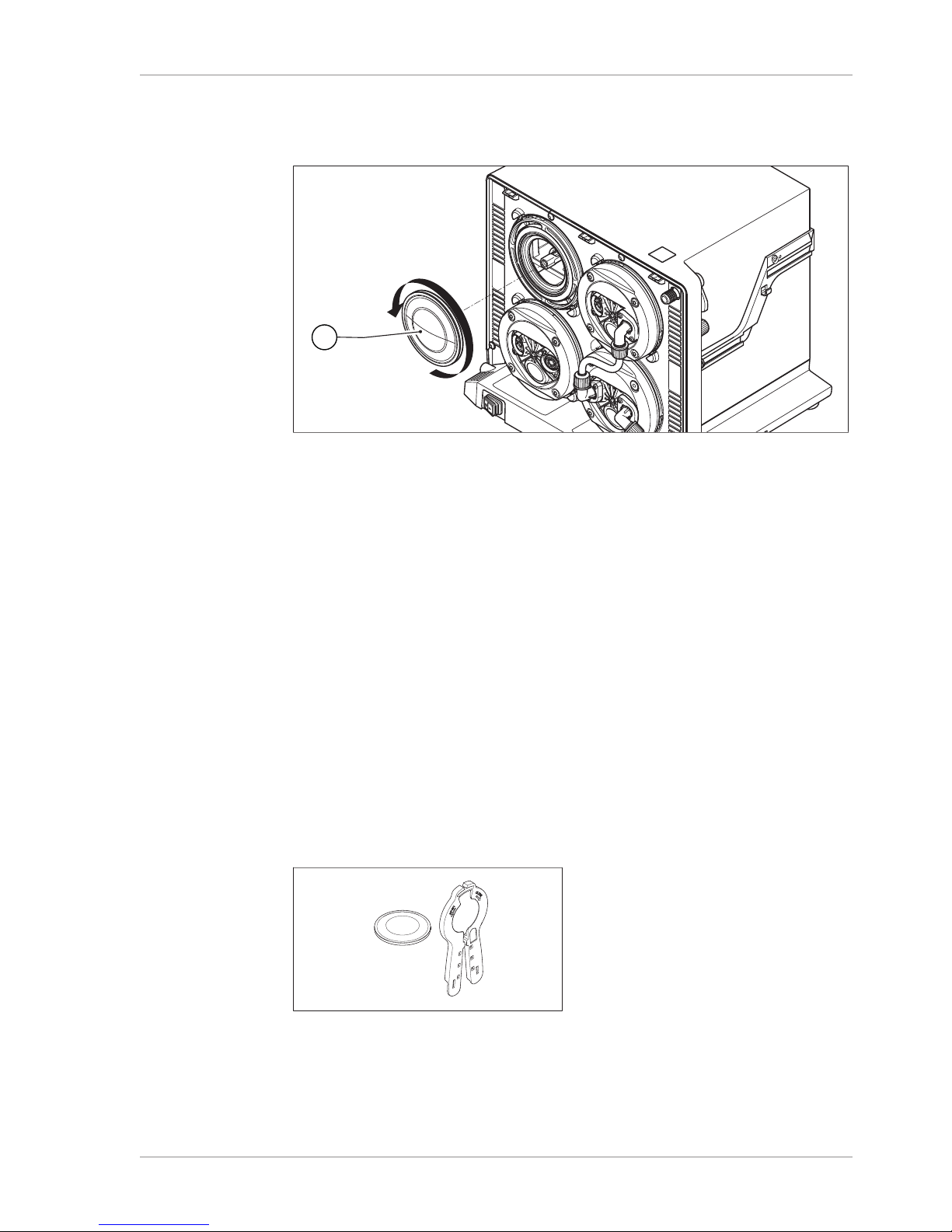

Fig.27: Pump heads and diaphragms of V-600
1 Diaphragm
Tools required:
Diaphragm grips (see Spare parts).
Precondition:
R Pump has been shut down.
u Remove the casing front, see Chapter7.2.2 "Dismantling and reassembling pump
head", page43.
u Remove the connecting components, see Chapter "Step 1: Removing connecting
components", page44.
u Remove the fixing ring and pump head, see Chapter "Step 2: dismantling pump
head", page45.
u Grip diaphragm (1) with diaphragm grips and turn counter-clockwise.
u Remove old diaphragm, insert new diaphragm and tighten using the diaphragm
grips.
u Tighten new diaphragm by turning clockwise with the diaphragm grips. When do-
ing so, tighten the diaphragm until the diaphragm grips slip.
u Fit the pump head and fixing ring over the diaphragm and fix in place..
u Refit connecting components.
u Refit casing front.
Fig.28: Diaphragm grips for unscrewing and tightening the diaphragms in the V-600
Page 48
7 | Cleaning and servicing BÜCHI Labortechnik AG
48/65 Operation Manual Vacuum Pump V-600
7.2.4 Replacing the non-return valve
On each of the four pump heads of the V-600 there are two non-return valves with Orings (see Chapter7.2.6 "Replacing O-rings", page53). They are inside the elbow
connectors. To get at the valves, the connecting components and elbow connectors
first have to be removed from the pump heads.
2
1
2
1

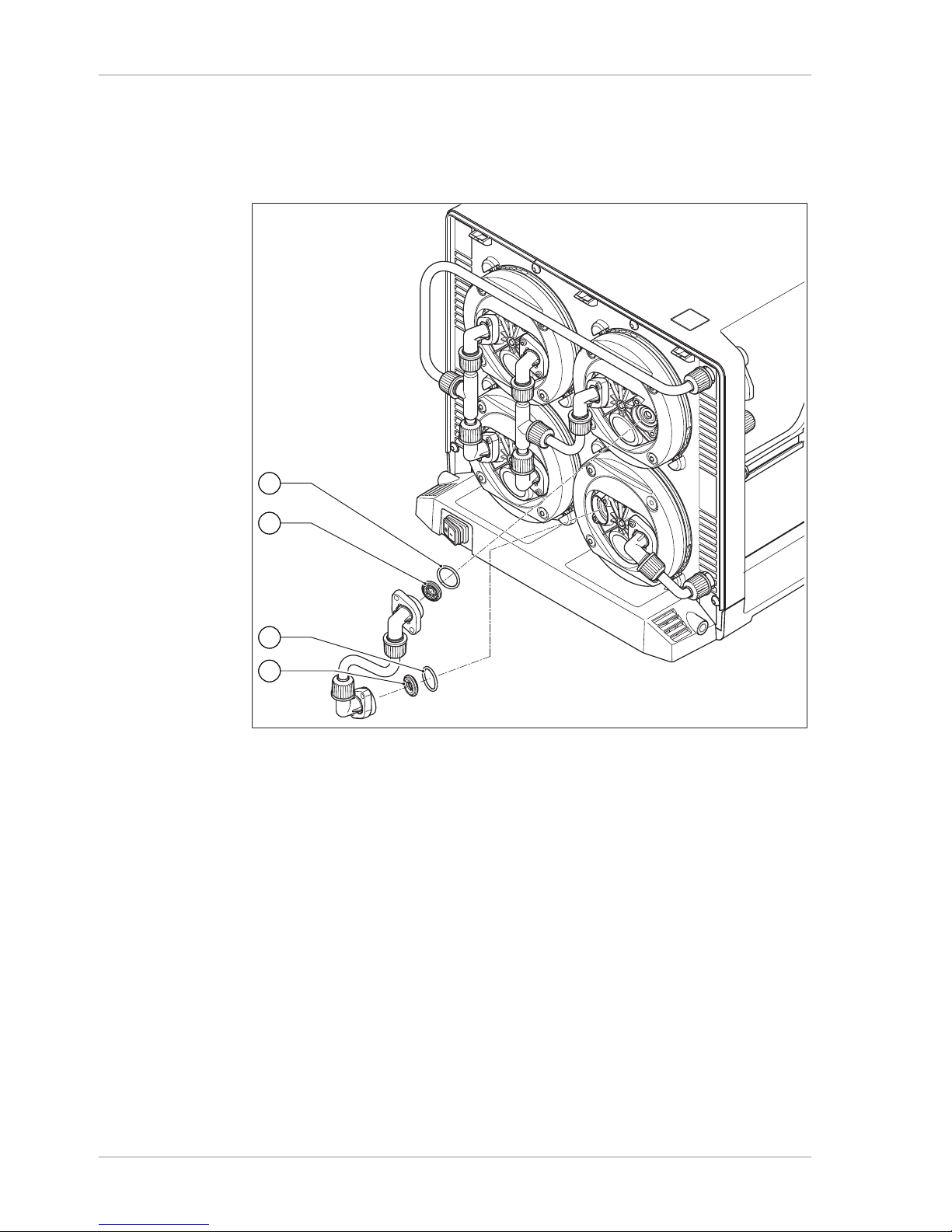

Fig.29: Non-return valves in V-600
1 O-rings 2 Non-return valves
u Remove the casing front, see Chapter7.2.2 "Dismantling and reassembling pump
head", page43.
u Remove the elbow connectors together with connecting components, see Chapter
"Step 1: Removing connecting components", page44.
u Remove the old non-return valves (2) and O-rings (1) from the elbow connectors.
Use the diaphragm grips to do so., Chapter7.2.7 "Removing non-return valve from
elbow connector", page54.
u Insert new non-return valves and O-rings in the elbow connectors. NO-
TICE!When inserting the valves, pay attention to the symbols on the pump
heads! The two valves on each pump head are inserted the opposite way
round from each other.
Page 49
BÜCHI Labortechnik AG Cleaning and servicing | 7
Operation Manual Vacuum Pump V-600 49/65

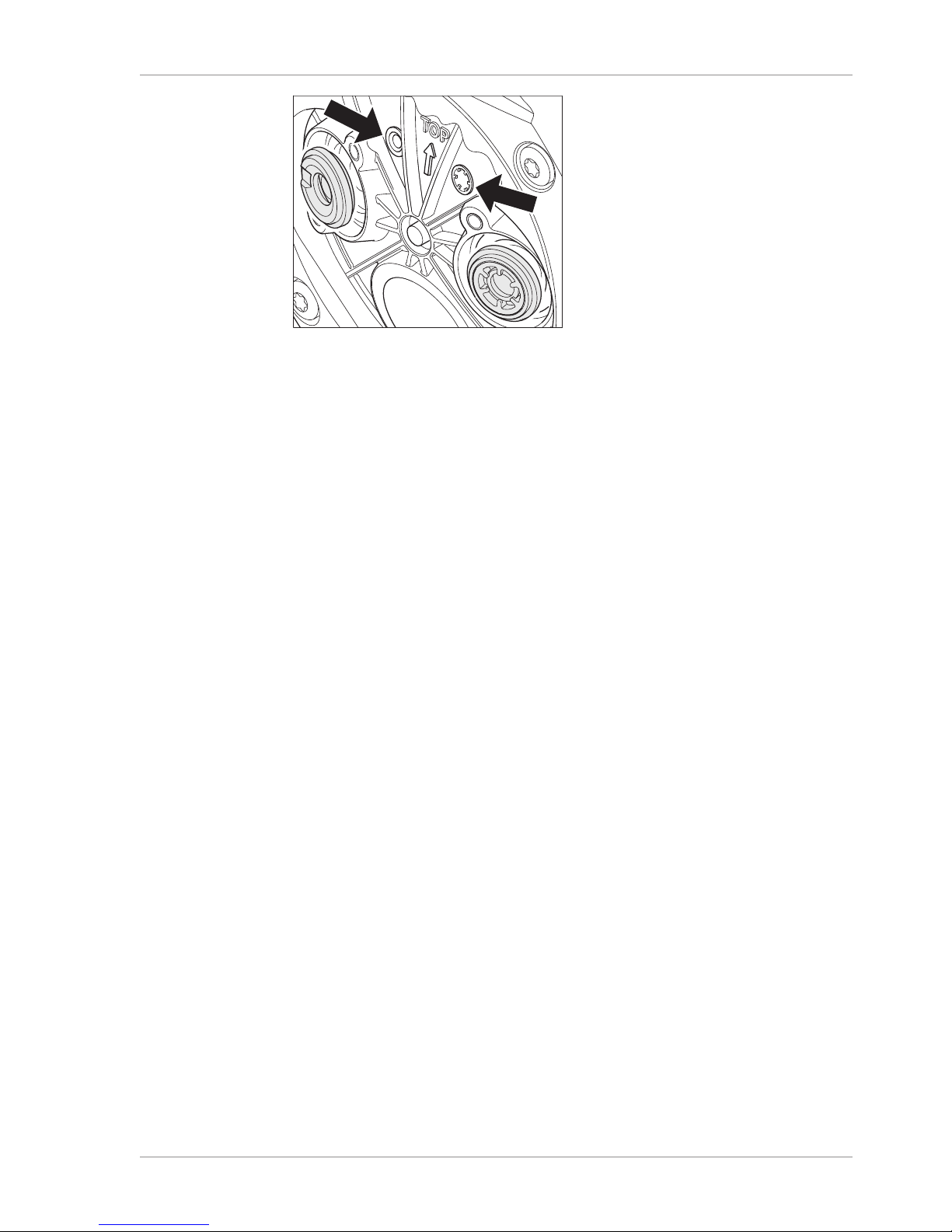

Fig.30: Orientation of non-return valves according to symbols
u Refit the elbow connectors together with connecting components, see Chapter
"Step 3: Reassembling and refitting the pump head", page46.
u Refit casing front.
Page 50
7 | Cleaning and servicing BÜCHI Labortechnik AG
50/65 Operation Manual Vacuum Pump V-600
7.2.5 Replacing connecting tubes
The V-600 has a total of four connecting tubes on the pump heads, see Chapter
"Step 1: Removing connecting components", page44.
Replacing pump-head connecting tube
2
1
1
3
4
2
3
3
4

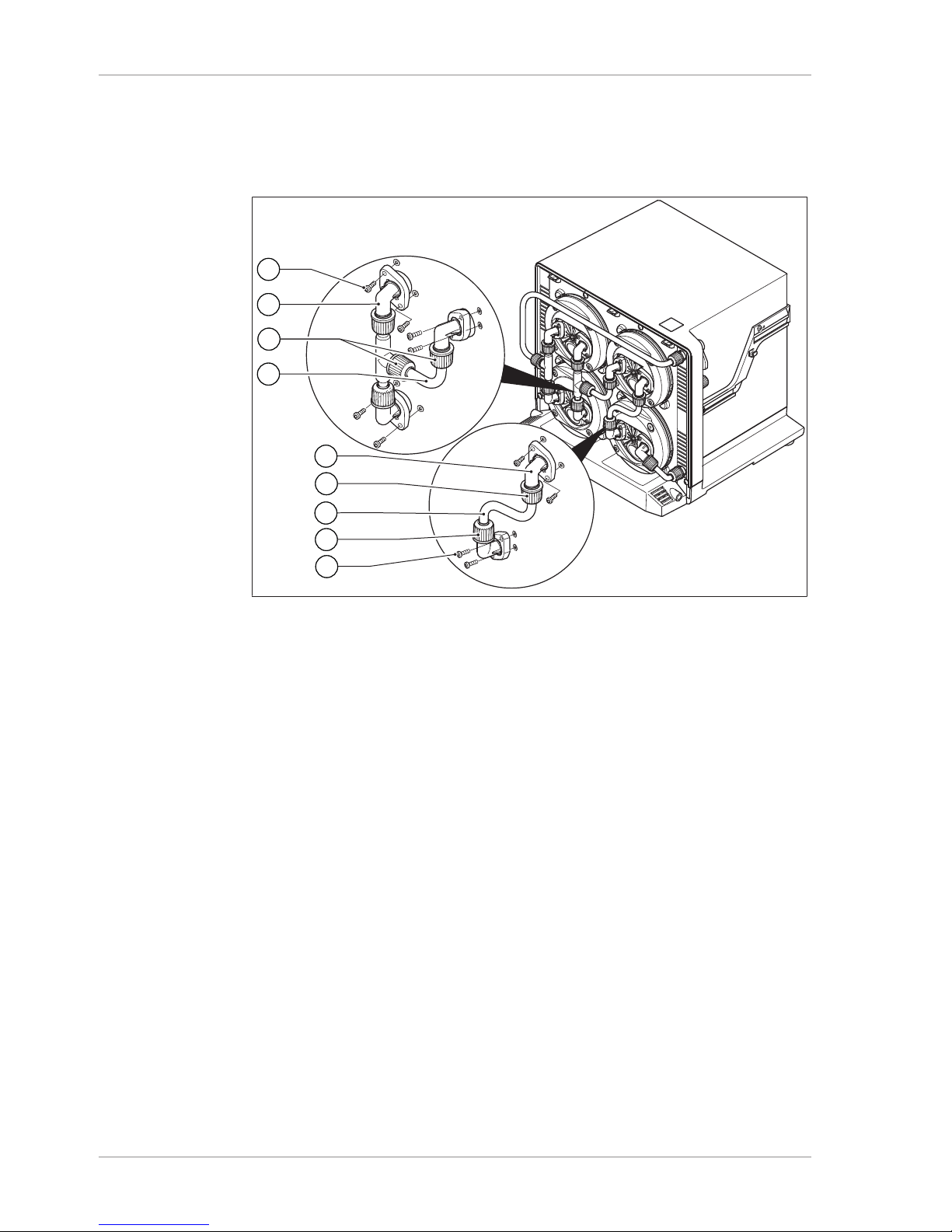

Fig.31: Pump-head connecting tube in V-600
1 Fixing screws for elbow connector 3 GL14 union nut
2 Elbow connector 4 Pump-head connecting tube
Tools required:
Torx key Tx10
u Remove the casing front, see Chapter7.2.2 "Dismantling and reassembling pump
head", page43.
u Unscrew the fixing screws (1) from the elbow connectors (2).
u Remove the elbow connectors together with the connecting component.
u Unscrew and pull back the GL14 union nut (3) on each end of the pump-head con-
necting tube (4).
u Pull the ends of the tubes out of the elbow connectors.
u Pull the GL14 union nuts off the connecting tube and dispose of the old connecting
tube.
u Loosely fit two new union nuts with tube seals on the connectors, see Chap-
ter7.2.8 "Fitting GL14 union nut with tube seal", page55. NOTICE!If incorrectly
fitted, the tube seals may be damaged.
u Insert new connecting tube into the elbow connectors, taking care not to damage
the tube seals when doing so.
u Fit the elbow connectors together with connecting components onto the ports in
the pump heads and screw in place.
u Tighten the two union nuts.
u Refit casing front.
Page 51
BÜCHI Labortechnik AG Cleaning and servicing | 7
Operation Manual Vacuum Pump V-600 51/65
Replacing connecting tube to pump intake or pump outlet
3
2
1
4
4
1
5
2

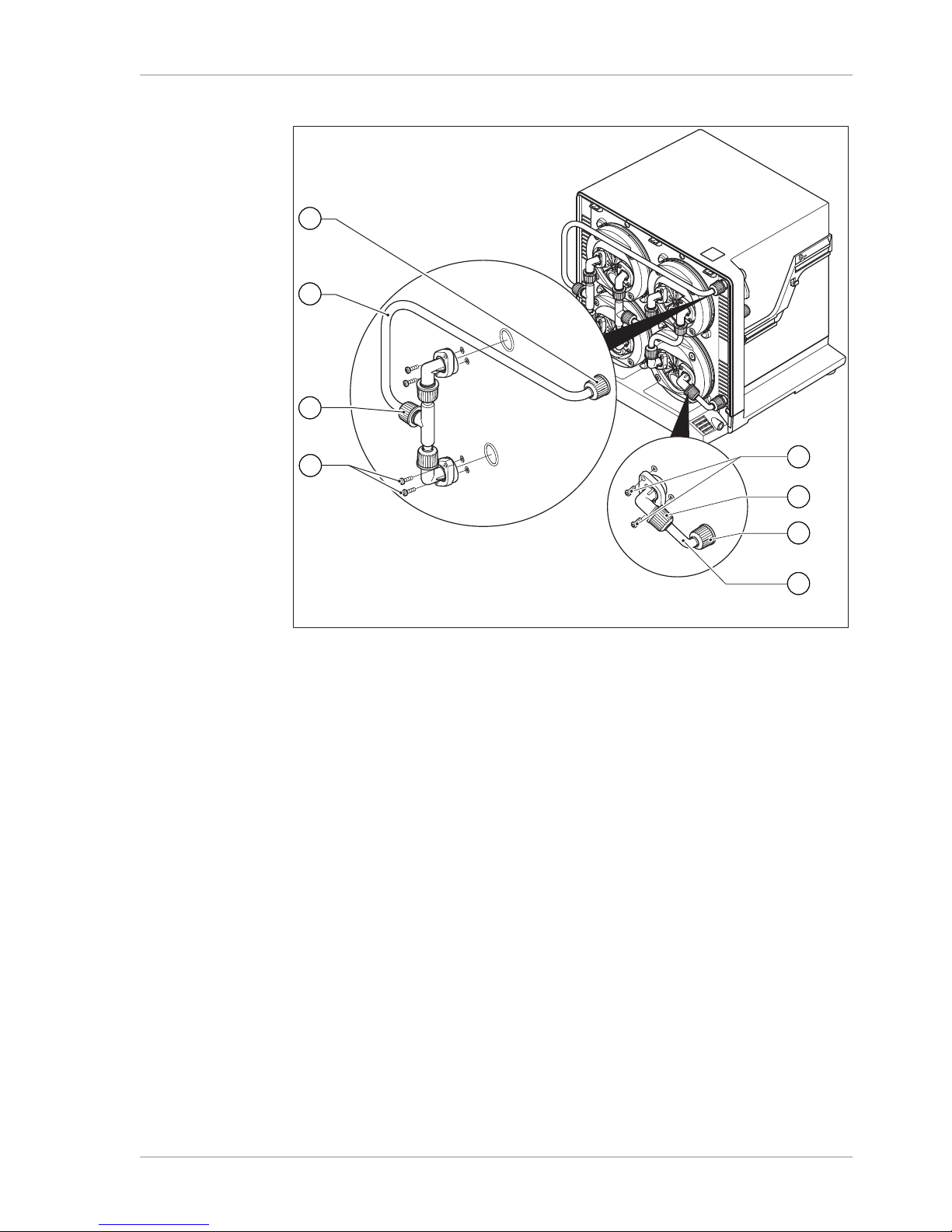

Fig.32: Connecting tubes to the V-600 pump heads
1 GL14 union nut 4 Fixing screws for elbow connector
2 Connecting tube 5 Union nut on the elbow connector
3 Union nut on T-piece
Tools required:
Torx key Tx10
u Remove the casing front, see Chapter7.2.2 "Dismantling and reassembling pump
head", page43.
u Unscrew the fixing screws (4) from the elbow connectors on the pump heads.
u Unscrew and pull back the GL14 union nut (1) on the connection for the pump in-
take or pump outlet.
u Remove the connecting component together with elbow connectors.
u Unscrew and pull back the GL14 union nut on the elbow connector (5) or T-piece
(3).
u Pull the end of the tube out of the elbow connector/T-piece.
u Pull the GL14 union nuts off the connecting tube and dispose of the old connecting
tube.
u Loosely fit two new union nuts with tube seals on the connector and on the con-
nection for the pump intake or pump outlet, see Chapter7.2.8 "Fitting GL14 union
nut with tube seal", page55. NOTICE!If incorrectly fitted, the tube seals may
be damaged.
u Insert one end of the connecting tube (see illustration) into the elbow connector/T-
piece, taking care not to damage the tube seal when doing so.
Page 52
7 | Cleaning and servicing BÜCHI Labortechnik AG
52/65 Operation Manual Vacuum Pump V-600
u Insert the other end of the connecting tube into the pump intake or pump inlet con-
nection, taking care not to damage the tube seal when doing so.
u Fit the elbow connectors onto the ports in the pump heads and screw in place.
u Tighten the GL14 union nuts on the connection for the pump intake/pump outlet
and elbow connector.
u Refit casing front.
Page 53
BÜCHI Labortechnik AG Cleaning and servicing | 7
Operation Manual Vacuum Pump V-600 53/65
7.2.6 Replacing O-rings
The O-rings have to be replaced if the V-600 is no longer functioning to full capacity
and no longer achieving the terminal vacuum. In such cases, it makes sense to replace all eight O-rings in the elbow connectors on the pump heads (see Chapter7.2.4
"Replacing the non-return valve", page48).

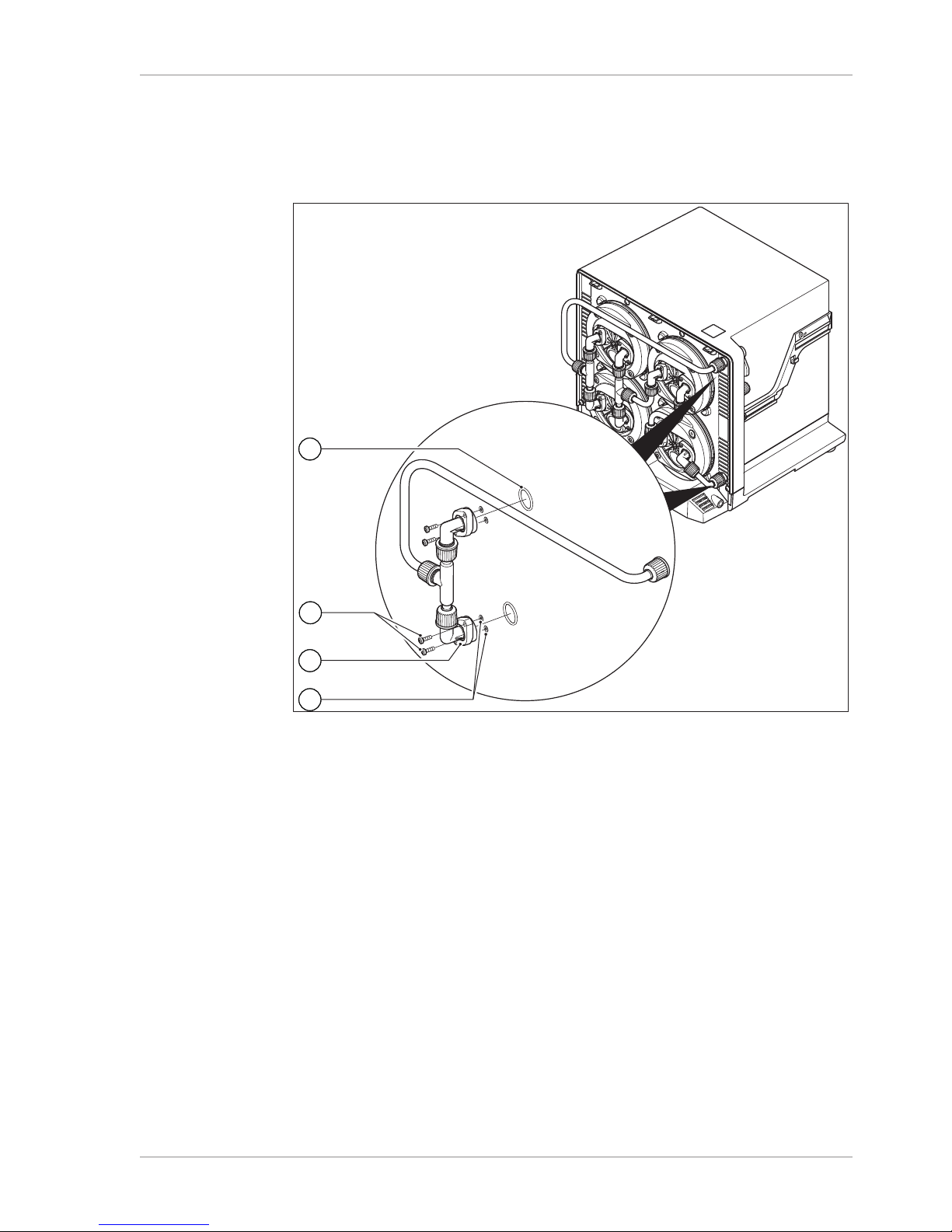

1
3
4
2
Fig.33: Connecting components, elbow connectors and O-rings inside V-600
1 O-ring 3 Elbow connector
2 Fixing screws for elbow connector
u Remove the casing front, see Chapter7.2.2 "Dismantling and reassembling pump
head", page43.
u Remove the elbow connectors (3) together with connecting components, see
Chapter "Step 1: Removing connecting components", page44.
u Remove the old O-rings (1) together with the non-return valves from the elbow
connectors. Use the diaphragm grips to do so., Chapter7.2.7 "Removing non-return valve from elbow connector", page54.
u Insert new O-rings together with non-return valves in the elbow connectors.
NOTICE!When inserting the valves, pay attention to the symbols on the
pump heads! The two valves on each pump head are inserted the opposite
way round from each other.
Page 54
7 | Cleaning and servicing BÜCHI Labortechnik AG
54/65 Operation Manual Vacuum Pump V-600

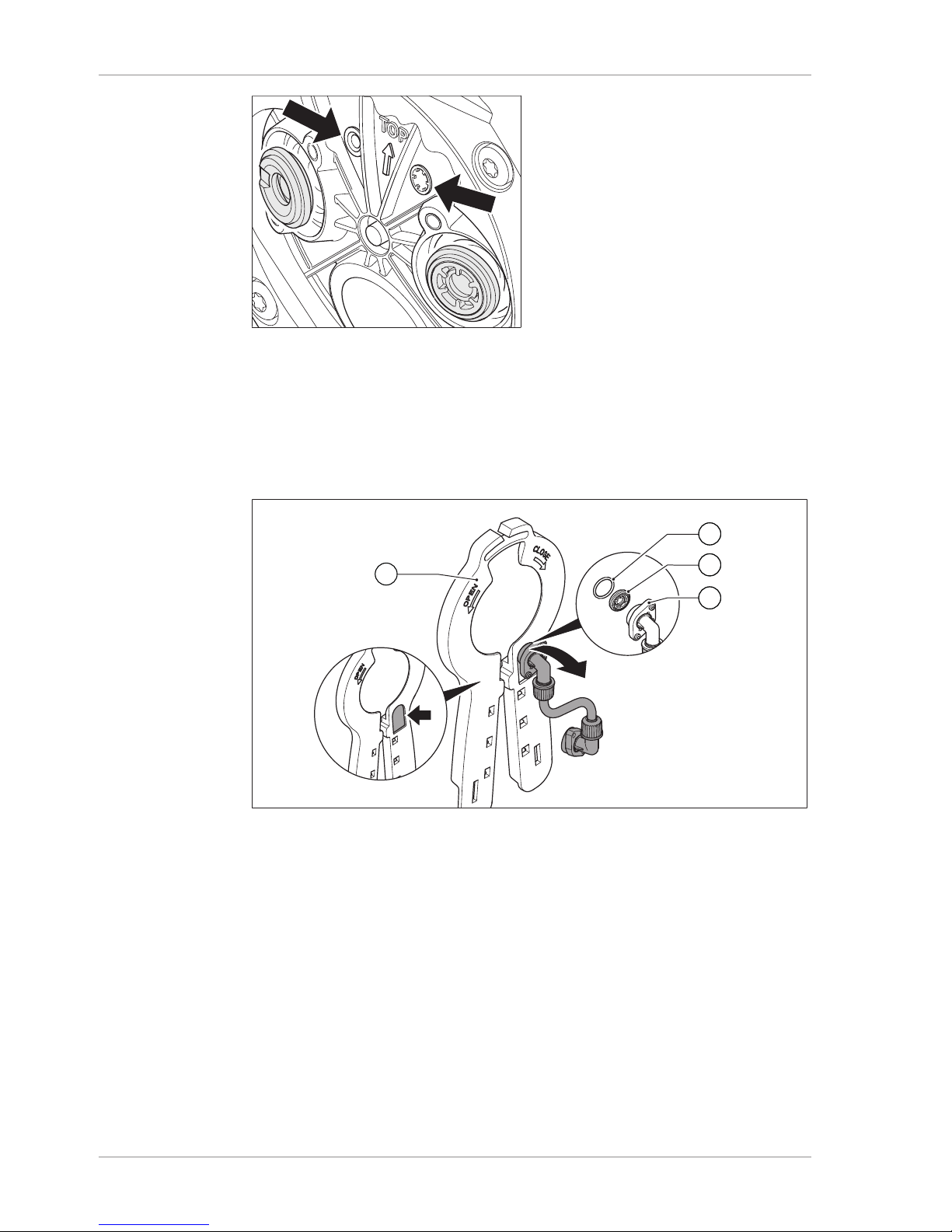

Fig.34: Orientation of non-return valves according to symbols
u Refit the elbow connectors together with connecting components, see Chapter
"Step 3: Reassembling and refitting the pump head", page46.
u Refit casing front.
7.2.7 Removing non-return valve from elbow connector
The diaphragm grips supplied have a notch in the front of the right-hand grip. This
can be used as an aid to removing the non-return valves from the elbow connectors.
1
2
4
3
Fig.35: Diaphragm grips with notch in right-hand grip for removing non-return valves
1 Diaphragm grips 3 Non-return valve
2 O-ring 4 Elbow connector
u Slide the connector (4) up to the top of the notch in the diaphragm grips.
u Press the connector upwards slightly so that the non-return valve twists in the
notch and then tilt it down.
5 The non-return valve and O-ring come away from the connector.
Page 55
BÜCHI Labortechnik AG Cleaning and servicing | 7
Operation Manual Vacuum Pump V-600 55/65
7.2.8 Fitting GL14 union nut with tube seal
2
1
3

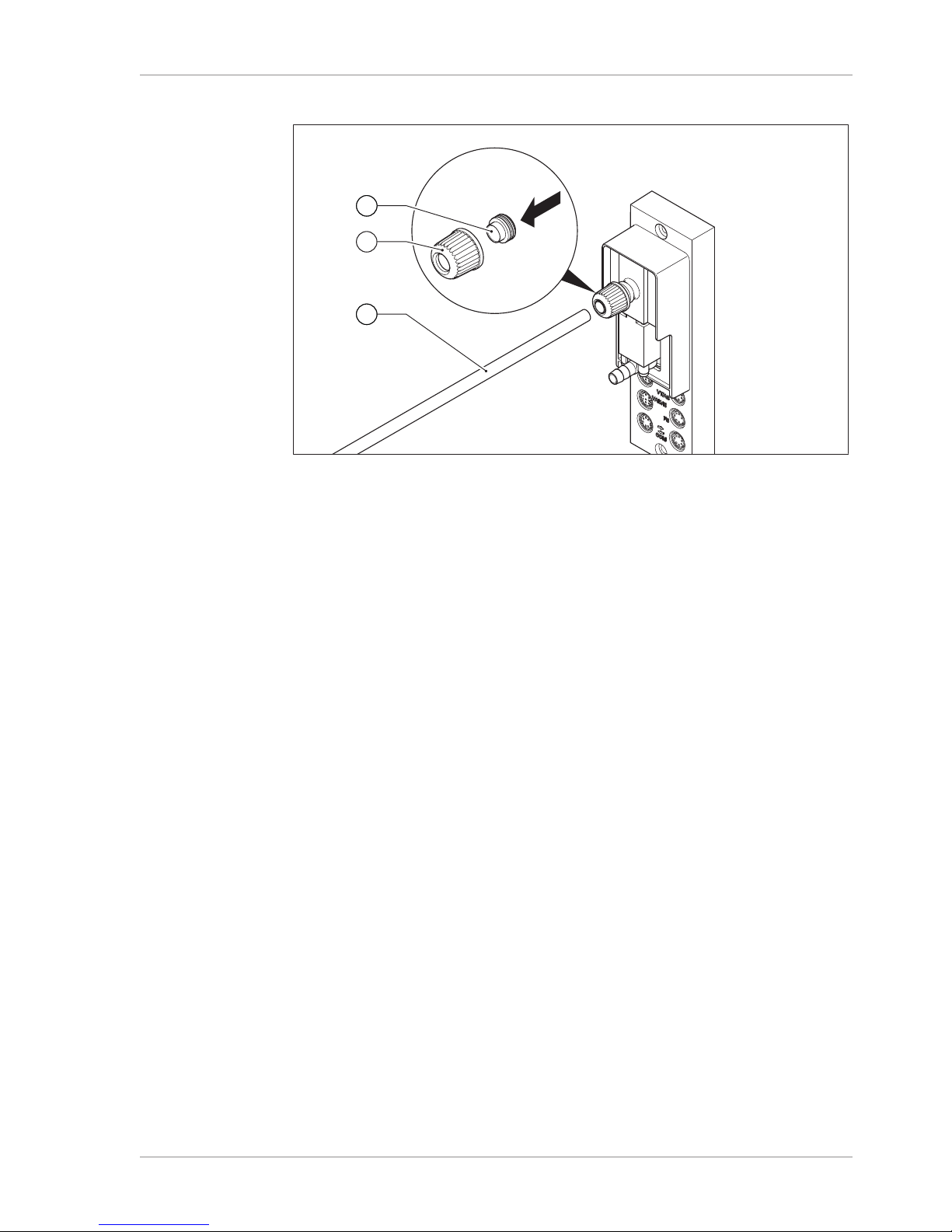

Fig.36: Fitting GL14 union nut with tube seal (example shows VacuBox)
1 Tube seal 3 Tubing
2 GL14 union nut
u Insert the tube seal (1) in the GL14 union nut (2) ensuring it is straight. NO-
TICE!Risk of damaging tube seal. Make sure that the tube seal does not twist
or jam in the GL14 union nut.
u Loosely screw the GL14 union nut together with tube seal onto the device con-
cerned (example shows VacuBox) or the Woulff bottle.
u Carefully insert the end of the tube (3) into the GL14 union nut and tube seal.
u Tighten the GL14 union nut and tube seal.
Page 56
8 | Help with faults BÜCHI Labortechnik AG
56/65 Operation Manual Vacuum Pump V-600
8 Help with faults
8.1 Faults, possible causes and remedies
Fault Possible cause Remedy
Device does not work. Master switch is off. u Switch on master switch.
Device is not connected
to a power supply.
u Check power supply.
The outlet of the pump
or a downstream device
is closed off.
u Make sure that all outlets are
open.
System is leaking (leakage rate is greater than
5 mbar) and cannot
achieve terminal vacuum. See also operating instructions of Interface I-300/I-300 Pro,
section "Performing
leak test".
Connections reversed. Join up connections as de-
scribed in Chapter5.4 "Connecting laboratory equipment",
page22.
GL14 union nuts and
tube seals not correctly
fitted or are damaged.
u Inspect GL14 union nuts and
tube seals, (see Chapter7.2.5 "Replacing connecting tubes", page50).
Tubing leaking (and
brittle).
u Replace tubing (see Chap-
ter7.2.5 "Replacing connecting tubes", page50).
Diaphragm and/or
valves dirty.
u Clean or replace diaphragm
and/or valves (see Chapter7.2.3 "Replacing the diaphragm", page47 and
Chapter7.2.4 "Replacing the
non-return valve", page48).
Valve O-rings are leaking.
u Replace O-rings (see Chap-
ter7.2.6 "Replacing O-rings",
page53).
Pump fails to start. Casing front not prop-
erly closed.
u Check seating of casing front
and correct if necessary. The
cover is fixed by two knurledhead screws.
Pump starts then stops
again shortly afterwards
(in standalone operation).
Fan is defective. u Contact BUCHI Customer
Service.
Page 57
BÜCHI Labortechnik AG Help with faults | 8
Operation Manual Vacuum Pump V-600 57/65
8.2 Customer service
Repairs to the device may only be carried out by authorized service technicians. The
service technicians have been comprehensively technically trained and are aware of
the potential hazards that can arise from the device.
The addresses of the official BUCHI Customer Service offices can be found on the
BUCHI website at: www.buchi.com. If you have any questions regarding technical issues or faults, please contact those offices.
Customer Services can offer you:
supply of spare parts
repairs
technical advice
Page 58
9 | Taking out of service and disposal BÜCHI Labortechnik AG
58/65 Operation Manual Vacuum Pump V-600
9 Taking out of service and disposal
9.1 Taking out of service
u Remove all tubing and communication cables from the device.
u Run the pump to dry out tubing and diaphragms inside the pump.
u Switch off the pump and disconnect it from the mains power supply.
9.2 Disposal
The operator is responsible for proper disposal of the Vacuum Pump.
u When disposing of equipment observe the local regulations and statutory require-
ments regarding waste disposal.
Page 59
BÜCHI Labortechnik AG Appendix | 10
Operation Manual Vacuum Pump V-600 59/65
10 Appendix
10.1 Solvent table
Solvent Formula Molar
mass in g/
mol
Evaporation energy in J/g
Boiling
point in °C
at 1013
mbar
Density in
g/cm
3
Vacuum in
mbar for
40°C boiling point
Acetone CH3H6O 58.1 553 56 0.790 556
n-pentanol C5H12O 88.1 595 37 0.814 11
Benzene C6H
6
78.1 548 80 0.877 236
n-butanol C4H10O 74.1 620 118 0.810 25
tert-butanol C4H10O 74.1 590 82 0.789 130
Chlorobenzene C6H5Cl 112.6 377 132 1.106 36
Chloroform CHCl
3
119.4 264 62 1.483 474
Cyclohexane C6H
12
84.0 389 81 0.779 235
Diethyl ether C4H10O 74.0 389 35 0.714 850
1,2-dichloroethane C2H4Cl
2
99.0 335 84 1.235 210
cis-1,2dichloroethene
C2H2Cl
2
97.0 322 60 1.284 479
trans-1,2dichloroethene
C2H2Cl
2
97.0 314 48 1.257 751
Di-isopropyl ether C6H14O 102.0 318 68 0.724 375
Dioxane C4H8O
2
88.1 406 101 1.034 107
DMF (dimethylformamide)
C3H7NO 73.1 – 153 0.949 11
Acetic acid C2H4O
2
60.0 695 118 1.049 44
Ethanol C2H6O 46.0 879 79 0.789 175
Ethylacetate C4H8O
2
88.1 394 77 0.900 240
Heptane C7H
16
100.2 373 98 0.684 120
Hexane C6H
14
86.2 368 69 0.660 360
Isopropanol C3H8O 60.1 699 82 0.786 137
Isopentanol C5H12O 88.1 595 129 0.809 14
Methylethylketone C4H8O 72.1 473 80 0.805 243
Methanol CH4O 32.0 1227 65 0.791 337
Dichlormethane CH2CI
2
84.9 373 40 1.327 850
Pentane C5H
12
72.1 381 36 0.626 850
n-propanol C3H8O 60.1 787 97 0.804 67
Pentachloroethane C2HCl
5
202.3 201 162 1.680 13
1,1,2,2-tetrachloroethane
C2H2Cl
4
167.9 247 146 1.595 20
Tetrachloromethane CCl
4
153.8 226 77 1.594 271
1,1,1-trichloroethane C2H3Cl
3
133.4 251 74 1.339 300
Page 60
10 | Appendix BÜCHI Labortechnik AG
60/65 Operation Manual Vacuum Pump V-600
Solvent Formula Molar
mass in g/
mol
Evaporation energy in J/g
Boiling
point in °C
at 1013
mbar
Density in
g/cm
3
Vacuum in
mbar for
40°C boiling point
Tetrachloroethene C2Cl
4
165.8 234 121 1.623 53
THF (tetrahydrofuran)
C4H8O 72.1 – 67 0.889 374
Toluene C7H
8
92.2 427 111 0.867 77
Trichloroethene C2HCl
3
131.3 264 87 1.464 183
Water H2O 18.0 2261 100 1.000 72
Xylene (mixture) C8H
10
106.2 389 – – 25
o-xylene C8H
10
106.2 – 144 0.880 –
m-xylene C8H
10
106.2 – 139 0.864 –
p-xylene C8H
10
106.2 – 138 0.861 –
Page 61
BÜCHI Labortechnik AG Appendix | 10
Operation Manual Vacuum Pump V-600 61/65
10.2 Spare parts and accessories
u Use only genuine BUCHI consumables and spare parts in order to ensure correct,
safe and reliable operation of the system.
NOTE
Any modifications of spare parts or assemblies are only allowed with the prior written
permission of BUCHI.
Page 62
10 | Appendix BÜCHI Labortechnik AG
62/65 Operation Manual Vacuum Pump V-600
10.3 Health and safety approval
To guarantee the health and safety of our staff and to comply with the law and the
regulations for handling hazardous materials, for the purposes of health and safety at
work and safe disposal of waste, no products may be sent back to BÜCHI Labortechnik AG or repaired unless we have received the declaration below, completed and
signed.
Products sent to us will not be accepted for repair until we have received this declaration.
u Copy the form overleaf and complete it.
u Make sure that you know the full details of the substances with which the device
has been in contact and that all questions have been answered fully and correctly.
u Send the completed form to us in advance by post or fax. The declaration must
reach us before the device.
u Enclose a copy of the declaration with the device.
u If the product is contaminated, inform the carrier (in accordance with GGVE/
GGVS/RID/ADR).
If the declaration is missing or the procedure described is not followed, the repairs will
be delayed. We ask for your understanding and cooperation with regard to these
measures.
Page 63
BÜCHI Labortechnik AG Appendix | 10
Operation Manual Vacuum Pump V-600 63/65
10.4 Health and safety
Declaration regarding the safety, hazards and safe disposal of waste
To guarantee the health and safety of our staff and to comply with the law and the
regulations for handling hazardous materials, regarding health and safety at work,
and to comply with safety regulations, health and safety requirements and requirements for safe disposal of waste such as chemical waste, chemical residues or solvents, the form below must be fully completed and signed whenever devices or faulty
components are to be sent back to our factory.
Products or components will not be accepted if this declaration has not been
provided.
Device
Model: Part/Device no.:
Declaration for
non-hazardous ma-
terials
We hereby assure that the products returned
have not been used in the laboratory and are new.
have not been in contact with toxic, corrosive, biologically active, explosive, ra-
dioactive or other hazardous materials.
are not contaminated. The solvents or residues of the substances pumped have
been removed.
Declaration for haz-
ardous materials
In respect of the products returned, we hereby assure that
all substances (toxic, corrosive, biologically active, explosive, radioactive or otherwise hazardous) that have been pumped by the products or have otherwise been
in contact with the products are listed below.
the products have been cleaned, decontaminated, sterilised inside and outside
and all inlets and outlets are sealed.
List of hazardous materials that have been in contact with the products:
Chemical, material Hazard category
Final declaration We hereby declare that
we are fully conversant with the substances that have been in contact with the
products and have answered all questions correctly.
we have taken all measures necessary to prevent potential hazards in respect of
the products returned.
Company name or stamp:
Place, date:
Name (block letters), position
(block letters):
Signature:
Page 64
Page 65
www.buchi.com
Loading...
