Color Laser Printer

PARTS REFERENCE LIST

MODEL: HL-L8250CDN/L8350CDW/

L8350CDWT/L9200CDW/L9200CDWT/

L9300CDW/L9300CDWT

Read this list thoroughly before maintenance work.

Keep this list in a convenient place for quick and easy reference at all times.

February PL-PRN139 84E5* Ver. 8

2014

NOTE FOR USING THIS PARTS REFERE NCE LIST

1. In the case of ordering parts, it is necessary to mention the following items:

(1) Code

(2) Q'ty

(3) Description

REF No. CODE Q’TY DESCRIPTION MODEL SPEC REMARKS

2. Design-changed parts: If any of the parts is changed, one of the following symbols is indicated in the REMARKS column.

Symbol in capital letters indicates the latest parts change information in the page.

3. Parts change will be informed by the Parts change information.

4. Parts are subject to change in design without prior notice.

(1)

CHG (chg): The part is changed for a new one.

ADD (add): The part is newly added.

DEL (del): The part is deleted.

(2)

(3)

COUNTRIES & AREAS

ARG ----- ARGENTINA

ARL ----- AUSTRALIA

BRZ ----- BRAZIL

CAN ----- CANADA

CEE ----- CEE GENERAL

CHE ----- SWITZERLAND

CHL ----- CHILE

CHN ----- CHINA

FRA/BEL/NLD -----

FRANCE/BELGIUM/NETHERLANDS

GER ----- GERMANY

GUL ----- GULF

IBR ----- IBERIA (SPAIN & PORTUGAL)

ITA ----- ITALY

KOR ----- KOREA

PND ----- PAN-NORDIC

(NORWAY/FINLAND/DENMARK/SWEDEN)

RUS ----- RUSSIA

SGP ----- SINGAPORE

TWN ----- TAIWAN

UK ----- UNITED KINGDOM

US ----- U.S.A.

1. FRAME ................................................................................................. 1

2. DRIVE ................................................................................................... 3

3. LASER UNIT......................................................................................... 5

4. PAPER FEEDER .................................................................................. 7

5. MP UNIT ............................................................................................... 9

6. DUPLEX ............................................................................................. 11

7. PAPER TRAY ..................................................................................... 13

8. FUSER UNIT ...................................................................................... 15

9. PAPER EJECT ................................................................................... 17

10. COVERS & LABELS .......................................................................... 19

11. PCB .................................................................................................... 23

12. ACCESSORIES .................................................................................. 25

13. PACKING MATERIALS ...................................................................... 29

14. PERIODICAL MAINTENANCE PARTS ............................................. 32

15. LT ....................................................................................................... 34

1.FRAME

8-1

- 1 -

1. FRAME

REF No. CODE Q'TY DESCRIPTION MODEL SPEC

1 LY0101001 1 BLOWER 2 LY7613001 1 AIR DUCT FILM 3 LV0489001 1 DEVELOP RELEASE SENSOR

4 LY7724001 1 TONER/NEW SENSOR PCB ASSY 5 LV1177001 1 FRONT COVER SENSOR 6 LV1201001 1 EJECT SENSOR PCB ASSY HL-L8250CDN FOR US/US_FS 6 LV1412001 1 EJECT SENSOR PCB ASSY HL-L8250CDN FOR GER/UK/ARL/CHE/ITA/IBR/

6 LV1201001 1 EJECT SENSOR PCB ASSY HL-L8350CDW FOR US/CAN/TWN/BRZ/US_FS 6 LV1412001 1 EJECT SENSOR PCB ASSY HL-L8350CDW FOR GER/UK/ARL/CHE/ITA/IBR/

6 LV1201001 1 EJECT SENSOR PCB ASSY HL-L8350CDWT 6 LV1201001 1 EJECT SENSOR PCB ASSY HL-L9200CDW FOR US/CAN 6 LV1412001 1 EJECT SENSOR PCB ASSY HL-L9200CDW FOR ARL/CHN 6 LV1201001 1 EJECT SENSOR PCB ASSY HL-L9200CDWT FOR US 6 LV1412001 1 EJECT SENSOR PCB ASSY HL-L9200CDWT FOR GER/UK/CHE/ITA/IBR/RUS/

6 LV1201001 1 EJECT SENSOR PCB ASSY HL-L9300CDW 6 LV1201001 1 EJECT SENSOR PCB ASSY HL-L9300CDWT FOR US 6 LV1412001 1 EJECT SENSOR PCB ASSY HL-L9300CDWT FOR GER/UK/CHE/ITA/IBR/FRA/

7 LY7726001 1 REGISTRATION MARK SENSOR

8 LY7727001 1 FUSER COVER ASSY

8-1 LY0634001 4 CLEANER PINCH ROLLER S ASSY

9 LY7625001 1 FUSER FAN 10 LY7719001 1 POWER FAN 11 LY7725001 1 DEVELOP RELEASE DRIVE UNIT 12 LV1176001 1 BACK COVER SENSOR ASSY

PCB ASS

UNIT

CHN/SGP/KOR/RUS/FRA/BEL/

PND/CEE

NLD

ARG/CHL/GUL/SGP/KOR/FRA/

NLD/PND/CEE

BEL

FRA/BEL/NLD/PND/CEE

BEL/NLD/PND

REMARKS

ADD

- 2 -

2.DRIVE

2-1

- 3 -

2. DRIVE

REF No. CODE Q'TY DESCRIPTION MODEL SPEC

1 LY7731001 1 MAIN DRIVE UNIT

2 LU4923001 1 PROCESS DRIVE UNIT (SP) HL-L8250CDN

2 LU4923001 1 PROCESS DRIVE UNIT (SP) HL-L8350CDW

2 LU4923001 1 PROCESS DRIVE UNIT (SP) HL-L8350CDWT

2 LU4923001 1 PROCESS DRIVE UNIT (SP) HL-L9200CDW

2 LU4923001 1 PROCESS DRIVE UNIT (SP) HL-L9200CDWT

2 LR2159001 1 PROCESS DRIVE UNIT (SP) HL-L9300CDW

2 LR2159001 1 PROCESS DRIVE UNIT (SP) HL-L9300CDWT

2-1 LY0233001 1 FUSER DRIVE GEAR Z25

3 LU6109001 1 TAPTITE PAN (WASHER) B M4X12DA

REMARKS

- 4 -

3.LASER UNIT

- 5 -

3. LASER UNIT

REF No. CODE Q'TY DESCRIPTION MODEL SPEC

1 LU6918001 1 LASER UNIT (SP) CHG

2 LV1174001 1 LASER UNIT FLAT CABLE

3 LU1259001 1 LABEL LASER CAUTION

REMARKS

- 6 -

4.PAPER FEEDER

1-3

1-2

1-1

- 7 -

4. PAPER FEEDER

ASSY

REF No. CODE Q'TY DESCRIPTION MODEL SPEC

1 LR2190001 1 PAPER FEED UNIT (SP)

1-1 LV1208001 1 REGISTRATION FRONT/REAR

SENSOR PCB ASS

1-2 LV1210001 1 T1 PAPER FEED SENSOR PCB

1-3 LY7136001 1 JOINT PIN

REMARKS

CHG

- 8 -

5.MP UNIT

- 9 -

5. MP UNIT

ASSY

REF No. CODE Q'TY DESCRIPTION MODEL SPEC

1 LV1212001 1 MP PAPER EMPTY/REGISTRATION

FRONT SENSOR PCB ASSY

2 LY0873001 1 MP PAPER EMPTY ACUTUATOR A

3 LY0304001 1 MP PAPER EMPTY ACUTUATOR B

REMARKS

- 10 -

6.DUPLEX

- 11 -

6. DUPLEX

REF No. CODE Q'TY DESCRIPTION MODEL SPEC

1 LU4928001 1 DX FEED ASSY LTR (SP) HL-L8250CDN FOR US/US_FS

1 LU4929001 1 DX FEED ASSY A4 (SP) HL-L8250CDN FOR GER/UK/ARL/CHE/ITA/IBR/

CHN/SGP/KOR/RUS/FRA/BEL/

PND/CEE 1 LU4928001 1 DX FEED ASSY LTR (SP) HL-L8350CDW FOR US/CAN/ARG/CHL/BRZ/US_FS 1 LU4929001 1 DX FEED ASSY A4 (SP) HL-L8350CDW FOR GER/UK/ARL/CHE/ITA/IBR/

1 LU4928001 1 DX FEED ASSY LTR (SP) HL-L8350CDWT 1 LU4928001 1 DX FEED ASSY LTR (SP) HL-L9200CDW FOR US/CAN 1 LU4929001 1 DX FEED ASSY A4 (SP) HL-L9200CDW FOR ARL/CHN 1 LU4928001 1 DX FEED ASSY LTR (SP) HL-L9200CDWT FOR US 1 LU4929001 1 DX FEED ASSY A4 (SP) HL-L9200CDWT FOR GER/UK/CHE/ITA/IBR/RUS/

1 LU4928001 1 DX FEED ASSY LTR (SP) HL-L9300CDW 1 LU4928001 1 DX FEED ASSY LTR (SP) HL-L9300CDWT FOR US 1 LU4929001 1 DX FEED ASSY A4 (SP) HL-L9300CDWT FOR GER/UK/CHE/ITA/IBR/FRA/

2 LY1163001 2 TAPTITE CUP B M3X12

NLD

TWN/GUL/SGP/KOR/FRA/BEL/

PND/CEE

NLD

FRA/BEL/NLD/PND/CEE

BEL/NLD/PND

REMARKS

- 12 -

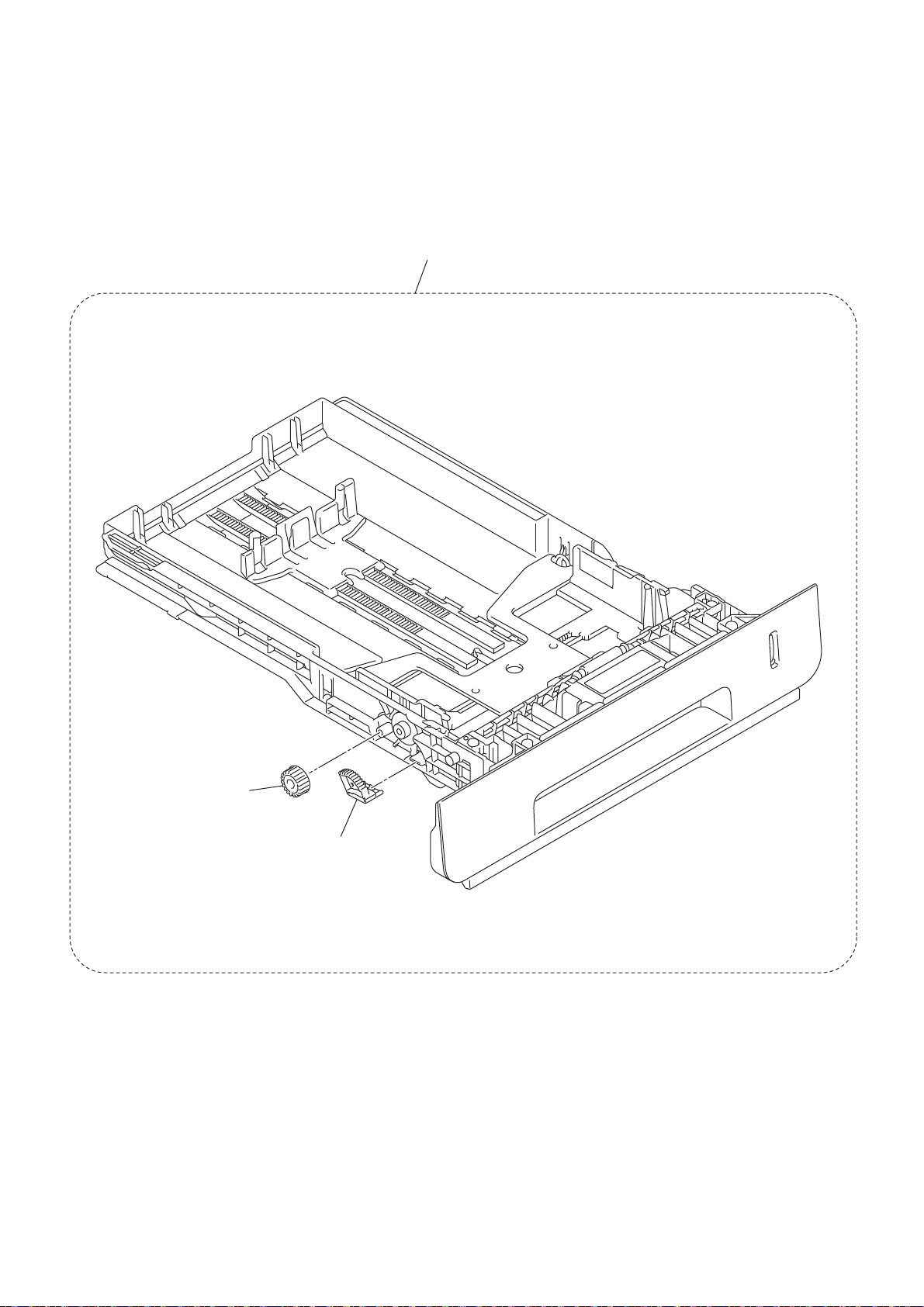

7.PAPER TRAY

1-1

1-2

- 13 -

7. PAPER TRAY

REF No. CODE Q'TY DESCRIPTION MODEL SPEC

1 LY7750001 1 PAPER TRAY 1 HL-L8250CDN 1 LY7750001 1 PAPER TRAY 1 HL-L8350CDW 1 LY7750001 1 PAPER TRAY 1 HL-L8350CDWT 1 LY7750002 1 PAPER TRAY 1 HL-L9200CDW 1 LY7750002 1 PAPER TRAY 1 HL-L9200CDWT 1 LY7750002 1 PAPER TRAY 1 HL-L9300CDW 1 LY7750002 1 PAPER TRAY 1 HL-L9300CDWT

1-1 LR0252001 1 GEAR Z19M10 1-2 LY2202001 1 LIFT GEAR 46

REMARKS

- 14 -

8.FUSER UNIT

- 15 -

8. FUSER UNIT

)

(SP)

REF No. CODE Q'TYDESCRIPTION MODEL SPEC

1 LR2241001 1 FUSER UNIT 115V(SP 1 LR2242001 1 FUSER UNIT 230V(SP) HL-L8250CDN FOR GER/UK/ARL/CHE/ITA/IBR/

1 LR2241001 1 FUSER UNIT 115V 1 LR2244001 1 FUSER UNIT 127V 1 LR2242001 1 FUSER UNIT 230V(SP) HL-L8350CDW FOR GER/UK/ARL/CHE/ITA/IBR/

1 LR2241001 1 FUSER UNIT 115V 1 LR2241001 1 FUSER UNIT 115V 1 LR2242001 1 FUSER UNIT 230V 1 LR2241001 1 FUSER UNIT 115V 1 LR2242001 1 FUSER UNIT 230V(SP) HL-L9200CDWT FOR GER/UK/CHE/ITA/IBR/RUS/

1 LR2241001 1 FUSER UNIT 115V 1 LR2241001 1 FUSER UNIT 115V 1 LR2242001 1 FUSER UNIT 230V(SP) HL-L9300CDWT FOR GER/UK/CHE/ITA/IBR/FRA/

2 LJ0395001 2 TAPTITE PAN B M4X14

HL-L8250CDN FOR US/US FS CHG

CHN/SGP/KOR/RUS/FRA/BEL/

NLD/PND/CEE HL-L8350CDW FOR US/CAN/TWN/US FS CHG HL-L8350CDW FOR BRZ CHG

ARG/CHL/GUL/SGP/KOR/FRA/ HL-L8350CDWT CHG

HL-L9200CDW FOR US/CAN CHG HL-L9200CDW FOR ARL/CHN CHG HL-L9200CDWT FOR US CHG

FRA/BEL/NLD/PND/CEE HL-L9300CDW CHG HL-L9300CDWT FOR US CHG

BEL/NLD/PND

REMARKS

CHG

- 16 -

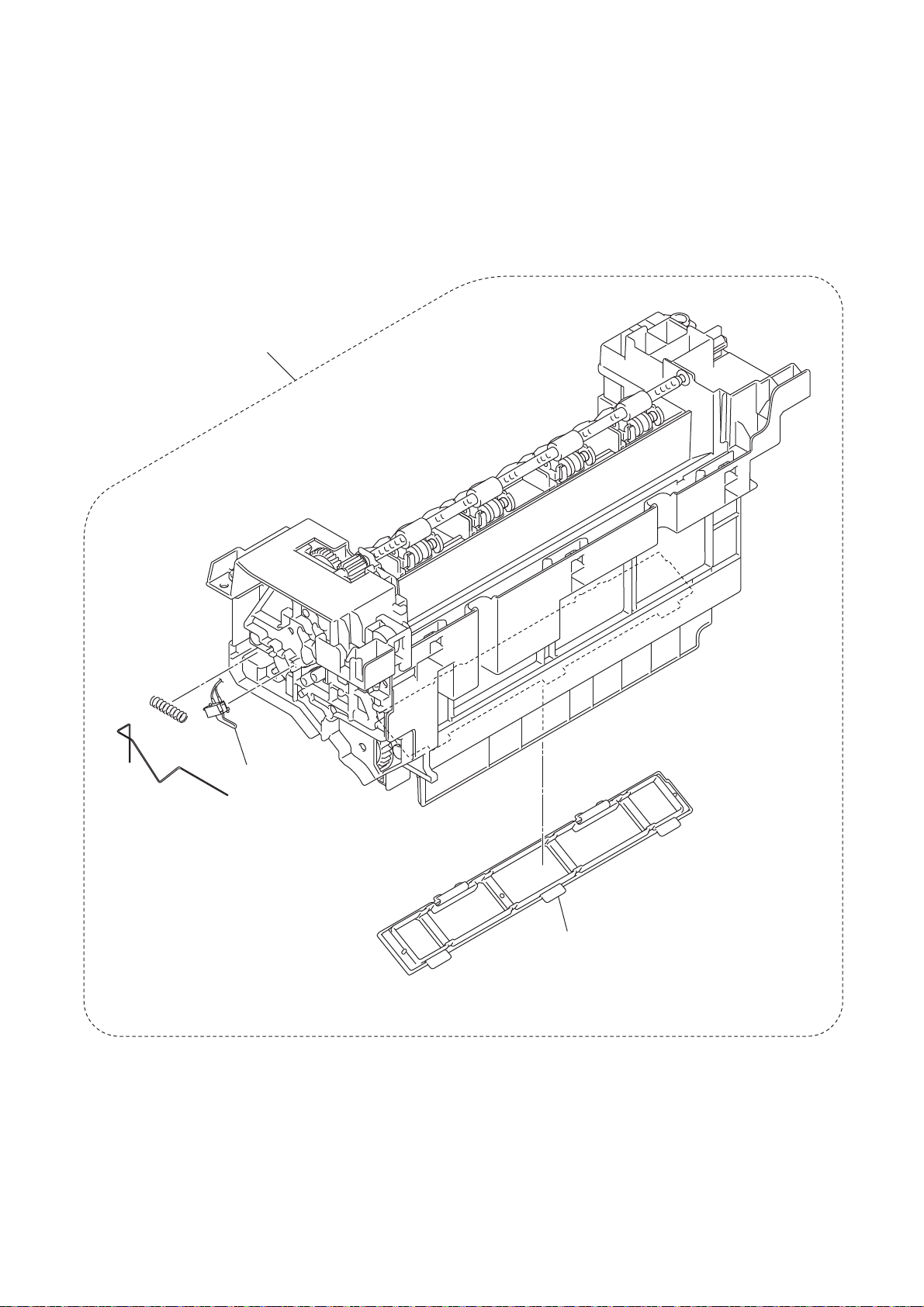

9.PAPER EJECT

1-2

1-1

- 17 -

9. PAPER EJECT

REF No. CODE Q'TY DESCRIPTION MODEL SPEC

1 LU4924001 1 PAPER EJECT ASSY (SP) 1-1 LY7841001 1 TONER FILTER ASSY 1-2 LV1282001 1 PAPER EJECT ORIGIN SENSOR

REMARKS

- 18 -

10.COVER&LABELS

4-3 4-5

4-3-3

4-3-1

4-3-2

4-1 5-1

4-2

4-4

5-2

5-7

5-3

5-3-1

5-4

5-5

5-6

- 19 -

10. COVERS & LABELS

(SP)

REF No. CODE Q'TYDESCRIPTION MODEL SPEC

1 LY1859001 1 FRONT COVER HL-L8250CDN 1 LY1859001 1 FRONT COVER HL-L8350CDW 1 LY1859001 1 FRONT COVER HL-L8350CDWT 1 LY1859002 1 FRONT COVER HL-L9200CDW 1 LY1859002 1 FRONT COVER HL-L9200CDWT 1 LY1859002 1 FRONT COVER HL-L9300CDW 1 LY1859002 1 FRONT COVER HL-L9300CDWT 2 LY1910001 1 FRONT COVER RELEASE BUTTON 3 LY1911001 1 FRONT COVER RELEASE BUTTON

4 LU4925001 1 TOP COVER ASSY 4 LU4926001 1 TOP COVER ASSY

4 LU4926001 1 TOP COVER ASSY 4-1 LY0428003 1 SUPPORT FLAP HL-L8250CDN 4-1 LY0428003 1 SUPPORT FLAP HL-L8350CDW 4-1 LY0428003 1 SUPPORT FLAP HL-L8350CDWT 4-2 LY7765001 1 USB COVER PRINTED ASSY HL-L8250CDN 4-2 LY7765001 1 USB COVER PRINTED ASSY HL-L8350CDW 4-2 LY7765001 1 USB COVER PRINTED ASSY HL-L8350CDWT 4-3 LY7766001 1 PANEL COVER ASSY HL-L8250CDN 4-3 LY7912001 1 PANEL COVER ASSY HL-L8350CDW 4-3 LY7912001 1 PANEL COVER ASSY HL-L8350CDWT

4-3-1 LY1908001 1 RUBBER KEY PRINTED ASSY HL-L8250CDN 4-3-1 LY1908001 1 RUBBER KEY PRINTED ASSY HL-L8350CDW 4-3-1 LY1908001 1 RUBBER KEY PRINTED ASSY HL-L8350CDWT 4-3-2 LV1148001 1 PANEL PCB ASSY HL-L8250CDN 4-3-2 LV1148001 1 PANEL PCB ASSY HL-L8350CDW 4-3-2 LV1148001 1 PANEL PCB ASSY HL-L8350CDWT 4-3-3 A62009001 1 LCD HL-L8250CDN 4-3-3 A62009001 1 LCD HL-L8350CDW 4-3-3 A62009001 1 LCD HL-L8350CDWT

4-4 LV1391001 1 USB HOST RELAY PCB ASS 4-4 LV1391001 1 USB HOST RELAY PCB ASS 4-4 LV1391001 1 USB HOST RELAY PCB ASS 4-5 LT2155001 1 WIRELESS LAN PCB HL-L8350CDW 4-5 LT2155001 1 WIRELESS LAN PCB HL-L8350CDWT

4 LU4927001 1 TOP COVER ASSY

5 LU4927001 1 TOP COVER ASSY

5 LR2209001 1 TOP COVER ASSY

5 LR2209001 1 TOP COVER ASSY 5-1 LY0428003 1 SUPPORT FLAP HL-L9200CDW 5-1 LY0428003 1 SUPPORT FLAP HL-L9200CDWT 5-1 LY0428003 1 SUPPORT FLAP HL-L9300CDW 5-1 LY0428003 1 SUPPORT FLAP HL-L9300CDWT 5-2 LV1149001 1 PANEL CONTROL PCB ASSY HL-L9200CDW 5-2 LV1149001 1 PANEL CONTROL PCB ASSY HL-L9200CDWT 5-2 LV1149001 1 PANEL CONTROL PCB ASSY HL-L9300CDW 5-2 LV1149001 1 PANEL CONTROL PCB ASSY HL-L9300CDWT 5-3 LY7862001 1 PANEL CASE ASSY HL-L9200CDW 5-3 LY7862001 1 PANEL CASE ASSY HL-L9200CDWT 5-3 LY7862001 1 PANEL CASE ASSY HL-L9300CDW 5-3 LY7862001 1 PANEL CASE ASSY HL-L9300CDWT

5-3-1 LV1169001 1 KEY PCB FLAT CABLE HL-L9200CDW 5-3-1 LV1169001 1 KEY PCB FLAT CABLE HL-L9200CDWT 5-3-1 LV1169001 1 KEY PCB FLAT CABLE HL-L9300CDW 5-3-1 LV1169001 1 KEY PCB FLAT CABLE HL-L9300CDWT

5-4 LY7793001 1 LCD PANEL ASSY HL-L9200CDW 5-4 LY7793001 1 LCD PANEL ASSY HL-L9200CDWT 5-4 LR2013001 1 LCD PANEL ASSY HL-L9300CDW 5-4 LR2013001 1 LCD PANEL ASSY HL-L9300CDWT 5-5 LY7765002 1 USB COVER PRINTED ASSY HL-L9200CDW 5-5 LY7765002 1 USB COVER PRINTED ASSY HL-L9200CDWT 5-5 LY7765002 1 USB COVER PRINTED ASSY HL-L9300CDW 5-5 LY7765002 1 USB COVER PRINTED ASSY HL-L9300CDWT 5-6 LV1391001 1 USB HOST RELAY PCB ASS 5-6 LV1391001 1 USB HOST RELAY PCB ASS 5-6 LV1391001 1 USB HOST RELAY PCB ASS 5-6 LV1391001 1 USB HOST RELAY PCB ASS 5-7 LT2155001 1 WIRELESS LAN PCB HL-L9200CDW 5-7 LT2155001 1 WIRELESS LAN PCB HL-L9200CDWT 5-7 LT2155001 1 WIRELESS LAN PCB HL-L9300CDW 5-7 LT2155001 1 WIRELESS LAN PCB HL-L9300CDWT

6 LY1866001 1 SIDE COVER R

SPRING

HL-L8250CDN HL-L8350CDW HL-L8350CDWT

HL-L9200CDW HL-L9200CDWT HL-L9300CDW HL-L9300CDWT

REMARKS

- 20 -

10. COVERS & LABELS

REF No. CODE Q'TYDESCRIPTION MODEL SPEC

7 LY7768001 1 SIDE COVER L ASSY

8 LY1868001 1 REAR COVER

9 LY0450001 1 REAR COVER STOPPER ARM L

10 LY0451001 1 REAR COVER STOPPER ARM R 11 LY0452003 1 MP COVER ASSY HL-L8250CDN 11 LY0452003 1 MP COVER ASSY HL-L8350CDW 11 LY0452003 1 MP COVER ASSY HL-L8350CDWT 11 LY0452004 1 MP COVER ASSY HL-L9200CDW 11 LY0452004 1 MP COVER ASSY HL-L9200CDWT 11 LY0452004 1 MP COVER ASSY HL-L9300CDW 11 LY0452004 1 MP COVER ASSY HL-L9300CDWT 12 LY0456003 1 MP PAPER GUIDE ASSY HL-L8250CDN 12 LY0456003 1 MP PAPER GUIDE ASSY HL-L8350CDW 12 LY0456003 1 MP PAPER GUIDE ASSY HL-L8350CDWT 12 LY0456004 1 MP PAPER GUIDE ASSY HL-L9200CDW 12 LY0456004 1 MP PAPER GUIDE ASSY HL-L9200CDWT 12 LY0456004 1 MP PAPER GUIDE ASSY HL-L9300CDW 12 LY0456004 1 MP PAPER GUIDE ASSY HL-L9300CDWT 13 LY1929003 1 MP LINK R HL-L8250CDN 13 LY1929003 1 MP LINK R HL-L8350CDW 13 LY1929003 1 MP LINK R HL-L8350CDWT 13 LY1929004 1 MP LINK R HL-L9200CDW 13 LY1929004 1 MP LINK R HL-L9200CDWT 13 LY1929004 1 MP LINK R HL-L9300CDW 13 LY1929004 1 MP LINK R HL-L9300CDWT 14 LY0460003 1 MP LINK L HL-L8250CDN 14 LY0460003 1 MP LINK L HL-L8350CDW 14 LY0460003 1 MP LINK L HL-L8350CDWT 14 LY0460004 1 MP LINK L HL-L9200CDW 14 LY0460004 1 MP LINK L HL-L9200CDWT 14 LY0460004 1 MP LINK L HL-L9300CDW 14 LY0460004 1 MP LINK L HL-L9300CDWT 15 LY0872001 1 LAN PORT CAP 16 LY4852002 1 EMBLEM BROTHER SHEET HL-L8250CDN 16 LY4852002 1 EMBLEM BROTHER SHEET HL-L8350CDW 16 LY4852002 1 EMBLEM BROTHER SHEET HL-L8350CDWT 16 LY4852005 1 EMBLEM BROTHER SHEET HL-L9200CDW 16 LY4852005 1 EMBLEM BROTHER SHEET HL-L9200CDWT 16 LY4852005 1 EMBLEM BROTHER SHEET HL-L9300CDW 16 LY4852005 1 EMBLEM BROTHER SHEET HL-L9300CDWT 17 LY7850001 1 COLOR LASER LABEL HL-L8250CDN 17 LY7850001 1 COLOR LASER LABEL HL-L8350CDW 17 LY7850001 1 COLOR LASER LABEL HL-L8350CDWT 17 LY7850002 1 COLOR LASER LABEL HL-L9200CDW 17 LY7850002 1 COLOR LASER LABEL HL-L9200CDWT 17 LY7850002 1 COLOR LASER LABEL HL-L9300CDW 17 LY7850002 1 COLOR LASER LABEL HL-L9300CDWT 18 LY7886001 1 MP SET INSTRUCTION LABEL 19 LY7888001 1 LABEL H/SP CAUTION REAR 49X45 20 LY7889001 1 LABEL DR OPERATION PRN 21 LY1430001 1 LABEL HIGH TEMP 13.9X13.4 22 LY7894001 1 BELT OPERATION LABEL 23 LY1160001 1 LABEL FRONT JAM 18X16 24 LY7987001 1 LABEL H/SP CAUTION F HL-L8250CDN FOR CHN 24 LY7891001 1 LABEL H/SP CAUTION F HL-L8250CDN FOR US/US FS 24 LY7984001 1 LABEL H/SP CAUTION F HL-L8250CDN FOR ARL 24 LY7986001 1 LABEL H/SP CAUTION F HL-L8250CDN FOR SGP/KOR 24 LY7892001 1 LABEL H/SP CAUTION F HL-L8250CDN FOR GER/UK/CHE/ITA/IBR/RUS/

FRA/BEL/NLD/PND/CEE 24 LY7891001 1 LABEL H/SP CAUTION F HL-L8350CDW FOR US/CAN/US FS 24 LY7984001 1 LABEL H/SP CAUTION F HL-L8350CDW FOR ARL 24 LY7982001 1 LABEL H/SP CAUTION F HL-L8350CDW FOR ARG/CHL/BRZ 24 LU6853001 1 LABEL H/SP CAUTION F HL-L8350CDW FOR GUL 24 LY7986001 1 LABEL H/SP CAUTION F HL-L8350CDW FOR TWN/SGP/KOR 24 LY7893001 1 LABEL H/SP CAUTION F HL-L8350CDW FOR GER/UK/CHE/ITA/IBR/FRA/

BEL/NLD/PND/CEE 24 LY7891001 1 LABEL H/SP CAUTION F HL-L8350CDWT 24 LY7987001 1 LABEL H/SP CAUTION F HL-L9200CDW FOR CHN 24 LY7981001 1 LABEL H/SP CAUTION F HL-L9200CDW FOR US/CAN 24 LY7985001 1 LABEL H/SP CAUTION F HL-L9200CDW FOR ARL 24 LY7981001 1 LABEL H/SP CAUTION F HL-L9200CDWT FOR US 24 LY7983001 1 LABEL H/SP CAUTION F HL-L9200CDWT FOR GER/UK/CHE/ITA/IBR/RUS/

FRA/BEL/NLD/PND/CEE

REMARKS

- 21 -

10. COVERS & LABELS

REF No. CODE Q'TYDESCRIPTION MODEL SPEC

24 LY7981001 1 LABEL H/SP CAUTION F HL-L9300CDW 24 LY7981001 1 LABEL H/SP CAUTION F HL-L9300CDWT FOR US 24 LY7983001 1 LABEL H/SP CAUTION F HL-L9300CDWT FOR GER/UK/CHE/ITA/IBR/FRA/

BEL/NLD/PND

REMARKS

- 22 -

11.PCB

- 23 -

11. PCB

SGP/KOR/

REF No. CODE Q'TY DESCRIPTION MODEL SPEC

1 LV1254001 1 MAIN PCB ASSY HL-L8250CDN FOR US/GER/UK/ARL/CHE/ITA/

IBR/CHN/SGP/KOR/RUS/FRA/

NLD/PND/CEE 1 LV1254002 1 MAIN PCB ASSY (*) HL-L8250CDN FOR US_FS 1 LV1253001 1 MAIN PCB ASSY HL-L8350CDW FOR US/CAN/GER/UK/ARL/CHE/

1 LV1253002 1 MAIN PCB ASSY (*) HL-L8350CDW FOR US_FS 1 LV1253001 1 MAIN PCB ASSY HL-L8350CDWT 1 LV1147001 1 MAIN PCB B512380 ASSY1 BC2P HL-L9200CDW 1 LV1147001 1 MAIN PCB B512380 ASSY1 BC2P HL-L9200CDWT 1 LV1451001 1 MAIN PCB ASSY HL-L9300CDW 1 LV1451001 1 MAIN PCB ASSY HL-L9300CDWT 2 LV1216001 1 LOW-VOLTAGE POWER SUPPLY

PCB UNIT

2 LV1108001 1 LOW-VOLTAGE POWER SUPPLY

PCB UNIT

2 LV1161001 1 LOW-VOLTAGE POWER SUPPLY

PCB UNIT

2 LV1216001 1 LOW-VOLTAGE POWER SUPPLY

PCB UNIT

2 LV1108001 1 LOW-VOLTAGE POWER SUPPLY

PCB UNIT

2 LV1306001 1 LOW-VOLTAGE POWER SUPPLY

PCB UNIT

2 LV1216001 1 LOW-VOLTAGE POWER SUPPLY

PCB UNIT

2 LV1216001 1 LOW-VOLTAGE POWER SUPPLY

PCB UNIT

2 LV1108001 1 LOW-VOLTAGE POWER SUPPLY

PCB UNIT

2 LV1161001 1 LOW-VOLTAGE POWER SUPPLY

PCB UNIT

2 LV1216001 1 LOW-VOLTAGE POWER SUPPLY

PCB UNIT

2 LV1108001 1 LOW-VOLTAGE POWER SUPPLY

PCB UNIT

2 LV1161001 1 LOW-VOLTAGE POWER SUPPLY

PCB UNIT

2 LT2763001 1 LOW-VOLTAGE POWER SUPPLY

PCB UNIT

2 LT2763001 1 LOW-VOLTAGE POWER SUPPLY

PCB UNIT

2 LT2764001 1 LOW-VOLTAGE POWER SUPPLY

PCB UNIT

3 LY7790001 1 HIGH-VOLTAGE POWER SUPPLY

PCB ASS

HL-L8250CDN FOR US/US_FS

HL-L8250CDN FOR GER/UK/ARL/CHE/ITA/IBR/

HL-L8250CDN FOR CHN/RUS

HL-L8350CDW FOR US/CAN/TWN/US_FS

HL-L8350CDW FOR GER/UK/ARL/CHE/ITA/IBR/

HL-L8350CDW FOR BRZ

HL-L8350CDWT

HL-L9200CDW FOR US/CAN

HL-L9200CDW FOR ARL

HL-L9200CDW FOR CHN

HL-L9200CDWT FOR US

HL-L9200CDWT FOR GER/UK/CHE/ITA/IBR/FRA/

HL-L9200CDWT FOR RUS

HL-L9300CDW

HL-L9300CDWT FOR US

HL-L9300CDWT FOR GER/UK/CHE/ITA/IBR/FRA/

BEL

ITA/IBR/TWN/ARG/CHL/GUL/BRZ/

FRA/BEL/NLD/PND/CEE

SGP/KOR/FRA/BEL/NLD/PND/CEE

ARG/CHL/GUL/SGP/KOR/FRA/

NLD/PND/CEE

BEL

BEL/NLD/PND/CEE

BEL/NLD/PND

REMARKS

(*) First 3-months production only

- 24 -

12.ACCESSORIES

- 25 -

12. ACCESSORIES

(

)

(

)

REF No. CODE Q'TY DESCRIPTION MODEL SPEC

1 LR2073001 1 CDROM ASSY HL-L9300CDW 1 LR2073001 1 CDROM ASSY HL-L9300CDWT FOR US 1 LY7905001 1 CDROM ASSY HL-L8250CDN FOR US/US_FS 1 LY7905001 1 CDROM ASSY HL-L8350CDW FOR US/US_FS 1 LY7905001 1 CDROM ASSY HL-L8350CDWT 1 LY7905001 1 CDROM ASSY HL-L9200CDW FOR US 1 LY7905001 1 CDROM ASSY HL-L9200CDWT FOR US 1 LY7910001 1 CDROM ASSY HL-L8350CDW FOR CAN 1 LU4899001 1 CDROM ASSY HL-L9200CDW FOR CAN 1 LY7903001 1 CDROM ASSY HL-L8250CDN FOR GER/UK/CHE/ITA/IBR/

1 LY7903001 1 CDROM ASSY HL-L8350CDW FOR GER/UK/CHE/ITA/IBR/

1 LU4521001 1 CDROM ASSY HL-L9200CDWT FOR GER/UK/CHE/ITA/IBR/

1 LR2074001 1 CDROM ASSY HL-L9300CDWT FOR GER/UK/CHE/ITA/IBR/

1 LY7911001 1 CDROM ASSY HL-L8250CDN FOR ARL/SGP 1 LY7911001 1 CDROM ASSY HL-L8350CDW FOR ARL/ARG/CHL/GUL/BRZ/SGP 1 LU4900001 1 CDROM ASSY HL-L9200CDW FOR ARL 1 LY7908001 1 CDROM ASSY HL-L8250CDN FOR CHN 1 LY7908001 1 CDROM ASSY HL-L9200CDW FOR CHN 1 LR2065001 1 CDROM ASSY HL-L8350CDW FOR TWN 1 LY7909001 1 CDROM ASSY HL-L8250CDN FOR KOR 1 LY7909001 1 CDROM ASSY HL-L8350CDW FOR KOR 1 LY7906001 1 CDROM ASSY HL-L8250CDN FOR RUS/CEE 1 LY7906001 1 CDROM ASSY HL-L8350CDW FOR CEE 1 LU4901001 1 CDROM ASSY HL-L9200CDWT FOR RUS/CEE 2 LU4808001 1 SETUP GUIDE (GERMAN) HL-L8250CDN FOR GER/CHE 2 LU4808001 1 SETUP GUIDE (GERMAN) HL-L8350CDW FOR GER/CHE 2 LR2111001 1 SETUP GUIDE (GERMAN) HL-L9200CDWT FOR GER/CHE 2 LR2111001 1 SETUP GUIDE (GERMAN) HL-L9300CDWT FOR GER/CHE 2 LU4807001 1 SETUP GUIDE (PORTUGUESE) HL-L8350CDW FOR BRZ 2 LU4832001 1 SETUP GUIDE (KOREAN) HL-L8250CDN FOR KOR 2 LU4832001 1 SETUP GUIDE (KOREAN) HL-L8350CDW FOR KOR 2 LR2092001 1 SETUP GUIDE (TAIWANESE) HL-L8350CDW FOR TWN 2 LR2110001 1 SETUP GUIDE (ENGLISH) HL-L9300CDW 2 LR2110001 1 SETUP GUIDE (ENGLISH) HL-L9300CDWT FOR US/UK 2 LU4805001 1 SETUP GUIDE (ENGLISH) HL-L8250CDN FOR US/UK/ARL/SGP/US_FS/CEE 2 LU4805001 1 SETUP GUIDE (ENGLISH) HL-L8350CDW FOR US/CAN/UK/ARL/GUL/SGP/

2 LU4805001 1 SETUP GUIDE (ENGLISH) HL-L8350CDWT 2 LR2110001 1 SETUP GUIDE (ENGLISH) HL-L9200CDW FOR US/CAN/ARL 2 LR2110001 1 SETUP GUIDE (ENGLISH) HL-L9200CDWT FOR US/UK/CEE 2 LU4833001 1 SETUP GUIDE (CHINESE) HL-L8250CDN FOR CHN 2 LU4856001 1 SETUP GUIDE (CHINESE) HL-L9200CDW FOR CHN 2 LU4829001 1 SETUP GUIDE (INDONESIAN) HL-L8250CDN FOR SGP 2 LU4829001 1 SETUP GUIDE (INDONESIAN) HL-L8350CDW FOR SGP 2 LU4818001 1 SETUP GUIDE 2 LU4847001 1 SETUP GUIDE 2 LU4814001 1 SETUP GUIDE (FINNISH) HL-L8250CDN FOR PND 2 LU4814001 1 SETUP GUIDE (FINNISH) HL-L8350CDW FOR PND 2 LR2117001 1 SETUP GUIDE (FINNISH) HL-L9200CDWT FOR PND 2 LR2117001 1 SETUP GUIDE (FINNISH) HL-L9300CDWT FOR PND 2 LU4821001 1 SETUP GUIDE (CZECH) HL-L8250CDN FOR CEE 2 LU4821001 1 SETUP GUIDE (CZECH) HL-L8350CDW FOR CEE 2 LU4850001 1 SETUP GUIDE (CZECH) HL-L9200CDWT FOR CEE 2 LU4809001 1 SETUP GUIDE (FRENCH) HL-L8250CDN FOR CHE/FRA/BEL/NLD 2 LU4809001 1 SETUP GUIDE (FRENCH) HL-L8350CDW FOR CHE/FRA/BEL/NLD 2 LR2112001 1 SETUP GUIDE (FRENCH) HL-L9200CDWT FOR CHE/FRA/BEL/NLD 2 LR2112001 1 SETUP GUIDE (FRENCH) HL-L9300CDWT FOR CHE/FRA/BEL/NLD 2 LU4827001 1 SETUP GUIDE (TURKISH) HL-L8350CDW FOR GUL 2 LU4830001 1 SETUP GUIDE (VIETNAMESE) HL-L8250CDN FOR SGP 2 LU4830001 1 SETUP GUIDE (VIETNAMESE) HL-L8350CDW FOR SGP 2 LU4819001 1 SETUP GUIDE (BELARUSIAN) HL-L8250CDN FOR RUS 2 LU4848001 1 SETUP GUIDE (BELARUSIAN) HL-L9200CDWT FOR RUS 2 LU4813001 1 SETUP GUIDE (DUTCH) HL-L8250CDN FOR FRA/BEL/NLD 2 LU4813001 1 SETUP GUIDE (DUTCH) HL-L8350CDW FOR FRA/BEL/NLD 2 LR2116001 1 SETUP GUIDE (DUTCH) HL-L9200CDWT FOR FRA/BEL/NLD 2 LR2116001 1 SETUP GUIDE (DUTCH) HL-L9300CDWT FOR FRA/BEL/NLD 2 LU4815001 1 SETUP GUIDE (DANISH) HL-L8250CDN FOR PND 2 LU4815001 1 SETUP GUIDE (DANISH) HL-L8350CDW FOR PND

RUSSIAN RUSSIAN

HL-L8250CDN FOR RUS HL-L9200CDWT FOR RUS

FRA/BEL/NLD/PND

US FS/CEE

REMARKS

CHG

CHG CHG

CHG

- 26 -

12. ACCESSORIES

REF No. CODE Q'TY DESCRIPTION MODEL SPEC

2 LR2118001 1 SETUP GUIDE (DANISH) HL-L9200CDWT FOR PND 2 LR2118001 1 SETUP GUIDE (DANISH) HL-L9300CDWT FOR PND 2 LU4822001 1 SETUP GUIDE (HUNGARIAN) HL-L8250CDN FOR CEE 2 LU4822001 1 SETUP GUIDE (HUNGARIAN) HL-L8350CDW FOR CEE 2 LU4851001 1 SETUP GUIDE (HUNGARIAN) HL-L9200CDWT FOR CEE 2 LU4806001 1 SETUP GUIDE (FRENCH) HL-L8350CDW FOR CAN 2 LU4836001 1 SETUP GUIDE (FRENCH) HL-L9200CDW FOR CAN 2 LU4810001 1 SETUP GUIDE (ITALIAN) HL-L8250CDN FOR CHE/ITA/IBR 2 LU4810001 1 SETUP GUIDE (ITALIAN) HL-L8350CDW FOR CHE/ITA/IBR 2 LR2113001 1 SETUP GUIDE (ITALIAN) HL-L9200CDWT FOR CHE/ITA/IBR 2 LR2113001 1 SETUP GUIDE (ITALIAN) HL-L9300CDWT FOR CHE/ITA/IBR 2 LU4828001 1 SETUP GUIDE (ARABIC) HL-L8350CDW FOR GUL 2 LU4831001 1 SETUP GUIDE (THAI) HL-L8250CDN FOR SGP 2 LU4831001 1 SETUP GUIDE (THAI) HL-L8350CDW FOR SGP 2 LU4820001 1 SETUP GUIDE (KAZAKH) HL-L8250CDN FOR RUS 2 LU4849001 1 SETUP GUIDE (KAZAKH) HL-L9200CDWT FOR RUS 2 LU4816001 1 SETUP GUIDE (NORWEGIAN) HL-L8250CDN FOR PND 2 LU4816001 1 SETUP GUIDE (NORWEGIAN) HL-L8350CDW FOR PND 2 LR2119001 1 SETUP GUIDE (NORWEGIAN) HL-L9200CDWT FOR PND 2 LR2119001 1 SETUP GUIDE (NORWEGIAN) HL-L9300CDWT FOR PND 2 LU4823001 1 SETUP GUIDE (POLISH) HL-L8250CDN FOR CEE 2 LU4823001 1 SETUP GUIDE (POLISH) HL-L8350CDW FOR CEE 2 LU4852001 1 SETUP GUIDE (POLISH) HL-L9200CDWT FOR CEE 2 LU4811001 1 SETUP GUIDE (SPANISH) HL-L8250CDN FOR ITA/IBR 2 LU4811001 1 SETUP GUIDE (SPANISH) HL-L8350CDW FOR ITA/IBR/ARG/CHL 2 LR2114001 1 SETUP GUIDE (SPANISH) HL-L9200CDWT FOR ITA/IBR 2 LR2114001 1 SETUP GUIDE (SPANISH) HL-L9300CDWT FOR ITA/IBR 2 LU4817001 1 SETUP GUIDE (SWEDISH) HL-L8250CDN FOR PND 2 LU4817001 1 SETUP GUIDE (SWEDISH) HL-L8350CDW FOR PND 2 LR2120001 1 SETUP GUIDE (SWEDISH) HL-L9200CDWT FOR PND 2 LR2120001 1 SETUP GUIDE (SWEDISH) HL-L9300CDWT FOR PND 2 LU4824001 1 SETUP GUIDE (BULGARIAN) HL-L8250CDN FOR CEE 2 LU4824001 1 SETUP GUIDE (BULGARIAN) HL-L8350CDW FOR CEE 2 LU4853001 1 SETUP GUIDE (BULGARIAN) HL-L9200CDWT FOR CEE 2 LU4812001 1 SETUP GUIDE (PORTUGUESE) HL-L8250CDN FOR ITA/IBR 2 LU4812001 1 SETUP GUIDE (PORTUGUESE) HL-L8350CDW FOR ITA/IBR 2 LR2115001 1 SETUP GUIDE (PORTUGUESE) HL-L9200CDWT FOR ITA/IBR 2 LR2115001 1 SETUP GUIDE (PORTUGUESE) HL-L9300CDWT FOR ITA/IBR 2 LU4825001 1 SETUP GUIDE (ROMANIAN) HL-L8250CDN FOR CEE 2 LU4825001 1 SETUP GUIDE (ROMANIAN) HL-L8350CDW FOR CEE 2 LU4854001 1 SETUP GUIDE (ROMANIAN) HL-L9200CDWT FOR CEE 2 LU4826001 1 SETUP GUIDE (SLOVAK) HL-L8250CDN FOR CEE 2 LU4826001 1 SETUP GUIDE (SLOVAK) HL-L8350CDW FOR CEE 2 LU4855001 1 SETUP GUIDE (SLOVAK) HL-L9200CDWT FOR CEE 3 LU4976001 1 SETUP GUIDE LT HL-L8350CDWT chg 3 LU4976001 1 SETUP GUIDE LT HL-L9200CDWT chg 3 LU4976001 1 SETUP GUIDE LT HL-L9300CDWT 4 LM9362001 1 AC CORD BAG ASSY LF

UL/CSA 13

4 LM9362001 1 AC CORD BAG ASSY LF

UL/CSA 13

4 LM9362001 1 AC CORD BAG ASSY LF

UL/CSA 13

4 LM9362001 1 AC CORD BAG ASSY LF

UL/CSA 13

4 LM9362001 1 AC CORD BAG ASSY LF

UL/CSA 13

4 LM9362001 1 AC CORD BAG ASSY LF

UL/CSA 13

4 LM9362001 1 AC CORD BAG ASSY LF

UL/CSA 13

4 LV0364001 1 AC CORD BAG ASSY LF VDE S HL-L8250CDN FOR GER/ITA/IBR/SGP/RUS/ 4 LV0364001 1 AC CORD BAG ASSY LF VDE S HL-L8350CDW FOR GER/ITA/IBR/GUL/SGP/ 4 LV0364001 1 AC CORD BAG ASSY LF VDE S HL-L9200CDWT FOR GER/ITA/IBR/RUS/FRA/ 4 LV0364001 1 AC CORD BAG ASSY LF VDE S HL-L9300CDWT FOR GER/ITA/IBR/FRA/BEL/ 4 LV0368001 1 AC CORD BAG ASSY LF BS/PSB S HL-L8250CDN FOR UK/SGP

4 LV0368001 1 AC CORD BAG ASSY LF BS/PSB S HL-L8350CDW FOR UK/GUL/SGP 4 LV0368001 1 AC CORD BAG ASSY LF BS/PSB S HL-L9200CDWT FOR UK

HL-L8250CDN FOR US/US_FS HL-L8350CDW FOR US/CAN/US_FS HL-L8350CDWT HL-L9200CDW FOR US/CAN HL-L9200CDWT FOR US HL-L9300CDW HL-L9300CDWT FOR US

FRA/BEL/NLD/PND/CEE FRA/BEL/NLD/PND/CEE BEL/NLD/PND/CEE NLD/PND

REMARKS

CHG

- 2 -

12. ACCESSORIES

REF No. CODE Q'TY DESCRIPTION MODEL SPEC

4 LV0368001 1 AC CORD BAG ASSY LF BS/PSB S HL-L9300CDWT FOR UK 4 LV0366001 1 AC CORD BAG ASSY LF SAA S HL-L8250CDN FOR ARL 4 LV0366001 1 AC CORD BAG ASSY LF SAA S HL-L8350CDW FOR ARL 4 LV0366001 1 AC CORD BAG ASSY LF SAA S HL-L9200CDW FOR ARL 4 LT2259001 1 AC CORD BAG ASSY LF SEV HL-L8250CDN FOR CHE 4 LT2259001 1 AC CORD BAG ASSY LF SEV HL-L8350CDW FOR CHE 4 LT2259001 1 AC CORD BAG ASSY LF SEV HL-L9200CDWT FOR CHE 4 LT2259001 1 AC CORD BAG ASSY LF SEV HL-L9300CDWT FOR CHE 4 LV1093001 1 AC CORD BAG ASSY LF

CHN S/BRO

4 LV1093001 1 AC CORD BAG ASSY LF

CHN S/BRO 4 LT1833001 1 AC CORD BAG ASSY LF TWN HL-L8350CDW FOR TWN 4 LT0925001 1 AC CORD BAG ASSY LF IRAM HL-L8350CDW FOR ARG 4 LG6207001 1 AC CORD BAG ASSY LF CHILE HL-L8350CDW FOR CHL 4 LV1465001 1 AC CORD BAG ASSY LF INMETRO HL-L8350CDW FOR BRZ 4 LT0935001 1 AC CORD BAG ASSY LF KOR S HL-L8250CDN FOR KOR 4 LT0935001 1 AC CORD BAG ASSY LF KOR S HL-L8350CDW FOR KOR 4 LV0388001 1 AC CORD BAG ASSY LF PERU HL-L8350CDW FOR CHL 4 LG4720001 1 AC CORD BAG ASSY LF DEMKO HL-L8250CDN FOR PND 4 LG4720001 1 AC CORD BAG ASSY LF DEMKO HL-L8350CDW FOR PND 4 LG4720001 1 AC CORD BAG ASSY LF DEMKO HL-L9200CDWT FOR PND 4 LG4720001 1 AC CORD BAG ASSY LF DEMKO HL-L9300CDWT FOR PND 4 LG6404001 1 AC CORD BAG ASSY LF SAF HL-L8350CDW FOR GUL 5 LJ9803001 1 USB CABLE 2.0 6 XA9940051 1 TOUCH PEN 7 LU6915001 1 DRUM CLEANING SHEET KIT

(8) LU4904001 1 FRENCH PANEL STICKER HL-L8350CDW FOR CAN (8) LU4905001 1 FRENCH PANEL STICKER HL-L9200CDW FOR CAN

HL-L8250CDN FOR CHN

HL-L9200CDW FOR CHN

REMARKS

chg

add

add ADD ADD

- 28 -

13.PACKING MATERIALS

1919

- 29 -

13. PACKING MATERIALS

REF No. CODE Q'TY DESCRIPTION MODEL SPEC

1 LU4778001 1 CARTON HL-L8250CDN FOR US/US_FS 1 LU4750001 1 CARTON HL-L8250CDN FOR GER/UK/CHE/ITA/IBR/RUS/

1 LU4756001 1 CARTON HL-L8250CDN FOR ARL 1 LU4760001 1 CARTON HL-L8250CDN FOR CHN 1 LU4754001 1 CARTON HL-L8250CDN FOR SGP/KOR 1 LU4767001 1 CARTON HL-L8350CDW FOR US/US_FS 1 LU4771001 1 CARTON HL-L8350CDW FOR CAN 1 LU4751001 1 CARTON HL-L8350CDW FOR GER/UK/CHE/ITA/IBR/

1 LU4757001 1 CARTON HL-L8350CDW FOR ARL 1 LU4755001 1 CARTON HL-L8350CDW FOR TWN/SGP/KOR 1 LU4777001 1 CARTON HL-L8350CDW FOR ARG/CHL 1 LU6881001 1 CARTON HL-L8350CDW FOR GUL 1 LU4774001 1 CARTON HL-L8350CDW FOR BRZ 1 LU4784001 1 CARTON HL-L8350CDWT 1 LU4782001 1 CARTON HL-L9200CDW FOR US/CAN 1 LU4758001 1 CARTON HL-L9200CDW FOR ARL 1 LU4761001 1 CARTON HL-L9200CDW FOR CHN 1 LU4782001 1 CARTON HL-L9200CDWT FOR US 1 LR2139001 1 CARTON HL-L9300CDW 1 LR2139001 1 CARTON HL-L9300CDWT FOR US 2 LY7881001 1 POLYSTYRENE PAD ASSY HL-L8250CDN FOR US/GER/UK/ARL/CHE/ITA/

2 LY7877001 1 POLYSTYRENE PAD ASSY HL-L8250CDN FOR CHN 2 LY7881001 1 POLYSTYRENE PAD ASSY HL-L8350CDW 2 LY7881001 1 POLYSTYRENE PAD ASSY HL-L8350CDWT 2 LY7877001 1 POLYSTYRENE PAD ASSY HL-L9200CDW 2 LY7877001 1 POLYSTYRENE PAD ASSY HL-L9200CDWT 2 LY7877001 1 POLYSTYRENE PAD ASSY HL-L9300CDW 2 LY7877001 1 POLYSTYRENE PAD ASSY HL-L9300CDWT 3 LY1721001 1 PE BAG 1000X1000 4 LY0908001 1 CLEANER LOCK L 5 LY0909001 1 CLEANER LOCK R 6 LY0896001 1 DEVELOP SPACER L 7 LY0897001 1 DEVELOP SPACER R 8 LY0898001 1 DEVELOP STOPPER

9 LY7999001 1 REMOVE SHEET ASSY 10 LY0903001 1 DRM STOPPER L 11 LU6891001 1 DRM STOPPER R chg 12 LY1678001 1 SILICA GEL HL-L8250CDN FOR US/US_FS 12 LY1679001 1 SILICA GEL HL-L8250CDN FOR GER/UK/ARL/CHE/ITA/IBR/

12 LY1678001 1 SILICA GEL HL-L8350CDW FOR US/CAN/ARG/CHL/BRZ/US_FS 12 LY1679001 1 SILICA GEL HL-L8350CDW FOR GER/UK/ARL/CHE/ITA/IBR/

12 LY1678001 1 SILICA GEL HL-L8350CDWT 12 LY1678001 1 SILICA GEL HL-L9200CDW FOR US/CAN 12 LY1679001 1 SILICA GEL HL-L9200CDW FOR ARL/CHN 12 LY1678001 1 SILICA GEL HL-L9200CDWT FOR US 12 LY1679001 1 SILICA GEL HL-L9200CDWT FOR GER/UK/CHE/ITA/IBR/RUS/

12 LY1678001 1 SILICA GEL HL-L9300CDW 12 LY1678001 1 SILICA GEL HL-L9300CDWT FOR US 12 LY1679001 1 SILICA GEL HL-L9300CDWT FOR GER/UK/CHE/ITA/IBR/

13 LY1395001 1 SILICA GEL SHEET 14 LU4589001 1 CARTON LT HL-L8350CDWT 14 LU4590001 1 CARTON LT HL-L9200CDWT 15 LY0690001 1 STYROFOAM PAD ASSY LT HL-L8350CDWT 15 LY0690001 1 STYROFOAM PAD ASSY LT HL-L9200CDWT 15 LU6979001 1 STYROFOAM PAD ASSY LT HL-L9300CDWT 16 LJ5584001 1 BAG 700X800H HL-L8350CDWT 16 LJ5584001 1 BAG 700X800H HL-L9200CDWT 16 LJ5584001 1 BAG 700X800H HL-L9300CDWT 17 LU6727001 1 P-TRAY HOLD PAD L ASSY HL-L8350CDWT 17 LU6727001 1 P-TRAY HOLD PAD L ASSY HL-L9200CDWT 17 LU6727001 1 P-TRAY HOLD PAD L ASSY HL-L9300CDWT 18 LY5864001 1 P-TRAY HOLD PAD S ASSY HL-L8350CDWT

FRA/BEL/NLD/PND/CEE

IBR/SGP/KOR/RUS/US_FS/

BEL/NLD/PND/CEE

FRA

CHN/SGP/KOR/RUS/FRA/BEL/

PND/CEE

NLD

TWN/GUL/SGP/KOR/FRA/BEL/

PND/CEE

NLD

FRA/BEL/NLD/PND/CEE

FRA/BEL/NLD/PND

REMARKS

- 30 -

13. PACKING MATERIALS

REF No. CODE Q'TY DESCRIPTION MODEL SPEC

18 LY5864001 1 P-TRAY HOLD PAD S ASSY HL-L9200CDWT 18 LY5864001 1 P-TRAY HOLD PAD S ASSY HL-L9300CDWT 19 LU4783001 1 CARTON OUTER HL-L8350CDWT 19 LU4785001 1 CARTON OUTER HL-L9200CDWT FOR US 19 LU4752001 1 CARTON OUTER HL-L9200CDWT FOR GER/UK/CHE/ITA/IBR/RUS/

FRA/BEL/NLD/PND/CEE 19 LR2145001 1 CARTON OUTER HL-L9300CDWT FOR US 19 LR2147001 1 CARTON OUTER HL-L9300CDWT FOR GER/UK/CHE/ITA/IBR/

FRA/BEL/NLD/PND 20 LU4707001 2 CARTON SPACER HL-L8350CDWT 20 LY7915001 2 CARTON SPACER HL-L9200CDWT 20 LY7915001 2 CARTON SPACER HL-L9300CDWT 21 LU6883001 1 CARTON SPACER A HL-L8250CDN FOR CHN 21 LU6883001 1 CARTON SPACER A HL-L9200CDW 21 LU6883001 1 CARTON SPACER A HL-L9200CDWT 21 LU6883001 1 CARTON SPACER A HL-L9300CDW 21 LU6883001 1 CARTON SPACER A HL-L9300CDWT 22 LR2174001 1 CHINA ENERGY LABEL HL-L8250CDN FOR CHN CHG 22 LR2175001 1 CHINA ENERGY LABEL HL-L9200CDW FOR CHN CHG

REMARKS

add add

- 31 -

14.PERIODICAL MAINTENANCE PARTS

- 32 -

14.PERIODICAL MAINTENANCE PARTS

REF No. CODE Q'TY DESCRIPTION MODEL SPEC

1 LU4978001 1 PAPER FEEDING KIT 1 2 LU4979001 1 MP PAPER FEEDING KIT 3 LY1548001 1 PAPER FEEDING KIT 2 (SP) HL-L8350CDWT 3 LY1548001 1 PAPER FEEDING KIT 2 (SP) HL-L9200CDWT 3 LR2210001 1 PAPER FEEDING KIT 2 (SP) HL-L9300CDWT 3 LR2210001

PAPER FEEDING KIT 3 (SP) HL-L9300CDWT

REMARKS

- 33 -

15. LT

4

- 34 -

15. LT

REF No. CODE Q'TYDESCRIPTION MODEL SPEC

1 LY0669001 1 LT PAPER FEED FRAME UNIT HL-L8350CDWT 1 LY0669001 1 LT PAPER FEED FRAME UNIT HL-L9200CDWT 1 LY0669001 1 LT PAPER FEED FRAME UNIT HL-L9300CDWT 2 LY7866001 1 LT PAPER TRAY UNIT HL-L8350CDWT 2 LY7866002 1 LT PAPER TRAY UNIT HL-L9200CDWT 2 LU6969001 1 LT PAPER TRAY UNIT HL-L9300CDWT 3 LY0686001 1 LT COVER LEFT HL-L8350CDWT 3 LY0686001 1 LT COVER LEFT HL-L9200CDWT 3 LU6974001 1 LT COVER LEFT HL-L9300CDWT 4 LY0687001 1 LT COVER RIGHT HL-L8350CDWT 4 LY0687001 1 LT COVER RIGHT HL-L9200CDWT 4 LU6975001 1 LT COVER RIGHT HL-L9300CDWT 5 LY0688001 1 LT COVER REAR HL-L8350CDWT 5 LY0688001 1 LT COVER REAR HL-L9200CDWT 5 LY0688001 1 LT COVER REAR HL-L9300CDWT 6 LV1345001 1 LT RELAY PCB ASS 6 LV1345001 1 LT RELAY PCB ASS 6 LV1345001 1 LT RELAY PCB ASS 7 LY0667001 1 LT EDGE ACTUATOR HL-L8350CDWT 7 LY0667001 1 LT EDGE ACTUATOR HL-L9200CDWT 7 LY0667001 1 LT EDGE ACTUATOR HL-L9300CDWT

HL-L8350CDWT HL-L9200CDWT HL-L9300CDWT

REMARKS

- 35 -

Brother hl-l8250cdn, HL-l8350cdw, HL-8350cdwt, HL-l9200cdw, HL-l9200cdwt Parts List

Specifications and Main Features

Frequently Asked Questions

User Manual

CONTENTS

1.FRAME

2.DRIVE

3.LASER UNIT

5.MP UNIT

6.DUPLEX

7.PAPER TRAY

8.FUSER UNIT

9.PAPER EJECT

11.PCB

12.ACCESSORIES

13.PACKING MATERIALS

14.PERIODICAL MAINTENANCE PARTS

15. LT
