User’s Guide

ADS-1000W ADS-1500W

Version 0

USA

Brother Numbers

IMPORTANT

NOTE

For technical help, you must call the country where you bought the machine. Calls must be made from within that country.

 Register Your Product

 FAQs (frequently asked questions)

 For Customer Service

Register Your Product

By registering your product with Brother International Corporation, you will be recorded as the original owner of the product. Your registration with Brother:

 may serve as confirmation of the purchase date of your product should you lose your receipt;

 may support an insurance claim by you in the event of product loss covered by insurance; and,

 will help us notify you of enhancements to your product and special offers.

Complete and fax the Brother Warranty Registration And Test Sheet or, for your convenience and most efficient way to register your new product, register on-line at

http://www.brother.com/registration/

FAQs (frequently asked questions)

The Brother Solutions Center is our one-stop resource for all your Brother machine needs. You can download the latest software documents and utilities, read FAQs and troubleshooting tips, and learn how to get the most from your Brother product.

http://solutions.brother.com/

• You can check here for Brother driver updates.

• To keep your machine performance up to date, check here for the latest firmware upgrade.

For Customer Service

In USA: 1-877-BROTHER (1-877-276-8437)

1-901-379-1215 (fax)

For the location of a Brother authorized service center, call 1-877-BROTHER (1-877276-8437).

In Canada: (514) 685-4898 (fax)

If you have comments or suggestions, write us at:

In USA: Printer Customer Support

Brother International Corporation

200 Crossing Boulevard

Bridgewater, TN 38133

In Canada: Brother International Corporation (Canada), Ltd.

- Marketing Dept.

1, rue Hotel de Ville Dollard-des-Ormeaux, PQ, Canada H9B 3H6

Service center locator (USA only)

For the location of a Brother authorized service center, call 1-877-BROTHER (1-877-276-8437) or visit us online at http://www.brother-usa.com/service/

Internet addresses

Brother Global Web Site: http://www.brother.com/

For Frequently Asked Questions (FAQs), Product Support and Technical Questions, Driver Updates and Utilities, and User’s Guides: http://solutions.brother.com/

For Brother Accessories & Supplies:

In USA: http://www.brothermall.com/

In Canada: http://www.brother.ca/

User's Guides and where do I find them?

Which manual? What's in it? Where is it?

Quick Setup Guide Follow the instructions for setting up your machine

and installing the drivers and software for the operating system and connection type you are using.

This Guide also includes the Safety Instructions before you set up your machine. Read the instructions first.

User’s Guide Learn the Scan operations and security features,

learn how to perform routine maintenance, and see troubleshooting tips.

Network User’s Guide This Guide provides useful information about

wireless network settings and security settings using the Brother machine. You can also find supported protocol information for your machine and detailed troubleshooting tips.

Web Connect Guide (ADS-1500W only)

Mobile Print/Scan Guide for Brother iPrint&Scan

Brother Image Viewer Guide for Android™

Brother ScanViewer Guide for iOS/OS X

This Guide provides useful information about accessing internet services from the Brother machine, as well as downloading images and uploading files directly from internet services.

This Guide provides useful information about using your Android™ mobile device to view and edit documents that were scanned by a Brother machine.

This Guide provides useful information about using your iOS device or Macintosh computer to view and edit documents that were scanned by a Brother machine and saved to iCloud.

Printed / In the box

PDF file / Brother

Solutions Center

PDF file / Brother

Solutions Center

PDF file / Brother

Solutions Center

PDF file / Brother

Solutions Center

PDF file / Brother

Solutions Center

PDF file / Brother

Solutions Center

Visit us at http://solutions.brother.com/.

iii

Getting Started

Features Applications What Can I Do?

Scan to PC Scan to


Scan to OCR Scan your document and convert

ControlCenter4

(Windows

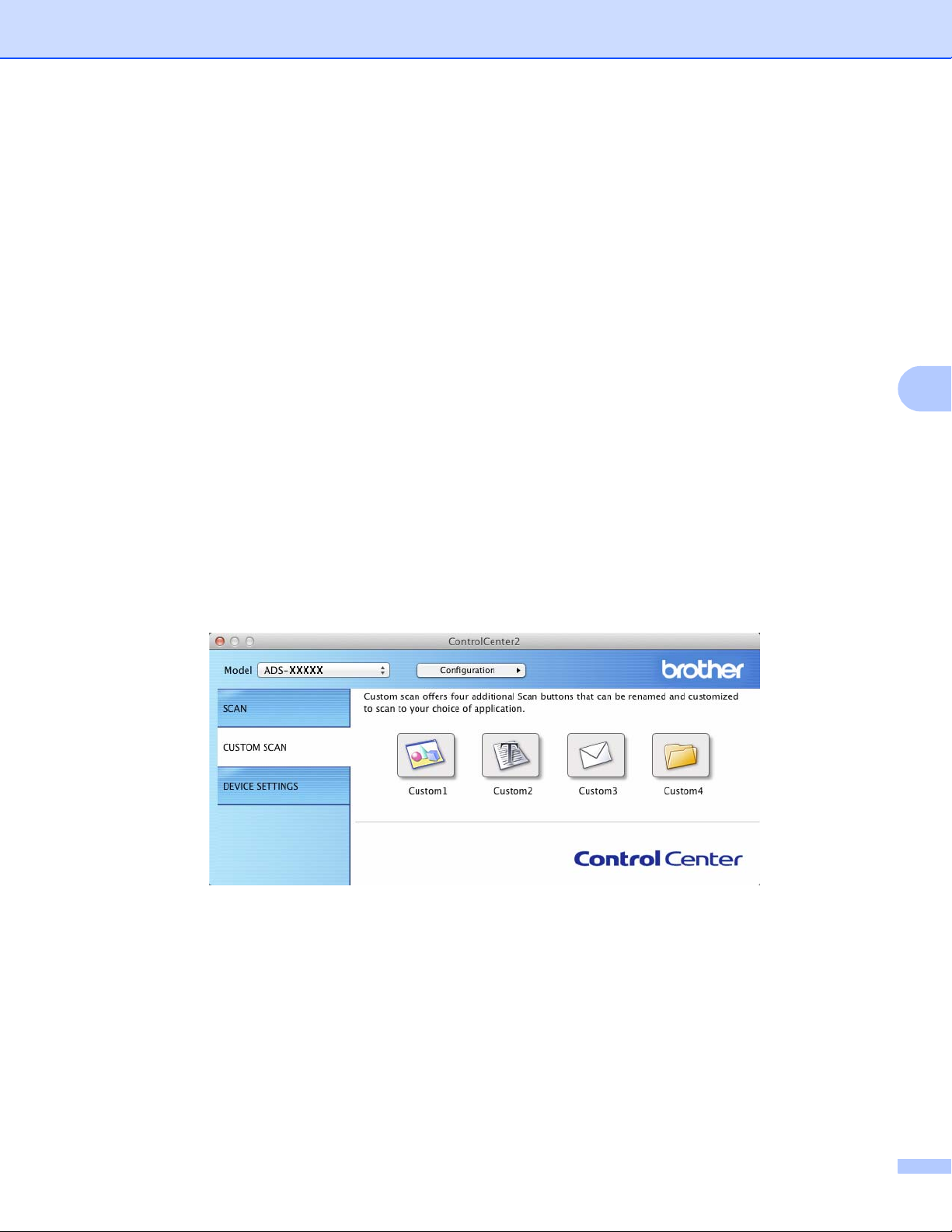

ControlCenter2 (Macintosh)

)

Scan your document directly into a graphics application for image editing.

it to text. This text can be edited using your favorite word processing software.

Where Should I Go for More

Information?

For scanning from the Control Panel of the machine:

Save Scanned Documents on Your Computer on page 130

For scanning from ControlCenter4

(Windows

 Home Mode: Basic Scan

 Advanced Mode: Basic Scan

For scanning from ControlCenter2 (Macintosh):

Image (example: Apple Preview) on page 72

For scanning from the Control Panel of the machine:

Save Scanned Documents on Your Computer on page 130

on page 53

on page 59

For scanning from ControlCenter4

(Windows

 Home Mode: Basic Scan

 Advanced Mode: Basic Scan

For scanning from ControlCenter2 (Macintosh):

OCR (word processing application) on page 73

on page 53

on page 59

Features Applications What Can I Do?

Scan to PC

(continued)

Scan to E-mail

ControlCenter4

(Windows

)

ControlCenter2 (Macintosh)

Scan your document to your default E-mail application, so you can send the scanned job as an attachment.

(continued)

Scan to File Scan your document and save it

to a folder on your hard disk in one of the file types shown in the file type list. If you want to scan your document as a PDF file, select this method.

Where Should I Go for More

Information?

For scanning from the Control Panel of the machine:

Save Scanned Documents on Your Computer on page 130

For scanning from ControlCenter4

(Windows

 Home Mode: Basic Scan

on page 53

 Advanced Mode: Basic Scan

on page 59

For scanning from ControlCenter2 (Macintosh):

E-mail on page 74

For scanning from the Control Panel of the machine:

Save Scanned Documents on Your Computer on page 130

For scanning from ControlCenter4

(Windows

Scan Receipts

BR-Receipts

(Windows

and

Macintosh)

Use the BR-Receipts application included in the Brother MFL-Pro software suite for scanning receipts.

 Home Mode: Basic Scan

on page 53

 Advanced Mode: Basic Scan

on page 59

For scanning from ControlCenter2 (Macintosh):

File on page 75

For scanning from Windows

Scan Receipts Using BR-Receipts

(Windows

) on page 92

For scanning from Macintosh:

Scan Receipts Using BR-Receipts (Macintosh) on page 104

Features Applications What Can I Do?

Scan to PC

(continued)

Scan Business Cards

Scan Using the TWAIN/WIA/

ISIS

Driver

for

Windows

Users

Scan Using the TWAIN/ICA Driver for Macintosh Users

NewSoft Presto! BizCard

6 (Windows

and Macintosh)

Applications supporting TWAIN/WIA/ISI S driver such as:

Nuance™ PaperPort™ 12SE

Windows

Fax

and Scan

Windows

Photo Gallery

Captiva

QuickScan™ Pro

Applications supporting TWAIN/ICA driver such as:

Presto! PageManager

Apple Image Capture

Use the NewSoft Presto! BizCard 6 application included in the Brother MFL-Pro software suite for scanning business cards.

Use the Nuance™ PaperPort™ 12SE application included in the Brother MFL-Pro software suite, or other applications supporting TWAIN or WIA specifications, for scanning.

You can also use the free trial

version of Captiva

QuickScan™

Pro, or other applications

supporting ISIS

specifications,

for scanning. Before scanning

using the ISIS

must install the ISIS

applications, you

scanner

driver.

Use the Presto! PageManager application included in the Brother MFL-Pro software suite, or other applications supporting TWAIN specifications, for scanning.

After installing the Brother MFL-Pro software suite, you can also use the Apple Image Capture application for scanning.

Where Should I Go for More

Information?

For scanning from ControlCenter4

(Windows

 Home Mode: Scan Business

Cards on page 57

 Advanced Mode: Scan

Business Cards on page 62

For scanning from ControlCenter2 (Macintosh):

Scan Business Cards on page 80

For scanning using the TWAIN/WIA driver:

Scan Using Nuance™ PaperPort™ 12SE or Other

Windows

Applications

on page 93

For scanning using the ISIS

driver:

Scan Using Captiva

QuickScan™ Pro or ISIS

Applications (Windows

)

on page 115

For scanning using the TWAIN driver:

Scan Using Presto! PageManager or TWAIN Applications (Macintosh) on page 105

For scanning using the ICA driver:

Scan Using Apple Image Capture (ICA Driver) on page 110

Features Applications What Can I Do?

Scan to PC

(continued)

WS Scan

(Windows users only)

Windows

and Scan

Windows Photo Gallery

Fax

Scan your document by using the Web Services protocol. The Web Services protocol enables you to scan over the network using your machine and a computer running

Windows Vista

Windows

(SP2 or later),

7 or Windows® 8.

Where Should I Go for More

Information?

For installing drivers:

Installing drivers used for scanning via Web Services

(Windows Vista

and Windows

, Windows® 7

8) in the Network

User’s Guide

For scanning from the Control Panel of the machine:

Scan Using Web Services

(Windows Vista

Windows

SP2 or Later,

7 and Windows® 8)

on page 136

vii

Features Applications What Can I Do?

Scan from the Control Panel of the Machine

Scan to USB — Scan your document and save

the scanned image on a USB flash drive. You can configure the settings on the control panel of the machine.

Scan to FTP Scan your document directly to

an FTP server on your local network, or on the internet.

Scan to Network

(Windows users only)

Scan your document directly to a shared folder on a CIFS server on your local network, or on the internet.

(ADS-1500W only)

Scan to E-mail Server

(ADS-1500W only)

— Scan your document and send it

directly to an E-mail address from the machine. In addition, because this feature can assign an E-mail address to the machine, you can use the machine to send documents over your local network or the internet to computers or other Internet Fax machines.

Scan to Web

(ADS-1500W only)

Scan your document and upload it directly to Web Services, such as Facebook, Picasa, Flickr, Google Docs, Evernote, Dropbox, Box.net and SkyDrive, without using a computer.

Outline and Scan

(ADS-1500W only)

Scan your document that contains specific areas outlined using a red pen. The outlined areas can be processed as images in various ways.

Where Should I Go for More

Information?

Save Scanned Documents on a USB Flash Drive on page 140

Scan Documents to an FTP Server on page 116

Scan Documents to a CIFS Server

(Windows

) (ADS-1500W only)

on page 125

Send Scanned Documents Directly to an Email Address (ADS-1500W only) on page 143

Web Connect Guide

viii

Features Applications What Can I Do?

From Mobile Devices

Scan Documents

(Brother iPrint&Scan)

Brother iPrint&Scan

Scan your document directly from your Android™ devices,

iOS devices, and Windows

Phone without using a computer.

You can download and install Brother iPrint&Scan from the Google Play, App Store, or

Phone Store.

View or Edit Scanned Data (iOS/OS X)

Brother ScanViewer

Windows

Use your iOS device or Macintosh computer to view and edit images and documents that were scanned by a Brother machine and saved to iCloud.

You can download and install Brother ScanViewer from the App Store.

View or Edit Scanned Data (Android™)

Brother Image Viewer

Use your Android™ mobile device to view and edit documents that were scanned by a Brother machine.

You can download and install Brother Image Viewer from the Google Play.

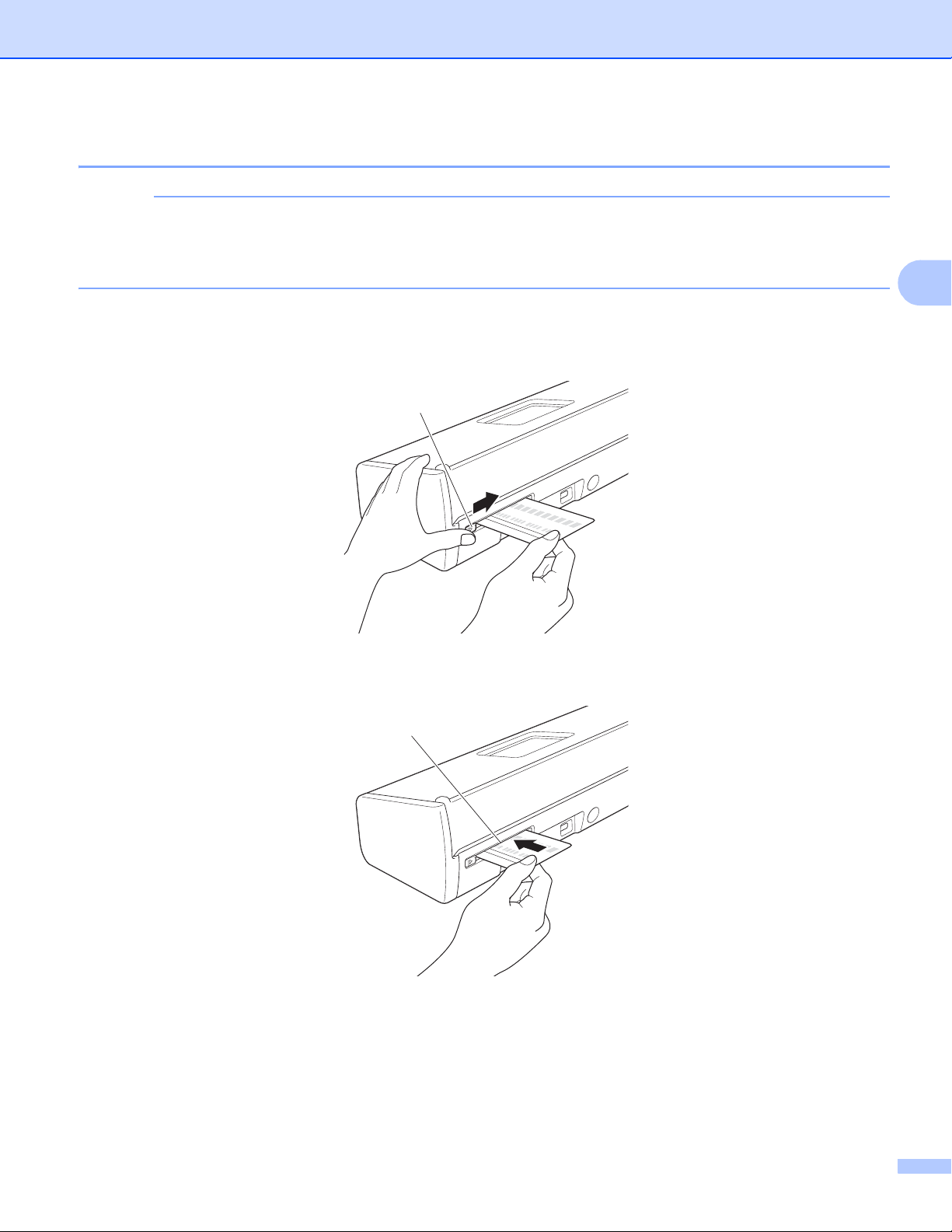

Scan Plastic Cards Using the Card Slot Scan your plastic cards using the

Card Slot on the back of the machine. Scan to Image, Scan to OCR, Scan to E-mail, Scan to File, Scan to FTP and Scan from mobile devices using Brother iPrint&Scan are available when scanning a plastic card using the Card Slot.

Where Should I Go for More

Information?

Mobile Print/Scan Guide for Brother iPrint&Scan

Brother ScanViewer Guide for iOS/OS X

Brother Image Viewer Guide for Android™

For scanning from the Control Panel of the machine:

Scan Plastic Cards on page 149

For scanning from ControlCenter4

(Windows

 Home Mode: Scan Plastic

Cards on page 54

 Advanced Mode: Scan Plastic

Cards on page 60

For scanning from ControlCenter2 (Macintosh):

Scan Plastic Cards on page 77

1 General Information 1

Using the Documentation ..........................................................................................................................1

Symbols and Conventions Used in the Documentation ......................................................................1

About This Machine ...................................................................................................................................2

Control Panel Overview (ADS-1000W)......................................................................................................3

Control Panel Overview (ADS-1500W)......................................................................................................5

2.7" Touchscreen LCD ........................................................................................................................6

Basic Operation ...................................................................................................................................8

Change the Keyboard Setting .............................................................................................................9

Set the Backlight Brightness................................................................................................................9

Set the Dim Timer for the Backlight.....................................................................................................9

Memory....................................................................................................................................................10

Volume ....................................................................................................................................................10

Select Your Language .............................................................................................................................13

Set the Date and Time (ADS-1500W only)..............................................................................................16

Automatic Daylight Saving Time..............................................................................................................16

Set the Time Zone...................................................................................................................................19

Sleep Mode .............................................................................................................................................22

Auto Power Off ........................................................................................................................................25

2 Document Specifications 28

Acceptable Documents............................................................................................................................28

Unacceptable Documents........................................................................................................................30

Receipt Carrier Sheet Recommendations ...............................................................................................31

Unacceptable Receipts............................................................................................................................32

3 Scan Preparation 33

Set Up Your Scanner...............................................................................................................................33

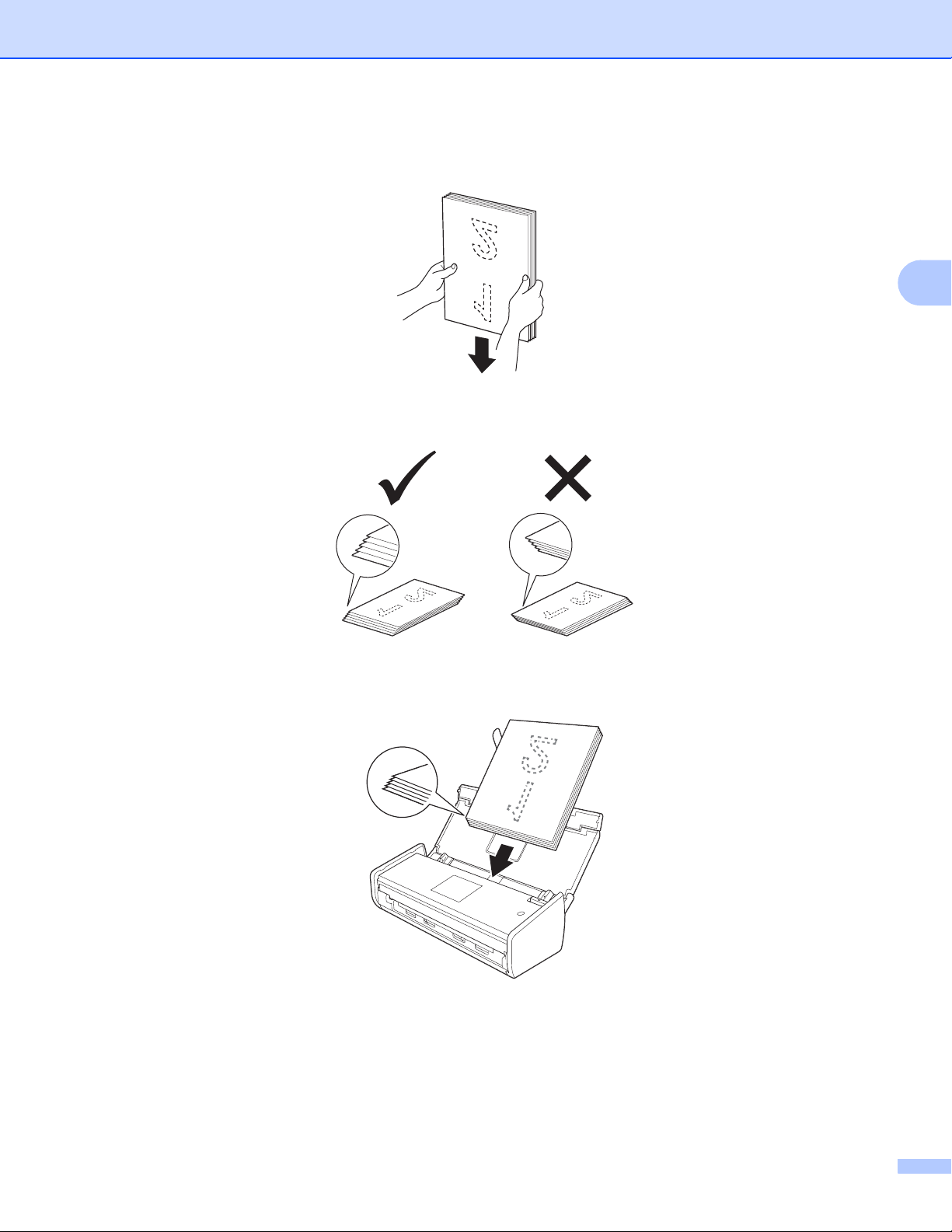

Load Documents......................................................................................................................................34

Standard-size Documents .................................................................................................................34

Business Cards .................................................................................................................................36

Documents Longer than Letter Size ..................................................................................................37

Receipts.............................................................................................................................................38

Plastic Cards .....................................................................................................................................40

4 Prepare Your Network 41

Before Scanning ......................................................................................................................................41

Before Network Scanning........................................................................................................................42

Network License (Windows

Configure Network Scanning for Windows

Configure Network Scanning for Macintosh ......................................................................................45

Launch the BRAdmin Utility (Windows

)............................................................................................................42

......................................................................................42

)...........................................................................................48

5 Scan Using Your Computer 49

Change the User Interface of ControlCenter4 (Windows®) .....................................................................49

Scan Using ControlCenter4 in Home Mode (Windows®) ........................................................................53

Basic Scan.........................................................................................................................................53

Scan Plastic Cards............................................................................................................................54

Scan to an Office File ........................................................................................................................56

Scan Business Cards ........................................................................................................................57

Scan Using ControlCenter4 in Advanced Mode (Windows

) ..................................................................59

Basic Scan.........................................................................................................................................59

Change the Default Settings of Each Button.....................................................................................59

Scan Plastic Cards............................................................................................................................60

Scan to an Office File ........................................................................................................................61

Scan Business Cards ........................................................................................................................62

Create a Custom Tab (ControlCenter4 Advanced Mode) (Windows

) ...................................................64

Create a Custom Tab ........................................................................................................................64

Create a Custom Button in Custom Tab............................................................................................65

Change Scan Settings (ControlCenter4) (Windows

) .............................................................................66

Scan Using ControlCenter2 (Macintosh).................................................................................................71

Image (example: Apple Preview).......................................................................................................72

OCR (word processing application)...................................................................................................73

E-mail ................................................................................................................................................74

File.....................................................................................................................................................75

Change the Default Settings of a Button ...........................................................................................76

Scan Plastic Cards............................................................................................................................77

Scan to an Office File ........................................................................................................................79

Scan Business Cards ........................................................................................................................80

User-defined Button...........................................................................................................................83

Change Scan Settings (ControlCenter2) (Macintosh) .............................................................................86

Scan Receipts Using BR-Receipts (Windows

Installing BR-Receipts .......................................................................................................................92

Scan Using Nuance™ PaperPort™ 12SE or Other Windows

Scan Using Nuance™ PaperPort™ 12SE.........................................................................................93

Scan Using Windows

Photo Gallery or Windows® Fax and Scan.................................................101

Use Nuance PDF Converter Professional 8 (Windows

Installing Nuance PDF Converter Professional 8 ............................................................................102

Use NewSoft Presto! BizCard 6 (Windows

)......................................................................................92

Applications ..........................................93

) (ADS-1500W only) .......................................102

) ........................................................................................103

Installing NewSoft Presto! BizCard 6...............................................................................................103

Scan Receipts Using BR-Receipts (Macintosh) ....................................................................................104

Scan Using Presto! PageManager or TWAIN Applications (Macintosh) ...............................................105

Installing Presto! PageManager ......................................................................................................105

Scan Using Presto! PageManager ..................................................................................................105

TWAIN Driver Settings ....................................................................................................................107

Scan Using Apple Image Capture (ICA Driver) .....................................................................................110

Scan Using Apple Image Capture ...................................................................................................110

ICA Driver Settings..........................................................................................................................112

Select your machine from Print & Fax or Print & Scan....................................................................113

Use NewSoft Presto! BizCard 6 (Macintosh).........................................................................................114

Installing NewSoft Presto! BizCard 6...............................................................................................114

Scan Using Captiva

Installing ISIS

QuickScan™ Pro or ISIS® Applications (Windows®)..........................................115

Scanner and Captiva® QuickScan™ Pro ...............................................................115

6 Scan Using the Control Panel 116

Scan Documents to an FTP Server.......................................................................................................116

Start Web Based Management .......................................................................................................116

Configure the FTP Default Settings.................................................................................................118

Scan Using FTP Server Profiles......................................................................................................121

Scan Documents to a CIFS Server (Windows

) (ADS-1500W only) ....................................................125

Configure the Scan to Network Default Settings.............................................................................126

Scan Using Scan to Network Profiles..............................................................................................128

Save Scanned Documents on Your Computer......................................................................................130

Scan to PC (USB Connect) .............................................................................................................130

Scan to PC (Network Connect) .......................................................................................................132

Scan Using Web Services (Windows Vista

SP2 or Later, Windows® 7 and Windows® 8) .................136

Configuring Settings for Scanning...................................................................................................138

Save Scanned Documents on a USB Flash Drive.................................................................................140

Send Scanned Documents Directly to an Email Address (ADS-1500W only).......................................143

Select an E-mail Address from the Address Book...........................................................................143

Enter an E-mail Address Manually ..................................................................................................144

Set Up the Address Book (ADS-1500W only) .......................................................................................145

Register an E-mail Address.............................................................................................................145

Change an E-mail Address..............................................................................................................145

Delete an E-mail Address................................................................................................................146

Set Up a Group................................................................................................................................146

Change a Group .............................................................................................................................147

Delete a Group ................................................................................................................................147

Scan Plastic Cards ................................................................................................................................149

Upload Scanned Documents to the Web (ADS-1500W only)................................................................150

Change Scan to PC Settings (Windows

).............................................................................................151

Change Scan to PC Settings (Macintosh) .............................................................................................157

Create Scan Shortcuts (ADS-1500W only)............................................................................................163

Register a Shortcut..........................................................................................................................163

Rename or Delete a Shortcut..........................................................................................................165

7 Managing the Machine from Your Computer 166

Monitor the Status of the Machine from Your Computer (Windows®) ...................................................166

Monitor the Status of the Machine from Your Computer .................................................................166

Error Notifications............................................................................................................................167

What are the Status Monitor Indicators? .........................................................................................167

Monitor the Status of the Machine from Your Computer (Macintosh)....................................................168

Monitor the Status of the Machine from Your Computer .................................................................168

Turn the AutoLoad Feature On/Off (ControlCenter2) ......................................................................170

Set Up the Brother Machine from Your Computer.................................................................................171

8 Routine Maintenance 175

Clean the Outside of the Machine .........................................................................................................175

Clean the Scanner .................................................................................................................................176

Replace Consumables...........................................................................................................................180

Order Consumables ........................................................................................................................180

Check Consumable Replacement Cycle.........................................................................................182

Replace the Separation Pad............................................................................................................184

Replace the Pick-up Roller..............................................................................................................187

Reset the Usage Counters ..............................................................................................................189

Packing and Shipping the Machine .......................................................................................................193

xii

9 Troubleshooting 195

Identifying Your Problem .......................................................................................................................195

Error and Maintenance Messages.........................................................................................................195

Document Jam ................................................................................................................................200

Long Paper Jam ..............................................................................................................................202

Card Jam.........................................................................................................................................202

Troubleshooting .....................................................................................................................................204

If you are having difficulty with your machine..................................................................................204

Machine Information ..............................................................................................................................212

Check the Serial Number ................................................................................................................212

WLAN Enable/Disable .....................................................................................................................214

Reset Functions...............................................................................................................................214

Reset the Machine...........................................................................................................................215

Scan Priority (ADS-1000W only) .....................................................................................................217

A Specifications 220

General ..................................................................................................................................................220

Scanner .................................................................................................................................................222

Direct Scan Feature (Scan to USB).......................................................................................................222

Interfaces...............................................................................................................................................223

Network..................................................................................................................................................223

Computer Requirements........................................................................................................................224

BAppendix 225

Entering Text (ADS-1500W only) ..........................................................................................................225

Inserting spaces .............................................................................................................................225

Making corrections ..........................................................................................................................225

LED Indications (ADS-1000W only).......................................................................................................226

Service Call Indications ...................................................................................................................233

CIndex 234

xiii

NOTE

General Information 1

Using the Documentation 1

Thank you for buying a Brother machine! Reading the documentation will help you make the most of your machine.

Symbols and Conventions Used in the Documentation 1

The following symbols and conventions are used throughout the documentation.

CAUTION

IMPORTANT

NOTE

Bold Bold typeface identifies keys on the machine control panel or computer screen.

Italics Italicized typeface emphasizes an important point or refers you to a related topic.

Courier New (ADS-1500W only)

• Unless otherwise specified, screens and illustrations in this guide show the ADS-1500W.

• Unless otherwise specified, the screens in this manual are from Windows on your computer may vary depending on your operating system.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injuries.

IMPORTANT indicates a potentially hazardous situation which, if not avoided, may result in damage to property or loss of product functionality.

NOTE tell you how you should respond to a situation that may arise or give tips about how the operation works with other features.

Text in Courier New font identifies messages on the LCD of the machine.

7 and OS X v10.7.x. Screens

General Information

About This Machine 1

1 Document Support Arms

2 Top Cover

3 Automatic Document Feeder (ADF)

4 Document Guides

5 Front Cover

6 Control Panel

7Power Key

Press the Power Key to turn on the machine. Press and hold down the Power Key to turn off the machine.

8 Cover Release Lever

9 Card Slot Guide

10 Card Slot

11 USB Direct Interface

12 AOSS/WPS Button (ADS-1000W only)

13 USB Connector

14 AC Adapter Connector

15 Security Slot

General Information

NOTE

Control Panel Overview (ADS-1000W) 1

1WiFi

When WLAN is enabled, the WiFi light lights up.

2 Error Indicator

The Error Indicator will light up when an error is occurring.

3 Stop Button

Press to stop or cancel. The Stop button does not light up when it is unavailable.

4Start Button

Press to start scanning. You must select a scan type by pressing one of the Scan buttons (5) before pressing the Start button. The Start button does not light up when it is unavailable.

If you configure the Scan Priority settings (see Scan Priority (ADS-1000W only) on page 217) and the Scan buttons are available, they will blink without pressing.

5 Scan Buttons

Press to select a scan type. The Scan buttons will light up when they are available.

Press to select the Scan to PC (USB Connect) function. Scan to PC (USB Connect) is available only when the machine was set up using the USB interface method (see the Quick Setup Guide). For more information, see Scan to PC (USB Connect) on page 130.

You can assign the Scan to FTP, Scan to PC (Network Connect), or WS Scan function to these keys. After configuring the settings, press to select your assigned function. These buttons are available only when the machine was set up using the wireless network method with the installation DVD-ROM and a USB cable (see the Quick Setup Guide). For more information, see Scan Documents to an FTP Server on page 116,

General Information

Scan to PC (Network Connect) on page 132, or Scan Using Web Services (Windows Vista® SP2 or Later,

Windows

7 and Windows® 8) on page 136.

Press to select the Scan to USB function. For more information, see Save Scanned Documents on a USB Flash Drive on page 140.

General Information

4321

Control Panel Overview (ADS-1500W) 1

1 Back Button

Press to go back to the previous menu level. The Back key does not light up when it is unavailable.

2 Home Button

Press to return to Ready mode. The Home key does not light up when it is unavailable.

3 Stop Button

Press to stop or cancel. The Stop key does not light up when it is unavailable.

4 2.7" Touchscreen LCD

This is a Touchscreen LCD. You can access the menus and options by pressing them on the Touchscreen.

General Information

2.7" Touchscreen LCD 1

Clock Mode (When the Top Cover is closed only) 1

The LCD displays Clock Mode when the machine is idle. Clock Mode displays the date, time, and current machine status.

1 Date and Time

Current date and current time.

When WLAN is enabled, a four-level indicator shows the current wireless signal strength if you are using a wireless connection.

0Max

Press to access and change the plastic card scan settings.

The information icon appears on the Touchscreen when there is an error or maintenance message. For more information, see Error and Maintenance Messages on page 195.

Scan Mode (When the Top Cover is open only) 1

In this mode, Scan to FTP, Scan to Network, Scan to PC, Scan to USB, Scan to E-mail Server and Scan to Web are available.

General Information

The LCD shows the current machine status when the machine is idle.

1 to FTP

Press to access the Scan to FTP function.

2 to Network

Press to access the Scan to Network function.

3 to PC

Press to access the Scan to PC function.

4 to USB

Press to access the Scan to USB function.

5 to E-mail Server

Press to access the Scan to E-mail Server function.

6 to Web

Press to access the Scan to Web function.

When WLAN is enabled, a four-level indicator shows the current wireless signal strength if you are using a wireless connection.

0Max

8 Shortcuts

Press to set up Shortcut menus. Once you have set up shortcuts, press to view all of your shortcut options.

General Information

NOTE

IMPORTANT

NOTE

9 (Settings)

Press to access the main settings.

The information icon appears on the Touchscreen when there is an error or maintenance message. For details, see Error and Maintenance Messages on page 195.

This product adopts the font of ARPHIC TECHNOLOGY CO.,LTD.

Basic Operation 1

Use your finger to press option buttons on the Touchscreen. Use the d c or a b to access and scroll through screen menus and setting options. To display and access all the screen menus or options in a setting, press a or b to scroll through them.

DO NOT press the screen with a sharp object, such as a pen or stylus. It may damage the machine.

The following steps show how to change a setting in the machine. In this example, the Document Size setting in Scan to PC is changed from Letter to Auto.

a Press d or c to display to PC. b Press to PC. c Press d or c to display to File. d Press to File. e Press Options. f Press a or b to display Set with Touch Panel. g Press Set with Touch Panel. h Press On. i Press a or b to display Document Size. j Press Document Size. k Press a or b to display Auto. l Press Auto.

Press to go back to the previous level.

General Information

Change the Keyboard Setting 1

Select the keyboard type you want to display on the Touchscreen.

a Press (Settings), General Setup and then Keyboard Settings.

b Press QWERTY or ABC.

c Press .

Set the Backlight Brightness 1

If you are having difficulty reading the LCD, change the LCD's backlight brightness setting.

a Press (Settings), General Setup, LCD Settings and then Backlight.

b Press Light, Med or Dark.

c Press .

Set the Dim Timer for the Backlight 1

Set how long the LCD backlight stays on after the Ready screen is shown.

a Press (Settings), General Setup, LCD Settings and then Dim Timer.

b Press Off, 10Secs, 20Secs or 30Secs.

c Press .

General Information

Memory 1

Your menu settings are stored permanently and, in the event of a power failure, will not be lost, although temporary settings will be lost.

(ADS-1500W only)

If you have chosen Set New Default for your Scan to USB and Scan to E-mail Server preferred settings, those settings will not be lost. Also, during a power failure, the machine will retain the date and time for approximately 24 hours.

Volume 1

When the beep setting is on, the machine will beep when you press a key or make a mistake.

You can choose a range of beep volume levels from Low to High, or choose Off.

(ADS-1000W)

a Start the ControlCenter application.

 Windows

1 Click the (ControlCenter4) icon in the task tray and then select Open from the menu.

The ControlCenter4 window will appear.

2 Click the Device Settings tab (the example below uses Home Mode).

 Macintosh

1 Click the (ControlCenter2) icon in the Dock.

The ControlCenter2 window will appear.

General Information

2 Click the DEVICE SETTINGS tab.

b Click the Remote Setup button. The Remote Setup window will appear.

c Select General Setup in the folder tree (the example below uses Windows

d Select Low, Med, High or Off from the Beep drop-down list. e Click Apply and then OK.

(ADS-1500W)

a Press (Settings), General Setup and then Beep.

General Information

b Press Low, Med, High or Off.

c Press .

General Information

Select Your Language 1

(ADS-1000W)

a Start the ControlCenter application.

 Windows

1 Click the (ControlCenter4) icon in the task tray and then select Open from the menu.

The ControlCenter4 window will appear.

2 Click the Device Settings tab (the example below uses Home Mode).

 Macintosh

1 Click the (ControlCenter2) icon in the Dock.

The ControlCenter2 window will appear.

General Information

2 Click the DEVICE SETTINGS tab.

b Click the Remote Setup button. The Remote Setup window will appear.

c Select Language in the folder tree (the example below uses Windows

d Select your language from the Language on Remote Setup drop-down list. e Click Apply and then OK.

(ADS-1500W)

a Press (Settings).

General Information

b Press a or b to display Initial Setup.

Press Initial Setup.

c Press Local Language. d Press a or b to display your language.

Press your language.

e Press .

General Information

Set the Date and Time (ADS-1500W only) 1

The machine displays the date and time.

a Press (Settings).

b Press a or b to display Initial Setup. c Press Initial Setup, Date & Time and then Date. d Enter the last two digits of the year on the Touchscreen, and then press OK. e Enter the two digits for the month on the Touchscreen, and then press OK. f Enter the two digits for the day on the Touchscreen, and then press OK. g Press Clock Type. h Press 12h Clock or 24h Clock. i Press Time.

j Enter the time on the Touchscreen.

(12h Clock only) Press to cycle AM and PM.

k Press OK, and then press .

Automatic Daylight Saving Time 1

You can set the machine to change the time automatically for Daylight Saving Time. The Time will be adjusted forward one hour in the Spring and adjusted backward one hour in the Fall.

The factory setting is Off, therefore, you will have to change the Automatic Daylight Saving Time setting to On as follows.

(ADS-1000W)

a Start the ControlCenter application.

 Windows

1 Click the (ControlCenter4) icon in the task tray and then select Open from the menu.

The ControlCenter4 window will appear.

General Information

2 Click the Device Settings tab (the example below uses Home Mode).

 Macintosh

1 Click the (ControlCenter2) icon in the Dock.

The ControlCenter2 window will appear.

2 Click the DEVICE SETTINGS tab.

b Click the Remote Setup button. The Remote Setup window will appear.

General Information

NOTE

c Select Initial Setup in the folder tree (the example below uses Windows

d Select On (or Off) from the Auto Daylight options. e Click Apply and then OK.

(ADS-1500W)

Make sure you have set the correct date and time in the Date & Time setting.

a Press (Settings). b Press a or b to display Initial Setup. c Press Initial Setup, Date & Time and then Auto Daylight. d Press On (or Off).

e Press .

General Information

Set the Time Zone 1

You can set the time zone (not summer time but standard time) on the machine for your location. For example, the time zone for Eastern Time in the USA and Canada is UTC-05:00.

(ADS-1000W)

a Start the ControlCenter application.

 Windows

1 Click the (ControlCenter4) icon in the task tray and then select Open from the menu.

The ControlCenter4 window will appear.

2 Click the Device Settings tab (the example below uses Home Mode).

 Macintosh

1 Click the (ControlCenter2) icon in the Dock.

The ControlCenter2 window will appear.

General Information

2 Click the DEVICE SETTINGS tab.

b Click the Remote Setup button. The Remote Setup window will appear.

c Select Initial Setup in the folder tree (the example below uses Windows

d Select your time zone from the Time Zone options. e Click Apply and then OK.

(ADS-1500W)

a Press (Settings).

General Information

b Press a or b to display Initial Setup. c Press Initial Setup, Date & Time and then Time Zone. d Enter your time zone.

Press OK.

e Press .

General Information

NOTE

Sleep Mode 1

You can specify how long the machine must be idle before it enters Sleep Mode. The maximum setting is 60 minutes and the default setting is 10 minutes. The timer will restart if any operation is carried out on the machine.

If a plastic card is inserted into the Card Slot, the machine dose not enter Sleep mode.

(ADS-1000W)

a Start the ControlCenter application.

 Windows

1 Click the (ControlCenter4) icon in the task tray and then select Open from the menu.

The ControlCenter4 window will appear.

2 Click the Device Settings tab (the example below uses Home Mode).

 Macintosh

1 Click the (ControlCenter2) icon in the Dock.

The ControlCenter2 window will appear.

General Information

2 Click the DEVICE SETTINGS tab.

b Click the Remote Setup button. The Remote Setup window will appear.

c Select General Setup in the folder tree (the example below uses Windows

d Select 1 Min, 2 Mins, 3 Mins, 5 Mins, 10 Mins, 30 Mins or 60 Mins from the Sleep Mode drop-down list. e Click Apply and then OK.

(ADS-1500W)

a Press (Settings) and then General Setup.

General Information

b Press a or b to display Sleep Mode. c Press Sleep Mode. d Press 1Min, 2Mins, 3Mins, 5Mins, 10Mins, 30Mins or 60Mins.

e Press .

General Information

Auto Power Off 1

You can enter how long the machine is in Sleep mode (the maximum setting is 8 hours and the default setting is Off) before it turns the power off automatically.

(ADS-1000W)

a Start the ControlCenter application.

 Windows

1 Click the (ControlCenter4) icon in the task tray and then select Open from the menu.

The ControlCenter4 window will appear.

2 Click the Device Settings tab (the example below uses Home Mode).

 Macintosh

1 Click the (ControlCenter2) icon in the Dock.

The ControlCenter2 window will appear.

General Information

2 Click the DEVICE SETTINGS tab.

b Click the Remote Setup button. The Remote Setup window will appear.

c Select General Setup in the folder tree (the example below uses Windows

d Select 1hour, 2hours, 4hours, 8hours or Off from the Auto Power Off drop-down list. e Click Apply and then OK.

(ADS-1500W)

a Press (Settings) and then General Setup.

General Information

b Press a or b to display Auto Power Off. c Press Auto Power Off. d Press 1hour, 2hours, 4hours, 8hours or Off. e Press .

NOTE

Document Specifications 2

Acceptable Documents 2

Do not load documents that contain multiple page thicknesses, paper qualities, etc.

Standard Paper Length 2.76 in. to 11.7 in. (70 mm to 297 mm)

Width 2.0 in. to 8.5 in. (51 mm to 215.9 mm)

Weight

Thickness 3 mil to 5 mil (0.08 mm to 0.12 mm)

Maximum Number of Pages Total thickness of no more than 79 mil (2 mm), no more than

Standard Paper Size A4 8.3  11.7 in. (210  297 mm)

14 lb to 29 lb (52 g/m

20 sheets

A5 5.8  8.3 in. (148  210 mm)

A6 4.1  5.8 in. (105  148 mm)

B5 7.2  10.1 in. (182  257 mm)

B6 5.0  7.2 in. (128  182 mm)

Letter 8.5  11 in. (215.9  279.4 mm)

to 110 g/m2)

Thick Paper1 Length 2.76 in. to 5.8 in. (70 mm to 147 mm)

Width 2.0 in. to 4.33 in. (51 mm to 110 mm)

Weight

Thickness 5 mil to 8 mil (0.12 mm to 0.2 mm)

Maximum Number of Pages Total thickness of no more than 79 mil (2 mm) and no more than

Thick Paper2 Length 2.76 in. to 3.74 in. (70 mm to 95 mm)

Width 2.0 in. to 2.17 in. (51 mm to 55 mm)

Material Plastic (PET), Paper

Thickness 8 mil to 16 mil (0.2 mm to 0.4 mm)

Maximum Number of Pages 1 page

Long Paper Length 11.7 in. to 34.0 in. (297 mm to 863 mm)

Width 2.0 in. to 8.5 in. (51 mm to 215.9 mm)

Weight

Thickness 3 mil to 5 mil (0.08 mm to 0.12 mm)

Maximum Number of Pages 1 page

29 lb to 53 lb (110 g/m

10 sheets

14 lb to 29 lb (52 g/m

to 200 g/m2)

to 110 g/m2)

Document Specifications

NOTE

To scan a document between 11.7 in. to 34.0 in. (297 mm to 863 mm), select Long Paper as Scan Size or Document Size in the setting dialog box.

Plastic Card Standard Size (ISO) 3.37  2.13  0.03 in. (85.6  54.0  0.76 mm)

Length 2.76 in to 3.74 in. (70 mm to 95 mm)

Width 2.0 in to 2.17 in. (51 mm to 55 mm)

Material Plastic (PET)

Type Plastic card such as driver’s license or insurance card

Thickness Base: 16 mil to 30 mil (0.4 mm to 0.76 mm)

Embossed: up to 55 mil (up to 1.4 mm)

Maximum Number of Pages 1 page

A plastic card can be scanned when saving the scanned image to your computer. Select the

Plastic Card Mode check box in the setting dialog box.

Receipts (using Receipt Carrier Sheet)

Length up to 10.62 in. (270 mm)

Width up to 4.33 in. (110 mm)

Weight

up to 29 lb (110 g/m

)

Thickness Total thickness of the Receipt Carrier Sheet and receipt of no

more than 14 mil (0.35 mm) (excluding overlapping portions of a receipt folded in two places)

Maximum Number of Pages 1 page

Fold a receipt in two places so that it overlaps if it is longer than the Receipt Carrier Sheet.

A Receipt Carrier Sheet can be used when saving the scanned image to your computer and cannot be used when scanning to USB flash drive.

Document Specifications

Unacceptable Documents 2

 Documents with a carbon sheet attached on the back

 Documents written in pencil

 Documents of uneven thickness, such as envelopes

 Documents with large wrinkles or curls

 Bent or damaged documents

 Documents that use tracing paper

 Documents that use coated paper

 Photographs (photographic paper)

 Documents printed on perforated paper

 Documents printed on unusually-shaped paper (not square or rectangle)

 Documents with photos, notes, or stickers affixed to them

 Documents that use carbonless paper

 Documents that use loose-leaf paper or any paper with holes in it

 Documents with paper clips or staples

 Documents with wet ink

 Fabrics, metallic sheets, Over Head Projector sheets

 Glossy or mirrored media

 Documents that exceed recommended media thicknesses

Document Specifications

Receipt Carrier Sheet Recommendations 2

 Use the Receipt Carrier Sheet for a receipt only.

 Use the BR-Receipts application when using the Receipt Carrier Sheet (see Scan Receipts Using BR-

Receipts (Windows

 You can fold the receipt in two places so that it overlaps and then insert it into the Receipt Carrier Sheet

if the receipt is longer than the Receipt Carrier Sheet (see Receipts on page 38).

 To avoid document jams, do not load the Receipt Carrier Sheet upside down. Refer to the instructions

printed on the Receipt Carrier Sheet itself for more information or see Load Documents on page 34.

 To avoid document jams, do not put several small documents into the Receipt Carrier Sheet at the same

time. Insert only one document into the Receipt Carrier Sheet at a time.

 Do not write on the Receipt Carrier Sheet, as the writing may be seen in a scanned receipt. If the Receipt

Carrier Sheet becomes dirty, wipe it with a dry cloth.

 Do not leave any receipt in the Receipt Carrier Sheet for extended periods of time, as the printing on the

receipt may bleed-through onto the Receipt Carrier Sheet.

) on page 92 or Scan Receipts Using BR-Receipts (Macintosh) on page 104).

Document Specifications

CAUTION

IMPORTANT

Unacceptable Receipts 2

 Receipts with paper clips or staples

 Receipts with wet ink

To avoid cutting yourself, do not slide or scrape your hand or fingers along the edge of the Receipt Carrier Sheet.

• To avoid warping, do not place the Receipt Carrier Sheet in direct sunlight or in an area subject to high temperatures and high humidity. Do not store the Receipt Carrier Sheet horizontally with a large object placed on top of it.

• To avoid damaging the Receipt Carrier Sheet, do not bend or pull it. If the Receipt Carrier Sheet becomes damaged, it may not be acceptable for scanning, and should not be used.

Scan Preparation 3

Set Up Your Scanner 3

a Open the Top Cover (1) and push the flap of the Top Cover (2) firmly back until it clicks.

b Lift the Document Support Arms (1).

Scan Preparation

IMPORTANT

Load Documents 3

The document feeder can hold up to 20 pages and feeds each sheet individually. Use 20 lb (80 g/m2) paper and always fan the pages before placing them in the document feeder.

• Make sure documents with ink or correction fluid are completely dry.

• DO NOT pull on the document while it is feeding.

• DO NOT use paper that is curled, wrinkled, folded, ripped, stapled, paper clipped, pasted or taped.

• DO NOT use cardboard or fabric.

Standard-size Documents 3

a Adjust the Document Guides (1) to fit the width of your document.

b Fan the pages several times along both the long edge and the short edge.

Scan Preparation

c Align the edges of the pages.

d Position the pages so that the leading edges are aligned at a slight angle in the feed direction.

e Place your document, face down, top edge first in the document feeder between the Guides until you

feel it touch the inside of the machine gently.

Scan Preparation

NOTE

f Make sure that the side edges of the document are parallel to the grooves in the Top Cover, and then

adjust the Guides to fit the width of the document again.

Business Cards 3

Do not insert a business card into the Card Slot located at the back of the machine.

a Adjust the Document Guides (1) to fit the width of your document.

Scan Preparation

NOTE

b Place your document, face down and short side first in the document feeder between the Guides until

you feel it touch the inside of the machine.

Documents Longer than Letter Size 3

• Load only one document at a time.

• Support the document with your hand if the document is longer than the Top Cover.

a Adjust the Document Guides (1) to fit the width of your document.

Scan Preparation

NOTE

b Place your document, face down, top edge first in the document feeder between the Guides until you

feel it touch the inside of the machine.

Receipts 3

• You can fold the receipt in two places so that it overlaps and then insert it into the Receipt Carrier Sheet if the receipt is longer than the Receipt Carrier Sheet.

• When the Receipt Carrier Sheet is scanned, the 30 mm glued portion at the leading edge of the sheet will be automatically deleted only when using BR-Receipts (see Scan Receipts Using BR-Receipts

(Windows

a Insert the document into the Receipt Carrier Sheet.

) on page 92 or Scan Receipts Using BR-Receipts (Macintosh) on page 104).

Scan Preparation

NOTE

Set the document in the center of the Receipt Carrier Sheet and align the top of the document with the top of the Receipt Carrier Sheet.

b Adjust the Document Guides (1) to fit the width of the Receipt Carrier Sheet.

c Place the Receipt Carrier Sheet in the document feeder between the Guides until you feel it touch the

inside of the machine.

Scan Preparation

NOTE

Plastic Cards 3

• If the plastic card is embossed, insert the plastic card, the embossed side down, into the Card Slot.

• If the plastic card is not fed into the machine automatically, pull the plastic card out from the machine and load it into the document feeder as you would load a business card (see Business Cards on page 36).

a Close the Top Cover if it is open. b Adjust the Card Slot Guide (1) located at the back of the machine to fit the width of the plastic card.

c Insert the plastic card into the Card Slot (1). The card will be fed into the machine.

Prepare Your Network 4

Before Scanning 4

Before scanning, confirm the following:

 Make sure you have installed the Brother software (MFL-Pro Suite) by following the steps in the Quick

Setup Guide.

 Make sure that the USB cable is physically secure.

Prepare Your Network

NOTE

Before Network Scanning 4

Network License (Windows®) 4

This product includes a computer license for up to two users.

This license supports the installation of the MFL-Pro Suite software including Nuance™ PaperPort™ 12SE on up to 2 computers on the network.

If you want to use more than 2 computers with Nuance™ PaperPort™ 12SE installed, buy the Brother NL-5 pack which is a multiple computer license agreement pack for up to 5 additional users. To buy the NL-5 pack, contact your Brother dealer.

Configure Network Scanning for Windows

If you are using a different machine than the one that was originally registered to your computer during the installation of MFL-Pro Suite software, follow the steps below.

a (Windows

Click the Start button, Control Panel, Printers and Other Hardware, then Scanners and Cameras (or Control Panel, Scanners and Cameras).

(Windows Vista

Click the button, Control Panel, Hardware and Sound, then Scanners and Cameras.

(Windows

Click the button, All Programs, Brother, ADS-XXXXX (where XXXXX is your model name),

Scanner Settings, then Scanners and Cameras.

(Windows® 8)

Click (Brother Utilities), and then click the drop-down list and select your model name (if not

XP)

)

already selected). Click SCAN in the left navigation bar, and then click Scanners and Cameras.

b Do one of the following:

 Windows

Right-click the Scanner Device icon and choose Properties.

The Network Scanner Properties dialog box appears.

 Windows Vista

Click the Properties button.

(Windows Vista®, Windows® 7 and Windows® 8)

If the User Account Control screen appears, do the following:

, Windows® 7 and Windows® 8

Prepare Your Network

• For users who have administrator rights: Click Continue or Yes.

• For users who do not have administrator rights: Enter the administrator password and click OK or Yes.

c Click the Network Setting tab and choose the appropriate connection method.

Specifyyourmachinebyaddress

Enter the IP address of the machine in IP Address, and then click Apply or OK.

Prepare Your Network

Specifyyourmachinebyname 4

1 Enter the machine node name in Node Name, or click Browse and choose the machine you want

to use.

2 Click OK.

d Click the Scan To Button tab and enter your computer name in the Display Name field. The

Destination drop-down list in Scan to Network Device from the Scan tab in Web Base Management

(ADS-1000W only)(see Save Scanned Documents on Your Computer on page 130) or on the LCD of the machine (ADS-1500W only) displays the name you enter. The default setting is your computer name. You can enter any name that you like.

e If you want to avoid receiving unwanted documents, enter a 4-digit PIN number in the Pin number and

Retype Pin number field.

(ADS-1500W only) To send data to a computer protected by a PIN number, the LCD prompts you to enter the PIN number before the document can be scanned and sent to the computer.

Prepare Your Network

Configure Network Scanning for Macintosh 4

If you want to scan from the machine on a network, you must choose the networked machine in the Device Selector application from the Model drop-down list in the main screen of ControlCenter2. If you have already installed the MFL-Pro Suite software following the network installation steps in the Quick Setup Guide, this selection should already be made.

To use the machine as a network scanner, the machine must be configured with a TCP/IP address. You can set or change the address settings from the Control Panel.

a Click the (ControlCenter2) icon in the Dock.

The ControlCenter2 window will appear.

Prepare Your Network

b Select Other from the Model drop-down list.

The Device Selector window will appear.

c Click the + button. The setting window will appear. d Select your machine from the list and then click Add.

Prepare Your Network

NOTE

You can also select your machine by entering the IP address. Click IP and then specify your machine by IP address. To change the IP address, enter the new IP address.

e Click Add.

Click the check box for Scan Key Setting and then configure the following:

• For Scan to PC (Network Connect)(ADS-1000W only) or scanning from the Control Panel of the machine (ADS-1500W only), click the check box for Register your computer with the "Scan To" functions at the device. Then enter the name you want to be displayed in the Destination drop-down list in Scan to Network Device from the Scan tab in Web Base Management (ADS-1000W only)(see Save Scanned Documents on Your Computer on page 130) or on the LCD of the machine (ADS-1500W only). You can use up to 15 characters.

• You can avoid receiving unwanted documents by setting a 4-digit PIN number. Enter your PIN code in the PIN code and Verify field.

(ADS-1500W only)

To send data to a computer protected by a PIN code, the LCD prompts you to enter the PIN code before the document can be scanned and sent to the machines.

Prepare Your Network

NOTE

Launch the BRAdmin Utility (Windows®) 4

If you have installed BRAdmin Light or BRAdmin Professional 3, the BRAdmin button lets you open the BRAdmin Light or BRAdmin Professional 3 utility.

The BRAdmin Light utility is designed for initial setup of the Brother network connected devices. It can also search for Brother products in a TCP/IP environment, view the status and configure basic network settings, such as the IP address. For information about installing BRAdmin Light from the supplied DVD-ROM, see the Network User’s Guide.

If you require more advanced machine management, use the latest version of BRAdmin Professional 3 utility that is available as a download from http://solutions.brother.com/

a Click the (ControlCenter4) icon in the task tray and then select Open from the menu.

The ControlCenter4 window will appear.

b Select the Device Settings tab. c Click BRAdmin. The BRAdmin Light or BRAdmin Professional 3 utility dialog box will appear.

If you have installed both BRAdmin Light and BRAdmin Professional, ControlCenter4 will launch BRAdmin Professional 3.

Scan Using Your Computer 5

Change the User Interface of ControlCenter4 (Windows®) 5

ControlCenter4 is a software utility that lets you quickly and easily access your often used applications. Using ControlCenter4 eliminates the need to manually launch specific applications.

ControlCenter4 also controls the settings for the , (when used for the Scan to PC function with

network connection only for ADS-1000W), (for ADS-1000W), or to PC button (for ADS-1500W) on

your Brother machine. For information about how to configure the settings for the , (when used

for the Scan to PC function with network connection only for ADS-1000W), (for ADS-1000W), or

to PC button (for ADS-1500W) on the machine, see Change Scan to PC Settings (Windows

ControlCenter4 has two operation modes: Home Mode and Advanced Mode. You can change the mode at any time.

 Home Mode

Lets you access your machine's main functions easily. You can intuitively use the functions without any settings.

) on page 151.

1 Document Type option

Lets you select a document type.

2 Custom Settings button

Lets you configure scan settings.

3 Scan Size drop-down list

Lets you select a scan size.

Scan Using Your Computer

4 Scan button

Lets you start scanning.

5 Image viewer

Displays a scanned image.

6 Save button

Lets you save a scanned image to a folder on your hard disk in one of the file types shown in the file type list.

7 Open with an Application button

Lets you scan an image directly into your graphics application for image editing.

8 Send E-mail button

Lets you scan a document to your default E-mail application.

9 OCR button

Lets you scan a document and convert it to text.

 Advanced Mode

Gives you more control over the details of your machine's functions. You can also customize one-button scan actions to meet your scanning needs.

1 2 3 4

1 Image button

Lets you scan a document directly into any graphic viewer/editor application.

2 OCR button

Lets you scan a document and convert it to text.

3 E-mail button

Lets you scan a document to your default E-mail application.

4 File button

Lets you save a scanned image to a folder on your hard disk in one of the file types shown in the file type list.

Scan Using Your Computer

NOTE

To change the operation mode, perform the following steps.

a Click the (ControlCenter4) icon in the task tray and then select Open from the menu.

The ControlCenter4 window will appear.

If the icon is not displayed in the task tray, do one of the following:

• (Windows

XP, Windows Vista® and Windows® 7 users)

Click (Start), All Programs, Brother, ADS-XXXXX (where XXXXX is your model name) and then

ControlCenter4.

• (Windows

8 users)

Click (Brother Utilities), and then click the drop-down list and select your model name (if not

already selected). Click SCAN in the left navigation bar, and then click ControlCenter4.

b Click Configuration and then select Mode Select.

Scan Using Your Computer

c Select Home Mode or Advanced Mode in the mode dialog box.

Scan Using Your Computer

NOTE

Scan Using ControlCenter4 in Home Mode (Windows®) 5

There are four scan options: Save, Open with an Application, Send E-mail and OCR.

This section briefly introduces the Scan tab function. For more details of each function, click (Help).

Basic Scan 5

a Configure the settings in the PC Scan setting area.

b Click (Scan).

c Confirm and edit (if necessary) the scanned image in the image viewer.

d Click (Save), (Open with an Application), (Send E-mail) or (OCR).

e Do one of the following:

 For (Save)

Select your Destination Folder and other settings. Click OK.

The image will be saved in your chosen folder.

 For (Open with an Application)

Select the application from the drop-down list and then click OK.

The image will appear in the application you have chosen.

If you have installed the EVERNOTE application in your computer, you can select EVERNOTE from the drop-down and then click OK to upload the scanned data to EVERNOTE directly.

 For (Send E-mail)

Configure the attached file settings and then click OK.

Your default E-mail application will open and the image will be attached to a new E-mail.

 For (OCR)

Configure the OCR settings and then click OK.

The application you have chosen will open with the converted text data.

Scan Using Your Computer

NOTE

Scan Plastic Cards 5

a Load a plastic card (see Plastic Cards on page 40).

Load only one plastic card at a time.

b Click the (ControlCenter4) icon in the task tray and then select Open from the menu.

The ControlCenter4 window will appear.

c Select the Scan tab.

d Select Custom in the Document Type option and then click the Custom Settings button.

The Custom Scan Settings dialog box will appear.

Scan Using Your Computer

NOTE

e Check the Plastic Card Mode check box. f Configure other settings if needed (see Change Scan Settings (ControlCenter4) (Windows

)

on page 66).

g Click OK. h Click the (Scan) button. The machine starts scanning, and then the Scanning Completed dialog

box will appear and display the number of scanned pages. The scanned image appears in the image viewer.

If the Scanning Completed dialog box does not appear and you want to display the number of scanned pages, check the Display Scanning Results check box.

i Do one of the following:

 Click the (Save) button to save the scanned data. See Basic Scan on page 53.

 Click the (Open with an Application) button to open the scanned data in another application.

See Basic Scan on page 53.

 Click the (Send E-mail) button to attach the scanned data to an E-mail. See Basic Scan

on page 53.

 Click the (OCR) button to scan to an editable text file. See Basic Scan on page 53.

Plastic Card Mode automatically uses these settings:

Resolution: 600x600dpi

Scan Size: 2 in 1 (Auto)

2-sided Scanning: On (Short-edge binding)

Auto Deskew: On

Auto Image Rotation: Off

Original Layout Scan Result

Scan Using Your Computer

NOTE

Scan to an Office File 5

Your machine can convert scanned data to a Microsoft® Word file or a Microsoft® PowerPoint® file. In order to use this feature, your Brother machine must be connected to a network that has access to the Internet through a wireless connection.

a Load your document (see Standard-size Documents on page 34).

b Click the (ControlCenter4) icon in the task tray and then select Open from the menu.

The ControlCenter4 window will appear.

c Select the Scan tab.

d Select the document type. e Change the size of your document, if needed. f Configure other settings if needed (see Change Scan Settings (ControlCenter4) (Windows

on page 66).

)

g Click the (Scan) button. The machine starts scanning, and then the Scanning Completed dialog

box will appear and display the number of scanned pages. The scanned image appears in the image viewer.

If the Scanning Completed dialog box does not appear and you want to display the number of scanned pages, check the Display Scanning Results check box.

h Click (Save) or (Send E-mail). The setting dialog box will appear.

Scan Using Your Computer

NOTE

i Click the File Type drop-down list, and then select the Microsoft Office Word(*.docx) or Microsoft

Office PowerPoint (*.pptx) option.

j Click OK. If a message dialog box regarding the Internet connection appears, read the information and

click OK.

Scan Business Cards 5

a Load your document (see Business Cards on page 36).

b Click the (ControlCenter4) icon in the task tray and then select Open from the menu.

The ControlCenter4 window will appear.

c Select the Scan tab.

d Select the document type. e Select Business Card from the Scan Size drop-down list. f Configure other settings if needed (see Change Scan Settings (ControlCenter4) (Windows

on page 66).

)

g Click the (Scan) button. The machine starts scanning, and then the Scanning Completed dialog

box will appear and display the number of scanned pages. The scanned image appears in the image viewer.

If the Scanning Completed dialog box does not appear and you want to display the number of scanned pages, check the Display Scanning Results check box.

Scan Using Your Computer

h Click (Open with an Application). The Open with an Application dialog box will appear.

i Select BizCard MFC Application from the Target Application drop-down list and then click OK. The

scanned data will be opened in the BizCard 6 application.

j Edit and save the scanned date using BizCard 6.

Scan Using Your Computer

NOTE
