INSTALLATION INSTRUCTIONS
HB0092
MODELS BC2130SS & BC4130SS
! !
INTENDED FOR DOMESTIC COOKING ONLY
READ AND SAVE THESE INSTRUCTIONS
INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.
HOMEOWNER: USE AND CARE INFORMATION ON PAGES 10 AND 11.
Broan-NuTone Canada Inc.; Mississauga, Ontario www.broan.ca 877-896-1119
www.broan.ca
REGISTER YOUR PRODUCT ONLINE AT: www.broan.com/register
SV08969 rev. 06
!
WARNING
!
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer at the address
or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel and lock service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by
qualified personnel in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.
4. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment
to prevent backdrafting. Follow the heating equipment
manufacturer’s guidelines and safety standards such as
those published by the National Fire Protection Association
(NFPA) and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE) and the local code
authorities.
5. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any additional solid-state speed
control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
10. When applicable local regulations comprise more
restrictive installation and/or certification requirements,
the aforementioned requirements prevail on those of this
document and the installer agrees to conform to these at his
own expenses.
WARNING - TO REDUCE THE RISK OF A RANGE TOP
GREASE FIRE:
a) Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers that may ignite. Heat oils
slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when
flambeing food (i.e.: Crêpes Suzette, Cherries Jubilee,
Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed
to accumulate on fan, filters or in exhaust ducts.
d) Use proper pan size. Always use cookware appropriate for the
size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE
THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or
metal tray, then turn off the burner. BE CAREFUL TO PREVENT
BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels —
This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and you know how to
operate it.
B. The fire is small and contained in the area where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
CAUTION
1. For indoor use only.
2. For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
3. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
4. Your power pack motor has a thermal overload which will
automatically shut off the motor if it becomes overheated. The
motor will restart when it cools down. If the motor continues to
shut off and restart, have the power pack serviced.
5. The minimum power pack distance above cooktop must
not be less than 24”. A maximum of 30” above cooktop is
recommended for best capture of cooking impurities.
6. Two installers are recommended because of the large size and
weight of this unit.
7. To reduce the risk of fire and to properly exhaust air, be sure to
duct air outside — Do not exhaust air into spaces within walls
or ceiling or into attics, crawl space or garage.
8. Because of the high exhausting capacity of this unit, you
should make sure enough air is entering the house to replace
exhausted air by opening a window close to or in the kitchen.
9. To reduce the risk of fire and electrical shock, the Broan power
pack models BC2130SS and BC4130SS must be installed
only with their own built-in blower(s). Other blowers cannot be
substituted.
10. Please read specification label on product for further
information and requirements.
2
- BC2130SS & BC4130SS POWER PACK SYSTEM -
STANDARD
3¼” x 10” ROOF CAP
(NOT INCLUDED)
TANDARD
S
3¼” x 10” DUCT
(NOT INCLUDED)
STANDARD
3¼” x 10” WALL CAP
(NOT INCLUDED)
3¼” x 10”
DAPTER/DAMPER
A
(INCLUDED)
BC2130SS
POWER PACK
BC4130SS
POWER PACK
HL0133
3
1. PREPARE THE INSTALLATION
!
WARNING
When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
NOTE: Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer.
Make sure that the following items are included:
- Power pack
- Accessories: • 1filter
• 3¼” x 10” Adapter/Damper
• 2 Shielded halogen bulbs (120 V, 50 W with GU10 base)
• Bag of parts including: 1 wire clamp, 2 wire connectors, 4 no. 8 x 3/8” screws,
9 no. 8-10 x 1/2” screws, 8 no. 8-32 x 1/4” screws.
Parts sold separately:
- Ducts, elbows, wall and roof caps. Refer to page 3 for a complete list of venting options and model numbers.
NOTE: During installation, protect coutertop and/or cooktop.
2. INSTALL DUCTWORK AND ELECTRICAL WIRING
Plan where and how the ductwork will be installed. Access to the top of the hood is preferred
for connection of ductwork.
Install 3¼” x 10” ductwork, elbows and roof or wall cap, according to the installation type. Use
2” metal foil duct tape to seal duct joints.
NOTE: Although the horizontal discharge installation is feasible, this installation type should
be performed in specific situation only since it requires particular knowledge and
technical skills from the installers.
The minimum power pack distance above cooktop must not be less than 24’’.
A maximum of 30” above cooktop is recommended for best capture of cooking
impurities.
Distances over 30” are at the installer and users discretion.
Run 3-wire power supply cable to installation location. Its length should extend at least 4 feet
below the bottom of the custom hood.
Wall
cap
HH0119A
Roof cap
3¼” x 10” duct
3¼” x 10”
adapter & damper
24” to 30”
above
cooking surface
TYPICAL DUCTWORK
Power pack
4
3. CUSTOM HOOD PREPARATION
!
WARNING
When building a custom hood, always follow all applicable construction codes and standards. The custom hood
must be positively secured to wall studs or other wooden framework behind the drywall. Make sure the cabinet is
capable of supporting its own weight and the weight of the power pack. Failure to do so may cause personal injury
or damage to countertop or cooktop.
TOP VIEW
The custom hood must be constructed to fit
the shape and total weight of the BC2130SS or
BC4130SS power pack models.

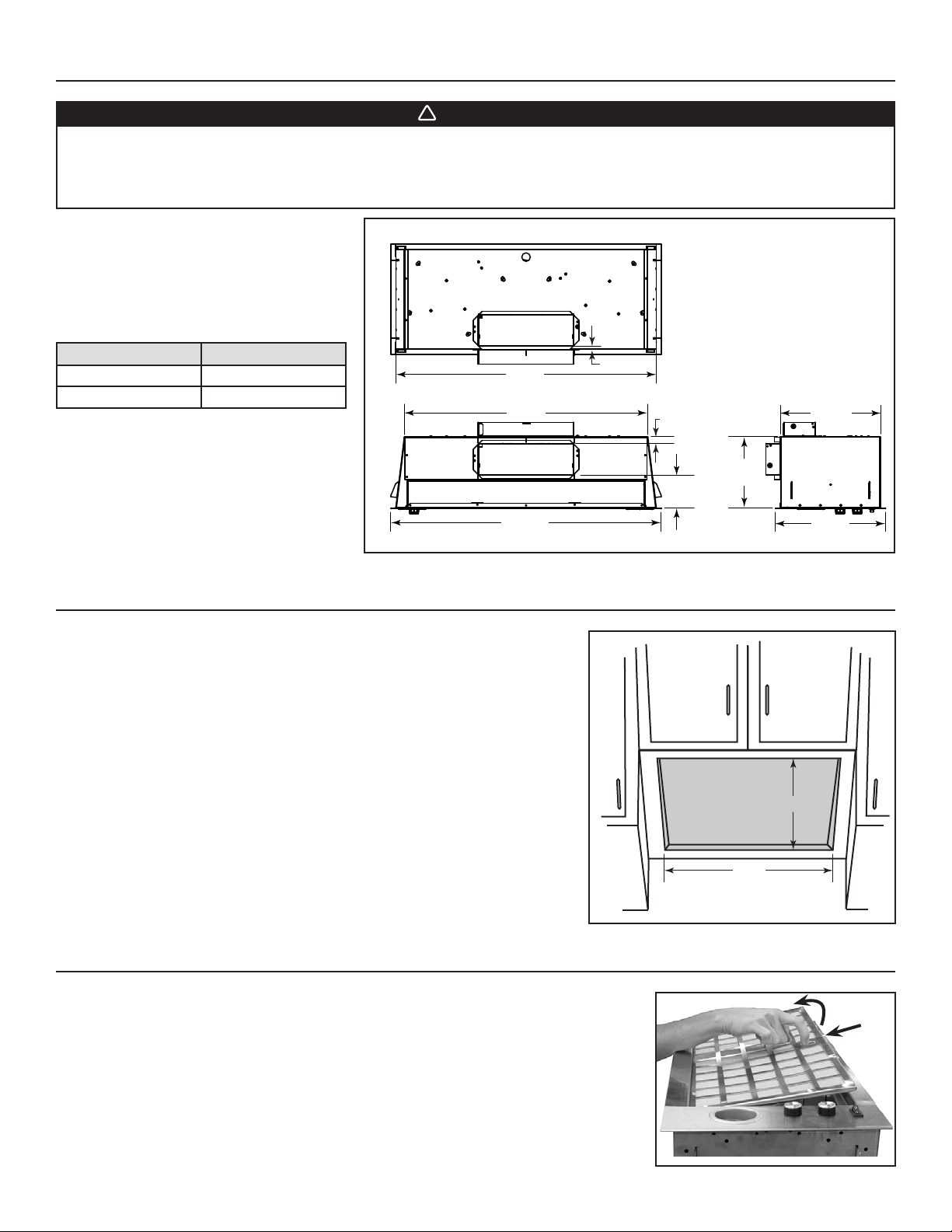

See chart and illustrations for details.
POWER PACK T YPE TOTAL WEIGHT
SINGLE BLOWER 28 LB.
DUAL BLOWER 34 LB.
26 5/8”
7
24
/8”
The recommended minimum thickness for the
custom hood base is 5/8”. The custom hood sides
and front thickness are at the installer’s discretion.
5
/8”
27
HK0105A
BACK VIEW SIDE VIEW
4. CUT THE HOLE IN CUSTOM HOOD BASE
Cut a hole in the bottom of the custom hood, using the dimensions shown at right.
NOTE: The minimum distance from the rearmost cutout edge to the wall should be 1/2’’.
5/16”
11/16”
3 ³/8”
7 5/16”
10½”
10
11¼”
5
/16”
26¾”
HD0341A
5. REMOVE FILTER
2
1
Rest the power pack on a table. Remove tape on filter. Using finger cup, lift filter from power pack
by pushing it towards the back (1) and rotate (2), then set filter aside.
5
HD0359
6. REMOVE THE ADAPTER/DAMPER
Using a Phillips no. 2 screwdriver, remove both screws retaining the adapter/damper (A) to the
power pack inner panel. Set the adapter/damper aside.
NOTE: Though picture at right shows a double blower model, this applies also for single blower
model.
7. UNPLUG THE BLOWER(S)
BLOWER
Using a Phillips no. 2 screwdriver, remove the screw securing the blower plug cover in place.
Lift out the cover and set aside. Unplug the blower(s) from the inner panel.
PLUG
COVER
A
HD0360
HO0130
HE0102
8. REMOVE INNER PANEL
Using a Phillips no. 2 screwdriver, remove 4 screws retaining the inner panel to the power pack. See illustration below for screw locations.
Carefully detach the inner panel from the power pack and set aside with its screws.
SINGLE BLOWER UNIT DUAL BLOWER UNIT
SCREW LOCATIONS
HO0132
SCREW LOCATIONS
9. DISCARD THE DEFLECTOR (HORIZONTAL DISCHARGE INSTALLATION ONLY)
For horizontal dischage installation, disengage the deflector from the scroll notch, then lift out and discard the deflector.
HO0133
SINGLE BLOWER UNIT DUAL BLOWER UNIT
SCROLL NOTCH
SCROLL
NOTCH
6
10. REMOVE THE ELECTRICAL KNOCK-OUT
SINGLE BLOWER UNIT
Punch out the electrical knockout hole on back (A) OR on top (B),
to the right side of the power pack. Install the wire clamp (included
in parts bag).
D
UAL BLOWER UNIT
Punch out the electrical knockout hole on top (B) OR in front (C)
of the power pack.
11. REMOVE THE KNOCK-OUT OPENING
Remove the knockout opening on top
(vertical discharge installation) or on
back (horizontal discharge installation)
of the power pack.
1
SINGLE BLOWER UNIT DUAL BLOWER UNIT
B
A
B
C
HR0035
2
HR0036
12. INSTALL THE ADAPTER/DAMPER
VERTICAL EXHAUST INSTALLATION
Using 2 no. 8 x 3/8’’ screws provided in parts bag, secure the adapter to the top of the power pack. Remove tape from damper flap. Seal
the adapter to the power pack using metal foil duct tape.
HO0136
HORIZONTAL EXHAUST INSTALLATION
The adapter/damper will be installed on the back of the power pack once the power pack is mounted in the custom hood. Refer to step 15.
7
13. CONNECT WIRING
!
WARNING
Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable
codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting
means to prevent power from being switched on accidentally.
Position the power pack below the installed custom hood.
RETAINING SCREW
DUAL BLOWER UNIT: Remove the screw retaining the electrical compartment cover.
Lift out the cover and install the wire clamp (included in parts
bag). Insert the house wiring cable through the wire clamp and
tighten to secure the cable.
HO0134
SINGLE BLOWER UNIT: Position the power pack below the installed custom hood. Insert the house wiring cable through the wire clamp
previously installed in step 10. Tighten the wire clamp to secure the cable.
A
ALL UNITS: Connect cable using provided wire connectors. Connect wires as follow:
BLACK to BLACK, WHITE to WHITE and GREEN or BARE wire under
ground screw (A). DO NOT FORGET TO CONNECT THE GROUND.
DUAL BLOWER UNIT: Reinstall the electrical compartment cover.
HE0059
14. INSTALL THE POWER PACK
CAUTION
Take care not to kink ducting or pinch electrical wire when installing the power pack.
Lift the power pack in custom hood until the bottom of the clasping springs (2 per side) rests
on the top of the custom hood base (grey zone in illustration at right).
HD0362
From inside the power pack, using provided no. 8-10 x 1/2” screws, mount thepower pack
to the custom hood base. To do so, lift one side until its flange rests on the outer side of the
custom hood base and use 2 screws to secure in place.
Do the same for the other side, then finalise mounting with 2 other screws for each side.
See figure at right for mounting screws specific locations.
VERTICAL EXHAUST INSTALLATION ONLY
Make sure the adapter/damper enters the ducting and the damper opens freely.Wherever it
is possible, seal connections with metal foil duct tape.
8
HH0124
CLASPING SPRINGS
15. INSTALL THE ADAPTER/DAMPER ON BACK OF POWER PACK
(HORIZONTAL DISCHARGE INSTALLATION ONLY)
From the outside of the wall, using 2 no. 8 x 3/8’’
screws provided in parts bag, secure the
adapter/damper to the back of the power pack.
Remove tape from damper flap. Connect ducting
to the adapter/damper and seal the joint using
metal foil duct tape.
WALL
HH0125A
BACK VIEW SIDE VIEW
16. REINSTALL INNER PANEL
CAUTION
Take care not to pinch wiring when installing inner panel.
Carefully put back in place the inner panel. Using a Phillips no. 2 screwdriver, and screws previously removed in step 8, secure the inner
panel to the power pack.
SINGLE BLOWER UNIT DUAL BLOWER UNIT
SCREW LOCATIONS
HO0132
SCREW LOCATIONS
17. PLUG THE BLOWER(S)
1. Plug back the blower(s).
2. Reinstall the blower plug cover in place, by aligning its tab with the slot in power pack panel.
3. Using a Phillips no. 2 screwdriver and the screw previously removed in step 7, secure the plug cover to the power pack.
2
1
HE0102
HO0135
3
BLOWER
PLUG
COVER
HO0130
9
!
18. REINSTALL FILTER
CAUTION
Remove protective plastic film covering filter before installing it.
A
1. Rest rear filter edge on filter springs (A) in the power pack.
2. Using the finger cup, tilt up the filter into position. Make sure filter
tabs (B) are securely engaged in power pack front edge after
installation.
HD0363
B
19. LIGHT BULBS
This power pack requires shielded halogen lamps (120 V, 50 W, PAR16 with GU10 base), included.
WARNING
Do not touch lamps during or soon after operation. Burns may occur. In order to prevent the risk of personal injury,
only install shielded halogen lamps. Also, never install a cool beam, a dichroic lamp, a lamp not suitable for use in
recessed luminaires or identified for use in enclosed fixtures.
1. Install the lamps by placing the bulb leads into their grooves in the socket.
2. Gently push upwards and turn clockwise until secure.
To remove lamps, gently push upwards and turn counterclockwise to disengage bulb leads
from their grooves.
NOTE: If need be, use a rubber dishwashing glove to add grip when removing the bulb.
12
HO0090
20. USE AND CARE
Filter
The filter should be cleaned frequently. Use a warm detergent solution. Wash more often if your cooking style generates greater grease
— like frying foods or wok cooking.
Remove filter by pushing it towards the back of power pack and rotating filters downward. Filter is dishwasher safe. Allow filter to dry
completely before reinstalling it in the power pack.
Clean all-metal filter in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergent
or as a result of local water conditions — but this will not affect filter performance. This discoloration is not covered by the warranty.
Blower(s) Cleaning
Remove the filter in order to access the blower(s). Vacuum blower(s) to clean. Do not immerse in water.
Power Pack Cleaning
Stainless steel cleaning:
Do:
• Regularly wash with clean cloth or rag soaked with warm water
and mild soap or liquid dish detergent.
• Always clean in the direction of original polish lines.
• Always rinse well with clear water (2 or 3 times) after cleaning.
Wipe dry completely.
• You may also use a specialized household stainless steel
cleaner.
Don’t:
• Use any steel or stainless steel wool or any other scrapers to
remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction residues reach the
power pack. During construction/renovation, cover the power
pack to make sure no dust sticks to stainless steel surface.
10
20. USE AND CARE (CONT'D)
Avoid when choosing a detergent:
- Any cleaners that contain bleach will attack stainless steel.
- Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
- Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be
used close to a range.
21. OPERATION
Always turn your blower on before you begin cooking to establish an airflow in the kitchen. Let the blower run for a few minutes to clear the
air after you turn off the range. This will help keep the whole kitchen cleaner and brighter.
3
COOKTOP LIGHTING (HALOGEN)
A rotary 4-position knob (1) controls the halogen lights (OFF - low intensity - medium intensity - high intensity).
BLOWER
The blower is operated using two controls.
Use the on/off rocker switch (3) to start and stop the blower. When turned on, the blower operates at the
previous setting of the speed control (2).
A rotary 4-position knob (2) controls the blower speed (low speed - medium-low speed - medium speed - high
speed).
2
1
HC0047
1) HALOGEN LIGHT KNOB
2) BLOWER SPEED CONTROL KNOB
3) ON/OFF BLOWER SWITCH
22. WARRANTY
ONE-YEAR LIMITED WARRANTY FOR BROAN PRODUCTS
Broan-NuTone Canada (Broan-NuTone) warrants to the original consumer purchaser of Broan products that such products will be
free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANTABILITY OR
FITNESS FOR APARTICULAR PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be
defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCANDESCENT BULBS,
FUSE, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover
(a) normal maintenance and service or (b) any products or parts which have been subject to misuse, negligence, accident, improper
maintenance or repair (other than by Broan-NuTone), faulty installation or installation contrary to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some provinces do not allow
limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE PURCHASER’S SOLE
AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE.
Some provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may
not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from province to another. This warranty
supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at the address or telephone number stated below, (b) give the model
number and part identification and (c) describe the nature of any defect in the product or part. At the time of requesting warranty service,
you must present evidence of the original purchase date.
Broan-NuTone Canada Inc.; 1140 Tristar Drive, Mississauga, ON L5T 1H9 www.broan.ca 877-896-1119
11

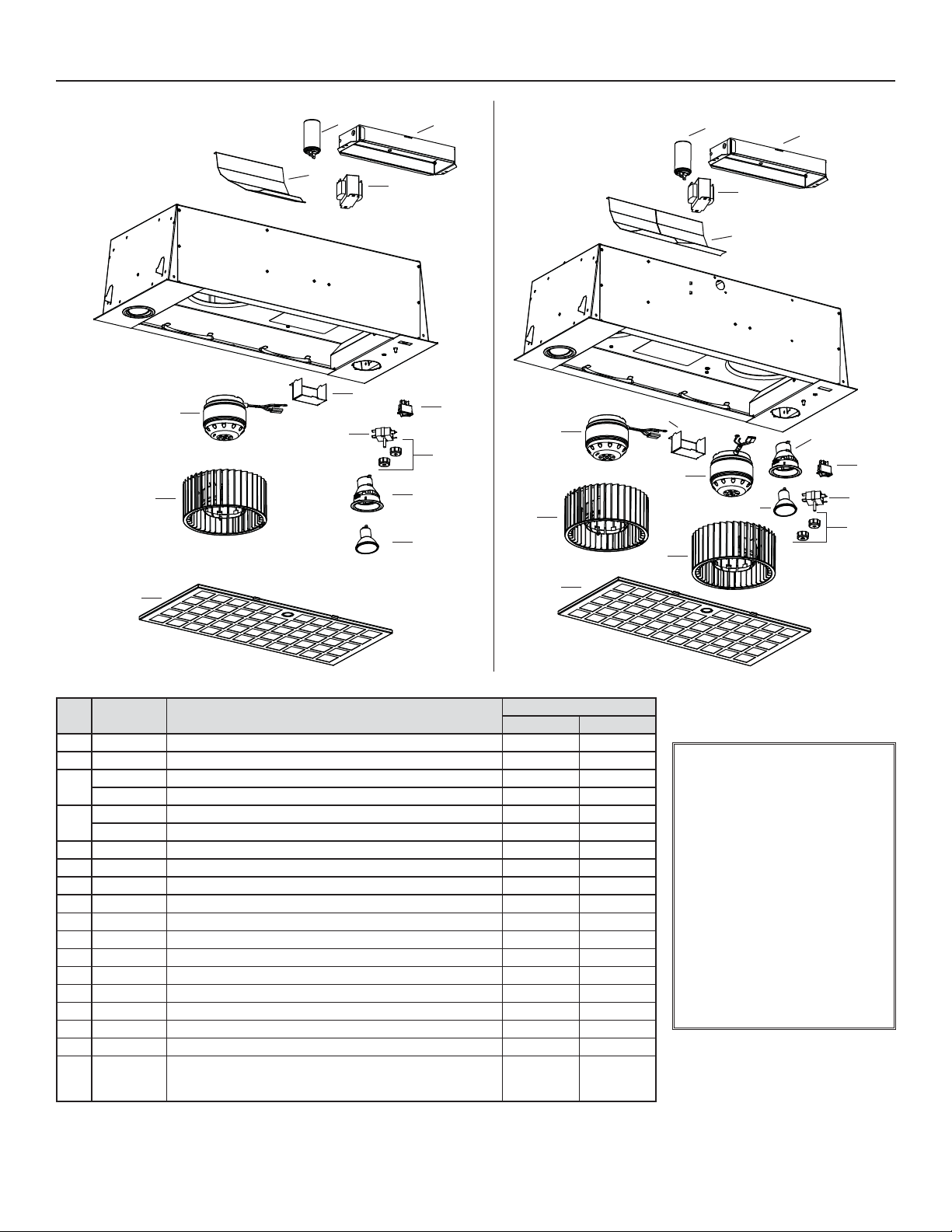

23. SERVICE PARTS
BC2130SS
6
2
1
BC4130SS
2
1
4
3
3
4
13
5
11
12
5
10
9
6
13
14
9
12
8
11
10
8
15
7
HL0134
KEY
PART NO.DESCRIPTION
NO.
1 SV13296 ADAPTER/DAMPER 3¼” X 10” 1 1
2 SV02160 CAPACITOR 12
SV18440 SINGLE BLOWER TRANSFORMER 1-
3
SV18439 DUA L BLOWER TRANSFORMER -1
SV18407 S
4
SV18408 DUA L BLOWER AIR DEFLECTOR -1
5 SV01766 MOTOR (LEFT)11
6 SV03400 BLOWER WHEEL (LEFT)11
7 SV08965 SQUARE PATTERN FILTER 11
8 SV05921 SHIELDED HALOGEN BULB (120 V, 50 W, GU-10) 2 2
9 SV16569 LIGHT SOCKET AND TRIM ASSEMBLY 22
10 SV08355 LIGHT AND FAN KNOBS (2 KNOBS)11
11 SV21722 ROTARY SWITCH 22
12 SV08548 BLOWER ROCKER SWITCH 11
13 SV18406 B
14 SV03457 MOTOR (RIGHT)-1
15 SV03399 BLOWER WHEEL (RIGHT)-1
* SV08969 INSTALLATION GUIDE 11
* SV08353
* NOT SHOWN.
INGLE BLOWER AIR DEFLECTOR 1-
LOWER PLUG COVER 11
PARTS BAG: 1 WIRE CLAMP, 2 WIRE CONNECTORS,
4 NO. 8 X 3/8” SCREWS, 9 NO. 8-10 X 1/2” SCREWS,
8 NO. 8-32 X 1/4” SCREWS.
7
QTY. (POWER PACK MODEL)
BC2130SS BC4130SS
REPLACEMENT PARTS AND REPAIRS
In order to ensure your unit remains in
good working condition, you must use
Broan-NuTone genuine replacement
parts only. Broan-NuTone genuine
replacement parts are specially
designed for each unit and are
manufactured to comply with all the
applicable certification standards and
maintain a high standard of safety.
Any third party replacement part
used may cause serious damage and
drastically reduce the performance
level of your unit, which will result
in premature failing. Broan-NuTone
recommends to contact a certified
service depot for all replacement
parts and repairs.
11
12
Loading...
