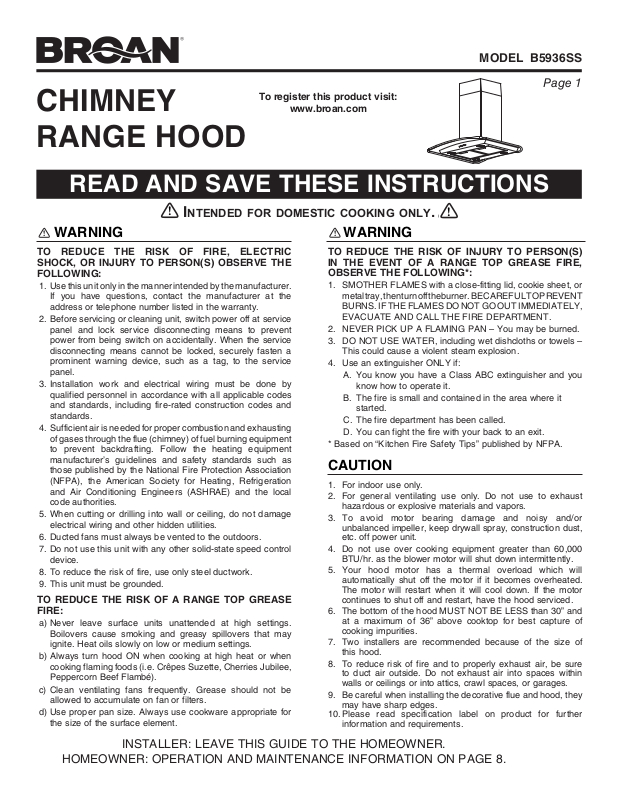

Broan B5936SS Installation Manual

CHIMNEY

!

!

!

!

RANGE HOOD

READ AND SAVE THESE INSTRUCTIONS

Intended for domestIc cookIng only.

MODEL B5936SS

Page 1

To register this product visit:

www.broan.com

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSON(S) OBSERVE THE
FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer at the
address or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service
panel and lock service disconnecting means to prevent
power from being switch on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service
panel.

3. Installation work and electrical wiring must be done by
qualified personnel in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.

4. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment
to prevent backdrafting. Follow the heating equipment
manufacturer’s guidelines and safety standards such as
those published by the National Fire Protection Association
(NFPA), the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE) and the local
code authorities.

5. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.

6. Ducted fans must always be vented to the outdoors.

7. Do not use this unit with any other solid-state speed control
device.

8. To reduce the risk of fire, use only steel ductwork.

9. This unit must be grounded.

TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE:

a) Never leave surface units unattended at high settings.

Boilovers cause smoking and greasy spillovers that may
ignite. Heat oils slowly on low or medium settings.

b) Always turn hood ON when cooking at high heat or when

cooking flaming foods (i.e. Crêpes Suzette, Cherries Jubilee,
Peppercorn Beef Flambé).

c) Clean ventilating fans frequently. Grease should not be

allowed to accumulate on fan or filters.

d) Use proper pan size. Always use cookware appropriate for

the size of the surface element.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSON(S)
IN THE EVENT OF A RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING*:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
metal tray, then turn off the burner. BE CAREFUL TO PREVENT
BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY,
EVACUATE AND CALL THE FIRE DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN – You may be burned.

3. DO NOT USE WATER, including wet dishcloths or towels –
This could cause a violent steam explosion.

4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you

know how to operate it.
B. The fire is small and contained in the area where it

started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.

CAUTION

1. For indoor use only.

2. For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.

3. To avoid motor bearing damage and noisy and/or
unbalanced impeller, keep drywall spray, construction dust,
etc. off power unit.

4. Do not use over cooking equipment greater than 60,000
BTU/hr. as the blower motor will shut down intermittently.

5. Your hood motor has a thermal overload which will
automatically shut off the motor if it becomes overheated.
The motor will restart when it will cool down. If the motor
continues to shut off and restart, have the hood serviced.

6. The bottom of the hood MUST NOT BE LESS than 30” and
at a maximum of 36” above cooktop for best capture of
cooking impurities.

7. Two installers are recommended because of the size of
this hood.

8. To reduce risk of fire and to properly exhaust air, be sure
to duct air outside. Do not exhaust air into spaces within
walls or ceilings or into attics, crawl spaces, or garages.

9. Be careful when installing the decorative flue and hood, they
may have sharp edges.

10. Please read specification label on product for further
information and requirements.

INSTALLER: LEAVE THIS GUIDE TO THE HOMEOWNER.

HOMEOWNER: OPERATION AND MAINTENANCE INFORMATION ON PAGE 8.

MODEL B5936SS

INSTALL THE DUCTWORK
(Ducted Hoods Only)

ROOF CAP

6” ROUND

DUCT

DECORATIVE

FLUES

HOOD

30” TO 36” ABOVE

COOKING SUFACE

1. Decide where the ductwork will run between the hood and
the outside.

2. A straight, short duct run will allow the hood to perform
most efficiently.

3. Long duct runs, elbows and transitions will reduce the
performance of the hood. Use as few of them as possible.
Larger ducting may be required for best performance with
longer duct runs.

4. Install wall cap or roof cap. Connect round metal ductwork
to cap and work back towards the hood location. Use duct
tape to seal the joints between ductwork sections.

6” ROUND

ELBOWS

DUCT CENTER LINE
(1-3/4” to rear of hood

centerline)

HOOD

CENTER

LINE

EAVE
VENT

PREPARE THE HOOD

Unpack hood and check contents. You should receive:
1 - Hood
1 - Metal Canopy
1 - Decorative Flue Assembly (2 pcs.)
1 - Damper / Duct Connector
1 - Ceiling Mounting Plate
8 - Angle Brackets
2 - Aluminum Grease Filters (installed in hood)
1 - Parts Bag containing:

8 - Mounting Screws (M6 x 40mm Pan Head)
46 - Machine Screws (M4 x 8mm Pan Head)
20 - Serrated Flange Nuts (M4)
8 - Sheet Metal Screws (M4 x 8mm Phillips Head)
3 - Wire Nuts

M6 x

40 mm

M4 x

8 mm

M4 x 8 mm

Sheet Metal

Page 2

MEASURE THE INSTALLATION

The minimum hood distance above cooktop MUST NOT BE
LESS than 30”.

A maximum of 36” above cooktop is highly recommended for
best capture of cooking impurities.

Distances over 36” are at the installer and users discretion;
providing that the ceiling height permits.

NOTE:

On 8-ft. ceilings

Hood distance above cooktop is:
Minimum 30”, Maximum 32¼” (for ducted discharge)
Minimum 30”, Maximum 30½” (for non-ducted discharge)

On 9-ft. ceilings

Hood distance above cooktop is:
Minimum 30”, Maximum 36” (for both ducted and non-ducted
discharge).

On 10-ft. ceilings

Hood distance above cooktop is:
Minimum 30”, Maximum 36” (for both ducted and non-ducted
discharge).

NOTE: 10-ft. ceilings require 10-ft. Flue Extension, Model
FXN59SS for ducted or non-ducted installations (purchase
separately).

M4

Serrated

Flange

Nut

Wire Nut

INSTALL CEILING SUPPORT

MODEL B5936SS

Page 3

PREPARE THE HOOD

CEILING

JOISTS

CROSS

FRAMING

CEILING

MOUNTING

PLATE

(8) M6 x 40mm

WOOD

SCREWS

1. At hood location install 2 x 4 cross framing between ceiling
joists using dimensions shown. Make sure framing does not
interfere with electrical outlet box opening in ceiling mount­ing plate.

2. Install house wiring and ductwork.

3. Finish ceiling surface. Be sure to mark the location of the
ceiling joists & cross framing. Bring house wiring through
finished ceiling.

4. Remove cover from electrical outlet box on ceiling mount­ing plate. Pull house wiring through hole on top of mounting
plate and into electrical outlet box. Secure house wiring
cable to mounting plate / electrical box with appropriate
connector.

5. Install ceiling mounting plate with the side marked “front”
at the desired hood location. Secure using (8) M6 x 40mm
wood screws. Make sure screws are driven into the center
of the framing for maximum strength.

6” ROUND DUCTWORK

8

⅞

FRONT

HOUSE

WIRING

ELECTRICAL

OUTLET

BOX

”

(4) M4 x 8mm

PAN HEAD

SHEET METAL

SCREWS

1. Place the hood on flat surface with protection to insure the
hood is not damaged.

2. Attach the damper / duct connector to the hood with (4) M4
x 8mm pan head sheet metal screws.

DAMPER / DUCT

CONNECTOR

INSTALL THE HOOD
(Ducted Installation Only)

(8) M4 x 10mm

PAN HEAD

MACHINE

SCREWS

1. Assemble (4) angle brackets to the lower hood mounting
locations using (8) M4 x 10mm pan head machine screws
(2 for each angle bracket).

MODEL B5936SS

Page 4

3. Attach the upper set of (4) angle brackets to the outside of
the lower angle brackets according to dimension “H”. Use
(16) M4 x 10mm pan head machine screws and (16) M4
serrated flange nuts (4 at each angle bracket connection).

4. Attach the angle bracket assemblies to the upper hood
mounting locations using (8) M4 x 10mm pan head machine
screws (2 for each angle bracket).

For 10-ft. ceilings: Attach a third set of (4) angle brackets
to the inside of the second set of angle brackets using
hardware supplied.

METAL

DUCT

INNER

FLUE

(16) M4 x 10mm

PAN HEAD

MACHINE

SCREWS &

(16) M4

SERRATED

FLANGE NUTS

3”

(8) M4 x 10mm

PAN HEAD

MACHINE

SCREWS

2. Determine dimension “H” based upon ceiling height and
height of hood installation above cooktop:

8-ft. ceiling Hood 30” above cooktop H = 30”

Hood 32¼” above cooktop H = 27¾”

9-ft. ceiling Hood 30” above cooktop H = 42”

Hood 36” above cooktop H = 36”

10-ft. ceiling Hood 30” above cooktop H = 54”

Hood 36” above cooktop H = 48”

For 10-ft. ceilings: Purchase a 10-ft. flue extension (Model
FXN59SS) which includes (4) additional angle mounting
brackets, (1) longer upper flue, and additional mounting
hardware.

H

POWER

LOUVERS

METAL

DUCT

DAMPER /

DUCT

CONNECTOR

5. Measure the length of 6” round metal duct required from
the damper / duct connector to the ductwork rough-in in the
ceiling. Connect the duct to the damper / duct connector
and seal with duct tape.

6. Remove the protective coating from the inner the flue. Turn
the inner flue so that the louvers are at the bottom. Carefully
slide the inner flue down into the outer flue. Slide the flues
over the angle brackets. Make sure the side marked “front”
faces the control side of the hood. Feed the power cable up
through the flues.

CABLE

OUTER

FLUE

DUCT

TAPE

FRON T

MODEL B5936SS

Page 5

INSTALL THE HOOD
(Non-Ducted Installation Only)

NON-DUCT OPTION AVAILABLE ONLY IN THE U. S.

POWER

CABLE

(8) M4 x 10mm

PAN HEAD

MACHINE

SCREWS

7. Attach the hood assembly to the ceiling bracket using (8)
M4 x 10mm machine screws (2 for each support leg).

8. Connect metal duct to ceiling duct and seal with duct tape.

9. Connect power cable to house wiring inside of electrical
outlet box. Black to Black, White to White, and Green to
Green or Bare wires. Secure power cable to wiring box with
appropriate connector and re-attach outlet box cover.

FRONT

NON-DUCT

PLENUM

NON-DUCT PLENUM

COLLAR

NON-DUCTED
RECIRCULATION
FILTER

8 MOUNTING
SCREWS
(M4 x 8
Pan Head
Sheet Metal)

2 TIE

WRAPS

FLEXIBLE DUCT

NOTE:

Non-ducted installations require Non-Duct kit; model RK59

(purchased separately).

Do not use plastic or rigid metal duct.

DAMPER

FLAPS

(4) M4 x 8mm

SHEET METAL

SCREWS

10. Slide the inner flue up to the ceiling and secure with (4) M4

x 8mm sheet metal screws.

11. Remove the protective coating from the hood and the

outer flue.

1. Remove the damper flaps from the damper / duct connector

and discard flaps.

FRONT

(4) M4 x 8mm

SHEET METAL

SCREWS

2. Attach non-duct collar to non-duct plenum using (4) M4 x
8mm sheet metal screws.

(8) M4 x 10mm

PAN HEAD

MACHINE

SCREWS

1. Assemble (4) angle brackets to the hood using (8) M4
x 10mm pan head machine screws (2 for each angle
bracket).

(16) M4 x 10mm

PAN HEAD

MACHINE

SCREWS &

(16) M4

SERRATED

FLANGE NUTS

MODEL B5936SS

Page 6

3. Attach the upper set of (4) angle brackets to the outside of
the lower angle brackets according to dimension “H”. Use
(16) M4 x 10mm pan head machine screws and (16) M4
serrated flange nuts (4 at each angle bracket connection).

4. Attach the angle bracket assemblies to the upper hood
mounting locations using (8) M4 x 10mm pan head machine
screws (2 for each angle bracket).

For 10-ft. ceilings: Attach a third set of (4) angle brackets
to the inside of the second set of angle brackets using
hardware supplied.

(4) M4 x 8mm

SHEET METAL

SCREWS

FRONT

NON-DUCT

PLENUM

FLEXIBLE

DUCT

INNER

FLUE

POWER

CABLE

3”

(8) M4 x 10mm

PAN HEAD

MACHINE

SCREWS

2. Determine dimension “H” based upon ceiling height and
height of hood installation above cooktop:

8-ft. ceiling Hood 30” above cooktop H = 30”

Hood 30½” above cooktop H = 29½”

9-ft. ceiling Hood 30” above cooktop H = 42”

Hood 36” above cooktop H = 36”

10-ft. ceiling Hood 30” above cooktop H = 54”

Hood 36” above cooktop H = 48”

For 10-ft. ceilings: Purchase a 10-ft. flue extension (Model
FXN59SS) which includes (4) additional angle mounting
brackets, (1) longer upper flue, and additional mounting
hardware.

H

OUTER

FLUE

DAMPER /

DUCT

CONNECTOR

5. Measure the length of 6” round flexible duct required from
the damper / duct connector to the ductwork rough-in in the
ceiling. Connect the duct to the damper / duct connector,
secure with tie wrap and seal with duct tape.

6. Attach the aluminum flexible duct to the non-duct plenum
collar. Make sure non-duct plenum “front” is facing front of
hood. Secure with tie wrap and seal with duct tape.

7. Remove the protective coating from the inner the flue. Turn
the inner flue so that the louvers are at the top. Carefully
slide the inner flue down into the outer flue. Slide the flues
over the angle brackets. Make sure the side marked “front”
faces the control side of the hood. Feed the power cable up
through the flues.

8. Pull the inner flue up and attach the non-duct plenum with
collar to the upper flue using (4) M4 x 8mm sheet metal screws.

DUCT

TAPE

MODEL B5936SS

Page 7

(8) M4 x 10mm

PAN HEAD

MACHINE
SCREWS

FRON T

NON-DUCT

FILTER

MOUNTING

TABS

METAL
LATCH

GREASE

FILTERS

13. Remove the grease filters by pulling down the metal latch

tab and tilting the filters downward to remove.

14. Install the non-duct recirculation filter as shown. Turn

mounting tabs on hood to secure filter.

15. Reinstall grease filters by aligning rear filter tabs with

slots in the hood. Pull down the metal latch tab, push filter
into position and release. Make sure filters are securely
engaged after installation.

NON-DUCT

RECIRCULATION

FILTER

9. Attach the hood assembly to the ceiling bracket using (8)
M4 x 10mm machine screws (2 for each support leg).

10. Connect power cable to house wiring. Black to Black,

White to White, and Green to Green or Bare wires. Secure
power cable to wiring box with appropriate connector.

(4) M4 x 8mm

SHEET METAL

SCREWS

11. Slide the inner flue up to the ceiling and secure with (4) M4

x 8mm sheet metal screws.

12. Remove the protective coating from the hood and the

outer flue.

MODEL B5936SS

!

Page 8

LIGHT BULBS

LIGHT BULB

COVER

WARNING
Bulbs may be hot. Always allow bulbs to cool down before
removing them.

This range hood requires four halogen bulbs (Type JC, 12V,
20W Max, G-4 Base).

To change bulbs:

1. Remove light bulb cover by gently pushing it upward and

turning it counterclockwise.

2. Replace bulb.

3. Re-install light bulb cover by gently pushing it upward and

turning it clockwise.

OPERATION

OFF

The hood is operated using the push buttons on the front panel.
Push the light button to turn the lights on and off.
Push the fan controls to select low, medium, or high blower

speed.
Push the OFF button to turn the blower off.

LOW

FAN CONTROLS

MED.

HIGH LIGHT

ON/OFF

MAINTENANCE

Grease Filters

Grease filters should be cleaned monthly. Remove grease
filters by pulling down on the metal latch tab. This will
disengage the filter from the hood. Tilt the filter downward and
remove.

To clean all-metal filters: Use a warm detergent solution or
put them in the dishwasher using a non-phosphate detergent.
Discoloration of the filter may occur if using phosphate
detergent or as a result of local water conditions - but this will
not affect filter performance. This discoloration is not covered
by the warranty.

Non-Duct Recirculation Filter

Change the non-duct recirculation filter every 6 months.

Hood Cleaning

How to maintain the bright look of stainless steel and help
prevent corrosion.

Dos:

- Once a month, wash surfaces with clean cloth or rag soaked
with warm water and mild soap or liquid dish detergent.

- Always clean in the direction of original polish lines.

- Always rinse well with clear water (2 or 3 times) after
cleaning. Wipe dry completely.

- You may also use a specialized household stainless steel
cleaner.

Don’ts:

- Do not use any steel or stainless steel wool or any other
scrapers to remove stubborn dirt.

- Do not use any harsh or abrasive cleansers.

- Do not allow dirt to accumulate.

- Do not let plaster dust or any other construction residues
reach the hood. During construction or renovation, cover
the hood to make sure no dust sticks to stainless steel
surface.

Avoid: when choosing a detergent

- Any cleaners that contain bleach will attack stainless steel.

- Any products containing: chloride, fluoride, iodide,
bromide will deteriorate surfaces rapidly.

- Any combustible products used for cleaning such as
acetone, alcohol, ether, benzol, etc., are highly explosive
and should never be used close to a range.

SERVICE PARTS

stop low mid

high lamp

GRN / YLW

KEY PART NO. DESCRIPTION QTY.

1 S99527129 Decorative Upper and Lower Flues 1
2 S99526974 Motor / Blower Assembly 1
3 S99526975 Light Socket Assembly 4
4 S99527010 Light Trim Ring / Lens Assembly 4
5 S99526976 Push Button Assembly 1
6 S97018029 Aluminum Grease Filters (pair) 2
7 S99527023 Non-Duct Recirculation Filter 1
8 S99527131 Curved Metal Plate with Rail 1

9 S99526983 Damper / Duct Connector 1
10 S99526984 6” Dia. Expandable Flexible Aluminum Duct 1
11 S99527021 Non-Duct Plenum Assembly 1
12 S99527130 Angle Mounting Bracket 8
13 S99527022 Ceiling Mounting Bracket w/ Outlet Box 1
14 S99527013 Plastic Cover 1

S99527011 Transformer (not shown) 1
S99527012 Capacitor (not shown) 1
S99527132 Parts Bag (not shown) 1
S99528459 Non-Duct Filter Clips (not shown) 1

Order service parts by Part No. - not by Key No.

10

11

MODEL B5936SS

Page 9

13

1

12

WIRING DIAGRAM

HALOGEN LIGHTS

TRANSFORMER PCB

CAPACITOR

TO MOTOR

R

BLK

R

O

BRN

BLK

W

B

B

WG

B

Y

L

R

R

L

K

N

Y

K

BLU

9

WOR

B

B

R

L

N

K

PUSHBUTTON

GRN

BLK

W

14

8

3

W

4

2

7

5

6

Replacement parts can be ordered on our website:

www.broan.com
