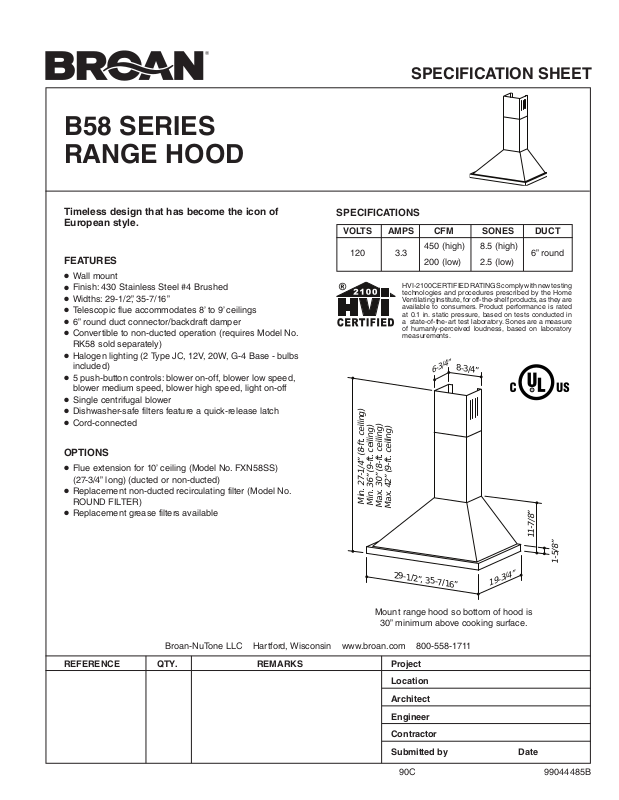

Broan B5836SS Specifications
B58 SERIES
RANGE HOOD
SPECIFICATION SHEET
Timeless design that has become the icon of
European style.
FEATURES
Wall mount
•
Finish: 430 Stainless Steel #4 Brushed
•
Widths: 29-1/2”, 35-7/16”
•
Telescopic flue accommodates 8’ to 9’ ceilings
•
6” round duct connector/backdraft damper
•
Convertible to non-ducted operation (requires Model No.
•
RK58 sold separately)
Halogen lighting (2 Type JC, 12V, 20W, G-4 Base - bulbs
•
included)
5 push-button controls: blower on-off, blower low speed,
•
blower medium speed, blower high speed, light on-off
Single centrifugal blower
•
Dishwasher-safe filters feature a quick-release latch
•
Cord-connected
•
OPTIONS
Flue extension for 10’ ceiling (Model No. FXN58SS)
•
(27-3/4” long) (ducted or non-ducted)
Replacement non-ducted recirculating filter (Model No.
•
ROUND FILTER)
Replacement grease filters available
•
SPECIFICATIONS
VOLTS AMPS CFM SONES DUCT
120 3.3
200 (low) 2.5 (low)
Min. 27-1/4” (8-ft. ceiling)
Min. 36” (9-ft. ceiling)
450 (high) 8.5 (high)
HVI-2100 CERTIFIED RATINGS comply with new testing
technologies and procedures prescribed by the Home
Ventilating Institute, for off-the-shelf products, as they are
available to consumers. Product performance is rated
at 0.1 in. static pressure, based on tests conducted in
a state-of-the-art test laboratory. Sones are a measure
of humanly-perceived loudness, based on laboratory
measurements.
8-3/4”
6-3/4”
Max. 30” (8-ft. ceiling)
Max. 42” (9-ft. ceiling)
6” round
29-1/2”, 35-7/16”
19-3/4”
Mount range hood so bottom of hood is
30” minimum above cooking surface.
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
90C 99044485B
11-7/8”
1-5/8”
B58 SERIES WIRING
1. GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit,
grounding reduces the risk of electric shock by providing an escape wire for the
electric current. This appliance is equipped with a cord having a grounding wire
with a grounding plug. The plug must be plugged into an outlet that is properly
installed and grounded.
14”
MAX.
NOTE:
A recessed “clock” outlet is recommended.
2. Position the electrical outlet within the space covered by the decorative flue and
where it will not interfere with the round duct. Make sure the outlet is no further
than 14” from where the cord exits from the hood and that the outlet does not
interfere with a mounting bracket fastening area or where the decorative flue
touches the wall.
B58 SERIES MOUNTING
1. Construct wood wall framing that is flush with interior surface of wall studs.
Make sure:
a) the framing is centered over installation location.
b) the height of the framing will allow the mounting bracket
to be secured to the framing within the dimensions
shown.
2. After wall surface is finished, carefully center and level the hood
mounting bracket and secure it to wall framing with (3) #8 x 1-1/2”
mounting screws. Tighten the screws completely.
NOTE:
On 8-ft. ceilings
Hood distance above cooktop is:
Minimum 30”, Maximum 32-3/4” (for ducted discharge)
Minimum 30”, Maximum 30” (for non-ducted discharge)
On 9-ft. ceilings
Hood distance above cooktop is:
Minimum 30”, Maximum 36” (for both ducted and non-ducted discharge)
On 10-ft. ceilings
Hood distance above cooktop is:
Minimum 30”, Maximum 36” (for both ducted and non-ducted discharge).
NOTE: 10-ft. ceilings require 10-ft. Flue Extension, Model FXN58SS
for ducted or non-ducted installations (purchase separately).
WALL STUDS
FRAMING BEHIND
DRYWALL
C
L
77⁄8”
315⁄16”
425⁄8” = bottom of hood 30” above cooktop
485⁄8” = bottom of hood 36” above cooktop
19⁄16”
CEILING DUCT MOUNTING DISTANCE ABOVE 36” HIGH COOKTOP (SEE NOTE BELOW)
HEIGHT METHOD 30” 31” 32” 33” 34” 35” 36”
MOUNTING BRACKET LOCATION ABOVE 36” HIGH COOK TOP
8 FEET DUCTED OR 42-5/8” 43-5/8” 44-5/8”
9 FEET DUCTED OR 42-5/8” 43-5/8” 44-5/8” 45-5/8” 46-5/8” 47-5/8” 48-5/8”
10 FEET DUCTED WITH 42-5/8” 43-5/8” 44-5/8” 45-5/8” 46-5/8” 47-5/8” 48-5/8”
NOTE: Minimum hood distance above cooktop must not be less than 30”.
A maximum of 36” above the cooktop is highly recommended for best capture of cooking impurities.
Distances over 36” are at the installer and users’ discretion; and if ceiling height and flue length permit.
NONDUCTED
NONDUCTED
FEXTK42
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
MOUNTING BRACKET
LOCATION
(ABOVE 36” HIGH
COOKTOP)
