MT1828E & MT1828G
CONVEYOR OVEN
REPLACEMENT PARTS LIST
APRIL 18, 2001
Maytag Foodservice Division
Superseding All Previous Parts Lists.
The Company reserves the right to make substitution in the event that items specified are not available.
ERRORS: Descriptive and/or typographic errors are subject to correction.
IMPORTANT: When ordering parts, please provide the model, gas type
and serial number of the oven. The identification plate is located on
the left side of the combustion compartment and, also, above the control
panel under the ledge.
þ ASAP Distributor Required Stocking Parts
MT1828E & MT1828G
April 18, 2001
2
ELECTRICAL COMPONENTS
Ref. Part
No. No. Description
1 þ M6474 Computer Control Kit,Closed Loop SB(Qty 1)
1 þ FW525 Computer Control Kit,Closed Loop SB(Qty 1)
(Reconditioned)
M9692 DAC Board (for M6474)
M10049 Decal & Control Membrane
(for M6474/FW525) SB
M3175 Lexan Decal only, SB
60 M10197 Remote Mounting Support Kit, for Computer
(sgl, dbl & tpl ovens) Replaces M3314
2 þ M7427 Probe, Temperature RTD, 500 OHMS 6"
(Qty 1) (Before 7/15/99 or S.N. 071599GE066T)
Note: Use this probe if oven
burner retrofitted.
M9607 Probe, Temperature RTD, 500 OHMS 14"
(Qty 1) (After 7/15/99 or S.N. 071599GE066T)
Note: Use this probe if oven has been
burner retrofitted.
M7202 Conversion Kit, Open to Closed Loop(Qty 1)
M10035 Silicone Compound (for cables)
M3347 Cable, Computer Control, 25 Pin, 10' (Qty 1)
M3348 Cable, Computer Control, 9 Pin, 10' (Qty 1)
M3490 Cable, Computer Control, 25 Pin, 50' (Qty 1)
M3491 Cable, Computer Control, 9 Pin, 50' (Qty 1)
M5661 Bracket Assy, Cable Clamp
M9262 Jack Screw (for harness mounts)
M3349 Harness, w/socket, Inter-Connecting DC
Drive, 3-Wire (For 9 Pin) (Qty 1)
M7237 Harness, w/socket, Relay Board
(For 25 Pin) (Qty 1)
M9985 Relay Harness & Jack Screw Kit (25 pin)
þ M0984 Pick-Up, PV-2 (Qty 1)
þ M7236 Board, Relay/Transformer (Qty 1)
3 þ 22672 Relay, Control (Qty 4)
4 þ M3352 Transformer, 120V to 24V (Qty 1)
5 22593 Transformer, 208/230V to 115V (Qty 1)
37 þ 24356 Transformer, 120V to 24V (Qty 1)(for M7885)
6 þ 20349 Buzzer, 120V (Qty 1)
7 þ M3295 Thermostat, High Limit (Man. Reset) (Qty1)
M9867 Probe Well Assy
8 þ M1362 Snap Disc, L140-20F, 2 Pole SPST
(Control Compartment)
9 þ M2453 Snap Disc, L140-20F, 3 Pole SPDT
(Blower Compartment)
10 þ M6044 Snap Disc, L110-20F, 3 Pole SPDT (Computer)
þ M0152 Contact, Emergency Stop Switch (Qty 1)
þ M3296 Activator, Emergency Stop Switch
(Mushroom Shape) (Qty 1)
þ M3297 Nameplate, Emergency Stop (Qty 1)
has not been
ELECTRICAL COMPONENTS - Cont'd
Ref. Part
No. No. Description
11 þ 11204 Terminal Block, 3 Pole (Qty 1) Gas
98 M3714 Terminal Block, 3 Pole (Qty 1) Elec
99 M3715 Terminal Block, 1 Pole (Qty 1) Elec (Ground)
12 þ M0593 Terminal Block, 2 Pole (Qty 1) or (CE Qty 2)
13 þ M2469 Fan, Axial 110 CFM 4-1/2" (Qty 5)
14 22718 Fan Guard & Hardware (Qty 2)
M0572 Cord, Axial Fan 30" Power (Qty 5)
þ M6576 Plate Assy., Control MT1828E
M6578 Plate Assy., Control MT1828G
M1694 Cord Set & Plug Assy., 10' MT1828G
M7955 Cord Set & Plug Assy., 10' MT1828E
M0772 Receptacle, Twist Lock
15 M0708 Contactor, 3 Pole, 120V Coil (Fan)
16 M7159 Contactor, 3 Pole, 30 AMP, 120V 3PH
(Element)
M6868 Contactor, 2 Pole, 60 AMP, 120V 1PH
(Element)
M4988 Fuse, 5 AMP, 300V, SC-5 (Qty 2)
17 M0158 Fuse Holder (Qty 2) Elec Ovens
M8559 Conv Kit, 208V 3PH to 240V 1PH
18 M6097 Element Assy., 208V, 3 PH (Qty 1)
18 M6099 Element Assy., 208V, 1 PH (Qty 1)
18 M6101 Element Assy., 220V (Qty 1)
18 M6098 Element Assy., 240V, 3 PH (Qty 1)
18 M6100 Element Assy., 240V, 1 PH (Qty 1)
18 M6102 Element Assy., 240V (Qty 1)
M9839 Element, Individual 208V
M9840 Element, Individual 220V
M9841 Element, Individual 240V
19 90034 Lug, Grounding (Qty 1) Gas Ovens
M9422 Pressure Switch
M9705 Polyurethane Tubing, used w/pressure
switch (Per Foot, Total 3 FT)
M3118 Harness (back of control to motors)
M3120 Harness (Contactor to control box)
APRIL 18, 2001 3 MT1828 E & G
MT1828E DOMESTIC CONTROL PLATE ASSY (M6576)
M10081
21
or FW502
Conveyor
Control
Buzzer
22672
Relay,
Control
M3295
Thermostat,
High-Limit
3
20349
7
M1362
Snap Disc,
Control
Compartment
6
8
M2254
22
Fuse
M9787
23
Fuse
M0708
15
Contactor,
3 Pole
22593
Transformer,
208/230V-115V
5
M3352
Transformer,
120V-24V
M0593
Terminal
Block, 2 Pole
4
12
16
M7159
Contactor,
3 Pole
APRIL 18, 2001 4 MT1828 E & G
MT1828G DOMESTIC & GENERAL EXPORT CONTROL PLATE ASSY (M6578)
M10081
21
or FW502
Conveyor
Control
22672
Relay,
Control
Qty 4
M3295
Thermostat,
High-Limit
M3352
Transformer,
120V-24V
M0593
Terminal
Block,
2 Pole
4
7
12
Buzzer
3
20349
M1362
Snap Disc,
Control
Compartment
6
8
M2254
22
Fuse
M9787
23
Fuse
M0708
15
Contactor,
3 Pole
45
30851
Ignition
Control: Call
Tech Service
with Serial # if
you need this
part # or if
oven HAS
NOT been
burner
retrofitted.
M9529
103
Ignition Control,
Midco Burner/
Direct Spark
Units
24356
37
Transformer,
120V-24V
APRIL 18, 2001 5 MT1828 E & G

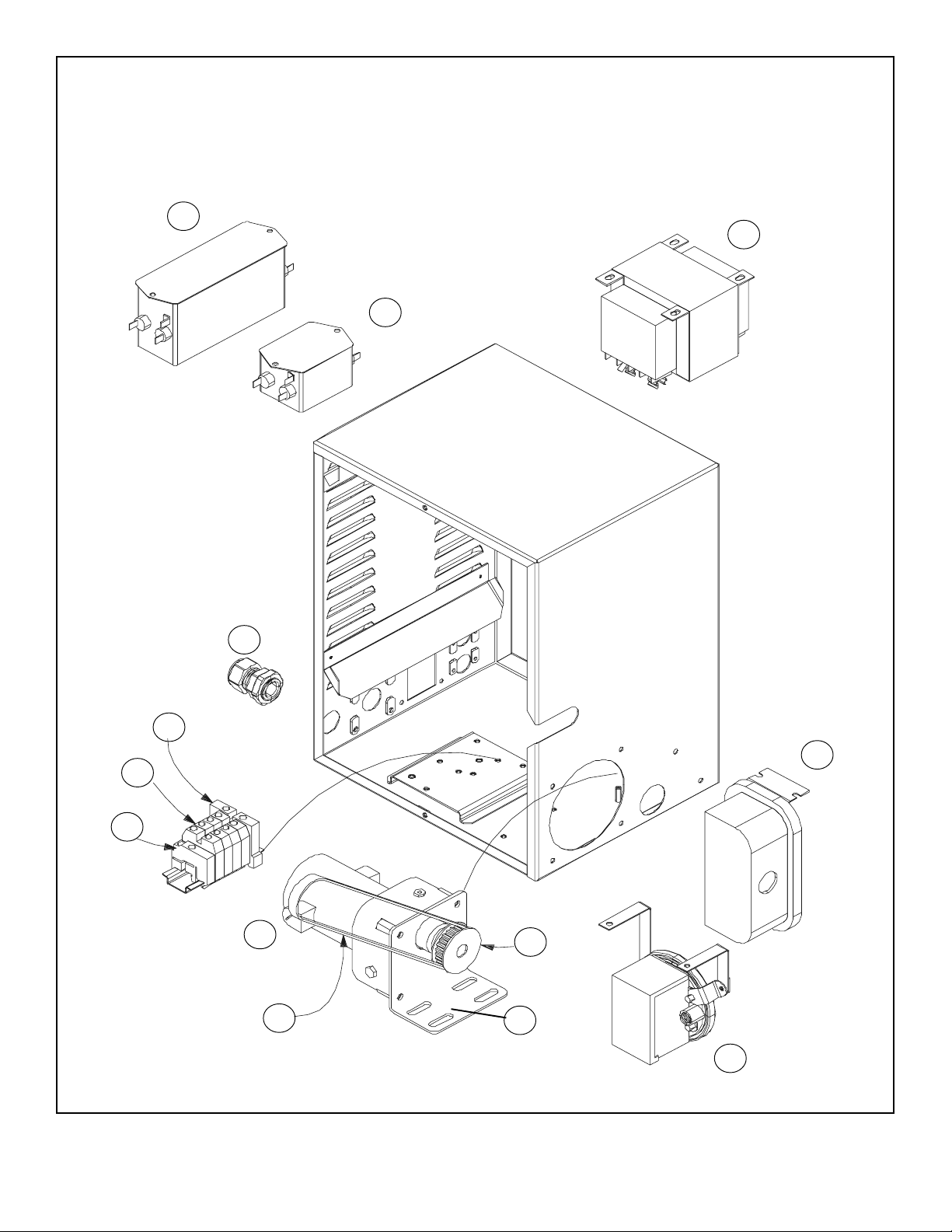

MT1828E & MT1828G DOMESTIC CONTROL BOX
(CONTROL PLATE AND/OR GAS BURNER COMPONENTS NOT SHOWN)
13
M2469
Elec.
Axial Fan,
4 1/2"
98
M3714
Terminal
Block, 3
Pole
Elec.
Fuseholder
M7427
Probe
RTD 6"
1 Pole Elec. (Ground)
Grounding Lug
Gas (Ground)
2
99
M3715
Terminal Block,
90034
19
M0158
17
Elec.
M2469
Axial Fan, 4 1/2"
FOR INTEGRAL
COMPUTER
ONLY
13
11204
Terminal Block, 3 Pole
11
Gas
M6808
Timing
24
M10082
Conveyor
Motor
31
Belt
30
M6121
Timing
Pulley
32
M6192
Bracket, for Motor
(comes separately)
APRIL 18, 2001 6 MT1828 E & G
DIRECT SPARK IGNITION SYSTEM
STANDARD FOR OVENS MANUFACTURED
AFTER 07/15/99 OR S.N. 071599GE066T
SEE PICTURES ON PAGE 7
Ref. Part
No. No. Description
36 þ M7885 Blower Motor, Combustion 60 HZ (Qty 1)
M6966 Gasket, Combustion Blower Motor (Qty 1)
102 M10425 Orifice Assy, Main Burner, Nat
Replaces M10124
102 M10426 Orifice Assy, Main Burner, LP
Replaces M10125
M9705 Polyurethane Tubing, Per foot
NOTE:
M9422 Pressure Switch
103 þ M9529 Ignition Control, Direct Spark
104 þ M9530 Burner Ignitor
þ M9607 Probe, Temperature RTD 500 OHMS, 14"
105 þ M9517 Flame Sensor
106 þ M9871 Spark Wire only (Orange)
107 M9510 Burner, Complete LP & Nat
38 19086 Grommet, Rubber 5/8" (Qty 1)
40 þ M7028 Gas Valve, Nat & LP(Qty 1)
NOTE: This valve is for both Nat & LP only on
M9618 Harness, Gas Valve
41 þ M0282 Gas Valve, Manual (Qty 1)
42 M0280 Tee, 3/4 x 3/4 x 1/4 (Qty 1)
43 M0281 Plug, Pipe 1/8 Black (Qty 1)
See Application below when ordering
(Total 2 ft. when used w/Burner Retrofit Kits)
(Total 3 ft. when used with Pressure Switch)
Direct Spark Ignition units made after
07/15/99
HOT SURFACE IGNITION
STANDARD FOR OVENS MANUFACTURED
BEFORE 07/15/99 OR S.N. 071599GE066T
SEE PICTURES ON PAGE 8
NOTE: IF YOU NEED TO ORDER THESE
PARTS OR YOUR OVEN STILL HAS THE
HOT SURFACE IGNITION, PLEASE
CONTACT THE BLODGETT SERVICE
DEPARTMENT WITH YOUR SERIAL
NUMBER!! 1-800-331-5842
Ref. Part
No. No. Description
36 M7885 Blower Motor, Combustion 60 HZ (Qty 1)
M6966 Gasket, Combustion Blower Motor (Qty 1)
M7883 Burner Assy. (Qty 1)
100 M5970 Complete Burner Assy. MT1828G
33 M7066 Orifice, Main Burner, Nat (MTD 34) (Qty 1)
33 R5059 Orifice, Main Burner, LP (MTD 49) (Qty 1)
NOTE: This orifice does not come pre-drilled. You
MUST specify the correct drill size, MTD 49.
34 M7815 Shroud, Flame Sensor (Qty 1)
35 þ M7884 Probe, Flame Sensing (Qty 1)
45 þ 30851 Control, Hot Surface Ignition (Qty 1)
46 þ M7886 Ignitor, Hot Surface (Crossfire) (Qty 1)
M6578 Plate Assy., Control MT1828G (Qty 1)
(Before 7/15/99 or S.N. 071599GE066T)
38 19086 Grommet, Rubber 5/8" (Qty 1)
40 þ M7028 Gas Valve, Nat (Qty 1)
40 þ M7154 Gas Valve, LP (Qty 1)
41 þ M0282 Gas Valve, Manual (Qty 1)
42 þ M0280 Tee, 3/4 x 3/4 x 1/4 (Qty 1)
43 M0281 Plug, Pipe 1/8 Black (Qty 1)
44 M6980 Manifold Assy. (Qty 1)
47 M7497 Pry Out Plug (for Burner) (Qty 1 )
M6958 Gasket, End Cap (Qty 1)
M9422 Pressure Switch
M9705 Polyurethane Tubing, used w/pressure
switch (Per Foot, Total 3 FT)
APRIL 18, 2001 7 MT1828 E & G

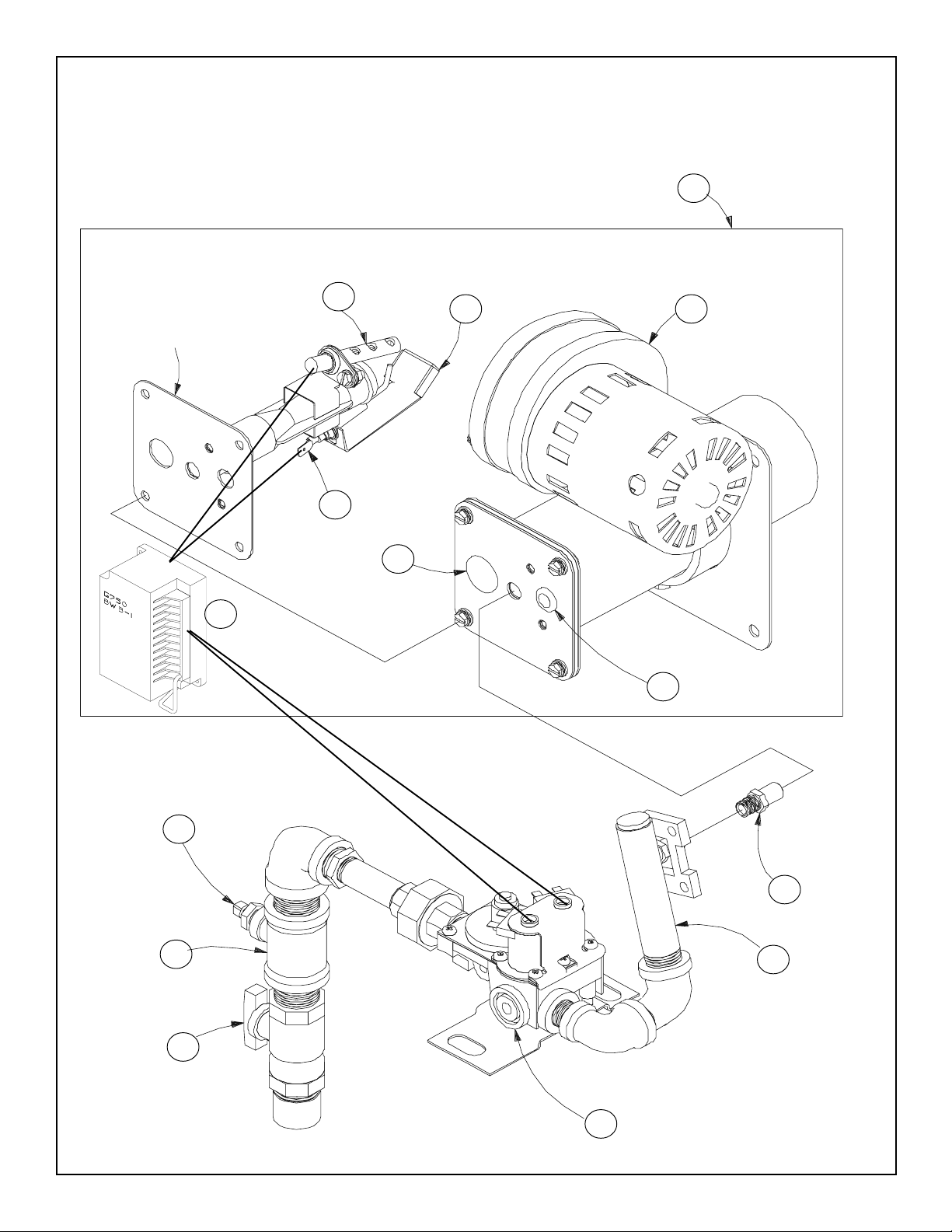

MT1828G BURNER ASSY, DIRECT SPARK IGNITION SYSTEM DOMESTIC
STANDARD FOR OVENS MANUFACTURED AFTER 07/15/99 OR S.N. 071599GE066T
106
M9871
Spark Wire,
Only
103
M9529
Ignition
Control
M7885
Blower,
Motor
Combustion
M9510
107
Complete Burner
Assy, LP & Nat
36
M9530
Burner
Ignitor
104
Complete Burner Assy
LP & Nat
105
102
M9517
Flame
Sensor
Spud Orifices
M10425 Nat
M10426 LP
APRIL 18, 2001 8 MT1828 E & G
MT1828G DOMESTIC & GENERAL EXPORT GAS BURNER COMPONENTS
HOT SURFACE IGNITION
Standard for ovens before 07/15/99, unless oven is retrofitted with new burner system. If you
need to order these parts please call Technical Service with your serial number!!
M5970
Complete Burner Assy,
does not include Ignition Control
100
Part Not Available, part of
old style burner.
45
30851
Ignition Control
Box
M7886
Ignitor, Hot Surface
46
M7884
Probe, Flame
35
Sensing
47
M7497
Pry Out Plug,
for burner
NOTE: The Ignition Control
Box connects in 4 places.
(See lines)
M7815
Shroud, Flame Sensor
34
M7885
36
Blower Motor,
Combustion
19086
38
Grommet, Rubber
M0280
Tee, 3/4x3/4
M0282
Gas Valve,
Manual
M0281
Plug, Pipe
43
42
41
M7028 Gas Valve-Nat
40
M7154 Gas Valve-LP
44
33
M6980
Manifold
Assy
M7066 Nat
R5059 LP
Orifice
APRIL 18, 2001 9 MT1828 E & G

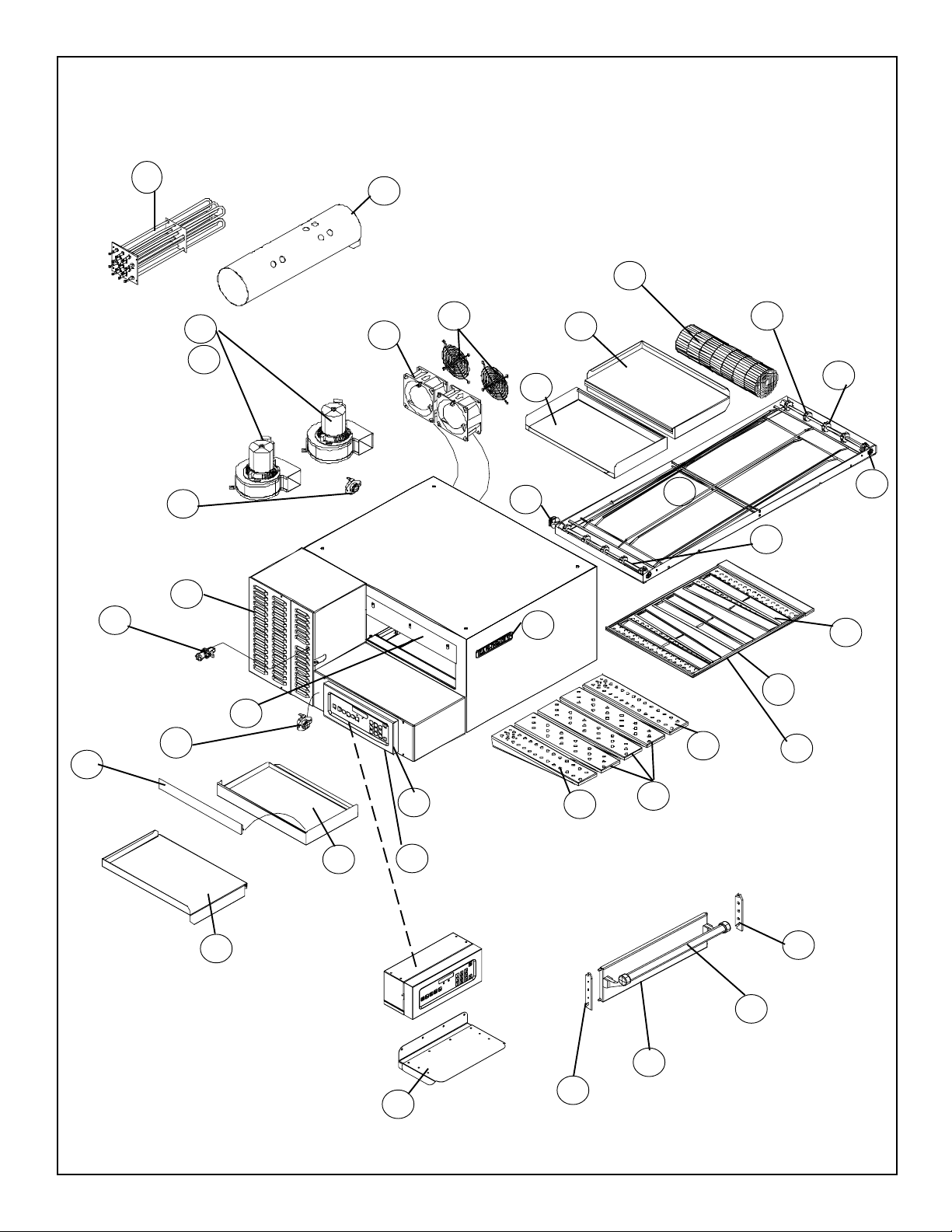

CONVECTION COMPONENTS
SEE PICTURES ON PAGE 10
Ref. Part
No. No. Description
48 M7156 Motor & Blower Assy., CW, 50/60 HZ (Qty 2)
M5944 Insulation Kit, Motor (2 Blower) (Qty 1)
49 M6807 Plate Assy., Air (Upper) (Qty 1)
50 M6805 Plate Assy., Block Off (Upper) (Nozzle)
51 M5820 Nozzle Assy., (Under Conveyor) (Qty 3)
52 M6828 Nozzle Assy., (Under Conveyor) (Qty 2)
M4131 Block Off Plate
(Integral Control Ovens)
M9639 Plate,Block Off (Nozzle) for Donato's
M9640 Air Plate Assy., for Donato's
39 M6969 Tube Assy., Flame (Qty 1)
CONVEYOR COMPONENTS
SEE PICTURES ON PAGE 10 OR 3&4
Ref. Part
No. No. Description
20 M6337 Belt, Wire S/S 18" (Per Foot)
(Total Length 9 FT)
23 M9787 Fuse, Armature, 250MA, 250V
(Replaces part M2316, DOMESTIC ONLY)
22 M2254 Fuse, Line, Bodine Board, 5 AMP, 125V
M3301 Capacitor, Digital Speed Control Board
21 þ FW502 Digital Speed Control Board, Bodine
Recond
NOTE: M2379 is no longer available
þ M10099 Conveyor Motor & Control Kit, Brushless
(for Computerized Ovens) *See Note
21 þ M10081 Conveyor Control, Brushless *See Note
24 þ M10082 Conveyor Motor, Brushless *See Note
*NOTE: You must install the Brushless Kit BEFORE
you purchase the new brushless motor or
control separately.
32 þ M6192 Bracket (For M10082)
M2500 Brush Set, Bodine (Qty 1)
25 M5805 Conveyor Assy. (Qty 1)
26 M4815 Shaft, Conveyor Drive(Qty 1)
27 M4816 Shaft, Conveyor Idle (Qty 1)
28 M4817 Bearing, Rulon (Qty 4)
M4812 Bushing, for Bearing M4817 (Qty 4)
29 M4818 Sprocket, Wire Belt (Qty 10)
30 M6121 Pulley, Timing 1/5P 3/8 Wide
(Sprocket)(Qty 1)
31 þ M6808 Belt, Timing (Qty 1) (Marked "220XL")
M9862 Chain Guard (Only on units after 07/16/99
or S.N. 071699GE040T)
EXTERIOR COMPONENTS
SEE PICTURES ON PAGE 10
Ref. Part
No. No. Description
53 M10181 Sandwich Door Assy, 17"x5", Solid w/
handle Replaces M4587
53 M10243 Sandwich Door Assy, 17"x5", Glass w/
handle Replaces M9237
NOTE: For ALL ovens, if you need a new sandwich
door order part M10181, Door Assy,
or part M10243, Door Assy.
M10128 Handle Kit, 16 1/2" For M10181 & M10243
For ovens after 12/05/00, or converted units
with 16 1/2" handle
M2188 Handle Assy, 2" black plastic, for Sandwich
Door For ovens before 12/05/00
NOTE: To convert from a 2" to a 16 " handle you
must purchase a complete door assy
M10181 or M10243.
55 M4581 Plate, Pivot RH Slotted (Qty 1)
56 M4582 Plate, Pivot LH Slotted (Qty 1)
57 M7118 Crumb Pan, Idle (Single Section) (Qty 1)
M7117 Crumb Pan, Idle (Top Section) (Qty 1)
58 M7116 Crumb Pan, Drive (Qty 1)
59 M6792 Product Stop (Qty 1)
61 M10056 Product Extension, 12", Drive & Idle Side
(Qty 2 per oven)
62 M5880 Panel Assy., Access (Power)
63 M6035 Latch, Access Panel Assy. (Qty 1)
64 M6925 Air Curtain, Drive Side (Qty 1)
M6945 Air Curtain, Idle Side (Qty 1)
M6955 Heat Shield Kit
M5899 Heat Shield, Only
M6813 Chimney Kit, Single (Qty 1)
M6814 Chimney Kit, Double (Qty 1)
M6815 Chimney Kit, Triple (Qty 1)
M5847 Body Back (Qty 1)
M5953 Stand, 24" S/S w/casters (Sgl & Dbl Ovens)
M2532 Triple Base w/casters (Qty 1)
M9106 Pins, Stacking (Set of 4)
M9083 Stacking Kit
21826 Installation Hose, 36" (Qty 1)
21242 Installation Hose, 48" (Qty 1)
65 16469 Nameplate, Blodgett 7-3/4" (Qty 1)
M9931 Kit, Integral to Remote Mount, Computer
Conversion (does not include computer)
APRIL 18, 2001 10 MT1828 E & G
MT1828E & MT1828G EXTERIOR OVEN VIEW
M6097, M6099, M6191,
M6098, M6100, M6102
Element
18
Electric Ovens Only
M6969
Flame Tube
39
Gas Ovens Only
M7156 DOM
Motor &
Blower Assy
OR
M7156 CE
Blower Assy
Snap
Disc
M2453
Latch,
Access
Panel
M6035
63
M6044
Snap
Disc
59
M6792
Product Stop
48
66
Motor &
9
Access Panel
Assy
M5880
62
M6925
Air Curtain
10
61
64
M2469
M7116
Crumb
Pan
Axial
Fans
58
22718
Fan Guard
13
1
75
14
Crumb
Pan
M7118
57
M6121
Timing Pulley
(Sprocket)
30
65
16469
Nameplate
M6474
Computer Control
Kit DOM
OR
M7880
Computer Control
Kit CE
Product Extension
M10056
61
52
M6828
Nozzle Assy
(Qty 2)
M6337
Belt, Wire20
25
M5805
Conveyor Assy
52
M6828
51
Nozzle Assy
(Qty 2)
M5820
Nozzle Assy
(Qty 3)
M4818
Sprocket,
Qty 10
29
Shaft, Conv.
Rulon Bearing
26
M4815
Shaft, Conv.
M6805
Block Off Plate
Assy
49
M6807 DOM
Air Plate Assy
97
M4581
Plate, Pivot RH
55
M4816
27
28
M4817
50
M7230 CE
Air Plate
Assy
M10056
Product
Extension
60
M10197
Bracket,
Remote
Computer
56
M4582
Plate,
Pivot LH
53
M10181
Sandwich Door/
Solid
OR M10243
Sandwich Door/
Glass
54
(Black plastic handle, 2") On
M2188
ovens before 12/05/00
OR M10128
(Towel Rack style handle,
16") On ovens
after 12/05/00
APRIL 18, 2001 11 MT1828 E & G
MT1828E GENERAL EXPORT CONTROL PLATE ASSY (M6577)
M10081
21
or FW502
Conveyor
Control
20349
Buzzer
22672
Relay,
Control
M3295
Thermostat,
High-Limit
M3352
Transformer,
120V-24V
7
4
M1362
Snap Disc,
Control
Compartment
6
3
8
M2254
22
Fuse
M9787
23
Fuse
M0708
15
Contactor,
3 Pole
5
22593
Transformer
208/230V-115V
M0593
Terminal
Block, 2 Pole
12
69
M6868
Contactor,
2 Pole
60A
APRIL 18, 2001 12 MT1828 E & G
EXCLUSIVE TO VERSION AA
Philippines & Korea
Ref. Part
No. No. Description
M9150 Transformer, 220V/110V
M6924 Decal, Lexan Control
EXCLUSIVE TO EXPORT 50 HZ
Ref. Part
No. No. Description
90 M3153 Speed Control Board, Digital
(Gas ovens only)
24 M3128 Conveyor Drive Motor, 180V
(Gas ovens only)
M6888 Element Assy., 220/380V, 1 PH (Qty 1)
M6101 Element Assy., 220/380V, 3 PH (Qty 1)
M6100 Element Assy., 240/415V, 1 PH (Qty 1)
M6102 Element Assy., 240/415V, 3 PH (Qty 1)
66 M7156 Motor & Blower Assy., CW 50/60 HZ (Qty 2)
67 M6527 Gas Valve, Nat 230V (Qty 1)
67 M6528 Gas Valve, LP 230V (Qty 1)
33 M7066 Orifice Assy, Nat Gen Exp CE
Units before 02/28/00
33 R5059 Orifice Assy, LP Gen Exp CE
Units before 02/28/00
102 M10425 Orifice Assy, Main Burner, Nat Gen Exp CE
Replaces M10124 Units after 02/28/00
102 M10426 Orifice Assy, Main Burner, LP Gen Exp CE
Replaces M10125 Units after 02/28/00
M10177 Gas Conversion Kit, LP to Nat CE
**Except France and Belgium
M10178 Gas Conversion KIt, Nat to LP CE
**Except France and Belgium
M10179 Gas Conversion Kit, LP to Nat CE
**France and Belgium only
M10180 Gas Conversion Kit, Nat to LP CE
**France and Belgium only
M6868 Contactor, Mercury 120V (Qty 1)
71 M6029 Connector, Liquid Tight (Qty 1)
72 R0166 Terminal Block, Ground (Qty 1)
73 M4542 Terminal Block, Power (Qty 1) CE
74 R1580 Stop, End (Qty 1)
75 M7880 Computer Control Kit Closed Loop SB, CE
M8559 Wire Conversion Kit, 208V, 1PH, 3Wire
to 220/240V, 1PH,2Wire
76 M7282 Board, Relay/Transformer (Qty 1) CE
M8704 Fuse, 250V, 125 MA (for M7282) CE
(Replaces part M8652)
M6024 Transformer (for M7282) CE
77 22672 Relay, "Ice cube" (Qty 4) CE
78 M3443 Bushing, Adapter (Qty 2) CE
79 M2841 Fitting, Pressure Tap (Qty 2) CE
35 þ M7884 Probe, Flame Sensing (Qty 1) CE
(Before 7/15/99 or S.N. 071599GE066T)
Use if oven has not been burner retrofitted.
94 32206 Control, Hot Surface Ignition (Qty 1) CE
95 M6504 Ignitor, Hot Surface (Crossfire) (Qty 1) CE
EXCLUSIVE TO EXPORT 50 HZ
Ref. Part
No. No. Description
34 M7815 Shroud, Flame Sensor (Qty 1) CE
105 M9517 Probe, Flame Sensing (Qty 1) CE
(After 7/15/99 or S.N. 071599GE066T)
Use if oven
2 M7427 Probe, RTD, 500 OHMS (Qty 1) 6"
(After 7/15/99 or S.N. 071599GE066T)
M9607 Probe, RTD 500 Ohms 14"
(After 7/15/99 or S.N. 071599GE066T)
Use if oven has been burner retrofitted.
M9530 Ignitor, Direct Spark (Qty 1) CE
(After 7/15/99 or S.N. 071599GE066T)
Use if oven has been burner retrofitted.
84 M6448 Filter, Noise (Qty 1) CE
85 M6449 Filter, Noise (Qty 1) CE
86 20350 Buzzer, 240V (Qty 1) CE
101 M7157 Complete Burner Assy. CE
87 16037 Indicator Light, 250V, Red, Round (Qty 2)
CE
70 M0595 Air Pressure Switch CE & Gen Exp
Gas Ovens only
M9978 Conversion Kit, Air Pressure Differential
Switch CE & Gen Exp Gas Ovens Only
(Replaces M3330 or M2819)
88 M9422 Air Pressure Differential Switch, switch
only CE & Gen Exp Gas Ovens only
M9705 Polyurethane Tubing, used w/pressure
switch (Per Foot, Total 3 FT) CE & Gen Exp
89 M2247 Contactor, 240V, 50 HZ (Qty 1) CE
91 M3172 Time Delay, 2 Second (Qty 1) CE
M3173 Timer, 10 second fixed (Qty 1) CE
92 16775 Relay, SPST, 240V, 30 Amp. (Qty 1) CE
93 M6519 Relay, Time Delay (Qty 1) CE
96 M9107 Blower Motor, Combustion 50 HZ (Qty 1)
CE
97 M7230 Plate Assy., Air (Qty 1) CE
M3167 Fuseholder, Type HTB-36M CE
M8592 Fuse, Export 5AMP CE
M4988 Fuse, 5AMP, 300V, Class G
M2316 Fuse, Armature, 200MA, 250V (Qty 1) CE
M2630 Fuse, Line, Bodine Board, 500MA, 250V
(Qty 1) CE
45 M7170 Transformer, 208/460V-120 CE & NON CE
M8744 Leg/ Casters, 17 1/4" (Set of 4) CE
M8745 Leg/Casters, 23 1/4" (Set of 4) CE
has been burner retrofitted.
APRIL 18, 2001 13 MT1828 E & G
MT1828G CE CONTROL PLATE ASSY (M6575)
M3153
90
Speed
Control
Board,
Digital
22672
Relay,
"Ice Cube"
Qty 4
M3295
Thermostat,
High-Limit
M7282
Board,
Relay/Transformer
16037
Indicator Light
16037
Indicator Light
Terminal Block,
M6519
Relay,
Time Delay
87
M0593
2 Pole
93
77
7
87
12
76
12
20350
Buzzer,
240V
M1362
Snap Disc,
Control
Compartment
86
8
M2254
22
Fuse
M9787
23
Fuse
M2247
89
Contactor,
240V 50HZ
32206
94
Control
HSI
NOTE:
Please
call Tech
Service
with
Serial
Number if
you need
this part.
91
92
M3172
Time Delay,
2 Second
16775
Relay,
SPST,
240V 30A
APRIL 18, 2001 14 MT1828 E & G
MT1828G CE GAS BURNER COMPONENTS
HOT SURFACE IGNITION
(CONTROL BOX NOT SHOWN)
Part Not Available, part of
old style burner.
M6504
Ignitor, Hot Surface
95
M7884
35
Probe, Flame
Sensing
M7497
Pry Out
Plug
Complete Burner Assy
M7815
Shroud, Flame Sensor
34
47
M7157
101
96
M9107
Blower Motor,
Combustion
M0280
Tee, 3/4X3/4
M3443
Bushing,
Adapter
42
78
79
M2841
Fitting,
Pressure
M2841
Fitting,
Pressure
M3443
Bushing,
Adapter
79
78
19068
38
Grommet, Rubber
M6527 Gas Valve Nat
67
M6528 Gas Valve LP
44
M7066 Nat
R5059 LP
Orifice
33
M6980
Manifold
Assy
APRIL 18, 2001 15 MT1828 E & G
MT1828E & MT1828G EXCLUSIVE TO 50 HZ & CE CONTROL BOX
M6449
Noise Filter
85
M6029
Connector, Liquid
Tight
71
M7170
Transformer
208/460-120V
45
M6448
Noise Filter
84
M4542
Terminal
Block,
Power
R1580
End Stop
74
73
R0166
72
Terminal Block,
Ground
M6121
M10082
Conveyor
Motor
BLODGETT OVEN COMPANY, 50 Lakeside Avenue, Burlington, Vermont 05402 USA
24
31
M6808
TimingBelt
Telephone: (802) 860-3700 (800) 331-5842 Fax: (802) 860-3732
Maytag Food Service Division
Timing Pulley
30
32
M6192
Bracket, for Motor
(comes separately)
88
M9422
Air Pressure
Differential
Switch
70
M0595-Air Pressure
Switch
Loading...
