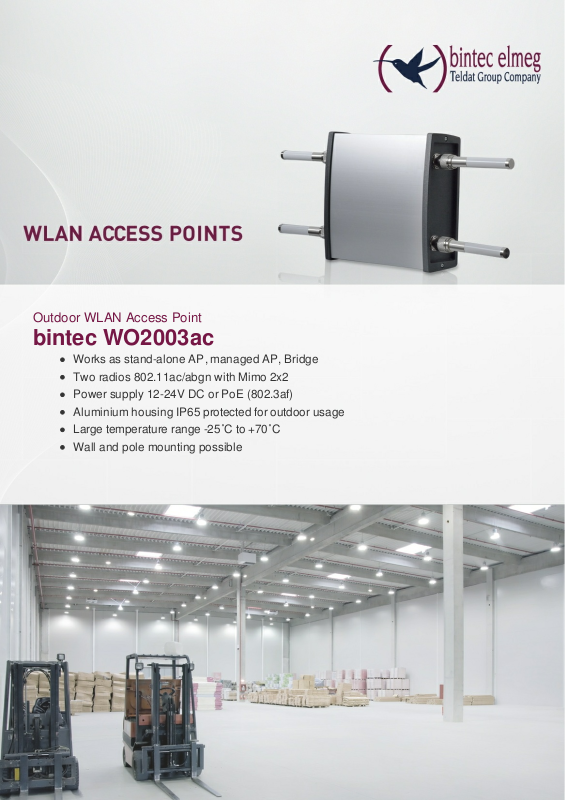

Outdoor WLAN Access Point
bintec WO2003ac
Works as stand-alone AP, managed AP, Bridge
Two radios 802.11ac/abgn with Mimo 2x2
Power supply 12-24V DC or PoE (802.3af)
Aluminium housing IP65 protected for outdoor usage
Large temperature range -25˚C to +70˚C
Wall and pole mounting possible
bintec WO2003ac
Rugged Outdoor WLAN Access Point with two independent radios, can be used as WLAN-AP, WLAN HotSpot or to build a
wireless Bridge connections.
Product description
The bintec WO2003ac is an IP65-rated access point with two independent radio modules for outdoor use. The robust,
water-resistant metal housing and wide operating temperature range from -25° to +60° make the device suitable for use in
extreme environmental conditions. The high durability standards of the device are also reflected in its ports. For the
antenna jacks, for instance, weatherproof Type N connectors are used.
The device is equipped with two 802.11 ac/abgn radio modules with MIMO 2x2 technology, enabling raw data rates of up to
2x867 Mbps. The operating modes and frequency bands of the radio modules can be selected independently of one
another, enabling a wide range of applications.
The bintec WO2003ac as a HotSpot for internet access in public spaces
With the optional bintec HotSpot, the WO2003n is ideal for providing internet access in public spaces. If you`re using
multiple access points, the bintec WLAN Controller offers additional load balancing capabilities to ensure good performance
when handling large numbers of wireless clients. The second radio module can be used either as a wireless backbone in
this scenario or transmit over a second radio channel in order to increase the number of WLAN clients that can be
accommodated.
The bintec WO2003ac for logistics
If you need to provide wireless coverage across a large outdoor storage location, for instance to connect handheld
scanners to your inventory management system, the bintec WO2003ac in conjunction with a bintec WLAN Controller is an
ideal solution. The WO2003ac`s use of the IAPP protocol together with careful radio cell planning ensures optimal roaming
behavior for your wireless scanners in this scenario. Here as well, the second radio module can be used as a wireless
backbone.
The bintec WO2003ac as a wireless bridge
In conjunction with our comprehensive line of directional antennas, WO2003n devices can be used in pairs to set up very
powerful wireless bridges.
Management
To configure individual devices, all you need is an internet browser. The device`s integrated web server allows for rapid
configuration and monitoring via the graphic user interface. If you are using the devices as access points however and plan
to install more than two of them, a managed network that includes a bintec WLAN Controller is the preferred solution.
WLAN Management from the Cloud
The bintec Cloud NetManager, the controller-free wireless network management capable of managing both very small and
very large networks distributed across numerous locations.
The Cloud NetManager allows you to conveniently administrate your devices. The dashboard gives you a single source for
convenient access to important performance data, error messages, and notifications for your network. Here you will find
information on current and historical network performance. With this information, you can see at all times whether your
binte c elmeg GmbH – Südwestpa rk 94 – 9044 9 Nürnberg – Deutschlan d
Telefo n: +49 9 11 967 3 0 – Tele fax: +49 9 11 688 07 25
E-Mail: info@b intec-elmeg.co m – www.bin tec-elmeg.com
binte c WO2003ac
Novembe r 7, 2 017
Subje ct to tech nical alteration s
201 711070 25736
network is working properly or experiencing excessive loads.
WLAN Controller
Optimize your WLAN network by using a bintec WLAN controller. The bintec WLAN controller allows configuration of your
customers WLAN network in lesser than 30 minutes ... and this without deeper WLAN know-how! The automatic RF
management system relieves you the time killing search for free WLAN channels and selects the best channels for the
system.
For smaller WLAN networks up to 6 APs bintec access points are able to take over the function of the WLAN controller by
themself and work as quasi master APs. For networks with up to 12 APs you will need a bintec RS series router as WLAN
controller hardware. You are able to manage bigger WLANs with up to 150 AP by using a bintec RXL12x00 as WLAN
controller hardware.
Mounting and installation
The bintec WO2003ac is suitable for standard wall mounting or, using the optional pole mounting hardware, can be
mounted directly on an antenna mast.
The unit can be powered either via PoE or a 100-240V plug-in adapter.
As antenna is the Antenna-Kit (5520000145) as accessory available. The antenna kit contains two Omni antennas with
water resistant N-type socket and swivel feature. The antenna can be directly attach to the Access Point without any
cables. For the WO2003ac two antenna kits are required. As an alternative an external antenna with higher gain can be
used. In this case the adapter cable CAB-N-N-0,5m (5500001764) is required.
Variants
bintec WO2003ac (5510000443) Outdoor WLAN AP IP65 with two radios according
802.11ac/abgn (2,4/5 GHz) Mimo 2x2, two IP65 protected
Gigabit ETH, PoE, 4x N antenna sockets, Incl. wall
mounting, without antennas and without power supply
Features
Operation Modes
WLAN AP
WLAN Access Point Stand-alone or managed WLAN
Access Point
WLAN Bridge WLAN Bridge link Point-to-Point or Point-to-Multipoint
Wireless LAN
WLAN standards 802.11ac/abgn (Mimo 2x2)
Frequency 2,4 GHz Indoor/Outdoor
2,4 GHz Indoor/Outdoor (2412-2484 MHz) 20 MHz
bandwidth
Frequency 5 GHz Indoor 5 GHz Indoor (5150-5350 MHz) 20/40/80 MHz bandwidth
Frequency 5 GHz Outdoor 5 GHz Outdoor (5470-5725 MHz) 20/40/80 MHz bandwidth
binte c elmeg GmbH – Südwestpa rk 94 – 9044 9 Nürnberg – Deutschlan d
Telefo n: +49 9 11 967 3 0 – Tele fax: +49 9 11 688 07 25
E-Mail: info@b intec-elmeg.co m – www.bin tec-elmeg.com
binte c WO2003ac
Novembe r 7, 2 017
Subje ct to tech nical alteration s
201 711070 25736
TX Power @ 2,4GHz (2 streams) up to 18 dBm without antenna gain
TX Power @ 5GHz (2 streams) up to 23 dBm without antenna gain
RX Sensivtiy up to -94 dBm without antenna gain
TX Power adjustable 5dBm, 8dBm, 11dBm, 14dBm, 17dBm, max.
Channel selection Automatic or manually
Automatic Rate Selection Supported
Transmission rates Automatic
Number of spatial streams 1 or 2
Software
Multi-SSID
Up to 16 Service sets for each Radio module with
assignment to a VLAN and own MAC address for each
SSID
Broadcast SSID On/Off switchable
Airtime fairness
Optimizing the throughput when slow clients or clients there
are far away are connected
Client load balancing
Avoid overloading of the AP in the case that many users
are connected. Allow the movement of clients to other AP in
case of high load.
Data rate trimming
Enhance the system performance by disable lower legacy
data rates
Low RSSI threshold management
Clients with weak signal (Sticky Clients) can disconnected
automatically. This improve the roaming behavoiur of the
clients and enhance the system performance of the WLAN
Network.
Limitation of the number of clients
From 1 up to 250 clients. To allow more than 32 clients is
practicable, if the application there requires only low
bandwitdth.
Throughput limitation
A maximum throughput can be defined for each client.
Defineable or each SSID
TPC
TPC (Transmission Power Control): For 5 GHz, automatic
TX power reduction according EN301893)
DFS DFS (Dynamic Frequency Selection) for 5 GHz
Extended Performance Feature
256-QAM, Beamforming, MRC (Maximum Ratio Combining),
Block-Acknowlegde, STBC (Space Time Block Coding),
LDPC (Low Density Parity Check)
WMM 802.11e QoS Data priority for TOS tagged data according 802.11e/WMM
WMM 802.11e Power Save
Supports WLAN Clients there supporting 802.11e power
save and U-APSD
Roaming
Seamless Roaming through IAPP (Inter Access Point
Protocol) support according 802.11f useful for VoWLAN
phones and for Wireless Barcode scanner.
binte c elmeg GmbH – Südwestpa rk 94 – 9044 9 Nürnberg – Deutschlan d
Telefo n: +49 9 11 967 3 0 – Tele fax: +49 9 11 688 07 25
E-Mail: info@b intec-elmeg.co m – www.bin tec-elmeg.com
binte c WO2003ac
Novembe r 7, 2 017
Subje ct to tech nical alteration s
201 711070 25736
Software Features for AP stand-alone operation
Captive portal function / HotSpot
Additional external RADIUS server or bintec HotSpot
license required
Internet Dial-up PPPoE, PPTP
NTP NTP Client, NTP Server, manually
DNS DNS client, DNS server, DNS relay
DHCP DHCP client, DHCP server, DHPC relay
VPN IPsec, L2TP, PPTP, GRE
Software Features for WLAN Bridge operation
Configuration
Applicable as Access-Point/Bridge-Link Master or as
Bridge-Link Client
Application
For Point-to-Point or for Point-to-Multipoint (up to 8)
applications.
Wireless security WPA2 Personal
DFS
DFS (Dynamic Frequency Selection) for 5 GHz works
without interruption every 24h
Monitoring
Detailed information for each link (Uptime, Signal, Noise,
Data rate, ...)
Coverage
The system etablishing connections up to 1200 metre
distance.
Security
Wireless security
Open, WEP64 (40 Bit key), WEP128 (104 Bit key), WPA
Personal, WPA Enterprise, WPA2 Personal, WPA2
Enterprise
IEEE802.11i authentication and security
802.1x/EAP-MD5, 802.1x/EAP-TLS, 802.1x/EAP-TTLS,
802.1x/EAP-PEAP, Key Management, PSK/TKIP
Encryption, AES Encryption, 802.1x/EAP
Access control list (ACL)
MAC address filter for WLAN clients (white list) and
dynamic and static blacklist. Black list function requires
WLAN Controller
WIDS (Wireless Intrusion Detection System)
Rogue AP detection: detect foreign Aps, which try to spy
out data via SSIDs by permanent background scanning.
When the attack is detect a SNMP trap or a email alert can
be send. This functionality requires WLAN Controller.
WIDS (Wireless Intrusion Detection System)
Neighbor AP detection: Detect AP in the neighborhood,
which can reduce the performance at the own network. In
case of detection a SNMP trap or a email alert can be
send.This functionality requires WLAN Controller.
WIPS (Wireless Protection Detection System)
Rogue Client Detection: detection and protection: detect
conspicuous clients, which try to intrude or interfere the
wireless network.In threat case blocking by dynamic black
list. This functionality requires WLAN Controller.
binte c elmeg GmbH – Südwestpa rk 94 – 9044 9 Nürnberg – Deutschlan d
Telefo n: +49 9 11 967 3 0 – Tele fax: +49 9 11 688 07 25
E-Mail: info@b intec-elmeg.co m – www.bin tec-elmeg.com
binte c WO2003ac
Novembe r 7, 2 017
Subje ct to tech nical alteration s
201 711070 25736
VLAN
Network separation at layer 2. For each SSID ist one VLAN
ID possible. Static VLAN configuration according IEEE
802.1q, supports up to 32 VLANs.
Intercell repeating
Inter traffic blocking for public HotSpot (PHS) applications
for preventing of communication WLAN client to WLAN
client in a single radio cell
Administration / Management
Supported Management systems
Cloud NetManager, Virtual Cloud NetManager, WLAN
Controller
WLAN Controller operation
Manageable with the bintec WLAN Controller according
CAPWAP (DHCP option RFC1517)
Master-AP operation Integrated WLAN controller for 5 additional bintec AP
HTTP/HTTPS Web based configuration
Configuration management Via Telnet, SSH, HTTP, HTTPS, SNMP
SNMP
SNMP (v1, v2, v3), USM Model, VACM Views, SNMP
Traps (v1, v2, v3) selectable, SNMP IP access list
configurable
SNMP Configuration
Complete Management according MIB-II, MIB 802.11,
Enterprise-MIB
SSH Login
Support SSH V1.5 and SSH V2.0 for secure connection of
terminal application
Configuration backup/restore Backup/Restore to/from file
Configuration backup/restore Optional encrypted backup file
Configuration backup/restore Optional automatic backup via scheduler
Supervision
Syslog Syslog Client with different level of the messages
eMail Alarm Automatic eMail if any defined event occurs
SNMP Traps Statistic information for all physical and logical interfaces
WLAN Monitoring
Detailed information about the radio, SSIDs, Bridge link,
clients. For each link MAC address, IP address, TX
packets, RX packets, signal for each antenna, Signal/Noise
value, data rate.
WLAN History view
Show the performance values based on WLC, AP, SSID,
Client level help to detect any bottlenecks
Scheduler
The following events are plan able: device reboot,
activate/deactivate interfaces, activate/deactivate SSIDs,
trigger of software update, trigger of configuration backup
Hardware
Radio modules 2x 802.11ac/abgn
binte c elmeg GmbH – Südwestpa rk 94 – 9044 9 Nürnberg – Deutschlan d
Telefo n: +49 9 11 967 3 0 – Tele fax: +49 9 11 688 07 25
E-Mail: info@b intec-elmeg.co m – www.bin tec-elmeg.com
binte c WO2003ac
Novembe r 7, 2 017
Subje ct to tech nical alteration s
201 711070 25736
LAN/WAN Interface
Two interfaces 10/100/1000 Mbps, autosensing, auto
MDI/MDIX
Ethernet connectors
Two water protected RJ-45 Harting Push Pull (HPP V4 RJ45
GL)sockets
Antenna sockets Four water protected N type antenna sockets
Power Supply
12-24 Volt DC power supply (M12 socket) required or PoE
according 802.3af or 802.3at (Power supply or PoE injector
not include)
Power supply range (DC)
9-36 Volt max. 1,4 A with over voltage protection, galvanic
isolated
Typical power consumption ca. 8,7 Watt
Power consumption in networked standby 7,3 Watt (after 5 minutes inactivity)
Dimensions 140 x 178 x 66 mm
Weight ca. 1300 g
Wind load (@210 km/h 82 N
Temperature conditions -25°C to +60°C
Protection class Protection class IP65, dust and water protected
Mounting Rugged aluminum housing
Mounting
Wall mounting included. Pole mounting for poles up to 70
mm as accessory available
Theft protection Integrated at the wall mounting unit
Approvals
CE approval
Directive 2014/53/EU, 2011/65/EU, 2009/125/EU, EN
60950, EN 62311, EN 301489, EN 300328, EN 301893, EN
50581
Content of Delivery
1 wall mounting unit, 3 protection caps for antenna socket,
1 protection cap for M12 power socket, 1 protection cap for
Harting Push Pull RJ45 socket, 1 Harting Push Pull (HPP
V4 RJ45 GL) plug assembly kit, Quick install guide
binte c elmeg GmbH – Südwestpa rk 94 – 9044 9 Nürnberg – Deutschlan d
Telefo n: +49 9 11 967 3 0 – Tele fax: +49 9 11 688 07 25
E-Mail: info@b intec-elmeg.co m – www.bin tec-elmeg.com
binte c WO2003ac
Novembe r 7, 2 017
Subje ct to tech nical alteration s
201 711070 25736
Loading...
