3500/42M Proximitor Seismic Monitor
Datasheet
Bently Nevada Machinery Condition Monitoring
Description
The 3500/42M Proximitor Seismic Monitor:
l Protects machinery by continuously comparing
monitored parameters against configured alarm
setpoints to drive alarms.
l Communicates essential machine information to both
operations and maintenance personnel.
The 3500/42M Proximitor Seismic Monitor is a four-channel
monitor that accepts input from proximity and seismic
transducers. It conditions the signal to provide vibration and
position measurements and compares the conditioned
signals with user-programmable alarms.
You can program each channel using the 3500 Rack
Configuration Software to monitor and report:
143694 Rev. V
l Radial vibration l REBAM
l Thrust position l Acceleration
l Differential
expansion
l Eccentricity l Circular acceptance region
l Velocity
The monitor channels are programmed in pairs and can
perform up to two of the listed functions at a time. For
example, Channels 1 and 2 can perform one function while
channels 3 and 4 perform another or the same function.
Each channel, depending on configuration, typically
conditions its input signal to generate various parameters
called static values. You can configure alert setpoints for
each active static value and danger setpoints for any two of
the active static values.
l Shaft absolute
3500/42M Proximitor Seismic Monitor
Datasheet 143694 Rev. V
Outputs
Specifications
Inputs
Accepts from 1 to 4 proximity,
Signal
Power
consumption
Input Impedance
Standard I/O
Sensitivity
Radial Vibration
Thrust
Eccentricity
Differential
Expansion
REBAM
Acceleration &
Acceleration2
Velocity &
Velocity2
Shaft Absolute,
Radial Vibration
Shaft absolute,
Direct
Shaft absolute,
Velocity
Circular
Acceptance
Region
velocity or acceleration
transducer signals
7.7 watts, typical
10 kΩ
(Proximitor and acceleration
inputs)
3.94 mV/μm (100 mV/mil) or
7.87 mV/μm (200 mV/mil)
3.94 mV/μm (100 mV/mil) or
7.87 mV/μm (200 mV/mil)
3.94 mV/μm (100 mV/mil) or
7.87 mV/μm (200 mV/mil)
0.394 mV/μm (10 mV/mil) or
0.787 mV/μm (20 mV/mil)
40 mV/μm (1000 mV/mil) or
80 mV/μm (2000 mV/mil)
10 mV/ (m/s2) (100 mV/g)
20 mV/ (mm/s) pk (500 mV/
(in/s) pk) or
5.8 mV/ (mm/s) pk (145 mV/
(in/s) pk) or
4 mV/ (mm/s) pk (100 mV/ (in/s)
pk)
3.94 mV/μm (100 mV/mil) or
7.87 mV/μm (200 mV/mil)
3.94 mV/μm (100 mV/mil) or
7.87 mV/μm (200 mV/mil)
20 mV/ (mm/s) pk (500 mV/
(in/s) pk) or
5.8 mV/ (mm/s) pk (145 mV/
(in/s) pk) or
4 mV/ (mm/s) pk (100 mV/ (in/s)
pk)
See Radial Vibration on the next
page..
Front Panel LEDs
Indicates when the 3500/42M
OK LED
TX/RX LED
Bypass LED
Buffered Transducer
Outputs
Output Impedance 550 Ω
Transducer Power
Supply
Recorder
Voltage
Compliance
(current output)
Resolution
Shaft Absolute
Buffered Outputs
Shaft Absolute
Output Impedance
Output supply
parameters
Proximitor Seismic Monitor is
operating properly.
Indicates when the 3500/42M
Proximitor Seismic Monitor is
communicating with other
modules in the 3500 rack.
Indicates when the 3500/42M
Proximitor Seismic Monitor is in
Bypass Mode.
The front of each monitor has
one coaxial connector for
each channel.
Each connector is short-circuit
protected.
-24 Vdc
+4 to +20 mA
Values are proportional to
monitor full-scale.
The monitor provides
individual recorder values for
each channel.
Monitor operation is
unaffected by short circuits on
recorder outputs.
0 to +12 Vdc range across load
Load resistance is 0 to 600 Ω.
0.3662 µA per bit
±0.25% error at room
temperature
±0.7% error over temperature
range
Update rate approximately 100
ms or less
The Shaft Absolute I/O
modules have one output for
each channel group.
Each output is short-circuit
protected.
300 Ω
See Output Supply Parameters
on page9..
2/18
3500/42M Proximitor Seismic Monitor
Datasheet 143694 Rev. V
Signal Conditioning
Specified at +25 ºC (+77 ºF) unless otherwise
noted.
Radial Vibration
Frequency Response
User-programmable
Single-pole
Direct filter
Gap filter -3 dB at 0.09 Hz
Not 1X filter
Smax 0.125 to 15.8 times running speed
1X and 2X vector
filter
1X and 2X Vector, Not 1X, and Smax
parameters are valid for machine
speeds of 60 cpm to 60,000 cpm.
-3db at 4 Hz to 4000 Hz or
1 Hz to 600 Hz
± 1% accuracy
60 cpm to 15.8 times running
speed
Constant Q notch filter
Minimum rejection in stopband
of -34.9 dB
Constant Q Filter
Minimum rejection in stopband
of -57.7 dB
Eccentricity
Within ±0.33% of full-scale
Accuracy
Frequency Response
Direct filter -3 dB at 15.6 Hz
Gap filter -3 dB at 0.41 Hz
typical
±1% maximum
Acceleration
Within ±0.33% of full-scale
Accuracy
Filter Quality
High-pass
Low-pass
Table 1: Frequency Ranges if Both Channels
of a Channel Pair are Enabled
typical
±1% maximum
Exclusive of filters
4-pole
(80 dB per decade, 24 dB per
octave)
4-pole
(80 dB per decade, 24 dB per
octave)
Accuracy
Exclusive of filtering
Direct and Gap
1X and 2X
Smax Within ±5% maximum
Not 1X
Within ±0.33% of full-scale
typical
±1% maximum
Within ±0.33% of full-scale
typical
±1% maximum
±3% for machine speeds less
than 30,000 cpm
±8.5% for machine speeds
greater than 30,000 cpm
Thrust and Differential Expansion
Within ±0.33% of full-scale
Accuracy
Frequency Response
Direct filter -3 dB at 1.2 Hz
Gap filter -3 dB at 0.41 Hz
typical
±1% maximum
Dual Channel Frequency Response
Low or
Output Type
RMS
Peak
Without
Filter
10 to
30,000
Hz
3 to
30,000
Hz
High
Pass
Filter
10 to
9,155 Hz10 to 9,155 Hz
3 to
9,155 Hz10 to 9,155 Hz
Integration
Table 2: Frequency Ranges if a Single
Channel of a Channel Pair is Enabled
Single Channel Frequency Response
Without Filter
Output Type
RMS 10 to 30,000 Hz 10 to 14,500 Hz
Peak 3 to 30,000 Hz 10 to 14,500 Hz
Low or High
Pass Filter
With
Integration
With
3/18
3500/42M Proximitor Seismic Monitor
Datasheet 143694 Rev. V
Acceleration II
Within ± 0.33% of full scale
Accuracy
Filter Quality
High-pass
Low-pass
Frequency Response
Bias filter -3 dB at 0.01 Hz
Not OK filter -3 dB at 2400 Hz
1X and 2X vector
filter
typical
± 1% maximum
Exclusive of filters
4-pole
(80 dB per decade, 24 dB per
octave)
4-pole
(80 dB per decade, 24 dB per
octave)
Valid for machine speeds of 60
cpm to 100,000 cpm
Table 3: Frequency Ranges for the 3500/42M
Proximitor Seismic Monitor under Different
Options using the Acceleration II Channel
Type
Frequency Ranges
Without Filter
Output Type
RMS 10 to 30,000 Hz 10 to 20,000 Hz
Peak 3 to 30,000 Hz 10 to 20,000 Hz
Low or High
Pass Filter
With
Integration
Velocity and Velocity II
Within ±0.33% of full-scale
typical
Accuracy
Velomitor sensor
accuracy
Velomitor sensor
accuracy with
barriers
Frequency Response
Bias
±1% maximum
+1% -3% with MTL 764(-) Zener
External Barrier
Exclusive of filters
Full Scale 0-0.5: ±3% typical
Full Scale 0-1.0: ±2% typical
Full Scale 0-2.0: ±1% typical
Under radiated immunity
conditions, add ± 11% for all full
scale ranges. The total Velomitor
sensor accuracy will be ± 15%.
-3dB at 0.01 Hz
Velocity II only
Not OK filter
RMS 10 to 5,500 Hz, -3 dB
Peak or peak-to-
peak
1X and 2X vector
filter
Filter Quality
High-pass
Low-pass
-3 dB at 40 Hz
Velocity II only
3 to 5,500 Hz, -3 dB
Valid for machine speeds of 60
to 100,000 cpm
Velocity II only
4-pole
(80 dB per decade, 24 dB per
octave)
2-pole
(40 dB per decade, 12 dB per
octave)
Shaft Absolute, Radial Vibration
Frequency Response
Direct filter
Gap filter -3 dB at 0.09 Hz
1X vector filter
Accuracy
Direct and gap
1X
User-programmable
4 Hz to 4000 Hz or 1 Hz to 600 Hz
Valid for machine speeds of 240
cpm to 60,000 cpm
Within ±0.33% of full-scale
typical
±1% maximum
Within ±0.33% of full-scale
typical
±1% maximum
Shaft Absolute, Velocity
Within ±0.33% of full scale typical
Accuracy
Frequency Response
Peak or
peak-to-peak
Filter Quality
High-pass
Low-pass
1X vector filter
±1% maximum
Exclusive of filters
User-programmable
3 to 4,000 Hz, -3 dB
2-pole
(40 dB per decade, 12 dB per
octave)
2-pole
(40 dB per decade, 12 dB per
octave)
Constant Q Filter
Minimum rejection in stopband
4/18
3500/42M Proximitor Seismic Monitor
Datasheet 143694 Rev. V
of -57.7 dB
Shaft Absolute Buffered Output
Accuracy ±6.0% @ 25 C
Circular
acceptance
region
See Radial Vibration on page3..
REBAM
Frequency Response
Spike
Element
Rotor
Direct
Gap
1X vector filter
Table 4: Summary of the Relationship
between Nominal Shaft Speed and the Valid
Speed Range
Nominal Shaft
Speed (Hz)
10 to <126 0.071 to 160
126 to <252 0.133 to 330
252 to <504 0.25 to 660
504 to 584 0.50 to 750
User-programmable
from 0.152 to 8678 Hz
User-programmable for BPFO
ranging from 0.139 to 3836 Hz
High-pass corner is 0.8x BPFO.
Low-pass corner is 2.2x BPFO.
User programmable from 0.108
to 2221 Hz
Programmable from 3.906 to 14.2
Hz
Selection is determined by Spike
and Rotor filters.
Programmable from 0.002 to 1.0
Hz
Selection is determined by the
Rotor filter.
The range of shaft speeds for
which the value is valid depends
on the nominal shaft speed for
which the channel is configured.
Valid Speed Range (Hz)
limitation of the resultant input signal is
approximately 20 KHz.
Filter Quality
6-pole Elliptic
Spike high-pass
Element
bandpass
Rotor low-pass
Rotor, direct highpass
Spike, direct lowpass
Gap low-pass
1X amplitude
(155 dB per decade, minimum)
Corner frequency is -0.1 dB.
8-pole Butterworth
(155 dB per decade minimum)
Corner frequency is -3 dB.
6-pole Elliptic
(155 dB per decade, minimum)
Corner frequency is -0.1 dB.
1-pole Butterworth
(18 dB per decade, minimum)
Corner frequency is -3 dB.
Corner is -0.3 dB maximum.
1-pole Butterworth
(18 dB per decade, minimum)
Corner frequency is -3 dB.
Constant Q of 16.67
Stopband frequencies are 0.91
and 1.09 times the running
speed.
Stopband attenuation is -51 dB
minimum.
Accuracy
Within ±0.33% of full scale typical
Amplitude
Phase 3 degrees error, maximum
Channels
enabled
±1% maximum when input signal
is at the center frequency of the
measured value's passband
You can use certain
configurations to enable only
one channel of a channel pair.
See REBAM Channels on page17..
If a multi-event gear or speed wheel
generates the speed input, the upper
5/18
3500/42M Proximitor Seismic Monitor
Datasheet 143694 Rev. V
Filter Tracking / Stepping (Requires a valid speed
signal)
Initial condition Nominal filter set used
Switch from
nominal to lower
filter set
Switch from lower
to nominal filter
set
Switch from
nominal to higher
filter set
Switch from
higher to nominal
filter set
Shaft speed error
condition
Current shaft speed ≤ 0.9 x
(nominal shaft speed)
Current shaft speed ≥ 0.95 x
(nominal shaft speed)
Current shaft speed ≥ 1.1 x
(nominal shaft speed)
Current shaft speed ≤ 1.05 x
(Nominal Shaft Speed)
Nominal filter set used
Physical
Monitor Module (Main Board)
Dimensions
(Height x Width x
Depth)
Weight 0.91 kg (2.0 lb)
I/O Modules (non-barrier)
Dimensions
(Height x Width x
Depth)
Weight 0.20 kg (0.44 lb)
I/O Modules (barrier)
Dimensions
(Height x Width x
Depth)
Weight 0.46 kg (1.01 lb)
241.3 mm x 24.4 mm x 241.8 mm
(9.50 in x 0.96 in x 9.52 in)
241.3 mm x 24.4 mm x 99.1 mm
(9.50 in x 0.96 in x 3.90 in)
241.3 mm x 24.4 mm x 163.1 mm
(9.50 in x 0.96 in x 6.42 in)
Channel
Parameters
(entity)
Seismic Barrier
Circuit
Parameters
Channel
Parameters
(entity)
Alarms
Alarm Setpoints
Accuracy of
alarm setpoints
(PWR) = 237.6 Ω
(SIG) = 4985 Ω
Vmax = 28.0 V
Imax = 115.62 mA
Rmin (PWR) = 237.6 Ω
(SIG) = 4985 Ω
Vmax (PWR) = 27.25 V
Imax (PWR) = 91.8 mA
Rmin (PWR) = 297 Ω
Vmax = 27.25 V
Imax = 91.8 mA
Rmin (PWR) = 297 Ω
Use Rack Configuration Software
to set alert levels for each value
measured by the monitor and
danger setpoints for any two of
the values measured by the
monitor.
Alarms are adjustable from 0 to
100% of full-scale for each
measured value. However, when
the full-scale range exceeds the
range of the transducer, the
range of the transducer will limit
the setpoint.
Within 0.13% of the desired value
Rack Space Requirements
Monitor 1 full-height front slot
I/O Modules 1 full-height rear slot
Barrier Parameters
The following parameters apply to CSA-NRTL/C
and ATEX approvals.
Proximitor Barrier
Vmax (PWR) = 26.80 V
Circuit
Parameters
(SIG) = 14.05 V
Imax (PWR) = 112.8 mA
(SIG) = 2.82 mA Rmin
6/18
3500/42M Proximitor Seismic Monitor
Datasheet 143694 Rev. V
Alarm Time Delays
You can program alarm delays using Rack
Configuration Software.
For all channel pair types excluding
Shaft Absolute Velocity and REBAM
Alert
Danger
Shaft Absolute Velocity
Alert
Danger
REBAM
Alert
Danger
From one to 60 seconds in one
second intervals
0.1 seconds or from one to 60
seconds in 0.5 second intervals
From one to 60 seconds in one
second intervals
0.1 seconds or from one to 60
seconds in 0.5 second intervals
From the calculated minimum
value to 400 seconds in one
second intervals
From the calculated minimum
value to 400 seconds in 0.5
second intervals
Static Values
Static values are measurements used to
monitor the machine. The 3500/42M Proximitor
Seismic Monitor returns the following static
values:
Direct, Gap, 1X Amplitude, 1X
Radial Vibration
Thrust Position Direct, Gap
Differential
Expansion
Eccentricity
REBAM
Phase Lag, 2X Amplitude, 2X
Phase Lag, Not 1X Amplitude and
Smax Amplitude
Direct, Gap
Peak-to-peak, Gap,
Direct Minimum, Direct Maximum
Spike, Element, Rotor, Direct, Gap,
1X Amplitude, 1X Phase Lag
Direct
Velocity
Velocity II
Shaft Absolute,
Radial Vibration
and Shaft
Absolute, Velocity
Circular
Acceptance
Region
Amplitude
Defined as one of the following:
RMS Acceleration, Peak
Acceleration, RMS Velocity, Peak
Velocity, Band-pass peak
Acceleration, or Band-pass peak
Velocity
Additionally, 1X Phase, 2X Phase
and Bias Voltage
Direct
Defined as one of the following:
RMS Velocity, Peak Velocity,
peak-to-peak Displacement,
Band-pass peak Velocity, Bandpass, or Peak-to-peak
Displacement
Direct, 1X Amplitud and 2X
Amplitude
Defined as one of the following:
RMS Velocity, Peak Velocity,
peak-to-peak Displacement,
Band-pass peak Velocity, Bandpass, or Peak-to-peak
Displacement
Additionally, 1X Phase, 2X Phase
and Bias Voltage
Direct, Gap, 1X Amplitude, 1X
Phase Lag
Direct, Gap, 1X Amplitude, 1X
Phase Lag, 1X Circular
Acceptance Radius, 2X
Amplitude, 2X Phase Lag, 2X
Circular Acceptance Radius
Acceleration
Acceleration II
Defined as one of the following:
RMS Acceleration, Peak
Acceleration, RMS Velocity, Peak
Velocity, Band-pass peak
Acceleration, or Band-pass peak
Velocity
Direct, 1X Amplitude and 2X
7/18
3500/42M Proximitor Seismic Monitor
Datasheet 143694 Rev. V
Compliance and Certifications
FCC
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
l This device may not cause harmful
interference.
l This device must accept any
interference received, including
interference that may cause
undesired operation.
EMC
European Community Directive:
EMC Directive 2014/30/EU
Standards:
EN 61000-6-2 Immunity for
Industrial Environments
EN 61000-6-4 Emissions for
Industrial Environments
Hazardous Area Approvals
For the detailed listing of country and product
specific approvals, refer to the Approvals Quick
Reference Guide (108M1756) available from
Bently.com.
CSA/NRTL/C
Class I, Zone 2: AEx/Ex nA nC ic
IIC T4 Gc;
When used with
I/O module
ordering options
without internal
barriers
When used with
I/O module
ordering options
with internal
barriers
Class I, Zone 2: AEx/Ex ec nC ic
IIC T4 Gc;
Class I, Division 2, Groups A, B, C,
and D;
T4 @ Ta= -20˚C to +65˚C (-4˚F
to +149˚F)
When installed per drawing
149243 or 149244.
Class I, Zone 2: AEx/Ex nA nC ic
[ia Ga] IIC T4 Gc;
Class I, Zone 2: AEx/Ex ec nC ic
[ia Ga] IIC T4 Gc;
Class I, Division 2, Groups A, B, C,
and D (W/ IS Output for Division
1)
T4 @ Ta= -20˚C to +65˚C (-4˚F
to +149˚F)
When installed per drawing
138547.
Electrical Safety
European Community Directive:
LV Directive 2014/35/EU
Standards:
EN 61010-1
RoHS
European Community Directive:
RoHS Directive 2011/65/EU
Maritime
ABS - Marine and Offshore Applications
DNV GL Rules for Classification – Ships,
Offshore Units, and High Speed and Light
Craft
ATEX/IECEx
When used with
I/O module
ordering options
without internal
barriers
When used with
I/O module
ordering options
with internal
barriers
II 3 G
Ex nA nC ic IIC T4 Gc;
Ex ec nC ic IIC T4 Gc;
T4 @ Ta= -20˚C to +65˚C (-4˚F
to +149˚F)
When installed per drawing
149243 or 149244.
II 3(1) G
Ex nA nC ic [ia Ga] IIC T4 Gc;
Ex ec nC ic [ia Ga] IIC T4 Gc;
T4 @ Ta= -20˚C to +65˚C (-4˚F
to +149˚F)
When installed per drawing
138547.
8/18
3500/42M Proximitor Seismic Monitor
Datasheet 143694 Rev. V
Output Supply Parameters
The following values are accurate regardless of external barrier connections.
I/O Part and Order
Options
128229-01 A 01
128240-01 A 02
138708-01 A 07
138700-01 A 08
140471-01 A 09
140482-01 A 10
Description Configuration
Prox/Seismic I/O Module with
Internal Terminations
Prox/Seismic I/O Module with
External Terminations
Shaft Absolute I/O Module with
Internal Terminations
Shaft Absolute I/O Modules
with External Terminations
Prox/Velom I/O Module with
Internal Terminations
Prox/Velom I/O Module with
External Terminations
Prox/Accel
Velomitor
Seismoprobe
Prox/Accel
Velomitor
Seismoprobe
Prox & Velomitor
Prox & Seismoprobe
Prox & Velomitor
Prox & Seismoprobe
Prox/Accel
Velomitor
Prox/Accel
Velomitor
Supply Parameters
U (V) I (mA) P (W)
23.9 45.5 1.09
23.9 45.5 1.09
6.82 2.75 0.02
23.9 45.5 1.09
23.9 45.5 1.09
6.82 2.75 0.02
23.9 45.5 1.09
6.82 45.5 0.31
23.9 45.5 1.09
6.82 45.5 0.31
23.9 45.5 1.09
23.9 45.5 1.09
23.9 45.5 1.09
23.9 45.5 1.09
9/18
3500/42M Proximitor Seismic Monitor
Datasheet 143694 Rev. V
Cables
Ordering Information
For the detailed listing of country and product
specific approvals, refer to the Approvals Quick
Reference Guide (108M1756) available from
Bently.com.
Monitor
3500/42M - AA - BB
A: I/O Module Type
See I/O Module Types on page12.
B: Hazardous Area Approval Option
00 None
01 CSA / NRTL / C (Class 1, Division 2)
ATEX / IECEx / CSA (Class 1, Zone 2)
02
Option B02 is available only with A04, A05,
A06 and A09.
External Termination Blocks
125808-02
128015-02
128702-01
128710-01
140993-01
141001-01
125808-08
Proximitor ET Block
Euro Style Connectors
Proximitor ET Block
Terminal Strip Connectors
Recorder External Termination
Block
Euro Style connectors
Recorder External Termination
Block
Terminal Strip connectors
Shaft Absolute External
Termination Block
Euro Style connectors
Shaft Absolute External
Termination Block
Terminal Strip
Proximitor / Velomitor External
Termination Block
Euro Style connectors
3500 Transducer XDCR signal to External
Termination Block Cable
129525 - AAAA - BB
A: I/O Cable Length
0005 5 feet (1.5 metres)
0007 7 feet (2.1 metres)
0010 10 feet (3.0 metres)
0025 25 feet (7.6 metres)
0050 50 feet (15.2 metres)
0100 100 feet (30.5 metres)
B: Assembly Instructions
01 Not Assembled
02 Assembled
External Termination Block Cable
129529 - AAAA- BB
A: I/O Cable Length
0005 5 feet (1.5 metres)
0007 7 feet (2.1 metres)
0010 10 feet (3.0 metres)
0025 25 feet (7.6 metres)
0050 50 feet (15.2 metres)
0100 100 feet (30.5 metres)
B: Assembly Instructions
01 Not Assembled
02 Assembled
10/18
3500/42M Proximitor Seismic Monitor
Datasheet 143694 Rev. V
Spares
176449-02
128229-01
128240-01
00530843
143489
135489-01
135489-02
135489-03
138708-01
138700-01
00517018
140471-01
140482-01
00561941
00580434
00580432
3500/42M Proximitor
Seismic Monitor
Prox/Seismic I/O Module
with internal terminations
Prox/Seismic I/O Module
with external terminations
3500/42M Prox/Seismic
I/O Module four-pin
connector shunt
3500/42M Monitor User
Guide
I/O Module with Internal
Barriers (internal
terminations, 4 x
Prox/Accel)
I/O Module with Internal
Barriers (internal
terminations, 2 x
Prox/Accel and 2 x
Velomitor)
I/O Module with Internal
Barriers (internal
terminations, 4 x
Velomitor)
Shaft Absolute I/O Module
with internal terminations
Shaft Absolute I/O Modules
with external terminations
3500/42M Shaft Absolute
I/O Module 8-pin
connector shunt
Prox/Velom I/O Module
with internal terminations
Prox/Velom I/O Module
with External Terminations
3500/42M Prox/Velom I/O
Module 10-pin connector
shunt
Internal I/O Module
connector header, Euro
style, 8-pin
Used on I/O modules
128229-01 and 138708-01
Internal I/O Module
connector header, Euro
style, 10-pin
Used on I/O modules
128229-01 and 138708-01
Internal I/O Module
00502133
connector header, Euro
style, 12-pin
For spare front and rear cover plates,
please see 3500/05 System Rack
datasheet (document 141525)
Firmware & Software Requirements
3500/01 software, version
2.50 or later
3500/42M Proximitor
Seismic Monitor
Internal Barrier I/O
Modules
Shaft Absolute
REBAM
Acceleration II,
Velocity II,
Circular Acceptance
Region
3500/02 software, version
2.20 or later
3500/03 software, version
1.21 or later
See the 3500 Internal
Barrier datasheet (part
number
141495-01)
3500/42M Module
Firmware, revision B
3500/01 Software, version
2.61
DM2000 Software, version
3.10
The 3500 Proximitor /
Seismic Monitor, version M
3500/40M Module
Firmware – Revision 2.1
3500/01 Software, version
3.30
3500/02 Software, version
2.40
3500/03 Software, version
1.40
DM2000 Software, version
3.40
The 3500 Proximitor
Monitor, version M
3500/42M Module
Firmware, revision 2.10
3500/01 Software, version
3.20
DM2000 Software, version
3.30
The 3500 Proximitor
Monitor, version M
11/18
3500/42M Proximitor Seismic Monitor
Datasheet 143694 Rev. V
I/O Module Types
AA
Ordering
Option
01 128229-01
02 128240-01
04 135489-01
05 135489-02
06 135489-03
I/O Part
Number
I/O Description Transducer Type
Prox/Seismic I/O Module with
internal terminations
Prox/Seismic I/O Module with
external terminations
I/O Module with internal
Barriers, internal terminations,
4 x Prox/Accel
I/O Module with internal
barriers, internal terminations,
2 x Prox/Accel and 2 x
Velomitor
I/O Module with internal
barriers, internal terminations,
4 x Velomitor
Seismoprobe
Prox/Accel and Velomitor are
supported but are not
recommended.
Seismoprobe
Prox/Accel and Velomitor are
supported but are not
recommended.
Prox/Accel on channels 1 through 4
Prox/Accel on channels 1 and 2
Velomitor on channels 3 and 4
Velomitor on channels 1 through 4
07 138708-01
08 138700-01
09 140471-01
10 140482-01
External termination blocks cannot be used with Internal Termination I/O Modules. When
ordering I/O modules with external terminations, order the external termination blocks and
cable separately for each I/O module.
Shaft Absolute I/O Module with
internal terminations
Shaft Absolute I/O Modules
with external terminations
Prox/Velom I/O Module with
internal terminations
Prox/Velom I/O Module with
external terminations
Prox/Accel or Velomitor or
Seismorprobe
Prox/Accel or Velomitor or
Seismorprobe
Prox/Accel, Velomitor or HTVS
Prox/Accel, Velomitor or HTVS
12/18
3500/42M Proximitor Seismic Monitor
Datasheet 143694 Rev. V
Graphs and Figures
1. Status LEDs
2. Buffered Transducer Outputs
3. Prox/Seismic I/O Module with Internal Terminations
4. Prox/Seismic I/O Module with External Terminations
Figure 1: Front and Rear Views of 3500/42M Monitor
13/18
3500/42M Proximitor Seismic Monitor
Datasheet 143694 Rev. V

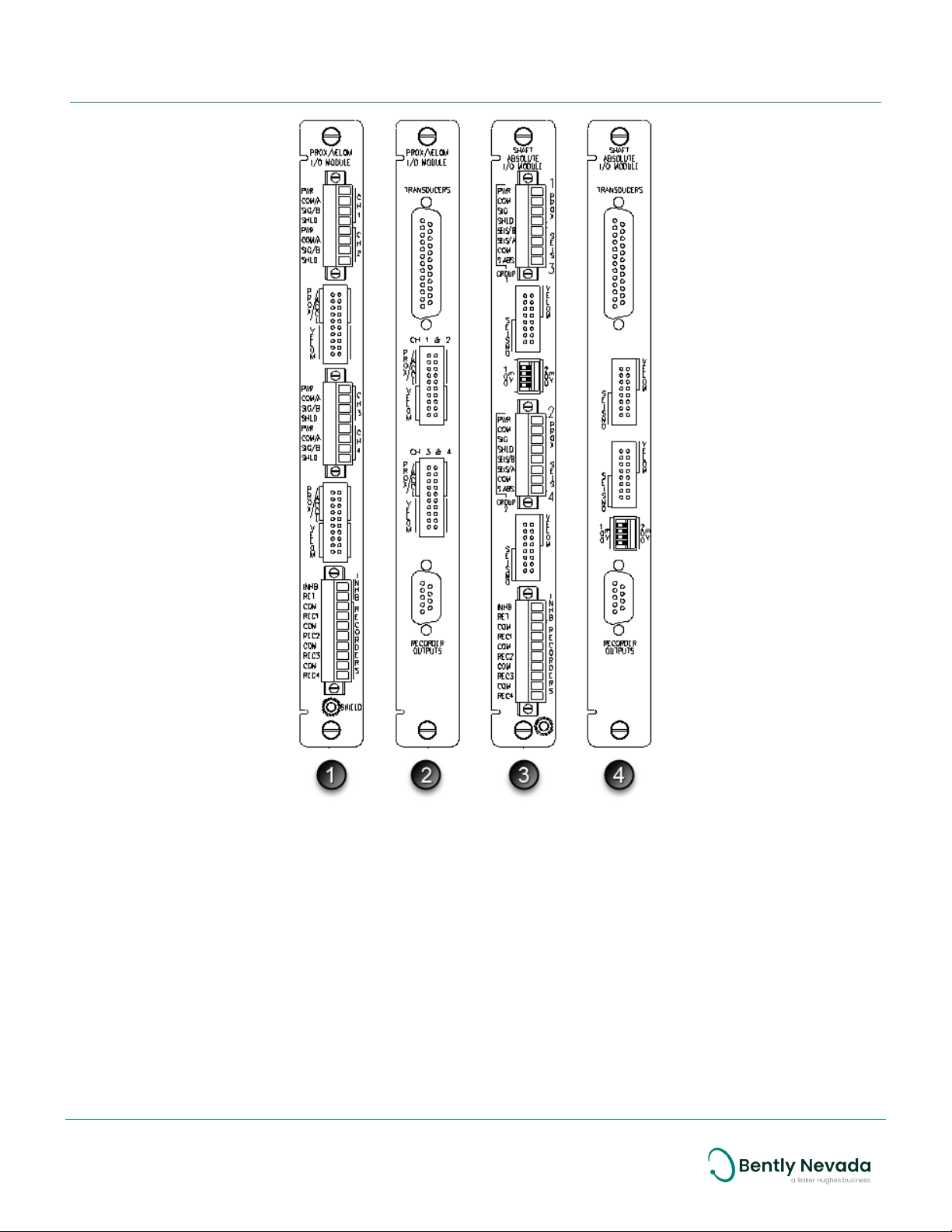

1. Prox/Velom I/O Module, Internal Terminations
2. Prox/Velom I/O Module, External Terminations
3. Shaft Absolute I/O Module, Internal Terminations
4. Shaft Absolute I/O Module, External Terminations
Figure 2: Additional I/O Modules for Legacy 3500/42M
14/18
3500/42M Proximitor Seismic Monitor
Datasheet 143694 Rev. V
Prox/Velom I/O modules and Shaft Absolute I/O modules
with internal or external terminations have the same jumpers.
Figure 3: Updated View of Additional I/O Modules
15/18
3500/42M Proximitor Seismic Monitor
Datasheet 143694 Rev. V
1. Barrier I/O Module for connecting four proximitor sensors
2. Barrier I/O Module for connecting four proximitor sensors and two velomitor sensor
3. Barrier I/O Module for connecting four velomitor sensors
Figure 4: Barrier I/O Modules of the 3500/42M Proximitor Seismic Monitor
16/18
3500/42M Proximitor Seismic Monitor
Datasheet 143694 Rev. V
REBAM Channels

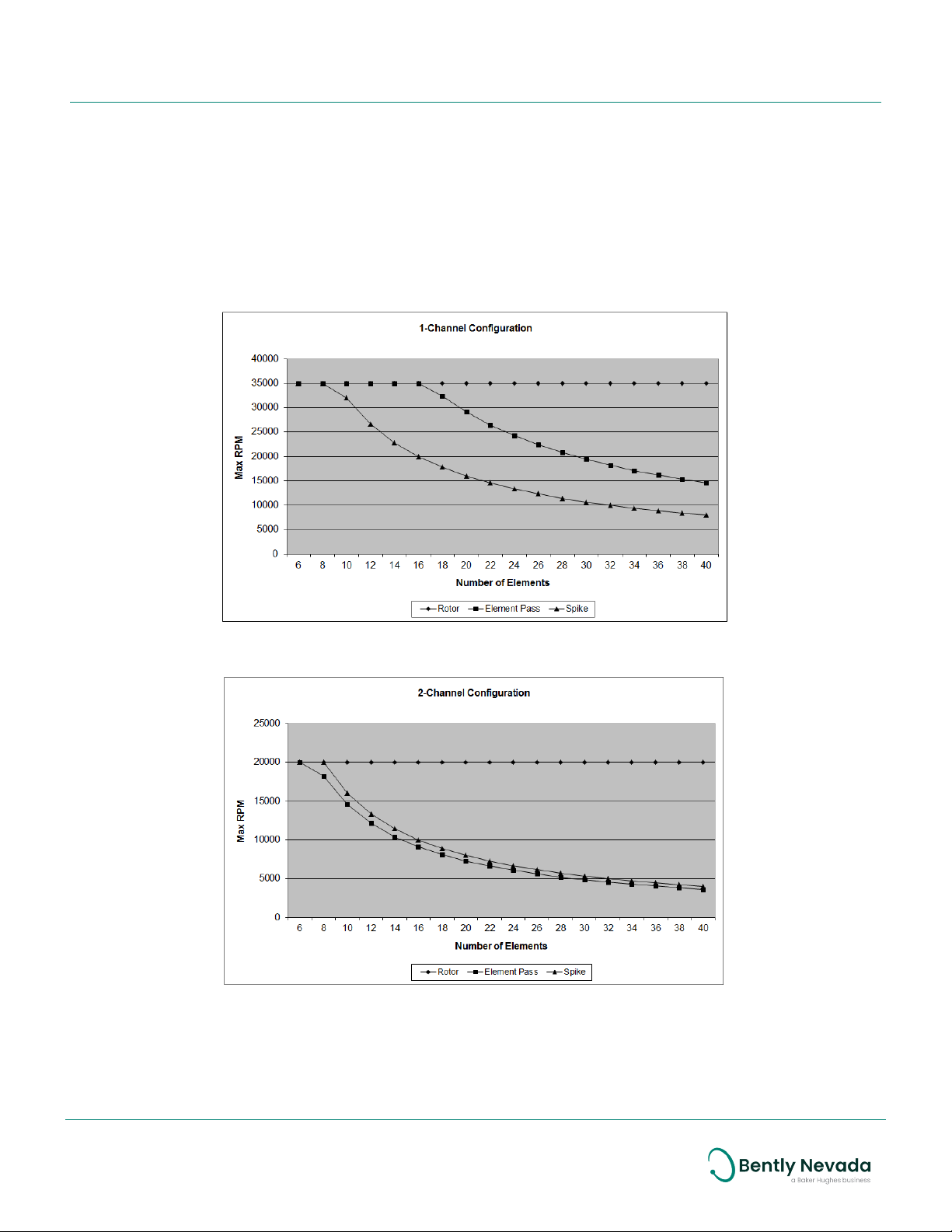

The following graphs show the maximum machine speed allowed for a monitor channel pair
configured for REBAM. The maximum speed depends on the number of rolling elements in the bearing.
The graphs are generated with the following assumptions:
l The rotor lowpass filter corner is set at 3.2 times the shaft speed.
l The spike highpass filter corner is set at four times the element pass frequency for the outer race
(BPFO).
Figure 5: Both Channels of the Channel Pair are Enabled
Figure 6: Only One Channel of a Channel Pair is Enabled
17/18
3500/42M Proximitor Seismic Monitor
Datasheet 143694 Rev. V
Copyright 2020 Baker Hughes Company. All rights reserved.
Bently Nevada, Orbit Logo and Proximitor are registered trademarks of Bently Nevada, a Baker Hughes Business, in
the United States and other countries. The Baker Hughes logo is a trademark of Baker Hughes Company. All other
product and company names are trademarks of their respective holders. Use of the trademarks does not imply any
affiliation with or endorsement by the respective holders.
Baker Hughes provides this information on an “as is” basis for general information purposes. Baker Hughes does
not make any representation as to the accuracy or completeness of the information and makes no warranties of
any kind, specific, implied or oral, to the fullest extent permissible by law, including those of merchantability and
fitness for a particular purpose or use. Baker Hughes hereby disclaims any and all liability for any direct, indirect,
consequential or special damages, claims for lost profits, or third party claims arising from the use of the
information, whether a claim is asserted in contract, tort, or otherwise. Baker Hughes reserves the right to make
changes in specifications and features shown herein, or discontinue the product described at any time without
notice or obligation. Contact your Baker Hughes representative for the most current information.
The information contained in this document is the property of BakerHughes and its affiliates; and is subject to
change without prior notice. It is being supplied as a service to our customers and may not be altered or its content
repackaged without the express written consent of Baker Hughes. This product or associated products may be
covered by one or more patents. See Bently.com/legal.
1631 Bently Parkway South, Minden, Nevada USA 89423
Phone: 1.775.782.3611 or 1.800.227.5514 (US only)
Bently.com
18/18
Loading...
