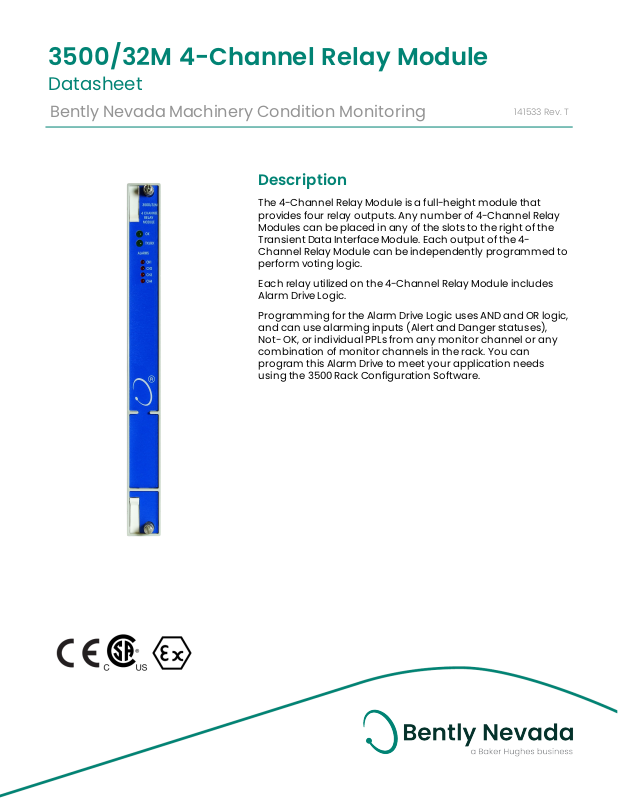

3500/32M 4-Channel Relay Module
Datasheet
Bently Nevada Machinery Condition Monitoring
Description
The 4-Channel Relay Module is a full-height module that
provides four relay outputs. Any number of 4-Channel Relay
Modules can be placed in any of the slots to the right of the
Transient Data Interface Module. Each output of the 4Channel Relay Module can be independently programmed to
perform voting logic.
Each relay utilized on the 4-Channel Relay Module includes
Alarm Drive Logic.
Programming for the Alarm Drive Logic uses AND and OR logic,
and can use alarming inputs (Alert and Danger statuses),
Not- OK, or individual PPLs from any monitor channel or any
combination of monitor channels in the rack. You can
program this Alarm Drive to meet your application needs
using the 3500 Rack Configuration Software.
141533 Rev. T
3500/32M 4-Channel Relay Module
Datasheet 141533 Rev. T
I/O Module
Specifications
Inputs
Power
Consumption
Outputs
OK LED
TX/RX LED
CH ALARM LED
Relays
Type
Environmental
Sealing
Arc
Suppressor
Contact Life
Operation
5.8 watts typical
Illuminated when module is
functioning properly.
Transmit and Receive. Flashes to
indicate proper communications
between this module and other
modules within the rack.
Illuminated to indicate that the
Relay Channel is in an alarm state.
Single-pole, double-throw (SPDT)
relays
Epoxy-sealed
250 Vrms, installed as standard
100,000 cycles @ 5 A, 24 Vdc or 240
Vac
Each relay of the four channels is
switch selectable for Normally Deenergized or Normally Energized.
Environmental Limits
Operating
Temperature
Storage
Temperature
Humidity 95%, non-condensing
-30°C to +65°C
(-22°F to +150°F)
-40°C to +85°C
(-40°F to +185°F)
Dimensions
(Height x Width x
Depth)
Weight 0.4 kg (1.0 lb.)
Rack Space Requirements
Main Module 1 full-height front slot.
I/O Modules 1 full-height rear slot.
Contact Ratings for Standard
Systems
Standard Relays
Minimum switched current 100 mA @ 12 Vdc
DC specifications (Resistive load)
Maximum switched current
Max switched voltage 125 Vdc
AC specifications (Resistive load)
Maximum switched voltage 250 Vac
Maximum switched current 2 A
Maximum switched power 450 VA
Contact Ratings For Functional
Safety Systems and Hazardous
Area Systems
Standard Relays
241 mm x 24.4 mm x 99.1 mm
(9.50 in. x 0.96 in. x 3.90 in.).
2 A @ 0V to 30 Vdc
0.75 A @ 48 Vdc
0.2 A @ 125 Vdc
Physical Characteristics
Main Module
Dimensions
(Height x Width x
Depth)
Weight 0.7 kg (1.6 lb.)
241 mm x 24.4 mm x 242 mm
(9.50 in. x 0.96 in. x 9.52 in.)
Minimum switched current 100 mA @ 12 Vdc
DC specifications (Resistive load)
Maximum switched current 2 A @ 0V to 30 Vdc
Maximum switched voltage 30 Vdc
AC specifications (Resistive Load)
Maximum Switched Voltage 30 Vac
Maximum Switched Current 2 A
2/7
3500/32M 4-Channel Relay Module
Datasheet 141533 Rev. T
WARNING
Due to the potential for varying
voltage levels, please review the
following:
• 3500 monitors ordered with
hazardous approvals options (01 & -
02) are certified to Division 2/Zone 2
standards (including ATEX/IECEx
and North American Zones and
Divisions). The Division 2 /Zone 2
standards specify increased
spacing requirements at higher
voltages, and the 3500/32M relays
do not meet these spacing
requirements. For this reason,
3500/32M relays ordered with the
hazardous area approvals options
(including country-specific
hazardous area approvals options)
have historically been limited to a
lower voltage than those ordered
with non-hazardous approvals
options. Using higher voltages
would violate the hazardous area
certificates associated with the
hazardous area approvals option.
• If the 3500/32M is part of a
functional safety (SIL) system, the
functional safety certificate
requires the restricted voltage.
Higher voltages are not allowed for
functional safety (SIL) systems.
• It is possible to connect field wiring
to the 3500/32M relays such that
conductors are exposed to
potential human contact. This could
present a shock hazard at high
voltages. Customers shall only use
the 3500/32M relays at the voltages
specified. Appropriate safety
precautions must be taken with
respect to the shock hazard.
3/7
3500/32M 4-Channel Relay Module
Datasheet 141533 Rev. T
Hazardous Area Approvals
Compliance and Certifications
FCC
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
l This device may not cause harmful
interference.
l This device must accept any
interference received, including
interference that may cause
undesired operation.
EMC
European Community Directive:
EMC Directive 2014/30/EU
Standards:
EN 61000-6-2 Immunity for
Industrial Environments
EN 61000-6-4 Emissions for
Industrial Environments
Electrical Safety
For the detailed listing of country and product
specific approvals, refer to the Approvals Quick
Reference Guide (108M1756) available from
Bently.com.
CSA/NRTL/C
Class I, Zone 2: AEx/Ex nA nC ic IIC T4
Gc;
Class I, Zone 2: AEx/Ex ec nC ic IIC T4
Gc;
Class I, Division 2, Groups A, B, C,
and D;
T4 @ Ta= -20˚C to +65˚C (-4˚F to
+149˚F)
When installed per drawing 149243
or 149244.
ATEX/IECEx
II 3 G
Ex nA nC ic IIC T4 Gc
Ex ec nC ic IIC T4/T5 Gc
T4 @ Ta= -20˚C to +65˚C
(-4˚F to +149˚F)
When installed per drawing 149243
or 149244.
European Community Directive:
LV Directive 2014/35/EU
Standards:
EN 61010-1
RoHS
European Community Directive:
RoHS Directive 2011/65/EU
Maritime
ABS - Marine and Offshore Applications
DNV GL Rules for Classification – Ships,
Offshore Units, and High Speed and Light
Craft
4/7
3500/32M 4-Channel Relay Module
Datasheet 141533 Rev. T
Ordering Considerations
Firmware, Software, and Hardware
Requirements
The 3500/32M requires the 3500/22 Transient
Data Interface (TDI)module. It also requires
these or newer versions of the following
firmware and software:
3500/32M Firmware N.NN, Rev. X
3500/22 Firmware (TDI) Rev 1.71
3500/01 Software (Rack
Config)
3500/02 Software (Op
Display)
3500/03 Software (Data
Acquisition)
3500/94 VGA display Rev C
3500/93 LCDdisplay Rev P
l The 3500/32M requires 3500 Rack
Configuration software, version 4.5 or
later.
l The 3500/32M requires 3500 Data
Acquisition software, version 2.40 or
later.
l The 3500/32M requires 3500 Data
Display software, version 1.40 or later.
l When used with a 3500/93 LCD Display
module, the 3500/93 will require
firmware revision P or later.
l When used with a 3500/94 VGA Display
module, the 3500/94 will require
firmware revision C or later.
Rev 4.5
Rev 2.21
Rev 2.4
Ordering Information
For the detailed listing of country and product
specific approvals, refer to the Approvals Quick
Reference Guide (108M1756) available from
Bently.com.
3500 4-Channel Relay Module
3500/32 -AA-BB
A: Output Module
01 4-Channel Relay Output Module
B: Agency Approval Option
00 None
01
02 ATEX/IECEx/CSA (Class I, Zone 2)
CSA/NRTL/C (Class I, Div 2)
Spares
149986-02
125720-01
125720-02
04425545 Grounding wrist strap (single use)
00580453
For more information, please refer to the
3500/32 and 3500/32M 4-Channel and
3500/34 TMR Relay Modules User Guide
(document 129771).
Spare 4-Channel Relay Control
Module
Spare 4-Channel Relay Output
Module (available for repair only)
Spare 4-Channel Relay Output
Module for hazardous area systems
and functional safety systems
Connector header, internal
termination, 16-position, green
5/7
3500/32M 4-Channel Relay Module
Datasheet 141533 Rev. T
Graphs and Figures
1. Relay module
2. I/O module
3. Status LEDs
4. Relay channel LEDs
5. Relay contacts
6. Relay mode selection switch
Figure 1: Front and Rear View of the 4-Channel Relay Module
6/7
3500/32M 4-Channel Relay Module
Datasheet 141533 Rev. T
Copyright 2020 Baker Hughes Company. All rights reserved.
Bently Nevada and Orbit Logo are registered trademarks of Bently Nevada, a Baker Hughes Business, in the United
States and other countries. The Baker Hughes logo is a trademark of Baker Hughes Company. All other product and
company names are trademarks of their respective holders. Use of the trademarks does not imply any affiliation
with or endorsement by the respective holders.
Baker Hughes provides this information on an “as is” basis for general information purposes. Baker Hughes does
not make any representation as to the accuracy or completeness of the information and makes no warranties of
any kind, specific, implied or oral, to the fullest extent permissible by law, including those of merchantability and
fitness for a particular purpose or use. Baker Hughes hereby disclaims any and all liability for any direct, indirect,
consequential or special damages, claims for lost profits, or third party claims arising from the use of the
information, whether a claim is asserted in contract, tort, or otherwise. Baker Hughes reserves the right to make
changes in specifications and features shown herein, or discontinue the product described at any time without
notice or obligation. Contact your Baker Hughes representative for the most current information.
The information contained in this document is the property of BakerHughes and its affiliates; and is subject to
change without prior notice. It is being supplied as a service to our customers and may not be altered or its content
repackaged without the express written consent of Baker Hughes. This product or associated products may be
covered by one or more patents. See Bently.com/legal.
1631 Bently Parkway South, Minden, Nevada USA 89423
Phone: 1.775.782.3611 or 1.800.227.5514 (US only)
Bently.com
7/7
