Behringer X-ADAT Product Information

Product Information Document

Mixer Accessories

EXPANSIONCARD
X-ADAT

High-Performance 32-Channel ADAT /
Wordclock Expansion Card for X32

32-channel ADAT* in/out on 8

#

 ber-optical connectors (TOSLINK)

Simultaneous 32-in,

#

32-out audio streaming

BNC word-clock in/out for

#

external clock synchronization—
in/out switchable

Perfect for studio and live recordings

#

on HD recorders with ADAT interface

High-speed 24-bit signal

#

transmission at 48 or 44.1 kHz for
ultimate signal integrity

Light-pipe  ber-optic connections

#

to prevent ground loop interference

External clock synchronization to

#

any of the 4 Toslink inputs possible

3-Year Warranty Program**

#

Conceived and designed by

#

BEHRINGER Germany

The X32’s expansion slot provides

 exible and expandable connectivity

for many di erent applications

The X-ADAT Expansion Card can easily

be installed in place of the X-USB

card that is included with the X32.

It allows you to digitally integrate your

X32 with any equipment featuring

ADAT I/O. This includes stand-alone

recorders, digital audio workstations,

and other digital mixers and signal

processing gear.

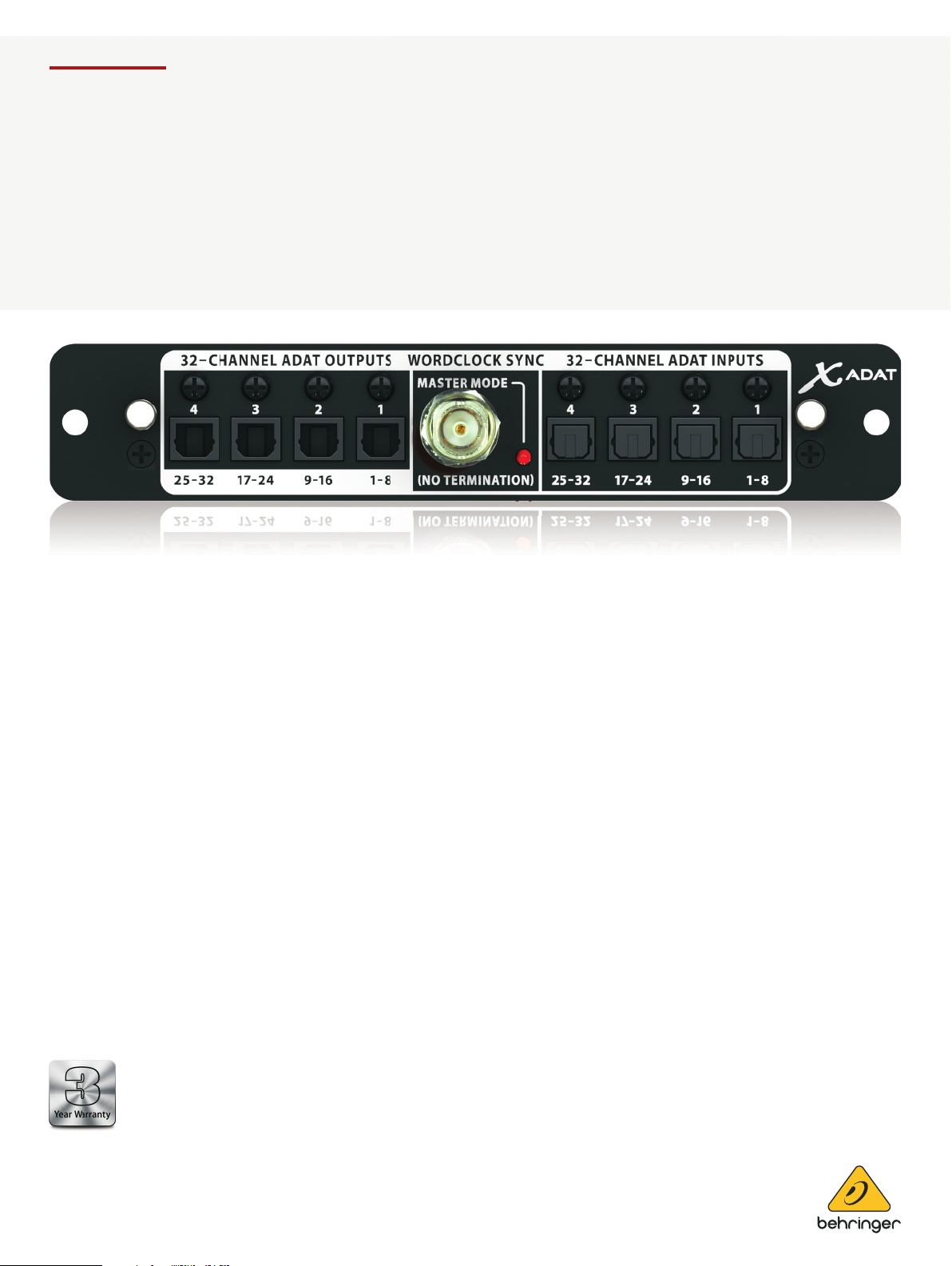

Rear Panel Flexibility

The X-ADAT card provides 32-channels of
ADAT inputs and outputs on its 8  ber-optic
Toslink* connectors. The card features 24-bit
signal transmission and operates at both

44.1 and 48 kHz sample rates, maintaining
your signals integrity. The light-pipe  ber-optic
connections also assure that your signal is
protected from ground loop interference.

*Mac and OS X are t rademarks of Ap ple Inc. All third -party tra demarks
are the prop erty of their r espective own ers. Their use ne ither constitut es
a claim of the tr ademark nor a liation of the tra demark owners wi th
MUSIC Group.

**Warran ty details can b e found at music-gro up.com.

Product Information Document

Mixer Accessories

EXPANSIONCARD
X-ADAT

High-Performance 32-Channel ADAT /
Wordclock Expansion Card for X32

More Options - Including Word Clock

The X-ADAT expansion card allows you to integrate your X32 in any situation where ADAT connectivity
is required, expanding the X32 series consoles use in live, studio, AV, and integration applications.
The X-ADAT card features a BNC word-clock in/out that can be used to interface X32 with an external
clock or provide clock signal for other devices. External clock synchronization is possible through the
BNC connection as well as any of the 4 Toslink inputs.

You Are Covered

We always strive to provide the best possible Customer Experience. Our products are made in our
own MUSIC Group factory using state-of-the-art automation, enhanced production work ows and
quality assurance labs with the most sophisticated test equipment available in the world. As a result,
we have one of the lowest product failure rates in the industry, and we con dently back it up with a
generous 3-Year Warranty program.
