Behringer DJX750 User Manual

User Manual

PRO MIXER DJX750

Professional 5-Channel DJ Mixer with
Advanced Digital Eects and BPM Counter

2 PRO MIXER DJX750 User Manual

Table of Contents

Thank you .......................................................................2

Important Safety Instructions ...................................... 3

Legal Disclaimer ............................................................. 3

Limited warranty ............................................................ 3

1. Control Elements ....................................................... 4

1.1 Stereo channels 1 to 4 ....................................................... 4

1.2 Microphone channel ......................................................... 5

1.3 Monitor section ................................................................... 5

1.4 Master section...................................................................... 5

1.5 Crossfader section .............................................................. 5

1.6 XPQ 3D surround eect .................................................... 5

1.7 Auto BPM counter ............................................................... 5

1.8 Internal eects processor ................................................ 6

2. Connections ............................................................... 6

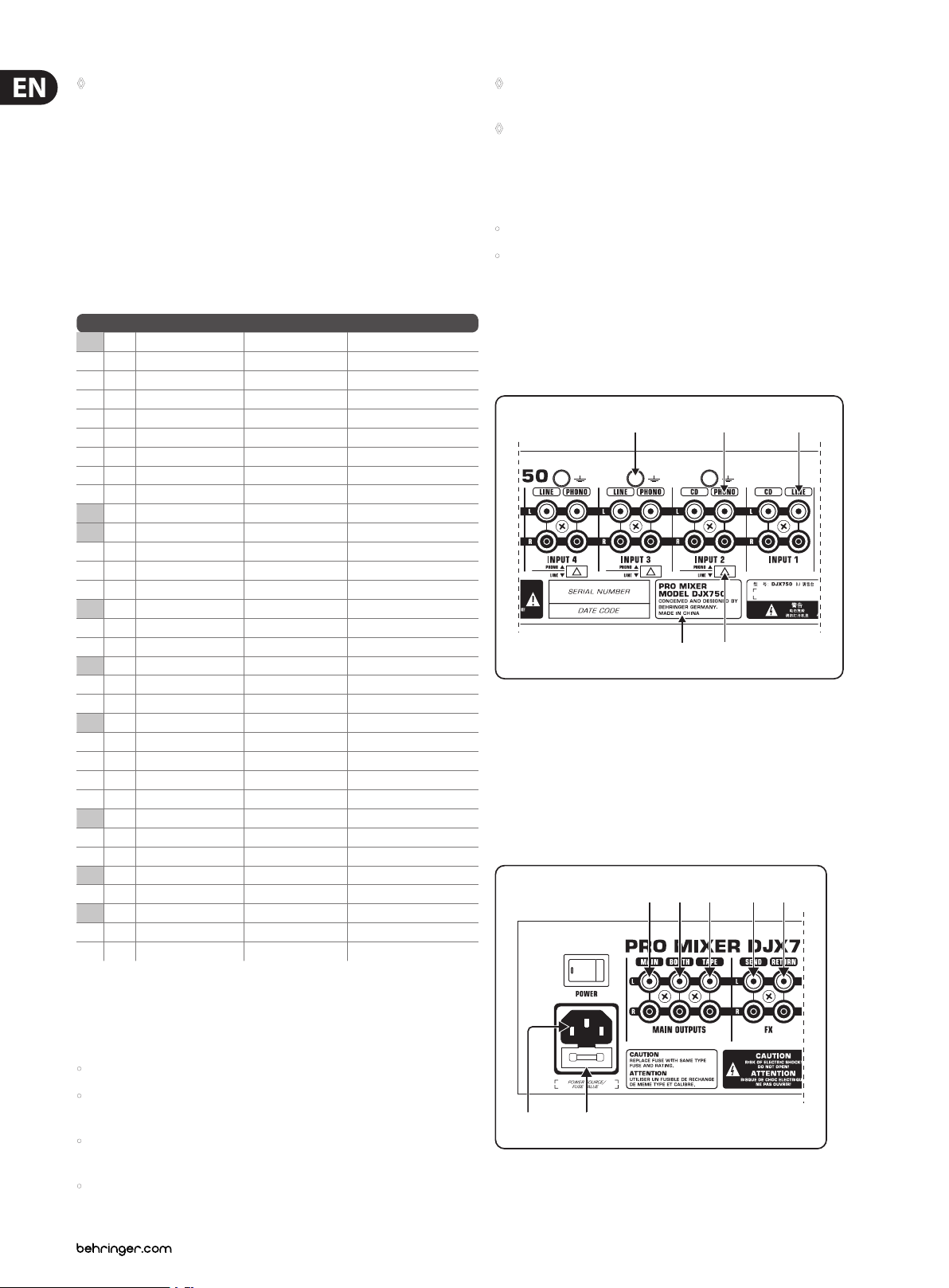

2.1 Rear panel connectors ..................................................... 6

3. Initial Operation ........................................................ 7

4. Shipment .................................................................... 7

5. Online Registration ................................................... 7

6. Specications .............................................................8

Thank you

Your purchase of the BEHRINGER PRO MIXER DJX750 has put you at the forefront
of today’s trends in DJ mixing consoles. Numerous features, such as beat counter,
insert loop and digital eects processor, enable you to work in completely new
and creative ways. The DJX750 is a mixer for professional use, it is extremely easy
to operate and it helps you give free rein to your creativity.

Time is tight and if you don’t want to be left in the dust, you’d better get moving.
To help you along, we have developed an excellent DJ mixing console with the
most popular new features and technologies. It is per fectly suited for use in
dance clubs or for DJ systems and is sure to deliver tons of pure fun.

Be honest: who really likes to read manuals? We know you want to get started
right away, but it is only after reading these instructions that you will fully
understand and be able to properly use all the features your DJX750 has to oer.
Take the time to read everything through!

3 PRO MIXER DJX750 User Manual

9. Do not defeat the safety purpose of the polarized

TO BIND MUSICGROUP BY ANY EXPRESS OR IMPLIED

Important Safety Instructions

Terminals marked with this symbol carry
electrical current of su cient magnitude

to constitute risk of electric shock.
Use only high-quality professional speaker cables with
¼" TS or twist-locking plugs pre-installed. Allother
installation or modi cation should be performed only
by quali edpersonnel.

This symbol, wherever it appears,

alertsyou to the presence of uninsulated

dangerous voltage inside the
enclosure-voltage that may be su cient to constitute a
risk ofshock.

This symbol, wherever it appears,

alertsyou to important operating and

maintenance instructions in the
accompanying literature. Please read the manual.

Caution

To reduce the risk of electric shock, donot

remove the top cover (or the rear section).
No user serviceable parts inside. Refer servicing to
quali ed personnel.

Caution

To reduce the risk of  re or electric shock,

do not expose this appliance to rain and
moisture. The apparatus shall not be exposed to dripping
or splashing liquids and no objects  lled with liquids,
suchas vases, shall be placed on the apparatus.

Caution

These service instructions are for use

by quali ed ser vice personnel only.
Toreduce the risk of electric shock do not perform any
servicing other than that contained in the operation
instructions. Repairs have to be performed by quali ed
servicepersonnel.

or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. Ifthe
provided plug does not  t into your outlet, consult an
electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.

11. Use only attachments/accessories speci ed by
themanufacturer.

12. Use only with the
cart, stand, tripod, bracket,
or table speci ed by the
manufacturer, orsold with
the apparatus. When a cart
is used, use caution when
moving the cart/apparatus
combination to avoid

injury from tip-over.

13. Unplug this apparatus during lightning storms or
when unused for long periods of time.

14. Refer all servicing to quali ed service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has
beendropped.

15. The apparatus shall be connected to a MAINS socket
outlet with a protective earthing connection.

16. Where the MAINS plug or an appliance coupler is
used as the disconnect device, the disconnect device shall
remain readily operable.

UNDERTAKING OR REPRESENTATION. THIS MANUAL
IS COPYRIGHTED. NO PART OF THIS MANUAL MAY
BE REPRODUCED OR TRANSMITTED IN ANY FORM
OR BY ANY MEANS, ELECTRONIC OR MECHANICAL,
INCLUDING PHOTOCOPYING AND RECORDING OF ANY
KIND, FOR ANY PURPOSE, WITHOUT THE EXPRESS
WRITTEN PERMISSION OF MUSICGROUPIPLTD.

ALL RIGHTS RESERVED.
© 2013 MUSICGroupIPLtd.
Trident Chambers, Wickhams Cay, P.O. Box 146,
Road Town, Tortola, British Virgin Islands

LIMITED WARRANTY

For the applicable warranty terms and conditions
and additional information regarding MUSIC Group’s
Limited Warranty, please see complete details online at
www.music-group.com/warranty.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including ampli ers) that produce heat.

LEGAL DISCLAIMER

TECHNICAL SPECIFICATIONS AND APPEARANCES
ARE SUBJECT TO CHANGE WITHOUT NOTICE AND
ACCURACY IS NOT GUARANTEED. BEHRINGER,
KLARKTEKNIK, MIDAS, BUGERA, AND TURBOSOUND
ARE PART OF THE MUSIC GROUP MUSICGROUP.COM.
ALL TRADEMARKS ARE THE PROPERTY OF THEIR
RESPECTIVE OWNERS. MUSICGROUP ACCEPTS NO
LIABILITY FOR ANY LOSS WHICH MAY BE SUFFERED
BY ANY PERSON WHO RELIES EITHER WHOLLY OR
IN PART UPON ANY DESCRIPTION, PHOTOGRAPH
OR STATEMENT CONTAINED HEREIN. COLORS AND
SPECIFICATIONS MAY VARY FROM ACTUAL PRODUCT.
MUSIC GROUP PRODUCTS ARE SOLD THROUGH
AUTHORIZED FULLFILLERS AND RESELLERS ONLY.
FULLFILLERSAND RESELLERS ARE NOT AGENTS OF
MUSICGROUP AND HAVE ABSOLUTELY NO AUTHORITY

4 PRO MIXER DJX750 User Manual

1. Control Elements

(1) (3) (2) (5) (4)

(7)

(

8)

(9)

(10)

(11)

(27)

(28)

(29)

(17)
(32)

(31)

(30)

(16)

(33)

(6)

(12)

(13)

(14)

(15)

1.1 Stereo channels 1 to 4

(1) Use the LINE/CD switch to select the input signal for channel 1. Unlike other

channels, channel 1 features t wo line inputs.

(2) You determine the input signals for the channels 2 to 4 with the PHONO/CD

i.e. PHONO/LINE switch (channels 3 and 4). “Phono” is intended for
connecting a turntable. “Line” i. e. “CD” must be selected for all other signal
sources (e. g. CD or MD players). The input sensitivity of the phono input can
be switched to line level, allowing utmost exibility (see (41)).

(34)

(18)

(35)

(36)

(19)

(37)

(20)(26)(25)(24)(23)(22)(21)

◊ Never connect devices with line level to the highly sensitive phono

inputs! The output level of phono pick-up systems is measured in
millivolts, whereas CD players and tape decks have levels measured in
volts, i.e. the level from line signals is up to 100 times higher than that
of the phono inputs.

(3) The GAIN control in the CHANNEL section is used to adjust the level of the

input signal. The level meter (5) reads the input level.

5 PRO MIXER DJX750 User Manual

(4) Each of the input channels features a 3-band equalizer (HI, MID and LOW)

with kill characteristic. Thus, the signal can be attenuated to a much greater
extent (-32 dB) than it can be raised (+12 dB). This function can be very
useful when, for exmple, fading a frequency range out of a music track.

◊ The overall level also depends on the EQ setting. Thus, should adjust

the equalizer before setting the input gain with the GAIN control.

(5) The 10-digit LED chains display the signal level of the input signals.

(6) Adjust the channel volume using the CHANNEL fader.

1.2 Microphone channel

(7) The MIC IN connector is the balanced XLR input for your dynamic microphone.

(8) Set the volume of the microphone signal with the GAIN control in the

MICsection.

(9) There is a 3-band equalizer (HI, MID and LOW, no kill characteristic) inthe

microphone section. This allows you to ne-tune your voice to adapt
perfectly to your sound.

(10) Activate the microphone channel using the MIC ON switch. The channel is

active when the corresponding LED is lit.

(11) The DJX750 is equipped with a talkover function, which works very simply:

if you speak into the microphone while a track is running, the volume of
the music is automatically reduced, so that your voice is always “in front”.
The TALK control allows you to determine how much the music volume is
lowered (max. -24 dB). This function can come in handy when your own voice
needs to be prominently heard, as in when making an announcement etc.

1.5 Crossfader section

(21) ASSIGN A and ASSIGN B selectors let you determine which input signals are

routed to CROSSFADER sides A and B. You can also alternate between these
two signals by using the CROSSFADER (see below).

(22) The VCA controlled CROSSFADER is used to fade between the channels you

have selected (see (21) ). Like the channel faders, the crossfader sec tion is
equipped with a professional 45-mm fader.

(23) The TIME OFFSET LED indicates the synchronisation of tracks

(see chapter 2.7).

(24) The TEMPO DIFFERENCE LED displays tempo dierences between the tracks

(see chapter 2.7).

(25) A 3-band kill switch is available for use with both the left and the right side

of the crossfader (KILL A and KILL B respectively). Kill switches are used to
lower three separate frequency ranges (LOW, MID and HIGH) up to -32dB.
When using the kill switch, the equalizer of ordinary DJ mixers usually
loses its functionality. Not the case with the DJX750: the EQs can be used to
achieve an even more pronounced lowering of a particular frequency range.

(26) The CF CURVE control lets you alter the control characteristic of the

crossfader between linear and logarithmic in an innite number of steps.
When set to linear, the crossfader engages directly proportionally to
the fader’s incremental movement. When set to logarithmic, the fader’s
movement yields higher volume increases as the fader moves farther along
its range of motion.

1.6 XPQ 3D surround eect

1.3 Monitor section

The MONITOR signal is your headphones signal, allowing you to listen to music
without aecting the MASTER output signal.

(12) When the MODE switch is in the “Split” position, channel PFL is located on the

left side of the headphones, while the MASTER signal is on the right side. In this
case, the MIX control (see below) serves no function. While in “Stereo” mode,
you can use the MIX control to alternate between MASTER signal andPFL.

(13) When in “Stereo” mode, the MIX control lets you determine which signal can

be heard via the headphones. When the control is turned to its left-most
position (CUE), you hear the PFL signal only; when the control is turned to its
right-most position, you hear the MASTER signal only. Alternating the MIX
control between the two end positions lets you dermine the relative ratio
between the two signals in your headphones.

(14) The Level control determines the volume of the headphones signal.

(15) Connect your headphones using the PHONES OUT stereo connector.

Yourheadphones should have a minimum impedance of 32 Ohms.

(16) To select the PFL signal for the headphones, use the MONITOR CUE keys

(CH-1to CH-4, MASTER, FX). You can also select multiple signal sources and
listen to them simultaneously. LEDs on corresponding keys are lit when a
channel is routed to the headphones.

1.4 Master section

(17) The LEVEL METER displays the level of the MASTER signal.

(18) The MASTER fader allows you to adjust the output volume at the MASTER

output (see (44)).

(19) The MASTER BALANCE control for the MASTER output is for setting the

stereoimage.

(20) The BOOTH LEVEL control adjusts the output level of the BOOTH output

(see (45)).

The XPQ 3D surround func tion is a built-in eect that puts the nishing touch
to your music and turns every gig into a real experience. The widening of the
stereo base makes for a livelier, more transparent sound. You can determine the
intensity of the eect by using the SURROUND control (27), while the XPQ ON
switch (28) turns the XPQ eect on (the respective LED is lit).

1.7 Auto BPM counter

The integrated auto BPM counter is an extremely useful feature. It ensures
smooth transition from one track to the next, taking a lot of the guesswork out.
It can calculate the various tempos of tracks in bpm (beats per minute). Both BPM
counter sections are identical and both show the BPM value of the two signals
routed to the crossfader. The LEDs located above the DISPLAYs 1 - 4 (29) indicate
which of the four input channels are routed to the respective BPM counter.

The tempo of the track assigned by using the ASSIGN A or ASSIGN B keys is shown
in the respective Display (30). Several tempo changes in one track would produce
a constant display of various BPM values and thus lead to unnecessary confusion.
That’s why the beat counter sections each have a SYNC LOCK button (31) that can
be used during the song to limit the range of possible tempo values. Thismakes
sense if the counter has already calculated a realistic value. You can do the
same thing manually with the BEAT ASSIST button (32). Pushing this button at
least three times in sync with the song’s tempo results in the calculated tempo
appearing in the DISPLAY. The Beat Assist and SYNC LOCK buttons are each
equipped with a LED.

When you have limited the tempo of the tracks on both channels with the SYNC
LOCK or BEAT ASSIST buttons, the dierence in tempo from both channels is
illustrated in the form of a nine-character message on the TEMPO DIFFERENCE­LED (24). The extent of theT dierence in tempo is indicated by a corresponding
swing to the right (signal A is slower) or to the left (signal B is slower). When the
middle LED lights up, the tempi are the same. The TIME OFFSET LED (23) below
that displays the signal A and B synchronisation. Should the middle LED light
up, the tracks are synchronised. Should the display move to the lef t or right,
the channels are not synchronised. The TEMPO DIFFERENCE and TIME OFFSET
displays are only active if the tempi of both channels have been xed in one of
the waysdescribed.

6 PRO MIXER DJX750 User Manual

◊ When no signal is present (or when the signal level is too low), the BPM

display shows only dashes. When the signal is present but can not be
identified, the display shows 160 BPM and then shows the said dashes.
The beat counter then attempts to get another readout. Therefore,
“160” BPM is no usable value; rather, it is simply an error message
when the signal can not be analyzed.

To exit the SYNC LOCK or BEAT ASSIST modes, simply push the SYNC LOCK button
once more on both channels.

1.8 Internal eects processor

Presets of the multi-eects processor

Grp No. Eect Typ e Adjustable Parameter

1 0 Filter Sweep LP Frequency

1 Filter Sweep BP Frequency

2 Filter Sweep HP Frequency

3 “Auto Filter (Envelope)” LP Sensitivity

4 “Auto Filter (Envelope)” BP Sensitivity

5 “Auto Filter (Envelope)” HP Sensitivity

6 LFO Filter LP LFO Rate

7 LFO Filter BP LFO Ra te

8 LFO Filter HP LFO Rate

2 0 Bitcrusher — Depth

3 0 Flanger Gate/Pan LFO Rate

1 Flanger “Standar d (Full Res)” LFO Rate

2 Flanger “Standard (Half Res)” LFO Ra te

3 Flanger Ultra LF O Rate

4 0 Delay 1/1 Delay Tim e (related t o BPM)

1 Delay 3/4 Delay Time (re lated to BPM)

2 Delay 1/2 Delay Time (rela ted to BPM)

5 0 Echo 1/1 Delay Tim e (related to BPM)

1 Echo 3/4 Delay T ime (related to BPM)

2 Echo 1/2 Delay Tim e (related t o BPM)

6 0 Reverb Big Plate Rever b Time (Decay)

1 Reverb Small Chamber Re verb Time (Decay)

2 Reverb Bright Room Reverb Tim e (Decay)

3 Reverb Voice Widener Tone

4 Reverb/Delay “Big Pla te + Delay” Delay Time (re lated to BPM)

7 0 Phase Shifter 4 LFO Rate

1 Phase Shifter Fall LFO Rate

2 Phase Shifter Rise LFO Rate

8 0 Panning Panning LFO Rate

1 Panning Trem olo LFO Rate

9 0 Sim/Dyn Ultrabass Frequency

1 Sim/Dyn Ultrafex Frequency

2 Sim/Dyn Voice Changer Distortion

◊ View the table (column “Ajustable Parameter”) to see which parameter

of the selected effect can be modified.

◊ The parameter values of the delay and echo effects are displayed in

BPM (beats per minute). The selectable range is from 80 to 160 BPM.
The display only shows two digits and so values of 100 and above are
represented with a dot behind the number (for example, 120 BPM is
displayed as “20.”).

• Use the LEVEL control (36) to determine the volume level of the eect signal.

• Activate the eect signal by pressing the FX ON switch (37).

Press the PROGRAM control one more time to use it for selecting eects again.

2. Connections

2.1 Rear panel connectors

(38)(39)(40)

(41)(50)

(38) These are the LINE i. e. CD inputs to connec t a tape deck, CD or MD player etc.

Unlike other channels, channel 1 features two line inputs.

(39) The PHONO inputs for channels 2 to 4 are for connecting a turntable.

(40) The GND connectors ground the turntables.

(41) With the PHONO/LINE switch it is possible to switch the input sensitivity of

the PHONO inputs 2 to 4 to line level. This allows you to connect a tape deck
or a CD player to the PHONO inputs.

(44) (45) (46) (42) (43)

The DJX750 features an internal digital eects processor into which you can
feed your master signal, the signals of the input channels or the mic signal. The
module provides a number of standard eects, such as reverb, delay and echo, as
well as various lter and modulation eects.

• To select the signal to be processed, use the SOURCE selector (33).

• Turn the PROGRAM control (35) to select an eect. The corresponding

program number appears on the PROGRAM display (34).

• Press and hold the PROGRAM control for about 2 seconds to load the

selectedpreset.

• When the new eect has been loaded, turn the PROGRAM control (35)

to change the eect’s parameters. The parameter value is shown on
thedisplay.

(48) (49)

7 PRO MIXER DJX750 User Manual

(42) The DJX750 features an integrated eects loop for the connection of an

external eects device. The MONITOR signal is taken at the SEND output
and routed, for example, to a reverb processor. Thus, the signal at the SEND
connector is identical to the headphones signal and is selected with the
MONITOR CUE buttons (16).

 Caution

Please note that when operating the unit at 120 V, a higher fuse rating is
required. Please refer to the “Specications” for details.

(43) The externally processed signal is added to the MASTER output signal via the

RETURN connectors. The eect signal volume may only be adjusted at the
output control of the eects device itself.

(44) The MASTER output is for connecting to an amplier and can be adjusted

with the MASTER fader (18).

◊ Always turn the power amps on last to avoid inrush currents that can

easily damage your speakers. And, to avoid sudden and unpleasant
surprises for your ears, make sure there is no signal at the DJX750
before turning on the power amps. To be sure, slide all the faders to the
bottom and switch all controls to the zero position.

(45) The BOOTH output gives you an additional option of connecting an amplier

in order to, for example, feed the signal into your monitors or to bring sound
to an extra area. The BOOTH output level is regulated by using the BOOTH
LEVEL control (20) of the MASTER section.

(46) Using the TAPE output you can record your music by connecting devices such as

tape decks, DAT recorders etc. Unlike the MASTER output, the outp ut volume is
xed, making it necessary for you to adjust the input level on the recording device.

(47) The POWER switch powers the DJX750 on. You should always make sure that

the POWER switch is in the “O ” position when initially connecting the unit
to the mains.

◊ Merely switching the unit off does not mean that it is fully disconnected

from the mains. When not using the unit for prolonged periods of time,
please unplug the unit’s power cord from the power outlet.

(48) This is the connector for the power cable. This is where the advantage of a

sophisticated internal power supply can be seen: the pulse behaviour of each
amplifying circuit is mainly determined by the voltage reserves available.
Each mixing console is equipped with numerous operational ampliers
(opamps) to process line level signals. Due to limited output of their power
supplies, many mixing consoles show signs of “stress” when subjected to
heavy loads. But not your DJX750: the sound is always clear and transparent.

(49) FUSE HOLDER / VOLTAGE SETTING. Before connecting the unit to the mains,

ensure that the voltage setting matches your local voltage. Blown fuses
should only be replaced by a fuse of the same type and rating. On some
units, the fuses holder can be switched to one of two positions, i.e. 230 V and
120 V. Please note: should you desire to operate the unit outside Europe at
120 V, a higher fuse rating is required.

◊ To disconnect power from main, pull out the main cord plug.

When installing the product, ensure that the plug is easily accessible.
If mounting in a rack, ensure that the mains can be easily disconnected
by a plug or by an all-pole disconnect switch on or near the rack.

(50) SERIAL NUMBER.

If you set the unit to a dierent mains voltage, be sure to use a fuse of the correct
type and rating. Please refer to the “Specications” for details.

◊ Blown fuses must be replaced by fuses of the correct rating!

Please refer to the “Specifications” section for the applicable rating.
Before you change the fuse, switch off the device and pull the plug to
avoid electric shock or damage to the device.

The mains connection is made using the enclosed power cord and a standard IEC
receptacle. It meets all international safety certication requirements.

◊ Please make sure that all devices are properly grounded. For your own

safety, never remove or disable the ground conductors from the devices
or on the power cords. The unit must always be connected to the mains
outlet with a protective grounding connection.

◊ The sound quality may diminish within the range of powerful

broadcasting stations and high-frequency sources. Increase the
distance between the transmitter and the device and use shielded
cables for all connections.

4. Shipment

Should your BEHRINGER product malfunction, it is our intention to have it
repaired as quickly as possible. To arrange for warranty ser vice, please contact
the BEHRINGER retailer from whom the equipment was purchased. Should your
BEHRINGER dealer not be located in your vicinity, you may directly contact one of
our subsidiaries.

Corresponding contac t information is included in the original equipment
packaging (Global Contact Information/European Contact Information).
Shouldyour country not be listed, please contact the distributor nearest
you. Alist of distributors can be found in the support area of our website
(behringer.com).

Registering your purchase and equipment with us helps us process your repair
claims more quickly and eciently.

Your product was carefully packed at the factory to ensure safe transpor t.
Nevertheless, if the box is damaged inspect the unit immediately for signs
ofdamage.

◊ If the unit is damaged please do NOT return it to us, but notify your

dealer and the shipping company immediately; otherwise, claims for
damage or replacement may not be granted.

◊ Always use the original box to prevent damage during storage

or transport.

◊ Make sure that children cannot play unsupervised with the unit or

its packaging.

3. Initial Operation

◊ Ensure adequate air supply and to avoid overheating do not place the

unit near radiators etc.

◊ Before you connect your unit to the mains, please make sure that your

local voltage matches the voltage required by the unit. The fuse holder
on the mains connec tor has 3 triangular markings, with two of these
triangles opposing each other. The unit is set to the operating voltage
printed next to these markers and can be set to another voltage by
turning the fuse holder by 180°.

5. Online Registration

Please register your new BEHRINGER equipment right after your purchase
by visiting behringer.com and read the terms and conditions of our
warrantycarefully.

Thank you for your cooperation!

8 PRO MIXER DJX750 User Manual

6. Specications

Audio Inputs

Mic 40 dB Gain, XLR,

electronically balanced input stage

Phono in 40 dB Gain, unbalanced input

Line in 0 dB Gain, unbalanced inputs

CD in 0 dB Gain, unbalanced inputs

Return 0 dB Gain, unbalanced input

Audio Outputs

Master max. +21 dBu

Booth max. +21 dBu

Tape typ. 0 dBu

Send typ. 0 dBu

Phones Out max. 180 mW @ 75 W / 1% THD

Equalizer

Stereo Low +12 dB / -32 dB @ 50 Hz

Stereo Mid +12 dB / -32 dB @ 1.2 kHz

Power Supply

Power consumption 32 W

Mains connection Standard IEC receptacle

Mains Voltages/Fuses

100 - 120 V~, 50/60 Hz T 1 A H

220 - 230 V~, 50/60 Hz T 500 mA H

Dimensions/Weight

Dimensions (H x W x D) approx. 4.1 x 12.6 x 14.6"

approx. 104.3 x 320 x 370.8 mm

Weight approx. 8.6 lbs / approx. 3.9 kg

BEHRINGER i s constantly str iving to maintain the h ighest profess ional standards. A s a result of these e ffort s,
modific ations may be made f rom time to time to exi sting product s without prio r notice. Specif ications and
appearance m ay differ fro m those listed or illus trated.

Stereo High +12 dB / -32 dB @ 10 kHz

Mic Low +15 dB / -15 dB @ 80 Hz

Mic Mid +15 dB / -15 dB @ 2.5 kHz

Mic High +15 dB / -15 dB @ 12 kHz

Kill Low -54 dB @ 50 Hz

Kill Mid -44 dB @ 1 kHz

Kill High -26 dB @ 10 kHz

Digital Eects Processor

DSP Freescale

A/D-D/A converter 24-bit Sigma-Delta,

64/128-times oversampling

Sampling rate 46.875 kHz

System Specications

Signal-to-noise ratio > 80 dB (Line)

Crosstalk > 70 dB (Line)

Distortion (THD) < 0.03%

Frequency response 10 Hz - 55 kHz, +0 / -3 dB

9 PRO MIXER DJX750 User Manual

FEDERAL COMMUNICATIONS
COMMISSION COMPLIANCE
INFORMATION

PRO MIXER DJX750

Responsible Party Name: MUSIC Group Services US Inc.

Address: 18912 North Creek Parkway,

Suite 200 Bothell, WA 98011,
USA

Phone/Fax No.: Phone: [phone]

Fax: [phone]

PRO MIXER DJX750

complies with the FCC rules as mentioned in the followingparagraph:

This equipment has been tested and found to comply with the limits for a ClassB
digital device, pur suant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the followingmeasures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent f rom that to which the

receiver is connected.

• Consult the dealer or an experienced radio/ TV technician forhelp.

This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any inter ference received, including inter ference that may
cause undesired operation.

Important information:

Changes or modications to the equipment not expressly approved by MUSIC Group
can void the user’s authority to use the equipment.

We Hear You
