BECKHOFF KL1904 User Manual

Operating instructions for
KL1904
TwinSAFE input terminal with 4 fail-safe inputs
Version: 2.2.1 Date: 30.01.2015
Table of contents
Table of contents
1Foreword 3
1.1Notes on the manual 3
1.1.1Disclaimer 3
1.1.2Brands 3
1.1.3Patents 3
1.1.4Copyright 3
1.1.5Delivery conditions 3
1.2Safety instructions 4
1.2.1Delivery state 4
1.2.2Operator's obligation to exercise diligence 4
1.2.3Description of safety symbols 5
1.2.4Origin of the document 5
1.2.5Documentation issue status 6
2System description 7
2.1The Beckhoff Bus Terminal system 7
2.1.1Bus Coupler 8
2.1.2Bus Terminals 9
2.1.3K-bus 9
2.1.4Power contacts 9
2.2TwinSAFE 10
2.2.1The I/O construction kit is extended safely 10
2.2.2Safety concept 10
2.2.3KL1904, KL2904 – Bus Terminals with 4 fail-safe inputs or ou tputs 11
2.2.4KL6904 TwinSAFE logic terminal with 4 fail-safe outputs 11
2.2.5The fail-safe principle (Fail Stop) 11
3Product description 12
3.1General description 12
3.2Intended use 13
3.3Technical data 14
3.4Safety parameters 15
3.5Dimensions 16
KL1904 1
Table of contents
4Operation 17
4.1Installation 17
4.1.1Safety instructions 17
4.1.2Transport / storage 17
4.1.3Mechanical installation 18
4.1.4Electrical installation 19
4.1.5Tested devices 23
4.2Configuration of the KL1904 in the TwinCAT System Manager 24
4.2.1Inserting a Beckhoff Bus Coupler 24
4.2.2Inserting a Beckhoff Bus Terminal 24
4.2.3Inserting a KL1904 24
4.2.4Address settings on the TwinSAFE terminals 25
4.2.5Entering a TwinSAFE address and parameters in the System Manager 26
4.3Diagnostics 29
4.3.1Diagnostic LEDs 29
4.4Maintenance 31
4.4.1Cleaning 31
4.4.2Service life 31
4.5Decommissioning 32
4.5.1Disposal 32
5Appendix 33
5.1Beckhoff Support and Service 33
5.1.1Beckhoff branches and partner companies Beckhoff Support 33
5.1.2Beckhoff company headquarters 33
5.2Certificates 34
2 KL1904
Foreword
1 Foreword
1.1 Notes on the manual
This description is only intended for the use of trained specialists in control and automation technology familiar with the applicable national standards. It is essential that the following notes and explanations are followed when installing and commissioning these components. The responsible staff must ensure that the application or use of the products described satisfy all the safety requirements, including all the relevant laws, regulations, guidelines and standards.
1.1.1 Disclaimer
This documentation has been prepared with care. The products described are, however, constantly under development. For this reason, the documentation may not always have been fully checked for consistency with the performance data, standards or other characteristics described. If it should contain technical or editorial errors, we reserve the right to make changes at any time and without notice. No claims for the modification of products that have already been supplied may be made on the basis of the data, diagrams and descriptions in this documentation.
1.1.2 Brands
Beckhoff®, TwinCAT®, EtherCAT®, Safety over EtherCAT®, TwinSAFE® and XFC® are registered trademarks of and licensed by Beckhoff Automation GmbH. The use by third parties of other brand names or trademarks contained in this documentation may lead to an infringement of the rights of the respective trademark owner.
1.1.3 Patents
The EtherCAT technology is patent protected, in particular by the following applications and patents: EP1590927, EP1789857, DE102004044764, DE102007017835 with the corresponding applications and registrations in various other countries.
The TwinCAT technology is patent protected, in particular by the following applications and patents: EP0851348, US6167425 with the corresponding applications and registrations in various other countries.
1.1.4 Copyright
©
Beckhoff Automation GmbH & Co. KG. The copying, distribution and utilization of this document as well as the communication of its contents to others without express authorization is prohibited. Offenders shall be held liable for damages. All rights conferred by patent grant or registration of a utility model or registered design are reserved.
1.1.5 Delivery conditions
In addition, the general delivery conditions of the company Beckhoff Automation GmbH & Co. KG apply.
KL1904 3
Foreword
1.2 Safety instructions
1.2.1 Delivery state
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG.
1.2.2 Operator's obligation to exercise diligence
The operator must ensure that
the TwinSAFE products are only used as intended (see section Product description);  the TwinSAFE products are only operated in sound condition and in working order (see chapter
Cleaning).
the TwinSAFE products are operated only by suitably qualified and authorized personnel.  the personnel is instructed regularly about relevant occupational safety and environmental
protection aspects, and is familiar with the operating instructions and in particular the safety instructions contained herein.
the operating instructions are in good condition and complete, and always available for reference
at the location where the TwinSAFE products are used.
none of the safety and warning notes attached to the TwinSAFE products are removed, and all
notes remain legible.
4 KL1904
Foreword
1.2.3 Description of safety symbols
The following safety symbols are used in these operating instructions. They are intended to alert the reader to the associated safety instructions.
Serious risk of injury!
DANGER
WARNING
CAUTION
Failure to follow the safety instructions associated with this symbol directly endangers
the life and health of persons.
Caution - Risk of injury!
Failure to follow the safety instructions associated with this symbol endangers the life
and health of persons.
Personal injuries!
Failure to follow the safety instructions associated with this symbol can lead to injuries
to persons.
Damage to the environment or devices
Attention
Failure to follow the instructions associated with this symbol can lead to damage to the
environment or equipment.
Tip or pointer
Note
This symbol indicates information that contributes to better understanding.
1.2.4 Origin of the document
These operating instructions were originally written in German. All other languages are derived from the German original.
KL1904 5
Foreword
1.2.5 Documentation issue status
Version Comment
2.2.1
Certificate updated
2.2.0
2.1.1
2.1.0
2.0.0
1.2.3
1.2.2
1.2.1
1.2.0
1.1.0
Company address amended  Document origin added  Version history added  EN954 example removed  Safety parameters extended
Reference to EN 60068-2-29 removed
Version and date updated
Description of the configuration in the TwinCAT System Manager added  Certificates added
Diagrams updated
LED and pin assignment corrected
LED descriptions added
Technical data added  Precise specification of permitted operating environment
Operation of the KL1904 under TwinCAT added
1.0.1
1.0.0
Pin assignment added
First released version
6 KL1904
System description
2 System description
2.1 The Beckhoff Bus Terminal system
The Beckhoff Bus Terminal system is used for decentralized connection of sensors and actuators to a control system. The Beckhoff Bus Terminal system components are mainly used in industrial automation and building management applications. In its minimum configuration, a bus station consists of a Bus Coupler or a Bus Terminal Controller and Bus Terminals connected to it. The Bus Coupler forms the communication interface to the higher-level controller, and the terminals are the interface to sensors and actuators. The whole bus station is clipped onto a 35 mm DIN mounting rail (EN 50022). The mechanical cross connection of the bus station is established via a slot and key system at the Bus Coupler and the Bus Terminals.
The sensors and actuators are connected with terminals via the screwless Cage Clamp system.
Since a wide range of different communication standards are established in industrial automation, Beckhoff offers Bus Couplers for all common bus systems (e.g. BK3120 for PROFIBUS, BK9000 for Ethernet etc.).
©
connection
KL1904 7
System description
2.1.1 Bus Coupler
Mechanical data
Mechanical data Bus Coupler
Material polycarbonate, polyamide (PA6.6). Dimensions (W x H x D) 47 mm x 100 mm x 68 mm Installation on 35 mm mounting rail (EN50022) with locking Attachable by double slot and key connection
Connection technology
Connection technology Bus Coupler
Wiring Cage Clamp® spring-loaded system Connection cross-section 0.08 mm2 ... 2.5 mm2, stranded wire, solid wire Fieldbus connection depending on fieldbus Power contacts 3 spring contacts Current load 10 A Rated voltage 24 VDC
8 KL1904
System description
2.1.2 Bus Terminals
Mechanical data
Mechanical data Bus Terminal
Material polycarbonate, polyamide (PA6.6). Dimensions (W x H x D) (12 mm x 100 mm x 68 mm) Installation on 35 mm mounting rail (EN50022) with locking Attachable by double slot and key connection
Connection technology
Connection technology Bus Terminal
Wiring Cage Clamp® spring-loaded system Connection cross-section 0.08 mm2 ... 2.5 mm2, stranded wire, solid wire Fieldbus connection depending on fieldbus Power contacts up to 3 blade/spring contacts Current load 10 A Rated voltage depends on Bus Terminal type
2.1.3 K-bus
The K-Bus is the data path within a terminal strip. The K-Bus is led through from the Bus Coupler through all the terminals via six contacts on the terminals' side walls. The end terminal terminates the K-Bus.
2.1.4 Power contacts
The operating voltage is passed on to following terminals via two power contacts. Terminal strip can be split into galvanically isolated groups by means of potential feed terminals as required. The power feed terminals play no part in the control of the terminals, and can be inserted at any locations within the terminal strip.
KL1904 9
System description
2.2 TwinSAFE
2.2.1 The I/O construction kit is extended safely
With the TwinSAFE Terminals, Beckhoff offers the option of simply expanding the proven Bus Terminal system, and to transfer the complete cabling for safety circuits into the already existing fieldbus cable. Safe signals can be mixed with standard signals without restriction. This saves design effort, installation and material. Maintenance is simplified significantly through faster diagnosis and simple replacement of only a few components.
The new KLx9xx series Bus Terminals only include three basic functionalities: digital KL19xx inputs, digital KL29xx outputs and a KL6904 link unit. For a large number of applications, all sensors and actuators can be wired on these Bus Terminals. The required logical link of the inputs and the outputs is handled by the KL6904. For small to medium-sized configurations, the tasks of a fail-safe PLC can thus be handled within the Bus Terminal system.
2.2.2 Safety concept
TwinSAFE: Safety and I/O technology in one system
Extension of the familiar Beckhoff I/O system with TwinSAFE terminals  Freely selectable mix of safe and standard signals  Logic link of the I/Os in the KL6904 TwinSAFE logic terminal  Safety-relevant networking of machines via bus systems
TwinSAFE protocol (FSoE)
Transfer of safety-relevant data via any media (“genuine black channel”)  TwinSAFE communication via fieldbus systems such as EtherCAT, Lightbus, PROFIBUS or
Ethernet
IEC 61508:2010 SIL 3 compliant
Configuring instead of wiring: the TwinSAFE configurator
Configuration of the TwinSAFE system via the TwinCAT System Manager  System Manager for editing and displaying all bus parameters  Certified function blocks such as emergency stop, operation mode, etc.  Simple handling  Typical function blocks for machine safety  Freely selectable fieldbus connection with the KL6904 TwinSAFE logic terminal
KL6904 TwinSAFE logic terminal
Link unit between TwinSAFE input and output terminals  Configuration of a simple, flexible, cost-effective, decentralized safety controller  No safety requirements for higher-level control system  TwinSAFE enables networks with up to 1023 TwinSAFE devices  TwinSAFE logic terminal can establish up to 15 connections (TwinSAFE connections).  Several TwinSAFE logic terminals are cascadable in a network  Safety functions such as emergency stop, protective door etc. are already included  Safe outputs integrated  Suitable for applications up to SIL 3 according to IEC 61508:2010
10 KL1904
System description
TwinSAFE digital input (KL1904) and output terminal (KL2904)
All current safety sensors can be connected  Operation with a TwinSAFE logic terminal  KL1904 with 4 fail-safe inputs for sensors (24 V  KL2904 with four safe channels for actuators (24 V
) with floating contacts
DC
, 0.5 A per channel)
DC
conforming to IEC 61508:2010 SIL 3
2.2.3 KL1904, KL2904 – Bus Terminals with 4 fail-safe inputs or outputs
The KL1904 and KL2904 Bus Terminals enable connection of common safety sensors and actuators. They are operated with the KL6904 TwinSAFE logic terminal. The TwinSAFE logic terminal is the link unit between the TwinSAFE input and output terminals. It enables the configuration of a simple, flexible and cost-effective decentralized safety control system.
Therefore, there are no safety requirements for the higher-level controller! The typical safety functions required for the automation of machines, such as emergency stop, protective door, two-hand etc., are already permanently programmed in the KL6904. The user configures the KL6904 terminal according to the safety requirements of his application.
2.2.4 KL6904 TwinSAFE logic terminal with 4 fail-safe outputs
The KL6904 TwinSAFE logic terminal is a digital output terminal with four fail-safe outputs with 0.5 A, 24 V
. The KL6904 meets the requirements of IEC 61508:2010 SIL 3 and DIN EN ISO 13849-1:2006
DC
(Cat 4, PL e).
2.2.5 The fail-safe principle (Fail Stop)
The basic rule for a safety system such as TwinSAFE is that failure of a part, a system component or the overall system must never lead to a dangerous condition. The safe state is always the switched off and wattless state.
KL1904 11
Product description
3 Product description
3.1 General description
KL1904 - TwinSAFE digital four channel input terminal
The KL1904 is a digital input terminal for transducers with floating contacts for 24 V has 4 fail-safe inputs.
With two-channel connection, the KL1904 meets the requirements of IEC 61508:2010 SIL 3, DIN EN ISO 13849-1:2006 (Cat 4, PL e), NRTL, UL508, UL1998 and UL991.
The Bus Terminal has the standard design of a Beckhoff Bus Terminal.
. The Bus Terminal
DC
12 KL1904
Product description
3.2 Intended use
Caution - Risk of injury!
WARNING
The TwinSAFE terminals expand the application range of Beckhoff Bus Terminal system with functions that enable them to be used for machine safety applications. The TwinSAFE terminals are designed for machine safety functions and directly associated industrial automation tasks. They are therefore only approved for applications with a defined fail-safe state. This safe state is the wattless state. Fail-safety according to the relevant standards is required.
The TwinSAFE terminals enable connection of:
24 V
emergency off pushbutton switches, pull cord switches, position switches, two-hand switches, safety mats, light curtains, light barriers, laser scanner, etc.
24 V
contactors, protection door switches with tumbler, signal lamps, servo drives, etc.
TwinSAFE terminals may only be used for the purposes described below!
sensors (KL1904) such as
DC
actuators (KL2904, KL6904) such as
DC
The following modules were developed for these tasks:
The KL1904 terminal is an input module with digital inputs.  The KL2904 terminal is an output module with digital outputs.  The KL6904 terminal is a logic module with digital outputs.
These modules are suitable for operation with
Beckhoff BKxxxx series Bus Couplers  Beckhoff BXxxxx series Bus Terminal Controllers (with firmware version ≥ 1.20)
(Beckhoff BCxxxx series Bus Terminal Controllers are not supported!)
Beckhoff CXxxxx series Embedded PCs with K-Bus connection
Follow the machinery directive
CAUTION
The TwinSAFE terminals may only be used in machines according to the Machinery Directive.
Ensure traceability
The buyer has to ensure the traceability of the device via the serial number.
CAUTION
KL1904 13
Product description
3.3 Technical data
Product designation KL1904
Number of inputs 4 Number of outputs 0 Status display 4 (one green LED per input) Reaction time
(read input/write to K-Bus) Error reaction time watchdog time Cable length between
sensor and terminal
(unshielded) 100 m max.(at 0.75 or 1 mm²)
(shielded) 100 m max.(at 0.75 or 1 mm²) Input process image 6 bytes Output process image 6 bytes KL1904 supply voltage 24 VDC (–15% / +20%) Current consumption of the modular electronics
at 24 V (without current consumption of sensors) Current consumption from K-bus 4 channels occupied: typically 47 mA
Power dissipation of the terminal typically 540 mW Electrical isolation (between the channels) no Electrical isolation (between the channels and the
K-Bus) Insulation voltage (between the channels and the
K-Bus, under common operating conditions) Dimensions (W x H x D) 12mm x 100mm x 68mm Weight approx. 50 g Permissible ambient temperature (operation) -0°C to +55°C Permissible ambient temperature
(transport/storage) Permissible air humidity 5 % to 95 %, non-condensing Permissible air pressure
(operation/storage/transport) Climate category according to EN 60721-3-3 3K3 Permissible level of contamination Contamination level 2
Impermissible operating conditions TwinSAFE terminals must not be used under the
EMC immunity/emission Conforms to EN 61000-6-2 / EN 61000-6-4 Vibration / shock resistance Conforms to EN 60068-2-6 / EN 60068-2-27 Shocks 15 g with pulse duration 11 ms in all three axes Protection class IP20 Permitted operating environment control cabinet or terminal box with minimum
Permissible installation position Variable Approvals CE
typically: 4 ms, maximally: see error reaction time
4 channels occupied: typically 12 mA 0 channels occupied: typically 1 mA
0 channels occupied: typically 33 mA
yes
insulation tested with 500 VDC
-25°C to +70°C
750 hPa to 1100 hPa
(please see the section on cleaning)
following operating conditions:
under the influence of ionizing radiation  in corrosive environments  in an environment that leads to
unacceptable soiling of the Bus Terminal
protection class IP54 according to IEC 60529
14 KL1904
Product description
3.4 Safety parameters
Key figures KL1904
Lifetime [a] 20 Prooftest Interval [a] not required 1) PFH 2.30E-09 %SIL3 2.3% PFD 1.81E-04 %SIL3 18.1% MTTFd [a] >100 DC >99% Performance level PL e Category 4 HFT 1 Element classification 2) Type A
1)
Special proof tests are not required during the entire service life of the KL1904 Bus Terminal.
2)
Classification according to IEC 61508-2:2010 (see chapters 7.4.4.1.2 and 7.4.4.1.3)
The KL1904 Bus Terminal can be used for safety-related applications within the meaning of IEC 61508:2010 up to SIL3 and EN ISO 13849-1 up to PL e (Cat4).
KL1904 15
Product description
3.5 Dimensions
Width: 12 mm (side-by-side installation) Height: 100 mm Depth 68 mm
16 KL1904
Operation
4 Operation
Please ensure that the TwinSAFE terminals are only transported, stored and operated under the specified conditions (see technical data)!
Caution - Risk of injury!
WARNING
4.1 Installation
4.1.1 Safety instructions
The TwinSAFE terminals must not be used under the following operating conditions:
under the influence of ionizing radiation  in corrosive environments  in an environment that leads to unacceptable soiling of the Bus Terminal
Before installing and commissioning the TwinSAFE terminals please read the safety notes in the foreword of this documentation.
4.1.2 Transport / storage
Use the original packaging for transporting or storing the digital TwinSAFE terminals.
Note the specified environmental conditions
CAUTION
Please ensure that the digital TwinSAFE terminals are only transported and stored under the specified environmental conditions (see technical data).
KL1904 17
Operation
4.1.3 Mechanical installation
Serious risk of injury!
DANGER
4.1.3.1 Control cabinet
The TwinSAFE terminals must be installed in a control cabinet or terminal box with IP54 protection class according to IEC 60529 as a minimum.
4.1.3.2 Mounting rail installation
Installation
The Bus Couplers and Bus Terminals are attached to commercially available 35 mm mounting rails (according to EN 50022) by applying slight pressure:
Bring the bus system into a safe, de-energized state before starting installation, disassembly or wiring of the Bus Terminals!
1. First attach the Fieldbus Coupler to the mounting rail.
2. The Bus Terminals are now attached on the right-hand side of the fieldbus Coupler. Join the components with slot and key and push the terminals against the mounting rail, until the lock clicks onto the mounting rail. If the terminals are clipped onto the mounting rail first and then pushed together without slot and key, the connection will not be operational! When correctly assembled, no significant gap should be visible between the housings.
3. During the installation of the Bus Terminals, the locking mechanism of the terminals must not come into conflict with the fixing bolts of the mounting rail.
18
KL1904
Operation
Removal
1. Carefully pull the orange-colored lug approximately 1 cm out of the terminal to be disassembled, until it protrudes loosely. The lock with the mounting rail is now released for this terminal, and the terminal can be pulled from the mounting rail without excessive force.
2. Grasp the released terminal with thumb and index finger simultaneous at the upper and lower grooved housing surfaces and pull the terminal away from the mounting rail.
4.1.4 Electrical installation
4.1.4.1 Connections within a Bus Terminal block
The electric connections between the Bus Coupler and the Bus Terminals are automatically realized by joining the components:
The six spring contacts of the K-Bus deal with the transfer of the data and the supply of the Bus
Terminal electronics.
Note the maximum K-Bus current!
Note
The power contacts deal with the supply for the field electronics and thus represent a supply rail
within the Bus Terminal block. The power contacts are supplied via terminals on the Bus Coupler.
Note
Observe the maximum current that your Bus Coupler can supply to the K-Bus! Use the KL9400 Power Supply Terminal if the current consumption of your terminals exceeds the maximum current that your Bus Coupler can feed to the K-Bus supply.
Note the pin assignment of the power contacts!
During the design of a Bus Terminal block, the pin assignment of the individual Bus Terminals must be taken account of, since some types (e.g. analog Bus Terminals or digital 4-channel Bus Terminals) do not or not fully loop through the power contacts. Power Feed Terminals (KL91xx, KL92xx) interrupt the power contacts and thus represent the start of a new supply rail.
KL1904 19
Operation
PE power contact
The power contact labelled PE can be used as a protective earth. For safety reasons this contact mates first when plugging together, and can ground short-circuit currents of up to 125 A.
Insulation tests
CAUTION
DANGER
Note that, for reasons of electromagnetic compatibility, the PE contacts are capacitatively coupled to the mounting rail. This may lead to incorrect results during insulation testing or to damage on the terminal (e.g. disruptive discharge to the PE line during insulation testing of a consumer with a rated voltage of 230 V). For insulation testing, disconnect the PE supply line at the Bus Coupler or the Power Feed Terminal! In order to decouple further feed points for testing, these Power Feed Terminals can be released and pulled at least 10 mm from the group of terminals.
Serious risk of injury!
The PE power contact must not be used for other potentials!
20 KL1904
Operation
4.1.4.2 Wiring
Up to eight connections enable the connection of solid or finely stranded cables to the Bus Terminals. The terminals are implemented in spring force technology. Connect the cables as follows:
1. Open a spring-loaded terminal by slightly pushing with a screwdriver or a rod into the square opening above the terminal.
2. The wire can now be inserted into the round terminal opening without any force.
3. The terminal closes automatically when the pressure is released, holding the wire safely and permanently.
Wire cross section Strip length
0.08 ... 2.5 mm
8 mm
2
KL1904 21
Operation

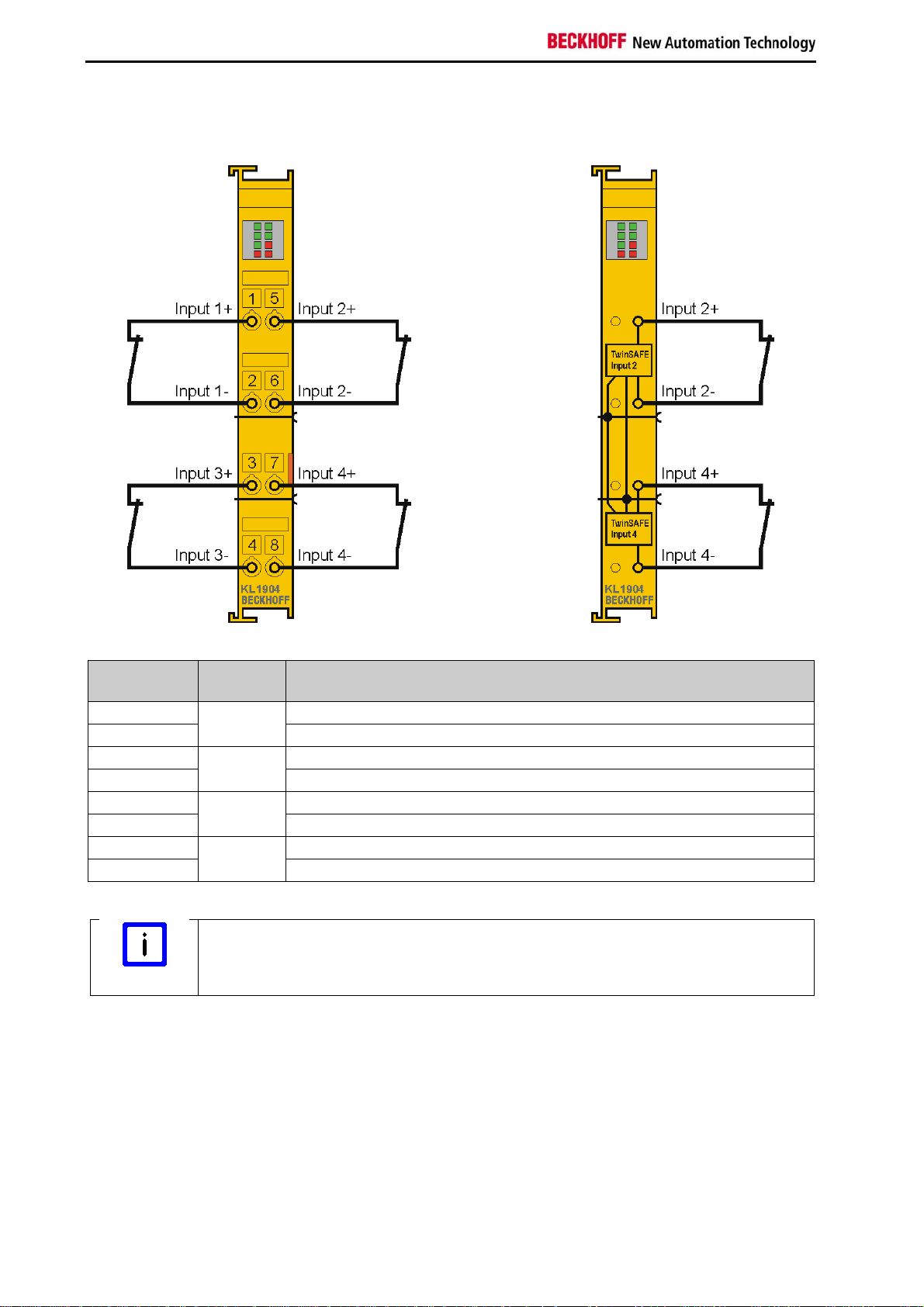

KL1904 pin assignment
Terminal
Input Signal
point
1 1 Input 1+ 2 Input 1­3 3 Input 3+ 4 Input 3­5 2 Input 2+ 6 Input 2­7 4 Input 4+ 8 Input 4-
Configurable inputs
Note
The inputs 1 to 4 can be occupied as you want with normally closed contacts or normally open contacts. The corresponding analysis is carried out in the safety PLC.
22 KL1904
Operation
4.1.5 Tested devices
The following list contains devices that were tested the together with the KL1904 TwinSAFE terminal. The results only apply for the current device hardware version at the time of testing. The tests were carried out in a laboratory environment. Modifications of these products cannot be considered here. If you are unsure please test the hardware together with the TwinSAFE terminal.
Manufacturer Type Comment
SICK C4000
Wenglor
SG2-14ISO45C1 Safety light grids
Leuze lumiflex ROBUST 42/43/44 Safety light barriers
Schmersal BNS250-11ZG Safety switch
ifm GM701S Inductive safety sensor
The tests were carried out as function tests only. The information provided in the respective manufacturer documentation remains valid.
Safety light curtain
KL1904 23
Operation
4.2 Configuration of the KL1904 in the TwinCAT System Manager
Do not change the register values!
CAUTION
4.2.1 Inserting a Beckhoff Bus Coupler
See TwinCAT automation software documentation.
4.2.2 Inserting a Beckhoff Bus Terminal
See TwinCAT automation software documentation.
Do not change the register values for the TwinSAFE terminals. Changes to the register values (e.g. with the KS2000 configuration software or via register communication) sets the terminal permanently in the Fail-Stop state!
4.2.3 Inserting a KL1904
A KL1904 is inserted in the same way as any other Beckhoff Bus Terminal. In the list open Safety Terminals (KLx9xx) and select the KL1904.
24 KL1904
Operation
4.2.4 Address settings on the TwinSAFE terminals
The TwinSAFE address of the terminal is set via the 10-way DIP switch on the left-hand side of the TwinSAFE terminal. TwinSAFE addresses between 1 and 1023 are available.
DIP switch Address 1 2 3 4 5 6 7 8 9 10
OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF 0
ON
OFF
ON ON
OFF OFF
ON
OFF
ON ON ON
OFF OFF OFF OFF OFF OFF OFF OFF OFF 1
ON
OFF OFF OFF OFF OFF OFF OFF OFF 2
OFF OFF OFF OFF OFF OFF OFF OFF 3
ON
OFF
ON
ON ON
OFF OFF OFF OFF OFF OFF OFF 4
OFF OFF OFF OFF OFF OFF OFF 5
OFF OFF OFF OFF OFF OFF OFF 6
OFF OFF OFF OFF OFF OFF OFF 7
... ... ... ... ... ... ... ... ... ... ...
ON ON ON ON ON ON ON ON ON ON
1023
Unique TwinSAFE address
Each TwinSAFE address may only be used once within a network!
WARNING
KL1904 25
Operation
4.2.5 Entering a TwinSAFE address and parameters in the System Manager
The TwinSAFE address set at the DIP switch must also be entered under the Parameters tab (S_Address entry).
Parameter overview
PrmName Meaning Values
S_Address DIP switch address 1 to 1023 Channel 1 Activation of channel 1 active/not active Channel 2 Activation of channel 2 active/not active Channel 3 Activation of channel 3 active/not active Channel 4 Activation of channel 4 active/not active Sensor test channel 1 The clock signal for connection Input1+ is
active/not active
checked at connection Input1-.
Sensor test channel 2 The clock signal for connection Input2+ is
active/not active
checked at connection Input2-.
Sensor test channel 3 The clock signal for connection Input3+ is
active/not active
checked at connection Input3-.
Sensor test channel 4 The clock signal for connection Input4+ is
active/not active
checked at connection Input4-.
Channel 1 and 2 For two-channel evaluation, inputs 1 and 2 must
have the same signal states.
Channel 3 and 4 For two-channel evaluation, inputs 3 and 4 must
have the same signal states.
Ambivalence channel 1 and 2
Ambivalence channel 3 and 4
If active, inputs 1 and 2 must have different signal states.
If active, inputs 3 and 4 must have different signal states.
single-channel evaluation / two-channel evaluation
single-channel evaluation / two-channel evaluation
not active/active
not active/active
26 KL1904
Operation
4.2.5.1 KL1904 configuration for light barriers, light grids, light curtains etc.
From firmware version 17 the KL1904 also supports direct connection of contact-free protective equipment with two self-testing outputs such as light barriers, light grids, light curtains, laser scanners etc.
Sensors with self-testing outputs
CAUTION
Only sensors with self-testing outputs and a maximum sensor self-test duration of 350 µs may be connected to the KL1904.
KL1904 27
Operation
Parameter
To connect these sensors please set the following parameters for the KL1904 in the TwinCAT System Manager:
Connect the two sensor signals either to channels 1 and 2 or channels 3 and 4 and activate the
two-channel evaluation for the two inputs used.
Set the KL1904 sensor test for the two inputs used to not active.
No simultaneous sensor self-test with two-channel evaluation
CAUTION
The sensor self-test must not set the two channels for two-channel evaluation to LOW simultaneously!
28
KL1904
Operation
4.3 Diagnostics
4.3.1 Diagnostic LEDs
4.3.1.1 Diag 1 (green)
The Diag 1 LED indicates the state of the TwinSAFE interface.
Flashing Code Meaning
LED illuminated continuously (from firmware version 17) or cyclic flashing at 1 Hz (up to firmware version 16)
rapid flickering, alternating with 1 flash pulse Error in S parameter (TwinSAFE parameter) rapid flickering, alternating with 2 flash pulses Error in I parameter (Individual parameter)
rapid flickering, alternating with 3 flash pulses Waiting for S and I parameter
rapid flickering, alternating with 4 flash pulses S- and I-parameter correct:
rapid flickering, alternating with 5 flash pulses Watchdog error
rapid flickering, alternating with 6 flash pulses CRC error
rapid flickering, alternating with 7 flash pulses Sequence number error
rapid flickering, alternating with 8 flash pulses Intermediate state in a sensor
4.3.1.2 Diag 2 (red)
The Diag 2 LED illuminates red if the terminal detects an external supply or cross-circuit. The LED
extinguishes once the error is rectified.
normal operation: TwinSAFE communication OK
waiting for first host message
KL1904 29
Operation
4.3.1.3 Diag 3 (red) and Diag 4 (red)
The Diag 3 and Diag 4 LEDs indicate internal terminal errors.
Returning the terminal
Note
These errors lead to shutdown of the terminal. The terminal must be checked by Beckhoff Automation GmbH & Co. KG.
Diag 3 LED (red) Diag 4 LED (red) Source of error
lit flashes (see below for flashing
µC1
codes)
lit off µC2
In the event of a fault the Diag 4 LED indicates the type of error through flashing codes. The flashing
codes are structured as follows:
Flashing sequence
Meaning
Rapid flickering Start of flashing code
First slow sequence Error code
Second slow sequence Error code argument
Start Error code Error code argument
Count the number of flash pulses after the rapid flickering sequence
during the first slow sequence in order to ascertain the error code  during the second slow sequence in order to ascertain the error argument
The flashing code is repeated after the second slow sequence, followed by rapid flickering.
30
KL1904
Operation
4.4 Maintenance
The TwinSAFE terminals are maintenance-free!
Observe the specified environmental conditions!
WARNING
If the terminal is operated outside the permitted temperature range it will switch to Global Fault state.
4.4.1 Cleaning
Protect the TwinSAFE terminal from unacceptable soling during operation and storage!
If the TwinSAFE terminals were subjected to unacceptable soiling they may no longer be operated!
Please ensure that the TwinSAFE terminals are only stored and operated under the specified conditions (see technical data).
Have soiled terminals checked!
WARNING
Cleaning of the TwinSAFE terminal by the user is not permitted! Please send soiled terminals to the manufacturer for inspection and cleaning!
4.4.2 Service life
The TwinSAFE terminals are designed for a service life of 20 years.
Due to the high diagnostic coverage within the lifecycle no special proof tests are required.
The TwinSAFE terminals bear a date code, which is composed as follows:
Date code: CW YY SW HW
Legend: CW: Calendar week of manufacture YY: Year of manufacture SW: Software version HW: Hardware version
In addition the TwinSAFE terminals bear a unique serial number.
Example: Date code 17 11 05 00 Calendar week: 17 Year: 2011 Software version: 05 Hardware version: 00
KL1904 31
Operation
4.5 Decommissioning
Serious risk of injury!
DANGER
4.5.1 Disposal
In order to dispose of the device, it must be removed and fully dismantled.
Housing components (polycarbonate, polyamide (PA6.6)) are suitable for plastic recycling.  Metal parts can be sent for metal recycling.  Electronic parts such as disk drives and circuit boards must be disposed of in accordance with
national electronics scrap regulations.
Bring the bus system into a safe, de-energized state before starting disassembly of the Bus Terminals!
32 KL1904
Appendix
5 Appendix
5.1 Beckhoff Support and Service
Beckhoff and their partners around the world offer comprehensive support and service, making available fast and competent assistance with all questions related to Beckhoff products and system solutions.
5.1.1 Beckhoff branches and partner companies Beckhoff Support
Please contact your Beckhoff branch office or partner company for local support and service on Beckhoff products! The contact addresses for your country can be found in the list of Beckhoff branches and partner companies: www.beckhoff.com. You will also find further documentation for Beckhoff components there.
5.1.2 Beckhoff company headquarters
Beckhoff Automation GmbH & Co.KG Huelshorstweg 20 33415 Verl Germany
Phone: + 49 (0) 5246/963-0 Fax: + 49 (0) 5246/963-198 E-mail: info@beckhoff.com Web: www.beckhoff.com
Beckhoff Support
Support offers you comprehensive technical assistance, helping you not only with the application of individual Beckhoff products, but also with other, wide-ranging services:
 world-wide support  design, programming and commissioning of complex automation systems  and extensive training program for Beckhoff system components
Hotline: + 49 (0) 5246/963-157 Fax: + 49 (0) 5246/963-9157 E-mail: support@beckhoff.com
Beckhoff Service
The Beckhoff Service Center supports you in all matters of after-sales service:
on-site service repair service spare parts service hotline service
Hotline: + 49 (0) 5246/963-460 Fax: + 49 (0) 5246/963-479 E-mail: service@beckhoff.com
KL1904 33
Appendix
5.2 Certificates
34 KL1904
Appendix
KL1904 35
Loading...
