DE 3361

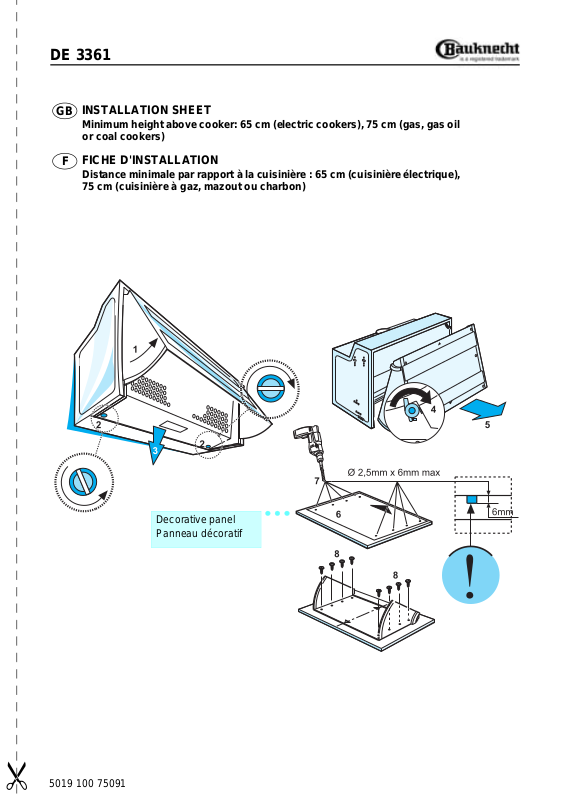

INSTALLATION SHEET
GB
Minimum height above cooker: 65 cm (electric cookers), 75 cm (gas, gas oil
or coal cookers)
FICHE D'INSTALLATION
F
Distance minimale par rapport à la cuisinière : 65 cm (cuisinière électrique),
75 cm (cuisinière à gaz, mazout ou charbon)
5019 100 75091
Decorative panel
Panneau décoratif
Page 2
DE 3361
15
!
16A
13
14
12
11
17
16F
N1
C B
10
N2
9
!
18
17
N2
!
5019 100 75091
22
21
19
20
21
22
4
23
26
25
25
26
24
Page 3
DE 3361
PRODUCT DESCRIPTION SHEET
CONTROL PANEL
4
b
a
2
b
3
c
1.
Control panel.
2.
Grease filters (behind the extractor grille).
3.
Lighting unit.
4.
Pull-out steam deflector.
1
Fig. 1
MAINTENANCE...
(refer also to “USER INSTRUCTIONS” manual).
1.
Unplug the appliance or switch off the mains
power supply.
2.
Pull out the steam deflector (
3.
Open the extractor grille (
a - Fig. 1
b, c - Fig. 1
).
).
... of the grease filter:
4.
Remove the grease filter fixing device
d - Fig. 3
(
5.
Remove the dirty grease filter. After replacing
or cleaning the grease filter (according to the
model) remount in reverse order, making
sure the entire extraction surface is covered.
).
... of the carbon filter (Fig. 4):
4. Mounting:
protection grille.
Line up the plastic reference tab (
on the carbon filter with the reference mark
on the fan shroud (
clockwise until it locks.
5. Removing/replacing:
anticlockwise.
fit the carbon filter over the motor
e - Fig. 4
f - Fig. 4
) and turn
turn the carbon filter
B
A
Fig. 2
A.
Speed selector.
B.
Light switch.
With the speed selected, opening the steam
deflector switches on the hood. Closing the
steam deflector switches off the hood.
Fig. 3
)
large amount of
steam and fumes
medium amount
of steam and fumes
small amount
of steam and fumes
d
... of the bulb:
4.
Remove the burnt-out bulb and fit a new one.
5.
Use 40W max E14 bulbs only.
On completion of maintenance operations,
remount the extractor grille!
5019 100 75091
f
e
Fig. 4
FGB
