Thank you for purchasing this machine. Before using this machine, carefully read the “IMPORTANT SAFETY
INSTRUCTIONS”, and then study this manual for the correct operation of the various functions.
In addition, after you have finished reading this manual, store it where it can quickly be accessed for future reference.
IMPORTANT SAFETY INSTRUCTIONS
Please read these safety instructions before attempting to use the machine.
DANGER - To reduce the risk of electrical shock
1Always unplug the machine from the electrical outlet immediately after using, when cleaning, making any user
servicing adjustments mentioned in this manual, or if you are leaving the machine unattended.
WARNING - To reduce the risk of burns, fire, electrical shock, or injury to
persons.
2Always unplug the machine from the electrical outlet when making any adjustments mentioned in the instruction
manual.
• To unplug the machine, switch the machine to the symbol “O” position to turn it off, then grasp the plug and pull
it out of the electrical outlet. Do not pull on the cord.
• Plug the machine directly into the electrical outlet. Do not use an extension cord.
• Always unplug your machine if there is a power failure.
3Electrical Hazards:
• This machine should be connected to an AC power source within the range indicated on the rating label. Do not
connect it to a DC power source or converter. If you are not sure what kind of power source you have, contact a
qualified electrician.
• This machine is approved for use in the country of purchase only.
4Never operate this machine if it has a damaged cord or plug, if it is not working properly, has been dropped or
damaged, or water is spilled on the unit. Return the machine to the nearest authorized Baby Lock retailer for
examination, repair, electrical or mechanical adjustment.
• While the machine is stored or in use if you notice anything unusual, such as an odor, heat, discoloration or
deformation, stop using the machine immediately and unplug the power cord.
• When transporting the machine, be sure to carry it by its handle. Lifting the machine by any other part may
damage the machine or result in the machine falling, which could cause injuries.
• When lifting the machine, be careful not to make any sudden or careless movements, which may cause a
personal injury.
i
IMPORTANT SAFETY INSTRUCTIONS
5Always keep your work area clear:
• Never operate the machine with any air openings blocked. Keep ventilation openings of the machine and foot
control free from the build up of lint, dust, and loose cloth.
• Do not store objects on the foot controller.
• Do not use extension cords. Plug the machine directly into the electrical outlet.
• Never drop or insert foreign objects in any opening.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• Do not use the machine near a heat source, such as a stove or iron; otherwise, the machine, power cord or
garment being sewn may ignite, resulting in fire or an electric shock.
• Do not place this machine on an unstable surface, such as an unsteady or slanted table, otherwise the machine
may fall, resulting in injuries.
6Special care is required when sewing:
• Always pay close attention to the needle. Do not use bent or damaged needles.
• Keep fingers away from all moving parts. Special care is required around the machine needle.
• Switch the machine to the symbol “O” position to turn it off when making any adjustments in the needle area.
• Do not use a damaged or incorrect needle plate, as it could cause the needle to break.
• Do not push or pull the fabric when sewing, and follow careful instruction when free motion stitching so that
you do not deflect the needle and cause it to break.
7This machine is not a toy:
• Your close attention is necessary when the machine is used by or near children.
• The plastic bag that this machine was supplied in should be kept out of the reach of children or disposed of.
Never allow children to play with the bag due to the danger of suffocation.
• Do not use outdoors.
8For a longer service life:
• When storing this machine, avoid direct sunlight and high humidity locations. Do not use or store the machine
near a space heater, iron, halogen lamp, or other hot objects.
• Use only neutral soaps or detergents to clean the case. Benzene, thinner, and scouring powders can damage the
case and machine, and should never be used.
• Always consult the Instruction and Reference Guide when replacing or installing any assemblies, the presser feet,
needle or other parts to assure correct installation.
9For repair or adjustment:
• If the light unit is damaged, it must be replaced by an authorized Baby Lock retailer.
• In the event a malfunction occurs or adjustment is required, first follow the troubleshooting table in the back of
the Instruction and Reference Guide to inspect and adjust the machine yourself. If the problem persists, please
consult your local authorized Baby Lock retailer.
Use this machine only for its intended use as described in the manual.
Use accessories recommended by the manufacturer as contained in this manual.
The contents of this manual and specifications of this product are subject to change without notice.
For additional product information and updates, visit our website at www.babylock.com
ii
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This machine is intended for household use.
FOR USERS IN COUNTRIES EXCEPT EUROPEAN COUNTRIES
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.
FOR USERS IN EUROPEAN COUNTRIES
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
FOR USERS IN THE UK, EIRE, MALTA
AND CYPRUS ONLY
IMPORTANT
• In the event of replacing the plug fuse, use a fuse approved by ASTA to BS 1362, i.e. carrying the mark,
rating as marked on plug.
• Always replace the fuse cover. Never use plugs with the fuse cover omitted.
• If the available electrical outlet is not suitable for the plug supplied with this equipment, you should contact your
authorized Baby Lock retailer to obtain the correct lead.
iii
TRADEMARKS
TRADEMARKS
IMPORTANT:
READ BEFORE DOWNLOADING, COPYING, INSTALLING OR USING.
By downloading, copying, installing or using the software you agree to this license. If you do not agree
to this license, do not download, install, copy or use the software.
Intel License Agreement For Open Source Computer Vision Library
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the
following conditions are met:
• Redistribution’s of source code must retain the above copyright notice, this list of conditions and the following
disclaimer.
• Redistribution’s in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
• The name of Intel Corporation may not be used to endorse or promote products derived from this software
without specific prior written permission.
This software is provided by the copyright holders and contributors “as is” and any express or implied warranties,
including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose are
disclaimed. In no event shall Intel or contributors be liable for any direct, indirect, incidental, special, exemplary,
or consequential damages (including, but not limited to, procurement of substitute goods or services; loss of use,
data, or profits; or business interruption) however caused and on any theory of liability, whether in contract, strict
liability, or tort (including negligence or otherwise) arising in any way out of the use of this software, even if
advised of the possibility of such damage.
All information provided related to future Intel products and plans is preliminary and subject to change at any time, without notice.
iv
WHAT YOU CAN DO WITH THIS MACHINE
WHAT YOU CAN DO WITH THIS MACHINE
B Basic operations
After purchasing your machine, be sure to read this section first. This section provides details on the initial setup
procedures as well as descriptions of this machine’s more useful functions.
Chapter 1 GETTING READY
To learn the operation of the principal parts and the screens
Chapter 2 STARTING TO SEW
To learn how to prepare for sewing and basic sewing operations
Chapter 3 STARTING TO EMBROIDER
To learn how to prepare for embroidering and basic embroidering operations
Page B-2
Page B-35
Page B-52
SSewing
This section describes procedures for using the various utility stitches as well as other functions. It provides details on
basic machine sewing in addition to the more expressive features of the machine, such as sewing tubular pieces and
buttonholes.
Chapter 1 SEWING ATTRACTIVE FINISHES
Tips for sewing attractive finishes and various fabrics
Chapter 2 UTILITY STITCHES
Sew pre-programmed frequently used stitches
Page S-2
Page S-6
D Decorative sewing
This section provides instructions on sewing character stitches and decorative stitches as well as on adjusting and editing
them.
Chapter 1 CHARACTER / DECORATIVE STITCHES
The variety of stitches widen your creativity
Page D-2
E Embroidering
This section provides instruction on editing embroidery patterns and recalling stored embroidery patterns.
Chapter 1 EMBROIDERY
Embroider artistically; by editing the built-in patterns you can easily create your own original designs.
Page E-2
A Appendix
This section provides important information for operating this machine.
Chapter 1 MAINTENANCE AND TROUBLESHOOTING
The various maintenance and troubleshooting procedures are described.
Page A-2
v
CONTENTS
CONTENTS
INTRODUCTION .................................................. i
IMPORTANT SAFETY INSTRUCTIONS ................. i
TRADEMARKS ..................................................... iv
WHAT YOU CAN DO WITH THIS MACHINE ..... v
BBasic operations
Chapter 1 GETTING READY2
Names of Machine Parts and Their Functions....... 2
Chapter2 STARTING TO SEW................................................. B-35
Chapter3 STARTING TO EMBROIDER................................. B-52
Names of Machine Parts and Their Functions
a
b
c
d
e
f
g
h
i
j
k
l
m
n
a
b
c
d
e
f
g
h
i
j
Chapter 1
GETTING READY
Names of Machine Parts and Their Functions
The names of the various parts of the machine and their functions are described below. Before using the machine,
carefully read these descriptions to learn the names of the machine and their locations.
Machine
■ Front view
B Flat bed attachment
Insert the presser foot accessory tray into the accessory
compartment of the flat bed attachment. Remove the flat bed
attachment when sewing cylindrical pieces such as sleeve
cuffs.
C Thread cutter
Pass the threads through the thread cutter to cut them.
D Needle threader lever
Use the needle threader lever to thread the needle.
■ Right-side/rear view
1 Top cover
Open the top cover to place the spool of thread on the spool
pin.
2 Thread guide plate
Pass the thread around the thread guide plate when threading
the upper thread.
3 Bobbin winding thread guide and pretension disk
Pass the thread under this thread guide and around the
pretension disk when winding the bobbin thread.
4 Spool cap
Use the spool cap to hold the spool of thread in place.
5 Spool pin
Place a spool of thread on the spool pin.
6 Bobbin winder
Use the bobbin winder when winding the bobbin.
7 LCD (liquid crystal display)
Settings for the selected stitch and error messages appear in
the LCD. (page B-11)
8 Operation panel
From the operation panel, stitch settings can be selected and
edited, and operations for using the machine can be selected
(page B-5).
9 Knee lifter mounting slot
Insert the knee lifter into the knee lifter mounting slot.
0 Knee lifter
Use the knee lifter to raise and lower the presser foot. (page B-
46)
A Operation buttons and sewing speed controller
Use these buttons and the slide to operate the machine.
(page B-4)
B-2
1 Handwheel
Turn the handwheel toward you (counterclockwise) to raise and
lower the needle to sew one stitch.
2 Handle
Carry the machine by its handle when transporting.
3 Presser foot lever
Raise and lower the presser foot lever to raise and lower the
presser foot.
4 Feed dog position switch
Use the feed dog position switch to lower the feed dogs.
5 Main power switch
Use the main power switch to turn the machine on and off.
6 Power supply jack
Insert the plug on the power cord into the power supply jack.
7 Foot controller
Depress the foot controller to control the speed of the machine.
(page B-37)
8 Air vent
The air vent allows the air surrounding the motor to circulate.
Do not cover the air vent while the machine is being used.
Names of Machine Parts and Their Functions
i
b
a
c
d
e
f
g
h
a
b
c
d
e
f
9 Foot controller jack
Insert the plug on the end of the foot controller cable into the
foot controller jack.
0 USB port (for a USB flash drive)
In order to import patterns from a USB flash drive, insert the
USB flash drive directly into the USB port.
Needle and presser foot section
1 Needle bar thread guide
Pass the upper thread through the needle bar thread guide.
2 Needle plate
The needle plate is marked with guides for sewing straight
seams.
3 Needle plate cover
Remove the needle plate cover to clean the bobbin case and
race.
4 Bobbin cover/bobbin case
Remove the bobbin cover and then insert the bobbin into the
bobbin case.
5 Feed dogs
The feed dogs feed the fabric in the sewing direction.
6 Presser foot
The presser foot applies pressure consistently on the fabric as
the sewing takes place. Attach the appropriate presser foot for
the selected stitch.
7 Presser foot holder
The presser foot is attached onto the presser foot holder.
8 Presser foot holder screw
Use the presser foot holder screw to hold the presser foot in
place. (page B-34, B-53)
9 Buttonhole lever
Lower the buttonhole lever when sewing buttonholes and bar
tacks or when darning.

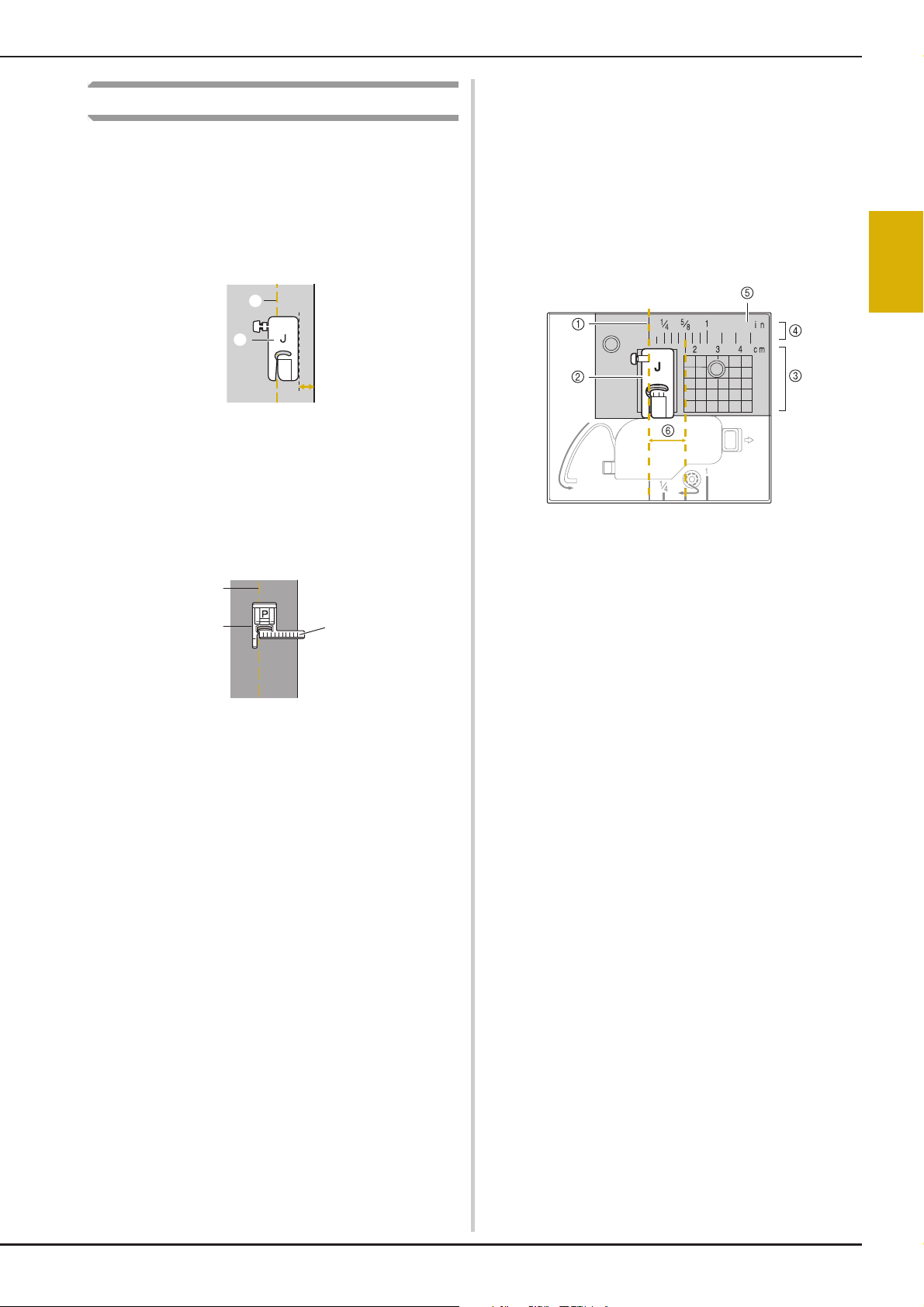

Measurements on the needle plate, bobbin cover (with
markings) and needle plate cover
The measurements on the bobbin cover are references for
patterns with a middle (center) needle position. The
measurements on the needle plate and the needle plate cover
are references for stitches with a left needle position.
1 For stitches with a middle (center) needle position
2 For stitches with a left needle position
3 Middle (center) needle position <inch>
4 Middle (center) needle position <cm>
5 Middle (center) needle position on the bobbin cover
(with markings) <inch>
6 Left needle position on the needle plate cover <inch>
B
GETTING READY
Basic operations B-3
Names of Machine Parts and Their Functions
CAUTION
a
b
d
e
c
CAUTION
Embroidery Unit
1 Embroidery frame holder
Insert the embroidery frame into the embroidery frame holder
to hold the frame in place. (page B-61)
2 Frame-securing lever
Press the frame-securing lever down to secure the embroidery
frame. (page B-61)
3 Embroidery unit connection
Insert the embroidery unit connection into the connection port
when attaching the embroidery unit. (page B-54)
4 Carriage
The carriage moves the embroidery frame automatically when
embroidering. (page B-54)
5 Release button (located under the embroidery unit)
Press the release button to remove the embroidery unit.
(page B-55)
• Before inserting or removing the embroidery
unit, turn the main power to OFF.
• After the embroidery frame is set in the frame
holder, be sure the frame-securing lever is
correctly lowered.
Operation buttons
bc d e f
a
1 “Start/Stop” button
Press the “Start/Stop” button to start or stop sewing. The
machine stitches at a slow speed at the beginning of sewing
while the button is pressed. When sewing is stopped, the
needle is lowered in the fabric. For details, refer to “STARTING
TO SEW” on page B-35.
The button changes color according to the machine’s
operation mode.
Green:The machine is ready to sew or is sewing.
Red:The machine can not sew.
Orange:The machine is winding the bobbin thread, or
2 Reverse stitch button
For straight, zigzag, and elastic zigzag stitch patterns that use
reverse stitches, the machine will sew reverse stitches at low
speed only while holding down the Reverse stitch button. The
stitches are sewn in the opposite position.
For other stitches, use this button to sew reinforcement
stitches at the beginning and end of sewing. Press and hold
this button, and the machine sews 3 stitches in the same spot
and stops automatically. (page B-39)
3 Reinforcement stitch button
Use this button to sew a single stitch repeatedly and tie-off.
For character/decorative stitches, press this button to end with
a full stitch instead of at a mid-point. The LED light beside this
button lights up while the machine is sewing a full motif, and
automatically turns off when the sewing is stopped. (page B-
38)
4 Needle position button
Press the needle position button to raise or lower the needle.
Pressing the button twice sews one stitch.
5 Thread cutter button
Press the thread cutter button after sewing is stopped to cut
both the upper and the bobbin threads. For details, refer to
step
l under the “Sewing a stitch” section on page B-36.
6 Presser foot lifter button
Press this button to lower the presser foot and apply pressure
to the fabric. Press this button again to raise the presser foot.
7 Sewing speed controller
Slide the sewing speed controller to adjust the sewing speed.
the bobbin winder shaft is moved to the right
side.
g
B-4
• Do not press (Thread cutter button) after
the threads have already been cut, otherwise
the needle may break, the threads may
become tangled or damage to the machine
may occur.
Names of Machine Parts and Their Functions
Note
Operation panel and operation keys
i
h
g
f
1 LCD (liquid crystal display) (touch panel)
Selected pattern settings and messages are displayed.
Touch the keys displayed on the LCD to perform operations.
For details, refer to “LCD Operation” on page B-11.
2 Previous page key
Displays the previous screen when there are items that are not
displayed on the LCD.
3 Next page key
Displays the next screen when there are items that are not
displayed on the LCD.
4 Help key
Press to get help on using the machine.
5 Settings key
Press to set the needle stop position, the buzzer sound, and
more.
6 Embroidery key
Press this key to sew embroidery.
7 Utility stitch key
Press this key to select a utility stitch or decorative stitch.
8 Back key
Press to return to the previous screen.
9 Presser foot/Needle exchange key
Press this key before changing the needle, the presser foot,
etc. This key locks all key and button functions to prevent
operation of the machine.
e
a
b
c
d
Using the flat bed attachment
Pull the top of the flat bed attachment to open the accessory
compartments.
B
GETTING READY
A presser foot accessory tray is stored in the accessory
compartment of the flat bed attachment.
1
3
1
2
1 Storage space of the flat bed attachment
2 Presser foot accessory tray
3 Embroidery foot “U”
• The operation keys of this machine are
capacitive touch sensors. Operate the keys by
directly touching them with your finger.
The response of the keys varies according to the
user. The pressure exerted on the keys does not
affect the response of the keys.
• Since the operation keys react differently
depending on the user, adjust the setting for
“Adjusting input sensitivity for operation keys” on
page B-16.
• When using an electrostatic touch pen, make
sure that its point is 8 mm or more. Do not use a
touch pen with a thin point or a unique shape.
Basic operations B-5
Names of Machine Parts and Their Functions
J
G
I
R
A
U
Included accessories
After opening the carton, check that the following accessories are included. Part code for each item is listed under the part name.
1.2.3.4.5.6.
N
Zigzag foot “J” (on machine)
XF9671-001
7.8.9.10.11.12.
Monogramming foot “N”
XD0810-031
Overcasting foot “G”
XC3098-031
Zipper foot “I”
X59370-021
Blind stitch foot “R”
XE2650-001
Button fitting foot “M”
XE2643-001
O
Buttonhole foot “A”
XC2691-023
13.14.15.16.17.18.
Adjustable zipper/piping foot
FA9
19.20.21.22.23.24.
Cleaning brush
X59476-051
25.26.27.28.29.30.
Embroidery foot “U”
XD0313-051
Needle set
X58358-021
Eyelet punch
XZ5051-001
Open toe foot
FA7
Twin needle
2.0/11 needle
X59296-121
Screwdriver (large)
XC4237-021
Free motion open toe quilting
foot “O”
BLSR-FMO
Bobbin (4)
(One is one machine.)
X52800-120
Screwdriver (small)
X55468-051
Non stick foot
FA8
Seam rippe r
XF4967-001
L-shaped screwdriver
XG0918-001
Stitch guide foot “P”
FA6
Scissors
XC1807-121
Disc-shaped screwdriver
XC1074-051
M
P
Horizontal spool pin
XC4654-151
Spool cap (large)
130012-024
Spool cap (medium) (2)
(One is on machine)
XE1372-001
Spool cap (small)
130013-124
Thread spool insert
(mini king thread spool)
XA5752-121
31.32.33.*34.35.*
Knee lifter
XA6941-052
Standard bobb in case (gree n
marking on the screw)
(on machine)
XG2058-001
Alternate bobbin case
(no color on the screw)
XG2062-001
Foot controller
XZ5100-001
Embroider y frame set ( extra large)
26 cm (H) × 16 cm (W) (10-1/4 inches (H) × 6-1/4 inches (W))
EF81/EF86
36.*37.*38.39.40.
Embroidery frame set (large)
18 cm (H) × 13 cm (W) (7 inches (H) × 5 inches (W))
EF75/EF79
Embroidery bobbin thread
(60 weight, white)
BBT-W
Accessory bag
XC4487-021
Hard case
XF8687-001
41.42.43.44.45.46.
Bobbin cover (with markings)
(on machine)
XF0750-101
These accessories are included in the same box as the embroidery unit.
*
Bobbin cover
XE8992-101
Power c ord
XC6052-021
Instruction and Reference
Guide
XF9681-001
Quick Reference Guide
XF9682-001
Spool net
XA5523-020
Bobbin center pin and
instruction sheet
XF5048-001
Embroidery Design Guide
XG0538-001
B-6
Names of Machine Parts and Their Functions
Note
Memo
• (For U.S.A. only) Foot controller: Model T
This foot controller can be used on the machine model:BLMAV.
• The presser foot holder screw is available through your authorized Baby Lock retailer. (Part code: XG1343-001)
• The presser foot accessory tray is available, through your authorized Baby Lock retailer. (Part code: XF8650-001)
Optional accessories
The following are available as optional accessories to be purchased separately. Part code for each item is listed under the part
name.
1.2.3.4.5.6.
B
GETTING READY
Free motion echo quilting foot
“E”
BLSR-FME
Free motion quilting foot “C”
BLSO-FMC
Quilting foot
FA2
Walking foot
BLG-WF
1/4" quilting foot
FA1
1/4" quilting foot with guide
ESG-QFG
7.8.9.10.
Quilting guide
BLG-QG
Side cutter “S”
BLG-SCF
Embroidery frame set (medium)
10 cm (H) × 10 cm (W) (4 inches (H) × 4 inches (W))
EF74/EF78
Embroidery frame set (small)
2 cm (H) × 6 cm (W) (1 inch (H) × 2-1/2 inches (W))
EF73/EF77
11.12.13.14.
Border embroidery frame set
18 cm (H) × 10 cm (W) (7 inches (H) × 4 inches (W))
BLSO-BF
Quilt embroidery frame set
15 cm (H) × 15 cm (W) (6 inches (H) x 6 inches (W))
BLMA-150
Embroidery b obbin thread
(60 weight)
BBT-W (white)
BBT-B (black)
Straight stitch foot and needle
plate set
BLMAC-SS
15.16.17.18.19.
Extension table
BLMAC-ET
• To obtain optional accessories or parts, contact your authorized Baby Lock retailer.
• All specifications are correct at the time of printing. Please be aware that some specifications may change without
• Visit your nearest authorized Baby Lock retailer for a complete listing of optional accessories available for your
• Always use accessories recommended for this machine.
notice.
machine.
Spool stand
BLMAC-STS
Narrow hemmer foot
ESG-HF
Cording foot (3 cord guide)
BLG-CF3
Edge joining foot
ESG-EJF
Basic operations B-7
Names of Machine Parts and Their Functions
Using the utility stitch tables in the “Sewing”
section
The utility stitch numbers differ depending on the model of
your machine. Refer to the column titled “BLMAV” for your
machine.
Stitch nameStitch
Basting stitch1-080807
Straight stitch (Left)
Straight stitch (Middle)1-03
Triple stretch stitch1-05
BLMAV
Stitch number
1-01
1-02
BLMAV: Aventura
BLMSP: Soprano
BLMLR: Lyric
BL210A: Katherine
BLMSP/BLMLR
*01*
01
02
*02*
03
*03*
05
*05*
BL210A
Presser foot
J
B-8
Turning the Machine On/Off
WARNING
CAUTION
Turning the Machine On/Off
• Use only regular household electricity for the power source. Using other power sources may result in fire,
electric shock, or damage to the machine.
• Make sure that the plugs on the power cord are firmly inserted into the electrical outlet and the power
cord receptacle on the machine. Otherwise, a fire or electric shock may result.
• Do not insert the plug on the power cord into an electrical outlet that is in poor condition.
• Turn the main power to OFF and remove the plug in the following circumstances:
When you are away from the machine
After using the machine
When the power fails during use
When the machine does not operate correctly due to a bad connection or a disconnection
During electrical storms
• Use only the power cord included with this machine.
• Do not use extension cords or multi-plug adapters with any other appliances plugged into them. Fire or
electric shock may result.
• Do not touch the plug with wet hands. Electric shock may result.
• When unplugging the machine, always turn the main power to OFF first. Always grasp the plug to remove
it from the electrical outlet. Pulling on the cord may damage the cord, or lead to fire or electric shock.
• Do not allow the power cord to be cut, damaged, modified, forcefully bent, pulled, twisted, or bundled.
Do not place heavy objects on the cord. Do not subject the cord to heat. These things may damage the
cord, or cause fire or electric shock. If the cord or plug is damaged, take the machine to your authorized
Baby Lock retailer for repairs before continuing use.
• Unplug the power cord if the machine is not to be used for a long period of time. Otherwise, a fire may
result.
• When leaving the machine unattended, either the main switch of the machine should be turned to OFF or
the plug must be removed from the electrical outlet.
• When servicing the machine or when removing covers, the machine must be unplugged.
• For USA only
This appliance has a polarized plug (one blade wider than the other). To reduce the risk of electrical
shock, this plug is intended to fit in a polarized electrical outlet only one way.
If the plug does not fit fully in the electrical outlet, reverse the plug. If it still does not fit, contact a
qualified electrician to install the proper electrical outlet. Do not modify the plug in any way.
B
GETTING READY
Basic operations B-9
Turning the Machine On/Off
Memo
1
2
Turning on the machine
Make sure that the machine is turned off (the main
a
power switch is set to “”), and then plug the power
cord into the power supply jack on the right side of the
machine.
Insert the plug of the power cord into a household
b
electrical outlet.
1 Power supply jack
2 Main power switch
Press the right side of the main power switch on the
c
right side of the machine to turn the machine on (set it
to “I”).
Turning off the machine
When you are finished using the machine, turn it off. In
addition, before transporting the machine to another location,
be sure to turn it off.
Make sure that the machine is not sewing.
a
Press the main power switch on the right side of the
b
machine in the direction of the “” symbol to turn
the machine off.
Select machine setting for the first time
When you first turn on the machine, select the language of
your choice. Follow the procedure below when the settings
screen appears automatically.
Press and to select your choice of language.
a
→ The light, LCD and the “Start/Stop” button light up
when the machine is turned on.
• When the machine is turned on, the needle and
the feed dogs will make a sound when they move;
this is not a malfunction.
• If the machine is turned off in the middle of sewing
in the “Sewing” function, the operation will not be
resume after turning the power on again.
When the machine is turned on, the opening movie is
d
played. Press anywhere on the screen.
b
Press .
B-10
LCD Operation
1
2
LCD Operation
Viewing the LCD
An opening movie may be displayed when the power is turned on. When the opening movie is displayed, the screen will be
displayed if you touch the LCD with your finger. Press a key with your finger to select the stitch pattern, to select a machine
function, or to select an operation indicated on the key.
The screen below appears when you press on the operation panel.
This section contains a description of the utility stitch screen, which appears when any of the keys indicated by 1 is pressed.
Pressing any of the keys indicated by 2 displays the character/decorative stitch screen. For details, refer to the “Decorative
sewing” section.
1–StitchesPress the key for the pattern you want to sew.B-35
2Pattern display sizeShow the approximate size of the pattern selected.
100%: Nearly the same size as the sewn pattern
50%: 1/2 the size of the sewn pattern
25%: 1/4 the size of the sewn pattern
The actual size of the sewn pattern may differ depending on the type of fabric and
thread that is used.
3–Stitch previewShows a preview of the selected stitch. Approximate size of the pattern selected
shows at the bottom of the stitch preview. When shown at 100%, the stitch appears
in the screen at nearly its actual size.
4Presser footShows presser foot to be used.B-33
5Needle position settingShows single or twin needle mode setting, and the needle stop position.
: Single needle/down position
: Single needle/up position
: Twin needle/down position
: Twin needle/up position
6Stitch widthShows the stitch width of the currently selected stitch pattern. B-40
B-35
B-13
–
7Stitch lengthShows the stitch length of the currently selected stitch pattern.B-40
8L/R ShiftShows the tendency of left/right of the center line for the original zigzag stitch.B-41
9Thread tensionShows the automatic thread tension setting for the currently selected stitch pattern.B-41
0Manual adjustment keyPress this key to display the following manual adjustment screen.
You can adjust the value of each item by pressing /.
1 Press to save stitch settings to machine memory (Width/Length/L/R Shift/
Tension).
2 Press to return the stitch settings to default.
APage display Shows additional pages that can be displayed.–
BEdit/stitch switching keyPress this key to switch to the utility stitch editing screen.–
CImage keyShows a preview of the sewn image.–
DAutomatic thread cutting
key
EAutomatic reverse/
FPivot keyPress this key to select the pivot function.B-44
GSingle/repeat sewing keyPress this key to choose single pattern or continuous patterns. Depending on the
B-12
reinforcement key
Press this key to set the automatic thread cutting function. B-43
Press this key to use the automatic reverse/reinforcement stitch function.B-38
selected stitch, this key may be disabled.
B-42
–
LCD Operation
1
2
3
4
5
6
7
8
9
0
No. DisplayKey NameExplanationPage
HBack to beginning keyWhen sewing is stopped, press this key to return to the beginning of the pattern. For
details, refer to “Returning to the beginning of the pattern” in the “Decorative sewing”
section.
IMirror image keyAfter selecting the stitch pattern, use this key to create a horizontal mirror image of
the stitch pattern.
JFree motion mode keyPress this key to enter free motion sewing mode.B-45
–
B-43
Using the settings key
Press to change the default machine settings (needle stop position, embroidery speed, opening display, etc.). Press or
, after you changed necessary settings.
■ Sewing settings
Page 1Page 2Page 3
B
GETTING READY
1 Select whether to use the sewing speed controller to determine the zigzag width. For details, refer to “Satin stitching using the
sewing speed controller” in the “Sewing” section.
2 Make adjustments to character or decorative stitch patterns. For details, refer to “Making adjustments” in the “Decorative
sewing” section.
3 Set to “ON” when using twin needle. (page B-28)
4 Adjust the presser foot height. (Select the height of the presser foot when the presser foot is raised.)
5 Adjust the presser foot pressure. (The higher the number, the greater the pressure will be. Set the pressure at “3” for normal
sewing.) (page B-43)
6 Select either “1-01 Straight stitch (Left)” or “1-03 Straight stitch (Middle)” as the utility stitch that is automatically selected when
the machine is turned on.
7 Change the height of the presser foot when sewing is stopped when the pivot key is selected. Adjust the presser foot to one of
the three heights (3.2 mm, 5.0 mm and 7.5 mm). (page B-44)
8 Change the height of the presser foot when the machine is set to free motion sewing mode (page B-45).
9 When set to “ON”, the thickness of the fabric is automatically detected by an internal sensor while sewing. This enables the fabric
to be fed smoothly (page B-44).
0 When set “ON”, reinforcement stitches are sewn at the beginning and/or end of sewing for a reinforcement stitch pattern, even
when the reverse button is pressed.
Basic operations B-13
LCD Operation
B
A
C
D
E
F
G
I
H
J
K
■ Embroidery settings
Page 4Page 5Page 6
A Select the embroidery frame to be used and displayed as a guide. For details, refer to “Changing the “Embroidery Frame
Display”” in the “Embroidering” section.
B When set to “ON”, the embroidery pattern can be selected according to the embroidery frame size that you have selected in
number
A. For details, refer to “Selecting/displaying patterns according to the embroidery frame size” in the “Embroidering”
section.
C Change the thread color display on the “Embroidery” screen; thread number, color name. (page B-65).
D When the thread number “#123” is selected, select from six thread brands. (page B-65).
E Adjust the maximum embroidery speed setting. For details, refer to “Adjusting the embroidery speed” in the “Embroidering”
section.
F Adjust the upper thread tension for embroidering. For details, refer to “Adjusting thread tension” in the “Embroidering” section.
G Select the height of the embroidery foot during embroidering. (page B-57).
H Change the color of the background for the embroidery display area. For details, refer to “Changing the background colors of the
embroidery patterns” in the “Embroidering” section.
I Change the color of the background for the thumbnail area. For details, refer to “Changing the background colors of the
embroidery patterns” in the “Embroidering” section.
Page 7
J Press to specify the size of pattern thumbnails. For details, refer to “Specifying the size of pattern thumbnails” in the
“Embroidering” section.
K Change the display units (mm/inch).
B-14
LCD Operation
Memo
L
M
N
O
P
Q
R
T
S
■ General settings
Page 8Page 9Page 10
L Select the needle stop position (the needle position for when the machine is not being operated) to be up or down. Select the
down position when using the pivot key. (page B-44)
M Select whether to hear the beep operation sound. For details, refer to “Operation beep” in the “Appendix” section.
N Select whether to display the opening screen when the machine is turned on.
O Select the display language. (page B-16)
P Select whether to turn on the light for the needle area and work area.
Q Select the level of the input sensitivity for operation keys. (page B-16)
R Display the total number of stitches sewn on this machine, which is a reminder to take your machine in for regular servicing.
(Contact your authorized Baby Lock retailer for details.)
S The “No.” is the internal machine number for your machine.
T Display the program version of the LCD panel.
B
GETTING READY
• The latest version of software is installed in your machine. Check with your local authorized Baby Lock retailer or at
“ www.babylock.com
flash drive” in the “Appendix” section.
• Press to save the current settings screen image to USB flash drive. (page B-17)
” for available updates. For details, refer to “Upgrading your machine’s software using USB
Basic operations B-15
LCD Operation
1
1
Note
■ Choosing the display language
Press .
a
Display page 8.
b
Use and to choose the display language.
c
1 Display language
Press to return to the original screen.
d
Adjusting input sensitivity for operation keys
Adjust the “Input Sensitivity” by pressing /.
d
• The higher the setting, the more sensitive the keys
will be. The default setting is “3”.
• We recommend selecting the highest setting if
an electrostatic touch pen is being used.
You can adjust the sensitivity of the operation keys to five
levels. Display the settings screen to set desired level.
1 Operation keys
Press to display the settings screen.
a
Display page 9 by pressing /.
b
Press “Start”.
c
Press to return to previous screen.
e
■ If the machine does not respond when an
operation key is pressed
Hold down (Thread cutter button) and turn on the
machine to reset the settings. Display the settings screen,
and then adjust the settings again.
B-16
→ The adjusting screen is displayed.
Saving a settings screen image to USB flash
4321
5678
drive
An image of the settings screen can be saved as a BMP file.
Insert the USB flash drive into the USB port on the
a
right side of the machine.
1 USB port
2 USB flash drive
Press .
b
→ The settings screen appears. Select the settings screen
page, make the changes that you want, and then save
the screen image.
→ The first screen describing the procedure for the
selected topic appears.
• Pressing , returns you to the item selection
screen.
B
GETTING READY
Press .
c
→ The image file will be saved to the USB flash drive.
Remove the USB flash drive, and then for future
d
reference, check the saved image using a computer.
• The files for settings screen images are saved with the
name “S######.bmp” in a folder labeled “bPocket”.
Checking machine operating procedures
Turn on the machine.
a
→ The LCD comes on.
Press anywhere on the LCD screen.
b
Press on the operation panel.
c
Press to switch to the next page.
e
If you press , you return to the previous page.
After you have finished viewing, press two times.
f
→ The machine help screen appears.
Basic operations B-17
Winding/Installing the Bobbin
CAUTION
Memo
Memo
2
1
Winding/Installing the Bobbin
• Only use the Bobbin (part code: X52800-120)
designed specifically for this machine. Use of
any other bobbin may result in injuries or
damage to the machine.
• The included bobbin was designed specifically
for this machine.
If bobbins from other models are used, the
machine will not operate correctly. Use only
the included bobbin or bobbins of the same
type (X52800-120).
X52800-120 is Class15 type bobbin.
Open the top cover.
a
Place the bobbin on the bobbin winder shaft so that the
b
spring on the shaft fits into the notch in the bobbin
Press down on the bobbin until it snaps into place.
.
* Actual size
1 This model
2 Other models
3 11.5 mm (approx. 7/16 inch)
• When the foot controller is connected, bobbin
winding can be started and stopped with the foot
controller.
Winding the bobbin
This section describes how to wind thread onto a bobbin.
1 Notch
2 Bobbin winder shaft spring
Slide the bobbin winder in the direction of the arrow
c
until it snaps into place.
• The “Start/Stop” button lights up in orange.
Remove the spool cap that is inserted onto the spool
d
pin.
1
2
1 Spool pin
2 Spool cap
• When winding bobbin for embroidery be sure to
use the recommended bobbin thread for this
machine.
B-18
Place the spool of thread for the bobbin onto the spool
CAUTION
Memo
e
pin.
Slide the spool onto the pin so that the spool is
horizontal and the thread unwinds to the front at the
bottom.
Winding/Installing the Bobbin
• When sewing with fine, cross-wound thread, use
the small spool cap, and leave a small space
between the cap and the spool.
B
• If the spool is not positioned so that the thread
unwinds correctly, the thread may become tangled
around the spool pin.
Slide the spool cap onto the spool pin.
f
Slide the spool cap as far as possible to the right, as
shown, with the rounded side on the left.
• If the spool or the spool cap is not installed
correctly, the thread may become tangled
around the spool pin, causing the needle to
break.
• Three spool cap sizes are available, allowing
you to choose a spool cap that best fits the size
of spool being used. If the spool cap is too
small for the spool being used, the thread may
catch on the slit in the spool or the machine
may be damaged.
c
a
1 Spool cap (small)
2 Spool (cross-wound thread)
3 Space
• When using thread that winds off quickly, such as
transparent nylon thread or metallic thread, place
the spool net over the spool before placing the
spool of thread onto the spool pin.
If the spool net is too long, fold it to fit the size of
the spool.
1
3
1 Spool net
2 Spool
3 Spool cap
4 Spool pin
• If a spool of thread whose core is 12 mm (1/2
inch) in diameter and 75 mm (3 inches) high is
inserted onto the spool pin, use the thread spool
insert (mini king thread spool).
b
2
4
GETTING READY
1 Thread spool insert (mini king thread spool)
2 12 mm (1/2 inch)
3 75 mm (3 inches)
Basic operations B-19
Winding/Installing the Bobbin
Note
1
1
1
2
3
Note
CAUTION
Note
While holding the thread near the spool with your right
g
hand, as shown, pull the thread with your left hand,
and then pass the thread behind the thread guide cover
and to the front.
1 Thread guide cover
Pass the thread under the thread guide plate, and then
h
pull it to the right.
While holding the thread with your left hand, wind the
j
thread that was pulled out clockwise around the
bobbin five or six times with your right hand.
• Make sure that the thread between the spool and
the bobbin is pulled tight.
• Be sure to wind the thread clockwise around the
bobbin, otherwise the thread will become
wrapped around the bobbin winder shaft.
Pass the end of the thread through the guide slit in the
k
bobbin winder seat, and then pull the thread to the
right to cut it.
1 Thread guide plate
Pass the thread under the hook on the thread guide,
i
and then wind it counterclockwise under the
pretension disk.
1 Thread guide
2 Pretension disk
3 Pull it in as far as possible
• Make sure that the thread passes under the
pretension disk.
1
1 Guide slit in bobbin winder seat
(with built-in cutter)
• Be sure to cut the thread as described. If the
bobbin is wound without cutting the thread
using the cutter built into the slit in the bobbin
winder seat, the thread may become tangled in
the bobbin or the needle may bend or break
when the bobbin thread starts to run out.
Slide the sewing speed controller to the right.
l
1
1 Speed controller
• Bobbin winding speeds may vary depending on
type of thread being wound on bobbin.
Turn on the machine.
m
B-20
Press the “Start/Stop” button once to start winding the
CAUTION
Memo
Memo
1
Memo
CAUTION
2
1
n
bobbin.
When the foot controller is plugged in, press down on
the foot controller.
1 “Start/Stop” button
When the bobbin winding becomes slow, press the
o
“Start/Stop” button once to stop the machine.
When the foot controller is plugged in, remove your
foot from the foot controller.
Winding/Installing the Bobbin
Installing the bobbin
Install the bobbin wound with thread.
You can begin sewing immediately without pulling up the
bobbin thread by simply inserting the bobbin in the bobbin
case and guiding the thread through the slit in the needle
plate cover.
• For details on sewing after pulling up the bobbin
thread, for example, when making gathers or with
free motion quilting, refer to “Pulling up the
bobbin thread” on page B-27.
• Use a bobbin that has been correctly wound
with thread, otherwise the needle may break
or the thread tension will be incorrect.
B
GETTING READY
• When the bobbin winding becomes slow, stop
the machine, otherwise the machine may be
damaged.
Use scissors to cut the end of the thread wound around
p
the bobbin.
Slide the bobbin winder shaft to the left, and then
q
remove the bobbin from the shaft.
• If the bobbin winder shaft is set to the right side,
the needle will not move. (Sewing is impossible.)
• Before inserting or changing the bobbin, be
sure to press on the operation panel to
lock all keys and buttons, otherwise injuries
may occur if the “Start/Stop” button or any
other button is pressed and the machine starts.
Press (Needle position button) once or twice to
a
raise the needle.
Press .
b
• When the message “OK to automatically lower the
presser foot? ” appears on the LCD screen, press
to continue.
→ The screen changes, and all keys and operation
buttons are locked (except ).
Slide the sewing speed controller to desired sewing
r
speed position.
Remove the spool for the bobbin thread from the spool
s
pin.
• When the machine is started or the handwheel is
turned after winding the bobbin, the machine will
make a clicking sound; this is not a malfunction.
Raise the presser foot lever.
c
Slide the bobbin cover latch to the right.
d
1 Bobbin cover
2 Latch
Basic operations B-21
Winding/Installing the Bobbin
CAUTION
Memo
Note
1
Remove the bobbin cover.
e
Hold the bobbin with your right hand with the thread
f
unwinding to the left, and hold the end of the thread
with your left hand. Then, with your right hand, place
the bobbin in the bobbin case.
Lightly hold down the bobbin with your right hand
g
(1), and then guide the end of the thread around the
tab of the needle plate cover with your left hand (2).
While lightly holding down the bobbin with your right
h
hand (1), guide the thread through the slit in the
needle plate cover (2) and lightly pull it with your left
hand (3).
• The thread enters the tension spring of the bobbin
case.
While lightly holding down the bobbin with your right
i
hand (1), continue guiding the thread through the slit
with your left hand (2) Then, cut the thread with the
cutter (3).
1 Tab
• Be sure to hold down the bobbin with your
finger and unwind the bobbin thread
correctly, otherwise the thread may break or
the thread tension will be incorrect.
• The order that the bobbin thread should be
passed through the bobbin case is indicated by
marks around the bobbin case. Be sure to thread
the machine as indicated.
• If the thread is not correctly inserted through the
tension-adjusting spring of the bobbin case, it
may cause incorrect thread tension.
1 Tension-adjusting spring
B-22
Reattach the bobbin cover.
Memo
1
2
j
Insert the tab in the lower-left corner of the bobbin
cover, and then lightly press down on the right side.
→ The bobbin threading is finished.
Next, thread the upper thread. Continue with the
procedure in “Upper Threading” on page B-24.
• You can begin sewing without pulling up the
bobbin thread. If you wish to pull up the bobbin
thread before starting to sew, pull up the thread
according to the procedure in “Pulling up the
bobbin thread” on page B-27.
Press to unlock all keys and buttons.
k
Winding/Installing the Bobbin
B
GETTING READY
Basic operations B-23
Upper Threading
CAUTION
Note
1
1
Upper Threading
• Three spool cap sizes are available, allowing
you to choose a spool cap that best fits the size
of spool being used. If the spool cap is too
small for the spool being used, the thread may
catch on the slit in the spool or the needle may
break. For more information regarding the
choice of spool caps for your thread choice,
see page B-19.
• When threading the upper thread, carefully
follow the instructions. If the upper threading
is not correct, the thread may become tangled
or the needle may bend or break.
• Never use a thread weight of 20 or lower.
• Use the needle and the thread in the correct
combination. For details on the correct
combination of needles and threads, refer to
“Fabric/thread/needle combinations” on
page B-30.
Raise the presser foot lever to raise the presser foot.
b
1
1 Presser foot lever
→ The upper thread shutter opens so the machine can
be threaded.
• If the presser foot is not raised, the machine
cannot be threaded.
Press (Needle position button) once or twice to
c
raise the needle.
Threading the upper thread
Turn on the machine.
a
1 Needle position button
→ The needle is correctly raised when the mark on the
handwheel is at the top, as shown below. Check the
handwheel and, if this mark is not at this position, press
(Needle position button) until it is.
1 Mark on handwheel
Remove the spool cap that is inserted onto the spool
d
pin.
1
2
1 Spool pin
2 Spool cap
B-24
Upper Threading
CAUTION
1
Note
1
Place the spool of thread onto the spool pin.
e
Slide the spool onto the pin so that the spool is
horizontal and the thread unwinds to the front at the
bottom.
• If the spool or the spool cap is not positioned
correctly, the thread may become tangled
around the spool pin or the needle may break.
Slide the spool cap onto the spool pin.
f
Slide the spool cap as far as possible to the right, as
shown, with the rounded side on the left.
While using your right hand to lightly hold the thread
i
passed under the thread guide plate, pass the thread
through the guides in the order shown below.
• If the presser foot has been lowered and the
shutter is closed, the machine cannot be
threaded. Be sure to raise the presser foot to
open the shutter before threading the machine.
In addition, before removing the upper thread, be
sure to raise the presser foot to open the shutter.
• This machine is equipped with a window that
allows you to check the position of the take-up
lever. Look through this window and check that
the thread is correctly fed through the take-up
lever.
B
GETTING READY
While holding the thread lightly with your right hand,
g
pull the thread with your left hand, and then pass the
thread behind the thread guide cover and to the front.
1 Thread guide cover
Pass the thread under the thread guide plate, and then
h
pull it up.
1 Thread guide plate
Press .
j
• When the message “OK to automatically lower the
presser foot? ” appears on the LCD screen, press
to continue.
→ The screen changes, and all keys and operation
buttons are locked (except ).
Slide the thread behind the needle bar thread guide.
k
The thread can easily be slid behind the needle bar
thread guide by holding the thread in your left hand,
then feeding the thread with your right hand, as shown.
1 Needle bar thread guide
Basic operations B-25
Upper Threading
Memo
1
2
2
1
Note
Note
1
Raise the presser foot lever.
l
Threading the needle
• The needle threader can be used with machine
needles 75/11 through 100/16.
• The needle threader cannot be used with the wing
needle or the twin needle.
• When thread such as transparent nylon
monofilament or specialty threads are used it is
not recommended to use the needle threader.
• If the needle threader cannot be used, refer to
“Threading the needle manually (without using the
needle threader)” on page B-27.
Pull the end of the thread, which has been passed
a
through the needle bar thread guide, to the left, then
pass the thread through the notch of the threader
thread guide a, and then firmly pull the thread from
the front and insert it into the slit of the threader
thread guide disk marked “7” all the way b.
• Make sure that the thread passes through the notch of
the threader thread guide.
• If the thread is pulled through and cannot be cut
correctly, lower the presser foot lever so that the
thread is held in place before cutting the thread.
If this operation is performed, skip step
• When using thread that quickly winds off the
spool, such as metallic thread, it may be difficult
to thread the needle if the thread is cut.
Therefore, instead of using the thread cutter, pull
out about 80 mm (approx. 3 inches) of thread
after passing it through the threader thread guide
disks (marked “7”).
1 80mm (approx. 3 inches) or more
Lower the presser foot lever to lower the presser foot.
c
c.
b
B-26
1 Notch of the threader thread guide
2 Threader thread guide disk
Cut the thread with the cutter on the left side of the
machine.
1
1 Cutter
1
1 Presser foot lever
Lower the needle threader lever on the left side of the
d
machine until it clicks, and then slowly return the lever
to its original position.
1 Hook
2 Needle threader lever
→ The hook is rotated and passes the thread through the
eye of the needle.
• If the needle is not raised to it's highest position,
the needle threader cannot thread the needle.
Turn handwheel counterclockwise until the
needle is at its highest position. The needle is
correctly raised when the mark on the handwheel
is at the top, as shown under step
c on
page B-24.
Carefully pull the end of thread that was passed
CAUTION
1
e
through the eye of the needle.
If the needle was not completely threaded, but a loop in
the thread was formed in the eye of the needle, carefully
pull the loop through the eye of the needle to pull out
the end of the thread.
• When pulling out the thread, do not pull it
with extreme force, otherwise the needle may
break or bend.
Raise the presser foot lever, pass the end of the thread
f
through and under the presser foot, and then pull out
about 5 cm (approx. 2 inches) of thread toward the
rear of the machine.
Upper Threading
Pulling up the bobbin thread
When making gathers or before free motion quilting, first pull
up the bobbin thread as described below.
Refer to “Threading the upper thread” (page B-24) to
a
thread the machine with the upper thread and thread
the needle.
Follow steps d to f in “Installing the bobbin”
b
(page B-21) for installing the bobbin to insert the
bobbin into the bobbin case.
Pass the bobbin thread through the slot.
c
Do not cut the thread with the cutter.
While lightly holding the upper thread with your left
d
hand, press (Needle position button) twice to raise
the needle.
B
GETTING READY
1 5 cm (approx. 2 inches)
Press to unlock all keys and buttons.
g
Threading the needle manually (without
using the needle threader)
When using specialty thread, such as transparent nylon
thread, a wing needle or a twin needle which cannot be used
with the needle threader, thread the needle as described
below.
Thread the machine to the needle bar thread guide.
a
• For details, refer to “Upper Threading” on page B-24.
Insert the thread through the eye of the needle from
b
front to back.
→ The bobbin thread is looped around the upper thread
and can be pulled up.
Carefully pull the upper thread upward to pull out the
e
end of the bobbin thread.
Pull up the bobbin thread, pass it under the presser
f
foot and pull it about 10 cm (4 inches) toward the back
of the machine, making it even with the upper thread.
Raise the presser foot lever, pass the end of the thread
c
through and under the presser foot, and then pull out
about 5 cm (approx. 2 inches) of thread toward the
rear of the machine.
Press to unlock all keys and buttons.
d
Basic operations B-27
Upper Threading
Memo
CAUTION
1
2
1
Reattach the bobbin cover.
g
Insert the tab in the lower-left corner of the bobbin
cover, and then lightly press down on the right side.
Using the twin needle
With the twin needle, you can sew two parallel lines of the
same stitch with two different threads. Both upper threads
should have the same thickness and quality. Be sure to use the
twin needle, the horizontal spool pin and the appropriate
spool caps.
For details on the stitches that can be sewn with the twin
needle, refer to “Stitch Setting Chart” beginning on page B-47.
Manually thread the left needle with the upper thread.
c
Pass the thread through the eye of the needle from the
front.
Insert the horizontal spool pin onto the bobbin winder
d
shaft.
Insert the spool pin so that it is perpendicular to the
bobbin winder shaft.
• Traditionally a twin needle is also used for creating
pintucks. Contact your nearest authorized Baby
Lock retailer to obtain the optional pintuck foot for
your machine (ESG-PF).
• Only use the twin needle (2.0/11 needle, part
code: X59296-121). Use of any other needle
may bend the needle or damage the machine.
• Never use bent needles. Bent needles can
easily break, possibly resulting in injuries.
• The needle threader cannot be used with the
twin needle. If the needle threader is used with
the twin needle, the machine may be
damaged.
Install the twin needle.
a
• For details on installing a needle, refer to “Replacing
the needle” on page B-31.
1 Bobbin winder shaft
Swing the spool pin toward the left so that it is
e
horizontal.
Place the upper thread spool for the needle on the right
f
side onto the spool pin, and then secure it with the
spool cap.
The thread should unroll from the top front of the spool.
12
1 Spool cap
2 Spool
Thread the upper thread for the left needle eye.
b
• For details, refer to steps
“Threading the upper thread” on page B-24.
B-28
a through k of
Upper Threading
CAUTION
CAUTION
CAUTION
Note
CAUTION
Thread the upper thread in the same way that the
g
upper thread for the left side was threaded.
1
1 Thread guide cover
• For details, refer to steps g through i of
“Threading the upper thread” on page B-24.
Without passing the thread through the needle bar
h
thread guide, manually thread the right needle.
Insert the thread through the eye of the needle from the
front.
Press .
m
• When using the twin needle, be sure to select
the twin needle setting, otherwise the needle
may break or the machine may be damaged.
Start sewing.
n
• For details on starting to sew, refer to “STARTING TO
SEW” on page B-35.
→ Two lines of stitching are sewn parallel to each other.
B
GETTING READY
• The needle threader cannot be used with the twin
needle. If the needle threader is used with the twin
needle, the machine may be damaged.
Attach zigzag foot “J”.
i
• For details on changing the presser foot, refer to
“Replacing the presser foot” on page B-33.
• When using the twin needle, be sure to attach
zigzag foot “J”. If bunched stitches occur, use
presser foot “N” or attach stabilizer material.
Turn on the machine and select a stitch.
j
• For stitch selection see “Sewing a stitch” on page B-
35.
• See “Stitch Setting Chart” on page B-47 for stitches
that use a twin needle.
• When using the twin needle, be sure to select
an appropriate stitch, otherwise the needle
may break or the machine may be damaged.
• When changing the sewing direction, press
(Needle position button) to raise the needle from
the fabric, and then raise the presser foot lever
and turn the fabric.
• Do not try turning the fabric while the twin
needle is down in the fabric, otherwise the
needle may break or the machine may be
damaged.
Press to display the settings screen.
k
Set “Twin Needle” to “ON.”
l
Basic operations B-29
Replacing the Needle
CAUTION
Note
CAUTION
Replacing the Needle
Be sure to observe the following precautions concerning the handling of the needle. Failure to observe these precautions is
extremely dangerous, for example, if the needle breaks and fragments are dispersed. Be sure to read and carefully follow the
instructions below.
• Only use recommended home machine needles. Use of any other needle may bend the needle or damage
the machine.
• Never use bent needles. Bent needles can easily break, possibly resulting in injuries.
Fabric/thread/needle combinations
The machine needle that should be used depends on the fabric and thread thickness. Refer to the following table when choosing
the thread and needle appropriate for the fabric that you wish to sew.
Fabric Type/ApplicationThreadSize of Needle
TypeSize
Medium weight
fabrics
Thin fabricsLawnCotton thread
Heavy fabricsDenim
Stretch fabricsJersey
Easily frayed fabrics
For top-stitching
• Never use thread of 20 weight or lower. It may
cause the machine to malfunction.
BroadclothCotton thread
TaffetaSynthetic thread
Flannel, GabardineSilk thread50
GeorgetteSynthetic thread
Challis, SatinSilk thread50
CorduroySynthetic thread
TweedSilk thread
Thread for knits50–60
Tr ic ot
Synthetic thread30100/16
60–90
60–90
Cotton thread
Cotton thread
Silk thread50
Silk thread50–9090/14–100/16
30100/16
50
50–60
50–90
75/11–90/14
65/9–75/11
90/14–100/16
Ball point needle
75/11–90/14
(gold colored)
65/9–90/14Synthetic thread
■ Embroidery needles
Use a 75/11 home machine needle. When embroidering
on heavier fabrics such as denim, use a 90/14 or 100/16
home machine needle.
■ Thread and needle number
The lower the thread number is, the heavier the thread;
the higher the needle number, the larger the needle.
■ Ball point needle (gold colored)
To avoid skipped stitches use ball point needles (75/
11–90/14) with stretch fabrics.
■ Transparent nylon thread
Use a 90/14 to 100/16 needle, regardless of the fabric or
thread.
B-30
• The appropriate fabric, thread and needle
combinations are shown in the table above. If
the combination of the fabric, thread and
needle is not correct, particularly when sewing
heavy fabrics (such as denim) with thin
needles (such as 65/9 to 75/11), the needle
may bend or break. In addition, the stitching
may be uneven or puckered or there may be
skipped stitches.
Checking the needle
CAUTION
Note
1
Sewing with a bent needle is extremely dangerous since the
needle may break while the machine is being operated.
Before using the needle, place the flat side of the needle on a
flat surface and check that the distance between the needle
and the flat surface is even.
1
2
1 Flat side
2 Needle type marking
• If the distance between the needle and the flat
surface is not even, the needle is bent. Do not
use a bent needle.
Replacing the Needle
Press .
c
• When the message “OK to automatically lower the
presser foot? ” appears on the LCD screen, press
to continue.
→ The screen changes, and all keys and operation
buttons are locked (except ).
Hold the needle with your left hand, and then use a
d
screwdriver to turn the needle clamp screw toward
you (counterclockwise) to remove the needle.
• The needle clamp screw can also be loosened or
tightened with the L-shaped (or disc-shaped)
screwdriver.
2
1
B
GETTING READY
1
1 Flat surface
Replacing the needle
Use the screwdriver and a needle that has been determined to
be straight according to the instructions in “Checking the
needle”.
Press (Needle position button) once or twice to
a
raise the needle.
Place fabric or paper under the presser foot to cover
b
the hole in the needle plate.
• Before replacing the needle, cover the hole in the
needle plate with fabric or paper to prevent the
needle from falling into the machine.
1 Screwdriver
2 Needle clamp screw
• Do not apply a strong force when loosening or
tightening the needle clamp screw, otherwise certain
parts of the machine may be damaged.
With the flat side of the needle toward the rear of the
e
machine, insert the needle until it touches the needle
stopper.
1
1 Needle stopper
While holding the needle with your left hand, use the
f
screwdriver to tighten the needle clamp screw by
turning it clockwise.
Basic operations B-31
Replacing the Needle
CAUTION
• Be sure to insert the needle until it touches the
needle stopper and securely tighten the needle
clamp screw with the screwdriver, otherwise
the needle may break or damage may result.
Press to unlock all keys and buttons.
g
B-32

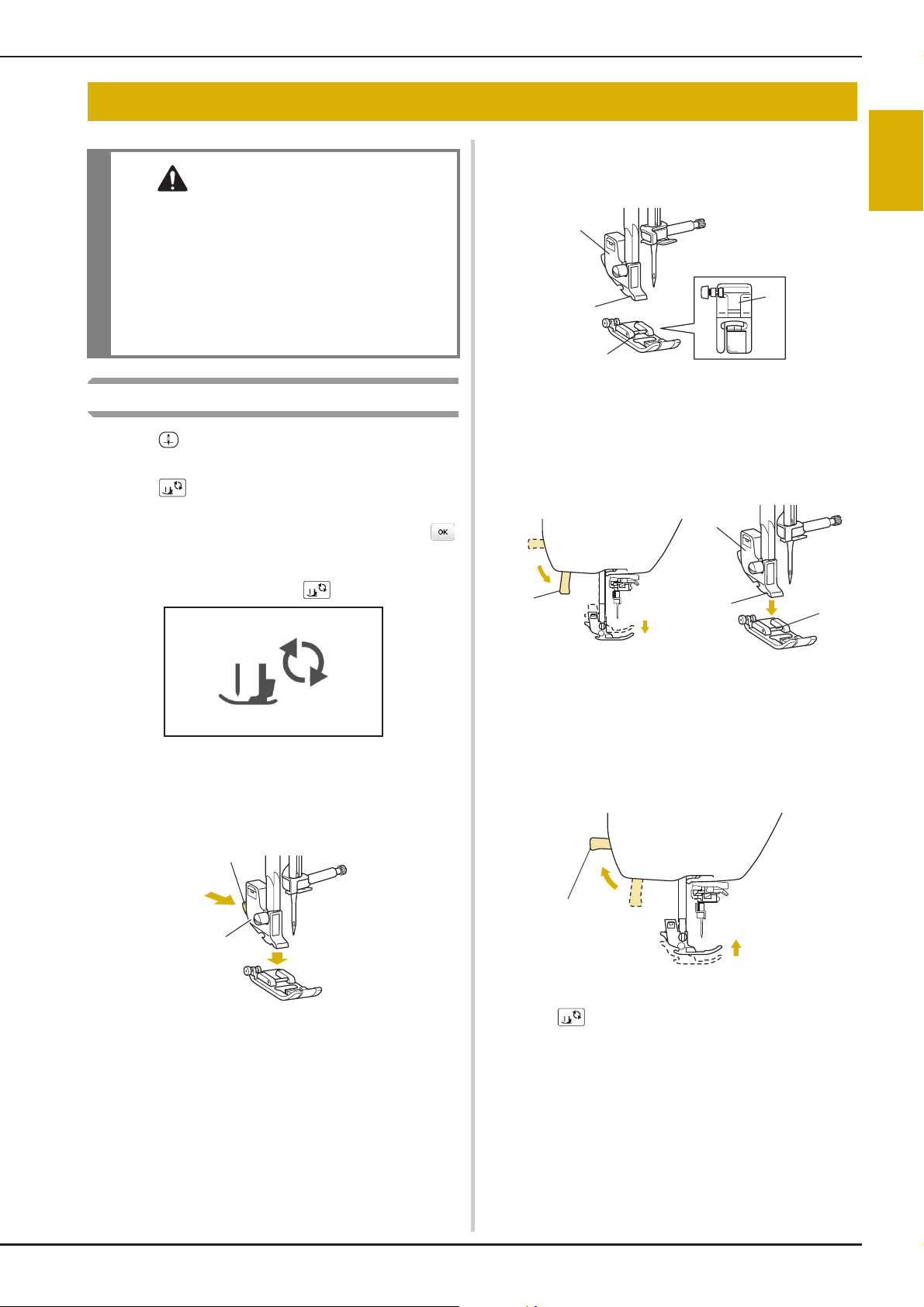

Replacing the Presser Foot
CAUTION
a
b
2
3
4
1
1
Replacing the Presser Foot
Place a different presser foot below the holder so that
e
the presser foot pin is aligned with the notch in the
holder.
B
• Use the presser foot appropriate for the type
of stitch that you wish to sew, otherwise the
needle may hit the presser foot, causing the
needle to bend or break.
• Only use presser feet designed specifically for
this machine. Use of any other presser foot
may result in injuries or damage to the
machine.
Replacing the presser foot
Press (Needle position button) once or twice to
a
raise the needle.
Press .
b
• When the message “OK to automatically lower the
presser foot? ” appears on the LCD screen, press
Raise the presser foot lever to check that the presser
g
foot is securely attached.
1 Presser foot lever
Press to unlock all keys and buttons.
h
Basic operations B-33

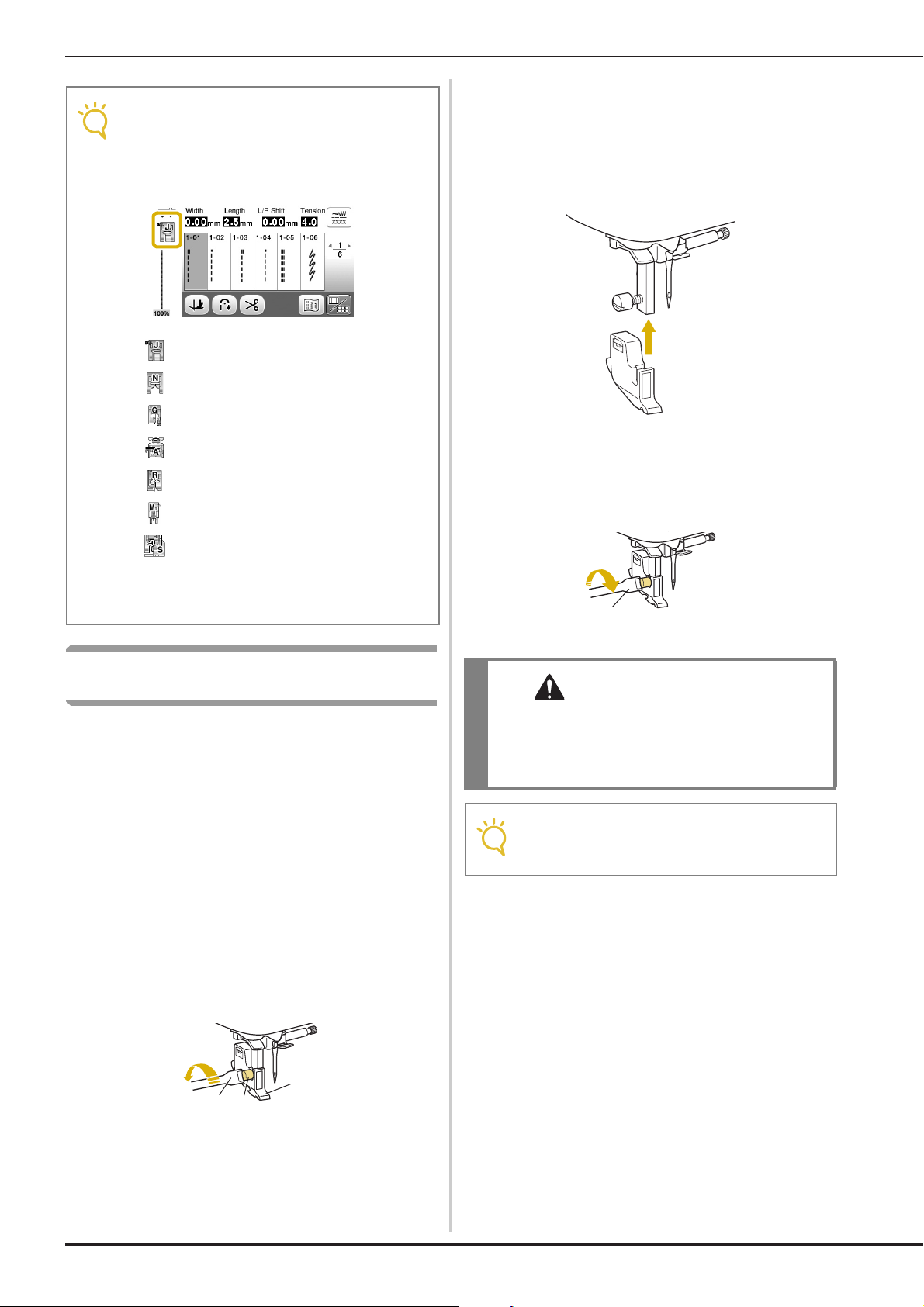

Replacing the Presser Foot
Note
13
2
CAUTION
Note
■ Attaching the presser foot holder
• When a stitch is selected, the icon for the presser
foot that should be used appears in the screen.
Check that the correct presser foot is attached
before starting to sew.
Zigzag foot “J”
Monogramming foot “N”
Overcasting foot “G”
Buttonhole foot “A”
Blind stitch foot “R”
Button fitting foot “M”
Side cutter “S”
Raise the presser foot lever.
a
Align the presser foot holder with the lower-left side of
b
the presser bar.
Hold the presser foot holder in place with your right
c
hand, and then tighten the screw using the screwdriver
in your left hand.
Turn the screw toward you (clockwise).
• For details on the presser foot that should be
used with the selected stitch, refer to “Stitch
Setting Chart” beginning on page B-47.
Removing and attaching the presser foot
holder
Remove the presser foot holder when cleaning the machine or
when installing a presser foot that does not use the presser
foot holder, such as the walking foot and quilting foot. Use
the screwdriver to remove the presser foot holder.
Remove the presser foot.
a
• For details, refer to “Replacing the presser foot” on
page B-33.
Use the screwdriver to loosen the presser foot holder
b
screw.
Turn the screw toward the back of the machine
(counterclockwise).
• The presser foot holder screw can also be loosened
or tightened with the L-shaped (or disc-shaped)
screwdriver.
1
1 Screwdriver
• Be sure to securely tighten the presser foot
holder screw, otherwise the presser foot
holder may fall off and the needle may strike
it, causing the needle to bend or break.
• While the machine is in operation, pay special
attention to the needle location. In addition,
keep your hands away from all moving parts
such as the needle and handwheel, otherwise
injuries may occur.
• Do not pull or push the fabric too hard while
sewing, otherwise injuries may occur or the
needle may break.
• Never use bent needles. Bent needles can
easily break, possibly resulting in injuries.
• Make sure that the needle does not strike
basting pins, otherwise the needle may break
or bend.
Sewing a stitch
Turn the main power to ON and press (Needle
a
position button) to raise the needle.
→ The screen of appears. If you want to sew any
stitch in category, proceed to step 4.
Press on the operation panel.
b
B
STARTING TO SEW
Stitch types
1 Utility stitches
You can select from utility stitches, including straight
line stitching, overcasting, buttonhole and basic
decorative stitches.
For details on the various stitches, refer to “Stitch
Setting Chart” beginning on page B-47.
2 Decorative stitches
3 Satin stitches
4 7 mm satin stitches
5 Cross stitch stitches
6 Utility decorative stitches
7 Character stitches
8 Patterns stored in the machine's memory
Patterns recalled from machine's memory can be sewn.
9 Patterns stored in USB flash drive
Patterns recalled from the USB flash drive can be sewn.
• For details on sewing and storing the stitches 2
through 9, refer to “Decorative sewing” section.
Select the stitch type.
c
Press the stitch selection.
d
displays the previous screen, and displays the
next screen.
• For details on the key functions, refer to “Viewing the
LCD” on page B-11.
Basic operations B-35
Sewing
Note
CAUTION
Memo
Memo
If necessary, specify the setting for automatic reverse/
e
reinforcement stitching and adjust the stitch length,
etc.
• For details on adjusting the stitch width and length,
refer to “Setting the stitch width” on page B-40 and
“Setting the stitch length” on page B-40.
Install the presser foot.
f
• For details on changing the presser foot, refer to
“Replacing the presser foot” on page B-33.
• When a stitch is selected, the icon for the
presser foot that should be used appears on the
screen. Check that the correct presser foot is
attached before starting to sew.
• Always use the correct presser foot. If the
wrong presser foot is used, the needle may
strike the presser foot and bend or break,
possibly resulting in injury.
Refer to page B-47 for presser foot
recommendations.
Adjust the sewing speed with the sewing speed
i
controller.
You can use this controller to adjust sewing speed
during sewing.
b
1 Fast
2 Slow
Press the “Start/Stop” button to start sewing.
j
Guide the fabric lightly by hand.
a
Set the fabric under the presser foot. Hold the fabric
g
and thread with your left hand, and rotate the
handwheel counterclockwise or press (Needle
position button) to set the needle in the sewing start
position.
• The black button on the left side of presser foot
“J” should be pressed only if the fabric does not
feed or when sewing thick seams. For details,
refer to “Sewing thick fabrics” in the “Sewing”
section. Normally, you can sew without pressing
the black button.
• When the foot controller is being used, you
cannot start sewing by pressing the “Start/Stop”
button.
Press the “Start/Stop” button again to stop sewing.
k
Press (Thread cutter button) to trim the upper and
l
lower threads.
1
Lower the presser foot.
h
You do not have to pull up the bobbin thread.
B-36
1 Thread cutter button
→ The needle will return to the up position
automatically.
CAUTION
• Do not press (Thread cutter button) after
Note
Memo
CAUTION
Memo
Memo
the threads have been cut. Doing so could
tangle the thread or break the needle and
damage the machine.
• Do not press (Thread cutter button) when
there is no fabric set in the machine or during
machine operation. The thread may tangle,
possibly resulting in damage.
Turn off the machine.
a
Insert the foot controller plug into its jack on the
b
machine.
1
Sewing
B
STARTING TO SEW
• When cutting thread such as nylon monofilament
thread, or other decorative threads, use the
thread cutter on the side of the machine.
When the needle has stopped moving, raise the presser
m
foot and remove the fabric.
• This machine is equipped with a bobbin thread
sensor that warns you when the bobbin thread is
almost empty. When the bobbin thread is nearly
empty, the machine automatically stops.
However, if the “Start/Stop” button is pressed, a
few stitches can be sewn. When the warning
displays, replace with a wound bobbin
immediately.
1 Foot controller jack
Turn on the machine.
c
Slowly depress the foot controller to start sewing.
d
• The speed that is set using the sewing speed
controller will be the foot controller’s maximum
sewing speed.
Release the foot controller to stop the machine.
e
■ Using the foot controller
You can also use the foot controller to start and stop
sewing.
• Do not allow fabric pieces and dust to collect
in the foot controller. Doing so could cause a
fire or an electric shock.
• When the foot controller is being used, you
cannot start sewing by pressing the “Start/Stop”
button.
• Bobbin winding can be started and stopped with
the foot controller.
• The foot controller cannot be used when
embroidering.
Basic operations B-37
Sewing
Memo
Memo
Memo
Sewing reinforcement stitches
Reverse/reinforcement stitches are generally necessary at the
beginning and end of sewing. You can use (Reverse stitch
button) to sew reverse/reinforcement stitches. Refer to “Stitch
Setting Chart” under the column for “Reverse/ Reinforcement
stitching” on page B-47.
While pressing
will sew 3 to 5 reinforcement stitches at that point and then
If the automatic reinforcement stitch is selected on the screen,
reverse stitches (or reinforcement stitches) will be sewn
automatically at the beginning of sewing when the “Start/
Stop” button is pressed. Press (Reverse stitch button) or
(Reinforcement stitch button) to sew reverse stitches or
reinforcement stitches automatically at the end of sewing.
(Reinforcement stitch button), the machine
12
Automatic reinforcement stitching
After selecting a stitch motif, turn on the automatic
reinforcement stitching function before sewing, and the
machine will automatically sew reinforcement stitches (or
reverse stitches, depending on the stitch motif) at the
beginning and end of sewing. Refer to the table on page B-39.
Select a stitch pattern.
a
Press to set the automatic reinforcement stitching
b
function.
→ The key will display as .
• Some stitches, such as buttonholes and bar
tacks, require reinforcement stitches at the
beginning of sewing. If you select one of these
stitches, the machine will automatically turn on
this function (the key appears as when the
stitch is selected).
1 Reverse stitch
2 Reinforcement stitch
The operation performed when the button is pressed differs
depending on the selected pattern. Refer to the table in
“Automatic reinforcement stitching” on page B-38.
• While pressing (Reinforcement stitch button)
when sewing character/decorative stitch pattern,
you can end sewing with a completed motif
instead of at the midpoint of a stitch motif.
• The green light on the left of (Reinforcement
stitch button) lights up while the machine is
sewing a full motif, and it automatically turns off
when the sewing is stopped.
Set the fabric in the start position and begin sewing.
c
1 Reverse stitches (or reinforcement stitches)
→ The machine will automatically sew reverse stitches
(or reinforcement stitches) and then continue sewing.
• When selecting the stitches below, the machine
will automatically sew reverse stitches at the
beginning of the stitch.
• If you press the “Start/Stop” button to pause
sewing, press it again to continue. The machine
will not sew reverse/reinforcement stitches again.
B-38
Sewing
Memo
Press (Reverse stitch button) or (Reinforcement
d
stitch button).
1 Reverse stitches (or reinforcement stitches)
→ The machine will sew reverse stitches (or
reinforcement stitches) and stop.
• To turn off the automatic reinforcement stitching
function, press again, so it appears as .
The operation performed when the button is pressed differs
depending on the selected pattern. Refer to the following table
for details on the operation that is performed when the button
is pressed.
When the automatic
reinforcement
stitching function is
not active while
selecting character/
decorative stitches
When the automatic
reinforcement
stitching function is
active while selecting
character/decorative
stitches
Reverse stitch
button
Machine starts
sewing and then
sews reinforcement
stitches while
holding the Reverse
stitch button.
Machine sews
reinforcement
stitches at the
beginning and sews
reinforcement
stitches when the
Reverse stitch
button is pressed.
Reinforcement
stitch button
Machine starts
sewing at the
beginning, then
completes the
pattern and sews
reinforcement
stitches at the end of
sewing.
Machine sews
reinforcement
stitches at the
beginning, then
completes the
pattern and sews
reinforcement
stitches at the end of
sewing.
* If “Reinforcement Priority” on page 3 of the settings screen
is set to “ON”, reinforcement stitches are sewn instead of
reverse stitches.
B
STARTING TO SEW
When the automatic
reinforcement
stitching function is
not active while
selecting utility
stitches like
examples shown
below
When the automatic
reinforcement
stitching function is
not active while
selecting utility
stitches like
examples shown
below
When the automatic
reinforcement
stitching function is
active while selecting
utility stitches like
examples shown
below
Reverse stitch
button
Machine starts
sewing the stitches
and only sews
reverse stitches
while holding the
Reverse stitch
button.
Machine starts
sewing the stitches
and only sews
reverse stitches
while holding the
Reverse stitch
button.*
Machine sews
reverse stitches at
the beginning and
end of sewing.
Reinforcement
stitch button
Machine starts
sewing the stitches
and sews 3 - 5
reinforcement
stitches while
holding the
Reinforcement stitch
button.
Machine starts
sewing the stitches
and sews 3 - 5
reinforcement
stitches while
holding the
Reinforcement stitch
button.
Machine sews
reverse stitches at
the beginning and
reinforcement
stitches at the end of
sewing.
When the automatic
reinforcement
stitching function is
active while selecting
utility stitches like
examples shown
below
Machine sews
reinforcement
stitches at the
beginning and
reverse stitches at
the end of sewing.*
Machine sews
reinforcement
stitches at the
beginning and end of
sewing.
Basic operations B-39
Setting the Stitch
Note
Memo
CAUTION
Memo
Setting the Stitch
This machine is preset with the default settings for the
stitch width, stitch length, “L/R Shift”, and upper thread
tension for each stitch. However, you can change any of
the settings by pressing in the utility stitch screen, then
following the procedure described in this section.
• Press to return the setting to its default.
• If the straight stitch (left needle position or triple
stretch stitch) was selected, changing the stitch
width changes the needle position. Increasing the
width moves the needle to the right; reducing the
width moves the needle to the left.
• means the setting cannot be adjusted.
After changing the settings, press to return to the utility
stitch screen.
• Stitch settings return to their defaults if they are
changed, when the machine is turned off or a
different stitch is selected before the stitch
setting is saved, refer to “Saving stitch settings”
on page B-42.
Setting the stitch width
The stitch width (zigzag width) can be adjusted to make the
stitch wider or narrower.
• After adjusting the stitch width, slowly turn
the handwheel toward you (counterclockwise)
and check that the needle does not touch the
presser foot. If the needle hits the presser foot,
the needle may bend or break.
Setting the stitch length
The stitch length can be adjusted to make the stitch coarser
(longer) or finer (shorter).
Each press of
makes the stitch finer (shorter).
Each press of makes the zigzag stitch narrower.
Each press of
B-40
makes the zigzag stitch wider.
Each press of makes the stitch coarser (longer).
• Press to return the setting to its default.
• means the setting cannot be adjusted.
Setting the Stitch
Memo
CAUTION
Note
1
2
3
4
5
Setting the “L/R Shift”
Follow the steps below when you want to change the
placement of the zigzag stitch pattern by moving it left and
right.
Press to shift the pattern to the left.
→ The value in the display appears with a minus sign.
Press to shift the pattern to the right side of the left needle
position.
Setting the thread tension
You may need to change the thread tension, depending on the
fabric and thread being used.
■ Correct thread tension
The upper thread and the bobbin thread should cross near
the center of the fabric. Only the upper thread should be
visible from the right side of the fabric, and only the
bobbin thread should be visible from the wrong side of the
fabric.
1
2
3
1 Wrong side of fabric
2 Right side of fabric
3 Upper thread
4 Bobbin thread
4
B
STARTING TO SEW
→ The value in the display appears with a plus sign.
• Press to return the setting to its default.
• means the setting cannot be adjusted.
• After adjusting the “L/R Shift”, slowly rotate
the handwheel toward you (counterclockwise)
and check that the needle does not touch the
presser foot. If the needle hits the presser foot,
the needle may bend or break.
• If the stitches are bunched together, increase
the stitch length. Continuing to sew with the
stitches bunched together may result in the
needle bending or breaking.
■ Upper thread is too tight
If the bobbin thread is visible from the right side of the
fabric, the upper thread is too tight.
• If the bobbin thread was incorrectly threaded, the
upper thread may be too tight. In this case, refer
to “Installing the bobbin” on page B-21 and
rethread the bobbin thread.
1 Wrong side of fabric
2 Right side of fabric
3 Upper thread
4 Bobbin thread
5 The bobbin thread is visible from the right side of the
fabric.
Each press of makes the thread tension looser.
Basic operations B-41
Setting the Stitch
Note
Note
5
1
2
3
4
Note
■ Upper thread is too loose
If the upper thread is visible from the wrong side of the
fabric, the upper thread is too loose.
• If the upper thread was incorrectly threaded, the
upper thread may be too loose. In this case, refer
to “Upper Threading” on page B-24 and rethread
the upper thread.
1 Wrong side of fabric
2 Right side of fabric
3 Upper thread
4 Bobbin thread
5 The upper thread is visible from the wrong side of the
fabric.
Each press of makes the thread tension tighter.
• If the upper thread is not threaded correctly or
the bobbin is not installed correctly, it may not
be possible to set the correct thread tension. If
the correct thread tension cannot be achieved,
rethread the upper thread and insert the bobbin
correctly.
Press .
d
• To reset the selected stitch pattern back to its default
settings, press , and then press .
Press .
e
→ The original screen is displayed.
• The next time that the same straight stitch is
selected, the stitch length is set to 2.0 mm.
• All stitch settings (stitch width (zigzag width),
stitch length, L/R shift, thread tension) are saved,
not just the setting that was changed. When the
same stitch pattern is selected, the last settings
saved are displayed even if the machine was
turned off. If the settings are changed again, or if
is pressed to reset the setting to its default,
the new settings are not saved unless is
pressed another time.
Even if is pressed, the settings for
programmed thread cutting and automatic
reverse/reinforcement stitching cannot be reset.
Saving stitch settings
If you wish to save specific settings for a stitch so that they can
be used later, press after changing the settings to save the
new settings with the selected stitch.
This feature can be used only with utility stitches.
To use a stitch length of 2.0 mm for the straight stitch
Select a straight stitch.
a
Press .
b
Set the stitch length to 2.0 mm.
c
B-42
Useful Functions
Memo
Memo
Useful Functions
Automatically cutting the thread
The machine can be set to automatically cut the threads at the
end of the stitching. This is called “programmed threadcutting”. If programmed thread-cutting is set, automatic
reverse/reinforcement stitching is also set.
Turn on the machine.
a
Select a stitch.
b
• For details on selecting a stitch, refer to “Sewing a
stitch” on page B-35.
Press on the screen.
c
→ You get
programmed thread-cutting and automatic reverse/
reinforcement stitching.
• To turn programmed thread cutting off, press .
, and the machine is set for
• Programmed thread-cutting will not be performed
if the “Start/Stop” button is pressed while sewing.
Press (Reverse stitch button) or
(Reinforcement stitch button) at the end of the
stitching.
• If the power is turned off, programmed threadcutting will be turned off.
Mirroring stitches
You can sew the mirror image of a stitch horizontally (left and
right).
Turn on the machine.
a
Select a stitch.
b
• For details on selecting a stitch, refer to “Sewing a
stitch” on page B-35.
Press , and then on the screen.
c
B
STARTING TO SEW
Set the fabric in place, and press the “Start/Stop”
d
button once.
→ Stitching will begin after reverse stitches or
reinforcement stitches are sewn.
Once you have reached the end of the stitching, press
e
(Reverse stitch button) or (Reinforcement stitch
button) once.
If stitching, such as buttonholes and bar tacking, that
includes reinforcement stitching has been selected, this
operation is unnecessary.
→ After the reverse stitching or reinforcement stitching
has been done, the machine stops, and the thread is
cut.
1
32
1 The point where the “Start/Stop” button was pressed.
2 The point where (Reverse stitch button) or
(Reinforcement stitch button) was pressed.
3 The thread is cut here.
→ It turns to , and the pattern displayed at the top of
the screen is mirrored.
• To turn the mirrored stitching off, press .
• Mirroring is not possible when the mirroring icon
is grayed out on the editing screen. Certain
stitches, such as buttonholes, etc., cannot be
mirrored.
• When the machine is turned off, the mirroring
setting is cancelled.
Adjusting the presser foot pressure
You can adjust the presser foot pressure (the amount of
pressure applied to the fabric by the presser foot) on the
settings screen. The higher the number, the greater the
pressure will be. Set the pressure at “3” for normal sewing.
Press to display the settings screen.
a
Display page 2.
b
Basic operations B-43
Useful Functions
CAUTION
Memo
Note
Adjust the “Presser Foot Pressure” by pressing /.
c
Automatic Fabric Sensor System (Automatic
presser foot pressure)
The thickness of the fabric is automatically detected and the
presser foot pressure is automatically adjusted with an internal
sensor while sewing, to insure that your fabric is fed smoothly.
The fabric sensor system works continuously while sewing.
This function is useful for sewing over thick seams or quilting.
For details, refer to the “Sewing” section.
Pivoting
If the pivot key is selected, the machine stops with the needle
lowered (in the fabric) and the presser foot is automatically
raised to an appropriate height when the “Start/Stop” button is
pressed. When the “Start/Stop” button is pressed again, the
presser foot is automatically lowered and sewing continues.
This function is useful for stopping the machine to rotate the
fabric.
• When the pivot key is selected, the machine
will begin stitching when the “Start/Stop”
button is pressed or the foot controller is
pressed down even if the presser foot has been
raised by pressing (Presser foot lifter
button). Be sure to keep your hands and other
items away from the needle, otherwise injuries
may occur.
Press to display the settings screen.
a
Display page 3.
b
Set “Automatic Fabric Sensor System” to “ON”.
c
Press to return to the original screen.
d
• When the pivot key is selected, the height of the
presser foot when sewing is stopped can be
changed according to the type of fabric being
sewn. Press to display “Pivoting Height” in
the settings screen. Press or to select one
of the three heights (3.2 mm, 5.0 mm or 7.5 mm).
Generally 3.2 mm is the preferred setting.
• The “Needle Position - Up / Down” in the
settings screen, must be set to the down
position
When “Needle Position - Up / Down” is set in the
raised position, appears as light gray and
cannot be used.
• The pivot function can only be used with stitches
where presser foot J or N is indicated in the
upper-left corner of the screen. If any other stitch
is selected, appears as light gray and is not
available.
• Use (Presser foot lifter button) to make sure
the presser foot is lowered, and then press the
“Start/Stop” button to continue sewing.
• If the pivot key is selected, and beside
“Presser Foot Height” in the settings screen are
not available and the setting cannot be changed.
for the pivot function to be used.
B-44
Useful Functions
Memo
CAUTION
Select a stitch.
a
Press to select the pivot function.
b
→ The key appears as .
Place the fabric under the presser foot with the needle
c
at the starting point of the stitching, lower presser foot
and then press the “Start/Stop” button. The machine
will begin sewing.
Rotate the fabric, and then press the “Start/Stop”
e
button.
→ The presser foot is automatically lowered, and
sewing continues.
Sewing with free motion mode
In free motion mode, the presser foot is raised to the necessary
height for free motion sewing. When starting to sew, the
internal sensor detects the thickness of the fabric, and the
quilting foot is raised to the height specified in the machine
settings screen.
In this mode, lower the feed dogs (using the feed dog position
switch) so that the fabric can be moved freely in any direction.
B
STARTING TO SEW
• If you press the “Start/Stop” button to pause
sewing, press it again to continue, reverse
stitches (or reinforcement stitches) will not be
sewn.
Press the “Start/Stop” button to stop the machine at
d
the point where the sewing direction changes.
→ The machine stops with the needle in the fabric, and
the presser foot is raised.
• With free motion quilting, control the feeding
speed of the fabric to match the sewing speed.
If the fabric is moved faster than the sewing
speed, the needle may break or other damage
may result.
■ Adjusting free motion presser foot height
Select a stitch.
a
Press to display editing screen.
b
Press .
c
→ The key appears as .
Press to display the settings screen.
d
Basic operations B-45
Useful Functions
Memo
Note
CAUTION
Display page 3.
e
Adjust the “Free Motion Foot Height” by pressing /
f
to select the height that the quilting foot is raised
above the fabric.
• Increase the setting by pressing , for example,
when sewing very stretchy fabric, so that it is easier
to sew.
• In order to sew with a balanced tension, it may be
necessary to adjust the upper thread tension. For
details, refer to “Setting the thread tension” on
page B-41. Test with a sample piece of quilting
fabric.
Hands-free raising and lifting of the presser
foot
Using the knee lifter, you can raise and lower the presser foot
with your knee, leaving both hands free to handle the fabric.
• If the knee lifter is not fully inserted into the
mounting slot, it may fall out while the machine is
operating.
■ Using the knee lifter
Stop the machine.
a
• Do not use the knee lifter while the machine is
operating.
With your knee, press the knee lifter to the right.
b
Keep the knee lifter pressed to the right.
→ The presser foot is raised.
Release the knee lifter.
c
■ Installing the knee lifter
Turn off the machine.
a
Insert the knee lifter into the mounting slot on the front
b
of the machine in the lower-right corner.
Align the tabs on the knee lifter with the notches in the
mounting slot, and then insert the knee lifter as far as
possible.
→ The presser foot is lowered.
• While sewing, keep your knee away from the
knee lifter. If the knee lifter is pressed while
the machine is operating, the needle may
break or the machine may be damaged.
B-46
Stitch Setting Chart
Memo
Note
Stitch Setting Chart
Applications, stitch lengths and widths and whether the twin needle can be used are listed for utility stitches in the
following table.
B
• The stitches shown in the table below may differ slightly from the stitch patterns displayed in the LCD.
*1
For free motion quilting, use free motion open toe quilting foot “O”.
*2
For free motion quilting, use free motion quilting foot “C” (sold separately with some models) or free motion open toe quilting
foot “O”.
*3
When the Automatic reverse/reinforcement key is activated, the stitch will begin with reinforcement stitch. If “Reinforcement
Priority” on page 3 of the settings screen is also set to “ON”, the machine will sew reinforcement stitches at the end of
stitching and then stop.
• Do not sew reverse stitching when using the walking foot.
Stitch
Stitch
number
1-01
1-02
1-03
1-04
1-05
1-06
1-07
1-08
1-09
1-10
1-11
1-12
1-13
1-14
Stitch name
Straight stitch
(Left)
Straight stitch
(Left)
Straight stitch
(Middle)
Straight stitch
(Middle)
Triple stretch
stitch
Stem stitch
Decorative
stitch
Basting stitch
Zigzag stitch
Zigzag stitch
Zigzag stitch
(Right)
Zigzag stitch
(Left)
2 steps elastic
zigzag stitch
3 steps elastic
zigzag stitch
Presser
foot
*1
J
*1
J
*1
J
*1
J
*1
J
*1
J
*1
N
*1
J
*1
J
*1
J
*1
J
*1
J
*1
J
*1
J
Stitch width
Applications
General sewing, gather,
pintuck, etc.
General sewing, gather,
pintuck, etc.
General sewing, gather,
pintuck, etc.
General sewing, gather,
pintuck, etc.
General sewing for
reinforcement and
decorative topstitching
Reinforced stitching,
sewing and decorative
applications
Decorative stitching, top
stitching
Basting0.0 (0)
For overcasting, mending.3.5 (1/8)
For overcasting, mending.3.5 (1/8)
Start from right needle
position, zigzag sew at
left.
Start from left needle
position, zigzag sew at
right.
Overcasting (medium
weight and stretch
fabrics), tape and elastic
Overcasting (medium,
heavyweight and stretch
fabrics), tape and elastic
[mm (inch)]
Auto.
Manual
0.0 (0)
0.0 - 7.0
(0 - 1/4)
0.0 (0)
0.0 - 7.0
(0 - 1/4)
3.5 (1/8)
0.0 - 7.0
(0 - 1/4)
3.5 (1/8)
0.0 - 7.0
(0 - 1/4)
0.0 (0)
0.0 - 7.0
(0 - 1/4)
1.0 (1/16)
0.0 - 7.0
(0 - 1/4)
0.0 (0)
0.0 - 7.0
(0 - 1/4)
0.0 - 7.0
(0 - 1/4)
0.0 - 7.0
(0 - 1/4)
0.0 - 7.0
(0 - 1/4)
3.5 (1/8)
2.5 - 5.0
(3/32 - 3/16)
3.5 (1/8)
2.5 - 5.0
(3/32 - 3/16)
5.0 (3/16)
0.0 - 7.0
(0 - 1/4)
5.0 (3/16)
0.0 - 7.0
(0 - 1/4)
Stitch length
[mm (inch)]
Auto.
Manual
2.5 (3/32)
0.2 - 5.0
(1/64 - 3/16)
2.5 (3/32)
0.2 - 5.0
(1/64 - 3/16)
2.5 (3/32)
0.2 - 5.0
(1/64 - 3/16)
2.5 (3/32)
0.2 - 5.0
(1/64 - 3/16)
2.5 (3/32)
0.4 - 5.0
(1/64 - 3/16)
2.5 (3/32)
0.4 - 5.0
(1/64 - 3/16)
2.5 (3/32)
0.4 - 5.0
(1/64 - 3/16)
20 (3/4)
5 - 30
(3/16 - 1-3/16)
1.4 (1/16)
0.0 - 5.0
(0 - 3/16)
1.4 (1/16)
0.0 - 5.0
(0 - 3/16)
1.4 (1/16)
0.3 - 5.0
(1/64 - 3/16)
1.4 (1/16)
0.3 - 5.0
(1/64 - 3/16)
1.0 (1/16)
0.2 - 5.0
(1/64 - 3/16)
1.0 (1/16)
0.2 - 5.0
(1/64 - 3/16)
Twin
needle
OK
( J )
OK
( J )
OK
( J )
OK
( J )
OK
( J )
OK
( J )
OK
( J )
NO
OK
( J )
OK
( J )
OK
( J )
OK
( J )
OK
( J )
OK
( J )
Reverse/
Reinforce-
ment
stitching
ReverseNO
*3
Reverse
ReverseNO
Reinforce-
ment
Reinforce-
ment
Reinforce-
ment
Reinforce-
ment
Reinforce-
ment
ReverseNO
*3
Reverse
*3
Reverse
*3
Reverse
*3
Reverse
*3
Reverse
STARTING TO SEW
Walking
foot
OK
NO
NO
NO
NO
NO
NO
OK
NO
OK
NO
Basic operations B-47

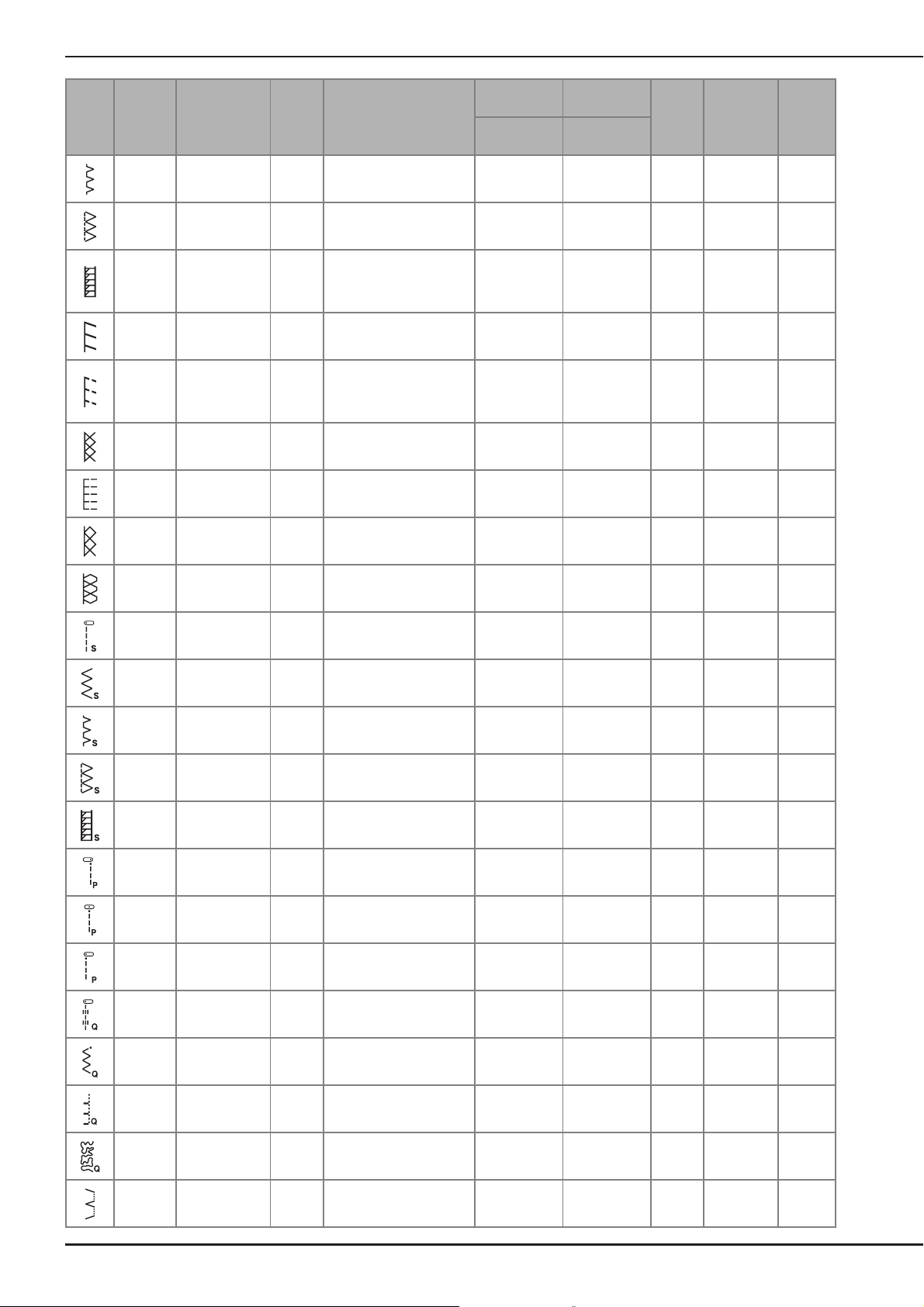

Stitch Setting Chart
Stitch
Stitch
number
1-15
1-16
1-17
1-18
1-19
1-20
1-21
1-22
1-23
1-24
1-25
1-26
1-27
1-28
1-29
1-30
1-31
1-32
1-33
1-34
1-35
2-01
Stitch name
Presser
foot
Overcasting
stitchG
Overcasting
stitchG
Overcasting
stitch
Overcasting
stitch
J
Overcasting
stitch
J
Overcasting
stitch
J
Overcasting
stitch
J
Single
diamond
J
overcast stitch
Single
diamond
J
overcast stitch
With side
cutterS
With side
cutterS
With side
cutterS
With side
cutterS
With side
cutterS
Piecing stitch
(Right)
J
Piecing stitch
(Middle)
J
Piecing stitch
(Left)
J
Hand-look
quilting stitch
J
Quilting
appliqué
J
zigzag stitch
Quilting
appliqué stitch
J
Quilting
stippling stitch
J
Blind hem
stitchR
Applications
Reinforcing of light and
medium weight fabrics
Reinforcing of
heavyweight fabric
Reinforcing of medium,
heavyweight and easily
G
friable fabrics or
decorative stitching.
Reinforced seaming of
*1
stretch fabric
Reinforcing of medium
stretch fabric and
*1
heavyweight fabric,
decorative stitching
Reinforcement of stretch
*1
fabric or decorative
stitching
Stretch knit seam5.0 (3/16)
*1
Reinforcement and
*1
seaming stretch fabric
Reinforcement of stretch
*1
fabric
Straight stitch while
cutting fabrics
Zigzag stitch while cutting
fabrics
Overcasting stitch while
cutting fabrics
Overcasting stitch while
cutting fabrics
Overcasting stitch while
cutting fabrics
Piecework/patchwork 6.5
*1
mm (approx. 1/4 inch)
right seam allowance
Piecework/patchwork
*2
Piecework/patchwork 6.5
*1
mm (approx. 1/4 inch) left
seam allowance
Quilting stitch made to
*1
look like hand quilting
stitch
Zigzag stitch for quilting
*1
and sewing on appliqué
quilt pieces
Quilting stitch for invisible
*1
appliqué or attaching
binding
Background quilting7.0 (1/4)
Tap er ed
keyhole
buttonhole
stitch
Keyhole
buttonhole
stitch
Darning stitch
Darning stitch
Bar tack stitch
Button sewing
stitchM
Eyelet stitch
Reverse
(Straight
stitch)
Sideways to
left (Straight
stitch)
Sideways to
right (Straight
stitch)
Forward
(Straight
stitch)
Sideways to
left (Zigzag
stitch)
Sideways to
right (Zigzag
stitch)
Forward
(Zigzag stitch)N
Reverse
(Zigzag stitch)N
Presser
foot
Stitch width
Applications
Buttonholes for light to
medium weight fabrics
A
Buttonholes for stretch or
A
woven fabrics
Buttonholes for heirloom
A
and stretch fabrics
The first step in making
A
bound buttonholes
Buttonholes in
heavyweight or thick
A
fabrics for larger flat
buttons
Buttonholes in medium to
heavy weight fabrics for
A
larger flat buttons
Buttonholes with vertical
bar tack for reinforcement
A
in heavyweight or thick
fabrics
Darning of medium weight
A
fabric
Darning of heavyweight
A
fabric
Reinforcement at opening
A
of pocket, etc.
Attaching buttons3.5 (1/8)
For making eyelets, holes
on belts, etc.
N
For attaching appliqué on
N
tubular pieces of fabric
and mitering corners
For attaching appliqué on
N
tubular pieces of fabric——NO
For attaching appliqué on
N
tubular pieces of fabric——NO
For attaching appliqué on
N
tubular pieces of fabric
and mitering corners
For attaching appliqué on
N
tubular pieces of fabric——NO
For attaching appliqué on
N
tubular pieces of fabric——NO
For attaching appliqué on
tubular pieces of fabric
and mitering corners
For attaching appliqué on
tubular pieces of fabric
and mitering corners
[mm (inch)]
Auto.
Manual
5.0 (3/16)
3.0 - 5.0
(1/8 - 3/16)
6.0 (15/64)
3.0 - 6.0
(1/8 - 15/64)
6.0 (15/64)
3.0 - 6.0
(1/8 - 15/64)
5.0 (3/16)
0.0 - 6.0
(0 - 15/64)
7.0 (1/4)
3.0 - 7.0
(1/8 - 1/4)
7.0 (1/4)
3.0 - 7.0
(1/8 - 1/4)
7.0 (1/4)
3.0 - 7.0
(1/8 - 1/4)
7.0 (1/4)
2.5 - 7.0
(3/32 - 1/4)
7.0 (1/4)
2.5 - 7.0
(3/32 - 1/4)
2.0 (1/16)
1.0 - 3.0
(1/16 - 1/8)
2.5 - 4.5
(3/32 - 3/16)
7.0 (1/4)
7.0 6.0 5.0
(1/4 15/64
3/16)
——NO
——NO
——NO
——NO
Stitch length
[mm (inch)]
Auto.
Manual
0.4 (1/64)
0.2 - 1.0
(1/64 - 1/16)
1.0 (1/16)
0.5 - 2.0
(1/32 - 1/16)
1.5 (1/16)
1.0 - 3.0
(1/16 - 1/8)
2.0 (1/16)
0.2 - 4.0
(1/64 - 3/16)
0.5 (1/32)
0.3 - 1.0
(1/64 - 1/16)
0.5 (1/32)
0.3 - 1.0
(1/64 - 1/16)
0.5 (1/32)
0.3 - 1.0
(1/64 - 1/16)
2.0 (1/16)
0.4 - 2.5
(1/64 - 3/32)
2.0 (1/16)
0.4 - 2.5
(1/64 - 3/32)
0.4 (1/64)
0.3 - 1.0
(1/64 - 1/16)
—NO
7.0 (1/4)
7.0 6.0 5.0
(1/4 15/64
3/16)
Twin
needle

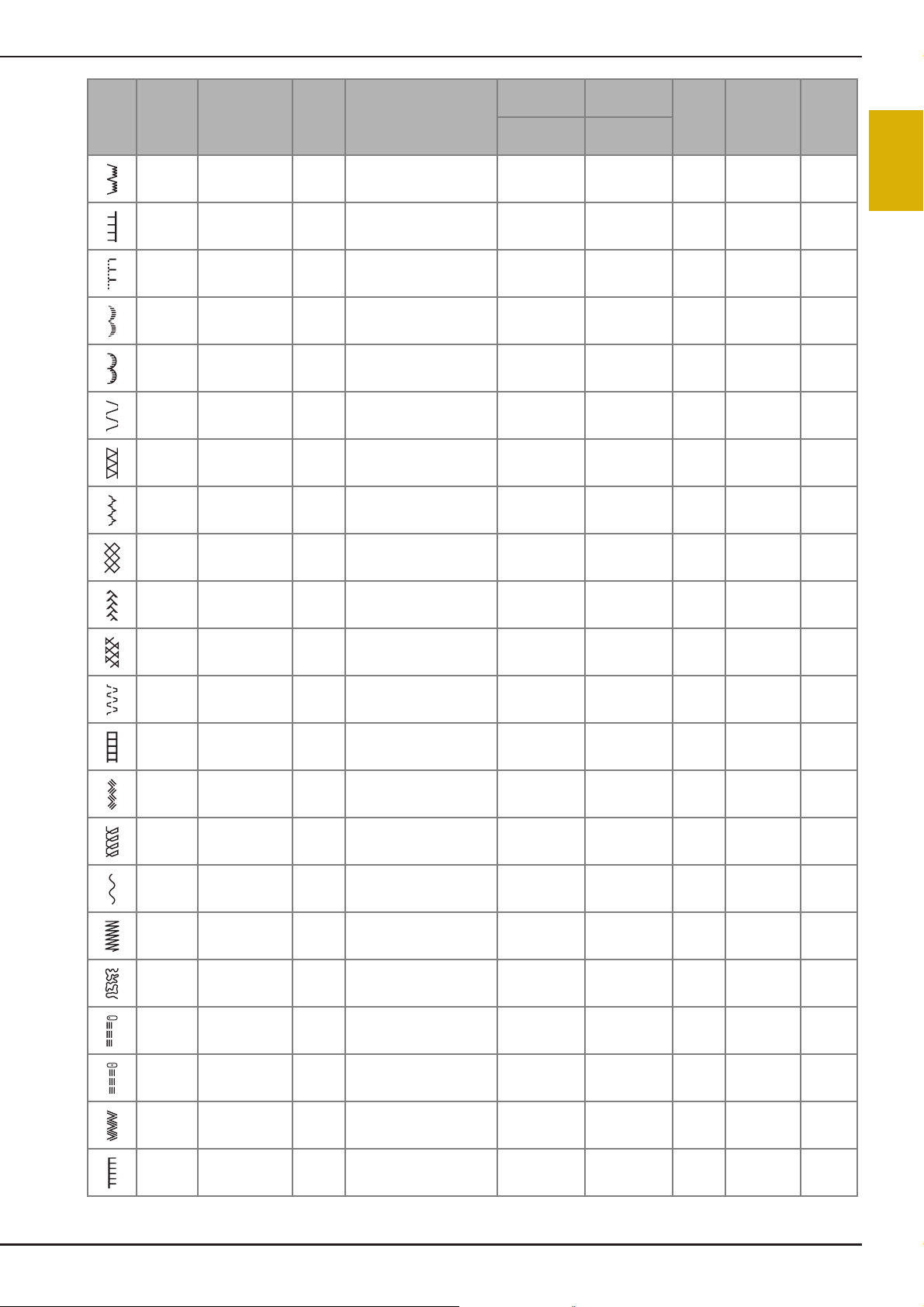

NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
Reverse/
Reinforce-
ment
stitching
Automatic
reinforce-
ment
Automatic
reinforce-
ment
Automatic
reinforce-
ment
Automatic
reinforce-
ment
Automatic
reinforce-
ment
Automatic
reinforce-
ment
Automatic
reinforce-
ment
Automatic
reinforce-
ment
Automatic
reinforce-
ment
Automatic
reinforce-
ment
Automatic
reinforce-
ment
Automatic
reinforce-
ment
Reinforce-
ment
Reinforce-
ment
Reinforce-
ment
Reinforce-
ment
Reinforce-
ment
Reinforce-
ment
Reinforce-
ment
Reinforce-
ment
Walking
foot
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
B
STARTING TO SEW
Basic operations B-51
Embroidery Step by Step
Step 3
Step 1, 2
Step 5
Step 6
Step 4
Step 7, 8
Step 9
Chapter 3
EMBROIDER
Embroidery Step by Step
Follow the steps below to prepare the machine for embroidery.
2Checking the needleUse needle 75/11 for embroidery. *B-30
3Embroidery unit attachmentAttach the embroidery unit. B-54
4Bobbin thread setupFor the bobbin thread, wind embroidery bobbin thread and set it in place. B-21
5Fabric preparationAttach a stabilizer material to the fabric, and hoop it in the embroidery frame. B-57
6Embroidery frame attachmentAttach the embroidery frame to the embroidery unit. B-63
7Pattern selectionTurn the main power to on, and select an embroidery pattern. B-62
8Checking the layoutCheck and adjust the size and position of the embroidery.B-63
9Embroidery thread setupSet up embroidery thread according to the pattern. B-56
* It is recommended that a 90/14 needle should be used when embroidering on heavy weight fabrics or stabilizing products (for example;
denim, puffy foam, etc.). Ball point needle (golden colored) 90/14 is not recommended for embroidery.
B-52
Attaching the Embroidery Foot
CAUTION
a
b
CAUTION
a
bc
• Be sure to use embroidery foot when doing
embroidery. Using another presser foot may
cause the needle to strike the presser foot,
causing the needle to bend or break and
possibly cause injury.
Press (Needle position button) to raise the needle.
a
Press .
b
• When the message “OK to automatically lower the
presser foot? ” appears on the LCD screen, press
to continue.
→ The screen changes, and all keys and operation
buttons are locked (except ).
Attaching the Embroidery Foot
Use the included screwdriver to loosen the presser foot
e
holder screw, and then remove the presser foot holder.
• The presser foot holder screw can also be loosened
or tightened with the L-shaped (or disc-shaped)
screwdriver.
Attach embroidery foot “U” so that the presser foot
f
holder screw fits into the notch in the foot.
B
STARTING TO EMBROIDER
Raise the presser foot lever.
c
Press the black button on the presser foot holder to
d
remove the presser foot.
1 Black button
2 Presser foot holder
• Make sure that embroidery foot “U” is vertical when
it is installed.
Hold the embroidery foot in place with your right
g
hand, and then use the included screwdriver to
securely tighten the presser foot holder screw.
• Use the included screwdriver to firmly tighten
the screw of the embroidery foot. If the screw
is loose, the needle may strike the presser foot
and possibly cause injury.
Press to unlock all keys and buttons.
h
Basic operations B-53
Attaching the Embroidery Unit
CAUTION
Note
CAUTION
Note
Note
1
2
Attaching the Embroidery Unit
• Do not move the machine with the embroidery
unit in place. The embroidery unit may be
dropped and cause injury.
• Keep your hands and other objects away from
the embroidery carriage and frame. Otherwise
injury may result.
Slide the tab on the cover of the connection port in the
c
direction of the arrow to open the cover.
• Do not touch the connector in the embroidery
unit connector slot. The connector could be
damaged, and it may cause malfunctions.
• Do not lift up on the embroidery carriage, and do
not forcefully move it. It may cause malfunctions.
Turn off the machine.
a
• Be sure to close the cover of the connection port
when the embroidery unit is not being used.
Insert the embroidery unit connector into the
d
connection port, and then lightly push in the
embroidery unit until it snaps into place.
1 Connection port
2 Embroidery unit connector
• Make sure that there is no gap between the
embroidery unit and the machine, otherwise the
embroidery pattern may not be sewn correctly.
Be sure to fully insert the connector into the
connection port.
• Do not push on the carriage when attaching the
embroidery unit to the machine, otherwise
damage to the embroidery unit may result.
• Before attaching the embroidery unit, be sure
to turn off the machine. Otherwise, injuries
may occur if one of the operation buttons is
accidentally pressed and the machine starts
sewing.
Pull the flat bed attachment off to the left.
b
B-54
Turn on the machine.
e
→ A message appears in the screen.
Be sure that no objects or hands are near the
f
embroidery unit and press .
→ The carriage moves to its initial position.
CAUTION
Note
Memo
1
CAUTION
CAUTION
1 Carriage
• Keep your hands and foreign objects away
from the embroidery carriage and frame when
the machine is embroidering. Otherwise,
injury may result.
• If the machine was not initialized correctly, the
initial screen may not appear. This is not a sign of
a malfunction. If this occurs, turn the machine
off, then on again.
• A confirmation message to lower the framesecuring lever after the carriage moves to its
initial position is displayed. Continue with pattern
selection and remember to lower the framesecuring lever when the embroidery frame is
attached.
Attaching the Embroidery Unit
Press , and then press .
b
→ The embroidery carriage moves into a position
where it can be stored.
Turn off the machine.
c
• Always turn off the machine before removing
the embroidery unit.
It may cause malfunctions if removed when
the machine is turned on.
Hold the release button on the bottom left of the
d
embroidery unit, and slowly pull the embroidery unit
to the left.
B
STARTING TO EMBROIDER
→ The screen for selecting the embroidery pattern type
is displayed.
• For details on the embroidery patterns, refer to
“Selecting Embroidery Patterns” on page B-62.
• Utility stitches cannot be selected when the
embroidery unit is attached.
■ Removing the embroidery unit
Make sure that the machine is completely stopped and
follow the instructions below.
Remove the embroidery frame.
a
• For details on removing the embroidery frame, refer
to “Attaching the Embroidery Frame” on page B-61.
1
1 Release button
• Do not carry the embroidery unit by holding
the release button compartment.
Basic operations B-55
Embroidery Attractive Finishes
Note
Memo
a
CAUTION
Note
Embroidery Attractive Finishes
There are many factors that go into beautiful embroidery.
Using the appropriate stabilizer (page B-57) and hooping
the fabric in the frame (page B-58) are two important
factors mentioned earlier. Another important point is the
appropriateness of the needle and thread being used. See
the explanation of threads below.
■ Thread
Upper threadUse embroidery thread intended for use with
this machine.
Other embroidery threads may not yield
optimum results.
Bobbin thread Use embroidery bobbin thread intended for
use with this machine.
• Before embroidering, check that there is enough
thread in the bobbin. If you start to sew your
embroidery project without enough thread in the
bobbin, you will need to rewind the bobbin in the
middle of the embroidery pattern.
• If you use threads other than those listed above,
the embroidery may not sew out correctly.
■ Bobbin case
Two types of bobbin cases are included with this
machine. When embroidering, use the appropriate bobbin
case depending on the bobbin thread that will be used.
See the explanation of bobbin case types below.
Standard bobbin case (recommended for sewing and for
embroidering with included 60 weight bobbin thread)
Alternate bobbin case (for prewound or other
embroidery bobbin threads such as 90 weight bobbin
thread)
2 Alternate bobbin case
(no color on the screw)
The alternate bobbin case with no color on the tension
adjustment screw is set with tighter tension for embroidery
with different weights of bobbin threads and a variety of
embroidery techniques. This bobbin case is identified with
a dark colored mark on the inside of the bobbin cavity.
The tension screw on this case can be adjusted if
necessary. For details on adjusting thread tension, refer to
“Adjusting thread tension” in the “Embroidering” section.
• See “Cleaning the Race” in the “Appendix” section
for how to remove the bobbin case.
• When embroidering on large garments
(especially jackets or other heavy fabrics), do
not let the fabric hang over the table.
Otherwise, the embroidery unit cannot move
freely and the embroidery frame may strike the
needle, causing the needle to bend or break
and possibly cause injury.
Place the fabric so that it does not hang off the
table or hold the fabric to keep it from
dragging.
1 Standard bobbin case
(green marking on the screw)
The standard bobbin case originally installed in the
machine has a green marking on the tension adjustment
screw. We recommend using the included embroidery
bobbin thread with this bobbin case. Do not adjust the
tension screw on this bobbin case with the green marked
screw.
B-56
• Do not leave objects in the range of motion of the
embroidery frame. The frame may strike the
object and cause a poor finish to the embroidery
pattern.
• When embroidering on large garments
(especially jackets or other heavy fabrics), do not
let the fabric hang over the table. Otherwise, the
embroidery unit cannot move freely, and the
pattern may not turn out as planned.
Preparing the Fabric
CAUTION
Note
CAUTION
Memo
• Use fabrics with a thickness of less than 3 mm
(approx. 1/8 inch). Using fabrics thicker than 3
mm (approx. 1/8 inch) may cause the needle
to break.
• When using layers with thicker batting etc.,
you can sew more attractive embroidery by
adjusting the embroidery presser foot height in
the embroidery settings screen (see below).
• In the case of thick terry cloth towels we
recommend that you place a piece of water
soluble stabilizer on the top surface of the
towel. This will help to reduce the nap of the
toweling and result in more attractive
embroidery.
Preparing the Fabric
• Always use a stabilizer material for embroidery
when sewing stretch fabrics, lightweight
fabrics, fabrics with a coarse weave, or fabrics
which cause pattern shrinkage. Otherwise, the
needle may break and cause injury. Not using
a stabilizer material may result in a poor finish
to your project.
Use a piece of stabilizer which is larger than the
a
embroidery frame being used.
B
STARTING TO EMBROIDER
• Press . In the “Embroidery Foot Height”
display, use and in the settings screen.
Adjust the presser foot height for thick or puffy
fabrics.
• To increase the space between the presser foot
and the needle plate, set the embroidery foot
height to a larger number, 1.5 mm setting is used
for most embroidery.
Attaching iron-on stabilizers (backing) to the
fabric
For best results in your embroidery projects, always use
stabilizer material for embroidery. Follow the package
instructions for the stabilizer being used.
When using fabrics that cannot be ironed (such as terry cloth
or fabrics that have loops which expand when ironed) or in
places where ironing is difficult, position the stabilizer
material under the fabric without fusing it, then position the
fabric and stabilizer in the embroidery frame, or check with
your authorized Baby Lock retailer for the correct stabilizer to
use.
1 Size of the embroidery frame
2 Iron-on stabilizer (backing)
Iron the iron-on stabilizer material to the wrong side of
b
the fabric.
1 Fusible side of stabilizer
2 Fabric (wrong side)
• When embroidering on thin fabrics such as
organdy or lawn, or on napped fabrics such as
terry cloth or corduroy, use water soluble
stabilizer (sold separately) for best results. The
water soluble stabilizer material will dissolve
completely in water, giving the project a more
attractive finish.
Basic operations B-57
Preparing the Fabric
CAUTION
Note
1 2
Hooping the fabric in the embroidery frame
■ Types of embroidery frames
The types and numbers of supplied embroidery frames
will differ depending on the machine model.
Extra Large
Embroidery field 26 cm × 16 cm
(10 - 1/4 inches × 6 - 1/4 inches)
Use when embroidering connected or combined
characters or patterns, or when embroidering large
patterns.
Other optional embroidery frames can be used. When
choosing frames that do not appear on the screen, be sure
to check the design size of the embroidery field of the
optional frame. Check with your authorized Baby Lock
retailer for frame compatibility.
Select a frame that is slightly larger than the pattern size.
Included frame options are displayed on the screen.
1 Highlighted: Can be used
2 Shaded: Cannot be used
Large
Embroidery field 18 cm × 13 cm (7 inches × 5 inches)
Use when embroidering patterns between 10 cm × 10 cm
(4 inches × 4 inches) and 18 cm × 13 cm (7 inches × 5
inches).
Medium (sold separately with some models)
Embroidery field 10 cm × 10 cm (4 inches × 4 inches)
Use when embroidering patterns under 10 cm × 10 cm
(4 inches × 4 inches).
Small (sold separately with some models)
Embroidering field 2 cm × 6 cm (1 inch × 2 - 1/2 inches)
Use when embroidering small sized patterns, such as
name tags.
• If you use a frame that is too small, the presser
foot may strike the frame during sewing and
cause injury or may damage your machine.
■ Inserting the Fabric
• If the fabric is not securely held in the embroidery
frame, the embroidery design will sew out poorly.
Insert the fabric on a level surface, and gently
stretch the fabric taut in the frame. Follow the
steps below to insert the fabric correctly.
Lift-up and loosen the frame adjustment screw and
a
remove the inner frame.
1 Frame adjustment screw
2 Inner frame
B-58
Lay the fabric right side up on top of the outer frame.
Memo
Memo
b
Re-insert the inner frame making sure to align the inner
frame’s with the outer frame’s .
1 Inner frame’s
2 Outer frame’s
3 Frame adjustment screw
Slightly tighten the frame adjustment screw, and then
c
remove the slack in the fabric by gently pulling on the
edges and corners. Do not loosen the screw.
Preparing the Fabric
• After stretching the fabric, lightly tapping it should
produce a drum-like sound.
• Stretch the fabric from all four corners and all four
edges. While stretching the fabric, tighten the
frame adjustment screw.
Return the frame adjustment screw to its initial
e
position.
• You can use the included screwdriver when you
loosen or tighten the frame adjustment screw.
B
STARTING TO EMBROIDER
Gently stretch the fabric taut, and tighten the frame
d
adjustment screw to keep the fabric from loosening
after stretching.
• After stretching the fabric, make sure the fabric is
taut.
• Make sure the inside and outside frames are even
before you start embroidering.
■ Using the embroidery sheet
When you want to embroider the pattern in a particular
place, use the embroidery sheet with the frame.
With a chalk pencil, mark the area of the fabric you
a
want to embroider.
1 Embroidery pattern
2 Mark
1 Outer frame
2 Inner frame
3 Fabric
Basic operations B-59
Preparing the Fabric
Place the embroidery sheet on the inner frame. Align
b
the guide lines on the embroidery sheet with the mark
you made on the fabric.
1 Inner frame
2 Guide line
Gently stretch the fabric so there are no folds or
c
wrinkles, and press the inner frame into the outer
frame.
Embroidering small fabrics or fabric edges
Use an embroidery stabilizer to provide extra support. After
embroidering, remove the stabilizer carefully. Attach the
stabilizer as shown in the following examples. We
recommend using a stabilizer for embroidery.
■ Embroidering small fabrics
Use a temporary spray adhesive to adhere the small piece
of fabric to the larger piece in the frame.
If you do not wish to use a temporary spray adhesive,
attach the stabilizer with a basting stitch.
1 Inner frame
2 Outer frame
Remove the embroidery sheet.
d
1 Fabric
2 Stabilizer
■ Embroidering edges or corners
Use a temporary spray adhesive to adhere the small piece
of fabric to the larger piece in the frame.
If you do not wish to use a temporary spray adhesive,
attach the stabilizer with a basting stitch.
1 Fabric
2 Stabilizer
■ Embroidering ribbons or tape
Secure with double-sided tape or a temporary spray
adhesive.
B-60
1 Ribbon or tape
2 Stabilizer
Attaching the Embroidery Frame
Note
CAUTION
• Wind and insert the bobbin before attaching the
embroidery frame making sure to use the
recommended bobbin thread.
Press (Presser foot lifter button) to raise the presser
a
foot.
Raise the frame-securing lever.
b
1 Frame-securing lever
2 Carriage
Attaching the Embroidery Frame
Lower the frame-securing lever to be level with the
e
frame to secure the embroidery frame in the
embroidery frame holder.
• If the frame-securing lever is not lowered, the
following message appears. You cannot start
sewing until you lower the frame-securing
lever.
B
STARTING TO EMBROIDER
Align the embroidery frame guide with the right edge
Slide the embroidery frame into the holder, making
d
sure to align the embroidery frame’s arrow mark with
the one on holder.
■ Removing the embroidery frame
Press (Presser foot lifter button) to raise the presser
a
foot.
Raise the frame-securing lever.
b
Pull the embroidery frame toward you.
c
1 Arrow mark
Basic operations B-61
Selecting Embroidery Patterns
a
c
f
e
hg
b
d
Selecting Embroidery Patterns
Copyright information
The patterns stored in the machine are intended for private
use only. Any public or commercial use of copyrighted
patterns is an infringement of copyright law and is strictly
prohibited.
Embroidery pattern types
There are many character and decorative embroidery
patterns stored in the machine's memory (see the
“Embroidery Design Guide” for a full summary of
patterns in the machine's memory). You can also use
patterns from USB flash drive (sold separately).
Press or to display the desired pattern on the
b
screen. Press 4 times in this procedure.
1 Baby Lock “Exclusives”
2 Embroidery patterns
3 Floral alphabet patterns
4 Character patterns
5 Frame patterns
6 Press this key to position the embroidery unit for storage
7 Patterns saved in the machine's memory
8 Patterns saved in USB flash drive
Selecting an embroidery pattern
Select a simple pattern built-in your machine and embroider
for testing purposes. You can try various selection of patterns
and pattern editing in the “Embroidering” section.
Press in the pattern type selection screen.
a
• Once the machine has finished the initialization and
the carriage has moved to the start position, the
pattern type selection screen will display. If another
screen is displayed, press to display the screen
below.
Press , and then .
c
→ Pattern editing screen appears.
Press .
d
• For details on pattern editing screen, refer to “Editing
Patterns” in the “Embroidering” section.
→ Embroidery settings screen appears.
Press .
e
• For details on embroidery settings screen, refer to
“Editing Patterns” in the “Embroidering” section.
• Confirm the pattern position to be sewn, referring to
“Confirming the Pattern Position” on page B-63.
B-62
→ Embroidering screen appears.
Confirming the Pattern Position
Memo
1
Note
The pattern is normally positioned in the center of the
embroidery frame. If the pattern needs to be repositioned
for better placement on the garment, you can check the
layout before starting embroidery.
Checking the pattern position
The embroidery frame moves and shows the pattern position.
Watch the frame closely to make sure the pattern will be sewn
in the right place.
Press on the embroidery settings screen.
a
Confirming the Pattern Position
• Needle should be in the raised position before
pressing otherwise the following error
message will appear “The needle is down. Press
the needle position button to raise the needle.”
When needle is raised this message will then
disappear.
Press .
c
Previewing the selected pattern
Press .
a
B
STARTING TO EMBROIDER
From , press the key for the position that you
b
want to check.
1 Selected position
→ The needle will move to the selected position on the
pattern.
• To see the entire embroidering area, press .
The embroidery frame moves and shows the
embroidery area.
→ An image of the pattern as it will be embroidered
appears.
Press to select the frame used in the
b
preview.
• Frames displayed in light gray cannot be selected.
• Press to enlarge the image of the pattern.
• The pattern can be sewn as it appears in the
following display.
■ Frame sizes displayed on screen
DisplayFrame type and embroidering area
Extra large embroidery frame
26 cm × 16 cm (10-1/4 inches × 6-1/4 inches)
Large embroidery frame
18 cm × 13 cm (7 inches × 5 inches)
Medium embroidery frame (sold separately with
some models)
10 cm × 10 cm (4 inches × 4 inches)
Small embroidery frame (sold separately with some
models)
2 cm × 6 cm (1 inch × 2-1/2 inches)
Press to return to the original screen.
c
Basic operations B-63

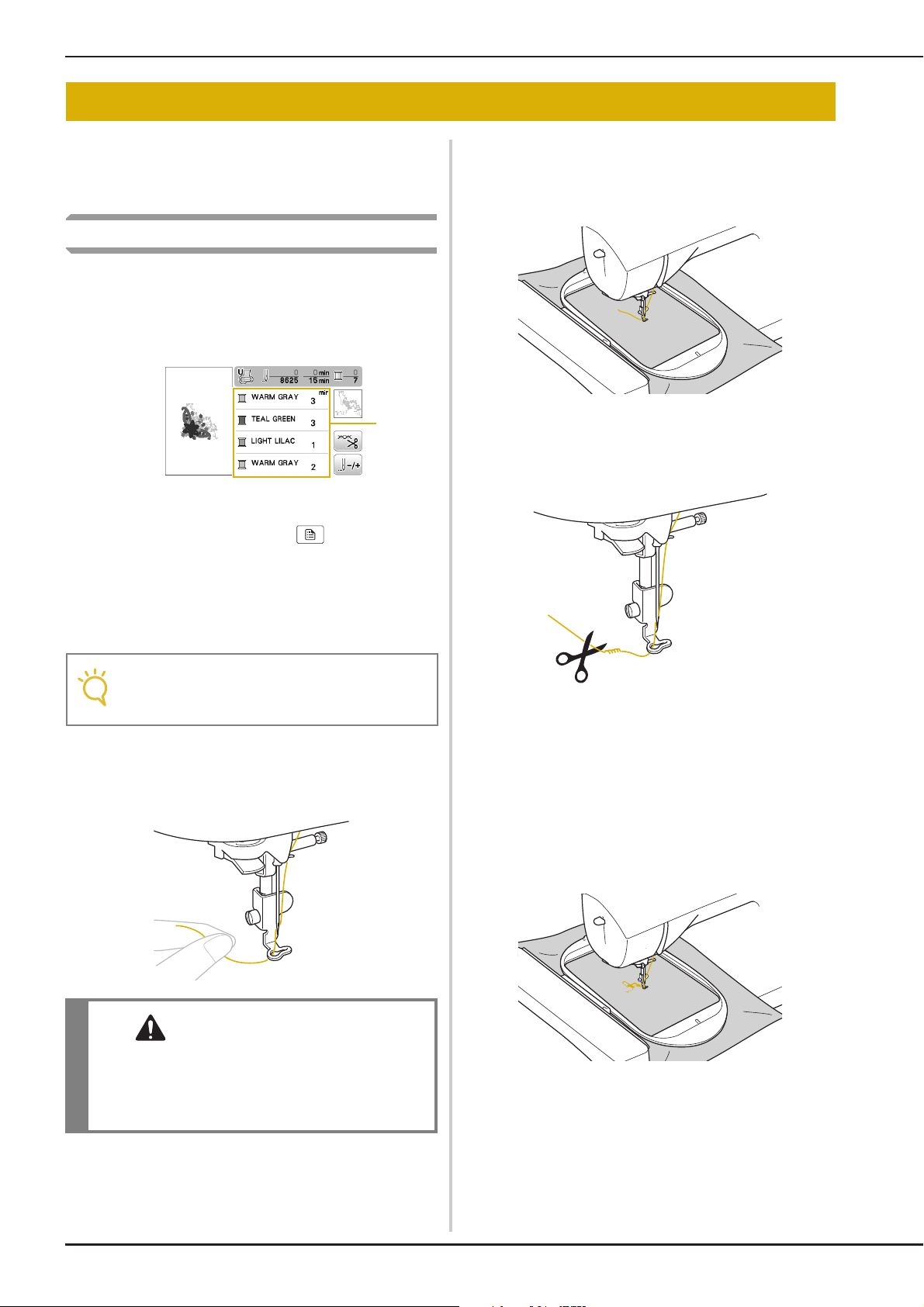

Embroidering
Note
CAUTION
1
Embroidering
After the preparations are done, you can try embroidering.
This section describes the steps for embroidering and
appliquéing.
Embroidering a pattern
Embroidery patterns are embroidered with a change of thread
after each color.
Prepare embroidery thread of the color shown on the
a
screen.
1 Embroidery color order
• The thread color number set displayed for the thread
colors can be changed. Press , and then change
the setting in the settings screen. For details, refer to
“Changing the thread color display” on page B-65.
Lower the presser foot, then press the “Start/Stop”
d
button to start embroidering.
After 5-6 stitches, press the “Start/Stop” button again
to stop the machine.
Trim the excess thread at the end of the seam. If the
e
end of the seam is under the presser foot, raise the
presser foot, then trim the excess thread.
Set the embroidery thread, and thread the needle.
b
• Refer to “Threading the upper thread” on page B-24
and “Threading the needle” on page B-26.
• Before using the needle threader, be sure to
lower the presser foot.
Pass the thread through the embroidery foot hole, and
c
hold it lightly in your left hand.
Give the thread a little slack.
• If the thread is left at the beginning of the stitching, it
may be sewn over as you continue embroidering the
pattern, making it very difficult to deal with the
thread after the pattern is finished. Trim the thread at
the beginning.
Press the “Start/Stop” button to start embroidering.
f
→ Stitching stops automatically with reinforcement after
one color has been completed. When automatic
thread cutting is set, the thread is cut.
• If the thread is pulled too tight, the needle may
break or bend.
• Do not let hands or objects hit the carriage
while sewing. The pattern may misalign.
B-64
Embroidering
Memo
Memo
Remove the thread for the first color from the
g
machine. Thread the machine with the next color.
Repeat the same steps for embroidering the remaining
h
colors.
→ When the last color is sewn, the message informing
that the embroidering is finished will appear on the
display. Press , and the display will return to the
initial screen.
• For the automatic thread cutting setting, refer to
“Using the automatic thread cutting function (END
COLOR TRIM)” in the “Embroidering” section.
Cut the excess thread jumps within the color.
i
Thread color name
Thread number
When the thread number “#123” is displayed, use
d
or to select from six embroidery thread brands
pictured below.
B
STARTING TO EMBROIDER
Changing the thread color display
You can display the name of the thread colors or embroidery
thread number.
• Colors on the screen may vary slightly from actual
spool colors.
Press .
a
Use or on operation panel to display the thread
b
color selections.
Use or to select the name of the thread colors
c
or the embroidery thread number.
Embroidery (polyester thread)
Country (cotton thread)*
Madeira Poly (polyester thread)
Madeira Rayon
Sulky
Robison-Anton (polyester
thread)
* Depending on the country or area, cotton-like polyester
thread is sold.
Press .
e
Basic operations B-65
Embroidering
B-66
Sewing
CAUTION
This section describes procedures for using the various utility stitches as well as other
functions. It provides details on basic sewing in addition to the more expressive features of
the machine, such as sewing tubular pieces and buttonholes.
Page number starts with “S” in this section.
• Before replacing the presser foot, be sure to press (Presser foot/Needle exchange key)
on the operation panel to lock all keys and buttons, otherwise injuries may occur if the
“Start/Stop” button or any other button is pressed and the machine starts. For details on
changing the presser foot, refer to “Replacing the Presser Foot” in the “Basic operations”
section.
Sewing Tips
Chapter 1
SEWING ATTRACTIVE
FINISHES
Sewing Tips
Trial sewing
After you have set up the machine with the thread and needle
appropriate for the type of fabric being sewn, the machine
automatically sets the stitch length and width for the stitch
that is selected. However, a trial piece of fabric should be
sewn since, depending on the type of fabric and stitching
being sewn, the desired results may not be achieved.
For the trial sewing, use a piece of fabric and thread that are
the same as those used for your project, and check the thread
tension and stitch length and width. Since the results differ
depending on the type of stitching and the number of layers of
fabric sewn, perform the trial sewing under the same
conditions that will be used with your project.
Changing the sewing direction
Sewing curves
Stop sewing, and then slightly change the sewing direction to
sew around the curve. For details on sewing with an even
seam allowance, refer to “Sewing an even seam allowance”
on page S-3.
When sewing along a curve while using a zigzag stitch, select
a shorter stitch length in order to obtain a finer stitch.
When the stitching reaches a corner, stop the machine.
a
Leave the needle lowered (in the fabric). If the needle
remains up when the machine stops sewing, press
(Needle position button) to lower the needle.
Raise the presser foot lever, and then turn the fabric.
b
Turn the fabric using the needle as a pivot.
Lower the presser foot lever and continue sewing.
c
Sewing cylindrical pieces
Removing the flat bed attachment allows for free-arm sewing,
making it easier to sew cylindrical pieces such as sleeve cuffs
and pant legs.
Pull the flat bed attachment off to the left.
a
Slide the part that you wish to sew onto the free arm,
b
and then sew from the top.
S-2
When you are finished with free arm sewing, install the
c
flat bed attachment back in its original position.
Sewing Tips
1
2
3
Sewing an even seam allowance
To sew an even seam, start sewing so that the seam allowance
is to the right of the presser foot, and the edge of the fabric is
aligned with either the right edge of the presser foot or a
marking on the needle plate.
■ Aligning the fabric with the presser foot
Sew while keeping the right edge of the presser foot a
fixed distance from the edge of the fabric.
1
2
1 Seam
2 Presser foot
■ Aligning the fabric with the stitch guide foot
(sold separately with some models)
Sew while keeping the right edge of the fabric aligned
with a desired position of markings on the stitch guide
foot.
■ Aligning the fabric with a needle plate marking
The markings on the needle plate show the distance from
the needle position of a seam sewn with the straight stitch
(left needle position). Sew while keeping the edge of the
fabric aligned with a marking on the needle plate. The
distance between the markings in the upper scale is
1/8 inch (3 mm) and the distance between the markings in
the grid is 5 mm (3/16 inch).
For stitches with a left needle position
(Stitch width: 0.0 mm)
■ If the fabric does not fit under the presser foot
If the fabric does not fit easily under the presser foot, raise
the presser foot lever even higher to bring the presser foot
to its highest position.
■ If thick seams are being sewn and the fabric
does not feed at the beginning of stitching
The fabric may not feed when thick seams are being sewn
and the presser foot is not level, as shown below. In this
case, use the presser foot locking pin (black button on the
left side of zigzag foot “J” so that the presser foot remains
level while sewing, allowing the fabric to be fed smoothly.
Release the presser foot locking pin (black button).
d
→ The presser foot remains level, allowing the fabric to
be fed.
→ After the seam is sewn, the presser foot will return to
its original angle.
• You may find adjusting the “Presser Foot
Pressure” in the settings screen helpful on some
thick fabrics.
• (For models equipped with Automatic Fabric
Sensor System)
When “Automatic Fabric Sensor System” in the
settings screen is set to “ON”, the thickness of the
fabric is automatically detected by the internal
sensor so the fabric can be fed smoothly for best
sewing results. For details on the automatic fabric
sensor system, refer to “Automatic Fabric Sensor
System (Automatic presser foot pressure)” in the
“Basic operations” section.
a
1 Sewing direction
Raise the presser foot lever.
a
Align the beginning of stitching, and then position the
b
fabric.
While holding zigzag foot “J” level, hold the presser
c
foot locking pin (black button on the left side) pressed
in, and lower the presser foot lever.
1 Presser foot holding pin (black button)
• If fabric more than 6 mm (15/64 inch) thick is
sewn or if the fabric is pushed with too much
force, the needle may bend or break.
Sewing thin fabrics
When sewing thin fabrics, the stitching may become
misaligned or the fabric may not feed correctly. Move the
needle (be sure to use a fine needle) to the furthest left or right
hand position so that the fabric does not get pulled down into
the feed dog area. If this occurs, place thin paper or stabilizer
material under the fabric and sew it together with the fabric.
When you have finished sewing, tear off any excess paper.
1
1 Stabilizer material or paper
S-4
Sewing Various Fabrics
Note
1
CAUTION
Note
Sewing stretch fabrics
First, baste the pieces of fabric together, and then sew without
stretching the fabric.
1
1 Basting
For best results when sewing on knit fabrics use the stretch
stitches. Also be sure to use a needle for knits. The
recommended stitches and their stitch numbers are indicated
below.
Stitch
BLMAV1-051-061-131-142-13
BLMSP/BLMLR
BL210A
* Stitch patterns can be selected directly by pressing the
numeric keys on the machine during preset utility stitch
mode. Refer to “Basic operations” section.
*06*
05
05
*06*
13
11
14
12
48
*
42
*
Sewing hook-and-loop fastener tape
• Use only the adhesive-free hook-and-loop
fastener tape which is designed for sewing.
When the glue adheres to the needle or the
bobbin hook race, it may cause malfunction.
• If the hook-and-loop fastener tape is sewn with
the thin needle (65/9-75/11), the needle may
bend or break.
• Before sewing, baste together the fabric and the
hook-and-loop fastener tape.
Make sure that the needle passes through the hook-and-loop
fastener tape by turning the handwheel and lower the needle
into the hook-and-loop fastener tape before sewing. And then,
sew the edge of the hook-and-loop fastener tape at a slow
speed.
If the needle does not pass through the hook-and-loop
fastener tape, replace the needle with the needle size for
thicker fabrics. For details, refer to “Fabric/thread/needle
combinations” in the “Basic operations” section.
S
SEWING ATTRACTIVE FINISHES
Sewing leathers or vinyl fabrics
When sewing fabrics that may stick to the presser foot such as
leathers or coated fabrics, change the presser foot to the non
stick foot*. The walking foot* is also suitable for sewing some
leathers or vinyl fabrics.
* Sold separately with some models.
1 Leather
• The walking foot can only be used with straight
or zigzag stitch patterns with reinforcement
stitches. For details, refer to “Stitch Setting
Chart” in the “Basic operations” section.
• When using the walking foot, test sew on a scrap
piece of leather or vinyl that is to be used in
project to make sure foot does not leave any
marks.
1 Edge of the hook-and-loop fastener tape
Sewing S-5
Basic Stitching
J
Chapter 2
UTILITY STITCHES
Basic Stitching
Straight stitches are used for sewing plain seams.
• Using the table below, refer to “Using the utility
stitch tables in the “Sewing” section” in the “Basic
operations” section.
Stitch nameStitch
Basting stitch1-080807
Straight stitch (Left)
Straight stitch (Middle)1-03
Straight stitch (Middle)1-04
BLMAV
Stitch number
1-01
1-02
BLMSP/BLMLR
*01*
01
02
*02*
03
*03*
04*04*
Basic stitching
Baste or pin together the fabric pieces.
a
Attach zigzag foot “J”.
b
BL210A
Presser foot
Select a stitch.
c
Lower the needle into the fabric at the beginning of the
d
stitching.
Lower the presser foot lever, and then start sewing.
J
e
When sewing is finished, cut the thread.
f
Triple stretch stitch1-05
* Stitch patterns can be selected directly by pressing the
numeric keys on the machine during preset utility stitch
mode. Refer to “Basic operations” section.
05
*05*
Basting
Sew basting with a stitch length between 5 mm (3/16 inch)
and 30 mm (1-3/16 inches).
Attach zigzag foot “J”.
a
J
Select stitch .
b
Start sewing.
c
S-6
■ Changing the needle position
12
0.02.05.57.0
34 5
6
1
2
The needle position used as the baseline is different for the
straight stitch (left needle position) and the straight stitch
(center needle position).
When the stitch width of the straight stitch (left needle
position) is set to its standard setting (0.0 mm), the
distance from the needle position to the right side of the
presser foot is 12 mm (1/2 inch). If the stitch width is
changed (between 0 and 7.0 mm (1/4 inch)), the needle
position will also change. By changing the stitch width
and sewing with the right side of the presser foot aligned
with the edge of the fabric, a seam allowance can be sewn
with a fixed width.
Basic Stitching
S
UTILITY STITCHES
1 Stitch width setting
2 Distance from the needle position to the right side of the
presser foot
3 12.0 mm (1/2 inch)
4 10.0 mm (3/8 inch)
5 6.5 mm (1/4 inch)
6 5.0 mm (3/16 inch)
• For details, refer to “Setting the stitch width” in the
“Basic operations” section.
Sewing S-7
Blind Hem Stitching
Memo
3
1
3
6
5
1
1
2
7
4
Blind Hem Stitching
Secure the bottoms of skirts and pants with a blind hem.
• Using the table below, refer to “Using the utility
stitch tables in the “Sewing” section” in the “Basic
operations” section.
Stitch nameStitch
Blind hem stitch2-013631
Blind hem stretch
stitch
BLMAV
BL210A
BLMSP/BLMLR
Stitch number
2-023732
• When the size of cylindrical pieces is too small to
slide onto the arm or the length is too short, the
fabric will not feed and desired results may not be
achieved.
Turn the skirt or pants wrong side out.
a
2
1
1 Wrong side of fabric
2 Right side of fabric
3 Edge of fabric
4 Bottom side
Fold the fabric along the desired edge of the hem, and
b
press.
1 Wrong side of fabric
2 Right side of Fabric
3 Edge of fabric
4
4 Desired edge of hem
<Thick fabric>
<Normal fabric>
1
1
1
3
2
2
2
3
R
Presser foot
Use a chalk to mark on the fabric about 5 mm (3/16
c
inch) from the edge of the fabric, and then baste it.
1 Wrong side of fabric
2 Right side of fabric
3 Edge of fabric
4 Desired edge of hem
5 5 mm (3/16 inch)
4
6 Basting
<Thick fabric>
<Normal fabric>
1
1
1
3
5
6
2
2
2
<Seen from the side>
Fold back the fabric inside along the basting.
d
1 Wrong side of fabric
2 Right side of fabric
3 Edge of fabric
4 Desired edge of hem
5 5 mm (3/16 inch)
6 Basting
7 Basting point
<Thick fabric>
<Normal fabric>
<Seen from the side>
Unfold the edge of fabric, and position the fabric with
e
the wrong side facing up.
1 Wrong side of fabric
2 Right side of fabric
4
1
1
1
6
3
1
1
5
2
3 Edge of fabric
4 Desired edge of hem
5 Basting point
6 Basting
<Thick fabric>
<Normal fabric>
<Seen from the side>
Attach blind hem foot “R”.
f
<Seen from the side>
S-8
Select or .
g
Remove the flat bed attachment to use the free arm.
h
Slide the item that you wish to sew onto the free arm,
Memo
1
2
i
make sure that the fabric feeds correctly, and then start
sewing.
Blind Hem Stitching
• Blind hem stitches cannot be sewn if the left
needle drop point does not catch the fold. If the
needle catches too much of the fold, the fabric
cannot be unfolded and the seam appearing on
the right side of the fabric will be very large,
leaving an unattractive finish. If you experience
either of these cases, perform the following
instructions to solve the problem.
1 Free arm
Position the fabric with the edge of the folded hem
j
against the guide of the presser foot, and then lower
the presser foot lever.
1 Wrong side of fabric
2 Fold of hem
3 Guide
Adjust the stitch width until the needle slightly catches
k
the fold of the hem.
■ If the needle catches too much of the hem fold
The needle is too far to the left.
Decrease the stitch width so that the needle slightly
catches the fold of the hem.
Example: Thick fabric
Example: Normal fabric
1 Wrong side of fabric
2 Right side of fabric
S
UTILITY STITCHES
1 Needle drop point
When you change the needle drop point, raise the
needle, and then change the stitch width.
1 Thick fabric
2 Normal fabric
Sewing S-9
Blind Hem Stitching
Note
1
2
■ If the needle does not catch the hem fold
The needle is too far to the right.
Increase the stitch width so that the needle slightly catches
the fold of the hem.
Example: Thick fabric
Example: Normal fabric
1 Wrong side of fabric
2 Right side of fabric
Sew with the fold of the hem against the presser foot
l
guide.
Press the “Start/Stop” button to stop sewing when you
m
are finished, and raise the presser foot and needle to
remove the fabric by pulling it back.
• Be sure to pull the fabric backward after finished
sewing. If you pull the fabric toward side or
forward, the presser foot may be damaged.
Remove the basting stitching and reverse the fabric.
n
1 Wrong side of fabric
2 Right side of fabric
S-10
Overcasting Stitches
G
a
CAUTION
1
Overcasting Stitches
Sew overcasting stitches along the edges of cut fabric to
prevent them from fraying.
Sewing overcasting stitches using
overcasting foot “G”
• Using the table below, refer to “Using the utility
stitch tables in the “Sewing” section” in the “Basic
operations” section.
Stitch nameStitch
Overcasting stitch
BLMAV
BLMSP/BLMLR
Stitch number
1-15
1-171715
15
*13*
BL210A
Sew with the edge of the fabric against the presser foot
d
guide.
S
UTILITY STITCHES
1 Needle drop point
Presser foot
G1-161614
• After the stitch width is adjusted, rotate the
handwheel toward you (counterclockwise).
Check that the needle does not touch the
presser foot. If the needle hits the presser foot,
the needle may break and cause injury.
* Stitch patterns can be selected directly by pressing the
numeric keys on the machine during preset utility stitch
mode. Refer to “Basic operations” section.
Attach overcasting foot “G”.
a
Select a stitch.
b
Position the fabric with the edge of the fabric against
c
the guide of the presser foot, and then lower the
presser foot lever.
1 Guide
1 The needle should not touch the center bar
• If the presser foot is raised to its highest level,
the needle may strike the presser foot.
Press the “Start/Stop” button to stop sewing when you
e
are finished, and raise the presser foot and needle to
remove the fabric by pulling it back.
Sewing S-11
Overcasting Stitches
J
a
Note
1
Sewing overcasting stitches using zigzag foot
“J”
• Using the table below, refer to “Using the utility
stitch tables in the “Sewing” section” in the “Basic
operations” section.
1 Needle drop point
Stitch nameStitch
Zigzag stitch1-09
Zigzag stitch (Right)1-111110
2 steps elastic zigzag
stitch
3 steps elastic zigzag
stitch
Overcasting stitch
Single diamond
overcast stitch
BLMAV
BLMSP/BLMLR
Stitch number
09
*08*
1-131311
1-14
1-181816
1-191917
1-202018
1-212119
1-2222–
1-2323–
*12*
14
BL210A
* Stitch patterns can be selected directly by pressing the
numeric keys on the machine during preset utility stitch
mode. Refer to “Basic operations” section.
Attach zigzag foot “J”.
a
Presser foot
Sewing overcasting stitches using the side
cutter (sold separately with some models)
Using the side cutter, seam allowances can be finished
while the edge of the fabric is cut off. Five utility stitches
can be used to sew overcasting stitches with the side
cutter.
• Using the table below, refer to “Using the utility
stitch tables in the “Sewing” section” in the “Basic
operations” section.
• Thread the needle manually when using the side
cutter, or only attach the side cutter after
J
threading the needle using the needle threader.
Stitch nameStitch
With side cutter
BLMAV
BLMSP/BLMLR
Stitch number
1-242420
1-252521
1-262622
1-272723
BL210A
Presser foot
S
Select a stitch.
b
Sew along the edge of the fabric with the needle
c
dropping off the edge at the right.
1 Needle drop point
S-12
1-282824
Side cutter
Overcasting Stitches
Note
Memo
1
Remove the presser foot.
a
Hook the connecting fork of the side cutter onto the
b
needle clamp screw.
a
b
1 Connecting fork
2 Needle clamp screw
Position the side cutter so that side cutter pin is aligned
c
with the notch in the presser foot holder, and then
slowly lower the presser foot lever.
b
a
Select a stitch.
f
Make a cut of about 2 cm (3/4 inch) long in the fabric
g
at the beginning of the stitching.
1
1 2 cm (3/4 inch)
Position the fabric in the side cutter.
h
The cut in the fabric should be positioned over the
guide plate of the side cutter.
a
1 Guide plate
• If the fabric is not positioned correctly, the fabric will
not be cut.
S
UTILITY STITCHES
1 Notch in presser foot holder
2 Pin
• When it is hard to set under the presser foot
holder, fit the pin on the side cutter into the notch
of the presser foot holder raising up the presser
foot lever higher.
Raise the presser foot lever to check that the side
d
cutter is securely attached.
Pass the upper thread under the side cutter, and then
e
pull it out toward the rear of the machine.
Lower the presser foot lever, and then start sewing.
i
→ A seam allowance is cut while the stitching is sewn.
• If the stitching is sewn in a straight line , the seam
allowance will be about 5 mm (3/16 inch).
1 5 mm (3/16 inch)
• The side cutter can cut as much as one layer of
13-oz. denim.
• After using the side cutter, clean it by removing
any lint or dust.
• If the side cutter can no longer cut fabric, use a
piece of cloth to apply a small amount of oil to the
cutting edge of the cutter.
Sewing S-13
Buttonhole Stitching/Button Sewing
Buttonhole Stitching/Button Sewing
• Using the table below, refer to “Using the utility
stitch tables in the “Sewing” section” in the “Basic
operations” section.
Stitch nameStitch
Narrow rounded
buttonhole stitch
BLMAV
BL210A
BLMSP/BLMLR
Stitch number
4-017757
Buttonhole sewing
The maximum buttonhole length is about 28 mm (1-1/8
inches) (diameter + thickness of the button).
Buttonholes are sewn from the front of the presser foot to the
back, as shown below.
Presser foot
Tapered round ended
buttonhole stitch
Round ended
buttonhole stitch
Narrow squared
buttonhole stitch
Stretch buttonhole
stitch
Heirloom buttonhole
stitch
Bound buttonhole
stitch
Keyhole buttonhole
stitch
Tapered keyhole
buttonhole stitch
Keyhole buttonhole
stitch
Button sewing stitch4-149070M
4-027858
4-037959
4-048060
4-058161
4-068262
4-078363
4-088464
4-098565
4-108666
A
1 Reinforcement stitching
The names of parts of buttonhole foot “A”, which is used to
create buttonholes, are indicated below.
S-14
1
2
5
3
4
A
1 Button guide plate
2 Presser foot scale
3 Pin
4 Marks on buttonhole foot
5 5 mm (3/16 inch)
Buttonhole Stitching/Button Sewing
1
2
2
A
1
2
a
Use chalk to mark on the fabric the position and length
a
of the buttonhole.
1 Marks on fabric
2 Buttonhole sewing
Pull out the button guide plate of buttonhole foot “A”,
b
and then insert the button that will be put through the
buttonhole.
Select a stitch.
d
Position the fabric with the front end of the buttonhole
e
mark aligned with the red marks on the sides of the
buttonhole foot, and then lower the presser foot lever.
1 Mark on fabric (front)
2 Red marks on buttonhole foot
Pass the upper thread down through the hole in the
presser foot.
• When lowering the presser foot, do not push in the
front of the presser foot.
S
UTILITY STITCHES
■ If the button does not fit in the button guide
plate
Add together the diameter and thickness of the button,
and then set the button guide plate to the calculated
length. (The distance between the markings on the presser
foot scale is 5 mm (3/16 inch).)
1
2
3
1 Presser foot scale
2 Length of buttonhole (diameter + thickness of button)
3 5 mm (3/16 inch)
Example: For a button with a diameter of
15 mm (9/16 inch) and a thickness of 10 mm (3/8 inch),
the button guide plate should be set to 25 mm (1 inch) on
the scale.
1
1 Do not reduce the gap.
Pull down the buttonhole lever as far as possible.
f
a
1 Buttonhole lever
The buttonhole lever is positioned behind the bracket
on the buttonhole foot.
1
2
1 Buttonhole lever
2 Bracket
1 10 mm (3/8 inch)
2 15 mm (9/16 inch)
→ The size of the buttonhole is set.
Attach buttonhole foot “A”.
c
Sewing S-15
Buttonhole Stitching/Button Sewing
Memo
1
CAUTION
Memo
Gently hold the end of the upper thread in your left
g
hand, and then start sewing.
→ Once sewing is completed, the machine
automatically sews reinforcement stitches, then
stops.
Press (Thread cutter button) once.
h
Raise the presser foot, and then remove the fabric.
• If the automatic thread cutting setting was
selected before sewing, the machine will
automatically cut the threads at the end of the
stitching. For details, refer to “Automatically
cutting the thread” in the “Basic operations”
section.
• When using the thread cutter on the left side of
the machine or scissors to cut the threads, press
(Needle position button) to raise the needle,
raise the presser foot, and then pull out the fabric
before cutting the threads.
For keyhole buttonholes, use the eyelet punch to make
a hole in the rounded end of the buttonhole, and then
use the seam ripper to cut open the buttonhole.
1
1 Eyelet punch
• When using the eyelet punch, place thick paper or
some other protective sheet under the fabric before
punching the hole in the fabric.
• When opening the buttonhole with the seam
ripper, do not place your hands in the cutting
direction, otherwise injuries may result if the
seam ripper slips.
• Do not use the seam ripper in any other way
than how it is intended.
■ Changing the density of the stitching
Adjust the stitch length.
Raise the buttonhole lever to its original position.
i
Insert a pin along the inside of one bar tack at the end
j
of the buttonhole stitching to prevent the stitching
from being cut.
1
1 Pin
Use the seam ripper to cut towards the pin and open
k
the buttonhole.
1 Seam ripper
• For details, refer to “Setting the stitch length” in the
“Basic operations” section.
• If the fabric does not feed (for example, if it is too
thick), decrease the density of the stitching.
■ Changing the stitch width
Adjust the stitch width.
• For details, refer to “Setting the stitch width” in the
“Basic operations” section.
• Before sewing buttonholes, check the stitch
length and width by sewing a trial buttonhole on a
scrap piece of fabric.
S-16
■ Sewing buttonholes on stretch fabrics
When sewing buttonholes on stretch fabrics, use a gimp
thread.
Buttonhole Stitching/Button Sewing
a
Hook the gimp thread onto the part of buttonhole foot
a
“A” shown in the illustration.
It fits into the grooves, and then loosely tie it.
b
Attach buttonhole foot “A”.
c
Select stitch or .
d
Adjust the stitch width to the thickness of the gimp
e
thread.
Lower the presser foot lever and the buttonhole lever,
f
and then start sewing.
Raise the presser foot lever, and then slide the feed dog
b
position switch, located at the rear of the machine on
the base, to (to the left as seen from the rear of
the machine).
1 Feed dog position switch (as seen from the rear of the
machine)
Attach button fitting foot “M”.
c
Select stitch .
d
• Since the end of the thread will be tied off later, do
not set the machine for programmed-thread cutting.
Adjust the stitch width so that it is the same as the
e
distance between the holes in the button.
Place the button in the position where it will be sewn,
f
and lower the presser foot lever.
S
UTILITY STITCHES
When sewing is finished, gently pull the gimp thread to
g
remove any slack.
Use a handsewing needle to pull the gimp thread to the
h
wrong side of the fabric, and then tie it.
Button sewing
Buttons can be sewn on with the machine. Buttons with two
or with four holes can be attached.
Measure the distance between the holes in the button
a
to be attached.
a
1 Button
• When attaching four-hole buttons, first sew the two
holes closest to you. Then, slide the button so that
the needle goes into the two holes toward the rear of
the machine, and then sew them in the same way.
Sewing S-17
Buttonhole Stitching/Button Sewing
CAUTION
Memo
Turn the handwheel toward you (counterclockwise) to
g
check that the needle correctly goes into the two holes
of the button.
If it seems as if the needle will hit the button, remeasure
the distance between the holes in the button. Adjust the
stitch width to the distance between the buttonholes.
• When sewing, be sure that the needle does not
touch the button, otherwise the needle may
bend or break.
Start sewing.
h
Set the sewing speed controller to the left (so that the
speed will be slow).
■
Attaching a shank to a button
To sew the button with a shank, attach the button with
space between it and the fabric, and then wind the thread
by hand. This attaches the button securely.
Place the button into button fitting foot “M”, and then
a
pull the shank lever toward you.
1
1 Shank lever
After sewing is finished, cut the upper thread with
b
plenty of excess, wind it around the thread between
the button and the fabric, and then tie it to the upper
thread at the beginning of the stitching.
Tie together the ends of the bobbin thread at the end
and at the beginning of the stitching at the wrong side of
the fabric.
→ The machine automatically stops after sewing
reinforcement stitches.
• Do not press (Thread cutter button).
Use scissors to cut the upper thread and the bobbin
i
thread at the beginning of the stitching.
Pull the upper thread at the end of the stitching to the
wrong side of the fabric, and then tie it with the bobbin
thread.
When you are finished attaching the button, slide the
j
feed dog position switch, to (to the right as seen
from the rear of the machine) and turn the handwheel
to raise the feed dogs.
Cut off any excess thread.
c
• The feed dogs come up when you start sewing
again.
S-18
Zipper Insertion
1
2
3
1
2
3
4
1
1
2
3
4
1
2
3
2
1
I
Zipper Insertion
• Using the table below, refer to “Using the utility
stitch tables in the “Sewing” section” in the “Basic
operations” section.
Stitch nameStitch
Straight stitch (Middle)1-03
* Stitch patterns can be selected directly by pressing the
numeric keys on the machine during preset utility stitch
mode. Refer to “Basic operations” section.
BLMAV
BLMSP/BLMLR
Stitch number
03
*03*
BL210A
Presser foot
J, I
Inserting a centered zipper
Stitching is sewn on both pieces of fabric butted against each
other.
Press open the seam allowance from the wrong side of
d
the fabric.
1 Wrong side of fabric
Align the seam with the center of the zipper, and then
e
baste the zipper in place.
1 Wrong side of fabric
2 Basting stitching
3 Zipper
S
UTILITY STITCHES
1 Right side of fabric
2 Stitching
3 End of zipper opening
Attach zigzag foot “J”.
a
Sew straight stitches up to the zipper opening.
b
With the right sides of the fabric facing each other, sew
reverse stitches after reaching the zipper opening.
Using a basting stitch, continue sewing to the edge of
c
the fabric.
Remove about 5 cm (2 inches) from the end of the
f
basting on the outside.
1 Wrong side of fabric
2 Zipper basting
3 Outside basting
4 5 cm (2 inches)
Attach the presser foot holder to the right pin of zipper
g
foot “I”.
1 Pin on the right side
2 Needle drop point
1 Basting stitching
2 Reverse stitches
3 Wrong side of fabric
4 End of zipper opening
Sewing S-19
Zipper Insertion
CAUTION
CAUTION
1
2
3
4
1
2
3
1
Select stitch .
h
• When using zipper foot “I”, be sure to select
the straight stitch (center needle position), and
slowly turn the handwheel toward
counterclockwise)
(
to check that the needle
you
does not touch the presser foot. If a different
stitch is selected or the needle hits the presser
foot, the needle may bend or break.
Topstitch around the zipper.
i
Inserting a side zipper
Stitching is visible on only one piece of fabric. Use this type of
zipper application for side openings and back openings.
1 Stitching
2 Right side of fabric
3 End of zipper opening
The following procedure will describe how to stitch on the left
side, as shown in the illustration.
Attach zigzag foot “J”.
a
Sew straight stitches up to the zipper opening.
b
With the right sides of the fabric facing each other, sew
reverse stitches after reaching the zipper opening.
1 Stitching
2 Right side of fabric
3 Basting stitching
4 End of zipper opening
• When sewing, be sure that the needle does not
touch the zipper, otherwise the needle may
bend or break.
Remove the basting stitching.
j
Using a basting stitch, continue sewing to the edge of
c
the fabric.
1
3
2
4
1 Basting stitching
2 Reverse stitches
3 Wrong side of fabric
4 End of zipper opening
Press open the seam allowance from the wrong side of
d
the fabric.
S-20
1 Wrong side of fabric
Zipper Insertion
CAUTION
2
2
1
CAUTION
1
I
1
2
Press the seam allowance so that the right side (the side
e
that will not be stitched) has an extra 3 mm (1/8 inch).
1
1 Wrong side of fabric
2 3 mm (1/8 inch)
Align the zipper teeth with the pressed edge of the
f
fabric having the extra 3 mm (1/8 inch), and then baste
or pin the zipper in place.
1 Zipper teeth
2 Basting stitching
Sew the zipper to the piece of fabric with the extra 3
i
mm (1/8 inch), starting from the base of the zipper.
• When sewing, be sure that the needle does not
touch the zipper, otherwise the needle may
bend or break.
When you are about 5 cm (2 inches) from the end of
j
the zipper, stop the machine with the needle lowered
(in the fabric), raise the presser foot lever.
Open the zipper and continue sewing.
k
S
UTILITY STITCHES
Attach the presser foot holder to the right pin of zipper
g
foot “I”.
If the stitching will be sewn on the right side, attach the
presser foot holder to the left pin of the zipper foot.
1
I
2
1 Pin on the right side
2 Needle drop point
Select stitch .
h
• When using zipper foot “I”, be sure to select
the straight stitch (center needle position), and
slowly turn the handwheel toward you
counterclockwise)
(
to check that the needle
does not touch the presser foot. If a different
stitch is selected or the needle hits the presser
foot, the needle may bend or break.
Close the zipper, turn over the fabric, and then baste
l
the other side of the zipper to the fabric.
1 Basting stitching
Attach the presser foot holder to the other pin of
m
zipper foot “I”.
If the presser foot holder was attached to the right pin in
g, change it to the left pin.
step
1 Pin on the left side
2 Needle drop point
Sewing S-21
Zipper Insertion
CAUTION
1
2
3
4
5
Topstitch around the zipper.
n
Sew reverse stitches at the end of the zipper opening
and align the zipper teeth with the side of the presser
foot.
1 Right side of fabric
2 End of zipper opening
3 Reverse stitches
4 Beginning of stitching
5 Basting stitching
• When sewing, be sure that the needle does not
touch the zipper, otherwise the needle may
bend or break.
When you are about 5 cm (2 inches) from the end of
o
the zipper, stop the machine with the needle lowered
(in the fabric), and then raise the presser foot lever.
Remove the basting stitching, open the zipper, and
p
then continue sewing.
S-22
Zipper/piping Insertion
Note
CAUTION
Left sewing position
Right sewing position
1
Zipper/piping Insertion
A zipper and piping can be sewn in place.
• Using the table below, refer to “Using the utility
stitch tables in the “Sewing” section” in the “Basic
operations” section.
Stitch nameStitch
Straight stitch (Left)1-01
* Stitch patterns can be selected directly by pressing the
numeric keys on the machine during preset utility stitch
mode. Refer to “Basic operations” section.
**Adjustable zipper/piping foot (sold separately with some
models)
BLMAV
BLMSP/BLMLR
Stitch number
01
*01***
BL210A
Inserting a centered zipper
Presser foot
Slide the presser foot over either the left or right feed
e
dog.
Change the needle position so that the needle does not
f
touch the presser foot.
For details, refer to “Setting the stitch width” in the
“Basic operations” section.
1 Needle drop point
S
UTILITY STITCHES
Refer to step a–f of “Inserting a centered zipper”
a
on page S-19.
Remove the presser foot and presser foot holder to
b
attach the screw-on adjustable zipper/piping foot (sold
separately with some models).
• For details on removing the presser foot holder, refer
to “Removing and attaching the presser foot holder”
in the “Basic operations” section.
• Make sure that the thread between the spool and
the bobbin is pulled tight.
Select stitch .
c
Loosen the positioning screw on the back of the presser
d
foot.
• After adjusting the needle position, slowly turn
the handwheel toward you (counterclockwise)
and check the needle does not touch the
presser foot. If the needle hits the presser foot,
the needle may bend or break.
Securely tighten the positioning screw.
g
1
1 Positioning screw
1 Positioning screw
1
Sewing S-23
Zipper/piping Insertion
CAUTION
1
2
3
4
1
2
3
Topstitch around the zipper.
h
1 Stitching
2 Right side of fabric
3 Basting stitching
4 End of zipper opening
After sewing, turn them over.
d
• When sewing, be sure that the needle does not
touch the zipper, otherwise the needle may
bend or break.
Remove the basting stitching.
i
Inserting a piping
Place the piping between two fabrics inside out, as
a
shown below.
1 Fabric
2 Piping
3 Fabric
Refer to the steps of attaching the adjustable zipper/
b
piping foot on the previous page.
Sew along the piping.
c
S-24
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
