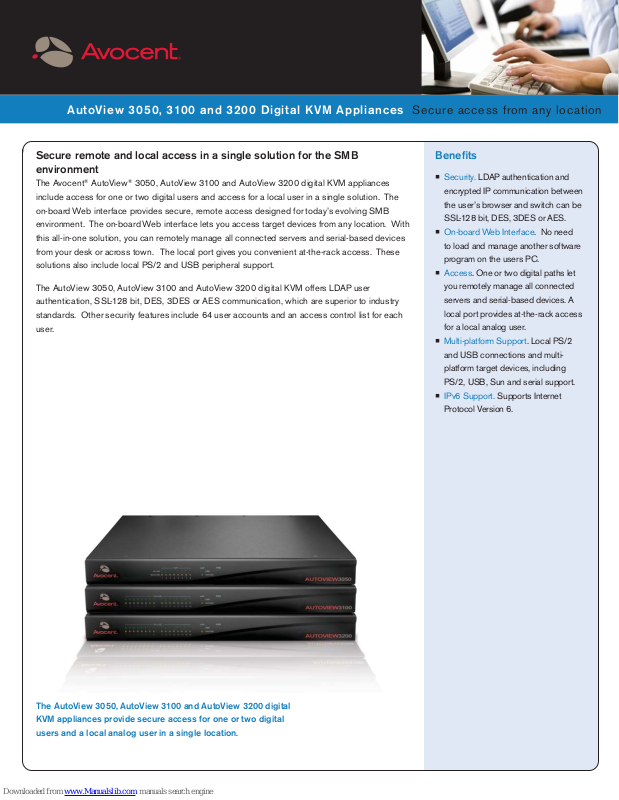

AutoView 3050, 3100 and 3200 Digital KVM Appliances Secure access from any location
Secure remote and local access in a single solution for the SMB
environment
The Avocent® AutoView® 3050, AutoView 3100 and AutoView 3200 digital KVM appliances
include access for one or two digital users and access for a local user in a single solution. The
on-board Web interface provides secure, remote access designed for today’s evolving SMB
environment. The on-board Web interface lets you access target devices from any location. With
this all-in-one solution, you can remotely manage all connected servers and serial-based devices
from your desk or across town. The local port gives you convenient at-the-rack access. These
solutions also include local PS/2 and USB peripheral support.
The AutoView 3050, AutoView 3100 and AutoView 3200 digital KVM offers LDAP user
authentication, SSL-128 bit, DES, 3DES or AES communication, which are superior to industry
standards. Other security features include 64 user accounts and an access control list for each
user.
Benefi ts
Security. LDAP authentication and
encrypted IP communication between
the user’s browser and switch can be
SSL-128 bit, DES, 3DES or AES.
On-board Web Interface . No need
to load and manage another software
program on the users PC.
Access . One or two digital paths let
you remotely manage all connected
servers and serial-based devices. A
local port provides at-the-rack access
for a local analog user.
Multi-platform Support . Local PS/2
and USB connections and multiplatform target devices, including
PS/2, USB, Sun and serial support.
IPv6 Support. Supports Internet
Protocol Version 6.
The AutoView 3050, AutoView 3100 and AutoView 3200 digital
KVM appliances provide secure access for one or two digital
users and a local analog user in a single location.
Page 2
Part Number Description
a
Ordering Details
AV3050-001
AV3100-001
AV3200-001
PS2IAC-7 7’ PS/2 CAT 5 integrated access cable
PS2IAC-10 10’ PS/2 CAT 5 integrated access cable
PS2IAC-15 15’ PS/2 CAT 5 integrated access cable
USBIAC-7 7’ USB CAT 5 integrated access cable
USBIAC-10 10’ USB CAT 5 integrated access cable
USBIAC-15 15’ PS/2 CAT 5 integrated access cable
The AutoView 3050, 3100 and 3200 Digital Appliances let you securely access targeted
devices from any location.
Integrated Access
Cable (IAC)
AVRIQ Server
Interface Module
AutoView 3050 Digital KVM appliance, one digital port with local port, 8 target
devices
AutoView 3100 Digital KVM appliance, one digital port with local port, 16 target
devices
AutoView 3200 Digital KVM appliance, two digital ports with local port, 16 target
devices
Specifi cations
Mechanical
Size: 1.72” (4.37 cm)H, 17”
(43.18 cm)W, 10.98” (27.98 cm)D
Weight: 7.3 lbs (3.31 Kg)
Style: Rack mount
Environmental
Operating Temperature: 32 to 104 F (0
to 40 C)
Storage Temperature: -4 to 158 F (-20
to 70 C)
Power
Operating Voltage: 100-240 VAC
Power Frequency: 50-60 Hz autosensing
Input: 40 W maximum
Supported Hardware
Computers: PS/2, Sun, USB
Monitors: VGA, SVGA (XGA, XGA-II
with adaptor), Maximum Local Port:
1600x1200, Maximum Remote Port using
a DSRIQ module: 1280x1024 @ 75 Hz
Peripherals: USB keyboard and mouse,
PS/2 keyboard, PS/2 mouse, IntelliMouse
Standards
Approved Agency:
UL, FCC, cUL, ICES-003, CE, GS, VCCI,
MIC, C-Tick, GOST
IP
Remote user
Direct connection
to switch
Local IP-connection
www.avocent.com/contacts
AutoView 3050, 3100
or 3200 Appliance
PS/2, USB, Sun and Seri
target devices
Warranty
Two Year
Avocent, the Avocent logo and AutoView are trademarks or registered
trademarks of Avocent Corporation or its affi liates in the U.S. and other
countries. All other marks are the property of their respective owners.
Copyright © 2008. Avocent Corporation.
0808-AV-DS-EN
