The Monarch® 932ä stacker works with a Monarch® 9860ä
printer. The stacker supports backfeed mode on the printer. There
is no power ON/OFF switch for the stacker. Once the stacker is
plugged into an outlet, it is on.
Unpacking the Stacker
¨
Important: After unpacking the stacker, look through all
packaging material for parts. Keep all packaging material
for future shipping.
Installing the Stacker
Use these instructions when you first install the stacker or when
you need to move the stacker to a different location.
Before installing:
¨
Find a level work surface at least 52" x 22"
(1321 mm x 559 mm).
Note:The printer comes with a knife attached.
¨
Turn off the printer before you install the stacker.
Getting Started 1-1

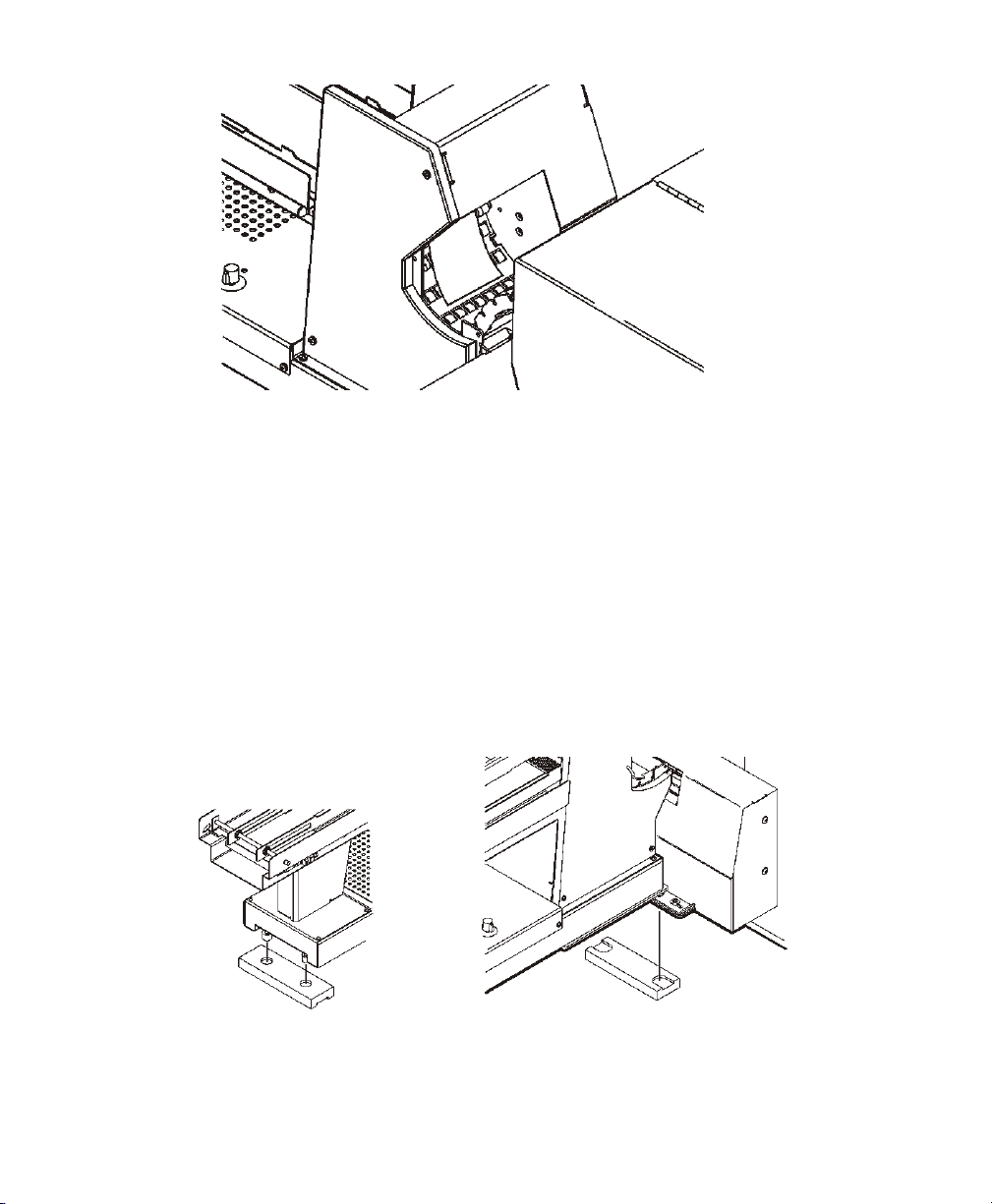

Step 1 - Connect the Stacker
1.Locate the screw hole on the stacker mounting plate.
Flanged Screw
Stacker Mounting
Adjusting Bracket

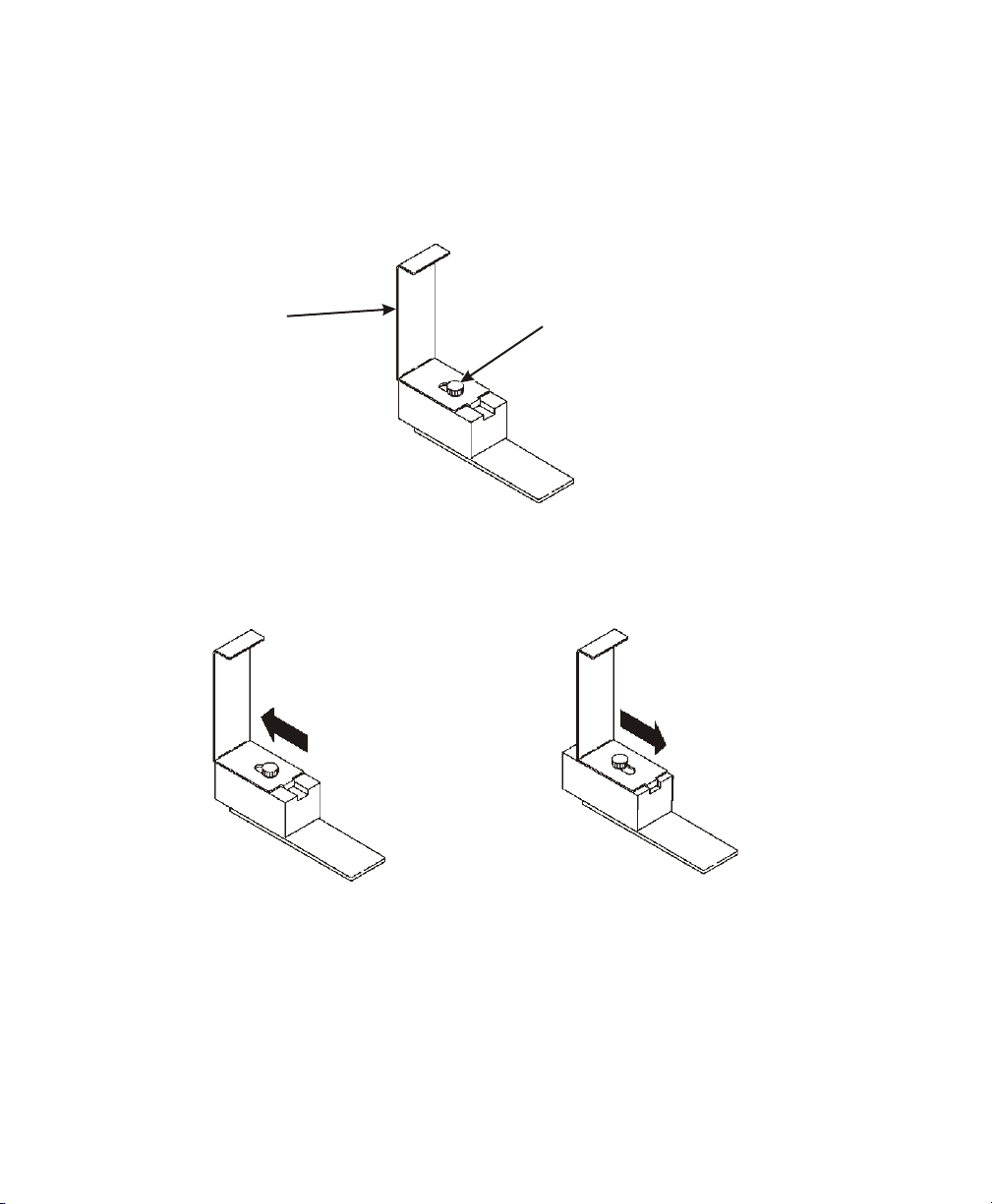

2.Attach the adjusting bracket to the stacker mounting plate using a
flanged screw as shown (do not tighten all the way).
Guide Tab
Plate
Knife Opening
Mounting Plate
Slot
Adjusting Bracket
Locating Pin
Locating Hole
3.Gently lift the stacker and center the guide tabs in the knife opening.
4.Set the stacker locating pins (on bottom of stacker) firmly in the
adjusting bracket locating hole and mounting plate slot.
5.Tighten the adjusting bracket flanged screw.

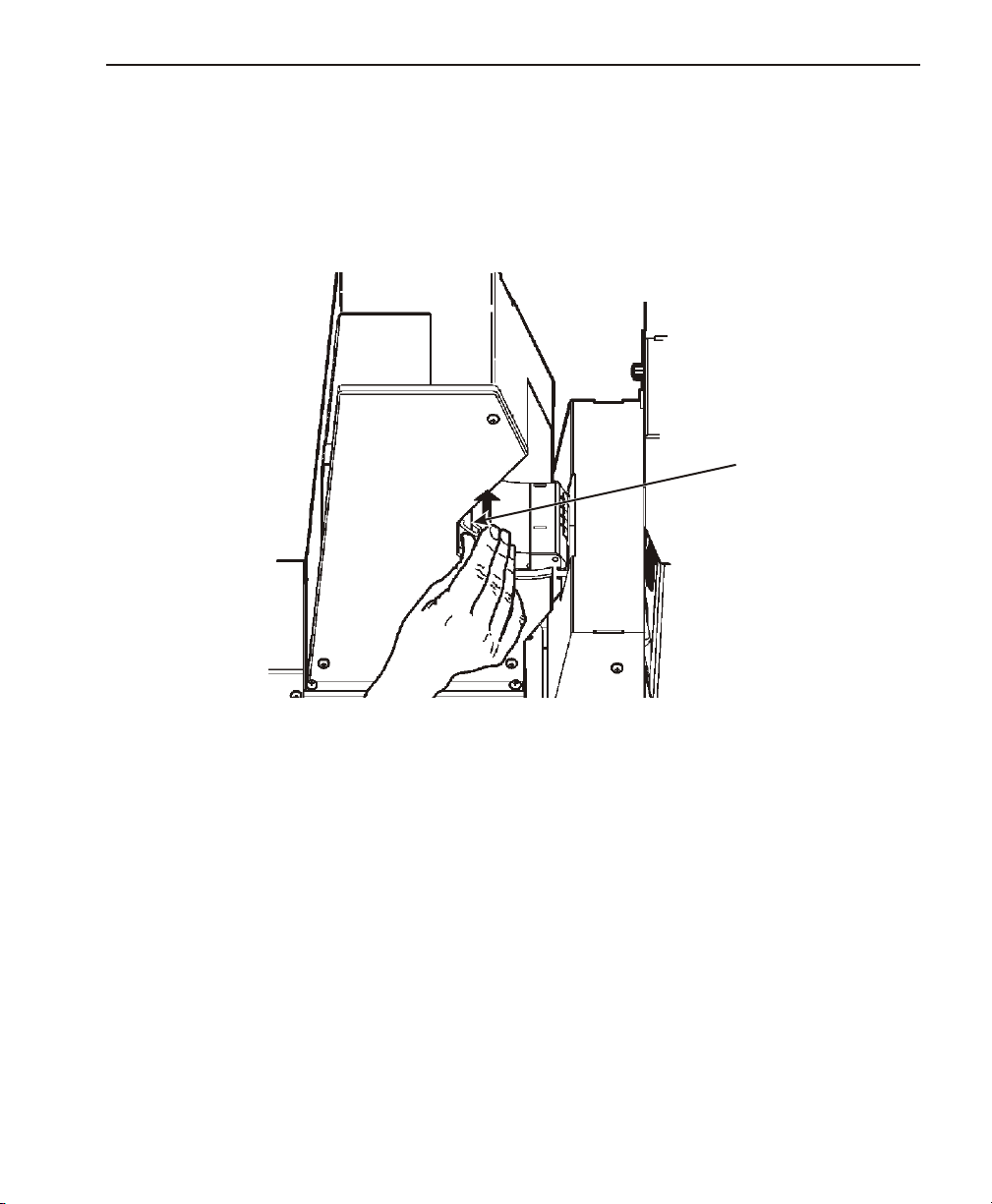

6.Connect the stacker cable to the knife.
1-2 Getting Started
Step 2 - Level the Stacker
1.Check the distance between the rollers and the knife. Make
sure the rollers are not touching the front of the knife or too
far from the knife. If incorrect, follow the steps below. If
correct, skip this step and move on to Step 3 - Connect the
Power Cord.
Rollers
Knife
Note:The ideal position for the stacker is with the end of tray
slightly down.
2.Loosen the locking nuts with a wrench.
3.Make sure the stacker’s feet are flat on a level surface.
You can raise or lower the feet by turning them.
4.Evenly adjust both feet.
If the stacker is
¨
touching the knife case, lower the
feet.
¨
too far from the knife, raise the
feet.
5.Tighten the locking nuts.
Locking
Nuts
Getting Started 1-3
Step 3 - Connect the Power Cord
1.Plug the power cord into the stacker’s AC inlet.
AC Inlet
2.Plug the other end of the power cord into a grounded outlet.
Once the power cord is attached to an outlet, the stacker is on. There is
no power ON/OFF switch for the stacker.
1-4 Getting Started
