AVer Dome type Camera Installation Manual

AVer Dome type Camera

Installation Guide

Table of Contents

IMPORTANT SAFEGUARD ................................................................................................. 1

PACKAGE CONTENTS ....................................................................................................... 2

OPTIONAL ACCESSORIES ................................................................................................ 2

IP CAMERA PARTS ............................................................................................................. 3

IP CAMERA INSTALLATION ............................................................................................... 4

DEPLOYING NETWORK ........................................................................................................ 4

Network Connection via Ethernet Switch .................................................................... 4

Connect the power adapter to power jack of camera .................................................. 4

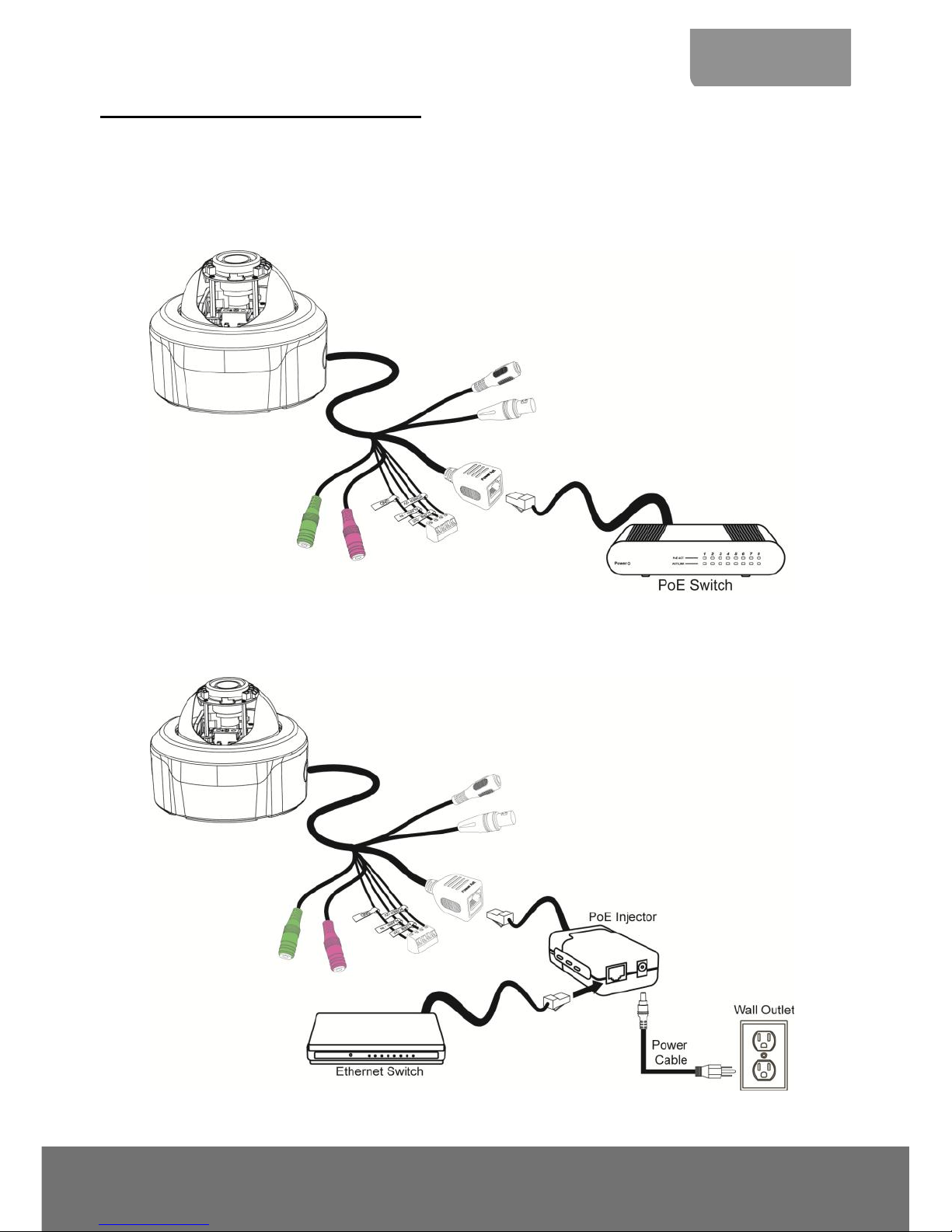

Power over Ethernet Connection ................................................................................ 5

CONNECTING EXTERNAL DEVICES TO I/O TERMINAL BLOCK .................................................... 6

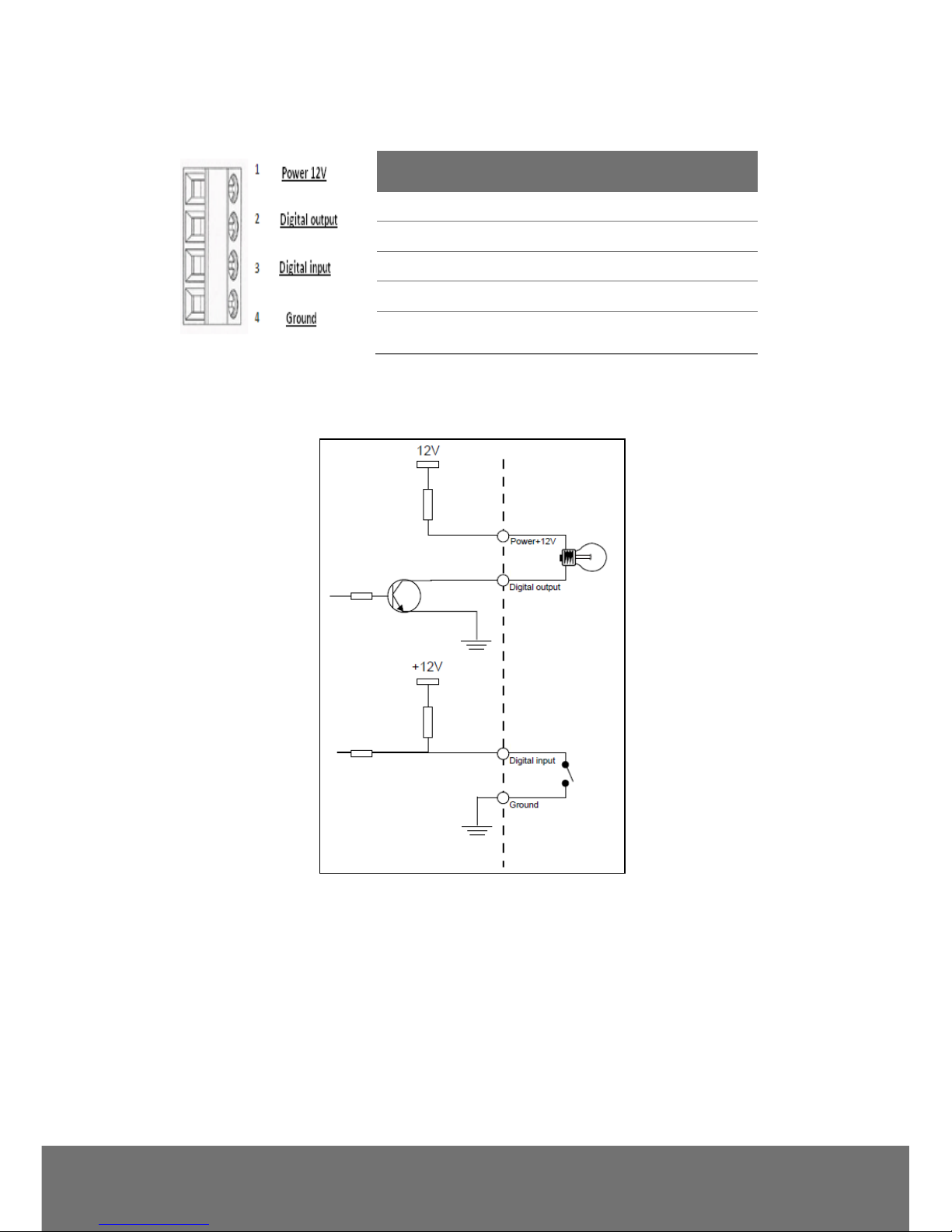

INTERNAL CONNECTION DIAGRAM OF DI/DO ......................................................................... 6

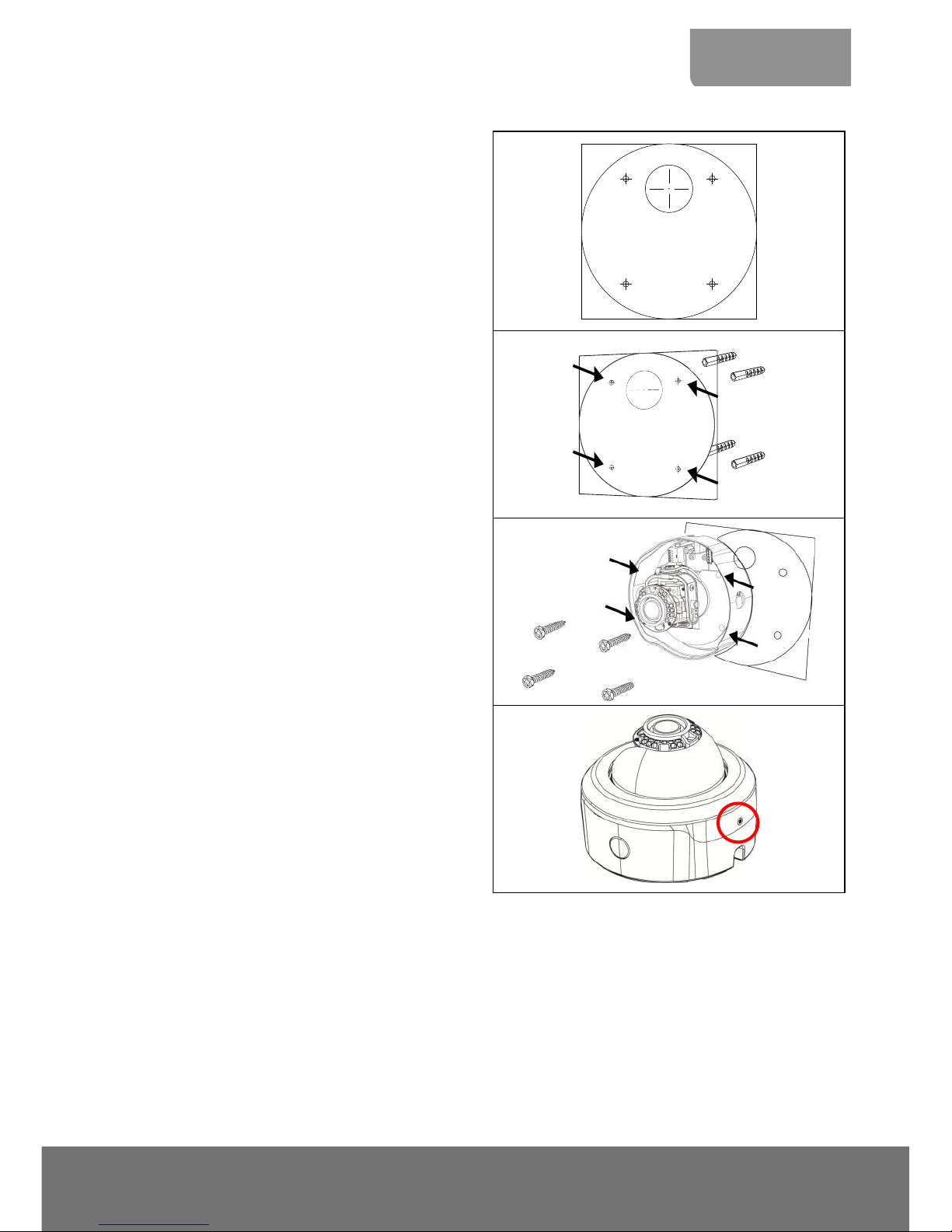

MOUNTING THE IP CAMERA ................................................................................................. 7

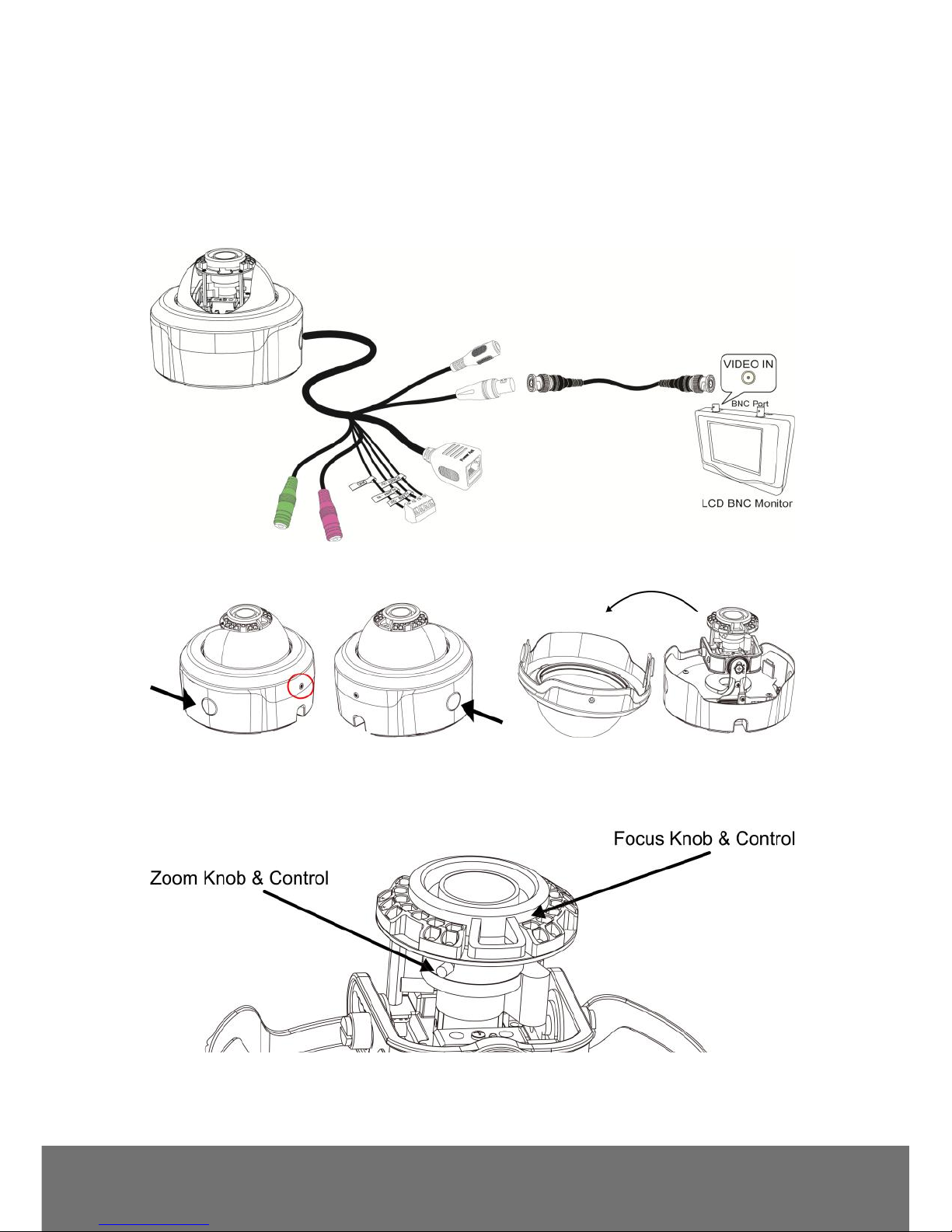

FOCUSING THE IP CAMERA WITH BNC MONITOR ................................................................... 8

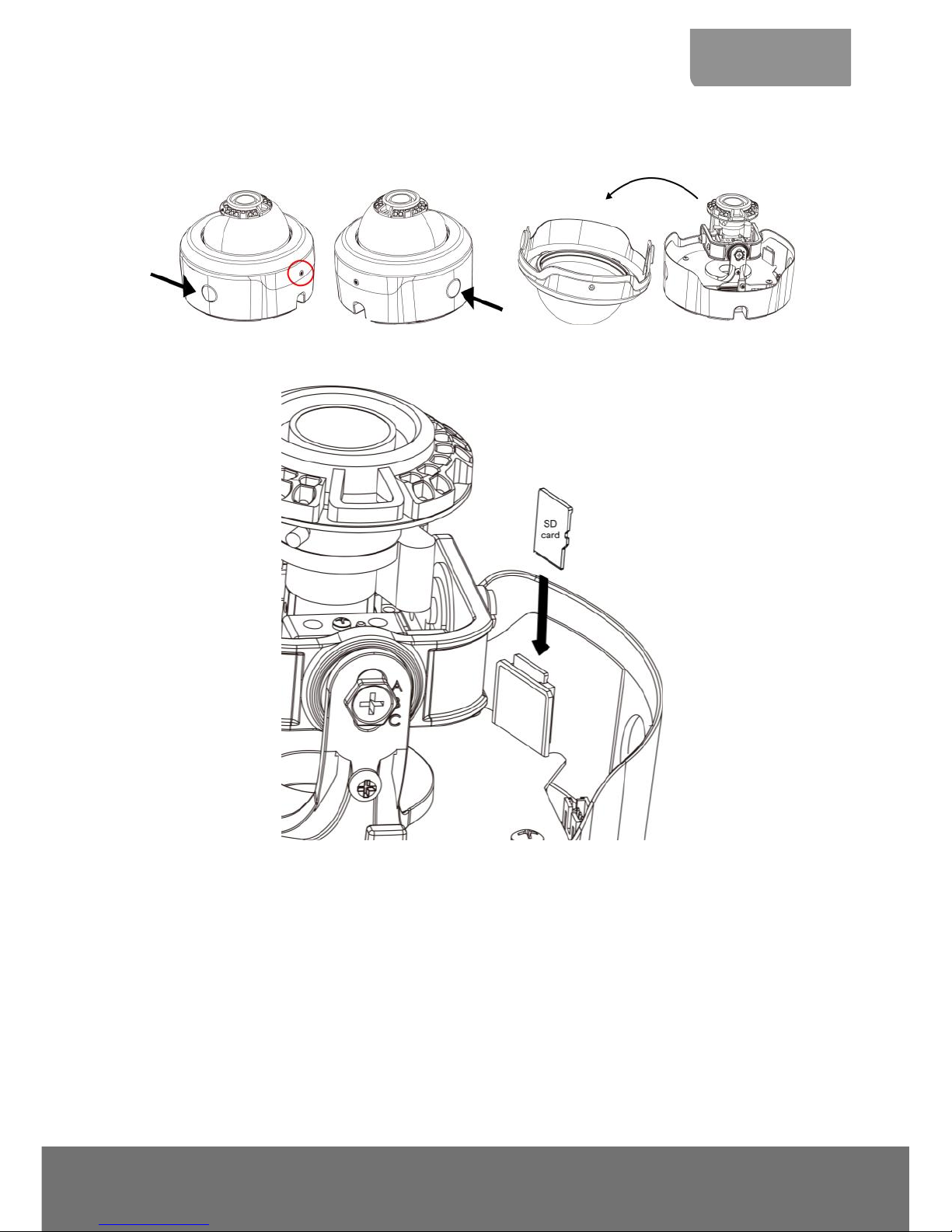

INSERTING MICROSD CARD TO SYSTEM ................................................................................ 9

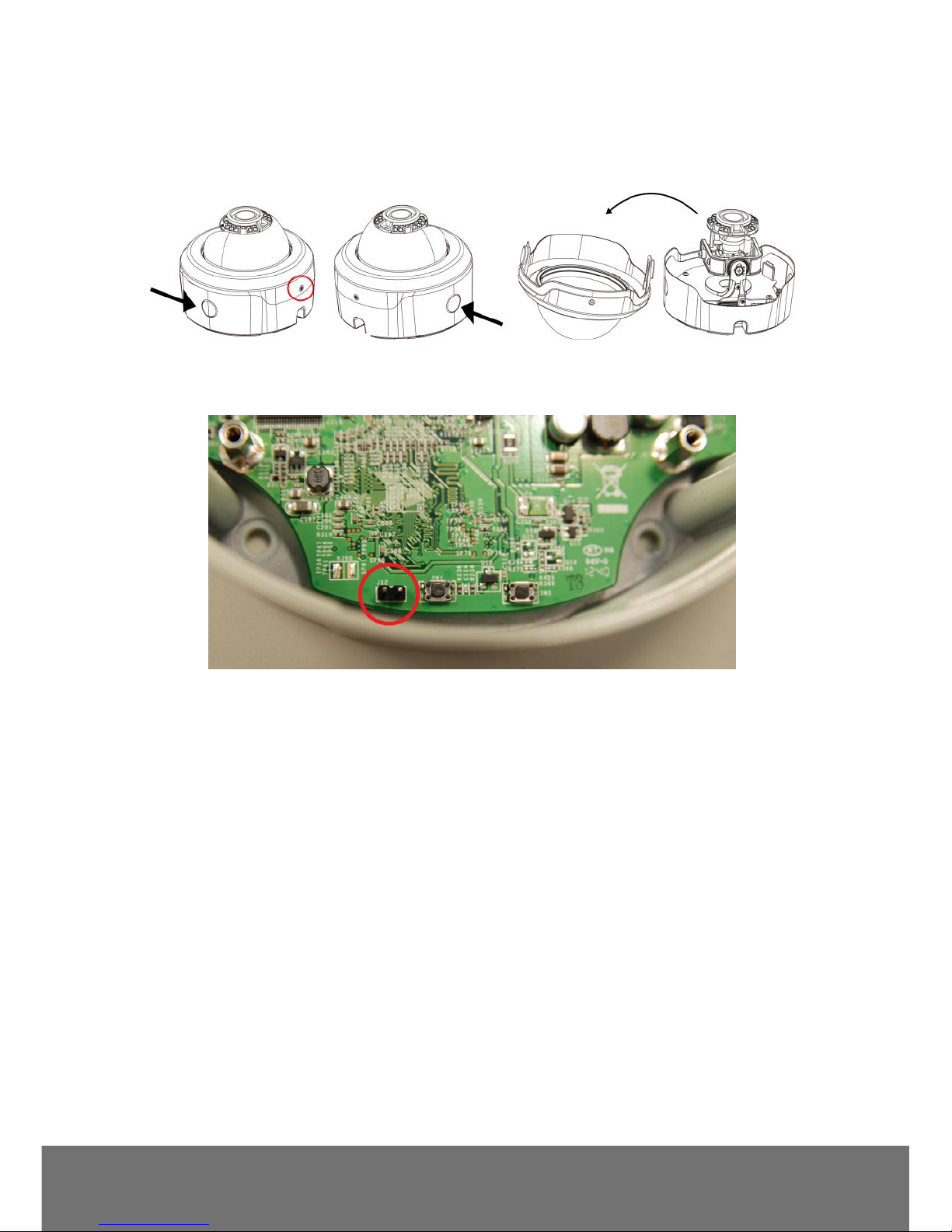

RESETTING HARDWARE ................................................................................................. 10

TECHNICAL SPECIFICATIONS ........................................................................................ 11

FD2020 (E)/FD2020-M (E) ................................ ........................................... 11

FCC NOTICE (CLASS B) .................................................................................................. 14

NOTICE .............................................................................................................................. 14

WARNING ................................ ................................................................ .......................... 14

GOVERNING LAW AND YOUR RIGHTS .......................................................................... 16

1

ENGLISH

Important Safeguard

Do not use power supply with different voltage
other than DC 12V / PoE.

Do not submerge the unit in the water.

Unplug the power of this unit as soon as smoke
or unusual odor is detected.

Unplug the power supply before cleaning. Use
only a lens cleaning cloth and never use
benzene, thinner, or other solvent for cleaning.

Do not attempt to service this unit by yourself.
Always refer all servicing to qualified service
personnel.

Do not place the unit in unsteady surface and
also do not drop the unit.

Keep the IP camera housing close and prevent
the dust from getting in the housing.

2

Package Contents

The following items are included in the package.

AVer Dome type Camera

Software & Manual CD

L-type Wrench

Alignment Sticker

4+1 Screws

4 Plastic Anchors

Optional Accessories

Power Adapter (12V, 2A)

* The power adapter will vary depending on the

standard power outlet of the country where it is

sold. Depending on your package the power

adapter maybe included.

3

ENGLISH

IP Camera Parts

No.

Function

(1)

Camera Lens

(2)

Light Sensor

(3)

Power Jack

(4)

BNC Jack (Video Out)

(5)

RJ45 Ethernet Jack

(6)

I/O Terminal Block

(7)

Phone Jack (Audio In)

(8)

Phone Jack (Audio Out)

4

IP Camera Installation

This section provides useful tips on how to adjust the IP camera to meet your needs.

Deploying Network

Network Connection via Ethernet Switch

Connect the RJ45 cable from the Ethernet switch to RJ45 Ethernet jack of camera

Connect the power adapter to power jack of camera
