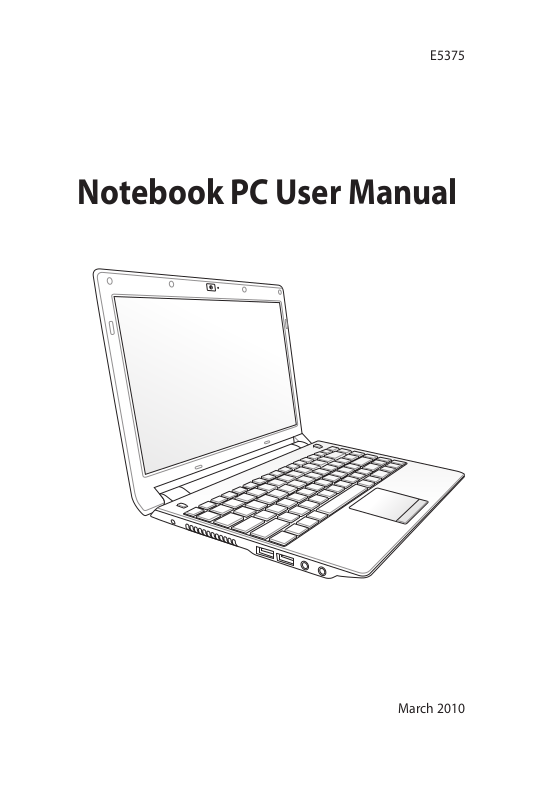

E5375

Notebook PC User Manual

March 2010

Table of Contents
Chapter 1:	Introducing the Notebook PC
About This User’s Manual.................................................................................		6
Notes for This Manual........................................................................................		6
Safety Precautions..............................................................................................		7
Preparing your Notebook PC..........................................................................		9
Chapter 2:	Knowing the parts
Top Side................................................................................................................		12
Bottom Side........................................................................................................		15
Right Side.............................................................................................................		18
Left Side................................................................................................................		20
Rear Side..............................................................................................................		22
Front Side.............................................................................................................		22
Chapter 3:	Getting Started
Power System.....................................................................................................		24
Using AC Power................................................................................................		24
Using Battery Power.......................................................................................		26
Battery Care.......................................................................................................		27
Powering ON the Notebook PC.................................................................		28
The Power-On Self Test (POST)...................................................................		28
Checking Battery Power...............................................................................		30
Charging the Battery Pack...........................................................................		31
Power Options..................................................................................................		32
Power Management Modes........................................................................		34
Sleep and Hibernate......................................................................................		34
Thermal Power Control.................................................................................		35
Special Keyboard Functions..........................................................................		36
Colored Hot Keys.............................................................................................		36
Microsoft Windows Keys...............................................................................		38
Multimedia Control Keys (on selected models)...................................		40
Status Indicators................................................................................................		41
Top .............................................................................................................		41
Front .............................................................................................................		41

Notebook PC User Manual

Chapter 4:	Using the Notebook PC
Pointing Device.	................................................................................................	44
Using the Touchpad.......................................................................................		45
Touchpad .....................................................................Usage Illustrations		46
Caring for ...............................................................................the Touchpad		49
Automatic .................................................................Touchpad Disabling		49
Storage Devices.................................................................................................		51
Flash Memory ..........................................................................Card Reader		51
Hard Disk ................................................................................................Drive		52
Memory (RAM).................................................................................................		54
Connections........................................................................................................		55
Network Connection......................................................................................		55
Wireless LAN ..................................Connection (on selected models)		57
Windows Wireless ................................................Network Connection		59
Bluetooth ........................Wireless Connection(on selected models)		61
Appendix
Optional Accessories.....................................................................................		A-2
Optional Connections.................................................................................		A-2
Operating System ...............................................................and Software		A-3
System BIOS ...................................................................................Settings		A-4
Common Problems ..........................................................and Solutions		A-7
Recovering Your ................................................................Notebook PC		A-13
Using Recovery ........................................................................Partition		A-13
Using Recovery ......................................DVD (on selected models)		A-14
DVD-ROM .................................................................Drive Information		A-16
Internal Modem .................................................................Compliancy		A-18
Declarations and .....................................................Safety Statements		A-22
Federal Communications ........................Commission Statement		A-22
FCC Radio .............Frequency (RF) Exposure Caution Statement		A-23
Declaration ..............of Conformity(R&TTE directive 1999/5/EC)		A-23
CE Marking...................................................................................................		A-24
IC Radiation ..................................Exposure Statement for Canada		A-24
Wireless Operation ......................Channel for Different Domains		A-25
France Restricted ...................................Wireless Frequency Bands		A-25

Notebook PC User Manual

UL Safety Notices.......................................................................................	A-27
Power Safety Requirement.....................................................................	A-28
TV Tuner Notices.........................................................................................	A-28
REACH ........................................................................................................	A-28
Nordic Lithium Cautions (for lithium-ion batteries)......................	A-29
Optical Drive Safety Information..........................................................	A-30
Laser Safety Information..........................................................................	A-30
Service warning label...............................................................................	A-30
CDRH Regulations......................................................................................	A-30
Macrovision Corporation Product Notice..........................................	A-31
CTR 21 Approval(for Notebook PC with built-in Modem)...........	A-32
European Union Eco-label......................................................................	A-34
Global Environmental Regulation Compliance and Declaration A-35
Takeback Services......................................................................................	A-35
Copyright Information...............................................................................	A-37
Limitation of Liability..................................................................................	A-38
Service and Support...................................................................................	A-38

Notebook PC User Manual

Chapter 1: 1

Introducing the

Notebook PC

About This User’s Manual

You are reading the Notebook PC User’s Manual.This User’s Manual provides information regarding the various components in the Notebook PC and how to use them.The following are major sections of this User’s Manual:

1.Introducing the Notebook PC

Introduces you to the Notebook PC and this User’s Manual.

2.Knowing the Parts

Gives you information on the Notebook PC’s components.

3.Getting Started

Gives you information on getting started with the Notebook PC.

4.Using the Notebook PC

Gives you information on using the Notebook PC’s components.

5.Appendix

Introduces you to optional accessories and gives additional information.

The actual bundled operating system and applications differ by models and territories.There may be differences between your Notebook PC and the pictures shown in this manual. Please accept your Notebook PC as being correct.

Notes for This Manual

A few notes and warnings are used throughout this guide, allowing you to complete certain tasks safely and effectively.These notes have different degrees of importance as follows:

WARNING! Important information that must be followed for safe operation.

IMPORTANT! Vital information that must be followed to prevent damage to data, components, or persons.

TIP: Tips for completing tasks.

NOTE: Information for special situations.

Notebook PC User Manual

Safety Precautions

The following safety precautions will increase the life of the Notebook PC. Follow all precautions and instructions. Except as described in this manual, refer all servicing to qualified personnel.

Disconnect the AC power and remove the battery pack(s) before cleaning.Wipe the Notebook PC using a clean cellulose sponge or chamois cloth dampened with a solution of nonabrasive detergent and a few drops of warm water and remove any extra moisture with a dry cloth.

DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged.

DO NOT expose to dirty or dusty environments. DO NOT operate during a gas leak.

DO NOT press or touch the display panel. Do not place together with small

items that may scratch or enter the Notebook PC.

DO NOT leave the Notebook PC on your lap or any part of the body to prevent discomfort or injury from heat exposure.

DO NOT place or drop objects on top and do not shove any

foreign objects into the Notebook PC.

DO NOT expose to strong magnetic or electrical fields.

DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical storms.

Battery safety warning: DO NOT throw the battery in fire. DO NOT short circuit the contacts. DO NOT disassemble the battery.

Notebook PC User Manual

SAFE TEMP:This Notebook PC should only be used in environments with ambient temperatures between 10°C (50°F) and 35°C (95°F).

DO NOT carry or cover a Notebook PC that

is powered ON with any materials that will reduce air circulation such as a carrying bag.

DO NOT use damaged power cords, accessories, or other peripherals.

INPUT RATING: Refer to the rating label on the bottom of the Notebook PC and be sure that your power adapter complies with the rating.

DO NOT use strong solvents such as thinners, benzene, or other chemicals on or near the surface.

Incorrect installation of battery may cause explosion and damage the Notebook PC.

DO NOT throw the Notebook PC in municipal waste.This product has been designed to enable proper reuse of parts and recycling.The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the battery in municipal waste.The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

Notebook PC User Manual

Preparing your Notebook PC

These are only quick instructions for using your Notebook PC.

Installing the Battery Pack

Connecting the Power Adapter

110V-220V

Notebook PC User Manual

Opening the LCD display panel

1.Carefully lift up the display panel with your thumb.

2.Slowly tilt the display panel forward or backward to a comfortable viewing angle.

Turning on the Power

1.Push and release the power button located beneath the LCD display panel.

2.Use [Fn]+[F5] or [Fn]+[F6] to adjust the LCD brightness.

10	Notebook PC User Manual

Chapter 2:	2

Knowing the parts

Top Side

The keyboard differs for each territory.

12	Notebook PC User Manual

1	Microphone (Built-in)

The built-in mono microphone can be used for video conferencing, voice narrations, or simple audio recordings.

2 Camera

The built-in camera allows picture taking or video recording. Can be used with video conferencing and other interactive applications.

3 Display Panel

The display panel functions the same as a desktop monitor. The Notebook PC uses an active matrix TFT LCD, which provides excellent viewing like that of desktop monitors. Unlike desktop monitors, the LCD panel does not produce any radiation or flickering, so it is easier on the eyes. Use

a soft cloth without chemical liquids (use plain water if necessary) to clean the display panel.

4 Express Gate/ Power4Gear Hybrid Key

Pressing this button will launch Express Gate. Refer to the Express Gate User’s Manual for details.

The Power4Gear Hybrid key toggles power savings between various power saving modes.The power saving modes control many aspects of the Notebook PC to maximize performance versus battery time. Applying or removing the power adapter will automatically switch the system between AC mode and battery mode.The selected mode is shown on the display.

5	Status Indicators (top)

Status indicators represent various hardware/software conditions. See indicator details in Chapter 3.

Notebook PC User Manual

6 Power Switch

The power switch allows powering ON and OFF the Notebook PC and recovering from STD. Use the switch once to turn ON and once to turn OFF the Notebook PC.The power switch only works when the display panel is opened.

7 Keyboard

The keyboard provides full-sized keys with comfortable travel (depth at which the keys can be depressed) and palm rest for both hands.Two Windows function keys are provided to help ease navigation in the Windows operating system.

8 Touchpad and Buttons

The touchpad with its buttons is a pointing device that provides the same functions as a desktop mouse. A software-controlled scrolling function is available after setting up the included touchpad utility to allow easy Windows or web navigation.

9	Status Indicators (front)

Status indicators represent various hardware/software conditions. See indicator details in Chapter 3.

14	Notebook PC User Manual

Bottom Side

The bottom side may vary in appearance depending on model.

The battery pack size varies depending on model.

WARNING! The bottom of the Notebook PC can get very hot. Be careful when handling the Notebook PC while it is in operation or recently been in operation. High temperatures are normal during charging or operation. DO NOT USE ON SOFT SURFACES

SUCH AS BEDS OR SOFAS WHICH MAY BLOCK THE VENTS. DO NOT PUT THE NOTEBOOK PC ON YOUR LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE HEAT.

Notebook PC User Manual

1 Battery Pack

The battery pack is automatically charged when the Notebook PC is connected to an AC power source and maintains power to the Notebook PC when AC power is not connected.This allows use when moving temporarily between locations. Battery time varies by usage and by the specifications for this Notebook PC.The battery pack cannot be disassembled and must be purchased as a single unit.

2 Battery Lock - Spring

The spring battery lock is used to keep the battery pack secured.When the battery pack is inserted, it will

automatically lock.To remove the battery pack, this spring lock must be held in the unlocked position.

3	Battery Lock - Manual

The manual battery lock is used to keep the battery pack secured. Move the manual lock to the unlocked position to insert or remove the battery pack. Move the manual lock to the locked position after inserting the battery pack.

4	Hard Disk Drive Compartments

The hard disk drive is secured in a compartment.Visit an authorized service center or retailer for information on hard disk drive upgrades for your Notebook PC. Only purchase hard disk drives from authorized retailers of this Notebook PC to ensure maximum compatibility and reliability.

16	Notebook PC User Manual

Memory (RAM) Compartment

The memory compartment provides expansion capabilities for additional memory. Additional memory will increase application performance by decreasing hard disk access. The BIOS automatically detects the amount of memory

in the system and configures accordingly.There is no hardware or software (including BIOS) setup required after the memory is installed.Visit an authorized service center or retailer for information on memory upgrades for your Notebook PC. Only purchase expansion modules from authorized retailers of this Notebook PC to ensure maximum compatibility and reliability.

Notebook PC User Manual

Right Side




	1	2	3	4	5
1	Flash Memory Slot

Normally an external memory card reader must be purchased separately in order to use memory cards from devices such as digital cameras, MP3 players, mobile phones, and PDAs.This Notebook PC has a built-in high-speed memory card reader that can conveniently read from and write to many flash memory cards.

2 USB Port (2.0)

The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such as keyboards, pointing devices, cameras, hard disk drives, printers, and scanners connected in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many devices to run simultaneously on a single computer, with some peripherals acting as additional plug-in sites or hubs. USB supports hot-swapping of devices so that most peripherals can be connected or disconnected without restarting the computer.

3 Display (Monitor) Output

The 15-pin D-sub monitor port supports a standard VGA-compatible device such as a monitor or projector to allow viewing on a larger external display.

18	Notebook PC User Manual

4 LAN Port

The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and supports a standard Ethernet cable for connection to a local network.The built-in connector allows convenient use without additional adapters.

5	Power (DC) Input

The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the Notebook PC and charges the internal battery pack.To prevent damage to the Notebook PC and battery pack, always use the supplied power adapter.

The adapter may become warm to hot when in use. Ensure not to cover the adapter and keep it away from your body.

Notebook PC User Manual

Left Side

1Security Port

The security port allows the Notebook PC to be secured to a fixed object with a 2 mm metal cable.

2Air Vents

The air vents allow cool air to enter and warm air to exit the Notebook PC.

Ensure that paper, books, clothing, cables, or other objects do not block any of the air vents or else overheating may occur.

3 HDMI HDMI Port

HDMI (High-Definition Multimedia Interface) is an uncompressed all-digital audio/video interface between any audio/video source, such as a set-top box, DVD player, and A/V receiver and an audio and/or video monitor, such as a digital television (DTV). Supports standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable. It transmits all ATSC HDTV standards and supports 8-channel digital audio, with bandwidth to spare to accommodate future enhancements or requirements.

20	Notebook PC User Manual

4 USB Port (2.0)

5 Headphone Output Jack

The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out signal to amplified speakers or headphones. Using this jack automatically disables the built-in speakers.

6	Microphone Input Jack

The mono microphone jack (1/8 inch) can be used to connect an external microphone or output signals from audio devices. Using this jack automatically disables the built-in microphone. Use this feature for video conferencing, voice narrations, or simple audio recordings.

Notebook PC User Manual

Rear Side

1	Battery Pack

Front Side






	1	2	1
1	Audio Speaker

The built-in stereo speaker system allows you to hear audio without additional attachments.The multimedia sound system features an integrated digital audio controller

that produces rich, vibrant sound (results improved with external stereo headphones or speakers). Audio features are software controlled.

2	Status Indicators (front)

Status indicators represent various hardware/software conditions.

22	Notebook PC User Manual

Chapter 3:	3

Getting Started

Power System

Using AC Power

The Notebook PC power is comprised of two parts, the power adapter and the battery power system.The power adapter converts AC power from a wall outlet to the DC power required by the Notebook PC.Your Notebook PC comes with a universal AC-DC adapter.That means that you may connect the power cord to any 100V-120V as well as 220V-240V outlets without setting switches or using power converters. Different countries may require that an adapter be used to connect the provided US-standard AC power cord to a different standard. Most hotels will provide universal outlets to support different power cords as well as voltages. It is always best to ask an experienced traveler about AC outlet voltages when bringing power adapters to another country.

110V-220V

You can buy travel kits for the Notebook PC that includes power and modem adapters for almost every country.

WARNING! DO NOT connect the AC power cord to an AC outlet prior to connecting the DC plug to the Notebook PC. Doing so may damage the AC-DC adapter.

24	Notebook PC User Manual

IMPORTANT! Damage may occur if you use a different adapter to power the Notebook PC or use the Notebook PC’s adapter to power other electrical devices. If there is smoke, burning scent, or extreme heat coming from the AC-DC adapter, seek servicing. Seek servicing if you suspect a faulty AC-DC adapter.You may damage both your battery pack(s) and the Notebook PC with a faulty AC-DC adapter.

This Notebook PC may come with either a two or three-prong plug depending on territory. If a three-prong plug is provided, you must use a grounded AC outlet or use a properly grounded adapter to ensure safe operation of the Notebook PC.

WARNING! THE POWER ADAPTER MAY BECOME WARM TO HOT WHEN IN USE. BE SURE NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY.

Unplug the power adapter or switch off the AC outlet to minimize the power consumption when the Notebook PC is not in use.

Notebook PC User Manual

Using Battery Power

The Notebook PC is designed to work with a removable battery pack. The battery pack consists of a set of battery cells housed together.

A fully charged pack will provide several hours of battery life, which can be further extended by using power management features through the BIOS setup. Additional battery packs are optional and can be purchased separately through a Notebook PC retailer.

Installing and Removing the Battery Pack

Your Notebook PC may or may not have its battery pack installed. If your Notebook PC does not have its battery pack installed, use the following procedures to install the battery pack.

IMPORTANT! Never attempt to remove the battery pack while the Notebook PC is turned ON, as this may result in the loss of working data.

To install the battery pack:

26	Notebook PC User Manual

To remove the battery pack:

2	3

IMPORTANT! Only use battery packs and power adapters supplied with this Notebook PC or specifically approved by the manufacturer or retailer for use with this model or else damage may occur to the Notebook PC.

Battery Care

The Notebook PC’s battery pack, like all rechargeable batteries, has a limit on the number times it can be recharged.The battery pack’s useful life will depend on your environment temperature, humidity, and how your Notebook PC is used. It is ideal that the battery be used in a temperature range between 10˚C and 35˚C (50˚F and 95˚F).You must also take into account that the Notebook PC’s internal temperature is higher than the outside temperature. Any temperatures above or below this range will shorten the life of the battery. But in any case, the battery pack’s usage time will eventually decrease and a new battery pack must be purchased from an authorized dealer for this Notebook PC. Because batteries also have a shelf life, it is not recommended to buy extras for storing.

WARNING! For safety reasons, DO NOT throw the battery in fire, DO NOT short circuit the contacts, and DO NOT disassemble the battery. If there is any abnormal operation or damage to the battery pack caused by impact, turn OFF the Notebook PC and contact an authorized service center.

Notebook PC User Manual

Powering ON the Notebook PC

The Notebook PC’s power-ON message appears on the screen when you turn it ON. If necessary, you may adjust the brightness by using the hot keys. If you need to run the BIOS Setup to set or modify the system configuration, press [F2] upon bootup to enter the BIOS Setup. If you press [Tab] during the splash screen, standard boot information such as the BIOS version can be seen. Press [ESC] and you will be presented with a boot menu with selections to boot from your available drives.

Before bootup, the display panel flashes when the power is turned ON.This is part of the Notebook PC’s test routine and is not a problem with the display.

IMPORTANT! To protect the hard disk drive, always wait at least 5 seconds after turning OFF your Notebook PC before turning it back ON.

WARNING! DO NOT carry or cover a Notebook PC that is powered ON with any materials that will reduce air circulation such as a carrying bag.

The Power-On Self Test (POST)

When you turn ON the Notebook PC, it will first run through a series of software-controlled diagnostic tests called the Power-On Self Test (POST).The software that controls the POST is installed as a permanent part of the Notebook PC’s architecture.The POST includes a record of the Notebook PC’s hardware configuration,

which is used to make a diagnostic check of the system.This record is created by using the BIOS Setup program. If the POST discovers a difference between the record and the existing hardware, it will display a message on the screen prompting you to correct the conflict by running BIOS Setup. In most cases the record should be

correct when you receive the Notebook PC.When the test is finished, you may get a message reporting“No operating system found”if the hard disk was not preloaded with an operating system.This indicates that the hard disk is correctly detected and ready for the installation of a new operating system.

28	Notebook PC User Manual

Self Monitoring and Reporting Technology

The S.M.A.R.T. (Self Monitoring and Reporting Technology) checks the hard disk drive during POST and gives a warning message if the hard disk drive requires servicing. If any critical hard disk drive warning is given during bootup, backup your data immediately and run Windows disk checking program.To run Window’s disk checking program: click Start > select Computer > right-click a hard disk drive icon > choose Properties > click the

Tools tab > click Check Now >

click Start.You can also select“Scan ... sectors”for more effective scan and repair but the process will run slower.

IMPORTANT! If warnings are still given during bootup after running a software disk checking utility, you should take your Notebook PC in for servicing. Continued use may result in data loss.

Notebook PC User Manual

Checking Battery Power

The battery system implements the Smart Battery standard under the Windows environment, which allows the battery to accurately report the amount of charge left in the battery. A fully-charged battery pack provides the Notebook PC a few hours of working power. But the actual figure varies depending on how you use the power saving features, your general work habits, the CPU, system memory size, and the size of the display panel.

Screen captures shown here are examples only and may not reflect what you see in your system.

You will be warned when battery power is low. If you continue to ignore the low battery warnings, the Notebook PC eventually enters suspend mode (Windows default uses STR).

Right-click the battery icon

Pointer over the battery icon without power adapter.

Left-click the battery icon	Pointer over the battery icon with
	power adapter.

WARNING! Suspend-to-RAM (STR) does not last long when the battery power is depleted. STR is not the same as power OFF. STR requires a small amount of power and will fail and lose data if no power is available due to complete battery depletion or no power supply (e.g. removing both the power adapter and battery pack).

30	Notebook PC User Manual

+ 74 hidden pages
