Page 1
P7H55D-M
EVO
Motherboard
Page 2
E5020
First Edition (V1)
December 2009
Copyright © 2009 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
Offer to Provide Source Code of Certain Software
This product may contain copyrighted software that is licensed under the General Public License (“GPL”)
and under the Lesser General Public License Version (“LGPL”). The GPL and LGPL licensed code in this
product is distributed without any warranty. Copies of these licenses are included in this product.
You may obtain the complete corresponding source code (as dened in the GPL) for the GPL Software,
and/or the complete corresponding source code of the LGPL Software (with the complete machinereadable “work that uses the Library”) for a period of three years after our last shipment of the product
including the GPL Software and/or LGPL Software, which will be no earlier than December 1, 2011, either
(1) for free by downloading it from http://support.asus.com/download;
or
(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location
where you want to have it shipped to, by sending a request to:
ASUSTeK Computer Inc.
Legal Compliance Dept.
15 Li Te Rd.,
Beitou, Taipei 112
Taiwan
In your request please provide the name, model number and version, as stated in the About Box of the
product for which you wish to obtain the corresponding source code and your contact details so that we
can coordinate the terms and cost of shipment with you.
The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as
the corresponding binary/object code.
This offer is valid to anyone in receipt of this information.
ASUSTeK is eager to duly provide complete source code as required under various Free Open Source
Software licenses. If however you encounter any problems in obtaining the full corresponding source code
we would be much obliged if you give us a notication to the email address gpl@asus.com, stating the
product and describing the problem (please do NOT send large attachments such as source code archives
etc to this email address).
ii
Page 3
Contents
Contents ...................................................................................................................... iii
Notices ......................................................................................................................
Safety information .................................................................................................... viii
About this guide ......................................................................................................... ix
P7H55D-M EVO specications summary ................................................................. xi
Chapter 1: Product introduction
1.1 Welcome! ....................................................................................................1-1
1.2 Package contents
1.3 Special features
1.3.1 Product highlights
1.3.2 ASUS Exclusive Overclocking Features .....................................
1.3.3 ASUS Xtreme Phase
1.3.4 ASUS Exclusive Features ...........................................................
1.3.5
1.3.6
Chapter 2: Hardware information
2.1 Before you proceed ...................................................................................2-1
2.2 Motherboard overview ...............................................................................
2.2.1 Motherboard layout .....................................................................
2.2.2 Layout contents ...........................................................................
2.2.3 Placement direction
2.2.4 Screw holes
2.3 Central Processing Unit (CPU) .................................................................
2.3.1 Installing the CPU .......................................................................
2.3.2 Installing the CPU heatsink and fan ............................................
2.3.3 Uninstalling the CPU heatsink and fan
2.4 System memory .......................................................................................
2.4.1 Overview ...................................................................................
2.4.2 Memory congurations ..............................................................
2.4.3 Installing a DIMM ......................................................................
2.4.4 Removing a DIMM ....................................................................
2.5 Expansion slots
2.5.1 Installing an expansion card
2.5.2 Conguring an expansion card .................................................
2.5.3 Interrupt assignments
2.5.4 PCI slot
....................................................................................... 1-1
.......................................................................................... 1-2
........................................................................ 1-2
1-3
................................................................... 1-3
1-3
ASUS Quiet Thermal Solutions ................................................... 1-4
ASUS EZ DIY .............................................................................. 1-4
2-2
2-2
2-3
..................................................................... 2-4
................................................................................. 2-4
2-5
2-5
2-8
........................................ 2-9
2-10
2-10
2-11
2-16
2-16
........................................................................................ 2-17
...................................................... 2-17
2-17
................................................................ 2-18
...................................................................................... 2-19
vii
iii
Page 4
Contents
2.5.5 PCI Express x1 slots ................................................................. 2-19
2.5.6 PCI Express 2.0 x16 slot ...........................................................
2.6 Jumper ......................................................................................................
2.7 Onboard switch ........................................................................................
2.8 Connectors ...............................................................................................

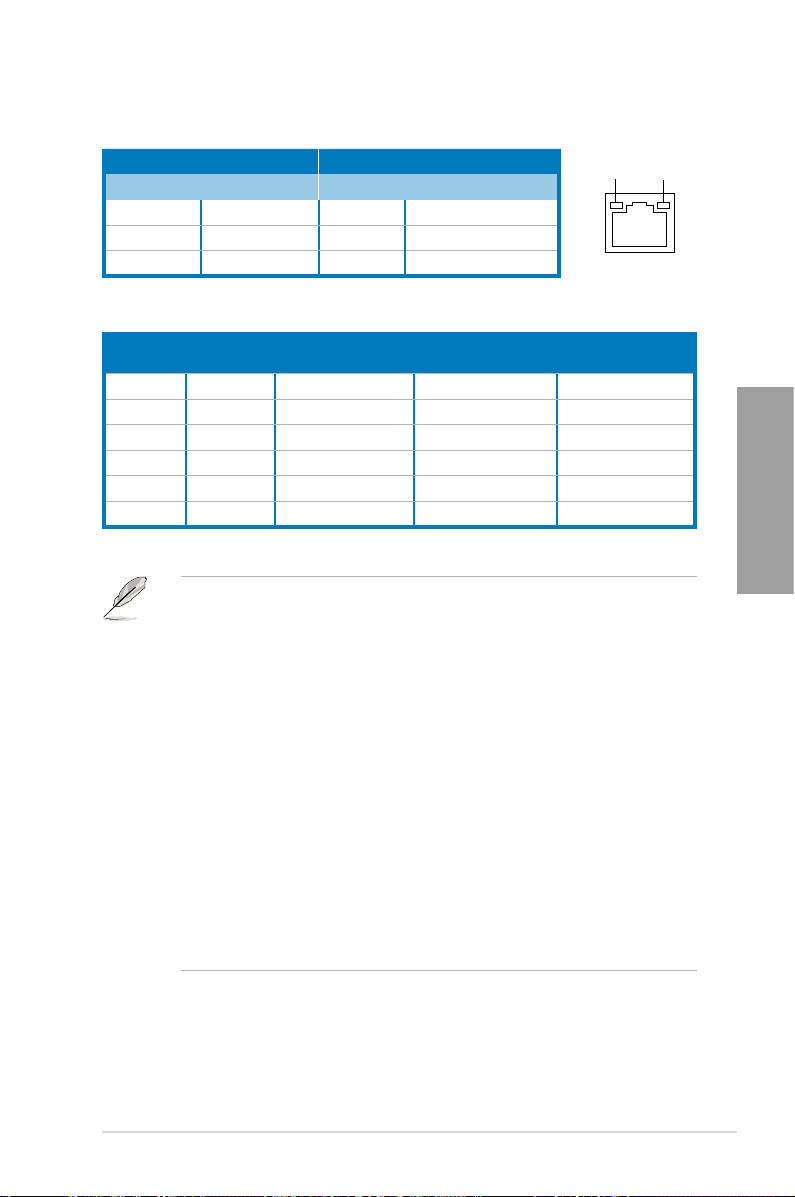

2.8.1 Rear panel connectors ..............................................................
2.8.2 Audio I/O connections ...............................................................

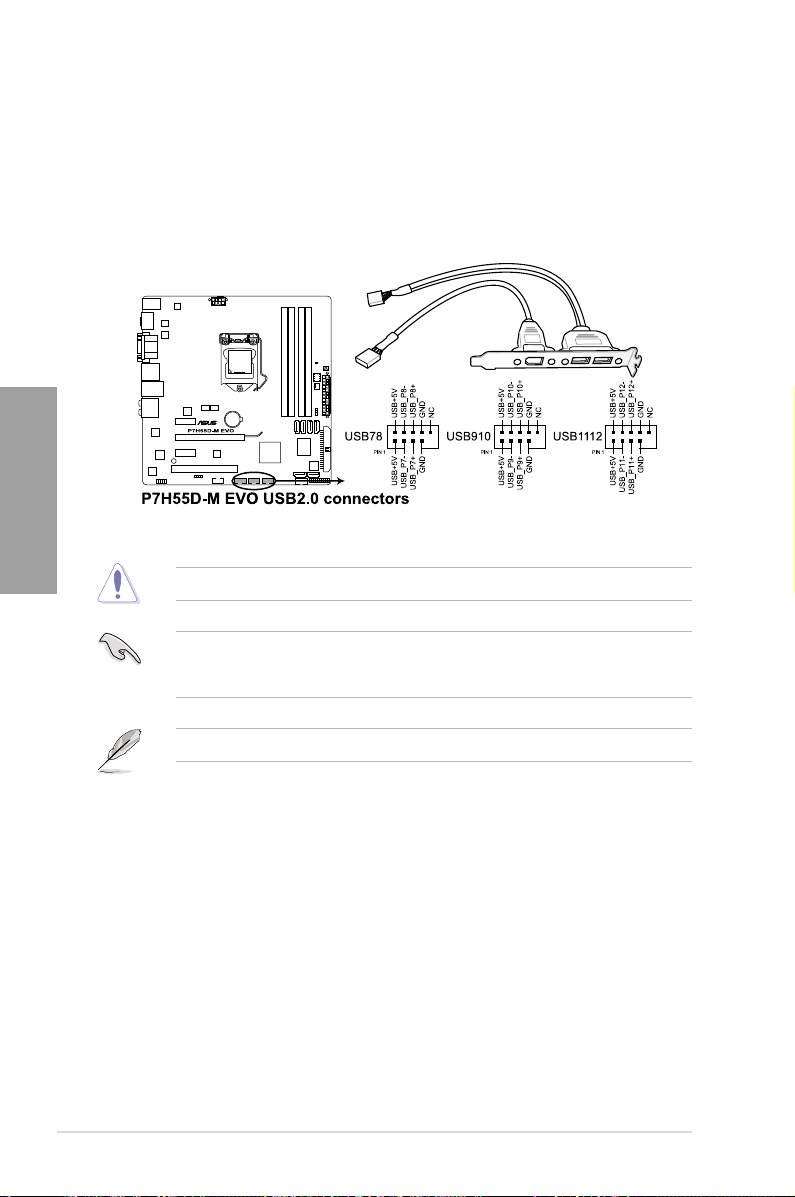

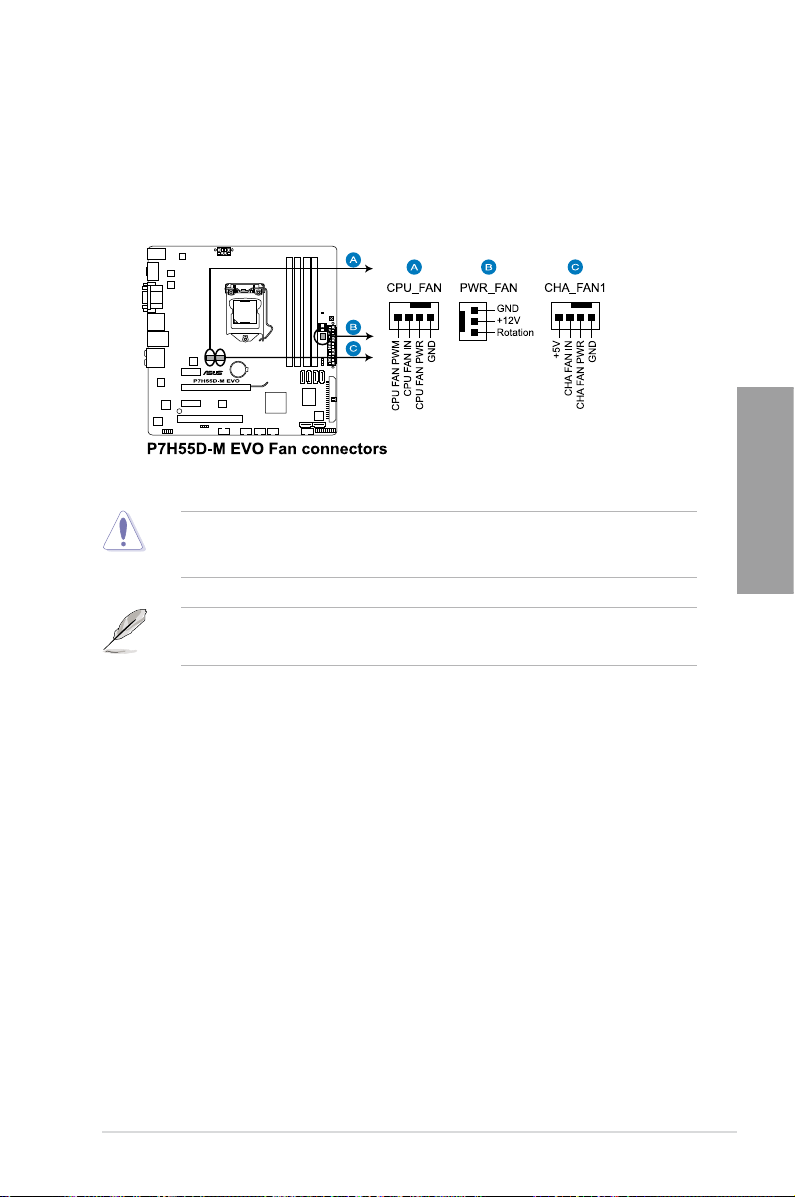

2.8.3 Internal connectors

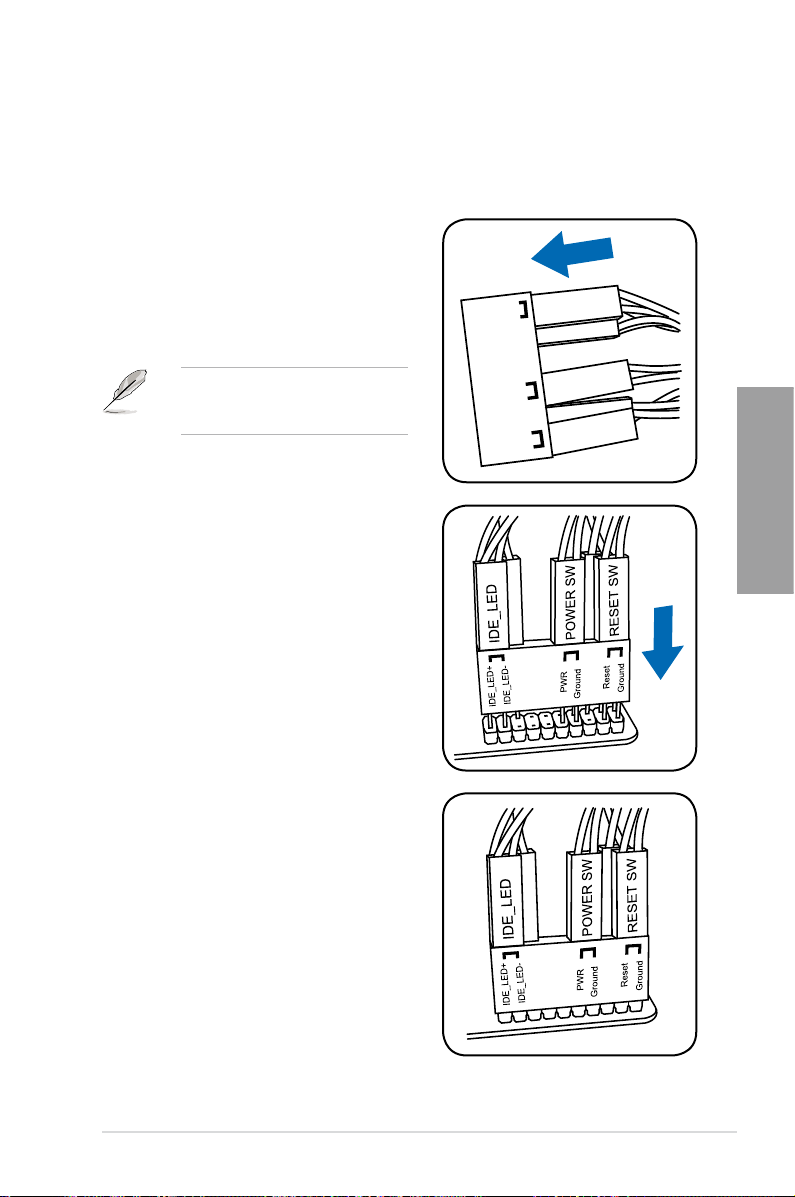

2.8.4. ASUS Q-Connector (system panel) ..........................................

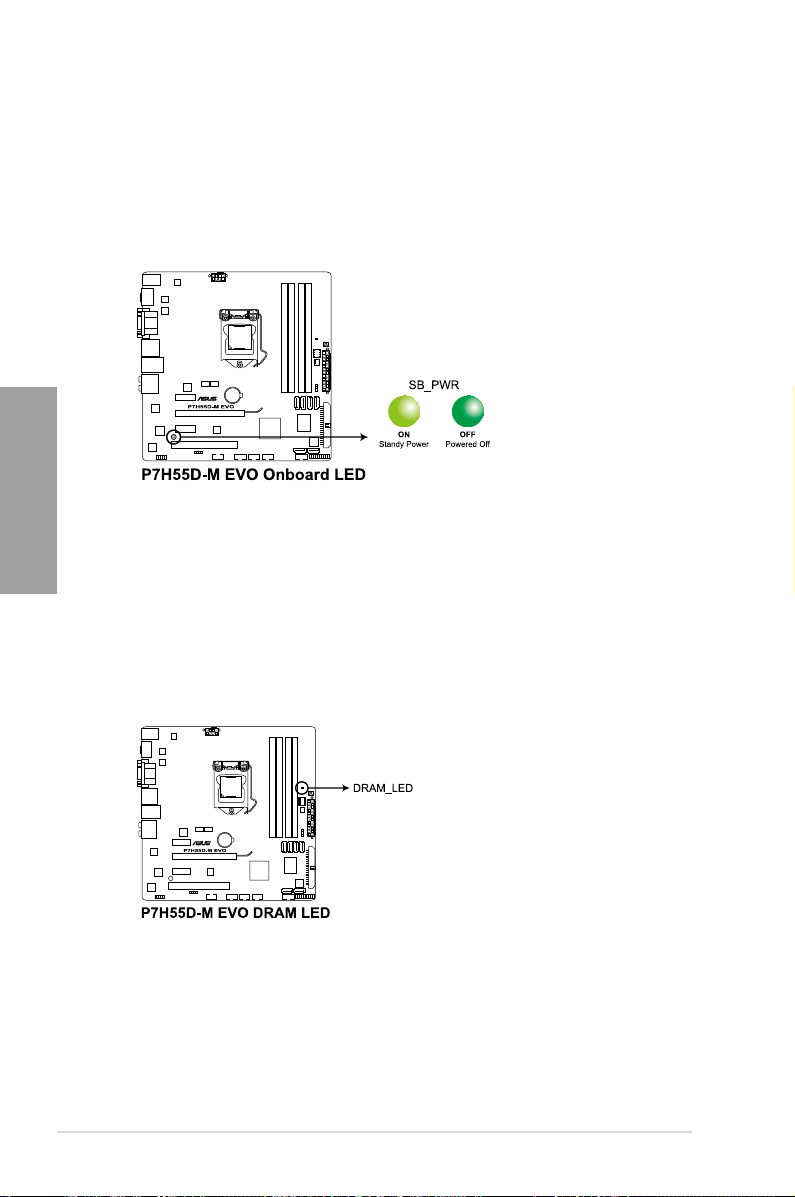

2.9 Onboard LEDs ..........................................................................................
2.10 Starting up for the rst time ....................................................................
2.11 Turning off the computer .........................................................................
Chapter 3: BIOS setup
3.1 Knowing BIOS ............................................................................................3-1
3.2 Updating BIOS ............................................................................................
3.2.1 ASUS Update utility
3.2.2 ASUS EZ Flash 2 utility ...............................................................
3.2.3 ASUS CrashFree BIOS 3 utility
3.2.4 ASUS BIOS Updater ...................................................................
3.3 BIOS setup program ..................................................................................
3.3.1 BIOS menu screen ......................................................................
3.3.2 Menu bar .....................................................................................
3.3.3 Navigation keys .........................................................................
3.3.4 Menu items
3.3.5 Submenu items .........................................................................
3.3.6 Conguration elds ...................................................................
3.3.7 Pop-up window
3.3.8 Scroll bar ...................................................................................
3.3.9 General help
3.4 Main menu ................................................................................................
3.4.1 SATA 1–6 ..................................................................................
3.4.2 Storage Conguration ...............................................................
3.4.3 System Information ...................................................................
3.5 Ai Tweaker menu ......................................................................................
3.5.1 Ai Overclock Tuner ....................................................................
3.5.2 CPU Ratio Setting .....................................................................
3.5.3 Intel(R) SpeedStep(TM) Tech ...................................................
.................................................................... 2-27
..................................................................... 3-2
................................................... 3-5
................................................................................ 3-10
.......................................................................... 3-10
.............................................................................. 3-10
2-19
2-20
2-21
2-22
2-22
2-25
2-35
2-36
2-37
2-37
3-1
3-4
3-6
3-9
3-9
3-9
3-10
3-10
3-10
3-10
3-11
3-11
3-13
3-13
3-14
3-14
3-15
3-15
iv
Page 5
Contents
3.5.4 Intel(R) TurboMode Tech ........................................................... 3-15
3.5.5 DRAM Frequency
3.5.6 QPI Frequency ..........................................................................
3.5.7 DRAM Timing Control ...............................................................
3.5.8 Xtreme Phase Full Power Mode ...............................................
3.5.9 BCLK Frequency .......................................................................
3.5.10 PCIE Frequency ........................................................................
3.5.11 CPU Differential Amplitude ........................................................
3.5.12 CPU Clock Skew .......................................................................
3.5.13 CPU Voltage Mode
3.5.14 IMC Voltage
3.5.15 DRAM Voltage
3.5.16 CPU PLL Voltage ......................................................................
3.5.17 PCH Voltage
3.5.18 iGPU Voltage
3.5.19 Load-Line Calibration ................................................................
3.5.20 CPU Spread Spectrum
3.5.21 PCIE Spread Spectrum .............................................................
3.6 Advanced menu .......................................................................................
3.6.1 CPU Conguration ....................................................................
3.6.2 Uncore Conguration ................................................................
3.6.3 Onboard Devices Conguration ................................................
3.6.4 USB Conguration ....................................................................
3.6.5 PCIPnP .....................................................................................
3.6.6 Intel VT-d ...................................................................................
3.7 Power menu ..............................................................................................
3.7.1 Suspend Mode ..........................................................................
3.7.2 Repost Video on S3 Resume ....................................................
3.7.3 ACPI 2.0 Support ......................................................................
3.7.4 ACPI APIC Support ...................................................................
3.7.5 EuP Ready ................................................................................
3.7.6 APM Conguration ....................................................................
3.7.7 Hardware Monitor
3.8 Boot menu ................................................................................................
3.8.1 Boot Device Priority
3.8.2 Boot Settings Conguration ......................................................
3.8.3 Security .....................................................................................
...................................................................... 3-16
................................................................... 3-18
.............................................................................. 3-18
........................................................................... 3-18
.............................................................................. 3-19
............................................................................. 3-19
.............................................................. 3-19
...................................................................... 3-29
................................................................... 3-31
3-16
3-16
3-16
3-16
3-16
3-18
3-18
3-19
3-19
3-19
3-20
3-20
3-22
3-24
3-25
3-26
3-26
3-27
3-27
3-27
3-27
3-27
3-27
3-28
3-31
3-32
3-33
v
Page 6
Contents
3.9 Tools menu ............................................................................................... 3-35
3.9.1 ASUS O.C. Prole .....................................................................
3.9.2 AI NET 2 ....................................................................................
3.9.3 ASUS EZ Flash 2 ......................................................................
3.9.4 Express Gate ............................................................................
3.10 Exit menu ..................................................................................................
Chapter 4: Software support
4.1 Installing an operating system .................................................................4-1
4.2 Support DVD information ..........................................................................
4.2.1 Running the support DVD ...........................................................
4.2.2 Obtaining the software manuals
4.3 Software information .................................................................................
4.3.1 ASUS PC Probe II .......................................................................
4.3.2 ASUS AI Suite .............................................................................
4.3.3 ASUS Fan Xpert
4.3.4 ASUS TurboV ..............................................................................
4.3.5 ASUS GPU Boost .......................................................................
4.3.6 ASUS Turbo Key .........................................................................
4.3.7 ASUS EPU ..................................................................................
4.3.8 ASUS Express Gate
4.3.9 Audio congurations
.......................................................................... 4-5
.................................................................. 4-10
.................................................................. 4-11
.................................................. 4-2
3-35
3-36
3-37
3-37
3-38
4-1
4-1
4-3
4-3
4-4
4-6
4-7
4-8
4-9
vi
Page 7
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with manufacturer’s instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV technician for help.
The use of shielded cables for connection of the monitor to the graphics card is required
to assure compliance with FCC regulations. Changes or modications to this unit not
expressly approved by the party responsible for compliance could void the user’s authority
to operate this equipment.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from
digital apparatus set out in the Radio Interference Regulations of the Canadian Department
of Communications.
This class B digital apparatus complies with Canadian ICES-003.
REACH
Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of
Chemicals) regulatory framework, we published the chemical substances in our products at
ASUS REACH website at http://green.asus.com/english/REACH.htm.
DO NOT throw the motherboard in municipal waste. This product has been designed to
enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin
indicates that the product (electrical and electronic equipment) should not be placed in
municipal waste. Check local regulations for disposal of electronic products.
DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol
of the crossed out wheeled bin indicates that the battery should not be placed in municipal
waste.
vii
Page 8
Safety information
Electrical safety
• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet
before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not sure
about the voltage of the electrical outlet you are using, contact your local power company.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied service
technician or your retailer.
Operation safety
• Before installing the motherboard and adding devices on it, carefully read all the manuals
that came with the package.
• Before using the product, ensure all cables are correctly connected and the power
cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may become wet.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualied service
technician or your retailer.
viii
Page 9
About this guide
This user guide contains the information you need when installing and conguring the motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Product introduction
This chapter describes the features of the motherboard and the new technology it
supports.
• Chapter 2: Hardware information
This chapter lists the hardware setup procedures that you have to perform when
installing system components. It includes description of the switches, jumpers, and
connectors on the motherboard.
• Chapter 3: BIOS setup
This chapter tells how to change system settings through the BIOS Setup menus.
Detailed descriptions of the BIOS parameters are also provided.
• Chapter 4: Software support
This chapter describes the contents of the support DVD that comes with the
motherboard package and the software.
Where to nd more information
Refer to the following sources for additional information and for product and software updates.
1. ASUS websites
The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.
2. Optional documentation
Your product package may include optional documentation, such as warranty yers,
that may have been added by your dealer. These documents are not part of the
standard package.
ix
Page 10
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components when trying to
complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.
Typography
Bold text Indicates a menu or an item to select.
Italic
s Used to emphasize a word or a phrase.
<Key> Keys enclosed in the less-than and greater-than sign means
that you must press the enclosed key.
Example: <Enter> means that you must press the Enter or
Return key.
<Key1> + <Key2> + <Key3> If you must press two or more keys simultaneously, the key
names are linked with a plus sign (+).
Example: <Ctrl> + <Alt> + <Del>
x
Page 11
P7H55D-M EVO specications summary
CPU LGA1156 socket for Intel® Core™ i7 / Core™ i5 / Core™ i3
Chipset Intel® H55 Express Chipset
Memory 4 x DIMM, max. 16GB, DDR3 2133(O.C.)* / 1333 / 1066 MHz,
Expansion slots 1 x PCI Express 2.0 x16 slots
VGA Multi-VGA output support: HDMI, DVI-D, and RGB ports
Storage Intel® H55 Express Chipset
LAN Realtek® 8112L Gigabit LAN controller featuring AI NET2
USB NEC USB 3.0 controller
IEEE 1394 VIA® VT6315N controller supports 2 x IEEE 1394a ports
Audio Realtek® 8-channel High Denition Audio CODEC
Pentium® Processors
Supports Intel® Turbo Boost Technology*
* The Intel® Turbo Boost Technology support depends on the CPU
types.
** Refer to www.asus.com for Intel CPU support list
non-ECC, un-buffered memory
Dual channel memory architecture
Supports Intel® Extreme Memory Prole (XMP)
* Hyper DIMM support is subject to the physical characteristics of
individual CPUs. Some hyper DIMMs only support one DIMM
per channel. Refer to the Memory QVL for details.
** Refer to www.asus.com or this user manual for the Memory
QVL (Qualied Vendors Lists)
2 x PCI Express x1 slots
1 x PCI slot
Supports HDMI with max. resolution 1920 x 1200 @60Hz
Supports DVI with max. resolution 1920 x 1200 @60Hz
Supports RGB with max. resolution 2048 x 1536 @75Hz
Maximum shared memory of 1748MB
- 6 x SATA 3.0 Gb/s ports
Marvell® 88SE6111 SATA & PATA controller
- 1 x Ultra DMA 133/100/66 for up to 2 PATA devices
- 1 x External SATA 3.0 Gb/s port (SATA on-the-go)
- 2 x USB 3.0 ports (blue, at back panel)
Intel® H55 Express Chipset
- 10 x USB 2.0 ports (6 ports at mid-board, 4 ports at back panel)
(one at midboard, one at back panel)
- BD Audio Layer Content Protection
- Supports Jack-Detection, Multi-streaming, and
Front Panel Jack-Retasking
- Optical S/PDIF out port at back I/O
- ASUS Noise Filter
(continued on the next page)
xi
Page 12
P7H55D-M EVO specications summary
ASUS unique features ASUS Exclusive Overclocking Features
ASUS exclusive
overclocking features
- TurboV
- Turbo Key
- GPU Boost
ASUS Xtreme Design
ASUS Xtreme Phase
- 8+3 Phase Power Design
ASUS Exclusive Features
- Express Gate
- MemOK!
- ASUS EPU
ASUS Quiet Thermal Solutions
- ASUS Fanless Design: Stack Cool 3
- ASUS Fan Xpert
ASUS EZ DIY
- ASUS Q-DIMM
- ASUS Q-Connector
- ASUS O.C. Prole
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2™
- Multi-language BIOS
Precision Tweaker 2
- vCore: Adjustable CPU voltage at 0.00625V increment
- vIMC: Adjustable IMC voltage at 0.02V increment
- vDRAM Bus: Adjustable DRAM voltage at 0.02V increment
- vPCH: Adjustable PCH voltage at 0.01V increment
- vCPU_PLL: Adjustable CPU_PLL voltage at 0.02V increment
- iGPU: Adjustable iGPU voltage at 0.0125V increment
SFS (Stepless Frequency Selection)
- Internal Base Clock tuning from 80MHz up to 500MHz at
1MHz increment
- PCI Express frequency tuning from 100MHz up to 200MHz
at 1MHz increment
Overclocking protection
- ASUS C.P.R. (CPU Parameter Recall)
(continued on the next page)
xii
Page 13
P7H55D-M EVO specications summary
Back panel I/O ports 1 x PS/2 keyboard port (purple)
Internal I/O connectors 3 x USB connectors support additional 6 USB ports
BIOS features 64 Mb Flash ROM, SPI, AMI BIOS, PnP, DMI 2.0, WfM 2.0,
Manageability WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Support DVD contents Drivers
Form factor uATX form factor: 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
*Specications are subject to change without notice.
1 x Optical S/PDIF Out port
1 x External SATA port
1 x HDMI out port
1 x DVI-D out port
1 x D-Sub out port
1 x IEEE 1394a port
1 x LAN (RJ-45) port
2 x USB 3.0/2.0 ports (blue)
4 x USB 2.0/1.1 ports
8-channel Audio I/O ports
1 x IDE connector
6 x SATA 3.0 Gb/s connectors
1 x CPU Fan connector
1 x Chassis Fan connectors (1 x 4-pin)
1 x Power Fan connector
1 x IEEE1394a connector
1 x COM connector
1 x Clear CMOS jumper
1 x S/PDIF Out header
1 x MemOK! button
Front panel audio connector
24-pin ATX Power connector
8-pin EATX 12V Power connector
System Panel (Q-Connector)
SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS,
ASUS EZ Flash 2, ASUS CrashFree BIOS 3
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)
xiii
Page 14
xiv
Page 15
Chapter 1
User Manual
Chapter 1: Product introduction
1.1 Welcome!
Thank you for buying an ASUS® P7H55D-M EVO motherboard!
The motherboard delivers a host of new features and latest technologies, making it another
standout in the long line of ASUS quality motherboards!
Before you start installing the motherboard, and hardware devices on it, check the items in
your package with the list below.
1.2 Package contents
Check your motherboard package for the following items.
ASUS P7H55D-M EVO motherboard 1 x Ultra DMA 133/100/66 cable
Chapter 1
ASUS P7H55D-M EVO 1-1
User guide Support DVD
1 x 2-in-1 ASUS Q-Connector kit 1 x ASUS I/O Shield
2 x Serial ATA 3.0 Gb/s cables
• If any of the above items is damaged or missing, contact your retailer.
• The illustrated items above are for reference only. Actual product specications may
vary with different models.
Page 16
1.3 Special features
1.3.1 Product highlights
Chapter 1
Intel® LGA1156 Lynneld / Clarkdale Processor Ready
This motherboard supports the latest Intel® Lynneld / Clarkdale processors in LGA1156
package, which has memory and PCI Express controller integrated to support 2-channel
(4 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes, enabling higher graphics
performance. Moreover, Intel® Clarkdale integrated Graphics Processing Unit (GPU)
processors which goes with Intel® H55 chipset with VGA out can bring you to the whole new
experience of the next generation VGA performance. It also provides separated 3D, 2D and
Video Engines to execute different graphic control in hardware. Refer to page 2-5 for details.
Intel® H55
The Intel® H55 Express Chipset is the latest one-chipset design to support the latest 1156
socket Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® processors. Intel® H55 chipset
provides improved performance by utilizing serial point-to-point links, allowing increased
bandwidth and stability. Using Intel® Core™ i5 6 Series, Core™ i3 5 Series, and Pentium®
CPU with H55 Express Chipset to enjoy the latest Intel integrated graphic performance!
Dual-Channel DDR3 2133(O.C.) / 1333 / 1066 support
The motherboard supports DDR3 memory that features data transfer rates of 2133(O.C.) /
1333 / 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics,
multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the
bandwidth of your system memory to boost system performance. Refer to page 2-10 for
details.
True USB 3.0 Support
Experience ultra-fast data transfers at 4.8 Gb/s with USB 3.0–the latest connectivity standard.
Built to connect easily with next-generation components and peripherals, USB 3.0 transfers
data 10X faster and is also backward compatible with USB 2.0 components.
HDMI support
High-Denition Multimedia Interface (HDMI) is a set of digital video standards that delivers
multi-channel audio and uncompressed digital video for full HD 1080p visuals through a
single cable. Supporting HDCP copy protection such as HD DVD and Blu-ray Discs, HDMI
provides you with the highest-quality home theater experience.
DVI-D Support
DVI (Digital Visual Interface) provides high visual quality of digital display devices such as
LCD monitor. The interface of this motherboard supports dual display output: DVI-D/HDMI,
VGA/HDMI, or DVI-D/VGA. Refer to page 2-22 for details.
Green ASUS
This motherboard and its packaging comply with the European Union’s Restriction on the
use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating
environment-friendly and recyclable products/packaging to safeguard consumers’ health
while minimizing the impact on the environment.
1-2 Chapter 1: Product Introduction
Page 17
1.3.2 ASUS Exclusive Overclocking Features
TurboV
Feel the adrenaline rush of real-time O.C. – now a reality with the ASUS TurboV. This easy
O.C. tool allows you to overclock without exiting or rebooting the OS; and its user-friendly
interface makes overclock with just a few clicks away. Moreover, the ASUS OC proles in
TurboV provides the best O.C. settings in different scenarios. Refer to page 4-6 for details.
Turbo Key
ASUS Turbo Key allows you to turn the PC power button into a physical overclocking button.
After the easy setup, Turbo Key can boost performances without interrupting ongoing work or
games, simply through pressing the button Refer to page 4-8 for details.
GPU Boost
GPU Boost overclocks the integrated GPU in real time for the best graphics performance.
User-friendly UI facilitates exible frequency and voltage adjustments. Its ability to deliver
multiple overclocking proles also provides rapid and stable system-level upgrades. Refer to
page 4-7 for details.
1.3.3 ASUS Xtreme Phase
ASUS 8+3 Phase Power Design
Unleashes ultimate memory performances with independent power to core components,
while providing fast transient response and stability for the CPU under heavy loading or
overclocking modes.
1.3.4 ASUS Exclusive Features
Chapter 1
Express Gate
Express Gate is an ASUS exclusive OS that provides you with quick access to the Internet
and key applications before entering the Windows® OS. Refer to page 3-37 and 4-10 for
details.
MemOK!
Memory compatibility is among the top concerns during computer upgrades. Worry no more.
MemOK! is the fastest memory booting solution today. This remarkable memory rescue tool
requires nothing but a push of a button to patch memory issues and get your system up and
running in no time. The technology is able to determine failsafe settings that can dramatically
improve your system booting success. Refer to page 2-21 for details.
ASUS EPU
The new ASUS EPU—the world’s rst power saving engine, has been upgraded to a new 6
engine version, which provides total system power savings by detecting current PC loadings and
intelligently moderating power in real-time. With auto phase switching for components (which
includes the CPU, VGA card / integrated GPU, memory, chipset, hard drives and CPU cooler /
system fans), the EPU automatically provides the most appropriate power usage via intelligent
acceleration and overclocking—helping save power and money. Refer to page 4-9 for details.
ASUS P7H55D-M EVO 1-3
Page 18
1.3.5 ASUS Quiet Thermal Solutions
ASUS Quiet Thermal solution makes system more stable and enhances the overclocking
capability.
Chapter 1
ASUS Fanless Design—Heat-sink solution
The crystal-shaped heatsink features 0-dB thermal solution that offers users a noiseless PC
environment. Not only the beautiful shape upgrades the visual enjoyment for motherboard
users, but also the heatsink design lowers the temperature of the chipset and power phase
area through high efcient heat-exchange. Combined with usability and aesthetics, the ASUS
crystal-shaped heatsink will give users an extremely silent and cooling experience with the
elegant appearance!
Fan Xpert
ASUS Fan Xpert intelligently allows you to adjust both the CPU and chassis fan speeds
according to different ambient temperatures caused by different climate conditions in different
geographic regions and your PC’s loading. The built-in variety of useful proles offer exible
controls of fan speed to achieve a quiet and cool environment. Refer to page 4-5 for details.
1.3.6 ASUS EZ DIY
ASUS EZ DIY feature collection provides you with easy ways to install computer components,
update the BIOS or back up your favorite settings.
ASUS Q-DIMM
ASUS Q-DIMM enhances your DIY experience by speeding up and simplifying the DIY
process!
ASUS Q-Connector
ASUS Q-Connector allows you to easily connect or disconnect the chassis front panel cables
to the motherboard. This unique module eliminates the trouble of connecting the system
panel cables one at a time and avoiding wrong cable connections. Refer to page 2-35 for
details.
ASUS O.C. Prole
The motherboard features the ASUS O.C. Prole that allows you to conveniently store or
load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate le,
giving you the freedom to share and distribute your favorite settings.
ASUS CrashFree BIOS 3
ASUS CrashFree BIOS 3 allows you to restore corrupted BIOS data from a USB ash disk
containing the BIOS le. This protection eliminates the need to buy a replacement ROM chip.
ASUS EZ-Flash 2
ASUS EZ Flash 2 is a user-friendly utility that allows you to update the BIOS without using a
bootable oppy disk or an OS-based utility. Refer to page 3-4 for details.
1-4 Chapter 1: Product Introduction
Page 19
Chapter 2
Chapter 2: Hardware information
2.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic pad or in the
bag that came with the component.
• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.
Chapter 2
ASUS P7H55D-M EVO 2-1
Page 20
2.2 Motherboard overview
2.2.1 Motherboard layout
Chapter 2
Refer to
2.8 Connectors
connectors.
2-2 Chapter 2: Hardware information
for more information about rear panel connectors and internal
Page 21
2.2.2 Layout contents
Connectors/Jumpers/Slots Page
1. ATX power connectors (24-pin EATXPWR, 8-pin EATX12V)
2. LGA1156 CPU Socket
3. DDR3 DIMM slots
4. MemOK! switch
5. CPU, chassis, and power fan connectors (4-pin CPU_FAN,
4-pin CHA_FAN1, 3-pin PWR_FAN)
6. Clear RTC RAM (3-pin CLRTC)
7. Intel
8. IDE connector (40-1 pin PRI_EIDE)
9. System panel connector (20-8 pin PANEL)
10. Serial port connector (10-1 pin COM1)
11. USB connectors (10-1 pin USB78, USB910, USB1112)

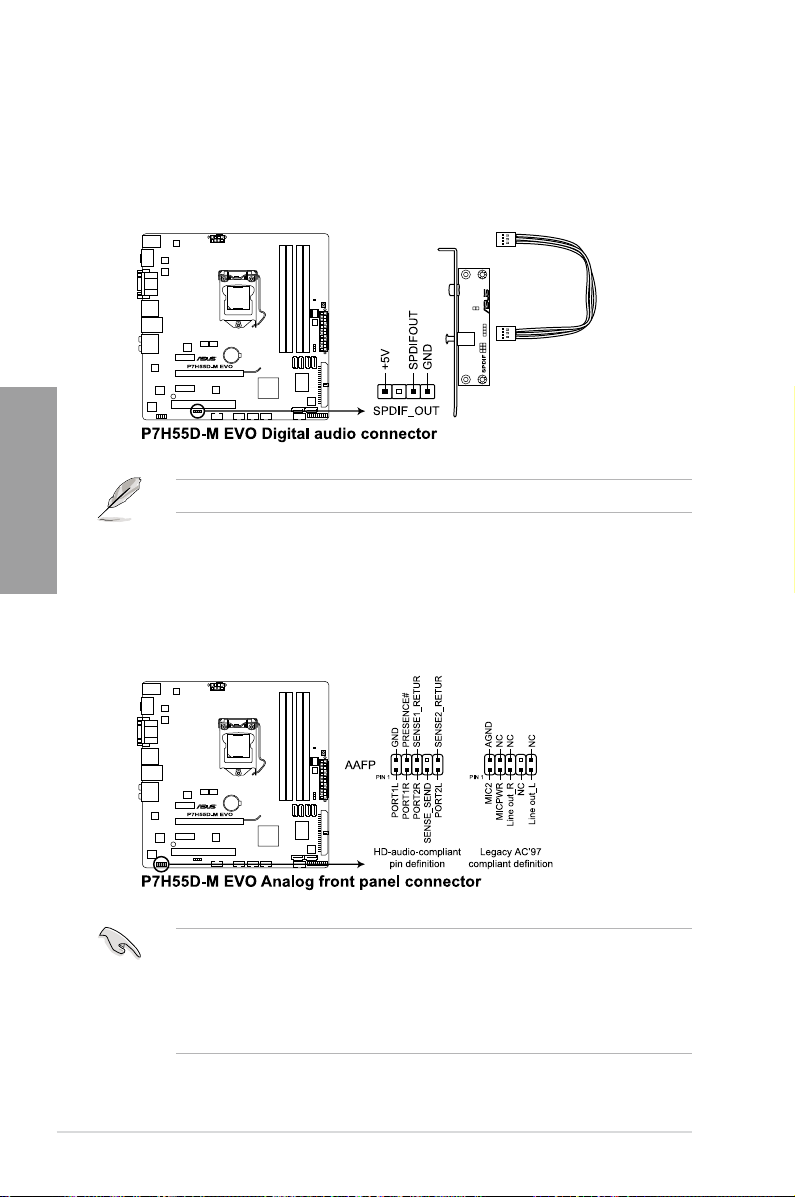

12. IEEE 1394a port connector (10-1 pin IE1394_2)
13. Digital audio connector (4-1 pin SPDIF_OUT)
14. Front panel audio connector (10-1 pin AAFP)
15. Standby power LED (SB_PWR)
®
H55 Serial ATA 3.0 Gb/s connectors (7-pin SATA1–6 [blue]) 2-28
2-33
2-5
2-10
2-21
2-31
2-20
2-27
2-34
2-29
2-30
2-29
2-32
2-32
2-36
Chapter 2
ASUS P7H55D-M EVO 2-3
Page 22
2.2.3 Placement direction
When installing the motherboard, ensure that you place it into the chassis in the correct
orientation. The edge with external ports goes to the rear part of the chassis as indicated in
the image below.
2.2.4 Screw holes
Place eight screws into the holes indicated by circles to secure the motherboard to the
chassis.
Chapter 2
DO NOT overtighten the screws! Doing so can damage the motherboard.
Place this side towards
the rear of the chassis
2-4 Chapter 2: Hardware information
Page 23
2.3 Central Processing Unit (CPU)
A
B
The motherboard comes with a surface mount LGA1156 socket designed for the Intel®
Core™ i7 / Core™ i5 / Core™ i3 / Pentium® processor.
Ensure that all power cables are unplugged before installing the CPU.
• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and
the socket contacts are not bent. Contact your retailer immediately if the PnP cap
is missing, or if you see any damage to the PnP cap/socket contacts/motherboard
components. ASUS will shoulder the cost of repair only if the damage is shipment/
transit-related.
• Keep the cap after installing the motherboard. ASUS will process Return Merchandise
Authorization (RMA) requests only if the motherboard comes with the cap on the
LGA1156 socket.
• The product warranty does not cover damage to the socket contacts resulting from
incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP
cap.
2.3.1 Installing the CPU
To install a CPU:
1. Locate the CPU socket on the motherboard.
Chapter 2
2. Press the load lever with your thumb (A),
and then move it to the right (B) until it is
Load lever
released from the retention tab.
To prevent damage to the socket pins,
do not remove the PnP cap unless you
are installing a CPU.
Retention tab
ASUS P7H55D-M EVO 2-5
Page 24
3. Lift the load lever in the direction of the
arrow until the load plate is completely
lifted.
Chapter 2
4. Remove the PnP cap from the CPU
socket by lifting the tab only.
Load plate
PnP cap
Cap tab
5. Position the CPU over the socket,
ensuring that the gold triangle is on the
bottom-left corner of the socket, and then
t the socket alignment keys into the CPU
CPU notches
notches.
The CPU ts in only one correct
orientation. DO NOT force the CPU
into the socket to prevent bending
the connectors on the socket and
damaging the CPU!
2-6 Chapter 2: Hardware information
Gold
triangle
mark
Alignment keys
Page 25
6. Apply some Thermal Interface Material
C
B
A
to the exposed area of the CPU that the
heatsink will be in contact with, ensuring
that it is spread in an even thin layer.
Some heatsinks come with pre-applied
thermal paste. If so, skip this step.
The Thermal Interface Material is
toxic and inedible. DO NOT eat it. If
it gets into your eyes or touches your
skin, wash it off immediately, and seek
professional medical help.
7. Close the load plate (A), and then push
down the load lever (B), ensuring that
the front edge of the load plate slides
under the retention lock (C).
Chapter 2
8. Insert the load lever under the retention
tab.
ASUS P7H55D-M EVO 2-7
Page 26
2.3.2 Installing the CPU heatsink and fan
The Intel® LGA1156 processor requires a specially designed heatsink and fan assembly to
ensure optimum thermal condition and performance.
Chapter 2
• When you buy a boxed Intel® processor, the package includes the CPU fan and
heatsink assembly. If you buy a CPU separately, ensure that you use only Intel®-certied
multi-directional heatsink and fan.
®
• Your Intel
• Use an LGA1156-compatible CPU heatsink and fan assembly only. The LGA1156
If you purchased a separate CPU heatsink and fan assembly, ensure that the Thermal
Interface Material is properly applied to the CPU heatsink or CPU before you install the
heatsink and fan assembly.
Ensure that you have installed the motherboard to the chassis before you install the CPU
fan and heatsink assembly.
LGA1156 heatsink and fan assembly comes in a push-pin design and does
not require any tool to install.
socket is incompatible with the LGA775 and LGA1366 sockets in size and dimension.
To install the CPU heatsink and fan:
1. Place the heatsink on top of the installed
CPU, ensuring that the four fasteners
match the holes on the motherboard.
B
A
B
2. Push down two fasteners at a time in
a diagonal sequence to secure the
heatsink and fan assembly in place.
A
B
2-8 Chapter 2: Hardware information
B
1
A
Orient the heatsink and fan assembly such that the CPU fan cable is closest to the CPU fan
connector.
A
1
Page 27
3. Connect the CPU fan cable to the connector on the motherboard labeled CPU_FAN.
DO NOT forget to connect the CPU fan connector! Hardware monitoring errors can occur if
you fail to plug this connector.
2.3.3 Uninstalling the CPU heatsink and fan
To uninstall the CPU heatsink and fan:
1. Disconnect the CPU fan cable from the
connector on the motherboard.
2. Rotate each fastener counterclockwise.
B
3. Pull up two fasteners at a time in a
diagonal sequence to disengage the
heatsink and fan assembly from the
motherboard.
A
B
B
A
4. Carefully remove the heatsink and fan assembly from the motherboard.
A
A
Chapter 2
B
ASUS P7H55D-M EVO 2-9
Page 28
2.4 System memory
2.4.1 Overview
The motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) sockets.
A DDR3 module has the same physical dimensions as a DDR2 DIMM but is notched
differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are developed for
better performance with less power consumption.
The gure illustrates the location of the DDR3 DIMM sockets:
Chapter 2
Recommended memory congurations
One DIMM:
Install one memory module in any slot as a single-channel operation.
Two DIMMs (dual-channel operation):
Four DIMMs (dual-channel operation):
2-10 Chapter 2: Hardware information
Page 29
2.4.2 Memory congurations
You may install 1GB, 2GB and 4GB unbuffered and non-ECC DDR3 DIMMs into the DIMM
sockets.
• You may install varying memory sizes in Channel A and Channel B. The system maps
the total size of the lower-sized channel for the dual-channel conguration. Any excess
memory from the higher-sized channel is then mapped for single-channel operation.
• Based on Intel specication, you can only install one X.M.P. DIMM per channel.
• According to Intel CPU spec, DIMM voltage below 1.65V is recommended to protect
the CPU.
• According to Intel CPU spec, CPUs with a core frequency of 2.66G support the
maximum DIMM frequency of up to DDR3-1333. To use DIMMs of a higher frequency
with a 2.66G CPU, enable the
3.5.1 Ai Overclock Tuner
• Always install DIMMs with the same CAS latency. For optimum compatibility, we
recommend that you obtain memory modules from the same vendor.
• Due to the memory address limitation on 32-bit Windows OS, when you install 4GB
or more memory on the motherboard, the actual usable memory for the OS can be
about 3GB or less. For effective use of memory, we recommend that you do any of the
following:
- Use a maximum of 3GB system memory if you are using a 32-bit Windows OS.
- Install a 64-bit Windows OS when you want to install 4GB or more on the
motherboard.
For more details, refer to the Microsoft® support site at
http://support.microsoft.com/kb/929605/en-us.
• This motherboard does not support DIMMs made up of 512Mb (64MB) chips or less
(Memory chip capacity counts in Megabit, 8 Megabit/Mb = 1 Megabyte/MB).
DRAM O.C. Prole
for details.
feature in BIOS. Refer to section
Chapter 2
• The default memory operation frequency is dependent on its Serial Presence Detect
(SPD), which is the standard way of accessing information from a memory module.
Under the default state, some memory modules for overclocking may operate at a
lower frequency than the vendor-marked value. To operate at the vendor-marked
or at a higher frequency, refer to section
frequency adjustment.
• For system stability, use a more efcient memory cooling system to support a full
memory load (4 DIMMs) or overclocking condition.
ASUS P7H55D-M EVO 2-11
3.5 Ai Tweaker menu
for manual memory
Page 30
P7H55D-M EVO Motherboard Qualied Vendors Lists (QVL)
DDR3-1333 MHz capability
Vendor Part No. Size
A-DATA AD3133301GOU 1GB SS A-DATA AD30908C8D-15IG - - • • •
A-DATA AD31333002GOU 2GB DS A-DATA AD30908C8D-15IG - - •
A-DATA AD3U1333B2G9-2 2GB DS A-DATA AD30908C8D-15IG - - •
A-DATA AX3U1333PB2G7-2P
A-DATA AD3U1333C4G9-B 4GB DS Hynix H5TQ2G83AFRH9C 1333-9-9-9-24 - • • •
A-DATA AD31333E002G0U
A-DATA AX3U1333PB2G7-3P
CORSAIR TR3X3G1333C9 (Ver2.1)
CORSAIR CM3X1024-1333C9DHX 1GB DS - - - 1.1 • •
Chapter 2
CORSAIR
CORSAIR CM3X2G1333C9 2GB DS - - 9-9-9-24 1.5 • • •
CORSAIR
CORSAIR TR3X6G1333C9 (Ver2.1)
CORSAIR CMX8GX3M4A1333C9
Crucial CT12864BA1339.8FF 1GB SS MICRON D9KPT 9 - • • •
Crucial CT12864BA1339.8SFD 1GB SS MICRON MT8JF12864AY-1G4D1 - - • • •
Crucial CT12872BA1339.9FF 1GB SS MICRON D9KPT(ECC) 9 - • • •
Crucial BL25664BN1337.16FF(XMP) 2GB DS - - 7-7-7-24 1.65 • • •
Crucial CT25664BA1339.16FF 2GB DS MICRON D9KPT 9 - • • •
Crucial CT25664BA1339.16SFD 2GB DS MICRON D9JNM - - • • •
Crucial CT25672BA1339.18FF 2GB DS MICRON D9KPT(ECC) 9 - • • •
Crucial BL25664BA1336.16SFB1
ELPIDA EBJ10UE8BAW0-DJ-E 1GB SS ELPIDA J1108BABG-DJ-E 9 - • • •
ELPIDA EBJ10UE8BDF0-DJ-F 1GB SS ELPIDA J1108BDSE-DJ-F - - • • •
ELPIDA EBJ10UE8EDF0-DJ-F 1GB SS ELPIDA J1108EDSE-DJ-F - - • • •
ELPIDA EBJ21UE8BAW0-DJ-E 2GB DS ELPIDA J1108BABG-DJ-E 9 - • • •
ELPIDA EBJ21UE8BDF0-DJ-F 2GB DS ELPIDA J1108BDSE-DJ-F - - • • •
ELPIDA EBJ21UE8EDF0-DJ-F 2GB DS ELPIDA J1108EDSE-DJ-F - - • • •
G.SKILL F3-10600CL7D-2GBPI
G.SKILL F3-10600CL8D-2GBHK
G.SKILL F3-10666CL7T-6GBPK(XMP) 2GB DS - - 7-7-7-18 1.5-1.6 • • •
G.SKILL F3-10666CL7D-4GBPI(XMP)
G.SKILL F3-10666CL7D-4GBRH(XMP)
G.SKILL F3-10666CL8D-4GBHK(XMP)
G.SKILL F3-10666CL8D-4GBRM(XMP)
BoxP/N:TWIN3X2048-1333C9
(CM3X1024-1333C9)Ver1.1
BoxP/N:TW3X4G1333C9DHX
(CM3X2048-1333C9DHX)Ver3.2
SS/
Chip Brand Chip NO. Timing Voltage
DS
4GB
DS - - 7-7-7-20 1.65-1.85 • • •
(2 x 2GB)
6GB
DS - - 7-7-7-20 1.65-1.85 • • •
(3 x 2GB)
6GB
DS - - 7-7-7-20 1.65-1.85 • • •
(3 x 2GB)
3GB
SS - - 9-9-9-24 1.5 • • •
(3 x 1GB)
2GB
DS - - 9-9-9-24 1.70 • • •
(2 x 1GB)
4GB
DS - - 9-9-9-24 1.70 • •
(2 x 2GB)
6GB
DS - - 9-9-9-24 1.5 • •
(3 x 2GB)
8GB
DS - - 9-9-9-24 1.5 • •
(4 x 2GB)
4GB
DS NA - 6-6-6-20 1.8 • • •
(2 x 2GB)
2GB
SS - - - 1.65 • •
(2 x 1GB)
2GB
SS - - - 1.65 • • •
(2 x 1GB)
4GB
DS - - 7-7-7-21 1.5 • • •
(2 x 2GB)
4GB
DS - - 7-7-7-21 1.5 • • •
(2 x 2GB)
4GB
DS - - 8-8-8-21 1.5-1.6 • • •
(2 x 2GB)
4GB
DS - - 8-8-8-21 1.5-1.6 • • •
(2 x 2GB)
DIMM socket support
(Optional)
1 DIMM 2 DIMM 4 DIMM
2-12 Chapter 2: Hardware information
Page 31
P7H55D-M EVO Motherboard Qualied Vendors Lists (QVL)
DDR3-1333 MHz capability (cont.)
Vendor Part No. Size
G.SKILL F3-10666CL9T-6GBNQ
GEIL GG34GB1333C9DC
GEIL GV34GB1333C7DC
Hynix HMT112U6BFR8C-H9 1GB SS Hynix H5TQ1G83BFR 9 - • •
Hynix HMT125U6BFR8C-H9 2GB DS Hynix H5TQ1G83BFR 9 - • • •
Hynix HMT125U6BFR8C-H9 2GB DS Hynix H5TQ1G83BFRH9C 9 - • • •
KINGSTON KVR1333D3N9/2G 2GB DS Qimonda IDSH1G-03A1F1C-13H 9 1.5 • • •
KINGSTON KVR1333D3N9/4G 4GB DS SAMSUNG K4B2G0846B-HCH9 9 1.5 • • •
MICRON MT8JTF12864AZ-1G4F1 1GB SS MICRON 9FF22 D9KPT 9 - • • •
MICRON MT8JTF12864AZ-1G4F1 1GB SS MICRON D9KPT 9 - • • •
MICRON MT9JSF12872AZ-1G4F1 1GB SS MICRON D9KPT(ECC) 9 - • • •
MICRON MT16JF25664AZ-1G4F1 2GB DS MICRON D9KPT 9 - • • •
MICRON MT16JTF25664AZ-1G4F1 2GB DS MICRON 9FF22 D9KPT 9 - • • •
MICRON MT18JSF25672AZ-1G4F1 2GB DS MICRON D9KPT(ECC) 9 - • • •
OCZ OCZ3RPX1333EB2GK
OCZ OCZ3G1333LV3GK
OCZ OCZ3P1333LV3GK
OCZ OCZ3P13332GK 1GB DS - - 7-7-7-20 - •
OCZ OCZ3G1333ULV4GK
OCZ OCZ3P13334GK
OCZ OCZ3RPX1333EB4GK
OCZ OCZ3G1333LV6GK
OCZ OCZ3P1333LV6GK
OCZ OCZX1333LV6GK(XMP)
PSC AL7F8G73D-DG1 1GB SS PSC A3P1GF3DGF - - • • •
PSC AL8F8G73D-DG1 2GB DS PSC A3P1GF3DGF - - • • •
SAMSUNG M378B2873DZ1-CH9 1GB SS SAMSUNG K4B1G0846D 9 - • • •
SAMSUNG M378B2873EH1-CH9 1GB SS SAMSUNG K4B1G0846E - - • • •
SAMSUNG M391B2873DZ1-CH9 1GB SS SAMSUNG K4B1G0846D(ECC) 9 - • • •
SAMSUNG M378B5673DZ1-CH9 2GB DS SAMSUNG K4B1G0846D 9 - • • •
SAMSUNG M378B5673EH1-CH9 2GB DS SAMSUNG K4B1G0846E - - • • •
SAMSUNG M391B5673DZ1-CH9 2GB DS SAMSUNG K4B1G0846D(ECC) 9 - •
SAMSUNG M378B5273BH1-CH9 4GB DS SAMSUNG K4B2G0846B-HCH9 9 - • • •
Super
W1333UX2GB(XMP)
Talent
SS/
Chip Brand Chip NO. Timing Voltage
DS
6GB
DS - - 9-9-9-24 1.5 • • •
(3 x 2GB)
4GB
DS GEIL GL1L128M88BA12N 9-9-9-24 1.3 • • •
(2 x 2GB)
4GB
DS - - 7-7-7-24 1.5 •
(2 x 2GB)
2GB
SS NANYA - 6-5-5 1.85 • •
(2 x 1GB)
3GB
SS - - 9-9-9 1.65 • •
(3 x 1GB)
3GB
SS - - 7-7-7 1.65 • •
(3 x 1GB)
4GB
DS - - 8-8-8 1.65 • •
(2 x 2GB)
4GB
DS - - 7 1.8 • •
(2 x 2GB)
4GB
DS - - - 1.85 • •
(2 x 2GB)
6GB
DS - - 9-9-9 1.65 • • •
(3 x 2GB)
6GB
DS - - 7-7-7 1.65 • •
(3 x 2GB)
6GB
DS NA - 8-8-8 1.6 • • •
(3 x 2GB)
2GB
SS - - 8 1.8 • • •
(2 x 1GB)
DIMM socket support
(Optional)
1 DIMM 2 DIMM 4 DIMM
Chapter 2
ASUS P7H55D-M EVO 2-13
Page 32
P7H55D-M EVO Motherboard Qualied Vendors Lists (QVL)
DDR3-1333 MHz capability (cont.)
Vendor Part No. Size
Transcend TS128MLK64V3U 1GB SS SAMSUNG K4B1G0846D 9 - • • •
Transcend TS256MLK64V3U 2GB DS SAMSUNG K4B1G0846D 9 - • •
Asint SLY3128M8-EDJ 1GB SS Asint DDRIII1208-DJ - - • • •
Asint SLY3128M8-EDJE 1GB SS ELPIDA J1108BASE-DJ-E - - • •
Asint SLZ3128M8-EDJ 2GB DS Asint DDRIII1208-DJ - - • •
Asint SLZ3128M8-EDJE 2GB DS ELPIDA J1108BASE-DJ-E - - • •
ASUS N/A 1GB DS - - - - • •
ATP AQ28M64A8BJH9S 1GB SS SAMSUNG K4B1G0846E - - • • •
ATP AQ28M72D8BJH9S 1GB SS SAMSUNG K4B1G0846D(ECC) - - • •
ATP AQ56M64B8BJH9S 2GB DS SAMSUNG K4B1G0846D - - • • •
ATP AQ56M72E8BJH9S 2GB DS SAMSUNG K4B1G0846D(ECC) - - • • •
BUFFALO FSX1333D3G-1G 1GB SS - - - - • • •
Chapter 2
BUFFALO FSH1333D3G-T3G(XMP)
BUFFALO FSX1333D3G-2G 2GB DS - - - - •
EK Memory EKM324L28BP8-I13
Elixir M2Y2G64CB8HA9N-CG 2GB DS - - - - • •
Patriot PDC32G1333LLK 1GB SS PATRIOT - 7 1.7 • •
Patriot PVT33G1333ELK
Patriot PVS34G1333ELK
Patriot PVS34G1333LLK
Patriot PVT36G1333ELK
Silicon
Power
Silicon
Power
Silicon
Power
SS/
Chip Brand Chip NO. Timing Voltage
DS
3GB
SS - - 7-7-7-20 - • •
(3 x 1GB)
4GB
DS - - 9 - • •
(2 x 2GB)
3GB
SS - - 9-9-9-24 1.65 • •
(3 x 1GB)
4GB
DS - - 9-9-9-24 1.5 • •
(2 x 2GB)
4GB
DS - - 7-7-7-20 1.7 • •
(2 x 2GB)
6GB
DS - - 9-9-9-24 1.65 • • •
(3 x 2GB)
SP001GBLTU1333S01 1GB SS NANYA NT5CB128M8AN-CG - - • • •
SP001GBLTU133S02 1GB SS S-POWER I0YT3E0 9 - • • •
SP002GBLTU133S02 2GB DS S-POWER I0YT3E0 9 - •
DIMM socket support
(Optional)
1 DIMM 2 DIMM 4 DIMM
2-14 Chapter 2: Hardware information
Page 33
P7H55D-M EVO Motherboard Qualied Vendors Lists (QVL)
DDR3-1066 MHz capability
Vendor Part No. Size
Crucial CT12864BA1067.8FF 1GB SS MICRON D9KPT 7 - • •
Crucial
Crucial CT12872BA1067.9FF 1GB SS MICRON D9KPT(ECC) 7 - • •
Crucial CT25664BA1067.16FF 2GB DS MICRON D9KPT 7 - • • •
Crucial CT25664BA1067.16SFD 2GB DS MICRON D9JNL 7 - • •
Crucial CT25672BA1067.18FF 2GB DS MICRON D9KPT(ECC) 7 - • • •
ELPIDA EBJ10UE8BAW0-AE-E 1GB SS ELPIDA J1108BABG-DJ-E 7 - • • •
ELPIDA
ELPIDA
ELPIDA EBJ21UE8BAW0-AE-E 2GB DS ELPIDA J1108BABG-DJ-E 7 - • • •
ELPIDA EBJ21UE8EDF0-AE-F 2GB DS ELPIDA J1108EDSE-DJ-F - - • • •
Hynix HMT112U6AFP8C-G7N0 1GB SS HYNIX H5TQ1G83AFPG7C 7 - • • •
Hynix HYMT112U64ZNF8-G7 1GB SS HYNIX HY5TQ1G831ZNFP-G7 7 - • •
Hynix
Hynix
KINGSTON KVR1066D3N7/1G 1GB SS KINGSTON D1288JEKAPA7U 7 1.5 • • •
KINGSTON KVR1066D3N7/2G 2GB DS KINGSTON D1288JEKAPGA7U 7 1.5 • • •
KINGSTON KVR1066D3N7/2G 2GB DS ELPIDA J1108BABG-DJ-E - 1.5 • • •
KINGSTON KVR1066D3N7/4G 4GB DS SAMSUNG K4B2G0846B-HCF8 - 1.5 • •
MICRON MT8JTF12864AY-1G1D1 1GB SS MICRON 7VD22 7 - • • •
MICRON MT8JTF12864AZ-1G1F1 1GB SS MICRON 8ZF22 D9KPV 7 - • •
MICRON MT8JTF12864AZ-1G1F1 1GB SS MICRON D9KPT 7 - • •
MICRON MT9JSF12872AZ-1G1F1 1GB SS MICRON D9KPT(ECC) 7 - • •
MICRON MT16JTF25664AY-1G1D1 2GB DS MICRON 7VD22 7 - • •
MICRON MT16JTF25664AZ-1G1F1 2GB DS MICRON 8ZF22 D9KPV 7 - • • •
MICRON MT16JTF25664AZ-1G1F1 2GB DS MICRON D9KPT 7 - • • •
MICRON MT18JSF25672AZ-1G1F1 2GB DS MICRON D9KPT(ECC) 7 - • • •
SAMSUNG M378B5273BH1-CF8 4GB DS SAMSUNG K4B2G0846B-HCF8 8 1.5 • • •
Transcend TS256MLK64V1U 2GB DS ELPIDA J1108BABG-AE-E 7 - • • •
Asint SLY3128M8-EAE 1GB SS Asint DDRIII1208-AE - - • • •
Asint SLZ3128M8-EAE 2GB DS Asint DDRIII1208-AE - - • • •
Elixir M2Y2G64CB8HA9N-BE 2GB DS - - - - • • •
WINTEC 3DU3191A-10 1GB DS Qimonda IDSH51-03A1F1C-10F 7 - • •
CT12864BA1067.8SFD
EBJ10UE8EDF0-AE-F
EBJ11UD8BAFA-AG-E 1GB DS ELPIDA J5308BASE-AC-E 8 - • • •
HMT125U6AFP8C-G7N0 2GB
HYMT125U64ZNF8-G7 2GB DS HYNIX HY5TQ1G831ZNFP-G7 7 - • • •
SS/
Chip Brand Chip NO. Timing Voltage
DS
MICRON D9JNL
1GB SS
ELPIDA J1108EDSE-DJ-F
1GB SS
DS HYNIX
H5TQ1G83AFPG7C
7
-
7 -
DIMM socket support
(Optional)
1 DIMM 2 DIMM 4 DIMM
- •
- •
• •
• •
• •
Chapter 2
Side(s): SS - Single-sided DS - Double-sided
DIMM support:
• 1 DIMM: Supports one (1) module inserted into any slot as Single-channel memory
conguration.
• 2 DIMMs: Supports two (2) modules inserted into either the blue slots or the black
slots as one pair of Dual-channel memory conguration.
• 4 DIMMs: Supports four (4) modules inserted into both the blue and the black slots as
two pairs of Dual-channel memory conguration.
• ASUS exclusively provides hyper DIMM support function.
• Hyper DIMM support is subject to the physical characteristics of individual CPUs.
• Based on Intel specication, you can only install one X.M.P. DIMM per channel.
• According to Intel CPU spec, CPUs with a core frequency of 2.66G support the
maximum DIMM frequency of up to DDR3-1333. To use DIMMs of a higher frequency
with a 2.66G CPU, enable the
3.5.1 Ai Overclock Tuner
DRAM O.C. Prole
for details.
feature in BIOS. Refer to section
• Visit the ASUS website for the latest QVL.
ASUS P7H55D-M EVO 2-15
Page 34
2.4.3 Installing a DIMM
1. Unlock a DIMM socket by pressing
the retaining clip outward.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
DIMM slot key on the socket.
Chapter 2
3. Hold the DIMM by both of its ends,
then insert the DIMM vertically into
the socket. Apply force to both ends
of the DIMM simultaneously until the
retaining clip snaps back into place,
and the DIMM cannot be pushed in
any further to ensure proper sitting of
the DIMM.
Ensure to unplug the power supply before adding or removing DIMMs or other system
components. Failure to do so may cause severe damage to both the motherboard and the
components.
1
2
Unlocked retaining clipDIMM notch
A DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a DIMM into
a socket in the wrong direction to avoid damaging the DIMM.
3
Locked Retaining Clip
Always insert the DIMM into the socket VERTICALLY to prevent DIMM notch damage.
2.4.4 Removing a DIMM
1. Press the retaining clip outward to
unlock the DIMM.
2. Remove the DIMM from the socket.
2-16 Chapter 2: Hardware information
2
1
Page 35
2.5 Expansion slots
In the future, you may need to install expansion cards. The following subsections describe the
slots and the expansion cards that they support.
Ensure to unplug the power cord before adding or removing expansion cards. Failure to do
so may cause you physical injury and damage motherboard components.
2.5.1 Installing an expansion card
To install an expansion card:
1. Before installing the expansion card, read the documentation that came with it and
make the necessary hardware settings for the card.
2. Remove the system unit cover (if your motherboard is already installed in a chassis).
3. Remove the bracket opposite the slot that you intend to use. Keep the screw for later
use.
4. Align the card connector with the slot and press rmly until the card is completely
seated on the slot.
5. Secure the card to the chassis with the screw you removed earlier.
6. Replace the system cover.
2.5.2 Conguring an expansion card
After installing the expansion card, congure it by adjusting the software settings.
1. Turn on the system and change the necessary BIOS settings, if any. See Chapter 3 for
information on BIOS setup.
2. Assign an IRQ to the card. Refer to the tables on the next page.
3. Install the software drivers for the expansion card.
Chapter 2
When using PCI cards on shared slots, ensure that the drivers support “Share IRQ” or that
the cards do not need IRQ assignments. Otherwise, conicts will arise between the two PCI
groups, making the system unstable and the card inoperable. Refer to the table on the next
page for details.
ASUS P7H55D-M EVO 2-17
Page 36
2.5.3 Interrupt assignments
Standard interrupt assignments
IRQ Priority Standard function
0
1 2 Keyboard Controller
2 – Redirect to IRQ#9
4 12 Communications Port (COM1)*
5 13 IRQ Holder for PCI Steering*
6 14 Reserved
7 15 Reserved
8 3 System CMOS/Real Time Clock
9 4 IRQ Holder for PCI Steering*
Chapter 2
10 5 IRQ Holder for PCI Steering*
11 6 IRQ Holder for PCI Steering*
12 7 Reserved
13 8 Numeric Data Processor
14 9 Primary IDE Channel
* These IRQs are usually available for PCI devices.
IRQ assignments for this motherboard
PCIE x16_1 shared – – – – – – –
PCIE x1_1 shared – – – – – – –
PCIE x1_2 – shared – – – – – –
PCI_1 shared – – – – – – –
LAN – shared – – – – – –
USB 2.0 Controller 1 – – – – – – – shared
USB 2.0 Controller 2 shared – – – – – – –
USB 3.0 Controller – – – shared – – – –
Marvell 6111 Controller shared – – – – – – –
SATA Host Controller – – shared – – – – –
1394 Controller – – shared – – – – –
HD Audio – – – – – – shared –
1 System Timer
A B C D E F G H
2-18 Chapter 2: Hardware information
Page 37
2.5.4 PCI slot
The PCI slot supports cards such as a LAN card, SCSI card, USB card, and other cards that
comply with PCI specications. Refer to the gure below for the location of the slot.
2.5.5 PCI Express x1 slots
This motherboard supports PCI Express x1 network cards, SCSI cards and other cards that
comply with the PCI Express specications. Refer to the gure below for the location of the
slots.
2.5.6 PCI Express 2.0 x16 slot
This motherboard has one PCI Express 2.0 x16 slot that supports PCI Express x16 2.0
graphic card complying with the PCI Express specications. Refer to the gure below for the
location of the slot.
Chapter 2
PCI slot 1
PCIe x1_2 slot
PCIe 2.0 x16_1 slot
PCIe x1_1 slot
ASUS P7H55D-M EVO 2-19
Page 38
2.6 Jumper
Clear RTC RAM (3-pin CLRTC)
This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the
CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM
data. The onboard button cell battery powers the RAM data in CMOS, which include system
setup information such as system passwords.
Chapter 2
To erase the RTC RAM
1. Turn OFF the computer and unplug the power cord.
2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for
about 5–10 seconds, then move the cap back to pins 1-2.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process and enter BIOS setup to
re-enter data.
Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default
position. Removing the cap will cause system boot failure!
• If the steps above do not help, remove the onboard battery and move the jumper again
to clear the CMOS RTC RAM data. After the CMOS clearance, reinstall the battery.
• You do not need to clear the RTC when the system hangs due to overclocking. For
system failure due to overclocking, use the C.P.R. (CPU Parameter Recall) feature.
Shut down and reboot the system so the BIOS can automatically reset parameter
settings to default values.
• Due to the chipset behavior, AC power off is required to enable C.P.R. function. You
must turn off and on the power supply or unplug and plug the power cord before
rebooting the system.
2-20 Chapter 2: Hardware information
Page 39
2.7 Onboard switch
The onboard switch allows you to ne-tune performance when working on a bare or open-case
system. This is ideal for overclockers and gamers who continually change settings to enhance
system performance.
MemOK! switch
Installing DIMMs that are incompaible with the motherboard may cause system boot failure,
and the DRAM_LED near the MemOK! switch lights continuously. Press and hold the
MemOK! switch until the DRAM_LED starts blinking to begin automatic memory compatibility
tuning for successful boot.
Chapter 2
• Refer to section
• The DRAM_LED also lights when the DIMM is not properly installed. Turn off the
system and reinstall the DIMM before using the MemOK! function.
• The MemOK! switch does not function under Windows
• During the tuning process, the system loads and tests failsafe memory settings. It
takes about 30 seconds for the system to test one set of failsafe settings. If the test
fails, the system reboots and test the next set of failsafe settings. The blinking speed
of the DRAM_LED increases, indicating different test processes.
• Due to memory tuning requirement, the system automatically reboots when each
timing set is tested. If the installed DIMMs still fail to boot after the whole tuning
process, the DRAM_LED lights continuously. Replace the DIMMs with ones
recommended in the Memory QVL (Qualied Vendors Lists) in this user manual or on
the ASUS website at www.asus.com.
• If you turn off the computer and replace DIMMs during the tuning process, the system
continues memory tuning after turning on the computer. To stop memory tuning, turn
off the computer and unplug the power cord for about 5–10 seconds.
• If your system fail to boot due to BIOS overclocking, press the MemOK! switch to boot
and load BIOS default settings. A messgae will appear during POST reminding you
that the BIOS has been restored to its default settings.
• We recommend that you download and update to the latest BIOS version from the
ASUS website at www.asus.com after using the MemOK! function.
ASUS P7H55D-M EVO 2-21
2.9 Onboard LEDs
for the exact location of the DRAM_LED.
®
OS environment.
Page 40
2.8 Connectors
2.8.1 Rear panel connectors
Chapter 2
Rear panel connectors
1. PS/2 keyboard port (purple) 7. HDMI out port***
2. Optical S/PDIF Out port 8. DVI out pot
3. VGA out port 9. IEEE 1394a port
4. USB 2.0 ports 3 and 4 10. External SATA port
5. LAN (RJ-45) port* 11. USB 3.0 ports 1 and 2
6. USB 2.0 ports 5 and 6 12. Audio I/O ports**
*and **: Refer to the tables on the next page for LAN port and audio port denitions.
***: Refer to the notes and troubleshooting on monitor overscan / underscan problem on the next pages.
DO NOT insert a different connector to the external SATA port.
2-22 Chapter 2: Hardware information
Page 41
* LAN port LED indications
Activity Link LED Speed LED
Status Description Status Description
OFF
No link
OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
ACT/LINK
LED
LAN port
** Audio 2, 4, 6, or 8-channel conguration
Port
Light Blue Line In Line In Line In Line In
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Orange – – Center/Subwoofer Center/Subwoofer
Black – Rear Speaker Out Rear Speaker Out Rear Speaker Out
Gray – – – Side Speaker Out
Headset
2-channel
4-channel 6-channel 8-channel
• This motherboard comes with multiple VGA output that features desktop extension on
two monitors. You can connect two monitors to any two of the onboard VGA, DVI-D,
and HDMI ports. Note that DVI-D/HDMI dual output works in OS environment only and
that during POST or BIOS setup, only DVI-D output is valid.
®
• Due to the Intel
VGA driver issue, the Windows® Display Settings menu may offer
some resolution options that your monitor does not support. When you set a resolution
not supported by your monitor, it will black out. If this happens, wait 15 seconds for the
system to return to its original setting or restart the system and press F8 to enter Safe
Mode. In Safe Mode, change the display setting to 800 x 600, and then restart the
system to adjust the monitor resolution from the Windows® Display Settings menu.
®
• Due to the Intel
driver issue, some monitor resolution settings will lead to monitor
overscan or underscan. Refer to the next page for the troubleshooting on monitor
overscan/underscan problem
•
Playback of Blu-Ray Discs
The speed and bandwidth of the CPU/Memory, DVD player, and drivers will affect the
playback quality. Following is a conguration example for your reference. Using the
CPU/Memory of higher speed and bandwidth with the higher-version DVD player and
drivers will upgrade the playback quality.
• To play Blu-Ray Disc, make sure to use an HDCP compliant monitor.
®
• You can only play Blu-Ray Disc under Windows
Vista™ / 7™ OS.
SPEED
LED
Chapter 2
ASUS P7H55D-M EVO 2-23
Page 42
Troubleshooting on monitor overscan / underscan problem
1. Install
from the motherboard support DVD.
2. From the Windows
double-click the
Accelerator Driver
Properties
3. Click
and select a
Chapter 2
Apply
4. Or you can click
Settings > Scaling > Customize
Aspect Ratio
Scaling
and then click
Intel Graphics Accelerator Driver
®
notication area,
Intel(R) Graphics Media
icon and click
Graphics
.
Display > General Settings
Resolution
. Click
.
Display > General
. Move the
and
Vertical Scaling
Apply
Horizontal
.
sliders
2-24 Chapter 2: Hardware information
Page 43
2.8.2 Audio I/O connections
Audio I/O ports
Connect to Headphone and Mic
Connect to Stereo / 2.1-channel Speakers
Chapter 2
ASUS P7H55D-M EVO 2-25
Page 44
Connect to 4.1 channel Speakers
Connect to 5.1 channel Speakers
Chapter 2
Connect to 7.1 channel Speakers
2-26 Chapter 2: Hardware information
Page 45
2.8.3 Internal connectors
1. IDE connector (40-1 pin PRI_EIDE)
The onboard IDE connector is for the Ultra DMA 133/100/66 signal cable. There are
three connectors on each Ultra DMA 133/100/66 signal cable: blue, black, and gray.
Connect the blue connector to the motherboard’s IDE connector, then select one of the
following modes to congure your device.
Drive jumper setting Mode of device(s) Cable connector
Single device Cable-Select or Master - Black
Black
Black or gray
Two devices
Cable-Select
Master Master
Slave Slave
Master
Slave Gray
Chapter 2
• Pin 20 on the IDE connector is removed to match the covered hole on the Ultra DMA
cable connector. This prevents incorrect insertion when you connect the IDE cable.
• Use the 80-conductor IDE cable for Ultra DMA 133/100/66 IDE devices.
If any device jumper is set as “Cable-Select”, ensure that all other device jumpers have the
same setting.
ASUS P7H55D-M EVO 2-27
Page 46
2. Intel® H55 Serial ATA connectors (7-pin SATA 1-6 [blue])
These connectors are for the Serial ATA signal cables for Serial ATA hard disk drives
and optical disc drives.
Chapter 2
You must install Windows® XP Service Pack 2 or later version before using Serial ATA hard
disk drives.
2-28 Chapter 2: Hardware information
Page 47
3. Serial port connector (10-1 pin COM1)
This connector is for a serial (COM) port. Connect the serial port module cable to this
connector, then install the module to a slot opening at the back of the system chassis.
The COM module is purchased separately.
4. IEEE 1394a port connector (10-1 pin IE1394_2)
This connector is for an IEEE 1394a port. Connect the IEEE 1394a module cable to this
connector, then install the module to a slot opening at the back of the system chassis.
Chapter 2
Never connect a USB cable to the IEEE 1394a connector. Doing so will damage the
motherboard!
The IEEE 1394a module is purchased separately.
ASUS P7H55D-M EVO 2-29
Page 48
5. USB connectors (10-1 pin USB78; USB910; USB1112)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specication that supports up to
480 Mbps connection speed.
Chapter 2
Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!
You can connect the front panel USB cable to the ASUS Q-Connector (USB, blue) rst, and
then install the Q-Connector (USB) to the USB connector onboard if your chassis supports
front panel USB ports.
The USB module is purchased separately.
2-30 Chapter 2: Hardware information
Page 49
6. CPU, chassis, and power fan connectors
(4-pin CPU_FAN; 4-pin CHA_FAN1; 3-pin PWR_FAN)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors. Insufcient air ow inside the
system may damage the motherboard components. These are not jumpers! Do not place
jumper caps on the fan connectors!
• The CPU_FAN connector supports the CPU fan of maximum 2A (24 W) fan power.
• Only the CPU_FAN and CHA_FAN1 connectors support the ASUS Fan Xpert feature.
Chapter 2
ASUS P7H55D-M EVO 2-31
Page 50
7. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect
the S/PDIF Out module cable to this connector, then install the module to a slot opening
at the back of the system chassis.
Chapter 2
8. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel
audio I/O module cable to this connector.
The S/PDIF module is purchased separately.
• We recommend that you connect a high-denition front panel audio module to this
connector to avail of the motherboard’s high-denition audio capability.
• If you want to connect a high-denition front panel audio module to this connector, set
the
Front Panel Type
AC'97 front panel audio module to this connector, set the item to [AC97]. By default,
this connector is set to [HD Audio].
2-32 Chapter 2: Hardware information
item in the BIOS setup to [HD Audio]; if you want to connect an
Page 51
9. ATX power connectors (24-pin EATXPWR; 8-pin EATX12V)
These connectors are for ATX power supply plugs. The power supply plugs are
designed to t these connectors in only one orientation. Find the proper orientation and
push down rmly until the connectors completely t.
• For a fully congured system, we recommend that you use a power supply unit
(PSU) that complies with ATX 12 V Specication 2.0 (or later version) and provides a
minimum power of 350 W.
• Do not forget to connect the 8-pin EATX12 V power plug; otherwise, the system will
not boot.
• We recommend that you use a PSU with higher power output when conguring a
system with more power-consuming devices. The system may become unstable or
may not boot up if the power is inadequate.
• If you are uncertain about the minimum power supply requirement for your system,
refer to the Recommended Power Supply Wattage Calculator at
com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us
Seventeam ST-522HLP T.C.STAR D420 CoolerMaster RS-750
Seventeam ST550EAJ-05F OCZ ELITEXSTREAM 1000 CWT PSH650V-D
ASUS P-50GA Seasonic SS-900HP CWT PSH750V-D
ASUS P-55GA Snake PSH850V Delta GPS-350AB
ASUS U-65GA Silverstone SST-ST85F EnerMAX EG495AX-VE (E)(24P)
ASUS U-75HA Silverstone ZM1200M EnerMAX ELT500AWT
AXE-AA1000U-C Tagan TG1100-U33 FSP FSP500-60GLN
Be quiet P6-PRO-850W Thermaltake W0132RE Gigabyte M550A-D1
Be quiet BN077 Thermaltake W0133RU Gigabyte P610A-C1
CoolerMaster RS-850EMBA Thermaltake W0171 GoldenField ATX-S398
Corsair CMPSU-620HX AcBel API4PC24 GoldenField ATX-S550
Corsair HX1000W Aelta GPS-550AB I-cuteAP-600S
EnerMAX EGX1000EWL Be quiet BN073 OCZ OCZ780MXS
HECHUAN ST-ATX330 CoolerMaster RS-650 Seasonic SS-351HT
Seasonic SS-460HS Seventeam ST-420BKP Thermaltake TWV500W-AP
Seasonic SS-500GB Snake PSH500V Thermaltake PUREPower-600AP
Seasonic SS-500HM Silverstone SST-ST50EF Zippy HP2-6500PE (G1)
Seasonic SS-550HT Silverstone PSU ST56ZF Zippy PSL6720P
Seasonic SS-600HT
PSU suggested list
http://support.asus.
Chapter 2
for details.
ASUS P7H55D-M EVO 2-33
Page 52
10. System panel connector (20-8 pin PANEL)
This connector supports several chassis-mounted functions.
Chapter 2
• System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
• Hard disk drive activity LED (2-pin IDE_LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or ashes when data is read from or written to
the HDD.
• System warning speaker (4-pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
• ATX power button/soft-off button (2-pin PWRSW)
This connector is for the system power button. Pressing the power button turns the
system on or puts the system in sleep or soft-off mode depending on the BIOS settings.
Pressing the power switch for more than four seconds while the system is ON turns the
system OFF.
• Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
2-34 Chapter 2: Hardware information
Page 53
2.8.4. ASUS Q-Connector (system panel)
IDE_LED
POWER SW
RESET SW
IDE_LED-
IDE_LED+
PWR
Reset
Ground
Ground
Use the ASUS Q-Connector to connect/disconnect the chassis front panel cables.
To install the ASUS Q-Connector:
1. Connect the front panel cables to the ASUS
Q-Connector.
Refer to the labels on the Q-Connector to
know the detailed pin denitions, and then
match them to their respective front panel
cable labels.
The labels on the front panel cables
may vary depending on the chassis
model.
2. Install the ASUS Q-Connector to the system
panel connector, ensuring the orientation
matches the labels on the motherboard.
Chapter 2
3. The front panel functions are now enabled.
The gure shows the Q-Connector is properly
installed on the motherboard.
ASUS P7H55D-M EVO 2-35
Page 54
2.9 Onboard LEDs
1. Standby Power LED
The motherboard comes with a standby power LED. The green LED lights up to
indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder
that you should shut down the system and unplug the power cable before removing or
plugging in any motherboard component. The illustration below shows the location of
the onboard LED.
Chapter 2
2. DRAM LED
DRAM LED checks the DRAM in sequence during motherboard booting process. If an
error is found , the LED next to the error device will continue lighting until the problem is
solved. This user-friendly design provides an intuitional way to locate the root problem
within a second.
2-36 Chapter 2: Hardware information
Page 55
2.10 Starting up for the rst time
1. After making all the connections, replace the system case cover.
2. Be sure that all switches are off.
3. Connect the power cord to the power connector at the back of the system chassis.
4. Connect the power cord to a power outlet that is equipped with a surge protector.
5. Turn on the devices in the following order:
a. Monitor
b. External SCSI devices (starting with the last device on the chain)
c. System power
6. After applying power, the system power LED on the system front panel case lights up.
For systems with ATX power supplies, the system LED lights up when you press the
ATX power button. If your monitor complies with the “green” standards or if it has a
“power standby” feature, the monitor LED may light up or change from orange to green
after the system LED turns on.
The system then runs the power-on self tests or POST. While the tests are running, the
BIOS beeps (see the BIOS beep codes table below) or additional messages appear on
the screen. If you do not see anything within 30 seconds from the time you turned on
the power, the system may have failed a power-on test. Check the jumper settings and
connections or call your retailer for assistance.
BIOS Beep Description
One short beep
One continuous beep followed by two short
beeps then a pause (repeated)
One continuous beep followed by three short
beeps
One continuous beep followed by four short
beeps
VGA detected
Quick boot set to disabled
No keyboard detected
No memory detected
No VGA detected
Hardware component failure
Chapter 2
7. At power on, hold down the <Delete> key to enter the BIOS Setup. Follow the
instructions in Chapter 3.
2.11 Turning off the computer
While the system is ON, pressing the power switch for less than four seconds puts the system
on sleep mode or soft-off mode, depending on the BIOS setting. Pressing the power switch
for more than four seconds lets the system enter the soft-off mode regardless of the BIOS
setting. Refer to section
ASUS P7H55D-M EVO 2-37
3.7 Power menu
in Chapter 3 for details.
Page 56
Chapter 2
2-38 Chapter 2: Hardware information
Page 57
Chapter 3
Chapter 3: BIOS setup
3.1 Knowing BIOS
BIOS (Basic Input and Output System) stores system hardware settings such as storage
device conguration, overclocking settings, advanced power management, and boot device
conguration that are needed for system startup in the motherboard CMOS. In normal
circumstances, the default BIOS settings apply to most conditions to ensure optimum
performance. We recommend that you not change the default BIOS settings except in
the following circumstances:
• An error message appears on the screen during the system bootup and requests you to
run the BIOS Setup.
• You have installed a new system component that requires further BIOS settings or
update.
Inappropriate settings of the BIOS may result to instability or failure to boot. We strongly
recommend that you change the BIOS settings only with the help of a trained service
personnel.
3.2 Updating BIOS
The ASUS website publishes the latest BIOS versions to provide enhancements on system
stability, compatibility, or performance. However, BIOS updating is potentially risky. If there
is no problem using the current version of BIOS, DO NOT manually update the BIOS.
Inappropriate BIOS updating may result in the system’s failure to boot. Carefully follow the
instructions of this chapter to update your BIOS if necessary.
Visit the ASUS website (www.asus.com) to download the latest BIOS le for this
motherboard.
The following utilities allow you to manage and update the motherboard BIOS setup program.
ASUS Update: Updates the BIOS in Windows® environment.
1.
2.
ASUS EZ Flash 2: Updates the BIOS using a USB ash drive.
3. ASUS CrashFree BIOS 3 utility: Restores the BIOS using the motherboard support
DVD or a USB ash drive when the BIOS le fails or gets corrupted.
4.
ASUS BIOS Updater: Updates and backups the BIOS in DOS environment using the
motherboard support DVD and a USB ash disk drive.
Refer to the corresponding sections for details on these utilities.
Save a copy of the original motherboard BIOS le to a USB ash disk in case you need
to restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS
Update utility.
ASUS P7H55D-M EVO 3-1
Chapter 3
Page 58
3.2.1 ASUS Update utility
The ASUS Update is a utility that allows you to manage, save, and update the motherboard
BIOS in Windows® environment. The ASUS Update utility allows you to:
• Save the current BIOS le
• Download the latest BIOS le from the Internet
• Update the BIOS from an updated BIOS le
• Update the BIOS directly from the Internet
• View the BIOS version information
This utility is available in the support DVD that comes with the motherboard package.
Installing ASUS Update
To install ASUS Update:
1. Place the support DVD in the optical drive.
2. From the
3. The ASUS Update utility is copied to your system.
Updating the BIOS through the Internet
Chapter 3
To update the BIOS through the Internet:
1. From the Windows® desktop, click
Start > Programs > ASUS >
ASUSUpdate > ASUSUpdate. The
ASUS Update main window appears.
ASUS Update requires an Internet connection either through a network or an Internet
Service Provider (ISP).
Main menu, click the Utilities tab, then click Install ASUS Update VX.XX.XX.
Quit all Windows® applications before you update the BIOS using this utility.
2. Select Update BIOS from the
Internet from the drop-down menu,
and then click Next.
3-2 Chapter 3: BIOS setup
Page 59
3. Select the ASUS FTP site nearest
you to avoid network trafc, or click
Auto Select. Click Next.
4. From the FTP site, select the BIOS
version that you wish to download. Click
Next.
5. Follow the onscreen instructions to complete the update process.
The ASUS Update utility is capable of updating itself through the Internet. Always update
the utility to avail all its features.
Updating the BIOS through a BIOS le
To update the BIOS through a BIOS le:
1. Fom the Windows® desktop, click
Start > Programs > ASUS >
ASUSUpdate > ASUSUpdate. The
ASUS Update main window appears.
2. Select
Update BIOS from a le
from the dropdown menu, then click
Next.
3. Locate the BIOS le from the Open
window, then click Open.
4. Follow the onscreen instructions to
complete the update process.
P7H55DME.ROM
Chapter 3
P7H55DME
Ensure to load the BIOS default
settings to ensure system
compatibility and stability. Select the
Load Setup Defaults item under
the Exit menu. See section 3.10 Exit
Menu for details.
ASUS P7H55D-M EVO 3-3
Page 60
3.2.2 ASUS EZ Flash 2 utility
The ASUS EZ Flash 2 feature allows you to update the BIOS without having to use a
bootable oppy disk or an OS-based utility.
Before you start using this utility, download the latest BIOS from the ASUS website
at www.asus.com.
To update the BIOS using EZ Flash 2:
1. Insert the USB ash disk that contains the latest BIOS le to the USB port, and then
launch EZ Flash 2 in any of these two ways:
• Press <Alt> + <F2> during POST to display the following.
• Enter the BIOS setup program. Go to the
press <Enter> to enable it.
ASUSTek EZ Flash 2 BIOS ROM Utility V4.10
FLASH TYPE: MXIC 25L1605A
Current ROM
BOARD: P7H55D-M EVO
VER: 0115
DATE: 10/28/2009
PATH: A:\
A:
Tools menu to select EZ Flash 2 and
Update ROM
BOARD: Unknown
VER: Unknown
DATE: Unknown
Chapter 3
Note
[Enter] Select or Load [Tab] Switch [V] Drive Info
[Up/Down/Home/End] Move [B] Backup [Esc] Exit
2. Press <Tab> to switch between drives until the correct BIOS le is found. When
the correct BIOS le is found, EZ Flash 2 performs the BIOS update process and
automatically reboots the system when done.
• This function can support devices such as a USB ash disk with FAT 32/16 format and
single partition only.
• DO NOT shut down or reset the system while updating the BIOS to prevent system
boot failure!
Ensure to load the BIOS default settings to ensure system compatibility and stability. Select
the Load Setup Defaults item under the Exit menu. See section 3.10 Exit Menu for
details.
3-4 Chapter 3: BIOS setup
Page 61
3.2.3 ASUS CrashFree BIOS 3 utility
The ASUS CrashFree BIOS 3 utility is an auto recovery tool that allows you to restore the
BIOS le when it fails or gets corrupted during the updating process. You can restore a
corrupted BIOS le using the motherboard support DVD or a USB ash drive that contains
the BIOS le.
The BIOS le in the motherboard support DVD may be older than the BIOS le published
on the ASUS ofcial website. If you want to use the newer BIOS le, download the le at
support.asus.com and save it to a USB ash drive.
Recovering the BIOS
To recover the BIOS:
1. Turn on the system.
2. Insert the motherboard support DVD to the optical drive, or the USB ash drive
containing the BIOS le to the USB port.
3. The utility automatically checks the devices for the BIOS le. When found, the utility
reads the BIOS le and starts ashing the corrupted BIOS le.
4. Turn off the system after the utility completes the updating process and power on
again.
5. The system requires you to enter BIOS Setup to recover BIOS setting. To ensure
system compatibility and stability, we recommend that you press <F2> to load default
BIOS values.
DO NOT shut down or reset the system while updating the BIOS! Doing so can cause
system boot failure!
ASUS P7H55D-M EVO 3-5
Chapter 3
Page 62
3.2.4 ASUS BIOS Updater
The ASUS BIOS Updater allows you to update BIOS in DOS environment. This utility also
allows you to copy the current BIOS le that you can use as a backup when the BIOS fails or
gets corrupted during the updating process.
Before updating BIOS
1. Prepare the motherboard support DVD and a USB ash drive in FAT32/16 format and
single partition.
2. Download the latest BIOS le and BIOS Updater from the ASUS website at http://
support.asus.com and save them on the USB ash drive.
3. Turn off the computer and disconnect all SATA hard disk drives (optional).
Booting the system in DOS environment
1. Insert the USB ash drive with the latest BIOS le and BIOS Updater to the USB port.
2. Boot your computer. When the ASUS Logo appears, press <F8> to show the
Boot Device Select Menu. Insert the support DVD into the optical drive and select the
Chapter 3
optical drive as the boot device.
The succeeding utility screens are for reference only. The actual utility screen displays may
not be same as shown.
• NTFS is not supported under DOS environment. Do not save the BIOS le and BIOS
Updater to a hard disk drive or USB ash drive in NTFS format.
• Do not save the BIOS le to a oppy disk due to low disk capacity.
BIOS
Please select boot device:
SATA:XXXXXXXXXXXXXXXX
CDROM:XXXXXXXXXXXXXXX
USB:XXXXXXXXXXXXXXXXX
Network:XXXXXXXXXXXXX
↑ and ↓ to move selection
ENTER to select boot device
ESC to boot using defaults
3. When the Make Disk menu appears, select the FreeDOS command prompt item by
pressing the item number.
4. At the FreeDOS prompt, type
d: and press <Enter> to switch the disk from
Drive C (optical drive) to Drive D (USB ash drive).
Welcome to FreeDOS (http://www.freedos.org)!
C:\>d:
D:\>
3-6 Chapter 3: BIOS setup
Page 63
Backing up the current BIOS
To backup the current BIOS le using the BIOS Updater
Ensure that the USB ash drive is not write-protected and has enough free space to save
the le.
1. At the FreeDOS prompt, type bupdater /o[lename] and press <Enter>.
D:\>bupdater /oOLDBIOS1.rom
Filename Extension
The [lename] is any user-assigned lename with no more than eight alphanumeric
characters for the lename and three alphanumeric characters for the extension.
2. The BIOS Updater backup screen appears indicating the BIOS backup process. When
BIOS backup is done, press any key to return to the DOS prompt.
ASUSTek BIOS Updater for DOS V1.00b [09/06/22]
FLASH TYPE: MXIC 25L1605A
Current ROM
BOARD: P7H55D-M EVO
VER: 0115
DATE: 10/28/2009
PATH: A:\
BIOS backup is done! Press any key to continue.
Update ROM
BOARD: Unknown
VER: Unknown
DATE: Unknown
Note
Saving BIOS:
ASUS P7H55D-M EVO 3-7
Chapter 3
Page 64
Updating the BIOS le
To update the BIOS le using BIOS Updater
1. At the FreeDOS prompt, type
2. The BIOS Updater screen appears as below.
3. Press <Tab> to switch between screen elds and use the <Up/Down/Home/End> keys
to select the BIOS le and press <Enter>. BIOS Updater checks the selected BIOS le
and prompts you to conrm BIOS update.
Chapter 3
bupdater /pc /g and press <Enter>.
D:\>bupdater /pc /g
ASUSTek BIOS Updater for DOS V1.00b [09/06/22]
FLASH TYPE: MXIC 25L1605A
Current ROM
BOARD: P7H55D-M EVO
VER: 0115
DATE: 10/28/2009
PATH: A:\
A:
Note
[Enter] Select or Load [Tab] Switch [V] Drive Info
[Up/Down/Home/End] Move [B] Backup [Esc] Exit
P7H55DME.ROM 2097152 2009-08-06 17:30:48
Are you sure to update BIOS?
Yes No
Update ROM
BOARD: Unknown
VER: Unknown
DATE: Unknown
4. Select Yes and press <Enter>. When BIOS update is done, press <ESC> to exit BIOS
Updater. Restart your computer.
DO NOT shut down or reset the system while updating the BIOS to prevent system boot
failure!
• For BIOS Updater version 1.04 or later, the utility automatically exits to the DOS
prompt after updating BIOS.
• Ensure to load the BIOS default settings to ensure system compatibility and stability.
Select the Load Setup Defaults item under the Exit BIOS menu. See Chaper 3 of
your motherboard user manual for details.
• Ensure to connect all SATA hard disk drives after updating the BIOS le if you have
disconnected them.
3-8 Chapter 3: BIOS setup
Page 65
3.3 BIOS setup program
A BIOS Setup program is provided for BIOS item modication. When you start up the
computer, the system provides you with the opportunity to run this program. Press <Del>
during the Power-On Self-Test (POST) to enter the Setup utility. Otherwise, POST continues
with its test routines.
If you wish to enter Setup after POST, restart the system by pressing <Ctrl> + <Alt> + <Delete>,
or by pressing the reset button on the system chassis. You can also restart by turning the
system off and then back on. Do this last option only if the rst two failed.
The Setup program is designed to make it as easy to use as possible. Being a menu-driven
program, it lets you scroll through the various submenus and select from the available options
using the navigation keys.
• The BIOS setup screens shown in this section are for reference purposes only, and
may not exactly match what you see on your screen.
• If the system becomes unstable after changing any BIOS setting, load the default
settings to ensure system compatibility and stability. Select the Load Setup Defaults
item under the Exit menu. See section 3.10 Exit Menu for details.
• If the system fails to boot after changing any BIOS setting, try to clear the CMOS and
reset the motherboard to the default value. See section 2.6 Jumper for details.
3.3.1 BIOS menu screen
Menu items
Main Ai Tweaker Advanced Power Boot Tools Exit
System Time [13:51:25]
System Date [Wed 11/04/2009]
Language [English]
SATA1 [HDT722516DLA380]
SATA2 [Not Detected]
SATA3 [ATAPI DVD DH1]
SATA4 [Not Detected]
SATA5 [Not Detected]
SATA6 [Not Detected]
Storage Conguration
System Information
Submenu items
Menu bar
v02.61 (C)Copyright 1985-2009, American Megatrends, Inc.
Conguration elds
BIOS SETUP UTILITY
General help
Use [ENTER], [TAB]
or [SHIFT-TAB] to
select a eld.
Use [+] or [-] to
congure system Date.
←→ Select Screen
↑↓ Select Item
+- Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit
Navigation keys
Chapter 3
3.3.2 Menu bar
The menu bar on top of the screen has the following main items:
Main For changing the basic system conguration
Ai Tweaker For changing the overclocking settings
Advanced For changing the advanced system settings
Power For changing the advanced power management (APM) conguration
Boot For changing the system boot conguration
Tools For conguring options for special functions
Exit For selecting the exit options and loading default settings
ASUS P7H55D-M EVO 3-9
Page 66
3.3.3 Navigation keys
At the bottom right corner of a menu screen are the navigation keys for that particular menu.
Use the navigation keys to select items in the menu and change the settings.
The navigation keys may differ from one screen to another.
3.3.4 Menu items
The highlighted item on the menu bar displays the specic items for that menu. For example,
selecting Main shows the Main menu items.
The other items (Ai Tweaker, Advanced, Power, Boot, Tools, and Exit) on the menu bar have
their respective menu items.
3.3.5 Submenu items
A solid triangle before each item on any menu screen means that the item has a submenu. To
display the submenu, select the item and press <Enter>.
3.3.6 Conguration elds
These elds show the values for the menu items. If an item is user-congurable, you can
change the value of the eld opposite the item. You cannot select an item that is not
user-congurable.
A congurable eld is enclosed in brackets, and is highlighted when selected. To change the
value of a eld, select it and press <Enter> to display a list of options. Refer to 3.3.7 Pop-up
window.
Chapter 3
3.3.7 Pop-up window
Select a menu item and press <Enter> to
display a pop-up window with the conguration
options for that item.
Main Ai Tweaker Advanced Power Boot Tools Exit
3.3.8 Scroll bar
A scroll bar appears on the right side of a
menu screen when there are items that do not
t on the screen. Press the Up/Down arrow
keys or <Page Up> / <Page Down> keys to
display the other items on the screen.
BIOS SETUP UTILITY
Suspend Mode [Auto]
ACPI Version Features [Disabled]
ACPI APIC support [Enabled]
APM Conguration
Hardware Monitor
v02.61 (C)Copyright 1985-2009, American Megatrends, Inc.
Disabled
Enabled
Pop-up window
Scroll bar
Use [ENTER], [TAB] or
[SHIFT-TAB] to select
a eld.
Use [+] or [-] to
congure system Time.
←→ Select Screen
↑↓ Select Item
+- Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit
3.3.9 General help
At the top right corner of the menu screen is a brief description of the selected item.
3-10 Chapter 3: BIOS setup
Page 67
3.4 Main menu
When you enter the BIOS Setup program, the Main menu screen appears, giving you an
overview of the basic system information. Select an item and press <Enter> to display the
submenu.
Refer to section 3.3.1 BIOS menu screen for information on the menu screen items and
how to navigate through them.
Main Ai Tweaker Advanced Power Boot Tools Exit
System Time [13:51:25]
System Date [Wed 11/04/2009]
Language [English]
SATA1 [HDT722516DLA380]
SATA2 [Not Detected]
SATA3 [ATAPI DVD DH1]
SATA4 [Not Detected]
SATA5 [Not Detected]
SATA6 [Not Detected]
Storage Conguration
System Information
v02.61 (C)Copyright 1985-2009, American Megatrends, Inc.
BIOS SETUP UTILITY
Use [ENTER], [TAB]
or [SHIFT-TAB] to
select a eld.
Use [+] or [-] to
congure system Date.
←→ Select Screen
↑↓ Select Item
+- Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit
3.4.1 SATA 1–6
While entering Setup, the BIOS automatically detects the presence of SATA devices. There
is a separate submenu for each SATA device. Select a device item and press <Enter> to
display the SATA device information.
Main
SATA 1
Device : Hard Disk
Vendor : HDT722516DLA380
Size : 164.7GB
LBA Mode : Supported
Block Mode : 16Sectors
PIO Mode : 4
Async DMA : MultiWord DMA-2
Ultra DMA : Ultra DMA-6
SMART Monitoring:Supported
Type [Auto]
LBA/Large Mode [Auto]
Block(Multi-sector Transfer)M [Auto]
PIO Mode [Auto]
DMA Mode [Auto]
SMART Monitoring [Auto]
32Bit Data Transfer [Enabled]
v02.61 (C)Copyright 1985-2009, American Megatrends, Inc.
BIOS SETUP UTILITY
Select the type
of device connected
to the system.
←→ Select Screen
↑↓ Select Item
+- Change Field
F1 General Help
F10 Save and Exit
ESC Exit
Chapter 3
The BIOS automatically detects the values of the dimmed items (Device, Vendor, Size, LBA
Mode, Block Mode, PIO Mode, Async DMA, Ultra DMA, and SMART Monitoring). These
values are not user-congurable. These items show N/A if no SATA device is installed in the
system.
ASUS P7H55D-M EVO 3-11
Page 68
Type [Auto]
Allows you to select the type of device installed.
[Not Installed] Select this option if no device is installed.
[Auto] Allows automatic selection of the appropriate device type.
[CDROM] Select this option if you are specically conguring a CD-ROM drive.
[ARMD] Select [ARMD] (ATAPI Removable Media Device) if your device is either a
LBA/Large Mode [Auto]
[Auto] Select [Auto] to enable the LBA mode (Logical Block Addressing mode)
[Disabled] Disables this function.
Block (Multi-Sector Transfer) M [Auto]
[Auto] When set to [Auto], the data transfer from and to the device occurs in
[Disabled] When set to [Disabled], the data transfer from and to the device occurs one
PIO Mode [Auto]
[Auto] Allows automatic selection of the PIO (Programmed input/output) modes,
Chapter 3
[0] [1] [2] [3] [4] Sets the PIO mode to Mode 0, 1, 2, 3, or 4.
DMA Mode [Auto]
DMA (Direct Memory Access) allows your computer to transfer data to and from the hardware
devices installed with much less CPU overhead.
The DMA mode consists of SDMA (single-word DMA), MDMA (multi-word DMA), and UDMA
(Ultra DMA). Setting to [Auto] allows automatic selection of the DMA mode.
ZIP, LS-120, or MO drive.
This item appears in SATA1-4 only.
if the device supports this mode, and if the device was not previously
formatted with LBA mode disabled.
multiple sectors at a time if the device supports multi-sector transfer feature.
sector at a time.
which correspond to different data transfer rates.
SMART Monitoring [Auto]
[Auto] Allows automatic selection of the S.M.A.R.T (Smart Monitoring, Analysis,
[Enabled] Enables the S.M.A.R.T feature.
[Disabled] Disables the S.M.A.R.T feature.
and Reporting Technology).
32Bit Data Transfer [Enabled]
[Enabled] Sets the controller to combine two 16-bit reads from the hard disk into
[Disabled] Disables this function.
3-12 Chapter 3: BIOS setup
a single 32-bit double word transfer to the processor. This makes more
efcient use of the PCI bus as fewer transactions are needed for the
transfer of a particular amount of data.
Page 69
3.4.2 Storage Conguration
The Storage Conguration menu allows you to congure your storage devices. Select an item
then press <Enter> to display the submenu.
Main
Storage Conguration
SATA Conguration [Enhanced]
Hard Disk Write Protect [Disabled]
IDE Detect Time Out (Sec) [35]
BIOS SETUP UTILITY
SATA Conguration [Enhanced]
Conguration options: [Disabled] [Compatible] [Enhanced]
Hard Disk Write Protect [Disabled]
[Enabled] Enables device write protection. This function will be effective only if the
[Disabled] Disables this function.
device is accessed through BIOS.
IDE Detect Time Out (Sec) [35]
Selects the time out value for detecting ATA/ATAPI devices from the following options: [0] [5]
[10] [15] [20] [25] [30] [35]
3.4.3 System Information
This menu gives you an overview of the general system specications. The BIOS automatically
detects the BIOS information, CPU specication, and system memory in this menu.
Main
BIOS Information
BIOS Version : 0201
BIOS Build Date : 11/23/09
Processor
Type : Intel(R) Core(TM) i5 CPU 661 @
3.33GHz
Speed : 3333MHz
System Memory
Usable Size : 925MB
BIOS SETUP UTILITY
Chapter 3
ASUS P7H55D-M EVO 3-13
Page 70
3.5 Ai Tweaker menu
The Ai Tweaker menu items allow you to congure overclocking-related items.
Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect eld
values can cause the system to malfunction.
The conguration options for this chapter vary depending on the CPU and DIMM model you
installed on the motherboard.
Main Ai Tweaker Advanced Power Boot Tools Exit
Congure System Performance Settings
Ai Overclock Tuner [Auto]
CPU Ratio Setting [Auto]
Intel(R) SpeedStep(TM) Tech [Enabled]
Intel(R) TurboMode Tech [Enabled]
Xtreme Phase Full Power Mode [Auto]
DRAM Frequency [Auto]
QPI Frequency [Auto]
DRAM Timing Control
CPU Differential Amplitude [Auto]
CPU Clock Skew [Auto]
******* Please key in numbers directly! *******
CPU Voltage Mode [Offset]
Offset Voltage [Auto]
IMC Voltage [Auto]
Scroll down to display the following items:
DRAM Voltage [Auto]
CPU PLL Voltage [Auto]
Chapter 3
PCH Voltage [Auto]
iGPU Voltage [Auto]
***********************************************
Load-Line Calibration [Auto]
CPU Spread Spectrum [Auto]
PCIE Spread Spectrum [Auto]
3.5.1 Ai Overclock Tuner [Auto]
Allows you to select the CPU overclocking options to achieve the desired CPU internal
frequency. Select any of these preset overclocking conguration options:
Manual Allows you to individually set overclocking parameters.
Auto Loads the optimal settings for the system.
D.O.C.P Overclocks DRAM frequency by adjusting BCLK frequency.
X.M.P.
BIOS SETUP UTILITY
Warning: this function
belongs to overclocking, and it may cause
instability.
Select a CPU level,
and the rest will be
auto-adjusted. If you
want to adjust more,
set Ai Overclock Tuner
to Manual after you
select a CPU level.
←→ Select Screen
↑↓ Select Item
+- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 (C)Copyright 1985-2009, American Megatrends, Inc.
←→ Select Screen
↑↓ Select Item
+- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 (C)Copyright 1985-2009, American Megatrends, Inc.
If you install memory modules supporting the eXtreme Memory Prole
(X.M.P.) Technology, choose this item to set the proles supported by
your memory modules for optimizing the system performance.
The conguration options for the following sub-items vary depending on the CPU/DIMMs
you install on the motherboard.
3-14 Chapter 3: BIOS setup
Page 71
DRAM O.C. Prole [DDR3-1600MHz]
This item appears only when you set the Ai Overclock Tuner item to [D.O.C.P.] and allows
you to select a DRAM O.C. prole, which applies different settings to DRAM frequency,
DRAM timing and DRAM voltage. Conguration options: [DDR3-1600MHz] [DDR3-1800MHz]
[DDR3-1866MHz] [DDR3-2000MHz] [DDR3-2133MHz] [DDR3-2200MHz]
DRAM Frequency
(MHz)
1333 Auto Auto Auto D.O.C.P. Auto
1600 D.O.C.P. Auto Auto D.O.C.P. D.O.C.P.
Above 1600 D.O.C.P. D.O.C.P. D.O.C.P. N/A N/A
Lynneld CPU Frequency (GHz)
2.66 2.8 2.93 2.8 Others
Clarkdale CPU Frequency
(GHz)
• When using DIMMs with a frequncy higher than the Intel
exclusive DRAM O.C. Prole function to overclock the DRAM.
• Adjust BCLK frequency to obtain a better performance after applying the D.O.C.P function.
®
CPU spec, use this ASUS
eXtreme Memory Prole [High Performance]
This item appears only when you set the Ai Overclock Tuner item to [X.M.P.] and allows you
to select the X.M.P. mode supported by your memory module.
[Disabled] You are not allowed to select the memory prole.
[High Performance] Allows your memory to work in high performance.
[High Frequency] Allows your memory to work in high frequency.
To obtain the best performance of the X.M.P. DIMM or 1600MHz DIMM, install only one
DIMM on each memory channel.
3.5.2 CPU Ratio Setting [Auto]
Allows you to set the ratio between the CPU Core Clock and the BCLK Frequency. Use the <+>
and <-> keys to adjust the ratio. The valid value ranges vary according to your CPU model.
3.5.3 Intel(R) SpeedStep(TM) Tech [Enabled]
[Enabled] The CPU speed is controlled by the operating system.
[Disabled] The CPU runs at its default speed.
3.5.4 Intel(R) TurboMode Tech [Enabled]
[Enabled] Allows processor cores to run faster than marked frequency in specic
[Disabled] Disables this function.
condition.
Chapter 3
• This item appears only if you set the CPU Ratio Setting item to [Auto].
®
Turbo Mode function support depends on CPU types.
• Intel
ASUS P7H55D-M EVO 3-15
Page 72
3.5.5 Xtreme Phase Full Power Mode [Auto]
[Auto] Automatic conguration.
[Enabled] Enables Full Power Mode to ensure the best CPU overclocking performance.
3.5.6 BCLK Frequency [XXX]
Allows you to adjust the Internal Base Clock (BCLK). Use the <+> and <-> keys to adjust the
value. You can also key in the desired value using the numeric keypad. The values range
from 80 to 500.
3.5.7 PCIE Frequency [XXX]
Allows you to set the PCI Express frequency. Use the <+> and <-> keys to adjust the PCIE
frequency. You can also key in the desired value using the numeric keypad. The values range
from 100 to 200.
3.5.8 DRAM Frequency [Auto]
Allows you to set the DDR3 operating frequency. The conguration options vary with the
BCLK Frequency item settings.
Chapter 3
The following two items appear only when you set the Ai Overclock Tuner item to
[Manual], [D.O.C.P.] or [X.M.P.].
According to Intel CPU spec, CPUs with a core frequency of 2.66G support the maximum
DIMM frequency of up to DDR3 1333. To use DIMMs of a higher frequency with a 2.66G
CPU, enable the DRAM O.C. Prole feature in BIOS. Refer to section 3.5.1 Ai Overclock
Tuner for details.
Selecting a very high DRAM frequency may cause the system to become unstable! If this
happens, revert to the default setting.
3.5.9 QPI Frequency [Auto]
Allows you to set the QPI frequency.
3.5.10 DRAM Timing Control
The items in this menu allow you to set the DRAM timing control features.
The conguration options for some of the following items vary depending on the DIMMs
you install on the motherboard.
1st Information: 7-7-7-20-4-60-8-5-20
The values vary depending on your settings of the following sub-items:
DRAM CAS# Latency [Auto]
Conguration options: [Auto] [3 DRAM Clock] [4 DRAM Clock] – [10 DRAM Clock]
[11 DRAM Clock]
3-16 Chapter 3: BIOS setup
Page 73
DRAM RAS# to CAS# Delay [Auto]
Conguration options: [Auto] [3 DRAM Clock] [4 DRAM Clock] – [14 DRAM Clock]
[15 DRAM Clock]
DRAM RAS# PRE Time [Auto]
Conguration options: [Auto] [3 DRAM Clock] [4 DRAM Clock] – [14 DRAM Clock]
[15 DRAM Clock]
DRAM RAS# ACT Time [Auto]
Conguration options: [Auto] [3 DRAM Clock] [4 DRAM Clock] – [30 DRAM Clock]
[31 DRAM Clock]
DRAM RAS# to RAS# Delay [Auto]
Conguration options: [Auto] [1 DRAM Clock] – [7 DRAM Clock]
DRAM REF Cycle Time [Auto]
Conguration options: [Auto] [48 DRAM Clock] [60 DRAM Clock] [72 DRAM Clock] [82
DRAM Clock] [88 DRAM Clock] [90 DRAM Clock] [100 DRAM Clock] [110 DRAM Clock]
[114 DRAM Clock] [118 DRAM Clock] [122 DRAM Clock] [126 DRAM Clock] [130 DRAM
Clock] [134 DRAM Clock] [138 DRAM Clock] [142 DRAM Clock] [150 DRAM Clock] [160
DRAM Clock] [170 DRAM Clock] [180 DRAM Clock] [190 DRAM Clock] [200 DRAM Clock]
DRAM WRITE Recovery Time [Auto]
Conguration options: [Auto] [1 DRAM Clock] – [18 DRAM Clock]
DRAM READ to PRE Time [Auto]
Conguration options: [Auto] [3 DRAM Clock] – [15 DRAM Clock]
DRAM FOUR ACT WIN Time [Auto]
Conguration options: [Auto] [1 DRAM Clock] – [63 DRAM Clock]
DRAM Timing Mode [Auto]
Conguration options: [Auto] [1N] [2N]
DRAM WRITE to READ Delay(DR) [Auto]
Conguration options: [Auto] [1 DRAM Clock] – [8 DRAM Clock]
DRAM WRITE to READ Delay(SR) [Auto]
Conguration options: [Auto] [10 DRAM Clock] – [22 DRAM Clock]
DRAM READ to WRITE Delay(S/D) [Auto]
Conguration options: [Auto] [2 DRAM Clock] – [14 DRAM Clock]
DRAM READ to READ Delay(DR) [Auto]
Conguration options: [Auto] [2 DRAM Clock] – [9 DRAM Clock]
DRAM READ to READ Delay(SR) [Auto]
Conguration options: [Auto] [4 DRAM Clock] [6 DRAM Clock]
DRAM WRITE to WRITE Delay(DR) [Auto]
Conguration options: [Auto] [2 DRAM Clock] – [9 DRAM Clock]
DRAM WRITE to WRITE Delay(SR) [Auto]
Conguration options: [Auto] [4 DRAM Clock] [6 DRAM Clock]
Chapter 3
ASUS P7H55D-M EVO 3-17
Page 74
3.5.11 CPU Differential Amplitude [Auto]
Different AMP might enhance BCLK overclocking ability.
Conguration options: [Auto] [700mV] [800mV] [900mV] [1000mV]
3.5.12 CPU Clock Skew [Auto]
Adjusting this item may help enhancing BCLK overclocking ability.
Conguration options: [Auto] [Normal] [Delay 100ps]–[Delay 1500ps]
3.5.13 CPU Voltage Mode [Offset]
Allows you to set the CPU Voltage Mode. Different sub-items appear according to the CPU
Voltage Mode item setting. Conguration options: [Offset] [Manual]
Offset Voltage [Auto]
This item appears only when you set the CPU Voltage Mode item to [Offset] and allows you to
set the Offset voltage. The values range from 0.00625V to 0.50000V with a 0.00625V interval.
Offset Sign [-]
This item appears only when you set the Offset Voltage item to a value other than [Auto].
[+] To offset the voltage by a positive value.
[–] To offset the voltage by a negative value.
Chapter 3
Fixed Voltage [Auto]
This item appears only when you set the CPU Voltage Mode item to [Manual] and allows you
to set a xed CPU voltage. The values range from 0.85V to 1.7V with a 0.00625V interval.
Some of the following items are adjusted by typing the desired values using the numeric keypad
and press the <Enter> key. You can also use the <+> and <-> keys to adjust the value. To
restore the default setting, type [auto] using the keyboard and press the <Enter> key.
Refer to the CPU documentation before setting the CPU Vcore voltage. Setting a high
VCore voltage may damage the CPU permanently, and setting a low VCore voltage may
make the system unstable.
3.5.14 IMC Voltage [Auto]
Allows you to set the CPU Integrated Memory Controller voltage. The values range from 1.1V
to 1.9V with a 0.02V interval.
3.5.15 DRAM Voltage [Auto]
Allows you to set the DRAM voltage. The values range from 1.20V to 2.2V with a 0.02V interval.
According to Intel CPU spec, DIMMs with voltage requirement over 1.65V may damage
the CPU permanently. We recommend you install the DIMMs with the voltage requirement
below 1.65V.
3-18 Chapter 3: BIOS setup
Page 75
3.5.16 CPU PLL Voltage [Auto]
Allows you to set the CPU PLL voltage. The values range from 1.8V to 2.2V with a 0.02V interval.
3.5.17 PCH Voltage [Auto]
Allows you to set the Platform Controller Hub voltage. The values range from 1.05V to 2.0V
with a 0.01V interval.
The system may need better cooling system to work stably under high voltage settings.
3.5.18 iGPU Voltage [Auto]
Allows you to set the integrated GPU voltage. The values range from 0.5V to 1.75V with a
0.0125V interval.
3.5.19 Load-Line Calibration [Auto]
[Auto] BIOS automatically adjusts the voltage.
[Disabled] Follows the Intel specications.
[Enabled] Improves the CPU VDroop directly.
3.5.20 CPU Spread Spectrum [Auto]
[Auto] Automatic conguration.
[Disabled] Enhances the BCLK overclocking ability.
[Enabled] Sets to [Enabled] for EMI control.
3.5.21 PCIE Spread Spectrum [Auto]
[Auto] Automatic conguration.
[Disabled] Enhances the PCIE overclocking ability.
[Enabled] Sets to [Enabled] for EMI control.
ASUS P7H55D-M EVO 3-19
Chapter 3
Page 76
3.6 Advanced menu
The Advanced menu items allow you to change the settings for the CPU and other system
devices.
Be cautious when changing the settings of the Advanced menu items. Incorrect eld values
can cause the system to malfunction.
Main Ai Tweaker Advanced Power Boot Tools Exit
CPU Conguration
Uncore Conguration
Onboard Devices Conguration
USB Conguration
PCIPnP
Intel VT-d [Disabled]
3.6.1 CPU Conguration
The items in this menu show the CPU-related information that the BIOS automatically detects.
Chapter 3
Advanced
Congure advanced CPU settings
Module Version:01.07
Manufacturer:Intel
Brand String:Intel(R) Core(TM) i5 CPU 661
Frequency :3.33GHz
BCLK Speed :133MHz
Cache L1 :128 KB
Cache L2 :512 KB
Cache L3 :4096 KB
Ratio Status:Unlocked (Min:09, Max:25)
Ratio Actual Value:25
CPUID :20652
CPU Ratio Setting [Auto]
C1E Support [Enabled]
Hardware Prefetcher [Enabled]
Adjacent Cache Line Prefetch [Enabled]
Max CPUID Value Limit [Disabled]
Intel(R) Virtualization Tech [Enabled]
BIOS SETUP UTILITY
Congure CPU.
←→ Select Screen
↑↓ Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 (C)Copyright 1985-2009, American Megatrends, Inc.
The items shown in this screen may be different due to the CPU you installed.
BIOS SETUP UTILITY
Sets the ratio between
CPU Core Clock and the
FSB Frequency.
NOTE: If an invalid
ratio is set in CMOS
then actual and
setpoint values may
differ.
NOTE: Please key in
ratio numbers directly
←→ Select Screen
↑↓ Select Item
F1 General Help
F10 Save and Exit
ESC Exit
Scroll down to display the following items:
CPU TM function [Enabled]
Execute-Disable Bit Capability [Enabled]
Intel(R) HT Technology [Enabled]
Active Processor Cores [All]
A20M [Disabled]
Intel(R) SpeedStep(TM) Tech [Enabled]
Intel(R) TurboMode Tech [Enabled]
Intel(R) C-STATE Tech [Enabled]
C State package limit setting [Auto]
3-20 Chapter 3: BIOS setup
v02.61 (C)Copyright 1985-2009, American Megatrends, Inc.
Page 77
CPU Ratio Setting [Auto]
Allows you to set the ratio between the CPU Core Clock and the BCLK Frequency. Use <+>
and <-> keys to adjust the ratio. The valid value ranges vary according to your CPU model.
C1E Support [Enabled]
[Enabled] Enables the C1E support function. This item should be enabled in order to
[Disabled] Disables this function.
enable the Enhanced Halt Sate.
Hardware Prefetcher [Enabled]
[Enabled] The processor fetches data and instructions from the memory into the
[Disabled] Disables this function.
cache that are likely to be required in the near future. This reduces the
latency associated with memory reads.
Adjacent Cache Line Prefetch [Enabled]
[Enabled] The processor fetches the currently requested cache line, as well as the
[Disabled] The processor fetches only the currently requested cache line.
subsequent cache line. This reduces the cache latency by making the next
cache line immediately available if the processor requires it as well.
Max CPUID Value Limit [Disabled]
[Enabled] Allows legacy operating systems to boot even without support for CPUs
[Disabled] Disables this function.
with extended CPUID functions.
Intel(R) Virtualization Tech [Enabled]
[Enabled] Allows a hardware platform to run multiple operating systems separately
[Disabled] Disables this function.
and simultaneously, enabling one system to virtually function as several
systems.
CPU TM function [Enabled]
[Enabled] Enables the overheated CPU to throttle its clock speed to cool down.
[Disabled] Disables this function.
Execute Disable Bit Capability [Enabled]
[Enabled] Enables the No-Execution Page Protection Technology.
[Disabled] Forces the XD feature ag to always return to zero (0).
Intel(R) HT Technology [Enabled]
The Intel Hyper-Threading Technology allows a hyper-threading processor to appear as two
logical processors to the operating system, allowing the operating system to schedule two
threads or processes simultaneously.
[Enabled] Two threads per activated core are enabled.
[Disabled] Only one thread per activated core is enabled.
ASUS P7H55D-M EVO 3-21
Chapter 3
Page 78
Active Processor Cores [All]
Allows you to choose the number of CPU cores to activate in each processor package.
Conguration options: [All] [1] [2]
A20M [Disabled]
[Enabled] Allows Legacy OSes to be compatible with APs.
[Disabled] Disables this function.
Intel(R) SpeedStep(TM) Tech [Enabled]
[Enabled] The CPU speed is controlled by the operating system.
[Disabled] The CPU runs at its default speed.
Intel(R) TurboMode Tech [Enabled]
[Enabled] Allows processor cores to run faster than marked frequency in specic
[Disabled] Disables this function.
Intel(R) C-STATE Tech [Enabled]
The Intel® C-State Technology allows the CPU to save more power under idle mode.
[Enabled] Enable this item only when you install a C-State Technology-supported CPU.
[Disabled] Disables this function.
C State package limit setting [Auto]
Chapter 3
This item appears only when you set the Intel(R) C-STATE Tech item to [Enabled]. We
recommend that you set this item to [Auto] for BIOS to automatically detect the C-State mode
supported by your CPU. Conguration options: [Auto] [C1] [C3] [C6]
condition.
Intel® Turbo Mode function support depends on CPU types.
3.6.2 Uncore Conguration
The Uncore Conguration menu allows you to change the advanced chipset settings.
Advanced
Uncore Conguration
IMC Type : Clarkdale
Memory Remap Feature [Enabled]
PCI MMIO Allocation: 4GB To 3072MB
Initate Graphic Adapter [PEG/PCI]
iGPU Graphics Mode Select [Enabled, 32MB]
iGPU Frequency [Auto]
Current iGPU Frequency: 900 MHz
DVMT/FIXED Memory [256MB]
Memory Remap Feature [Enabled]
[Disabled] Do not allow remapping of memory.
[Enabled] Allows for the segment of system memory that was previously overwritten
3-22 Chapter 3: BIOS setup
by PCI devices to be remapped above the total physical memory.
BIOS SETUP UTILITY
ENABLE: Allow
remapping of
overlapped PCI memory
above the total
physical memory.
DISABLE: Do not allow
remapping of memory.
Page 79
Initate Graphic Adapter [PEG/PCI]
Allows you to select which graphics controller to use as the primary boot device.
Conguration options: [IGD] [PCI/IGD] [PCI/PEG] [PEG/IGD] [PEG/PCI]
iGPU Graphics Mode Select [Enabled, 32MB]
Allows you to decide whether to use the integrated GPU and select the amount of memory
used by the integrated GPU.
Conguration options: [Enabled, 32MB] [Enabled, 64MB] [Enabled, 128MB]
iGPU Frequency [Auto]
Allows you to adjust the integrated GPU frequency.
Conguration options: [Auto] [133 MHz] [167 MHz] – [1467 MHz] [1500 MHz]
DVMT/FIXED Memory [256MB]
Allows you to allocate a xed amount of system memory as graphics memory.
Conguration options: [128MB] [256MB] [Maximum DVMT]
The [Maximum DVMT] option appears only when you install DIMM modules more than
1 GB.
This motherboard supports Intel® DVMT 5.0 Technology whose maximum graphics memory
size in total varies with the system memory size in total and the operating system. Refer to
the following table for details.
System Memory
1GB to < 1.5GB 512MB 365MB
1.5GB to < 2GB 768MB 808MB
2GB to < 3GB 1024MB 877MB
3GB to < 4GB — 1389MB
4GB and above — 1748MB
ASUS P7H55D-M EVO 3-23
Maximum Total Graphics Memory
Windows® XP Windows® Vista™/ 7™
Chapter 3
Page 80
3.6.3 Onboard Devices Conguration
Advanced
Onboard Devices Conguration
HDA Controller [Enabled]
Front Panel Type [HD Audio]
SPDIF OUT Mode Setting [SPDIF]
Realtek LAN [Enabled]
LAN Boot ROM [Disabled]
Onboard 1394 Controller [Enabled]
Marvell Storage Controller [Enabled]
Serial Port1 Address [3F8/IRQ4]
HDA Controller [Enabled]
[Enabled] Enables the High Denition Audio Controller.
[Disabled] Disables the controller.
Front Panel Type [HD Audio]
Allows you to set the front panel audio connector (AAFP) mode to legacy AC’97 or
high-denition audio depending on the audio standard that the front panel audio
module supports.
[AC97] Sets the front panel audio connector (AAFP) mode to legacy AC’97
[HD Audio] Sets the front panel audio connector (AAFP) mode to high denition audio.
SPDIF OUT Mode Setting [SPDIF]
If your graphics card has HDMI output and needs to use SPDIF signal from the
Chapter 3
SPDIF_Out header, you need to set to HDMI for HDMI audio output.
[SPDIF] Sets to [SPDIF Output] for SPDIF audio output.
[HDMI] Sets to [HDMI Output] for HDMI audio output.
BIOS SETUP UTILITY
Options
Enabled
Disabled
The following three items appear only when you set the HDA Controller item to [Enabled].
Realtek LAN [Enabled]
[Enabled] Enables the Realtek LAN controller.
[Disabled] Disables the controller.
LAN Boot ROM [Disabled]
This item appears only when you set the previous item to [Enabled].
[Enabled] Enables the Realtek Gigabit LAN Boot ROM.
[Disabled] Disables the LAN Boot ROM.
Onboard 1394 Controller [Enabled]
[Enabled] Enables the onboard IEEE 1394a controller.
[Disabled] Disables the controller.
Marvell Storage Controller [Enabled]
[Enabled] Enables the Marvell storage controller.
[Disabled] Disables the controller.
3-24 Chapter 3: BIOS setup
Page 81
Serial Port1 Address [3F8/IRQ4]
Allows you to select the Serial Port1 base address.
Conguration options: [Disabled] [3F8/IRQ4] [2F8/IRQ3] [3E8/IRQ4] [2E8/IRQ3]
3.6.4 USB Conguration
The items in this menu allow you to change the USB-related features. Select an item and
press <Enter> to display the conguration options.
Advanced
USB Conguration
Module Version - 2.24.5-13.4
USB Devices Enabled:
2 Hubs
USB Functions [Enabled]
Legacy USB Support [Auto]
BIOS EHCI Hand-Off [Enabled]
Onboard USB 3.0 Controller [Enabled]
The USB Devices Enabled item shows the auto-detected values. If no USB device is
detected, the item shows None.
USB Functions [Enabled]
[Enabled] Enables the USB Host Controllers.
[Disabled] Disables the controllers.
BIOS SETUP UTILITY
Disabled
Enabled
Options
The following items appear only when you set USB Functions to [Enabled].
Legacy USB Support [Auto]
[Auto] Allows the system to detect the presence of USB devices at startup. If
detected, the USB controller legacy mode is enabled. If no USB device is
detected, the legacy USB support is disabled.
[Enabled] Enables the support for USB devices on legacy operating systems (OS).
[Disabled] Disables the function.
BIOS EHCI Hand-off [Enabled]
[Enabled] Enables the support for operating systems without an EHCI hand-off
feature.
[Disabled] Disables the function.
Onboard USB 3.0 Controller [Enabled]
[Enabled] Enables the USB 3.0 controller.
[Disabled] Disables the controller.
ASUS P7H55D-M EVO 3-25
Chapter 3
Page 82
3.6.5 PCIPnP
The PCI PnP menu items allow you to change the advanced settings for PCI/PnP devices.
Advanced
Advanced PCI/PnP Settings
WARNING: Setting wrong values in below sections
may cause system to malfunction.
Plug And Play O/S [No]
Plug And Play O/S [No]
[Yes] When set to [Yes] and if you install a Plug and Play operating system, the
[No] When set to [No], BIOS congures all the devices in the system.
3.6.6 Intel VT-d [Disabled]
[Disabled] Disables the Intel Virtualization Technology for Directed I/O.
[Enabled] Enables the Intel Virtualization Technology for Directed I/O.
Chapter 3
BIOS SETUP UTILITY
operating system congures the Plug and Play devices not required for boot.
3-26 Chapter 3: BIOS setup
Page 83
3.7 Power menu
The Power menu items allow you to change the settings for the Advanced Power
Management (APM). Select an item then press <Enter> to display the conguration options.
Main Ai Tweaker Advanced Power Boot Tools Exit
Suspend Mode [Auto]
Repost Video on S3 Resume [No]
ACPI 2.0 Support [Disabled]
ACPI APIC Support [Enabled]
EuP Ready [Disabled]
APM Conguration
Hardware Monitor
v02.61 (C)Copyright 1985-2009, American Megatrends, Inc.
3.7.1 Suspend Mode [Auto]
Allows you to select the Advanced Conguration and Power Interface (ACPI) state to be used
for system suspend.
[Auto] The system automatically congures the ACPI suspend mode.
[S1 (POS) only] Sets the ACPI suspend mode to S1/POS (Power On Suspend).
[S3 only] Sets the ACPI suspend mode to S3/STR (Suspend To RAM).
3.7.2 Repost Video on S3 Resume [No]
Determines whether to invoke VGA BIOS POST on S3/STR resume.
[No] The system will not invoke VGA BIOS POST on S3/STR resume.
[Yes] The system invokes VGA BIOS POST on S3/STR resume.
BIOS SETUP UTILITY
Select the ACPI state
used for System
Suspend.
←→ Select Screen
↑↓ Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
3.7.3 ACPI 2.0 Support [Disabled]
[Disabled] The system will not add additional tables as per ACPI 2.0 specications.
[Enabled] The system adds additional tables as per ACPI 2.0 specications.
3.7.4 ACPI APIC Support [Enabled]
[Disabled] The system disables the Advanced Conguration and Power Interface
(ACPI) support in the Advanced Programmable Interrupt Controller (APIC).
[Enabled] The ACPI APIC table pointer is included in the RSDT pointer list.
3.7.5 EuP Ready [Disabled]
[Disabled] Disables the Energy Using Products (EuP) Ready function.
[Enabled] Allows BIOS to switch off some power at S5 state to get system ready for
the EuP requirement. When set to [Enabled], power for WOL, WO_USB,
audio and onboard LEDs will be switched off at S5 state.
ASUS P7H55D-M EVO 3-27
Chapter 3
Page 84
3.7.6 APM Conguration
Power
APM Conguration
Restore on AC Power Loss [Power Off]
Power On By RTC Alarm [Disabled]
Power On By External Modems [Disabled]
Power On By PCI Devices [Disabled]
Power On By PCIE Devices [Disabled]
Power On By PS/2 Keyboard [Disabled]
Restore On AC Power Loss [Power Off]
[Power On] The system goes into on state after an AC power loss.
[Power Off] The system goes into off state after an AC power loss.
[Last State] The system goes into either off or on state, whatever the system state was
before the AC power loss.
Power On By RTC Alarm [Disabled]
[Disabled] Disables RTC to generate a wake event.
[Enabled] When set to [Enabled], the items
Time will become user-congurable with set values.
Power On By External Modems [Disabled]
[Disabled] Disables to power up the computer when the external modem receives a
[Enabled] The computer could be powered up when the external modem receives a
call while the computer is in Soft-off mode.
call while the computer is in Soft-off mode.
BIOS SETUP UTILITY
RTC Alarm Date (Days) and System
Options
Power Off
Power On
Last State
Chapter 3
The computer cannot receive or transmit data until the computer and applications are fully
running. Thus, connection cannot be made on the rst try. Turning an external modem
off and then back on while the computer is off causes an initialization string that turns the
system power on.
Power On By PCI Devices [Disabled]
[Disabled] Disables the PME to wake up from S5 by PCI devices.
[Enabled] Allows you to turn on the system through a PCI LAN or modem card. This
feature requires an ATX power supply that provides at least 1A on the
+5VSB lead.
Power On By PCIE Devices [Disabled]
[Disabled] Disables the PCIE devices to generate a wake event.
[Enabled] Enables the PCIE devices to generate a wake event.
Power On By PS/2 Keyboard [Disabled]
[Disabled] Disables the Power On by a PS/2 keyboard.
[Enabled] Sets specic keys on the PS/2 keyboard to turn on the system. This feature
3-28 Chapter 3: BIOS setup
requires an ATX power supply that provides at least 1A on the +5VSB lead.
Page 85
3.7.7 Hardware Monitor
Power
Hardware Monitor
CPU Temperature(PECI) [35ºC/95ºF]
MB Temperature [34ºC/93ºF]
CPU Fan Speed [3590RPM]
CPU Q-Fan Control [Disabled]
Chassis Fan 1 Speed [N/A]
Chassis Q-Fan Control [Disabled]
Power Fan Speed [N/A]
CPU Voltage [ 1.040V]
3.3V Voltage [ 3.008V]
5V Voltage [ 4.776V]
12V Voltage [11.648V]
v02.61 (C)Copyright 1985-2009, American Megatrends, Inc.
CPU Temperature(PECI) / MB Temperature [xxxºC/xxxºF]
The onboard hardware monitor automatically detects and displays the CPU and motherboard
temperatures. Select Ignored if you do not wish to display the detected temperatures.
CPU Fan Speed [xxxxRPM] or [Ignored] / [N/A]
Chassis Fan 1 Speed [xxxxRPM] or [Ignored] / [N/A]
Power Fan Speed [xxxxRPM] or [Ignored] / [N/A]
The onboard hardware monitor automatically detects and displays the CPU, chassis,
and power fan speed in rotations per minute (RPM). If the fan is not connected to the
motherboard, the eld shows N/A. Select Ignored if you do not wish to display the detected
speed.
BIOS SETUP UTILITY
CPU Temperature (PECI)
←→ Select Screen
↑↓ Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
CPU Q-Fan Control [Disabled]
[Disabled] Disables the CPU Q-Fan control feature.
[Enabled] Enables the CPU Q-Fan control feature.
CPU Fan Profile [Standard]
This item appears only when you enable the CPU Q-Fan Control feature and allows
you to set the appropriate performance level of the CPU fan.
[Standard] Sets to [Standard] to make the CPU fan automatically adjust depending on
the CPU temperature.
[Silent] Sets to [Silent] to minimize the fan speed for quiet CPU fan operation.
[Turbo] Sets to [Turbo] to achieve maximum CPU fan speed.
[Manual] Sets to [Manual] to assign detailed fan speed control parameters.
The following four items appear only when you set CPU Fan Prole to [Manual].
CPU Upper Temperature [70ºC/158ºF]
Sets the upper limit of the CPU temperature.
Conguration options: [40ºC/104ºF] [50ºC/122ºF] [60ºC/140ºF] [70ºC/158ºF] [80ºC/176ºF]
[90ºC/194ºF]
ASUS P7H55D-M EVO 3-29
Chapter 3
Page 86
Chassis Q-Fan Control [Disabled]
[Disabled] Disables the Chassis Q-Fan control feature.
[Enabled] Enables the Chassis Q-Fan control feature.
Chassis Fan Profile [Standard]
This item appears only when you enable the Chassis Q-Fan Control feature and
allows you to set the appropriate performance level of the chassis fan.
[Standard] Sets to [Standard] to make the chassis fan automatically adjust depending
[Silent] Sets to [Silent] to minimize the fan speed for quiet chassis fan operation.
[Turbo] Sets to [Turbo] to achieve maximum chassis fan speed.
CPU Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage
The onboard hardware monitor automatically detects the voltage output through the onboard
Chapter 3
voltage regulators. Select Ignored if you do not want to detect this item.
CPU Fan Max. Duty Cycle [100%]
Sets the maximum CPU fan duty cycle. When the CPU temperature reaches the upper limit, the
CPU fan will operate at the maximum duty cycle.
Conguration options: [20%] [30%] [40%] [50%] [60%] [70%] [80%] [90%] [100%]
CPU Lower Temperature [40ºC/104ºF]
Displays the lower limit of the CPU temperature.
CPU Fan Min. Duty Cycle [20%]
Sets the minimum CPU fan duty cycle. When the CPU temperature is under 40ºC/104ºF, the
CPU fan will operate at the minimum duty cycle.
Conguration options: [00%] [10%] [20%] [30%] [40%] [50%] [60%] [70%] [80%] [90%] [100%]
on the chassis temperature.
3-30 Chapter 3: BIOS setup
Page 87
3.8 Boot menu
The Boot menu items allow you to change the system boot options. Select an item then press
<Enter> to display the submenu.
Main Ai Tweaker Advanced Power Boot Tools Exit
Boot Settings
Boot Device Priority
Boot Settings Conguration
Security
v02.61 (C)Copyright 1985-2009, American Megatrends, Inc.
BIOS SETUP UTILITY
Species the Boot Device
Boot Priority sequence.
A virtual oppy disk
drive (Floppy Drive B:
) may appear when you
set the CD-ROM drive
as the rst boot
device.
←→ Select Screen
↑↓ Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
3.8.1 Boot Device Priority
Boot
Boot Device Priority
1st Boot Device [Removable Dev.]
2nd Boot Device [Hard Drive]
3rd Boot Device [ATAPI CD-ROM]
1st – xxth Boot Device [Removable Dev.]
These items specify the boot device priority sequence from the available devices. The
number of device items that appears on the screen depends on the number of devices
installed in the system.
Conguration options: [Removable Dev.] [Hard Drive] [ATAPI CD-ROM] [Disabled]
• To select the boot device during system startup, press <F8> when ASUS Logo appears.
• To access Windows OS in Safe Mode, do any of the following:
- Press <F5> when ASUS Logo appears.
- Press <F8> after POST.
BIOS SETUP UTILITY
Chapter 3
ASUS P7H55D-M EVO 3-31
Page 88
3.8.2 Boot Settings Conguration
Boot
Boot Settings Conguration
Quick Boot [Enabled]
Full Screen Logo [Enabled]
AddOn ROM Display Mode [Force BIOS]
Bootup Num-Lock [On]
Wait For ‘F1’ If Error [Enabled]
Hit ‘DEL’ Message Display [Enabled]
Quick Boot [Enabled]
[Disabled] When set to [Disabled], BIOS performs all the POST items.
[Enabled] When set to [Enabled], BIOS skips some power on self tests (POST) while
Full Screen Logo [Enabled]
[Enabled] Enables the full screen logo display feature.
[Disabled] Disables the full screen logo display feature.
AddOn ROM Display Mode [Force BIOS]
[Force BIOS] The third-party ROM messages will be forced to display during the boot
[Keep Current] The third-party ROM messages will be displayed only if the third-party
Chapter 3
Bootup Num-Lock [On]
[Off] Sets the power-on state of the NumLock to [Off].
[On] Sets the power-on state of the NumLock to [On].
BIOS SETUP UTILITY
Allows BIOS to skip
certain tests while
booting. This will
decrease the time
needed to boot the
system.
booting to decrease the time needed to boot the system.
Set this item to [Enabled] to use the ASUS MyLogo 2™ feature.
sequence.
manufacturer had set the add-on device to do so.
Wait For ‘F1’ If Error [Enabled]
[Disabled] Disables this function.
[Enabled] The system waits for the <F1> key to be pressed when error occurs.
Hit ‘DEL’ Message Display [Enabled]
[Disabled] Disables this function.
[Enabled] The system displays the message “Press DEL to run Setup” during POST.
3-32 Chapter 3: BIOS setup
Page 89
3.8.3 Security
The Security menu items allow you to change the system security settings. Select an item
and press <Enter> to display the conguration options.
Boot
Security Settings
Supervisor Password : Not Installed
User Password : Not Installed
Change Supervisor Password
Change User Passward
Change Supervisor Password
Select this item to set or change the supervisor password. The Supervisor Password item
on top of the screen shows the default Not Installed. After you set a password, this item
shows Installed.
To set a Supervisor Password:
1. Select the
2. From the password box, key in a password composed of at least six letters and/or
numbers, then press <Enter>.
3. Conrm the password when prompted.
The message Password Installed appears after you successfully set your password.
To change the supervisor password, follow the same steps as in setting a user password.
To clear the supervisor password, select the Change Supervisor Password then press
<Enter>. The message Password Uninstalled appears.
Change Supervisor Password item and press <Enter>.
If you have forgotten your BIOS password, you can clear clear it by erasing the CMOS Real
Time Clock (RTC) RAM. See section 2.7.1 Rear panel connectors for information on how
to erase the RTC RAM.
BIOS SETUP UTILITY
<Enter> to change
password.
<Enter> again to
disable password.
After you have set a supervisor password, the other items appear to allow you to change
other security settings.
Boot
Security Settings
Supervisor Password : Installed
User Password : Installed
Change Supervisor Password
User Access Level [Full Access]
Change User Password
Clear User Password
Password Check [Setup]
BIOS SETUP UTILITY
<Enter> to change
password.
<Enter> again to
disabled password.
User Access Level [Full Access]
This item allows you to select the access restriction to the Setup items.
[No Access] Prevents user access to the Setup utility.
[View Only] Allows access but does not allow change to any eld.
[Limited] Allows changes only to selected elds, such as Date and Time.
[Full Access] Allows viewing and changing all the elds in the Setup utility.
ASUS P7H55D-M EVO 3-33
Chapter 3
Page 90
Change User Password
Select this item to set or change the user password. The User Password item on top of the
screen shows the default Not Installed. After you set a password, this item shows Installed.
To set a User Password:
1. Select the
2. On the password box that appears, type a password composed of at least six letters
and/or numbers, then press <Enter>.
3. Conrm the password when prompted.
The message Password Installed appears after you set your password successfully.
To change the user password, follow the same steps as in setting a user password.
Clear User Password
Select this item to clear the user password.
Password Check [Setup]
[Setup] BIOS checks for user password when accessing the Setup utility.
[Always]
Chapter 3
Change User Password item and press <Enter>.
BIOS checks for user password both when accessing Setup and booting
the system.
3-34 Chapter 3: BIOS setup
Page 91
3.9 Tools menu
The Tools menu items allow you to congure options for special functions. Select an item
then press <Enter> to display the submenu.
Main Ai Tweaker Advanced Power Boot Tools Exit
ASUS O.C. Prole
AI NET 2
ASUS EZ Flash 2
Express Gate [Auto]
Enter OS Timer [10 Seconds]
Reset User Data [No]
v02.61 (C)Copyright 1985-2009, American Megatrends, Inc.
BIOS SETUP UTILITY
←→ Select Screen
↑↓ Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
3.9.1 ASUS O.C. Prole
This item allows you to store or load multiple BIOS settings.
Tools
O.C. PROFILE Conguration
O.C. Prole 1 Status : Not Installed
O.C. Prole 2 Status : Not Installed
O.C. Prole 3 Status : Not Installed
O.C. Prole 4 Status : Not Installed
O.C. Prole 5 Status : Not Installed
O.C. Prole 6 Status : Not Installed
O.C. Prole 7 Status : Not Installed
O.C. Prole 8 Status : Not Installed
Status:
Add Your CMOS Prole.
Name: [Default-Prole]
Save To: [Uninstalled]
Load CMOS Proles.
Load From: [Blank]
Start O.C. Prole
v02.61 (C)Copyright 1985-2009, American Megatrends, Inc.
BIOS SETUP UTILITY
Typing your prole
name, [0-9][a-z][A-Z]
are acceptable.
←→ Select Screen
↑↓ Select Item
F1 General Help
F10 Save and Exit
ESC Exit
Chapter 3
Add Your CMOS Prole
Allows you to save the current BIOS le to the BIOS Flash. In the Name sub-item, key in
your prole name and press <Enter>, and then choose a prole number to save your CMOS
settings in the Save to sub-item.
Load CMOS Proles.
Allows you to load the previous BIOS settings saved in the BIOS Flash. Press <Enter> to
load the le.
ASUS P7H55D-M EVO 3-35
Page 92
Start O.C. Prole
Allows you to run the utility to save and load CMOS. Press <Enter> to run the utility.
ASUSTek O.C. Prole Utility V2.10
Chapter 3
3.9.2 AI NET 2
Tools
AI NET 2
Pair Status Length
Current CMOS
BOARD: P7H55D-M EVO
VER: 0115
DATE: 10/28/2009
PATH: A:\
A:
Note
[Enter] Select or Load [Tab] Switch [V] Drive Info
[Up/Down/Home/End] Move [B] Backup [Esc] Exit
Restore CMOS
BOARD: Unknown
VER: Unknown
DATE: Unknown
• This function can support devices such as a USB ash disk with FAT 32/16 format and
single partition only.
• DO NOT shut down or reset the system while updating the BIOS to prevent the
system boot failure!
• We recommend that you update the BIOS le only coming from the same memory/CPU
conguration and BIOS version.
• Only the CMO le can be loaded.
BIOS SETUP UTILITY
Check Realtek LAN cable [Disabled]
Check Realtek LAN cable [Disabled]
[Disabled] BIOS will not check the Realtek LAN cable during the Power-On Self-Test
[Enabled] BIOS checks the Realtek LAN cable during the Power-On Self-Test (POST).
3-36 Chapter 3: BIOS setup
(POST).
Page 93
3.9.3 ASUS EZ Flash 2
Allows you to run ASUS EZ Flash 2. When you press <Enter>, a conrmation message
appears. Use the left/right arrow key to select between [Yes] or [No], then press <Enter> to
conrm your choice.
For more details, refer to section 3.2.2 ASUS EZ Flash 2 utility.
3.9.4 Express Gate [Auto]
Allows you to enable or disable the ASUS Express Gate feature. The ASUS Express Gate
feature is a unique instant-on environment that provides quick access to the Internet browser
and Skype. Conguration options: [Enabled] [Disabled] [Auto]
Enter OS Timer [10 Seconds]
Sets countdown duration that the system waits at the Express Gate’s rst screen before
starting Windows or other installed OS. Choose [Prompt User] to stay at the rst screen of
Express Gate for user action.
Conguration options: [Prompt User] [1 second] [3 seconds] [5 seconds] [10 seconds]
[15 seconds] [20 seconds] [30 seconds]
Reset User Data [No]
Allows you to clear Express Gate’s user data.
[Reset] When setting this item to [Reset], ensure that you save the setting to the
[No] Sets to [No] to disable the
BIOS so that the user data will be cleared the next time you enter the
Express Gate. User data includes the Express Gate’s settings as well as
any personal information stored by the web browser such as bookmarks,
cookies, browsing history. This is useful in the rare case where corrupt
settings prevent the Express Gate environment from launching properly.
Reset User Data function when entering the
Express Gate.
The rst time wizard will run again when you enter the Express Gate environment after
clearing its settings.
Chapter 3
ASUS P7H55D-M EVO 3-37
Page 94
3.10 Exit menu
The Exit menu items allow you to load the optimal or failsafe default values for the BIOS
items, and save or discard your changes to the BIOS items.
Main Ai Tweaker Advanced Power Boot Tools Exit
Exit Options
Exit & Save Changes
Exit & Discard Changes
Discard Changes
Load Setup Defaults
Exit & Save Changes
Once you are nished making your selections, choose this option from the Exit menu to
ensure the values you selected are saved to the CMOS RAM. An onboard backup battery
sustains the CMOS RAM so it stays on even when the PC is turned off. When you select this
option, a conrmation window appears. Select Ok to save changes and exit.
Chapter 3
BIOS SETUP UTILITY
Exit system setup
after saving the
changes.
F10 key can be used
for this operation.
←→ Select Screen
↑↓ Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 (C)Copyright 1985-2009, American Megatrends, Inc.
Pressing <Esc> does not immediately exit this menu. Select one of the options from this
menu or <F10> from the legend bar to exit.
If you attempt to exit the Setup program without saving your changes, the program prompts
you with a message asking if you want to save your changes before exiting. Press <Enter>
to save the changes while exiting.
Exit & Discard Changes
Select this option only if you do not want to save the changes that you made to the Setup
program. If you made changes to elds other than System Date, System Time, and
Password, the BIOS asks for a conrmation before exiting.
Discard Changes
This option allows you to discard the selections you made and restore the previously saved
values. After selecting this option, a conrmation appears. Select Ok to discard any changes
and load the previously saved values.
Load Setup Defaults
This option allows you to load the default values for each of the parameters on the Setup
menus. When you select this option or if you press <F5>, a conrmation window appears.
Select Ok to load default values. Select Exit & Save Changes or make other changes before
saving the values to the non-volatile RAM.
3-38 Chapter 3: BIOS setup
Page 95
Chapter 4
Chapter 4: Software support
4.1 Installing an operating system
This motherboard supports Windows® XP/ 64-bit XP/ Vista / 64-bit Vista / 7 / 64-bit 7
operating systems (OS). Always install the latest OS version and corresponding updates to
maximize the features of your hardware.
• Motherboard settings and hardware options vary. Use the setup procedures presented
in this chapter for reference only. Refer to your OS documentation for detailed
information.
• Ensure that you install the Windows
installing the drivers for better compatibility and system stability.
4.2 Support DVD information
The support DVD that comes with the motherboard package contains the drivers, software
applications, and utilities that you can install to avail all motherboard features.
The contents of the support DVD are subject to change at any time without notice. Visit the
ASUS website at www.asus.com for updates.
4.2.1 Running the support DVD
Place the support DVD into the optical drive. The DVD automatically displays the Specials
menu if Autorun is enabled in your computer. Click each menu tab and select the items you
want to install.
The Drivers menu shows the
available device drivers if
the system detects installed
devices. Install the necessary
drivers to use the devices.
The Utilities
menu shows the
applications and
other software that
the motherboard
supports.
Click an item
to install
The Manual menu contains
the list of supplementary user
manuals. Click an item to open
the folder of the user manual.
®
XP Service Pack 2 or later versions before
Click the Contact tab
to display the ASUS
contact information.
Click the Highlights
tab to display the
software information
Click an icon
to display DVD/
motherboard
information
Click to obtain the
corresponding
software manuals
If Autorun is NOT enabled in your computer, browse the contents of the support DVD to
locate the le ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run
the DVD.
ASUS P7H55D-M EVO 4-1
Chapter 4
Page 96

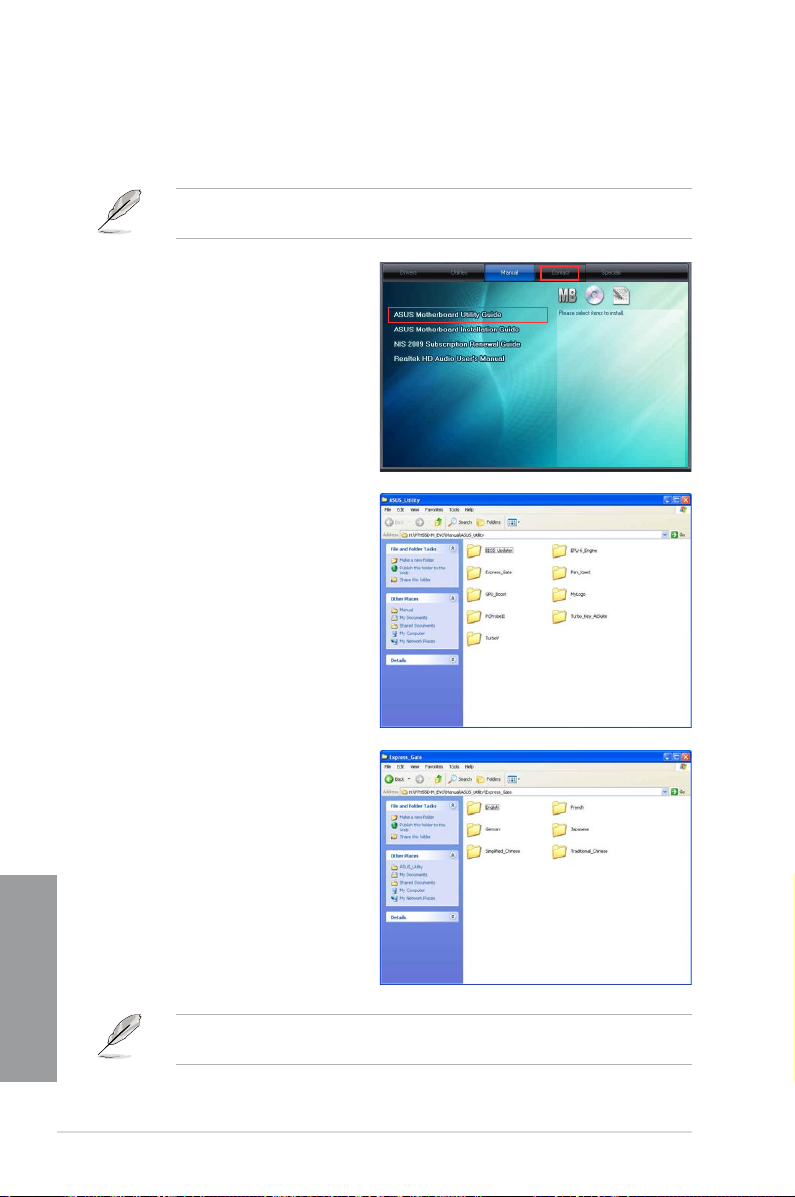

4.2.2 Obtaining the software manuals
The software manuals are included in the support DVD. Follow the instructions below to get
the necessary software manuals.
The software manual les are in Portable Document Format (PDF). Install the Adobe®
Acrobat® Reader from the Utilities menu before opening the les.
1. Click the Manual tab. Click ASUS
Motherboard Utility Guide from
the manual list on the left.
2. The
DVD appears. Double-click the
folder of your selected software.
3. Some software manuals are
provided in different languages.
Double-click the language to
show the software manual.
Chapter 4
Manual folder of the support
The screenshots in this section are for reference only. The actual software manuals
containing in the support DVD vary by models.
4-2 Chapter 4: Software support
Page 97
4.3 Software information
Most of the applications in the support DVD have wizards that will conveniently guide you
through the installation. View the online help or readme le that came with the software
application for more information.
4.3.1 ASUS PC Probe II
PC Probe II is a utility that monitors the computer’s vital components, and detects and
alerts you of any problem with these components. PC Probe II senses fan rotations, CPU
temperature, and system voltages, among others. Because PC Probe II is software-based,
you can start monitoring your computer the moment you turn it on. With this utility, you are
assured that your computer is always at a healthy operating condition.
Launching PC Probe II
1. Install PC Probe II from the motherboard support DVD.
2. Launch PC Probe II by clicking
Probe II v1.xx.xx. The PC Probe II main window appears.
3. The PC Probe II icon appears in the Windows
or restore the application.
PC Probe II main window
Start > All Programs > ASUS > PC Probe II > PC
®
notication area. Click this icon to close
Button Function
Opens the Conguration window
Opens the Report window
Opens the Desktop Management Interface window
Opens the Peripheral Component Interconnect window
Opens the Windows Management Instrumentation window
Opens the hard disk drive, memory, CPU usage window
Shows/Hides the Preference section
Minimizes the application
Closes the application
Refer to the software manual in the support DVD or visit the ASUS website at
www.asus.com for detailed software conguration.
ASUS P7H55D-M EVO 4-3
Chapter 4
Page 98
4.3.2 ASUS AI Suite
ASUS AI Suite allows you to launch several ASUS utilities easily.
Launching AI Suite
1. Install AI Suite from the motherboard support DVD.
2. Launch AI Suite by clicking
xx. The AI Suite main window appears.
Start > All Programs > ASUS > AI Suite > AI Suite v1.xx.
3. The AI Suite icon
appears in the Windows® notication area. If you minimize the
application main window, click this icon to restore the window.

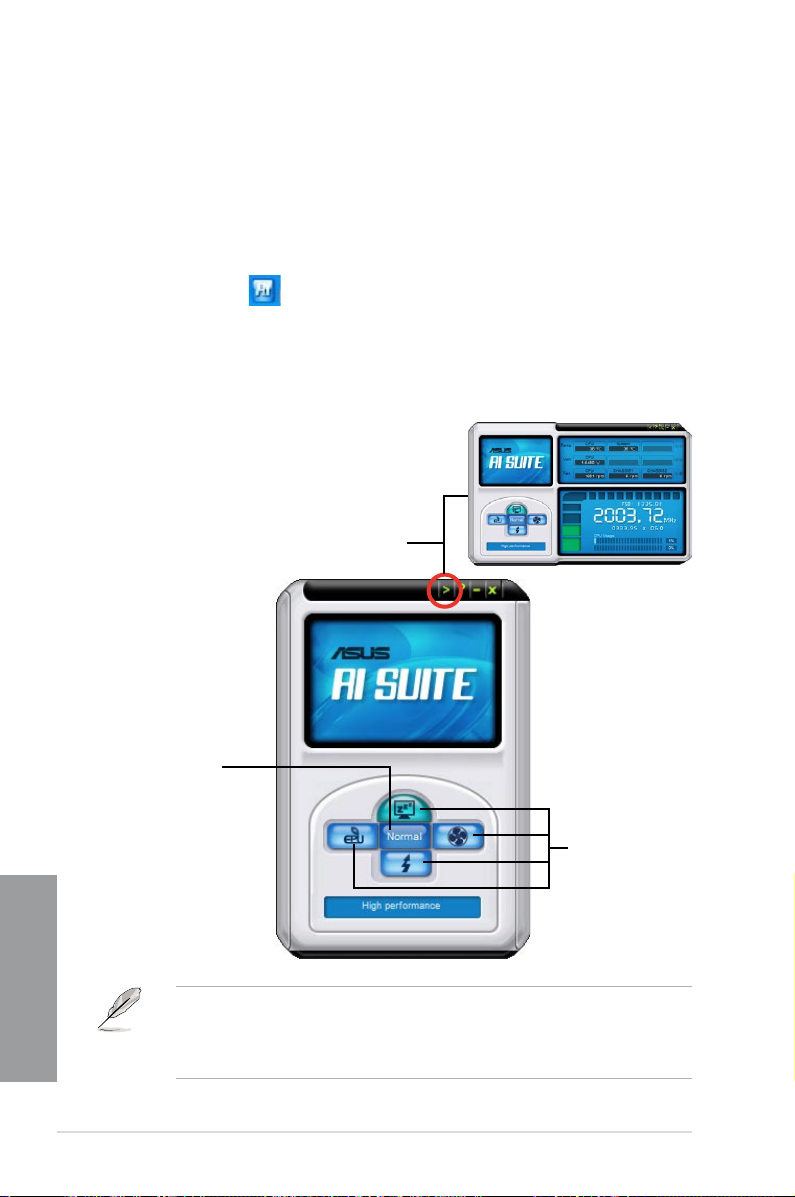

Using AI Suite
Click each utility button to launch the utility, or click the Normal button to restore system
default settings.
Click to open the monitor window that displays
system information such as CPU temperature,
CPU voltage, fan speed, and CPU/FSB frequency
Click to restore
default settings
Click to launch
each utility
Chapter 4
• The screenshots in this section are for reference only. The actual utility buttons vary
by models.
• Refer to the software manual in the support DVD or visit the ASUS website at
www.asus.com for detailed software conguration.
4-4 Chapter 4: Software support
Page 99
4.3.3 ASUS Fan Xpert
Asus Fan Xpert allows you to adjust both the CPU and chassis fan speeds according to
different ambient temperatures and your PC’s system loading. The various fan proles offer
exible controls of fan speeds to achieve a quiet and cool system environment.
Launching Fan Xpert
After installing AI Suite from the motherboard support DVD, launch Fan Xpert by doubleclicking the AI Suite tray icon and then clicking the Fan Xpert button on the AI Suite
main window.
Using Fan Xpert
Click to open the
Calibration window
Click to select a fan
Click to select a
fan prole
Click to apply
the settings
Click to display
the current CPU
temperature and the fan
speed ratio
Click to cancel
the settings
Fan proles
• Disable: disables the Fan Xpert function.
•
Standard: adjusts fan speed in a moderate pattern.
•
Silent: minimizes fan speed for quiet fan operation.
•
Turbo: maximizes the fan speed for the best cooling effect.
•
Intelligent: automatically adjusts the CPU fan speed according to the ambient
•
Stable: xes the CPU fan speed to avoid noise caused by the unsteady fan rotation. The
•
User: Allows you to congure the CPU fan prole under certain limitations.
temperature.
fan will speed up when the temperature exceeds 70ºC.
Chapter 4
ASUS P7H55D-M EVO 4-5
Page 100
4.3.4 ASUS TurboV
ASUS TurboV allows you to easily overclock without exiting or rebooting the OS, and set up
the best O.C. settings for different scenarios.
Refer to the CPU documentation before adjusting CPU voltage settings. Setting a high
voltage may damage the CPU permanently, and setting a low voltage may make the
system unstable.
• For system stability, all changes made in ASUS TurboV will not be saved to BIOS
settings and will not be kept on the next system boot. Use the Save Prole function
to save your customized overclocking settings and manually load the prole after
Windows starts.
• EPU cannot run on the customized overclocking settings. Restart the computer to
launch EPU.
• For system stability, set ASUS EPU to
TurboV.
Launching ASUS TurboV
1. Install the ASUS TurboV utility from the motherboard support DVD.
2. Click
Target settings
Default settings
Click to show
more settings
Advanced CPU
voltage settings
Start > All Programs > ASUS > TurboV > TurboV.
Save the current settings as a new prole
and chipset
High Performance Mode while using ASUS
Voltage
Adjustment bars
iGPU voltage and
frequency settings
Chapter 4
Applies all changes immediately Undoes all changes without applying
• GPU Boost is available when you install the GPU Boost driver from the motherboard
support DVD.
• For advanced overclock ability, adjust rst the BIOS items, and then proceed more
detailed adjustments using TurboV.
• Refer to the software manual in the support DVD or visit the ASUS website at
www.asus.com for detailed software conguration.
4-6 Chapter 4: Software support
