Asus P5E-VM User Manual

P5E-VM HDMI
Motherboard
E3527
Second Edition V2 November 2007
Copyright © 2007 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.
ii
Contents
Notices ........................................................................................................ vii
Safety information .................................................................................... viii
About this guide ......................................................................................... ix
P5E-VM HDMI specications summary .................................................... xi
Chapter 1: Product introduction
1.1 Welcome! ...................................................................................... 1-1
1.2 Package contents ......................................................................... 1-1
1.3 Special features ............................................................................ 1-2
1.3.1 Product highlights ........................................................... 1-2
1.3.2 ASUS AI Exclusive features ............................................ 1-4
1.3.3 ASUS Stylish features ..................................................... 1-6
1.3.4 ASUS Intelligent Overclocking features .......................... 1-6
Chapter 2: Hardware information
2.1 Before you proceed ..................................................................... 2-1
2.2 Motherboard overview ................................................................. 2-2
2.2.1 Placement direction ........................................................ 2-2
2.2.2 Screw holes .................................................................... 2-2
2.2.3 Motherboard layout ......................................................... 2-3
2.2.4 Layout contents ............................................................... 2-4
2.3 Central Processing Unit (CPU) ................................................... 2-6

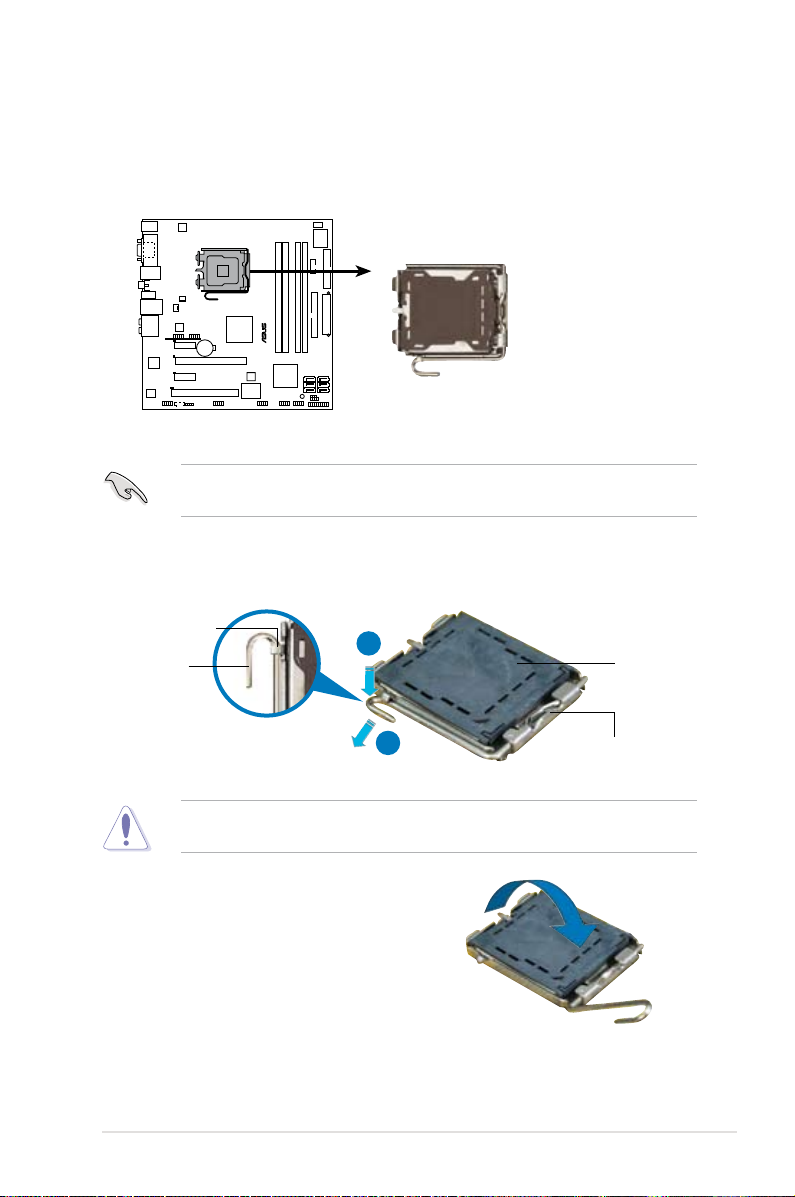

2.3.1 Installing the CPU ........................................................... 2-7
2.3.2 Installing the CPU heatsink and fan ................................ 2-9
2.3.3 Uninstalling the CPU heatsink and fan ..........................2-11
2.4 System memory ......................................................................... 2-13
2.4.1 Overview ....................................................................... 2-13
2.4.2 Memory configurations .................................................. 2-13

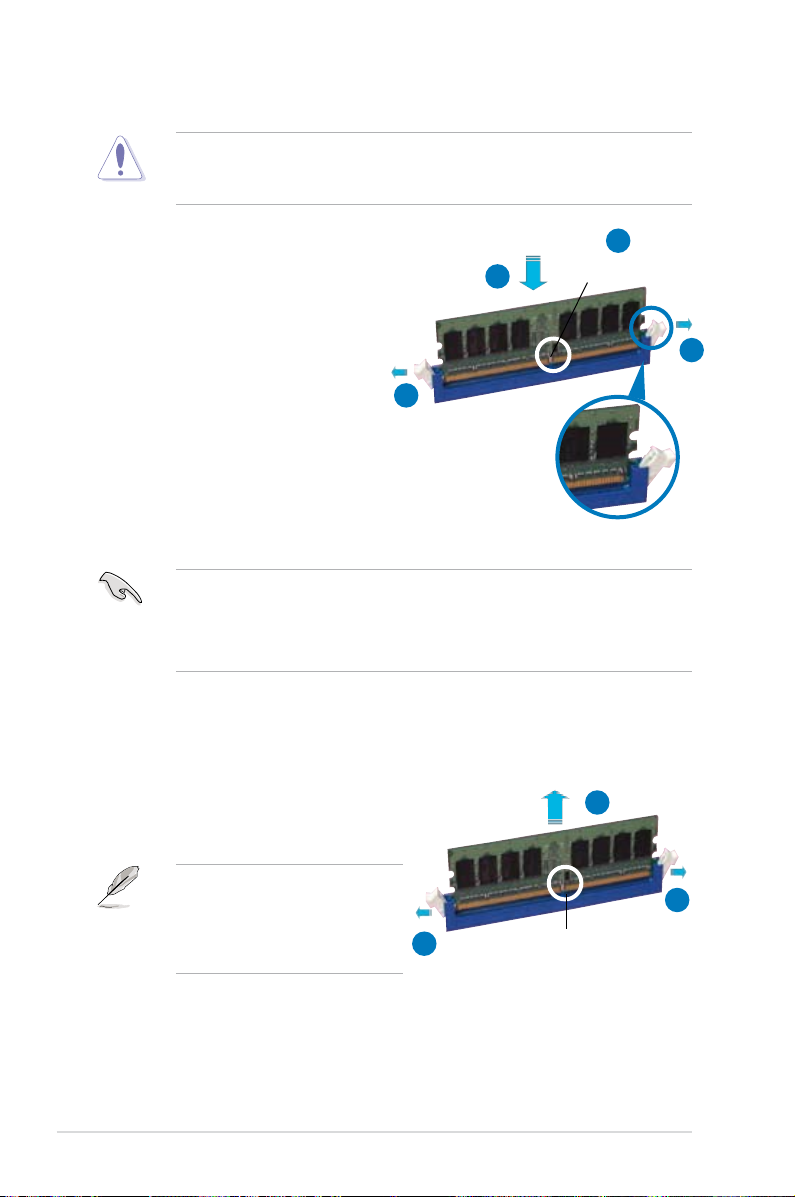

2.4.3 Installing a DIMM .......................................................... 2-18
2.4.4 Removing a DIMM ........................................................ 2-18
2.5 Expansion slots .......................................................................... 2-19
2.5.1 Installing an expansion card ......................................... 2-19
2.5.2 Configuring an expansion card ..................................... 2-19
2.5.3 Interrupt assignments ................................................... 2-20
2.5.4 PCI slot ......................................................................... 2-21
2.5.5 PCI Express x1 slots ..................................................... 2-21
2.5.6 PCI Express x16 slot ..................................................... 2-21
iii
Contents
2.6 Jumper ........................................................................................ 2-22
2.7 Connectors ................................................................................. 2-23
2.7.1 Rear panel connectors .................................................. 2-23
2.7.2 Internal connectors ....................................................... 2-26
Chapter 3: Powering up
3.1 Starting up for the rst time ........................................................ 3-1
3.2 Turning off the computer ............................................................. 3-2
3.2.1 Using the OS shut down function .................................... 3-2
3.2.2 Using the dual function power switch .............................. 3-2
Chapter 4: BIOS setup
4.1 Managing and updating your BIOS ............................................ 4-1
4.1.1 ASUS Update utility ........................................................ 4-1
4.1.2 Creating a bootable floppy disk ....................................... 4-4
4.1.3 ASUS EZ Flash 2 utility ................................................... 4-5
4.1.4 AFUDOS utility ................................................................ 4-6
4.1.5 ASUS CrashFree BIOS 3 utility ...................................... 4-8
4.2 BIOS setup program .................................................................... 4-9
4.2.1 BIOS menu screen ........................................................ 4-10
4.2.2 Menu bar ....................................................................... 4-10
4.2.3 Navigation keys ............................................................. 4-10
4.2.4 Menu items ....................................................................4-11
4.2.5 Sub-menu items .............................................................4-11
4.2.6 Configuration fields ........................................................4-11
4.2.7 Pop-up window ..............................................................4-11
4.2.8 Scroll bar ........................................................................4-11
4.2.9 General help ..................................................................4-11
4.3 Main menu .................................................................................. 4-12
4.3.1 System Time [xx:xx:xx] ................................................. 4-12
4.3.2 System Date [Day xx/xx/xxxx] ....................................... 4-12
4.3.3 Legacy Diskette A [1.44M, 3.5 in.] ................................. 4-12
4.3.4 Language [English] ....................................................... 4-12
4.3.5 SATA 1~6; PATA Primary Master/Slave ........................ 4-13
4.3.6 SATA Configuration ....................................................... 4-14
4.3.7 System Information ....................................................... 4-15
iv
Contents
4.4 Advanced menu ......................................................................... 4-16
4.4.1 Jumperfree Configuration ............................................. 4-16
4.4.2 USB Configuration ........................................................ 4-20
4.4.3 CPU Configuration ........................................................ 4-21
4.4.4 Chipset .......................................................................... 4-22
4.4.5 Onboard Devices Configuration .................................... 4-24
4.4.6 PCIPnP ......................................................................... 4-25
4.5 Power menu ................................................................................ 4-26
4.5.1 Suspend Mode [Auto] ................................................... 4-26
4.5.2 Repost Video on S3 Resume [Disabled] ....................... 4-26
4.5.3 ACPI 2.0 support [Disabled] .......................................... 4-26
4.5.4 ACPI APIC Support [Enabled] ....................................... 4-26
4.5.5 APM Configuration ........................................................ 4-27
4.5.6 Hardware Monitor ......................................................... 4-28
4.6 Boot menu .................................................................................. 4-30
4.6.1 Boot Device Priority ...................................................... 4-30
4.6.2 Boot Settings Configuration .......................................... 4-31
4.6.3 Security ......................................................................... 4-32
4.7 Tools menu ................................................................................. 4-34
4.7.1 ASUS EZ Flash 2 .......................................................... 4-34
4.7.2 ASUS O.C. Profile ......................................................... 4-35
4.8 Exit menu .................................................................................... 4-36
Chapter 5: Software support
5.1 Installing an operating system ................................................... 5-1
5.2 Support CD information .............................................................. 5-1
5.2.1 Running the support CD ................................................. 5-1
5.2.2 Drivers menu ................................................................... 5-2
5.2.3 Utilities menu .................................................................. 5-3
5.2.4 Make disk menu .............................................................. 5-5
5.2.5 Manual menu .................................................................. 5-6
5.2.6 ASUS Contact information .............................................. 5-6
5.2.7 Other information ............................................................ 5-7
5.3 Software information ................................................................... 5-9
v
5.3.1 ASUS MyLogo3™ ........................................................... 5-9
5.3.2 Audio configurations ......................................................5-11
5.3.3 ASUS PC Probe II ......................................................... 5-15
5.3.4 ASUS AI Suite ............................................................... 5-21
5.3.5 ASUS AI Gear 2 ............................................................ 5-23
5.3.6 ASUS AI Nap ................................................................ 5-24
5.3.7 ASUS AI N.O.S. ............................................................ 5-25
5.3.8 ASUS Q-Fan 2 .............................................................. 5-26
5.3.9 ASUS AI Booster ........................................................... 5-27
5.3.10 ASUS Splendid ............................................................. 5-28
5.3.11 ASUS AI Direct Link ...................................................... 5-30
5.4 RAID congurations .................................................................. 5-32
5.4.1 RAID definitions ............................................................ 5-32
5.4.2 Installing Serial ATA hard disks ..................................... 5-33
5.4.3 Intel® RAID configurations ............................................. 5-33
5.5 Creating a RAID driver disk ....................................................... 5-43
5.5.1 Creating a RAID driver disk without entering the OS .... 5-43
5.5.2 Creating a RAID driver disk in Windows®...................... 5-43
Appendix: CPU features
A.1 Intel® EM64T ..................................................................................A-1
A.2 Enhanced Intel SpeedStep® Technology (EIST) ........................A-1
A.2.1 System requirements ......................................................A-1
A.2.2 Using the EIST ................................................................A-2
A.3 Intel® Hyper-Threading Technology ...........................................A-3
vi
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference, and
This device must accept any interference received including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
vii
Safety information
Electrical safety
To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.
Seek professional assistance before using an adpater or extension cord. These devices could interrupt the grounding circuit.
Make sure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.
Operation safety
Before installing the motherboard and adding devices on it, carefully read all the manuals that came with the package.
Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet.
Place the product on a stable surface.
If you encounter technical problems with the product, contact a qualified service technician or your retailer.
viii
This symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment, and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
About this guide
This user guide contains the information you need when installing and configuring the motherboard.
How this guide is organized
This guide contains the following parts:
Chapter 1: Product introduction
This chapter describes the features of the motherboard and the new technology it supports.
Chapter 2: Hardware information
This chapter lists the hardware setup procedures that you have to perform when installing system components. It includes description of the switches, jumpers, and connectors on the motherboard.
Chapter 3: Powering up
This chapter describes the power up sequence and ways of shutting down the system.
Chapter 4: BIOS setup
This chapter tells how to change system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided.
Chapter 5: Software support
This chapter describes the contents of the support CD that comes with the motherboard package and the software.
Appendix: CPU features
The Appendix describes the CPU features and technologies that the motherboard supports.
Where to nd more information
Refer to the following sources for additional information and for product and software updates.
1. ASUS websites
The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information.
2. Optional documentation
Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. These documents are not part of the standard package.
ix
Conventions used in this guide
To make sure that you perform certain tasks properly, take note of the following symbols used throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself
when trying to complete a task.
CAUTION: Information to prevent damage to the components
when trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a
task.
NOTE: Tips and additional information to help you complete a
task.
Typography
Bold text Indicates a menu or an item to select.
Italics
Used to emphasize a word or a phrase.
<Key> Keys enclosed in the less-than and greater-than sign
means that you must press the enclosed key.
Example: <Enter> means that you must press the Enter or Return key.
<Key1>+<Key2>+<Key3> If you must press two or more keys simultaneously, the
key names are connected with a plus sign (+).
Example: <Ctrl>+<Alt>+<D>
Command Means that you must type the command exactly as
shown.
Example: At the DOS prompt, type the command line:
afudos /iP5E-VM.ROM
x
P5E-VM HDMI specications summary
CPU
Chipset
System bus
Memory
VGA
Expansion slots
Storage
LAN
Audio
IEEE 1394
LGA775 socket for Intel® Core™2 Quad / Core™2 Extreme / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 processors Compatible with Intel® 05B/05A/06 processors Supports Intel® next-generation 45nm multi-core CPUs *This motherboard supports FSB 1333/1066/800
Intel® G35 / ICH9R with Intel® Fast Memory Access TechnologyTechnology
1333/1066/800 MHz
Dual-channel memory architecture
- 4 x 240-pin DIMM sockets support unbuffered non-ECC DDR2 800/667/533MHz memory modules
- Supports up to 8 GB system memory
Intel® Graphics Media Accelerator X3500 integrated Dual VGA output support: HDMI/DVI-D and RGB Supports RGB with max. resolution 2048 x 1536@75Hz Supports HDMI with max. resolution 1920 x 1080@60Hz Supports DVI with max. resolution 1920 x 1200@60Hz Maximum shared memory of 384 MB Supports Microsoft® DirectX® 10, OpenGL® 2.0, Pixel Shader 4.0 *The DirectX® 10 driver will be provided by the chipset vendor later.
1 x PCI Express™ x16 slot 2 x PCI Express™ x1 slots 1 x PCI slot
Southbridge ICH9R
- 6 x Serial ATA 3 Gb/s ports
- Intel Matrix Storage Technology supports RAID 0,
1, 5 and 10
JMicron® JMB368 PATA controller supports:
- 1 x UltraDMA 133/100/66 for up to 2 PATA devices
Atheros L1 PCI-E Gigabit LAN controller PCIe Gb LAN controller
Realtek® ALC883 8-channel High-Definition Audio CODEC
- Supports Jack-Sensing, Enumeration, Multi-Streaming
- Coaxial S/PDIF out port at back I/O
- ASUS Noise Filter
VIA VT6308P controller supports 2 x IEEE 1394a ports (one at midboard; one at back panel)
(continued on the next page)
xi
P5E-VM HDMI specications summary
USB
AI Lifestyle Unique features
Other features
ASUS Exclusive Overclocking features
Rear panel connectors
12 x USB 2.0 ports (6 at mid-board, 6 at back panel)
ASUS AI Lifestyle Features:
- ASUS Splendid
ASUS Quiet Thermal Solution:
- ASUS AI Gear2
- ASUS AI Nap
- ASUS Q-Fan 2
ASUS Crystal Sound:
- ASUS Noise Filter
ASUS EZ DIY:
- ASUS Q-Connector
- ASUS AI Direct Link
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS MyLogo3
ASUS AI Booster utility Precision Tweaker 2:
- vDRAM: 33-step DRAM voltage control
- vChipset (N.B.): 24-step chipset voltage control
- vFSB: 16-step FSB voltage control
- vChipset (CPU PLL): 16-step CPU PLL voltage control
SFS (Stepless Frequency Selection:
- vCore: Adjustable CPU voltage at 0.0125V increment
- FSB tuning from 200MHz to 800 MHz at 1MHz increment
- Memory tuning from 533MHz to 1333MHz
- PCI Express frequency tuning from 100MHz to 150MHz at 1 MHz increment
Overclocking protection:
- ASUS C.P.R. (CPU Parameter Recall)
1 x PS/2 keyboard port (purple) 1 x PS/2 Mouse port (green) 1 x Coaxial S/PDIF Out port 1 x D-Sub port 1 x HDMI/DVI port 1 x IEEE1394a port 1 x LAN (RJ-45) port 6 x USB 2.0/1.1 ports 8-channel audio ports
(continued on the next page)
xii
P5E-VM HDMI specications summary
Internal connectors
BIOS features
Manageability
Support CD contents
Form factor
*Specications are subject to change without notice.
3 x USB connectors support 6 additional USB ports 1 x Floppy disk drive connector 1 x IDE connector 6 x Serial ATA connectors 1 x CPU / 1 x Chassis / 1 x Power fan connectors 1 x IEEE1394a connector 1 x COM connector 1 x S/PDIF Out header Chassis intrusion connector Front panel audio connector CD audio in connector 24-pin ATX power connector 4-pin ATX 12V power connector System panel connector (Q-Connector)
8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Drivers ASUS PC Probe II ASUS Update ASUS AI Suite Anti-virus software (OEM version) Multi-language MB installation guide
uATX form factor: 9.6 in x 9.6 in (24.4 cm x 24.4 cm)
xiii
xiv
This chapter describes the motherboard features and the new technologies it supports.
Product
1
introduction
Chapter summary
1
1.1 Welcome! ...................................................................................... 1-1
1.2 Package contents ......................................................................... 1-1
1.3 Special features ............................................................................ 1-2
ASUS P5E-VM HDMI
1.1 Welcome!
Thank you for buying an ASUS® P5E-VM HDMI motherboard!
The motherboard delivers a host of new features and latest technologies, making it another standout in the long line of ASUS quality motherboards!
Before you start installing the motherboard, and hardware devices on it, check the items in your package with the list below.
1.2 Package contents
Check your motherboard package for the following items.
Motherboard ASUS P5E-VM HDMI
Cables 3 x Serial ATA signal cables 3 x Serial ATA power cables 1 x Ultra DMA 133/100/66 cable 1 x Floppy disk drive cable 1 x HDMI-to-DVI conversion adaptor
Accessories I/O shield 1 x ASUS Q-Connector Kit (USB, 1394, system panel; Retail version only)
Application CD ASUS motherboard support CD ASUS Superb Software Library CDASUS Superb Software Library CD
Documentation User guide
If any of the above items is damaged or missing, contact your retailer.
ASUS P5E-VM HDMI
1-1
1.3 Special features
1.3.1 Product highlights
Intel® Quad-core Processor Ready
This motherboard supports the latest Intel® Quad-core processors in the LGA775 package and Intel’s next-generation 45nm multi-core processors. It is excellent for multi-tasking, multi-media and enthusiastic gamers with 1333/1066/800 MHz FSB. Intel® Quad-core processor is one of the most powerful CPU in the world. See page 2-6 for details.
Intel® Core™2 Duo/ Intel® Core™2 Extreme CPU support
This motherboard supports the latest Intel® Core™2 processor in the LGA775 package and Intel’s next-generation 45nm multi-core processors. With the new Intel® Core™ microarchitecture technology and 1333/1066/800 MHz FSB, the Intel® Core™2 is one of the most powerful and energy efficient CPUs in the world. See page 2-6 for details.
Intel G35 Chipset
The Intel® G35 Express Chipset boosts your gaming and multimedia experience with the integrated graphics engine Intel® Graphics Media Accelerator X3500. It supports the latest 1333MHz FSB multi-core processors, 384MB video shared memory, Microsoft® DirectX® 10, OpenGL® 2.0, and Pixel Shader 4.0, delivering breakthroughs in 3D and 2D graphics as well as video capabilities. Featuring theFeaturing the Intel® Clear Video Technology, enhanced post-processing and Vista™ compatibility, this chipset meets the changing display requirements of visually rich applications meets the changing display requirements of visually rich applications and provides smooth playback of High-Definition videos, superb 3D effects, crispHigh-Definition videos, superb 3D effects, crisp crispcrisp imaging, and accurate color control.
DDR2 memory support
The motherboard supports DDR2 memory that features data transfer rates of 800/667 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR2 architecture doubles the bandwidth of your system memory to boost system performance, eliminating bottlenecks with peak bandwidths of up to 12.8 GB/s. Furthermore, this motherboard does not restrict the memory size across two channels. Users may install different memory size DIMMs into the two channels and enjoy dual-channel and single-channel functions at the same time. This new feature optimizes the use of available memory size. See page 2-13 for details.
1-2 Chapter 1: Product Introduction

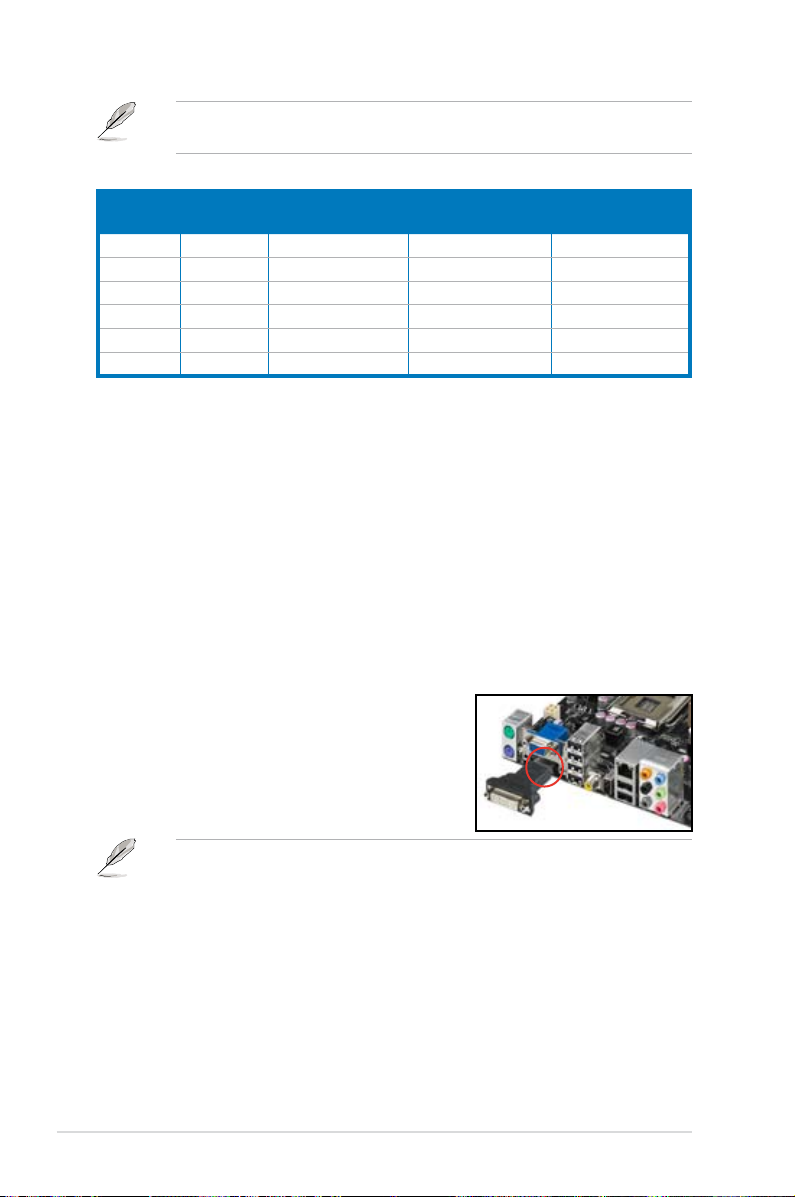

HDMI/DVI Interface
HDMI (High-Definition Multimedia Interface) is a set of digital video standards that delivers multi-channel audio and uncompressed digital video through a single cable for full HD 1080p visuals. Supporting HDCP copy protection such as HD DVD and Blu-ray Discs, HDMI provides you with the highest-quality home theater experience.
DVI (Digital Visual Interface) provides high quality visuals for digital display devices like LCD monitors. See pages 2-24 to 2-25 for details.
This motherboard is bundled with an HDMI-to-DVI conversion adaptor.
As the VGA driver for Windows® XP does not include screen scraper defense, HD-DVD and Blu-Ray can only run under Windows® Vista OS.
SPLENDID
ASUS exclusive Splendid Video Intelligence Technology carefully evaluates every pixel in every frame and dynamically adjusts them according to conditions most favorable to the human eye. With intelligent optimization of Contrast, Saturation, Hue, and Brightness, a delicate chipset engine built into ASUS motherboards delivers vivid colors and detailed images comparable to the very best visual experience. See pages 5-28 to 5-29 for details.
ASUS Splendid™ only supports D-sub VGA output with a resolution up to 1600x1200.
Dual Display
Allows you to utilize 2 monitors for increased multi-tasking work efficiency by not wasting time alt-tabbing between programs. You can easily work on 2 different applications in full screen mode and instantly double your desktop space. For example, you can browse your picture library thumbnails on one monitor and use the second to edit them; or browse the Internet / read emails on one while having a document open on the other. This motherboard supports dual VGA outputs for bothThis motherboard supports dual VGA outputs for both HDMI/DVI and RGB. See page 2-24 for details.See page 2-24 for details..
Serial ATA 3 Gb/s technology
This motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. The onboard Intel® ICH9R allows RAID 0, RAID 1, RAID 5, and RAID 10 configurations for six SATA connectors. See pages 2-27 to 2-28 for details.
ASUS P5E-VM HDMI
1-3
IEEE 1394a support
The IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices. See page 2-30 for details.
S/PDIF digital sound ready
This motherboard provides convenient connectivity to external home theater audio systems via the coaxial S/PDIF-out (SONY-PHILIPS Digital Interface) jack.It allows to transfer digital audio without converting to analog format and keeps the best signal quality. See pages 2-24 and 2-29 for details.
High Denition Audio
Enjoy high-end sound quality on your PC! The onboard 8-channel High Definition Audio CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing multi-channel network games. See pages 2-23 to 2-24, 5-11 to 5-14 for details.
Green ASUS
This motherboard and its packaging comply with the European Union’s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products/packaging to safeguard consumers’ health while minimizing the impact on the environment.
1.3.2 ASUS AI Exclusive features
ASUS Quiet Thermal Solution
ASUS Quiet Thermal solution makes system more stable and enhances the overclocking capability.
AI Gear 2
AI Gear 2 allows you to choose profiles to adjust the CPU frequency and Vcore voltage to minimize system noise and power consumption. You can change the mode in real-time in the operating system to max power saving mode and save up to 50% power when using word processing applications. See page 5-23 for details.
1-4 Chapter 1: Product Introduction
AI Nap
With AI Nap, the system can continue running at minimum power and noise when you are temporarily away. To wake the system and return to the OS environment, simply click the mouse or press a key. See page 5-24 for details.
Q-Fan 2
ASUS Q-Fan 2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation. See pages 2-31, 4-28, 4-29, and 5-26 for details.
ASUS Crystal Sound
This feature can enhance speech-centric applications like Skype, online game, video conference and recording.
Noise Filter
This feature detects repetitive and stationary noises (non-voice signals) like computer fans, air conditioners, and other background noises then eliminates it in the incoming audio stream while recording. See page 5-14 for details.
ASUS EZ DIY
ASUS EZ DIY feature collection provides you easy ways to install computer components, update the BIOS or back up your favorite settings.

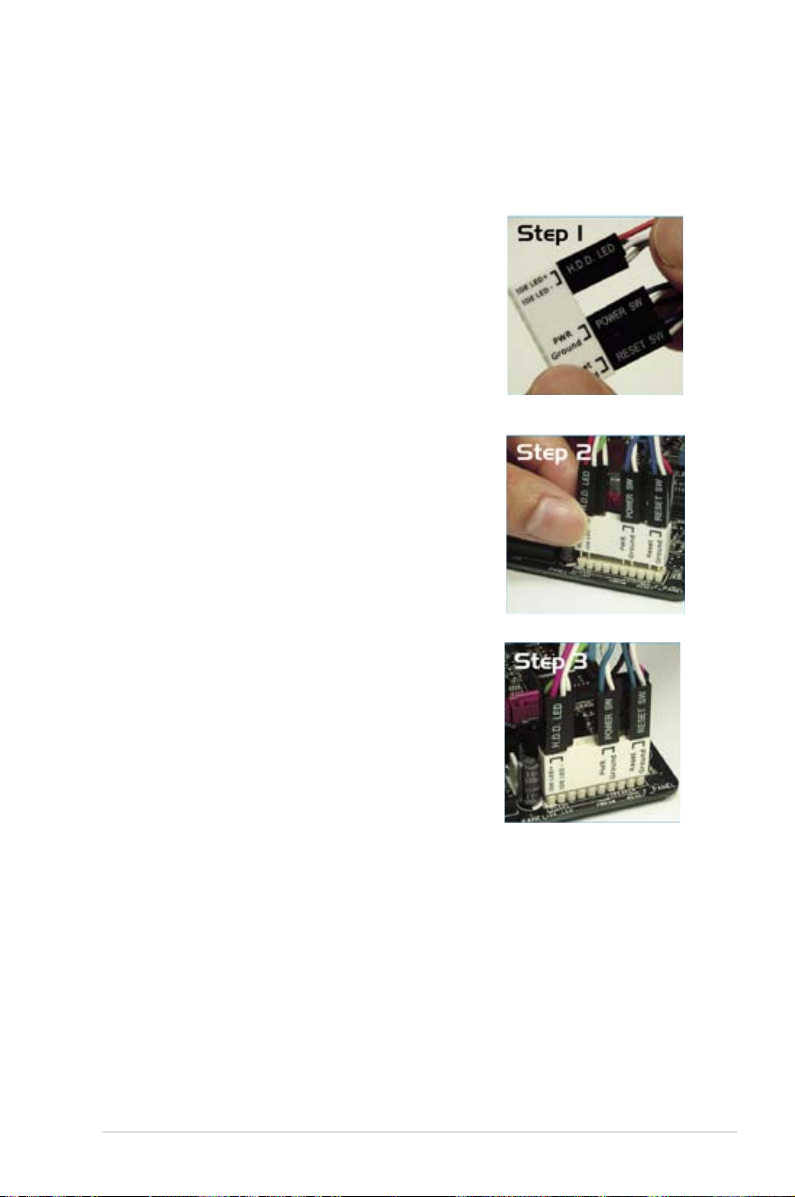

ASUS Q-Connector
ASUS Q-Connector allows you to easily connect or disconnect the chassis front panel cables to the motherboard. This unique module eliminates the trouble of connecting the system panel cables one at a time and avoiding wrong cable connections. See page 2-35 for details.
ASUS CrashFree BIOS 3
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. See page 4-8 for details.
ASUS EZ Flash 2
EZ Flash 2 is a user-friendly BIOS update utility. Simply press the predefined hotkey to launch the utility and update the BIOS without entering the OS. Update your BIOS easily without preparing a bootable diskette or using an OS-based flash utility. See pages 4-5 and 4-34 for details.
ASUS P5E-VM HDMI
1-5
ASUS AI Direct Link
AI Direct Link can easily and efficiently transfer large amounts of data via the network cable - saving up to 70% of the total time taken. With AI Direct Link, it becomes easy to backup or share large data files like movies or other media content. See page 5-30 for details.
1.3.3 ASUS Stylish features
ASUS MyLogo3™
This feature allows you to convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen. See pages 4-31, 5-9, and 5-10 for details.
Smart Support CD
It provides a checklist to allow the user to see which drivers are already installed, as well as those that aren’t. When using ASUS PC Probe II, you can easily see the critical parts of the computer. See pages 5-15 to 5-20 for details.
1.3.4 ASUS Intelligent Overclocking features
AI Booster
The ASUS AI Booster allows you to overclock the CPU speed in Windows environment without the hassle of booting the BIOS. See page 5-27 for details.
Precision Tweaker 2
Allows the user to adjust the NB Voltage, FSB termination Voltage, CPU PLL Voltage and the DRAM Voltage in 0.02v steps to finetune voltages to achieve the most precise setting for the ultimate customized overclocking configuration. See page 4-19 for details.
C.P.R. (CPU Parameter Recall)
The C.P.R. feature of the motherboard BIOS allows automatic re-setting to the BIOS default settings in case the system hangs due to overclocking. When the system hangs due to overclocking, C.P.R. eliminates the need to open the system chassis and clear the RTC data. Simply shut down and reboot the system, and the BIOS automatically restores the CPU default setting for each parameter. See pageSee page 2-22 for details.
1-6 Chapter 1: Product Introduction
This chapter lists the hardware setup procedures that you have to perform when installing system components. It includes description of the jumpers and connectors on the motherboard.
information
Hardware
2
Chapter summary
2
2.1 Before you proceed ..................................................................... 2-1
2.2 Motherboard overview ................................................................. 2-2
2.3 Central Processing Unit (CPU) ................................................... 2-6
2.4 System memory ......................................................................... 2-13
2.5 Expansion slots .......................................................................... 2-19
2.6 Jumper ........................................................................................ 2-22
2.7 Connectors ................................................................................. 2-23
ASUS P5E-VM HDMI
2.1 Before you proceed
P5E-VM HDMI
®
P5E-VM HDMI Onboard LED
SB_PWR
ON
Standby
Power
OFF
Powered
Off
Take note of the following precautions before you install motherboard components or change any motherboard settings.
Unplug the power cord from the wall socket before touching any component.
Use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, before handling components to avoid damaging them due to static electricity.
Hold components by the edges to avoid touching the ICs on them.
Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.
Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components.
Onboard LED
The motherboard comes with a standby power LED that lights up to indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should shut down the system and unplug the power cable before removing or plugging in any motherboard component. The illustration below shows the location of the onboard LED.
ASUS P5E-VM HDMI 2-1
P5E-VM HDMI
®
2.2 Motherboard overview
Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.
Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage motherboard components.
2.2.1 Placement direction
When installing the motherboard, make sure that you place it into the chassis in the correct orientation. The edge with external ports goes to the rear part of the chassis as indicated in the image below.
2.2.2 Screw holes
Place eight (8) screws into the holes indicated by circles to secure the motherboard to the chassis.
Do not overtighten the screws! Doing so can damage the motherboard.
Place this side towards the rear of the chassis
2-2 Chapter 2: Hardware information
2.2.3 Motherboard layout
PANEL
P5E-VM HDMI
®
AAFP
CHASSIS
24.5cm (9.6in)
24.5cm (9.6in)
CPU_FAN
DDR2 DIMM_A1 (64 bit,240-pin module)
DDR2 DIMM_A2 (64 bit,240-pin module)
FLOPPY
Super
I/O
CD
PCIEX16_1
CLRTC
SB_PWR
EATXPWR
CR2032 3V Lithium Cell
CMOS Power
CHA_FAN1
COM1
ATX12V
LGA775
Intel
®
G35
IE1394_2
PWR_FAN
Intel
®
ICH9R
PCIEX1_1
LAN1_USB12
KBMS
USB3-6
AUDIO
E1394
BIOS
DET_X16_1
DET_X1_1
USB910
DDR2 DIMM_B1 (64 bit,240-pin module)
DDR2 DIMM_B2 (64 bit,240-pin module)
ALC883
PRI_EIDE
PCI1
DET_PCI1
SPDIF_OUT
SATA1 SATA3 SATA5
VIA
VT6308P
ATHEROS
Attansic
ASM_2 ASM_1
HDMI
VGA
SPDIF_O1
PCIEX1_2
DET_X1_2
USB1112 USB78
SATA2 SATA4 SATA6
Silicon image
Refer to 2.7 Connectors for more information about rear panel connectors and internal connectors.
ASUS P5E-VM HDMI 2-3
2.2.4 Layout contents
Slots Page
1. DDR2 DIMM slots 2-13
2. PCI slots 2-21
3. PCI Express x 1 slots 2-21
4. PCI Express x16 slot 2-21
Jumper Page
1. Clear RTC RAM (3-pin CLRTC) 2-22
Rear panel connectors Page
1. PS/2 mouse port (green) 2-23
2. VGA port 2-23
3. LAN (RJ-45) port 2-23
4. Center/Subwoofer port (orange) 2-23
5. Rear Speaker Out port (black) 2-23
6. Line In port (light blue) 2-23
7. Line Out port (lime) 2-23
8. Microphone port (pink) 2-24
9. Side Speaker Out port (gray) 2-24
10. USB 2.0 ports 1 and 2 2-24
11. IEEE 1394a port 2-24
12. Coaxial S/PDIF Out port 2-24
13. USB 2.0 ports 3 -6 2-24
14. HDMI port 2-24
15. PS/2 keyboard port (purple) 2-25
2-4 Chapter 2: Hardware information
Internal connectors Page
1. Floppy disk drive connector (34-1 pin FLOPPY) 2-26
2. IDE connector (40-1 pin PRI_EIDE)) 2-26
3. IICH9R Serial ATA connectors (7-pin SATA1 [red], SATA2 [red], SATA3 [black], SATA4 [black], SATA5 [red], SATA6 [red])
4. Digital audio connector (4-1 pin SPDIF_OUT) 2-29
5. USB connectors (10-1 pin USB78, USB910, USB1112) 2-29
6. IEEE 1394a port connector (10-1 pin IE1394_2) 2-30
7. Optical drive audio connector (4-pin CD) 2-30

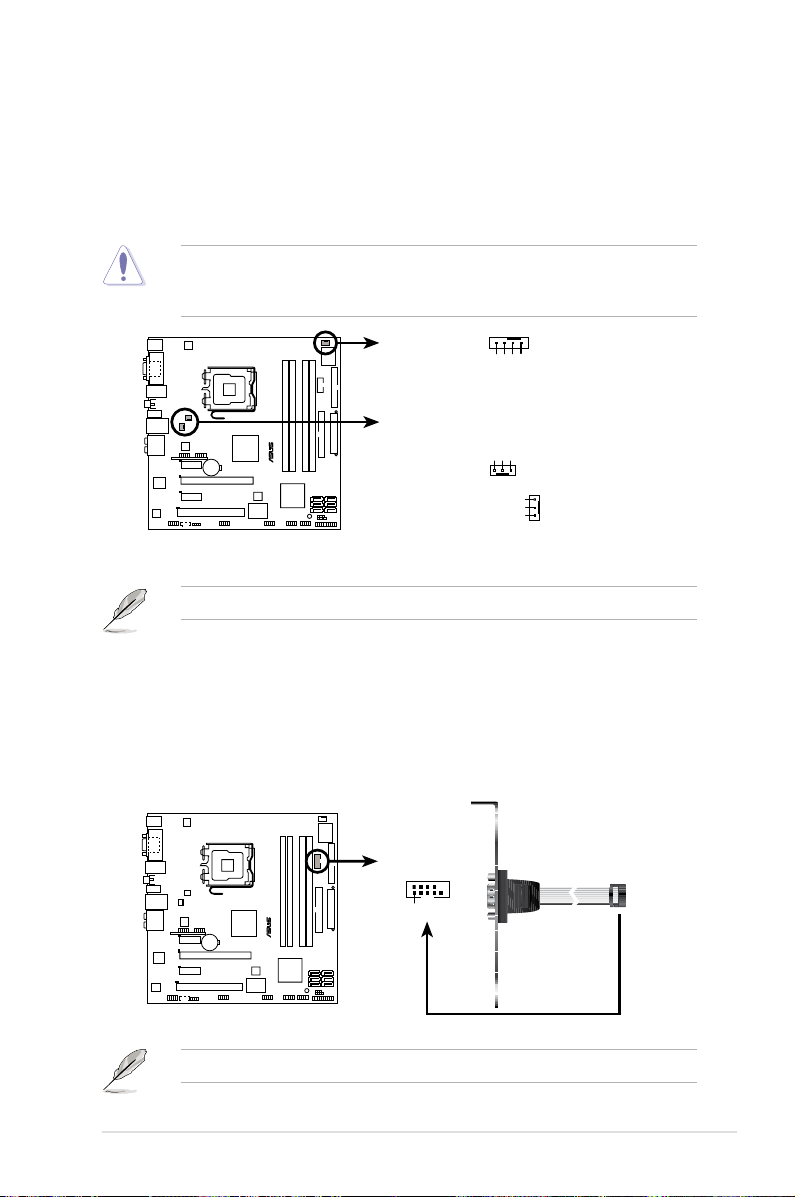

8. CPU, chassis and power fan connectors (4-pin CPU_FAN, 3-pin CHA_FAN1, 3-pin PWR_FAN)
9. Serial port connector (10-1 pin COM1) 2-31
10. Chassis intrusion connector (4-1 pin CHASSIS) 2-32
11. Front panel audio connector (10-1 pin AAFP) 2-32
12. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V) 2-33

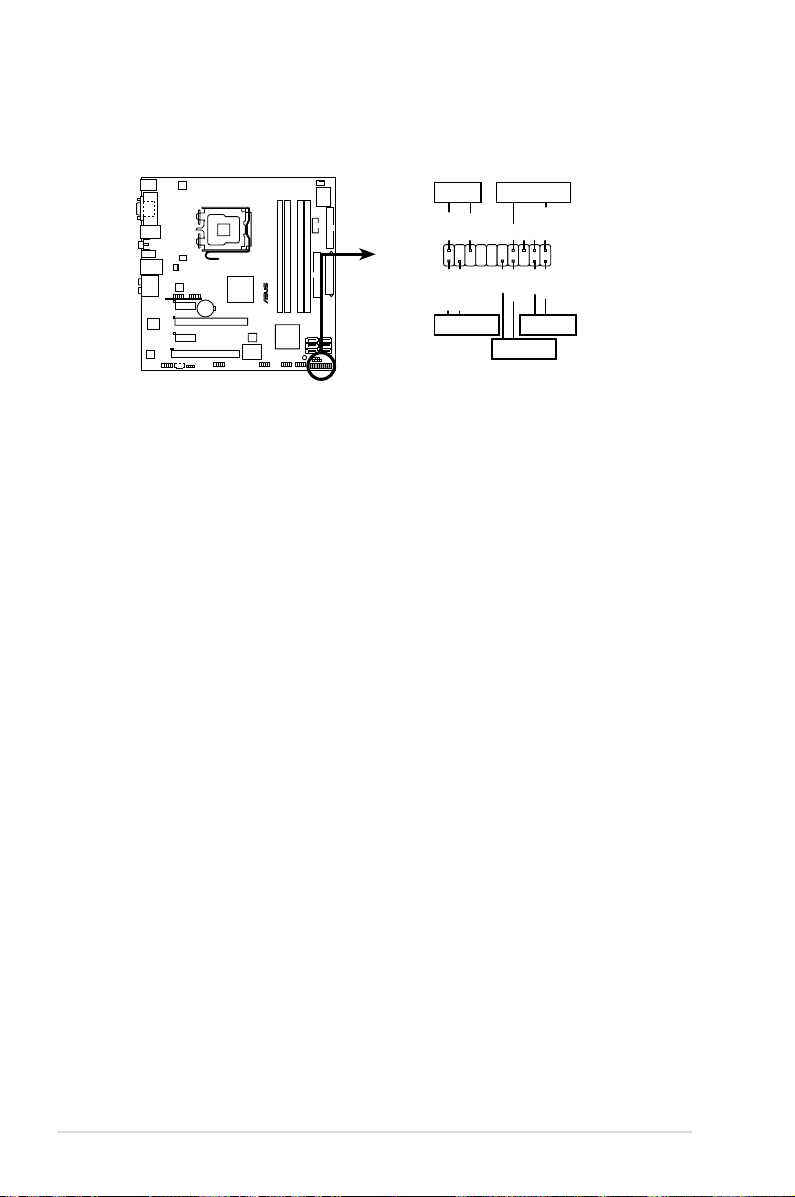

13. System panel connector (20-8 pin PANEL) 2-34
Q-Connector 2-35
2-27
2-31
ASUS P5E-VM HDMI 2-5
2.3 Central Processing Unit (CPU)
The motherboard comes with a surface mount LGA775 socket designed for the Intel® Core™2 Quad / Core™2 Extreme / Core™2 Duo / Pentium® Extreme / Pentium® D/ Pentium® 4 processors.
Make sure that all power cables are unplugged before installing the CPU.
Connect the chassis fan cable to the CHA_FAN1 connector to ensure system stability.
Upon purchase of the motherboard, make sure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. ASUS will shoulder the cost of repair only if the damage is shipment/transit-related.
Keep the cap after installing the motherboard. ASUS will process Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the LGA775 socket.
The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/ incorrect removal of the PnP cap.
2-6 Chapter 2: Hardware information
2.3.1 Installing the CPU
P5E-VM HDMI
®
P5E-VM HDMI CPU Socket 775
USB+5V
USB_P11-
USB_P11+
GND
To install a CPU:
1. Locate the CPU socket on the motherboard.
Before installing the CPU, make sure that the cam box is facing towards you and the load lever is on your left.
2. Press the load lever with your thumb (A), then move it to the left (B) until it is released from the retention tab.
Retention tab
Load lever
To prevent damage to the socket pins, do not remove the PnP cap unless you are installing a CPU.
3. Lift the load lever in the direction of the arrow to a 135º angle.
ASUS P5E-VM HDMI 2-7
A
B
PnP cap
This side of the socket box should face you.
4. Lift the load plate with your thumb and forefinger to a 100º angle (A), then push the PnP cap from the load plate window to remove (B).
Alignment key
5. Position the CPU over the socket, making sure that the gold triangle is on the bottom-left corner of the socket then fit the socket alignment key into the CPU notch.
The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the connectors on the socket and damaging the CPU!
CPU notch
Gold triangle mark
B
A
Load plate
6. Close the load plate (A), then
A
push the load lever (B) until it snaps into the retention tab.
7. If installing a dual-core CPU, connect the chassis fan cable
B
to the CHA_FAN1 connector to ensure system stability.
The motherboard supports Intel® LGA775 processors with the Intel® Enhanced Memory 64 Technology (EM64T), Enhanced Intel SpeedStep® Technology (EIST), and Hyper-Threading Technology. Refer to the Appendix for more information on these CPU features.
2-8 Chapter 2: Hardware information
2.3.2 Installing the CPU heatsink and fan
The Intel® LGA775 processor requires a specially designed heatsink and fan assembly to ensure optimum thermal condition and performance.
When you buy a boxed Intel® processor, the package includes the CPU fan and heatsink assembly. If you buy a CPU separately, make sure that you use only Intel®-certified multi-directional heatsink and fan.
Your Intel® LGA775 heatsink and fan assembly comes in a push-pin design and requires no tool to install.
If you purchased a separate CPU heatsink and fan assembly, make sure that you have properly applied Thermal Interface Material to the CPU heatsink or CPU before you install the heatsink and fan assembly.
Make sure that you have installed the motherboard to the chassis before you install the CPU fan and heatsink assembly.
To install the CPU heatsink and fan:
1. Place the heatsink on top of the installed CPU, making sure that the four fasteners match the holes on the motherboard.
Orient the heatsink and fan assembly such that the CPU fan cable is closest to the CPU fan connector.
Motherboard hole
Fastener
N a r r o w e n d of the groove
Make sure to orient each fastener with the narrow end of the groove pointing outward. (The photo shows the groove shaded for emphasis.)
ASUS P5E-VM HDMI 2-9
P5E-VM HDMI
®
P5E-VM HDMI CPU fan connector
CPU_FAN
GND
CPU FAN PWR
CPU FAN IN
CPU FAN PWM
2. Push down two fasteners at a time in a diagonal sequence to secure the heatsink and fan assembly in place.
B
A
A
A
B
B
A
B
3. Connect the CPU fan cable to the connector on the motherboard labeled CPU_FAN.
Do not forget to connect the CPU fan connector! Hardware monitoring errors can occur if you fail to plug this connector.
2-10 Chapter 2: Hardware information
2.3.3 Uninstalling the CPU heatsink and fan
To uninstall the CPU heatsink and fan:
1. Disconnect the CPU fan cable from the connector on the motherboard.
2. Rotate each fastener counterclockwise.
3. Pull up two fasteners at a time in a diagonal sequence to disengage the heatsink and fan assembly from the motherboard.
A
B
A
A
B
B
A
B
4. Carefully remove the heatsink and fan assembly from the motherboard.
ASUS P5E-VM HDMI 2-11
5. Rotate each fastener clockwise to ensure correct orientation when reinstalling.
The narrow end of the groove should point outward after resetting. (The photo shows the groove shaded for emphasis.)
Narrow end of the groove
Refer to the documentation in the boxed or stand-alone CPU fan package for detailed information on CPU fan installation.
2-12 Chapter 2: Hardware information
2.4 System memory
P5E-VM HDMI
®
P5E-VM HDMI 240-pin DDR2 DIMM sockets
DIMM_A2
DIMM_A1
DIMM_B2
DIMM_B1
2.4.1 Overview
The motherboard comes with four Double Data Rate 2 (DDR2) Dual Inline Memory Modules (DIMM) sockets.
The figure illustrates the location of the DDR2 DIMM sockets:
Channel Sockets
Channel A DIMM_A1 and DIMM_A2 Channel B DIMM_B1 and DIMM_B2
2.4.2 Memory congurations
You may install 256 MB, 512 MB, 1 GB, and 2 GB unbuffered non-ECC DDR2 DIMMs into the DIMM sockets.
Recommended Memory Congurations
Sockets
Populated
Mode
Single-Channel
DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2
Populated
Dual-channel (1) Populated Populated
Dual-channel (2) Populated Populated Populated Populated
ASUS P5E-VM HDMI 2-13
You may install varying memory sizes in Channel A and Channel B. The system maps the total size of the lower-sized channel for the dual-channel configuration. Any excess memory from the higher-sized channel is then mapped for single-channel operation.
Always install DIMMs with the same CAS latency. For optimum compatibility, it is recommended that you obtain memory modules from the same vendor.
If you install four 1 GB memory modules, the system may only recognize less than 3GB because the address space is reserved for other critical functions. This limitation appears on Windows® XP/Vista 32-bit operation system which does not support Physical Address Extension (PAE).
If you install Windows® XP/Vista 32-bit operation system, a total memory of less than 3GB is recommended.
Notes on memory limitations
Due to chipset limitation, this motherboard can only support up to 8 GB on the operating systems listed below. You may install a maximum of 2 GB DIMMs on each slot.
64-bit
Windows® XP Professional x64 Edition
Windows® Vista x64 Edition
Some old-version DDR2-800 DIMMs may not match Intel®’s On-Die-Termination (ODT) requirement and will automatically downgrade to run at DDR2-667. If this happens, contact your memory vendor to check the ODT value.
Due to chipset limitation, DDR2-800 with CL=4 will be downgraded to run at DDR2-667 by default setting. If you want to operate with lower latency, adjust the memory timing manually.
2-14 Chapter 2: Hardware information
P5E-VM HDMI Motherboard Qualied Vendors Lists (QVL) DDR2-800 MHz capability
Size Vendor Chip No. CL
512MB KINGSTON K4T51083QC 5 SEC SS KVR800D2N5/512
1024MB KINGSTON Heat-Sink Package 4-4-4-12 N/A DS KHX6400D2LL/1G
1024MB KINGSTON Heat-Sink Package 4-4-4-12 N/A SS KHX6400D2LLK2/1GN
1024MB KINGSTON V59C1512804QBF25 N/A N/A DS KVR800D2N5/1G
1024MB KINGSTON Heat-Sink Package N/A N/A SS KHX6400D2ULK2/1G
2048MB KINGSTON Heat-Sink Package N/A N/A DS KHX6400D2ULK2/2G
512MB Qimonda HYB18T512800BF25F 5-5-5 N/A SS HYS64T64000HU-25F-B
1024MB Qimonda HYB18T512800BF25F 5-5-5 N/A DS HYS64T128020HU-25F-B •
512MB SAMSUNG EDD339XX 5-5-5 N/A SS M378T6553CZ3-CE7
256MB SAMSUNG K4T51163QC-ZCE7 5-5-5 SAMSUNG SS M378T3354CZ3-CE7
512MB SAMSUNG ZCE7K4T51083QC 5-5-5 SEC SS M378T6553CZ3-CE7
1024MB SAMSUNG ZCE7K4T51083QC 5-5-5 SEC DS M378T2953CZ3-CE7
512MB Hynix HY5PS12821CFP-S5 5-5-5 Hynix SS HYMP564U64CP8-S5
1024MB Hynix HY5PS12821CFP-S5 5-5-5 Hynix DS HYMP512U64CP8-S5
512MB MICRON D9GKX N/A N/A SS MT8HTF6464AY-80ED4
1024MB MICRON D9GKX N/A N/A DS MT16HTF12864AY-80ED4 •
512MB CORSAIR Heat-Sink Package 5 N/A SS CM2X512A-6400
1024MB CORSAIR Heat-Sink Package 4 N/A DS CM2X1024-6400C4
1024MB ELPIDA E1108AB-8E-E(ECC) 5 ELPIDA SS EBE10EE8ABFA-8E-E
2048MB ELPIDA E1108AB-8E-E(ECC) 5 ELPIDA DS EBE21EE8ABFA-8E-E
512MB Crucial Heat-Sink Package 4 N/A SS BL6464AA804.8FD
512MB Crucial Heat-Sink Package 4 N/A SS BL6464AA804.8FD3
1024MB Crucial Heat-Sink Package 4 N/A DS BL12864AA804.16FD
1024MB Crucial Heat-Sink Package 4 N/A DS BL12864AL804.16FD3
1024MB Crucial Heat-Sink Package 4 N/A DS BL12864AA804.16FD3
512MB Apacer Heat-Sink Package 5 N/A DS AHU512E800C5K1C
1024MB Apacer Heat-Sink Package 5 N/A DS AHU01GE800C5K1C
512MB A-DATA AD29608A8A-25EG N/A N/A SS M2OAD6G3H3160G1E53 •
1024MB A-DATA AD26908A8A-25EG N/A N/A DS M2OAD6G3I4170I1E58
512MB KINGMAX KKA8FEIBF-HJK-25A N/A KINGMAX SS KLDC28F-A8KI5
1024MB KINGMAX KKA8FEIBF-HJK-25A N/A KINGMAX DS KLDD48F-ABKI5
512MB Transcend HY5PS12821CFP-S5 N/A Hynix SS TS64MLQ64V8J
1024MB Transcend HY5PS12821CFP-S5 N/A Hynix DS TS128MLQ64V8J
512MB Super Talent Heat-Sink Package N/A N/A SS T800UA12C4
1024MB Super Talent Heat-Sink Package N/A N/A DS T800UB1GC4
512MB NANYA NT5TU64M8BE-25C 5 NANYA SS NT512T64U880BY-25C
1024MB NANYA NT5TU64M8BE-25C 5 NANYA DS NT1GT64U8HB0BY-25C
512MB PSC A3R12E3HEF641B9A05 5 PSC SS AL6E8E63B8E1K
1024MB PSC A3R12E3HEF641B9A05 5 PSC DS AL7E8E63B-8E1K
256MB TwinMOS E2508AB-GE-E 5 ELPIDA SS 8G-24IK2-EBT
1024MB Elixir N2TU51280BE-25C N/A Elixir DS M2Y1G64TU8HB0B-25C
Chip Brand
SS/
DS
Part No.
DIMM support
A* B* C*
ASUS P5E-VM HDMI 2-15
P5E-VM HDMI Motherboard Qualied Vendors Lists (QVL) Motherboard Qualied Vendors Lists (QVL) DDR2-667MHz capability
SS/
Size Vendor Chip No. CL
512MB KINGSTON D6408TEBGGL3U 5 KINGSTON SS KVR667D2N5/512
1024MB KINGSTON D6408TEBGGL3U 5 KINGSTON DS KVR667D2N5/1G
256MB KINGSTON HYB18T256800AF3S 5 N/A SS KVR667D2N5/256
256MB KINGSTON 6SBI2D9DCG 5 MICRON SS KVR667D2N5/256
2048MB KINGSTON E1108AB-6E-E N/A ELPIDA DS KVR667D2N5/2G
512MB Qimonda HYB18T512800BF3S(ECC) 5-5-5 N/A SS HYS72T64000HU-3S-B
1024MB Qimonda HYB18T512800BF3S(ECC) 5-5-5 N/A DS HYS72T128020HU-3S-B
256MB Qimonda HYB18T512160BF-3S 5 INFINEON SS HYS64T32000HU-3S-B
512MB Qimonda HYB18T512800BF3S 5 N/A SS HYS64T64000HU-3S-B
1024MB Qimonda HYB18T512800BF3S 5 N/A DS HYS64T128020HU-3S-B
256MB SAMSUNG K4T51163QC-ZCE6 5 SAMSUNG SS M378T3354CZ0-CE6
512MB SAMSUNG ZCE6K4T51083QC 5 SEC SS M378T6553CZ0-CE6
1024MB SAMSUNG ZCE6K4T51083QC 5 SEC DS M378T2953CZ0-CE6
256MB SAMSUNG K4T51163QC-ZCE6 5 SAMSUNG SS M378T3354CZ3-CE6
512MB SAMSUNG K4T51083QC 5 SEC SS M378T6553CZ3-CE6
1024MB SAMSUNG ZCE6K4T51083QC 5 SEC DS M378T2953CZ3-CE6
512MB SAMSUNG K4T51163QE-ZCE6 5 SAMSUNG DS M378T3354EZ3-CE6
256MB SAMSUNG K4T51083QE 5 SAMSUNG SS M378T6553EZS-CE6
1024MB SAMSUNG K4T51083QE 5 SAMSUNG DS M378T2953EZ3-CE6
256MB Hynix HY5PS121621CFP-Y5 5 Hynix SS HYMP532U64CP6-Y5
1024MB Hynix HY5PS12821CFP-Y5 5 Hynix DS HYMP512U64CP8-Y5
256MB CORSAIR MIII00605 N/A N/A SS VS256MB667D2
512MB CORSAIR 64M8CFEG N/A N/A SS VS512MB667D2
1024MB CORSAIR 64M8CFEG N/A N/A DS VS1GB667D2
256MB ELPIDA E2508AB-6E-E 5 ELPIDA SS EBE25UC8ABFA-6E-E
512MB ELPIDA E5108AE-6E-E 5 ELPIDA SS EBE51UD8AEFA-6E-E
512MB A-DATA AD29608A8A-3EG 5 A-DATA SS M2OAD5G3H3166I1C52
1024MB A-DATA AD29608A8A-3EG 5 A-DATA DS M2OAD5G3I4176I1C52
2048MB A-DATA NT5TU128M8BJ-3C N/A N/A DS M2ONY5H3J4170I1C5Z
512MB crucial Heat-Sink Package 3 N/A SS BL6464AA663.8FD
1024MB crucial Heat-Sink Package 3 N/A DS BL12864AA663.16FD
1024MB crucial Heat-Sink Package 3 N/A DS BL12864AL664.16FD
1024MB crucial Heat-Sink Package 3 N/A DS BL12864AA663.16FD2
512MB Apacer AM4B5708GQJS7E0628F 5 APACER SS AU512E667C5KBGC
1024MB Apacer AM4B5708GQJS7E 5 APACER DS AU01GE667C5KBGC
512MB Transcend K4T51083QE N/A SAMSUNG SS TS64MLQ64V6J
1024MB Transcend K4T51083QE N/A SAMSUNG DS TS128MLQ64V6J
256MB Kingmax N2TU51216AG-3C 5 NANYA SS KLCB68F-36KH5
512MB Kingmax KKEA88B4LAUG-29DX 5 KINGMAX SS KLCC28F-A8KB5
1024MB Kingmax KKEA88B4LAUG-29DX 5 KINGMAX DS KLCD48F-A8KB5
512MB Super Talent Heat-Sink Package 5 N/A SS T6UA512C5
1024MB Super Talent Heat-Sink Package 5 N/A DS T6UB1GC5
512MB SMART G64M8XB3ITIX4TUE 5 SMART SS TB3D2667C58S
1024MB SMART G64M8XB3ITIX4TUE 5 SMART DS TB4D2667C58D
2048MB NANYA NT5TU128M8BJ-3C 5 NANYA DS NT2GT64U8HB0JY-3C
512MB NANYA NT5TU64M8BE-3C 5 NANYA SS NT512T64U88B0BY-3C
512MB PSC A3R12E3GEF637BLC5N 5 PSC SS AL6E8E63B-6E1K
Chip Brand
Part No.
DS
DIMM support
A* B* C*
2-16 Chapter 2: Hardware information
P5E-VM HDMI Motherboard Qualied Vendors Lists (QVL) Motherboard Qualied Vendors Lists (QVL) DDR2-667MHz capability
SS/
Size Vendor Chip No. CL
1024MB PSC A3R12E3GEF637BLC5N 5 PSC DS AL7E8E63B-6E1K
512MB TwinMOS E5108AE-GE-E 5 ELPIDA SS 8G-25JK5-EBT
512MB TwinMOS TMM6208G8M30C 5 TwinMOS SS 8D-23JK5M2ETP
Chip Brand
Part No.
DS
DIMM support
A* B* C*
P5E-VM HDMI Motherboard Qualied Vendors Lists (QVL) Motherboard Qualied Vendors Lists (QVL) DDR2-533MHz capability
SS/
Size Vendor Chip No. CL
256MB KINGSTON E5116AF-5C-E 4 ELPIDA SS KVR533D2N4/256
512MB KINGSTON HYB18T512800AF37 4 N/A SS KVR533D2N4/512
1024MB KINGSTON D6408TPAGGL3U N/A KINGSTON DS KVR533D2N4/1G
2048MB KINGSTON E1108AB-6E-E N/A ELPIDA DS KVR533D2N4/2G
512MB Qimonda HYB18T512800BF37 4-4-4 N/A SS HYS64T64000HU-3.7-B
1024MB Qimonda HYB18T512800BF37 4-4-4 N/A DS HYS64T128020HU-3.7-B •
256MB SAMSUNG K4T51163QC-ZCD5 4-4-4 SAMSUNG SS M378T3354CZ3-CD5
512MB SAMSUNG ZCD5K4T51083QC 4-4-4 SEC SS M378T6553CZ3-CD5
1024MB SAMSUNG ZCD5K4T51083QC 4-4-4 SEC DS M378T2953CZ3-CD5
256MB Hynix HY5PS121621CFP-C4 4-4-4 Hynix SS HYMP532U64CP6-C4
1024MB Hynix HY5PS12821CFP-C4 4-4-4 Hynix DS HYMP512U64CP8-C4
256MB CORSAIR 32M16CEDG N/A CORSAIR SS VS256MB533D2
512MB CORSAIR MI110052432M8CEC N/A CORSAIR DS VS512MB533D2
1024MB CORSAIR 64M8CEDG N/A CORSAIR DS VS1GB533D2
512MB ELPIDA E5108AB-5C-E(ECC) 5 ELPIDA SS EBE51ED8ABFA-5C-E
512MB ELPIDA E5108AB-5C-E 4 ELPIDA SS EBE51UD8ABFA-5C
512MB ELPIDA E5108AB-5C-E 4 ELPIDA SS EBE51UD8ABFA-5C-E
1024MB ELPIDA E5108AB-5C-E 4 ELPIDA DS EBE11UD8ABFA-5C-E
512MB KINGMAX E5108AE-5C-E 4 ELPIDA SS KLBC28F-A8EB4
1024MB KINGMAX E5108AE-5C-E 4 ELPIDA DS KLBD48F-A8EB4
512MB KINGMAX KKEA88E4AAK-37 4 KINGMAX SS KLBC28F-A8KE4
1024MB KINGMAX 5MB22D9DCN 4 MICRON DS KLBD48F-A8ME4
512MB Apacer AM4B5708GQJS5D N/A N/A SS AU512E533C4KBGC
1024MB Apacer AM4B5708GQJS5D N/A N/A DS AU01GE533C4KBGC
512MB Super Talent Heat-Sink Package 4 N/A SS T5UA512C4
1024MB Super Talent Heat-Sink Package 4 N/A DS T5UB1G8C4
1024MB PQI 64MX8D2-E 4 PQI DS MEAB-323LA
512MB PQI 64MX8D2-E 4 PQI SS MEAB-423LA
Chip Brand
Part No.
DS
SS - Single-sided DS - Double-sided DIMM support: A - Supports one module inserted into either slot as Single-channel memory configuration. B - Supports two modules inserted into either the yellow slots or the black slots as one pair of
Dual-channel memory configuration.
C - Supports four modules inserted into the yellow slots and the black slots as two pairs of
Dual-channel memory configuration.
DIMM support
A* B* C*
Visit the ASUS website for the latest DDR2-800/667/533 MHz QVL.
ASUS P5E-VM HDMI 2-17
2.4.3 Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other system components. Failure to do so can cause severe damage to both the motherboard and the components.
To install a DIMM:
1. Unlock a DIMM socket by pressing the retaining clips outward.
2. Align a DIMM on the socket such that the notch on the DIMM matches the break on the socket.
3. Firmly insert the DIMM into the socket until the retaining clips snap back in place and the DIMM is properly seated.
A DDR2 DIMM is keyed with a notch so that it fits in only one direction. DO NOT force a DIMM into a socket to avoid damaging the DIMM.
The DDR2 DIMM sockets do not support DDR DIMMs. DO NOT install DDR DIMMs to the DDR2 DIMM sockets.
2.4.4 Removing a DIMM
To remove a DIMM:
1. Simultaneously press the retaining clips outward to unlock the DIMM.
2
3
1
DDR2 DIMM notch
1
Unlocked retaining clip
2
Support the DIMM lightly with your fingers when pressing the retaining clips. The DIMM might get damaged when it flips out with extra force.
1
DDR2 DIMM notch
1
2. Remove the DIMM from the socket.
2-18 Chapter 2: Hardware information
2.5 Expansion slots
In the future, you may need to install expansion cards. The following sub-sections describe the slots and the expansion cards that they support.
Make sure to unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components.
2.5.1 Installing an expansion card
To install an expansion card:
1. Before installing the expansion card, read the documentation that came with it and make the necessary hardware settings for the card.
2. Remove the system unit cover (if your motherboard is already installed in a chassis).
3. Remove the bracket opposite the slot that you intend to use. Keep the screw for later use.
4. Align the card connector with the slot and press firmly until the card is completely seated on the slot.
5. Secure the card to the chassis with the screw you removed earlier.
6. Replace the system cover.
2.5.2 Conguring an expansion card
After installing the expansion card, configure it by adjusting the software settings.
1. Turn on the system and change the necessary BIOS settings, if any. See Chapter 4 for information on BIOS setup.
2. Assign an IRQ to the card. Refer to the tables on the next page.
3. Install the software drivers for the expansion card.
When using PCI cards on shared slots, ensure that the drivers support “Share IRQ” or that the cards do not need IRQ assignments. Otherwise, conflicts will arise between the two PCI groups, making the system unstable and the card inoperable. Refer to the table on the next page for details.
ASUS P5E-VM HDMI 2-19
2.5.3 Interrupt assignments
IRQ Priority Standard function
0 1 System timer 1 2 2 3 11 IRQ holder for PCI steering* 4 12 Communications port (COM1)* 5 13 IRQ holder for PCI steering* 6 14 Floppy disk controller 7 15 Printer port (LPT1)* 8 3 System CMOS/Real Time Clock
9 4 IRQ holder for PCI steering* 10 5 IRQ holder for PCI steering* 11 6 IRQ holder for PCI steering* 12 7 IRQ holder for PCI steering* 13 8 Numeric data processor 14 9 Primary IDE channel 15 10 Secondary IDE channel
* These IRQs are usually available for PCI devices.
IRQ assignments for this motherboard
PCI slot 1 shared – PCI slot 2 shared – LAN (Marvell8056) shared – PATA (368) shared – PCIE x16_1 shared – PCIE x1_1 shared – PCIE x1_2 shared – USB controller 0 shared USB controller 1 shared – USB controller 2 shared – USB controller 3 shared – USB controller 4 shared – USB controller 5 shared – USB 2.0 controller 1 shared USB 2.0 controller 2 shared – SATA controller 1 shared – SATA controller 2 shared – VIA 1394 shared – Azalia shared
Keyboard controller
Re-direct to IRQ#9
A B C D E F G H
2-20 Chapter 2: Hardware information
2.5.4 PCI slot
The PCI slot support cards such as a LAN card, SCSI card, USB card, and other cards that comply with PCI specifications. Refer to the figure below for the location of the slot.
2.5.5 PCI Express x1 slots
This motherboard supports PCI Express x1 network cards, SCSI cards and other cards that comply with the PCI Express specifications. Refer to the figure below for the location of the slots.
2.5.6 PCI Express x16 slot
This motherboard has one PCI Express x16 slot that supports a PCI Express x16 graphics card complying with the PCI Express specifications. Refer to the figure below for the location of the slot.
PCI Express x1 slot
PCI Express x16 slot
ASUS P5E-VM HDMI 2-21
PCI slot
PCI Express x1 slot
2.6 Jumper
P5E-VM HDMI
®
P5E-VM HDMI Clear RTC RAM
CLRTC
Normal
(Default)
Clear RTC
1 2 2 3
1. Clear RTC RAM (3-pin CLRTC)
This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Remove the onboard battery.
3. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5~10 seconds, then move the cap back to pins 1-2.
4. Reinstall the battery.
5. Plug the power cord and turn ON the computer.
6. Hold down the <Del> key during the boot process and enter BIOS setup to re-enter data.
Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure!
Yo u do no t nee d to cl ear the RT C when th e s ys tem hangs due t o overclocking. For system failure due to overclocking, use the C.P.R. (CPU Parameter Recall) feature. Shut down and reboot the system so the BIOS can automatically reset parameter settings to default values.
Due to the chipset behavior, AC power off is required to enable C.P.R. function. You must turn off and on the power supply or unplug and plug the power cord before rebooting the system.
2-22 Chapter 2: Hardware information
2.7 Connectors
3 4896 75
1013
12 11
1
15
2
14
2.7.1 Rear panel connectors
1. PS/2 mouse port (green)PS/2 mouse port (green). This port is for a PS/2 mouse.
2. VGA port. This port is for a VGA monitor or other VGA-compatible devices.
Due to the Intel® VGA driver issue, display setting menu will show some resolution values that monitor does not support. When users choose the resolution setting that monitor does not support, this would lead to monitor black out. You can just wait 15 seconds for the system to return to the original setting or restart system and press F8 to enter safe mode. While in safe mode, change the display setting to 800x600, then restart the system and adjust the right setting for your monitor.
3. LAN (RJ-45) port. Supported by Gigabit LAN controller, this port allows
Gigabit connection to a Local Area Network (LAN) through a network hub. Refer to the table below for the LAN port LED indications.
LAN port LED indications
LED
LAN port
SPEED
LED
Activity/Link LED Speed LED Status Description Status Description
OFF No link OFF 10 Mbps connection ORANGE Linked ORANGE 100 Mbps connection BLINKING Data activity GREEN 1 Gbps connection
4. Center/Subwoofer port (orange).
This port connects the center/subwoofer
ACT/LINK
speakers.
5. Rear Speaker Out port (black).
This port connects the rear speakers in a
4-channel, 6-channel, or 8-channel audio configuration.
6. Line In port (light blue).
This port connects the tape, CD, DVD player, or
other audio sources.
7. Line Out port (lime). This port connects a headphone or a speaker. In
4-channel, 6-channel, and 8-channel configuration, the function of this port becomes Front Speaker Out.
ASUS P5E-VM HDMI 2-23
Refer to the audio configuration table below for the function of the audio ports in 2, 4, 6, or 8-channel configuration.
Audio 2, 4, 6, or 8-channel conguration
Port
Light Blue Line In Line In Line In Line In Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out Pink Mic In Mic In Mic In Mic In Orange Center/Subwoofer Center/Subwoofer Black Rear Speaker Out Rear Speaker Ou Rear Speaker Out Gray Side Speaker Out
8. Microphone port (pink). This port connects a microphone.
9. Side Speaker Out port (gray). This port connects the side speakers in an
10. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports
11. IEEE1394a port. This 6-pin IEEE 1394a port provides high-speedThis 6-pin IEEE 1394a port provides high-speed
12. Coaxial S/PDIF Out port. This port connects an external audio output device
13. USB 2.0 ports 3-6. These two 4-pin Universal Serial Bus (USB) ports are
14. HDMI portHDMI port. This port is for a high-definition
Headset 2-channel
4-channel 6-channel 8-channel
8-channel audio configuration.
are available for connecting USB 2.0 devices.
connectivity for audio/video devices, storage peripherals, PCs, or portable devices..
via a coaxial S/PDIF cable.
available for connecting USB 2.0 devices.
multimedia interface (HDMI) connector.
This motherboard comes with dual-VGA outputs that features different displays on 2 monitors at the same time if you connect 2 monitors to both
the onboard VGA and HDMI ports.
With the bundled HDMI-to-DVI conversion adapter, this motherboard can also support DVI output.
Due to the IntelDue to the Intel® VGA driver issue, display setting menu will show some resolution values that monitor does not support. When you choose the resolution setting that monitor does not support, this would lead to monitor black out. You can just wait 15 seconds for the system to return to the original setting or restart system and press F8 to enter safe mode. While in safe mode, change the display setting to 800x600, then restart the system and adjust the right setting for your monitor.
2-24 Chapter 2: Hardware information
Due to Intel® driver issue, some monitor resolution settings will lead to monitor overscan and underscan. This situation will be improved after the driver is updated later.
To play HD DVD or Blu-Ray Disc, make sure to use an HDCP compliant monitor.
As the VGA driver for Windows® XP does not include screen scraper defense, HD-DVD and Blu-Ray can only run under Windows® Vista OS.
Playback of HD DVD and Blu-Ray Discs The speed and bandwidth of the CPU/Memory, DVD player, and drivers will affect the playback quality. Following is a configuration example for your reference. Using the CPU/Memory of higher speed and bandwidth with the higher-version DVD player and drivers will upgrade the playback quality.
CPU: Intel Core 2 Duo 2.4GHz DIMM: DDR2-800 1GB Playback software - CyberLink PowerDVD Ultra v7.14
15. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
ASUS P5E-VM HDMI 2-25
2.7.2 Internal connectors
P5E-VM HDMI
®
P5E-VM HDMI Floppy disk drive connector
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.
PIN 1
FLOPPY
P5E-VM HDMI
®
P5E-VM HDMI IDE connector
NOTE: Orient the red markings
(usually zigzag) on the IDE ribbon cable to PIN 1.
PRI_EIDE
PIN 1
1. Floppy disk drive connector (34-1 pin FLOPPY)
This connector is for the provided floppy disk drive (FDD) signal cable. Insert one end of the cable to this connector, then connect the other end to the signal connector at the back of the floppy disk drive.
Pin 5 on the connector is removed to prevent incorrect cable connection when using a FDD cable with a covered Pin 5.
2. IDE connector (40-1 pin PRI_EIDE)
The onboard IDE connector is for the Ultra DMA 133/100/66 signal cable. There are three connectors on each Ultra DMA 133/100/66 signal cable: blue, black, and gray. Connect the blue connector to the motherboard’s IDE connector, then select one of the following modes to configure your device.
Drive jumper setting Mode of
Single device Cable-Select or Master - Black
Two devices Cable-Select Master
Master Master Black or gray
device(s)
Slave Gray
Cable connector
Black
Slave Slave
2-26 Chapter 2: Hardware information
Pin 20 on the IDE connector is removed to match the covered hole on the
P5E-VM HDMI
®
P5E-VM HDMI SATA connectors
SATA1
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
SATA3
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXP3
RSATA_RXN3
GND
GND
RSATA_TXP5
RSATA_TXN5
GND
RSATA_RXP5
RSATA_RXN5
GND
SATA5
SATA2
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
SATA4
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXP4
RSATA_RXN4
GND
GND
RSATA_TXP6
RSATA_TXN6
GND
RSATA_RXP6
RSATA_RXN6
GND
SATA6
Ultra DMA cable connector. This prevents incorrect insertion when you connect the IDE cable.
Use the 80-conductor IDE cable for Ultra DMA 133/100/66 IDE devices.
If any device jumper is set as “Cable-Select,” make sure all other device jumpers have the same setting.
3. ICH9R Serial ATA connectors (7-pin SATA1 [red], SATA2 [red], SATA3 [black], SATA4 [black], SATA5 [red], SATA6 [red])
These connectors are for the Serial ATA signal cables for Serial ATA hard disk drives.
If you installed Serial ATA hard disk drives, you can create a RAID 0, RAID 1, RAID 5, and RAID 10 configuration with the Intel® Matrix Storage Technology through the onboard Intel® ICH9R RAID controller.
These connectors are set to Standard IDE mode by default. In Standard IDE mode, you can connect Serial ATA boot/data hard disk drives to these connectors. If you intend to create a Serial ATA RAID set using these connectors, set the Congure SATA as item in the BIOS to [RAID]. See section 4.3.6 SATA Conguration for details.
Before creating a RAID set, refer to 5.4.3 Intel RAID Conguration or the
ASUS P5E-VM HDMI 2-27
manual bundled in the motherboard support CD.
You must install the Windows® XP Service Pack 1 or later version before using Serial ATA hard disk drives. The Serial ATA RAID feature (RAID 0, RAID 1, RAID 5, and RAID 10) is available only if you are using Windows XP or later version.
When using the connectors in Standard IDE mode, connect the primary (boot) hard disk drive to the SATA1/2/5/6 connector. Refer to the table below for the recommended SATA hard disk drive connections.
Serial ATA hard disk drive connection
Connector Color Setting Use
SATA1/2/5/6 Red Master Boot disk
SATA3/4 Black Slave Data Disk
®
Connect the right-angle side of SATA signal cable to SATA device. Or you may connect the right-angle side of SATA cable to the onboard SATA port to avoid mechanical conflict with huge graphics cards.
right angle side
2-28 Chapter 2: Hardware information
4. Digital audio connector (4-1 pin SPDIF_OUT)4-1 pin SPDIF_OUT))
P5E-VM HDMI
®
P5E-VM HDMI Digital audio connector
+5V
SPDIFOUT
GND
SPDIF_OUT
P5E-VM HDMI
®
P5E-VM HDMI USB 2.0 connectors
USB910
USB+5V
USB_P10-
USB_P10+
GND
NC
USB+5V
USB_P9-
USB_P9+
GND
PIN1
USB+5V
USB_P12-
USB_P12+
GND
NC
USB+5V
USB_P11-
USB_P11+
GND
PIN1
USB+5V
USB_P8-
USB_P8+
GND
NC
USB+5V
USB_P7-
USB_P7+
GND
PIN1
USB1112
USB78
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port(s). Connect the S/PDIF module cable to this connector, then install the module to a slot opening at the back of the system chassis.
The S/PDIF Out module is purchased separately.
5. USB connectors (10-1 pin USB78, USB 910, USB1112)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then install the module to a slot opening at the back of the system chassis. These USB connectors comply with USB 2.0 specification that supports up to 480 Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!
You can connect the front panel USB cable to the ASUS Q-Connector (USB, blue) first, and then install the Q-Connector (USB) to the USB connector onboard if your chassis supports front panel USB ports.
ASUS P5E-VM HDMI 2-29
The USB module cable is purchased separately.
6. IEEE 1394a port connector (10-1 pin IE1394_2)
P5E-VM HDMI
®
P5E-VM HDMI IEEE 1394a connector
IE1394_2
PIN1
TPA2-
GND
TPB2-
+12V
GND
TPA2+
GND
TPB2+
+12V
P5E-VM HDMI
®
P5E-VM HDMI Internal audio connector
CD
Right Audio Channel
Left Audio Channel
Ground
Ground
This connector is for a IEEE 1394a port. Connect the IEEE 1394a module cable to this connector, then install the module to a slot opening at the back of the system chassis.
Never connect a USB cable to the IEEE 1394a connector. Doing so will damage the motherboard!
You can connect the front panel 1394 cable to the ASUS Q-Connector (1394, red) first, and then install the Q-Connector (1394) to the 1394 connector onboard if your chassis supports front panel 1394 ports.
The IEEE 1394a module cable is purchased separately.
7. Optical drive audio connector (4-pin CD)
These connectors allow you to receive stereo audio input from sound sources such as a CD-ROM, TV tuner, or MPEG card.
2-30 Chapter 2: Hardware information
8. CPU, chassis, and power fan connectors
P5E-VM HDMI
®
P5E-VM HDMI Fan connectors
CPU_FAN
CHA_FAN1
PWR_FAN
GND
CPU FAN PWR
CPU FAN IN
CPU FAN PWM
GND
Rotation
+12V
GND
Rotation
+12V
P5E-VM HDMI
®
P5E-VM HDMI COM port connector
PIN 1
COM1
(4-pin CPU_FAN, 3-pin CHA_FAN1, 3-pin PWR_FAN)
The fan connectors support cooling fans of 350 mA~2000 mA (24 W max.) or a total of 1 A~7 A (84 W max.) at +12V. Connect the fan cables to the fan connectors on the motherboard, making sure that the black wire of each cable matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan connectors!
Only the CPU-FAN connectors support the ASUS Q-FAN 2 feature.
9. Serial port connector (10-1 pin COM1)
This connector is for a serial (COM) port. Connect the serial port module cable to this connector, then install the module to a slot opening at the back of the system chassis.
ASUS P5E-VM HDMI 2-31
The serial port module is purchased separately.
10. Chassis intrusion connector (4-1 pin CHASSIS)
P5E-VM HDMI
®
P5E-VM HDMI Chassis intrusion connector
CHASSIS
+5VSB_MB
Chassis Signal
GND
(Default)
P5E-VM HDMI
®
P5E-VM HDMI Analog front panel connector
AAFP
Legacy AC ‘97 audio pin definition
SENSE2_RETUR
PORT1 L
PORT2 R
PORT2 L
SENSE1_RETUR
SENSE_SEND
PORT1 RPRESENCE#
GND
NC
MIC2
Line out_R
Line out_L
NC
NC
MICPWRNC
AGND
HD Audio-compliant pin definition
This connector is for a chassis-mounted intrusion detection sensor or switch. Connect one end of the chassis intrusion sensor or switch cable to this connector. The chassis intrusion sensor or switch sends a high-level signal to this connector when a chassis component is removed or replaced. The signal is then generated as a chassis intrusion event.
By default, the pin labeled “Chassis Signal” and “Ground” are shorted with a jumper cap. Remove the jumper caps only when you intend to use the chassis intrusion detection feature.
11. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel audio I/O module cable to this connector.
We recommend that you connect a high-definition front panel audio module
to this connector to avail of the motherboard’s high-definition audio capability.
If you want to connect a high-definition front panel audio module to this
connector, set the Front Panel Type item in the BIOS setup to [HD Audio]; if you want to connect an AC'97 front panel audio module to this connector, set the item to [AC'97]. By default, this connector is set to [HD Audio]. See section 4.4.5 Onboard Devices Conguration for details.
2-32 Chapter 2: Hardware information
12. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)
P5E-VM HDMI
®
P5E-VM HDMI ATX power connectors
EATXPWR
+3 Volts
+3 Volts
Ground
+5 Volts
+5 Volts
Ground
Ground
Power OK
+5V Standby
+12 Volts
-5 Volts
+5 Volts
+3 Volts
-12 Volts
Ground
Ground Ground PSON#
Ground
+5 Volts
+12 Volts
+3 Volts
+5 Volts
Ground
ATX12V
+12V DC
GND
+12V DC GND
These connectors are for ATX power supply plugs. The power supply plugs are designed to fit these connectors in only one orientation. Find the proper orientation and push down firmly until the connectors completely fit.
For a fully configured system, we recommend that you use a power supply
unit (PSU) that complies with ATX 12V Specification 2.0 (or later version) and provides a minimum power of 400 W.
Do not forget to connect the 4-pin ATX12V power plug; otherwise, the system will not boot.
Use of a PSU with a higher power output is recommended when configuring a system with more power-consuming devices. The system may become unstable or may not boot up if the power is inadequate.
If you are uncertain about the minimum power supply requirement for your system, refer to the Recommended Power Supply Wattage Calculator at http://support.asus.com/PowerSupplyCalculator/PSCalculator. aspx?SLanguage=en-us for details.
• The ATX12V Specification 2.0-compliant (400W) PSU has been tested to support the motherboard power requirements with the following configuration:
CPU: Intel® Pentium® Extreme 3.73GHz Memory: 512 MB DDR2 (x4) Graphics card: ASUS EAX1900XT Parallel ATA device: IDE hard disk drive Serial ATA device: SATA hard disk drive (x2) Optical drive: DVD-RW
ASUS P5E-VM HDMI 2-33
13. System panel connector (20-8 pin PANEL)
P5E-VM HDMI
®
P5E-VM HDMI System panel connector
* Requires an ATX power supply.
PANEL
PLED-
PWR
+5V
Speaker
Ground
RESET
Ground
Reset
Ground
Ground
PWRSW
PLED+
IDE_LED-
IDE_LED+
IDE_LED
PLED SPEAKER
This connector supports several chassis-mounted functions.
System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.
Hard disk drive activity LED (2-pin IDE_LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable to this connector. The IDE LED lights up or flashes when data is read from or written to the HDD.
System warning speaker (4-pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings.
ATX power button/soft-off button (2-pin PWRSW)
This connector is for the system power button. Pressing the power button turns the system on or puts the system in sleep or soft-off mode depending on the BIOS settings. Pressing the power switch for more than four seconds while the system is ON turns the system OFF.
Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off the system power.
2-34 Chapter 2: Hardware information
Q-Connector (system panel)
You can use ASUS Q-Connector to connect / disconnect chassis front panel
cables by only a few steps. Directions below shows how to install ASUS Q­Connector.
Step1.
Connect correct front panel to ASUS Q-
Connector first. You can refer to the marking on Q-Connector itself to know the detail pin definition.
Step2.
Properly install the ASUS Q-Connector to the
System panel connctor.
Step3.
Front panel functions are enabled.
ASUS P5E-VM HDMI 2-35
2-36 Chapter 2: Hardware information
This chapter describes the power up sequence, the vocal POST messages, and ways of shutting down the system.
Powering up
3
Chapter summary
3
3.1 Starting up for the rst time ........................................................ 3-1
3.2 Turning off the computer ............................................................. 3-2
ASUS P5E-VM HDMI
3.1 Starting up for the rst time
1. After making all the connections, replace the system case cover.
2. Be sure that all switches are secured.
3. Connect the power cord to the power connector at the back of the system chassis.
4. Connect the power cord to a power outlet that is equipped with a surge protector.
5. Turn on the devices in the following order:
a. Monitor
b. External SCSI devices (starting with the last device on the chain)
c. System power
6. After applying power, the system power LED on the system front panel case lights up. For systems with ATX power supplies, the system LED lights up when you press the ATX power button. If your monitor complies with “green” standards or if it has a “power standby” feature, the monitor LED may light up or switch between orange and green after the system LED turns on.
The system then runs the power-on self tests or POST. While the tests are
running, the BIOS beeps (see BIOS beep codes table below) or additional messages appear on the screen. If you do not see anything within 30 seconds from the time you turned on the power, the system may have failed a power-on test. Check the jumper settings and connections or call your retailer for assistance.
AMI BIOS beep codes
BIOS Beep Description
One short beep VGA detected
One continuous beep followed by two short beeps then a pause (repeated)
One continuous beep followed by three short beeps
One continuous beep followed by four short beeps
Quick boot set to disabled No keyboard detected
No memory detected
No VGA detected
Hardware component failure
7. At power on, hold down the <Delete> key to enter the BIOS Setup. Follow the instructions in Chapter 4.
ASUS P5E-VM HDMI
3-1
3.2 Turning off the computer
3.2.1 Using the OS shut down function
If you are using Windows® XP:
1. Click the Start button then select Turn Off Computer.
2. Click the Turn Off button to shut down the computer.
3. The power supply should turn off after Windows® shuts down.
If you are using Windows® Vista:
1. Click the Start button then select ShutDown.
2. The power supply should turn off after Windows® shuts down.
3.2.2 Using the dual function power switch
While the system is ON, pressing the power switch for less than four seconds puts the system to sleep mode or to soft-off mode, depending on the BIOS setting. Pressing the power switch for more than four seconds lets the system enter the soft-off mode regardless of the BIOS setting. Refer to section Chapter 4 for details.
4.5 Power Menu
in
3-2 Chapter 3: Powering up
This chapter tells how to change the system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided.
BIOS setup
4
Chapter summary
4
4.1 Managing and updating your BIOS ............................................ 4-1
4.2 BIOS setup program .................................................................... 4-9
4.3 Main menu .................................................................................. 4-12
4.4 Advanced menu ......................................................................... 4-16
4.5 Power menu ................................................................................ 4-26
4.6 Boot menu .................................................................................. 4-30
4.7 Tools menu ................................................................................. 4-34
4.8 Exit menu .................................................................................... 4-36
ASUS P5E-VM HDMI
4.1 Managing and updating your BIOS
The following utilities allow you to manage and update the motherboard Basic Input/Output System (BIOS) setup.
1. ASUS Update (Updates the BIOS in Windows® environment.)
2. ASUS EZ Flash 2 (Updates the BIOS using a floppy disk or USB flash disk.)
3. ASUS AFUDOS (Updates the BIOS using a bootable floppy disk.)
4. ASUS CrashFree BIOS 3 (Updates the BIOS using a bootable floppy disk, USB flash disk or the motherboard support CD when the BIOS file fails or gets corrupted.)
Refer to the corresponding sections for details on these utilities.
Save a copy of the original motherboard BIOS file to a bootable floppy disk or USB flash disk in case you need to restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS Update or AFUDOS utilities.
4.1.1 ASUS Update utility
The ASUS Update is a utility that allows you to manage, save, and update the motherboard BIOS in Windows® environment. The ASUS Update utility allows you to:
Save the current BIOS file
Download the latest BIOS file from the Internet
Update the BIOS from an updated BIOS file
Update the BIOS directly from the Internet, and
View the BIOS version information.
This utility is available in the support CD that comes with the motherboard package.
ASUS Update requires an Internet connection either through a network or an Internet Service Provider (ISP).
Installing ASUS Update
To install ASUS Update:
1. Place the support CD in the optical drive. The Drivers menu appears.
2. Click the Utilities tab, then click Install ASUS Update.
3. The ASUS Update utility is copied to your system.
ASUS P5E-VM HDMI 4-1
Quit all Windows® applications before you update the BIOS using this utility.
Updating the BIOS through the Internet
To update the BIOS through the Internet:
1. Launch the ASUS Update utility from the Windows® desktop by clicking Start
> Programs > ASUS > ASUSUpdate > ASUSUpdate. The ASUS Update main window appears.
2. Select Update BIOS from the
Internet option from the drop-down menu, then click Next.
4-2 Chapter 4: BIOS setup
3. Select the ASUS FTP site nearest you to avoid network traffic, or click Auto Select. Click Next.
4. From the FTP site, select the BIOS version that you wish to download. Click Next.
5. Follow the screen instructions to complete the update process.
The ASUS Update utility is capable of updating itself through the Internet. Always update the utility to avail all its features.
Updating the BIOS through a BIOS le
To update the BIOS through a BIOS file:
1. Launch the ASUS Update utility from the Windows® desktop by clicking Start > Programs > ASUS > ASUSUpdate > ASUSUpdate. The ASUS Update main window appears.
2. Select Update BIOS from a file option from the drop-down menu, then click Next.
3. Locate the BIOS file from the Open window, then click Open.
4. Follow the screen instructions to
P5E-VM.rom
complete the update process.
P5E-VM
ASUS P5E-VM HDMI 4-3
4.1.2 Creating a bootable oppy disk
1. Do either one of the following to create a bootable floppy disk.
DOS environment
a. Insert a 1.44MB floppy disk into the drive.
b. At the DOS prompt, type
Windows® XP environment
a. Insert a 1.44 MB floppy disk to the floppy disk drive.
b. Click Start from the Windows® desktop, then select My Computer.
c. Select the 3 1/2 Floppy Drive icon.
d. Click File from the menu, then select Format. A Format 3 1/2 Floppy
Disk window appears.
e. Select Create an MS-DOS startup disk from the format options field,
then click Start.
2. Copy the original or the latest motherboard BIOS file to the bootable floppy disk.
format
A:/S then press <Enter>.
4-4 Chapter 4: BIOS setup
4.1.3 ASUS EZ Flash 2 utility
The ASUS EZ Flash 2 feature allows you to update the BIOS without having to go through the long process of booting from a floppy disk and using a DOS-based utility. The EZ Flash 2 utility is built-in the BIOS chip so it is accessible by pressing <Alt> + <F2> during the Power-On Self Tests (POST).
To update the BIOS using EZ Flash 2:
1. Visit the ASUS website (www.asus.com) to download the latest BIOS file for the motherboard.
2. Save the BIOS file to a floppy disk or a USB flash disk, then restart the system.
3. You can launch the EZ Flash 2 by two methods.
(1) Insert the floppy disk / USB flash disk that contains the BIOS file to the
floppy disk drive or the USB port.
Press <Alt> + <F2> during POST to display the following.
ASUSTek EZ Flash 2 BIOS ROM Utility V3.06
FLASH TYPE: WINBOND W25X80
Current ROM
BOARD: P5E-VM HDMI VER: 0113 DATE: 10/05/07
PATH: C:\
A:
Update ROM
BOARD: Unknown VER: Unknown DATE: Unknown
Note
[Enter] Select or Load [B] Backup [ESC] Exit
[Tab] Switch [Up/Down/Home/End] Move
(2) Enter BIOS setup program. Go to the Tools menu to select EZ Flash2
and press <Enter> to enable it.
You can switch between drives by pressing <Tab> before the correct file
is found. Then press <Enter>.
4. When the correct BIOS file is found, EZ Flash 2 performs the BIOS update process and automatically reboots the system when done.
This function can support devices such as USB flash disk, or floppy disk
FAT 32/16
with
Do not shut down or reset the system while updating the BIOS to prevent system boot failure!
ASUS P5E-VM HDMI 4-5
format and single partition only.
4.1.4 AFUDOS utility
The AFUDOS utility allows you to update the BIOS file in DOS environment using a bootable floppy disk with the updated BIOS file. This utility also allows you to copy the current BIOS file that you can use as backup when the BIOS fails or gets corrupted during the updating process.
Copying the current BIOS
To copy the current BIOS file using the AFUDOS utility:
Make sure that the floppy disk is not write-protected and has at least 1024KB free space to save the file.
The succeeding BIOS screens are for reference only. The actual BIOS screen displays may not be same as shown.
1. Copy the AFUDOS utility (afudos.exe) from the motherboard support CD to the bootable floppy disk you created earlier.
2. Boot the system in DOS mode, then at the prompt type:
afudos /o[lename]
where the [filename] is any user-assigned filename not more than eight alphanumeric characters for the main filename and three alphanumeric characters for the extension name.
A:\>afudos /oOLDBIOS1.rom
Main lename Extension name
3. Press <Enter>. The utility copies the current BIOS file to the floppy disk.
A:\>afudos /oOLDBIOS1.rom
AMI Firmware Update Utility - Version 1.19(ASUS V2.07(03.11.24BB))
Copyright (C) 2002 American Megatrends, Inc. All rights reserved.
Reading ash ..... done
Write to le...... ok
A:\>
The utility returns to the DOS prompt after copying the current BIOS file.
Updating the BIOS le
To update the BIOS file using the AFUDOS utility:
1. Visit the ASUS website (www.asus.com) and download the latest BIOS file for the motherboard. Save the BIOS file to a bootable floppy disk.
4-6 Chapter 4: BIOS setup
Write the BIOS filename on a piece of paper. You need to type the exact BIOS filename at the DOS prompt.
2. Copy the AFUDOS utility (afudos.exe) from the motherboard support CD to the bootable floppy disk you created earlier.
3. Boot the system in DOS mode, then at the prompt type:
afudos /i[lename]
where [filename] is the latest or the original BIOS file on the bootable floppy disk.
A:\>afudos /iP5E-VM.ROM
4. The utility verifies the file and starts updating the BIOS.
A:\>afudos /iP5E-VM.ROM
AMI Firmware Update Utility - Version 1.19(ASUS V2.07(03.11.24BB))
Copyright (C) 2002 American Megatrends, Inc. All rights reserved.
WARNING!! Do not turn off power during ash BIOS
Reading le ....... done
Reading ash ...... done
Advance Check ......
Erasing ash ...... done
Writing ash ...... 0x0008CC00 (9%)
Do not shut down or reset the system while updating the BIOS to prevent system boot failure!
5. The utility returns to the DOS prompt after the BIOS update process is completed. Reboot the system from the hard disk drive.
A:\>afudos /iP5E-VM.ROM
AMI Firmware Update Utility - Version 1.19(ASUS V2.07(03.11.24BB))
Copyright (C) 2002 American Megatrends, Inc. All rights reserved.
WARNING!! Do not turn off power during ash BIOS
Reading le ....... done
Reading ash ...... done
Advance Check ......
Erasing ash ...... done
Writing ash ...... done
Verifying ash .... done
Please restart your computer
A:\>
ASUS P5E-VM HDMI 4-7
4.1.5 ASUS CrashFree BIOS 3 utility
The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can update a corrupted BIOS file using the motherboard support CD, the floppy disk, or the USB flash disk that contains the updated BIOS file.
Prepare the motherboard support CD, the floppy disk or the USB flash disk containing the updated motherboard BIOS before using this utility.
If you use a SATA optical drive, always connect the SATA cable to the SATA1/SATA2 connector; otherwise, the utility will not function.
Recovering the BIOS from the support CD
To recover the BIOS from the support CD:
1. Turn on the system.
2. Insert the motherboard support CD to the optical drive.
3. The utility displays the following message and automatically checks the CD for the BIOS file.
Bad BIOS checksum. Starting BIOS recovery...
Checking for oppy...
When found, the utility reads the BIOS file and starts flashing the corrupted
BIOS file.
Bad BIOS checksum. Starting BIOS recovery...
Checking for oppy...
Floppy found!
Reading le “P5E-VM.ROM”. Completed. Start ashing...
4. Restart the system after the utility completes the updating process.
Recovering the BIOS from the USB ash disk
To recover the BIOS from the USB flash disk:
1. Insert the USB flash disk that contains BIOS file to the USB port.
2. Turn on the system.
3. The utility will automatically checks the devices for the BIOS file When found, the utility reads the BIOS file and starts flashing the corrupted BIOS file.
4. Restart the system after the utility completes the updating process.
Only the USB flash disk with FAT 32/16 format and single partition can support ASUS CrashFree BIOS 3. The device size should be smaller than 8GB.
DO NOT shut down or reset the system while updating the BIOS! Doing so can cause system boot failure!
4-8 Chapter 4: BIOS setup
4.2 BIOS setup program
This motherboard supports a programmable Serial Peripheral Interface (SPI) chip that you can update using the provided utility described in section “4.1 Managing and updating your BIOS.”
Use the BIOS Setup program when you are installing a motherboard, reconfiguring your system, or prompted to “Run Setup.” This section explains how to configure your system using this utility.
Even if you are not prompted to use the Setup program, you can change the configuration of your computer in the future. For example, you can enable the security password feature or change the power management settings. This requires you to reconfigure your system using the BIOS Setup program so that the computer can recognize these changes and record them in the CMOS RAM of the SPI chip.
The SPI chip on the motherboard stores the Setup utility. When you start up the computer, the system provides you with the opportunity to run this program. Press <Del> during the Power-On Self-Test (POST) to enter the Setup utility; otherwise, POST continues with its test routines.
If you wish to enter Setup after POST, restart the system by pressing <Ctrl+Alt+Delete>, or by pressing the reset button on the system chassis. You can also restart by turning the system off and then back on. Do this last option only if the first two failed.
The Setup program is designed to make it as easy to use as possible. Being a menu-driven program, it lets you scroll through the various sub-menus and make your selections from the available options using the navigation keys.
The default BIOS settings for this motherboard apply for most conditions to ensure optimum performance. If the system becomes unstable after changing any BIOS settings, load the default settings to ensure system compatibility and stability. Select the Load Setups Default item under the Exit Menu. See section 4.8 Exit Menu.
The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen.
Visit the ASUS website (www.asus.com) to download the latest BIOS file for this motherboard.
ASUS P5E-VM HDMI 4-9
4.2.1 BIOS menu screen
Menu bar
Main Advanced Power Boot Tools Exit
System Time [10:55:25] System Date [Wed 08/10/2007] Legacy Diskette A [1.44M, 3.5 in] Language [English]
SATA 1 [WDC WD800JD-00LSA0] SATA 2 [Not Detected] SATA 3 [Not Detected] SATA 4 [Not Detected] SATA 5 [Not Detected] SATA 6 [Not Detected] PATA Primary Master [Not Detected] PATA Primary Slave [Not Detected]
SATA Coniguration System Information
v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
Sub-menu items
Conguration eldsMenu items
BIOS SETUP UTILITY
General help
Use [ENTER], [TAB] or [SHIFT-TAB] to select
a eld.
Use [+] or [-] to
congure system Time.
Select Screen
Select Item +- Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit
Navigation keys
4.2.2 Menu bar
The menu bar on top of the screen has the following main items:
Main For changing the basic system configuration
Advanced For changing the advanced system settings
Power For changing the advanced power management (APM)
configuration
Boot For changing the system boot configuration
Tools For Configuring options for special functions
Exit For selecting the exit options and loading default settings.
To select an item on the menu bar, press the right or left arrow key on the keyboard until the desired item is highlighted.
4.2.3 Navigation keys
At the bottom right corner of a menu screen are the navigation keys for that particular menu. Use the navigation keys to select items in the menu and change the settings.
Some of the navigation keys differ from one screen to another.
4-10 Chapter 4: BIOS setup
4.2.4 Menu items
The highlighted item on the menu bar displays the specific items for that menu. For example, selecting Main shows the Main menu items.
The other items (Advanced, Power, Boot, and Exit) on the menu bar have their respective menu items.
System Time [06:22:54] System Date [Fri 03/09/2007] Legacy Diskette A [1.44M, 3.5 in]
SATA 1 [Not Detected] SATA 2 [Not Detected] SATA 3 [Not Detected]SATA 3 [Not Detected] [Not Detected] SATA 4 [Not Detected]SATA 4 [Not Detected] [Not Detected] PATA Primary Master [Not Detected] PATA Primary Slave [Not Detected]
IDE Conguration
System Information
Main menu items
Use [ENTER], [TAB], or [SHIFT-TAB] to
select a eld.
Use [+] or [-] to
congure system
Time.
4.2.5 Sub-menu items
A solid triangle before each item on any menu screen means that the iteam has a sub-menu. To display the sub-menu, select the item and press <Enter>.
4.2.6 Conguration elds
These fields show the values for the menu items. If an item is user- configurable, you can change the value of the field opposite the item. You cannot select an item that is not user-configurable.
A configurable field is enclosed in brackets, and is highlighted when selected. To change the value of a field, select it then press <Enter> to display a list of options. Refer to “4.2.7 Pop-up window.”
4.2.7 Pop-up window
Select a menu item then press <Enter> to display a pop-up window with the configuration options for that item.
4.2.8 Scroll bar
A scroll bar appears on the right side of a menu screen when there are items that do not fit on the screen. Press the Up/Down arrow keys or <Page Up> /<Page Down> keys to display the other items on the screen.
4.2.9 General help
At the top right corner of the menu screen is a brief description of the selected item.
ASUS P5E-VM HDMI 4-11
Pop-up window
Scroll bar
4.3 Main menu
When you enter the BIOS Setup program, the Main menu screen appears, giving you an overview of the basic system information.
Refer to section 4.2.1 BIOS menu screen for information on the menu screen items and how to navigate through them.
Main Advanced Power Boot Tools Exit
System Time [10:55:25] System Date [Wed 08/10/2007] Legacy Diskette A [1.44M, 3.5 in] Language [English]
SATA 1 [WDC WD800JD-00LSA0] SATA 2 [Not Detected] SATA 3 [Not Detected] SATA 4 [Not Detected] SATA 5 [Not Detected] SATA 6 [Not Detected] PATA Primary Master [Not Detected] PATA Primary Slave [Not Detected]
SATA Coniguration System Information
v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
BIOS SETUP UTILITY
Use [ENTER], [TAB] or [SHIFT-TAB] to select
a eld.
Use [+] or [-] to
congure system Time.
Select Screen
Select Item +- Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit
4.3.1 System Time [xx:xx:xx]
Allows you to set the system time.
4.3.2 System Date [Day xx/xx/xxxx]
Allows you to set the system date.
4.3.3 Legacy Diskette A [1.44M, 3.5 in.]
Sets the type of floppy drive installed. Configuration options: [Disabled] [720K, 3.5 in.] [1.44M, 3.5 in.]
4.3.4 Language [English]
Allows you to select the display language for the BIOS setup screen. Configuration options: [English]
4-12 Chapter 4: BIOS setup
4.3.5 SATA 1~6; PATA Primary Master/Slave
While entering Setup, the BIOS automatically detects the presence of IDE devices. There is a separate sub-menu for each IDE device. Select a device item then press <Enter> to display the IDE device information.
Main
SATA 1
Device : Hard Disk Vendor : WDC WD800JD-00LSA0 Size : 80.0GB LBA Mode : Supported Block Mode : 16 Sectors PIO Mode : 4 Async DMA : MultiWord DMA-2 Ultra DMA : Ultra DMA-5 SMART Monitoring: Supported
Type [Auto] LBA/Large Mode [Auto] Block(Multi-sector Transfer) [Auto] PIO Mode [Auto] DMA Mode [Auto] SMART Monitoring [Auto] 32Bit Data Transfer [Enabled]
v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
The BIOS automatically detects the values opposite the dimmed items (Device, Vendor, Size, LBA Mode, Block Mode, PIO Mode, Async DMA, Ultra DMA, and SMART monitoring). These values are not user-configurable. These items show N/A if no IDE device is installed in the system.
Type [Auto]
Selects the type of IDE drive. Setting to [Auto] allows automatic selection of the appropriate IDE device type. Select [CDROM] if you are specifically configuring a CD-ROM drive. Select [ARMD] (ATAPI Removable Media Device) if your device is either a ZIP, LS-120, or MO drive. Configuration options: [Not Installed] [Auto] [CDROM] [ARMD]
BIOS SETUP UTILITY
Select the type of device connected to the system.
Select Screen
Select Item +- Change Option F1 General Help F10 Save and Exit ESC Exit
This item does not appear when you select the PATA Primary Master/Slave device.
LBA/Large Mode [Auto]
Enables or disables the LBA mode. Setting to [Auto] enables the LBA mode if the device supports this mode, and if the device was not previously formatted with LBA mode disabled. Configuration options: [Disabled] [Auto]
Block (Multi-sector Transfer) [Auto]
Enables or disables data multi-sectors transfers. When set to [Auto], the data transfer from and to the device occurs multiple sectors at a time if the device supports multi-sector transfer feature. When set to [Disabled], the data transfer from and to the device occurs one sector at a time. Configuration options: [Disabled] [Auto]
ASUS P5E-VM HDMI 4-13
PIO Mode [Auto]
Selects the PIO mode. Configuration options: [Auto] [0] [1] [2] [3] [4]
DMA Mode [Auto]
Selects the DMA mode. Configuration options: [Auto] [SWDMA0] [SWDMA1] [SWDMA2] [MWDMA0] [MWDMA1] [MWDMA2] [UDMA0] [UDMA1] [UDMA2] [UDMA3] [UDMA4] [UDMA5]
SMART Monitoring [Auto]
Sets the Smart Monitoring, Analysis, and Reporting Technology. Configuration options: [Auto] [Disabled] [Enabled]
32Bit Data Transfer [Enabled]
Enables or disables 32-bit data transfer. Configuration options: [Disabled] [Enabled]
4.3.6 SATA Conguration
The items in this menu allow you to set or change the configurations for the SATA devices installed in the system. Select an item then press <Enter> if you want to configure the item.
SATA Conguration
SATA Conguraton [Enhanced] Congure SATA as [IDE]
Hard Disk Write Protect [Disabled] SATA Detect Time Out (Sec) [35]
Options
Disabled Compatiable Enhanced
SATA Conguration [Enhanced]
Configuration options: [Disabled] [Compatible] [Enhanced]
Configure SATA as [IDE]
Sets the configuration for the Serial ATA connectors supported by the Southbridge chip. Configuration options: [IDE] [RAID] [AHCI]
The AHCI allows the onboard storage driver to enable advanced Serial ATA features that increases storage performance on random workloads by allowing the drive to internally optimize the order of commands.
4-14 Chapter 4: BIOS setup
If you want to create a RAID 0, RAID 1, RAID 5, RAID 10, or the Intel® Matrix Storage Technology configuration from the Serial ATA hard disk drives, set this item to [RAID].
If you want to use the Serial ATA hard disk drives as Parallel ATA physical storage devices, keep the default setting [IDE].
If you want the Serial ATA hard disk drives to use the Advanced Host Controller Interface (AHCI), set this item to [AHCI].
Hard Disk Write Protect [Disabled]
Disables or enables device write protection. This will be effective only if device is accessed throuh BIOS. Confiuration option: [Disabled] [Enabled]
SATA Detect Time Out (Sec) [35]
Selects the time out value for detecting ATA/ATAPI devices. Configuration options: [0] [5] [10] [15] [20] [25] [30] [35]
4.3.7 System Information
This menu gives you an overview of the general system specifications. The BIOS automatically detects the items in this menu.
Main
AMIBIOS
Version : 0113 Build Date : 10/05/07
Processor
Type : Intel(R) Core(TM)2 Duo CPU @ 3.00GHz Speed : 3000 MHz Count : 2
System Memory
Available : 503 MB
BIOS SETUP UTILITY
Select Screen
Select Item F1 General Help F10 Save and Exit ESC Exit
v02.58 (C)Copyright 1985-2006, American Megatrends, Inc.
AMI BIOS
Displays the auto-detected BIOS information.
Processor
Displays the auto-detected CPU specification.
System Memory
Displays the auto-detected system memory.
ASUS P5E-VM HDMI 4-15
4.4 Advanced menu
The Advanced menu items allow you to change the settings for the CPU and other system devices.
Take caution when changing the settings of the Advanced menu items. Incorrect field values can cause the system to malfunction.
Main Advanced Power Boot Tools Exit
JumperFree Conguration USB Conguration
CPU Conguration
Chipset
Onboard Devices Conguration
PCIPnP
v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
BIOS SETUP UTILITY
4.4.1 Jumperfree Conguration
Advanced
Congure System Frequency/Voltage
Ai Overclocking [Auto] CPU Ratio Control [Auto] FSB Strap to North Bridge [Auto]
DRAM Frequency [Auto]
DRAM Timing Control [Auto]
Clock Over-Charging Mode [Auto]
CPU Spread Spectrum [Auto] PCIE Spread Spectrum [Auto]
Select Screen
Select Item +- Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit
Select the target CPU
frequency, and the
relevant parameters will be auto-adjusted.
Frequencies higher
than CPU manufacturer recomends are not guaranteed to be stable. If the system becomes unstable, return to the default.
Ai Overclocking [Auto]
Allows selection of CPU overclocking options to achieve desired CPU internal frequency. Select any one of the preset overclocking configuration options:
Manual Allows you to individually set overclocking parameters.
Auto Loads the optimal settings for the system.
Standard Loads the standard settings for the system.
N.O.S. The ASUS Non-delay Overclocking System feature
intelligently determines the system load and automatically boosts the performance for the most demanding tasks.
4-16 Chapter 4: BIOS setup
Some of the following items appear when you set AI Overclocking to [Manual] and [N.O.S.]
CPU Ratio Control [Auto]
Configuration options: [Auto] [Manual]
The following item appears when the CPU Ratio Control item is set to [Manual].
Ratio CMOS Setting [9]
Use the <+> and <-> keys to select the CMOS ratio values.
FSB Strap to North Bridge [Auto]
FSB Strap will be adjusted automatically by FSB Frequency and DRAM Frequency. Configuration options: [Auto] [200MHz] [266MHz] [333MHz].
The following two items only appear when you set the Ai Overclocking item to [Manual].
FSB Frequency [333]
Displays the frequency sent by the clock generator to the system bus and PCI bus. The value of this item is auto-detected by the BIOS. Use the <+> and <-> keys to adjust the FSB frequency. You can also type the desired CPU frequency using the numeric keypad. The values range from 200 to 800. Refer to the table below for the correct Front Side Bus and CPU External Frequency settings.
FSB/CPU External Frequency Synchronization
Front Side Bus CPU External Frequency
FSB 1333 333 MHz
FSB 1066 266 MHz
FSB 800 200 MHz
PCIE Frequency [Auto]
Allows you to set the PCI Express frequency. Configuration options: [Auto] [100] [101] ~ [149] [150]
DRAM Frequency [Auto]
Allows you to set the DDR2 operating frequency. Configuration options: [Auto] [DDR2-667MHz] [DDR2-800MHz] [DDR2-834MHz] [DDR2-888MHz] [DDR2-1000MHz] [DDR2-1112MHz] [DDR2-1333MHz]
Selecting a very high DRAM frequency may cause the system to become unstable! If this happens, revert to the default setting.
ASUS P5E-VM HDMI 4-17
DRAM Timing Control [Auto]
Allows you to set the DRAM timing control. Configuration options: [Auto] [Manual]
The following items appear when you set the DRAM Timing Control item to [Manual].
DRAM CAS# Latency [ 5]
Configuration options: [3] [4] [5] [6]
DRAM RAS# to CAS# Delay [ 6 DRAM Clocks]
Configuration options: [3 DRAM Clocks] [4 DRAM Clocks] [5 DRAM Clocks] [6 DRAM Clocks]
DRAM RAS# Precharge [6 DRAM Clocks]
Configuration options: [3 DRAM Clocks] [4 DRAM Clocks] [5 DRAM Clocks] [6 DRAM Clocks]
DRAM RAS# Activate to Precharge [15 DRAM Clocks]
Configuration options: [9 DRAM Clocks] [10 DRAM Clocks]~[14 DRAM Clocks] [15 DRAM Clocks]
DRAM Write Recovery Time [Auto]
Configuration options: [Auto] [1 DRAM Clocks] [2 DRAM Clocks]~[14 DRAM Clocks] [15 DRAM Clocks]
DRAM TRFC [Auto]
Configuration options: [Auto] [20 DRAM Clocks] [25 DRAM Clocks] [30 DRAM Clocks] [35 DRAM Clocks] [42 DRAM Clocks]
DRAM TWTR [Auto]
Configuration options: [Auto] [1 DRAM Clocks]~[15 DRAM Clocks]
DRAM TRRD [Auto]
Configuration options: [Auto] [1 DRAM Clocks]~[15 DRAM Clocks]
DRAM TRTP [Auto]
Configuration options: [Auto] [1 DRAM Clocks]~[15 DRAM Clocks]
Clock Over-Charging Mode [Auto]
Configuration options: [Auto] [0.70V] [0.80V] [0.90V] [1.00V]
CPU Spread Spectrum [Auto]
Allows you to enable or disable the CPU spread spectrum. Configuration options: [Auto] [Disabled]
PCIE Spread Spectrum [Auto]
Allows you to enable or disable the PCIE spread spectrum. Configuration options: [Auto] [Disabled]
4-18 Chapter 4: BIOS setup
CPU Voltage [Auto]
Allows you to select the CPU voltage. Configuration options: [Auto] [1.7000V] [1.6875V] [1.6750V] [1.6625V] [1.6500V] [1.6375V] [1.6250V] [1.6125V] [1.6000V] [1.5875V] [1.5750V] [1.5625V] [1.5500V] [1.5375V] [1.5250V] [1.5125V] [1.5000V] [1.4875V] [1.4750V] [1.4625V] [1.4500V] [1.4375V] [1.4250V] [1.4125V] [1.4000V] [1.3875V] [1.3750V] [1.3625V] [1.3500V] [1.3375V] [1.3250V] [1.3125V] [1.3000V] [1.2875V] [1.2750V] [1.2625V] [1.2500V] [1.2375V] [1.2250V] [1.2125V] [1.2000V] [1.1875V] [1.1750V] [1.1625V] [1.1500V] [1.1375V] [1.1250V] [1.1125V] [1.1000V]
Refer to the CPU documentation before setting the CPU voltage. Setting a high voltage may damage the CPU!
CPU Voltage Reference [Auto]
Configuration options: [Auto] [0.63x] [0.61x] [0.59x] [0.57x]
CPU Voltage Damper [Auto]
Allows you to enable or disable the CPU voltage damper. Configuration options: [Auto] [Disabled] [Enabled]
PLL Voltage [Auto]
Configuration options: [Auto] [1.50V] [1.52V] [1.54V] [1.56V] ~ [1.76V] [1.78V]
DRAM Voltage [Auto]
Allows you to select the DRAM reference voltage. Configuration options: [Auto] [1.80V] [1.82V] [1.84V] ~ [2.40V] [2.42V] [2.44V]
Refer to the DDR2 documentation before adjusting the memory voltage. Setting a very high memory voltage may damage the memory module(s)!
FSB Termination Voltage [Auto]
Allows you to select the front side bus termination voltage. Configuration options: [Auto] [1.20V] [1.22V] [1.24V] ~ [1.46V] [1.48V] [1.50V]
Setting a high FSB termination voltage may damage the chipset and CPU.
North Bridge Voltage [Auto]
Configuration options: [Auto] [1.25V] [1.27V] [1.29V] ~ [1.67V] [1.69V] [1.71V]
North Bridge Voltage Reference [Auto]
Configuration options: [Auto] [0.67x] [0.61x]
South Bridge Voltage [Auto]
Configuration options: [Auto] [1.05V] [1.20V]
ASUS P5E-VM HDMI 4-19
4.4.2 USB Conguration
The items in this menu allows you to change the USB-related features. Select an item then press <Enter> to display the configuration options.
Advanced
USB Conguration
USB Devices Enabled: None
USB Functions [Enabled] USB 2.0 Controller [Enabled] USB 2.0 Controller Mode [HiSpeed] BIOS EHCI Hand-off [Enabled] Port 64/60 Emulation [Disabled] Legacy USB Support [Auto]
v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
The USB Devices Enabled item shows auto-detected values. If no USB device is detected, the item shows None.
USB Functions [Enabled]
Allows you to enable or disable the USB functions. The following sub-items appear when this item is set to [Enabled]. Configuration options: [Disabled] [Enabled]
USB 2.0 Controller [Enabled]
Allows you to enable or disable the USB 2.0 controller. Configuration options: [Enabled] [Disabled]
BIOS SETUP UTILITY
Options
Disabled Enhanced
Select Screen
Select Item
+- Change Option
F1 General Help F10 Save and Exit ESC Exit
USB 2.0 Controller Mode [HiSpeed]
Allows you to set the USB 2.0 controller mode to HiSpeed (480 Mbps) or FullSpeed (12 Mbps). This item appears only when you enable the USB 2.0 Controller item. Configuration options: [FullSpeed ] [HiSpeed ]
BIOS EHCI Hand-off [Enabled]
Allows you to enable support for operating systems without an EHCI hand-off feature. Configuration options: [Disabled] [Enabled]
Port 64/60 Emulation [Disabled]
Allows you to enable or disable the I/O port 60h/64h emulation support. This item should be enabled for the complete USB keyboard legacy support for non-USB aware OSes. Configuration options: [Disabled] [Enabled]
4-20 Chapter 4: BIOS setup
Legacy USB Support [Auto]
Allows you to enable or disable support for legacy USB devices. Setting to [Auto] allows the system to detect the presence of USB devices at startup. If detected, the USB controller legacy mode is enabled. If no USB device is detected, the legacy USB support is disabled. Configuration options: [Disabled] [Enabled] [Auto]
4.4.3 CPU Conguration
The items in this menu show the CPU-related information that the BIOS automatically detects.
Advanced
Congure advanced CPU settings
Manufacturer:Intel Brand String:Intel(R) Core(TM)2 Duo CPU @ 3.00 GHz
Frequency :3.00GHz
FSB Speed :1333 MHz Cache L1 :64 KB Cache L2 :4096 KB CPUID :6F9 Ratio Status:Unlocked (Max:09, Min:06) Ratio Actual Value :9
CPU Ratio Control [Auto] C1E Support [Enabled] Max CPUID Value Limit: [Disabled] Vanderpool Technology [Enabled] CPU TM function [Enabled] Execute Disable Bit [Enabled] Intel(R) SpeedStep(TM) Tech. [Enabled]
v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
CPU Ratio Control [Auto]
Configuration options: [Auto] [Manual]
BIOS SETUP UTILITY
Options
Auto MANUAL
Select Screen
Select Item +- Change Option F1 General Help F10 Save and Exit ESC Exit
The following item appears when the item CPU Ratio Control is set to [Manual].
Ratio CMOS Setting: [9]
Use the <+> and <-> keys to select the CMOS ratio values.
C1E Support [Enabled]
Allows you to enable or disable C1E Support. Configuration options: [Disabled] [Enabled]
Max CPUID Value Limit [Disabled]
Setting this item to [Enabled] allows legacy operating systems to boot even without support for CPUs with extended CPUID functions. Configuration options: [Disabled] [Enabled]
Vanderpool Technology [Enabled]
Configuration options: [Enabled] [Disabled]
ASUS P5E-VM HDMI 4-21
CPU TM Function [Enabled]
Configuration options: [Disabled] [Enabled]
Execute Disable Bit [Enabled]
Allows you to enable or disable the No-Execution Page Protection Technology. Setting this item to [Disabled] forces the XD feature flag to always return to zero (0). Configuration options: [Disabled] [Enabled]
The following item appears when you set CPU Ratio Control to [Auto]
Intel(R) SpeedStep (TM) Tech. [Enabled]
Configuration options: [Enabled] [Disabled]
4.4.4 Chipset
The Chipset menu allows you to change the advanced chipset settings. Select an item then press <Enter> to display the sub-menu.
Advanced
Advanced Chipset Settings
WARMING: Setting wrong values in below sections may cause system to malfunction.
North Bridge Conguration
BIOS SETUP UTILITY
Congure North Bridge
features.
North Bridge Conguration
Advanced
North Bridge Chipset Conguration
Memory Remap Feature [Enabled] Initiate Graphic Adapter [PEG/PCI] Internal Graphics Mode Select [Enabled, 8MB] PEG Port Control [Auto] PEG Port Force x1 [Disabled]
Video Function Conguration
v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
4-22 Chapter 4: BIOS setup
BIOS SETUP UTILITY
ENABLE: Allow remapping of overlapped PCI memory above the total physical memory.
DISABLE: Do not allow remapping of memory.
Select Screen
Select Item
+- Change Option
F1 General Help F10 Save and Exit ESC Exit
Memory Remap Feature [Enabled]
Allows you to enabled or disable the remapping of the overlapped PCI memory above the total physical memory. Enable this option only when you install 64-bit operating system. Configuration options: [Disabled] [Enabled]
Initiate Graphic Adapter [PEG/PCI]
Allows you to decide which graphics controller to use as the primary boot device. Configuration options: [IGD] [PCI/IGD] [PCI/PEG] [PEG/IGD] [PEG/PCI]
Internal Graphics Mode Select [Enabled, 8MB]
Allows you to decide whether to use the internal graphics device and select the amount of memory used by the device. Configuration options: [Disabled] [Enabled, 1MB] [Enabled, 8MB]
Set this item to [Disabled] if you intend to install a PCIE x16 graphics card to the PCIE x16 slot.
PEG Port Control [Auto]
Configuration options: [Auto] [Disabled]
PEG Force x1 [Disabled]
This item appears when the PEG Port Control item is set to [Auto]. Configuration options: [Enabled] [Disabled]
The following item appears when the Internal Graphics Mode Select item is set to [Enabled, 1MB] or [Enabled, 8MB].
Video Function Configuration
Advanced
Video Function Conguration
DVMT Mode Select [DVMT Mode] DVMT/FIXED Memory [256MB]
BIOS SETUP UTILITY
Options
Fixed Mode DVMT Mode
DVMT Mode Select [DVMT Mode]
Configuration options: [Fixed Mode] [DVMT Mode]
DVMT/FIXED Memory [256MB]
Configuration options: [128MB] [256MB]
ASUS P5E-VM HDMI 4-23
4.4.5 Onboard Devices Conguration
Advanced
Onboard Device Conguraiton
High Denition Audio [Enabled]
Front Panel Type [HD Audio] Onboard 1394 Controller [Enabled] Onboard PCIE GbE LAN [Enabled] LAN Option ROM [Disabled] J-Micron PATA Controller [Enabled]
Serial Port1 Address [3F8/IRQ4] Parallel Port Address [378] Parallel Port Mode [ECP] ECP Mode DMA Channel [DMA3] Parallel Port IRQ [IRQ7]
v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
High Denition Audio [Enabled]
Allows you to enable or disable the High Definition Audio. The following item appears only when you enable this item. Configuration options: [Enabled] [Disabled]
Front Panel Type [HD Audio]
Allows you to set the front panel audio connector (AAFP) mode to legacy AC’97 or high-definition audio depending on the audio standard that the front panel audio module supports. Configuration options: [AC97] [HD Audio]
Onboard 1394 Controller [Enabled]
Allows you to disable or enable the onboard 1394 device support. Configuration options: [Enabled] [Disabled]
BIOS SETUP UTILITY
Enable or Disable
High Denition Audio
Controller
Select Screen
Select Item +- Change Option F1 General Help F10 Save and Exit ESC Exit
Onboard PCIE GbE LAN [Enabled]
Allows you to disable or enable the onboard PCIE GbE LAN. Configuration options: [Enabled] [Disabled]
LAN Option ROM [Disabled]
Configuration options: [Disabled] [Enabled]
J-Micron PATA Controller [Enabled]
Allows you to enable or disable the JMicron® PATA controller. Configuration options: [Enabled] [Disabled]
Serial Port1 Address [3F8/IRQ4]
Allows you to select the Serial Port1 base address. Configuration options: [Disabled] [3F8/IRQ4] [2F8/IRQ3] [3E8/IRQ4] [2E8/IRQ3]
4-24 Chapter 4: BIOS setup
Parallel Port Address [378]
Allows you to select the Parallel Port base addresses. Configuration options: [Disabled] [378] [278] [3BC]
Parallel Port Mode [ECP]
Allows you to select the Parallel Port mode. Configuration options: [Normal] [Bi-Directional] [EPP] [ECP]
ECP Mode DMA Channel [DMA3]
Appears only when the Parallel Port Mode item is set to [ECP]. This item allows you to set the parallel port ECP DMA. Configuration options: [DMA0] [DMA1] [DMA3]
EPP Version [1.9]
Appears only when the Parallel Port Mode item is set to [EPP]. This item allows you to select the parallel port EPP version. Configuration options: [1.9] [1.7]
Parallel Port IRQ [IRQ7]
Configuration options: [IRQ5] [IRQ7]
4.4.6 PCIPnP
The PCI PnP menu items allow you to change the advanced settings for PCI/PnP devices.
Take caution when changing the settings of the PCI PnP menu items. Incorrect field values can cause the system to malfunction.
Advanced
Advanced PCI/PnP Settings
WARNING: Setting wrong values in below sections may cause system to malfunction.
Plug And Play O/S [No]
v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
BIOS SETUP UTILITY
NO: lets the BIOS
congure all the
devices in the system. YES: lets the operating system
congure Plug and Play
(PnP) devices not
required for boot if
your system has a Plug and Play operating system.
Select Screen
Select Item +- Change Option F1 General Help F10 Save and Exit ESC Exit
Plug And Play O/S [No]
When set to [No], BIOS configures all the devices in the system. When set to [Yes] and if you install a Plug and Play operating system, the operating system configures the Plug and Play devices not required for boot. Configuration options: [No] [Yes]
ASUS P5E-VM HDMI 4-25
4.5 Power menu
The Power menu items allow you to change the settings for the Advanced Power Management (APM). Select an item then press <Enter> to display the configuration options.
Main Advanced Power Boot Tools Exit
Suspend Mode [Auto] Repost Video on S3 Resume [Disabled] ACPI 2.0 Support [Disabled] ACPI APIC Support [Enabled]
APM Conguration
Hardware Monitor
v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
4.5.1 Suspend Mode [Auto]
Allows you to select the Advanced Configuration and Power Interface (ACPI) state to be used for system suspend. Configuration options: [S1 (POS) Only] [S3 Only] [Auto]
4.5.2 Repost Video on S3 Resume [Disabled]
Determines whether to invoke VGA BIOS POST on S3/STR resume. Configuration options: [Disabled] [Enabled]
BIOS SETUP UTILITY
Select the ACPI state used for System Suspend.
Select Screen
Select Item +- Change Option F1 General Help F10 Save and Exit ESC Exit
4.5.3 ACPI 2.0 support [Disabled]
Allows you to select the Advanced Configuration and Power Interface (ACPI) version supported. Configuration options: [Disabled] [Enabled][Enabled]
4.5.4 ACPI APIC Support [Enabled]
Allows you to enable or disable the Advanced Configuration and Power Interface (ACPI) support in the Advanced Programmable Interrupt Controller (APIC). When set to Enabled, the ACPI APIC table pointer is included in the RSDT pointer list. Configuration options: [Disabled] [Enabled]
4-26 Chapter 4: BIOS setup
4.5.5 APM Conguration
Power
APM Conguration
Restore on AC Power Loss [Power Off] Power On By RTC Alarm [Disabled] Power On By External Modems [Disabled] Power On By PCI Devices [Disabled] Power On By PCIE Devices [Disabled] Power On By PS/2 Keyboard [Disabled] Power On By PS/2 Mouse [Disabled]
v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
Restore On AC Power Loss [Power Off]
When set to Power Off, the system goes into off state after an AC power loss. When set to Power On, the system goes on after an AC power loss. When set to Last State, the system goes into either off or on state, whatever the system state was before the AC power loss. Configuration options: [Power Off] [Power On] [Last State]
Power On By RTC Alarm [Disabled]
Allows you to enable or disable RTC to generate a wake event. When this item is set to Enabled, the items RTC Alarm Date/ RTC Alarm Hour/ RTC Alarm Minute/ RTC Alarm Second will become user-configurable with set values. Configuration options: [Disabled] [Enabled]
BIOS SETUP UTILITY
<Enter> to select whether or not to restart the system after AC power loss.
Select Screen
Select Item +- Change Option F1 General Help F10 Save and Exit ESC Exit
Power On By External Modems [Disabled]
This allows either settings of [Enabled] or [Disabled] for powering up the computer when the external modem receives a call while the computer is in Soft-off mode. Configuration options: [Disabled] [Enabled]
The computer cannot receive or transmit data until the computer and applications are fully running. Thus, connection cannot be made on the first try. Turning an external modem off and then back on while the computer is off causes an initialization string that turns the system power on.
Power On By PCI Devices [Disabled]
Allows you to enable or disable the PME to wake up from S5 by PCI devices. Configuration options: [Disabled] [Enabled]
Power On By PCIE Devices [Disabled]
Allows you to enable or disable the PCIE devices to generate a wake event. Configuration options: [Disabled] [Enabled]
ASUS P5E-VM HDMI 4-27
Power On By PS/2 Keyboard [Disabled]
Allows you to disable the Power On by PS/2 keyboard function or set specific keys on the PS/2 keyboard to turn on the system. This feature requires an ATX power supply that provides at least 1A on the +5VSB lead. Configuration options: [Disabled] [Space Bar] [Ctrl-Esc] [Power Key]
Power On By PS/2 Mouse [Disabled]
When set to [Enabled], this parameter allows you to use the PS/2 mouse to turn on the system. This feature requires an ATX power supply that provides at least 1A on the +5VSB lead. Configuration options: [Disabled] [Enabled]
4.5.6 Hardware Monitor
Power
Hardware Monitor
CPU Temperature [30ºC/86ºF] MB Temperature [36ºC/96.5ºF]
CPU Fan Speed [1095RPM] CPU Q-Fan Control [Enabled]
CPU Fan Prole [Optimal]
Chassis Fan 1 Speed [N/A] Chassis Q-Fan Controls [Disabled] Power Fan Speed [N/A]
VCORE Voltage [ 1.264V]
3.3V Voltage [ 3.248V] 5V Voltage [ 4.992V] 12V Voltage [12.152V]
BIOS SETUP UTILITY
CPU Temperature
Select Screen
Select Item +- Change Field F1 General Help F10 Save and Exit ESC Exit
v02.58 (C)Copyright 1985-2006, American Megatrends, Inc.
v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
CPU Temperature [xxxºC/xxxºF] MB Temperature [xxxºC/xxxºF]
The onboard hardware monitor automatically detects and displays the motherboard and CPU temperatures. Select [Ignored] if you do not wish to display the detected temperatures.
CPU Fan Speed [xxxxRPM] or [Ignored] / [N/A]
The onboard hardware monitor automatically detects and displays the CPU fan speed in rotations per minute (RPM). If the fan is not connected to the motherboard, the field shows N/A.
CPU Q-Fan Control [Enabled]
Allows you to enable or disable the CPU Q-Fan controller. Configuration options: [Disabled] [Enabled]
4-28 Chapter 4: BIOS setup
The CPU Fan Prole item appears when you enable the CPU Q-Fan Control feature.
CPU Fan Prole [Optimal]
Allows you to set the appropriate performance level of the CPU Q-Fan. When set to [Optimal], the CPU fan automatically adjusts depending on the CPU temperature. Set this item to [Silent Mode] to minimize fan speed for quiet CPU fan operation, or [Performance Mode] to achieve maximum CPU fan speed. Configuration options: [Optimal] [Silent Mode] [Performance Mode][Optimal] [Silent Mode] [Performance Mode][Performance Mode]
Chassis Fan 1 Speed [xxxxRPM] or [Ignored] / [N/A]
The onboard hardware monitor automatically detects and displays the chassis fan speed in rotations per minute (RPM). If the fan is not connected to the motherboard, the field shows N/A.
Chassis Q-Fan Control [Enabled]
Allows you to enable or disable the Chassis Q-fan. Configuration options: [Disabled] [Enabled]
The following items appear only when you enable Chassis Q-Fan Control.
Chassis Fan Ratio [Auto]
Allows you to select a fan speed ratio in the low CPU temperature. Configuration options [Auto] [90%] [80%] [70%] [60%]
A very low fan speed ratio may cause fan speed drop and trigger the hardware monitor warning message.
Chassis Target Temperature [37°C]
CPU fan speed will auto-adjust to reach this target temperature. Configuration options: [28°C] [31°C] [34°C] [37°C] [40°C] [43°C] [46°C]
Vcore Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage
The onboard hardware monitor automatically detects the voltage output through the onboard voltage regulators. Select [Ignored] if you do not want to detect this item.
Power Fan Speed [xxxxRPM] or [Ignored] / [N/A]
The onboard hardware monitor automatically detects and displays the power fan speed in rotations per minute (RPM). If the fan is not connected to the motherboard, the field shows N/A.
ASUS P5E-VM HDMI 4-29
4.6 Boot menu
The Boot menu items allow you to change the system boot options. Select an item then press <Enter> to display the sub-menu.
Main Advanced Power Boot Tools Exit
Boot Device Priority
Boot Settings Conguration
Security
v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
4.6.1 Boot Device Priority
Boot
Boot Device Priority
1st Boot Device [1st FLOPPY DRIVE] 2nd Boot Device [HDD:PM-WDC WD800JD] 3rd Boot Device [ATAPI CD-ROM]
BIOS SETUP UTILITY
BIOS SETUP UTILITY
Species the Boot
Device Priority
sequence.
A virtual oppy disk
drive (Floppy Drive B:) may appear when you set the CD-ROM drive as the
rst boot device.
Select Screen
Select Item Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit
Species the boot sequence from the
availabe devices.
A device enclosed in parenthesis has been disabled in the corresponding menu.
Select Screen
Select Item
Change Option
+-
F1 General Help F10 Save and Exit ESC Exit
v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
1st ~ xxth Boot Device [xxx Drive]
These items specify the boot device priority sequence from the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system. Configuration options: [1st FLOPPY DRIVE] [HDD:xxxxx] [ATAPI CD-ROM] [Disabled]
4-30 Chapter 4: BIOS setup
4.6.2 Boot Settings Conguration
Boot
Boot Settings Conguration
Quick Boot [Enabled] Full Screen Logo [Enabled] AddOn ROM Display Mode [Force BIOS] Bootup Num-Lock [On] Wait For ‘F1’ If Error [Enabled] Hit ‘DEL’ Message Display [Enabled] Interrupt 19 Capture [Disabled]
v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
Quick Boot [Enabled]
Enabling this item allows the BIOS to skip some power on self tests (POST) while booting to decrease the time needed to boot the system. When set to [Disabled], BIOS performs all the POST items. Configuration options: [Disabled] [Enabled]
Full Screen Logo [Enabled]
This allows you to enable or disable the full screen logo display feature. Configuration options: [Disabled] [Enabled]
Set this item to [Enabled] to use the ASUS MyLogo3™ feature.
BIOS SETUP UTILITY
Allows BIOS to skip certain tests while booting. This will decrease the time needed to boot the system.
Select Screen
Select Item +- Change Option F1 General Help F10 Save and Exit ESC Exit
AddOn ROM Display Mode [Force BIOS]
Sets the display mode for option ROM. Configuration options: [Force BIOS] [Keep Current]
Bootup Num-Lock [On]
Allows you to select the power-on state for the NumLock. Configuration options: [Off] [On]
Wait For ‘F1’ If Error [Enabled]
When set to Enabled, the system waits for the F1 key to be pressed when error occurs. Configuration options: [Disabled] [Enabled]
Hit ‘DEL’ Message Display [Enabled]
When set to Enabled, the system displays the message “Press DEL to run Setup” during POST. Configuration options: [Disabled] [Enabled]
Interrupt 19 Capture [Disabled]
When set to [Enabled], this function allows the option ROMs to trap Interrupt 19. Configuration options: [Disabled] [Enabled]
ASUS P5E-VM HDMI 4-31
4.6.3 Security
The Security menu items allow you to change the system security settings. Select an item then press <Enter> to display the configuration options.
Boot
Security Settings
Supervisor Password :Not Installed User Password :Not Installed
Change Supervisor Password Change User Password
v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
Change Supervisor Password
Select this item to set or change the supervisor password. The Supervisor Password item on top of the screen shows the default Not Installed. After you set a password, this item shows Installed.
To set a Supervisor Password:
1. Select the Change Supervisor Password item and press <Enter>.
2. From the password box, type a password composed of at least six letters and/or numbers, then press <Enter>.
3. Confirm the password when prompted.
The message “Password Installed” appears after you successfully set your password.
To change the supervisor password, follow the same steps as in setting a user password.
To clear the supervisor password, select the Change Supervisor Password then press <Enter>. The message “Password Uninstalled” appears.
BIOS SETUP UTILITY
<Enter> to change password. <Enter> again to disabled password.
Select Screen
Select Item Enter Change F1 General Help F10 Save and Exit ESC Exit
If you forget your BIOS password, you can clear it by erasing the CMOS Real Time Clock (RTC) RAM. See section 2.6 Jumper for information on how to erase the RTC RAM.
After you have set a supervisor password, the other items appear to allow you to change other security settings.
4-32 Chapter 4: BIOS setup
Boot
Security Settings
Supervisor Password :Installed User Password :Installed
Change Supervisor Password User Access Level [Full Access] Change User Password Clear User Password Password Check [Setup]
v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
BIOS SETUP UTILITY
<Enter> to change password. <Enter> again to disabled password.
Select Screen
Select Item Enter Change F1 General Help F10 Save and Exit ESC Exit
User Access Level [Full Access]
This item allows you to select the access restriction to the Setup items. Configuration options: [No Access] [View Only] [Limited] [Full Access]
No Access prevents user access to the Setup utility.
View Only allows access but does not allow change to any field.
Limited allows changes only to selected fields, such as Date and Time.
Full Access allows viewing and changing all the fields in the Setup utility.
Change User Password
Select this item to set or change the user password. The User Password item on top of the screen shows the default Not Installed. After you set a password, this item shows Installed.
To set a User Password:
1. Select the Change User Password item and press <Enter>.
2. On the password box that appears, type a password composed of at least six letters and/or numbers, then press <Enter>.
3. Confirm the password when prompted.
The message “Password Installed” appears after you set your password successfully.
To change the user password, follow the same steps as in setting a user password.
Clear User Password
Select this item to clear the user password.
Password Check [Setup]
When set to [Setup], BIOS checks for user password when accessing the Setup utility. When set to [Always], BIOS checks for user password both when accessing Setup and booting the system. Configuration options: [Setup] [Always]
ASUS P5E-VM HDMI 4-33
4.7 Tools menu
The Tools menu items allow you to configure options for special functions. Select an item then press <Enter> to display the sub-menu.
Main Advanced Power Boot Tools Exit
ASUS EZ Flash 2
ASUS O.C. Prole
v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
4.7.1 ASUS EZ Flash 2
Allows you to run ASUS EZ Flash 2. When you press <Enter>, a confirmation message appears. Use the left/right arrow key to select between [Yes] or [No], then press <Enter> to confirm your choice. Please see section 4.1.3 for details.
ASUSTek EZ Flash 2 BIOS ROM Utility V3.06
FLASH TYPE: WINBOND W25X80
Current ROM
BOARD: P5E-VM HDMI VER: 0113 DATE: 10/05/07
PATH: C:\
A:
C:
BIOS SETUP UTILITY
BOARD: Unknown VER: Unknown DATE: Unknown
Update ROM
Press ENTER to run the utility to select and update BIOS. This utility doesn't support :
1.NTFS format
Select Screen
Select Item
Change Field
+-
Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit
Note
[Enter] Select or Load [B] Backup [ESC] Exit [Tab] Switch [Up/Down/Home/End] Move
4-34 Chapter 4: BIOS setup
Loading...
