Asrock Z490 Phantom Gaming-ITX/TB3 User Manual

Version 1.0

Published April 2020

Copyright©2020 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.

Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibilit y of such damages arising from any
defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see ww w.dtsc.ca.gov/hazardouswaste/
perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
compensation for any other reasonably foreseeable loss or damage caused by our
goods. You are also entitled to have the goods repaired or replaced if the goods fail
to be of acceptable quality and the failure does not amount to a major failure. If
you require assistance please call ASRock Tel : [phone] ext.123 (Standard
International call charges apply)

e terms HDMI® and HDMI High-Denition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.

CE Warning

is device complies with directive 2014/53/EU issued by the Commision of the European
Community.

is equipment complies with EU radiation exposure limits set forth for an uncontrolled
environment.
is equipment should be installed and operated with minimum distance 20cm between
the radiator & your body.

Operations in the 5.15-5.35GHz band are restricted to indoor usage only.

Radio transmit power per transceiver type

Function Frequency Maximum Output Power (EIRP)

2400-2483.5 MHz 18.5 + / -1.5 dbm

5150-5250 MHz 21.5 + / -1.5 dbm

WiFi

Bluetooth 2400-2483.5 MHz 8.5 + / -1.5 dbm

5250-5350 MHz

5470-5725 MHz

18.5 + / -1.5 dbm (no TPC)

21.5 + / -1.5 dbm (TPC)

25.5 + / -1.5 dbm (no TPC)

28.5 + / -1.5 dbm (TPC)

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 8

1.4 I/O Panel 12

Chapter 2 Installation 15

2.1 Installing the CPU 16

2.2 Installing the CPU Fan and Heatsink 19

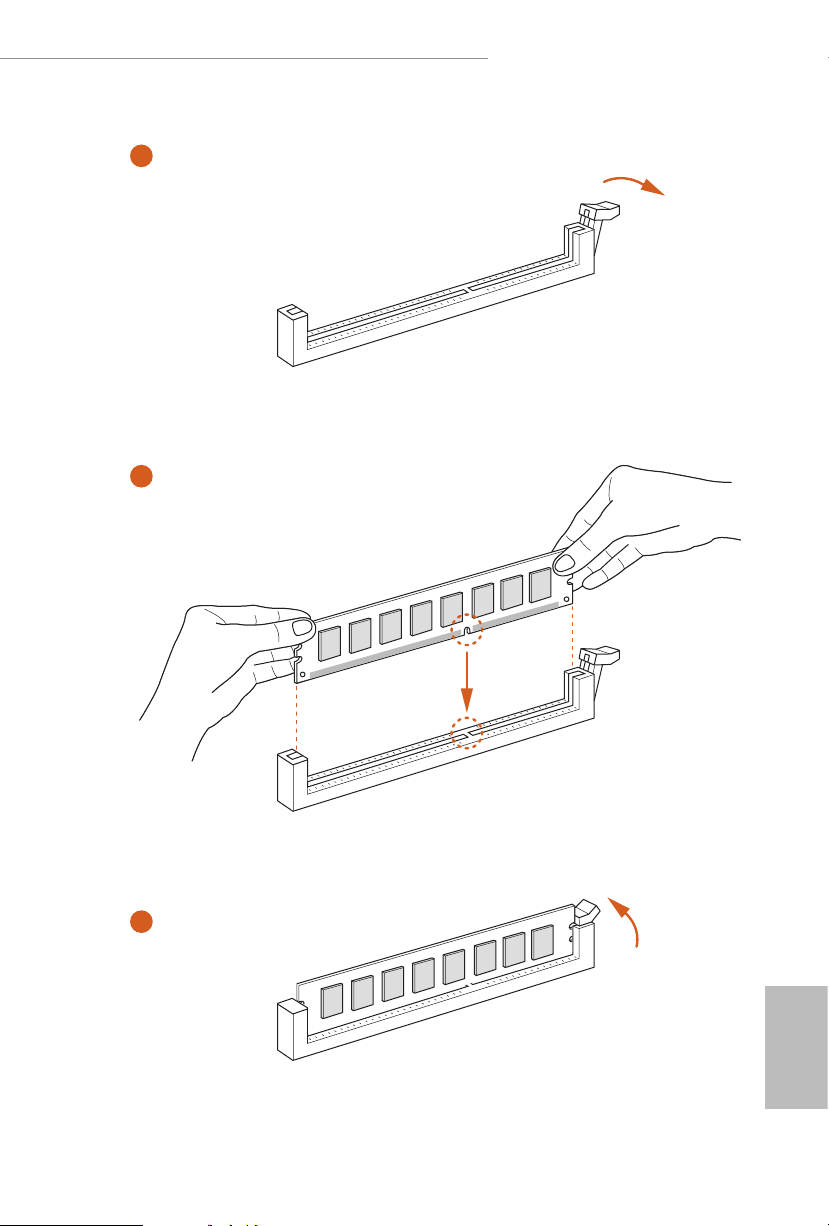

2.3 Installing Memory Modules (DIMM) 20

2.4 Expansion Slots (PCI Express Slots) 22

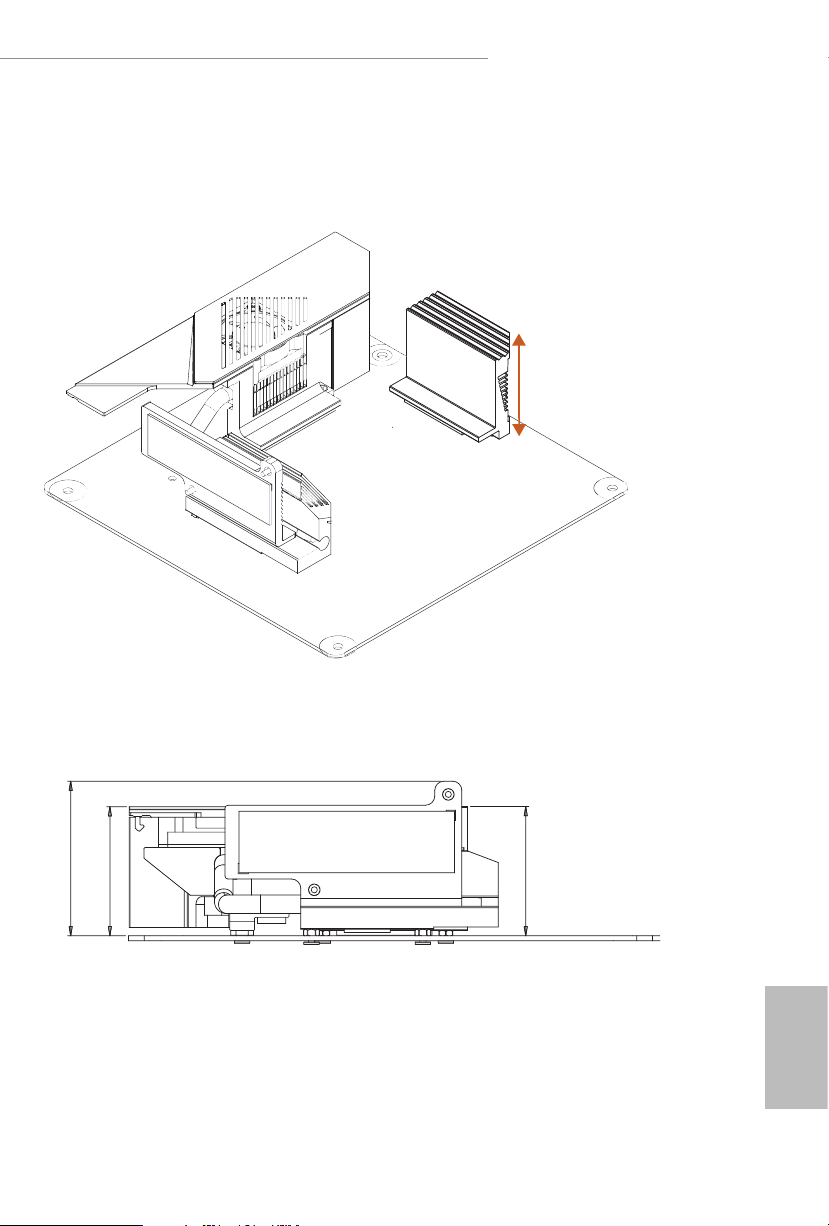

2.5 MOS Heatsink Height 23

2.6 Onboard Headers and Connectors 24

2.7 Clear CMOS Button 29

2.8 M.2_SSD (NGFF) Module Installation Guide (M2_1) 30

2.9 M.2_SSD (NGFF) Module Installation Guide (M2_2) 34

Chapter 3 Software and Utilities Operation 38

3.1 Installing Drivers 38

3.2 ASRock Motherboard Utility (Phantom Gaming Tuning) 39

3.2.1 Installing ASRock Motherboard Utility (Phantom Gaming
Tuning) 39

3.2.2 Using ASRock Motherboard Utility (Phantom Gaming Tuning) 39

3.3 ASRock Live Update & APP Shop 42

3.3.1 UI Overview 42

3.3.2 Apps 43

3.3.3 BIOS & Drivers 46

3.3.4 Setting 47

3.4 Nahimic Audio 48

3.5 ASRock Polychrome SYNC 49

Chapter 4 UEFI SETUP UTILITY 52

4.1 Introduction 52

4.2 EZ Mode 53

4.3 Advanced Mode 54

4.3.1 UEFI Menu Bar 54

4.3.2 Navigation Keys 55

4.4 Main Screen 56

4.5 OC Tweaker Screen 57

4.6 Advanced Screen 67

4.6.1 CPU Conguration 68

4.6.2 Chipset Conguration 70

4.6.3 Storage Conguration 73

4.6.4 Intel(R) Thunderbolt 74

4.6.5 Super IO Conguration 75

4.6.6 ACPI Conguration 76

4.6.7 USB Conguration 77

4.6.8 Trusted Computing 78

4.7 Tools 79

4.8 Hardware Health Event Monitoring Screen 81

4.9 Security Screen 83

4.10 Boot Screen 84

4.11 Exit Screen 87

Z490 Phantom Gaming-ITX/TB3

Chapter 1 Introduction

ank you for purchasing ASRock Z490 Phantom Gaming-ITX/TB3 motherboard,

a reliable motherboard produced under ASRock ’s consistently stringent quality

control. It delivers excellent performance with robust design conforming to

ASRock’s commitment to quality and endurance.

In this documentation, Chapter 1 and 2 contains the introduction of the

motherboard and step-by-step installation guides. Chapter 3 contains the operation

guide of the soware and utilities. Chapter 4 contains the conguration guide of

the BIOS setup.

Becau se the motherboard specications and th e BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In ca se any modi­cations of this documentation occur, the u pdated version will be available on ASRock ’s
website w ithout further notice. If you require technical support related to this mother­board, please visit our website for specic information about the model you are using. You
may nd the l atest VGA cards and CPU suppor t list on ASRock’s website a s well. ASRock
website http://www.asrock.com.

1.1 Package Contents

ASRock Z490 Phantom Gaming-ITX/TB3 Motherboard (Mini-ITX Form Factor)

•

ASRock Z490 Phantom Gaming-ITX/TB3 Quick Installation Guide

•

ASRock Z490 Phantom Gaming-ITX/TB3 Support CD

•

2 x Serial ATA (SATA) Data Cables (Optional)

•

1 x ASRock WiFi 2.4/5 GHz Antenna

•

2 x Screws for M.2 Sockets (Optional)

•

English

1

1.2 Specications

Platform

CPU

Chipset

Memory

•

•

•

•

•

•

•

•

•

•

•

•

•

* Please refer to Memory Support List on ASRock's website for

more information. (http://www.asrock.com/)

* CoreTM (i9/i7) support DDR4 up to 2933; CoreTM (i5/i3),

Pentium® and Celeron® support DDR4 up to 2666.

•

•

•

•

Mini-ITX Form Factor

8 Layer PCB

2oz Copper PCB

Suppor ts 10th Gen and future generation Intel® CoreTM

Processors (Socket 1200)

Digi Power design

9 Power Phase design

Supports Intel® Turbo Boost Ma x 3.0 Technology

Supports Intel® K-Series unlocked CPUs

Supports ASRock BCLK Full-range Overclocking

Intel® Z490

Dual Channel DDR4 Memory Technology

2 x DDR4 DIMM Slots

Support s DDR4 4 666+(OC)*/460 0/4 500/44 00/4333/426 6

(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/

3600(OC)/3200(OC)/2933/2800/2666/2400/2133 non-ECC,

un-buered memory

Supports ECC UDIMM memory modules (operate in non-

ECC mode)

Max. capacity of system memory: 64GB

Supports Intel® Extreme Memory Prole (X MP) 2.0

15μ Gold Contact in DIMM Slots

English

2

Expansion
Slot

1 x PCI Express 3.0 x16 Slot*

•

* Supports PCIe riser cards to extend x16, x8/x8 or x8/x4/x4

slots

* Supports NVMe SSD as boot disks

1 x Vertical M.2 Socket (Key E) with the bundled WiFi-

•

802.11ax module (on the rear I/O)

15μ Gold Contact in VGA PCIe Slot (PCIE1)

•

Graphics

Z490 Phantom Gaming-ITX/TB3

Intel® UHD Graphics Built-in Visuals and the VGA outputs

•

can be supported only with processors which are GPU

integrated.

Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265

•

8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2,

MJ PEG, VC-1

* VP9 10bit and VC-1 are for decode only.

* VP8 and VP9 encode are not supported by Windows OS.

Graphics, Media & Compute: Microso DirectX 12, OpenGL

•

4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid /

Switchable Graphics, OpenCL 2.1

Display & Content Security: Rec. 2020 (Wide Color Gamut),

•

Microso PlayReady 3.0, Intel® SGX Content Protection,

UHD/HDR Blu-ray Disc

ree graphics output options: HDMI, DisplayPort 1.4 and

•

Intel® underboltTM 3

Supports Triple Monitor

•

Supports Intel® underboltTM 3 with max. resolution up to

•

4K x 2K (4096x2304) @ 60Hz

Supports HDMI 2.0 with max. resolution up to 4K x 2K

•

(4096x2160) @ 60Hz

Supports DisplayPort 1.4 with max. resolution up to 4K x 2K

•

(4096x2304) @ 60Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

•

HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant

HDMI monitor is required)

Supports HDR (High Dynamic Range) with HDMI 2.0

•

Supports HDCP 2.3 with HDMI 2.0, DisplayPort 1.4 and

•

Intel® underboltTM 3

Supports 4K Ultra HD (UHD) playback with HDMI 2.0,

•

DisplayPort 1.4 and Intel® underboltTM 3

English

3

Audio

7.1 CH HD Audio with Content Protection (Realtek

•

ALC1220 Audio Codec)

Premium Blu-ray Audio support

•

Supports Surge Protection

•

120dB SNR DAC with Dierential Amplier

•

NE5532 Premium Headset Amplier for Front Panel Audio

•

Connector (Supports up to 600 Ohm headsets)

Pure Power-In

•

Direct Drive Technology

•

PCB Isolate Shielding

•

Impedance Sensing on Rear Out port

•

Individual PCB Layers for R/L Audio Channel

•

Gold Audio Jacks

•

15μ Gold Audio Connector

•

Nahimic Audio

•

English

LAN

Wireless
LAN

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Dragon RTL8125BG

•

Supports Phantom Gaming LAN Soware

•

- Smart Auto Adjust Bandwidth Control

- Visual User Friendly UI

- Visual Network Usage Statistics

- Optimized Default Setting for Game, Browser, and

Streaming Modes

- User Customized Priority Control

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection

•

Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

Intel® 802.11ax WiFi Module

•

Supports IEEE 802.11a/b/g/n/ax

•

Supports Dual-Band (2.4/5 GHz)

•

Supports WiFi6 802.11ax (2.4Gbps)

•

2 antennas to support 2 (Transmit) x 2 (Receive) diversity

•

technolog y

Supports Bluetooth 5.1 + High speed class II

•

Supports MU-MIMO

•

4

Rear Panel
I/O

Storage

Z490 Phantom Gaming-ITX/TB3

2 x Antenna Ports

•

1 x HDMI Port

•

1 x DisplayPort 1.4

•

1 x Optical SPDIF Out Port

•

3 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD

•

Protection)

1 x USB 3.2 Gen2 underboltTM 3 Type-C Port (40Gb/s for

•

underbolt protocol; 10 Gb/s for USB3.2 protocol) (Supports

ESD Protection)

* Supports USB PD 2.0 charging up to 5V@3A (15W)

2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

•

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

•

LED)

1 x Clear CMOS Button

•

HD Audio Jacks: Rear Speaker / Central / Bass / Line in /

•

Front Speaker / Microphone (Gold Audio Jacks)

4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

•

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology

17), NCQ, AHCI and Hot Plug*

* If M2_1 is occupied by a SATA-type M.2 device, SATA_1 will

be disabled.

1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2

•

SATA3 6.0 Gb/s module and M.2 PCI Express module up to

Gen3 x4 (32 Gb/s)**

1 x Ultra M.2 Socket (M2_2), supports M Key ty pe

•

2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI

Express module up to Gen3 x4 (32 Gb/s)**

** Supports Intel® OptaneTM Tech nolo g y

** Supports NVMe SSD as boot disks

Connector

1 x Chassis Intrusion Header

•

1 x RGB LED Header

•

* Supports in total up to 12V/3A, 36W LED Strip

1 x Addressable LED Header

•

* Supports in total up to 5V/3A, 15W LED Strip

1 x CPU Fan Connector (4-pin)

•

* e CPU Fan Connector supports the CPU fan of maximum

1A (12W) fan power.

English

5

BIOS
Feature

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan

•

Speed Control)

* CPU_OPT/W_PUMP can auto detect if 3-pin or 4-pin fan is

in use.

1 x Chassis Fan Connector (4-pin) (Smart Fan Speed

•

Control)

1 x 24 pin ATX Power Connector (Hi-Density Power

•

Connec tor)

1 x 8 pin 12V Power Connector (Hi-Density Power

•

Connec tor)

1 x Front Panel Audio Connector (15μ Gold Audio

•

Connec tor)

1 x USB 2.0 Headers (Support 2 USB 2.0 port) (Supports ESD

•

Protection)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

•

(Supports ESD Protection)

AMI UEFI Legal BIOS with multilingual GUI support

•

ACPI 6.0 Compliant wake up events

•

SMBIOS 2.7 Support

•

CPU Core/Cache, DRAM, VPPM,VTTDDR, VCCSFR,

•

VCCPLL_OC, PCH Voltage, VCCIO, VCCST, VCCSA,

CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL,

Memory Controller PLL Voltage Multi-adjustment

English

6

Hardware
Monitor

OS

Temperature Sensing: CPU, CPU_OPT/Water Pump,

•

Chassis Fans

Fan Tachometer: CPU, CPU_OPT/Water Pump, Chassis

•

Fans

Quiet Fan (Auto adjust chassis fan speed by CPU

•

temperature): CPU_OPT/Water Pump

Fan Multi-Speed Control: CPU, CPU_OPT/Water Pump,

•

Chassis Fans

CASE OPEN detection

•

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,

•

VPPM, PCH, VCCSA, VCCST, VCCIO, VCCPLL_OC,

VCCSFR

Microso® Windows® 10 64-bit

•

Z490 Phantom Gaming-ITX/TB3

FCC, CE

Certica­tions

* For detailed product information, please visit our website: http://www.asrock .com

Please realize that the re is a certain risk involved with overclocking, including adjusting
the setting in the BIO S, applying Untied Overclocking Technology, or using third-par ty
overclocking tools. O verclocking may aect your syste m’s stability, or even cause damage to
the components and devices of your syste m. It should be done at your own risk and expe nse.
We are not responsibl e for possible damage caused by overclocking.

•

ErP/EuP ready (ErP/EuP ready power supply is required)

•

English

7

Intel

Z490

CPU_FAN1

RGB_LED1

1

CHA_FAN1

1

4

3

7

5

1

14

10

12

ATXPWR1

RJ- 45 LAN

DP_1

DDR 4_A1 (6 4 bit, 28 8-pin m odule )

DDR 4_B1 (6 4 bit, 28 8-pin m odule )

USB 3.2 Gen2
T: USB3 4_
B: USB3_5

USB 3.2 G en2

USB3 3_

PCIE1

IO1

PS2

Keyb oard

/Mou se

HDM I1

Top:

Central/Bass

Cente r:

REAR SP K

Top:

LINE IN

Cente r:

FRONT

Botto m:

Optic al

SPDIF

Botto m:

MIC IN

SATA3_0

SATA3_1

ADDR_LED1

LAN

TB_1

AUDIO
CODEC

Z4 90

Ph an t om G am i ng - IT X/ T B3

1

ATX12V1

CPU_OPT/W_PUMP

2

USB3_ 6_7

1

1

HD_AUDIO1

USB 3. 2 Gen1

T: USB1

B: USB 2

M2_WIFI

CLRC
BTN

6

PANEL1

HDLED RES ET

PLED PWRB TN

CMOS

Batt ery

8

11

9

13

1.3 Motherboard Layout

Top Side View

English

8

M2_ 1

15

BIOS
ROM

Back Side View

Z490 Phantom Gaming-ITX/TB3

English

9

I/O Expansion Card (For Front Socket)

CI1

20 19 18 17 16

RoHS

M2_2

CT1

CT2

SPEAKER1

1

USB1_2

1

Z490 PG-ITX M.2/SATA/USB C ard

Ultra M.2

PCIe Gen3 x4

SATA3_3

1

SATA3_2

21

English

10

No. Description

1 8 pin 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN2)

3 Addressable LED Header (ADDR_LED1)

4 CPU/Water Pump Fan Connector (CPU_OPT/W_PUMP)

5 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

6 RGB LED Header (RGB_LED1)

7 ATX Power Connector (ATXPWR1)

8 USB 3.2 Gen1 Header (USB3_6_7)

9 Chassis Fan Connector (CHA_FAN1)

10 SATA3 Connector (SATA_0)

11 System Panel Header (PANEL1)

12 SATA3 Connector (SATA_1)

13 I/O Socket (IO1)

14 Front Panel Audio Header (HD_AUDIO1)

15 Ultra M.2 Socket (M2_1)

16 Ultra M.2 Socket (M2_2)

17 SATA3 Connector (SATA_3)

18 SATA3 Connector (SATA_2)

19 Chassis Intrusion Header (CI1)

20 USB 2.0 Header (USB1_2)

21 Chassis Speaker Header (SPEAKER1)

Z490 Phantom Gaming-ITX/TB3

11

English

1.4 I/O Panel

21 3

6

547

14

9 8101516 13 11

12

No. Description No. Description

1 DisplayPort 1.4 9 Optical SPDIF Out Port

2 PS/2 Mouse/Keyboard Port 10 USB 3.2 Gen2 Ports (USB3_4_ 5)

3 2.5G LAN RJ-45 Port 11 USB 3.2 Gen2 Port (USB3_3)

(Dragon RTL8125BG)* 12 USB 3.2 Gen2 underboltTM 3

4 Central / Bass (Orange) Type-C Port (TB_1)

5 Rear Speaker (Black) 13 Clear CMOS Button

6 Line In (Light Blue) 14 USB 3.2 Gen1 Ports (USB3_12)

7 Front Speaker (Lime)** 15 Antenna Ports

8 Microphone (Pink) 16 HDMI Port

English

12

Z490 Phantom Gaming-ITX/TB3

*ere are two LEDs on each LAN port. Plea se refer to the tabl e below for the LA N port LED indications.

ACT/LINK LED

SPEED LED

LAN Por t

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange

On Link Green 2.5Gbps connection

** If you use a 2- channel speaker, plea se connect the speake r’s plug into “Front Speaker Jack”. See the table below

for connection d etails in accordance w ith the ty pe of speaker you use.

100Mbps/1Gbps

connection

Audio Output

Channels

Front Speaker

(No. 7)

Rear Speaker

(No. 5)

Central / Bass

(No. 4)

2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V

Line In

(No. 6)

English

13

1.5 WiFi-802.11ax Module and ASRock WiFi 2.4/5 GHz
Antenna

WiFi-802.11ax + BT Module

is motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ax + BT v5.1

module (pre-installed on the rear I/O panel) that oers support for WiFi 802.11 a/b/

g/n/ax connectivity standards and Bluetooth v5.1. WiFi + BT module is an easy-to-

use wireless local area network (WLAN) adapter to support WiFi + BT. Bluetooth

v5.1 standard features Smart Ready technology that adds a whole new class of

functionality into the mobile devices. BT 5.1 also includes Low Energy Technology

and ensures extraordinary low power consumption for PCs. e 2T2R WiFi

solution sets a WiFi high speed standard and oers max link rate up to 2.4Gbps.

* e transmission speed may vary according to the environment.

ASRock WiFi 2.4/5 GHz Antenna

English

14

Z490 Phantom Gaming-ITX/TB3

Chapter 2 Installation

is is a Mini-ITX form factor motherboard. Before you insta ll the motherboard,

study the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard

•

components. Failure to do so may cause physical injuries and damages to motherboard

components.

In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a grounded

wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

15

English

2.1 Installing the CPU

1

1. Be fore you insert the 1200 -Pin CPU into the sock et, please check if the P nP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to in sert the CPU into the socket if above situation is found . Otherwise, the CPU
will be seriously damaged.

2. Unplug all powe r cables before installing the CPU.

English

A

B

2

16

Z490 Phantom Gaming-ITX/TB3

3

5

4

17

English

Please save and replace the cover if the processor i s removed. e cover must be placed if
you wish to return the motherboard for aer se rvice.

English

18

2.2 Installing the CPU Fan and Heatsink

1 2

Z490 Phantom Gaming-ITX/TB3

CPU_FAN

English

19

2.3 Installing Memory Modules (DIMM)

is motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots,

and supports Dual Channel Memory Technology.

1. For dual channel conguration, you always need to install identical (the same

brand, speed , size and chip-type) DDR4 DIMM pairs.

2. It is unable to activate Dual Channel Memory Technology with only one memory

module installed.

3. It is not allowed to install a DDR, DDR 2 or DDR3 memory module into a DDR4

slot; otherwise, this motherboard and DIMM may be damaged.

English

20

Z490 Phantom Gaming-ITX/TB3

1

2

3

English

21

2.4 Expansion Slot (PCI Express Slot)

ere is 1 PCI Express slot on the motherboard.

Before installing an ex pansion card, please make sure that the power supply is switched o
or the power cord is unplugged. Please read the document ation of the expansion card and
make necessary hardware settings for the card before you start the installation.

PCIe slot:

PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

* Supports PCIe riser cards to extend x16, x8/x8 or x8/x4/x4 slots

English

22

2.5 MOS Heatsink Height

Z490 Phantom Gaming-ITX/TB3

MOS-N Heatsink Height

42.00 mm

50.24 mm

41.95 mm

42.00 mm

English

23
