Asrock N3700-ITX User Manual

N3700-ITXN3700-ITX

N3150-ITXN3150-ITX

Version 1.1

Published May 2015

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or tness for a particular purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of prots, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/ perchlorate”

ASRock Website: http://www.asrock.com

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 5

1.4 I/O Panel 7

Chapter 2 Installation 9

2.1 Installing Memory Modules (SO-DIMM) 10

2.2 Expansion Slots (PCI Express Slots) 12

2.3 Jumpers Setup 13

2.4 Onboard Headers and Connectors 14

Chapter 3 Software and Utilities Operation 18

3.1 Installing Drivers 18

3.2 ASRock APP Shop 19

3.2.1 UI Overview 19

3.2.2 Apps 20

3.2.3 BIOS & Drivers 23

3.2.4 Setting 24

3.3 Enabling USB Ports for Windows® 7 Installation 25

Chapter 4 UEFI SETUP UTILITY 28

4.1 Introduction 28

4.1.1 UEFI Menu Bar 28

4.1.2 Navigation Keys 29

4.2 Main Screen 30

4.3 Advanced Screen 31

4.3.1 CPU Conguration 32

4.3.2 Chipset Conguration 33

4.3.3 Storage Conguration 35

4.3.4 IntelRMT Conguration 37

4.3.5 Super IO Conguration 38

4.3.6 ACPI Conguration 39

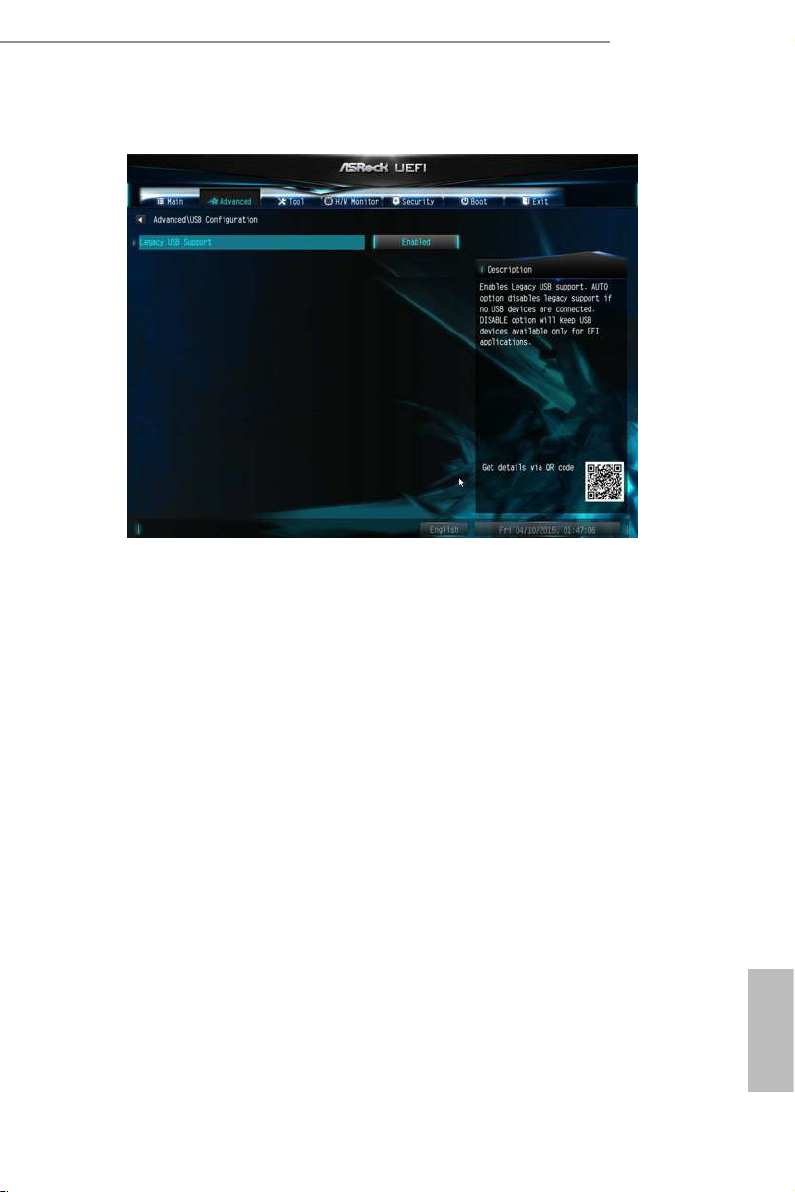

4.3.7 USB Conguration 41

4.3.8 Trusted Computing 42

4.4 Tools 43

4.5 Hardware Health Event Monitoring Screen 45

4.6 Security Screen 46

4.7 Boot Screen 47

4.8 Exit Screen 50

Chapter 1 Introduction

ank you for purchasing ASRock N3700-ITX / N3150-ITX motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

In this manual, Chapter 1 and 2 contains the introduction of the motherboard

and step-by-step installation guides. Chapter 3 contains the operation guide of the

soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.

Becau se the motherboard specications and the BIOS soware might be updated, the content of this documentation will be subject to ch ange without notice. In case any modications of this documentation occur, the updated version will be available on ASRock’s website without further notice. If you require technical support relate d to this motherboard , please visit our website for specic information about the model you are using. You may nd the latest VGA cards and CPU support list on ASRock’s website a s well. ASRock website htt p://www.asrock.com .

1.1 Package Contents

ASRock N3700-ITX / N3150-ITX Motherboard (Mini-ITX Form Factor)

•

ASRock N3700-ITX / N3150-ITX Quick Installation Guide

•

ASRock N3700-ITX / N3150-ITX Support CD

•

2 x Serial ATA (SATA) Data Cables (Optional)

•

1 x I/O Panel Shield

•

1 x WiFi Module Screw

•

N3700-ITX N3150-ITX

English

1.2 Specications

Platform

CPU

Memory

Expansion Slot

•

* If only one SO-DIMM module is installed, please install it into DDR3_A1.

•

N3700-ITX N3150-ITX

Mini-ITX Form Factor Solid Capacitor design High Density Glass Fabric PCB

Intel® Quad-Core Pentium® Processor N3700 (up to 2.4 GHz)

(for N3700-ITX)

Intel® Quad-Core Processor N3150 (up to 2.08 GHz)

(for N3150-ITX)

Dual Channel DDR3/DDR3L Memory Technology 2 x DDR3/DDR3L SO-DIMM Slots Supports DDR3/DDR3L 1600/1066 non-ECC, un-buered memory Max. capacity of system memory: 16GB (see CAUTION)

1 x PCI Express 2.0 x1 Slot 1 x Half-size Mini-PCI Express Slot

Graphics

Intel® 8th generation (Gen 8) graphics: up to 16 EUs inside

•

(for N3700-ITX)

Intel® 8th generation (Gen 8) graphics: up to 12 EUs inside

•

(for N3150-ITX)

DirectX 11.1, Pixel Shader 5.0

•

ree graphics output options: DVI-D, HDMI and

•

DisplayPort 1.1a Supports Triple Monitor

•

Supports HDMI with max. resolution up to 4K x 2K

•

(3840x2160) @ 30Hz or 2560x1600 @ 60Hz Supports DVI-D with max. resolution up to 1920x1200 @

•

60Hz Supports DisplayPort 1.1a with max. resolution up to 4K x 2K

•

(3840x2160) @ 30Hz or 2560x1600 @ 60Hz Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate

•

Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HW Accelerated Decoders: H.264 @ level 5.2,

•

H.265/HEVC @ level 5 (GPU accelerated), JPEG, VP8

English

Audio

LAN

Rear Panel I/O

Supports HDCP with DVI-D, HDMI and DisplayPort 1.1a

•

Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D,

•

HDMI and DisplayPort 1.1a Ports

7.1 CH HD Audio with Content Protection (Realtek ALC892

•

Audio Codec) Premium Blu-ray Audio support

•

Supports Surge Protection (ASRock Full Spike Protection)

•

ELNA Audio Caps

•

PCIE x1 Gigabit LAN 10/100/1000 Mb/s

•

Realtek RTL8111GR

•

Supports Wake-On-WAN

•

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection (ASRock Full Spike

•

Protection) Supports LAN Cable Detection

•

Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

1 x PS/2 Mouse/Keyboard Port

•

1 x DVI-D Port

•

1 x HDMI Port

•

1 x DisplayPort

•

1 x Optica l SPDIF Out Port

•

2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

•

Spike Protection)) 4 x USB 3.0 Ports (ASMedia ASM1074 hub) (Supports ESD

•

Protection (ASRock Full Spike Protection)) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

•

LED) HD Audio Jacks: Rear Speaker / Central / Bass / Line in /

•

Front Speaker / Microphone

1.1a

English

Storage

Connector

2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and

•

Hot Plug 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, sup-

•

port NCQ, AHCI and Hot Plug

1 x COM Port Header

•

1 x TPM Header

•

BIOS Feature

Hardware Monitor

1 x CPU Fan Connector (3-pin)

•

1 x Chassis Fan Connector (3-pin)

•

1 x 24 pin ATX Power Connector

•

1 x Front Panel Audio Connector

•

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD

•

Protection (ASRock Full Spike Protection)) 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD

•

Protection (ASRock Full Spike Protection))

* USB3_3_4 is shared with USB_ 5_6.

64Mb AMI UEFI Legal BIOS with GUI support

•

Supports Plug and Play

•

ACPI 1.1 compliant wake up events

•

Supports jumperfree

•

SMBIOS 2.3.1 support

•

CPU/Chassis temperature sensing

•

CPU/Chassis Fan Tachometer

•

CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

•

CPU temperature) CPU/Chassis Fan multi-speed control

•

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

•

N3700-ITX N3150-ITX

Microso® Windows® 10 64-bit / 8.1 64-bit / 7 64-bit

Certications

* For detailed product information, pl ease vi sit our website: http://ww w.asrock .com

Due to limitation, the actual memory size may be le ss than 4GB for the reservation for system usage under Windows® 32-bit ope rating systems. Windows® 6 4-bit operating systems do not have such limitations. You can use ASRock XFast R AM to utilize the memory that Windows® cannot use.

•

* To install Windows® 7 64-bit OS, a modied installation disk with xHCI drivers packed into the ISO le is required. Please refer to page 25 for more detailed instructions. * For the updated Windows® 10 driver, please visit ASRock's website for details: http://www.asrock.com

FCC, CE, WHQL

•

ErP/EuP ready (ErP/EuP ready power supply is required)

•

English

1.3 Motherboard Layout

PCIE1

ATXP WR 1

AUDIO CODEC

TPMS1

DDR 3_B1

DDR3_ A1

CPU_FAN 1

HDLED RESET

PLED PWRB TN

PANEL1

SPEAKE R1

COM1

SATA3_A 1

CMOS

Batte ry

Ro HS

HD_AU DIO1

64Mb BIOS

Fr on t US B 3. 0

LAN

CLRMOS 1

USB3_ 3_4

SATA3_1

Top: RJ- 45

USB 3 .0 T: USB1 B: US B2

USB_5_ 6

USB_3_ 4

USB 3 .0 T: USB5 B: US B6

SATA3_A 2

SATA3_2

USB 2 .0

T: USB1

B: US B2

PS2

Key board /

Mou se

DVI1

HDM I1

DP_1

Top:

Central/Bass

Cent er:

REAR SP K

Top:

LINE IN

Cent er:

FRON T

Bott om:

Opti cal

SPDI F

Bott om:

MIC IN

MIN I_PCI E1

English

No. Description

1 CPU Fan Connector (CPU_FAN1)

2 2 x 204-pin DDR3 SO-DIMM Slots (DDR3_A1, DDR3_B1)

3 ATX Power Connector (ATXPWR1)

4 USB 3.0 Header (USB3_3_4)

5 USB 2.0 Header (USB_5_6)

6 Chassis Fan Connector (CHA_FAN1)

7 USB 2.0 Header (USB_3_4)

8 SATA3 Connector (SATA3_1)

9 SATA3 Connector (SATA3_2)

10 Chassis Speaker Header (SPEAKER1)

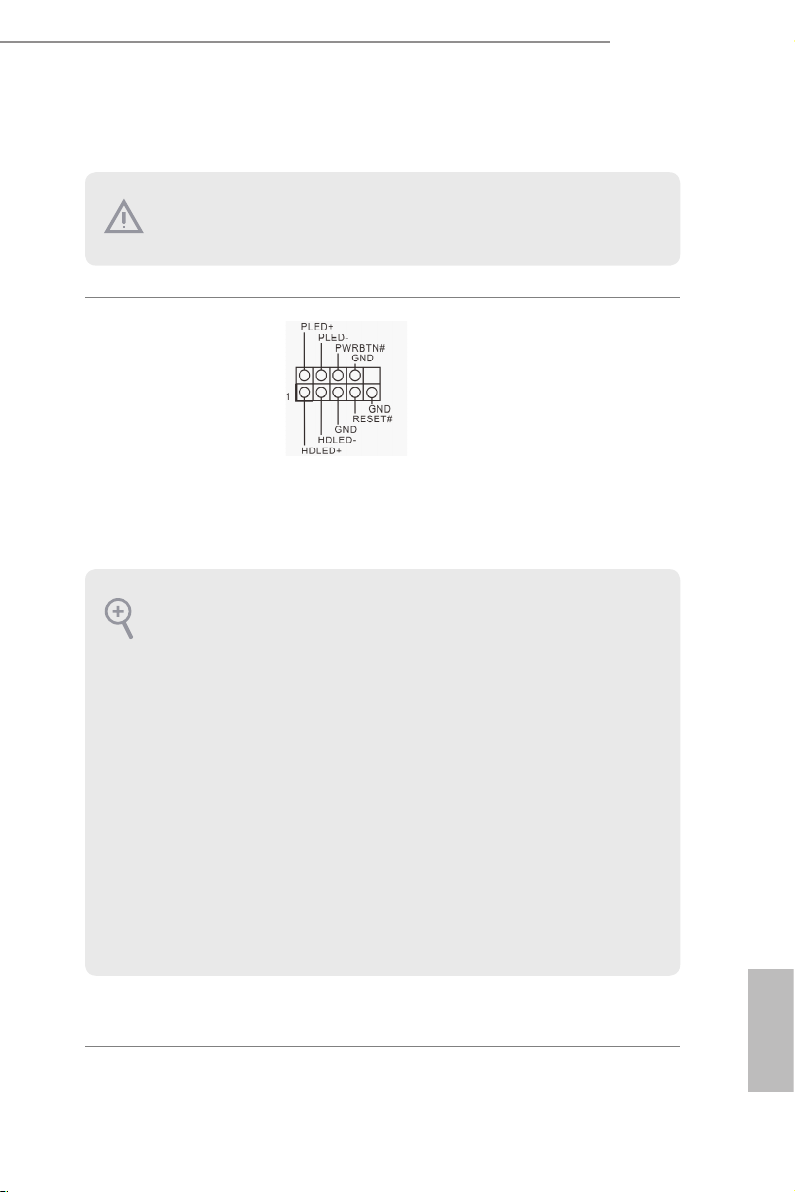

11 System Panel Header (PANEL1)

12 Clear CMOS Jumper (CLRMOS1)

13 COM Port Header (COM1)

14 SATA3 Connector (SATA3_A2)

15 SATA3 Connector (SATA3_A1)

16 TPM Header (TPMS1)

17 Front Panel Audio Header (HD_AUDIO1)

N3700-ITX N3150-ITX

English

1.4 I/O Panel

14 8910111213

No. Description No. Description

1 USB 2.0 Ports (USB12) 8 Microphone (Pink)

2 DisplayPort 1.1a 9 Optica l SPDIF Out Port

3 LAN RJ-45 Port* 10 USB 3.0 Ports (USB3_12)

4 Central / Bass (Orange) 11 USB 3.0 Ports (USB3_ 56)

5 Rear Speaker (Black) 12 HDMI Port

6 Line In (Light Blue) 13 DVI-D Port

7 Front Speaker (Lime)** 14 PS/2 Mouse/Keyboard Port

2 3 547

English

N3700-ITX N3150-ITX

* ere are two LEDs on each LAN por t. Please refe r to the table below for the LAN port LED indications.

ACT/LINK L ED

SPEED LE D

LAN Por t

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection Blinking Data Activity Orange 100Mbps connection On Link Green 1Gbps connection

** If you use a 2- channel speaker, please connect the speaker’s plug into “Front Speak er Jack”. See the table below

for connection details in accordance with the ty pe of speaker you use.

Audio Output

Channels

Front Speaker

(No. 7)

Rear Speaker

(No. 5)

Central / Bass

(No. 4)

2 V -- -- -- 4 V V -- -- 6 V V V -- 8 V V V V

To enable Multi-Streaming, you need to connect a front panel audio cable to the front panel audio header. Aer restarting your computer, you will nd the “Mixe r” tool on your system. Please select “Mix er ToolBox” , click “Enable pl ayback multi-streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are all owed to sel ect “Realtek HDA Primary output” to use the Rear Speaker, Central/Bass , and Front Speaker, or sel ect “Realtek HDA Audio 2nd output” to use the front panel audio.

Line In

(No. 6)

English

Chapter 2 Installation

is is a Mini-ITX form factor motherboard. Before you install the motherboard,

study the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard.

•

Failure to do so may cause physical injuries to you and damages to motherboard

components.

In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a grounded

wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

English

2.1 Installing Memory Modules (SO-DIMM)

is motherboard provides two 204-pin DDR3/DDR3L (Double Data Rate 3) SO-

DIMM slots. If only one SO-DIMM module is installed, please install it into DDR3_

A1.

It is not allowed to install a DDR or DDR2 memory module into a DDR 3/DDR3L slot; otherwise, this motherboard and SO-DIMM may be damaged.

e SO-DIMM only ts in one correct orientation. It will cause permanent damage to the motherboard and the SO-DIM M if you force the SO-DIMM into the slot at incorrect orientation .

N3700-ITX N3150-ITX

English

2.2 Expansion Slots (PCI Express Slots)

ere is 1 PCI Express slot and 1 mini-PCI Express slot on the motherboard.

Before installing an expansion card , please make sure that the power supply is switched o or the power cord is unplugge d. Please read the documentation of the expan sion card and mak e necessary hardware settings for the card before you start the installation .

PCIe slot:

PCIE1 (PCIe 2.0 x1 slot) is used for PCI Express cards with x1 lane width cards.

mini-PCIe slot:

MINI_PCIE1 (mini-PCIe slot) is used for WiFi module.

N3700-ITX N3150-ITX

English

2.3 Jumpers Setup

e illustration shows how jumpers are setup. When the jumper cap is placed on

the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper

is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”

when a jumper cap is placed on these 2 pins.

Clear CMOS Jumper

(CLRMOS1)

(see p.5, No. 12)

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system

parameters to default setup, please turn o the computer and unplug the power

cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to

short pin2 and pin3 on CLRMOS1 for 5 seconds. However, please do not clear the

CMOS right aer you update the BIOS. If you need to clear the CMOS when you

just nish updating the BIOS, you must boot up the system rst, and then shut it

down before you do the clear-CMOS action. Please be noted that the password,

date, time, and user default prole will be cleared only if the CMOS battery is

removed.

Clear CMOSDefault

English

2.4 Onboard Headers and Connectors

Onboard headers and connec tors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumpe r caps over the heade rs and connectors will cause permanent damage to the motherboard.

N3700-ITX N3150-ITX

System Panel Header

(9-pin PANEL1)

(see p.5, No. 11)

PWRBTN (Power Swit ch):

Connec t to the power switch on the cha ssis front panel. You may cong ure the way to turn o your system u sing the power switch.

RESET (Reset Sw itch):

Connec t to the reset switch on the cha ssis front panel. Press the reset switch to restart the computer if the computer freezes and fails to pe rform a normal restar t.

PLED (Syste m Power LED):

Connec t to the power status indicator on the chassis front panel . e LED is on when the system is operating. e LED keeps blinking when the system is in S1/S3 sleep state. e LED is o when the system is in S4 sleep state or powere d o (S5).

HDLED (Ha rd Drive Activity LED):

Connec t to the hard drive ac tivity LED on the chassis front panel.  e LED is on when the hard dr ive is reading or w riting data.

e front panel design may dier by chas sis. A front panel module mainly consis ts of power switch, re set switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assig nments and the pin assignments are matched cor rectly.

Connect the power

switch, reset switch and

system status indicator on

the chassis to this header

according to the pin

assignments below. Note

the positive and negative

pins before connecting

the cables.

English

Serial ATA3 Connectors

IntA _P_D+

(SATA3_1:

see p.5, No. 8)

(SATA3_2:

see p.5, No. 9)

(SATA3_A1:

see p.5, No. 15)

(SATA3_A2:

see p.5, No. 14)

SATA3_A1 SATA3_1

SATA3_A2 SATA3_2

ese four SATA3

connectors support SATA

data cables for internal

storage devices with up to

6.0 Gb/s data transfer rate.

USB 2.0 Headers

(9-pin USB_3_4)

(see p.5, No. 7)

(9-pin USB_5_6)

(see p.5, No. 5)

USB 3.0 Header

(19-pin USB3_3_4)

(see p.5, No. 4)

Front Panel Audio Header

(9-pin HD_AUDIO1)

(see p.5, No. 17)

IntA _P_D-

IntA _P_D+

USB _PWR

P-

USB _PWR

GND

IntA _P_SS TX+

IntA _P_SS TX-

IntA _P_SS TX+

GND

IntA _P_D-

P+

GND

P+

GND

IntA _P_SS RX+

GND

IntA _P_SS TX-

DUM MY

IntA _P_S SRX-

Vbus

IntA _P_S SRX-

IntA _P_SS RX+

Besides two USB 2.0 ports

on the I/O panel, there

are two headers on this

motherboard. Each USB

2.0 header can support

two ports.

Besides four USB 3.0

ports on the I/O panel,

there is one header on this

motherboard. is USB

3.0 header can support

two ports.

is header is for

connecting audio devices

to the front audio panel.

English

1. Hig h Denition Audio supports Jack Sensing, but the panel wire on the chassis must

GND

FAN_V OLTAGE

FAN_S PEED

GND

FAN_ VOLTAGE

FAN_ SPEED

suppor t HDA to function correctly. Please follo w the instr uctions in our manual and chassis manual to install your system.

2. If you use an AC’97 audio panel , please install it to the f ront panel audio header by the steps below: A. Connect Mic_ IN (MIC) to MIC2_L. B. Conne ct Audio_R (RIN) to OUT2_R and Audio_L (LI N) to OUT2_ L. C. Connect Ground (GND) to Ground (GND). D. MIC_ RET and OUT_RET are for the HD audio panel only. You don’t need to connec t them for the AC’97 audio panel. E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and adju st “Recording Volume”.

N3700-ITX N3150-ITX

Chassis Speaker Header

(4-pin SPEAKER1)

(see p.5, No. 10)

Chassis Fan Connector

(3-pin CHA_FAN1)

(see p.5, No. 6)

CPU Fan Connector

(3-pin CPU_FAN1)

(see p.5, No. 1)

ATX Power Connector

(24-pin ATXPWR1)

(see p.5, No. 3)

DUM MY

+5V

SPE AKER

DUM MY

Please connect the chassis

speaker to this header.

Please connect fan cable

to the fan connector and

match the black wire to

the ground pin.

Please connect the CPU

fan cable to the connector

and match the black wire

to the ground pin.

is motherboard pro-

vides a 24-pin ATX power

connector. To use a 20-pin

ATX power supply, please

plug it along Pin 1 and Pin

13.

English

TPM Header

(17-pin TPMS1)

(see p.5, No. 16)

is connector supports Trusted

Platform Module (TPM) system,

which can securely store keys,

SMB _CLK_ MAIN

GND

SMB _DATA _MAIN

LAD 2

GND

LAD 1

digital certicates, passwords,

S_P WRDWN #

SER IRQ#

GND

and data. A TPM system also

+3V

LAD 3

FRA ME

PCI CLK

LAD 0

PCI RST#

helps enhance network security,

protects digital identities, and

GND

+3V SB

ensures platform integrity.

Serial Port Header

(9-pin COM1)

(see p.5, No. 13)

RRXD 1

DDTR #1

TTXD 1

DDCD #1

DDSR #1

CCTS #1

RRTS #1

GND

is COM1 header

supports a serial port

module.

RRI# 1

English

Chapter 3 Software and Utilities Operation

3.1 Installing Drivers

e Support CD that comes with the motherboard contains necessary drivers and

useful utilities that enhance the motherboard’s features.

Running The Support CD

To begin using the support CD, insert the CD into your CD-ROM drive. e CD

automatically displays the Main Menu if “AUTORUN” is enabled in your computer.

If the Main Menu does not appear automatically, locate and double click on the le

“ASRSETUP.EXE” in the Support CD to display the menu.

Drivers Menu

e drivers compatible to your system will be auto-detected and listed on the

support CD driver page. Please click Instal l All or follow the order from top to

bottom to install those required drivers. erefore, the drivers you install can work

properly.

Utilities Menu

e Utilities Menu shows the application soware that the motherboard supports.

Click on a specic item then follow the installation wizard to install it.

To improve Windows 7 compatibility, ple ase download and install the following hot x provided by Mic roso. “KB2720599”: http://support.microso.com/kb/2720599/en-us

English

3.2 ASRock APP Shop

e ASRock APP Shop is an online store for purchasing and downloading soware

applications for your ASRock computer. You can quickly and easily install various

apps and support utilities, such as USB Key, XFast LAN, XFast R AM and more.

With ASRock APP Shop, you can optimize your system and keep your motherboard

up to date simply with a few clicks.

N3700-ITX N3150-ITX

Double-click

*You need to be connected to the Interne t to download apps from the ASRock APP Shop.

on your desktop to access ASRock APP Shop utility.

3.2.1 UI Overview

Category Panel

Information Panel

Category Panel: e category panel contains several category tabs or buttons that

when selected the information panel below displays the relative information.

Hot News

Information Panel: e information panel in the center displays data about the

currently selected category and allows users to perform job-related tasks.

Hot News: e hot news section displays the various latest news. Click on the image

to visit the website of the selected news and know more.

English

3.2.2 Apps

When the "Apps" tab is selected, you will see all the available apps on screen for you

to download.

Installing an App

Step 1

Find the app you want to install.

e most recommended app appears on the le side of the screen. e other various

apps are shown on the right. Please scroll up and down to see more apps listed.

English

You can check the price of the app and whether you have a lready intalled it or not.

- e red icon displays the price or "Free" if the app is free of charge.

- e green "Installed" icon means the app is installed on your computer.

Step 2

Click on the app icon to see more details about the selected app.

Step 3

N3700-ITX N3150-ITX

If you want to install the app, click on the red icon

Step 4

When installation completes, you can nd the green "Installed" icon appears on the

upper right corner.

to start downloading.

To uninstall it, simply click on the trash can icon . *e trash icon may not appear for certain apps.

English

Upgrading an App

You can only upgrade the apps you have already installed. When there is an

available new version for your app, you will nd the mark of "New Version"

appears below the installed app icon.

Step 1

Click on the app icon to see more details.

Step 2

English

Click on the yellow icon

to start upgrading.

3.2.3 BIOS & Drivers

Installing BIOS or Drivers

When the "BIOS & Drivers" tab is selected, you will see a list of recommended or

critical updates for the BIOS or drivers. Please update them all soon.

N3700-ITX N3150-ITX

Step 1

Please check the item information before update. Click on

Step 2

Click to select one or more items you want to update.

Step 3

Click Update to start the update process.

to see more details.

English

3.2.4 Setting

In the "Setting" page, you can change the language, select the server location, and

determine if you want to automatically run the ASRock APP Shop on Windows

startup.

English

N3700-ITX N3150-ITX

3.3 Enabling USB Ports for Windows® 7 Installation

Intel® Braswell and Skylake has removed their support for the Enhanced Host

Controller Interface (EHCI – USB2.0) and only kept the eXtensible Host Controller

Interface (XHCI – USB3.0). Due to that fact that XHCI is not included in the

Windows 7 inbox drivers, users may nd it dicult to install Windows 7 operating

system because the USB ports on their motherboard won’t work. In order for the

USB ports to function properly, please create a Windows® 7 installation disk with

the Intel® USB 3.0 eXtensible Host Controller (xHCI) drivers packed into the ISO

le.

Requirements

A Windows® 7 installation disk or USB drive

•

USB 3.0 drivers (included in the ASRock Support CD or website)

•

A Windows® PC

•

Win7 USB Patcher (included in the ASRock Support CD or website)

•

Scenarios

You have an ODD and PS/2 ports:

If there is an optical disc drive, PS/2 ports and PS/2 Keyboard or mouse on your computer,

you can skip the instructions below and go ahead to install Windows® 7 OS.

You only have an ODD (For Intel Skylake platforms only):

If there is an optical disc drive but no PS/2 ports on your computer, please enable the “PS/2

Simulator” option in UEFI SETUP UTILITY > Advanced > USB Conguration, which

allows the USB port to function as a PS/2 port, and then you can install the Windows® 7

OS. Please set PS/S Simulator back to disabled aer the installation.

You’ve got nothing:

If you do not have an optical disc drive, please nd another computer and follow the

instructions below to create a new ISO le with the “Win7 USB Patcher”. en use the new

patched Windows® 7 installation USB drive to install Windows® 7 OS.

English

Instructions

Step 1

Insert the Windows® 7 installation disk or USB drive to your system.

Step 2

Extract the tool (Win7 USB Patcher) and launch it.

Step 3

Select the “Win7 Folder” from Step1 by clicking the red circle as shown as the picture

below.

Step 4

Select the “USB Driver Folder” by clicking the red circle as shown as the picture below.

English

If you are using ASRock ’s Support CD for the USB 3.0 driver, please select your CD-ROM.

N3700-ITX N3150-ITX

Step 5

Select where to save the ISO le by pressing the red circle as shown as the picture below.

Step 6

If you want to burn the patched image to a CD, please check “Burn Image” and select “Target

Device to Burn”. If not, the patched ISO image will be exported to the destination selected

in Step5. en Press “Start” to proceed.

Step 7

Now you are able to install Windows® 7 on Braswell or Skylake with the new burned CD.

Or please use the patched ISO image to ma ke an OS USB drive to install the OS.

English

Chapter 4 UEFI SETUP UTILITY

4.1 Introduction

is section explains how to use the UEFI SETUP UTILITY to congure your

system. You may run the UEFI SETUP UTILITY by pressing <F2> or <Del> right

aer you power on the computer, otherwise, the Power-On-Self-Test (POST) will

continue with its test routines. If you wish to enter the UEFI SETUP UTILITY aer

POST, restart the system by pressing <Ctl> + <Alt> + <Delete>, or by pressing the

reset button on the system chassis. You may also restart by turning the system o

and then back on.

Becau se the UEFI soware is constantly being updated , the following U EFI setup screens and descriptions are for reference purpose only, and they may not exactly match what you see on your screen.

4.1.1 UEFI Menu Bar

e top of the screen has a menu bar with the following selections:

English

Main

Advanced

Tool

H/W Monitor

Security

Boot

Exit

For setting system time/date information

For advanced system congurations

Useful tools

Displays current hardware status

For security settings

For conguring boot settings and boot priority

Exit the current screen or the UEFI Setup Utility

4.1.2 Navigation Keys

Use < > key or < > key to choose among the selections on the menu bar, and

use < > key or < > key to move the cursor up or down to select items, then

press <Enter> to get into the sub screen. You can also use the mouse to click your

required item.

Please check the following table for the descriptions of each navigation key.

Navigation Key(s) Description

N3700-ITX N3150-ITX

+ / -

<Tab>

<PGUP>

<PGDN>

<HOME>

<END>

<F1>

<F7>

<F9>

<F10>

<F12>

<ESC>

To change option for the selected items

Switch to next function

Go to the previous page

Go to the next page

Go to the top of the screen

Go to the bottom of the screen

To display the General Help Screen

Discard changes and exit the SETUP UTILITY

Load optimal default values for all the settings

Save changes and exit the SETUP UTILITY

Print screen

Jump to the Exit Screen or exit the current screen

English

4.2 Main Screen

When you enter the UEFI SETUP UTILITY, the Main screen will appear and

display the system over view.

N3700-ITX:

English

N3150-ITX:

4.3 Advanced Screen

In this section, you may set the congurations for the following items:

CPU Conguration, Chipset Conguration, Storage Conguration, IntelRMT Con-

guration, Super IO Conguration, ACPI Conguration, USB Conguration and

Trusted Computing.

N3700-ITX N3150-ITX

Setting wrong values in this section may cause the system to malfunction.

English

4.3.1 CPU Conguration

Intel SpeedStep Technology

Intel SpeedStep technology allows processors to switch between multiple

frequencies and voltage points for better power saving and heat dissipation.

CPU C States Support

Enable CPU C States Support for power saving. It is recommended to keep C1, C6

and C7 all enabled for better power saving.

English

Enhanced Halt State (C1E)

Enable Enhanced Halt State (C1E) for lower power consumption.

Intel Virtualization Technology

Intel Virtualization Technology allows a platform to run multiple operating systems

and applications in independent partitions, so that one computer system can

function as multiple virtual systems.

Power Gear

Toggle between three operational modes (Eco, Normal and Sport) to maximize

performance or conserve energy.

Eco Mode: Reduces your computer’s performance and saves energy.

Normal Mode: Balance performance with power consumption.

Sport Mode: Use more power to achieve the highest performance.

4.3.2 Chipset Conguration

DRAM Voltage

Use this to congure DRAM Voltage. e default value is [Auto].

N3700-ITX N3150-ITX

Primary Graphics Adapter

Select a primary VGA.

Share Memory

Congure the size of memory that is allocated to the integrated graphics processor

when the system boots up.

Onboard HD Audio

Enable/disable onboard HD audio. Set to Auto to enable onboard HD audio and

automatically disable it when a sound card is installed.

Front Panel

Enable/disable front panel HD audio.

Onboard HDMI HD Audio

Enable audio for the onboard digital outputs.

Onboard LAN

Enable or disable the onboard network interface controller.

English

PCIE1 Link Speed

Select the link speed for PCIE1.

Deep S5

Congure deep sleep mode for power saving when the computer is shut down.

Restore on AC/Power Loss

Select the power state aer a power failure. If [Power O] is selected, the power will

remain o when the power recovers. If [Power On] is selected, the system will start

to boot up when the power recovers.

WiFi Radio

Enable or disable the connectivity of the WiFi module.

English

4.3.3 Storage Conguration

SATA Controller(s)

Enable/disable the SATA controllers.

N3700-ITX N3150-ITX

SATA Mode Selection

AHCI: Supports new features that improve performance.

AHCI (Advanc ed Host Controller Interface) supports NCQ and other new feature s that will improve SATA disk performance.

Aggressive Link Power Management

Aggressive Link Power Management allows SATA devices to enter a low power state

during periods of inactivity to save power. It is only supported by AHCI mode.

Hard Disk S.M.A.R.T.

S.M.A.R.T stands for Self-Monitoring, Analysis, and Reporting Technology. It is a

monitoring system for computer hard disk drives to detect and report on various

indicators of reliability.

English

ASMedia SATA3 Mode

IDE: For better compatibility.

AHCI: Supports new features that improve performance.

English

4.3.4 IntelRMT Conguration

Intel RMT Support

Enable to load Intel RMT (Ready Mode Technology) SSDT table.

N3700-ITX N3150-ITX

English

4.3.5 Super IO Conguration

Serial Port 1

Enable or disable the Serial port 1.

Serial Port Address

Select the address of the Serial port.

English

PS2 Y-Cable

Enable the PS2 Y-Cable or set this option to Auto.

4.3.6 ACPI Conguration

Suspend to RAM

It is recommended to select auto for ACPI S3 power saving.

N3700-ITX N3150-ITX

ACPI HPET Table

Enable the High Precision Event Timer for better performance and to pass WHQL

tests.

PS/2 Keyboard Power On

Allow the system to be waked up by a PS/2 Keyboard.

PCIE Device Power On

Allow the system to be waked up by a PCIE device and enable wake on LAN.

Ring-In Power On

Allow the system to be waked up by onboard COM port modem Ring-In signals.

RTC Alarm Power On

Allow the system to be waked up by the real time clock alarm. Set it to By OS to let

it be handled by your operating system.

English

USB Keyboard/Remote Power On

Allow the system to be waked up by an USB keyboard or remote controller.

USB Mouse Power On

Allow the system to be waked up by an USB mouse.

English

4.3.7 USB Conguration

Legacy USB Support

Enable Legacy USB Support. AUTO option disables legacy support if no USB

devices are connected. DISABLE option will keep USB devices available only for

EFI applications.

N3700-ITX N3150-ITX

English

4.3.8 Trusted Computing

Security Device Support

Enable to activate Trusted Platform Module (TPM) security for your hard disk

drives.

English

4.4 Tools

Instant Flash

Save UEFI les in your USB storage device and run Instant Flash to update your

UEFI.

N3700-ITX N3150-ITX

Internet Flash

ASRock Internet Flash downloads and updates the latest UEFI rmware version

from our servers for you. Please setup network conguration before using Internet

Flash.

*For BIOS backup and recovery purpose, it is recommended to plug in your USB

pen drive before using this function.

English

Network Conguration

Use this to congure internet connection settings for Internet Flash.

Internet Setting

Enable or disable sound eects in the setup utility.

UEFI Download Server

Select a server to download the UEFI rmware.

English

4.5 Hardware Health Event Monitoring Screen

is section allows you to monitor the status of the hardware on your system,

including the parameters of the CPU temperature, motherboard temperature, fan

speed and voltage.

N3700-ITX N3150-ITX

CPU Fan 1 Setting

is allows you to set CPU fan 1’s speed. Conguration options: [Full On] and

[Automatic Mode]. e default value is [Full On].

Chassis Fan 1 Setting

is allows you to set chassis fan 1’s speed. Conguration options: [Full On],

[Automatic Mode] and [Manual]. e default value is [Full On].

English

4.6 Security Screen

In this section you may set or change the supervisor/user password for the system.

You may also clear the user password.

Supervisor Password

Set or change the password for the administrator account. Only the administrator

has authority to change the settings in the UEFI Setup Utility. Leave it blank and

press enter to remove the password.

English

User Password

Set or change the password for the user account. Users are unable to change the

settings in the UEFI Setup Utility. Leave it blank and press enter to remove the

password.

Secure Boot

Enable to support Windows 8.1 Secure Boot.

4.7 Boot Screen

is section displays the available devices on your system for you to congure the

boot settings and the boot priority.

Fast Boot

Fast Boot minimizes your computer's boot time. In fast mode you may not boot

from an USB storage device. Ultra Fast mode is only supported by Windows 8.1

and the VBIOS must support UEFI GOP if you are using an external graphics card.

Please notice that Ultra Fast mode will boot so fast that the only way to enter this

UEFI Setup Utility is to Clear CMOS or run the Restart to UEFI utility in Windows.

N3700-ITX N3150-ITX

Boot From Onboard LAN

Allow the system to be waked up by the onboard LAN.

Setup Prompt Timeout

Congure the number of seconds to wait for the setup hot key.

Bootup Num-Lock

Select whether Num Lock should be turned on or o when the system boots up.

Boot Beep

Select whether the Boot Beep should be turned on or o when the system boots up. Please

note that a buzzer is needed.

English

Full Screen Logo

Enable to display the boot logo or disable to show normal POST messages.

AddOn ROM Display

Enable AddOn ROM Display to see the AddOn ROM messages or congure the

AddOn ROM if you've enabled Full Screen Logo. Disable for faster boot speed.

Boot Failure Guard

If the computer fails to boot for a number of times the system automatically restores

the default settings.

English

CSM (Compatibility Support Module)

CSM

Enable to launch the Compatibility Support Module. Please do not disable unless

you’re running a WHCK test. If you are using Windows 8.1 64-bit and all of your

devices support UEFI, you may also disable CSM for faster boot speed.

N3700-ITX N3150-ITX

Launch PXE OpROM Policy

Select UEFI only to run those that support UEFI option ROM only. Select Legacy

only to run those that support legacy option ROM only. Do not launch?

Launch Storage OpROM Policy

Select UEFI only to run those that support UEFI option ROM only. Select Legacy

only to run those that support legacy option ROM only. Do not launch?

Launch Video OpROM Policy

Select UEFI only to run those that support UEFI option ROM only. Select Legacy

only to run those that support legacy option ROM only. Do not launch?

English

4.8 Exit Screen

Save Changes and Exit

When you select this option the following message, “Save conguration changes

and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP

UTILITY.

Discard Changes and Exit

When you select this option the following message, “Discard changes and exit

setup?” will pop out. Select [OK] to exit the UEFI SETUP UTILITY without saving

any changes.

English

Discard Changes

When you select this option the following message, “Discard changes?” will pop

out. Select [OK] to discard all changes.

Load UEFI Defaults

Load UEFI default values for all options. e F9 key can be used for this operation.

Launch EFI Shell from lesystem device

Copy shellx64.e to the root directory to launch EFI Shell.

Contact Information

If you need to contact ASRock or want to know more about ASRock, you’re welcome

to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer

for further information. For technical questions, please submit a support request

form at http://www.asrock.com/support/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 3151

6604 LV Wijchen

e Netherlands

Phone: +31-24-345-44-33

Fax: +31-24-345-44-38

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

N3700-ITX N3150-ITX

U.S.A.

Phone: +1-909-590-8308

Fax: +1-909-590-1026

English

Asrock N3700-ITX User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1.1 Package Contents

1.3 Motherboard Layout

1.4 I/O Panel

Chapter 2 Installation

2.1 Installing Memory Modules (SO-DIMM)

2.2 Expansion Slots (PCI Express Slots)

2.3 Jumpers Setup

2.4 Onboard Headers and Connectors

Chapter 3 Software and Utilities Operation

3.1 Installing Drivers

3.2 ASRock APP Shop

3.2.1 UI Overview

3.2.2 Apps

3.2.3 BIOS & Drivers

3.2.4 Setting

Chapter 4 UEFI SETUP UTILITY

4.1 Introduction

4.1.1 UEFI Menu Bar

4.1.2 Navigation Keys

4.2 Main Screen

4.3 Advanced Screen

4.3.8 Trusted Computing

4.4 Tools

4.5 Hardware Health Event Monitoring Screen

4.6 Security Screen

4.7 Boot Screen

4.8 Exit Screen
