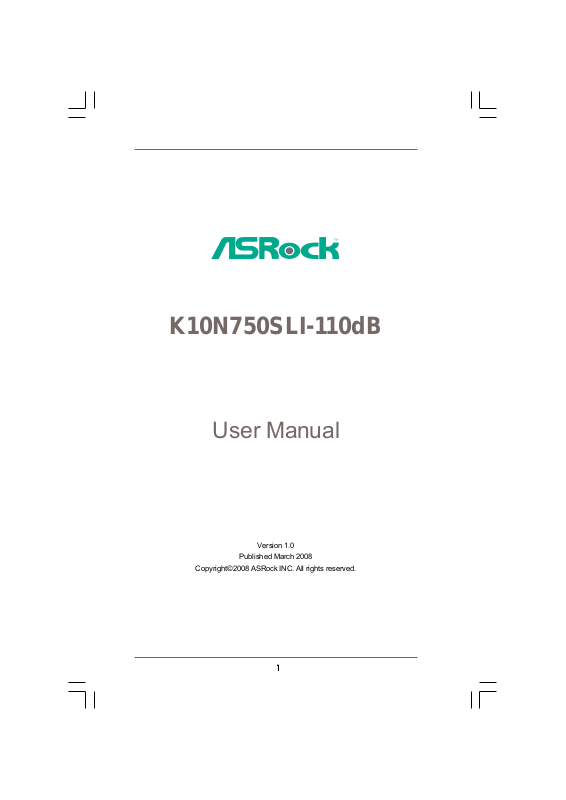

ASRock K10N750SLI-110DB User Manual

K10N750SLI-110dB

User Manual

Version 1.0

Published March 2008

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Disclaimer:Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

ContentsContents

Contents

ContentsContents

1.1.

IntroductionIntroduction

Introduction

1.1.

IntroductionIntroduction

1.1 Package Contents ..................................................................... 5

1.2 Specifications ........................................................................... 6

1.3 Minimum Hardware Requirement Table for Windows® Vista

Premium 2008 and Basic Logo .................................................. 10

1.4 Supported PCI Express VGA Card List for SLITM Mode ............. 11

1.5 Motherboard Layout ................................................................... 12

1.6 ASRock WiFi_SPDIF I/O ........................................................... 13

2.2.

InstallationInstallation

Installation

2.2.

InstallationInstallation

Pre-installation Precautions ................................................................ 14

2.1 CPU Installation ......................................................................... 15

2.2 Installation of CPU Fan and Heatsink ......................................... 15

2.3 Installation of Memory Modules (DIMM) .................................... 16

2.4 Expansion Slots (PCI and PCI Express slots) .................................. 18

2.5 SLITM Operation Guide ............................................................... 20

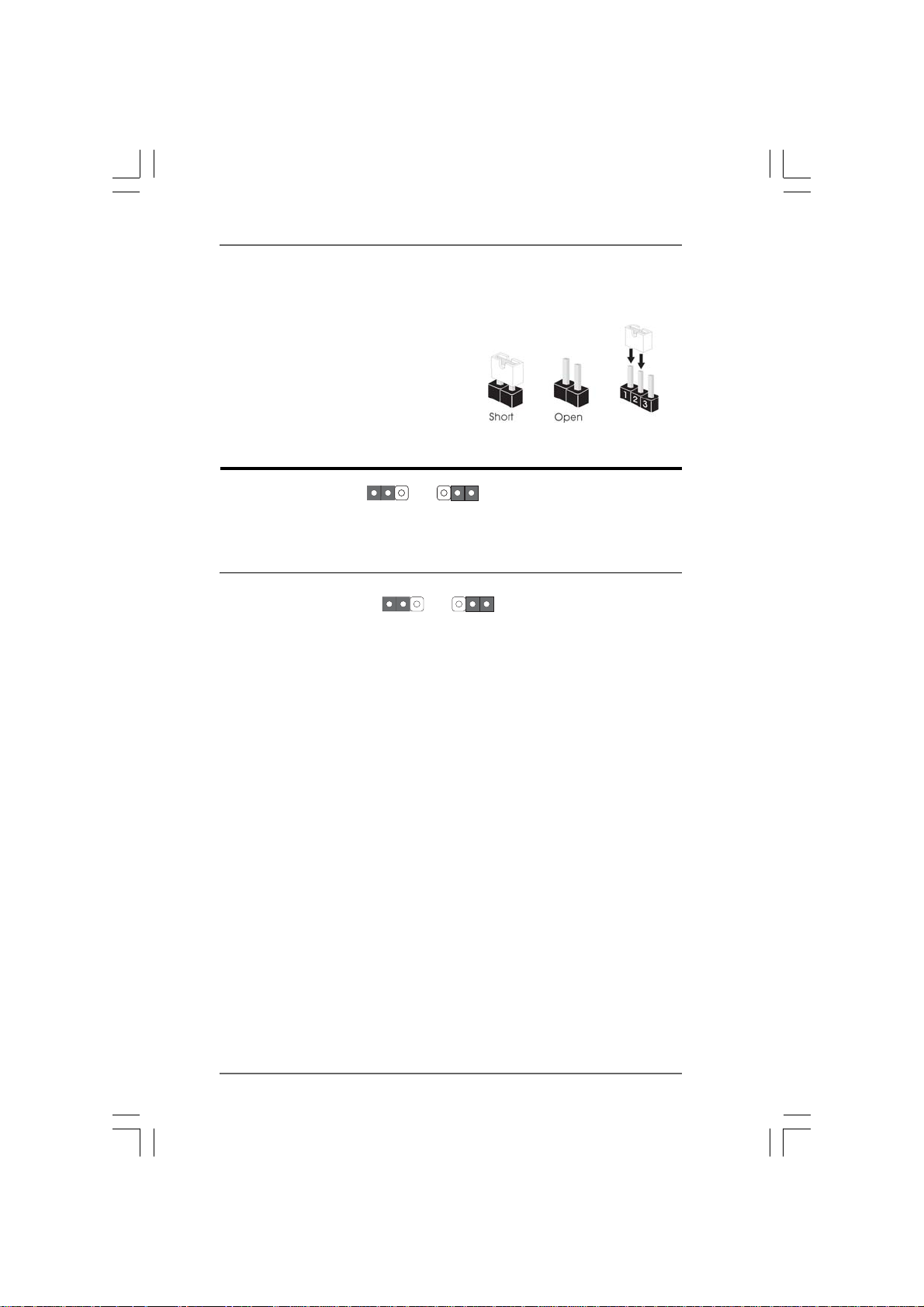

2.6 Jumpers Setup .......................................................................... 25

2.7 Onboard Headers and Connectors ............................................. 26

2.8 HDMI_SPDIF Header Connection Guide .................................... 32

2.9 eSATAII Interface Introduction .................................................... 33

2.10 SATAII Hard Disk Setup Guide ................................................... 36

2.11 Serial ATA (SATA) / Serial ATAII (SATAII) Hard Disks

Installation ................................................................................. 37

2.12 Hot Plug and Hot Swap Functions for SATA / SATAII HDDs and

eSATAII Devices ......................................................................... 38

2.13 SATA / SATAII HDD Hot Plug Feature and Operation Guide ....... 39

2.14 Driver Installation Guide ............................................................. 41

2.15 Installing Windows® XP / XP 64-bit / VistaTM / Vista

Without RAID Functions ............................................................ 41

2.15.1 Installing Windows® XP / XP 64-bit Without RAID

2.15.2 Installing Windows® VistaTM / Vista

2.16 Installing Windows® XP / XP 64-bit / VistaTM / Vista

With RAID Functions ................................................................. 43

2.16.1 Installing Windows® XP / XP 64-bit With RAID

2.16.2 Installing Windows® VistaTM / Vista

2.17 Untied Overclocking Technology ................................................ 45

......................................................................................................................

...........................................................

......................................................................................................................

..........................................................................................................................

.............................................................

..........................................................................................................................

64-bit

Functions ...................................................................... 41

Functions ...................................................................... 42

Functions ...................................................................... 43

Functions ...................................................................... 44

64-bit Without RAID

64-bit

64-bit With RAID

5 5

14 14

3.3.

BIOS SBIOS S

BIOS S

3.3.

BIOS SBIOS S

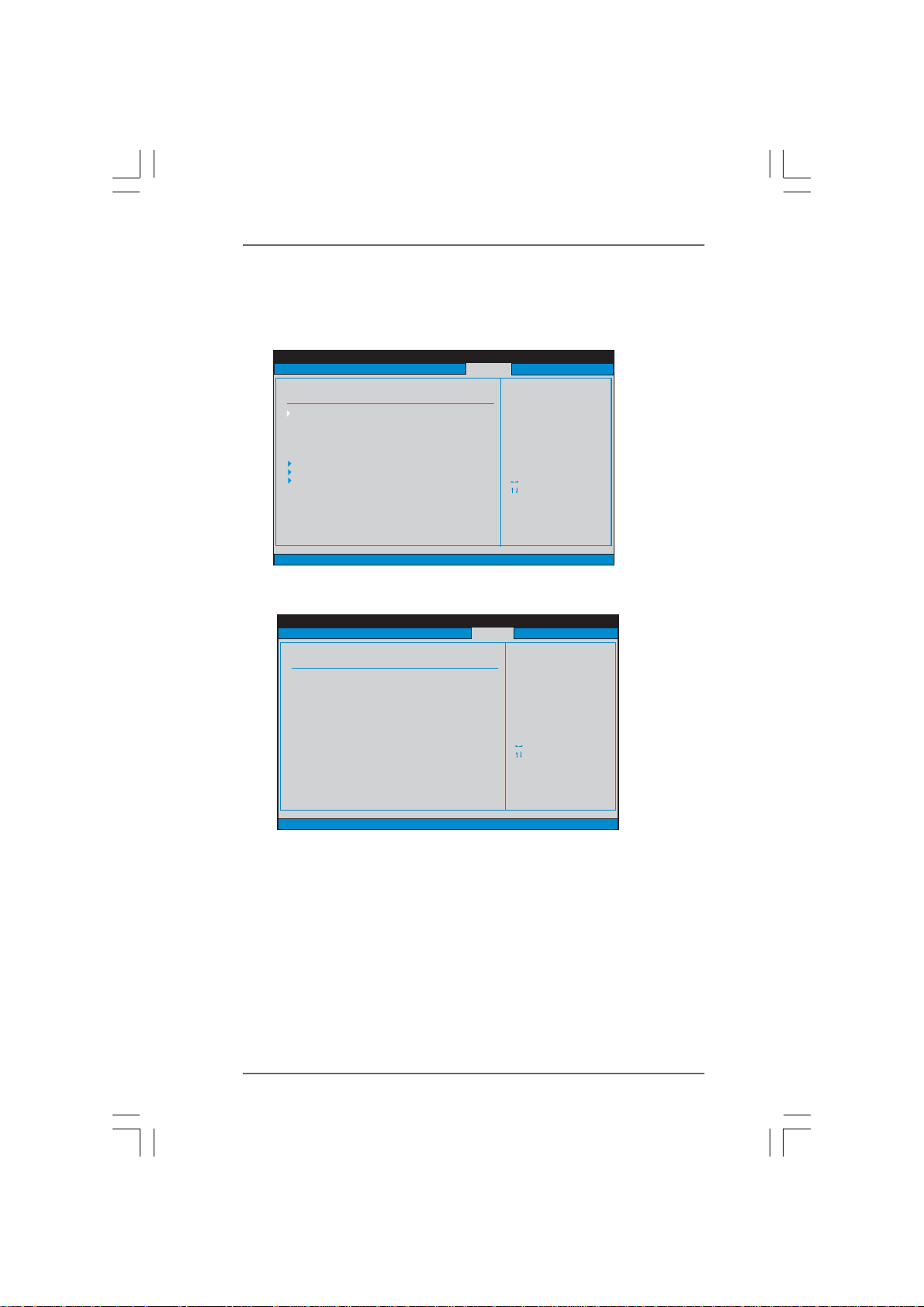

3.1 Introduction ................................................................................ 46

3.2 Main Screen .............................................................................. 47

3.3 Advanced Screen ....................................................................... 48

3.4 Hardware Health Event Monitoring Screen ................................. 61

3.5 Boot Screen .............................................................................. 62

3.6 Security Screen ......................................................................... 63

3.7 Exit Screen ................................................................................ 64

4.4.

Software SupportSoftware Support

Software Support

4.4.

Software SupportSoftware Support

4.1 Install Operating System ........................................................... 65

4.2 Support CD Information .............................................................. 65

ETUP UTILITYETUP UTILITY

ETUP UTILITY

ETUP UTILITYETUP UTILITY

3.1.1 BIOS Menu Bar ............................................................... 46

3.1.2 Navigation Keys .............................................................. 47

3.3.1 CPU Configuration ........................................................... 48

3.3.2 Chipset Configuration ...................................................... 53

3.3.3 ACPI Configuration .......................................................... 55

3.3.4 IDE Configuration............................................................. 56

3.3.5 PCIPnP Configuration ...................................................... 58

3.3.6 Floppy Configuration ........................................................ 59

3.3.7 Super IO Configuration .................................................... 59

3.3.8 USB Configuration ........................................................... 60

3.5.1 Boot Settings Configuration ............................................. 62

4.2.1 Running Support CD ........................................................ 65

4.2.2 Drivers Menu .... ......... .......... ......... .......... ......... ................ 65

4.2.3 Utilities Menu .................................................................. 65

4.2.4 Contact Information .......................................................... 65

....................................................................................................

..................................................

....................................................................................................

......................................................................................................

...................................................

......................................................................................................

4646

65 65

1.1.

IntroductionIntroduction

Introduction

1.1.

IntroductionIntroduction

Thank you for purchasing ASRock K10N750SLI-110dB motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control. It de-

livers excellent performance with robust design conforming to ASRock’s commit-

ment to quality and endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-

step guide to the hardware installation. Chapter 3 and 4 contain the configuration

guide to BIOS setup and information of the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.11.1

ackack

1.1

1.11.1

ASRock K10N750SLI-110dB Motherboard

(ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm)

ASRock K10N750SLI-1 10dB Quick Installation Guide ASRock K10N750SLI-110dB Support CD

One ASRock SLI Bridge

One ASRock SLI/XFire Switch Card

One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

Four Serial ATA (SATA) Data Cables (Optional)

One Serial ATA (SATA) HDD Power Cable (Optional)

One HDMI_SPDIF Cable (Optional)

One “ASRock WiFi_SPDIF I/O” I/O Panel Shield

age Contentsage Contents

ack

age Contents

ackack

age Contentsage Contents

http://www.asrock.com

1.21.2

SpecificationsSpecifications

1.2

Specifications

1.21.2

SpecificationsSpecifications

Platform - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm

- All Solid Capacitor design

CPU - Support for Socket AM2+ / AM2 processors: AMD Phenom

FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon

X2 Dual-Core / Athlon 64 / Sempron processor

- AMD LIVE!TM Ready

- Supports AMD’s Cool ‘n’ QuietTM Technology

- FSB 2600 MHz (5.2 GT/s) (see CAUTION 1)

- Supports Untied Overclocking Technology (see CAUTION 2)

- Supports Hyper-Transport Technology

Chipset - NVIDIA

nForce 750a SLI

Memory - Dual Channel DDR2 Memory Technology (see CAUTION 3)

- 4 x DDR2 DIMM slots

- Support DDR2 1066/800/667/533 non-ECC, un-buffered memory (see CAUTION 4)

- Max. capacity of system memory: 8GB (see CAUTION 5)

Expansion Slot - 2 x PCI Express 2.0 x16 slots

(green @ x16 mode, blue @ x8 mode)

- 1 x PCI Express x1 slot

- 3 x PCI slots

- Supports NVIDIA® SLI

- Supports NVIDIA® Hybrid SLI

Audio - 7.1 CH Windows

(see CAUTION 6)

VistaTM Premium Level HD Audio with

(see CAUTION 7)

Content Protection

- DAC with 110dB dynamic range (ALC890 Audio Codec)

LAN - Gigabit LAN 10/100/1000 Mb/s

- Giga PHY Realtek RTL8211B

- Supports Wake-On-LAN

Rear Panel I/O ASRock WiFi_SPDIF I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Coaxial SPDIF Out Port

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x eSATAII Port

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- 1 x IEEE 1394 Port

- HD Audio Jack: Side Speaker/Rear Speaker/Central/Bass/ Line in/Front Speaker/Microphone (see CAUTION 8)

Connector - 6 x SATAII 3.0Gb/s connectors, support RAID (RAID 0, RAID 1,

RAID 0+1, JBOD and RAID 5), NCQ, AHCI and “Hot Plug” functions (see CAUTION 9)

- 1 x eSATAII 3.0Gb/s connector (shared with 1 SATAII connector) (see CAUTION 10)

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x DeskExpress Hot Plug Detection header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x IEEE 1394 header

- CPU/Chassis FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- SLI/XFIRE power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports) (see CAUTION 11)

- 1 x WiFi/E header (see CAUTION 12)

BIOS Feature - 8Mb AMI BIOS

- AMI Legal BIOS

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- AMBIOS 2.3.1 Support

- CPU, DRAM, NB, SB, VTT Voltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version) Unique Feature - ASRock OC Tuner (see CAUTION 13)

- Intelligent Energy Saver (see CAUTION 14)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 15)

- ASRock U-COP (see CAUTION 16)

- Boot Failure Guard (B.F.G.)

- ASRock AM2 Boost: ASRock Patented Technology to boost

memory performance up to 12.5% (see CAUTION 17 ) Hardware - CPU Temperature Sensing Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft

Windows® XP / XP Media Center / XP 64-bit / Vista

/ VistaTM 64-bit compliant

Certifications - FCC, CE, WHQL

* For detailed product information, please visit our website: http://www.asrock.com

WA R NING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

CAUTION!

1. If you install AM2 CPU on this motherbord, the system bus speed will be

HT1.0 (2000 MT/s). If you install AM2+ CPU on this motherbord, the system

bus speed will be HT3.0 (up to 5200 MT/s), and the HT Link frequency

depends on the ability of the AM2+ CPU you adopt. Please refer to the CPU

support list on our website for more information.

ASRock website

2. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 45 for details.

3. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read

the installation guide of memory modules on page 16 for proper

installation.

4. Whether 1066MHz memory speed is supported depends on the AM2+

CPU you adopt. If you want to adopt DDR2 1066 memory module on this

motherboard, please refer to the memory support list on our website for

the compatible memory modules.

ASRock website

5. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows® XP

and Windows

64-bit with 64-bit CPU, there is no such limitation.

6. This motherboard supports NVIDIA

function, please follow the instructions on page 20 to reverse the

SLI

direction of ASRock SLI/XFire Switch Card. For the information of the com-

patible SLITM Mode PCI Express VGA cards, please refer to the “Supported

PCI Express VGA Card List for SLI

installation of PCI Express VGA card, please refer to the installation guide

on page 18.

http://www.asrock.com

VistaTM. For Windows® XP 64-bit and Windows® Vista

SLITM technology. If you want to use

Mode” on page 11. For the proper

7. Hybrid SLITM feature should depend on the driver from NVIDIA®. Currently,

Hybrid SLI

driver is not ready yet. As long as NVIDIA® releases Hybrid SLI

driver, we will update it to our website. Please visit our website for Hybrid

SLI

driver and its operation guide in the future.

ASRock website:

http://www.asrock.com

8. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-channel,

6-channel, and 8-channel modes. Please check the table on page 13 for

proper connection.

9. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 36 to adjust your SATAII hard disk drive to

SATAII mode. You can also connect SATA hard disk to SATAII connector

directly.

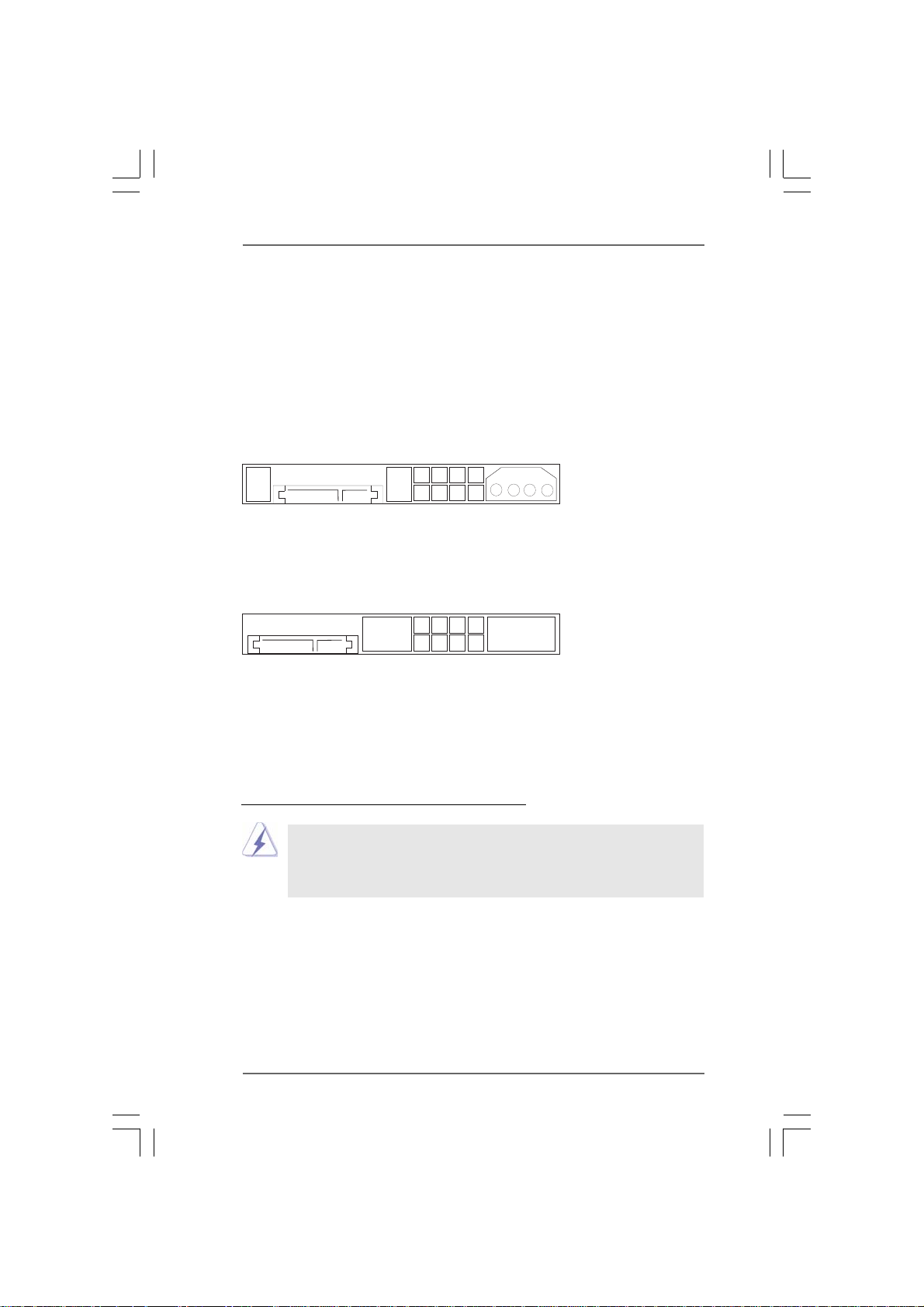

10. This motherboard supports eSATAII interface, the external SATAII

specification. Please read “eSATAII Interface Introduction” on page 33

for details about eSATAII and eSATAII installation procedures.

11. Power Management for USB 2.0 works fine under Microsoft® Windows

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2.

12. WiFi/E header supports WiFi+AP function with ASRock WiFi-802.11g or

WiFi-802.11n module, an easy-to-use wireless local area network

(WLAN) adapter. It allows you to create a wireless environment and

enjoy the convenience of wireless network connectivity. Please visit our

website for the availability of ASRock WiFi-802.11g or WiFi-802.11n

module. ASRock website http://www.asrock.com

13. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows

environment. Please visit our website for the operation procedures of

ASRock OC Tuner. ASRock website:

http://www.asrock.com

14. Featuring an advanced proprietary hardware and software design, Intel-

ligent Energy Saver is one of the options in ASRock OC Tuner. The

voltage regulator can reduce the number of output phases to improve

efficiency when the CPU cores are idle. In other words, it is able to

provide exceptional power saving and improve power efficiency without

sacrificing computing performance. To use Intelligent Energy Saver

function, please enable Cool ‘n’ Quiet option in the BIOS setup in

advance. Please visit our website for the operation procedures of Intel-

ligent Energy Saver. ASRock website:

http://www.asrock.com

15. Although this motherboard offers stepless control, it is not recom-

mended to perform over-clocking. Frequencies other than the recom-

mended CPU bus frequencies may cause the instability of the system

or damage the CPU.

16. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC

system.

17. This motherboard supports ASRock AM2 Boost overclocking technology

for AM2 CPU. If you enable this function in the BIOS setup, the memory

performance will improve up to 12.5%, but the effect still depends on the

AM2 CPU you adopt. Enabling this function will overclock the chipset/CPU

reference clock. However, we can not guarantee the system stability for all

CPU/DRAM configurations. If your system is unstable after AM2 Boost func-

tion is enabled, it may not be applicative to your system. You may choose to

disable this function for keeping the stability of your system.

1.31.3

Minimum Hardware RMinimum Hardware R

1.3

Minimum Hardware R

1.31.3

Minimum Hardware RMinimum Hardware R

TMTM

VistaVista

Vista

VistaVista

For system integrators and users who purchase this motherboard and

plan to submit Windows® VistaTM Premium 2008 and Basic logo, please follow

below table for minimum hardware requirement.

CPU Sempron 2800+

Memory 1GB system memory (Premium)

VGA DX10 with WDDM Driver

Premium 2008 and Basic Logo Premium 2008 and Basic Logo

Premium 2008 and Basic Logo

Premium 2008 and Basic Logo Premium 2008 and Basic Logo

512MB system memory (Basic)

with 128bit VGA memory (Premium)

with 64bit VGA memory (Basic)

equirement Tequirement T

equirement T

equirement Tequirement T

able for Wable for W

able for W

able for Wable for W

indowsindows

indows

indowsindows

®®

* After June 1, 2008, all Windows

minimum hardware requirements in order to qualify for Windows

2008 logo.

VistaTM systems are required to meet above

1010

VistaTM Premium

1.41.4

Supported PCI Express VGA Card List for SLISupported PCI Express VGA Card List for SLI

1.4

Supported PCI Express VGA Card List for SLI

1.41.4

Supported PCI Express VGA Card List for SLISupported PCI Express VGA Card List for SLI

(for Windows® XP / XP 64-bit / VistaTM / VistaTM 64-bit only)

Graphics Chip Model Name Chipset Name

Vendor

NVIDIA

* These two cards can only work under Windows

For the latest updates of the supported PCI Express VGA card list for SLI

please visit our website for details.

ASRock website: http://www.asrock.com/support/index.htm

ASUS EN8800GTX

ASUS EN8600GT/2DHT

ASUS EN7950GX2 *

ASUS EN7900GT TOP

ASUS EN7800GT

ASUS EN7600GSSILENT

ASUS EN7600GT/2DHT

ASUS EN6800LE

ASUS Extreme N6800/TD

ALBATRON PC6600GT

GIGABYTE GV-NX66256DP2

LEADTEK PX7900GS TDH

LEADTEK PX7300GS TDH *

MSI 7300GT-TD256EH

XP / XP 64-bit OS.

TMTM

GeForce 8800GTX

GeForce 8600GT

GeForce 7950GX2

GeForce 7900GT

GeForce 7800GT

GeForce 7600GT

GeForce 7600GS

GeForce 6800LE

GeForce 6800

GeForce 6600GT

GeForce 6600

GeForce 7900GS

GeForce 7300GS

GeForce 7300GT

Mode Mode

Mode

Mode Mode

Mode,

1111

1.5 Motherboard Layout1.5 Motherboard Layout

1.5 Motherboard Layout

1.5 Motherboard Layout1.5 Motherboard Layout

22.4cm (8.8-in)

Keyboard

Mouse

PS2

36 35

31 30

PS2_USB_PW1

Coaxial

SPDIF

Optical

SPDIF

eSATAII_TOP

Bottom:

ESATAII

USB2.0

T:U SB 4

B:USB5

USB2.0

Top:

COM1

IEEE

T:U SB 2

1394

B:USB3

USB2.0

Top:

T:U SB 0

RJ-45

B:USB1

Top:

SIDESPK

Bottom:

CTRBASS

Center:

REARSPK

Bottom:

MICIN

Top:

LINEIN

Center:

FRONT

LAN PHY

Gigabit LAN

PCI Express 2.0

Super

I/O

AUDIO CODEC

7.1CH HD

CD1

HDMI_SPDIF1

HD_AUDIO1

ATXPWR1

eSATAII

IR1

WIFI/E

PCIE1

SLI/XFIRE_PWR1

CMOS

BATTERY

FLOPPY1

ATX12V 1

K10N750SLI-110dB

CPU_FAN1

PCIE2

PCIE3

PCI1

PCI2

RoHS

PCI3

CHA_FAN1

PCI

EXPRESS

FRONT_1394

SPEAKER1

SOCKET AM2

RAID

Dual Channel

750a SLI

Chipset

1394a

8Mb BIOS

USB8_9

PANEL1

PLEDPWRBTN

HDLED RESET

DDR2 800

FSB800

DDRII_2(64 bit, 240-pinmodule)

DDRII_1(64 bit, 240-pinmodule)

AM2+

FSB2.6GHz

NVIDIA nForce

SATAII_2(PORT1)

SATAII_1(PORT0)

USB6_7

1920

FSB800

DDRII_3(64 bit, 240-pinmodule)

CLRCMOS1

SATAII

SATAII_6(PORT5)

SATAII_5(PORT4)

SATAII_4(PORT3)

SATAII_3(PORT2)

DDRII_4(64 bit, 240-pinmodule)

IDE1

30.5cm (12.0-in)

12 13

14 15 16

1 PS2_USB_PW1 Jumper 20 SPI BIOS Chip 2 ATX Power Connector (ATXPWR1) 21 System Panel Header (PANEL1) 3 ATX 12V Power Connector (ATX12V1) 22 Front Panel IEEE 1394 Header 4 CPU Fan Connector (CPU_FAN1) (FRONT_1394) 5 AM2 940-Pin CPU Socket 23 Chassis Speaker Header (SPEAKER 1) 6 CPU Heatsink Retention Module 24 Chassis Fan Connector (CHA_FAN1) 7 2 x 240-pin DDR 2 DIM M Sl ots 2 5 Floppy Connector (FLOPPY1)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 26 DeskExpress Hot Plug Detection Header

8 2 x 240 -p in D DR 2 D IM M S lo ts (IR1)

(Dual Channel B: DDRII_3, DDRII_4; Orange) 27 HDMI_SPDIF Header (HDMI_SPDIF1) 9 Primary IDE Connector (IDE1, Blue) 2 8 Front Panel Audio Header (HD_AUDIO1) 10 NVIDIA nForce 750a SLI Chipset 29 Internal Audio Connector: CD1 (Black) 11 Clear CMOS Jumper (CLRCMOS1) 30 PCI Slots (PCI1- 3) 12 SATAII Connector (SATAII_6 (PORT5)) 31 PCI E xp re ss x1 6 S lo t ( PC IE 3, Blue) 13 SATAII Connector (SATAII_5 (PORT4)) 32 SLI/XFire Switch Card Retention Slot 14 SATAII Connector (SATAII_2 (PORT1)) 33 PCI Express x16 Slot (PCIE2, Green) 15 SATAII Connector (SATAII_4 (PORT3)) 34 PCI Express x1 Slot (PCIE1, White) 16 SATAII Connector (SATAII_3 (PORT2)) 35 WiFi/E Header (WIFI/E) 17 SATAII Connector (SATAII_1 (PORT0)) 36 SLI / XFIRE Power Connector 18 USB 2.0 Header (USB8_9, Blue) 37 COM Port Header (COM1) 19 USB 2.0 Header (USB6_7, Blue) 38 eSATAII Connector (eSATAII_TOP)

1212

1.61.6

ASRock WiFi_SPDIF I/OASRock WiFi_SPDIF I/O

1.6

ASRock WiFi_SPDIF I/O

1.61.6

ASRock WiFi_SPDIF I/OASRock WiFi_SPDIF I/O

1 PS/2 Mouse Port (Green) 9 Microphone (Pink) 2 IEEE 1394 Port 10 USB 2.0 Ports (USB01)

* 3 LAN RJ-45 Port 11 USB 2.0 Ports (USB23)

4 Side Speaker (Gray) 12 USB 2.0 Ports (USB45) 5 Rear Speaker (Black) 13 eSATAII Port 6 Central / Bass (Orange) 14 Optical SPDIF Out Port 7 Line In (Light Blue) 15 Coaxial SPDIF Out Port

**8 Front Speaker (Lime) 16 PS/2 Keyboard Port (Purple)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications.

SPEED LED Activity/Link LED

Status Description Status Description

LAN Port LED Indications

1314

ACT/LINK

SPEED

LED

Off 10Mbps connection Off No link Orange 100Mbps connection Orange Linked Green 1Gbps connection Blinking Data Activity

LAN Port

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Conne ction

Audio Output ChannelsFront Speaker Rear Speaker Central / Bass Side Speaker

(No. 8) (No. 5) (No. 6) (No. 4) 2 V -- -- -4VV---6VVV-8VVVV

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio.

1313

2.2.

InstallationInstallation

Installation

2.2.

InstallationInstallation

This is an ATX form factor (12.0-in x 8.8-in, 30.5 cm x 22.4 cm) motherboard.

Before you install the motherboard, study the configuration of your chassis to en-

sure that the motherboard fits into it.

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Pre-installation PrecautionsPre-installation Precautions

Take note of the following precautions before you install motherboard

components or change any motherboard settings.

Before you install or remove any component, ensure that the

power is switched off or the power cord is detached from the

power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any

component.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet or

the like. Also remember to use a grounded wrist strap or touch a

safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti-

static pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the motherboard

to the chassis, please do not over-tighten the screws! Doing so may

damage the motherboard.

1414

2.12.1

CPU InstallationCPU Installation

2.1

CPU Installation

2.12.1

CPU InstallationCPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90

angle.

Step 2. Position the CPU directly above the socket such that the CPU corner with

the golden triangle matches the socket corner with a small triangle.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the CPU

into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

Lever 90° Up

CPU Golden Triangle

Socket Corner

Small Triangle

STEP 1: Lift Up The Socket Lever

2.22.2

Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink

2.2

Installation of CPU Fan and Heatsink

2.22.2

Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink

STEP 2 / STEP 3: Match The CPU Golden Triangle To The Socket Corner Small Triangle

STEP 4: Push Down And Lock The Socket Lever

After you install the CPU into this motherboard, it is necessary to install a

larger heatsink and cooling fan to dissipate heat. You also need to spray

thermal grease between the CPU and the heatsink to improve heat

dissipation. Make sure that the CPU and the heatsink are securely fas-

tened and in good contact with each other. Then connect the CPU fan to

the CPU FAN connector (CPU_FAN1, see Page 12, No. 4). For proper

installation, please kindly refer to the instruction manuals of the CPU fan

and the heatsink.

1515

2.3 Installation of Memory Modules (DIMM)2.3 Installation of Memory Modules (DIMM)

2.3 Installation of Memory Modules (DIMM)

2.3 Installation of Memory Modules (DIMM)2.3 Installation of Memory Modules (DIMM)

This motherboard provides four 240-pin DDR2 (Double Data Rate 2) DIMM slots,

and supports Dual Channel Memory Technology. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type)

DDR2 DIMM pair in the slots of the same color. In other words, you have to install identical DDR2 DIMM pair in Dual Channel A (DDRII_1 and DDRII_2; Yellow slots; see p.12 No.7) or identical DDR2 DIMM pair in Dual Channel B (DDRII_3 and

DDRII_4; Orange slots; see p.12 No.8), so that Dual Channel Memory Technology

can be activated. This motherboard also allows you to install four DDR2 DIMMs for dual channel configuration, and please install identical DDR2 DIMMs in all four

slots. You may refer to the Dual Channel Memory Configuration Table below.

Dual Channel Memory Configurations

DDRII_1 DDRII_2 DDRII_3 DDRII_4

(Yellow Slot) (Yellow Slot) (Orange Slot) (Orange Slot)

(1) Populated Populated - -

(2) - - Populated Populated

(3)* Populated Populated Populated Populated

* For the configuration (3), please install identical DDR2 DIMMs in all four slots.

1. If you want to install two memory modules, for optimal compatibil-

ity and reliability, it is recommended to install them in the slots of

the same color. In other words, install them either in the set of

yellow slots (DDRII_1 and DDRII_2), or in the set of orange slots

(DDRII_3 and DDRII_4).

2. If only one memory module or three memory modules are installed

in the DDR2 DIMM slots on this motherboard, it is unable to acti-

vate the Dual Channel Memory Technology.

3. If a pair of memory modules is NOT installed in the same Dual

Channel, for example, installing a pair of memory modules in DDRII_1

and DDRII_3, it is unable to activate the Dual Channel Memory

Technology .

4. It is not allowed to install a DDR memory module into DDR2 slot;

otherwise, this motherboard and DIMM may be damaged.

1616

Installing a DIMMInstalling a DIMM

Installing a DIMM

Installing a DIMMInstalling a DIMM

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break

on the slot.

notch

break

notch

break

The DIMM only fits in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into the

slot at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully

snap back in place and the DIMM is properly seated.

1717

2.4 Expansion Slots (PCI and PCI Express Slots)2.4 Expansion Slots (PCI and PCI Express Slots)

2.4 Expansion Slots (PCI and PCI Express Slots)

2.4 Expansion Slots (PCI and PCI Express Slots)2.4 Expansion Slots (PCI and PCI Express Slots)

There are 3 PCI slots and 3 PCI Express slots on this motherboard. PCI Slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

PCIE Slots:PCIE1 (PCIE x1 slot; White) is used for PCI Express cards with x1 lane

width cards, such as Gigabit LAN card, SATA2 card and ASRock

PCIE_DE card.

PCIE2 (PCIE x16 slot; Green) is used for PCI Express x16 lane width

graphics cards, or used to install PCI Express graphics cards to support

SLITM function.

PCIE3 (PCIE x16 slot; Blue) is used for PCI Express x1 lane width cards,

such as Gigabit LAN card, SATA2 card, etc., or used to install PCI

Express graphics cards to support SLITM function.

PCIE2 / PCIE3 / SLI/XFire Switch Card Retention Slot

Configurations

PCIE2 Slot PCIE3 Slot SLI/XFire Switch Card (Green) (Blue) Retention Slot

Single Graphics Card PCIE x16 PCIE x1

Dual Graphics Cards PCIE x8 PCIE x8

in SLI

Mode

1818

1. If you plan to install only one PCI Express VGA card on this

motherboard, please install it on PCIE2 slot (Green). In this mode,

you do not need to adjust the default setting of ASRock SLI/XFire

Switch Card, and please do not remove or lose ASRock SLI/XFire

Switch Card when it is still in working condition.

2. For the information of the compatible SLI

cards and SLI

PCI Express VGA Card List for SLI

Operation Guide” on page 20.

3. If you want to use ASRock DeskExpress function on this motherboard,

please install ASRock PCIE_DE card on PCIE1 slot.

Installing an expansion cardInstalling an expansion card

Installing an expansion card

Installing an expansion cardInstalling an expansion card

setup procedures, please refer to the “Supported

Mode PCI Express VGA

Mode” on page 11 and “SLI

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the system unit cover (if your motherboard is already installed in a

chassis).

Step 3. Remove the bracket facing the slot that you intend to use. Keep the screws

for later use.

Step 4. Align the card connector with the slot and press firmly until the card is

completely seated on the slot.

Step 5. Fasten the card to the chassis with screws.

Step 6. Replace the system cover.

1919

TMTM

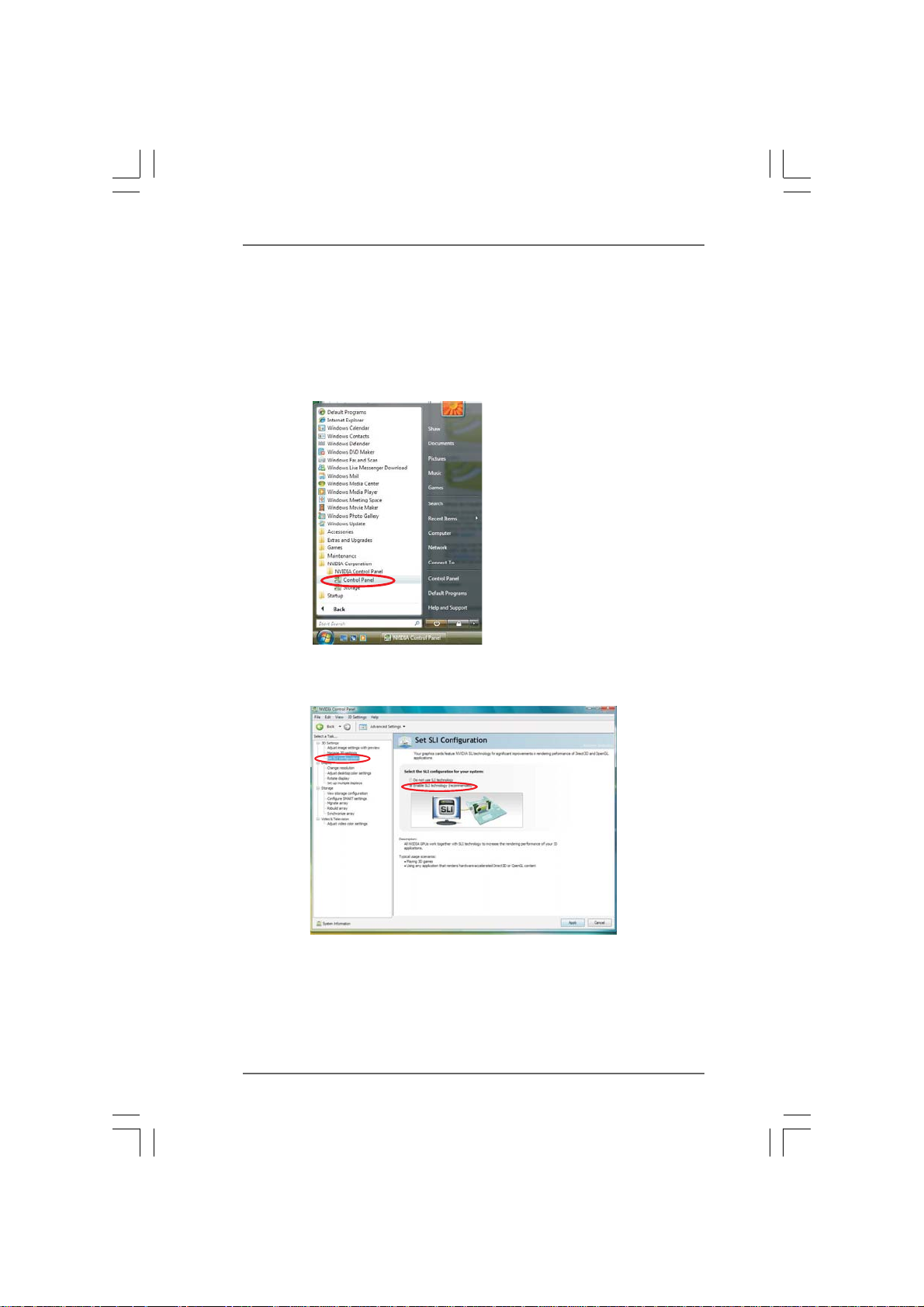

2.5 SLI2.5 SLI

2.5 SLI

2.5 SLI2.5 SLI

TMTM

Operation Guide Operation Guide

Operation Guide

Operation Guide Operation Guide

This motherboard supports NVIDIA® SLITM (Scalable Link Interface) technology that allows

you to install two identical NVIDIA® SLI

enabled PCI Express x16 graphics

cards. Currently, NVIDIA® SLITM technology supports Windows® XP, XP 64-bit, Vista

and VistaTM 64-bit OS. Please follow the installation procedures in this section.

SLI

Technology Requirements

1. You should have two identical SLITM-ready graphics cards that are NVIDIA

certified.

2. Make sure that your graphics card driver supports the NVIDIA

technology. Download the latest driver from the NVIDIA® website

(www.nvidia.com).

3. Make sure that your power supply unit (PSU) can provide at least the

minimum power required by your system.

TMTM

Enjoy the benefit of SLIEnjoy the benefit of SLI

Enjoy the benefit of SLI

Enjoy the benefit of SLIEnjoy the benefit of SLI

TMTM

SLI

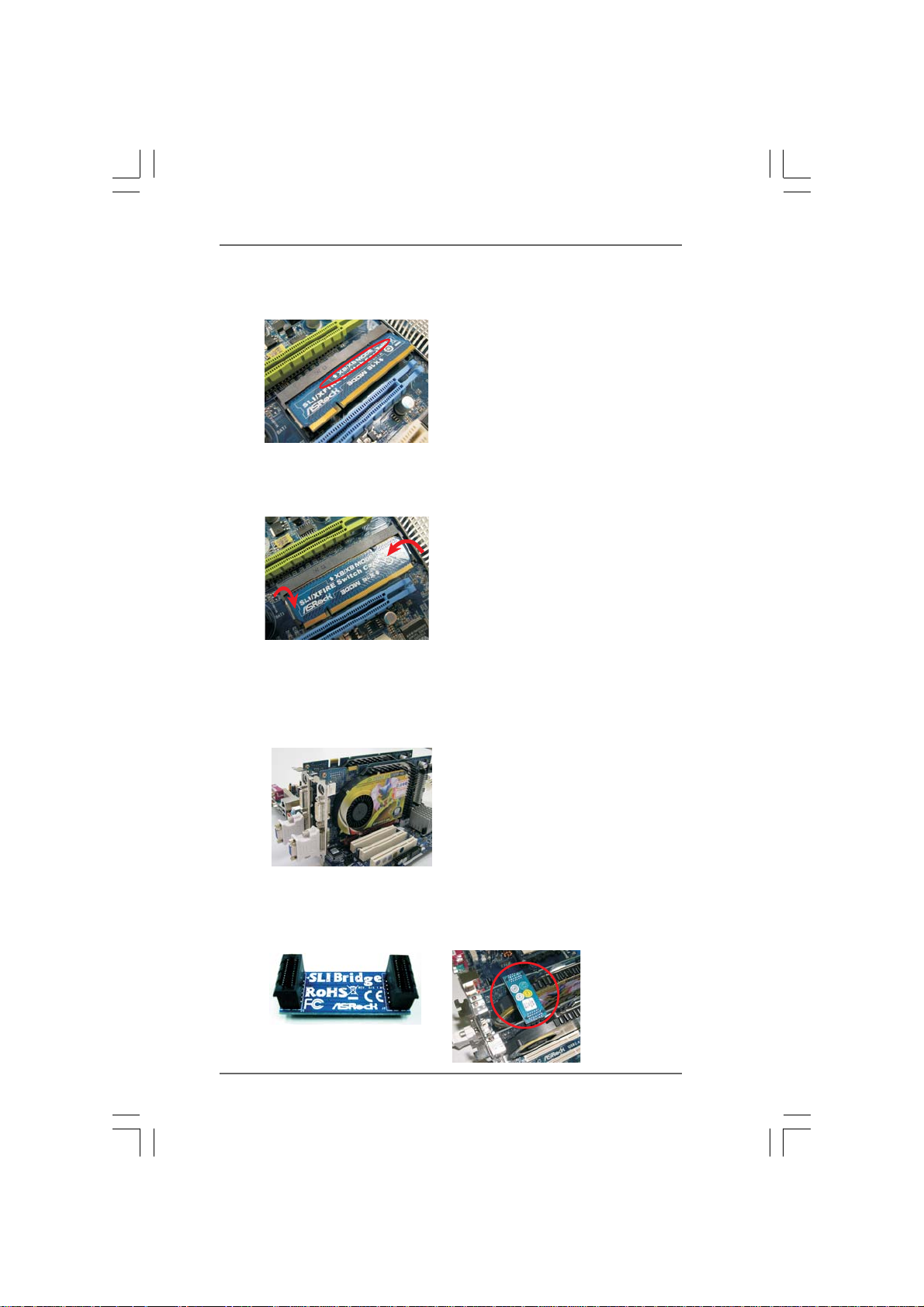

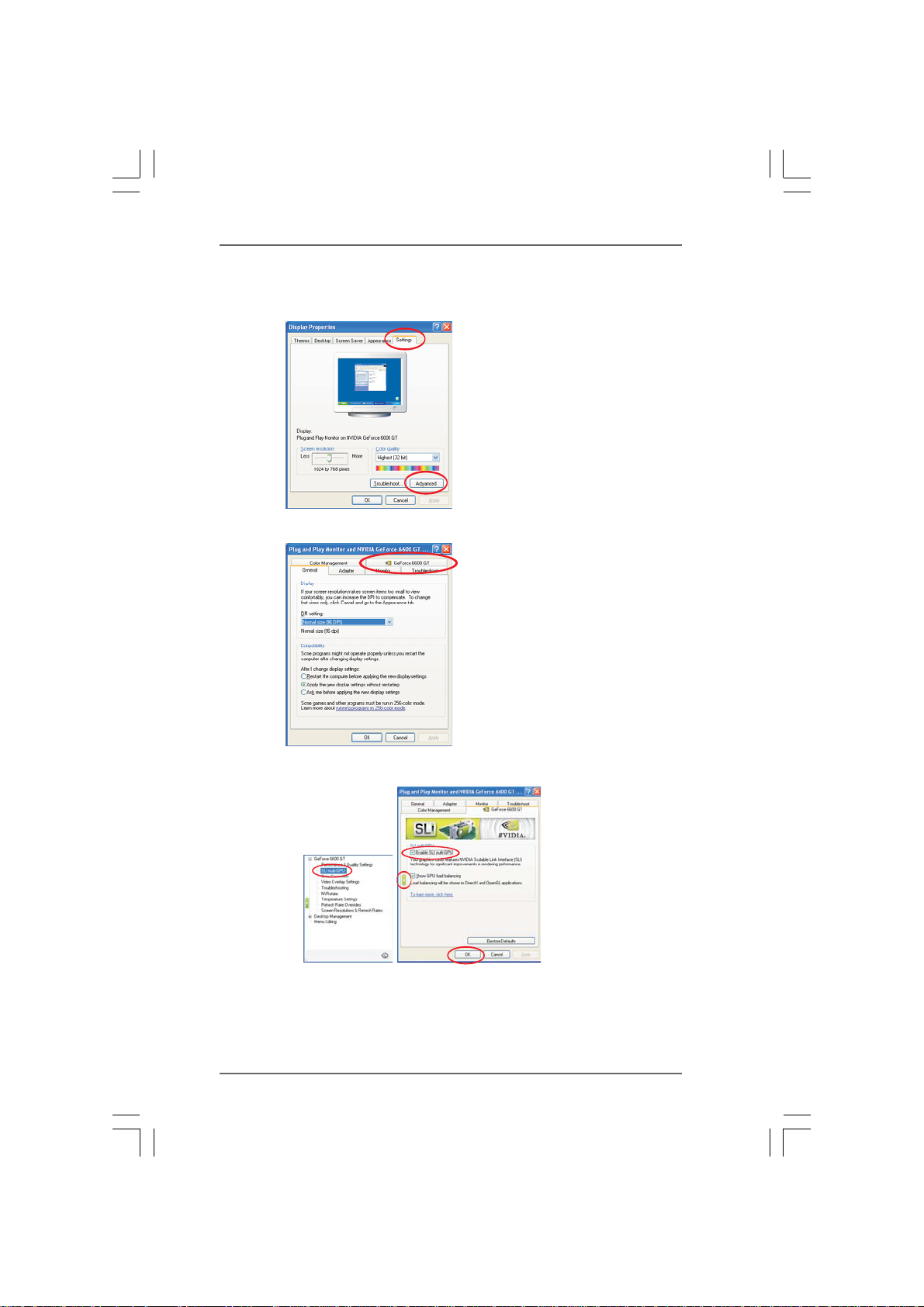

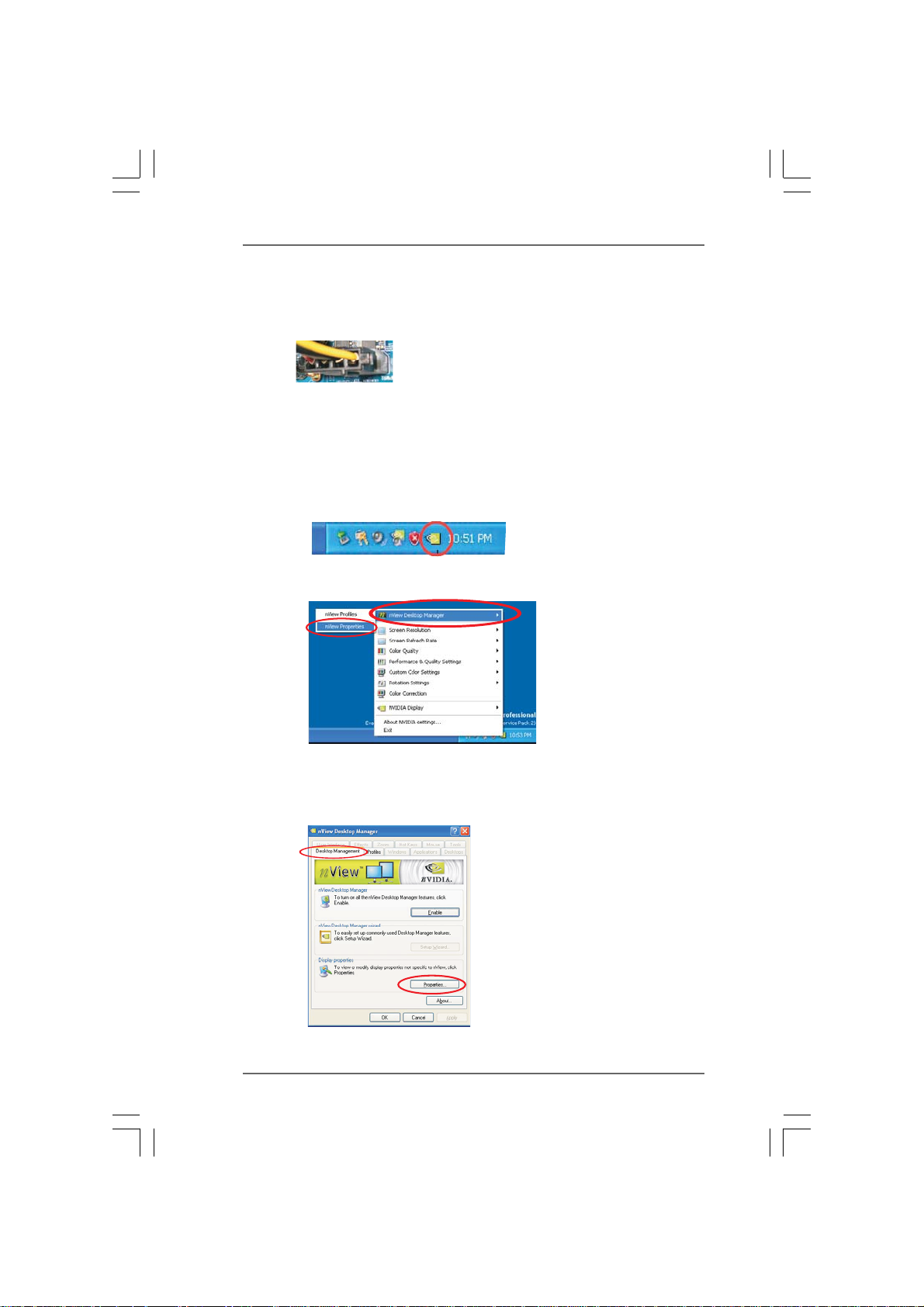

Step 1. There is one ASRock SLI/XFire Switch Card factory-mounted on this

motherboard. This card served as a switch between the default mode (x16)

and SLI mode (x8 / x8). ASRock SLI/XFire Switch Card is factory-mounted

with its default mode (x16) side toward the retention slot base.

Step 2. To change it to SLI Mode, you need to reverse the direction of ASRock SLI/

XFire Switch Card. Please simultaneously pull open both the retention arms

that hold the card in position. The card itself will spring away from the

retention slot. Take it out gently by holding its edges, and keep away from

touching the connectors (Golden Fingers).

2020
