ASRock IMB-1211-D R2, IMB-1211-L R2, IMB-1210-D R2, IMB-1210-L R2 User Manual

Download

IMB-1211-D R2

IMB-1211-L R2

IMB-1210-D R2

IMB-1210-L R2

User Manual

Version 1.1

Updated September 3, 2020

Version 1.1

Updated September 3, 2020

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRockInd Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRockInd. ASRockInd assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRockInd does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or tness for a particular purpose.

In no event shall ASRockInd, its directors, ocers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of prots, loss of business, loss of data, interruption of business and the like), even if ASRockInd has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Pract ices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/ perchlorate”

ASRockInd Website: http://www.asrockind.com

CAUTION:

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTER IES ACCOR DING TO THE INSTRUCTIONS.

Contents

1 Introduction ....................................................... 5

1.1 Package Contents ......................................................... 5

1.2 Specications ................................................................. 6

1.3 Motherboard Layout ....................................................... 14

1.4 I/O Panel ........................................................................ 16

2 Installation ......................................................... 20

2.1 Screw Holes ................................................................... 20

2.2 Pre-installation Precautions ........................................... 20

2.3 Installation of Memory Modules (SO-DIMM) .................. 21

2.4 Expansion Slots ............................................................ 23

2.5 Jumpers Setup ............................................................... 25

2.6 Onboard Headers and Connectors ................................ 28

3 UEFI SETUP UTILITY ......................................... 33

3.1 Introduction .................................................................... 33

3.1.1 UEFI Menu Bar .................................................... 33

3.1.2 Navigation Keys ................................................... 34

3.2 Main Screen ................................................................... 34

3.3 Advanced Screen ........................................................... 35

3.3.1 CPU Conguration ............................................... 36

3.3.2 Chipset Conguration........................................... 38

3.3.3 Storage Conguration .......................................... 40

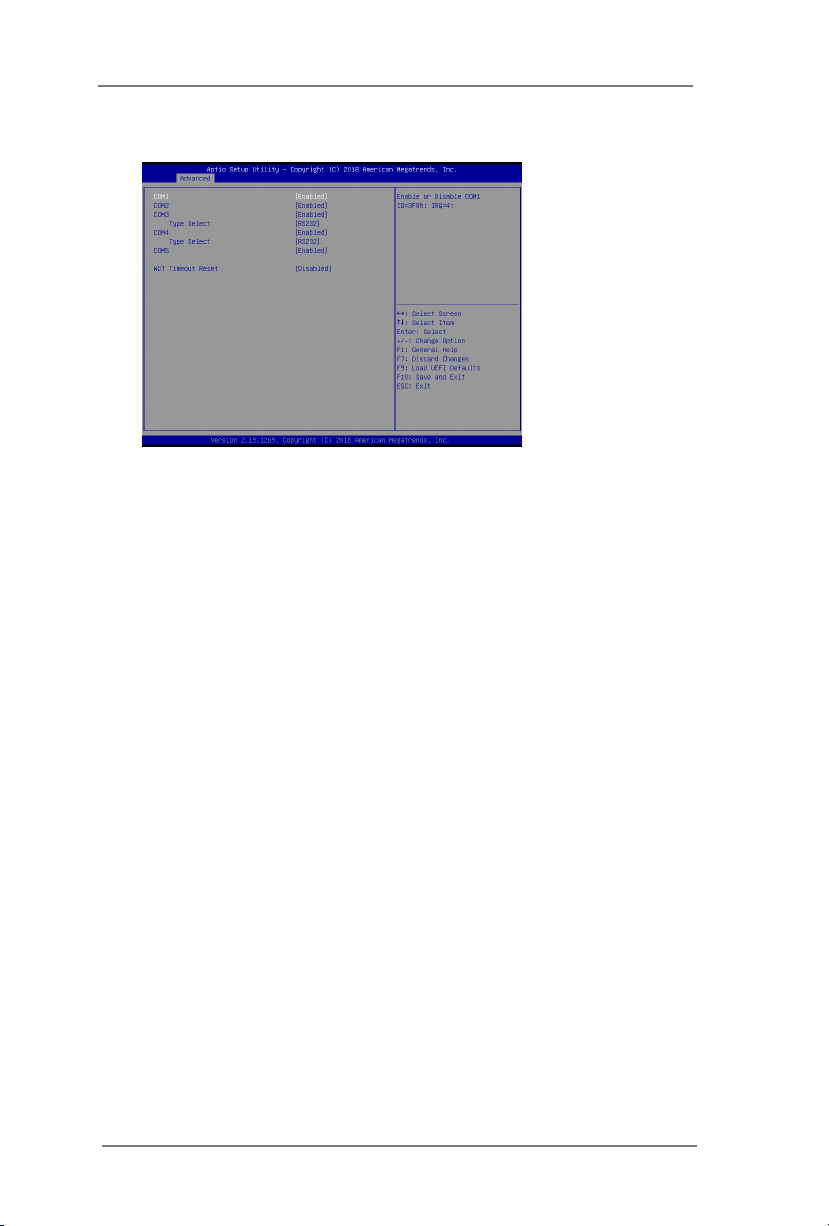

3.3.4 Super IO Conguration ........................................ 41

3.3.5 AMT Conguration ............................................... 42

3.3.6 ACPI Conguration............................................... 44

3.3.7 USB Conguration ............................................... 45

3.3.8 Trusted Computing ............................................... 46

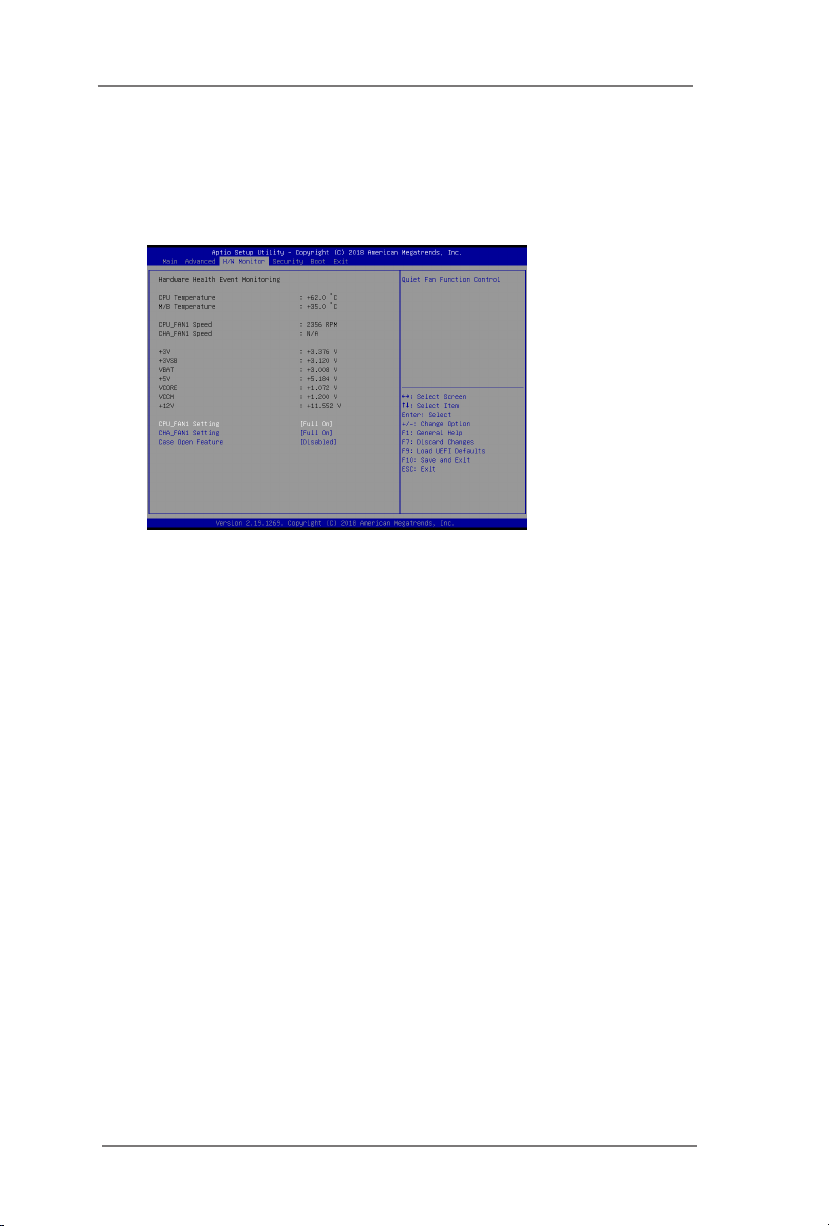

3.4 Hardware Health Event Monitoring Screen ................... 47

3.5 Security Screen ............................................................. 48

3.6 Boot Screen ................................................................... 49

3.7 Exit Screen .................................................................... 51

4 Software Support .............................................. 52

4.1 Install Operating System ................................................ 52

4.2 Support CD Information ................................................. 52

4.2.1 Running Support CD ............................................ 52

4.2.2 Drivers Menu ........................................................ 52

4.2.3 Utilities Menu........................................................ 52

4.2.4 Contact Information .............................................. 52

Chapter 1: Introduction

Thank you for purchasing ASRockInd

1210-D R2 / IMB-1210-L R2

ASRockInd’s consistently stringent quality control. It delivers excellent performance

with robust design conforming to ASRockInd’s commitment to quality and endur-

ance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-

by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration

guide to BIOS setup and information of the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRockInd website without further notice. You may

nd the latest VGA cards and CPU support lists on ASRockInd website

as well. ASRockInd website http://www.asrockind.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrockind.com/support/index.asp

motherboard, a reliable motherboard produced under

1.1 Package Contents

ASRockInd

Motherboard (Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

ASRockInd

Driver CD

ASRockInd

Jumper setting instruction

1 x I/O Panel Shield

IMB-1211-D R2 / IMB-1211-L R2 / IMB-1210-D R2 / IMB-1210-L R2

IMB-1211-D R2 / IMB-1211-L R2 / IMB-

1.2 Specications

IMB-1211-D R2:

Form Factor

Processor System

Expansion Slot

Memory

Graphics

Ethernet

Dimensions Mini-ITX (6.7-in x 6.7-in)

Socket LGA 1151 for 9th/8th Intel® Core i7/i5/i3/

CPU

Chipset Intel® Q370 PCIe 1 x PCIe x16

Mini-PCIe 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0 mSATA N/A

M.2

Technology Dual Channel DDR4 2400/2666 MHz

Max.

Socket 2 x SO-DIMM Controller Intel® HD Graphics (By CPU) VGA N/A DVI N/A LVDS N/A HDMI N/A

DisplayPort

MultiDisplay Triple Display

eDP

Ethernet 10/100/1000 Mbps Controller 1 x Intel® I210, 1 x Intel® I219LM

Celeron (Supports up to 65W) * The Performance of CPUs over 65W will be limited due to power design.

1x M.2 (Key E, 2230) with PCIe x1, CNVI and USB2.0 for Wireless 1x M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD

64GB*

* Intel® Core i9/i7/i5 CPUs support up to 64GB

(32GB per DIMM)

Intel® Core i3/Pentium®/Celeron® CPUs

support up to 32GB (16GB per DIMM)

Supports max resolution up to 4096x2304@60Hz

Rear I/O

Internal Connector

Watchdog Timer

Power Requirements

Environment

VGA N/A HDMI N/A DisplayPort 3 Ethernet 2 USB 4 x USB support USB3.1 Audio 2 (Mic-in, Line-out) Serial 2 x COM(RS-232/422/485) PS2 N/A USB 4 x USB 2.0 LVDS/ inverter eDP 1 VGA N/A Serial 3 x COM(RS-232) SATA 4 x SATA3 (6.0Gb/s)

GPIO 4 x GPI, 4 x GPO

SATA PWR Output Speaker Header TPM 1 x Onboard TPM 2.0 IC Output From super I/O to drag RESETCON# Interval 256 Segments, 0,1,2…255 Sec Input PWR ATX PWR 24+4-pin

Power On

Operating Temp Storage Temp

N/A

AT/ATX Supported AT: Directly PWR on as Power input ready ATX: Press Button to PWR on after Power input ready

0ºC – 60ºC

-40ºC – 85ºC

IMB-1211-L R2:

Form Factor

Processor System

Expansion Slot

Memory

Graphics

Ethernet

Dimensions Mini-ITX (6.7-in x 6.7-in)

Socket LGA 1151 for 9th/8th Intel® Core i7/i5/i3/

CPU

Chipset Intel® Q370 PCIe 1 x PCIe x16

Mini-PCIe 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0 mSATA N/A

M.2

Technology Dual Channel DDR4 2400/2666 MHz

Max.

Socket 2 x SO-DIMM Controller Intel® HD Graphics (By CPU)

VGA

DVI N/A

LVDS

HDMI N/A

DisplayPort

MultiDisplay Triple Display eDP N/A Ethernet 10/100/1000 Mbps Controller 1 x Intel® I210, 1 x Intel® I219LM

Celeron (Supports up to 65W) * The Performance of CPUs over 65W will be limited due to power design.

1x M.2 (Key E, 2230) with PCIe x1, CNVI and USB2.0 for Wireless 1x M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD

64GB*

* Intel® Core i9/i7/i5 CPUs support up to 64GB

(32GB per DIMM)

Intel® Core i3/Pentium®/Celeron® CPUs

support up to 32GB (16GB per DIMM)

Supports max resolution up to 1920x1200@60Hz

Supports max resolution up to 4096x2304@60Hz

Rear I/O

Internal Connector

Watchdog Timer

Power Requirements

Environment

VGA 1 HDMI N/A DisplayPort 2 Ethernet 2 USB 4 x USB support USB3.1 Audio 2 (Mic-in, Line-out) Serial 2 x COM(RS-232/422/485) PS2 N/A USB 4 x USB 2.0 LVDS/ inverter eDP N/A VGA N/A Serial 3 x COM(RS-232) SATA 4 x SATA3 (6.0Gb/s)

GPIO 4 x GPI, 4 x GPO

SATA PWR Output Speaker Header TPM 1 x Onboard TPM 2.0 IC Output From super I/O to drag RESETCON# Interval 256 Segments, 0,1,2…255 Sec Input PWR ATX PWR 24+4-pin

Power On

Operating Temp Storage Temp

N/A

AT/ATX Supported AT: Directly PWR on as Power input ready ATX: Press Button to PWR on after Power input ready

0ºC – 60ºC

-40ºC – 85ºC

IMB-1210-D R2:

Form Factor

Processor System

Expansion Slot

Memory

Graphics

Ethernet

Dimensions Mini-ITX (6.7-in x 6.7-in)

Socket LGA 1151 for 9th/8th Intel® Core i7/i5/i3/

CPU

Chipset PCIe 1 x PCIe x16

Mini-PCIe 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0 mSATA N/A

M.2

Technology Dual Channel DDR4 2400/2666 MHz

Max.

Socket 2 x SO-DIMM Controller Intel® HD Graphics (By CPU) VGA N/A DVI N/A LVDS N/A HDMI N/A

DisplayPort

MultiDisplay Dual Display

eDP

Ethernet 10/100/1000 Mbps Controller 1 x Intel® I210, 1 x Intel® I219V

Celeron (Supports up to 65W) * The Performance of CPUs over 65W will be limited due to power design. Intel® H310

1x M.2 (Key E, 2230) with PCIe x1, CNVI and USB2.0 for Wireless 1x M.2 (Key M, 2242/2260/2280) with shared SATA3 for SSD

64GB*

* Intel® Core i9/i7/i5 CPUs support up to 64GB

(32GB per DIMM)

Intel® Core i3/Pentium®/Celeron® CPUs

support up to 32GB (16GB per DIMM)

Supports max resolution up to 4096x2304@60Hz

Rear I/O

Internal Connector

Watchdog Timer

Power Requirements

Environment

VGA N/A HDMI N/A DisplayPort 3 Ethernet 2 USB 4 x USB support USB3.1 Audio 2 (Mic-in, Line-out)

Serial

PS2 N/A USB 4 x USB 2.0 LVDS/ inverter eDP 1 VGA N/A Serial 2 x COM(RS-232)

SATA

GPIO 4 x GPI, 4 x GPO

SATA PWR Output Speaker Header TPM 1 x Header Output From super I/O to drag RESETCON# Interval 256 Segments, 0,1,2…255 Sec Input PWR ATX PWR 24+4-pin

Power On

Operating Temp Storage Temp

1 x COM(RS-232/422/485), 1 x COM (RS-

232)

N/A

4 x SATA3 (6.0Gb/s), one is shared with M.2

Key M

N/A

AT/ATX Supported AT: Directly PWR on as Power input ready ATX: Press Button to PWR on after Power input ready

0ºC – 60ºC

-40ºC – 85ºC

IMB-1210-L R2:

Form Factor

Processor System

Expansion Slot

Memory

Graphics

Ethernet

Dimensions Mini-ITX (6.7-in x 6.7-in)

Socket LGA 1151 for 9th/8th Intel® Core i7/i5/i3/

CPU

Chipset Intel® H310 PCIe 1 x PCIe x16

Mini-PCIe 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0 mSATA N/A

M.2

Technology Dual Channel DDR4 2400/2666 MHz

Max.

Socket 2 x SO-DIMM Controller Intel® HD Graphics (By CPU)

VGA

DVI N/A

LVDS

HDMI N/A

DisplayPort

MultiDisplay Dual Display eDP N/A Ethernet 10/100/1000 Mbps Controller 1 x Intel® I210, 1 x Intel® I219V

Celeron (Supports up to 65W) * The Performance of CPUs over 65W will be limited due to power design.

1x M.2 (Key E, 2230) with PCIe x1, CNVI and USB2.0 for Wireless 1x M.2 (Key M, 2242/2260/2280) with shared SATA3 for SSD

64GB*

* Intel® Core i9/i7/i5 CPUs support up to 64GB

(32GB per DIMM)

Intel® Core i3/Pentium®/Celeron® CPUs

support up to 32GB (16GB per DIMM)

Supports max resolution up to 1920x1200@60Hz

Supports max resolution up to 4096x2304@60Hz

Rear I/O

Internal Connector

Watchdog Timer

Power Requirements

Environment

VGA 1 HDMI N/A DisplayPort 2 Ethernet 2 USB 4 x USB support USB3.1 Audio 2 (Mic-in, Line-out)

Serial

PS2 N/A USB 4 x USB 2.0 LVDS/ inverter eDP N/A VGA N/A Serial 2 x COM(RS-232)

SATA

GPIO 4 x GPI, 4 x GPO

SATA PWR Output Speaker Header TPM 1 x Header Output From super I/O to drag RESETCON# Interval 256 Segments, 0,1,2…255 Sec Input PWR ATX PWR 24+4-pin

Power On

Operating Temp Storage Temp

1 x COM(RS-232/422/485), 1 x COM (RS-

232)

4 x SATA3 (6.0Gb/s), one is shared with M.2

Key M

N/A

AT/ATX Supported AT: Directly PWR on as Power input ready ATX: Press Button to PWR on after Power input ready

0ºC – 60ºC

-40ºC – 85ºC

1.3 Motherboard Layout

1 : COM Port PWR Setting Jumpers PWR_COM3 (For COM Port3) PWR_COM4 (For COM Port4) 2 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1) 3 : BL1 4 : Inverter Power Control Wafer (BLT_PWR1) 5* :

LVDS Panel Connector * eDP Connector 6 : BL2 7 : Buzzer 8 : Panel Power Select (LCD_VCC) (PNL_PWR1) 9 : Backlight Volume Control (BLT_VOL1) 10* : COM Port Headers (COM1, 2, 5)

(COM5 is for IMB-1211-D R2 / IMB-1211-L R2 only) (COM1, COM2, COM5 support RS232 only) 11 :

Digital Input / Output

12 :

4-Pin Chassis FAN Connector (+12V) 13 : 24-pin ATX Power Input Connector 14 : ATX/AT Mode Jumper (SIO_AT1) 15 :

System Panel Header 16 : LPC Header

17 : Digital Input / Output Power Select (JGPIOPWR) (JGPIO_PWR1) 18 : Digital Input/Output Pin Header (JGPIO1)

19* : COM Port PWR Setting Jumpers (PWR_COM5 PWR_COM1 (For COM Port1) PWR_COM2 (For COM Port2) PWR_COM5 (For COM Port5) 20 :

Chassis Intrusion Headers (CI1, CI2) 21 : 4-pin ATX Power Input/Output Connector 22 : PWR_BAT1 23 :

USB2.0 Headers ( 24 : Clear CMOS Headers (CLRMOS1, CLRMOS2) 25 : M.2 Select (M2_SEL1) (For IMB-1210-D R2 / IMB-1210-L R2 only) 2

6 : 3W Audio AMP Output Wafer

27 :

Front Panel Audio Header 28 : SATA3 Connectors (SATA3_1~4) 29 : USB Power Setting Jumpers (USB2_PWR_H1 (For USB2_5_6)) (USB2_PWR_H2 (For USB2_7_8)) (USB3_PWR1 (For 30 :

4-Pin CPU FAN Connector (+12V) (CPU_FAN1)

is for IMB-1211-D R2 / IMB-1211-L R2 only)

(For IMB-1210-L R2 / IMB-1211-L R2 only)

(For IMB-1210-D R2 / IMB-1211-D R2 only) (

Default Value Setting (JGPIO_SET1)

USB2_5_6, USB2_7_8

USB3_1_2

))

)

on the Backside of PCB)

* IMB-1211-D R2 / IMB-1210-D R2 supports DisplayPort on the rear I/O panel.

IMB-1211-L R2 / IMB-1210-L R2 supports VGA port on the rear I/O panel.

Back Side : M.2 Socket ( * M2_2 supports either PCIe or SATA mode for IMB-1211-D R2. M2_2 supports SATA mode only for IMB-1210-L R2. * M2_2 and SATA3_1 share lanes. If either one of them is in use, the other one will be disabled.

Key-M)

(M2_2) :

1.4 I/O Panel

IMB-1211-D R2:

1 COM Port (COM3) (RS232/422/485)*

2 DisplayPort (DP1)

3 LAN RJ-45 Port**

4 LAN RJ-45 Port**

5 Line out (Lime)

6 Microphone (Pink)

* This motherboard supports RS232/422/485 on COM3, 4 ports. Please refer to below table for

the pin denition. In addition, COM3, 4 ports (RS232/422/485) can be adjusted in BIOS setup

utility > Advanced Screen > Super IO Conguration. You may refer to page 41 for details.

PIN RS232 RS422 RS485

1 DCD TX- RTX2 RXD RX+ N/A 3 TXD TX+ RTX+ 4 DTR RX- N/A 5 GND GND GND 6 DSR N/A N/A 7 RTS N/A N/A 8 CTS N/A N/A 9 +5V / +12V N/A N/A

COM3, 4 Port Pin Denition

7 USB 3.0 Ports (USB3_3_4) (Only +5VSB)

8 USB 3.0 Ports (USB3_1_2)

9 DisplayPort (DP3)

10 DisplayPort (DP2)

11 COM Port (COM4) (RS232/422/485)*

** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

Activity/Link LED SPEED LED

Status Description Status Description

LAN Port LED Indications

ACT/LINK

LED

SPEED

LED

O󰀨 No Link O󰀨 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

LAN Port

IMB-1211-L R2:

1 COM Port (COM3) (RS232/422/485)*

2 DisplayPort (DP1)

3 LAN RJ-45 Port**

4 LAN RJ-45 Port**

5 Line out (Lime)

6 Microphone (Pink)

* This motherboard supports RS232/422/485 on COM3, 4 ports. Please refer to below table for

the pin denition. In addition, COM3, 4 ports (RS232/422/485) can be adjusted in BIOS setup

utility > Advanced Screen > Super IO Conguration. You may refer to page 41 for details.

PIN RS232 RS422 RS485

1 DCD TX- RTX2 RXD RX+ N/A 3 TXD TX+ RTX+ 4 DTR RX- N/A 5 GND GND GND 6 DSR N/A N/A 7 RTS N/A N/A 8 CTS N/A N/A 9 +5V / +12V N/A N/A

COM3, 4 Port Pin Denition

7 USB 3.0 Ports (USB3_3_4) (Only +5VSB)

8 USB 3.0 Ports (USB3_1_2)

9 D-Sub Port (VGA1)

10 DisplayPort (DP2)

11 COM Port (COM4) (RS232/422/485)*

** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

Activity/Link LED SPEED LED

Status Description Status Description

LAN Port LED Indications

ACT/LINK

LED

SPEED

LED

O󰀨 No Link O󰀨 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

LAN Port

IMB-1210-D R2:

1 COM Port (COM3) (RS232/422/485)*

2 DisplayPort (DP1)

3 LAN RJ-45 Port**

4 LAN RJ-45 Port**

5 Line out (Lime)

6 Microphone (Pink)

* This motherboard supports RS232/422/485 on COM3 port. Please refer to below table for

the pin denition. In addition, COM3 port (RS232/422/485) can be adjusted in BIOS setup

utility > Advanced Screen > Super IO Conguration. You may refer to page 41 for details.

PIN RS232 RS422 RS485

1 DCD TX- RTX2 RXD RX+ N/A 3 TXD TX+ RTX+ 4 DTR RX- N/A 5 GND GND GND 6 DSR N/A N/A 7 RTS N/A N/A 8 CTS N/A N/A 9 +5V / +12V N/A N/A

COM3 Port Pin Denition

7 USB 3.0 Ports (USB3_3_4) (Only +5VSB)

8 USB 3.0 Ports (USB3_1_2)

9 DisplayPort (DP3)

10 DisplayPort (DP2)

11 COM Port (COM4) (RS232)*

** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

Activity/Link LED SPEED LED

Status Description Status Description

LAN Port LED Indications

ACT/LINK

LED

SPEED

LED

O󰀨 No Link O󰀨 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

LAN Port

IMB-1210-L R2:

1 COM Port (COM3) (RS232/422/485)*

2 DisplayPort (DP1)

3 LAN RJ-45 Port**

4 LAN RJ-45 Port**

5 Line out (Lime)

6 Microphone (Pink)

* This motherboard supports RS232/422/485 on COM3 port. Please refer to below table for

the pin denition. In addition, COM3 port (RS232/422/485) can be adjusted in BIOS setup

utility > Advanced Screen > Super IO Conguration. You may refer to page 41 for details.

PIN RS232 RS422 RS485

1 DCD TX- RTX2 RXD RX+ N/A 3 TXD TX+ RTX+ 4 DTR RX- N/A 5 GND GND GND 6 DSR N/A N/A 7 RTS N/A N/A 8 CTS N/A N/A 9 +5V / +12V N/A N/A

COM3 Port Pin Denition

7 USB 3.0 Ports (USB3_3_4) (Only +5VSB)

8 USB 3.0 Ports (USB3_1_2)

9 D-Sub Port (VGA1)

10 DisplayPort (DP2)

11 COM Port (COM4) (RS232)*

** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

Activity/Link LED SPEED LED

Status Description Status Description

LAN Port LED Indications

ACT/LINK

LED

SPEED

LED

O󰀨 No Link O󰀨 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

LAN Port

Chapter 2: Installation

This is a Mini-ITX form factor (6.7” x 6.7”, 17.0 x 17.0 cm) motherboard. Before you

install the motherboard, study the conguration of your chassis to ensure that the

motherboard ts into it.

motherboard. Failure to do so may cause physical injuries to you and

damages to motherboard components.

Make sure to unplug the power cord before installing or removing the

2.1 Screw Holes

Place screws into the holes to secure the motherboard to the chassis.

Do not over-tighten the screws! Doing so may damage the motherboard.

2.2 Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity,

NEVER place your motherboard directly on the carpet or the like. Also

remember to use a grounded wrist strap or touch a safety grounded object

before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic pad or

in the bag that comes with the component.

Before you install or remove any component, ensure that the power is

switched o󰀨 or the power cord is detached from the power supply.

Failure to do so may cause severe damage to the motherboard, peripherals,

and/or components.

2.3 Installation of Memory Modules (SO-DIMM)

This motherboard provides two 260-pin DDR4 (Double Data Rate 4) SO-DIMM

slots.

1. The SO-DIMM only ts in one correct orientation. It will cause permanent damage

to the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at

incorrect orientation.

2. Please do not intermix di󰀨erent voltage SO-DIMMs on this motherboard.

2.4 Expansion Slots

There is 1 mini-PCIe slot, 2 M.2 sockets and 1 PCI Express slot on this mother-

board.

mini-PCIe slot:

MINI_PCIE1 (mini-PCIe slot; half/full size) is used for PCI Express mini

cards.

M.2 sockets:

1 x M.2 (M2_2) (Key E, 2230) with PCIe x1, CNVI and USB2.0 for

Wireless.

1x M.2 (M2_1) (Key M, 2242/2260/2280) with shared SATA3 for SSD

PCIE slot:

PCIE1 (PCIE x16 slot) is used for PCI Express x16 lane width cards.

Installing an expansion card

Step 1. Before installing the expansion card, please make sure that the power

supply is switched o󰀨 or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the system unit cover (if your motherboard is already installed

in a chassis).

Step 3. Remove the bracket facing the slot that you intend to use. Keep the

screws for later use.

Step 4. Align the card connector with the slot and press rmly until the card is

completely seated on the slot.

Step 5. Fasten the card to the chassis with screws.

Step 6. Replace the system cover.

M.2 Key-E Socket (M2_1):

M.2 Key-M Socket (M2_2):

* IMB-1211-D R2: Switch between SATA and PCIe mode. IMB-1210-L R2: SATA mode only. * M2_2 and SATA3_1 share lanes. If either one of them is in use, the other one will be disabled.

SATA Mode: PCIe Mode:

2.5 Jumpers Setup

The illustration shows how jumpers are setup.

When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap is

placed on pins, the jumper is “Open”. The illus-

tration shows a 3-pin jumper whose pin1 and

pin2 are “Short” when jumper cap is placed on

these 2 pins.

Jumper Setting Description

Clear CMOS Jumpers

(3-pin CLRMOS1)

(see p.14, No. 24)

Clear CMOSDefault

CLRMOS1

1-2 : Normal

2-3 : Clear CMOS

Note: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn o󰀨 the computer and unplug the

power cord from the power supply. After waiting for 15 seconds, use a jumper cap

to short pin2 and pin3 on CLRMOS1 for 5 seconds. However, please do not clear

the CMOS right after you update the BIOS. If you need to clear the CMOS when

you just nish updating the BIOS, you must boot up the system rst, and then shut

it down before you do the clear-CMOS action. Please be noted that the password,

date, time, user default prole and MAC address will be cleared only if the CMOS

battery is removed.

(2-pin CLRMOS2)

(see p.14, No. 24)

CLRMOS2

Open : Normal

Short : Auto Clear CMOS (Power O󰀨)

Digital Input / Output Power Select (JGPIOPWR) 1-2 : +12V

(3-pin JGPIO_PWR1)

(see p.14, No. 17)

Digital Input / Output

(3-pin JGPIO_SET1)

(see p.14, No. 11)

2-3 : +5V

3 2 1

Default Value Setting

1-2 : Pull-High

2-3 : Pull-Low

Backlight Power Select (LCD_BLT_VCC) 1-2 : LCD_BLT_VCC : +5V

(3-pin BKT_PWR1)

(see p.14, No. 2)

2-3 : LCD_BLT_VCC : +12V

COM Port PWR Setting Jumpers 1-2 : +5V

(3-pin

PWR_COM1 (For COM Port1),

PWR_COM2 (For COM Port2),

PWR_COM5 (For COM Port5) (PWR_COM5 is for IMB-1211-D R2 / IMB-1211-L R2 only))

(see p.14, No. 19)

2-3 : +12V

BL1, BL2

(2-pin BL1)

(see p.14 No. 3)

(2-pin BL2)

(see p.14 No. 6)

Open : Protect LCD_BLT_VCC

Short : No Protect LCD_BLT_VCC

Open : Protect LCD_VCC

Short : No Protect LCD_VCC

COM Port PWR Setting Jumpers 1-2 : +5V

(3-pin

PWR_COM3 (For COM Port3),

PWR_COM4 (For COM Port4),

(see p.14, No. 1)

2-3 : +12V

Panel Power Select (LCD_VCC) 1-2 : LCD_VCC : +3V

(5-pin PNL_PWR1)

(see p.14, No. 8)

2-3 : LCD_VCC : +5V

4-5 : LCD_VCC : +12V

ATX/AT Mode Jumper Open : ATX Mode

(2-pin SIO_AT1)

(see p.14, No. 14)

PWR_BAT1

(2-pin PWR_BAT1)

(see p.14, No. 22)

Open : Normal

Close : AT Mode

Close : Charge Battery

USB Power Setting Jumpers 1-2 : +5V

(3-pin USB2_PWR_H1 (For USB2_5_6),

USB2_PWR_H2 (For USB2_7_8),

USB3_PWR1 (For USB3_1_2))

(see p.14, No. 29)

2-3 : +5VSB

M.2 Select (For IMB-1210-D R2 / IMB-1210-L R2 only)

(2-pin M2_SEL1)

(see p.14, No. 25)

* M2_2 and SATA3_1 share lanes. If either one of them is in use, the other one will be disabled.

Open : For SATA3_1

Close : For M.2

2.6 Onboard Headers and Connectors

FAN_ SPE E D

FAN_ SPE E D_C ONT ROL

+12 V

GND

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

CPU Fan Connector Please connect the CPU fan

(4-pin CPU_FAN1)

(see p.14 No. 30)

ground pin.

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

cable to the connector and

match the black wire to the

CPU fan still can work successfully even without the fan speed control function. If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this motherboard, please connect it to Pin 1-3.

Chassis Fan Connector Please connect the chassis fan

(4-pin CHA_FAN1)

(see p.14 No. 12)

cable to the connector and

match the black wire to the

FAN _SPE ED_ CON TRO L

ground pin.

4 3 2 1

CHA _FAN _SP EED

+12 V

GND

Though this motherboard provides 4-Pin chassis fan (Quiet Fan) support, the 3-Pin chassis fan still can work successfully even without the fan speed control function. If you plan to connect the 3-Pin chassis fan to the chassis fan connector on this motherboard, please connect it to Pin 1-3.

Digital Input / Output Pin Header

(10-pin JGPIO1)

(see p.14, No. 18)

PLE D +

PLE D -

HDL E D-

HDL E D+

PWR B TN#

GND

RES E T#

GND

System Panel Header This header accommodates

(9-pin PANEL1)

(see p.14, No. 15)

several system front panel

functions.

Signal

PIN Signal Name

Name

GND

SIO_GP237SIO_GP27

SIO_GP225SIO_GP26

SIO_GP213SIO_GP25

SIO_GP201SIO_GP24

JGPIO_PWR

Connect the power switch, reset switch and system status indicator on the

chassis to this header according to the pin assignments below. Note the

positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may congure

the way to turn o󰀨 your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

switch to restart the computer if the computer freezes and fails to perform a

normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED

is on when the system is operating. The LED keeps blinking when the sys-

tem is in S1/S3 sleep state. The LED is o󰀨 when the system is in S4 sleep

state or powered o󰀨 (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED

is on when the hard drive is reading or writing data.

The front panel design may di󰀨er by chassis. A front panel module mainly

consists of power switch, reset switch, power LED, hard drive activity LED,

speaker and etc. When connecting your chassis front panel module to this

header, make sure the wire assignments and the pin assign-ments are

matched correctly.

COM1, 2, 5 Headers

(10-pin COM1, 2, 5: see p.14, No. 10)

(COM5 is for IMB-1211-D R2 / IMB-1211-L R2 only)

(COM1, COM2, COM5 support RS232 only)

Signal Name

RRXD

DDCD#

Signal

Name

DDTR#

TTXD

Signal Name

DDSR#

GND

Signal Name

CCTS#

RRTS#

Signal Name

N/A

PWR

SATA3 Connectors These four Serial ATA3 (SATA3)

(SATA3_1~4: see p.14, No. 28)

SATA3_4

connectors support SATA data

SATA3_1

cables for internal storage

devices. The current SATA3

interface allows up to 6.0 Gb/s

SATA3_2

SATA3_3

data transfer rate.

* M2_2 and SATA3_1 share lanes. If either one of them is in use, the other one will be disabled.

USB 2.0 Headers There are two headers on this

(9-pin USB2_5_6, USB2_7_8:

see p.14, No. 23)

header can support two por ts.

motherboard. Each USB 2.0

Front Panel Audio Header This is an interface for front

(9-pin HD_AUDIO1)

(see p.14 No. 27)

panel audio cable that allows

convenient connection and

control of audio devices.

OUT _RET

MIC _RE T

PRE SEN CE#

GN D

OUT 2_L

J_S ENS E OUT 2_R

MIC 2_R

MIC 2_L

1. High Denition Audio supports Jack Sensing, but the panel wire on

the chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below:

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

need to connect them for AC’97 audio panel.

E. To activate the front mic.

Go to the “FrontMic” Tab in the Realtek Control panel. Adjust

“Recording Volume”.

3W Audio AMP Output Wafer

(4-pin SPEAKER1)

(see p.14 No. 26)

Signal

Name

1 OUTLN 2 OUTLP 3 OUTRP 4 OUTRN

Signal Name

Signal

Name

Signal Name

ATX Power Input/Output Connector

(4-pin ATX12V1)

(see p.14 No. 21)

power supply to this

connector.

3-4 : DC Input

Please connect a DC

1-2 : GND

ATX Power Input Connector

(24-pin ATXPWR1)

(see p.14 No. 13)

a 24-pin ATX power connector.

To use a 20-pin ATX power

supply, please plug it along Pin

This motherboard provides

24 13

12 1

1 and Pin 13.

* LVDS Connector (For IMB-1210-L R2 / IMB-1211-L R2 only)

(40-pin LVDS1)

(see p.14 No. 5)

2 LCD_VCC 1 LCD_VCC

4 LDDC_CLK 3 +3.3V

6 LVDS_A_DATA0# 5 LDDC_DATA

8 PD (Panel Detection) 7 LVDS_A_DATA0

10 LVDS_A_DATA1 9 LVDS_A_DATA1#

12 LVDS_A_DATA2# 11 GND

14 GND 13 LVDS_A_DATA2

16 LVDS_A_DATA3 15 LVDS_A_DATA3#

18 LVDS_A_CLK# 17 GND

20 GND 19 LVDS_A_CLK

22 LVDS_B_DATA0 21 LVDS_B_DATA0#

24 LVDS_B_DATA1# 23 GND

26 GND 25 LVDS_B_DATA1

28 LVDS_B_DATA2 27 LVDS_B_DATA2#

30 LVDS_B_DATA3# 29 DPLVDD_EN

32 GND 31 LVDS_B_DATA3

34 LVDS_B_CLK 33 LVDS_B_CLK#

36 CON_LBKLT_EN 35 GND

PIN Signal Name PIN Signal Name

38 LCD_BLT_VCC 37 CON_LBKLT_CTL

* PD (Panel Detection): Connect this pin to LVDS Panel’s Ground pin to

detect Panel detection.

eDP Connector (For IMB-1210-D R2 / IMB-1211-D R2 only)

(on the Backside of PCB)

(40-pin EDP1)

PIN Signal Name

2 GND

1 NA

4 eDP_TX3_CON

3 eDP_TX#3_CON

7 eDP_TX2_CON

6 eDP_TX#2_CON

5 GND

9 eDP_TX#1_CON

8 GND

10 eDP_TX1_CON

11 GND

15 eDP_AUX_CON

14 GND

13 eDP_TX0_CON

12 eDP_TX#0_CON

EDP1

18 LCD_VCC

17 GND

16 eDP_AUX#_CON

20 LCD_VCC

19 LCD_VCC

22 NA

21 LCD_VCC

23 GND

24 GND

25 GND

26 GND

30 GND

29 GND

28 GND

27 eDP_HPD_CON

31 GND

32 CON_LBKLT_EN

33 CON_LBKLT_CTL

39 LCD_BLT_VCC

38 LCD_BLT_VCC

37 LCD_BLT_VCC

36 LCD_BLT_VCC

35 NA

34 NA

40 LCD_BLT_VCC 39 LCD_BLT_VCC

40 NA

Buzzer

(2-pin BUZZ2)

(see p.14 No. 7)

Chassis Intrusion Headers This motherboard supports

(2-pin CI1, CI2: see p.14, No. 20)

that detects if the chassis cover

GND

CASE OPEN detection feature

Sig na l

has been removed. This feature

requires a chassis with chassis

intrusion detection design.

CI1 :

Close : Active Case Open

Open : Normal

CI2 :

Close : Normal

Open : Active Case Open

LPC Header This connector supports a

(19-pin LPC1)

see p.14, No. 16)

(

Trusted Platform Module (TPM)

system, which can

securely store keys, digital

certicates, passwords, and

data. A TPM system also helps

enhance network security,

protects digital identities, and

ensures platform integrity.

Inverter Power Control Wafer

(6-pin BLT_PWR1)

(see p.14 No. 4)

Backlight Volume Control

(7-pin BLT_VOL1)

(see p.14 No. 9)

Signal

Name

GND6GND5BLT_DW4BLT_UP3PWRDN

Signal

Name

Signal Name

PIN Signal Name

6 LCD_BLT_VCC

5 LCD_BLT_VCC

4 CON_LBKLT_EN

3 CON_LBKLT_CTL

2 GND

1 GND

Signal

Name

Signal Name

GPIO_

VOL_

Signal Name

GPIO_

VOL_

Chapter 3: UEFI SETUP UTILITY

3.1 Introduction

This section explains how to use the UEFI SETUP UTILITY to congure your

system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You

may run the UEFI SETUP UTILITY when you start up the computer. Please press

<F2> or <Del> during the Power-On-Self-Test (POST) to enter the UEFI SETUP

UTILITY, otherwise, POST will continue with its test routines.

If you wish to enter the UEFI SETUP UTILITY after POST, restart the system by

pressing <Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system

chassis. You may also restart by turning the system o󰀨 and then back on.

Because the UEFI software is constantly being updated, the

following UEFI setup screens and descriptions are for reference

purpose only, and they may not exactly match what you see on

your screen.

3.1.1 UEFI Menu Bar

The top of the screen has a menu bar with the following selections:

Main

Advanced

H/W Monitor

Security

Boot

Exit

Use < > key or < > key to choose among the selections on the menu

bar, and then press <Enter> to get into the sub screen. You can also use the

mouse to click your required item.

To set up the system time/date information

To set up the advanced UEFI features

To display current hardware status

To set up the security features

To set up the default system device to locate and load the

Operating System

To exit the current screen or the UEFI SETUP UTILITY

3.1.2 Navigation Keys

Please check the following table for the function description of each navigation

key.

Navigation Key(s) Function Description

Moves cursor left or right to select Screens

Moves cursor up or down to select items

+ / -

<Enter>

<F1>

To display the General Help Screen

<F7>

Discard changes

<F9>

<F10>

<F12>

Print screen

<ESC>

To jump to the Exit Screen or exit the current screen

To change option for the selected items

To bring up the selected screen

To load optimal default values for all the settings

To save changes and exit the UEFI SETUP UTILITY

3.2 Main Screen

When you enter the UEFI SETUP UTILITY, the Main screen will appear and display

the system overview.

3.3 Advanced Screen

In this section, you may set the congurations for the following items: CPU Congu-

ration, Chipset Conguration, Storage Conguration, Super IO Conguration, AMT

Configuration(Q370 only), ACPI Configuration, USB Configuration and Trusted

Computing.

Setting wrong values in this section may cause

the system to malfunction.

Instant Flash

Instant Flash is a UEFI ash utility embedded in Flash ROM. This conve-

nient UEFI update tool allows you to update system UEFI without entering

operating systems rst like MS-DOS or Windows®. Just launch this tool

and save the new UEFI le to your USB ash drive, oppy disk or hard

drive, then you can update your UEFI only in a few clicks without prepar-

ing an additional oppy diskette or other complicated ash utility. Please

be noted that the USB ash drive or hard drive must use FAT32/16/12 le

system. If you execute Instant Flash utility, the utility will show the UEFI

les and their respective information. Select the proper UEFI le to update

your UEFI, and reboot your system after UEFI update process completes.

3.3.1 CPU Conguration

Intel Hyper Threading Technology

Intel Hyper Threading Technology allows multiple threads to run on each

core, so that the overall performance on threaded software is improved.

Active Processor Cores

Select the number of cores to enable in each processor package.

CPU C States Support

Enable CPU C States Support for power saving. It is recommended to

keep C3, C6 and C7 all enabled for better power saving.

Intel Virtualization Technology

When this option is set to [Enabled], a VMM (Virtual Machine Architecture)

can utilize the additional hardware capabilities provided by Vanderpool

Technology. This option will be hidden if the installed CPU does not

support Intel Virtualization Technology.

Intel SpeedStep Technology

Intel SpeedStep technology is Intel’s new power saving technology. Pro-

cessors can switch between multiple frequencies and voltage points to en-

able power saving. The default value is [Enabled]. Conguration options:

[Enabled] and [Disabled]. If you install Windows® OS and want to enable

this function, please set this item to [Enabled]. This item will be hidden if

the current CPU does not support Intel SpeedStep technology.

Please note that enabling this function may reduce CPU voltage and lead to system

stability or compatibility issues with some power supplies. Please set this item to

[Disabled] if above issues occur.

Intel Turbo Boost Technology

Use this item to enable or disable Intel Turbo Boost Mode Technology.

Turbo Boost Mode allows processor cores to run faster than marked fre-

quency in specic conditions. The default value is [Enabled].

CPU Thermal Throttling

You may select [Enabled] to enable CPU internal thermal control

mechanism to keep the CPU from overheating.

3.3.2 Chipset Conguration

Primary Graphics Adapter

This allows you to select [Onboard] or [PCI Express] as the boot graphic

adapter priority. The default value is [PCI Express].

Above 4G Decoding

Enable or disable 64bit capable Devices to be decoded in Above 4G Ad-

dress Space (only if the system supports 64 bit PCI decoding).

VT-d

Use this to enable or disable Intel® VT-d technology (Intel® Virtualization

Technology for Directed I/O). The default value of this feature is [Disabled].

PCIE1 Link Speed

Select the link speed for PCIE1.

PCIE1 Bandwidth Mode (Q370 only)

Select the bandwidth mode for PCIE1.

Share Memory

Congure the size of memory that is allocated to the integrated graphics

processor when the system boots up.

IGPU Multi-Moniter

Select disable to disable the integrated graphics when an external

graphics card is installed. Select enable to keep the integrated graphics

enabled at all times.

Active LVDS (IMB-1210-L R2 and IMB-1211-L R2 only)

Use this to enable or disable the LVDS. The default value is [Disabled].

Set the item to [enable]. Then press <F10> to save the setting and restart

the system. Now the default value of Active LVDS is changed to ENABLE

(F9 load default is also set to ENABLE)

Change the setting from [Enable] to [Disable], and then press <F10> to

save the setting and restart the system. Likewise, the default value of Ac-

tive LVDS is changed to DISABLE (F9 load default is also set to DISABLE)

Panel Type Selection (IMB-1210-L R2 and IMB-1211-L R2 only)

Use this to select panel type. This item appears when you enable Active

LVDS.

The default values of Active LVDS and Panel Type Selec-

tion will be changed only when the users manually adjust

them. They will keep at the default values no matter you clear

CMOS, use Instant Flash or press <F9>.

Onboard LAN1

This allows you to enable or disable the Onboard LAN1 feature.

Onboard LAN2

This allows you to enable or disable the Onboard LAN2 feature.

Onboard HD Audio

Select [Enabled] or [Disabled] for the onboard HD Audio feature.

Deep Sleep

Mobile platforms support Deep S4/S5 in DC only and desktop platforms

support Deep S4/S5 in AC only. The default value is [Disabled].

3.3.3 Storage Conguration

SATA Controller(s)

Use this item to enable or disable the SATA Controller feature.

SATA Mode Selection

Use this to select SATA mode. The default value is [AHCI Mode].

AHCI (Advanced Host Controller Interface) supports NCQ

and other new features that will improve SATA disk perfor-

mance.

SATA Aggressive Link Power Management

Use this item to congure SATA Aggressive Link Power Management.

Hard Disk S.M.A.R.T.

Use this item to enable or disable the S.M.A.R.T. (Self-Monitoring, Analy-

sis, and Reporting Technology) feature. Conguration options: [Disabled]

and [Enabled].

3.3.4 Super IO Conguration

COM1 Conguration

Use this to set parameters of COM1.

COM2 Conguration

Use this to set parameters of COM2.

COM3 Conguration

Use this to set parameters of COM3. Select COM3 port type: [RS232],

[RS422] or [RS485].

COM4 Conguration

Use this to set parameters of COM4. Select COM4 port type: [RS232],

[RS422] or [RS485]. (Q370 only)

COM5 Conguration (Q370 only)

Use this to set parameters of COM5.

WDT Timeout Reset

Use this to set the Watch Dog Timer.

3.3.5 AMT Technology (Q370 only)

AMT BIOS Features

Use this to enable or disable Intel(R) Active Management Technology

BIOS Extension. The default is [Enabled].

ASF support

Use this to enable or disable Alert Specication Format. The default is [En-

abled].

USB Provisioning of AMT

Use this to enable or disable AMT USB Provisioning. The default is [Dis-

abled].

Secure Erase mode

Change Secure Erase module behavior: Simulated: Performs SE flow

without erasing SSD. Real: Erase SSD.

Force Secure Erase

Use this to enable or disable Force Secure Erase on next boot. The de-

fault is [Disabled].

MEBx hotkey Pressed

Use this to enable or disable MEBx hotkey press. The default is [Disabled].

MEBx Selection Screen

Use this to enable or disable MEBx Selection Screen. The default is [Dis-

abled].

Hide Un-congure ME Conrmation Prompt

Hide Un-Congure ME without password conrmation prompt. The default

is [Disabled].

MEBx OEM Debug Menu Enable

Use this to enable or disable MEBx OEM Debug Menu. The default is [Dis-

abled].

Un-Congure ME

Un-Congure ME without password. The default is [Disabled].

WatchDog

Use this to enable or disable AMT WatchDog Timer. The default is [Dis-

abled].

Activate Remote Assistance Process

Trigger CIRA boot. The default is [Disabled].

PET Progress

User can enable or disable PET Events progress to receive PET events or

not. The default is [Enabled].

ASF Sensors Table

Use this to enable or disable ASF Sensor Table. The default is [Disabled].

Non-UI Mode Resolution

Use this to set resolution for non-UI text mode.

UI Mode Resolution

Use this to set resolution for UI text mode.

Graphics Mode Resolution

Use this to set resolution for graphics mode.

3.3.6 ACPI Conguration

Suspend to RAM

Use this item to select whether to auto-detect or disable the Suspend-to-

RAM feature. Select [Auto] will enable this feature if the OS supports it.

PCIE Devices Power On

Use this item to enable or disable PCIE devices to turn on the system from

the power-soft-o󰀨 mode.

RTC Alarm Power On

Use this item to enable or disable RTC (Real Time Clock) to power on the

system.

3.3.7 USB Conguration

Legacy USB Support

Use this option to select legacy support for USB devices. There are two

conguration options: [Enabled] and [UEFI Setup Only]. The default value

is [Enabled]. Please refer to below descriptions for the details of these four

options:

[Enabled] - Enables support for legacy USB.

[UEFI Setup Only] - USB devices are allowed to use only under UEFI

setup and Windows / Linux OS.

3.3.8 Trusted Computing

Security Device Support

Enable or disable BIOS support for security device.

Onboard TPM (Q370 only)

Use this to enable or disable onboard TPM. The default is [Enabled].

3.4 Hardware Health Event Monitoring Screen

In this section, it allows you to monitor the status of the hardware on your system,

including the parameters of the CPU temperature, motherboard temperature, CPU

fan speed, chassis fan speed, and the critical voltage.

CPU_FAN1 Setting

This allows you to set CPU fan 1’s speed. Conguration options: [Full On]

and [Automatic Mode]. The default value is [Full On].

CHA_FAN1 Setting

This allows you to set chassis fan 1’s speed. Conguration options: [Full

On] and [Automatic Mode]. The default value is [Full On].

Case Open Feature

This allows you to enable or disable case open detection feature. The

default is value [Disabled].

Clear Status

This option appears only when the case open has been detected. Use this

option to keep or clear the record of previous chassis intrusion status.

3.5 Security Screen

In this section, you may set, change or clear the supervisor/user password for the

system.

Supervisor Password

Set or change the password for the administrator account. Only the ad-

ministrator has authority to change the settings in the UEFI Setup Utility.

Leave it blank and press enter to remove the password.

User Password

Set or change the password for the user account. Users are unable to

change the settings in the UEFI Setup Utility. Leave it blank and press en-

ter to remove the password.

Secure Boot

Use this item to enable or disable support for Secure Boot.

Intel(R) Platform Trust Technology (H310 only)

Enable/disable Intel PTT in ME. Disable this option to use discrete TPM

Module.

3.6 Boot Screen

In this section, it will display the available devices on your system for you to cong-

ure the boot settings and the boot priority.

Boot From Onboard LAN

Use this item to enable or disable the Boot From Onboard LAN feature.

Setup Prompt Timeout

Thi s shows the number o f seconds to wait fo r setup activati on key.

65535(0XFFFF) means indenite waiting.

Bootup Num-Lock

If this item is set to [On], it will automatically activate the Numeric Lock

function after boot-up.

Full Screen Logo

Use this item to enable or disable OEM Logo. The default value is [Dis-

abled].

CSM (Compatibility Support Module)

CSM

Use this to enable or disable Compatibility Support Module. The default

value is [Disabled].

Launch PXE OpROM Policy

Select UEFI only to run those that support UEFI option ROM only. Select

Legacy only to run those that support legacy option ROM only. Select Do

not launch to not execute both legacy and UEFI option ROM.

Launch Storage OpROM Policy

Select UEFI only to run those that support UEFI option ROM only. Select

Legacy only to run those that support legacy option ROM only. Select Do

not launch to not execute both legacy and UEFI option ROM.

3.7 Exit Screen

Save Changes and Exit

When you select this option, it will pop-out the following message, “Save

conguration changes and exit setup?” Select [OK] to save the changes

and exit the UEFI SETUP UTILITY.

Discard Changes and Exit

When you select this option, it will pop-out the following message, “Discard

changes and exit setup?” Select [OK] to exit the UEFI SETUP UTILITY

without saving any changes.

Discard Changes

When you select this option, it will pop-out the following message, “Discard

changes?” Select [OK] to discard all changes.

Load UEFI Defaults

Load UEFI default values for all the setup questions. F9 key can be used

for this operation.

Launch EFI Shell from lesystem device

Attempts to Launch EFI Shell application (Shell64.efi) from one of the

available lesystem devices.

Chapter 4: Software Support

4.1 Install Operating System

This motherboard supports various Microsoft® Windows® operating systems: 10 64-

bit. Because motherboard settings and hardware options vary, use the setup proce-

dures in this chapter for general reference only. Refer your OS documentation for

more information.

4.2 Support CD Information

The Support CD that came with the motherboard contains necessary drivers and

useful utilities that enhance the motherboard’s features.

4.2.1 Running The Support CD

To begin using the support CD, insert the CD into your CD-ROM drive. The

CD automatically displays the Main Menu if “AUTORUN” is enabled in your

computer. If the Main Menu did not appear automatically, locate and double

click on the le “ASRSETUP.EXE” from the BIN folder in the Support CD to

display the menus.

4.2.2 Drivers Menu

The Drivers Menu shows the available device’s drivers if the system detects

installed devices. Please install the necessary drivers to activate the devices.

4.2.3 Utilities Menu

The Utilities Menu shows the application software that the motherboard sup-

ports. Click on a specic item then follow the installation wizard to install it.

4.2.4 Contact Information

If you need to contact ASRockInd or want to know more about ASRockInd,

you’re welcome to visit ASRockInd’s website at http://www.asrockind.com; or

you may contact your dealer for further information.

ASRock IMB-1211-D R2, IMB-1211-L R2, IMB-1210-D R2, IMB-1210-L R2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
