Page 1

IMB-130

User Manual

Version 1.0

Published March 2013

Page 2

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identication or explanation and to the owners’ benet, without intent to infringe.

Disclaimer:

Specications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or tness for a particular purpose.

In no event shall ASRock, its directors, ofcers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from

any defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-

lowing two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in Cali-

fornia, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Page 3

Contents

1 Introduction ....................................................... 5

1.1 Package Contents ......................................................... 5

1.2 Specications ................................................................. 6

1.3 Motherboard Layout ....................................................... 8

1.4 I/O Panel ........................................................................ 10

2 Installation ......................................................... 11

2.1 Screw Holes ................................................................... 11

2.2 Pre-installation Precautions ........................................... 11

2.3 Installation of Memory Modules (SO-DIMM) .................. 12

2.4 Expansion Slots

2.5 Jumpers Setup ............................................................... 14

2.6 Onboard Headers and Connectors ................................ 17

2.7 Serial ATA (SATA) / Serial ATA2 (SATA2) Hard Disks

Installation ...................................................................... 21

2.8 Hot Plug and Hot Swap Functions for SATA / SATA2

HDDs ............................................................................ 21

2.9 Driver Installation Guide ............................................ 22

3 UEFI SETUP UTILITY ......................................... 23

3.1 Introduction .................................................................... 23

3.1.1 UEFI Menu Bar .................................................... 23

3.1.2 Navigation Keys ................................................... 24

3.2 Main Screen ................................................................... 24

3.3 Advanced Screen ........................................................... 25

3.3.1 CPU Conguration ............................................... 26

3.3.2 Chipset Conguration........................................... 27

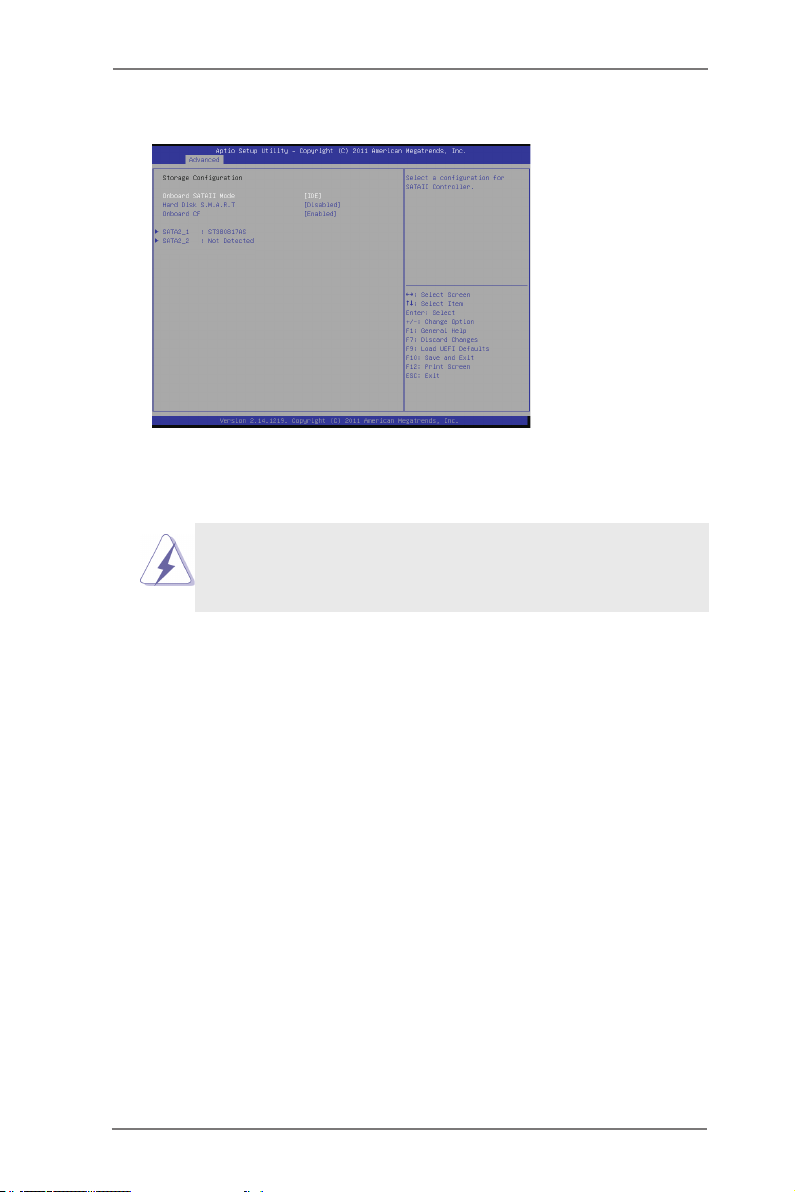

3.3.3 Storage Conguration .......................................... 28

3.3.4 Super IO Conguration ........................................ 29

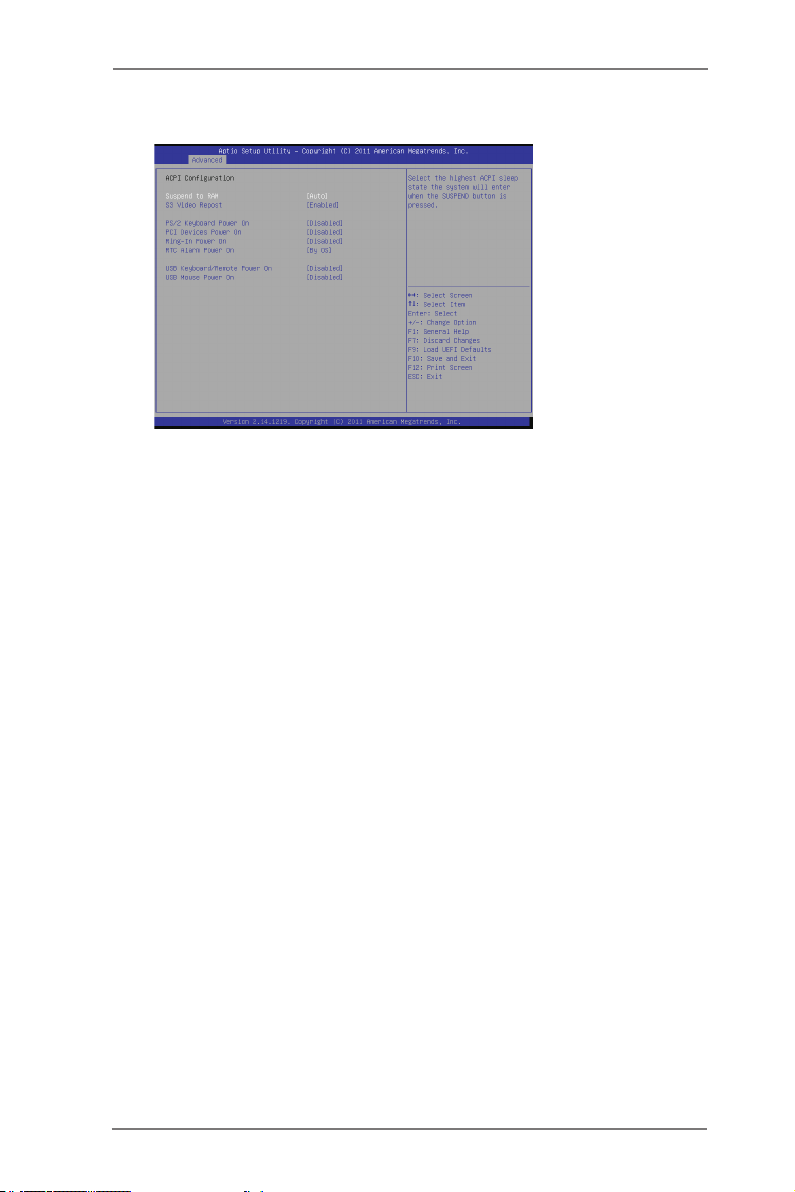

3.3.5 ACPI Conguration............................................... 30

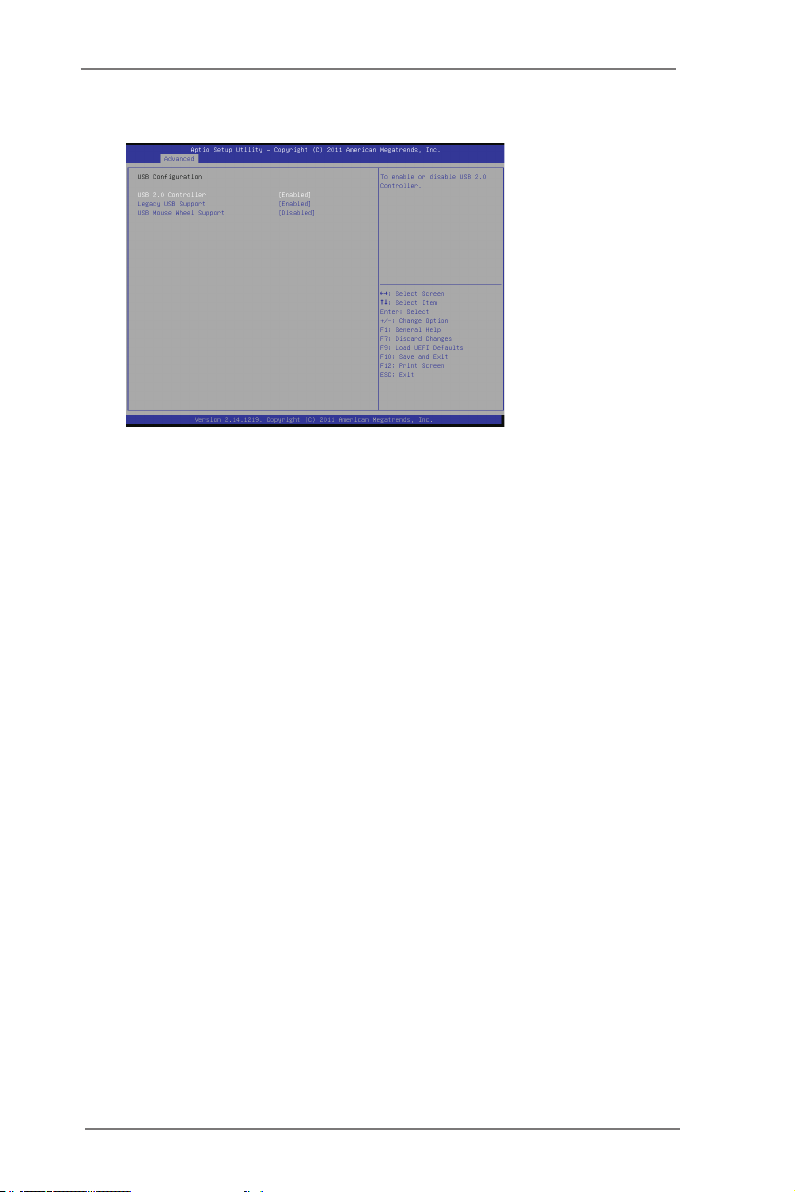

3.3.6 USB Conguration ............................................... 31

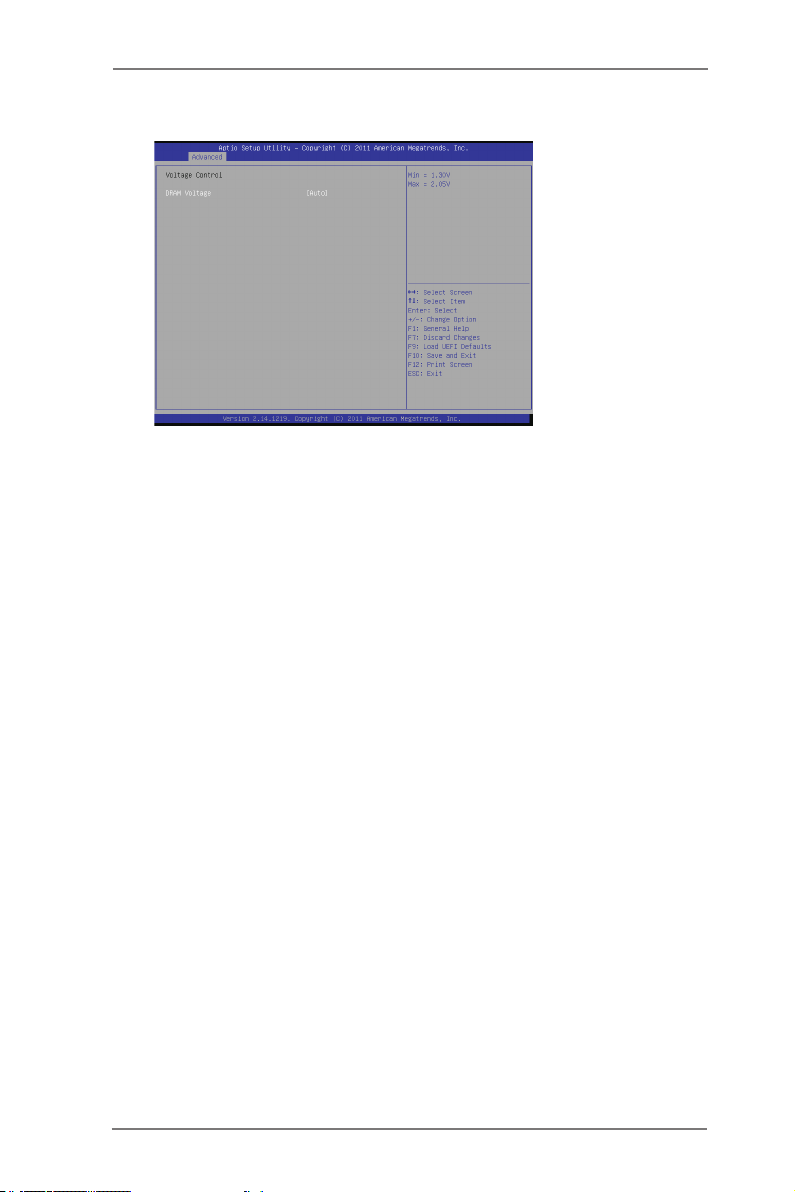

3.3.7 Voltage Conguration ........................................... 32

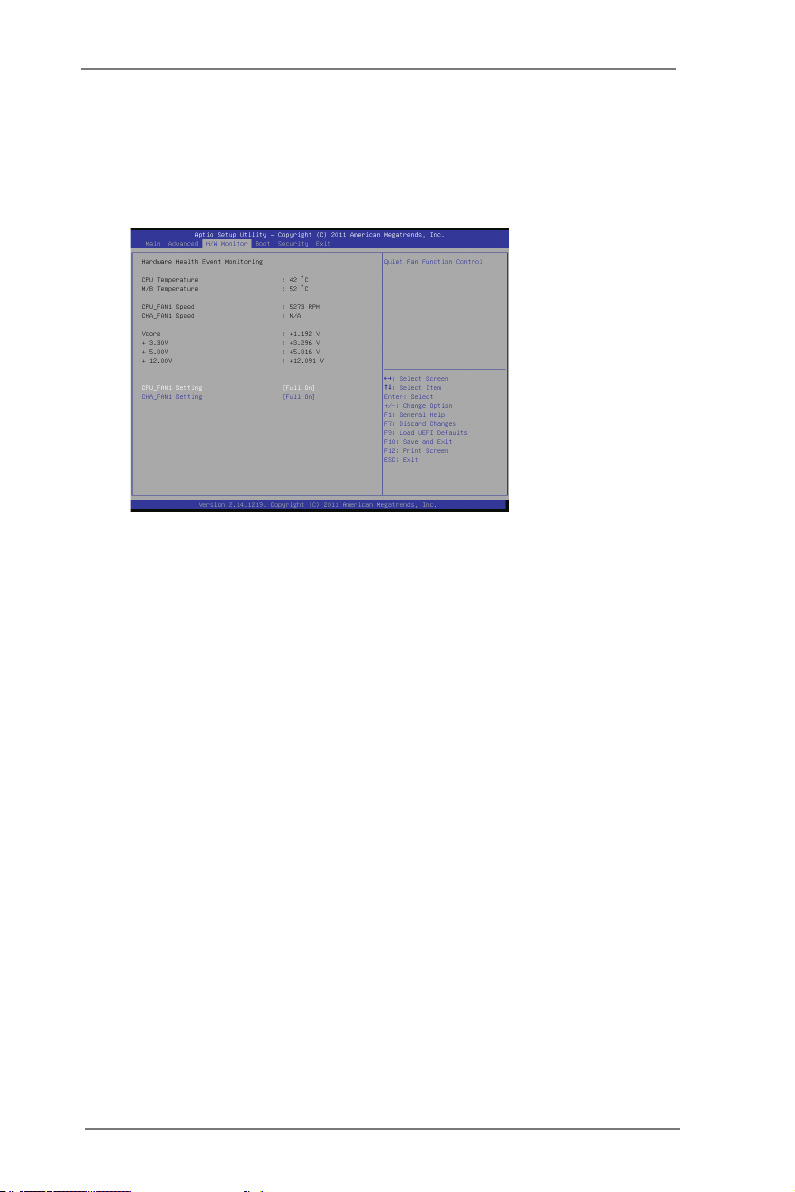

3.4 Hardware Health Event Monitoring Screen ................... 33

3.5 Boot Screen ................................................................... 34

3.6 Security Screen ............................................................. 35

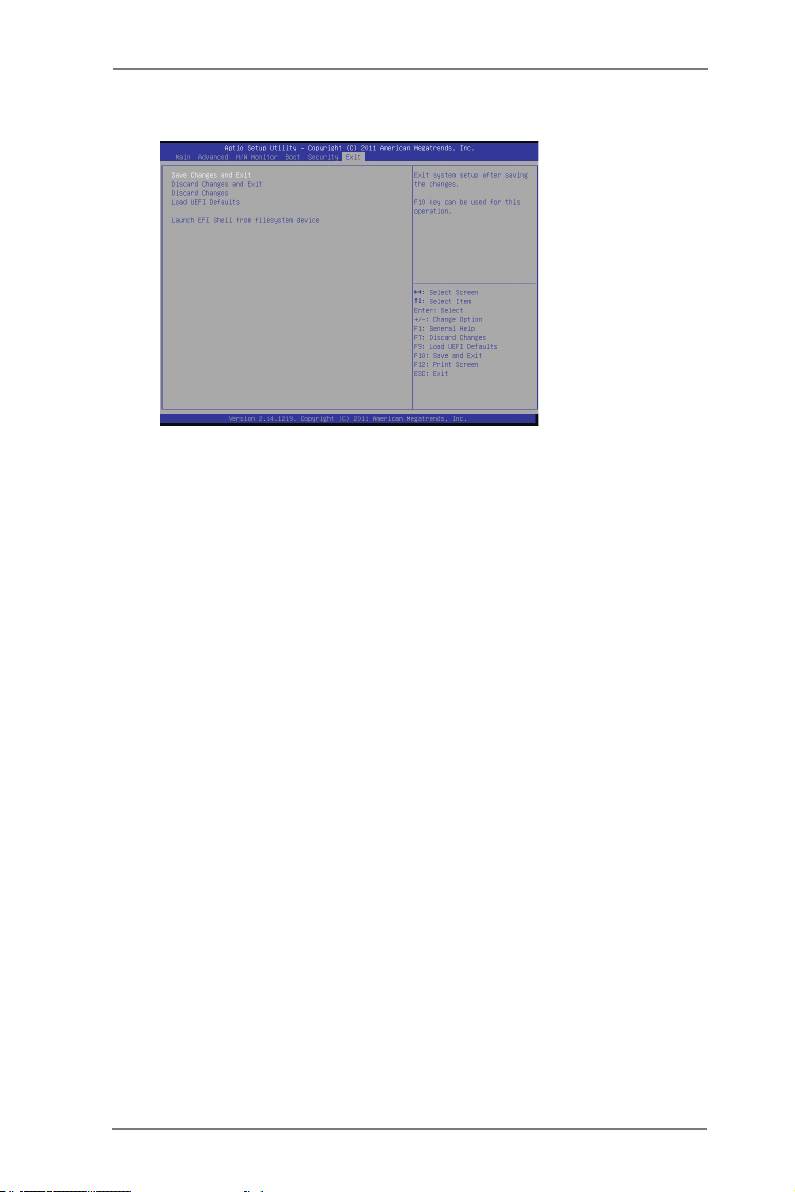

3.7 Exit Screen .................................................................... 36

(PCI and mini-PCIE Slots)

........................ 13

Page 4

4 Software Support .............................................. 37

4.1 Install Operating System ................................................ 37

4.2 Support CD Information ................................................. 37

4.2.1 Running Support CD ............................................ 37

4.2.2 Drivers Menu ........................................................ 37

4.2.3 Utilities Menu........................................................ 37

4.2.4 Contact Information .............................................. 37

Page 5

Chapter 1: Introduction

Thank you for purchasing ASRock IMB-130 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-

by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration

guide to BIOS setup and information of the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock IMB-130 Motherboard

(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

ASRock IMB-130 Driver CD

ASRock IMB-130 Jumper setting instruction

1 x I/O Panel Shield

2 x SATA HDD Cables

1 x SATA Power Cable

2 x COM Port Cables

1 x DC-IN Cable

Page 6

1.2 Specications

Form Factor

Processor System

Expansion Slot

Memory

Graphics

Ethernet

SATA

Dimensions Mini-ITX (6.7-in x 6.7-in)

CPU

Core Number

Max Speed

L3 Cache N/A Chipset NM10 BIOS UEFI PCI 1 Mini-PCIe 1 (Full Size) mSATA 0 PCIe 0 CFast Card

Socket Technology Single Channel DDR3 800/1066 MHz SDRAM

Max.

Socket

Controller

VRAM Shared Memory VGA Yes, supports max resolution 1920x1200 LVDS Dual Channel 24bits, max resolution 1920x1200 HDMI Supports HDMI 1.3a, max resolution 1920x1200 DVI No Display Port No Multi Display Yes Ethernet 10/100/1000 Mbps Controller GbE LAN: 1 x Realtek RTL8111E-VL Connector 1 x RJ-45 Max Data Transfer Rate

Intel® Dual-Core AtomTM CedarView Processor D2550/N2600/N2800

- D2550/N2800: 1.86 GHz

- N2600: 1.6GHz

- D2550/N2800: 4GB

- N2600: 2GB

- D2550/N2800: 2 x SO-DIMM

- N2600: 1 x SO-DIMM Intel® PowerVR SGX545, Support Directx9 compliant Pixel Shader v3.0 and OGL 3.0

SATA2 (3.0Gb/s)

Page 7

VGA 1 x D-Sub DVI 0 HDMI 1 DisplayPort 0

Rear I/O

Internal Connector

Watchdog Timer

Power Requirements

Environment Temperature 0ºC – 60ºC

Ethernet 1 USB 4 (USB 2.0 compliant) Audio 2 (Mic-in, Line-out) Serial 1 (RS-232/422/485) + 1 (RS232) PS/2 2 (1 x keyboard and 1 x mouse) USB 3 (USB 2.0 compliant) LVDS/ Inverter VGA 0 Serial 3 (RS-232) SATA 2 x SATA2 (3.0Gb/s) mPCIe 1 Parallel 1 mSATA 0 IrDA 0 GPIO 8-bit 4 x GPI + 4 x GPO SATA PWR Output Con Speaker Header

Output Output from super I/O to drag RESETCON# Interval 256 Segments, 0,1,2…255 Sec/Min

Input PWR 12V DC-In (4-pin ATX PWR Con)

Power On

1/1

AT/ATX Supported

-AT : Directly PWR on as power input ready

-ATX : Press button to PWR on after power input ready

Page 8

1.3 Motherboard Layout

PANEL 1

HDLED RESE T

PLED PW RBTN

SATA2_2

SATA2_1

CMOS

Batt ery

16Mb BIOS

RoHS

Desig ned in T aipei

HD_AUD IO1

LAN PHY

CLRCMOS1

JGP IO1

CPU_FAN1

DDR 3_ A1

DDR 3_ A2

CHA_FAN 1

LPT1

SATA_PWR1

USB 2. 0 T: US B2 B: USB 3

Top: RJ-4 5

USB 2. 0 T: US B0 B: USB 1

Ps2

Mouse

Ps2

Keyboar d

IMB- 130

COM Por t A

COM Por t B

DC12V1

PWR_JP1

JGPIO_PW R1

LVDS1

SET_CM 2

SET_CM 1

SET_CM 4

SET_CM 6

SET_CM 5

COM4

COM6

COM5

BLT_VOL1

USB6

PNL_PWR1

BKT_PWR1

JLVD_GPIO 1

USB4, 5

SPEAKE R1

1 1

BLT_PWR2

VGA1

HDMI 1

25 24 23

22 21 20

3 4 5

Line Ou t

Bott om:

Mic In

Top:

Supe r

AUDIO CODEC

PCI1

Page 9

1 : COM Port PWR Setting header ( COM Port2)

2 : LVDS Con

3 : Panel VDD PWR Setting

4 : Panel BackLight PWR Setting

5 : Panel resolution selection control

6 : 4-Pin ATX PWR In (+12V)

7 : 4-Pin FAN con (+12V)

8 : 3-Pin FAN con (+12V)

9 : Output Power

10 : SATA2 Connector (SATA2_1)

11 : SATA2 Connector (SATA2_2)

12 : Printer Port Header

13 : Internal USB connectors (USB Port4, 5)

14 : Internal USB connector (USB Port6)

15 : Digital I/O Header

16 : Digital I/O Header PWR setting

17 : Clear CMOS Header

18 : PWR-On mode setting

19 : System Panel Control Header (White)

20 : Internal COM port connector (COM Port6)

21 : Internal COM port connector (COM Port5)

22 : Internal COM port connector (COM Port4)

23 : COM Port PWR Setting header ( COM Port6)

24 : COM Port PWR Setting header ( COM Port5)

25 : COM Port PWR Setting header ( COM Port4)

26 : Panel Brightness and Speaker Volume Control

27 : Panel BackLight Inverter connector

28 : Speaker connector

29 : Front Panel Audio Header (White)

30 : COM Port PWR Setting header ( COM Port1)

Page 10

1.4 I/O Panel

1 PS/2 Mouse Port

2 Com Port A (COM1)

3 VGA Port (VGA1)

* 4 LAN RJ-45 Port

5 Line out (Green)

6 Microphone (Pink)

7 USB 2.0 Ports (USB23)

8 USB 2.0 Ports (USB01)

9 HDMI Port (HDMI1)

10 Com Port B (COM2)

11 PS/2 Keyboard Port

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

Activity/Link LED SPEED LED

LAN Port LED Indications

ACT/LINK

LED

SPEED

LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

LAN Port

Page 11

Chapter 2: Installation

This is a Mini-ITX form factor (6.7" x 6.7", 17.0 x 17.0 cm) motherboard. Before you

install the motherboard, study the conguration of your chassis to ensure that the

motherboard ts into it.

motherboard. Failure to do so may cause physical injuries to you and

damages to motherboard components.

Make sure to unplug the power cord before installing or removing the

2.1 Screw Holes

Place screws into the holes to secure the motherboard to the chassis.

Do not over-tighten the screws! Doing so may damage the motherboard.

2.2 Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity,

NEVER place your motherboard directly on the carpet or the like. Also

remember to use a grounded wrist strap or touch a safety grounded object

before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic pad or

in the bag that comes with the component.

Before you install or remove any component, ensure that the power is

switched off or the power cord is detached from the power supply.

Failure to do so may cause severe damage to the motherboard, peripherals,

and/or components.

Page 12

2.3 Installation of Memory Modules (SO-DIMM)

IMB-130 motherboard provides two 204-pin DDR3 (Double Data Rate 3) SO-DIMM

slots.

1. It is not allowed to install a DDR or DDR2 memory module into a

DDR3 slot; otherwise, this motherboard and SO-DIMM may be

damaged.

2. Please install the memory module from DDR3_A2 slot for the rst

priority.

Installing a SO-DIMM

Please make sure to disconnect the power supply before adding or

removing SO-DIMMs or the system components.

Step 1. Unlock a SO-DIMM slot by pressing the retaining clips outward.

Step 2. Align a SO-DIMM on the slot such that the notch on the SO-DIMM

matches the break on the slot.

notch

brea k

notch

The SO-DIMM only ts in one correct orientation. It will cause perma-

nent damage to the motherboard and the SO-DIMM if you force the SO-

DIMM into the slot in the incorrect orientation.

brea k

Step 3. Firmly insert the SO-DIMM into the slot until the retaining clips at both

ends fully snap back in place and the SO-DIMM is properly seated.

Page 13

2.4 Expansion Slots (PCI and mini-PCIE Slots)

There is 1 PCI slot and 1 mini-PCIE slot on this motherboard.

PCI slot: The PCI slot is used to install an expansion card that has 32-bit PCI

interface.

The mini-PCIE slot is used for PCI Express mini cards.

Installing an expansion card

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the system unit cover (if your motherboard is already installed

in a chassis).

Step 3. Remove the bracket facing the slot that you intend to use. Keep the

screws for later use.

Step 4. Align the card connector with the slot and press rmly until the card is

completely seated on the slot.

Step 5. Fasten the card to the chassis with screws.

Step 6. Replace the system cover.

Page 14

2.5 Jumpers Setup

The i llu strat ion shows how ju mpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustra ti on shows a 3-p in jumper whose

pin1 and pin2 are “Short” when jumper cap

is placed on these 2 pins.

Clear CMOS Jumper

(CLRCMOS1)

(see p.8, No. 17)

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just nish updating the BIOS, you must boot up

the system rst, and then shut it down before you do the clear-CMOS action.

Please be noted that the password, date, time, user default prole and MAC

address will be cleared only if the CMOS battery is removed.

Clear CMOSDefault

Panel Resolution Selection Reserved.

(12-pin JLVD_GPIO1)

(see p.8 No. 5)

High + GPIOx = 1

Default set by BIOS.

Low + GPIOx = 0

Note: If you want to use BIOS to set Panel type, then set all GPIO[3:0]= “1111”.

If you want to use jumpers to set Panel type, select “Set by Jumper” in BIOS.

Page 15

GPIO

Selection Name In BIOS

[3:0]

0000 1366x768/18-bit/1-ch/LED 1366 768 6 Single LED No

0001 800x600/18-bit/1-ch/CCFL 800 600 6 Single CCFL Yes

0010 1024x768/24-bit/1-ch/CCFL 1024 768 8 Single CCFL Yes

0011 1280x1024/24-bit/2-ch/CCFL 1280 1024 8 Dual CCFL Yes

0100 1366x768/24-bit/1-ch/CCFL 1366 768 8 Single CCFL Yes

0101 1440x900/24-bit/2-ch/CCFL 1440 900 8 Dual CCFL Yes

0110 1024x600/18-bit/1-ch/LED 1024 600 6 Single LED No

0111 1440x900/24-bit/2-ch/LED 1440 900 8 Dual LED No Default Setting

1000 1280x1024/24-bit/2-ch/LED 1280 1024 8 Dual LED No

1001 1024x768/24-bit/1-ch/LED 1024 768 8 Single LED No

1010 1600x900/18-bit/2-ch/LED 1600 900 6 Dual LED No

1011 1366x768/24-bit/1-ch/LED 1366 768 8 Single LED No

1100 1920x1080/24-bit/2-ch/LED 1920 1080 8 Dual LED No

1101 800x600/24-bit/1-ch/LED 800 600 8 Single LED No

1110 640x480/24-bit/1-ch/LED 640 480 8 Single LED No

1111 1280x800/18-bit/1-ch/LED 1280 800 6 Single LED No

(Pixel)VA(Line)CD(bit)

Port

BackLight

Type

Invert PWM

output

Remark

COM Port PWR Setting Headers

(10-pin SET_CM1)

(see p.8 No. 30)

(10-pin SET_CM2)

(see p.8 No. 1)

(10-pin SET_CM4)

(see p.8 No. 25)

(10-pin SET_CM5)

(see p.8 No. 24)

1-3: +12V

3-5: +5V

7-9: COM port signal Data Carrier Detect

2-4: +12V

(10-pin SET_CM6)

(see p.8 No. 23)

4-6: +5V

8-10: COM port signal Ring Indicator

Panel Power Selection 1-2 : +3V

(3-pin PNL_PWR1)

(see p.8, No. 3)

2-3 : +5V

Backlight Power Selection 1-2 : +5V

(3-pin BKT_PWR1)

(see p.8, No. 4)

2-3 : +12V

Page 16

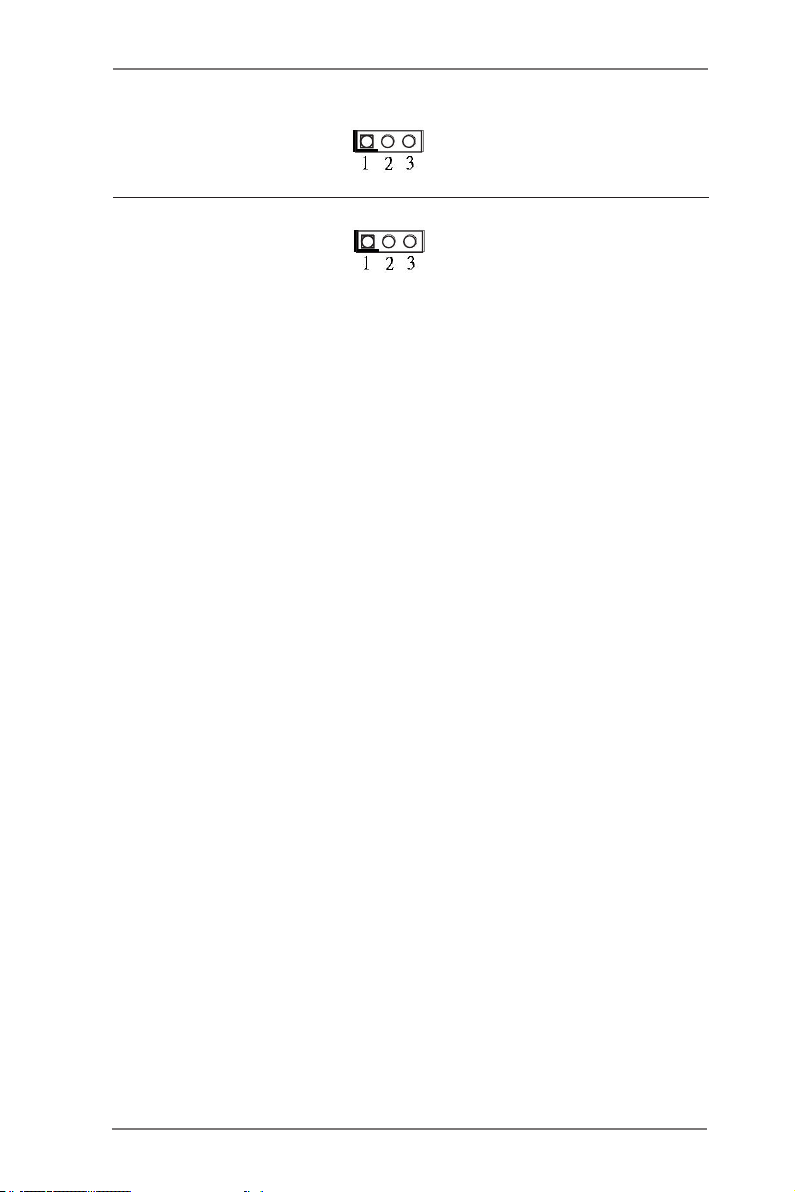

ATX/AT Mode

(3-pin PWR_JP1)

(see p.8, No. 18)

Selection 1-2 : AT Mode

2-3 : ATX Mode

Digital Input/Output Power Selection 1-2 : +12V

(3-pin JGPIO_PWR1)

(see p.8, No. 16)

2-3 : +5V

Page 17

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

SATA2 Connectors These two Serial ATA2

(SATA2_1: see p.8, No. 10)

(SATA2_2: see p.8, No. 11)

storage devices. The current

SATA2 interface allows up to

3.0 Gb/s data transfer rate.

(SATA2) connectors support

SATA data cables for internal

SATA2_2SATA2_1

USB 2.0 Ports Besides four default USB 2.0

(4-pin USB4,5)

(see p.8 No. 13)

ports on the I/O panel, there

are three USB 2.0 ports on this

motherboard.

(4-pin USB6)

(see p.8 No. 14)

PW R -4 +4 G ND

PW R -5 +5 G ND

PWR - 6 +6 GND

System Panel Header This header accommodates

(9-pin PANEL1)

(see p.8 No. 19)

several system front panel

functions.

Connect the power switch, reset switch and system status indicator on the

chassis to this header according to the pin assignments below. Note the

positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may congure

the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

switch to restart the computer if the computer freezes and fails to perform a

normal restart.

Page 18

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED

is on when the system is operating. The LED keeps blinking when the sys-

tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep

state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED

is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly

consists of power switch, reset switch, power LED, hard drive activity LED,

speaker and etc. When connecting your chassis front panel module to this

header, make sure the wire assignments and the pin assign-ments are

matched correctly.

R+ L -

R- L +

Speaker Connector 1: Speaker R-

(4-pin SPEAKER 1)

(see p.8 No. 28)

2: Speaker R+

3: Speaker L+

4: Speaker L-

Front Panel Audio Header This is an interface for front

(9-pin HD_AUDIO1)

(see p.8 No. 29)

panel audio cable that allows

convenient connection and

control of audio devices.

1. High Denition Audio supports Jack Sensing, but the panel wire on

the chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below:

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

need to connect them for AC’97 audio panel.

E. To activate the front mic.

For Windows® XP / XP 64-bit OS:

Select “Mixer”. Select “Recorder”. Then click “FrontMic”.

For Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS:

Go to the “FrontMic” Tab in the Realtek Control panel. Adjust

“Recording Volume”.

OUT _RE T

OUT 2_L

MIC _RE T

PRE SEN CE#

GND

J_S ENS E

OUT 2_R

MIC 2_R

MIC 2_L

Page 19

Chassis Fan Connector Please connect the fan cable

(3-pin CHA_FAN1)

(see p.8 No. 8)

match the black wire to the

to the fan connector and

FAN_ SP EE D

+12 V

GND

ground pin.

CPU Fan Connector Please connect the CPU fan

(4-pin CPU_FAN1)

(see p.8 No. 7)

cable to the connector and

match the black wire to the

ground pin.

4 3 2 1

+12 V

FAN_ SPE ED_ CO NTR OL

CPU _FAN _S P EE D

GND

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function. If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this motherboard, please connect it to Pin 1-3.

Pin 1-3 Connected

3-Pin Fan Installation

DC 12V Power Connector Please connect a DC 12V

(4-pin DC12V1)

(see p.8 No. 6)

power supply to this connector.

COM Port Header

(10-pin COM4)

(see p.8 No. 22)

(10-pin COM5)

(see p.8 No. 21)

(10-pin COM6)

(see p.8 No. 20)

12V 12V

GND GND

PWR - 4 +4 GND

PWR - 5 +5 GND

PIN RS232 RS422 RS485

DCD, Data

carrier detect

RXD, Receive

data

TXD, Transmit

data

DTR, Data

terminal ready

TX- RTX-

RX+ N/A

TX+ RTX+

RX- N/A

5 GND GND GND

Page 20

Printer Port Header

(25-pin LPT1)

(see p.8 No. 12)

GND

SLI N #

PIN I T#

ERR OR#

AFD #

SLC T

BUS Y

ACK #

SPD 7

SPD 6

SPD 5

SPD 4

SPD 3

SPD 2

SPD 1

SPD 0

STB #

LVDS Con

(40-pin LVDS1)

(see p.8 No. 2)

Output Power 1: +5V

(4-pin SATA_PWR1)

(see p.8 No. 9)

1 2 3 4

Digital I/O Header

(10-pin JGPIO1)

(see p.8 No. 15)

Pin # Signal Name Pin # Signal Name

1 VDD PWR 2 VDD PW R

EDID PWR (3V)

3 5 EDID_DAT 6 RXINO07 RXINO0+ 8 GND

9 RXINO1- 10 RXINO1 + 11 GND 12 RXINO2 13 RXINO2+ 14 GND 15 RXINO3- 1 6 RX INO3+ 17 GND 18 RXO CLKIN19 RXOCLK IN+ 20 GND 21 RXINE0- 22 RXINE0+ 23 GND 24 RXINE125 RXINE1+ 26 GND 27 RXINE2- 28 RXINE2+ 29 GND 30 RXINE331 RXINE3+ 32 GND 33 RXECLKIN- 34 RXECLKIN+ 35 GND 36 Back Light EN

BackLight PWM

BackLight PWR

2, 3: GND

4. +12V

Pin # Signal Name Pin # Signal Name

1 GP24 2 GP20 3 GP25 4 GP21 5 GP26 6 GP22 7 GP27 8 GP23 9 PWR 10 GND

4 EDID_CLK

BackLight PWR

Page 21

Panel Brightness and 1: Volume_UP

Speaker Volume Control 2: Volume_DOWN

(7-pin BLT_VOL1)

(see p.8 No. 26)

3: PANEL PWR Down

4: Panel BackLight UP

1 7

5: Panel BackLight Down

6: GND

7: GND

Panel BackLight Inverter 1,2: GND

connector 3: Panel Backlight Control

(6-pin BLT_PWR2)

(see p.8 No. 27)

4: Panel Backlight Enable

5,6: Panel Backlight Power

2.7 Serial ATA (SATA) / Serial ATA2 (SATA2) Hard Disks

Installation

This motherboard adopts Intel® NM10 chipset that supports Serial ATA (SATA) /

Serial ATA2 (SATA2) hard disks. You may install SATA / SATA2 hard disks on this

motherboard for internal storage devices. This section will guide you to install the

SATA / SATA2 hard disks.

STEP 1: Install the SATA / SATA2 hard disks into the drive bays of your chassis.

STEP 2: Connect the SATA power cable to the SATA / SATA2 hard disk.

STEP 3: Connect one end of the SATA data cable to the motherboard’s SATA2 con-

nector.

STEP 4: Connect the other end of the SATA data cable to the SATA / SATA2 hard

disk.

2.8 Hot Plug Function for SATA / SATA2 HDDs

This motherboard supports Hot Plug function for SATA / SATA2 in AHCI mode. Intel®

NM10 chipset provides hardware support for Advanced Host controller Interface

(AHCI), a new programming interface for SATA host controllers developed through a

joint industry effort.

NOTE

What is Hot Plug Function?

If the SATA / SATA2 HDDs are NOT set for RAID conguration, it is called “Hot

Plug” for the action to insert and remove the SATA / SATA2 HDDs while the

system is still power-on and in working condition.

However, please note that it cannot perform Hot Plug if the OS has been

installed into the SATA / SATA2 HDD.

Page 22

2.9 Driver Installation Guide

To install the drivers to your system, please insert the support CD to your optical

drive rst. Then, the drivers compatible to your system can be auto-detected and

listed on the support CD driver page. Please follow the order from top to bottom to

install those required drivers. Therefore, the drivers you install can work properly.

Page 23

Chapter 3: UEFI SETUP UTILITY

3.1 Introduction

This section explains how to use the UEFI SETUP UTILITY to congure your

system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You

may run the UEFI SETUP UTILITY when you start up the computer. Please press

<F2> or <Del> during the Power-On-Self-Test (POST) to enter the UEFI SETUP

UTILITY, otherwise, POST will continue with its test routines.

If you wish to enter the UEFI SETUP UTILITY after POST, restart the system by

pressing <Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system

chassis. You may also restart by turning the system off and then back on.

Because the UEFI software is constantly being updated, the

following UEFI setup screens and descriptions are for reference

purpose only, and they may not exactly match what you see on

your screen.

3.1.1 UEFI Menu Bar

The top of the screen has a menu bar with the following selections:

Main To set up the system time/date information

OC Tweaker To set up overclocking features

Advanced To set up the advanced UEFI features

H/W Monitor To display current hardware status

Boot To set up the default system device to locate and load the

Operating System

Security To set up the security features

Exit To exit the current screen or the UEFI SETUP UTILITY

Use < > key or < > key to choose among the selections on the menu

bar, and then press <Enter> to get into the sub screen. You can also use the

mouse to click your required item.

Page 24

3.1.2 Navigation Keys

Please check the following table for the function description of each navigation

key.

Navigation Key(s) Function Description

/ Moves cursor left or right to select Screens

/ Moves cursor up or down to select items

+ / - To change option for the selected items

<Enter> To bring up the selected screen

<F1> To display the General Help Screen

<F7> Discard changes

<F9> To load optimal default values for all the settings

<F10> To save changes and exit the UEFI SETUP UTILITY

<F12> Print screen

<ESC> To jump to the Exit Screen or exit the current screen

3.2 Main Screen

When you enter the UEFI SETUP UTILITY, the Main screen will appear and display

the system overview.

Page 25

3.3 Advanced Screen

In this section, you may set the congurations for the following items: CPU Congu-

ration, Chipset Conguration, Storage Conguration, Super IO Conguration, ACPI

Conguration, USB Conguration and Voltage Conguration.

Setting wrong values in this section may cause

the system to malfunction.

Instant Flash

Instant Flash is a UEFI ash utility embedded in Flash ROM. This conve-

nient UEFI update tool allows you to update system UEFI without entering

operating systems rst like MS-DOS or Windows®. Just launch this tool

and save the new UEFI le to your USB ash drive, oppy disk or hard

drive, then you can update your UEFI only in a few clicks without prepar-

ing an additional oppy diskette or other complicated ash utility. Please

be noted that the USB ash drive or hard drive must use FAT32/16/12 le

system. If you execute Instant Flash utility, the utility will show the UEFI

les and their respective information. Select the proper UEFI le to update

your UEFI, and reboot your system after UEFI update process completes.

Page 26

3.3.1 CPU Conguration

Intel Hyper Threading Technology

To enable this feature, it requires a computer system with an Intel proces-

sor that supports Hyper-Threading technology and an operating system

that includes optimization for this technology, such as Microsoft® Windows

7. Set to [Enabled] if using Microsoft® Windows® 7.

No-Excute Memory Protection

No-Execution (NX) Memory Protection Technology is an enhancement

to the IA-32 Intel Architecture. An IA-32 processor with “No Execute (NX)

Memory Protection” can prevent data pages from being used by malicious

software to execute code.

Page 27

3.3.2 Chipset Conguration

Set Panel Type by

Use this to congure Set Panel Type. The default value is [UEFI Setup].

Panel Type Selection

Use this to select panel type. The default value is [1366x768/18-bit/1-ch/

LED].

ACPI HPET Table

Use this item to enable or disable ACPI HPET Table. The default value is

[Enabled]. Please set this option to [Enabled] if you plan to use this moth-

erboard to submit Windows® certication.

Restore on AC/Power Loss

This allows you to set the power state after an unexpected AC/power

loss. If [Power Off] is selected, the AC/power remains off when the power

recovers. If [Power On] is selected, the AC/power resumes and the system

starts to boot up when the power recovers.

Onboard HD Audio

Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio feature. If

you select [Auto], the onboard HD Audio will be disabled when PCI Sound

Card is plugged.

Front Panel

Select [Auto] or [Disabled] for the onboard HD Audio Front Panel.

Onboard LAN

This allows you to enable or disable the “Onboard LAN” feature.

Page 28

3.3.3 Storage Conguration

Onboard SATAII Mode

Use this to select SATA2 mode. Conguration options: [IDE Mode], [AHCI

Mode] and [Disabled]. The default value is [IDE Mode].

AHCI (Advanced Host Controller Interface) supports NCQ

and other new features that will improve SATA disk perfor-

mance but IDE mode does not have these advantages.

Hard Disk S.M.A.R.T.

Use this item to enable or disable the S.M.A.R.T. (Self-Monitoring, Analy-

sis, and Reporting Technology) feature. Conguration options: [Disabled]

and [Enabled].

Page 29

3.3.4 Super IO Conguration

COM1 Conguration

Use this to set parameters of COM1.

COM2 Conguration

Use this to set parameters of COM2.

COM4 Conguration

Use this to set parameters of COM4.

COM5 Conguration

Use this to set parameters of COM5.

COM6 Conguration

Use this to set parameters of COM6.

LPT1 Port Conguration

Use this set parameters of the onboard parallel port.

WDT Timeout Reset

This allows users to enable/disable the Watch Dog Timer timeout to reset

system. The default value is [Disabled].

Page 30

3.3.5 ACPI Conguration

Suspend to RAM

Use this item to select whether to auto-detect or disable the Suspend-to-

RAM feature. Select [Auto] will enable this feature if the OS supports it.

S3 Video Repost

Use this to enable/disable S3 Video Repost. The default value is [Enabled].

PS/2 Keyboard Power On

Use this item to enable or disable PS/2 keyboard to turn on the system

from the power-soft-off mode.

PCI Devices Power On

Use this item to enable or disable PCI devices to turn on the system from

the power-soft-off mode.

Ring-In Power On

Use this item to enable or disable Ring-In signals to turn on the system

from the power-soft-off mode.

RTC Alarm Power On

Use this item to enable or disable RTC (Real Time Clock) to power on the

system.

USB Keyboard/Remote Power On

Use this item to enable or disable USB Keyboard/Remote to power on the

system.

USB Mouse Power On

Use this item to enable or disable USB Mouse to power on the system.

Page 31

3.3.6 USB Conguration

USB 2.0 Controller

Use this item to enable or disable the use of USB 2.0 controller.

Legacy USB Support

Use this option to select legacy support for USB devices. There are four

conguration options: [Enabled], [Auto], [Disabled] and [UEFI Setup Only].

The default value is [Enabled]. Please refer to below descriptions for the

details of these four options:

[Enabled] - Enables support for legacy USB.

[Auto] - Enables legacy support if USB devices are connected.

[Disabled] - USB devices are not allowed to use under legacy OS and

UEFI setup when [Disabled] is selected. If you have USB compatibility is-

sue, it is recommended to select [Disabled] to enter OS.

[UEFI Setup Only] - USB devices are allowed to use only under UEFI

setup and Windows / Linux OS.

USB Mouse Wheel Support

Use this option to enable or disable USB Mouse Wheel Support. The

default value is [Disabled].

Page 32

3.3.7 Voltage Conguration

DRAM Voltage

Use this to select DRAM Voltage. The default value is [Auto].

Page 33

3.4 Hardware Health Event Monitoring Screen

In this section, it allows you to monitor the status of the hardware on your system,

including the parameters of the CPU temperature, motherboard temperature, CPU

fan speed, chassis fan speed, and the critical voltage.

CPU_FAN1 Setting

This allows you to set CPU_FAN1’s speed. Configuration options: [Full

On] and [Automatic Mode]. The default value is [Full On].

CHA_FAN1 Setting

This allows you to set CHA_FAN1’s speed. Configuration options: [Full

On] and [Automatic Mode]. The default value is [Full On].

Page 34

3.5 Boot Screen

In this section, it will display the available devices on your system for you to cong-

ure the boot settings and the boot priority.

Setup Prompt Timeout

Thi s sho ws the number of seconds to wait for setup activat ion key.

65535(0XFFFF) means indenite waiting.

Bootup Num-Lock

If this item is set to [On], it will automatically activate the Numeric Lock

function after boot-up.

Boot From Onboard LAN

Use this item to enable or disable the Boot From Onboard LAN feature.

Page 35

3.6 Security Screen

In this section, you may set, change or clear the supervisor/user password for the

system.

Page 36

3.7 Exit Screen

Save Changes and Exit

When you select this option, it will pop-out the following message, “Save

conguration changes and exit setup?” Select [OK] to save the changes

and exit the UEFI SETUP UTILITY.

Discard Changes and Exit

When you select this option, it will pop-out the following message, “Discard

changes and exit setup?” Select [OK] to exit the UEFI SETUP UTILITY

without saving any changes.

Discard Changes

When you select this option, it will pop-out the following message, “Discard

changes?” Select [OK] to discard all changes.

Load UEFI Defaults

Load UEFI default values for all the setup questions. F9 key can be used

for this operation.

Launch EFI Shell from lesystem device

Attempts to Launch EFI Shell application (Shell64.efi) from one of the

available lesystem devices.

Page 37

Chapter 4: Software Support

4.1 Install Operating System

This motherboard supports Microsoft® Windows® operating systems: 7 32-bit. Be-

cause motherboard settings and hardware options vary, use the setup procedures

in this chapter for general reference only. Refer to your OS documentation for more

information.

4.2 Support CD Information

The Support CD that came with the motherboard contains necessary drivers and

useful utilities that enhance the motherboard’s features.

4.2.1 Running The Support CD

To begin using the support CD, insert the CD into your CD-ROM drive. The

CD automatically displays the Main Menu if “AUTORUN” is enabled in your

computer. If the Main Menu did not appear automatically, locate and double

click on the le “ASSETUP.EXE” from the BIN folder in the Support CD to dis-

play the menus.

4.2.2 Drivers Menu

The Drivers Menu shows the available device’s drivers if the system detects

installed devices. Please install the necessary drivers to activate the devices.

4.2.3 Utilities Menu

The Utilities Menu shows the application software that the motherboard sup-

ports. Click on a specic item then follow the installation wizard to install it.

4.2.4 Contact Information

If you need to contact ASRock or want to know more about ASRock, you’re

welcome to visit ASRock’s website at http://www.asrock.com; or you may con-

tact your dealer for further information.
