ASKO OP8664A, OP8664B, OP8664S User Manual

Instructions for use

OVEN

OP8664A / BO6PY4S3-42 OP8664B / BO6PY4S3-42

OP8664S / BO6PY4S3-42

EN User manual EN 3 - EN 29

Pictograms used

Important information

Tip

CONTENTS

Your oven

First use

Use

Operation

Settings

Introduction 4 Description of the appliance 5 Guide rails/Telescopic guide rails 5 Accessories 6 Door 7 Cooling fan 7 Control panel 7 Control panel general use 8

Before first use 10

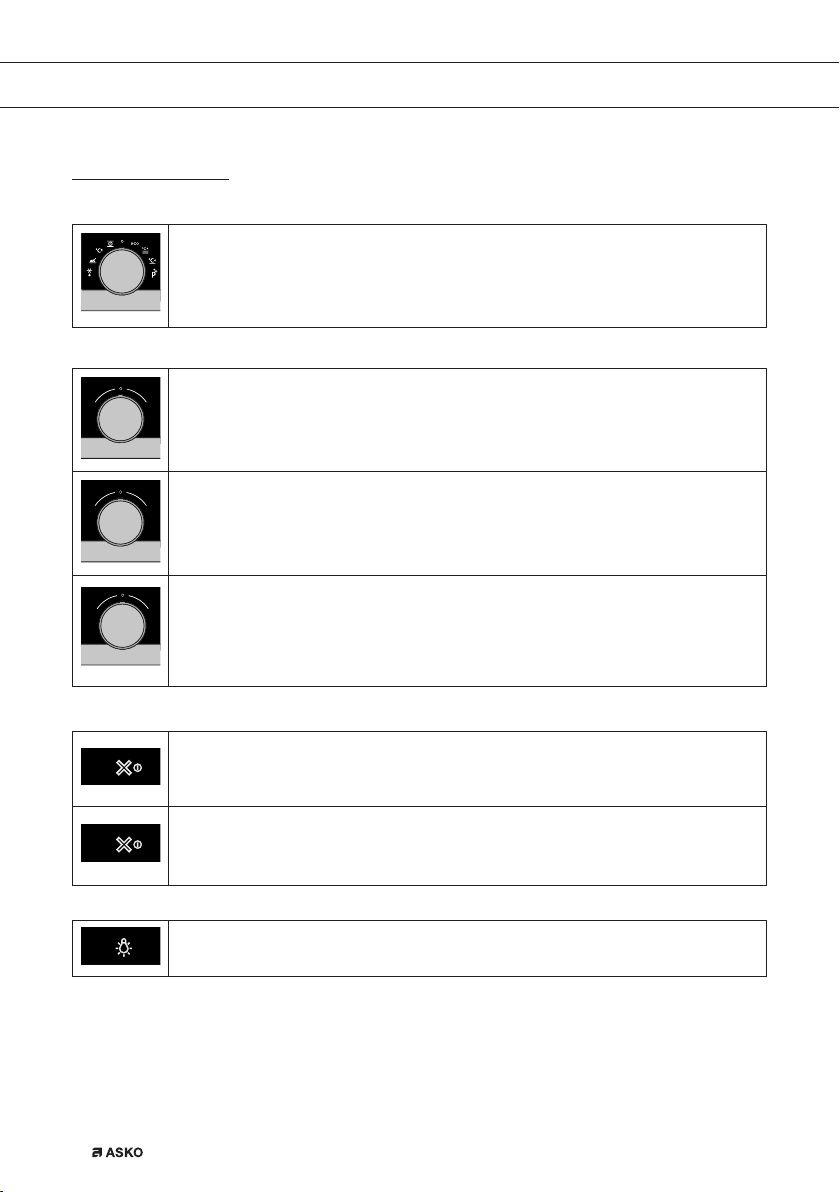

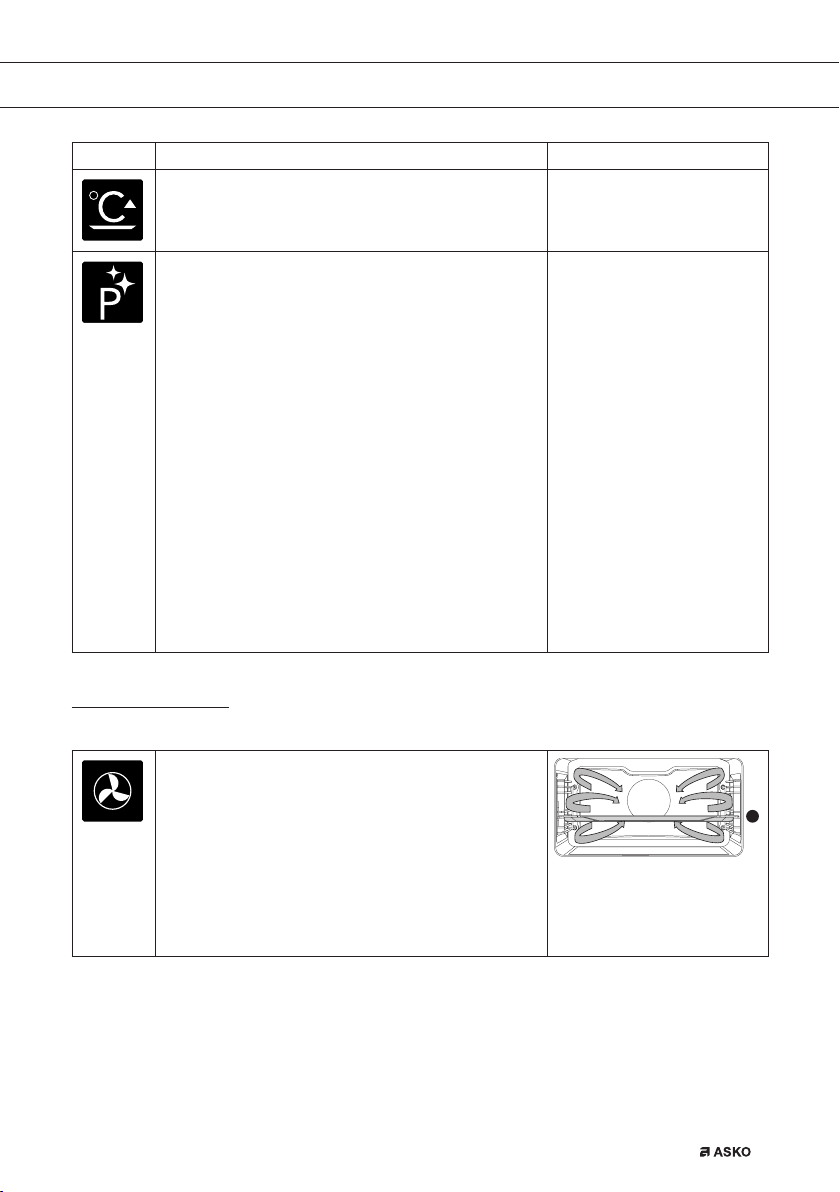

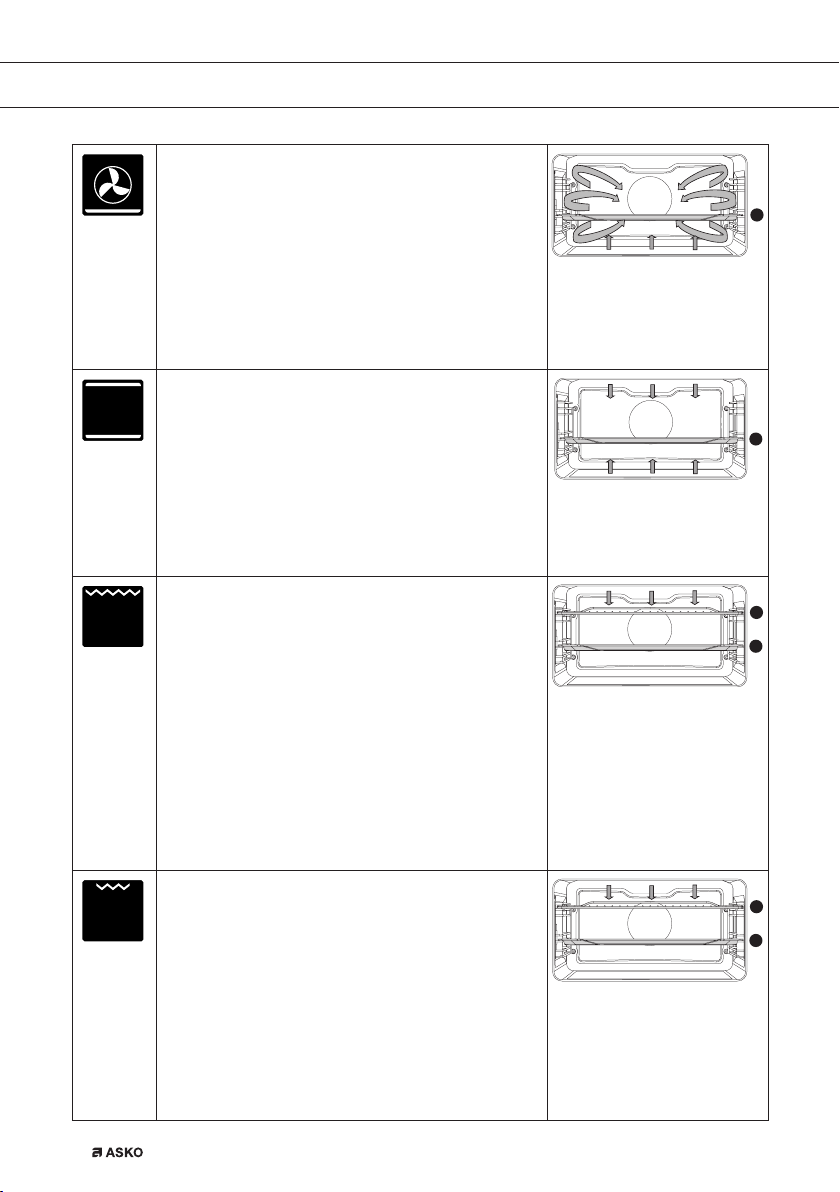

Explanation of the knobs and the keys 12 Description of the main functions 14 Description of the sub functions 15 Plus menu 18

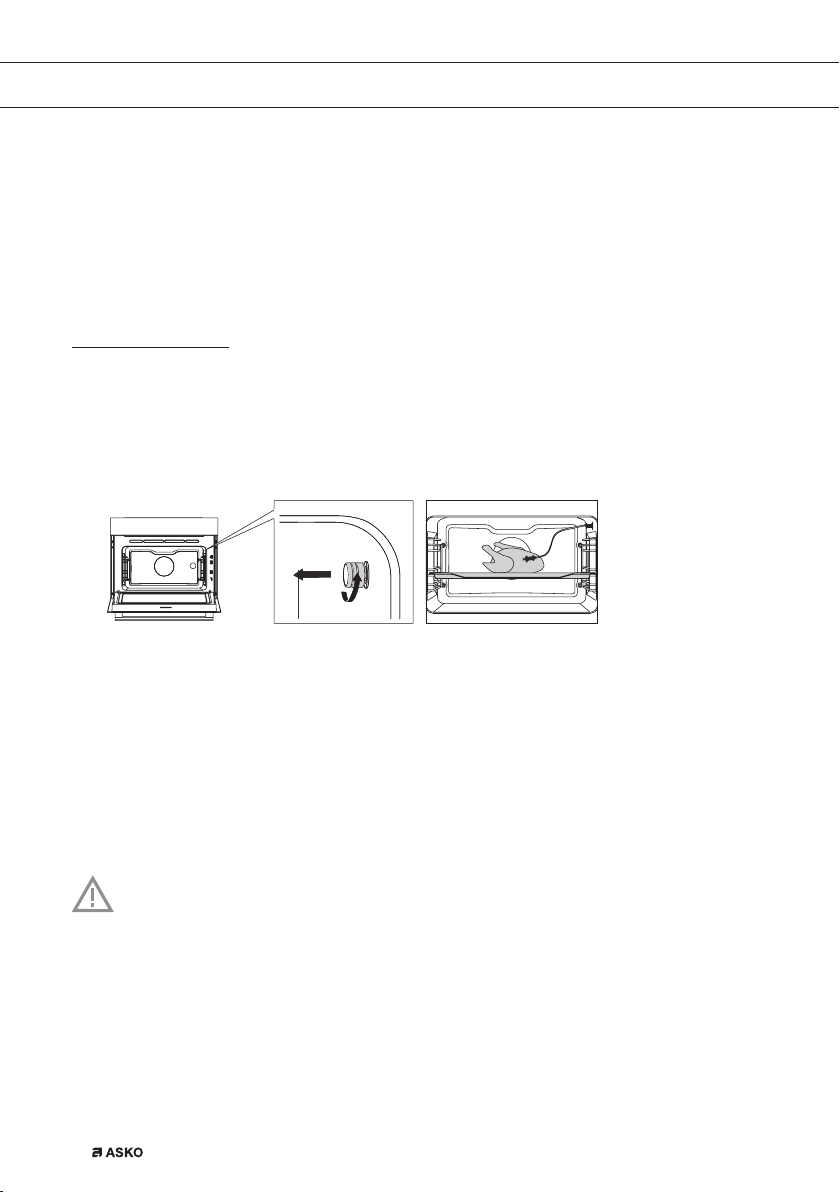

Using the appliance cooking functions 19 Culisensor 20

Settings menu 21

Maintenance

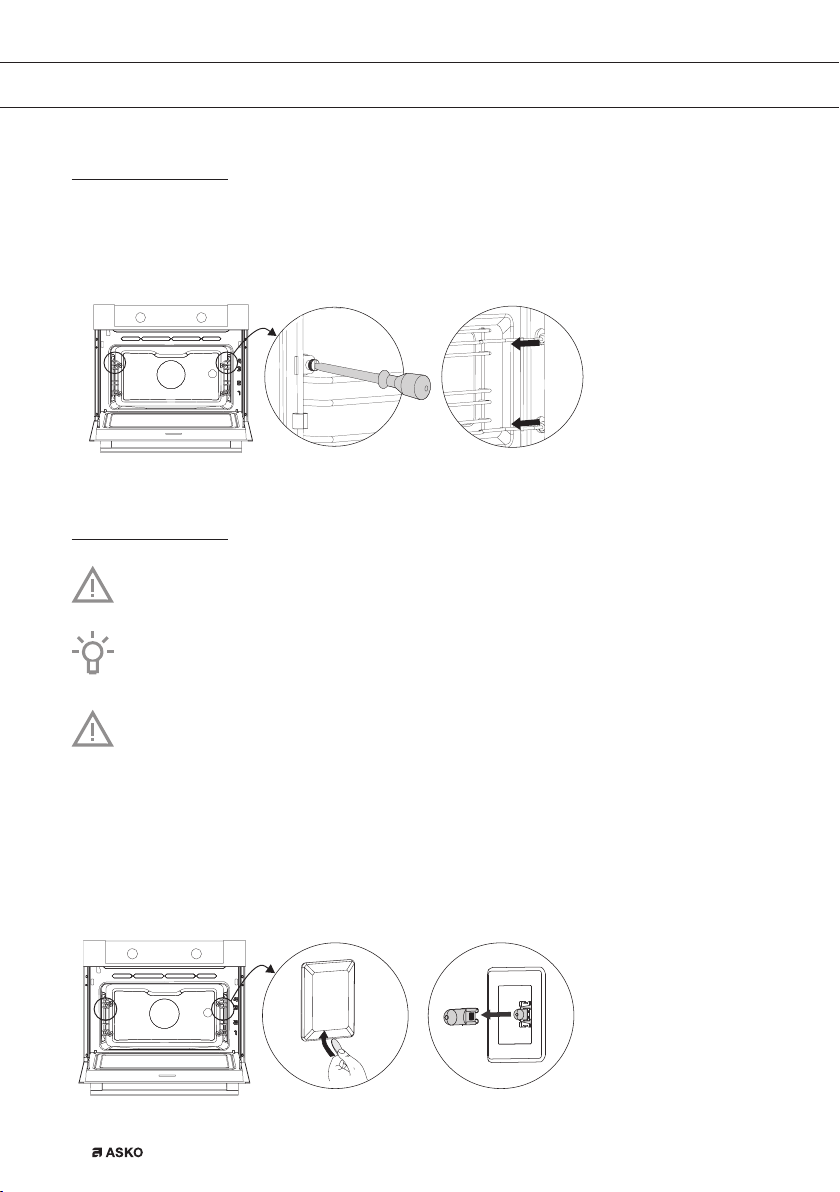

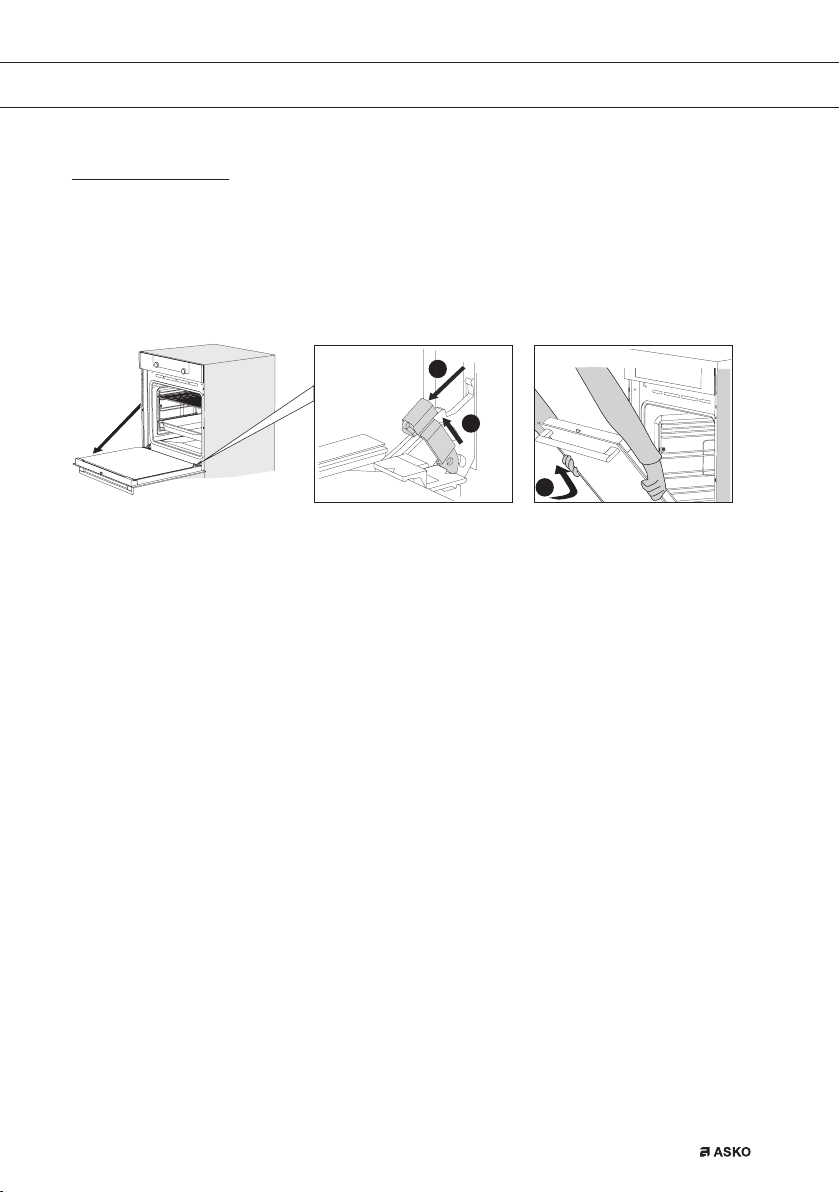

Cleaning the appliance 22 Pyrolysis 22 Cleaning function (Steam clean) 23 Removing and cleaning the guide rails 24 Replacing the oven lamp 24 Removal and installation of the oven door 25 Removal and installation of the oven door glass 26

Malfunctions

General 27

Environmental aspects

Disposal of the appliance and packaging 29

EN 3

YOUR OVEN

Introduction

Congratulations on choosing this oven. This product is designed with simple operation and

optimum comfort in mind.

This manual shows how you can best use this oven. In addition to information about operating

the appliance, you will also find background information that may be useful when using the

appliance.

Please read the separate safety instructions carefully before using the appliance!

Read this manual before using the appliance and keep it in a safe place for future use.

The installation instructions are included separate

EN 4

YOUR OVEN

Description of the appliance

Level 4 Level 3

Level 2

Level 1

1. Control panel

2. Oven levels

3. Oven door

4. Door handle

Guide rails/Telescopic guide rails

• The oven has four or five guide rails (Level 1 to 4/5), depending on the model. Level 1 is

mainly used in combination with bottom heat. The two upper levels are mainly used for the

grill function.

• Place the oven rack, baking tray or steam dish in the gap between the guide rail sliders.

• A number of shelf levels can have fully-retractable telescopic guide rails, depending on the

model.

▷ Pull the telescopic guide rails out of the oven cavity completely and place the oven rack

/ baking tray / steam dish on them. Then slide the oven rack / baking tray / steam dish

on the telescopic guide rails, back into the oven cavity.

▷ Only close the oven door when the telescopic guide rails have been returned completely

back into the oven cavity.

Note: remove the guide rails / telescopic guide rails out of the oven if you are going to

use the Pyrolysis function!

EN 5

YOUR OVEN

Accessories

Your appliance is accompanied by a range of accessories, depending on the model. Only use

original accessories; they are specially suited toyour appliance. Be sure that all the accessories

that are being used are able to withstand the temperature settings of the chosen oven function.

Note: not all accessories are suitable/available for every appliance (itmay also differ by country).

When purchasing, always provide the exact identification number of your appliance. Please see

the sales brochures or check online for more details about optional accessories.

Note: never place an accessory on the bottom of the oven!

Accessories that can be supplied with your appliance (depending on the model)

Enamelled baking tray; to be used for pastries and cakes.

• Do not use the enamelled baking tray for microwave functions!

• Suitable for pyrolysis cleaning.

Oven rack; mainly used for grilling. A steam dish or pan with food can also be placed on the oven rack.

• The oven rack is equipped with a safety peg. Lift the rack slightly at the front to slide it out of the oven.

• Do not use the oven rack for microwave functions!

Deep enamelled baking tray; to be used for roasting meat and baking moist pastry.

• Do not place the deep baking tray on the lowest level during a cooking process, except when using it as a drip tray during grilling, roasting or roasting with a spit roast (when available).

• Do not use the deep enamelled baking tray for microwave functions!

• Suitable for pyrolysis cleaning.

Glass baking tray; for microwave and oven use.

• NOT suitable for pyrolysis cleaning.

EN 6

Culisensor; can be used to measure the core temperature of the dish. When the desired temperature is reached, the cooking process will be stopped automatically.

Pyrolysis guide rails; only use these guide rails to clean an

enamelled baking tray during pyrolysis (replace the guide rails /

telescopic guide rails with these special pyrolysis guide rails).

• Please note: the high temperature during pyrolysis may cause the pyrolysis guide rails to discolour.

YOUR OVEN

Door

• The door switches interrupt the operation of the oven when the door is opened during use.

The oven continues operating when the door is closed.

Cooling fan

• The appliance is equipped with a cooling fan that cools the casing and control panel.

Control panel

1 10 116 7 8 95432

12 13 14 15 16 17

1. Function knob (in ‘Off’ position)

2. Defrost

3. Programs

4. Fast preheat

5. Oven

6. Eco hot air

7. Plate warming

8. Warming

9. Cleaning

10. Display

11. Selection knob

12. On/off key and stop key (cancel)

13. Light key

14. Navigation key left

15. Navigation key right

16. Plus key

17. Confirm key

The keys respond best if you touch them shortly with a large area of your fingertip.

Every time you touch a key during use, a short acoustic signal will sound.

EN 7

YOUR OVEN

Control panel general use

Activated area (grey background)

Set a function and settings

1. Touch and hold the on/off key to switch on the appliance.

2. Turn the function knob to set a main oven function.

The main oven functions are visible around the oven function knob and in the display.

The function icon is displayed larger. The ‘active area’ (recognizable by a grey background)

moves to the right.

3. Turn the selection knob to select a sub oven function.

The ‘active area’ shows the several different sub oven functions. Scroll up or down to view

the different functions. If a chosen main function does not have a sub function then the next

available setting appears in the active area.

4. Touch the selection knob (or the right navigation key) to confirm the chosen sub oven

function or setting.

The ‘active area’ (grey background) moves to the right.

5. Turn the selection knob to change the next available settings (left = decrease, right =

increase) and confirm by touching the selection knob or touching the right navigation key.

• When all elements in the screen are set, then confirm these settings by touching the confirm

key.

• When the confirm key is blinking it is possible to start the oven with the default settings.

• Touch the left navigation key to move the active area to the left to change an already made

setting. Change the setting by turning and touching the selection knob.

• Touch the stop key to go one-step back in the menu.

Follow the instructions on the display.

EN 8

YOUR OVEN

Feedback bar

OVEN 14:30

• The display will show the icon and name of the activated function for about 1.5 seconds.

• This bar shows what setting you are changing.

Delayed start

• Set an desired cooking time and finishing time to start cooking at a later time.

Display

When the appliance is in progress you see the following information in the display:

• Temperature

• Active oven (sub) function

• Egg time (when set / See ‘Plus menu’)

• Cooking time (cooking time counting up or counting down when cooking time has been set)

• Finishing time (when cooking time has been set)

Clock

Egg timer

Cooking time

Finishing time

Active area (grey background)

Main function icon

Stand-by mode

The stand-by display will show the time, date and the timer (if set). The appliance goes to stand-

by mode after turning the function knob to 0 (‘off’ position).

Switching on the appliance

• Touch and hold the on/off key to switch on the appliance.

• The appliance can also be switched on by turning the function knob to a function.

Shutting down the appliance

• Touch and hold the stop key to shut down the appliance manually.

• Default the appliance will shut down when there has been no action during 30 minutes.

EN 9

FIRST USE

Before first use

• Clean the appliance interior and accessories with hot water and washing-up liquid.

Do not use aggressive cleaning agents, abrasive sponges and similar.

• The appliance will emit a particular odor when it is used for the first time; this is normal.

Make sure that there is good ventilation during initial use.

When the appliance is first plugged in or after connection when the appliance was

disconnected from the power mains for a long period of time, you have to set ‘Language’,

‘Date’ and ‘Time’.

Setting the language

12:00Language

English

Français

Nederlands

In case you are not comfortable with the language on the display, you can select another

language. The default setting is ‘English’.

1. Turn the selection knob and select your preferred language from the displayed list.

2. Confirm the setting by touching the confirm key.

The next screen will be displayed.

Setting the date and time

12:00Language

12:00Year

English

Français

2017

2018

Nederlands

1. Turn the selection knob and change the first setting (Year).

2. Confirm this setting by touching the right navigation key or by touching the selection knob.

3. Turn the selection knob and change the next setting (Month).

4. Confirm this setting by touching the right navigation key or by touching the selection knob.

5. Turn the selection knob and change the last setting (Day).

6. Confirm this setting by touching the confirm key.

The next screen will be displayed. Now set the hours and minutes with the selection knob

and navigation key. Confirm your setting by touching the confirm key.

EN 10

12:00Hours
