IN20 SERIES

Reference Guide

Declaration of Conformity

Manufacturer: InFocus Corporation, 27700B SW Parkway Ave. Wilsonville, Oregon 97070 USA European Office: Strawinskylaan 585, 1077 XX Amsterdam, The Netherlands We declare under our sole responsibility that this projector conform to the following directives and norms:

March, 2006

EMC Directive 89/336/EEC, Amended by 93/68/EEC EMC: EN 55022 EN 55024

EN 61000-3-2 EN 61000-3-3

Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC

Safety: IEC 60950-1: 1st Edition

Trademarks

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer, Inc. IBM is a trademark or registered trademark of International Business Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered trademarks of Microsoft Corporation. Adobe and Acrobat are trademarks or registered trademarks of Adobe Systems Incorporated. InFocus, In Focus, and INFOCUS (stylized) are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries.

FCC Warning

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

Canada

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Agency Approvals

UL, cUL, TUV

Other specific Country Approvals may apply. Please see product certification label.

This document applies to: IN24, W240, IN26, and W260.

InFocus reserves the right to alter product offerings and specifications at any time without notice.

Table of Contents

Introduction 3 Positioning the projector 5 Projector and device connector guide 6 Connecting a computer source 9

Required computer connections 9

Optional computer connections 9 Displaying an image 10 Adjusting the image 11 Connecting a video device 12 Video device connections 13

Composite video connection 13

S-video connection 13

VESA connection 13

Component video connection 13

Shutting down the projector 14

Troubleshooting your setup 14

Using the remote control 22 Using the audio 23 Using the keypad buttons 24

Optimizing computer images 25 Presentation features 25 Optimizing video images 26 Customizing the projector 26 Using the menus 27

Picture menu 28

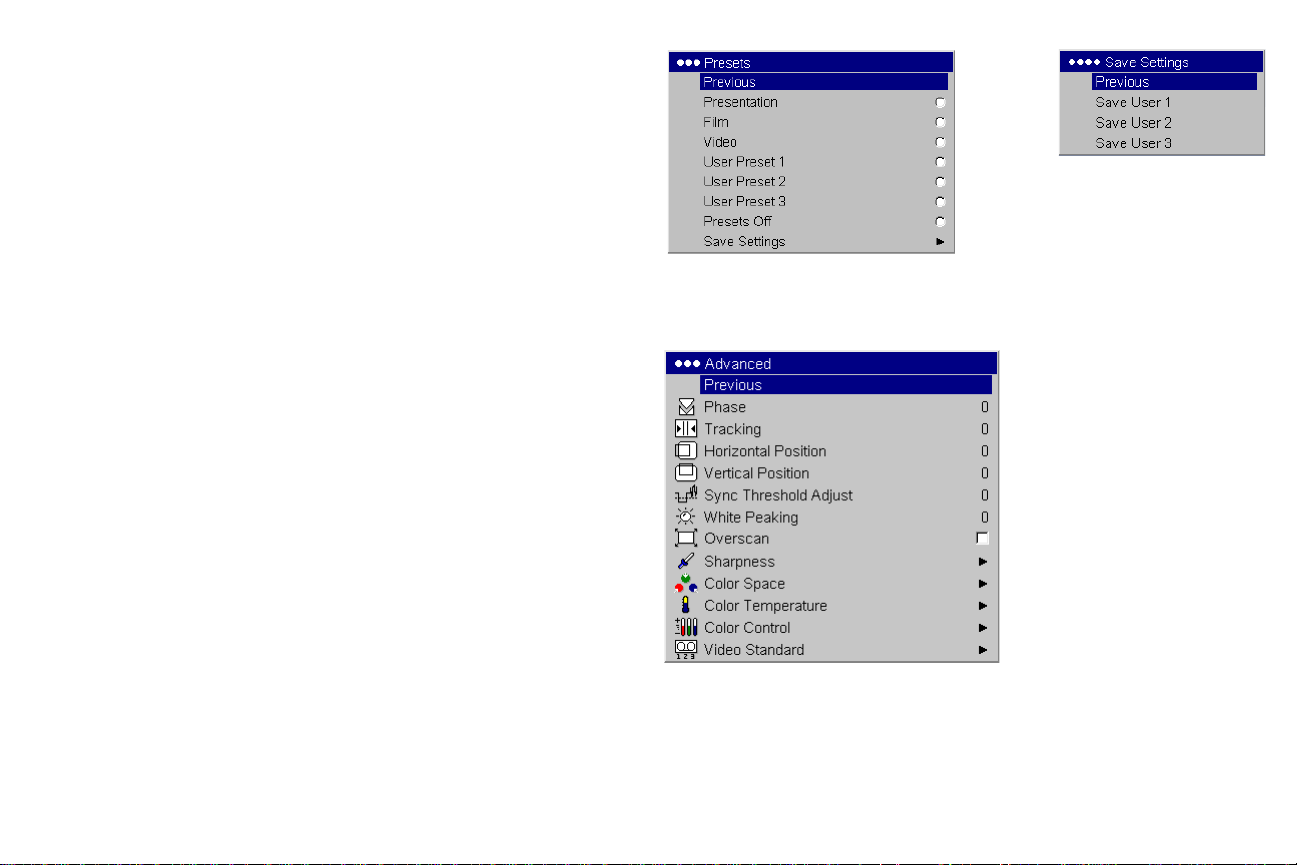

Advanced menu 29

Settings menu 31 Maintenance 35

Cleaning the lens 35

Replacing the projection lamp 35

Using the security lock 37

Important Operating Considerations for Safety

• Place the projector in a horizontal position no greater than 15 degrees off axis.

• Locate the projector in a well-ventilated area without any obstructions to intake or exhaust vents. Do not place the projector on a tablecloth or other soft covering that may block the vents.

• Locate the projector at least 4' (1.2 m) away from any heating or cooling vents.

• Use only InFocus-approved ceiling mounts.

• Use only the power cord provided. A surge-protected power strip is recommended.

• Refer to this guide for proper startup and shutdown procedures.

• This product has a lamp which contains a very small amount of mercury. Wash hands after cleaning the area and handling the ruptured lamp. Dispose of it as required by local, state or federal ordinances and regulations. For more information see www.eiae.org.

• In the unlikely event of a lamp rupture, particles may exit through the projector side vents. When the projector is turned on, keep people, food, and drinks out of the "keep out" area under and around the pro jector, as indicated by the "X" areas below.

’

/2.4m

’

/1.5m

/1m

’

/1m

Follow these instructions to help ensure image quality and lamp life over the life of the projector. Failure to follow these instructions may affect the warranty. For complete details of the warranty, see the Warranty booklet.

/0.6m

’

Introduction

Your new digital projector is simple to connect, easy to use, and straightforward to maintain. It is a versatile projector that is flexible enough for business presentations and home video viewing too. The IN24 has native SVGA 800x600 resolution while the IN26 has native XGA 1024x768 resolution. This guide applies to both products. They are compatible with a wide variety of computers and video devices, including:

• IBM-compatible computers, including laptops, up to 1024x768 resolution for the IN24 and 1400x 1050 for the IN26.

• Apple® Macintosh® and PowerBook® computers up to 1024x768 resolution for the IN24 and 1400x 1050 for the IN26.

• Most standard VCRs, DVD players (progressive and interlaced), progressive DVD, HDTV sources, TV and satellite tuners, camcorders, video games, and laser disc players.

Product specifications

To read the latest specifications on your multimedia projector, be sure to visit our website at www.infocus.com, as specifications are subject to change.

Accessories

The standard accessories that came with your projector are listed in the included user’s guide. Optional accessories can be found on our website at

www.infocus.com or at your retailer or dealer.

Online Registration

Register your projector on our website at www.infocus.com/register to acti- vate your warranty and receive product updates, announcements, and registration incentives.

elevator foot release

remote control receiver (IR)

zoom (rear ring)

focus (front ring)

keypad

power cord connector

connector panel

Connector Panel

The projector provides both computer and video connection options, including:

•VESA computer

•S-video

• Composite RCA audio/video

The projector also provides the following connectors:

• Monitor out, to provide an image on your desktop computer as well as on the projection screen

• Audio out, to provide sound for external speakers

• USB, to provide mouse control (used with an optional remote control only)

computer

USB

monitor out

S-video

audio in

audio out

security lock

composite video

adjustable foot

Positioning the projector

To determine where to position the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Here are some general guidelines:

• Position the projector on a flat surface at a right angle to the screen. The projector must be at least 4.9 feet (1.5m) from the projection screen.

• Position the projector within 10 feet (3m) of your power source and within 6 feet (1.8m) of your video device (unless you purchase extension cables). To ensure adequate cable access, do not place the projector within 6 inches (.15m) of a wall or other object.

• If you are installing the projector on the ceiling, refer to the installation guide that comes with the Ceiling Mount Kit for more information. To turn the image upside down, see “Ceiling” on using an InFocus authorized ceiling mount.

• Position the projector the desired distance from the screen. The distance from the lens of the projector to the screen, the zoom setting, and the video format determine the size of the projected image.

• The image exits the projector at a given angle. This image offset is

112.2%. This means that if you have an image 10’ high, the bottom of the image will be 1.12’ above the center of the lens.

page 31. We recommend

Table 1:

Range of distance to the screen for a given screen size

Distance to screen

Diagonal Screen Size (inches/m)

Maximum distance (feet/m)

Minimum Distance (feet/m)

60/1.5 8.5/2.5 7.9/2.4

80/2 11.3/3.4 10.6/3.2

92/2.3 13.0/3.9 12.2/3.7

150/3.8 21.2/6.4 19.8/6.0

10 ft high image

Projection angle

bottom of image

1.12 ft above center of lens

lens center

Projector and device connector guide

The following illustration and table should help you find the connectors to use and obtain the best resolution possible from your input devices, such as computers, standard VCRs, DVD players (progressive and interlaced), HDTV sources (1080i and 720p HDTV formats), TV and satellite tuners, camcorders, video games (progressive and interlaced), and laser disc play ers.

computer

USB

monitor out

S-video

audio in

composite video

audio out

Video Device

Video Compatibility

If Your Device Connector Is

Attach to Adapter or Labeled Connector on Projector

For Setup Instructions, see Comments

Standard Broadcast TV (not HDTV) via: cable, digital cable, satellite TV, DVD, or VCR

Standard Video Camera

Standard Video Game

NTSC, PAL, and SECAM formats

Composite video or S-video

Video 2 or S-video 1

Composite video connection on page 13.

S-video connection on page 13

Composite video connection on page 13.

S-video connection on page 13

Composite video connection on page 13.

S-video connection on page 13

Not for progressive (i.e. HDTV) sources.

page 8.

See

Not for progressive (i.e. HDTV) sources.

page 8.

See

Not for progressive (i.e. HDTV) sources.

page 8.

See

Video Device

Video Compatibility

If Your Device Connector Is

Attach to Adapter or Labeled Connector on Projector

For Setup Instructions, see Comments

HDTV (High Definition TV)

Progressive DVD

Progressive Video Game

1080i, 720p

Component 480i

1080i, 720p

Component 480p and 480i

1080i, 720p

Component 480p and 480i

VGA

Component video

VGA

Component video

VGA

Component video

Computer In

Computer In via optional VESA to Component adapter

Computer In

Computer In via optional VESA to Component adapter

Computer In

Computer In via optional VESA to Component adapter

VESA connection on page 13

Component video connection on page 13

VESA connection on page 13

Component video connection on page 13

VESA connection on page 13

Component video connection on page 13

Connecting a computer source

Required computer connections

Connect one end of the provided computer cable to the Computer In con- nector on the projector and the other to the VESA connector on your computer. If you are using a desktop computer, you will need to disconnect the monitor cable from the computer’s video port first (you can connect this monitor cable to the Monitor Out connector on the projector, see below).

Connect the black power cord to the Powe r connector on the back of the projector and to your electrical outlet.

NOTE: Always use the power cord that shipped with the projector.

Optional computer connections

To get sound from the projector, connect an audio cable (optional cable, not included) to your computer and to the red and/or white Audio In connec tors on the projector. You may also need an adapter.

If you are using a desktop computer and want to see the image on your computer screen as well as on the projection screen, connect the computer’s monitor cable to the Monitor Out connector on the projector.

To advance slides in a PowerPoint presentation using an optional remote control, plug the USB cable into the USB mouse connector on your computer and the USB connector on the projector.

connect computer cable

connect audio cable

connect monitor cable

connect USB cable

Displaying an image

Press the Power button.

The Power light on the Status Indicator Panel (page 14) blinks green and the fans start to run. When the lamp comes on, the start up screen displays and the Power light is steady green. It can take a minute for the image to achieve full brightness.

? No start up screen? Get help on page 14.

Turn on your computer or video device.

The image should appear on the projection screen. If it doesn’t, press the Source button on the projector’s keypad or remote.

If using a laptop, make sure it’s external video port is active.

Many laptops do not automatically turn on their external video port when a projector is connected. Usually a key combination like FN + F8 or CRT/LCD key turns the external display on and off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol. Press FN and the labeled function key simultaneously. Refer to your laptop’s documenta

tion to learn your laptop’s key combination.

? No laptop image? Try pressing the Auto Image button on the key-

pad. Get help on page 15.

press Power button

turn on computer or video device

activate laptop’s external port

monitor key or LCD/CRT key

FN key

Adjusting the image

If necessary, adjust the height of the projector by pressing the elevator foot release button to extend the foot.

If necessary, rotate the leveling foot located at the rear of the projector.

Avoid placing your hands near the hot exhaust vent at the side of the projector.

Position the projector the desired distance from the screen at a 90 degree angle to the screen.

See page 5 for a table listing screen sizes and distances.

adjust height

release button

elevator foot

adjust distance

Adjust the zoom or focus.

If the image is not square, first make sure that the projector is perpendicular to the screen. If the image is larger or smaller on the top or bottom edge of the screen, press the top Keys tone button to reduce the upper part of the image, and press the bottom Keyst one button to reduce the lower part.

If the left or right side of the screen is larger or smaller the other, you can turn the projector to the left or to the right a few degrees to square the image.

Adjust the Contrast or Brightness in the Picture menu. See page 28 for help with these menu adjustments.

For Aspect Ratio, keep in mind that DVD players must be configured for 16:9 in order to view the highest quality image. For more information regarding Aspect Ratio, see

page 12.

adjust zoom or focus

adjust keystone

adjust Picture menu

focus (front ring)

zoom

(rear ring)

Connecting a video device

You can connect video devices such as VCRs, DVD players, camcorders, digital cameras, video game consoles, HDTV receivers, and TV tuners to the projector. There is also an audio input via the red and white A/V connectors. You can connect the audio directly to the projector to get sound from the built-in speaker, or you can bypass the projector’s audio system and connect the audio directly from your source to a stereo or home theater system.

You can connect the projector to most video devices that can output video. You cannot directly connect the coaxial cable that enters your house from a cable or satellite company, the signal must pass through a tuner first. Exam ples of tuners are digital cable boxes, VCRs, digital video recorders, and satellite TV boxes. Basically, any device that can change channels is considered a tuner.

Before connecting your projector, you should decide which aspect ratio you want to use. The projector’s Aspect Ratio setting is accessed through the projector’s Picture Menu. See

What is Aspect Ratio?

Aspect ratio is the ratio of the image width to image height. TV screens are usually 4:3, which is the default for this projector. HDTV and most DVDs are 16:9. If you’re projecting onto a screen, the size/shape of the screen may determine which aspect ratio to use. If you are projecting onto a blank wall, you don’t have the screen size restriction. What you plan to project will also help you choose between 4:3 and 16:9. Most TV shows are 4:3, while most movies are 16:9.

If you have a 16:9 screen then you should select an aspect ratio of 16:9 for anamorphic movies or HDTV, and Native for 4:3 content. If you have a 4:3 screen you should still use 16:9 for anamorphic movies or HDTV, but you also have the option of using either 4:3 (to fill the screen) or Native (for direct pixel mapping) for 4:3 content. Keep in mind that anamorphic movies only appear correctly if the DVD player is set to output to a 16:9 television.

page 28 for more information.

4:3 screen

16:9 screen

Do Not Use

4:3 mode

16:9 mode

Native mode (NTSC only)
