Antari IP-1000 User Manual [en, de, fr]

IP-1000

Waterproof Fog Machine
User Manual

© 2014 Antari Lighting and Effects Ltd.

IP-63

Engl ish

‧

Fran çais

Deut sch

‧

‧

中文

User Manual

IP-1000 Fog Machine

Congratulations on the purchase of your new

ANTARI IP-1000 Fog Machine

Introduction

Thank you for choosing the AN TARI I P-1000 Fog Machine. You now own a rugged and
powerful state-of-the-art machine. Prior to use, we suggest that you carefully read all of the
instructions. By following the suggestions found in this user manual, you can look forward to
the reliable and satisfactory performance of your ANTAR I fog machine for years to come.

Please follow these operation, safety and maintenance instructions to ensure a long and safe
life for your fog machine.

CAUTION:

Prior to plugging in the unit,

Please place fluid tube into a properly filled fog fluid tank.

English - Deutsch - Français - 中文

Danger of Electric Shock

Use a 3-prong grounded electrical outlet only. Prior to use, take care to determine that the
unit is installed at the rated voltage.
Turn off or unplug the machine when not in use.
This machine is spray-proof. However, the attached remote controller is not spray-proof.
When operating this unit outdoors or in humid environment, please do not let the nozzle
exceed horizontal level. Otherwise, water might go into the nozzle and damage the unit.
Also, an earth leakage circuit breaker must be installed to prevent possible electrical shock
accident.
No user serviceable parts inside. Contact your ANTARI dealer or other qualified service
personnel when maintenance is required. Removing upper cover or modifying any part of the
machine randomly might cause danger and disable the spray-proof and dust-proof functions.
spray-proof means basically, the IP - 1 0 0 0 can be operated outdoors or in hu m i d
environments as long as an earth leakage circuit breaker is installed. However, please do
not put the whole machine into water as this model is not completely waterproof.

Danger of Burns

This device is for adult use only and must be installed out of the reach of children. Never
leave the unit running unattended.
Never aim the output nozzle directly at people.
Fog machine output is very hot. Avoid coming within 50 cm of the output nozzle during
operation.
Never aim the output nozzle at open flames.
The output nozzle becomes very hot during operation (200° C). Keep flammable materials at
least 50 cm away from the nozzle.
Always allow your ANTA RI fog machine to cool down before attempting to clean or service it.

Danger of Explosion

Never add flammable liquids of any kind (such as oil, gas, perfume) to the fog liquid or fluid
tank.
Use only Antari high-quality, water-based fog liquid that your dealer recommends. Other fog
liquids may cause clogging or damage the fog machine.

01

English - Deutsch - Français - 中文

Always make sure there is sufficient liquid in the tank. Operating this unit without liquid will
cause damage to the pump as well as over-heating of the heater.
If your fog machine fails to work properly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your ANTARI dealer for
service.

Pay attention to all warning labels and instructions printed

on the exterior of your ANTARI fog machine

Unpacking & Inspection

Open the shipping carton and verify that all equipment necessary to operate the system has
arrived intact. The shipping carton should contain the following items:

1. One unit of IP-1000 Fog Machine

2. Fluid tube

3. Fluid filter

4. User manual

If any equipment is missing contact your ANTA R I dealer immediately.

Before beginning your initial setup on your ANTA R I fog machine, make sure that there is no
evident damage caused by transportation. In the event that the unit's housing or cable is
damaged, do not plug it in and do not attempt to use it until after contacting your ANTA R I
dealer for assistance.

Setup

Remove all packing materials from the shipping box. Check that all foam and plastic padding
is removed, especially in the nozzle area.
Place the fog machine on a flat surface.
Place the fluid tube into a properly filled fluid tank.
Fil l wi th onl y Anta r i-a u tho riz e d F og liq u id . Th e Antar i I P -10 00 onl y wo rks wi t h
uncontaminated Antari FLR or FLG Fog Liquid. Other fluids may cause spitting and other
clogging problems and could result in the production of an unhealthful fog. The use of other
fluids will void the warranty of the Antari IP-1000. When filled, please place the cap back on
the liquid tank.

Operation

Connect the fog machine to a grounded power outlet. As soon as the unit is plugged in, the
heater starts to heat up. When the red light of the controller goes off, the heating process is
completed successfully.
Press and depress the switch on the remote control to adjust the fog output.
Note that there are no timer or any other controllers available for this model (no optional
accessories).

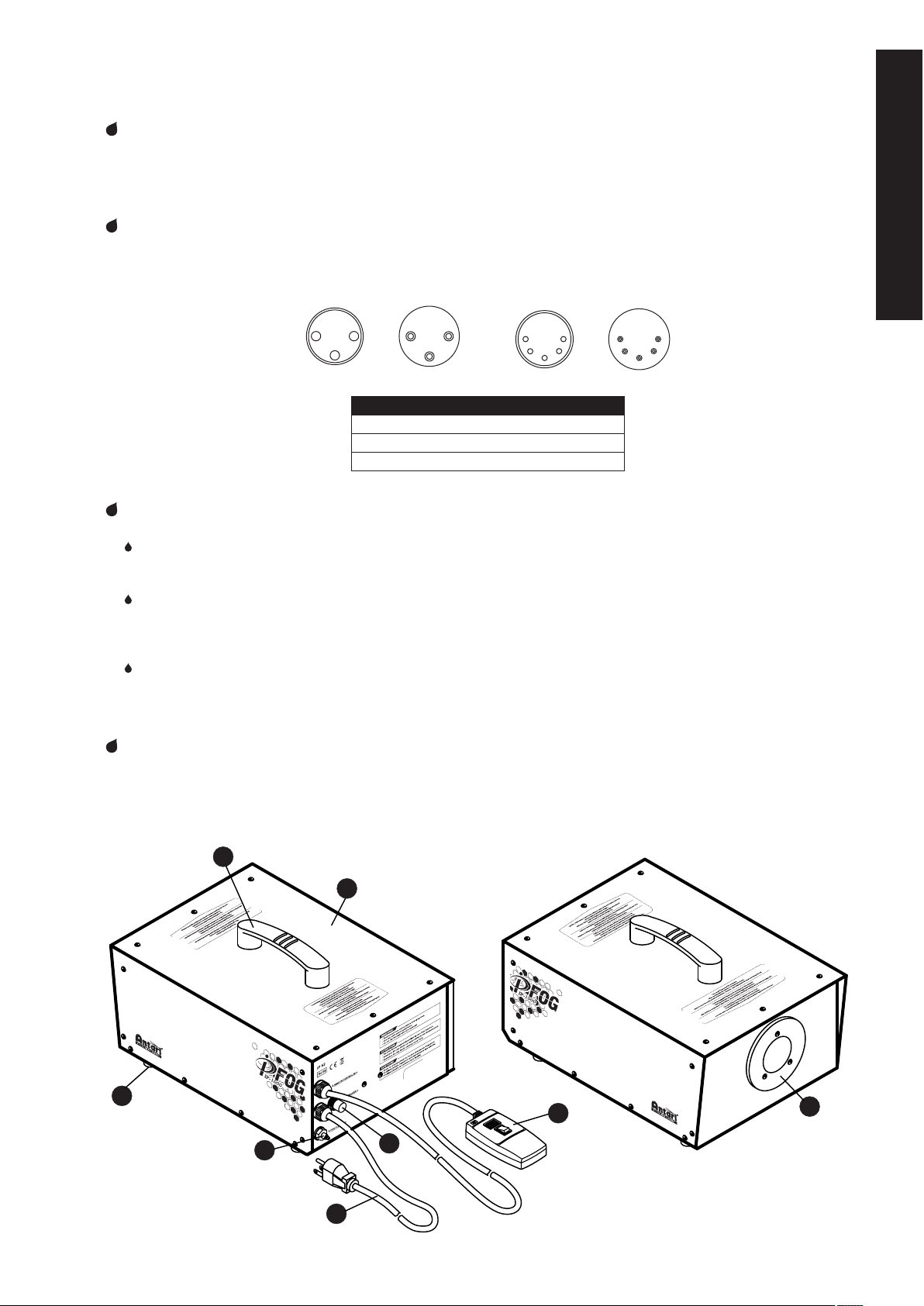

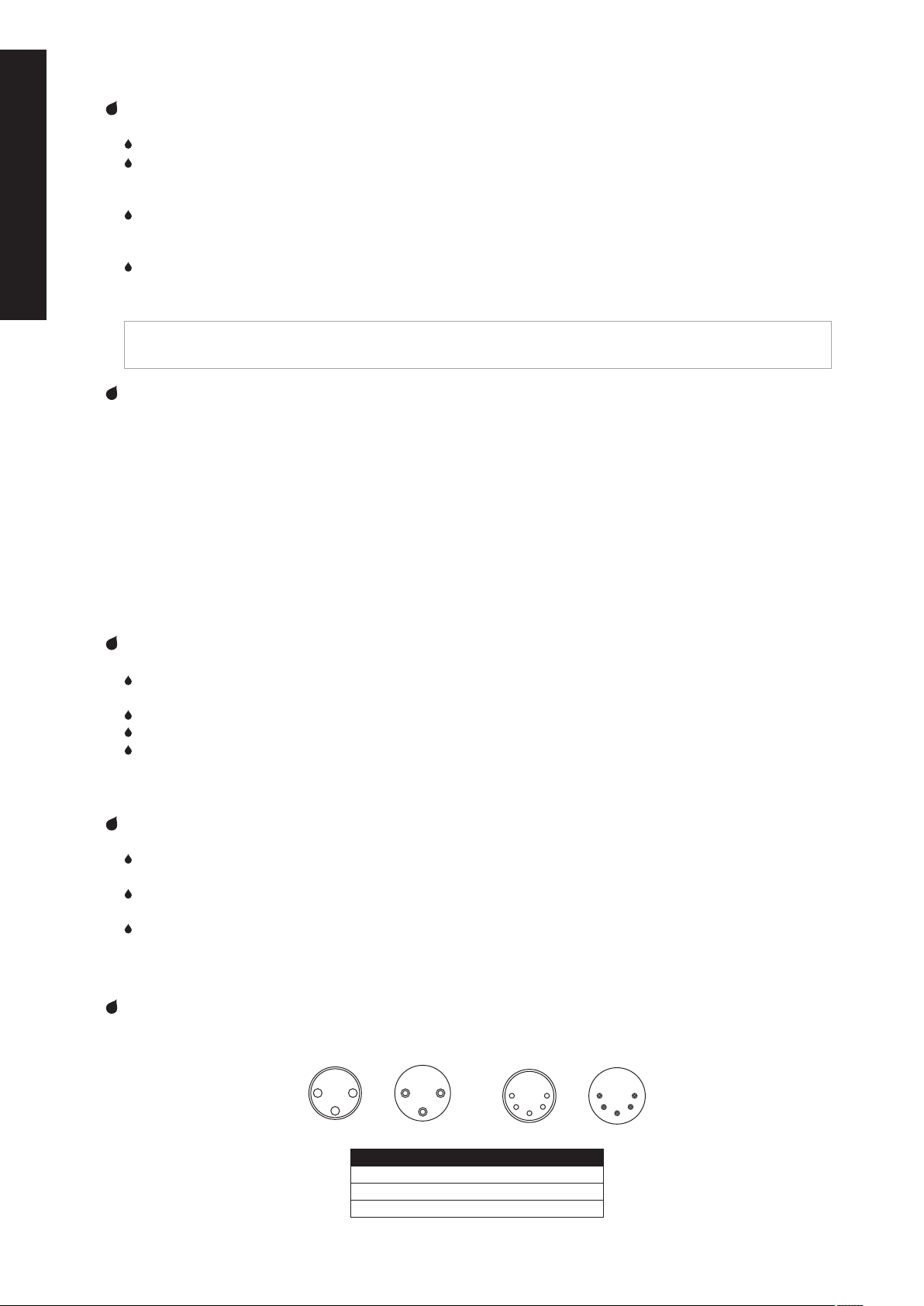

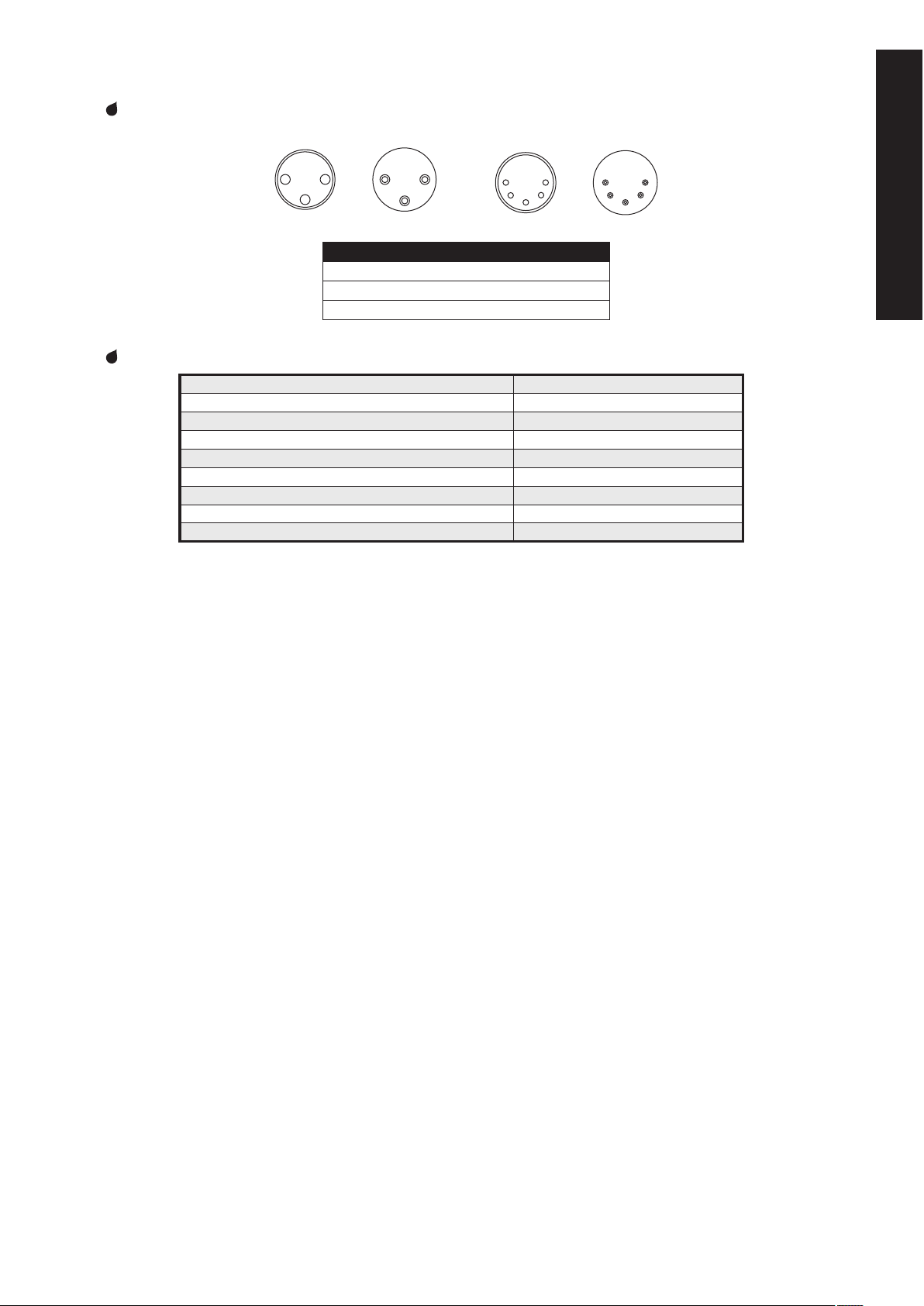

DMX Connector Pin Assignment

The machine provide 3 or 5 pin XLR connector for DM X connection. Diagram below indicate
pin assignment information

3

2 1

Pin

1
2
3

3

1 2

3 pin XLR5 pin XLR

Function

Ground
Data ­Data +

02

5 1

3

24

1 5

3

42

DMX Operation

There is no DMX function available for the Antari I P-1000.

Important:

Always monitor the tank fluid level as you are fogging. Running a fog machine with no fluid
can permanently damage the unit.

Never drink fog liquid. If it is ingested, call a doctor immediately. If fog liquid comes in contact
with skin or eyes, rinse thoroughly with water.

Always replace the caps on the fog liquid container immediately after filling to avoid
contamination.

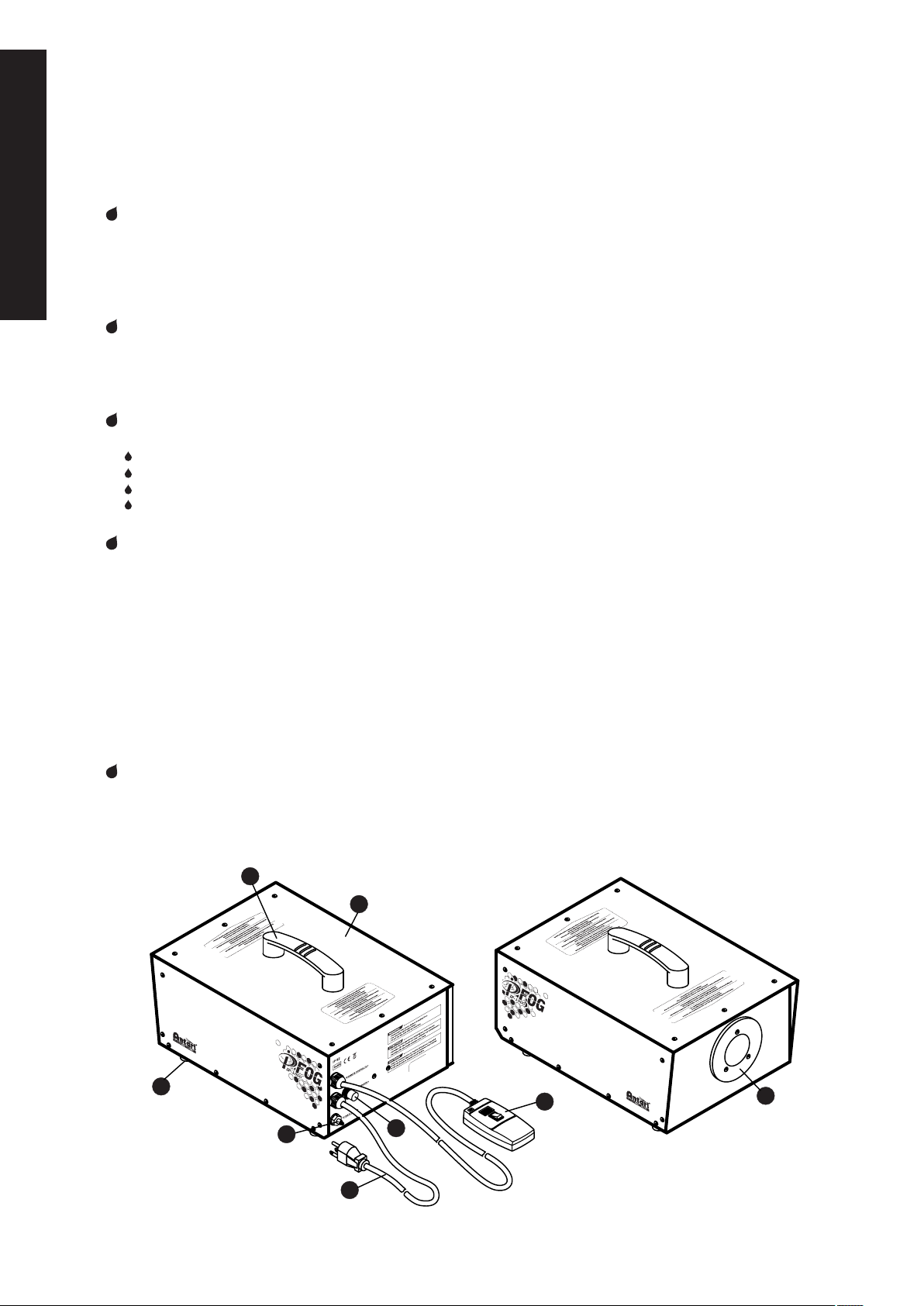

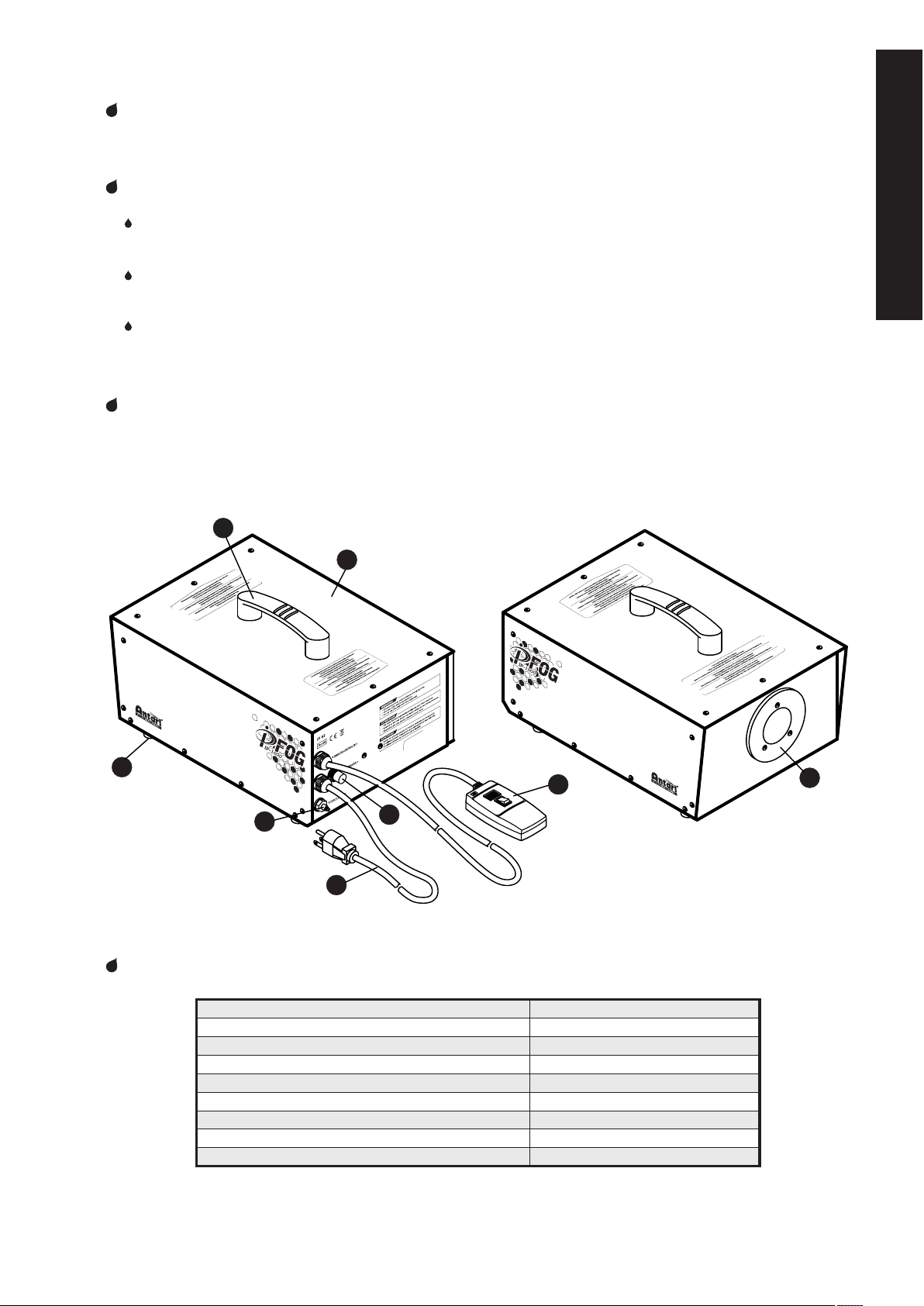

IP-1000 External View

01. Body

02. Handle

03. Foot

04. Wired remote controller

05. Water-proof cover

06. Power cord

07. Adaptor with nut

08. Nozzle

English - Deutsch - Français - 中文

03

02

07

06

01

05

04

08

Technical Specifications

Model
Power supply
Power consumption
Fog output volume
Fluid consumption
Weight
Dimensions (LxWxH)
Remote included
First (from cold machine) warm-up time

IP-1000
110 ~ 230 V AC 50/60 Hz
1,000 W
10,000 cubic feet / per minute
24 minutes / per liter

8.8 kg
355 x 249 x 147 (mm)
IP-10
10 minutes

03

English - Deutsch - Français - 中文

Performance Note

All fog machines develop condensation around the output nozzle. Because this may result in
some moisture accumulation on the surface below the output nozzle, consider this
condensation when installing your unit.
All fog machines may sputter small amounts of fog occasionally during operation and for a
minute or so after being turned off.
All fog machines have a recycling period after long bursts when the machine will shut itself
down for a short period in order to heat up again. During this time no fog can be produced.

Cleaning and Storage

Cleaning your fog machine regularly can help you reduce the frequency of parts replacement
and the cost of maintenance.

After 40 hours operation, we suggest you use distilled water to clean the heater as following
steps:

1. Fill proper distilled water into a clean tank and connect the fluid tube of the fog machine to
the tank.

2. Run the fog machine in a well ventilated place until the tank is empty.

3. Use dry cloth to wipe the fog machine.

If the fog machine is not in use, please clean it before storage. Store the fog machine in a dry
and cool place. At least run the fog machine once a month.

Please save this user manual carefully.

**Warranty

Warranty shall be valid only if the product is purchased from Antari's authorized distributors or
dealers. For warranty service, send the product only to an authorized distributor or dealer.

All warranties are void if the product has been modified in any manner; if the product has been
repaired or serviced by unauthorized personnel; or the product is damaged due to improper
use or maintenance as set forth in the instruction manual.

This is not a service contract and does not include standard maintenance or cleaning. All
expendables are not covered by this warranty.

The distributor reserves the right to change design and specifications without obligation to
include these changes in previously manufactured products.

Additional warranties provided at the discretion of the distributor dealers shall remain the sole
obligation of the distributor or dealer.

Always quote the unit's serial number and model name when contacting your distributor for
information or assistance.

04
