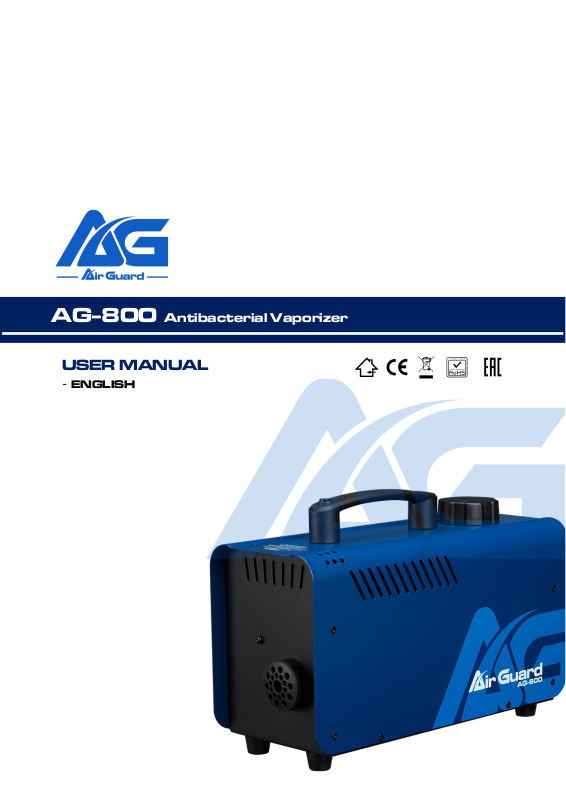

AG-800 Antibacterial Vaporizer
USER MANUAL
- ENGLISH
Safety Information
Thank you for choosing Air Guard. Please read the following safety information carefully before operating the machine. This information includes important safeguards about installation, usage, and maintenance. Pay attention to all warning labels and instructions in this manual and printed on the machine.
•Keep this device dry.
•Always connect to a grounded circuit to avoid risk of electrocution.
•Before connecting the machine to power, always check the voltage indicate on the machine matches to your local AC voltage. Do not use the machine if AC power voltage does not match.
•Disconnect the machine from AC power before servicing and when not in use.
•If the supply cord is damaged, contact your local dealer for replacement.
•This product is for indoor use only! Do not expose to rain or moisture. If fluid is spilled, disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic parts, immediately unplug the machine and contact your local dealer for advice.
•No user serviceable and modifiable parts inside. Never try to repair this product, an unauthorized technician may lead the machine to damage or malfunction.
•For adult use only. Children being supervised not to play with the machine. Never leave the machine running unattended.
•The machine is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
•Installed in a well ventilated area. Provide at least 50 cm space around the machine.
•Never add flammable liquid of any kind to the machine.
•Make sure there are no flammable materials close to the machine while operating.
•Only use Air Guard Antibacterial Solution. Other solution may lead to heater clog and malfunction.
•If the machine fails to work, unplug the machine and stop operation immediately. Contact your local dealer for advise .
•Before transporting the machine, make sure the fluid tank is completely drained.
3
•Air Guard Antibacterial Solution may present health risks if swallowed. Do not drink smoke solution. Store it securely. In case of eye contact or if solution is swallowed immediately look for medical advice.
Unpacking and Inspection
Immediately upon receiving the antibacterial vaporizer, carefully unpack the carton, check the content to ensure that all parts are present and have been received in good condition. If any parts appear damaged or mishandled from shipping, notify the shipper immediately and retain the packing material for inspection.
What is included: 1 x AG-800 Antibacterial Vaporizer 1 x Wireless remote control
1 x User Manual
Product Dimensions
H 165.5 mm
L 315 mm
W 128 mm
4
Product Overview
Manual ON/OFF
Tank cap
Fluid tank
Power switch
Fuse
Wireless receiver
Power cord
Setting Up
Step 1: Place the vaporizer on a flat surface and in a suitably large area with at least 50 cm of open space around the machine.
Step 2: Fill the fluid tank with Air Guard Antibacterial Solution.
Step 3: Connect the machine to a suitably rated power supply. To determine the power requirement for the machine refer to the label on the back of the machine.
Always connect the machine to a protected circuit and ensure it is properly grounded to avoid risk of electrocution.
Step 4: Turn on the machine and allow it to heat up, while the machine is heating up the LED status light on push button will flash. Heat up takes approximately 2 minutes. Once machine reach operating temperature, the LED status light will turn solid.
Step 5: To start making fog, press the push button located on the handle. Press the push botton again to stop
Step 6: To turn off the machine, put the power switch to OFF position.
5
