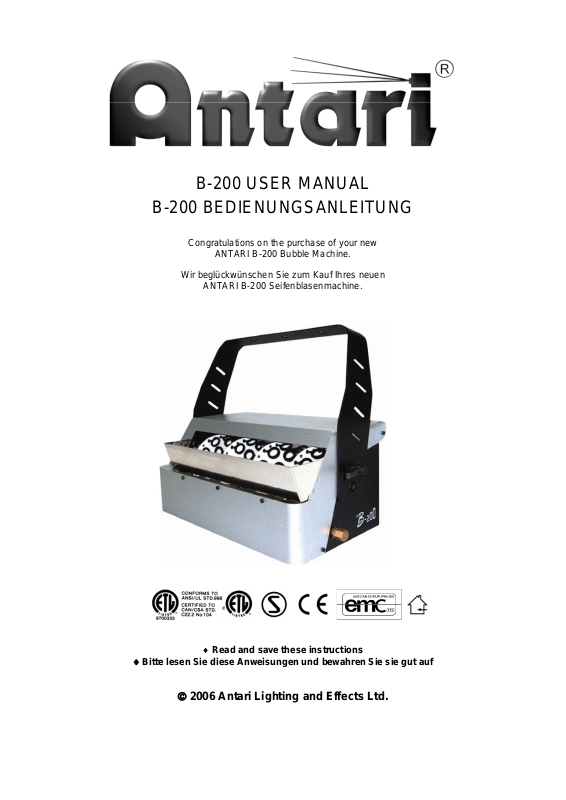

B-200 USER MANUAL
B-200 BEDIENUNGSANLEITUNG
Congratulations on the purchase of your new
ANTARI B-200 Bubble Machine.
Wir beglückwünschen Sie zum Kauf Ihres neuen
ANTARI B-200 Seifenblasenmachine.
♦Read and save these instructions
♦Bitte lesen Sie diese Anweisungen und bewahren Sie sie gut auf
©2006 Antari Lighting and Effects Ltd.
TeUser Manual
Antari B-200 Bubble Machine
Congratulations on the purchase of your new
ANTARI Bubble Machine
Introduction
Thank you for choosing the ANTARI B-200 Bubble Machine. You now own a rugged and powerful state- of-the-art machine. Prior to use, we suggest that you carefully read all of the instructions. By following the suggestions found in this user manual, you can look forward to the reliable and satisfactory performance of your ANTARI Bubble Machine for years to come.
Please follow these operation, safety and maintenance instructions to ensure a long and safe life for your bubble machine.
CAUTION!
Pay attention to all warning lables and instructions printed on the exterior of your Antari Bubble Machine. This appliance must be earthed.
Danger of Electric Shock
Keep this device dry.
Keep the bubble machine upright.
For inside use only. Not designed for outside use.
For the 110 V models, use 3-prong grounded electrical outlet only. Prior to use take care to determine that the unit is installed at the rated voltage.
Do not overfill your bubble machine. Overfilling will cause the unit to leak.
Do not tilt or angle the bubble machine. This may result in bubble liquid spilling out of the liquid tray.
Turn off or unplug the machine when not in use.
This machine is not water-proof or splash-proof. If moisture, water, or bubble fluid gets inside the housing, immediately unplug the unit and contact a service technician or your ANTARI dealer before using it again.
No user serviceable parts inside. Refer to your ANTARI dealer or other qualified service personnel.
This appliance must be earthed.
For adult use only. The bubble machine must be installed out of the reach of children. Never leave the unit running unattended.
Never aim the output at open flames.
Extended use may make surfaces where the bubbles land slippery.
Position output of bubbles away from persons.
Switch off from main power when refilling the liquid or cleaning the system.
Regular cleaning of the bubble wheel is required.
Install the bubble machine in a well-ventilated area. Never cover the unit’s vents. In order to guarantee adequate ventilation, allow a free air space of at least 20 cm around the sides and top of the unit.
Do not transport with liquid. If the machine gets wet, do not use it before it is completely dry.
Antari bubble liquid may leave permanent marks on clothing.
1
Danger of Explosion
Never add flammable liquids of any kind (such as oil, gas, perfume) to the bubble liquid.
Use only high-quality, water-based liquid that your dealer recommends. Other liquids may cause clogging or “spitting”.
Always make sure there is sufficient liquid in the tank. Operating this unit without liquid will cause damage to the pump.
If your ANTARI B-200 Bubble Machine fails to work properly, discontinue use immediately. Drain all liquid from the tank, pack the unit securely (preferably in the original packing material), and return it to your ANTARI dealer for service.
Always drain tank before mailing or transporting this unit.
Never drink bubble liquid. If it is ingested, call a doctor immediately. If liquid comes in contact with skin or eyes, rinse thoroughly with water.
Pay attention to all warning labels and instructions printed on the exterior of your ANTARI Bubble Machine
Unpacking & Inspection
Open the shipping carton and verify that all equipment necessary to operate the system has arrived intact. In addition to this user manual, the shipping carton should contain the following items:
1.B-200 Bubble Machine
2.Power cord and plug
3.1 Mounting bracket
4.2 pieces of tightening screws and metal screws, 5 pieces of washers, one safety ring.
If any equipment is missing contact your ANTARI dealer immediately.
Before beginning with the initial setup your Bubble Machine, make sure that there is no evident damage caused by transportation. In the event that the unit’s housing or cable is damaged, do not plug it in and do not attempt to use it until after contacting your ANTARI dealer for assistance.
Setup
Remove all packing materials from shipping box. Check that all foam and plastic padding is removed, especially in the nozzle area.
Place the bubble machine on a flat surface.
Loosen the side screws at the front of the B-200 and lift the top of the case up. This will expose the liquid tray where the bubble liquid is added. Fill the liquid to no more than 3 cm from the top of the tray.
Pour the bubble liquid into the liquid tray, DO NOT OVERFILL.
When the container is full, lower the housing and tighten the screws.
Attach the hanging bracket with the included tightening and metal screws.
Attach the M8 safety ring. This hooked safety ring can double insure the machine from falling down when installed at high positions.
The B-200 Bubble machine can now be positioned in the desired location. Be careful to keep the machine even while moving and installing otherwise liquid may spill out of the liquid tray. This is particularly important when the mounting bracket is used to suspend the B-200.
2
Once the machine is securely positioned and a final check is made to insure that no liquid has leaked, connect the power cord to the electrical supply. If there is any leakage or moisture on the machine, the cord or the remote, leave the machine unplugged until the B-200 is dry.
Washer
TTighteningScrescrew
WaWasherher
M8M8ScrewSafety eyelet
DMX DIP SW.
Dip switches
OFF
ON
SW. 1 2 3 4 5 6 7 8 9
CH.1 2 4 81632 64 128 256
Installation
Install the bubble machine in a well-ventilated area. Never cover the unit’s vents. In order to guarantee adequate ventilation, allow a free air space of at least 20 cm around the sides and top of the unit. Install the device out of the public area. Please consider that liquid may be spitted during operation around the device. The resulting slippery surface can cause accidents. Position output of bubbles away from persons. The minium distance should be 1.5 m. Only install the machine on scratch resistant and water resistant surfaces.
Please make sure that the inclination angle does not exceed 15°.
DANGER OF FIRE!
When installing the device, make sure there is no highly-inflammable
Material (decoration articles, etc.) within a minimum distance of 0.5 m.
This device is constructed for a standing installation only. If the device is to be installed overhead, the following safety instructions are binding:
DANGER TO LIFE!
Please consider the EN 60598-2-17and the respective national norms during the installation! The installation must only be carried out by an authorized dealer!
The installation of the device has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
3
