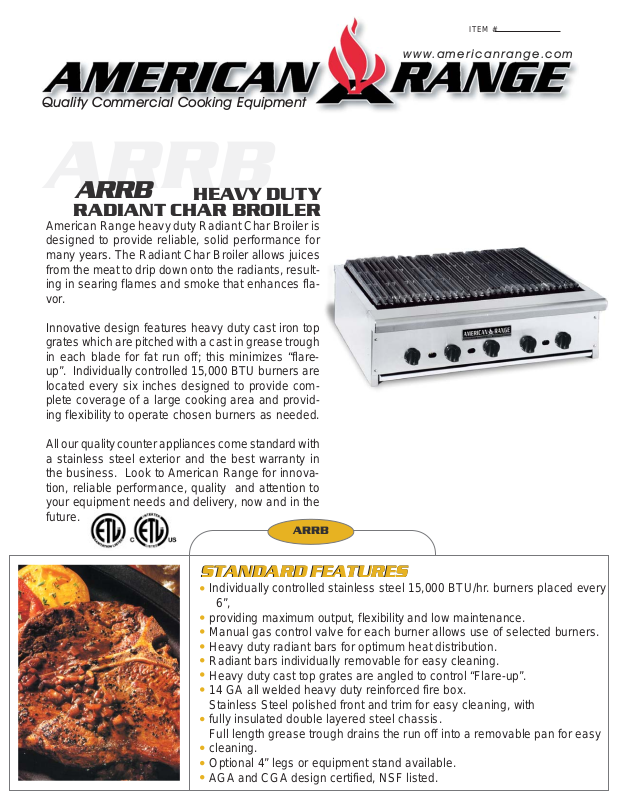

Quality Commercial Cooking Equipment
ARRB
ARRB
HEAVY DUTY
RADIANT CHAR BROILER
American Range heavy duty Radiant Char Broiler is
designed to provide reliable, solid performance for
many years. The Radiant Char Broiler allows juices
from the meat to drip down onto the radiants, resulting in searing flames and smoke that enhances flavor.
ITEM #
www.americanrange.com
Innovative design features heavy duty cast iron top
grates which are pitched with a cast in grease trough
in each blade for fat run off; this minimizes “flareup”. Individually controlled 15,000 BTU burners are
located every six inches designed to provide complete coverage of a large cooking area and providing flexibility to operate chosen burners as needed.
All our quality counter appliances come standard with
a stainless steel exterior and the best warranty in
the business. Look to American Range for innovation, reliable performance, quality and attention to
your equipment needs and delivery, now and in the
future.
ARRB
STANDARD FEATURES
STANDARD FEATURES
Individually controlled stainless steel 15,000 BTU/hr. burners placed every
6”,
providing maximum output, flexibility and low maintenance.
Manual gas control valve for each burner allows use of selected burners.
Heavy duty radiant bars for optimum heat distribution.
Radiant bars individually removable for easy cleaning.
Heavy duty cast top grates are angled to control “Flare-up”.
14 GA all welded heavy duty reinforced fire box.
Stainless Steel polished front and trim for easy cleaning, with
fully insulated double layered steel chassis.
Full length grease trough drains the run off into a removable pan for easy
cleaning.
Optional 4” legs or equipment stand available.
AGA and CGA design certified, NSF listed.
HEAVY DUTY RADIANT CHAR BROILERHEAVY DUTY RADIANT CHAR BROILER
HEAVY DUTY RADIANT CHAR BROILER
HEAVY DUTY RADIANT CHAR BROILERHEAVY DUTY RADIANT CHAR BROILER
RADIANT CHAR BROILER
ARRBARRB
ARRB
ARRBARRB
Series
MODEL BURNERS TOTAL BTU KW SHIP. WT. Lbs. WIDTH DEPTH HEIGHT
ARRB-12 12” 30” 10” 2 30,000 8.79 120
ARRB-24 24” 30” 10” 4 60,000 17.58 280
ARRB-30 30” 30” 10” 5 75,000 21.98 330
ARRB-36 36” 30” 10” 6 90,000 26.37 370
ARRB-48 48” 30” 10” 8 120,000 35.16 465
ARRB-60 60” 30” 10” 10 150,000 43.96 595
ARRB-72 72” 30” 10” 12 180,000 52.75 650
Kg.
54
127
150
168
211
270
294
STANDARD FEATURES
Individually controlled stainless Steel straight burners. 15,000 BTU/hr. spaced every 6” (152).
Optimum heat distribution with heavy duty angled radiants, removable for easy cleaning.
Angled radiants control flare-up while still imparting the char-broiled flavor.
Heavy duty cast iron top grates, 3” (76) x 22” (559) reversible, with grease runners to direct the run off to the
grease trough.
Full width grease pan, removable for easy cleaning.
14 GA. all welded Heavy Duty reinforced fire box.
AGA/CGA design Certified, NSF listed.
One year limited warranty, parts and labor.
OPTIONS
4” (102) Counter legs
GasGas
Gas: Manifold pressure is 5.0” W.C. for natural gas or 10.0” W.C. for propane gas. Specify type of gas and altitude if over 2000 feet.
GasGas
3/4”NPT Gas Inlet.
ClearancesClearances
Clearances: For use in non combustible locations only, Clearance to non combustible construction 0”.
ClearancesClearances
American RAmerican R
American R
American RAmerican R
improvements these specifications are subject to change without prior notice.
ange Corporation ange Corporation
ange Corporation is a quality manufacturer of commercial cooking equipment. Because of continuing product
