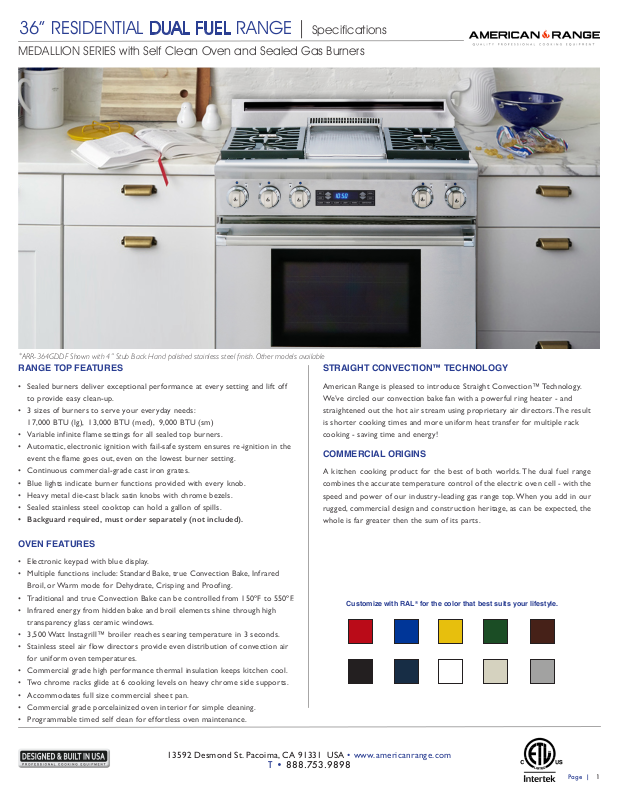

36” RESIDENTIAL DUAL FUEL RANGE | Specifications
MEDALLION SERIES with Self Clean Oven and Sealed Gas Burners
*
ARR-364GDDF Shown with 4” Stub Back Hand polished stainless steel nish. Other models available
RANGE TOP FEATURES
• Sealed burners deliver exceptional performance at every setting and lift off
to provide easy clean-up.
• 3 sizes of burners to serve your everyday needs:
17,000 BTU (lg), 13,000 BTU (med), 9,000 BTU (sm)
• Variable infinite flame settings for all sealed top burners.
• Automatic, electronic ignition with fail-safe system ensures re-ignition in the
event the flame goes out, even on the lowest burner setting.
• Continuous commercial-grade cast iron grates.
• Blue lights indicate burner functions provided with every knob.
• Heavy metal die-cast black satin knobs with chrome bezels.
• Sealed stainless steel cooktop can hold a gallon of spills.
• Backguard required, must order separately (not included).
OVEN FEATURES
• Electronic keypad with blue display.
• Multiple functions include: Standard Bake, true Convection Bake, Infrared
Broil, or Warm mode for Dehydrate, Crisping and Proofing.
• Traditional and true Convection Bake can be controlled from 150ºF to 550ºF.
• Infrared energy from hidden bake and broil elements shine through high
transparency glass ceramic windows.
• 3,500 Watt Instagrill™ broiler reaches searing temperature in 3 seconds.
• Stainless steel air flow directors provide even distribution of convection air
for uniform oven temperatures.
• Commercial grade high performance thermal insulation keeps kitchen cool.
• Two chrome racks glide at 6 cooking levels on heavy chrome side supports.
• Accommodates full size commercial sheet pan.
• Commercial grade porcelainized oven interior for simple cleaning.
• Programmable timed self clean for effortless oven maintenance.
STRAIGHT CONVECTION™ TECHNOLOGY
American Range is pleased to introduce Straight Convection™ Technology.
We’ve circled our convection bake fan with a powerful ring heater - and
straightened out the hot air stream using proprietary air directors. The result
is shorter cooking times and more uniform heat transfer for multiple rack
cooking - saving time and energy!
COMMERCIAL ORIGINS
A kitchen cooking product for the best of both worlds. The dual fuel range
combines the accurate temperature control of the electric oven cell - with the
speed and power of our industry-leading gas range top. When you add in our
rugged, commercial design and construction heritage, as can be expected, the
whole is far greater then the sum of its parts.
Customize with RAL® for the color that best suits your lifestyle.
13592 Desmond St. Pacoima, CA 91331 USA • www.americanrange.com
T • 888.753.9898
Page |
1
Page 2

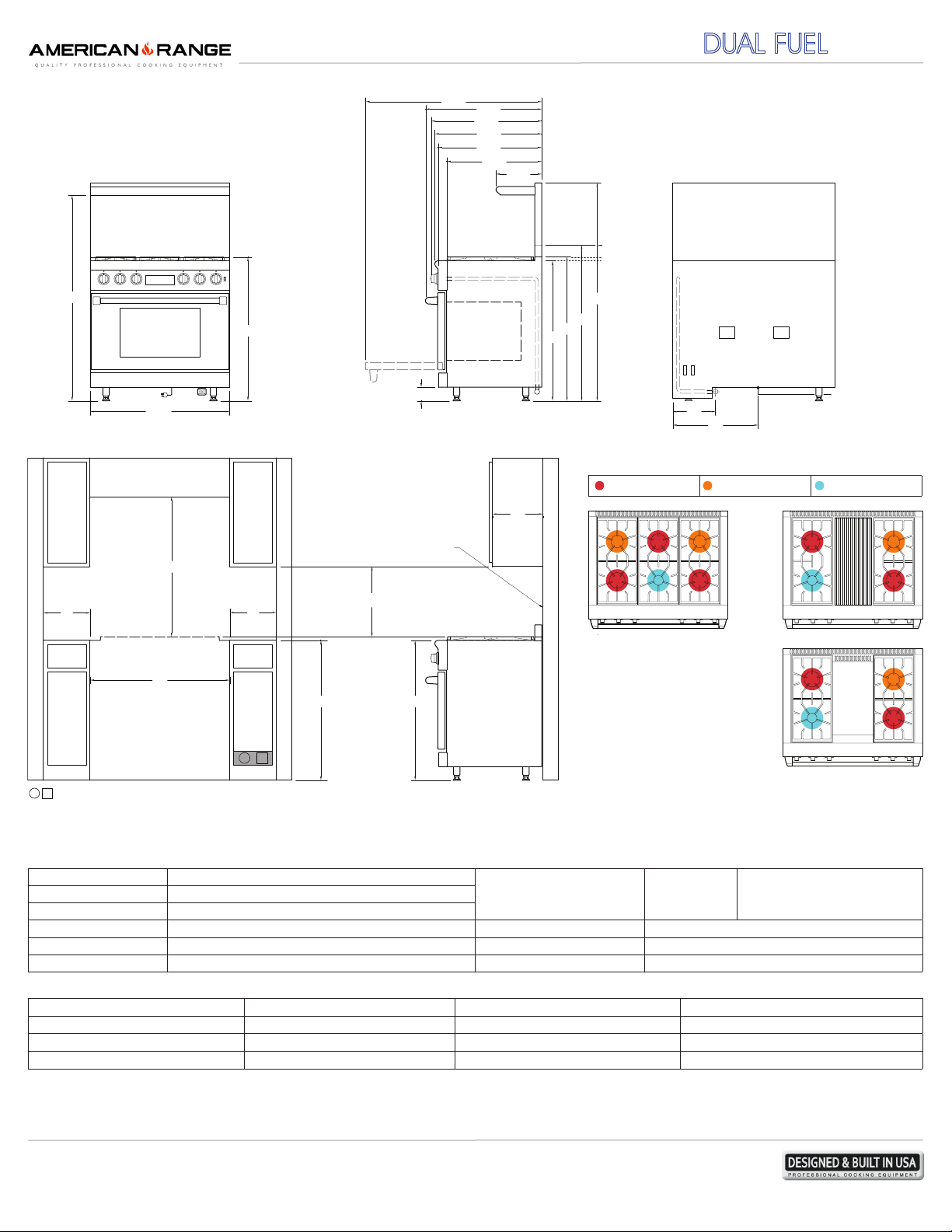

Specifications | 36” RESIDENTIAL DUAL FUEL RANGE
USE IGNITION
DEPTH TO OVEN DOOR
SCALE: NOT TO SCALE
PLATE
SHELF
55"
OVERALL WIDTH
FRONT VIEW
COMBUSTIBLE MATERIAL
30" TO VENTILLATION HOOD
36" MIN COOKING
SURFACE TO
COMBUSTIBLE
MATERIAL OR
30" to BOTTOM OF
VENTILATION HOOD
MIN COMBUSTIBLE
MATERIAL
6"
COOKING SURFACE
MEDALLION SERIES with Self Clean Oven and Sealed Gas Burners
3/8
45
"
7/8
29
"
1/2
28
"
1/2
27
"
5/8
26
"
1/2
24
"
OVERALL HEIGHT
COOKING SURFACE
37"
5.3 C.F.
3 1/2"
7/8
35
"
LEGS ALLOW +1" ADJUSTMENT
SIDE VIEW
REQUIRES 10" MINIMUM
ISLAND TRIM
DISTANCE FROM REAR
COMBUSTIBLE WALL
CABINET DEPTH
36"
MIN COMBUSTIBLE
MATERIAL
6"
18"
IN. MIN COMBUSTIBLE
TO COOKING SURFACE
DEPTH TO HANDLE
DEPTH TO KNOB
DEPTH TO BULL-NOSE
DEPTH TO CONTROL PANEL
DEPTH TO COOKTO P
DEPTH TO SHELF
3/4
11
"
40
37"
36"
13"
WITH 20" RISER
WITH 4" RISER
ISLAND TRIM
BULL-NOSE
1/16
56
"
1/16
"
ELECTRICAL
CONNECTION
WITH ATTACHED
ELECTRICAL CORD
11"
22"
GAS
INLET
REAR VIEW
BURNER CONFIGURATIONS
17,000 BTU (lg) 13,000 BTU (md) 9,000 BTU (sm)
ARR-366DF ARR-364GRDF
FINISHED OPENING WIDTH
36"
36"
36"
* ADJUSTABLE + 1”
A manual gas shut-off valve must be installed
external to the appliance, in a location accessible
G
E
E
RECOMMENDED LOCAT ION OF GAS AND ELECTRICAL SUPPLY
G
ISLAND OR PENINSULA INSTALLATIONS 10" MINIMUM CLEARANCE FROM BACK OF RANGE TO COMBUSTIBLE SURFACE. ISLAND TRIM 0 IN. CLEARANCE TO NON COMBUSTIBLE SURFACE. NO SIDE WALL ABOVE COOKING SURFACE
THIS APPLIANCE SHOULD NOT BE INSTA LLED WITH AN AIR CURTAIN OR OTHER TYPE OF VENTILATION SYSTEM THAT BLOWS AIR DOWNWARD TOWARD THE RANGE. SUCH TYPE OF VENTILATION SYSTEM MAY CA
AND COMBUSTION PROBLEMS WITH THE GAS COOKING APPLIANCE RESULTING IN PERSONAL INJURY OR UNINTENDED OPERATION.
COUNTERTOP
BULL-NOSE
from the front, for the purpose of shutting off the
gas supply. This is a vented appliance. To be used in
conjunction with a suitable vent hood only.
ARR-364GDDF
TECHNICAL SPECIFICATIONS
Overall Oven Capacity 5.3 CU. FT.
Oven Dimensions 32” W x 19” D x 15” H
Surface Burner Rating 17,000 BTU (lg) - 13,000 BTU (md) - 9,000 BTU (sm)
Total Gas Connection Rating
per model #
Infrared Broiler Element 3,500 Watts Gas Supply 7” W.C. Natural, 11” W.C. Propane
Oven Bake Burner Element 2,200 Watts Electrical Supply 240 VAC 30 AMP 60 Hz Single Phase
Convection Ring Element 2,200 Watts Shipping Weight 453 Lbs
ARR-366DF
ARR-364GDDF
ARR-364GRDF
86,000 BTU 6 burners
76,000 BTU 4 burners and griddle
74,000 BTU 4 burners and grill
ACCESSORIES & OPTIONS
1” Island back (standard) ARR36SIB-M S/S Leg Caps (2) ARR2LC-M 12” Griddle Plate ARRPGP12-M 11” Chrome Flat Griddle Plate MC11FS-M
1” Island back (welded) ARR36IB-M S/S Curb base ARR36CB-M 24” Griddle Plate ARRPGP24-M 11” CR Grooved Griddle Plate MC11GG-M
4” Stub Back ARR364SB-M 12” Griddle Cover ARRGDSCOV12S-M 24” Griddle Cover ARRGDCOV24S-M Porcelainized Broiler Pan R31005
21” High back w/ Shelf ARR3621HBS-M 12” Grill Cover ARRGRCOV12S-M 12” Cutting Board ARRCUTB12-M Wok Adapter ARR-WOK-M
MUST SHIP FROM FACTORY WITH PROPER GAS TYPE.
N=Natural gas L= LP Gas. Must provide N or L after model number for type of gas needed. Example: ARR366DF-L Must specify elevation if over 2000 ft. when ordering.
**The American Range Company continually improves its products and reserves the right to change materials, specications and dimensions without notice. This unit is manufactured for residential use only.
09042018 REV A
R70415
