American Range ARROB424N Brochure

Download
Page 1
RESIDENTIAL BROCHURE
DESIGNED AND BUILT IN THE UNITED STATES
Page 2
CONTENTS
FREESTANDING RANGES
___________________________________________________________
Cuisine Series Sealed-Burner Gas Ranges 4 - 5
Medallion Series Dual Fuel Self-Clean Ranges 8 - 9
WALL OVENS
___________________________________________________________
Legacy Series Gas or Electric Single Wall Ovens 10 - 11
Legacy Series Electric Double Wall Ovens 12
Legacy Series Gas Double Wall Ovens 13
Legacy Series Hybrid Double Wall Ovens, Gas & Electric 14
WARMING DRAWERS
___________________________________________________________
Villa Series Warming Drawer 15
COOKTOPS / RANGETOPS
___________________________________________________________
Performer Series Open Burner Slide-in Rangetops 20 - 21

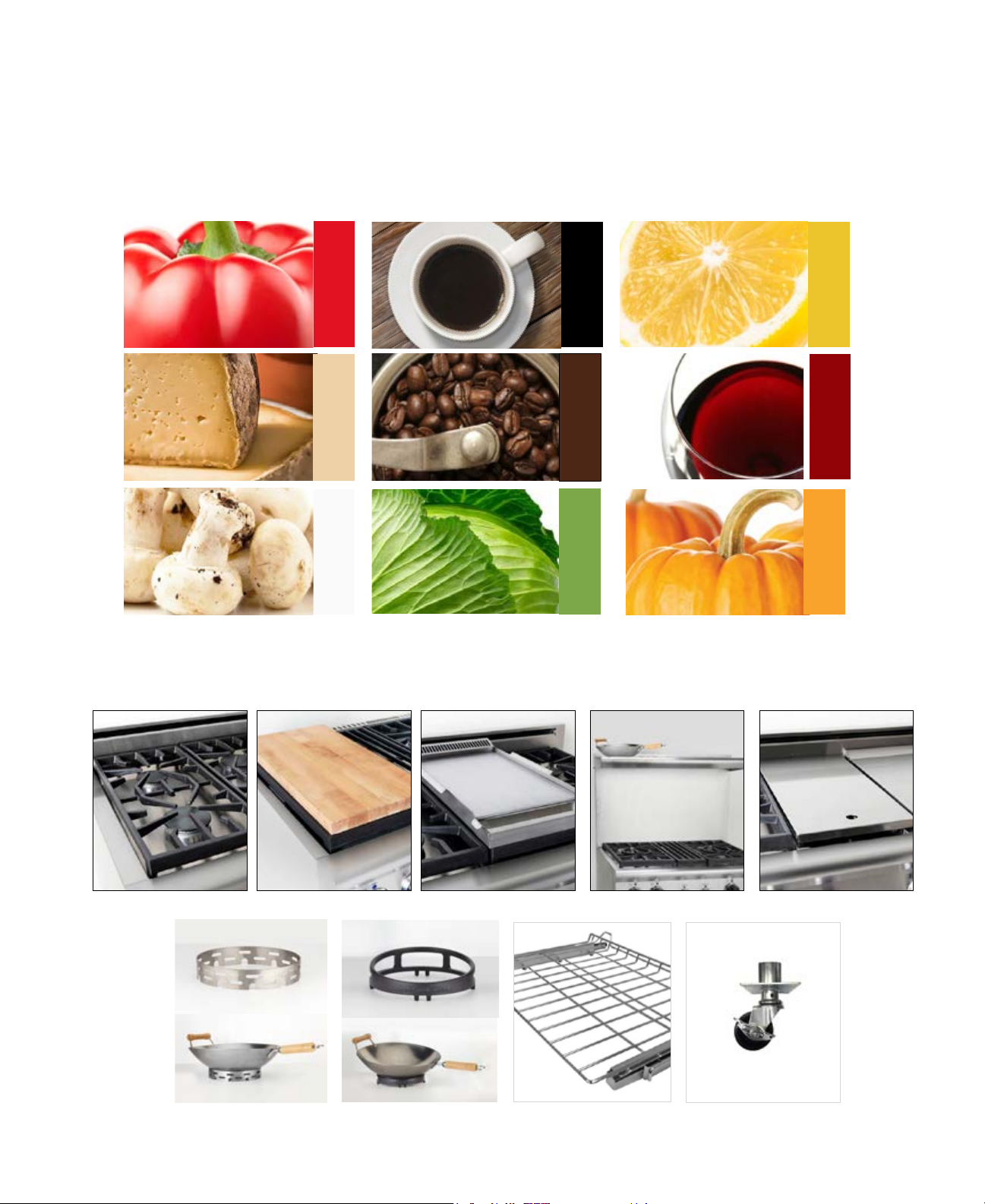

ACCESSORIES
___________________________________________________________
Accessories 23
Custom Colors 23
2
Page 3
3
Page 4
SEALED BURNER
“ It’s fun and easy to use”
4
Page 5
CUISINE
SEALED-BURNER FREESTANDING GAS RANGES
”
24
4 sealed gas burners and 24”
Innovection® oven with
infrared gas broiler.
ARR-424
”
30
5 sealed gas burners and
30” Innovection
infrared gas broiler.
®
oven with
ARR-436GDARR-636 ARR-436GR
ARR-530
”
36
4 or 6 sealed gas burners and 36” Innovection
oven with infrared gas broiler. Griddle
and grill option available.
®
”
48
4, 6 or 8 sealed gas burners, 30” Innovection
with infrared gas broiler and 18” standard oven.
Griddle and grill options available.
ARR-848 ARR-4482GR
ARR-448GDGR ARR-4482GD ARR-648GR
17,000 BTU (lg) 13,000 BTU (md) 9,000 BTU (sm)
ARR-648GD
®
oven
”
60
6 or 10 sealed gas burners and two
30” Innovection
broilers. Griddle and grill options available.
ARR-1060
Island back included and installed on all ranges, shown with optional leg caps.
®
ovens with infrared gas
ARR-660GDGR
ARR-6602GRARR-6602GD
5
Page 6

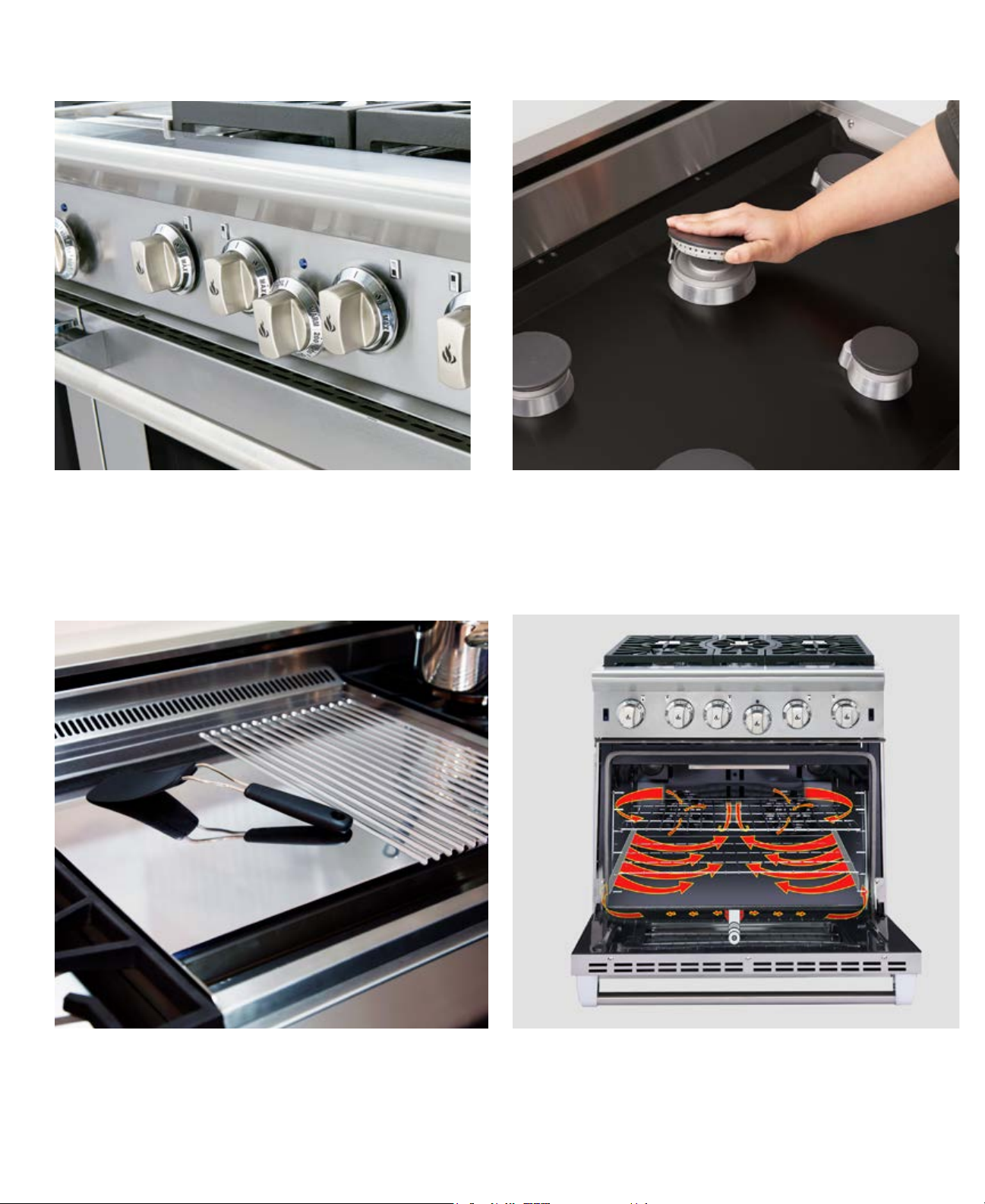

PERFORMER BURNER ADVANTAGE
WIDE HEAT BURNER
25,000 BTU SIX-STAR open burners provide a variety of temperatures from superior cooking power at high instant heat to even and consistent at an extra
low simmer setting.
6
REMOVABLE OPEN BURNER
Precision machined removable lift-off burner
heads make cleaning simple and easy
when food spillage happens.

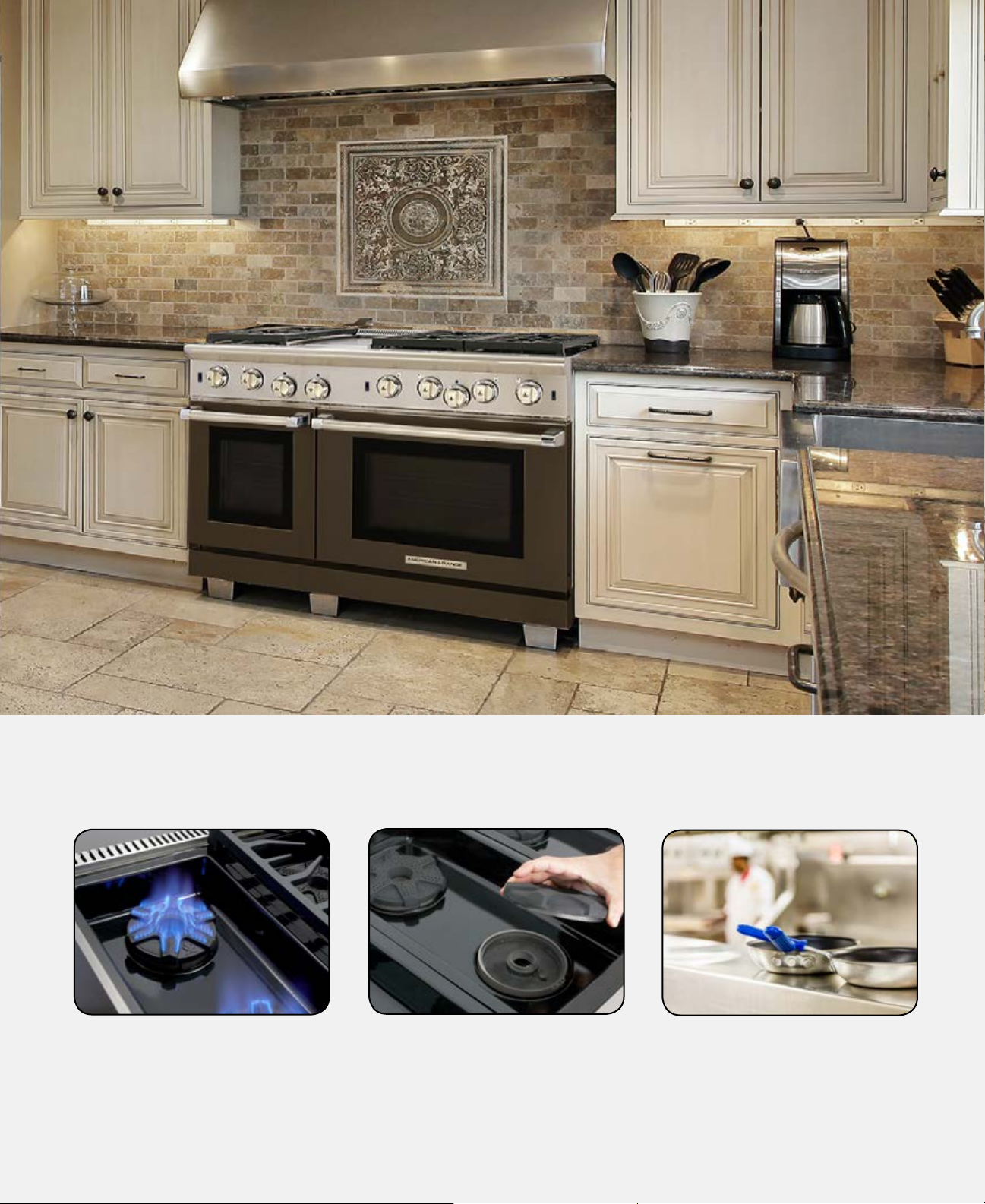

COMMERCIALLY PROVEN
Our robust SIX-STAR open burner with its high
BTU output capacity is used in our commercial
ranges and has been successfully servicing the
hospitality industry for many years.
Restaurants have come to depend on it.
7
Page 7
PERFORMER
OPEN BURNER FREESTANDING GAS RANGES
”
24
4 sealed gas burners and 24”
Innovection
®
oven with infrared
gas broiler.
ARROB-244
”
30
4 high-powered open gas burners and 30”
Innovection® oven with infrared gas broiler.
Griddle and grill options available.
ARROB-430 ARROB-436GD ARROB-436GRARROB-636
”
36
6 high-powered open gas burners and 36”
Innovection
®
oven with infrared gas broiler.
Griddle and grill options available.
”
48
4, 6 or 8 high-powered open gas burners,
30” Innovection
18” standard oven. Griddle and grill options available.
ARROB-848
ARROB-448GDGR ARROB-4482GD ARROB-648GR
25,000 BTU (lg)
®
oven with infrared gas broiler, and
ARROB-648GD ARROB-4482GR
18,000 BTU (md) 12,000 BTU (sm)
”
60
6 or 10 high-powered open gas burners and two 30”
Innovection
ARROB- 1060
ARROB-6602GD ARROB-6602GR
Island back included and installed on all ranges, shown with optional leg caps.
®
ovens with infrared gas broilers.
Griddle and grill options available.
ARROB-660GDGR
7
Page 8
SEALED BURNER
8
Page 9
MEDALLION
DUAL FUEL SELF-CLEAN RANGES
”
30
4 sealed gas burners and 30” electric self-clean, true
Innovection® oven with electric infrared broiler.
Backguard must be ordered separately.
ARR-364DF
”
48
”
36
4 or 6 sealed gas burners and 36” electric self-clean, true
Innovection® oven with electric infrared broiler. Griddle and grill
options available. Backguard must be ordered separately.
ARR-366DF
ARR-364GRDF
”
60
ARR-364GDDF
4 or 6 sealed gas burners with your choice of 11” griddle or 11” grill, 18” gas Innovection
self-clean true Innovection® oven with electric infrared broiler.
20
®
oven with gas infrared broiler, and 30” electric
Backguard must be ordered separately.
ARR-484GDGRDFARR-4842GRDFARR-486GDDF
ARR-4842GDDF
17,000 BTU (lg) 13,000 BTU (md) 9,000 BTU (sm)
ARR-486GRDF
4 or 6 sealed gas burners with 11” gas grill, 11” gas
griddle and two 30” electric self-clean true Innovection
ovens with electric infrared broiler in each oven.
Backguard must be ordered separately.
25
ARR - 6062GDDF
ARR-6062GRDF
ARR - 606GDGRDF
Shown with optional leg caps.
®
9
Page 10
LEGACY WALL OVENS
30” SINGLE ELECTRIC OVEN
SEF-30
30” single French door electric Innovection
wall oven with infrared broiler
Shown with Stainless Steel warming drawer
®
with classic handle
SEC-30
30” single Chef door electric Innovection®
wall oven with infrared broiler
10
Broiler: 3500 W - Bake: 2200 W
Page 11
30” SINGLE GAS OVEN
AROSG-30
30” single French door gas Innovection
wall oven with infrared broiler
®
Broiler 18,000 BTU - Bake: 30,000 BTU
AROSG-30
30” single Chef door gas Innovection
wall oven with infrared broiler
®
11
Page 12
30” DOUBLE ELECTRIC OVENS
DOUBLE
FRENCH DOOR
DEF-30
30” Double French door electric
Innovection® wall ovens with electric
infrared broilers.
DOUBLE
CHEF DOOR
DEC-30
30” Double Chef door electric
®
Innovection
wall ovens with electric
infrared broilers.
COMBINATION
FRENCH & CHEF DOOR
DEFC-30
30” Double, combination French and Chef
door, electric innovection
with electric infrared broilers.
®
wall ovens
Broiler: 3500 W - Bake: 2200 W
12
Page 13
30” DOUBLE GAS OVENS
DOUBLE
FRENCH DOOR
AROFFG-230
30” Double French door gas Innovection®
wall ovens with infrared broiler
and proong element.
DOUBLE
CHEF DOOR
AROSSG-230
30” Double Chef door gas Innovection
wall ovens with infrared broiler and
proong element.
COMBINATION
FRENCH & CHEF DOOR
AROFSG-230
®
30” Double, combination French and Chef door,
gas innovection
broiler and proong element.
®
wall ovens with infrared
Broiler 18,000 BTU - Bake: 30,000 BTU
13
Page 14
30” DOUBLE HYBRID OVENS
GAS & ELECTRIC
DOUBLE
FRENCH DOOR
AROFFHGE-230
30” Hybrid Double French door wall oven with
upper gas innovection® oven and broiler, and
lower electric oven with broiler.
DOUBLE
CHEF DOOR
AROSSHGE-230
30” Hybrid Double Chef door wall oven with
upper gas innovection® oven and broiler, and
lower electric oven with broiler.
COMBINATION
FRENCH & CHEF DOOR
AROFSHGE-230
30” Hybrid combination French and Chef door wall
oven with upper gas innovection® oven and broiler, and
lower electric oven with broiler.
Broiler: 3500 W - Bake: 2200 W
Broiler 18,000 BTU - Bake: 30,000 BTU
14
Page 15
VILLA WARMING DRAWERS
Create the ultimate culinary utopia with an exclusive American Range combination.
Experience the convenience and style of the powerful integrated design, outstanding performance and simple installation when you
combine our Villa Series Innovection
®
Warming Drawers with one of our Wall Ovens, or Rangtops.
”
27
ARR-27WD
Stainless steel warming drawer
with classic handle
”
30
ARR-30WD
Stainless steel warming drawer
with classic handle
”
36
ARR-36WD
Stainless steel warming drawer
with classic handle
”
27
ARR-27IRWD
Fully Integrated stainless steel warming drawer.
Shown with custom wood panel
and ARWDH-27 handle.
”
30
ARR-30IRWD
Fully Integrated stainless steel warming drawer.
Shown with custom wood panel
and ARWDH-30 handle.
”
36
ARR-36IRWD
Fully Integrated stainless steel warming drawer.
Shown with custom wood panel
and ARWDH-36 handle.
15
Page 16
BURNER DESCRIPTIONS
The “TOWER”, is a Smart Dual Stock Power Solid Brass Burner a single burner divided into two individual cham-
bers each capable of delivering two innite settings.
The ve position State of the Art Brass Valve includes innite variation within each of the settings , from a
powerful Wok Searing 19,000 BTU’s to a 1000 evenly distributed ultra-low Halo simmering ring capable of melting in the most delicate of sauces and being able to maintain a low of 125F -130F Sous-vide cooking! Each burner equipped with an electronic spark re-ignition.
16
The “PENTA”, is a Smart Dual Ring Solid Brass Burner, essentially features two individual internal burners
with ve distinctive settings .
The ve position State of the Art Brass Valve includes innite variation within each of the setting , from a
powerful 21,000 BTU’s Wok setting to a low simmering, just below the 500 BTU’s mark. Each burner equipped with an electronic spark re-ignition.
The “RING” , is a Smart Solid Brass powerhouse of its own , State of the Art Brass Valve includes
control variation with a dened high and low settings and innite variations in-between for
everyday cooking with a max 13000 BTU’s center focused heat and down to a 1500 BTU low setting. Each burner equipped with an electronic spark re-ignition.
Page 17
VITESSE
SEALED-BURNER COOKTOPS
”
30
ARDCT-305
5 sealed burners. including one 21k BTU burner
with simmer, and four 13k BTU burner.
”
36
ARDCT-366
simmer, one 18k BTU burner with simmer and four 13k BTU burners.
5 sealed burners. including one 21k BTU burner with simmer, one
6 sealed burners, one 21k BTU burner, with
”
36
ARDCT-365
18k BTU burner with simmer and three 13k BTU burners.
21,000 BTU (lg) 18,000 BTU (md) 13,000 BTU (sm)
17
Page 18
SEALED BURNER
18
Page 19
CUISINE
SEALED-BURNER RANGETOPS
”
24
4 sealed gas burners.
Backguard must be ordered separately.
ARSCT-242GD ARSCT-242GRARSCT-244
”
4, 6 or 8 sealed gas burners with griddle
and grill options available. Backguard
must be ordered separately.
48
”
30
5 sealed gas burners.
Backguards must be ordered separately.
ARSCT-305
6 sealed gas burners with griddle and grill options available.
”
4 or 6 sealed gas burners with griddle
60
Backguard must be ordered separately.
36
and grill options available.
ARSCT-364GDARSCT-366
”
ARSCT-364GR
ARSCT-848
ARSCT-4842GR
ARSCT-486GD
ARSCT-486GR
ARSCT-484GDGR
ARSCT-4842GD
17,000 BTU (lg) 13,000 BTU (md) 9,000 BTU (sm)
Island back included and installed on above ranges, Shown with optional 4” stub back..
ARSCT-606GDGR
ARSCT-6062GD
ARSCT-6062GR
19
Page 20
PERFORMER BURNER ADVANTAGE
WIDE HEAT BURNER
25,000 BTU SIX-STAR open burners provide a variety of temperatures from superior cooking power at high instant heat to even and consistent at an extra
low simmer setting.
20
REMOVABLE OPEN BURNER
Precision machined removable lift-off burner
heads make cleaning simple and easy
when food spillage happens.
COMMERCIALLY PROVEN
Our robust SIX-STAR open burner with its high
BTU output capacity is used in our commercial
ranges and has been successfully servicing the
hospitality industry for many years.
Restaurants have come to depend on it.
Page 21
PERFORMER
OPEN-BURNER RANGETOPS
”
24
4 open gas burners. Island
back included and installed.
AROBSCT-424
”
4, 6 or 8 open gas burners with griddle and grill options
Available. Island back included and installed.
48
”
30
4 open gas burners.
Island back included and installed.
AROBSCT-430
”
4 or 6 open gas burners with griddle and grill options
available. Island back included and installed.
AROBSCT-636 AROBSCT-436GRAROBSCT-436GD
60
6 open gas burners with griddle and
grill options available.
36
”
AROBSCT-848
AROBSCT-448GDGR
AROBSCT-648GD
AROBSCT-4482GD AROBSCT-648GR
Island back included and installed on above ranges, Shown with optional 4” stub back..
AROBSCT-4482GR
25,000 BTU (lg) 18,000 BTU (md) 12,000 BTU (sm)
AROBSCT-660GDGR
AROBSCT-6602GD
AROBSCT-6602GR
21
Page 22
FREESTANDING GAS RANGE FEATURES AND OPTIONS
HEAVY DUTY KNOBS
Solid die-cast, heavy duty, satin nish knobs, set in a chrome plated bezel with
indicator for each burner.
LIFT-OFF BURNERS
Spills happen. Our porcelain sealed cooktop will contain more than a gallon of liquid spills. Burner caps and rings lift-off for easy cleaning and are dishwasher safe.
MIRROR CHROME GRIDDLES (UPGRADE OPTION)
Our mirror chrome griddle nish is a shining example of our commitment to cooking innovation. Four models to choose from – at, half-at-half-grooved with avor
separator, and all-grooved, to help the discerning chef prepare dishes with a
restaurant-style look and avor in the comfort of your own kitchen.
22 7
INNOVECTION® OVEN TECHNOLOGY
Innovection A balanced turbulent heat distribution when baking, roasting and dehydrating food, reduces cooking time, gas usage, and delivers superior product.
®
convection, with it’s turbo fan system, optimizes uniform airow.
Page 23
THE CUSTOM COLORS OF AMERICAN RANGE
We offer many colors and custom options to choose from.
Product customization, other than colors, is typically a matter of changing burners, or griddle/grill positions on
the top of a range. We do all we can to accommodate your every need.
RED
CREME
WHITE
BLACK
BROWN
GREEN
YELLOW
BURGUNDY
ORANGE
4” Stub Back
12” Cutting Board
Wok ring - Stainless Steel.
Wok Not Included
ACCESSORIES
Removable Griddle
Wok Ring - Cast Iron,
Wok Not Included
High Shelf
30” & 36” Slide-in glide rack
Grill & Griddle Cover
Casters are available with
customization, please specify
with brakes or without
We reserve the right for ongoing improvements to make changes to specications without prior notice.
23
Page 24
DESIGNED AND BUILT IN THE UNITED STATES
Our Commercial Line of cooking equipment
R70120 06092016
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898
www.americanrange.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
