Page 1
60” RESIDENTIAL DUAL FUEL RANGE | Specifications
MEDALLION SERIES with Self Clean Oven and Sealed Gas Burners
*

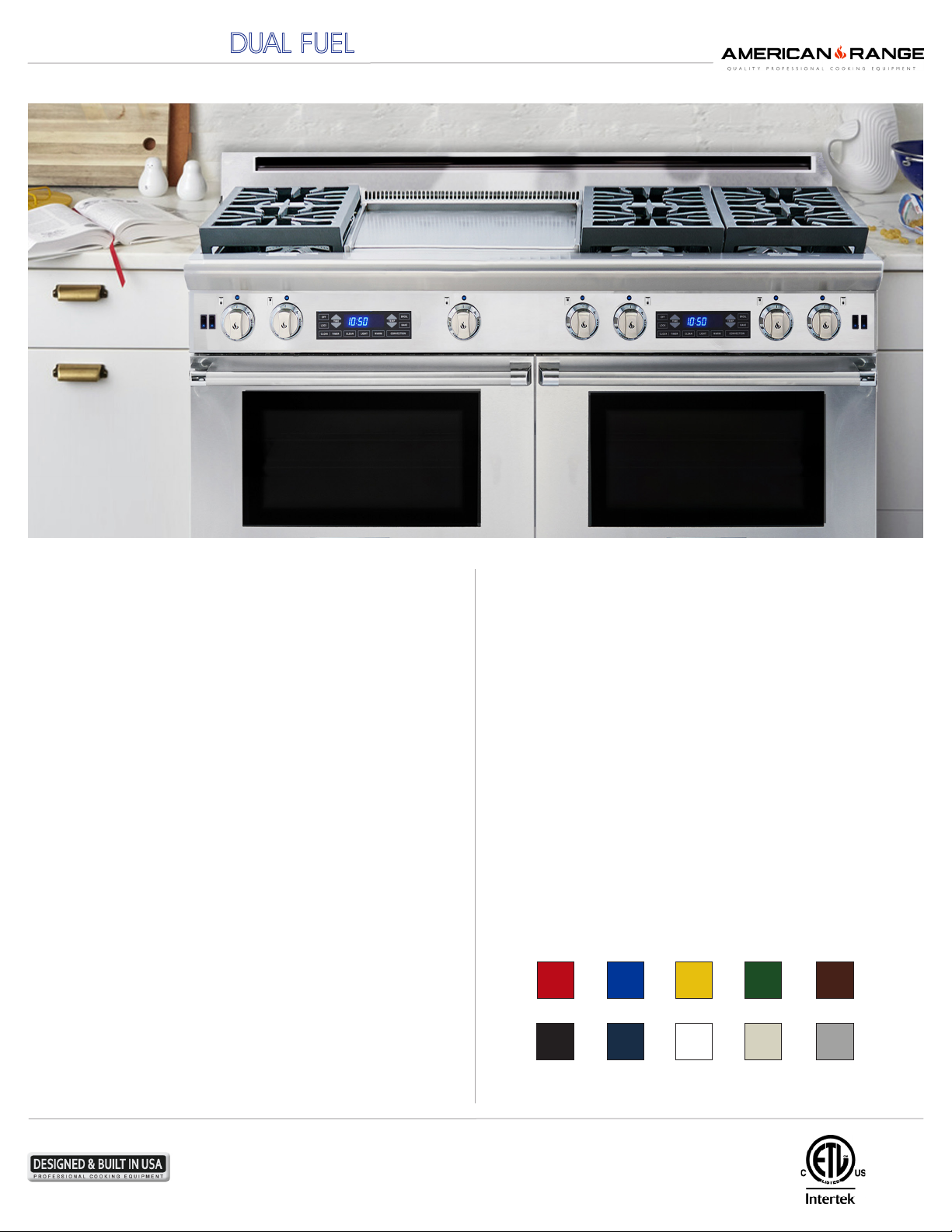

ARR-6062GDDF Shown with 4” Stub Back Hand polished stainless steel nish. Other models available
RANGE TOP FEATURES
• Sealed burners deliver exceptional performance at every setting and lift off
to provide easy clean-up.
• 3 sizes of burners to serve your everyday needs:
17,000 BTU (lg), 13,000 BTU (med), 9,000 BTU (sm)
• Variable infinite flame settings for all sealed top burners.
• Automatic, electronic ignition with fail-safe system ensures re-ignition in the
event the flame goes out, even on the lowest burner setting.
• Continuous commercial-grade cast iron grates.
• Blue lights indicate burner functions provided with every knob.
• Heavy metal die-cast black satin knobs with chrome bezels.
• Sealed stainless steel cooktop can hold a gallon of spills
• Backguard required, must order separately (not included).
OVEN FEATURES
• Electronic keypad with blue display.
• Multiple functions include: Standard Bake, true Convection Bake, Infrared
Broil, or Warm mode for Dehydrate, Crisping and Proofing.
• Traditional and true Convection Bake can be controlled from 150ºF to 550ºF.
• Infrared energy from hidden bake and broil elements shine through high
transparency glass ceramic windows.
• 3,500 Watt Instagrill™ broiler reaches searing temperature in 3 seconds.
• Stainless steel air flow directors provide even distribution of convection air
for uniform oven temperatures.
• Commercial grade high performance thermal insulation keeps kitchen cool.
• Two chrome racks glide at 6 cooking levels on heavy chrome side supports.
• Commercial grade porcelainized oven interior for simple cleaning.
• Programmable timed self clean for effortless oven maintenance.
STRAIGHT CONVECTION™ TECHNOLOGY
American Range is pleased to introduce Straight Convection™ Technology.
Borrowing from the aerospace industry, we’ve circled our convection bake fan
with a powerful ring heater - and straightened out the hot air stream using
proprietary air directors. The result is shorter cooking times and more uniform
heat transfer for multiple rack cooking - saving time and energy!
COMMERCIAL ORIGINS
A kitchen cooking product for the best of both worlds. The dual fuel range
combines the accurate temperature control of the electric oven cell - with the
speed and power of our industry-leading gas range top. When you add in our
rugged, commercial design and construction heritage, as can be expected, the
whole is far greater then the sum of its parts.
Customize with RAL® for the color that best suits your lifestyle.
13592 Desmond St. Pacoima, CA 91331 USA • www.americanrange.com
T • 888.753.9898
Page |
1
Page 2

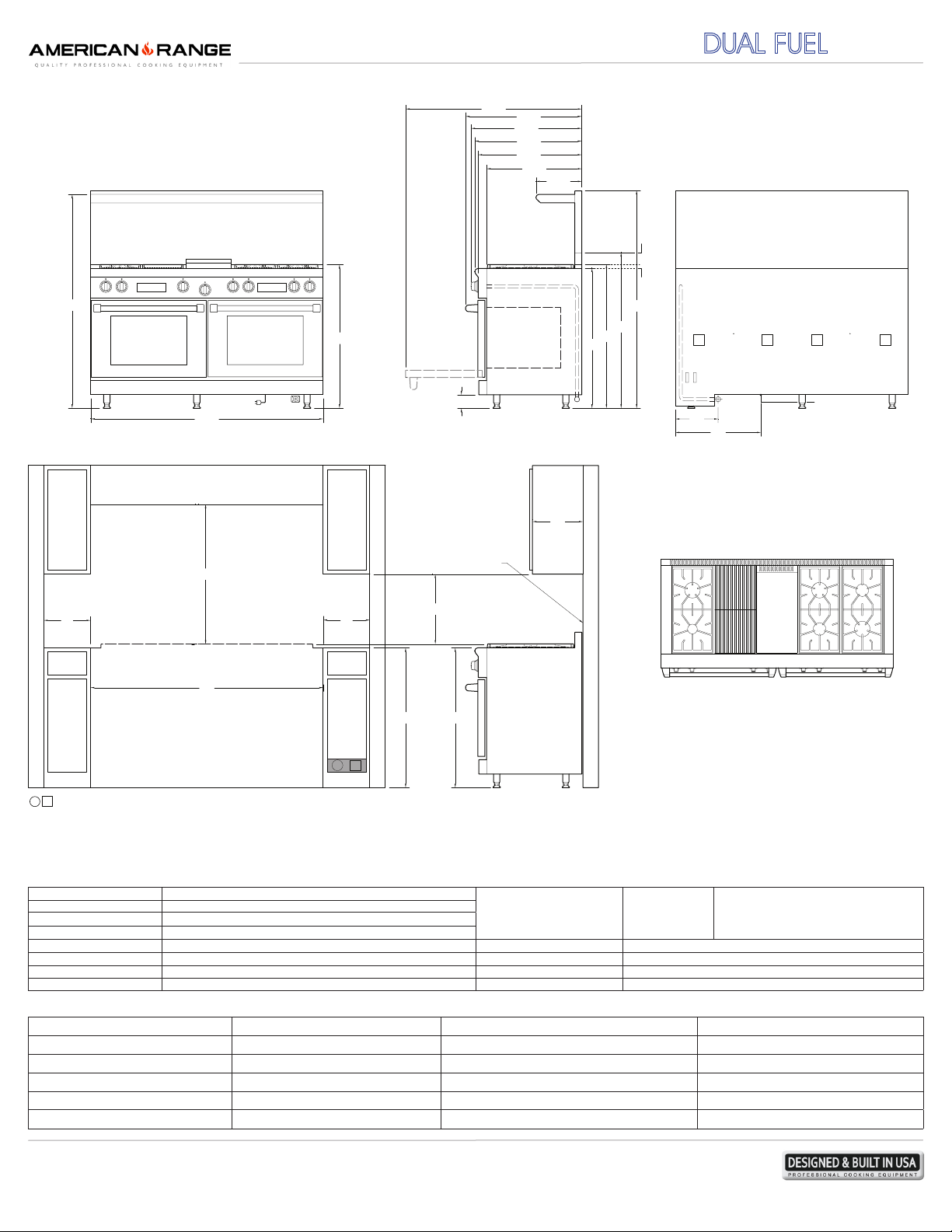

Specifications | 60” RESIDENTIAL DUAL FUEL RANGE
DEPTH TO OVEN DOOR
COUNTER
RECOMMENDED LOC
ISLAND OR PENINSULA INSTALLATIONS 10" MINIMUM CLEARANCE FROM BACK OF RANGE TO COMBUSTIBLE SURFAC E. ISLAND TRIM 0 IN. CLEARANCE TO NON COMBUSTIBLE SURFACE. NO SIDE WALL ABOVE COOKING SURFACE
SCALE: NOT TO SCALE
PLATE
SHELF
55"
36" MIN COOKING
SURFACE TO
COMBUSTIBLE
MATERIAL OR
30" to BOTTOM OF
VENTILATION HOOD
MIN COMBUSTIBLE
MATERIAL
6"
7/8
59
"
OVERALL WIDTH
FRONT VIEW
COMBUSTIBLE MATERIAL
30" TO VENTILLATION HOOD
36"
OVERALL
HEIGHT
COOKING
SURFACE
37"
MIN COMBUSTIBLE
MATERIAL
6"
MEDALLION SERIES with Self Clean Oven and Sealed Gas Burners
3/8
45
1/2
3
"
LEGS ALLOW +1" ADJUSTMENT
SIDE VIEW
REQUIRES 10" MINIMUM
ISLAND TRIM
DISTANCE FROM REAR
COMBUSTIBLE WALL
IN. MIN COMBUSTIBLE
18"
TO COOKING SURFACE
"
29
28
27
26
24
2 x 4.4 C.F.
7/8
"
1/2
"
1/2
"
5/8
"
1/2
"
CABINET DEPTH
DEPTH TO HANDLE
DEPTH TO KNOB
DEPTH TO BULL-NOSE
DEPTH TO CONTROL PANEL
DEPTH TO COOKTOP
DEPTH TO SHELF
3/4
11
"
1/16
40
37"
36"
13"
56
WITH
20"
RISER
WITH 4"
RISER
ISLAND
TRIM
BULLNOSE
1/16
"
"
11"
22"
GAS
INLET
ELECTRICAL
CONNECTION
WITH ATTACHED
ELECTRICAL CORD
REAR VIEW
COOKING SURFACE
60"
FINISHED OPENING WIDTH
EG
E
G
ATION OF GAS AND ELECTRICAL SUPPLY
36"
36"
TOP
BULL-NOSE
ARR-606GDGRDF
ARR-484GDGRDF
TOP VIEW
* ADJUSTABLE + 1”
A manual gas shut-off valve must be installed external to the appliance, in a location accessible from the front, for the purpose of shutting off the gas supply. This is a vented appliance. To be used in conjunction
with a suitable vent hood only.
TECHNICAL SPECIFICATIONS
Overall Oven Capacity 4.4 CU. FT. (each oven)
Oven Dimensions 26” W x 19” D x 15” H (each oven)
Surface Burner Rating 17,000 BTU (lg) - 13,000 BTU (md) - 9,000 BTU (sm)
Total Gas Connection Rating
per model #
Griddle Burner Rating 20,000 BTU - every 11” section
Grill Burner Rating 18,000 BTU - every 11” section Gas Supply 7” W.C. Natural, 11” W.C. Propane
Infrared Broiler Element 3,500 Watts Electrical Supply 240 VAC 60 AMP 60 Hz Single Phase
Oven Bake Burner Element 2,200 Watts Shipping Weight 800 Lbs
Convection Ring Element 2,200 Watts
ARR-6062GDDF
ARR-606X2GRDF
ARR-606GDGRDF
126,000 BTU 6 burners & double griddle
122,000 BTU 6 burners & double grill
124,000 BTU 6 burners, griddle & grill
ACCESSORIES AND OPTIONS
1” Island back (standard) ARR60SIB-M 12” Griddle Cover ARRGDSCOV12S-M 12” Cutting Board ARRCUTB12-M 22” CR Griddle w/ Separator MC22-SP-M
1” Island back (welded) ARR60IB-M 12” Grill Cover ARRGRCOV12S-M 11” Chrome Flat Griddle Plate MC11FS-M Wok Adapter ARRWOK-M
4” Stub Back ARR604SB-M 12” Griddle Plate ARRPGP12-M 11” Chrome Grooved Griddle Plate MC11-GG-M Extra Oven rack 30” R31007
21” High back w/ Shelf ARR6021HBS-M 24” Griddle Plate ARRPGP24-M 22” Chrome Flat Griddle Plate MC22FSM Porcelainized Broiler Pan R31005
Stainless Steel Leg Caps (3) ARR3LC-M 24” Griddle Cover ARRGDCOV24S-M 22” Chrome L- Flat R - Grooved Griddle MCHGM
S/S Curb base ARR60CB-M 24” Grill Cover ARRGRCOV24-M 22” CR Grooved Griddle Plate MC22-GG-M
13592 Desmond St. Pacoima, CA 91331 USA • www.americanrange.com
T • 888.753.9898
2
| Page
Page 3
60” RESIDENTIAL DUAL FUEL RANGE | Specifications
MEDALLION SERIES with Self Clean Oven and Sealed Gas Burners

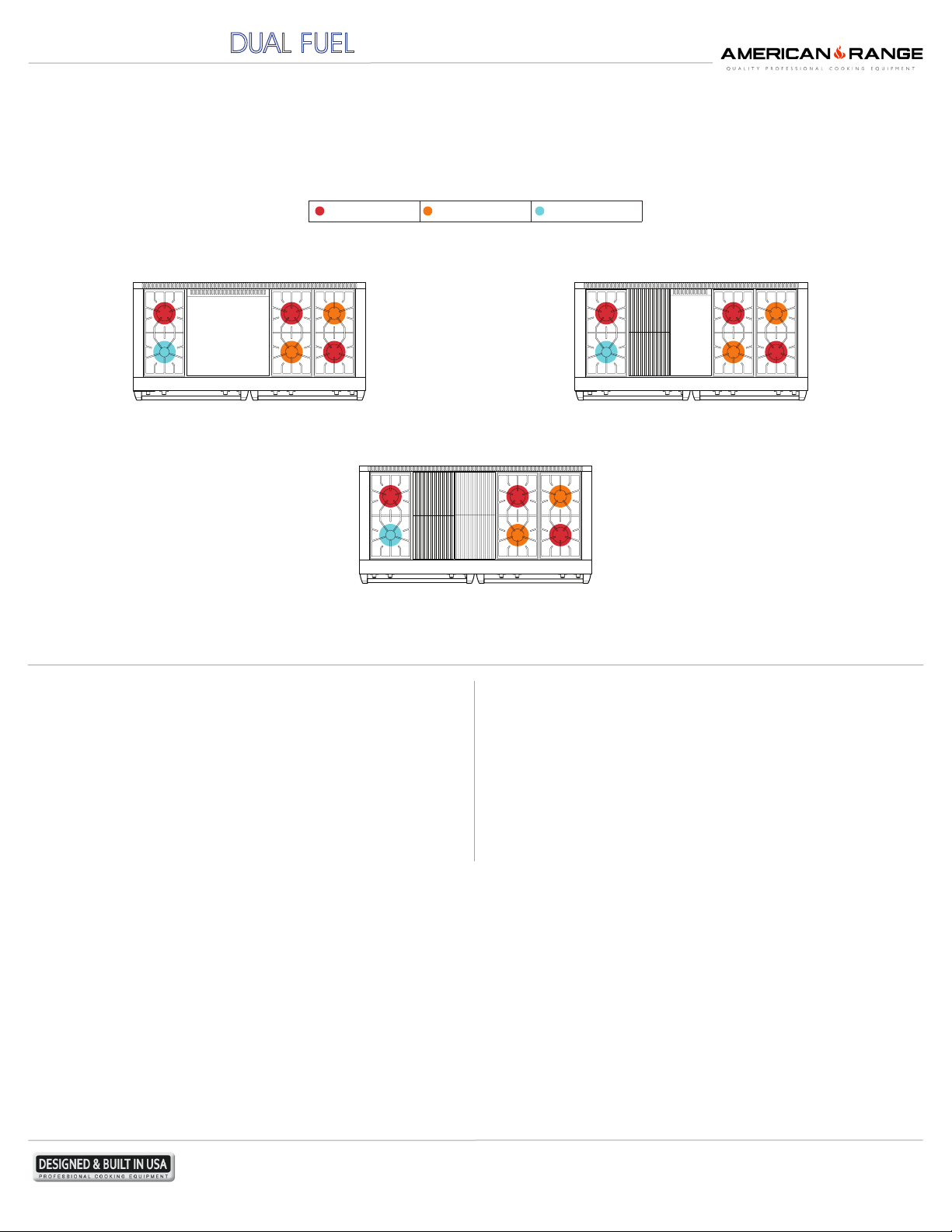

BURNER CONFIGURATIONS
17,000 BTU (lg) 13,000 BTU (md) 9,000 BTU (sm)
ARR-6062GDDF ARR-606GDGRDF
SCALE: NOT TO SCALE
MUST SHIP FROM FACTORY WITH PROPER GAS TYPE
N=Natural gas L= LP Gas.
Must provide N or L after model number for type of gas needed.
Example: ARR-6062GDDF-L .
Must specify elevation if over 2000 ft. when ordering.
ARR-606X2GRDF
This appliance should not be installed with an air curtain or other type of
ventilation system that blows air downward toward the range. Such type of
ventilation system may cause ignition and combustion problems with the gas
cooking appliance resulting in personal injury or unintended operation.
13592 Desmond St. Pacoima, CA 91331 USA • www.americanrange.com
T • 888.753.9898
09042018 REV A
R70417
Page |
3
