ITEM #
PART #
REF PART#
DESCRIPTION
LIST PRICE
1 A17001 10451 3 FINGER TOP GRATE $50.00

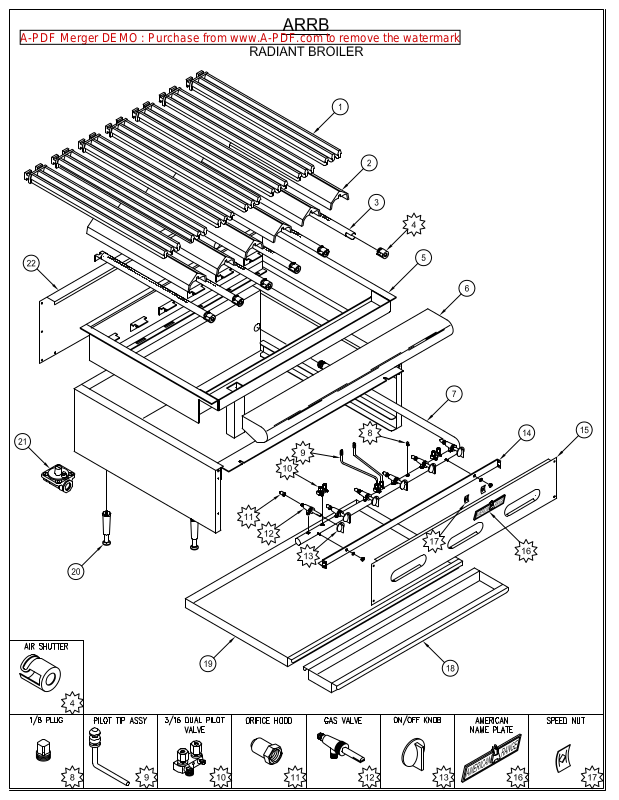

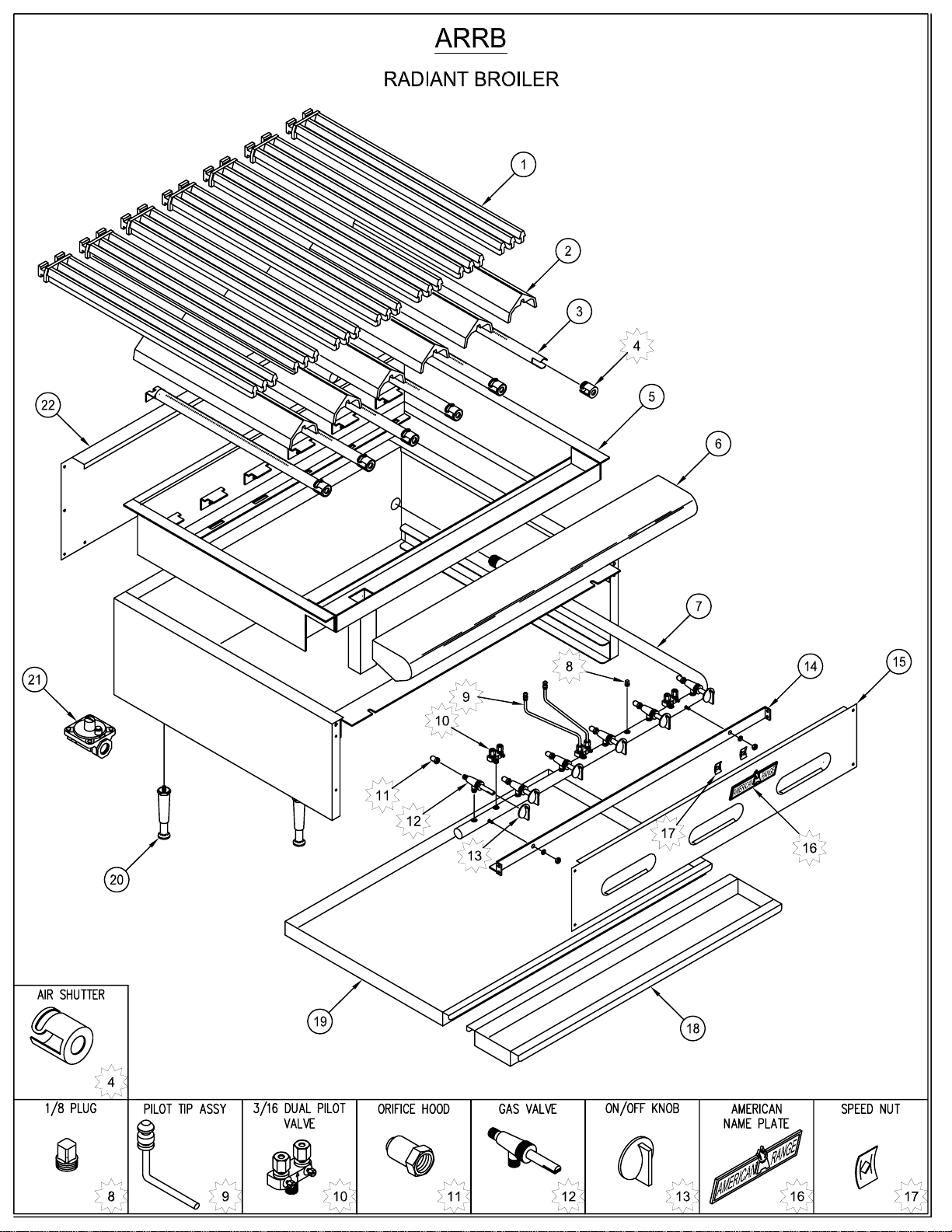

ARRB Parts Breakdown
2 A17004 10452 CAST IRON RADIANT $70.00
3 A14011 10468 RADIANT BROILER BURNER $62.00
4 A14036 10467 AIR SHUTTER $4.50
5 A80158 3030-24 24" FIRE BOX ASSY $288.77
A80159 3030-36 36" FIRE BOX ASSY $358.31
A80160 3030-48 48" FIRE BOX ASSY $410.59
A80161 3030-60 60" FIRE BOX ASSY $494.44
A80162 3030-72 72" FIRE BOX ASSY $521.48
6 A80163 3031-24 24" LANDING LEDGE ASSY $206.46
A80164 3031-36 36" LANDING LEDGE ASSY $264.60
A80165 3031-48 48" LANDING LEDGE ASSY $310.03
A80166 3031-60 60" LANDING LEDGE ASSY $354.45
A80167 3031-72 72" LANDING LEDGE ASSY $398.87
7 A80168 3014-24 24" MANIFOLD PIPE $90.00
A80169 3014-36 36" MANIFOLD PIPE $95.00
A80170 2014-48 48" MANIFOLD PIPE $123.21
A80171 3014-60 60" MANIFOLD PIPE $131.35
A80172 3014-72 72" MANIFOLD PIPE $154.51
8 A23010 10013 1/8" PLUG $2.50
9 A29203 10242 PILOT TOP ASSY $16.00
10 A29301 10432 3/16" DUAL PILOT AVLE $14.00
11 A29004 11050 ORIFICE HOOD #50 - NAT $2.00
A29008 11057 ORIFICE HOOD # 57 - LPG $2.00
12 A80109 10419 GAS VALVE $19.00
13 A32111 10420 CHROME ON/OFF KNOB $7.50
14 A80173 3013-24 24" MANIFOLD SUPPORT ANGLE $53.65
A80174 3013-36 36" MANIFOLD SUPPORT ANGLE $71.46
A80175 3013-48 48" MANIFOLD SUPPORT ANGLE $90.00
A80176 3013-60 60" MANIFOLD SUPPORT ANGLE $96.57
A80177 3013-72 72" MANIFOLD SUPPORT ANGLE $104.30
15 A80178 3015-24 24" VALVE COVER $166.50
A80179 3015-36 36" VALVE COVER $199.80
A80180 3015-48 48" VALVE COVER $233.10
A80181 3015-60 60" VALVE COVER $266.40
A80182 3015-72 72" VALVE COVER $299.70
16 A38000 10499 AMERICAN RANGE NAME PLATE $13.00
17 A44003 10601 SPEED NUT $0.50
18 A99646 3017-24 24" GREASE CAN $148.72
A99647 3017-36 36" GREASE CAN $154.51
A99648 3017-48 48" GREASE CAN $173.16
19 A99653 3018-24 24" CRUMB CAN $140.06
A99654 3018-36 36" CRUMB CAN $231.77
A99655 3018-48 48" CRUMB CAN $270.40
20 A35011 10437 4" LEG $35.00
Page 3
21 A80110 10480 REGULATOR (NAT) $32.00
A80011 10481 REGULATOR (LPG) $32.00
22 A80183 3011-24 24" BACK PANEL $77.26
A80184 3011-36 36" BACK PANEL $115.88
A80185 3011-48 48" BACK PANEL $153.18
A80186 3011-60 60" BACK PANEL $193.14
A80187 3011-72 72" BACK PANEL $231.77
