MRX-35
Electronic Calculating Time Recorder
Setup and Operations Manual
Proprietary Notice
This document contains proprietary information and such information
may not be reproduced in whole or part without the written permission
from Amano Cincinnati, Inc. 140 Harrison Ave., Roseland, New Jersey
07068.
Amano Cincinnati, Inc. reserves the right to make equipment changes
and improvements, which may not be reflected in this document.
Portions of this document may have been updated to include the latest
hardware or firmware version, if applicable.
To ensure safe use of this time recorder/stamp, be sure to thoroughly
read this manual in its entirety before any attempt is made to operate the
equipment. After you have finished reading this manual, be sure to store
it in a safe place for future reference.
Thank You….
For purchasing another fine product from Amano Cincinnati, Inc.
For Safe and proper operation, please carefully read the
manual before using the time clock and save it for
reference.
Warranty Notice
Any claim for warranty, express or implied, due to the clocks failure to
properly receive the radio signal because of interference, whatever may
be the source of this interference, are hereby expressly excluded.
Note: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Table of Contents
GUIDELINES FOR SAFE OPERATION….. .................... 1-1
Chapter 1: Overview ....................................................... 1-3
Operation Summary ................................................................ 1-3
External View .......................................................................... 1-5
Button Functions ..................................................................... 1-5
The LCD Display ..................................................................... 1-6
Normal Operation .............................................................. 1-7
Programming Mode ........................................................... 1-7
Other Components .................................................................. 1-8
Chapter 2: Getting Started ............................................. 2-1
Placement/Location ................................................................. 2-1
Desktop Installation ........................................................... 2-1
Wall Mounting ................................................................... 2-2
Power Connection ................................................................... 2-4
The Time Card ........................................................................ 2-5
How to Insert a Time Card ...................................................... 2-7
Chapter 3: Programming ................................................ 3-1
Introduction ............................................................................. 3-1
Programming Tips ................................................................... 3-1
Basic Programming ................................................................. 3-2
Time Settings .................................................................... 3-2
Date Settings..................................................................... 3-2
Pay Period Type and End Day .......................................... 3-3
Daylight Saving Time ........................................................ 3-5
Day Change Time ............................................................. 3-7
Day Change Override ....................................................... 3-8
Time Rounding ................................................................ 3-10
Automatic Break .............................................................. 3-12
Daily and Weekly Overtime ............................................. 3-15
Imprint and Display Mode ............................................... 3-18
Date Print Mode .............................................................. 3-19
Fixed Break ..................................................................... 3-20
Overtime Type ................................................................. 3-21
Card Data Clear .............................................................. 3-22
Data Initialization ............................................................. 3-23
Advanced Programming ........................................................ 3-26
Exception Zones ............................................................. 3-26
MRX-35 i
Revision Zones ............................................................... 3-35
Chapter 4: Maintenance and Troubleshooting ............. 4-1
Cleaning (Exterior) .................................................................. 4-1
Top Cover Removal ................................................................ 4-1
Ribbon Replacement ............................................................... 4-2
Fuse Replacement .................................................................. 4-4
Troubleshooting ...................................................................... 4-5
Error Codes ............................................................................. 4-6
Parameter Error Codes ........................................................... 4-7
Replacement Parts and Accessories ...................................... 4-8
Default Programming Values .................................................. 4-9
Basic Programming ........................................................... 4-9
Advanced Programming .................................................. 4-10
Chapter 5: Specifications ............................................... 5-1
ii MRX-35
GUIDELINES FOR SAFE OPERATION…..
To ensure safe operation, please carefully read the following warnings and
cautions prior to using the MRX-35 Electronic time recorder.
Warning
！
Do not disassembl e the unit. Ther e is a high vol tage pres ent inside,
possibly leading to an
Do not modify the unit. Modifications may cause a fire and/or electric
shock.
If any anomaly occurs, for example, heat or smoke is generated or an
odor is emitted, unplug the unit immediately an d contact your dealer
for servicing. There is a danger that further use may cause a fire or
electric shock.
Do not use any voltage of the power source other than designated.
Do not share a single outlet with another plug. These may lead to fire
or shock hazards.
Do not damage, break, or modify the power cord. Do not put a
heavy object on, pull, or
damage the cord, possibly resulting in a fire or electric shock.
If foreign matter should get in the unit (including a piece of metal,
water, or liquid), disconnect the plug from the outlet immediately and
contact your dealer for servicing. There is a danger that further use
may cause a fire or electric shock.
Do not plug or unplug the unit with a wet hand. You may get an
electric shock.
electric shock.
forcefully bend the cord, either. These may
Caution
！
Do not place the unit on an uneven or tilted surface. This may result
in injuries due to the unit dropping or falling off.
Do not put a water-filled container or a metal object on top of the unit.
If water is spilled or the metallic object slips inside, a fire or shock
hazard may occur.
Do not install the unit in a humid or dusty environment. It may cause
a fire or electric shock.
MRX-35 1-1
Do not place the unit near kitchen counter or humidifier. Oil, smoke,
or steam generating from them may cause fire or shock hazards.
Do not yank the power cord to disconnect from the outlet. Hold the
plug with your hand t o do so, or the cord may be damaged, possibly
leading to a fire or electric shock.
Remove the line cord plug from the outlet before transferring the unit,
or it may damage the cord, possibly leading to a fire or electric shock.
Be careful not to contact the print head, as you may get hurt or
burned.
Make sure to insert the power plug as far as it will go. Improper
insertion of the plu g ma y
develop fire or shock hazards.
Do not insert or drop any other time card than specified into the slot.
Such misuse may cause a fire or electric shock.
If the unit should be dropped or the case is broken, unplug the unit
and contact your dealer for servic i n g. Further use may lead to a fire or
shock hazard.
Relation to the Health and the Environment
The plastic currently used for the outer enclosure of this apparatus does not
contain the halogen substance.
1-2 MRX-35
Chapter 1: Overview
Operation Summary
The MRX-35 is an advanced electronic time recorder that calculates
daily and weekly employee hours based on user-defined options and
operating parameters.
The MRX-35 allows you to define the following parameters and userdefined options:
• Rounding
• Daily and Weekly Overtime
• Pay Period Selection
• Day Change Options
• Overtime Options
• Hour, Minute, and Date Imprint Formats
• Fixed Break Deduction
• Automatic Break Deductions
• Revision Zones
• Exception Zones
Both the operating and user-defined parameters in the MRX-35 are
configured using programming cards. A set of (3) Basic Programming
cards and (3) Advanced Programming cards are included with the MRX-
35.
MRX-35 1-3
User enrollments (ID numbers) are not required for the MRX-35. Hours
are stored for each user in the MRX-35 under a special user number that
is encoded on both sides of the time card. This information is stored in
the MRX-35 for two pay periods and then it is automatically deleted. This
information can also be manually deleted by using one of the
programming cards supplied with the MRX-35. When the programmed
pay period has ended, a new time card must be issued. When a new
time card is issued, the MRX-35 stores the data for the card under a new
user number, therefore eliminating the need for enrollments.
When all parameters are configured in the MRX-35, it is ready for use.
Employees simply punch IN and OUT. These punches will appear on the
time card in their corresponding columns.
The number of hours that appear in the DAILY NET, REG, OT1, and
OT2 columns are dependent on the options programmed. Hours that
appear in the DAILY NET column are the daily totals for a given day,
which may include Rounding, Breaks, or Revision Zones (if
programmed).
Hours that appear in the REG, OT1, and OT2 columns are accumulated
totals that will be calculated for each day that there is a pair of punches.
1-4 MRX-35
External View
Button Functions
In the normal mode, all buttons are disabled. In the programming mode,
the buttons have the following functions:
Button No. Function Description of Function
c
d
e
f
g
h
Not Shown
MRX-35 1-5
Not Used
Select Item
Select Item
Select Item
Select Item
Next/End
Illuminated
LED
Increase (or decrease) the value (or number)
Increase (or decrease) the value (or number)
Increase (or decrease) the value (or number)
Increase (or decrease) the value (or number)
Enters data into memory and advances to the
next step or ejects the card when there are
no more selections on the programming card.
When a specific code number has to be
entered in programming mode, an illuminated
LED underneath a button displays the current
setting.
The LCD Display
The LCD display on the front panel displays the current date, time and
day of the week, along with programming information and error codes.
Number Function Description of Function
c
d
e
f
g
h
Guide
Time/
Programming
Indicator
AM/PM
Date/Time
Date
Indicates programming step on card in
Programming Mode.
Displays hours and minutes during normal
operation. Displays a value, date, or time
in programming mode. Displays an error
code when an error occurs.
No function. Visible only in programming
mode.
AM/PM indicator is displayed when the
hours imprint format is set to 12-hour
format.
In programming mode, this indicator is
used to set a value, date, or time.
Displays the date during normal operation.
1-6 MRX-35
Normal Operation
During normal operation, the time and date are displayed.
Programming Mode
In the programming mode, the display will appear as follows:
Note: In the programming mode, time is displayed in a 24-hour format.
MRX-35 1-7
Other Components
• (3) Basic Programming Ca rds
• (3) Advanced Programming Cards
1-8 MRX-35
Chapter 2: Getting Started
Placement/Location
When choosing a mounting location for your MRX-35, you should
consider the following:
• The mounting surface or hardware must be capable of supporting the
unit’s weight, 2.5 kg (5.5 lbs.)
• The area must be within the specified operating temperature range:
-10°C~45°C (14°F~113°F), 10%Rh~90% Rh.
• The unit should be in close proximity to a power source or wall outlet.
• The following conditions should not exist:
Desktop Installation
The MRX-35 should be placed on a level surface.
MRX-35 2-1
Wall Mounting
1. Disconnect the power cord from the power source, if applicable.
2. Set the MRX-35 (display side down) on a flat surface.
3. Remove the rivet on the bottom of the unit, as shown below:
4. Place two fingers as shown on the tabs (designated by arrows) and lift
the back panel from the unit.
5. Remove the center material from the teardrop and round mounting
holes, as shown below:
2-2 MRX-35
6. Using the back plate as a template, approximate the final location of
the MRX-35, and mark the location of the teardrop-mounting hole on
the wall.
7. Hang the back plate on a screw or anchor from the teardrop-mounting
hole.
8. Level the back plate and mark the location of the bottom mounting
holes.
9. Secure the back plate to the wall by inserting screws through both
mounting holes as shown:
10. Align the tabs on the back plate with the grooves on the upper back
section of the MRX-35, and carefully pivot the MRX-35 away from
you onto the back plate until it snaps into place.
11. Re-install the plastic rivet on the bottom of the unit.
MRX-35 2-3
Power Connection
Plug the power cord into a suitable grounded outlet.
When the AC power is properly connected, the MRX-35 will cycle the
print mechanism and display the currently programmed day of the week,
date and time.
2-4 MRX-35
The Time Card

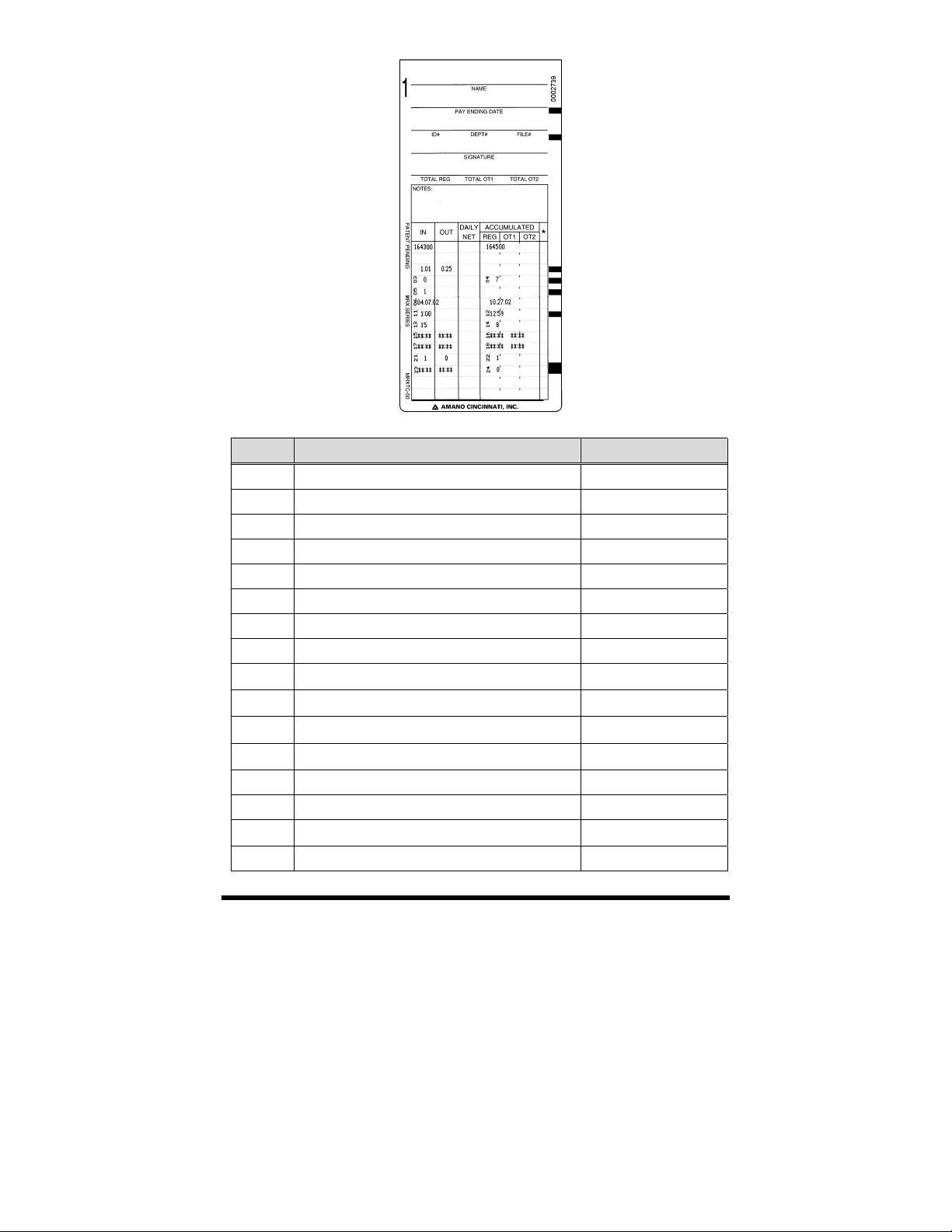

The MRX-35 is designed for use with the following time card:
Item Function/Description
Indicates the side of the time card being used.
Side Indicator
Employee/Payroll
Information
IN/OUT Punches
Exception Mark
Notes
MRX-35 2-5
For Weekly Pay Periods, only Side 1 will be
used. Bi-Weekly Pay Periods use both sides
(Week 1 on Side 1 and Week 2 on Side 2).
Employee/Payroll information is hand written in
this area.
All time punches are recorded in these columns.
Up to 2 pairs of punches can be made during
one day. If there are no punches made for a
particular day, the MRX-35 will skip a line upon
the first IN punch for the following day.
A diamond mark will be printed next to the
punch time if the punch is within an Exception
Zone.
Area to add comments or instructions. If the
Card Data Clear command is used
“
************” will be printed in this area.
Item Function/Description
This column displays the total amount of hours
Daily Net
Card ID Number
Barcode
for a given pair of punches or a day. This total
may include Rounding, Breaks, or Revision
Zones (if programmed).
This number is used by the MRX-35 to store
data from the time card.
The Card ID Number in barcode format.
These columns display the accumulated totals
REG, OT1, and
OT2 Hours
for each day that has a Daily Net calculation
(starting with the first day of the Pay Period).
The accumulated total for the Pay Period will be
printed on the last line used on the time card.
2-6 MRX-35
How to Insert a Time Card
1. Make sure that there is power to the MRX-35.
2. Verify that you are using the correct side of the time card for your Pay
Period:
Pay Period Side
Weekly Side 1
Bi-Weekly (If the Pay Period is
ending in the current week)
Bi-Weekly (If the Pay Period is
ending next week)
3. Gently insert a time card into the card throat. The card will
automatically be fed in, printed and ejected. Do not force it in or
attempt to pull it out before it has been fully ejected.
Side 2
Side 1 (1st Week)
Side 2 (2nd Week)
！
MRX-35 2-7
WARNING!: Please keep the right margin (Barcode area)
on either side of the time card clear from dust, dirt or marks.
This page intentionally left blank.
2-8 MRX-35
Chapter 3: Programming
Introduction
The MRX-35 must be programmed and configured before use. Basic
Programming consists of time, date, imprint, and display formatting, as
well as Pay Period, Time Rounding, Auto Breaks, Fixed Break, Overtime,
Daylight Saving Time (DST), and Day Change Time adjustments.
Advanced Programming mode involves creating Exception and Revision
Zones. An Exception Zone prints a next to the punch time on the time
card during a specified period. A Revision Zone “revises” a punch time
(IN or OUT punch) inside a specific period to a pre-configured time to
prevent employees from accumulating extra time by punching in early or
punching out late. Up to (6) Exception and (6) Revision Zones can be
programmed.
Programming Tips
• To eject a programming card, you must advance though all of the
settings.
• To return to a previous programming step, you must advance through
the card, re-insert the card and press the Next button until the desired
step is reached.
• An illuminated LED underneath a button displays the current setting.
Time and Date Settings:
• Holding down each button indicated by the programming card will
rapidly increase or decrease the values in the display.
• Start times and dates have to be entered first.
• To disable a Break, Zone, Daily OT #1 and #2, or Weekly OT #1
and #2, press the Hours button and advance the hours display past
“23” until it reaches “
- - - - “.
• All times must be entered in 24-hour format.
• For dates, each month is indicated by a number (January = 1).
MRX-35 3-1
Basic Programming
Time Settings
To set the time (Hours and Minutes), perform the following:
1. Insert MRX Basic Program ming Card #1
Side A. The card will stop at the Time
Settings (Hour and Minutes) position.
2. Press the buttons indicated by the
programming card to configure the hour
and minutes to the desired setting.
3. Press the Next button to enter the values
selected. The card and the display will
advance to the Date Settings position.
You may also press the Next button to
advance through all settings until the
card is ejected.
Date Settings
To set the date (Year, Month, and Date), perform the following:
1. If you have not already done so, insert
MRX Basic Programming Card #1 Side
and advance it to the Date Setting
A
position by pressing the Next button
once.
2. Press the buttons indicated by the
programming card to configure the year,
month, and date.
Note: The year will scroll chronologically
forward from 2002 to 2050.
3-2 MRX-35
3. Press the Next button to enter the values
selected. The card and the display will
advance to the Pay Period Type
position. You may also press the Next
button to advance through all settings
until the card is ejected.
Pay Period Type and End Day
The Pay Period Type and ending day can be configured to your specific
needs. Available Pay Periods are:
• Weekly: Pay Period ends weekly on the day specified.
• Bi-Weekly (This Week): Pay Period is every two weeks and ends on
the next occurrence of the day specified.
• Bi-Weekly (Next Week): Pay Period is every two weeks and ends on
the second occurrence of the day specified.
Note: If a Bi-Weekly Pay Period Type is selected, the overtime
calculation will be based on the threshold level set in the Weekly OT #1
and #2 settings. (Refer to MRX Basic Programming Card #2 Side B).
You then have the option of calculating these levels on a weekly or biweekly basis. (Refer to MRX Basic Programming Card #3 Side A). If BiWeekly is selected, the Weekly OT#1 and OT#2 threshold levels will be
doubled.
To configure the Pay Period Type and day that it will end on, perform the
following:
1. If you have not already done so, insert
MRX Basic Programming Card #1 Side
and advance it to the Pay Period Type
A
position by pressing the Next button
twice.
MRX-35 3-3
2. Select the Pay Period Type by pressing
the corresponding button indicated by
the programming card. The codes for the
Pay Period Type are as follows:
Code Pay Period Type
0 Weekly (Default)
1 Bi-Weekly (Ends THIS week)
2 Bi-Weekly (Ends NEXT week)
3. Press the Next button to enter the values
selected. The card and the display will
advance to the Pay Period End Day
position. You may press the End button
to eject the programming card.
4. Press the button indicated by the
programming card for the desired Pay
Period End Day or you may select a
code for the Pay Period End Day by
pressing the “Options” button.
Continue pressing the “Options” button
until the number corresponding to the
desired day appears.
Code Day Code Day
1 Monday 5 Friday
2 Tuesday 6 Saturday
3 Wednesday 7 Sunday
4 Thursday
* 7 = Default
5. Press the End button to enter the value
selected and the card will be ejected.
3-4 MRX-35
Daylight Saving Time
The MRX-35 is shipped from the factory with the Daylight Saving Time
(DST) feature enabled. However, it can be disabled if so desired. The
procedure for enabling/disabling DST is as follows:
1. Insert MRX Basic Program ming Card #1
Side B
. The card will stop at the Daylight
Saving Time position.
2. Press the one of the buttons indicated by
the programming card to either enable or
disable Daylight Saving Time.
3. Press the Next button to enter your
selection. The card and the display will
advance to the Daylight Saving Time
Begin Date position. You may also press
this button to advance through all
settings until the card is ejected.
Note: If “Disable” is selected, pressing
Next will eject the card.
If DST is enabled, the MRX-35 will automatically calculate the DST begin
date from year to year. If you wish to manually change this date, follow
the procedure below.
1. If you have not already done so, insert
MRX Basic Programming Card #1 Side
and advance it to the Daylight Saving
B
Time Begin Date position by pressing
the Next button once.
2. Press the buttons indicated by the
programming card to increase the year,
month, and date to the desired setting.
MRX-35 3-5
3. Press the Next button to enter the values
selected. The card will advance to the
Daylight Saving Time End Date position.
You may also press the Next button to
advance through all settings until the
card is ejected.
If DST is enabled, the MRX-35 will automatically calculate the DST end
date from year to year. If you wish to manually change this date, follow
the procedure below.
1. If you have not already done so, insert
MRX Basic Programming Card #1 Side
and advance it to the Daylight Saving
B
Time End Date position by pressing the
Next button twice.
2. Press the buttons indicated by the
programming card to increase the year,
month, and date to the desired setting.
3. Press the End button to enter the values
selected and eject the card.
3-6 MRX-35
Day Change Time
The Day Change Time is the time of day that a normal business day
ends. It advances the virtual time used for time calculation from the
current business day to the next or following business day. The MRX-35
is shipped with a default Day Change Time of 1:00 AM. If you wish to
change this setting, perform the following:
WARNING!: Altering the Day Change Time will affect your
！
time calculations.
1. Insert MRX Basic Program ming Card #2
. The card will stop at the Day
Side A
Change Time position.
2. Press the button indicated by the
programming card until the desired hour,
00:00 (Midnight) through 23:00, for the
Day Change Time appears in the
display.
3. Press the Next button to enter your
selection. The card and the display will
advance to the Day Change Override
Time position. You may also press the
Next button to advance through all
settings until the card is ejected.
MRX-35 3-7
Day Change Override
The Day Change Override Time determines if an employee’s OUT punch
will correspond to the next or previous day when their shift spans the
Day Change Time. It is in this window of time (HH:MM) that an OUT
punch must occur to be recorded for the previous day. If the time of the
OUT punch does not exceed the Day Change Override window, the OUT
punch will be printed in column 2 of that (previous) day. If the OUT punch
exceeds the Day Change Override window, it will be considered an IN
punch for the following or next day, and no calculation will be made for
the previous day.
Example 1:
Example 2:
3-8 MRX-35
Example 3:
The default value of the Day Change Override is set to 12:59 (12 hours
and 59 minutes from the IN punch). If you wish to change this setting,
perform the following:
1. If you have not already done so, insert
MRX Basic Programming Card #2 Side A
and advance it to the Day Change
Override Time position by pressing the
Next button once.
2. Make a selection by pressing the button
indicated by the programming card for
the preset values of 12:59, 17:59, or
enter in your own Day Change Override
by pressing the Hours and Minutes
buttons.
3. Press the Next button to enter your
selection. The card and the display will
advance to the Rounding Unit position.
You may also press the Next button to
advance through all settings until the
card is ejected.
MRX-35 3-9
Time Rounding
Time Rounding is used to simplify the calculation of accumulated hours.
When an IN/OUT punch equals or is greater then the Rounding Point,
that time is rounded up to the next Rounding Unit. When an IN/OUT
punch is less then the Rounding Point, it is rounded down to the previous
Rounding Unit.
If you are using Revision Zones, the Rounding Unit and Rounding Point
will be ignored and the settings of the Revision Zones will be applied to
the punch.
The Rounding Unit is set to a default of (15) and the Rounding Point
default is set to (8). To set the Rounding Unit and Point, perform the
following:
1. If you have not already done so, insert
MRX Basic Programming Card #2 Side
and advance it to the Rounding Unit
A
position by pressing the Next button
twice.
2. Make a selection by pressing the buttons
indicated by the programming card. The
choices are: 1 Minute, 6 Minutes, 15
Minutes (Default), or Adjustable (1
through 60 minutes). If you are using the
Adjustable setting, press the button
indicated until the desired value appears
in the display.
3-10 MRX-35
3. Press the Next button to enter your
selection. The card and the display will
advance to the Rounding Point position.
You may also press the Next button to
advance through all settings until the
card is ejected.
4. Make a selection by pressing the buttons
indicated by the programming card. The
choices are: 1 Minute, 4 Minutes, 8
Minutes (Default), or Adjustable (1
through 60 minutes). If you are using the
Adjustable setting, hold down the button
indicated until the desired value appears
in the display.
Note: The Rounding Unit must be greater than the Rounding Point.
5. Press the End button to enter the value
selected and eject the card.
MRX-35 3-11
Automatic Break
Up to two Automatic Breaks can be programmed in the MRX-35. Each
break deduction is limited to a maximum of four hours. The amount of
time set for each break is automatically deducted provided that the
employee works the minimum number of hours to qualify for each break.
Example 1: One IN and OUT punch per day.
IN1 = IN Punch 1 = 8:00 Auto Break 1 Hours = 2:00
OUT1 = Out Punch 1 = 17:00 Auto Break 1 Deduct = 0:15
Auto Break 2 Hours = 5:00
Auto Break 2 Deduct = 0:45
Scenario 1: An employee punches in for the day at 8:00 hours. At 10:00
hours, Auto Break #1 will begin. At this time, the clock will deduct a 0:15
minute break for the employee.
At 13:00 hours, Auto Break #2 will begin. At this time, the clock will
deduct a 0:45 minute break for the employee. At 17:00 hours, the
employee will punch out for the day. Their total accumulated hours for
the Daily Net Total will be 8:00 hours (17:00-8:00-0:15-0:45=8:00).
Example 2: Two IN and OUT punches per day.
IN1 = IN Punch 1 = 8:00 Auto Break 1 Hours = 2:00
OUT1 = Out Punch 1 = 13:00 Auto Break 1 Deduct = 0:15
IN2 = IN Punch 2 = 13:45 Auto Break 2 Hours = 5:00
OUT2 = Out Punch 2 = 17:00 Auto Break 2 Deduct = 0:45
Scenario 2: An employee punches in for the day at 8:00 hours. At 10:00
hours, Auto Break #1 will begin. At this time, the clock will deduct a 0:15
minute break for the employee.
3-12 MRX-35
At 13:00 hours, Auto Break #2 will begin and the employee will punch
out. At 13:45 hours, the employee will punch back in. At this time, the
clock will deduct a 0:45 minute break for the employee. At 17:00 hours,
the employee will punch out for the day. Their total accumulated hours
for the Daily Net Total will be 8:00 hours (17:00-8:00-9:00-0:150:45=8:00).
To set Auto Break 1 and Auto Break 2, perform the following:
1. Insert MRX Basic Program ming Card #2
Side B
. The card will stop at the Auto
Break #1 position.
2. The display will appear as follows:
3. Press the buttons indicated by the
programming card for the time (hours
and minutes) required to work to qualify
for the break deduction and the time to
be deducted.
4. Press the Next button to enter your
selections. The card and the display will
advance to the Auto Break #2 position.
You may also press the Next button to
advance through all settings until the
card is ejected.
5. The display for the Auto Break #2
position will appear as follows:
MRX-35 3-13
6. Press the buttons indicated by the
programming card for the time (hours
and minutes) required to work to qualify
for the break deduction and the time to
be deducted.
7. Press the Next button to enter your
selections. The card and the display will
advance to the Daily OT (Overtime)
position. You may also press the Next
button to advance through all settings
until the card is ejected.
3-14 MRX-35
Daily and Weekly Overtime
Overtime can be calculated on a daily or weekly basis; two levels of
overtime can be set for each one. For overtime to be calculated, you
must set the number of hours to be worked in a day and/or a week
before overtime can be accumulated. Overtime hours in the OT1 and
OT2 columns are accumulated for the pay period as follows:
The OT1 Column contains a cumulative total of all Daily OT1 and Weekly
OT1 Hours that have exceeded the Daily or Weekly OT1 thresholds.
The OT2 Column contains a cumulative total of all Daily OT2 and Weekly
OT2 Hours that have exceeded the Daily or Weekly OT2 thresholds.
The OT1 and OT2 totals for the Pay Period will be printed on the last line
used on the time card.
Example: Daily Overtime
If the Daily OT #1 is set to 7, and the employee works 10 hours, the
employee will receive 3 hours overtime for that day.
If the Daily OT#1 is set to 7 and Daily OT#2 is set to 10 hours, and the
employee works 11 hours, the employee will receive 3 hours in Daily
OT#1 and 1 hour for Daily OT#2 for that day.
MRX-35 3-15
To set the Daily OT threshold levels, perform the following:
1. Insert MRX Basic Program ming Card #2
Side B and position it to the Daily OT
position by pressing the Next button
twice.
2. The display will appear as follows:
3. Press the buttons indicated by the
programming card for the time (hours
and minutes) required to work before
Daily OT #1 and #2 threshold levels are
met.
4. Press the Next button to enter your
selection. The card and the display will
advance to the Weekly OT (Overtime)
position. You may also press the Next
button to advance through all settings
until the card is ejected.
3-16 MRX-35
To set the Weekly OT threshold levels, perform the following:
1. Insert MRX Basic Program ming Card #2
Side B and position it to the Weekly OT
position by pressing the Next button
three times.
2. The display will appear as follows:
3. Press the buttons indicated by the
programming card for the time (hours
and minutes) required to work before
Weekly OT #1 and #2 threshold levels
are met.
Note: The maximum time that can be set for each Weekly OT level
is 49:59.
Note: For a Bi-Weekly Pay Period, if the Overtime Type (MRX Basic
Programming Card #3 Side A) is set to Bi-Weekly, the Weekly OT
threshold levels will be doubled.
4. Press the End button to enter your
selections and eject the card.
MRX-35 3-17
Imprint and Display Mode
The MRX-35 allows you to select the printing format of the hours on the
time card. The hours setting also applies to the hours format in the LCD
display. For hours, you can choose either 12-hour (AM/PM, default with
PM hours underlined) or a 24-hour (military) format. For the
Accumulation Imprint, 1/60
th
’s (Default) or 1/100th’s of a minute can be
selected. The Accumulation Imprint setting only applies to the Daily Net
and Accumulated Hours columns on the time card. In and out punch
times only print in minutes.
To change these settings, perform the following:
1. Insert MRX Basic Program ming Card #3
Side A
. The card will stop at the Hour
Imprint / Display position.
2. Press the buttons indicated by the
programming card to set the desired
format for both the Hour and
Accumulation Imprint type.
3. Press the Next button to enter your
selection. The card and the display will
advance to the Date Imprint. You may
also press the Next button to advance
through all settings until the card is
ejected.
3-18 MRX-35
Date Print Mode
In addition to hours and minutes, you can also choose whether to print
the day or date on the time card. By default, the Day of Week (MO, TU,
WE, etc.) will print out on the time card. You may change this setting to
print out a calendar date (DD). If you wish to change the Date Print
Mode, perform the following:
1. If you have not already done so, insert
MRX Basic Programming Card #3 Side
A
, and advance it to the Date Imprint
position by pressing the Next button.
2. Press button for the desired Date Imprint
format as indicated by the programming
card. A code will appear in the display.
The codes are: 0 = Date, 1 = Day of the
Week.
3. Press the Next button to enter your
selection. The card and the display will
advance to the Fixed Break position.
You may also press the Next button to
advance through all settings until the
card is ejected.
MRX-35 3-19
Fixed Break
A single Fixed Break can be programmed. The break is defined by the
Start and End Times entered. The amount of time for the Fixed Break is
deducted automatically in the Daily Net calculation if the user is still
punched IN between the Start and End Times of the break. The Fixed
Break Time will be automatically deducted even if the break is not
punched.
To set the Start and End Times for the Fixed Break:
1. If you have not already done so, insert
MRX Basic Programming Card #3 Side
A
, and advance it to the Fixed Break
position by pressing the Next button
twice.
2. The display will appear as follows:
3. Press the buttons indicated by the
programming card for the Start and End
times (hours and minutes) of the break.
3-20 MRX-35
4. Press the Next button to enter the values
selected. The card and the display will
advance to the Overtime Type position.
You may also press the Next button to
advance through all settings until the
card is ejected.
Overtime Type
This parameter is used to set how Weekly OT #1 and OT#2 threshold
levels will be calculated for a Bi-Weekly Pay Period Type. If either BiWeekly Pay Period Type is selected, the overtime calculation will be
based on the threshold level set in the Weekly OT #1 and #2 settings.
(Refer to MRX Basic Programming Card #2 Side B). You then have the
option of calculating these levels on a weekly or bi-weekly basis based
on the accumulated number of hours for both weeks.
To select the Overtime Type, perform the following:
1. If you have not already done so, insert
MRX Basic Programming Card #3 Side
A
, and advance it to the Overtime Type
position by pressing the Next button
three times.
MRX-35 3-21
2. Press the button for the desired
Overtime Type as indicated by the
programming card. A code will appear in
the display. The codes are: 0 = Weekly,
1 = Bi-Weekly.
3. Press the End button to enter your
selection and eject the card.
Card Data Clear
Since the MRX-35 stores time data by time card number, it may be
necessary to manually clear a particular card number and its
corresponding time data from memory. This feature is useful if the time
card is no longer used or the time card (user) limit has been reached. To
clear the card data, perform the following:
1. Insert MRX Basic Program ming Card #3
Side B
. The card will stop at the Card
Data Clear position.
2. Press the button indicated by the
programming card to clear card data.
The programming card will be ejected.
3. Insert the time card you want to clear.
When the time card is ejected, the data
associated with that time card number
will be cleared from the MRX-35’s
memory and “
************” will be printed
in the Notes section of the time card.
3-22 MRX-35
Data Initialization
This selection is used to print out programmed settings or reset your
MRX-35 programmed settings to their default values.
To do either operation, perform the following:
1. If you have not already done so, insert
MRX Basic Programming Card #3 Side
B
, and advance it to the Data
Initialization position by pressing the
Next button once.
2. Press the buttons indicated by the
programming card to enter in a code to
either initialize (44) or print out (77)
programmed settings.
3. Press the End button to enter your
selection and eject the card. If code 44
was entered, the MRX-35 will beep and
return to normal operation mode. If code
77 was entered, insert a blank time card.
The programmed settings will be printed
on both sides of this card with the basic
settings on side 1 and advanced settings
on side 2.
MRX-35 3-23
No. Programming Item Default
03 Pay Period 0
04 Pay Ending Day 7
05 Daylight Saving Time 1
06 Daylight Saving Time Begin/ End Date 04.07.02/10.27.02
11 Day Change Time 1:00
12 Day Change Override 12:59
13 Rounding Unit 15
14 Rounding Point 8
15 Auto Break #1 Hour/Deduction
16 Auto Break #1 Hour/Deduction
17 Daily OT #1/#2 Hours
18 Weekly OT #1/#2
21 Hour/Minute Imprint Format 1/0
22 Date Imprint Format 1
23 Fixed Break Start/End Time
24 Overtime Type 0
**:**/**:**
**:**/**:**
**:**/**:**
**:**/**:**
**:**/**:**
3-24 MRX-35
No. Programming Item Default
31 Exception 1 Punch Type 0
32 Exception 1 Start/End Times **:**/**:**
33 Exception 2 Punch Type 0
34 Exception 2 Start/End Times **:**/**:**
35 Exception 3 Punch Type 0
36 Exception 3 Start/End Times **:**/**:**
37 Exception 4 Punch Type 0
38 Exception 4 Start/End Times **:**/**:**
39 Exception 5 Punch Type 0
40 Exception 5 Start/End Times **:**/**:**
41 Exception 6 Punch Type 0
42 Exception 6 Start/End Times **:**/**:**
43 Revision 1 Punch Type 0
44 Revision 1 Start/End Times **:**/**:**
45 Revision 2 Punch Type 0
46 Revision 2 Start/End Times **:**/**:**
47 Revision 3 Punch Type 0
48 Revision 3 Start/End Times **:**/**:**
49 Revision 4 Punch Type 0
50 Revision 4 Start/End Times **:**/**:**
51 Revision 5 Punch Type 0
52 Revision 5 Start/End Times **:**/**:**
53 Revision 6 Punch Type 0
54 Revision 6 Start/End Times **:**/**:**
MRX-35 3-25
Advanced Programming
Exception Zones
An Exception Zone is used to print a diamond symbol next to the
punch time on the time card during a specified period. This symbol
serves to represent a punch that is within a specified time frame set by
the user to indicate when an employee arrives late or leaves early.
To create Exception Zone 1, perform the following:
1. Insert MRX Advanced Programming
Card #4 Side A. The card will stop at the
Exception 1, Punch Type position
2. Select the Punch Type for Exception 1
.
from the choices indicated by the
programming card and the code on the
display. They are:
Code Punch Type
0 None
1 IN
2 OUT
3 Both (IN and OUT)
3. Press the Next button to enter your
selection. The card and the display will
advance to the Exception 1, Start and
End Time position. You may also press
this button to advance through all
settings until the card is ejected. If None
was selected, the card and display will
advance to the Exception 2, Punch Type
position.
4. The display will appear as follows:
3-26 MRX-35
5. Press the buttons indicated by the
programming card for the Start and End
times of the Exception.
6. Press the Next button to enter the values
selected. The card and the display will
advance to the Exception 2, Punch Type
position. You may also press this button
to advance through all settings until the
card is ejected.
To create Exception Zone 2, perform the following:
1. If you have not already done so, insert
MRX Advanced Programming Card #4
Side A
, and advance it to the Exception
2, Punch Type position
by pressing the
Next button twice.
2. Select the Punch Type for Exception 2
from the choices indicated by the
programming card and the code in the
display. They are:
Code Punch Type
0 None
1 IN
2 OUT
3 Both (IN and OUT)
MRX-35 3-27
3. Press the Next button to enter your
selection. The card and the display will
advance to the Exception 2, Start and
End Time position. You may also press
the Next button to advance through all
settings until the card is ejected. If None
was selected, the card will be ejected.
4. The display will appear as follows:
5. Press the buttons indicated by the
programming card for the Start and End
times of the Exception.
6. Press the End button to enter the values
selected and eject the card.
To create Exception Zone 3, perform the following:
1. Insert MRX Advanced Programming
Card #4 Side B. The card will stop at the
Exception 3, Punch Type position
.
3-28 MRX-35
2. Select the Punch Type for Exception 3
from the choices indicated by the
programming card and the code in the
display. They are:
Code Punch Type
0 None
1 IN
2 OUT
3 Both (IN and OUT)
3. Press the Next button to enter your
selection. The card and the display will
advance to the Exception 3, Start and
End Time position. You may also press
the Next button to advance through all
settings until the card is ejected. If None
was selected, the card and display will
advance to the Exception 4, Punch Type
position.
4. The display will appear as follows:
5. Press the buttons indicated by the
programming card for the Start and End
times of the Exception.
MRX-35 3-29
6. Press the Next button to enter the values
selected. The card and the display will
advance to the Exception 4, Punch Type
position. You may also press the Next
button to advance through all settings
until the card is ejected.
To create Exception Zone 4, perform the following:
1. If you have not already done so, insert
MRX Advanced Programming Card #4
, and advance it to the Exception
Side B
4, Punch Type position
by pressing the
Next button twice.
2. Select the Punch Type for Exception 4
from the choices indicated by the
programming card and the code in the
display. They are:
Code Punch Type
0 None
1 IN
2 OUT
3 Both (IN and OUT)
3-30 MRX-35
3. Press the Next button to enter your
selection. The card and the display will
advance to the Exception 4, Start and
End Time position. You may also press
the Next button to advance through all
settings until the card is ejected. If None
was selected, will be ejected.
4. The display will appear as follows:
5. Press the buttons indicated by the
programming card for the Start and End
times of the Exception.
6. Press the End button to enter the values
selected and eject the card.
To create Exception Zone 5, perform the following:
1. Insert MRX Advanced Programming
Card #6 Side A. The card will stop at the
Exception 5, Punch Type position.
MRX-35 3-31
2. Select the Punch Type for Exception 5
from the choices indicated by the
programming card and the code in the
display. They are:
Code Punch Type
0 None
1 IN
2 OUT
3 Both (IN and OUT)
3. Press the Next button to enter your
selection. The card and the display will
advance to the Exception 5, Start and
End Time position. You may also press
the Next button to advance through all
settings until the card is ejected. If None
was selected, the card and display will
advance to the Exception 6, Punch Type
position.
4. The display will appear as follows:
5. Press the buttons indicated by the
programming card for the Start and End
times of the Exception.
3-32 MRX-35
6. Press the Next button to enter the values
selected. The card and the display will
advance to the Exception 6, Punch Type
position. You may also press the Next
button to advance through all settings
until the card is ejected.
To create Exception Zone 6, perform the following:
1. If you have not already done so, insert
MRX Advanced Programming Card #6
, and advance it to the Exception
Side A
6, Punch Type position by pressing the
Next button twice.
2. Select the Punch Type for Exception 6
from the choices indicated by the
programming card and the code in the
display. They are:
Code Punch Type
0 None
1 IN
2 OUT
3 Both (IN and OUT)
MRX-35 3-33
3. Press the Next button to enter your
selection. The card and the display will
advance to the Exception 6, Start and
End Time position. You may also press
the Next button to advance through all
settings until the card is ejected. If None
was selected, the card will be ejected.
4. The display will appear as follows:
5. Press the buttons indicated by the
programming card for the Start and End
times of the Exception.
6. Press the End button to enter the values
selected and eject the card.
3-34 MRX-35
Revision Zones
A Revision Zone is a window of time in which the employee may punch
in or out (not both), but the MRX-35 will not begin or end calculation at
the moment of punch. A punch time in a Revision Zone will be “revised”
to a pre-configured time. A Revision Zone consists of a Punch Type,
Start Time, and End Time. If the Punch Type is set to IN, then the actual
punch time within the Revision Zone will be revised to the Revision Zone
End Time. If the Punch Type is set to OUT, then the actual punch time
within the Revision Zone will be revised to the Revision Zone Start Time.
When a Revision Zone is enabled, the MRX-35 considers “revised”
punch times to be the official IN or OUT punches. This feature will
prevent employees from accumulating extra time by punching in early or
punching out late. Up to (6) Revision Zones can be created.
Example: IN Punch Revision Zone
Revision 1 Start Time = 7:30 Punch Type = IN
Revision 1 End Time = 8:00 Actual Punch Time (IN1) = 7:39
Since the Punch Type = IN, the Actual Punch Time of 7:39 will be printed
out on the time card, and revised internally to 08:00 for calculation
purposes.
Example: OUT Punch Revision Zone
Revision 2 Start Time = 17:00 Punch Type = OUT
Revision 2 End Time = 17:30 Actual Punch Time (OUT2) = 17:19
Since the Punch Type = IN, the Actual Punch Time of 17:19 will be
printed out on the time card, and revised internally to 17:00 for
calculation purposes.
Note: No two Revision Zones with the same punch type can overlap.
Example: (Overlapping Revisions)
Revision #1: Punch Type = IN Beginning Time = 7:00 End Time = 7:30
Revision #2: Punch Type = IN Beginning Time = 7:30 End Time = 8:00
Example: (Non-Overlapping Revisions)
Revision #1: Punch Type = IN Beginning Time = 7:00
Revision #2: Punch Type = IN
Beginning Time = 7:31
End Time = 7:30
End Time = 8:00
MRX-35 3-35
To create Revision Zone 1, perform the following:
1. Insert MRX Advanced Programming Card
#5 Side A. The card will stop at the
Revision 1, Punch Type position.
2. Select the Punch Type for Revision 1
from the choices indicated by the
programming card and the code in the
display. They are:
Code Punch Type
0 None
1 IN
2 OUT
If None is selected the card and display
will advance to the Revision 2, Punch
Type position.
3. Press the Next button to enter your
selection. The card and the display will
advance to the Revision 1, Start and End
Time position. You may also press the
Next button to advance through all
settings until the card is ejected. If None
is selected, the card and display will
advance to the Revision 2, Punch Type
position.
4. The display will appear as follows:
5. Press the buttons indicated by the
programming card for the Start and End
times (hours and minutes) of the
Revision.
3-36 MRX-35
6. Press the Next button to enter the values
selected. The card and the display will
advance to the Revision 2, Punch Type
position. You may also press the Next
button to advance through all settings
until the card is ejected.
To create Revision Zone 2, perform the following:
1. If you have not already done so, insert
MRX Advanced Programming Card #5
, and advance it to the Revision 2,
Side A
Punch Type position by pressing the
Next button twice.
2. Select the Punch Type for Revision 2
from the choices indicated by the
programming card and the code in the
display. They are:
Code Punch Type
0 None
1 IN
2 OUT
MRX-35 3-37
3. Press the Next button to enter your
selection. The card and the display will
advance to the Revision 2, Start and
End Time position. You may also press
the Next button to advance through all
settings until the card is ejected. If None
is selected, the card will be ejected.
4. The display will appear as follows:
5. Press the buttons indicated by the
programming card for the Start and End
times (hours and minutes) of the
Revision.
6. Press the End button to enter the values
selected and eject the card.
To create Revision Zone 3, perform the following:
1. Insert MRX Advanced Programming
Card #5 Side B. The card will stop at the
Revision 3, Punch Type position
.
2. Select the Punch Type for Revision 3
from the choices indicated by the
programming card and the code in the
display. They are:
Code Punch Type
0 None
1 IN
2 OUT
3-38 MRX-35
If None is selected (Code 0), the card
and display will advance to the Revision
4, Punch Type position.
3. Press the Next button to enter your
selection. The card and the display will
advance to the Revision 3, Start and
End Time position. You may also press
the Next button to advance through all
settings until the card is ejected. If None
is selected, the card and display will
advance to the Revision 4, Punch Type
position.
4. The display will appear as follows:
5. Press the buttons indicated by the
programming card for the Start and End
times (hours and minutes) of the
Revision.
6. Press the Next button to enter the values
selected. The card and the display will
advance to the Revision 4, Punch Type
position. You may also press the Next
button to advance through all settings
until the card is ejected.
MRX-35 3-39

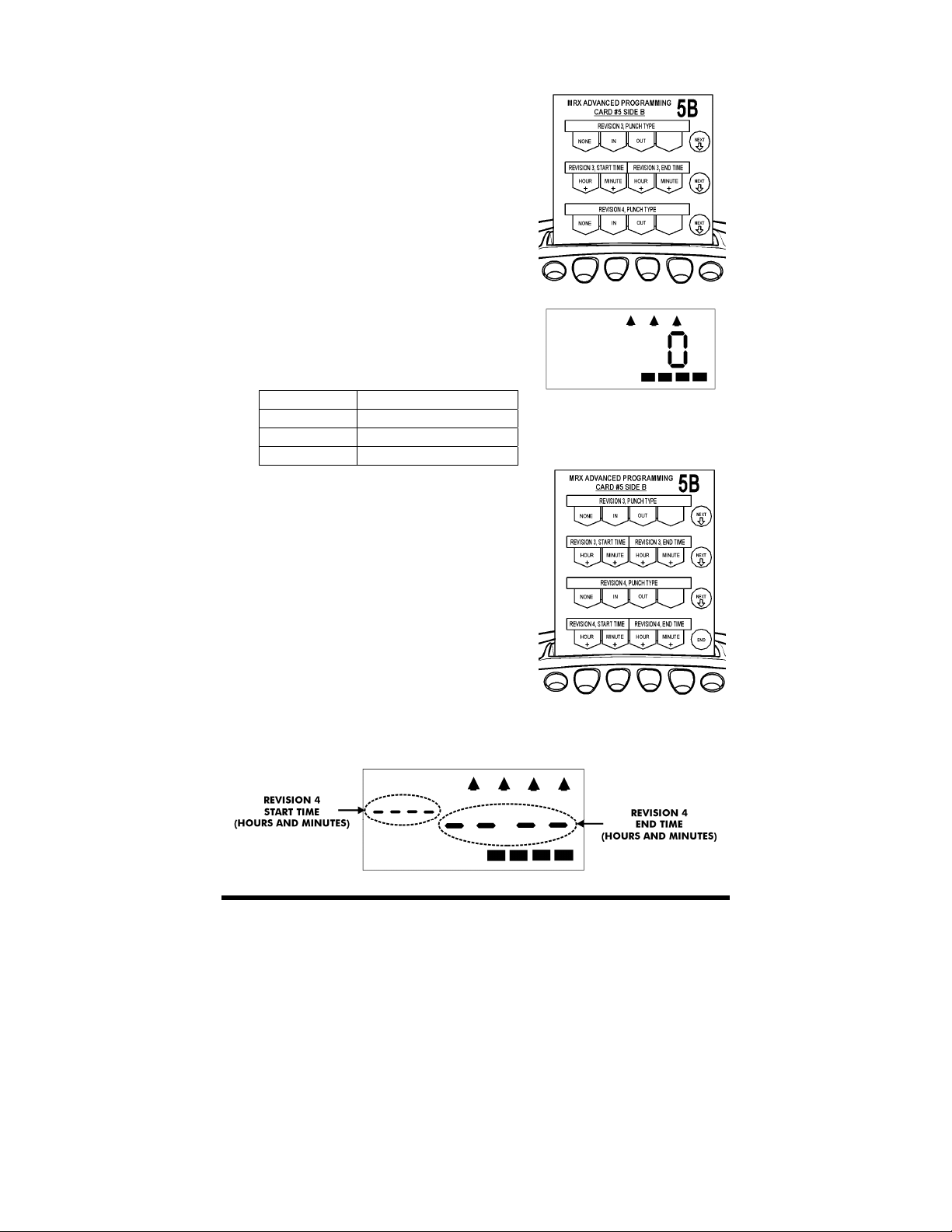

To create Revision Zone 4, perform the following:
1. If you have not already done so, insert
MRX Advanced Programming Card #5
Side B
, and advance it to the Revision 4,
Punch Type position
by pressing the
Next button twice.
2. Select the Punch Type for Revision 4
from the choices indicated by the
programming card and the code in the
display. They are:
Code Punch Type
0 None
1 IN
2 OUT
3. Press the Next button to enter your
selection. The card and the display will
advance to the Revision 4, Start and
End Time position. You may also press
the Next button to advance through all
settings until the card is ejected. If None
is selected, the card will be ejected.
4. The display will appear as follows:
3-40 MRX-35
5. Press the buttons indicated by the
programming card for the Start and End
times (hours and minutes) of the
Revision.
6. Press the End button to enter the values
selected and eject the card.
To create Revision Zone 5, perform the following:
1. Insert MRX Advanced Programming
Card #6 Side B. The card will stop at the
Revision 5, Punch Type position
.
7. Select the Punch Type for Revision 5
from the choices indicated by the
programming card and the code in the
display. They are:
Code Punch Type
0 None
1 IN
2 OUT
If None is selected the card and display
will advance to the Revision 6, Punch
Type position.
2. Press the Next button to enter your
selection. The card and the display will
advance to the Revision 5, Start and
End Time position. You may also press
the Next button to advance through all
settings until the card is ejected. If None
is selected, the card and display will
advance to the Revision 6, Punch Type
position.
3. The display will appear as follows:
MRX-35 3-41
4. Press the buttons indicated by the
programming card for the Start and End
times (hours and minutes) of the
Revision.
5. Press the Next button to enter the values
selected. The card and the display will
advance to the Revision 6, Punch Type
position. You may also press the Next
button to advance through all settings
until the card is ejected.
3-42 MRX-35
To create Revision Zone 6, perform the following:
1. Select the Punch Type for Revision 6
from the choices indicated by the
programming card and the code in the
display. They are:
Code Punch Type
0 None
1 IN
2 OUT
2. Press the Next button to enter your
selection. The card and the display will
advance to the Revision 6, Start and
End Time position. If None is selected,
the card will be ejected.
3. The display will appear as follows:
4. Press the buttons indicated by the
programming card for the Start and End
times (hours and minutes) of the
Revision.
5. Press the End button to enter the values
selected and eject the card.
MRX-35 3-43
This page intentionally left blank.
3-44 MRX-35
Chapter 4: Maintenance and Troubleshooting
Cleaning (Exterior)
WARNING!:
• Unplug the unit before attempting to clean it.
• Do not touch the plug with wet hands.
！
The case can be cleaned by gently wiping it with a soft cloth moistened
with either water or a neutral cleanser.
Top Cover Removal
To remove the Top Cover, hold the MRX-35 with both hands, press your
thumbs down in the area shown and push up until the Top Cover is off.
• Always hold the plug when removing it from the power
receptacle.
• Wiping the case with volatile chemicals such as benzene
or thinner will cause it to become deformed and
discolored.
If the cover is removed when the power is on, the word “OPEN” will
appear in the LCD display.
MRX-35 4-1
Ribbon Replacement
The Ribbon Cartridge (P/N CE-319250) should be replaced when the
imprint becomes too light.
To replace the ribbon:
1. Remove the Top Cover.
2. Unplug the power cord from the power source.
3. Flip the Display up as shown. Be careful not to touch the area
shown.
4. Using two fingers, press the two white release tabs down and
towards the case. While holding them, remove the ribbon.
5. Insert a new ribbon between the ribbon guide and the printer head.
4-2 MRX-35
6. Press the ribbon down until it clicks into place. Turn the knob
clockwise to remove any slack in the ribbon.
7. Put the Top Cover back on.
8. Plug the power cord back into the power source. The display will
show current date and time.
9. Check the ribbon installation by making a test print.
MRX-35 4-3
Fuse Replacement
！
If the fuse (P/N EFS-203001) is suspect, it must be replaced. To do so,
perform the following:
1. Disconnect the power cord from the power source.
2. Remove the top cover. Refer to page 4-1.
3. Lay the unit face up on a flat surface.
4. Facing the front of the unit, remove the two Phillips head screws in
the upper corners of the front cover.
WARNING!: Disconnect the power cord from the power
source before attempting to change the fuse.
5. Press both of your hands flat against the sides of the front cover.
6. Pivot the front cover towards you and remove it from the unit. Set face
up on a flat surface.
4-4 MRX-35
•
7. Locate the fuse. Replace the desired fuse only with one of the same
type and rating.
8. With the front cover on a flat surface and facing up, press both of
your hands flat against the sides.
9. Facing the bottom of the unit, set and align the tabs on the bottom of
the front cover with the slots on the housing.
10. Pivot the front cover towards the housing, push it down in place, and
then secure it with the two Phillips head screws.
11. Re-install the Top Cover.
12. If necessary, reconnect the power cord to the power source.
Troubleshooting
Problem Possible Cause Solution
Card will not feed
into unit.
Card ejected without
printing.
Gaining/Losing time. Time Setting is wrong. Re-enter the Time Settings.
Wrong Date Date Setting is wrong. Re-enter the Date Settings.
Light Imprint Ribbon cartridge is worn. Replace ribbon cartridge.
Misprinting
Error code See Error Code Charts
• Power failure.
• Power connection is
loose.
Card inserted upside
down or on wrong side.
Ribbon cartridge is not in
right place.
Wait until power is
restored.
• Check connection.
Turn card around and try
again.
Place it in right position.
MRX-35 4-5
Error Codes
The table below lists the possible Error Codes that may appear in the
display and their causes.
Figure 4-1 Error Code Message
Error Code Description Possible Cause and Solution
E-00 EEPROM Error
E-01 Card Error
E-02 Home Position
Internal error. Contact your local Amano
service dealer or representative.
Wrong side of card inserted. Verify Pay
Period and the correct side.
E-03 Dot Pulse
E-04 Timing Pulse
E-05 Row Position
Internal printer error. Contact your local
Amano service dealer or representative.
E-06 Gain Sensor
E-07 Start Mark
Verify that right (Barcode) margin of
card is free of dust, dirt, or marks. Insert
E-08 Check Code
E-09 Stop Mark
new time card. If error persists, contact
your local Amano service dealer or
representative.
E-12 Invalid Card Incorrect card type was inserted.
E-13 Read Error Card removed before it is processed.
E-14 Feed Error Card fed into card throat incorrectly.
E-15 4-Punch
E-17 Previous Punch
E-21 No Card Data
Card already has 4-punch daily
maximum.
Time card for printing is earlier than
previous punch.
No data for card inserted (after card
was cleared from memory).
E-22 No Clock Data No internal clock data.
E-23 Duplicate Data
E-30 Card Row
There are two sets of data for the same
time card number. Clear card data.
Number of lines to print exceeds card
row specification.
4-6 MRX-35
Error Code Description Possible Cause and Solution
E-96 CPU Error
Internal error. Contact your local Amano
service dealer or representative.
E-98 Password Incorrect password entered.
Parameter Error Codes
The table below lists the possible Parameter Error Codes that may
appear in the display when a parameter is incorrectly set.
Figure 4-2 Parameter Error Code Message
Error Code Programming Card Description
P-01
P-02 Date Settings
P-03 Pay Period Type
Basic Programming
Card #1 Side A
P-04 Pay Period End Day
P-05
P-06 Daylight Saving Time Begin Date
P-07 Daylight Saving Time End Date
Basic Programming
Card #1 Side B
P-11
P-12 Day Change Override Time
P-13 Rounding Unit
Basic Programming
Card #2 Side A
P-14 Rounding Point
P-15
P-16 Auto Break #2
P-17 Daily OT#1/#2
Basic Programming
Card #2 Side B
P-18 Weekly OT#1/#2
P-21
P-22 Date Imprint Format
P-23 Fixed Break Start/End Time
Basic Programming
Card #3 Side A
P-24 Overtime Type
P-25
P-26 Data Initialization
Basic Programming
Card #3 Side B
Time Settings
Daylight Saving Time
Day Change Time
Auto Break #1
Hour/Minute Imprint Format
Card Data Clear
MRX-35 4-7
Error Code Programming Card Description
P-31
P-32 Exception 1, Start/End Time
P-33 Exception 2, Punch Type
Advanced
Programming Card
#4 Side A
Exception 1, Punch Type
P-34 Exception 2, Start/End Time
P-35
P-36 Exception 3, Start/End Time
P-37 Exception 4, Punch Type
Advanced
Programming Card
#4 Side B
Exception 3, Punch Type
P-38 Exception 4, Start/End Time
P-39
P-40 Exception 5, Start/End Time
P-41 Exception 6, Punch Type
Advanced
Programming Card
#6 Side A
Exception 5, Punch Type
P-42 Exception 6, Start/End Time
P-43
P-44 Revision 1, Start/End Time
P-45 Revision 2, Punch Type
Advanced
Programming Card
#5 Side A
Revision 1, Punch Type
P-46 Revision 2, Start/End Time
P-39
P-40 Revision 3, Start/End Time
P-41 Revision 4, Punch Type
Advanced
Programming Card
#5 Side B
Revision 3, Punch Type
P-42 Revision 4, Start/End Time
P-39
P-40 Revision 5, Start/End Time
P-41 Revision 6, Punch Type
Advanced
Programming Card
#6 Side B
Revision 5, Punch Type
P-42 Revision 6, Start/End Time
Replacement Parts and Accessories
The following replacement parts and accessories are available for the
MRX-35. Parts and accessories can be ordered throu gh your local
Amano dealer.
Part Number Description
EFS-203001 Fuse
CE-319250 Ribbon Cartridge
MRXTC-50 Time Card Set
MRXTC-BPC Basic Programming Cards (Set of 3)
MRXTC-APC Advanced Programming Cards (Set of 3)
4-8 MRX-35
Default Programming Values
Basic Programming
Item Initial Value Input Data
Time Setting 12:00
Hour/Minute (∀)
Date Setting 2002/01/01 YYYY/MM/DD
0: Weekly
Pay Period 0
1: Bi-Weekly (This)
2: Bi-Weekly (Next)
1: Monday
2: Tuesday
3: Wednesday
Pay Period Ending Day 7
4: Thursday
5: Friday
6: Saturday
7: Sunday
Overtime Mode 0
0: Weekly
1: Bi-Weekly
Day Change Time 01:00 0:00 – 23:59
Day Change Override 12:59 0:00 – 23:59
Daylight Saving Time 1
0: None
1: Enable
DST Begin Date 0407 Beginning Date (MMDD)
DST End Date 1027 Ending Date
Imprint Mode 1
Time Imprint Mode 0
Date Imprint Mode 1
0: 24 Hour (Military)
1: 12 Hour (AM/PM)
0: 1/60
1: 1/100
th
’s of a minute
th
’s of a minute
0: Date
1: Day of the Week
Password Input
Data Initialization
44: Initialize
77: Print
MRX-35 4-9
Advanced Programming
Item Initial Value Input Data
Rounding Unit 15 1/6/15/0
Rounding Point 8 1/4/8/0
Daily OT1 : 00:00 – 23:59
Daily OT2 : 00:00 – 23:59
Weekly OT1 : 00:00 – 49:59
Weekly OT2 : 00:00 – 49:59
Auto Break #1 : 00:00 – 23:59
Auto Break #1 Deduction : 00:00 – 03:59
Auto Break #2 : 00:00 – 23:59
Auto Break #2 Deduction : 00:00 – 03:59
4-10 MRX-35
Chapter 5: Specifications
Power Requirements:
AC 110-120V±10% 50/60Hz
Power Consumption:
Dimensions:
Weight:
Ambient Conditions:
Lithium Battery:
Print Head:
Ribbon:
Employee Capacity:
Time Card:
Standards Compliance:
4W, Idle. 13W or less, Printing
233 mm H X 170 mm W X 115 mm D
(9.17” H X 6.69” W X 4.53” D)
2.5 kg (5.5 lbs.)
-10°C~45°C (14°F~113°F),
10%Rh~90%Rh
3 years during storage
5 years during operation
10,000,000 characters or more
(~1,660,000 punches)
180,000 characters or more (more than
30,000 punches). Amano P/N CE-319250
50, no registration required
Proprietary Amano Time Card
This page intentionally left blank.
ARX-100900-2 Copyright © 2012 Amano Cincinnati, Inc. 02/12
www.amano.com/time
Loading...
