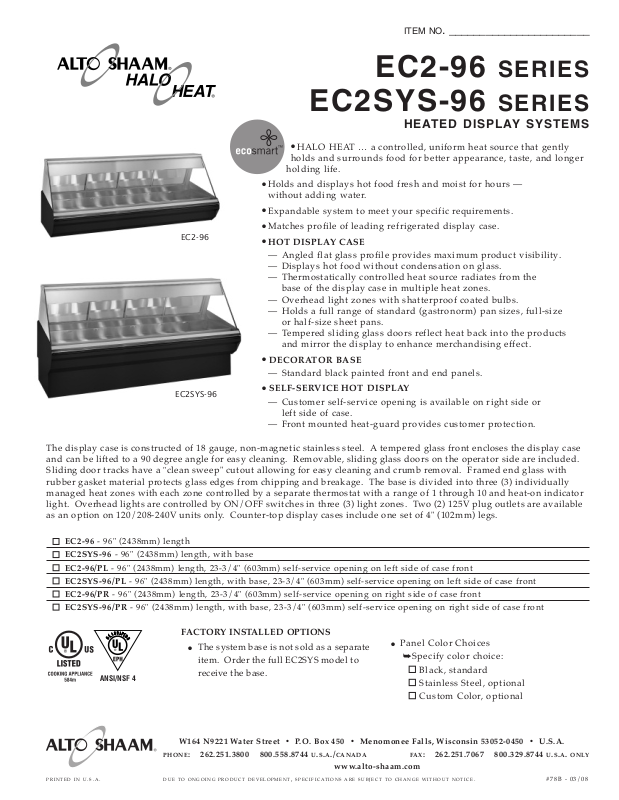

EC2SYS-96
User Manual
2 pgs177.89 Kb0

Alto-Shaam EC2-96, EC2SYS-96 User Manual

ANSI/NSF 4
EC2-96
EC2SYS-96
ITEM NO. _______________________
EC2-96 SERIES
EC2SYS-96 SERIES
HEATED DISPLAY SY S T E M S
●
HALO HEAT … a controlled, uniform heat source that gently
holds and surrounds food for better appearance, taste, and longer
holding life.
●
Holds and displays hot food fresh and moist for hours — without adding water.
●
Expandable system to meet your specific requirements.
●
Matches profile of leading refrigerated display case.
●
HOT DISPLAY CASE
— Angled flat glass profile provides maximum product visibility. — Displays hot food without condensation on glass. — Thermostatically controlled heat source radiates from the
base of the display case in multiple heat zones. — Overhead light zones with shatterproof coated bulbs. — Holds a full range of standard (gastronorm) pan sizes, full-size
or half-size sheet pans. — Tempered sliding glass doors reflect heat back into the products
and mirror the display to enhance merchandising effect.
●
DECORATOR BASE
— Standard black painted front and end panels.
●
SELF-SERVICE HOT DISPLAY
— Customer self-service opening is available on right side or
left side of case. — Front mounted heat-guard provides customer protection.
The display case is constructed of 18 gauge, non-magnetic stainless steel. A tempered glass front encloses the display case and can be lifted to a 90 degree angle for easy cleaning. Removable, sliding glass doors on the operator side are included. Sliding door tracks have a
"clean sweep" cutout allowing for easy cleaning and crumb removal. Framed end glass with
EC2-96 - 96" (2438mm) length
■■
EC2SYS-96 - 96" (2438mm) length, with base
■■
EC2-96/PL - 96" (2438mm) length, 23-3/4" (603mm) self-service opening on left side of case front
■■
EC2SYS-96/PL - 96" (2438mm) length, with base, 23-3/4" (603mm) self-service opening on left side of case front
■■
EC2-96/PR - 96" (2438mm) length, 23-3/4" (603mm) self-service opening on right side of case front
■■
EC2SYS-96/PR - 96" (2438mm) length, with base, 23-3/4" (603mm) self-service opening on right side of case front
■■
FACTORY INSTALLED OPTIONS
● The system base is not sold as a separate
item. Order the full EC2SYS model to receive the base.
W164 N9 221 Wate r Street • P.O. Box 450 • Me nomonee F alls, Wisconsi n 53052-0 45 0 • U.S .A.
PH ONE: 262.251 .3800 800.558 .8744 U.S .A./CA NAD A FAX : 262.251 .7067 80 0.329.874 4 U.S.A. ON LY
www.alto-sh aam.com
P RI NT E D IN U. S. A. D UE TO O NG O IN G PR OD U CT D EV E LO P ME NT , SP E CI F IC AT IO N S A RE S U BJ E CT T O C HA NG E W I TH O UT N OT IC E . #78 B - 03 /0 8
● Panel Color Choices
➥Specify color choice:
■■
Black, standard
■■
Stainless Steel, optional
■■
Custom Color, optional
ELECTRICAL
CORD
9
6" (2438mm)
CUTTING BOARD IN “DOWN” POSITION CUTTING BOARD IN “DOWN” POSITION
6-3/4"
(172mm)
ON
OFF
ON
OFF
ON
OFF
48" (1218mm)
72" (1829mm)
C
UTTING BOARD IN “DOWN” POSITION
ON
OFF
ON
OFF
48" (1218mm)
E
LECTRICAL
CORD
6-3/4"
(172mm)
5
3-1/2" (1358mm)
43-3/4" (1111mm)
1
3-9/16"
(344mm)
37-11
/16" (956mm)
2
3
-
7
/
8
"
(
6
0
6
m
m
)
48"
(1218m
m
)
10-11/16" (270mm)
4
1-7/8" (1063mm)
53-1/2" (1358mm)
4
3-3/4" (1111mm)
48" (1219mm)
C
UTTING BOARD IN “DOWN” POSITION
ON
OFF
ON
OFF
48" (1218mm)
ELECTRICAL
CORD
6-3/4"
(172mm)
53-1/2" (1358mm)
43-3/4" (1111mm)
13-9/16" (344mm)
37-11
/16" (956mm)
23-7/
8"
(606m
m
)
48"
(1218m
m
)
10-11/16" (270mm)
4
1-7/8" (1063mm)
53-1/2" (1358mm)
4
3-3/4" (1111mm)
5
3-1/2" (1358mm)
43-3/4" (1111mm)
13-9/16" (344mm)
37-11
/16" (956mm)
EC 2 Pr of il e
E L E C T R I C A L
V
OLTAG E PH AS E CY CL E/HZ AMP S
kW
1
20/
208-240 (UL)1 5
0/60
24.0 5.2
at 208 1 50/60 24. 0 5 .2 at 240 1 50/60 24. 0 5 .2
230
(C E) 1 50/60 24.3 5.6
230 1 50/60 24.7 5.7
Tyler Huss.eps r
evised 5/30/02
added L14-20P Plug Configuration
N
EM A L
14-30P
30A, 250V PL UG
B
ARE END
, N
O PLUG
PA N C O N F I G U R AT I O N *
PAN SIZE DI ME NS IO NS QT Y.
FU LL -S IZ E & O NE-THIRD**: 12" X 20" X 2-1/2" (GN 1/1) 7
12" X 6" X 2-1/2" (GN 1/3) 7
HA LF -S IZ E & O NE-THIRD**: 12" X 10" X 2-1/2" (GN 1/2) 14
12" X 6" X 2-1/2" (GN 1/3) 7
FU LL -S IZ E S HEET PAN S: 18" X 26" X 1" 4
MA X. C APA CI TY /V OL UM E: 112 lbs (51 kg)
70 qts (84 L)
* Pans are not included with display case. ** Will also accept 4" (100mm) deep pans.
EC 2S YS P ro fi le
EC 2S YS -9 6
I N S TA L L AT I O N R E Q U I R E M E N T S
Display case must be installed level. The display case must not be installed in any area where it may be affected by steam, grease, dripping water, high temperatures, or any other severely adverse conditions.
Do not install a heated display case near a cold air source such as a freezer, air conditioning vents, or in any area where outside air fluctuation can affect performance.
EC2-96 SER IES
EC2SYS-96 SER I ES
HEAT E D DI S P LAY SYST E M S
D I M E N S I O N S (HXWXD)
EX TE RI OR , CO UN TE R-TO P M ODEL WITH L EG S:
37-11/16" x 96" x 53-1/2" (9956mm x 2438mm x 1358mm)
EX TE RI OR , WI TH BASE:
48" x 96"
WE LL DI MENSIONS (WXLXD):
27-3/16" x 93-5/16" x 4-1/2" (690mm x 2370mm x 114mm)
x 53-1/2" (1219mm x 2438mm x 1358mm)
W E I G H T
MODEL NE T SHIP
EC2-96 769 lb (349 kg) 894 lb (406 kg)
EC2SYS-96 864 lb (392 kg) 989 lb (449 kg)
EC2-96/PL/PR 769 lb (349 kg) 894 lb (406 kg)
EC2SYS-96/PL/PR 864 lb (392 kg) 989 lb (449 kg)
CRATE D DIMENSION S (EST.): HXWXD
EC2-96: 45" x 85" x 55" (1143mm x 2159mm x 1397mm)
EC2SYS-96: 60" x 108" x 66" (1524mm x 2743mm x 1676mm)
O P T I O N S & A C C E S S O R I E S
■■
■■
■■
■■
■■
PANEL KIT, CO UN TE R TOP
■■
■■
78B - 0 3/ 08 D UE T O O N GO I NG P RO DU C T D EV E LO PM E NT , SP E CI F IC AT IO N S A RE S U BJ E CT T O CH A NG E W I TH O UT N O TI C E. P R IN T ED I N U .S .A .
BUTTING KIT CO NTACT FAC TORY
GAUGE, INTERIOR AMBIENT TEMP. GU-33384
GLASS, NON-GLARE, FRONT (2 RE QUIRED) GL-24256
GLASS, TEMPERED END PANE, BRONZE KIT 5008528
INDEPENDENT ELECTRICAL OUTLET 5001781
BR US HE D S TAINLESS S TE EL 5004696
CU ST OM COLOR 5004702
W164 N9 221 Wate r Street • P.O. Box 450 • Me nomonee F alls, Wisconsi n 53052-0 45 0 • U.S .A.
PH ONE: 262.251 .3800 800.558 .8744 U.S .A./CA NAD A FAX : 262.251 .7067 80 0.329.874 4 U.S.A. ON LY
S P E C I F I C AT I O N S
●
Fourteen (14) overhead lights in three (3) light zones.
●
Three (3) base heat zones with three (3) adjustable thermostats with a range of 1 through 10, and three (3) heat-on indicator lights.
●
Four (4) tinted, reflective, tempered glass sliding doors on operator side.
●
Two (2) 10" x 36" (254mm x 914mm) operator-side work shelves.
●
Self-serve models EC2-96/PL and EC2-96/PR have a self-serve pan insert 21-5/8" x 26-7/16" x 2" (549mm x 672mm x 51mm) and includes one (1) Wire Pan Grid.
PANEL KIT, S YS TE M
BR US HE D S TAINLESS S TE EL 5004699
■■
■■
CU ST OM COLOR 5004705
PLATFORM SCALE 55265
■■
SHEET PAN DIVIDER BAR PACKAGE
■■
FU LL -SE RVICE C ASE S 5002805 SELF-SERVICE LE FT-SIDE OR RIGHT-SIDE OF CA SES 5002806
■■
TEMPERATURE PROBE 5004918
■■
THERMOSTAT GUARD COVER PLATE 5007660
■■
■■
WORK SHELF WITH GRAVY LANE 5005638
