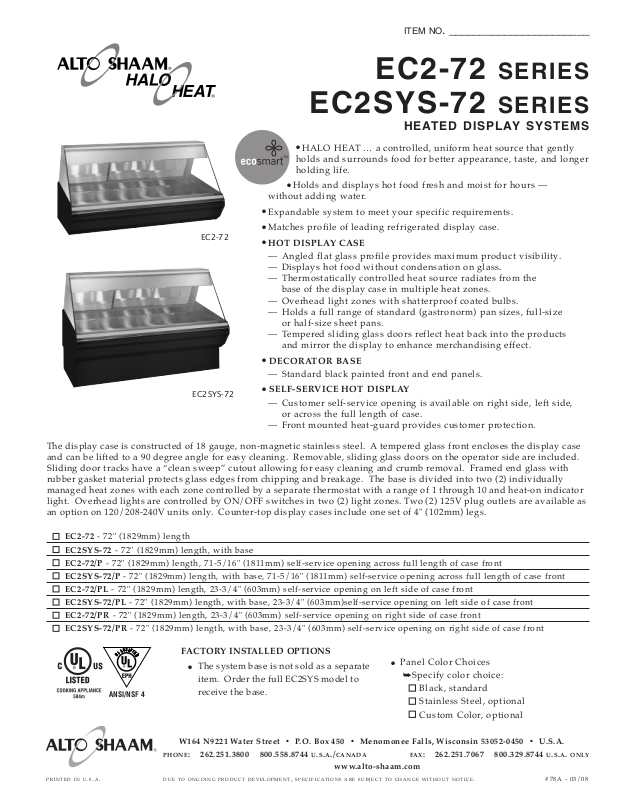

Alto-Shaam EC2SYS-72, EC2-72 User Manual

ANSI/NSF 4
EC2-72
EC2SYS-72
ITEM NO. _______________________
EC2-72 SERIES
EC2SYS-72 SERIES
HEATED DISPLAY SY S T E M S
●
HALO HEAT … a controlled, uniform heat source that gently holds and surrounds food for better appearance, taste, and longer holding life.
●
Holds and displays hot food fresh and moist for hours —
without adding water.
●
xpandable system to meet your specific requirements.
E
●
Matches profile of leading refrigerated display case.
●
HOT DISPLAY CASE
— Angled flat glass profile provides maximum product visibility. — Displays hot food without condensation on glass. — Thermostatically controlled heat source radiates from the
base of the display case in multiple heat zones. — Overhead light zones with shatterproof coated bulbs. — Holds a full range of standard (gastronorm) pan sizes, full-size
or half-size sheet pans. — Tempered sliding glass doors reflect heat back into the products
and mirror the display to enhance merchandising effect.
●
DECORATOR BASE
— Standard black painted front and end panels.
●
SELF-SERVICE HOT DISPLAY
— Customer self-service opening is available on right side, left side,
or across the full length of case. — Front mounted heat-guard provides customer protection.
The display case is constructed of 18 gauge, non-magnetic stainless steel. A tempered glass front encloses the display case and can be lifted to a 90 degree angle for easy cleaning. Removable, sliding glass doors on the operator side are included. Sliding door tracks have a
“clean sweep” cutout allowing for easy cleaning and crumb removal. Framed end glass with
■■
EC2-72 - 72" (1829mm) length
■■
EC2SYS-72 - 72" (1829mm) length, with base
■■
EC2-72/P - 72" (1829mm) length, 71-5/16" (1811mm) self-service opening across full length of case front
■■
EC2SYS-72/P - 72" (1829mm) length, with base, 71-5/16" (1811mm) self-service opening across full length of case front
■■
EC2-72/PL - 72" (1829mm) length, 23-3/4" (603mm) self-service opening on left side of case front
■■
EC2SYS-72/PL - 72" (1829mm) length, with base, 23-3/4" (603mm)self-service opening on left side of case front
■■
EC2-72/PR - 72" (1829mm) length, 23-3/4" (603mm) self-service opening on right side of case front
■■
EC 2SYS-72/PR - 72" (1829mm) length, with base, 23-3/4" (603mm) self-service opening on right side of case front
FACTORY INSTALLED OPTIONS
● The system base is not sold as a separate
item. Order the full EC2SYS model to receive the base.
● Panel Color Choices
➥Specify color choice:
■■
Black, standard
■■
Stainless Steel, optional
■■
Custom Color, optional
W164 N9 221 Wate r Street • P.O. Box 450 • Me nomonee F alls, Wisconsi n 53052-0 45 0 • U.S .A.
PH ONE: 262.251 .3800 800.558 .8744 U.S .A./CA NAD A FAX : 262.251 .7067 80 0.329.874 4 U.S.A. ON LY
www.alto-sh aam.com
P RI NT E D IN U. S. A. D UE TO O NG O IN G PR OD U CT D EV E LO P ME NT , SP E CI F IC AT IO N S A RE S U BJ E CT T O C HA NG E W I TH O UT N OT IC E . #78 A - 03 /0 8
72" (1829mm)
C
UTTING BOARD IN “DOWN” POSITION
ON
OFF
ON
OFF
48" (1218mm)
ELECTRICAL
C
ORD
6-3/4"
(
172mm)
53-1/2" (1358mm)
43-3/4" (1111mm)
13-9/16" (344mm)
37-11
/16" (956mm)
2
3
-
7
/
8
"
(
6
0
6
m
m
)
48"
(1218m
m
)
53-1/2" (1358mm)
4
3-3/4" (1111mm)
4
8" (1219mm)
CUTTING BOARD IN “DOWN” POSITION
ON
OFF
ON
OFF
48" (1218mm)
ELECTRICAL
CORD
6-3/4"
(172mm)
53-1/2" (1358mm)
43-3/4" (1111mm)
13-9/16" (344mm)
37-11
/16" (956mm)
23-7/
8"
(606m
m
)
48"
(1218m
m
)
10-11/16" (270mm)
4
1-7/8" (1063mm)
5
3-1/2" (1358mm)
4
3-3/4" (1111mm)
53-1/2" (1358mm)
43-3/4" (1111mm)
13-9/16" (344mm)
37-11
/16" (956mm)
EC 2 Pr of il e
E L E C T R I C A L
VO LTAGE P HA SE C YC LE /HZ AM PS k W
120/208-240 (U
L
)1 50/60 18. 75 4.5
at 208 1 50/60 19. 0 4.6 at 240 1 50/60 19. 0 4.6
230
(C E) 1 50/60 18.3 4.2
230 1 50/60 18.4 4.2
T
yler Huss.eps revised 5/30/02 added L14-20P Plug Configuration
NE MA L 14-3 0P
30A, 250V PL UG
BARE END, NO PLUG
PA N C O N F I G U R AT I O N *
PAN SIZE DI ME NS IO NS QT Y.
FU LL -S IZ E & O NE-THIRD**: 12" X 20" X 2-1/2" (GN 1/1) 5
12" X 6" X 2-1/2" (GN 1/3) 5
HA LF -S IZ E & O NE-THIRD**: 12" X 10" X 2-1/2" (GN 1/2) 10
12" X 6" X 2-1/2" (GN 1/3) 5
FU LL -S IZ E S HEET PAN S: 18" X 26" X 1" 3
MA X. C APA CI TY /V OL UM E: 80 lbs (36 kg)
50 qts (60 L)
* Pans are not included with display case. ** Will also accept 4" (100mm) deep pans.
EC 2S YS P ro fi le
EC 2S YS -7 2
I N S T A L L A T I O N R E Q U I R E M E N T S
Display case must be installed level. The display case must not be installed in any area where it may be affected by steam, grease, dripping water, high temperatures, or any other severely adverse conditions.
Do not install a heated display case near a cold air source such as a freezer, air conditioning vents, or in any area where outside air fluctuation can affect performance.
EC2-72 SER IES
EC2SYS-72 SER I ES
HEAT E D DI S P LAY SYST E M S
D I M E N S I O N S (HXWXD)
EX TERIOR, COU NTE R-TOP MODEL WITH L EGS:
37-11/16" x 72" x 53-1/2" (956mm x 1829mm x 1358mm)
EX TERIOR, WITH BA SE:
48" x 72" x 53-1/2" (1219mm x 1829mm x 1358mm)
WE LL DIME NSION S (WXLXD):
7-3/16" x 69-5/16" x 4-1/2" (690mm x 1760mm x 114mm)
2
W E I G H T
MODEL NET SHIP
EC2-72 440 lb (200 kg) 540 lb (245 kg)
EC2SYS-72 511 lb (232 kg) 611 lb (277 kg)
EC2-72/P 440 lb (200 kg) 540 lb (245 kg)
EC2SYS-72/P 511 lb (232 kg) 611 lb (277 kg)
EC2-72/PL/PR 453 lb (205 kg) 553 lb (251 kg)
EC2SYS-72/PL/PR 515 lb (234 kg) 615 lb (279 kg)
CR ATED DIMENSIONS (EST.): HXWXD
EC2-72: 45" x 85" x 55" (1143mm x 2159mm x 1397mm)
EC2SYS-72: 60" x 108" x 66" (1524mm x 2743mm x 1676mm)
S P E C I F I C AT I O N S
●
Ten (10) overhead lights with two (2) light zones.
●
Two (2) base heat zones with two (2) adjustable thermostats with a range of 1 through 10, and two (2) heat-on indicator lights.
●
Three (3) tinted, reflective, tempered glass sliding doors on operator side.
●
One (1) 10" x 60" (254mm x 1524mm) operator-side work shelf.
●
Self-serve model EC2-72/P has a self-serve pan insert 26-7/16" x 69-3/16" x 2" (672mm x 1757mm x 51mm) and includes three (3) Wire Pan Grids.
●
Self-serve models EC2-72/PL and EC2-72/PR have a self-serve pan insert 21-5/8" x 26-7/16" x 2" (549mm x 672mm x 51mm) and includes one (1) Wire Pan Grid.
O P T I O N S & A C C E S S O R I E S
BUTTING KIT CO NTACT FAC TORY
■■
■■
GAUGE, INTERIOR AMBIENT TEMP. GU-33384
GLASS, NON-GLARE, FRONT GL-26695
■■
GLASS, TEMPERED END PANE, BRONZE KIT 5008528
■■
■■
INDEPENDENT ELECTRICAL OUTLET 5001781
PANEL KIT, CO UN TE R TOP
■■
BR US HE D S TAINLESS S TE EL 5004695
CU ST OM COLOR 5004701
■■
#78 A - 03 /0 8 D UE T O O N GO I NG P RO DU C T D EV E LO PM E NT , SP E CI F IC AT IO N S A RE S U BJ E CT T O CH A NG E W I TH O UT N O TI C E. P R IN TE D I N U . S. A.
W164 N9 221 Wate r Street • P.O. Box 450 • Me nomonee F alls, Wisconsi n 53052-0 45 0 • U.S .A.
PH ONE: 262.251 .3800 800.558 .8744 U.S .A./CA NAD A FAX : 262.251 .7067 80 0.329.874 4 U.S.A. ON LY
PANEL KIT, S YS TE M
■■
BR US HE D S TAINLESS S TE EL 5004698
■■
CU ST OM COLOR 5004704
■■
PAN INSERT, SELF-SERVICE 4 " ( 10 2mm) DEEP 1001991 PLATFORM SCALE 55265
■■
SHEET PAN DIVIDER BAR PACKAGE
■■
FU LL -SE RVICE & SEL F-SERVICE FULL CA SES 5002803
■■
SEL F-SERVICE LE FT-SIDE OR RIGHT-SIDE OF CA SES 5002804
■■
TEMPERATURE PROBE 5004917 THERMOSTAT GUARD COVE R PLATE 5007660
■■
WORK SHELF WITH GRAVY LANE 5005639
■■
www.alto-sh aam.com
