Altera Cyclone III Development Board User Manual

Download

Cyclone III 3C120 Development Board

Reference Manual

101 Innovation Drive San Jose, CA 95134

www.alter a.com

Document Version: 1.4 Document Date: March 2009

Copyright © 2009 Altera Corporation. All rights reserved. Altera, The Programmable Solutions Company, the stylized Altera logo, specific device designations, and all other words and logos that are identified as trademarks and/or service marks are, unless noted otherwise, the trademarks and service marks of Altera Corporation in the U.S. and other countries. All other product or service names are the property of their respective holders. Altera products are protected under numerous U.S. and foreign patents and pending applications, maskwork rights, and copyrights. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera Corporation. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services

MNL-01029-1.4

Chapter 1. Overview

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

Board Component Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4

Handling the Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5

Chapter 2. Board Components

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

Board Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

Featured FPGA (U20) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

I/O and Clocking Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5

MAX II CPLD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

Configuration, Status, and Setup Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–14

Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–15

FPGA Programming Over USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–15

FPGA Programming from Flash Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–16

Flash Programming over USB Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–17

Status Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–17

Board Specific LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–17

Power Display (U28) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–18

Setup Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–18

JTAG Control DIP Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–19

MAX II Device Control DIP Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–20

System Reset and Configuration Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–20

POWER SELECT Rotary Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–21

PGM CONFIG SELECT Rotary Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–22

Speaker Header (J5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–22

Clocking Circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–23

Cyclone III FPGA Clock Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–23

Cyclone III FPGA Clock Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–24

Oscillators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–25

General User Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–26

User-Defined Push Button Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–26

User-Defined DIP Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–27

User-Defined LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–27

General User-Defined LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–27

HSMC User-Defined LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–28

DDR2 User-Defined LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–29

7-Segment Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–30

User 7-Segment Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–30

Power 7-Segment Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–31

LCD Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–31

Character LCD (J4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–32

Graphics LCD (J13) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–33

Communication Ports and Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–37

USB 2.0 MAC/PHY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–38

10/100/1000 Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–40

High-Speed Mezzanine Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–42

On-Board Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–48

DDR2 SDRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–48

SRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–54

Flash Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–58

Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–62

Power Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–64

Statement of China-RoHS Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–64

Additional Information

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . About–1

How to Contact Altera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . About–2

Typographic Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . About–2

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Introduction

This document describes the hardware features of the Cyclone® III development board, including detailed pin-out information to enable you to create custom FPGA designs that interface with all components of the board.

f For information about setting up and powering up the Cyclone III development

board and using the kit’s demo software, refer to the Cyclone III Development Kit User

Guide.

General Description

The Cyclone® III development board provides a hardware platform for developing and prototyping low-power, high-volume, and feature-rich designs as well as to demonstrate the Cyclone III device’s on-chip memory, embedded multipliers, and the Nios® II embedded processor.

1. Overview

With up to 4 Mbits of embedded memory and 288 embedded 18-bit × 18-bit multipliers, the Cyclone III device supplies internal memory while also providing external support for high-speed, low-latency memory access via dual-channel DDR SDRAM and low-power SRAM.

Built on TSMC’s 65-nm low-power process technology, Cyclone III devices are designed to provide low static and dynamic power consumption. Additionally, with the support of the Quartus® II software’s PowerPlay technology, designs are automatically optimized for power consumption. Therefore, the Cy clone III development board provides a power-optimized, integrated solution for memory-intensive, high-volume applications.

Accordingly, the Cyclone III development board is especially suitable for wireless, video and image processing, and other high-bandwidth, parallel processing applications. Through the use of Altera®-provided video and image intellectual property (or other MegaCore® functions) and board expansion connectors, you can enable the inter-operability of the Cyclone III device, allowing application-specific customization of the development board.

f For more information about the Altera Video and Image Processing Suite MegaCore

functions, refer to the Video and Image Processing Suite User Guide.

To get you started, Altera provides application-specific design examples. The pre-built and tested design examples allow you to:

■ Create a Cyclone III FPGA design in an hour

■ View Cyclone III FPGA power measurement examples

■ Design a 32-bit soft processor system inside the Cyclone III FPGA in an hour

1–2 Chapter 1: Overview

General Description

The Cyclone III development board has the following main features:

■ High logic density to implement more functions and features

■ Embedded memory for high-bandwidth applications

■ Expandable through two Altera High-Speed Mezzanine Connectors (HSMCs)

■ 256-MB of dual channel DDR2 SDRAM with a 72-bit data width

■ Supports high-speed external memory interfaces including dual-channel DDR

SDRAM and low-power SRAM

■ Four user push-button switches

■ Eight user LEDs

■ Power consumption display

The Cyclone III development board provides the following advantages:

■ Unique combination of low-cost, low-power Cyclone III FPGA that supports

high-volume, memory-intensive designs

■ Highest multiplier-to-logic ratio FPGA in the industry

■ Lowest cost, density- and power-optimized FPGA

■ Quartus II development software’s power optimization tools

Board Component Blocks

The board features the following major component blocks:

■ 780-pin Altera Cyclone III EP3C120 FPGA in a BGA package

■ 119K logic elements (LEs)

■ 3,888 Kbits of memory

■ 288 18 × 18 multiplier blocks

■ Four phase locked loops (PLLs)

■ 20 global clock networks

■ 531 user I/Os

■ 1.2-V core power

■ 256-pin Altera MAX

package

■ 1.8-V core power

■ On-board memory

■ 256-MB dual-channel DDR2 SDRAM

II EPM2210G CPLD in a FineLine Ball Grid Array (FBGA)

■ 8-MB SRAM

■ 64-MB flash memory

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 1: Overview 1–3

General Description

■ FPGA configuration circuitry

■ MAX II CPLD and flash passive serial configuration

■ On-board USB-Blaster™ circuitry using the Quartus II Programmer

■ On-board clocking circuitry

■ Two clock oscillators to support Cyclone III device user logic

■ 50 MHz

■ 125 MHz

■ 80 I/O, 6 clocks, SMBus, and JTAG

■ SMA connector for external clock input and output

■ General user and configuration interfaces

■ LEDs/displays:

■ Eight user LEDs

■ One transmit/receive LED (TX/RX) per HSMC interface

■ One configuration done LED

■ Ethernet LEDs

■ User 7-segment d isplay

■ Power consumption display

■ Memory activity LEDs:

■ SRAM

■ FLASH

■ DDR2 Top

■ DDR2 Bottom

■ Push-buttons:

■ One user reset push-button (CPU reset)

■ Four general user push-buttons

■ One system reset push-button (user configuration)

■ One factory push-button switch (factory configuration)

■ DIP switches:

■ One MAX control DIP switch

■ One JTAG control switch

■ Eight user DIP switches

■ Speaker header

■ Displays

■ 128 × 64 graphics LCD

■ 16 × 2 line character LCD

1–4 Chapter 1: Overview

CMOS + LVDS

Cyclone III

EP3C120F780

125 MHz

XTAL

SMA Input

MAX II

Device (x32)

2.5V CMOS

1.8V CMOS

Power

Measure/

Display

HSMC Port A

CMOS + LVDS

HSMC Port B

8MB SRAM

(x32)

64MB Flash

(x16)

256MB DDR2 Dual Channel

(x72)

USB

2.0

1.8V CMOS

50 MHz

Buttons/

Switches

1.8V CMOS

Quad 7-Seg/

User LEDs

1.8V SSTL

SMA Output

10/100/1000

Ethernet

2.5V CMOS

RJ-45

Jack

Graphics LCD

Character LCD

LP Filter and

Audio Amp

2.5V CMOS

Speaker

Header

General Description

■ Power supply

■ 14 V – 20 V DC input

■ On-board power measurement circuitry

■ Up to 19.8 W per HSMC interface

■ Mechanical

■ 6” × 8” board

■ Bench-top design

1 The Cyclone III FPGA Development Kit ships with additional HSMC daughter card

loopback and break-out headers for convenient testing of some of the HSMC signals. For more details regarding these test daughter cards, refer to their respective schematics at these locations in the installed kit directory:

■ <path>\board_design_files\schematic\breakout_hsmc

debug_header_breakout.pdf

■ <path>\board_design_files\schematic\loopback_hsmc

loopback_test_lowcost.pdf

Block Diagram

Figure 1–1 shows the functional block diagram of the Cyclone III development board.

Figure 1–1. Cyclone III Development Board Block Diagram

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 1: Overview 1–5

Handling the Board

When handling the board, it is important to observe the following precaution:

c Static Discharge Precaution: Without proper anti-static handling, the board can be

damaged. Therefore, use anti-static handling precautions when touching the board.

1–6 Chapter 1: Overview

Handling the Board

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Introduction

2. Board Components

This chapter introduces all the important components on the Cyclone III development board. Figure 2–1 illustrates all component locations and Ta bl e 2–1 describes component features.

The chapter is divided into the following sections:

■ “Featured FPGA (U20)” on page 2–4

■ “MAX II CPLD” on page 2–6

■ “Configuration, Status, and Setup Elements” on page 2–14

■ “Clocking Circuitry” on page 2–23

■ “General User Interfaces” on page 2–26

■ “Communication Ports and Interfaces” on page 2–37

■ “On-Board Memory” on page 2–48

■ “Power Supply” on page 2–62

■ “Statement of China-RoHS Compliance” on page 2–64

1 A complete set of board schematics, a physical layout database, and GERBER files for

the Cyclone III development board are installed in the Cyclone III Development Kit documents directory.

f For information about powering up the development board and installing the demo

software, refer to the Cyclone III Development Kit User Guide.

Board Overview

This section provides an overview of the Cyclone III development board, including an annotated board image and component descriptions.

Figure 2–1 shows the top view of the Cyclone III development board.

2–2 Chapter 2: Board Components

Speaker Header (J5)

DC Power Jack (J2)

Ethernet PHY

LEDs (D1, D3, D4)

Ethernet PHY

Duplex LED (D6)

Powe r

Switch (SW2)

Powe r

LED (D5)

Ethernet PHY TX/RX

Activity LEDS (D7, D8)

MAX II CPLD (U7)

DDR2 SDRAM Device Interface

Four x16 and one x8

(U11, U12, U25, U26, U13)

(Three on Top and Two on Bottom)

DDR2TOP_ACTIVE

LED (D11)

Cyclone III FPGA (U20)

MAX II Device

Control DIP

Switch (SW1)

24-MHz Crystal (Y1)

6-MHz Crystal (Y2)

Clock Out SMA (J11)

HSMC Port B Present LED (D19)

PGM Config Select Rotary Switch (SW5)

User Push Buttons

(S1 through S4)

User DIP

Switch (SW6)

CPU Reset Push

Button Switch (S5)

Power Select

Rotary Switch (SW4)

User Defined 7-Segment Display (U30)

Board-Specific LEDs (D20 through D24)

SRAM Active LED (D17)

HSMC Port A

Present LED (D18)

Clock In SMA (J10)

Power Display (U28)

Flash Active

LED (D23)

Configuration

Done LED (D25)

User LEDs

(D26 through D33)

Reset and

Factory Configuration Push Buttons

(S6 and S7)

DDR2BOT_ACTIVE

LED (D16)

50-MHz

Clock (Y5)

125-MHz

Clock (Y4)

24-MHz USB-

Blaster Clock (Y3)

JTAG Control

DIP Switch (SW3)

Graphics

LCD (J13)

HSMC Port B (J9) (Debug Header Shown)

HSMC Port A (J8)

(Loopback Board Shown)

Device Select Jumper (J6)

Board Overview

Figure 2–1. Top View of the Cyclone III Development Board

Ta b l e 2–1 describes the components and lists their corresponding board references.

Table 2–1. Cyclone III Development Boar d (Part 1 of 3)

Board Ref erence Type Description

Featured Devices

U20 FPGA EP3C120, 780-pin FineLine BGA pac kage.

U7 CPLD EPM2210G, 256-pin device in a FineLine BGA package.

Configuration Status and Setup Element s

J6 Device select

(DEV_SEL) jumper

J3 Input Type B USB connector that allows for connecting a Type A-B USB cable

D20 through D24 User LEDs Board-specific configuration green LEDs.

D25 Configuration done LED Green LED that illuminates when the FPGA is successfully configured.

Sets target device for JTAG signals when using an external USB-Blaster or equivalent.

between a PC and the board.

D12 through D15 Channel activity LEDs Green LEDs that indicate the RX and TX activity on the HSMC Ports A or B.

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–3

Board Overview

Table 2–1. Cyclone III Development Boar d (Part 2 of 3)

Board Ref erence Type Description

J5 Header Speaker header.

D1, D3, D4 Ethernet PHY LEDs Green Ethernet PHY LEDs. Illuminate when Ethernet PHY is using the

10/100/1000 Mbps (D1, D3, D4) connection speeds.

D6 Duplex Ethernet PHY

LED

Green Ethernet PHY LED. Illuminates when Ethernet PHY is both sending and receiving data.

D5 Power LED Blue LED indicates when power is applied to the board.

D7, D8 Ethernet PHY

transmit/receive activity

Green LED. Illuminates when transmit/receive data is active from the Ethernet PHY.

LEDs

SW1 MAX II device control

Controls various features specific to the Cyclone III development board.

DIP switch

SW3 JTAG control switch JTAG control DIP switch used to remove or include devices in the active JTAG

chain.

D17 SRAM active SRAM active LED. Illuminates when the SRAM device is accessed.

D23 Flash active Flash active LED. Illuminates when the flash device is accessed.

U28 Power display Displays power measured by the MAX II CPLD.

D16 DDR2 LED Indicates that the DDR2 top devices are active.

D11 DDR2 LED Indicates that the DDR2 bottom devices are active.

Cloc k Circuitry

Y4 125 MHz 125-MHz clock oscillator used for the system clock.

Y5 50 MHz 50-MHz clock oscillat or used for data processing.

Y1 24-MHz crystal Cypress USB PHY.

Y2 6-MHz crystal USB PHY FTDI reference clock.

Y3 24 MHz MAX II device clock.

J10 SMA clock input SMA connector that allows the provisi on of an ext ernal clock input.

J11 SMA clock output SMA connector that allows the provision of an external clock output.

General User Input and Output

S1 through S4 User push buttons Four 1.8-V push-button switches for user-defined, logic inputs.

S5 CPU reset push button One 1.8-V push-button switch for FPGA logic and CPU reset.

S6 and S7 Reset and factory

confi guration push

Two 1.8-V push-button switches that control FPGA configuration from flash memory.

buttons

D26 through D33 User LEDs Eight user-defined LEDs.

SW5 PGM CONFIG SELECT Rotary switch to select which FPGA configuration file to use in flash memory.

SW4 Power select rotary

Power rail select for on-board power monitor.

switch

U30 User display User-defined, green 7-segment display.

J4 Character LCD 14-pin LCD display.

J13 Graphics LCD 30-posit ion dot matrix graphics LCD display.

Memory

U31 Flash 64 MB of flash memory with a 16-bit data bus.

2–4 Chapter 2: Board Components

Featured FPGA (U20)

Table 2–1. Cyclone III Development Boar d (Part 3 of 3)

Board Ref erence Type Description

U23 and U24 SRAM The SRAM devices connect to the MAX II device as well as the flash memory

device.

U11, U12, U13, U25, U26

Components and Inter faces

U6 USB device USB device that provides JTAG programming of on-board devices, including

U3 Ethernet cable jack The RF-45 jack is for Ethernet cabl e connection. The connector is fed by a

J8, J9 HSMC Port A and Port B High-speed mezzanine header allows for the connection of HSMC daughter

Power Supply

J2 DC power jack 14–20 V DC power source.

SW2 Input Switches the board’s power on and off.

DDR2 SDRAM Four ×16 devices and a single ×8 device.

the Cyclone III device and flash memory device.

10/100/1000 base T PHY device with an RGMII interface to the Cyclone III device.

cards.

Featured FPGA (U20)

The Cyclone III Development Kit features the EP3C120F780 device (U20) in a 780-pin BGA package.

f For more information about Cyclone III devices, refer to the Cyclone III Device

Handbook.

Ta b l e 2–2 lists the main Cyclone III device features.

Table 2–2. Cyclone III Device Features

Feature Quantity

Logic elements 119,088

Memory (Kbits) 3,888

Multipliers 288

PLLs 4

Global clock ne tworks 20

Ta b l e 2–3 lists the Cyclone III component reference and manufacturing information.

Table 2–3. Cyclone III Component Reference and Manufacturing Information

Manufact uring

Board Reference Description Manufact urer

U20 Memory rich FPGA device Altera Corporation EP3C120F780 www.altera.com

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Part Number

Manufacturer

Website

Chapter 2: Board Components 2–5

Featured FPGA (U20)

Ta b l e 2–4 lists the Cyclone III EP3C120F780C7 device pin count.

Table 2–4. Cyclone III Device Pin Count

Function I/O Type I/O Count Special Pins

Oscil lators and SMAs 1.8-V CMOS 4 Three clock inputs, one

output

DDR2 1.8-V SSTL 148 Nine data strobe signal

(DQS), 10 V

REF

Flash/SRAM/MAX 1.8-V CMOS 78 —

Horizontal bank OCT calibration 1.8-V CMOS 4 2 Rup, 2 Rdn

Vertical bank OCT calibration 2.5-V CMOS 4 2 Rup, 2 Rdn

Passive serial configuration 2.5-V CMOS 2 DATAO, DCLK

Ether net 2.5-V CMOS 16 1 clock input

Buttons, Switches, LEDs 1.8-V CMOS 34 DEV_CLR

Character LCD, Graphics LCD 2.5-V CMOS 14 —

Speaker header 2.5-V CMOS 1 —

USB 2.5-V CMOS 14 1 clock input

HSMC Port A 2.5-V CMOS

2.5-V LVDS

86 5 clock inputs

(1 single-ended,

2 dif ferential)

HSMC Port B 2.5-V CMOS

2.5-V LVDS

86 5 clock inputs

(1 single-ended,

2 dif ferential)

Device I/O total: 491

f For additional information about Altera devices, go to

www.altera.com/products/devices.

I/O and Clocking Resources

This section lists specific I/O and clocking resources available with the EP3C120F780C7 device, which is the largest of the Cyclone III devices.

Figure 2–2 illustrates the available I/O bank resources on the EP3C120F780C7 device.

2–6 Chapter 2: Board Components

MAX II CPLD

Figure 2–2. Cyclone III Device I/O Bank Resources

72 I/O 72 I/O

B8 B7

MAX II CPLD

58 I/O

63 I/O

73 I/O 71 I/O

58 I/O

65 I/O

The board utilizes an Altera MAX II CPLD for the following purposes:

■ Power-up configuration of the FPGA from flash memory

■ Embedded USB-Blaster core for USB-based configuration of the FPGA

■ Power consumption monitoring and display

There are two USB MAC/PHY devices— FTDI and Cypress USB PHY devices— on the board. They are muxed through the MAX II CPLD. Only one can operate at any time. The FTDI device is the default device and it supports the embedded blaster functionality. The Cypress USB PHY is held in reset and is reserved for future use. Each device has a shared path between the USB device and the MAX II CPLD. The individual paths then drive to the FPGA separately. Figure 2–3 illustrates the MAX II device’s block diagram.

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–7

MAX II CPLD

Figure 2–3. MAX II Device’s Block Diagram

Power Display

JTAG

Header

64-MB

Flash (x16)

8-MB

SRAM (x32)

Cyclone III

Device

EP3C120F780

To FPGA

1.8-V CMOS FSM Bus

24 MHz

PS Config

JTAG Config

USB Data Bus

PWR_SEL

PGM_CONFIG_SEL

Power

Measure

2.5 V CMOS

MAX II CPLD

EPM2210GF256

CPU_RESET

2.5 V CMOS

RESET_CONFIG

2.5-V CMOS

1.8-V CMOS

FACTORY_CONFIG

Cypress 480 Mbps

USB (x16)

FTDI

12 Mbps USB (x8)

MAX II Device

Control DIP Switch

JTAG Control

DIP Switch

Config Status

LEDs

Ta b l e 2–5 lists the I/O signals present on the MAX II CPLD. The signal name and

function are relative to the MAX II device.

Table 2–5. MAX II Device Pi n-Out (Note 1) (Part 1 of 8)

Schematic

MAX II Pin Number I/O Stand ard Signal Direction

Signal Name

P3 — Input TCK

L6 — Input TDI

M5 — Output TDO

N4 — Input TMS

C14 1.8 V Output CLKIN_125_EN

J12 1.8 V Input CLKIN_24

E13 1.8 V Output CLKI N_50_EN

M9 1.8 V Input CPU_RESETn

F11 1.8 V Input DEV_SEL

A10 2.5 V Input FACTORY_CONFIGn

G13 1.8 V Output FLASH_ACTIVE

L15 1.8 V Output FLAS H_BYTEn

K14 1.8 V Output FLASH_CEn

2–8 Chapter 2: Board Components

MAX II CPLD

Table 2–5. MAX II Device Pi n-Out (Note 1) (Part 2 of 8)

Schematic

MAX II Pin Number I/O Stand ard Signal Direction

Signal Name

M16 1.8 V Output FLASH_OEn

L11 1.8 V Input FLASH _RDYBSYn

M15 1.8 V Output FLASH_RESETn

L12 1.8 V Output FLASH_WEn

J16 1.8 V Input FPGA_BYPASS

E3 2.5 V Input FPGA_CONF_DONE

D3 2.5 V Output FPGA_DATA

C2 2.5 V Output FPGA_DCLK

N3 2.5 V Input FPGA_JTAG_TCK

N1 2.5 V Output FPGA_JTAG_ TDI

N2 2.5 V Input FPGA_JTAG_TDO

P2 2.5 V Input FPGA_JTAG_TMS

E4 2.5 V Output FPGA_nCONFIG

C3 2.5 V Input FPGA_nSTATUS

N9 1.8 V Output FSA[0]

T8 1.8 V Output FSA[1]

N10 1.8 V Output FSA[10]

R11 1.8 V Output FSA[11]

P10 1.8 V Output FSA[12]

T12 1.8 V Output FSA[13]

M11 1.8 V Output FSA[14]

R12 1.8 V Output FSA[15]

N11 1.8 V Output FSA[16]

T13 1.8 V Output FSA[17]

P11 1.8 V Output FSA[18]

R13 1.8 V Output FSA[19]

T9 1.8 V Output FSA[2]

M12 1.8 V Output FSA[20]

R14 1.8 V Output FSA[21]

N12 1.8 V Output FSA[22]

T15 1.8 V Output FSA[23]

P12 1.8 V Output FSA[24]

R9 1.8 V Output FSA[3]

P9 1.8 V Output FSA[4]

T10 1.8 V Output FSA[5]

K16 1.8 V Output FSA[6]

R10 1.8 V Output FSA[7]

M10 1.8 V Output FSA[8]

T11 1.8 V Output FSA[9]

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–9

MAX II CPLD

Table 2–5. MAX II Device Pi n-Out (Note 1) (Part 3 of 8)

Schematic

MAX II Pin Number I/O Stand ard Signal Direction

Signal Name

P4 1.8 V Bidi rectional FSD[0]

R1 1.8 V Bidirectional FSD[1]

M6 1.8 V Bidirectional FS D[10]

R5 1.8 V Bidirectional FSD[11]

P7 1.8 V Bidi rectional FSD[12]

T5 1.8 V Bidirectional FSD[13]

N7 1.8 V Bidirectional FSD[14]

R6 1.8 V Bidirectional FSD[15]

M7 1.8 V Bidirectional FS D[16]

T6 1.8 V Bidirectional FSD[17]

J15 1.8 V Bidirectional FSD[18]

R7 1.8 V Bidirectional FSD[19]

P5 1.8 V Bidi rectional FSD[2]

P8 1.8 V Bidi rectional FSD[20]

T7 1.8 V Bidirectional FSD[21]

N8 1.8 V Bidirectional FSD[22]

R8 1.8 V Bidirectional FSD[23]

F12 1.8 V Bidirectional FSD[24]

D16 1.8 V Bidirectional FSD[25]

F13 1.8 V Bidirectional FSD[26]

D15 1.8 V Bidirectional FSD[27]

F14 1.8 V Bidirectional FSD[28]

D14 1.8 V Bidirectional FSD[29]

T2 1.8 V Bidirectional FSD[3]

E12 1.8 V Bidirectional FSD[30]

C15 1.8 V Bidirectional FSD[31]

N5 1.8 V Bidirectional FSD[4]

R3 1.8 V Bidirectional FSD[5]

P6 1.8 V Bidi rectional FSD[6]

R4 1.8 V Bidirectional FSD[7]

N6 1.8 V Bidirectional FSD[8]

T4 1.8 V Bidirectional FSD[9]

F7 GNDINT Gnd —

G6 GNDINT Gnd —

H7 GNDINT Gnd —

H9 GNDINT Gnd —

J8 GNDINT Gnd —

J10 GNDINT Gnd —

K11 GNDINT Gnd —

2–10 Chapter 2: Board Components

MAX II CPLD

Table 2–5. MAX II Device Pi n-Out (Note 1) (Part 4 of 8)

Schematic

MAX II Pin Number I/O Stand ard Signal Direction

Signal Name

L10 GNDINT Gnd —

A1 GNDIO Gnd —

A16 GNDIO Gnd —

B2 GNDIO Gnd —

B15 GNDIO Gnd —

G7 GNDIO Gnd —

G8 GNDIO Gnd —

G9 GNDIO Gnd —

G10 GNDIO Gnd —

K7 GNDIO Gnd —

K8 GNDIO Gnd —

K9 GNDIO Gnd —

K10 GNDIO Gnd —

R2 GNDIO Gnd —

R15 GNDIO Gnd —

T1 GNDIO Gnd —

T16 GNDIO Gnd —

J13 1.8 V Input HSMA_BYPASS

M4 2.5 V Output HSMA_JTAG_TDI

K4 2.5 V Input HSMA_JTAG_TDO

H16 1.8 V Input HSMB_BYPASS

H1 2.5 V Output HSMAB_JTAG_TDI

B9 2.5 V Input HSMB_JTAG_TDO

E16 1.8 V Input JTAG_SEL

D9 2.5 V Output LCD_BS1

N16 1.8 V Output LCD_SERn

L16 1.8 V Input MAX_CSn

N14 1.8 V Input MAX_DIP[0]

M13 1.8 V Input MAX_DIP[1]

N15 1.8 V Input MAX_DIP[2]

L14 1.8 V Input MAX_DIP[3]

J5 2.5 V Output MAX_EMB

M8 1.8 V Input MAX_EN

J4 2.5 V Output MAX_ERROR

J3 2.5 V Output MAX_FACTORY

K1 2.5 V Output MAX_LOAD

K13 1.8 V Input MAX_OEn

M14 1.8 V Input MAX_RESERVE[0]

P14 1.8 V Input MAX_RESERVE[1]

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–11

MAX II CPLD

Table 2–5. MAX II Device Pi n-Out (Note 1) (Part 5 of 8)

Schematic

MAX II Pin Number I/O Stand ard Signal Direction

Signal Name

K2 2.5 V Output MAX_USER

K15 1.8 V Input MAX_WEn

H12 1.8 V Input MAX2_CLK

M1 2.5 V Input MAXGP_JTAG_TCK

L4 2.5 V Output MAXGP_JTAG_TDI

L5 2.5 V Input MAXGP_JTAG_TDO

M2 2.5 V Input MAXGP_JTAG_TMS

N13 1.8 V Input MWATTS_MAMPS

H13 1.8 V Input PGM[0]

H15 1.8 V Input PGM[1]

H14 1.8 V Input PGM[2]

G16 1.8 V Input PGM[3]

J1 2.5 V Output PMON_CLK

J2 2.5 V Output PMON_CSN

H3 2.5 V Bidir PMON_DATA

H4 2.5 V Output PMON_SDI

H5 2.5 V Output PMON_SYNC

F6 2.5 V Output PWR_DIG_SE L[1]

F1 2.5 V Output PWR_DIG_SE L[2]

G3 2.5 V Output PWR_DIG_SEL[3]

G2 2.5 V Output PWR_DIG_SEL[4]

D2 2.5 V Output PWR_SEG_A

E5 2.5 V Output PWR_SEG_B

D1 2.5 V Output PWR_SEG_C

F3 2.5 V Output PWR_SEG_D

F5 2.5 V Output PWR_SEG_DP

E2 2.5 V Output PWR_SEG_E

F4 2.5 V Output PWR_SEG_F

E1 2.5 V Output PWR_SEG_G

F2 2.5 V Output PWR_S EG_MINUS

G4 2.5 V Input PWR_SEL[0]

G1 2.5 V Input PWR_SEL[1]

G5 2.5 V Input PWR_SEL[2]

H2 2.5 V Input PWR_SEL[3]

D13 — — RESERVED_INP UT

E14 — — RESERVED_INPUT

E15 — — RESERVED_INPUT

G12 — — RESERVED_INP UT

G14 — — RESERVED_INP UT

2–12 Chapter 2: Board Components

MAX II CPLD

Table 2–5. MAX II Device Pi n-Out (Note 1) (Part 6 of 8)

Schematic

MAX II Pin Number I/O Stand ard Signal Direction

Signal Name

G15 — — RESERVED_INP UT

K12 — — RESERVED_INPUT

L13 — — RESERVED_INPUT

P13 — — RESERVED_INPUT

R16 — Input RESET_CONFIGn

F16 — Output SRAM_ACTIVE

F15 — Input SRAM_CSn

B3 2.5 V Input USB_CLKOUT

E10 2.5 V Input USB_CMD_DATA

B10 2.5 V Output USB_EMPTY

E9 2.5 V Bidirectional USB_FD[0]

A9 2.5 V Bidi rectional USB_FD[1]

A8 2.5 V Bidi rectional USB_FD[2]

B8 2.5 V Bidi rectional USB_FD[3]

E8 2.5 V Bidirectional USB_FD[4]

A7 2.5 V Bidi rectional USB_FD[5]

D8 2.5 V Bidirectional USB_FD[6]

B7 2.5 V Bidi rectional USB_FD[7]

C9 2.5 V Output USB_FULL

J14 1.8 V Input USB_IFCLK

A2 2.5 V Bidi rectional USB_PA0_INT0n

D5 2.5 V Bidirectional USB_PA1_IN T1n

B1 2.5 V Bidi rectional USB_PA2_SLOE

D4 2.5 V Bidirectional USB_PA3_WU2

L3 2.5 V Bidirectional USB_PA4_IF0ADR0

L1 2.5 V Bidirectional USB_PA5_IF0ADR1

K5 2.5 V Bidi rectional USB_PA6 _PKTEND

L2 2.5 V Bidirectional USB_PA7_SLCSn

A4 2.5 V Input USB_PHY_CMD_DATA

D6 2.5 V Output USB_PHY_EM PTY

C13 2.5 V Bidirectional USB_PHY_FD [0]

B16 2.5 V Bidirectional USB_PHY_FD [1]

E11 2.5 V Bidirectional USB_PHY_FD [10]

B12 2.5 V Bidirectional USB_PHY_FD [11]

C10 2.5 V Bidirectional USB_PHY_FD [12]

A12 2.5 V Bidirectional USB_PHY_FD [13]

D10 2.5 V Bidirectional USB_ PHY_FD[14]

B11 2.5 V Bidirectional USB_PHY_FD [15]

C12 2.5 V Bidirectional USB_PHY_FD [2]

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–13

MAX II CPLD

Table 2–5. MAX II Device Pi n-Out (Note 1) (Part 7 of 8)

Schematic

MAX II Pin Number I/O Stand ard Signal Direction

Signal Name

A15 2.5 V Bidirectional USB_PHY_FD [3]

D12 2.5 V Bidirectional USB_P HY_FD[4]

B14 2.5 V Bidirectional USB_PHY_FD [5]

C11 2.5 V Bidirectional USB_PHY_FD [6]

B13 2.5 V Bidirectional USB_PHY_FD [7]

D11 2.5 V Bidirectional USB_P HY_FD[8]

A13 2.5 V Bidirectional USB_PHY_FD [9]

C4 2.5 V Output USB_PHY_FULL

C7 2.5 V Input USB_PHY_IFCLK

E6 2.5 V Input USB_PHY_REn

B4 2.5 V Input USB_PHY_WEn

E7 2.5 V Input USB_PWR_ENn

C8 2.5 V Output USB_RDn

A11 2.5 V Input USB_REn

C6 2.5 V Output USB_RESETn

A5 2.5 V Output USB_RSTn

D7 2.5 V Input US B_RSTOUTn

B6 2.5 V Input USB_RXFn

B5 2.5 V Output USB_SI_WU

K3 2.5 V Input USB_TXEn

C5 2.5 V Output USB_WAKEUP

M3 2.5 V Input USB_WEn

A6 2.5 V Output USB_WR

F10 — Power VCCINT

G11 — Power VCCINT

H8 — Power VCCINT

H10 — Power VCCINT

J7 — Power VCCINT

J9 — Power VCCINT

K6 — Power VCC INT

L7 — Power VCCINT

C1 — Power VCC IO1

H6 — Power VCCIO1

J6 — Power VCCIO1

P1 — Power VCC IO1

A3 — Power VCC IO2

A14 — Power VCCIO2

F8 — Power VCCIO2

F9 — Power VCCIO2

2–14 Chapter 2: Board Components

Configuration, Status, and Setup Elements

Table 2–5. MAX II Device Pi n-Out (Note 1) (Part 8 of 8)

Schematic

MAX II Pin Number I/O Stand ard Signal Direction

Signal Name

C16 — Power VCCIO3

H11 — Power VCCIO3

J11 — Power VCCIO3

P16 — Power VCCIO3

L8 — Power VCCIO4

L9 — Power VCCIO4

T3 — Power VCCIO4

T14 — Power VCCIO4

P15 1.8 V Input VOLTS_WATTS

Note to Table 2–5:

(1) For more information about the MAX II pin-out, refer to the Altera website at www.altera.com/literature/lit-dp.jsp.

Ta b l e 2–6 lists the MAX II component reference and manufacturing information.

Table 2–6. MAX II Component Reference and Manufacturing Information

Board

Reference Descr iption Manufacturer

U7 256-pin device in a FineLine Ball Grid

Altera Corporation EPM2210GF256C3N www.altera.com

Array (FBGA) package

Configuration, Status, and Setup Elements

This section describes the board’s configuration, status, and setup elements, and is divided into the following groups:

■ “Configuration” on page 2–15

■ FPGA programming over USB

■ FPGA programming from flash memory

■ Flash programming over USB

■ “Status Elements” on page 2–17

■ Board-specific LEDs

■ Power display

■ “Setup Elements” on page 2–18

■ JTAG control DIP switch

Manufacturing

Part Number

Manufact urer

Website

■ MAX II device control DIP switch

■ System reset and configuration push buttons

■ POWER SELECT rotary switch

■ PGM CONFIG SELECT rotary switch

■ Speaker header

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–15

2.5V

HSMC Port A

TDI TDO

TMS

TCK

FPGA

TDI TDO

TMS

TCK

MAX II

CPLD

PSNTn

HSMC Port B

TDI TDO

TMS

TCK

PSNTn

TDI TDO

TMS

TCK

GPIO Pins

JTAG Control

DIP Switch

FPGA_BYPASS HSMA_BYPASS

USB 2.0

JTAG Header

TDO TDI

TMS

TCK

GPIO Pins

Jumper

DEV_SEL

Jumper

JTAG_SEL

HSMA_BYPASS MAX_EN

Configuration, Status, and Setup Elements

Configuration

This section discusses FPGA, flash memory, and MAX II device programming methods supported by the Cyclone III development board.

FPGA Programming Over USB

The FPGA can be configured at any time the board is powered on by using the USB 2.0 interface and the Quartus II Programmer in JTAG mode.

The JTAG chain is mastered by the embedded USB Blaster function found in the MAX II device. Only a USB cable is needed to program the Cyclone III FPGA. Any device can be bypassed by using the appropriate switch on the JTAG control DIP switch.

1 Board reference SW1 position 5 (SW1.5), labeled MAX0, must be in the closed position

(on) for this feature to properly work. If the SW1 switch is in the closed position, the parallel flash loader (PFL) megafunction in the MAX II CPLD may try to overwrite the FPGA image just downloaded over the USB immediately after completion.

For more information about:

■ Advanced JTAG settings, refer to Table 2–7.

■ The JTAG control switch, refer to “JTAG Control DIP Switch” on page 2–19.

Figure 2–4. JTAG Chain with the MAX II Device and the Cyclone III Device

The JTAG header can be used with an external USB-Blaster cable, or equivalent, to program either the MAX II CPLD or configure the Cyclone III FPGA. Most users of the Cyclone III development board do not use the JTAG header at all and instead use a USB cable along with the embedded USB-Blaster. Using an external USB-Blaster with the JTAG header requires disabling the embedded USB-Blaster function. See

Ta b l e 2–7.

2–16 Chapter 2: Board Components

Configuration, Status, and Setup Elements

Table 2–7. JTAG Settings (Note 1)

Number Description

1 Embedded USB Blaster (2),

PFL

FPGA

Bypass

(SW3.1)

HSMA

Bypass

(SW3.2)

HSMB

Bypass

(SW3.3)

MAX

Enable

(SW3.4)

Enable (SW1.5 MAX0)

10001 X

Device Select

(DEV_SEL)

Jumper, J6

Cyclone III target device only

2 Embedded USB Blaster (2), (4)

11001 X

Cyclone III device + HSMC Port A

3 Embedded USB Blaster (2), (4)

10101 X

Cyclone III device + HSMC Port B

4 Ext ernal USB Blaster (3),

XXX11 Off

Cyclone III target device only

5 Ext ernal USB Blaster (3),

XXXXX On

MAX II target device only

Notes to Table 2–7:

(1) The nomenclature SW3.1 is used to indicate board reference SW3, position 1; similarly SW1.5 is used to indicate board reference SW1,

position 5. (2) Requires USB cable plugged into board reference J3. (3) Requires external USB-Blaster or equivalent plugged into board reference J14 (PCB bottom). (4) The JTAG chains for both HSMC ports A and B can only be accessed from the embedded USB-Blaster. They cannot be accessed from the

external USB-Blaster header.

FPGA Programming from Flash Memory

On either power-up or by pressing the RESET_CONFIG or FACTORY_CONFIG push button, the MAX II CPLD device’s PFL megafunction configures the Cyclone III FPGA from flash memory.

The PFL megafunction reads 16-bit data from the flash memory and converts it to passive serial format. The data is written to the Cyclone III device’s dedicated DCLK

and D0 configuration pins at 12 MHz.

FPGA configuration from flash memory can be sourced from one of eight images. The image is selected by the PGM_CONFIG_SELECT rotary switch, board reference SW5. The rotary switch has 16 positions, but only the first eight are used. The positions correspond to an offset in flash memory that the PFL is directed to for FPGA configuration data.

1 Board reference SW1 position 5 (SW1.5), labeled MAX0, must be in the

open position (1) for this feature to be enabled. If the SW1 switch is in the closed (0) position, the PFL megafunction in the MAX II CPLD is disabled.

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–17

Configuration, Status, and Setup Elements

Flash Programming over USB Interface

The flash memory can be programmed at any time the board is powered up by using the USB 2.0 interface and the Quartus II Programmer ’s JTAG mode.

The development kit implements the Altera PFL megafunction for flash programming. The PFL is a block of logic that is programmed into an Altera programmable logic device (FPGA or CPLD). The PFL functions as a utility for writing to a compatible flash device. The development kit ships with a pre-built PFL design called cycloneIII_3c120_dev_pfl. The PFL design is programmed onto the FPGA whenever the flash is to be written using the Quartus II software.

f For more information about:

■ PFL megafunction, refer to AN386: Using the Parallel Flash Loader with the Quartus II

Software.

■ Basic flash programming instructions for the development board, refer to the

Programming the Flash Device section of the Cyclone III Development User Guide.

Status Elements

The development board includes general user, board specific, and HSMC user LEDs. This section discusses board-specific LEDs as well as the power display device.

f For information about general and HSMC user-defined LEDS, refer to “User-Defined

LEDs” on page 2–27.

Board Specific LEDs

There are 14 board-specific LEDs, which are factory designated. Ta b le 2–8 lists the LED board reference, name, and description.

Table 2–8. Board-Specific LEDs (Part 1 of 2)

Board

Reference LED Name Description

D5 Power Illuminates when board power switch SW2 is on.

(Requires 14 V to 20 V input to DC input jack J2)

D25 CONF DONE Illuminates when FPGA is successfully configured. Driven by Cyclone III FPGA.

D20 Loading Illuminates when MAX II CPLD is actively configuring the FPGA. Driven by the MAX II CPLD.

D21 Error Illuminates when MAX II CPLD fails to successfully confi gure the FPGA. Driven by the

MAX II CPLD.

D24 Factory Illuminates when FPGA is configured with the default factor y FPGA design. Driven by the

MAX II CPLD.

D22 User Illuminates when FPGA is configured with a design other than the default factory FPGA

design. Driven by the MAX II CPLD.

D7 ENET TX Illuminates when transmit data is active from the Ethernet PHY. Driven by the

Marvell 88E1111 PHY.

D8 ENET RX Illuminates when receive data is active from the Ethernet PHY. Driven by the

Marvell 88E1111 PHY.

2–18 Chapter 2: Board Components

Configuration, Status, and Setup Elements

Table 2–8. Board-Specific LEDs (Part 2 of 2)

Board

Reference LED Name Description

D1 10 MB Illuminates when Ethernet PHY is using the 10 Mbps connection speed. Driven by the

Marvell 88E1111 PHY.

D3 100 MB Illuminates when Ethernet PHY is using the 100 Mbps connection speed. Driven by the

Marvell 88E1111 PHY.

D4 1000 M Illuminates when Ethernet PHY is usi ng the 1000 Mbps connection speed. Driven by the

Marvell 88E1111 PHY. Also connects to Cyclone III FPGA.

D6 Duplex Illuminates when Ethernet PHY is both sending and receiving data. Driven by the

Marvell 88E1111 PHY.

D18 HSMC Port A

present

D19 HSMC Port B

present

Illuminates when HSMC Port A has a board or cable plugged such that pin 160 becomes grounded.

Illuminates when HSMC Port B has a board or cable plugged such that pin 160 becomes grounded.

D17 SRAM active Illuminates when SRAM is being accessed with a read or write transaction. Driven by the

MAX II CPLD.

D23 Flash active Illuminates when flash memory is being accessed with a read or write transaction. Driven by

the MAX II CPLD.

Ta b l e 2–9 lists the board-specific LEDs component reference and manufacturing

information.

Table 2–9. Board-Specific LEDs Component Reference and Manufacturing Information

Board Reference Description Manufacturer

D1, D3, D4, D6-D8, D17- D19, D2 0, D22- D25

D5 Blue LED, 1206, SMT, clear lens,

Green LED, 1206, SMT, clear lens,

2.1 V

Lumex, Inc SML-LX1206GC-TR www.lumex.com

Lumex, Inc SML-LX1206USBC-TR www.lumex.com

3.5 V

D21 Red LED, 1206, SMT, clear lens,

Lumex, Inc SML-LX1206IC-TR www.lumex.com

2.0 V

Power Display (U28)

The power being measured by the MAX II CPLD and associated A/D is displayed on a dedicated 7-segment display connected to the MAX II device called Power Display. Although the 7-segment display is connected to the MAX II CPLD, it is also register-controllable from the FPGA using the FSM bus.

Setup Elements

The development board includes user, JTAG control, and board-specific DIP switches. The board also includes system reset and configuration push button switches as well as rotary switches. This section discusses:

Manufacturing

Part Number

Manufact urer

Website

■ JTAG control DIP switch

■ MAX II device control DIP switch

■ System reset and configuration push buttons

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–19

Configuration, Status, and Setup Elements

■ POWER SELECT rotary switch

■ PGM CONFIG SELECT rotary switch

■ Speaker header

JTAG Control DIP Switch

Board reference SW3 is a 4-position JTAG control DIP switch, and it is provided to either remove or include devices in the active JTAG chain. Additionally, JTAG control DIP switch is also used to disable the embedded USB-Blaster cable when using an external USB-Blaster cable (Tab le 2–10).

Table 2–10. JTAG Control DIP Switch Signal Name and Description

DIP Switch Signal Name Description

SW3.1 FPGA_BYPASS Includes or removes FPGA from embedded USB-Blaster

JTAG chain.

1 – FPGA included in JTAG chain

0 – FPGA not included in JTAG chain

SW3.2 HSMA_BYPASS Includes or removes HSMA Port from embedded

USB-Blaster JTAG chain.

1 – HSMA Port included in JTAG chain

0 – HSMA Port not included in JTAG chain

SW3.3 HSMB_BYPASS Includes or removes HSMB Port from embedded

USB-Blaster JTAG chain.

1 – HSMB Port included in JTAG chain

0 – HSMB Port not included in JTAG chain

SW3.4 MAX_EN Enables embedded USB-Blaster JTAG chain.

1 – Embedded USB-Blaster connected to JTAG chain

0 – Embedded USB-Blaster disconnected from JTAG chain

Because the JTAG chain also contains the two HSMC, the SW3 DIP switch allows data to bypass the HSMC interfaces as well as the MAX II CPLD. See “FPGA Programming

Over USB” on page 2–15.

f For information about user-defined DIP switches, refer to “User-Defined DIP

Switches” on page 2–27.

Ta b l e 2–11 lists the JTAG control switch component reference and manufacturing

information.

Table 2–11. JTAG Control Switch Component Reference and Manufacturing Information

Board

Reference Description Manufacturer

Manufact uring

Part Number

SW3 Four-position slider DIP switch C&K Components ITT industries TDA04H0SB1

2–20 Chapter 2: Board Components

Configuration, Status, and Setup Elements

MAX II Device Control DIP Switch

Board reference SW1 is the board settings DIP switch, which controls various features specific to the Cyclone III development board and factory default (board test system) FPGA design: On = logic 0 and Off = logic 1.

Ta b l e 2–12 lists the switch position, name, and description.

Table 2–12. MAX II Device Control DIP Switch Position, Name, and Description

Switch Name Description

8 MAX3 Reserved

7 MAX2 Reserved

6 MAX1 Reserved

5 MAX0 open (1) = MAX II device PFL enabled, closed (0) = MAX II device PFL disabled

4 MAX_RESERV E1 Reserved

3 MAX_RESERV E0 Reserved

2 VOLTS_WATT S 1 = power display shows mW/mA, 0 = power display shows voltage

1 MWATTS_MAM PS 1 = power display shows mA, 0 = power display shows mW

Ta b l e 2–13 lists the MAX II device control DIP switch component reference and

manufacturing information.

Table 2–13. MAX II Device Control DIP Switch Component Reference and Manufacturing Information

Manufacturing

Board Reference Descri ption Manufacturer

SW1 8-position rocker DIP switch Grayhill Corporation 76SB08ST www.grayhill.com

Part Number

Manufact urer

Website

System Reset and Configuration Switches

Board reference S6 is the system reset push button switch, RESET_CONFIGn, which is an input to the MAX II device. It forces a reconfiguration of the FPGA from flash memory. The location in flash memory is based on the input from the board settings rotary switch position for the signals PGM [2:0]. The MAX II device uses the RESET_CONFIGn pin as its reset along with the CPU_RESETn push button.

Board reference S5 is the CPU reset push button switch, CPU_RESET, which is an input to both the Cyclone III FPGA and the MAX II CPLD. The CPU_RESET push button is intended to be the master reset signal for the FPGA design loaded in the Cyclone III device, and connects to the special function pin called DEV_CLR on the FPGA but is also a regular I/O pin. The MAX II device uses this as its reset along with the RESET_CONFIG and FACTORY_CONFIG push buttons.

Board reference S7 is the factory push button switch (FACTORY_CONFIG), which is an input to the MAX II device. The FACTORY_CONFIG pin forces a reconfiguration of the FPGA with the factory default FPGA design, which is located at the base of flash memory. See Ta b l e 2–14.

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–21

Configuration, Status, and Setup Elements

Table 2–14. Push Button Switch Signal Name and Function

Cyclone III

Board

Reference Description

S7 User defined push button 1.8 V FACT ORY_CONFIG —A10

S6 User defined push button 1.8 V RESET_CONFIGn —R16

S5 User defined push button 1.8 V CPU_RESET T21 M9

I/O

Standard

Schematic

Signal Name

Device

Pin Number

MAX II Devi ce

Pin Nu mber

Ta b l e 2–15 lists the push-button switch component reference and manufacturing

information.

Table 2–15. Push-But ton Switch Component Reference and Manufact uring Information

Board

Reference Description Manufacturer

S5-S7 Push button switch Panasonic EVQAPAC07K www.panasonic.com

Manufacturing

Part Number

Manufacturer

Website

f For information about user-defined push buttons, refer to “User-Defined Push Button

Switches” on page 2–26.

POWER SELECT Rotary Switch

A 16-position rotary switch, board reference SW4, is used to select the current power rail whose power is being measured and displayed on the power display. The rotary switch is connected to the MAX II CPLD, but it also registers readable by the FPGA using the FSM shared bus (flash, SRAM, and MAX II device). Ta bl e 2–16 lists the power select rotary switch number, name, power pin, and description.

Table 2–16. Power Select Rotary Switch Number, Name, Pin, and Description (Par t 1 of 2)

Schematic

Number

0 1.2V_INT VCCINT FPGA core power

1 1.2V_VCCD VCCD_PLL FPGA PLL digital power

2 2.5V_VCCA VCCA FPGA PLL analog power and auxiliary circuit

3 1.8V_IO_B3_B4 VCCIO3, VCCIO4 FPGA I/O power ba nks 3, 4

4 1.8V_IO_B7_B8 VCCIO7, VCCIO8 FPGA I/O power ba nks 7, 8

5 2.5V_IO_B1_B2 VCCIO1, VCCIO2 FPGA I/O power ba nks 1, 2

6 2.5V_IO_B5_B6 VCCIO5, VCCIO6 FPGA I/O power ba nks 5, 6

7 1.2V — All non-FPGA 1.2-V power

8 1.8V — All non-FPGA 1.8-V power

9 2.5V — All non-FPGA 2.5-V power

A 3.3V — All 3.3-V power (voltage only) (1)

B 5.0V — All 5.0-V power (voltage only) (1)

Signa l Name Power Pin Name Description

power

(Ethernet)

(SRAM, Flash, MAX II, and DDR2 devices)

(Ethernet, LEDs, LCD)

2–22 Chapter 2: Board Components

Configuration, Status, and Setup Elements

Table 2–16. Power Select Rotary Switch Number, Name, Pin, and Description (Par t 2 of 2)

Schematic

Number

Signa l Name Power Pin Name Description

C 12V — All 12-V power (voltage only) (1)

D— — —

E— — —

F— — —

Note to Table 2–16:

(1) Display shows resistor divider output, not actual voltage as the A/D cannot take in sources higher than 3.0 V. See schematic page 5 for resistor

dividers. Current (mA) displays for these voltages are only accurate to see a change in current from one circuit state to another. The absolute

current levels should not be referenced.

Ta b l e 2–17 lists power select rot ary switch component reference and manufacturing

information.

Table 2–17. Power Select Rotar y Switch Component Reference and Manufacturing Information

Board

Reference Description Manufacturer

Manufacturing

Part Number

Manufact urer

Website

SW4 16-position rotary switch Grayhill Corporation 94HCB16WT www.grayhill.com

PGM CONFIG SELECT Rotary Switch

A 16-position rotary switch, board reference SW5, is used to select the location in flash memory to load the Cyclone III FPGA design. The rotary switch has 16 positions but only the first eight are used. For information about the flash memory locations, refer to Table 2–58 on page 2–60.

Ta b l e 2–18 lists PGM configuration select rotary switch component reference and

manufacturing information.

Table 2–18. PGM CONFIG SELECT Rotary Switch Component Reference and Manufacturing Information

Board Reference Description Manufacturer

Manufact uring

Part Number

Manufacturer

Website

SW5 Rotary switch Grayhil l Corporation 94HCB16WT www.grayhill.com

Speaker Header (J5)

A four-pin 0.1” pitch header is used for a PC speaker connection. The FPGA drives an R/C filter from a 2.5-V CMOS I/O pin allowing tones to be generated by driving different frequencies to the pin.

Ta b l e 2–19 lists power select rot ary switch component reference and manufacturing

information.

Table 2–19. Power Select Rotar y Switch Component Reference and Manufacturing Information

Board Reference Description Manufac turer

Manufacturing

Part Number

Manufact urer

Website

J5 Speaker header Samtec TSW-104-07-G-S www.samtec.com

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–23

Clocking Circuitry

This section describes Cyclone III FPGA clocking inputs and outputs. A diagram is provided for each section.

Cyclone III FPGA Clock Inputs

Figure 2–5 outlines the clocking inputs to the Cyclone III FPGA.

1 Some signals are connected to 1.8-V banks and some are connected to 2.5-V banks.

Refer to the Cyclone III Device Handbook for information about allowable levels for driving these inputs from external sources.

The clock 1 and clock 2 signals from the HSMC interface can be used as LVDS pairs or as eight separate clock signals. These signals include HSMA_CLK_IN_P2/N2, HSMA_CLK_IN_P1/N1, HSMB_CLK_IN_P2/N2, and HSMB_CLK_IN_P1/N1. These signals may also be used for bidirectional data. If used in LVDS mode, install applicable termination resistors between P/N pairs. A voltage translator, National Semiconductor part number FXLP34, is located in between the HSMC interfaces and the Cyclone III FPGA to reduce LVTTL to 1.8-V CMOS input levels for clock 0 signals HSMA_CLK_IN0 and HSMB_CLK_IN0.

f For more information, refer to the Cyclone III development board schematics

included in the development kit.

Figure 2–5. Cyclone III FPGA Clock Inputs

ENET_RX_CLK

ENET PHY

HSMA_CLK_IN_P2

HSMC Port A

HSMA_CLK_IN_N2

HSMA_CLK_IN_P1

HSMA_CLK_IN_N1

3.3V 1.8V

125 MHz

CLK0

CLK1

CLK2

CLK3

Bank 1

2.5 V

Bank 2

2.5 V

CLKIN_125

Bank 8

1.8 V

Bank 3

1.8 V

CLK15

CLK14

USB_IFCLK

Bank 7

1.8 V

Bank 4

1.8 V

CLK13

CLK8 CLK9 CLK10 CLK11

Bank 6

2.5 V

Bank 5

2.5 V

CLK12

MAX II CPLD

HSMB_CLK_IN0

CLK4

CLK5

CLK6

CLK7

3.3 V1.8 V

HSMB_CONN_CLK_IN0

BUF

HSMB_CLK_IN_P1

HSMB_CLK_IN_N1

HSMA_CLK_IN_P2

HSMA_CLK_IN_N2

HSMC Port B

BUF

HSMA_CONN_CLK_IN0

HSMA_CLK_IN0

SMA Input 50 MHz

CLKIN_SMA

CLKIN_50

2–24 Chapter 2: Board Components

Clocking Circuitry

Cyclone III FPGA Clock Outputs

Figure 2–6 outlines the clocking outputs from the Cyclone III FPGA.

1 Some signals are connected to 1.8-V banks and some are connected to 2.5-V banks.

Refer to the Cyclone III Device Handbook for information about voltage output levels.

The CLKOUT_SMA signal connects to the Cyclone III FPGA using a dedicated PLL output pin, PLL4_CLKOUTp. This pin does not have to be used with the PLL as it can also drive data or other trigger signals.

Figure 2–6. Cyclone III FPGA Clock Outputs

HSMC Port A

HSMA_CLK_OUT_P2

HSMA_CLK_OUT_N2

HSMA_CLK_OUT_P1

HSMA_CLK_OUT_N1

HSMA_CLK_OUT0

ENET PHY

ENET_GTX_CLK

MAX II CPLD

MAX2_CLK

Bank 1

2.5 V

Bank 2

2.5 V

DDR2_CK_P0

DDR2_CK_N0

DDR2

DDR2_CK_P2

DDR2_CK_N1

Bank 8

1.8 V

Bank 3

1.8 V

DDR2

Bank 7

1.8 V

Bank 4

1.8 V

SRAM_CLK

DDR2

DDR2_CK_P2

DDR2_CK_N2

Bank 6

2.5 V

Bank 5

2.5 V

PLL4

CLKOUT_SMA

HSMB_CLK_OUT_IN0

HSMB_CLK_IN_P1

HSMB_CLK_IN_N1

HSMA_CLK_IN_P2

HSMA_CLK_IN_N2

HSMC Port B

DDR2

DDR2 SRAM

SMA Output

Ta b l e 2–20 shows the clocking parts list.

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–25

Clocking Circuitry

Table 2–20. Cyclone III Development Board Clocking Parts List

Board

Reference Description Manufacturer

Y5 50-MHz LVDS oscillator Pletronics SM5545TEX-50.00M www.pletronics.c om

Y4 125-MHz LVDS oscillator Pletronics SM5545TEX-125.00M www.pletro nics.com

J10, J11 SMA for external clock

input/output

Y1 24-MHz crystal Abracon Corporation ABL-24.000MHZ-12 www.abracon.com

Y2 6-MHz crystal Abracon Corporation ABL-6.000MHZ-B2 www.abracon .com

X1 25-MHz crystal oscillator ECS, Inc. ECS-3953C-250-B www.ecsxtal.com

Y3 24-MHz crystal oscillator Pletronics SM5545TEX-24.00M www.pletronics.com

Lighthorse Tec hn olo gi es

Manufact urer

Part Number Manufacturer Website

LTI-SASF546-P26-X1 www.rfconnector.com

Ta b l e 2–21 lists the board’s clock distribution system.

Table 2–21. Cyclone III Development Board Clock Distribution

Signal

Schematic

Source

125-MHz (Y4) oscillator clkin_125 Input Y4 Cyclone III device pin A14

50-MHz (Y5) oscillator clkin_50 Input Y5 Cyclone II I device pin AH15

User input (SMA clock input) clkin_sma Input J10 Cyclone III device pin AH14

User output (SMA clock output) clkout_sma Output J11 From Cyclone III device pin AE23

25 MHz (reference clock); This clock can change both speed and direction depe nding on the Ethernet link speed (10/100/1000)

24-MHz (Y3) oscillator clkin_24 Input Y3 MAX II device pin J12

6-MHz crystal XTIN/XTOUT Input Y2 FTDI USB PHY

24-MHz crystal XTALIN/XTALOUT Input Y1 Cypress USB PHY

Signal Name I/O Standard

enet_rx_cl k Input U5 Cyclone III device pin B14

Originates

From Signal Propagat es To

(Bank 3)

Oscillators

There are several on-board crystals and crystal oscillators driving reference clocks to different devices. Table 2–22 lists the board’s oscillators.

Table 2–22. Board Oscillators

Number Frequency Description

1 6.000 MHz Crystal for FTDI USB PHY

2 24.000 MHz Crystal for Cypress USB PHY

3 24.000 MHz Crystal oscillator for MAX II CPLD

4 25.000 MHz Crystal oscillator for Ethernet PHY

5 50.000 MHz Crystal oscillator for Cyclone III FPGA PLL

6 125.000 MHz Crystal oscillator for Cyclone III FPGA PLL

2–26 Chapter 2: Board Components

General User Interfaces

To allow you to fully leverage the I/O capabilities of the Cyclone III device for debugging, control, and monitoring purposes, the following general user interfaces are available on the board:

■ Push buttons

■ DIP switches

■ LEDs

■ 7-segment displays

■ LCD displays

User-Defined Push Button Switches

The development board includes four general user, one user reset, one system reset, and one factory push button switch.

f For information on the system reset and factory push button switches, refer to

“System Reset and Configuration Switches” on page 2–20.

Board references S1 through S4 are push button switches allowing general user I/O interfaces to the Cyclone III device. There is no board-specific function for these four push buttons.

Board reference S5 is the user reset push button switch, CPU_RESETn, which is an input to the Cyclone III device and MAX II CPLD. It is intended to be the master reset signal for the FPGA design loaded into the Cyclone III device. This connects to the special function pin called the DEV_CLR on the FPGA, but it also is a regular I/O pin. The MAX II device uses the DEV_CLR pin as its reset along with the RESET_CONFIGn push button.

Ta b l e 2–23 lists the schematic signal name and corresponding Cyclone III pin number.

Table 2–23. Push Button Switch Signal Name and Function

Schematic Signal

Board Reference

S1 USER_PB3 AA 12 —

S2 USER_PB2 AH3 —

S3 USER_PB1 AC 12 —

S4 USER_PB0 AD7 —

S5 CPU_RESETn T21 M9

Name

Cyclone III Device

Pin Number

MAX II Device

Pin Nu mber

Ta b l e 2–24 lists the push button switch component reference and manufacturing

information.

Table 2–24. Push Button Switch Component Reference and Manufacturing Information

Manufact uring

Board Referen ce Description Manu facturer

S1 through S5 Push button switch Panasonic EVQPAC07K www.panasonic.com

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Part Number

Manufacturer

Website

Chapter 2: Board Components 2–27

General User Interfaces

User-Defined DIP Switches

Board reference SW6 is an 8-pin DIP switch. The switches in SW6 are user-defined, and are provided for additional FPGA input control. Each pin can be set to a logic 1 by pushing it to the open position, and each pin can be set to a logic 0 by pushing it to the closed position. There is no board-specific function for these switches.

Ta b l e 2–25 lists the user DIP switch setting, schematic signal name, and corresponding

Cyclone III device’s pin number.

Table 2–25. User-Defined DIP Switch Pin-Out (SW6)

Cyclone III

Board Reference

SW6 DIP Switch Descr iption I/O Standard

SW6 pin 1 User-defined DIP switch pin 1 1.8 V USER_DIPSW0 AC14

SW6 pin 2 User-defined DIP switch pin 2 1.8 V USER_DIPSW1 AD18

SW6 pin 3 User-defined DIP switch pin 3 1.8 V USER_DIPSW2 AG23

SW6 pin 4 User-defined DIP switch pin 4 1.8 V USER_DIPSW3 AC19

SW6 pin 5 User-defined DIP switch pin 5 1.8 V USER_DIPSW4 AD14

SW6 pin 6 User-defined DIP switch pin 6 1.8 V USER_DIP SW5 G20

SW6 pin 7 User-defined DIP switch pin 7 1.8 V USER_DIP SW6 AB15

SW6 pin 8 User-defined DIP switch pin 8 1.8 V USER_DIPSW7 AF25

Schematic

Signal Name

Device

Pin Number

Ta b l e 2–26 lists the user-defined DIP switch component reference and manufacturing

information.

Table 2–26. User-Defined DIP Switch Component Reference and Manufacturing Information

Manufacturing

Board Reference Description Manufacturer

SW6 8-position rocker DIP switch Grayhill Corporation 76SB08ST www.grayhill.com

Part Number

Manufacturer

Website

User-Defined LEDs

The board includes general, HSMC, and DDR2 user-defined LEDs. This section discusses all user-defined LEDs.

f For information about board specific or status LEDs, refer to “Status Elements” on

page 2–17.

General User-Defined LEDs

Board references D26 through D33 are eight user LEDs, which allow status and debugging signals to be driven to LEDs from the FPGA designs loaded into the Cyclone III device. There is no board-specific function for these LEDs.

Ta b l e 2–27 lists the general user LED reference number, schematic signal name, and

corresponding Cyclone III device pin number.

2–28 Chapter 2: Board Components

General User Interfaces

Table 2–27. LED Reference Number, Schematic Signal Name, and Cyclone III Device Pin Number

LED Board Reference Description I/O Standard

D26 User-defi ned LED 1.8 V USER_LED7 AF19

D27 User-defi ned LED 1.8 V USER_LED6 AG19

D28 User-defi ned LED 1.8 V USER_LED5 AC17

D29 User-defi ned LED 1.8 V USER_LED4 AE15

D30 User-defi ned LED 1.8 V USER_LED3 AD19

D31 User-defi ned LED 1.8 V USER_LED2 AF18

D32 User-defi ned LED 1.8 V USER_LED1 AE20

D33 User-defi ned LED 1.8 V USER_LED0 AD15

Schematic Signal

Name

Cycl one III Device

Pin Nu mber

Ta b l e 2–28 lists the general user-defined LED component reference and

manufacturing information.

Table 2–28. General User-Defined LED Component Ref erence and Manufacturing Information

Board Reference Description Manufacturer

D26-D33 Green LEDs, 1206,

SMT, clear lens, 2.1 V

Lumex, Inc . SML-LX1206GC-TR www.lumex.co m

Manufacturing

Part Number

Manufacturer

Website

HSMC User-Defined LEDs

The HSMC Port A and Port B have two LEDs located nearby. There are no board-specific functions for the HSMC LEDs; however, the HSMC LEDs are labeled TX and RX, and are intended to display data flow to and from connected HSMC daughter cards. The LEDs are driven by the Cyclone III device.

Ta b l e 2–29 lists the HSMC user-defined LED board reference number, schematic

signal name, and corresponding Cyclone III device pin number.

Table 2–29. HSMC User LEDs

Board

Reference Description

D12 User-defined but labeled TX in silk-screen for

HSMC Port A.

D14 User-defined but labeled RX in silk-screen for

HSMC Port A.

D13 User-defined but labeled TX in silk-screen for

HSMC Port B.

D15 User-defined but labeled RX in silk-screen for

HSMC Port B.

Ta b l e 2–30 lists the HSMC user-defined LED component reference and manufacturing

information.

I/O

Standard Schematic Signal Name

1.8 V HSMA_TX_LED AA3

1.8 V HSMA_RX_LED AE1

1.8 V HSMB_TX_LED D28

1.8 V HSMB_RX_LED F26

Cyclone III Device

Pin Number

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–29

General User Interfaces

Table 2–30. HSMC User-Defined LED Component Reference and Manufacturing Information

Board Reference Description Manufacturer

D12-D15 Green LED, 1206,

SMT, clear lens, 2.1 V

Lumex, Inc. SML-LX1206GC-TR www.l umex.com

DDR2 User-Defined LEDs

Each channel of DDR2 memory has an LED near the respective DDR2 device. There is no board-specific function for these LEDs; however, they are labeled DDR2TOP_ACTIVE and DDR2BOT_ACTIVE on the silkscreen and are intended to be illuminated when each respective memory channel is being accessed. The LEDs are driven by the Cyclone III device.

Ta b l e 2–31 lists the DDR2 user-defined LED board reference number, schematic signal

name, and corresponding Cyclone III device pin number.

Table 2–31. DDR2 User—Defined LEDs

Schemati c

Board Reference

D11 DDR2TOP_ACTIVE User defined but labeled DD R2TOP_ACTIVE on

D16 DDR2BOT_ACTIVE User defined but labeled DDR2BOT_ACTIVE in

Signal Name

Manufact uring

Part Number

Cyclone III Device

Pin Nu mber

the silkscreen for DDR2TOP memory channel.

silkscreen for DDR2BOT memory channel.

Manufacturer

Website

Ta b l e 2–32 lists the memory user-defined LED component reference and

manufacturing information.

Table 2–32. Memory User-Defined LED Component Reference and Manufacturing Information

Manufact uring

Board Reference Description Manufacturer

D11 and D16 Green LED, 1206,

SMT, clear lens 2.1 V

Lumex, Inc. SML-LX1206GC-TR www.l umex.com

Part Number

Manufacturer

Website

2–30 Chapter 2: Board Components

General User Interfaces

7-Segment Displays

This section discusses the following two on-board displays:

■ User 7-segment d isplay

■ Power 7-segment display

User 7-Segment Display

Board reference U30 is a four-digit, user-defined, 7-segment display that is labeled User Display. Each segment’s LED driver input signals are multiplexed to each of the four digits and a minus sign. A small HDL code snippet continuously writes to each of the four segments so that they appear constantly illuminated.

Ta b l e 2–33 lists the 7-segment display pin-out.

Table 2–33. 7-Segment Display Pin-Out

Cyclone III

Board

Reference Description I/O Standard

U30 pin 12 User-defined display signal 1.8 V SEVEN_SEG_A AD5

U30 pin 11 User-defined display signal 1.8 V SEVEN_SEG_B A3

U30 pin 3 User-defined display signal 1.8 V SEVEN_SEG_C C4

U30 pin 8 User-defined display signal 1.8 V SEVEN_SEG_D D4

U30 pin 9 User-defined display signal 1.8 V SEVEN_SEG_E E5

U30 pin 7 User-defined display signal 1.8 V SEVEN_SEG_F D5

U30 pin 5 User-defined display signal 1.8 V SEVEN_SEG_G AE6

U30 pin 2 User-defined display signal 1.8 V SEVEN_SEG_DP AD4

U30 pin 13 User-defined display signal 1.8 V SEVEN_SEG _SEL1 B3

U30 pin 1 User-defined display select signal 1.8 V SEVEN_ SEG_SEL2 C5

U30 pin 10 User-defined display select signal 1.8 V SEVEN_SEG_SEL3 E4

U30 pin 4 User-defined display select signal 1.8 V SEVEN_ SEG_SEL4 C3

U30 pin 6 User-defined display select signal 1.8 V SEVEN _SEG_MINUS G19

Schemati c

Signal Name

Device

Pin Name

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–31

12 B 11

C 3 D 8 E 2 F 9 G 7 DP

4 8

DIGIT2

DIGIT1

U30

F B

E C

QUAD_7SEG_M2212R1

DIGIT3 DIGIT4

General User Interfaces

1 The four-pin, 7-segment display uses fewer pins than 2-digit, 7-segment displays. See

Figure 2–7.

Figure 2–7. 7-Segment Display

Ta b l e 2–34 lists the 7-segment display component reference and manufacturing

information.

Table 2–34. 7-Segment Display Component Reference and Manufacturing Information

Board Reference Description Manufacturer

Manufact uring

Part Number

Manufacturer

Website

U30 7-segment, green LED display Lumex, Inc. LDQ-M2212R1 www.lumex.com

Power 7-Segment Display

The power measured by the MAX II CPLD and associated A/D is displayed on board reference U28, which is a dedicated 7-segment display connected to the MAX II CPLD, labeled Power Display.

Ta b l e 2–35 lists the power 7-segment display component reference and manufacturing

information.

Table 2–35. Power 7-Segment Display Component Reference and Manufacturing Information

Board Reference Description Manufacturer

Manufacturing

Part Number

Manufacturer

Website

U28 7-segment, green LED display Lumex, Inc. LDQ-M2212R1 www.lumex.com

LCD Information

The development board is designed to accommodate two separate displays:

■ Character LCD

■ Graphics LCD

The first display is a 16-character, by 2-line LCD display. The second is a 128 × 64 pixel transmissive graphics LCD. These two share a common bus but have separate control signals so they can operate simultaneously. This section describes both displays.

2–32 Chapter 2: Board Components

General User Interfaces

Character LCD (J4)

The board contains a single 14-pin 0.1” pitch dual-row header, used to interface to a 16-character by 2-line LCD display, Lumex (part number LCM-S01602DSR/C). The LCD has a 14-pin receptacle that mounts directly to the board’s 14-pin header, so it can be easily removed for access to components under the display—or to use the header for debugging or other purposes.

Ta b l e 2–36 summarizes the character LCD interface pins. Signal name and direction

are relative to the Cyclone III FPGA. For functional descriptions, see Ta b le 2–37.

Table 2–36. Character LCD Header I/O

Board

Reference Description

I/O

Standard

Schematic

Signal Name

Cyclone III Pin

Number

J22 pin 7 LCD data bus bit 0 2.5 V LCD_DAT A0 AA4

J22 pin 8 LCD data bus bit 1 2.5 V LCD_DAT A1 AD1

J22 pin 9 LCD data bus bit 2 2.5 V LCD_DAT A2 V8

J22 pin 10 LCD data bus bi t 3 2.5 V LCD_DATA3 AB5

J22 pin 11 LCD data bus bi t 4 2.5 V LCD_DATA4 AE2

J22 pin 12 LCD data bus bi t 5 2.5 V LCD_DATA5 V5

J22 pin 13 LCD data bus bi t 6 2.5 V LCD_DATA6 V6

J22 pin 14 LCD data bus bi t 7 2.5 V LCD_DATA7 AB3

J22 pin 4 LCD data/command selec t 2.5 V LCD_D_Cn D27

J22 pin 5 LCD write enable 2.5 V LCD_D_WEn AC4

J22 pin 6 LCD chip select 2.5 V LCD_D_CSn AB24

Ta b l e 2–37 shows pin definitions, and is an excerpt from the Lumex data sheet.

f For more information such as timing, character maps, interface guidelines, and

related documentation, visit www.lumex.com.

Table 2–37. Character LCD Display Pin Definitions

Pin Number Symbol Level Function

— Power supply 5 V

— GND (0 V)

— For LCD drive

4 RS H/L Register select signal

H: Data input

L: Instruction input

5 R/W H/L H: Data read (module to MPU)

L: Data write (MPU to module)

6 E H, H to L Enable

7~14 DB0~DB7 H/L Data bus, software selectable 4 or 8 bit mode

Figure 2–8 shows a functional block diagram of the Lumex LCD display device. The

8-bit data bus is shared with the graphics LCD, but the control signals are all separate.

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–33

General User Interfaces

1 The particular model used does not have a backlight and the LCD drive pin is not

connected.

Figure 2–8. LCD Display Block Diagram

Block Diagram 16 X 2, 1/16 Duty, 1/5 Bias

DB[7:0]

R/W

Vss

VDD

LCD

Controller

LSI

and

Driver

SEC 80

COM 16

LCD

Panel

A K

LED Backlight

Ta b l e 2–38 lists the character LCD display component reference and manufacturing

information.

Table 2–38. Character LCD Display Component Reference and Manufacturing Information

Board

Reference Description Manufacturer

Manufacturing

Part Number

Manufacturer

Website

J4 2 × 7 pin, 100 mil, vertical header Samtec TSM-107-01-G-DV www.samtec.com

2 × 16 c haracter dis play, 5 × 8 dot

Lumex LCM-S01602DSR/C www.lumex.com

matrix

Graphics LCD (J13)

The board contains a 30-pin, fine-pitch connector to interface directly to a 128 × 64 dot matrix graphics LCD display via a flex-cable that is soldered to the display itself. The display is an Optrex part number F-51852GNFQJ-LB-AIN (blue pixels) or F-51852GNFQJ-LB-CAN (green pixels). The pin-out of this interface connector is compatible with a variety of displays.

1 The data signals are bused with the 14-pin LCD header.

f For the graphics LCD data sheet and related documentation, visit www.optrex.com.

Ta b l e 2–39 lists the graphics LCD pin name, description, and type. Signal name and

direction are relative to the Cyclone III FPGA.

2–34 Chapter 2: Board Components

General User Interfaces

Table 2–39. Graphics LCD Interface I/O

Board

Reference Descri ption I/O Stan dard Schematic Signal Name

Cyclone III Device

Pin Number

J13 pin 6 LCD data bus bit 0 2.5 V LCD_DATA0 AA4

J13 pin 7 LCD data bus bit 1 2.5 V LCD_DATA1 AD1

J13 pin 8 LCD data bus bit 2 2.5 V LCD_DATA2 V8

J13 pin 9 LCD data bus bit 3 2.5 V LCD_DATA3 AB5

J13 pin 10 LCD data bus bit 4 2.5 V LCD_DATA4 AE2

J13 pin 11 LCD data bus bit 5 2.5 V LCD_DATA5 V5

J13 pin 12 LCD data bus bit 6 _or SCLK 2.5 V LCD_DATA6 V6

J13 pin 13 LCD data bus bit 7 _or SDATA 2.5 V LCD_DATA7 AB3

J13 pin 28 Parallel interface selection

2.5 V LCD_BS1 (1)

_high = 68 series, low = 80 series

J13 pin 1 LCD chip select 2.5 V LCD_CSn AB24

J13 pin 3 LCD data/command select 2.5 V LCD_D_Cn D27

J13 pin 5 LCD read enable 2.5 V LCD_E_RDn V7

J13 pin 2 LCD reset 2.5 V LCD_RSTn H7

J13 pin 29 LCD parallel/serial data select 2.5 V LCD_SERn (1)

J13 pin 4 LCD write enable 2.5 V LCD_WEn AC4

Note to Table 2–39:

(1) For the corresponding Cyclone III device pin number, refer to the MAX II device pin-out information in Table 2–5 on page 2–7.

f For more information about the data sheet and related documentation, visit Lumex at

www.lumex.com.

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–35

General User Interfaces

Ta b l e 2–40 is an excerpt from the OPTREX data sheet showing pin definitions for both

serial and parallel interfaces. The included display has a parallel interface.

Table 2–40. Graphics LCD Pin Definitions

Parallel I/F

Number

Name Description

1 CS1 Chip select signal L: active

2 RES Reset signal L: reset

3 A0 H: D0 to D7 are display data; L: D0 to D7 are instructions

4 WR 80 family CPU: reset signal L: active

5 RD 80 family CPU: reset signal L: active

6 D0 Display data

7 D1 Display data

8 D2 Display data

9 D3 Display data

10 D4 Display data

11 D5 Display data

12 D6(SCL) Display data (seri al data clock signal input)

13 D7(S1) Display data (serial data input)

14 V

15 V

16 V

OUT

Power supply for logic

Power supply (0 V.GND)

DC/DC volt age converter output

17 C3- DC/DC voltage convert er negative connec tion

18 C1+ DC/DC voltage converter positive connection

19 C1- DC/DC voltage convert er negative connec tion

20 C2- DC/DC voltage convert er negative connec tion

21 C2+ DC/DC voltage converter positive connection

22 V

23 V

24 V

25 V

26 V

27 V

Power supply for LCD dri ve V1 = 1/9-V

Power supply for LCD dri ve V2 = 2/9-V

Power supply for LCD dri ve V3 = 7/9-V

Power supply for LCD dri ve V4 = 8/9-V

Power supply for LCD dri ve V5, V

OUT

Voltage adjustment pin. Applies voltage between VCC and VS using a resistive divider

28 C86 Inter face mode select signal H:68 seri es L: 80 series

29 P/S Parallel/serial data select signal H: parallel L: serial

30 N/C Non-connection

1 Board defaults graphics LCD interface to 80 series CPU mode and parallel interface.

These defaults can be modified by writing to the appropriate register in the MAX II CPLD using the FSM bus.

2–36 Chapter 2: Board Components

Segment Drivers

Common

Drivers

Shift

Common

Drivers

Display Data RAM

65 X 132 = 8,580-bit

Display Data Latch

Low Address Deocder

Line Address Deocder

Column Address Decoder

Vss

VDD

Oscillator

Bus Holder Busy Flag

Instruction

Decoder

Status

Voltage

Followers

Voltage

Regulator

Voltage

Converter

Multiplexer

Line Counter

Initial Display Line

Common Direction Page Address Register

Column Address Counter

Column Address Register

MPU Interface

Reset

Common

Timing

Display Timing

C1+/C1C2+/C2-

C3-

Vss2

Vout

V1 to V6

Internal

Power

Circuits

C0 - - - C21 C63 - - - C32

S0 - - - S131

FR FRS CL CLS DOF

OSC1 OSC2

D5 to D0 P/S D6

(SCL)

(SI)

C86 A0 CS2 CS1 WR

Status

Internal Bus Line

RES

COMM

General User Interfaces

Figure 2–9 is an excerpt from the OPTREX data sheet showing the control chip in the

LCD module. The control chip is from New Japan Radio Corporation (part number NJU6676), and Figure 2–9 illustrates the functional block diagram of the display driver.

f For more information, contact Optrex American at www.optrex.com or New Japan

Radio at www.njr.co.jp/index_e.htm.

Figure 2–9. Graphics LCD Functional Block Diagram of Display Driver

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–37

Communication Ports and Interfaces

Figure 2–10 is an excerpt from the Optrex data sheet and shows the module interface

signals for both read and write transactions.

Figure 2–10. Graphics LCD Timing Diagram

CYC8

A0, CS1

AW8

AH8

WR, RD

D0~D7

(Write)

D0~D7

(Read)

CCH(W/R)

ACC8

CCL(W/R)

f For more information about timing parameters, visit www.optrex.com.

Ta b l e 2–41 lists the graphics LCD display component reference and manufacturing

information.

Table 2–41. Graphics LCD Display Component Reference and Manufacturing Information

Board

Reference Descript ion Manufact urer

J13 FPC/FFC 30-position flick lock

Hirose Electronics, Co. FH12S-30S-0.55H(55) www.hirose.com

Manufact uring

Part Number

connector, bottom contact

128 × 64 graphics modul e, blue LCD

Optrex America, Inc. F-51852GNFQJ-LB-AIN www.optre x.com

(1)

128 × 64 graphics module, green LCD

Optrex America, Inc. F-51852GNFQJ-LG-ACN www.optrex.com

(1)

Note to Table 2–41:

(1) The Cyclone III development board is shipped with either a blue or green Optrex LED display.

DS8

DH8

OH8

Manufacturer

Website

Communication Ports and Interfaces

This section describes the board’s communication ports and interfaces relative to the Cyclone III device.

The board supports the following communication ports:

■ USB 2.0 MAC/PHY

■ 10/100/1000 Ethernet

■ HSMC

2–38 Chapter 2: Board Components

Communication Ports and Interfaces

USB 2.0 MAC/PHY

The board incorporates the FTDI USB 2.0 PHY chip. The FT245BL (LQFP package) provides an easy cost-effective method of transferring data to/from a peripheral and a host PC at up to 8 million bits (1 Megabyte) per second (Mbps). The simple, FIFO-like design makes interfacing easier.

The device interfaces to J3, a Type B USB connector similar to those used by common peripherals such as digital cameras and printers. The maximum speed of the interface is 12 Mbps. Typical application speeds are around 1.5 Mbps; however, actual system speed may vary.

The primary usage for the USB device is to provide JTAG programming of on-board devices such as the FPGA and flash memory. The interface is also the default means through which the FPGA connects to host PC applications such as SignalTap® II, DSP Builder, and the Nios II JTAG universal asynchronous receiver/transmitter (UART).

Figure 2–11 shows the functional block diagram of the FTDI USB PHY device.

Figure 2–11. FTDI USB PHY Block Diagram

Send Immediate/WakeUP

VCC

3V3OUT

USBDP

USBDM

3.3V LDO

Regulator

USB

Transceiver

USB

DPLL

Serial Interface

Engine

(SIE)

PWREN#

FIFO Receive

Buffer

128 Bytes

USB

Protocol

Engine

FIFO Transmit

Buffer

384 Bytes

FIFO

Controller

RD#

RXF#

TXE#

XTOUT

XTIN

GND

TEST

6MHz

Oscillator

x8 Clock

Multiplier

RESET#

48MHz

12MHz

EEPROM

Interface

3V3OUT

Reset

Generator

EECS

EESK

EEDATA

RSTOUT#

f For more information about the data sheet and related documentation, contact FTDI

at www.ftdichip.com.

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–39

Communication Ports and Interfaces

Ta b l e 2–42 lists the FTDI USB interface pins. Signal name and direction are relative to

the MAX II CPLD.

Table 2–42. FTDI USB PHY Interface I/O

Signal Names Description Type

USB_FD(7:0 ) FIFO data bus 2.5-V CMOS in/out (8 bit) (1)

USB_RDn FIFO data bus read enable 2.5-V CMOS in (1)

USB_WR FIFO data bus write enable 2.5-V CMOS in (1)

USB_RXFn FIFO data bus RX enable 2.5-V CMOS out (1)

USB_TXEn FIFO data bus TX enable 2.5-V CMOS out (1)

USB_EECS EEPROM select N/A

USB_EESK EEPROM clock N/A

USB_EEDATA EEPROM dData N/A

USB_DP USB PHY + N/A

USB_DM USB PHY – N/A

USB_RSTn Reset in 2.5-V CMOS output (1)

USB_RSTOUT n Reset out 2.5-V CMOS i nput (1)

USB_XTIN 6-MHz crystal input N/A

USB_XTOUT 6-MHz crystal output N/A

USB_PWRENn Power enable 2.5-V CMOS input (1)

USB_SI_WU Send immediate / wake up 2.5-V CMOS input (1)

VCC 5-V core power 5.0 V (powered by USB host)

VCCIO I/O power 3.3 V

AVCC Analog power 1.2 V

AGND Analog ground 1.2 V

GND Ground Ground

Note to Table 2–42:

(1) The FTDI USB 2.0 device uses 3.3-V LVTTL levels driving into 2.5-V I/O banks on the MAX II CPLD.

Ta b l e 2–43 lists the FTDI USB interface component reference and manufacturing information.

Table 2–43. FTDI Interface Component Reference and Manufacturing Information

Board Reference Description Manufacturer

Manufacturing

Part Number

Manufacturer

Web Site

U8 FTDI USB device FTDI Ltd FT245BL www.ftdichip.com

2–40 Chapter 2: Board Components

Communication Ports and Interfaces

10/100/1000 Ethernet

The 10/100/1000 Ethernet PHY port is provided using a dedicated 10/100/1000 base-T, auto-negotiating Ethernet PHY with reduced Gigabit media independent interface (RGMII) to the FPGA. The target device is the Marvell 88E1111, which uses

2.5-V and 1.2-V power rails. The Marvell 88E1111 requires a 25-MHz reference clock driven from a dedicated oscillator.

The Marvell device is provided for copper RS-45 Ethernet connectivity and comes in the BCC96 leadless chip carrier package. The device interfaces to a HALO HFJ11-1G02E model RJ-45.

The PHY device provides 32 internal management registers that can be accessed using the Management Interface (MDIO). The MDIO address of the PHY device is configured to the value 18 (0x12).

Figure 2–12 shows the interface between the FPGA and the PHY device.

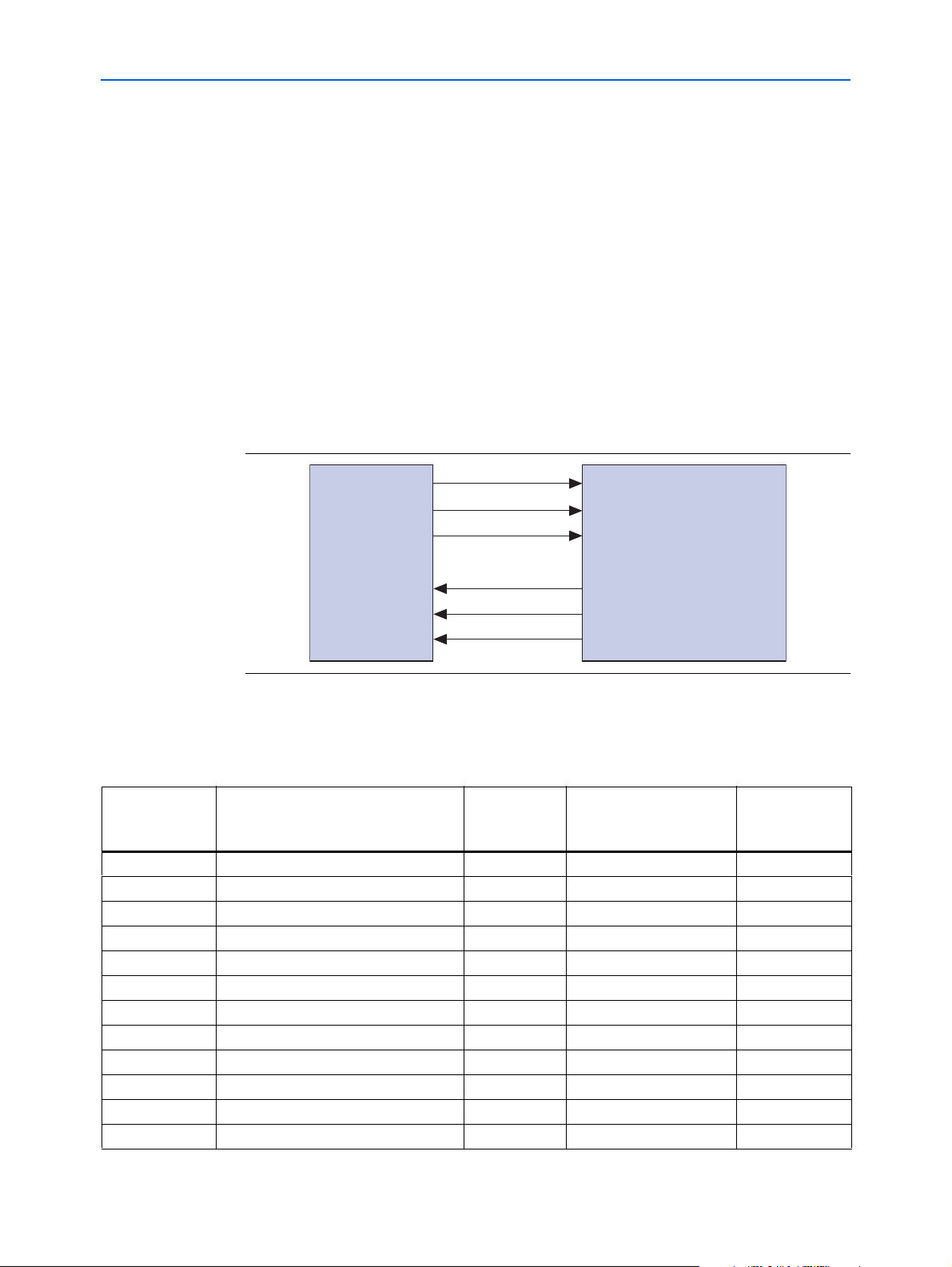

Figure 2–12. Interface Between the FPGA and the PHY Device

Cyclone III

Device

MAC Block

TXC

TX_EN

TD[3:0]

RXC

RX_DV

RD[3:0]

GTX_CLK

TX_EN

TDX[3:0]

RX_CLK

RX_DV

RXD[3:0]

Marvell 88E111 RGMII Interface

PHY Layer

Ta b l e 2–44 lists the signal name, description, and I/O standard for the Ethernet PHY

interface I/O. The signal name and type are relative to the Cyclone III device, i.e., the I/O setting and direction.

Table 2–44. Ethernet PHY Inter face I/O (Part 1 of 2)

Cyclone III

Board

Reference Description I/O Stan dard

Schemati c

Signal Name

Device Pin

Number

U5 pin 8 RGMII int erface transmit clock 2.5 V ENET_GTX_CLK T8

U5 pin 73 1000 MB link established 2.5 V ENET_LED_LINK1000 AC25

U5 pin 25 Management bus data clock 2.5 V ENET_MDC N8

U5 pin 24 Management bus data 2.5 V ENET_MDIO L5

U5 pin 28 Reset 2.5 V ENET_RESETN AD2

U5 pin 2 RGMII int erface receive clock 1.8 V ENET_RX_CLK B14

U5 pin 95 RGMII interface receive data bus bit 0 2.5 V ENET_RX_D0 W8

U5 pin 92 RGMII interface receive data bus bit 1 2.5 V ENET_RX_D1 AA6

U5 pin 93 RGMII interface receive data bus bit 2 2.5 V ENET_RX_D2 W7

U5 pin 91 RGMII interface receive data bus bit 3 2.5 V ENET_RX_D3 Y6

U5 pin 94 RGMII int erface receive control 2.5 V ENET_RX_DV AB4

U5 pin 11 RGMII interface transmit data bus bit 0 2.5 V ENET_TX_D0 W4

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–41

Communication Ports and Interfaces

Table 2–44. Ethernet PHY Inter face I/O (Part 2 of 2)

Cyclone III

Board

Reference Description I/O Stan dard

Schemati c

Signal Name

Device Pin

Number

U5 pin 12 RGMII interface transmit data bus bit 1 2.5 V ENET_TX_D1 AA5

U5 pin 14 RGMII interface transmit data bus bit 2 2.5 V ENET_TX_D2 Y5

U5 pin 16 RGMII interface transmit data bus bit 3 2.5 V ENET_TX_D3 W3

U5 pin 9 RGMII int erface transmit control 2.5 V ENET_TX_EN AA7

Ta b l e 2–45 is an excerpt from the Marvell data sheet with a summary of RGMII

interface signals and their functions.

Table 2–45. RGMII Signal Definitions

Schematic

Signal Name

Marvell

Device Pin

Name

RGMII

Spec Pin

Name Description

ENET_GTX_C LK GTX_CLK TXC 125-MHz, 25-MHz, or 2.5-MHz transmit clock with ±50 ppm tolerance

based on the selected speed.

ENET_TX_EN TX_EN TX_CTL Transmit control signals. TX_EN is encoded on the risi ng edge of

GTX_CLK, TX_ER, XORed with TX_EN is encoded on this falling edge of GTX_CLK.

ENET_TXD[3 :0] TXD[3:0] TD[3:0] Transmit data. In 1000 base-T and 1000 base-X modes, TXD[ 3:0]

are presented on both edges of GTX_CLK. In 100 base-T and 10 base-T modes, TXD[3:0] are presented on the rising edge of

GTX_CLK.

ENET_RX_CL K RX_CLK RXC 125-MHz, 25-MHz, or 2.5-MHz receive clock ±50 ppm tolerance

deri ved from the received data stream and based on the selected speed.

ENET_RX_DV RX_DV RX_CTL Receive control signals. RX_DV is encoded on the rising edge of

RX_CLK, RX_ER XORed with RX_DV is encoded on the falling edge of RX_CLK.

ENET_RXD[3 :0] RXD[3:0] RD[3:0] Receive data. In 1000 base-T and 1000 base-X modes, RXD[3:0]

are presented on both edges of RX_CLK. In 100 ba se-TX and 10 base-T modes, RXD[3:0] are presented on the rising edge of RX_CLK.

Ta b l e 2–46 lists the 10/100/1000 Ethernet PHY component reference and

manufacturing information.

Table 2–46. Ethernet PHY Component Reference and Manufacturing Information

Board Reference Description Manufacturer

Manufacturing

Part Number

Manufacturer

Website

U5 Etherne t PHY Base-T device Marvell Semiconductor 88E1111- B2-CAA1C000 www.marvell.com

f For more information about the data sheet and related documentation, contact

Marvell at www.marvell.com.

2–42 Chapter 2: Board Components

Communication Ports and Interfaces

High-Speed Mezzanine Connector

The board contains two HSMC interfaces called Port A and Port B. These HSMC interfaces support both single-ended and differential signaling. The connector part number is Samtec ASP-122953-01. The HSM connector interface also allows for JTAG, SMBus, clock outputs and inputs, as well as power for compatible HSMC daughter cards.

The HSMC is an Altera-developed specification, which allows users to expand the functionality of the development board through the addition of HSMC daughter cards.

f For more information about the HSMC specification such as signaling standards,

signal integrity, compatible connectors, and mechanical information, visit

www.altera.com.

The HSM connector has 172 total pins, including 120 signal pins, 39 power pins, and 13 ground pins. The ground pins are located between the two rows of signal and power pins, acting as both a shield and a reference. The HSM connector is based on the 0.5 mm-pitch QSH/QTH family of high-speed, board-to-board connectors from Samtec. There are three banks in this connector. Bank 1 has every third pin removed as is done in the QSH-DP/QTH-DP series. Bank 2 and Bank 3 have all of the pins

populated as done in the QSH/QTH series.

The Cyclone III development board does not use Bank 1 transceiver signals intended for clock-data-recover (CDR) applications such as PCI Express and Rapid I/O©. These 32 pins are left floating. Banks 2 and 3 are fully supported and can be used in two different configurations. See Figure 2–13.

Figure 2–13. HSMC Signal and Bank Diagram

Bank 3 Power

D(79.40)

-or-

LVDS

CLKIN2, CLKOUT

Bank 2 Power

D(39:0)

-or-

D[3:0] + LVDS

CLKIN1, CLKOUT

Bank 1

8 TX Channels CD 8 RX Channels C

JTAG

SMBus

CLKIN0, CLKOUT

The HSMC interface has programmable bi-directional I/O pins that can be used as

2.5-V LVCMOS, which is 3.3-V LVTTL-compatible. These pins can also be used as various differential I/O standards including, but not limited to LVDS, mini-LVDS, and RSDS with up to 17-channels full-duplex. Resistor locations are provided for board-level differential termination on designated receiver pairs, but are not installed as CMOS utilization of these pins is the default usage model.

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–43

Communication Ports and Interfaces

1 As noted in the HSMC specification, LVDS and single-ended I/O standards are only

guaranteed to function when mixed according to either the generic single-ended pin-out or the generic differential pin-out.

Ta b l e 2–47 lists the HSMC Port A interface signal name, description, and I/O

standard. Signal name and direction are relative to the Cyclone III FPGA, which is the

HSMC host.

Table 2–47. HSMC Port A Interface Signal Name, Description, and Type (Part 1 of 3)

Cycl one III

Board

Reference Description I/O S tandard

Schematic

Signal Name

Devi ce Pin

Number

J8 pin 33 Management serial data 2.5 V HSMA_SDA AC1

J8 pin 34 Management serial clock 2.5 V HSMA_SCL AC3

J8 pin 35 JTAG clock signal 2.5 V FPGA_JTAG_TCK P5

J8 pin 36 JTAG mode select signal 2.5 V FPGA_JTAG_TMS P8

J8 pin 39 Dedicated CMOS clock out 2.5 V HSMA_CLK_OUT0 Y7

J8 pin 40 Dedicated CMOS clock in 1.8 V HSMA_CLK_IN0 AG14

J8 pin 41 Dedicated CMOS I/O bit 0 2.5 V HSMA_D0 AB6

J8 pin 42 Dedicated CMOS I/O bit 1 2.5 V HSMA_D1 AF2

J8 pin 43 Dedicated CMOS I/O bit 2 2.5 V HSMA_D2 AE3

J8 pin 44 Dedicated CMOS I/O bit 3 2.5 V HSMA_D3 AC5

J8 pin 47 LVDS TX or CMOS I/O bit 0 LVDS or 2.5 V HSMA_TX_D_P0 R7

J8 pin 48 LVDS RX or CMOS I/O bit 0 LVDS or 2.5 V HSMA_RX_D_P0 AB2

J8 pin 49 LVDS TX or CMOS I/O bit 0 LVDS or 2.5 V HSMA_TX_D_N0 R6

J8 pin 50 LVDS RX or CMOS I/O bit 0 LVDS or 2.5 V HSMA_RX_D_N0 AB1

J8 pin 53 LVDS TX bit 1p or CMOS I/O data 8 LVDS or 2.5 V HSMA_TX_D_ P1 V4

J8 pin 54 LVDS RX bit 1p or CMOS I/O data 9 LVDS or 2.5 V HSMA_RX_D_P1 Y4

J8 pin 55 LVDS TX bit 1n or CMOS I/O data bit 10 LVDS or 2.5 V HSMA_TX_D_N1 V3

J8 pin 56 LVDS RX bit 1n or CMOS I/O data bit 11 LVDS or 2.5 V HSMA_RX_D_N1 Y3

J8 pin 59 LVDS TX bit 2p or CMOS I/O data bit 12 LVDS or 2.5 V HSMA_TX_D_P2 T4

J8 pin 60 LVDS RX bit 2p or CMOS I/O data bit 13 LVDS or 2.5 V HSMA_RX_D_P2 U3

J8 pin 61 LVDS TX bit 2n or CMOS I/O data bit 14 LVDS or 2.5 V HSMA_TX_D_N2 T3

J8 pin 62 LVDS RX bit 2n or CMOS I/O data bit 15 LVDS or 2.5 V HSMA_RX_D_N2 U4

J8 pin 65 LVDS TX bit 3p or CMOS I/O data bit 16 LVDS or 2.5 V HSMA_TX_D_P3 R3

J8 pin 66 LVDS RX bit 3p or CMOS I/O data bit 17 LVDS or 2.5 V HSMA_RX_D_P3 W2

J8 pin 67 LVDS TX bit 3n or CMOS I/O data bit 18 LVDS or 2.5 V HSMA_TX_D_N3 R4

J8 pin 68 LVDS RX bit 3n or CMOS I/O data bit 19 LVDS or 2.5 V HSMA_RX_D_N3 W1

J8 pin 71 LVDS TX bit 4p or CMOS I/O data bit 20 LVDS or 2.5 V HSMA_TX_D_P4 M8

J8 pin 72 LVDS RX bit 4p or CMOS I/O data bit 21 LVDS or 2.5 V HSMA_RX_D_P4 V2

J8 pin 73 LVDS TX or 4n CMOS I/O data bit 22 LVDS or 2.5 V HSMA_TX_D_N4 M7

J8 pin 74 LVDS RX 4n or CMOS I/O data bit 23 LVDS or 2.5 V HSMA_RX_D_N4 V1

J8 pin 77 LVDS TX 5p or CMOS I/O data bit 24 LVDS or 2.5 V HSMA_TX_D_P5 P2

J8 pin 78 LVDS RX 5p or CMOS I/O data bit 25 LVDS or 2.5 V HSMA_RX_D_P5 U2

2–44 Chapter 2: Board Components

Communication Ports and Interfaces

Table 2–47. HSMC Port A Interface Signal Name, Description, and Type (Part 2 of 3)

Cycl one III

Board

Reference Description I/O S tandard

Schematic

Signal Name

Devi ce Pin

Number

J8 pin 79 LVDS TX 5n or CMOS I/O data bit 26 LVDS or 2.5 V HSMA_TX_D_N5 P1

J8 pin 80 LVDS RX 5n or CMOS I/O data bit 27 LVDS or 2.5 V HSMA_RX_D_N5 U1

J8 pin 83 LVDS TX 6p or CMOS I/O data bit 28 LVDS or 2.5 V HSMA_TX_D_P6 M4

J8 pin 84 LVDS RX 6p or CMOS I/O data bit 29 LVDS or 2.5 V HSMA_RX_D_P6 U6

J8 pin 85 LVDS TX 6n or CMOS I/O data bit 30 LVDS or 2.5 V HSMA_TX_D_N6 M3

J8 pin 86 LVDS RX 6n or CMOS I/O data bit 31 LVDS or 2.5 V HSMA_RX_D_N6 U5

J8 pin 89 LVDS TX 7p or CMOS I/O data bit 32 LVDS or 2.5 V HSMA_TX_D_P7 M2

J8 pin 90 LVDS RX 7p or CMOS I/O data bit 33 LVDS or 2.5 V HSMA_RX_D_P7 R2

J8 pin 91 LVDS TX 7n or CMOS I/O data bit 34 LVDS or 2.5 V HSMA_TX_D_N7 M1

J8 pin 92 LVDS RX 7n or CMOS I/O data bit 35 LVDS or 2.5 V HSMA_RX_D_N7 R1

J8 pin 95 LVDS or CMOS clock out LVDS or 2.5 V HSMA_CLK_OUT_P1 G6

J8 pin 96 LVDS or CMOS clock in LVDS or 2.5 V HSMA_CLK_IN_P1 Y2

J8 pin 97 LVDS or CMOS clock out LVDS or 2.5 V HSMA_CLK_OUT_N1 G5

J8 pin 98 LVDS or CMOS clock in LVDS or 2.5 V HSMA_CLK_IN_N1 Y1

J8 pin 101 LVDS TX 8p or CMOS I/O data bit 40 LVDS or 2.5 V HSMA_TX_D_P8 L7

J8 pin 102 LVDS RX 8p or CMOS I/O data bit 41 LVDS or 2.5 V HSMA_RX_D_P8 N4

J8 pin 103 LVDS TX 8n or CMOS I/O data bit 42 LVDS or 2.5 V HSMA_TX_D_N8 L6

J8 pin 104 LVDS RX 8n or CMOS I/O data bit 43 LVDS or 2.5 V HSMA_RX_D_N8 N3

J8 pin 107 LVDS TX 9p or CMOS I/O data bit 44 LVDS or 2.5 V HSMA_TX_D_P9 K8

J8 pin 108 LVDS RX 9p or CMOS I/O data bit 45 LVDS or 2.5 V HSMA_RX _D_P9 L4

J8 pin 109 LVDS TX 9n or CMOS I/O data bit 46 LVDS or 2.5 V HSMA_TX_D_N9 L8

J8 pin 110 LVDS RX 9n or CMOS I/O data bit 47 LVDS or 2.5 V HSMA_RX_D_N9 L3

J8 pin 113 LVDS TX 10p or CMOS I/O data bit 48 LVDS or 2.5 V HSMA_TX_D_P10 K4

J8 pin 114 LVDS RX 10p or CMOS I/O data bit 49 LVDS or 2.5 V HSMA_RX_D_P10 L2

J8 pin 115 LVDS TX 10n or CMOS I/O data bit 50 LVDS or 2.5 V HSMA_TX_D_N10 K3

J8 pin 116 LVDS RX 10n or CMOS I/O data bit 51 LVDS or 2.5 V HSMA_RX_D_N10 L1

J8 pin 119 LVDS TX 11p or CMOS I/O data bit 52 LVDS or 2.5 V HSMA_TX_D_P11 J4

J8 pin 120 LVDS RX 11p or CMOS I/O data bit 53 LVDS or 2.5 V HSMA_RX_D_P11 K2

J8 pin 121 LVDS TX 11n or CMOS I/O data bit 54 LVDS or 2.5 V HSMA_TX_D_N11 J3

J8 pin 122 LVDS RX 11n or CMOS I/O data bit 55 LVDS or 2.5 V HSMA_RX_D_N11 K1

J8 pin 125 LVDS TX 12p or CMOS I/O data bit 56 LVDS or 2.5 V HSMA_TX_D_P12 J7

J8 pin 126 LVDS RX 12p or CMOS I/O data bit 57 LVDS or 2.5 V HSMA_RX_D_P12 J6

J8 pin 127 LVDS TX 12n or CMOS I/O data bit 58 LVDS or 2.5 V HSMA_TX_D_N12 K7

J8 pin 128 LVDS RX 12n or CMOS I/O data bit 59 LVDS or 2.5 V HSMA_RX_D_N12 J5

J8 pin 131 LVDS TX 13p or CMOS I/O data bit 60 LVDS or 2.5 V HSMA_TX_D_P13 G2

J8 pin 132 LVDS RX 13p or CMOS I/O data bit 61 LVDS or 2.5 V HSMA_RX_D_P13 H4

J8 pin 133 LVDS TX 13n or CMOS I/O data bit 62 LVDS or 2.5 V HSMA_TX_D_N13 G1

J8 pin 134 LVDS RX 13n or CMOS I/O data bit 63 LVDS or 2.5 V HSMA_RX_D_N13 H3

Cyclone III 3C120 Development Board Reference Manual © March 2009 Altera Corporation

Chapter 2: Board Components 2–45

Communication Ports and Interfaces

Table 2–47. HSMC Port A Interface Signal Name, Description, and Type (Part 3 of 3)

Cycl one III

Board

Reference Description I/O S tandard

Schematic

Signal Name

Devi ce Pin

Number

J8 pin 137 LVDS TX 14p or CMOS I/O data bit 64 LVDS or 2.5 V HSMA_TX_D_P14 F5

J8 pin 138 LVDS TX 14p or CMOS I/O data bit 65 LVDS or 2.5 V HSMA_RX_D_P14 G4

J8 pin 139 LVDS RX 14n or CMOS I/O data bit 66 LVDS or 2.5 V HSMA_TX_D_N14 F4

J8 pin 140 LVDS RX 14n or CMOS I/O data bit 67 LVDS or 2.5 V HSMA_RX_D_N14 G3

J8 pin 143 LVDS RX 15p or CMOS I/O data bit 68 LVDS or 2.5 V HSMA_TX_D_P15 E2

J8 pin 144 LVDS TX 15p or CMOS I/O data bit 69 LVDS or 2.5 V HSMA_RX_D_P15 F2

J8 pin 145 LVDS RX 15n or CMOS I/O data bit 70 LVDS or 2.5 V HSMA_TX_D_N15 E1

J8 pin 146 LVDS TX 15n or CMOS I/O data bit 71 LVDS or 2.5 V HSMA_RX_D_N15 F1

J8 pin 149 LVDS RX 16p or CMOS I/O data bit 72 LVDS or 2.5 V HSMA_TX_D_P16 D3

J8 pin 150 LVDS TX 16p or CMOS I/O data bit 73 LVDS or 2.5 V HSMA_RX_D_P16 E3

J8 pin 151 LVDS TX 16n or CMOS I/O data bit 74 LVDS or 2.5 V HSMA_TX_D_N16 C2

J8 pin 152 LVDS RX 16n or CMOS I/O data bit 75 LVDS or 2.5 V HSMA_RX_D_N16 F3

J8 pin 155 LVDS or CMOS clock out LVDS HSMA_CLK_OUT_P2 D2

J8 pin 156 LVDS or CMOS clock in LVDS HSMA_CLK_IN _P2 J2

J8 pin 157 LVDS or CMOS clock out 2.5 V HSMA_CLK_OUT_N2 D1

J8 pin 158 LVDS or CMOS clock in 2.5 V HSMA_CLK_IN_N2 J1

N/A User LED intended to show RX data

2.5 V HSMA_RX_LED AE1

activity on the HSMC interface

N/A User LED intended to show TX data

2.5 V HSMA_TX_LED AA3

activity on the HSMC interface

Ta b l e 2–48 lists the HSMC Port B interface signal name, description, and I/O

standard. Signal name and direction are relative to the Cyclone III FPGA, which is the

HSMC host.

Table 2–48. HSMC Port B Interface Signal Name, Description, and Type (Part 1 of 4)

Cyclone III

Board

Reference Description I/O Standar d

Schematic

Signal Name

Device Pin

Number

J9 pin 33 Management serial data 2.5 V HS MB_SDA H26

J9 pin 34 Management serial clock 2.5 V HSMB_SCL H25

J9 pin 35 JTAG clock signal 2.5 V FPGA_JTAG_TCK P5

J9 pin 36 JTAG mode select signal 2.5 V FPGA_JTAG_TMS P8

J9 pin 39 Dedicated CMOS clock out 2.5 V HSMB_CLK_OU T0 J22

J9 pin 40 Dedicated CMOS clock in 2.5 V HSMB_CLK_IN0 A15

J9 pin 41 Dedicated CMOS I/O bit 0 2.5 V HSMB_D0 G24

J9 pin 42 Dedicated CMOS I/O bit 1 2.5 V HSMB_D1 H23

J9 pin 43 Dedicated CMOS I/O bit 2 2.5 V HSMB_D2 G25

J9 pin 44 Dedicated CMOS I/O bit 3 2.5 V HSMB_D3 H24

J9 pin 47 LVDS TX 0p or CMOS I/O data bit 4 LVDS or 2.5 V HSMB_TX_D_P0 J25

J9 pin 48 LVDS RX 0p or CMOS I/O data bit 5 LVDS or 2.5 V HSMB_RX_D_P0 F27

2–46 Chapter 2: Board Components

Communication Ports and Interfaces

Table 2–48. HSMC Port B Interface Signal Name, Description, and Type (Part 2 of 4)

Cyclone III

Board

Reference Description I/O Standar d

Schematic

Signal Name

Device Pin

Number

J9 pin 49 LVDS TX 0n or CMOS I/O data bit 6 LVDS or 2.5 V HSMB_TX_D_N0 J26

J9 pin 50 LVDS RX 0n or CMOS I/O data bit 7 LVDS or 2.5 V HSMB_RX_D_N0 F28

J9 pin 53 LVDS TX 1p or CMOS I/O data bit 8 LVDS or 2.5 V HSMB_TX_D_P1 L23

J9 pin 54 LVDS RX 1p or CMOS I/O data bit 9 LVDS or 2.5 V HSMB_RX_D_P1 G27

J9 pin 55 LVDS TX 1n or CMOS I/O data bit 10 LVDS or 2.5 V HSMB_TX_D_N1 L24

J9 pin 56 LVDS RX 1n or CMOS I/O data bit 11 LVDS or 2.5 V HSMB_RX_D_N1 G28

J9 pin 59 LVDS TX 2p or CMOS I/O data bit 12 LVDS or 2.5 V HSMB_TX_D_P2 M25

J9 pin 60 LVDS RX 2p or CMOS I/O data bit 13 LVDS or 2.5 V HSMB_RX_D_P2 K25

J9 pin 61 LVDS TX 2n or CMOS I/O data bit 14 LVDS or 2.5 V HSMB_TX_D_N2 M26

J9 pin 62 LVDS RX 2n or CMOS I/O data bit 15 LVDS or 2.5 V HSMB_RX_D_N2 K26

J9 pin 65 LVDS TX 3p or CMOS I/O data bit 16 LVDS or 2.5 V HSMB_TX_D_P3 N25

J9 pin 66 LVDS RX 3p or CMOS I/O data bit 17 LVDS or 2.5 V HSMB_RX_D_P3 K27

J9 pin 67 LVDS TX 3n or CMOS I/O data bit 18 LVDS or 2.5 V HSMB_TX_D_N3 N26

J9 pin 68 LVDS RX 3n or CMOS I/O data bit 19 LVDS or 2.5 V HSMB_RX_D_N3 K28

J9 pin 71 LVDS TX 4p or CMOS I/O data bit 20 LVDS or 2.5 V HSMB_TX_D_P4 R27

J9 pin 72 LVDS RX 4p or CMOS I/O data bit 21 LVDS or 2.5 V HSMB_RX_D_P4 L27

J9 pin 73 LVDS TX 4n or CMOS I/O data bit 22 LVDS or 2.5 V HSMB_TX_D_N4 R28

J9 pin 74 LVDS RX 4n or CMOS I/O data bit 23 LVDS or 2.5 V HSMB_RX_D_N4 L28

J9 pin 77 LVDS TX 5p or CMOS I/O data bit 24 LVDS or 2.5 V HSMB_TX_D_P5 R25

J9 pin 78 LVDS RX 5p or CMOS I/O data bit 25 LVDS or 2.5 V HSMB_RX_D_P5 M27

J9 pin 79 LVDS TX 5n or CMOS I/O data bit 26 LVDS or 2.5 V HSMB_TX_D_N5 R26

J9 pin 80 LVDS RX 5n or CMOS I/O data bit 27 LVDS or 2.5 V HSMB_RX_D_N5 M28

J9 pin 83 LVDS TX 6p or CMOS I/O data bit 28 LVDS or 2.5 V HSMB_TX_D_P6 U25

J9 pin 84 LVDS RX 6p or CMOS I/O data bit 29 LVDS or 2.5 V HSMB_RX_D_P6 P25

J9 pin 85 LVDS TX 6n or CMOS I/O data bit 30 LVDS or 2.5 V HSMB_TX_D_N6 U26

J9 pin 86 LVDS RX 6n or CMOS I/O data bit 31 LVDS or 2.5 V HSMB_RX_D_N6 P26

J9 pin 89 LVDS TX 7p or CMOS I/O data bit 32 LVDS or 2.5 V HSMB_TX_D_P7 V27

J9 pin 90 LVDS RX 7p or CMOS I/O data bit 33 LVDS or 2.5 V HSMB_RX_D_P7 P27

J9 pin 91 LVDS TX 7n or CMOS I/O data bit 34 LVDS or 2.5 V HSMB_TX_D_N7 V28

J9 pin 92 LVDS RX 7n or CMOS I/O data bit 35 LVDS or 2.5 V HSMB_RX_D_N7 P28

J9 pin 95 LVDS or CMOS clock out LVDS or 2.5 V HSMB_CLK_OUT_P1 AC26

J9 pin 96 LVDS or CMOS clock in LVDS or 2.5 V HSMB_CLK_I N_P1 J27

J9 pin 97 LVDS or CMOS clock out LVDS or 2.5 V HSMB_CLK_OUT_N1 AD26

J9 pin 98 LVDS or CMOS clock in LVDS or 2.5 V HSMB_CLK_I N_N1 J28

J9 pin 101 LVDS TX 8p or CMOS I/O data bit 40 LVDS or 2.5 V HSMB_TX_D_P8 V25

J9 pin 102 LVDS RX 8p or CMOS I/O data bit 41 LVDS or 2.5 V HSMB_R X_D_P8 P21

J9 pin 103 LVDS TX 8n or CMOS I/O data bit 42 LVDS or 2.5 V HSMB_TX_D_N8 V26

J9 pin 104 LVDS RX 8n or CMOS I/O data bit 43 LVDS or 2.5 V HSMB_R X_D_N8 R21

Chapter 2: Board Components 2–47

Communication Ports and Interfaces

Table 2–48. HSMC Port B Interface Signal Name, Description, and Type (Part 3 of 4)

Cyclone III

Board

Reference Description I/O Standar d

Schematic

Signal Name

Device Pin

Number

J9 pin 107 LVDS TX 9p or CMOS I/O data bit 44 LVDS or 2.5 V HSMB_TX_D_P9 W25

J9 pin 108 LVDS RX 9p or CMOS I/O data bit 45 LVDS or 2.5 V HSMB_RX_D_P9 R22

J9 pin 109 LVDS TX 9n or CMOS I/O data bit 46 LVDS or 2.5 V HSMB_TX_D_N9 W26

J9 pin 110 LVDS RX 9n or CMOS I/O data bit 47 LVDS or 2.5 V HSMB_R X_D_N9 R23

J9 pin 113 LVDS TX 10p or CMOS I/O data bit 48 LVDS or 2.5 V HSMB_TX_D_P10 Y25

J9 pin 114 LVDS RX 10p or CMOS I/O data bit 49 LVDS or 2.5 V HSMB_RX_D_P10 T25

J9 pin 115 LVDS TX 10n or CMOS I/O data bit 50 LVDS or 2.5 V HSMB_TX_D_N10 Y26

J9 pin 116 LVDS RX 10n or CMOS I/O data bit 51 LVDS or 2.5 V HSMB_RX_D_N10 T26

J9 pin 119 LVDS TX 11p or CMOS I/O data bit 52 LVDS or 2.5 V HSMB_TX_D_P11 AA25

J9 pin 120 LVDS RX 11p or CMOS I/O data bit 53 LVDS or 2.5 V HSMB_RX_D_P11 U27

J9 pin 121 LVDS TX 11n or CMOS I/O data bit 54 LVDS or 2.5 V HSMB_TX_D_N11 AA26

J9 pin 122 LVDS RX 11n or CMOS I/O data bit 55 LVDS or 2.5 V HSMB_RX_D_N11 U28

J9 pin 125 LVDS TX 12p or CMOS I/O data bit 56 LVDS or 2.5 V HSMB_TX_D_P12 AB25

J9 pin 126 LVDS RX 12p or CMOS I/O data bit 57 LVDS or 2.5 V HSMB_RX_D_P12 U22

J9 pin 127 LVDS TX 12n or CMOS I/O data bit 58 LVDS or 2.5 V HSMB_TX_D_N12 AB26

J9 pin 128 LVDS RX 12n or CMOS I/O data bit 59 LVDS or 2.5 V HSMB_RX_D_N12 V22

J9 pin 131 LVDS TX 13p or CMOS I/O data bit 60 LVDS or 2.5 V HSMB_TX_D_P13 Y23

J9 pin 132 LVDS RX 13p or CMOS I/O data bit 61 LVDS or 2.5 V HSMB_RX_D_P13 W28

J9 pin 133 LVDS TX 13n or CMOS I/O data bit 62 LVDS or 2.5 V HSMB_TX_D_N13 Y24

J9 pin 134 LVDS RX 13n or CMOS I/O data bit 63 LVDS or 2.5 V HSMB_RX_D_N13 W27

J9 pin 137 LVDS TX 14p or CMOS I/O data bit 64 LVDS or 2.5 V HSMB_TX_D_P14 AE27

J9 pin 138 LVDS TX 14p or CMOS I/O data bit 65 LVDS or 2.5 V HSMB_RX_D_P14 V23

J9 pin 139 LVDS RX 14n or CMOS I/O data bit 66 LVDS or 2.5 V HSMB_TX_D_N14 AE28

J9 pin 140 LVDS RX 14n or CMOS I/O data bit 67 LVDS or 2.5 V HSMB_RX_D_N14 V24

J9 pin 143 LVDS RX 15p or CMOS I/O data bit 68 LVDS or 2.5 V HSMB_TX_D_P15 W22

J9 pin 144 LVDS TX 15p or CMOS I/O data bit 69 LVDS or 2.5 V HSMB_RX_D_P15 AB27

J9 pin 145 LVDS RX 15n or CMOS I/O data bit 70 LVDS or 2.5 V HSMB_TX_D_N15 Y22

J9 pin 146 LVDS TX 15n or CMOS I/O data bit 71 LVDS or 2.5 V HSMB_RX_D_N15 AB28

J9 pin 149 LVDS RX 16p or CMOS I/O data bit 72 LVDS or 2.5 V HSMB_TX_D_P16 V21

J9 pin 150 LVDS TX 16p or CMOS I/O data bit 73 LVDS or 2.5 V HSMB_RX_D_P16 AC27

J9 pin 151 LVDS TX 16n or CMOS I/O data bit 74 LVDS or 2.5 V HSMB_TX_D_N16 W21

J9 pin 152 LVDS RX 16n or CMOS I/O data bit 75 LVDS or 2.5 V HSMB_RX_D_N16 AC28

J9 pin 155 LVDS or CMOS clock out LVDS HSMB_CLK_OUT_P2 AD27

J9 pin 156 LVDS or CMOS clock in LVDS HSMB_CLK_IN_P2 Y27

J9 pin 157 LVDS or CMOS clock out 2.5 V HSMB_CLK_OUT_N2 AD28

J9 pin 158 LVDS or CMOS clock in 2.5 V HSMB_CLK_IN_N2 Y28

2–48 Chapter 2: Board Components

On-Board Memory

Table 2–48. HSMC Port B Interface Signal Name, Description, and Type (Part 4 of 4)

Cyclone III

Board

Reference Description I/O Standar d

N/A User LED intended to show RX data

activity on the HSMC interface

N/A User LED intended to show TX data

activity on the HSMC interface

2.5 V HSMB_RX_LED F26

2.5 V HSMB_TX_LED D28

Schematic

Signal Name

Device Pin

Number

The board provides both 12 V and 3.3 V to installed daughter cards up to 18.6 W each.

Ta b l e 2–49 shows the maximum current allowed per voltage.

Table 2–49. HSMC Power Supply

Maximum Current

Voltage

12 V 1.0 A 12.0 W

3.3 V 2.0 A 6.6 W

From Host Maximum Wattage

Ta b l e 2–50 lists HSMC component reference and manufacturing information.

Table 2–50. HSMC Component Reference and Manufacturing Information

Board

Reference Description Manufacturer

J8 and J9 High-speed mezzanine card (HSMC), custom

version of QSH-DP family high speed socket

Samtec ASP-122953-01 www.samtec.com

On-Board Memory

This section describes the on-board memory interface support, provides signal name, type, and signal connectivity relative to the Cyclone III device.

The board has the following on-board memory:

■ DDR2 SDRAM

■ SRAM

DDR2 SDRAM

The board has 256 MB of dual-channel DDR2 SDRAM memory with a 72-bit data width. These devices use the 1.8-V SSTL signaling standard.

The data bus can be configured as two separate buses of 32 bits each, or a single 32-bit and a single 40-bit bus. One address/control bus is referred to as TOP and the other is referred to as BOT (bottom), as they connect to the respective Cyclone III device edges. The interface comprises four ×16 devices for the 64-bit datapath, and a single ×8 device for the ECC bits for a total of 5 devices (3 to TOP, 2 to BOT). The Micron part numbers are MT47H32M16CC-3 for the ×16 devices and MT47H32M8BP-3 for the ×8 device.

Manufacturing

Part Number

Manufacturer

Website

Chapter 2: Board Components 2–49

On-Board Memory

The two address buses are large enough to support any size JEDEC-compliant DDR2 device, as they have all 16 address pins and all three bank pins connected. The Micron components shipped on the board all have 13 row addresses, 2 bank addresses, and 10 column addresses.

1 Unused control pins should be left tri-stated to reduce power consumption.

There are three clock pairs driven from the FPGA to the memories. The first two pairs clock two memory devices each. The last clock drives the 5th memory device as well as an additional capacitive load to make all clocks have similar loading.

The maximum frequency is 167 MHz (333 Mbps per pin). The theoretical bandwidth of the entire DDR2 interface is 2667 Mbps plus ECC, or 3,000 Mbps raw throughput.

f For more information, visit Micron at www.micron.com.

The data interface to the FPGA fabric runs at either one-half or one-quarter the physical layer data rate when using the Altera DDR2 MegaCore function, which equates to a doubling or quadrupling of the physical data bus width (144 bits or 288 bits, respectively). For example, a 72-bit interface with a 200-MHz external clock speed can have a 200 MHz 144-bit internal bus or a 100 MHz 288-bit interface.

To allow for the use of memory device ODT functionality, the ODT signal is connected. Because a board-level Class I termination is also available, use of this feature is optional. Termination resistors are approximately 50Ω to match the trace impedance of the signals on the board. Clocks are terminated using a single 100Ω resistor across each P/N pair. Altera recommends using the 50Ω OCT on the FPGA for data, and the 10 mA setting for the address and control pins. The DDR2 devices should use the reduced drive strength setting available as a register option.

Ta b l e 2–51 lists the DDR2 interface signal name, description, and I/O standard. Signal

name and direction are relative to the Cyclone III FPGA.

Table 2–51. DDR2 Interface I/O (Part 1 of 5)

Cyclone III

Board

Reference Description I/O Standard

U25, U26 pin K8 Differential clock 0n SSTL18 Class 1 DDR2_CK_N0 AF14

U11, U12 pin K8 Differential clock 1n SSTL18 Class 1 DDR2_CK_N1 G11

U13 pin F8 Differential clock 2n SSTL18 Class 1 DDR2_CK_N2 H19

U25, U26 pin J8 Differ ential clock 0p SSTL18 Class 1 DDR2_CK_P0 AE14

U11, U12 pin J8 Differ ential clock 1p SSTL18 Class 1 DDR2_CK_P1 H12

U13 pin E8 Differential clock 2p SSTL18 Class 1 DDR2_CK_P2 J19

U26 pin F3 Data mask 0 SSTL18 Class 1 D DR2_DM0 AH19

U26 pin B3 Data mask 1 SSTL18 Class 1 DDR2_DM1 AC15

U25 pin F3 Data mask 2 SSTL18 Class 1 D DR2_DM2 AF8

U25 pin B3 Data mask 3 SSTL18 Class 1 DDR2_DM3 AB9

U11 pin F3 Data mask 4 SSTL18 Class 1 D DR2_DM4 B10

U11 pin B3 Data mask 5 SSTL18 Class 1 DDR2_DM5 A8

U12 pin F3 Data mask 6 SSTL18 Class 1 D DR2_DM6 E15

Schematic

Signal Name

Device Pin

Number

2–50 Chapter 2: Board Components

On-Board Memory

Table 2–51. DDR2 Interface I/O (Part 2 of 5)

Cyclone III

Board

Reference Description I/O Standard

Schematic

Signal Name

Device Pin

Number

U12 pin B3 Data mask 7 SSTL18 Class 1 DDR2_DM7 C20

U13 pin B3 Data mask 8 SSTL18 Class 1 DDR2_DM8 B23

U26 pin G8 Data 0 SSTL18 Class 1 DDR2_DQ 0 AG22

U26 pin G2 Data 1 SSTL18 Class 1 DDR2_DQ 1 AH21

U26 pin D7 Data 10 SSTL18 Class 1 DDR2_DQ10 AH18

U26 pin D3 Data 11 SSTL18 Class 1 DDR2_DQ11 AH17

U26 pin D1 Data 12 SSTL18 Class 1 DDR2_DQ12 AF15

U26 pin D9 Data 13 SSTL18 Class 1 DDR2_DQ13 AE17

U26 pin B1 Data 14 SSTL18 Class 1 DDR2_DQ14 AF16

U26 pin B9 Data 15 SSTL18 Class 1 DDR2_DQ15 AB16

U25 pin G8 Data 16 SSTL18 Class 1 DDR2_DQ16 AE11

U25 pin G2 Data 17 SSTL18 Class 1 DDR2_DQ17 AG11

U25 pin H7 Data 18 SSTL18 Class 1 DDR2_DQ18 AG10

U25 pin H3 Data 19 SSTL18 Class 1 DDR2_DQ19 AH11

U26 pin H7 Data 2 SSTL18 Class 1 DDR2_DQ 2 AH22

U25 pin H1 Data 20 SSTL18 Class 1 DDR2_DQ20 AE9

U25 pin H9 Data 21 SSTL18 Class 1 DDR2_DQ21 AE12

U25 pin F1 Data 22 SSTL18 Class 1 DDR2_DQ22 AF10

U25 pin F9 Data 23 SSTL18 Class 1 DDR2_DQ23 AE13

U25 pin C8 Data 24 SSTL18 Class 1 DDR2_DQ24 AC8

U25 pin C2 Data 25 SSTL18 Class 1 DDR2_DQ25 AH7

U25 pin D7 Data 26 SSTL18 Class 1 DDR2_DQ26 AG8

U25 pin D3 Data 27 SSTL18 Class 1 DDR2_DQ27 AH8

U25 pin D1 Data 28 SSTL18 Class 1 DDR2_DQ28 AG7

U25 pin D9 Data 29 SSTL18 Class 1 DDR2_DQ29 AA10

U26 pin H3 Data 3 SSTL18 Class 1 DDR2_DQ 3 AG21

U25 pin B1 Data 30 SSTL18 Class 1 DDR2_DQ30 AF7

U25 pin B9 Data 31 SSTL18 Class 1 DDR2_DQ31 AD10

U11 pin G8 Data 32 SSTL18 Class 1 DDR2_DQ32 A12

U11 pin G2 Data 33 SSTL18 Class 1 DDR2_DQ33 C14

U11 pin H7 Data 34 SSTL18 Class 1 DDR2_DQ34 A11

U11 pin H3 Data 35 SSTL18 Class 1 DDR2_DQ35 C13

U11 pin H1 Data 36 SSTL18 Class 1 DDR2_DQ36 D15

U11 pin H9 Data 37 SSTL18 Class 1 DDR2_DQ37 C12

U11 pin F1 Data 38 SSTL18 Class 1 DDR2_DQ38 E14

U11 pin F9 Data 39 SSTL18 Class 1 DDR2_DQ39 D13

U26 pin H1 Data 4 SSTL18 Class 1 DDR2_DQ 4 AD17

U11 pin C8 Data 40 SSTL18 Class 1 DDR2_DQ40 B7

Chapter 2: Board Components 2–51

On-Board Memory

Table 2–51. DDR2 Interface I/O (Part 3 of 5)

Cyclone III

Board

Reference Description I/O Standard

Schematic

Signal Name

Device Pin

Number

U11 pin C2 Data 41 SSTL18 Class 1 DDR2_DQ41 C11

U11 pin D7 Data 42 SSTL18 Class 1 DDR2_DQ42 A7

U11 pin D3 Data 43 SSTL18 Class 1 DDR2_DQ43 C10

U11 pin D1 Data 44 SSTL18 Class 1 DDR2_DQ44 E11

U11 pin D9 Data 45 SSTL18 Class 1 DDR2_DQ45 B6

U11 pin B1 Data 46 SSTL18 Class 1 DDR2_DQ46 H13

U11 pin B9 Data 47 SSTL18 Class 1 DDR2_DQ47 D10

U12 pin G8 Data 48 SSTL18 Class 1 DDR2_DQ48 C17

U12 pin G2 Data 49 SSTL18 Class 1 DDR2_DQ49 B19

U26 pin H9 Data 5 SSTL18 Class 1 DDR2_DQ 5 AH23

U12 pin H7 Data 50 SSTL18 Class 1 DDR2_DQ50 B18

U12 pin H3 Data 51 SSTL18 Class 1 DDR2_DQ51 C19

U12 pin H1 Data 52 SSTL18 Class 1 DDR2_DQ52 D20

U12 pin H9 Data 53 SSTL18 Class 1 DDR2_DQ53 C16

U12 pin F1 Data 54 SSTL18 Class 1 DDR2_DQ54 A19

U12 pin F9 Data 55 SSTL18 Class 1 DDR2_DQ55 E17

U12 pin C8 Data 56 SSTL18 Class 1 DDR2_DQ56 C21

U12 pin C2 Data 57 SSTL18 Class 1 DDR2_DQ57 C22

U12 pin D7 Data 58 SSTL18 Class 1 DDR2_DQ58 A21

U12 pin D3 Data 59 SSTL18 Class 1 DDR2_DQ59 A22

U26 pin F1 Data 6 SSTL18 Class 1 DDR2_DQ6 AE19

U12 pin D1 Data 60 SSTL18 Class 1 DDR2_DQ60 C24

U12 pin D9 Data 61 SSTL18 Class 1 DDR2_DQ61 B21

U12 pin B1 Data 62 SSTL18 Class 1 DDR2_DQ62 D21

U12 pin B9 Data 63 SSTL18 Class 1 DDR2_DQ63 E18

U13 pin C8 Data 64 SSTL18 Class 1 DDR2_DQ64 E22

U13 pin C2 Data 65 SSTL18 Class 1 DDR2_DQ65 C25

U13 pin D7 Data 66 SSTL18 Class 1 DDR2_DQ66 A23

U13 pin D3 Data 67 SSTL18 Class 1 DDR2_DQ67 B25

U13 pin D1 Data 68 SSTL18 Class 1 DDR2_DQ68 A26

U13 pin D9 Data 69 SSTL18 Class 1 DDR2_DQ69 F21

U26 pin F9 Data 7 SSTL18 Class 1 DDR2_DQ7 AF24

U13 pin B1 Data 70 SSTL18 Class 1 DDR2_DQ70 B26

U13 pin B9 Data 71 SSTL18 Class 1 DDR2_DQ71 D22

U26 pin C8 Data 8 SSTL18 Clas s 1 DDR2_DQ8 AG18

U26 pin C2 Data 9 SSTL18 Clas s 1 DDR2_DQ9 AG17

U26 pin F7 Data strobe 0 SSTL18 Class 1 DDR2_DQS0 AE18

U26 pin B7 Data strobe 1 SSTL18 Class 1 DDR2_DQS1 AF17

2–52 Chapter 2: Board Components

On-Board Memory

Table 2–51. DDR2 Interface I/O (Part 4 of 5)

Cyclone III

Board

Reference Description I/O Standard

Schematic

Signal Name

Device Pin

Number

U25 pin F7 Data strobe 2 SSTL18 Class 1 DDR2_DQS2 AF11

U25 pin B7 Data strobe 3 SSTL18 Class 1 DDR2_DQS3 AE10

U11 pin F7 Data strobe 4 SSTL18 Class 1 DDR2_DQS4 D12

U11 pin B7 Data strobe 5 SSTL18 Class 1 DDR2_DQS5 E12

U12 pin F7 Data strobe 6 SSTL18 Class 1 DDR2_DQS6 B17

U12 pin B7 Data strobe 7 SSTL18 Class 1 DDR2_DQS7 D17

U13 pin B7 Data strobe 8 SSTL18 Class 1 DDR2_DQS8 A25

U25, U26 pin M8 Bottom address 0 SSTL18 Class 1 DDR2BOT_A0 AB22

U25, U26 pin M3 Bottom address 1 SSTL18 Class 1 DDR2BOT_A1 AG6

U25, U26 pin M2 Bottom address 10 SSTL18 Class 1 DDR2BOT_A10 AE4

U25, U26 pin P7 Bottom address 11 SSTL18 Class 1 DDR2BOT_A11 AF21

U25, U26 pin R2 Bottom address 12 SSTL18 Class 1 DDR2BOT_A12 Y12

U25, U26 pin R8 Bottom address 13 SSTL18 Class 1 DDR2BOT_A13 Y14

U25, U26 pin R3 Bottom address 14 SSTL18 Class 1 DDR2BOT_A14 AF12

U25, U26 pin R7 Bottom address 15 SSTL18 Class 1 DDR2BOT_A15 AA16

U25, U26 pin M7 Bottom address 2 SSTL18 Class 1 DDR2BOT_A2 Y13

U25, U26 pin N2 Bottom address 3 SSTL18 Class 1 DDR2BOT_A3 AE7

U25, U26 pin N8 Bottom address 4 SSTL18 Class 1 DDR2BOT_A4 AB12

U25, U26 pin N3 Bottom address 5 SSTL18 Class 1 DDR2BOT_A5 AC7

U25, U26 pin N7 Bottom address 6 SSTL18 Class 1 DDR2BOT_A6 AD12

U25, U26 pin P2 Bottom addres s 7 SSTL18 Class 1 DDR2BOT_ A7 AB8

U25, U26 pin P8 Bottom addres s 8 SSTL18 Class 1 DDR2BOT_ A8 AH12

U25, U26 pin P3 Bottom addres s 9 SSTL18 Class 1 DDR2BOT_ A9 AB10

LED D16 pin 2 Bottom bus activity LED 1.8 V DDR2 BOT_ACTIVE AA14

U25, U26 pin L2 Bottom bank address 0 SSTL18 Class 1 DDR2BOT_B A0 AF3

U25, U26 pin L3 Bottom bank address 1 SSTL18 Class 1 DDR2BOT_B A1 AF5

U25, U26 pin L1 Bottom bank address 2 SSTL18 Class 1 DDR2BOT_B A2 AH4

U25, U26 pin L7 Bottom column address

SSTL-18 Class I DDR2BOT_CASn AD21

strobe

U25, U26 pin K2 Bottom clock enable SSTL-18 Class I DDR2BOT_CKE AG4

U25, U26 pin L8 Bottom chip select SSTL-18 Class I DDR2BOT_CSn AC21

U25, U26 pin K9 Bottom on-die

SSTL-18 Class I DDR2BOT_ODT AE24

termination enable

U25, U26 pin K7 Bottom row address

SSTL-18 Class I DDR2BOT_RASn AE21

strobe

U25, U26 pin K3 Bottom write enable SSTL-18 Class I DDR2BOT_WEn AE5

U11, U12 pin M8, U13 pin H8 Top address 0 SSTL18 Class 1 DDR2TOP_A0 J13

U11, U12 pin M3, U13 pin H3 Top address 1 SSTL18 Class 1 DDR2TOP_A1 G18

U11, U12 pin M2, U13 pin H2 Top address 10 SSTL18 Class 1 DDR2TOP_A10 A17

Chapter 2: Board Components 2–53

On-Board Memory

Table 2–51. DDR2 Interface I/O (Part 5 of 5)

Cyclone III

Board

Reference Description I/O Standard

Schematic

Signal Name

Device Pin

Number

U11, U12 pin P7, U13 pi n K7 Top address 11 SSTL18 Class 1 DDR2TOP_A11 D8

U11, U12 pin R2, U13 pi n L2 Top address 12 SSTL18 Class 1 DDR2TOP_A12 D25

U11, U12 pin R8, U13 pi n L8 Top address 13 SSTL18 Class 1 DDR2TOP_A13 F15

U11, U12 pin R3, U13 pi n L3 Top address 14 SSTL18 Class 1 DDR2TOP_A14 B12

U11, U12 pin R7 Top address 15 SSTL18 Class 1 DDR2TOP_A 15 H16

U11, U12 pin M7, U13 pin H7 Top address 2 SSTL18 Class 1 DDR2TOP_A2 E8

U11, U12 pin N2, U13 pi n J2 Top address 3 SSTL18 Class 1 DDR2TOP_A3 D24

U11, U12 pin N8, U13 pi n J8 Top address 4 SSTL18 Class 1 DDR2TOP_A4 D7

U11, U12 pin N3, U13 pi n J3 Top address 5 SSTL18 Class 1 DDR2TOP_A5 J15

U11, U12 pin N7, U13 pi n J7 Top address 6 SSTL18 Class 1 DDR2TOP_A6 H15

U11, U12 pin P2, U13 pi n K2 Top address 7 SSTL18 Class 1 DD R2TOP_A7 J16

U11, U12 pin P8, U13 pi n K8 Top address 8 SSTL18 Class 1 DD R2TOP_A8 H8

U11, U12 pin P3, U13 pi n K3 Top address 9 SSTL18 Class 1 DD R2TOP_A9 D16

LED D11 pin 2 Top bus activity LED 1.8 V DDR2TOP_ACTIVE E10

U11, U12 pin L2, U13 pi n G2 Top bank addr ess 0 SSTL18 Class 1 DDR2TOP_BA0 C23

U11, U12 pin L3, U13 pi n G3 Top bank addr ess 1 SSTL18 Class 1 DDR2TOP_BA1 D19

U11, U12 pin L1, U13 pi n G1 Top bank addr ess 2 SSTL18 Class 1 DDR2TOP_BA2 C26

U11, U12 pin L7, U13 pi n G7 Top column address

SSTL-18 Class I DDR2TOP_CASn F14

strobe

U11, U12 pin K2, U13 pin F2 Top clock enable SSTL-18 Class I DDR2TOP_CKE E21

U11, U12 pin L8, U13 pi n G8 Top chip select SSTL- 18 Class I DDR2TOP_CSn C7

U11, U12 pin K9, U13 pi n F9 Top on-die termination

SSTL-18 Class I DDR2TOP_ODT A6

enable

U11, U12 pin K7, U13 pi n F7 Top row address strobe SSTL-18 Class I DDR2TOP_RASn F8

U11, U12 pin K3, U13 pin F3 Top write enable SSTL-18 Class I DDR2TOP_WEn A10

Ta b l e 2–52 lists the DDR2 interface component reference and manufacturing

information.

Table 2–52. DDR2 Interface Component Reference and Manufacturing Information

Board Referen ce Description Manufacture r

Manufacturing

Part Number

Manufacturer

Website

U11, U12, U25, U26 DDR2 SDRAM 34 M × 16 Micron Technology, Inc. MT47H32M16CC-3:B www.micron.com

U13 DDR2 SDRAM 32 M × 8 Micron Technology, Inc. MT47H32M8BP-3:B www.micron.com

2–54 Chapter 2: Board Components

On-Board Memory

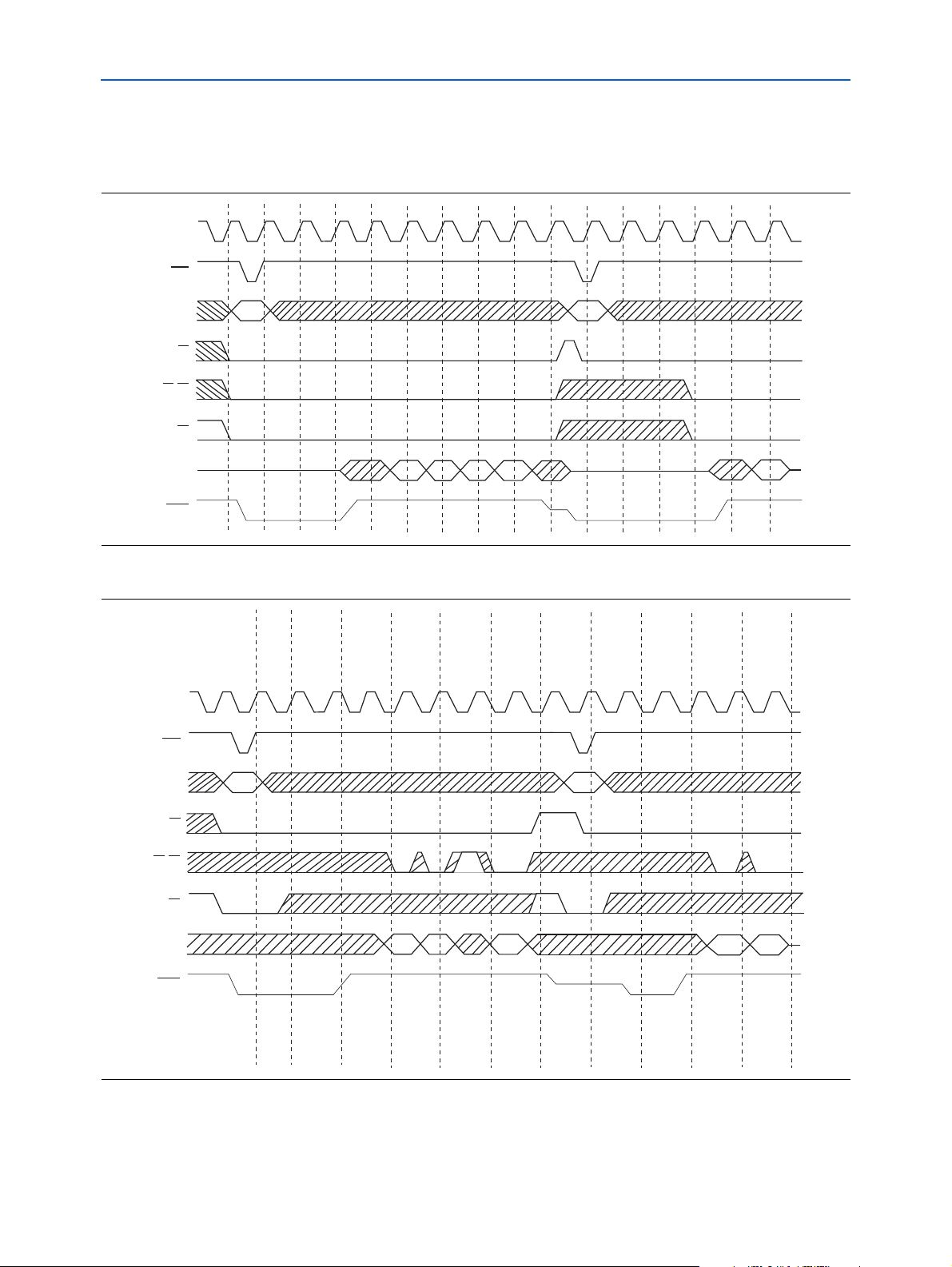

SRAM

The board features 8 MB of SRAM memory with a 32-bit data bus. The devices use

1.8-V CMOS signaling and are optimized for low cost and power.

The 32-bit interface comprises two ×16 devices. The Samsung part features a maximum frequency of 104 MHz (104 Mbps). The theoretical bandwidth of the entire interface is 416 Mbps.

The SRAM devices are part of a shared bus with connectivity to the MAX II CPLD as well as the flash memory, which is called the FSM bus. All three devices use 1.8-V CMOS signaling. Altera recommends using the 50-Ω OCT setting on the FPGA and the one-half drive setting on the SRAM.

Ta b l e 2–53 lists the SRAM interface signal name, description, and I/O standard.

Signal name and type are relative to the Cyclone III device, i.e., I/O setting and

direction.

Table 2–53. SRAM Interface I/O (Part 1 of 3)

Cyclone III

Board

Reference Descripti on I/O Standard

U23 pin A1 Byte enables bit 0 1.8 V SRAM_BEn0 AF20

U23 pin B2 Byte enables bit 1 1.8 V SRAM_BEn1 AH26

U24 pin A1 Byte enables bit 2 1.8 V SRAM_BEn2 AE22

U24 pin B2 Byte enables bit 3 1.8 V SRAM_BEn3 AB21

U23, U24 pin J2 Cl ock (drives two memories) 1.8 V SRAM_CLK AD22

U23, U24 pin B5 Chip select 1.8 V SRAM_CSn AB19

U23, U24 pin A2 Output enable 1.8 V SRAM_OEn AD25

U23, U24 pin A6 Power save /MRS set pin 1.8 V SRAM_PSn B4

U23 pin J1 Data wai t bit 0 1.8 V SRAM_WAIT0 AG15

U24 pin J1 Data wai t bit 1 1.8 V SRAM_WAIT1 AH25

U23, U24 pin G5 Write enable 1.8 V SRAM_WEn AE25

U23, U24 pin J3 Address valid 1.8 V SRAM_ADVn AA19

U23, U24 pin A3 Address bit 1 (DWORD al igned) 1.8 V FSA1 AH10

U23, U24 pin A4 Address bit 2 (DWORD al igned) 1.8 V FSA2 AA13

U23, U24 pin A5 Address bit 3 (DWORD al igned) 1.8 V FSA3 AC10

U23, U24 pin B3 Address bit 4 (DWORD al igned) 1.8 V FSA4 Y15

U23, U24 pin B4 Address bit 5 (DWORD al igned) 1.8 V FSA5 AF22

U23, U24 pin C3 Address bit 6 (DWORD al igned) 1.8 V FSA6 AF26

U23, U24 pin C4 Address bit 7 (DWORD al igned) 1.8 V FSA7 AF4

U23, U24 pin D4 Address bit 8 (DWORD aligned) 1.8 V FSA8 AD8

U23, U24 pin H2 Address bit 9 (DWORD aligned) 1.8 V FSA9 AG26

U23, U24 pin H3 Address bit 10 (DWORD aligned) 1.8 V FSA10 AH6

U23, U24 pin H4 Address bit 11 (DWORD aligned) 1.8 V FSA11 AD24

U23, U24 pin H5 Address bit 12 (DWORD aligned) 1.8 V FSA12 AF9

U23, U24 pin G3 Address bit 13 (DWORD aligned) 1.8 V FSA13 AA8

Sch ematic Si gnal

Name

Device Pin

Number

Chapter 2: Board Components 2–55

On-Board Memory

Table 2–53. SRAM Interface I/O (Part 2 of 3)

Cyclone III

Board

Reference Descripti on I/O Standard

Sch ematic Si gnal

Name

Device Pin

Number

U23, U24 pin G4 Address bit 14 (DWORD aligned) 1.8 V FSA14 AC22

U23, U24 pin F3 Address bit 15 (DWORD aligned) 1.8 V FSA15 AE8

U23, U24 pin F4 Address bit 16 (DWORD aligned) 1.8 V FSA16 AF13

U23, U24 pin E4 Addr ess bit 17 (DWORD aligned) 1.8 V FSA17 AB14

U23, U24 pin D3 Address bit 18 (DWORD aligned) 1.8 V FSA18 AF23

U23, U24 pin H1 Address bit 19 (DWORD aligned) 1.8 V FSA19 AG12

U23, U24 pin G2 Address bit 20 (DWORD aligned) 1.8 V FSA20 AB18

U23, U24 pin H6 Address bit 21 (DWORD aligned) 1.8 V FSA21 Y19

U23 pin B6 Data bit 0 1.8 V FSD0 J14

U23 pin C5 Data bit 1 1.8 V FSD1 D6

U23 pin C6 Data bit 2 1.8 V FSD2 J17

U23 pin D5 Data bit 3 1.8 V FSD3 G7

U23 pin E5 Data bit 4 1.8 V F SD4 F18

U23 pin F5 Data bit 5 1.8 V FSD5 C6

U23 pin F6 Data bit 6 1.8 V FSD6 H17

U23 pin G6 Data bit 7 1.8 V FSD7 C18

U23 pin B1 Data bit 8 1.8 V FSD8 D18

U23 pin C1 Data bit 9 1.8 V FSD9 G16

U23 pin C2 Data bit 10 1.8 V FSD10 G22

U23 pin D2 Data bit 11 1.8 V FSD11 F12

U23 pin E2 Data bit 12 1.8 V FSD12 D11

U23 pin F2 Data bit 13 1.8 V FSD13 E24

U23 pin F1 Data bit 14 1.8 V FSD14 H21

U23 pin G1 Data bit 15 1.8 V FSD15 G9

U24 pin B6 Data bit 16 1.8 V FSD16 A4

U24 pin C5 Data bit 17 1.8 V FSD17 G13

U24 pin C6 Data bit 18 1.8 V FSD18 H14

U24 pin D5 Data bit 19 1.8 V FSD19 B8

U24 pin E5 Data bit 20 1.8 V FSD20 C8

U24 pin F5 Data bit 21 1.8 V FSD21 F7

U24 pin F6 Data bit 22 1.8 V FSD22 B11

U24 pin G6 Data bit 23 1.8 V FSD23 B22

U24 pin B1 Data bit 24 1.8 V FSD24 A18

U24 pin C1 Data bit 25 1.8 V FSD25 G8

U24 pin C2 Data bit 26 1.8 V FSD26 J12

U24 pin D2 Data bit 27 1.8 V FSD27 D9

U24 pin E2 Data bit 28 1.8 V FSD28 C9

U24 pin F2 Data bit 29 1.8 V FSD29 E7

2–56 Chapter 2: Board Components

On-Board Memory

Table 2–53. SRAM Interface I/O (Part 3 of 3)

Cyclone III

Board

Reference Descripti on I/O Standard

Sch ematic Si gnal

Name

Device Pin

Number

U24 pin F1 Data bit 30 1.8 V FSD30 H10

U24 pin G1 Data bit 31 1.8 V FSD31 J10

Figure 2–14 illustrates the latency for both fixed and variable modes of operation. For

asynchronous accesses, each of the two devices has its own WAIT pin wired to the Cyclone III device.

f For Samsung SRAM pin definitions, data sheet, and other related documentation,

refer to the Samsung website at www.samsung.com.

Figure 2–14. SRAM Latency Timing Illust ration

Clock

ADV

Address

Fixed Latency - A18[0]

Data Out

Data In

Variable Latency - A18[1]

Data In/Out

Data Out

Latency 4 (Burst Length: 8)

Latency 2 (Burst Length: 8)

Ta b l e 2–54 lists the Samsung device latency values based on operation frequency.

Table 2–54. SRAM Latency Vs. Frequency

2nd 3rd 4th 5th

1st

Q0 Q1 Q2 Q3 Q4

DQ0 DQ1 DQ2 DQ3 DQ4

D0 D1 D2

D0 D1 D2 D3 D4

6th 7th 8th 9th 10th 11th

D3 D4

Q5 Q6 Q7

DQ5 DQ6 DQ7

D5 D6 D7

Up to 66 MHz Up to 80 MHz Up to 104 MHz

Item

Fixed Variable Fixed Variable Fix ed Variable

Latency set (A11:A10:A9) 4(0:0:1) 2(1:0:0) 5(0:1:0) 3(0:0:0) 7(1:0:1) 4(0:0:1)

Read latency (min) 4 2/4 5 3/5th 7 4/7

First read data fetch clock 5th 3rd/5th 6th 4th/6th 8th 5th/8th

Write latency (min) 223344

First write data loading clock 3rd 3rd 3rd 4th 5th 5th

Chapter 2: Board Components 2–57

On-Board Memory

Figure 2–15 and Figure 2–16 show the Samsung device read and write access

waveforms, respectively.

Figure 2–15. SRAM Read Timing Waveforms

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14

CLK

ADV

ADDR

UB, LB

Data Out

WAIT

Figure 2–16. SRAM Write Timing Waveforms

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14

CLK

ADV

ADDR

UB, LB

Data In

WAIT

2–58 Chapter 2: Board Components

On-Board Memory

Ta b l e 2–55 lists the SRAM board reference and manufacturing information.

Table 2–55. SRAM Manufacturing Information

Board Reference Description Manu facturer

U23, U24 32 MB (2 M × 16) of

SRAM

Samsung

Semiconductor

f For more information about timing parameter values, mode register settings (MRS),

or any other data regarding the Samsung device, visit www. samsung.com.

Flash Memory

The board features 64 MB of flash memory with a 16-bit data bus. The device uses

1.8-V CMOS signaling and is used for storing configuration files for the FPGA as well as any other files such as Nios software binaries, libraries, images, and sounds.

The interface uses a single Spansion device. The part number is S29GL512N11FFIV1. The device features CFI flash command support, byte- and word-mode operation, and 110 ns access times for a theoretical read bandwidth of 145 Mbps.

The flash device is part of a shared bus with connectivity to the MAX II CPLD as well as the SRAM memory, which is called the FSM bus. All three devices use 1.8-V CMOS signaling. Altera recommends using the 50-Ω OCT setting on the FPGA. The flash does not have a drive strength setting.

Ta b l e 2–56 shows the required signals for flash memory. Signal direction is relative to

the FPGA.

Manufacturer Part

Number

K1B3216B2E-BI70 www.samsung.com

Manufacturer

Website

Table 2–56. Flash Interface I/O (Part 1 of 2)

Cyclone III

Board

Refer ence Descript ion I/O Standard

U31 pin F2 Chip enable 1.8 V FLASH_CEn Y16

U31 pin G2 Output enable 1.8 V FLASH_OEn Y17

U31 pin A4 Ready/busy 1.8 V FLASH_RDYBSYn AG25

U31 pin B5 Reset 1.8 V FLASH_RESETn AB20

U31 pin A5 Write enable 1.8 V FLASH_WEn AA21

U31 pin F7 Word/ byte 1.8 V FLASH_BYTEn (1)

U31 pin E2 Address bus bit 0 (word aligned) 1.8 V FSA0 AC11

U31 pin D2 Address bus bit 1 (word aligned) 1.8 V FSA1 AH10

U31 pin C2 Address bus bit 2 (word aligned) 1.8 V FSA2 AA13

U31 pin A2 Address bus bit 3 (word aligned) 1.8 V FSA3 AC10

U31 pin B2 Address bus bit 4 (word aligned) 1.8 V FSA4 Y15

U31 pin D3 Address bus bit 5 (word aligned) 1.8 V FSA5 AF22

U31 pin C3 Address bus bit 6 (word aligned) 1.8 V FSA6 AF26

U31 pin A3 Address bus bit 7 (word aligned) 1.8 V FSA7 AF4

U31 pin B6 Address bus bit 8 (word aligned) 1.8 V FSA8 AD8

U31 pin A6 Address bus bit 9 (word aligned) 1.8 V FSA9 AG26

Schemati c

Signal Name

Device

Pin Number

Chapter 2: Board Components 2–59

On-Board Memory

Table 2–56. Flash Interface I/O (Part 2 of 2)

Cyclone III

Board

Refer ence Descript ion I/O Standard

Schemati c

Signal Name

Device

Pin Number

U31 pin C6 Address bus bit 10 (word aligned) 1.8 V FSA10 AH6

U31 pin D6 Address bus bit 11 (word aligned) 1.8 V FSA11 AD24

U31 pin B7 Address bus bit 12 (word aligned) 1.8 V FSA12 AF9

U31 pin A7 Address bus bit 13 (word aligned) 1.8 V FSA13 AA8

U31 pin C7 Address bus bit 14 (word aligned) 1.8 V FSA14 AC22

U31 pin D7 Address bus bit 15 (word aligned) 1.8 V FSA15 AE8

U31 pin E7 Address bus bit 16 (word aligned) 1.8 V FSA16 AF13

U31 pin B3 Address bus bit 17 (word aligned) 1.8 V FSA17 AB14

U31 pin C4 Address bus bit 18 (word aligned) 1.8 V FSA18 AF23

U31 pin D5 Address bus bit 19 (word aligned) 1.8 V FSA19 AG12

U31 pin D4 Address bus bit 20 (word aligned) 1.8 V FSA20 AB18

U31 pin C5 Address bus bit 21 (word aligned) 1.8 V FSA21 Y19

U31 pin B8 Address bus bit 22 (word aligned) 1.8 V FSA22 AG3

U31 pin C8 Address bus bit 23 (word aligned) 1.8 V FSA23 AE16

U31 pin F8 Address bus bit 24 (word aligned) 1.8 V FSA24 AB7

U31 pin E3 Data bit 0 1.8 V FSD0 J14

U31 pin H3 Data bit 1 1.8 V FSD1 D6

U31 pin E4 Data bit 2 1.8 V FSD2 J17

U31 pin H4 Data bit 3 1.8 V FSD3 G7

U31 pin H5 Data bit 4 1.8 V FSD4 F18

U31 pin E5 Data bit 5 1.8 V FSD5 C6

U31 pin H6 Data bit 6 1.8 V FSD6 H17

U31 pin E6 Data bit 7 1.8 V FSD7 C18

U31 pin F3 Data bit 8 1.8 V FSD8 D18

U31 pin G3 Data bit 9 1.8 V FSD9 G16

U31 pin F4 Data bit 10 1.8 V FSD10 G22

U31 pin G4 Data bit 11 1.8 V FSD11 F12

U31 pin F5 Data bit 12 1.8 V FSD12 D11

U31 pin G6 Data bit 13 1.8 V FSD13 E24

U31 pin F6 Data bit 14 1.8 V FSD14 H21

U31 pin G7 Data bit 15 1.8 V FSD15 G9

Note to Table 2–56:

(1) For the corresponding Cyclone III device pin number, refer to the MAX II device pin-out information in Table 2–5 on page 2–7.

2–60 Chapter 2: Board Components

On-Board Memory

Ta b l e 2–57 defines the flash memory map and lists the signals required for flash

memory. Signal directions are relative to the Cyclone FPGA.

Table 2–57. Flash Memory Map Defined

Signal Name Description I/O Standard

FSM_A(24:0 ) Address bus (word aligned) 1.8-V LVCMOS out (25 bit s)

FSM_D(15:0 ) Data bus N/A (Accounted for in SRAM section)

FLASH_CSn Chip select 1.8-V LVCMOS out

FLASH_OEn Output enable 1.8-V LVCMOS out

FLASH_WEn Write enabl e 1.8-V LVCMOS out

FLASH_RSTn Re set 1.8-V LVCMOS out

FLASH_WPn Write protect N/A (Tie to VCC)

FLASH_RDYB SYn Ready/not busy N/A (Tie to CPLD)

FLASH_BYTE n Byte/word select N/A (Tie to CPLD)

VIO I/O power 1.8 V

VCC Core power 3.3 V

VSS Ground Ground

Cyclone III device I/O totals: 29 1.8 V CMOS I/O pins

Ta b l e 2–58 shows the flash device memory map on the Cyclone III development

board. The memory provides non-volatile storage for a minimum of eight FPGA bit streams, as well as various settings data used for on-board devices such as Ethernet TCP/IP defaults, PFL configuration bits, and data on the board itself. The remaining area is designated as user flash area for storage of software binaries and other data relevant to a user FPGA design.

Table 2–58. Flash Memory Map (Part 1 of 2)

Name Address

PFL option bits 0x03FE.0080

0x03FE.0000

Ether net option bi ts 0x03FD.FFEF

0x03FC.0000

User space (32 MB) 0x03F9.FFFF

0x0200.0000

Reserved 0x01FF.FFFF

0x01C0.0000

FPGA design 7 0x01BE.EB E1

0x0188.0000

FPGA design 6 0x0186.EB E1

0x0150.0000

FPGA design 5 0x014E.EB E1

0x0118.0000

FPGA design 4 0x0116.EB E1

0x00E0.0000

Chapter 2: Board Components 2–61

On-Board Memory

Table 2–58. Flash Memory Map (Part 2 of 2)

Name Address

FPGA Design 3 0x00DE.EBE1

0x00A8.0000

FPGA Design 2 0x00A6.EBE1

0x0070.0000

FPGA Design 1 0x006E.EBE1

0x0038.0000

FPGA Design 0 (factory design) 0x0036.EBE1

0x0000.0000

f For information about the flash array command set and sequencing for register access,

or any other data regarding the Spansion device, visit www.spansion.com.

Ta b l e 2–59 and Table 2–60 are from the Spansion flash device data sheet. The tables

show the top and bottom sections of the flash sector map, along with the manufacturer’s sector address map.

Table 2–59. Flash Sector Map – Bottom

Sector A24-A16

Sector Size

(KBytes)

Kwords

8-Bit

Address Range

(In hexadecimal)

16-bit

Address Range

(In hexadecimal)

SA0 000000000 128/64 0000000–001FFFF 0000000–000FFFF

SA1 000000001 128/64 0020000–003FFFF 0010000–001FFFF

SA2 000000010 128/64 0040000–005FFFF 0020000–002FFFF

SA3 000000011 128/64 0060000–007FFFF 0030000–003FFFF

SA4 000000100 128/64 0080000–009FFFF 0040000–004FFFF

SA5 000000101 128/64 00A0000–00BFFFF 0050000–005FFFF

Table 2–60. Flash Sector Map – Top

Sector A24-A16

Sector Size

(Kybtes)

Kwords

8-Bit

Address Range

(In hexadecimal)

16-bit

Address Range

(In hexadecimal)

SA508 111111100 128/64 3F80000–3F9FFFF 1FC0000–1FCFFFF

SA509 111111101 128/64 3FA0000–3FBFFFF 1FD0000–1FDFFFF

SA510 111111110 128/64 3FC0000–3FDFFFF 1FE0000–1FEFFFF

SA511 111111111 128/64 3FE0000–3FFFFFF 1FF0000–1FFFFFF

Ta b l e 2–61 lists Spansion flash board reference and manufacturing information.

Table 2–61. Spansion Flash Manufacturing Information

Board Reference Description Manufactu rer

Manufacturer Part

Number

Manufact urer

Website

U31 64 MB of flash memory Spansion LLC S29GL512N11FF IV1 www.spansion.com

2–62 Chapter 2: Board Components

Power Supply

The board’s power is provided through an IBM laptop style DC power input. The input voltage must be in the range of 14 V to 20 V. The DC voltage is then stepp ed down to the various power rails used by the components on the board and installed into the HSM connectors.

Figure 2–17 shows the power distribution system, which uses current power rails as

described in “POWER SELECT Rotary Switch” on page 2–21. Regulator inefficiencies and sharing are reflected in the currents shown.

Chapter 2: Board Components 2–63

Wide Input Switching Regulator (LT3481)

Linear (LT1761)

2.013A

1.2V

2.000A

12V

0.013A

12V

4.169A

3.3V

0.002A

3.3V

1.036A

3.3V

0.002A

3.0V

1.036A

2.5V

0.619A

2.5V

0.013A

5.0V

Wide Input Switching Regulator (LTM4601)

10.429A

12V

PowerNet HMCA Port A HMCB Port B

5.0V

Partial Plane

Character LCD

DDR2 Term Regulators

Linear 80% eff. (LT1761)

3.0V_CSENSE Partial Plane

LTC1865Lm AD8531,

INA271, ADG725

1.045A

1.8V

0.005A

5.0V

1.045A

0.9V

VREF_B3_B4

Linear (TPS5100)

VTT_B3_B4 Partial Plane

DDR2BOT Term

1.205A

1.8V

0.005A

5.0V

1.205A

0.9V

VREF_B7_B8

Linear (TPS5100)

VTT_B7_B8 Partial Plane

DDR2TOP Term

2.5V_B1_B2 Partial Plane

FPGA VCCIO1 FPGA VCCIO2

Linear (LT1963)

MEASURE

0.182A

2.5V

2.5V_B5_B6 Partial Plane

FPGA VCCIO5 FPGA VCCIO6

0.182A

2.5V

2.5V_VCCA Partial Plane

FPGA VCCA

0.053A

2.5V

2.5V Partial Plane

MAXIIG VCCIO1/2,

Enet PHY VDDO/H/X+AVDD,

Graphics LCD VDD

3.200A

3.3V

4.693A

1.8V

1.747A

1.8V

1.8V_B3_B4

Partial Plane FPGA VCCIO3 FPGA VCCIO4

Switching Regulator (LTC3418)

0.348A

1.8V

1.8V_B7_B8

Partial Plane FPGA VCCIO7 FPGA VCCIO8

0.348A

1.8V

VLDOIN

1.8V Partial Plane DDR2 VDD/ VDDQ, MAXIIG VCCINT,

MAXIIG VCCIO3/4, SRAM VCC/

VCCQ, Flash VDDQ,

24M/50M/125M Oscillators

1.902A

3.3V

4.184A

1.2V

3.814A

1.2V

Power Net

Enet PHY DVDD

Switching Regulator (LTC3418)

0.250A

1.2V

1.2V_INT

Partial Plane

FPGA VCCINT

0.120A

3.3V

0.120A

1.2V

0.120A

1.2V

Linear

Regulator

(LTC1963A)

1.2V_VCCD

Partial Plane

FPGA VCCD

3.3V Partial Plane

Flash VDD, FTDI USB VCC,

Cypress USB VCC/AVCC,

25M Oscillator,

HSMC Port A, HSMC Port B

DC Input 14V - 20V

80% eff.

MEASURE

Power Supply

Figure 2–17. Power Distribution System

2–64 Chapter 2: Board Components

MAX II Device

SCK

SDI

SDO

CSn

A/D

Load #1

Load #13

Supply #1

SENSE

Power Select

Quad 7-segment

Display

16:1

Analog

Mux

Amp

Supply #13

MAX II Control

DIP Switch

mA vs. mW Amps vs. Volts

Statement of China-RoHS Compliance

Power Measurement

Eight power supply rails have on-board voltage and current sense capabilities. These measurements are made using an 8-channel differential A/D converter from Linear Technology, with a serial data bus connected to the MAX II CPLD.

The MAX II CPLD contains a logic design that continually monitors the power rails and displays the current in mW on the dedicated four-digit 7-segment display. Rotary switch SW4 is used to select the power rail being displayed. The sense resistor is large enough that it can be easily probed by a user to confirm the display results. The results are also accessible from the FPGA through register access across the FSM bus.

Figure 2–18 illustrates the circuit.

Figure 2–18. Power Measurement Circuit

Ta b l e 2–16 on page 2–21 lists the power measurement rails. The Schematic Signal Name

column lists the power rail being measured, and the power pins/devices attached to the power rail are listed in the Power Pin Name and Desc ription columns.

Statement of China-RoHS Compliance

Ta b l e 2–62 lists hazardous substances included with the kit.

Table 2–62. Table of Hazardous Substances’ Name and Concentration Notes (1), (2) (Part 1 of 2)

Hexavalent

Cadmium

Part Name Lead (Pb)

Cyclone III development board X* 0 0 0 0 0

(Cd)

12-V power supply 0 0 0 0 0 0

Type A-B USB cable 0 0 0 0 0 0

Chromium

(Cr6+)

Mercury

(Hg)

Polybrominated

biphenyls (PBB)

Polybrominated diphenyl Ethers

(PBDE)

Chapter 2: Board Components 2–65

Statement of China-RoHS Compliance

Table 2–62. Table of Hazardous Substances’ Name and Concentration Notes (1), (2) (Part 2 of 2)

Part Name Lead (Pb)

Cadmium

(Cd)

Hexavalent

Chromium

(Cr6+)

Mercury

(Hg)

Polybrominated

biphenyls (PBB)

Polybrominated diphenyl Ethers

(PBDE)

User guide 0 0 0 0 0 0

Notes to Table 2–62:

(1) 0 indicates that the concentration of the hazardous substance in all homogeneous materials in the parts is below the relevant threshold of the

SJ/T11363-2006 standard.

(2) X* indicates that the concentration of the hazardous substance of at least one of all homogeneous materials in the parts is above the relevant

threshold of the SJ/T11363-2006 standard, but it is exempted by EU RoHS.

2–66 Chapter 2: Board Components

Statement of China-RoHS Compliance

Additional Information

Revision History

The following table displays the revision history for this reference manual.

Date Version Changes Made

March 2009 1.4 Updated Table 2–10 and Table 2–12.

December 2008 1.3 Corrected “Schematic Signal Names” i n Table 2–47 and Table 2–48.

August 2008 1.2 ■ Corrected “Schematic Signal Names” in Table 2–5 and added (Note 1).

■ Updated JTAG settings in Table 2–7.

■ Updated Tabl e 2–16.

■ Updated the power supply information of banks 1, 2, 5, and 6 in Figure 2–6.

■ Updated (Note 1) in Table 2–39 and (Note 1) in Table 2–39 to point to MAX II pin-out

information.

■ Updated “10/100/1000 Ethernet” section.

■ Corrected unit in “Power Measurement” section.

■ Converted document to new frame template and made textual and style changes.

March 2008 1.1

October 2007 1.0 First publication

■ Added schematic information to, revised I/O standard terminology, and added data bit

information to the HSMC Port A and Port B tables.

■ Added schematic information to and revised I/O standard terminology to the DDR 2 interface

I/O table.

■ Added schematic information to and revised I/O standard terminology to the Ethernet PHY

I/O table.

■ Added schematic information to and revised I/O standard terminology to the flash memory

I/O table.

■ Added schematic information to and revised I/O standard terminology to the graphics LCD

table.

■ Added schematic information to and revised I/O standard terminology to the SRAM table.

■ Updated power measurement table.

■ Updated flash memory map table.

■ Added flash memory map definition table.

Info–2 Additional Information

How to Contact Altera

For the most up-to-date information about Altera products, refer to the following table.

Contact

Contact (Note 1)

Method Address

Technical support Website www.altera.com/support

Technica l tra ining Website www.altera.com/training

Email custrain@altera.com

Product literature Website www.altera.com/literature

Non-technical support (General) Email nacomp@altera.com

(Software Licensing) Email authorization@altera.com

Note to Table:

(1) You can also contact your local Altera sales office or sales representative.

Typographic Conventions

This document uses the typographic conventions shown in the following table.

Visual Cue Meaning

Bold Type with Initial Capital Letters

Indicates command names, dialog box titles, dialog box options, and other GUI labels. For example, Save As dialog box.

bold t ype Indicates directory names, project names, disk drive names, file names, file name

extensions, and software utility names. For example, \qdesigns directory, d: drive, and chiptrip.gdf file.

Italic Type with Initial Capital Letters Indicates document titl es. For example, AN 519: Stratix IV Design Guidelines.

Italic type Indicates variables. For example, n + 1.

Variable names are enclosed in angle brackets (< >). For example, <file name> and <project name>.pof file.

Initial Capital Letters Indicates ke yboard keys and menu names. For example, Delete key and the Options

menu.

“Subheading Title” Quotation marks indicate references to sections within a document and titles of

Quartus II Help topics. For example, “Typographic Conventions.”

Courier type Indicates signal, port, register, bit, block, and primitive names. For example, data1,

tdi, and input. Active-low signals are denot ed by suffix n. For example, resetn.

Indicates command line commands and anything that must be typed exactly as it appears. For example, c:\qdesigns\tutorial\chiptrip.gdf.

Also indicat es sections of an actual file, such as a Report File, references to parts of files (for example, the AHDL keyword SUBDESIGN) , and logic function names (f or example, TRI).

1., 2., 3., and a., b., c., and so on.

■ ■ Bullets indicate a list of items when the sequence of the items is not important.

Numbered steps indicate a list of items when the sequence of the items is important, such as the steps listed in a procedure.

1 The hand points to information that requires special attention.

Additional Information Info–3

Typographic Conventions

Visual Cue Meaning

A caution calls attention to a condition or possible situation that can damage or destroy the product or your work.

A warning calls attention to a condition or possible situation that can cause you injury.

r The angled arrow instructs you to press Enter. f The feet direct you to more information about a particular topi c.

Info–4 Additional Information

Typographic Conventions

Altera Cyclone III Development Board User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction

General Description

1. Overview

Board Component Blocks

Block Diagram

Handling the Board

Introduction

2. Board Components

Board Overview

Featured FPGA (U20)

I/O and Clocking Resources

MAX II CPLD

Configuration, Status, and Setup Elements

Configuration

Status Elements

Setup Elements

Clocking Circuitry

Cyclone III FPGA Clock Inputs

Cyclone III FPGA Clock Outputs

Oscillators

General User Interfaces

User-Defined Push Button Switches

User-Defined DIP Switches

User-Defined LEDs

DDR2 User-Defined LEDs

7-Segment Displays

LCD Information

Communication Ports and Interfaces

USB 2.0 MAC/PHY

10/100/1000 Ethernet

High-Speed Mezzanine Connector

On-Board Memory

DDR2 SDRAM

SRAM

Flash Memory

Power Supply

Statement of China-RoHS Compliance

Power Measurement

Additional Information

Revision History

How to Contact Altera

Typographic Conventions
