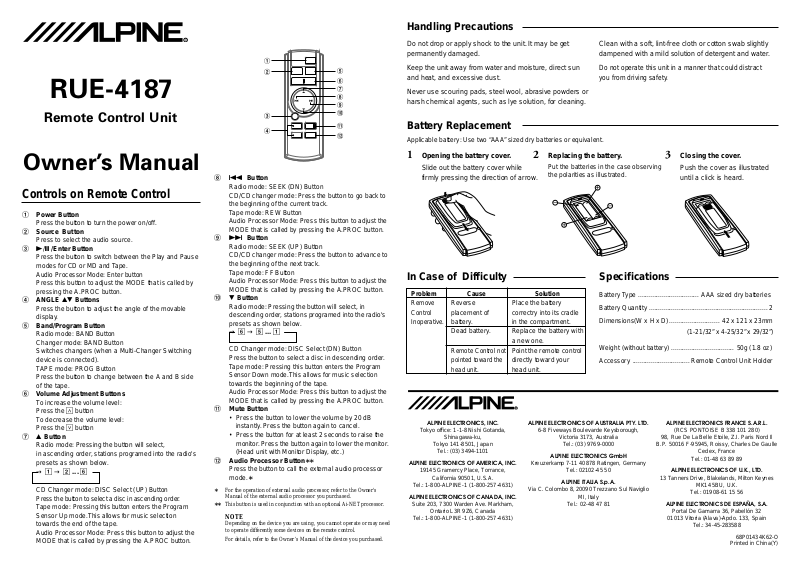

R

RUE-4187

Remote Control Unit

Owner’s Manual

Controls on Remote Control

1Power Button

Press the button to turn the power on/off.

2Source Button

Press to select the audio source.

3-/J /Enter Button

Press the button to switch between the Play and Pause modes for CD or MD and Tape.

Audio Processor Mode: Enter button

Press this button to adjust the MODE that is called by pressing the A.PROC button.

4ANGLE 89 Buttons

Press the button to adjust the angle of the movable display.

5Band/Program Button

Radio mode: BAND Button Changer mode: BAND Button

Switches changers (when a Multi-Changer Switching device is connected).

TAPE mode: PROG Button

Press the button to change between the A and B side of the tape.

6Volume Adjustment Buttons

To increase the volume level: Press the L button

To decrease the volume level: Press the K button

78 Button

Radio mode: Pressing the button will select,

in ascending order, stations programed into the radio's presets as shown below.

→ 1 → 2 ... 6

CD Changer mode: DISC Select (UP) Button Press the button to select a disc in ascending order.

Tape mode: Pressing this button enters the Program Sensor Up mode.This allows for music selection towards the end of the tape.

Audio Processor Mode: Press this button to adjust the MODE that is called by pressing the A.PROC button.

1

2 5

6 7 8 9

3!

4

"

#

8g Button

Radio mode: SEEK (DN) Button

CD/CD changer mode: Press the button to go back to the beginning of the current track.

Tape mode: REW Button

Audio Processor Mode: Press this button to adjust the MODE that is called by pressing the A.PROC button.

9f Button

Radio mode: SEEK (UP) Button

CD/CD changer mode: Press the button to advance to the beginning of the next track.

Tape mode: FF Button

Audio Processor Mode: Press this button to adjust the MODE that is called by pressing the A.PROC button.

!9 Button

Radio mode: Pressing the button will select, in descending order, stations programed into the radio's

presets as shown below.

→ 6 → 5 ... 1

CD Changer mode: DISC Select (DN) Button

Press the button to select a disc in descending order. Tape mode: Pressing this button enters the Program Sensor Down mode.This allows for music selection towards the beginning of the tape.

Audio Processor Mode: Press this button to adjust the MODE that is called by pressing the A.PROC button.

"Mute Button

Press the button to lower the volume by 20 dB instantly. Press the button again to cancel.

Press the button for at least 2 seconds to raise the

monitor. Press the button again to lower the monitor. (Head unit with Monitor Display, etc.)

#Audio Processor Button

Press the button to call the external audio processor mode.

For the operation of external audio processor, refer to the Owner's

Manual of the external audio processor you purchased.

This button is used in conjunction with an optional Ai-NET processor.

NOTE

Depending on the device you are using, you cannot operate or may need to operate differently some devices on the remote control.

For details, refer to the Owner’s Manual of the device you purchased.

Handling Precautions

Do not drop or apply shock to the unit. It may be get permanently damaged.

Keep the unit away from water and moisture, direct sun and heat, and excessive dust.

Never use scouring pads, steel wool, abrasive powders or harsh chemical agents, such as lye solution, for cleaning.

Clean with a soft, lint-free cloth or cotton swab slightly dampened with a mild solution of detergent and water.

Do not operate this unit in a manner that could distract you from driving safety.

Battery Replacement

Applicable battery: Use two “AAA” sized dry batteries or equivalent.

1 Opening the battery cover.

2

Replacing the battery.

3 Closing the cover.

Slide out the battery cover while



Put the batteries in the case observing

Push the cover as illustrated

firmly pressing the direction of arrow.

the polarities as illustrated.

until a click is heard.











































In Case of Difficulty



Specifications



Problem

Cause

Solution

Remove

Reverse

Place the battery

Control

placement of

correctry into its cradle

Inoperative.

battery.

in the compartment.



Dead battery.

Replace the battery with





a new one.



Remote Control not

Point the remote control



pointed toward the

directly toward your



head unit.

head unit.

Battery Type .................................

AAA sized dry batteries

Battery Quantity ................................................................

2

Dimensions(W x H x D) ...........................

42 x 121 x 23mm



(1-21/32” x 4-25/32” x 29/32”)

Weight (without battery) ..................................

50g (1.8 oz)

Accessory ...............................

Remote Control Unit Holder

R

ALPINE ELECTRONICS, INC.

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

ALPINE ELECTRONICS FRANCE S.A.R.L.

Tokyo office: 1-1-8 Nishi Gotanda,

6-8 Fiveways Boulevarde Keysborough,

(RCS PONTOISE B 338 101 280)

Shinagawa-ku,

Victoria 3173, Australia

98, Rue De La Belle Etoile, Z.I. Paris Nord Il

Tokyo 141-8501, Japan

Tel.: (03) 9769-0000

B.P. 50016 F-95945, Roissy, Charles De Gaulle

Tel.: (03) 3494-1101

ALPINE ELECTRONICS GmbH

Cedex, France

ALPINE ELECTRONICS OF AMERICA, INC.

Tel.: 01-48 63 89 89

Kreuzerkamp 7-11 40878 Ratingen, Germany



19145 Gramercy Place, Torrance,

Tel.: 02102-45 50

ALPINE ELECTRONICS OF U.K., LTD.

California 90501, U.S.A.

ALPINE ITALIA S.p.A.

13 Tanners Drive, Blakelands, Milton Keynes

Tel.: 1-800-ALPINE-1 (1-800-257-4631)

MK14 5BU, U.K.

Via C. Colombo 8, 20090 Trezzano Sul Naviglio



Tel.: 01908-61 15 56

ALPINE ELECTRONICS OF CANADA, INC.

MI, Italy

ALPINE ELECTRONICS DE ESPAÑA, S.A.

Suite 203, 7300 Warden Ave. Markham,

Tel.: 02-48 47 81

Ontario L3R 9Z6, Canada



Portal De Gamarra 36, Pabellón 32

Tel.: 1-800-ALPINE-1 (1-800-257-4631)



01013 Vitoria (Alava)-Apdo. 133, Spain





Tel.: 34-45-283588





68P01434K62-O
