PMD-B100
Owner’s Manual
Version 1.0
2
PRECAUTIONS AND NOTICES
■ Important Information
This product is intended to safely provide turn by turn
instructions to get you to a desired destination. Please
make certain that all persons using this navigation
system carefully read these precautions and the following instructions fully.
1) This product is not a substitute for your personal
judgment. Any route suggestions made by this
navigation system may never supersede any local
traffic regulations or your personal judgment
and/or knowledge of safe driving practices. Do not
follow route suggestions if the navigation system
instructs you to perform an unsafe or illegal
maneuver, places you in an unsafe situation, or
routes you into an area which you consider
unsafe.
2) Glance at the screen only when necessary and
safe to do so. If prolonged viewing of the screen is
necessary, pull over in a safe and legal manner
and location.
3) Do not input destinations, change settings, or
access any functions requiring a prolonged view
of the monitor and/or remote control while you are
driving. Pull over in a safe and legal manner and
location before attempting to access the system.
4) Do not use the navigation system to route you to
emergency services. Not all locations of emergency services such as police and fire stations,
hospitals and clinics are contained in the database. Please use your own judgment and ask for
directions in these situations.
5) The map database used in the navigation system
is the most recent map data available at the time
of production. Because of changes in streets and
neighborhoods, there may be situations where the
navigation system is not able to route you to your
desired destination. In these cases, use your own
judgment.
6) The map database is designed to provide you with
route suggestions and does not take into account
the relative safety of a suggested route or of factors which may affect the time required to reach
your destination. The system does not reflect road
closures or construction, road characteristics (i.e.
type of road surface, slope or grade, weight or
height restrictions, etc.), traffic congestion, weather conditions, or any other factors which may
affect the safety or timing of your driving experience. Use your own personal judgment if the navigation system is unable to provide you with an
alternate route.
7) There may be situations where the navigation system displays the vehicle's location erroneously.
Use your own driving judgment in this situation,
taking into account current driving conditions.
Please be aware that in this situation the navigation system should correct the vehicle's position
automatically. However, there may be times where
you may have to correct the position yourself. If
this is the case, pull over in a safe and legal manner and location before attempting operation.
8) Make certain that the volume level of the navigation system is set to a level which still allows you
to hear outside traffic and emergency vehicles.
If there is anything in the manual about the operation
of the navigation system which you are uncertain
about, please contact your local Alpine authorized
navigation dealer or Alpine at 1-888-NAV-HELP (1888-628-4357) before using the navigation system.
Blackbird has been tested and found to comply with
the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to
provide more reasonable protection against harmful
interference in a residential installation, and are more
stringent than "outdoor" requirements.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, you are encouraged to try to correct the interference by one of the following measures:
·Reorient or relocate the receiving antenna.
·Increase the separation between the equipment and
the receiver.
·Connect the equipment into an outlet on a circuit dif-
ferent from that to which the receiver is connected.
·Consult an experienced radio/TV technician.
Please Read Carefully Before Using This Product.
FCC Compliance Statement
3
WARNINGS
Read this manual carefully before using this system.
It contains instructions on how to use this product in
a safe and effective manner. Alpine cannot be
responsible for problems resulting from failure to
observe the instructions in this manual.
This manual uses various pictorial displays to show
you how to use this product safely and to alert you to
potential dangers resulting from improper connections and operation. Following are explanations of
these pictorial displays. It is important to fully understand the meanings of these pictorial displays in
order to use this manual and the system properly.
DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR
ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.
Any function that requires your prolonged attention
should only be performed after coming to a complete
stop. Always stop the vehicle in a safe location
before performing these functions. Failure to do so
may result in an accident.
KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL
HEAR OUTSIDE NOISE WHILE DRIVING.
Failure to do so may result in an accident.
MINIMIZE DISPLAY VIEWING WHILE DRIVING.
Viewing the display may distract the driver from looking ahead of the vehicle and cause an accident.
DO NOT DISASSEMBLE OR ALTER.
Doing so may result in an accident, fire or electric
shock.
USE THIS PRODUCT AS SPECIFIED.
Use for other than its designed application may result
in fire, electric shock or other injury.
KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE
REACH OF CHILDREN.
Swallowing them may result in serious injury. If swallowed, consult a physician immediately.
DO NOT PLACE HANDS, FINGERS OR FOREIGN OBJECTS
IN INSERTION SLOTS OR GAPS.
Doing so may result in personal injury or damage to
the product.
USE THE CORRECT AMPERE RATING WHEN REPLACING
FUSES.
Failure to do so may result in fire or electric shock.
DO NOT BLOCK VENTS OR RADIATOR PANELS.
Doing so may cause heat to build up inside and may
result in fire.
HALT USE IMMEDIATELY IF A PROBLEM APPEARS.
Failure to do so may cause personal injury or damage
to the product. Return it to your authorized ALPINE
dealer or the nearest ALPINE Service Center for
repairing.
PRECAUTIONS
Temperature
Be sure the temperature inside the vehicle is between
+45°C (+113°F) and -0°C (+32°F) before turning your
unit on.
Fuse Replacement
When replacing the fuse(s), the replacement must be
of the same amperage as shown on the fuse holder.
If the fuse(s) blows more than once, carefully check
all electrical connections for shorted circuitry. Also
have your vehicle’s voltage regulator checked.
Servicing the Unit
If you have problems, do not attempt to repair the
unit yourself. Return it to your ALPINE dealer or the
nearest ALPINE Service Station for servicing.
Installation Location
Make sure the PMD-B100 will not be exposed to:
• Direct sun and heat • Excessive dust
• High humidity • Excessive vibrations
Characteristics of LCD Panel
• After turning the system off, a slight ghost of the
image will remain temporarily. This is an effect
peculiar to LCD technology and is normal.
• Under cold temperature conditions, the screen
may lose contrast temporarily. After a short warmup period, it will return to normal.
• The LCD panel is manufactured using an extremely
high precision manufacturing technology. Its effective pixel ratio is over 99.99%. This means that
0.01% of the pixels could be either always ON or
OFF.
Using Headphones
If ACC or the monitor's power source is turned off, a
loud noise may be produced through the headphone
jack. Be sure to remove the headphones from your
ears before you turn the monitor off.
This symbol means important instructions.
Failure to heed them can result in serious
injury or death.
WARNING
This symbol means important instructions.
Failure to heed them can result in injury or
material property damage.
CAUTION
Points to Observe for Safe Usage
4
USER AGREEMENT
In using this Blackbird Portable Navigation System (hereinafter referred to as “System”), which
includes Alpine Electronics, Inc. (“Alpine”) Specifications, Space Machine, Inc. ("Space
Machine") Software and NAVTEQ North America, LLC. (“NAVTEQ”) Database, you are bound
by the terms and conditions set forth below. By breaking the seal on the System and using your
copy of the System, you have demonstrated your agreement to the terms and conditions of this
Agreement. You should, therefore, make sure that you read and understand the following provisions.
The System may not be copied, duplicated or otherwise modified, in whole or in part, without
the express written permission of Alpine, Space Machine and NAVTEQ.
The System may not be transferred or sublicensed to any third party for profit, rent or loan or
licensed for reuse in any manner.
The System may not be decompiled, reverse engineered or otherwise disassembled, in whole
or in part.
The System may not be used in a network or by any other manner of simultaneous use in multiple systems.
The System is intended solely for personal use (or internal use where the end-user is a business) by the consumer.
The System is not to be used for commercial purposes.
Neither Alpine, Space Machine nor NAVTEQ guarantees to the customer that the System meet
the specific objectives of the user.
Neither Alpine, Space Machine nor NAVTEQ shall be responsible for any damages caused by
the use of the System to the actual user and to any third party.
The warranty on the System shall not extend to an exchange or refund due to misspelling,
omission of letters, or any other cosmetic discrepancy in layout found in the System.
The right to use the System shall expire either when the user destroys this software, or when
any of the terms for use is violated and Alpine, Space Machine and/or NAVTEQ exercise the
option to revoke the license to use this software.
The terms and conditions hereof apply to all subsequent users and owners as well as to the
original purchaser.
The NAVTEQ Database may include or reflect data of licensors, including Her Majesty The
Queen in right of CANADA. Such data is licensed on an “AS IS” basis. The licensors, including
Her Majesty The Queen, make no guarantees, representations or warranties respecting such
data, either express or implied, arising by law or otherwise, accuracy or fitness for a particular
purpose.
The licensors, including Her Majesty The Queen, shall not be liable in respect of any claim,
demand or action, irrespective of the nature of the cause of the claim, demand or action alleging any loss, injury or damages, direct or indirect, which may result from the use or possession
of the data or the NAVTEQ database. The licensors, including Her Majesty The Queen, shall not
be liable in any way for loss of revenues or contracts, or any other consequential loss of any
kind resulting from any defect in the data or the NAVTEQ database.
End User shall indemnify and save harmless the licensors, including Her Majesty The Queen
and the minister, and their officers, employees and agents from and against any claim, demand
or action, irrespective of the nature of the cause of the claim, demand or action, alleging loss,
costs, expenses, damages or injuries (including injuries resulting in death) arising out of the use
or possession of the data or the NAVTEQ database.
5
TABLE OF CONTENTS
Precautions and Notices
. . . . . . . . . . . . . . . . .
2
Warnings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
User Agreement
. . . . . . . . . . . . . . . . . . . . . . .
4
Table of Contents
. . . . . . . . . . . . . . . . . . . . . .
5
Installation
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
How to Mount Blackbird
. . . . . . . . . . . . .
6
To Remove the Navigation System from
the Cradle
. . . . . . . . . . . . . . . . . . . . . . . . .
6
Battery Installation
. . . . . . . . . . . . . . . . .
7
How to Reset the System
. . . . . . . . . . . .
7
System Features
. . . . . . . . . . . . . . . . . . . . . . .
8
Basic Operations
. . . . . . . . . . . . . . . . . . . . . .
10
To Tu rn On Power
. . . . . . . . . . . . . . . . .
10
To Tu rn Off
. . . . . . . . . . . . . . . . . . . . . . .
10
Set a Destination and Go!
. . . . . . . . . .
10
Map Function
. . . . . . . . . . . . . . . . . . . . . . . .
12
Setting Estimate Time Display
. . . . . . .
12
Setting the Map Orientation
. . . . . . . . .
12
Repeating the Announcement
. . . . . . .
12
Zoom In/Out Map
. . . . . . . . . . . . . . . . . .
12
GPS Status
. . . . . . . . . . . . . . . . . . . . . . .
12
Battery Status
. . . . . . . . . . . . . . . . . . . .
12
Setting a Destination Directly
from Map Display
. . . . . . . . . . . . . . . . .
13
Switching Map Display
. . . . . . . . . . . . .
13
Destination
. . . . . . . . . . . . . . . . . . . . . . . . . .
14
Setting a Destination by Address
. . . .
14
Confirm Destination Screen
. . . . . . . . .
14
Setting a Destination by Places
. . . . . .
16
Setting a Destination from the
Address Book
. . . . . . . . . . . . . . . . . . . . .
16
Setting a Destination by Recently
Entered Destination
. . . . . . . . . . . . . . . .
18
Setting a Destination by Coordinates
. .
18
Setting a Destination by Intersection
. .
19
Options
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
20
Find Local Places
. . . . . . . . . . . . . . . . .
20
Saving a Destination into
the Address Book
. . . . . . . . . . . . . . . . .
20
Setting Waypoints
. . . . . . . . . . . . . . . . . .
21
Home
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
Finding a Way Home
. . . . . . . . . . . . . . .
22
Finding Alternative Way to Go Home
. .
22
One-Touch Go Home
. . . . . . . . . . . . . . .
22
Route
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
Recalling the Maneuver List
during Guidance
. . . . . . . . . . . . . . . . . .
23
Finding Alternate Route
. . . . . . . . . . . .
23
Finding Detour
. . . . . . . . . . . . . . . . . . . .
23
Delete Route
. . . . . . . . . . . . . . . . . . . . .
23
Edit
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
24
Editing Home
. . . . . . . . . . . . . . . . . . . . .
24
Editing Address Book
. . . . . . . . . . . . . .
25
Deleting Previously Saved
Destinations
. . . . . . . . . . . . . . . . . . . . . .
25
Setup
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
26
Customizing Display
. . . . . . . . . . . . . . .
26
Setting the Map Color
. . . . . . . . . . .
26
Displaying and Editing
Icons on the Map
. . . . . . . . . . . . . . .
26
Map Orientation
. . . . . . . . . . . . . . . .
26
Background Color
. . . . . . . . . . . . . . .
26
Trail
. . . . . . . . . . . . . . . . . . . . . . . . . . .
26
Brightness
. . . . . . . . . . . . . . . . . . . . .
26
Customizing Guidance
. . . . . . . . . . . . .
27
Turning Voice On and Off
. . . . . . . . .
27
Changing Navi Mix Volume
. . . . . . .
27
Setting Estimate Time Display
. . . .
27
Setting up the Clock
. . . . . . . . . . . . . . .
27
Switching the Measuring Unit
. . . . . . .
27
Configuring System Settings
. . . . . . . . .
27
FM Transmitter Setup
. . . . . . . . . . . .
27
Frequency
. . . . . . . . . . . . . . . . . . . . .
27
Remote Control
. . . . . . . . . . . . . . . . .
27
Information
. . . . . . . . . . . . . . . . . . . . . . . . . .
28

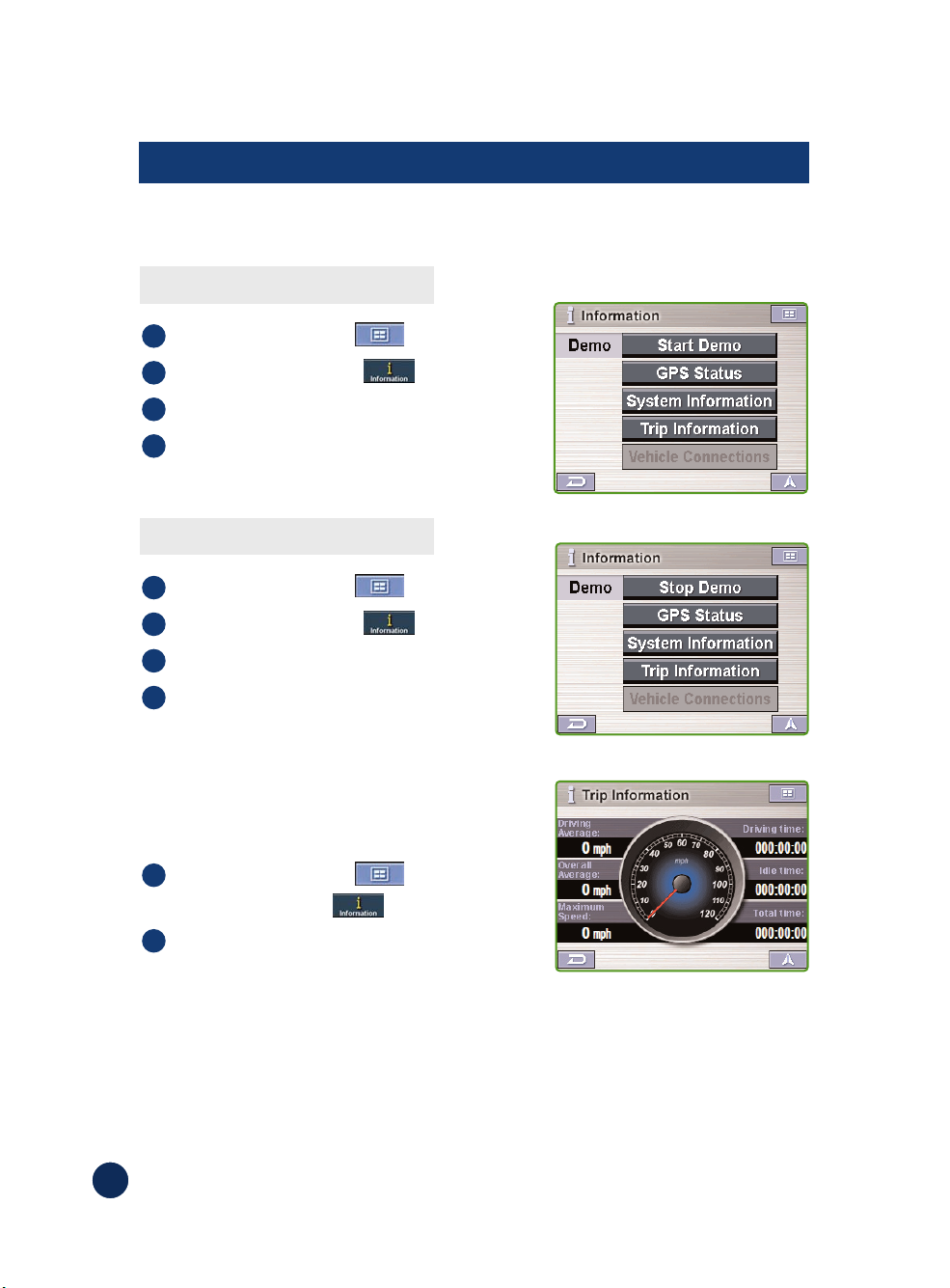

Simulating Navigation
. . . . . . . . . . . . . .
28
Viewing Trip Information
. . . . . . . . . . . .
28
Viewing GPS Status
. . . . . . . . . . . . . . . .
29
Viewing System Information
. . . . . . . .
29
Entertainment
. . . . . . . . . . . . . . . . . . . . . . . .
30
Listening to Audio
. . . . . . . . . . . . . . . . .
30
Playing Music on Your Blackbird
. . . . .
30
How to Listen to Guidance and
Music from Your Car Stereo
. . . . . . . . .
31
Updating the System
. . . . . . . . . . . . . . . . . .
31
How to Update the New Software
and Map Database
. . . . . . . . . . . . . . . .
31
In Case of Difficulty
. . . . . . . . . . . . . . . . . . .
32
In the Box
. . . . . . . . . . . . . . . . . . . . . . . . . . .
33
Accessories
. . . . . . . . . . . . . . . . . . . . . .
33
Optional Accessories
. . . . . . . . . . . . . . .
33
Specifications
. . . . . . . . . . . . . . . . . . . . . . . .
34
Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
35
Limited Warranty
. . . . . . . . . . . . . . . . . . . . .
36
6
INSTALLATION
■ How to Mount Blackbird
2
3
5
4
Find a spot suitable for the navigation system.
Ensure that both the suction cup and windshield
area are clean and free of dirt and grease before
attaching it.
Stick the suction cup mount against the windshield.
Turn the knob to activate the vacuum to lock the
position.
Turn the knob counterclockwise to adjust up/down
position. Then turn clockwise to set the position.
Turn the knob clockwise to adjust right/left position.
Then turn counter clockwise to set the position.
DEVICE SHOULD NOT BE INSTALLED SO THAT IT
OBSTRUCTS THE DRIVER’S VIEW.
Open the antenna before inserting the navigation
system into the cradle. For best reception sensitivity,
position the antenna 90 degrees to the main unit.
Slide the navigation system into the cradle until you
hear a click sound.
Plug the cigarette lighter charger into the cigarette
lighter socket.
Improper installation may make the navigation system fall out from the cradle while driving. Please
make sure all locks and knobs are turned tight.
Do not install the navigation while driving.
Note to California consumers:
California Vehicle
Code 26708 prohibits the placement of any object
on windows. Refer to your authorized Alpine dealer
for other installation options.
Press and hold the eject button on the cradle.
Grasp the navigation system behind the antenna
and remove by sliding up and out of the cradle.
■ To Remove the Navigation System from the Cradle
2
1
3
2
1
4
5
6
WARNING
Remove the navigation system when you are away
from the vehicle to prevent theft.
CAUTION
7
■
How to Reset Blackbird
In the event the system requires a reset, pull over in a safe and legal manner before
doing so. Insert a paper clip or similar object into the reset hole (located under the
GPS antenna in the upper left hand corner of the recessed area) and depress the
reset button for at least 1 second. Then, to restart the system, press and hold the
power button for 2 seconds. The system will re-start.
■ Battery Installation
Place Blackbird face down on a flat surface.
Press the battery door and pull away from the
main unit body.
Attach the battery to the battery door until a
click sound-heard.
Insert and slide the battery assembly back into
the main unit until a click sound is heard.
Note: It is recommended that the battery be
charged using the supplied AC adapter for 8 hours
before using the system. Avoid removing this
rechargeable battery. If the battery needs to be
replaced, dispose of it in accordance with local hazardous materials requirements.
4
3
2
1
Always turn off power to the system before
installing or removing the battery. Failure to do
so will result in damage to your system.
WARNING
8
SYSTEM FEATURES
Current Position
Button Function,
See Page 12
Mini USB Connector
External GPS
Antenna Connector
Destination
Volume
Control
Map Zoom In
Music
Main Menu Button
Map Zoom Out
Power Button
Headphone Jack
Battery Charging Status Indicator
Remote Sensor
and Ambient
Light Sensor
SD/MMC Card Slot
GPS Antenna
Battery Slot
Speaker
This illuminates when the system is being charged or requires charging. The battery will typically charge to full from empty in about three hours.
GREEN Battery is fully charged. RED Battery needs charging.
AMBER Battery is charging.
Battery Charging Status Indicator
Blackbird Portable Navigation System
Cradle Connector
9
Congratulations and thank you for purchasing the Alpine Blackbird Portable
Navigation System. We hope you enjoy using this exciting product and trust that it
will make your driving experience more comfortable, stress-free, and entertaining.
The Blackbird Portable Navigation System provides an easy-to-use user interface,
clear, easy-to-understand spoken driving instructions, and award winning design all
in a portable product. Blackbird is built upon Alpine's history of navigation success in
North America. Please read this manual carefully. If you have any further questions
about Blackbird’s operation, feel free to call Alpine at 1-888-NAV-HELP (628-4357)
for technical assistance.
Main Menu
Cradle with Cigarette Lighter Charger
Traffic feature allows
you to receive Real
Time Traffic (coming
soon).
Get back home from
anywhere.
➔
Page 22
Set and save
Destinations.
➔
Page 14
Play music.
➔
Page 30
Modify or choose
alternate routes to a
destination.
➔
Page 23
View Navigation
Demonstration and
system information.
➔
Page 28
Edit Home and
Address Book.
➔
Page 24
Customize the
navigation system.
➔
Page 26
Cradle Eject Lockout Screw
External GPS Antenna
Connector
(SMA-type connector)
AMPS/NEC
Mounting Holes
(x 4)
Windshield Mount Slot
Amplified External
Speaker
•
Optional External GPS Antenna Accessory Available (Model # PMD-ANT1)
Press and hold Power
Button for 2 seconds.
Opening screen appears.
Read carefully.
Touch
I Accept to dis-
play map.
The last-known current
location is indicated on
the map.
To Turn Off
Press and hold Power
Button for 2 seconds.
To Turn On Power
Power Button
Select the place with
correct address.
7
For Map Function, see page 12.
Touch Main Menu
.
Select Destination
from Main Menu, or
press Destination button.
1
Scroll the list.
Select desired place list.
(In this example, ATMS is
selected.)
4
10
BASIC OPERATION
Set a Destination and Go!
1
2
3
4
Map is displayed.
Follow the navigation.
9
Select OK to Proceed to
set the destination.
8
To Find other routes, see page 23.
To Go Home, see page 22.
Select desired method.
(In this example, Places is
selected.)
2
Select a search method.
(In this example, By Place
Type
is selected.)
3
The following example briefly describes how to input a destination.
Select the search method.
(In this example, Sort By
Name
is selected.)
5
Ty pe name of a place.
If more than one place with the
same name exist, sort method
screen appears.
6
11
12
MAP FUNCTION
Click this icon to switch between
Estimated Time Remaining and
Estimated Time of Arrival.
Note: The time estimates are
based on the average speed. The
estimate time will vary depending
on vehicle speed. The arrow always
points toward the destination.
Click icon to switch between North
up and Heading Up views.
In north up view, north is always at
the top of the display. This makes
it easy to determine your current
heading with respect to the map.
In heading-up view, the current
direction is always pointing to the
top of the display.
This makes it easy to see the direction of the next turn on the map.
Setting the Map Orientation
Setting Estimate Time Display
Click icon to repeat the guide
announcement.
Click icon to display scroll bar.
Touch ▲▼ or blue bar to zoom the
map in or out.
The scroll bar disappears automatically after 2 seconds. Minimum scale
is 1/16th mile and Maximum is 350
miles.
Repeating the Announcement
Zoom In/Out Map
GPS Status
Battery Status
Click icon to view GPS receiving
condition information from satellite.
Shows status of the battery.
(Lightning bolt) indicates that the
battery is currently being charged.
(3 bars) indicates that the battery
has more than 60% charge.
(2 bars) indicates that the battery
has more than 40% charge.
(1 bar) indicates that the battery has
about 10% charge remaining.
Distance to
next maneuver
Next Street Name
Next Maneuver
Arrow
Map
Orientation
Distance to
Destination
Direction to
Destination
Estimated Time
Remaining (ETR) /
Estimated Time of
Arrival (ETA)
GPS Status bar
Battery Status
Indicator
Current Street
Name
Voice Prompt
Repeat Button
Current
Position Icon
and Map /
Split / Arrow
Button
Map Scale Bar
Main Menu
Button
North Up
Heading
Up
Touch anywhere on map screen.
The current location arrow changes to Crosshair
Cursor on the screen.
Move the cursor to the new desired
street.
Note:
Use Map Scale Bar to zoom out the map
if the destination is far from the current location.
Touch .
Select Set as Destination.
Touch OK to Proceed on the confirma-
tion screen.
Note:
To use other functions on the confirmation
screen, see page 14 for details.
5
4
3
2
1
13
■ Setting a Destination Directly from Map Display
To cancel, touch
Previous Screen
icon.
Touch the Current Position to switch between Map and Arrow
modes. You may also configure the system to switch between Map
and Split screen modes (see page 27).
Switching Map Display
Route Mode
= Split
Route Mode
= Arrow
(default mode)
Arrow Mode
Displays threesuccessive arrow
maneuvers all the
way to your destination while providing turn-byturn guidance
prompts.
Map Mode
Shows a full-screen
map of the area while
providing turn-by-turn
guidance prompts.
Split Arrow/
Map Mode
Displays a large
arrow and larger
next-street-name
font along side a
map screen while
providing turn-byturn guidance
prompts.
14
DESTINATION
■ Setting a Destination by Address
Finding a Destination by Street Name First
OK to Proceed
Set the destination and display a map.
Change Method
Find an alternative way.
(Refer to page 22.)
Go to Main Menu
.
➔
Destination
➔
Address
1
■ Confirm Destination Screen
Select Input Street Name.
Type the first characters of the street name.
If there are unique matches, the system will automatically display a short list of street names. Touch
OK.
The list of applicable street names appears.
Select the desired street name from the list.
Type the street number and touch OK.
Select the desired city.
If there are multiple matches, the system will list cities
containing the street name and address number that
you keyed in.
Confirmation screen appears.
See below for details.
7
6
5
4
3
2
15
Option
Find Local Places➔P20
Set as Waypoint
➔
P21
Add to Address Book
➔
P20
Finding a Destination by City Name First
Select Input City Name.
Type the first few characters of the city name
and press OK.
If there are unique matches, the system will automatically display a short list of city names. Select the
desired city.
Type the first characters of the street name.
Touch OK.
The list of applicable street names appears. Select the
desired street.
Enter the street number.
Confirmation screen appears.
See below for details.
6
5
4
3
2
Change State
If you want to choose a different
state from the one shown on the
screen, touch
Change to switch
to a different state.
Selecting Letters
Deleting one letter
Selected
characters
are displayed.
Adding one space
Going to number screen
Map
Check the destination on the map.
Touch to go back to the
confirmation screen.
You can select from approximately 6 Million Point-of-Interest (POI) locations stored
inside your Blackbird Portable Navigation System. These destinations are sorted by
Place Name or by Place Type and are listed in order of distance from your current
location.
Finding a Destination by Place Name
Go to Main Menu
.
➔
Destination
➔
Places
1
Select By Place Name.
Type the desired place name. Touch OK.
A list of place names appears.
Note:
Use the arrows to the right of the list to move the
yellow highlight. This will show detailed address information and phone number (if available) for each entry in the
Places database.
Select the place with correct address.
For emergency locations such as Police Stations,
Hospitals, etc., please verify availability before proceeding to such locations.
Confirmation screen appears. Touch OK to
Proceed to set the destination and
start guidance.
5
4
3
2
16
DESTINATION
■ Setting a Destination by Places
Go to Main Menu
.
➔
Destination
➔
Address Book
Select the desired destination.
Confirmation screen appears.
Touch OK to Proceed to set your destination and start
receiving turn-by-turn navigation instructions.
To save an address in the address book, see page 20.
3
2
1
■ Setting a Destination from the Address Book
Select By Place Type.
Select a desired POI Category.
There are 37 POI categories to choose from
including ATMS, Banks, Gas Stations, Grocery
Stores, Hotels, Parking Lots, Restaurants and
more.
Select Search Method.
4
3
2
17
Finding a Destination by Place Type
Sort by Distance
Sort by Name
Within a City
The list of place names appears in order
of distance from the current vehicle position within the state region being
searched.
Select the place ➔OK to Proceed
6
5
Follow 3 to 5 in “Finding a Destination by Place Name” on Page 16.
5
Type the city name and select a city.
The list of Places appears in order of
the distance from the selected city.
Select the desired place.
Touch
OK to Proceed on the
confirmation screen.
7
6
5
Go to Main Menu
.
➔
Destination
➔
Coordinate
Enter the Latitude of your destination.
Touch OK.
Enter the Longitude of your destination.
Touch OK.
Confirmation screen appears.
Touch OK to Proceed to set the
destination and start guidance.
4
3
2
1
Go to Main Menu
.
➔
Destination
➔
Recent
The list of recent destinations appears.
Select the destination.
Confirmation screen appears.
Touch OK to Proceed to set the destination and start guidance.
Note:
To use other functions on the confirmation screen, see page 14 for details.
3
2
1
18
DESTINATION
■ Setting a Destination by Recently Entered Destination
■ Setting a Destination by Coordinates
Go to Main Menu
.
➔
Destination
➔
Intersection
1
Finding a Destination by Street Name
Select Input Street Name.
Type in the street name.
Touch OK.
The list of applicable street names appears.
Select the desired street.
Input the second street name.
If there is only one street crossing with the first
street, the name of the street automatically appears.
Confirmation screen appears.
Touch OK to Proceed.
Note:
To use other functions on the confirmation screen,
see the bottom of page 14 for details.
5
4
3
2
If you know the city name of the intersection you are searching, select Input City
Name. The choice of the street is narrowed down automatically. This saves time in
entering the street information.
Select Input City Name.
Type the city name, then select the city from the list.
Input the first street name.
Input the second street name.
Touch OK to Proceed on the confirmation screen.
6
5
4
3
2
19
■ Setting a Destination by Intersection
Finding a Destination by City Name
■ Saving a Destination into the Address Book
20
OPTIONS
■ Find Local Places
Touch anywhere on map screen.
The current location arrow changes to cross hair
cursor on the screen.
Touch .
Select Find Local Places.
Select the desired category.
Select the desired place.
Touch OK to Proceed on the confirmation screen.
Note:
To use other functions on the confirmation screen, see page 14 for details.
5
4
3
2
1
The navigation system can display Points of Interest (POI) around the cursor position,
when you scroll the map. As with POI categories, with the local places search you
can chose from 37 categories including ATMS, Banks, Gas Stations, Grocery Stores,
Hotels, Parking Lots, Restaurants and more.
Select a destination using any method.
From the confirmation screen, select Option.
Touch Save in Address Book.
3
2
1
How to Find Local Places Directly from the Map
How to Find Local Places from the Destination Menu
Set a destination first from Destination .
On the confirmation screen, touch Option.
Follow steps 3 to 5 above in "How to Find Local Places Directly
from the Map".
3
2
1
You can also find local places from the Destination Menu.
Any destination can be saved into the Address Book.
21
■ Setting Waypoints
Touch anywhere on map screen.
The current location arrow changes to cross hair
cursor on the screen.
Move the cursor to the desired waypoint.
Touch .
Select Set as waypoint and select
Re-calculate.
When the route search is complete, the
current location is displayed. The map navi-
gates you to the first waypoint.
5
4
3
2
1
“Input Name” screen appears.
Type the desired name and touch OK.
Note:
For the details of selecting letters, see page 15.
System returns to the Main Menu screen.
Note:
To display the saved destination on the map, see
page 16, “Setting a Destination from the Address Book”.
5
4
How to Set a Waypoint from the Destination Menu
How to Set a Waypoint Directly from Map
You can set up to 10 waypoints between your current location and your destination. The
final destination must be set before entering any waypoints.
You can also find local places from Destination Menu.
Enter a destination by using the method on pages 14 through 19
from Destination Menu.
On the confirmation screen, select Option.
Select Set as Waypoint and select Re-calculate.
3
2
1
Enter in a destination from the Address Book (see page 16).
At the confirmation screen, touch Option
➔
Set as Waypoint
.
Touch Re-Calculate to recalculate a route which includes your
waypoint.
3
2
1
How to Set a Waypoint from the Address Book
Go to Main Menu
.
➔
Home
Touch OK to Proceed
on the confirmation screen.
Follow the map and go home.
3
2
1
22
HOME
■ Finding a Way Home
■ Finding Alternate Way to Go Home
Go to Main Menu
➔
Home
➔
Change Method
·Quickest Way
· Shortest Route
·Maximize Freeway
·Minimize Freeway
·With/Without Ferry
· With/Without Toll Road
To edit the
Home Address,
See Page 24.
You can get home from anywhere once the home address is set from Edit Menu.
■ One-Touch Go Home
For an even easier way to immediately get guidance instructions to your home, you
can press and hold the flag on the circle key for 2 seconds. This will instantly display the destination confirmation screen and guide you to your home location.
23
ROUTE
■ Recalling the Maneuver List during Guidance
Go to Main Menu .
➔
Route
Touch Maneuver List.
List of upcoming streets and
turns appears on the screen.
To preview a specific point, select
a street name/maneuver on the list.
To go back to Route List,
Go to Main Menu
➔
Route
3
2
1
■ Finding Alternate Route
■ Finding Detour
Touch Main Menu
.
➔
Route
➔
Change Method
You can choose and re-calculate a different
route based on Quickest Route, Shortest
Route, Maximize Freeway, Minimize Freeway,
with/without Ferry and/or Toll Road.
Touch Main Menu
.
➔
Route
➔
Detour
The system automatically
calculates and displays detour.
■ Delete Route
Go to Main Menu
➔
Route
➔
Delete Route➔Yes
Note: After deleting the destination, you can not
select Route Menu until the next destination is set.
To set up the destination, see Destination Menu on
Page 14.
You can view a list of street names and upcoming turns and streets.
24
EDIT
■ Editing Home
Go to Main Menu
.
➔
Edit
Touch Edit Home.
“
Edit Home Point” screen
appears.
See below for details.
3
2
1
Locations and Home addresses saved in the Address Book can be edited for quick
recall. Also information including phone numbers and icons can be modified.
Name Touch Name to change the
display name of the stored
location.
Note:
For the details of selecting letters, see
page 15.
Input Name Screen
25
Go to Main Menu
.
➔
Edit
Touch Edit Address Book
The list of addresses appears.
Select the destination you
need to modify.
“Edit Address Item” screen
appears. See below for
details.
Note:
Select DELETE ALL to delete all
addresses saved in the address book.
4
3
2
1
■ Editing Address Book
■ Deleting Previously Saved
Destinations
Go to Main Menu
.
➔
Edit
Touch Delete Previous
Destination.
Select destination you need to
delete.
Touch YES to delete the desti-
nation on the confirmation
screen.
Note:
Select DELETE ALL to delete all
recently entered destinations.
4
3
2
1
Te l Touch Te l to change the telephone
number of the stored location.
Map Touch Map to preview the location
on the map.
To go back to Edit Menu,
Main Menu
➔
Edit
Delete Touch Delete to delete the stored
location.
Icon Touch Icon to change the icon of
the stored location on the map.
Edit Telephone Screen
Delete Screen
Change Icon Screen
26
Go to Main Menu .
Select Setup .
Setup screen appears.
3
2
1
SETUP
■ Customizing Display
Setting the Map Color
Day - a bright tone screen
Night - a dark tone screen
Auto - switches automatically between
Day and Night modes
Displaying and Editing Icons
on the Map
POI Icons, the Home Icon and Icons
used in the Address Book can be turned
on and off from the Display Setup Menu.
You can also change these icons.
Map Orientation
North Up or Heading Up map views
can be set here. You can also change
between North Up and Heading Up
views directly in the map screen. See
page 12.
Background Color
You can choose between gray or blue
backgrounds for all menu screens.
Trail
The Trail feature allows you to turn on
and off trail dots that appear wherever
the vehicle icon traverses. This is
especially helpful for off-road enthusiasts.
Brightness
The brightness of the screen can be
adjusted.
You can customize Display, Guidance, Clock, Measuring Unit and FM frequency settings from the Setup Menu.
Go to Main Menu
.
➔
Setup
➔
Display
27
■ Customizing Guidance
Turning Voice On and Off
This allows you to turn ON or OFF guidance voice
prompts.
Changing Navi Mix Volume
This allows you to vary the volume of the voice
prompts with respect to the music.
Setting Estimate Time Display
Estimated Time of Arrival (ETA) or Estimated Time Remaining (ETR) can be set here.
You can also change between ETA and ETR directly in the map screen. See page 12.
■ Setting up the Clock
You can set the Time Zone and Daylight saving
setting to fit your region.
■ Switching the Measuring Unit
You can choose the unit of measure between Miles
and Kilometers.
■ Configuring System Settings
FM Transmitter Setup
When set to ON, the FM Transmitter broadcasts music
and voice prompts (if set to ON) to an available frequency on your FM car radio. See page 31
Frequency
Allows you to change the frequency to find the best available station for broadcasting audio to your FM radio. See page 31
Remote Control
This feature allows you to turn ON the ability for the system to receive remote control
signals (optional RUE-4140 remote control available separately). Turning OFF the
remote control extends battery life while the system is in handheld mode and
detached from the cradle or AC adapter.
28
INFORMATION
■ Simulating Navigation
Go to Main Menu .
Select Information .
Select Start Demo.
Demonstration starts.
4
3
2
1
You can watch a demonstration of the navigation system’s voice and screen guidance.
To Start a Demonstration
To Stop a Demonstration
Go to Main Menu .
Select Information .
Select Stop Demo.
The demonstration will end.
4
3
2
1
Go to Main Menu .
➔
Information
Select Trip Information.
2
1
The odometer displays the route distance and
time traveled.
Here, you can see different types of information pertaining to your current trip.
Driving Average: Average speed since Trip Info was reset.
Overall Average: Average speed since start of trip.
Maximum Speed: Maximum speed reached on this trip.
Driving Time: Time vehicle has been moving since the trip was reset.
Idle Time: Time vehicle has been stopped (not moving) since the trip was reset.
Total Time: Total elapsed time on the trip which is always the driving time plus idle time.
■ Viewing Trip Information
29
Go to Main Menu .
➔
Information
Select GPS Status.
2
1
You can view the dynamic location information
received from satellite such as signal strength,
compass (direction information), latitude/longitude,
approximate altitude, and speed. This feature
allows you to view GPS satellite signal information.
An explanation of the messages is shown below.
“Locating GPS Satellites”:
Blackbird
searches the sky looking for GPS satellites.
“Acquiring GPS Signal”:
Blackbird
acquires positioning information transmitted
from 1 to 3 tracked satellites while searching for more satellites (minimum 4 needed).
“Fixing GPS Position”:
Blackbird
requires continuous signals from 4 or more
tracked satellites (for 30 seconds) in order
to accurately fix your position.
“Temporary Poor GPS Coverage”:
Thunderstorms, dense foliage or surrounding tall buildings may cause temporary loss
of position fix (acceptable if under 30 seconds).
“Poor GPS Signal, Lost Position Fix”:
You may have entered an area where consistently poor GPS signal (lasting 30 seconds or more) makes it impossible to
maintain a position fix.
“No Line of Sight, Lost GPS Tracking”:
You are in an area where line of sight to
GPS satellites has been blocked.
Go to Main Menu .
➔
Information
Select System Information.
2
1
You can check software application, database
version, and other information in this screen.
Make a note of this information and refer to it
whenever you communicate with Alpine Tech
Support or your Alpine authorized dealer.
■ Viewing GPS Status
■ Viewing System Information
The following messages are displayed while the GPS receiver is tracking satellites:
30
■ Playing Music on Your
Blackbird
You can play MP3 or WMA music
files* from your SD or MMC card.
Your music can be arranged in subfolders for easy retrieval when
using your Blackbird device.
*Blackbird only currently supports MP3
and WMA files without DRM.
Insert an SD or MMC card containing folders with music files
in the SD/MMC slot. The system will scan for music.
Touch Folder Search to
search the memory card.
Select a folder, then select a
song to play. The music will
start playing the song you
selected.
3
2
1
ENTERTAINMENT
■ Listening to Audio
Back
Play/
Pause
Forward
Folder
Up
Folder
Down
Folder
Search
Touch REPEAT to repeat songs.
Touch
REPEAT again to cancel the
repeat.
Touch
M.I.X. to shuffle songs.
Touch
M.I.X. again to cancel the shuffle.
REPEAT
M.I.X.
Folder
Number
File
Number
Playing
Time
Displays
Song Titles
and Artist
Names
31
UPDATING THE SYSTEM
■ How to Update the New Software and Map Database
Using your home PC, Blackbird can be updated with the latest mapping
and Point of Interest information. Please refer to instructions included
with the update software on how to upgrade your Blackbird system.
■
How to Listen to Guidance and Music from Your Car Stereo
Turning on the Transmitter and Playing Music from Your Radio
You can setup Blackbird to broadcast music and navigation voice guidance directly
to your FM radio.
Plug the cradle into your vehicle’s cigarette lighter/power outlet.
Insert Blackbird into the cradle (See page 6 for details).
Turn on your radio. Find an FM frequency from the following that is broadcasting
nothing but static: 88.1 MHz, 88.3 MHz, 88.5 MHz, 88.7 MHz, 88.9 MHz,
106.7MHz, 106.9 MHz, 107.1 MHz, 107.3 MHz, 107.5 MHz, 107.7 MHz, 107.9
MHz (do this with Blackbird off at first).
Turn on Blackbird.
On Blackbird, go to Main Menu
➔
Setup➔System.
The default broadcast frequency is 88.1 MHz.
Turn the transmitter button ON in System Setup screen.
Set Blackbird to that frequency and play music files on Blackbird.
(Touch Main Menu➔Entertainment, or simply press Music button) Blackbird
provides 12 frequencies to choose from. You may have to try a few frequencies
before you find one that works best in your vehicle.
7
6
5
4
3
2
1
Turning Off the Transmitter
Turn off or turn down the volume of your radio first to avoid the static noise.
On Blackbird, go to Main Menu
➔
Setup➔System.
Turn the transmitter button OFF in System Setup screen.
3
2
1
If you encounter a problem, please review the items in the following checklist.
This guide will help you isolate the problem if the unit is at fault. Otherwise make
sure the rest of your system is properly connected, batteries are completely
charged and contact your authorized Alpine dealer or Alpine directly at 1-888NAV-HELP (1-888-628-4357).
The vehicle’s position
is erroneous.
No operation
· Moisture condensation
➔
Allow enough time for the condensation to
evaporate (about 1 hour).
· Ambient temperature
➔
Lower the temperature in the vehicle to
over 113°F (45°C) below 113°F (45°C) by driving with the windows
open or air conditioner on.
· Blown fuse
➔
Replace with a fuse of the prescribed rating (2A
glass-type fuse located in the head of the cigarette lighter adapter).
32
IN CASE OF DIFFICULTY
Reset the unit and drive the vehicle in an area of
good GPS reception to allow the unit to recalibrate itself.
Move to a location where strong GPS reception
is possible.
33
IN THE BOX
■ Optional Accessories
■ Accessories
Cradle with Cigarette
Lighter Charger
AC Adapter
USB Cable
Carrying Case
Wiping Cloth
Quick Reference
Guide
1200mAh Battery
• Dummy SD Card (Inside Main Unit)
• Registration Card
Owner’s Manual
The following accessories are available from your authorized Alpine dealer.
1. PMD-DOK1 – A Docking Station that allows you to connect and experience
Blackbird navigation and music player from your Alpine Multimedia Station or
stand-alone display.
2. PMD-KIT1 – A second car kit comprised of windshield mount, cradle, and
home AC charger.
3. PMD-ANT1 – An external GPS antenna hard-wired to Blackbird used in
instances where you cannot normally receive GPS signals inside the car, due
to metallic window tint, etc.
4. PMD-BAT1 – A 1200 mAh Li-Polymer battery for extra battery power on the go.
5. RUE-4140 – A combination navigation and audio remote control that allows
you to control most of Blackbird’s navigation features wirelessly.
34
SPECIFICATIONS
BLACKBIRD SPECIFICATIONS
Main Unit Size 6.1” x 2.9” x 1.2” (145mm x 74mm x 29mm)
Main Unit Weight 8 oz (227 g)
CPU Centrality Atlas II ARM9 CPU
GPS Embedded 16 channel GPS, Built-In Main Unit Antenna with
Optional External Antenna Connection
Storage Media Built-In 1” HDD with Pre-Loaded Maps of US* and Canada
and 6 Million Points of Interest Locations
(*Including Alaska and Hawaii)
Card Slot Secure Digital (SD) or Multimedia Card (MMC) for playback of
MP3 or WMA music files
Audio Integrated speaker in main unit, amplified speaker in cradle,
stereo headphone jack, optional docking station audio output
FM Transmitter Built-in cradle, up to 12 selectable frequencies
RDS-TMC Tuner Built-in main unit w/antenna in cradle power cable
USB Interface 2.0
Power Requirements
Handheld Mode 5V @ 1A (via 1200 mAh Li-Polymer Battery, approximately 2
hours of continuous use)
Cradle Mode 12 VDC @ 2A (via Cigarette Lighter Adapter)
Fuse AGC/3AG -2Amp
Operating Temp 32˚ to 140˚ F (0˚ to +60˚C)
Storage Temp -13˚ to 176˚ F (-25˚ to +80˚ C)
Display
Screen Size 3.6” diagonal
Resolution QVGA 320 x 240 pixels, 16.7M possible colors
Display Type Digital TFT display with anti-glare touch screen
Brightness 200 nits (typical)
Note: Due to continuous product improvement, specifications are subject to
change without notice.
35
INDEX
A
Accessories
B
Background Color
Basic Operations
Battery Installation
Battery Status
Brightness
C
Changing Navi Mix Volume
Configuring System Settings
Confirm Destination Screen
Customizing Display
Customizing Guidance
D
Deleting Previously Saved
Destination
Delete Route
Destination
Setting a Destination by Address
Setting a Destination by
Coordinates
Setting a Destination by
Intersection
Setting a Destination by Places
Setting a Destination by
Recently Entered Destination
Setting a Destination from the
Address Book
E
Edit
Deleting Previously Saved
Destination
Editing Address Book
Editing Home
Entertainment
How to Listen to Guidance and
Music from Your Car Stereo
Listening to Audio
Playing Music on Your Blackbird
F
FCC Compliance Statement
Find Local Places
Finding a Way Home
Finding Alternate Route
Finding Alternate Way to Go Home
Finding Detour
FM Transmitter Setup
Frequency
G
GPS Status
H
Home
Finding a Way Home
Finding Alternate Way to Go
Home
One-Touch Go Home
How to Mount Blackbird
I
Icon
In Case of Difficulty
Index
Information
Simulating Navigation
Viewing GPS Status
Viewing System Information
Viewing Trip Information
Installation
M
Map Function
Battery Status
GPS Status
Repeating the Announcement
Set a Destination Directly
from Map Display
Set Estimate Time Display
Set the Map Orientation
Switching Map Display
Zoom In/Out Map
Map Orientation
O
One-Touch Go Home
P
Precautions And Notices
Power
R
Recalling the Maneuver List
during Guidance
Remote Control
Repeating the Announcement
Route
Delete Route
Finding Alternate Route
Finding Detour
Recalling the Maneuver List
during Guidance
S
Saving a Destination into the
Address Book
Set a Destination and Go!
Setting a Destination by Address
Setting a Destination from the
Address Book
Setting a Destination by Coordinates
Setting a Destination by Places
Setting a Destination by Recently
Entered Destination
Setting a Destination by Intersection
Setting a Destination Directly
from Map Display
Setting Estimate Time Display
Setting the Map Color
Setting the Map Orientation
Setting up the Clock
Setting Waypoints
Setup
Configuring System Settings
Customizing Display
Customizing Guidance
Setting up the Clock
Switching the Measuring Unit
Simulating Navigation
Specifications
Switching Map Display
Switching the Measuring Unit
System Features
T
Table of Contents
Trail
Turning Voice On and Off
U
User Agreement
V
Viewing GPS Status
Viewing System Information
Viewing Trip Information
Voice
Volume
W
Warnings
Warranty
Z
Zoom In/Out Map
33
26
10
7
12
26
27
27
14
26
27
25
23
14
14
18
19
16
18
16
24
25
25
24
30
31
30
30
2
20
22
23
22
23
27
27
12, 29
22
22
22
22
6
25
32
35
28
28
29
29
28
6
12
12
12
12
13
12
12
13
12
12, 26
22
2
10
23
27
12
23
23
23
23
23
20
10
14
16
18
16
18
19
13
12, 27
26
12, 26
27
21
26
27
26
27
27
27
28
34
13
27
8
5
26
27
4
29
29
28
27
27
3
36
12
●PRODUCTS COVERED:
This Warranty covers Car Audio, Navigation Products and
Related Accessories ("the product"). Products purchased in the
Canada are covered only in the Canada. Products purchased in
the U.S.A. are covered only in the U.S.A.
●LENGTH OF WARRANTY:
This Warranty is in effect for one year from the date of the first
consumer purchase.
●WHO IS COVERED:
This Warranty only covers the original purchaser of the product,
who must reside in the United States, Puerto Rico or Canada.
●WHAT IS COVERED:
This Warranty covers defects in materials or workmanship (parts
and labor) in the product.
●WHAT IS NOT COVERED:
This Warranty does not cover the following:
1 Damage occurring during shipment of the product to Alpine
for repair (claims must be presented to the carrier).
2 Damage caused by accident or abuse, including burned voice
coils caused by over-driving the speaker (amplifier level is
turned up and driven into distortion or clipping).
Speaker mechanical failure (e.g. punctures, tears or rips).
Cracked or damaged LCD panels. Dropped or damaged hard
drives.
3 Damage caused by negligence, misuse, improper operation or
failure to follow instructions contained in the Owner's manual.
4 Damage caused by act of God, including without limitation,
earthquake, fire, flood, storms or other acts of nature.
Any cost or expense related to the removal or reinstallation of
the product.
5 Service performed by an unauthorized person, company or
association.
6 Any product which has the serial number defaced, altered or
removed.
7 Any product which has been adjusted, altered or modified
without Alpine's consent.
8 Any product not distributed by Alpine within the United States,
Puerto Rico or Canada.
9 Any product not purchased from an Authorized Alpine Dealer.
●HOW TO OBTAIN WARRANTY SERVICE:
1 You are responsible for delivery of the product to an
Authorized Alpine Service Center or Alpine for repair and for
payment of any initial shipping charges. Alpine will, at its
option, repair or replace the product with a new or reconditioned product without charge. If the repairs are covered by
the warranty, and if the product was shipped to an Authorized
Alpine Service Center or Alpine, Alpine will pay the return shipping charges.
2 You should provide a detailed description of the problem(s) for
which service is required.
3 You must supply proof of your purchase of the product.
4 You must package the product securely to avoid damage dur-
ing shipment. To prevent lost packages it is recommended to
use a carrier that provides a tracking service.
●HOW WE LIMIT IMPLIED WARRANTIES:
ANY IMPLIED WARRANTIES INCLUDING FITNESS FOR USE
AND MERCHANTABILITY ARE LIMITED IN DURATION TO THE
PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE AND
NO PERSON IS AUTHORIZED TO ASSUME FOR ALPINE ANY
OTHER LIABILITY IN CONNECTION WITH THE SALE OF THE
PRODUCT.
●HOW WE EXCLUDE CERTAIN DAMAGES:
ALPINE EXPRESSLY DISCLAIMS LIABILITY FOR INCIDENTAL
AND CONSEQUENTIAL DAMAGES CAUSED BY THE PRODUCT.
THE TERM "INCIDENTAL DAMAGES" REFERS TO EXPENSES OF
TRANSPORTING THE PRODUCT TO THE ALPINE SERVICE CENTER, LOSS OF THE ORIGINAL PURCHASER'S TIME, LOSS OF
THE USE OF THE PRODUCT, BUS FARES, CAR RENTALS OR
OTHERS COSTS RELATING TO THE CARE AND CUSTODY OF
THE PRODUCT. THE TERM "CONSEQUENTIAL DAMAGES"
REFERS TO THE COST OF REPAIRING OR REPLACING OTHER
PROPERTY WHICH IS DAMAGED WHEN THIS PRODUCT DOES
NOT WORK PROPERLY.
THE REMEDIES PROVIDED UNDER THIS WARRANTY ARE
EXCLUSIVE AND IN LIEU OF ALL OTHERS.
●HOW STATE/PROVINCIAL LAW RELATES TO THE WARRANTY:
This Warranty gives you specific legal rights, and you may also
have other rights which vary from state to state and province to
province. In addition, some states/provinces do not allow limitations on how long an implied warranty lasts, and some do not
allow the exclusion or limitation of incidental or consequential
damages. Accordingly, limitations as to these matters contained
herein may not apply to you.
●IN CANADA ONLY:
This Warranty is not valid unless your Alpine car audio product
has been installed in your vehicle by an Authorized Installation
Center, and this warranty stamped upon installation by the
installation center.
●HOW TO CONTACT CUSTOMER SERVICE:
Should the product require service, please call the following
number for your nearest Authorized Alpine Service Center.
Or visit our website at; http://www.alpine-usa.com
LIMITED WARRANTY
ALPINE ELECTRONICS OF AMERICA, INC. AND ALPINE OF CANADA INC. ("Alpine"), are dedicated to quality craftsmanship and are
pleased to offer this Warranty. We suggest that you read it thoroughly. Should you have any questions, please contact your Dealer
or contact Alpine at one of the telephone numbers listed below.
ALPINE ELECTRONICS OF AMERICA, INC.,
19145 Gramercy Place, Torrance, California 90501, U.S.A.
ALPINE ELECTRONICS OF CANADA, INC.,
777 Supertest Road, Toronto, Ontario M3J 2M9, Canada Phone 1-416-736-6211
Do not send products to these addresses.
Call the toll free telephone number or visit the website to locate a service center.
© 2006 NAVTEQ. All Rights Reserved.
© 2006 Alpine Electronics of America, Inc. All Rights Reserved.
The WTR Logo is a trademark of the
Consumer Electronics Association.
CAR AUDIO 1-800-ALPINE-1 (1-800-257-4631)
NAVIGATION 1-888-NAV-HELP (1-888-628-4357)
