DVD Entertainment System

PKG-RSE2

• OWNER'S MANUAL

• MODE D'EMPLOI

• MANUAL DE OPERACIÓN

ALPINE ELECTRONICS MARKETING, INC.

ALPINE ELECTRONICS OF AMERICA, INC.

Phone 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF CANADA, INC.

Phone 1-800-ALPINE-1 (1-800-257-4631)

1-1-8 Nishi Gotanda

Shinagawa-ku

Tokyo 141-0031, Japan

Phone 03-5496-8231

19145 Gramercy Place

Torrance, California 90501 U.S.A.

777 Supertest Road

Toronto, Ontario M3J 2M9 Canada

DIGITAL VIDEO

Please read before using this equipment.

Veuillez lire avant d'utiliser cet appareil.

Leealo antes de utilizar equipe.

ALPINE ELECTRONICS OF AUSTRALIA PTY, LTD.

161-165 Princess Highway, Hallam

Victoria 3803, Australia

Phone 03-8787-1200

ALPINE ELECTRONICS GmbH

Frankfurter Ring 117, 80807 München, Germany

Fletchamstead Highway, Coventry CCV4 9TW, U.K.

ALPINE ELECTRONICS (BENELUX) GmbH

Phone 089-32 42 640

ALPINE ELECTRONICS OF U.K., LTD.

ALPINE House

Phone 0870-33 33 763

Leuvensesteenweg 510-B6,

1930 Zaventem, Belgium

Tel.: 02-725 1315

ALPINE ELECTRONICS FRANCE S.A.R.L.

(RCS PONTOISE B 338 101 280)

98, Rue de la Belle Etoile, Z.I. paris Nord II,

B.P. 50016, 95945 Roissy Charles de Gaulle

ALPINE ELECTRONICS DE ESPAÑA, S.A.

01013 Vitoria (Alava)-APDO 133, Spain

Cedex, France

Phone 01-48638989

ALPINE ITALIA S.p.A.

Viale C. Colombo 8, 20090 Trezzano

Sul Naviglio (MI), Italy

Phone 02-484781

Portal de Gamarra 36, Pabellón, 32

Phone 945-283588

Printed In China

Contents

Operating Instructions

WARNING

WARNING .................................................. 3

CAUTION ................................................... 3

PRECAUTIONS .........................................4

Discs playable on this unit ......................5

Getting Started

When Using the Remote Control ...................... 7

Remote Control Battery Replacement .............. 7

Overhead Monitor ............................................. 8

Remote Control ................................................. 8

Key Map of Remote Control Function .............. 9

ENGLISH

Switching the Audio Tracks ............................ 14

Switching the Angle (DVD only) .................... 14

Switching the Subtitles (subtitle language)

(DVD only) ................................................ 14

Displaying the Disc Status (DVD only) .......... 15

Displaying the Disc Status (Video CD only) ... 15

TV Tuner Control

Selecting Preset Channel ................................. 15

Selecting and Seeking Channel Manually ....... 15

Memorizing Channel ....................................... 15

DVB-T Control.........................................16

ISDB-T Control .......................................16

Basic Operations

Turning Power On and Off .............................. 10

Loading and Unloading Discs ......................... 10

Audio Mute function ....................................... 10

Adjusting the Volume ...................................... 11

Switching the Source ....................................... 11

Selecting the Backlight Brightness ................. 11

Instant Change of Visual EQ ........................... 11

Device Control

Memorizing Device Control ............................ 11

Selecting Source Name from Remote Control ...... 11

DVD

Playing DVD/Video CD .................................. 12

Stopping Playback (PRE-STOP) ..................... 12

Stopping Playback ........................................... 12

Fast-forwarding/Fast-reversing ....................... 13

Finding the Beginning of Chapters or Tracks .. 13

Playing Still Frames (pausing) ........................ 13

Frame-by-frame Playback .............................. 13

Slow Motion Playback .................................... 13

Searching by Title Number (DVD only) .......... 13

Searching Directly by Chapter or Track Number ...... 13

Chapter/Track/Title Repeat Playback ............. 14

Monitor Setup

Adjusting Picture ............................................. 17

Visual EQ Operation .................................... 17

Adjusting the Brightness .............................. 17

Adjusting the Color Density ........................ 17

Adjusting the Tint ........................................ 18

Adjusting the Contrast ................................. 18

Adjusting the Sharpness ............................... 18

Resetting the Picture Adjustment ................. 18

Setting Audio & Screen ................................... 18

Setting the Source Name .............................. 19

Setting the Auto Level Control ..................... 19

Setting the Screen Modes ............................. 19

Setting the TV System .................................. 19

Setting the Video Signal ............................... 19

Setting System Control ................................... 20

Setting the IR Transmitter ............................ 20

Setting the FM Modulator ............................ 20

Setting the FM Frequency ............................ 20

Setting the Dimmer ...................................... 20

Setting the Dimmer Low Level .................... 20

Setting the Beep ............................................ 20

Setting the DVD Auto Play ........................... 20

Resetting to the Factory Default ................... 20

1-EN

DVD Setup

DVD Setup Operation ..................................... 21

Setting the Language .................................... 21

Setting the TV Screen ................................... 21

Setting the Country Code ............................. 22

Setting the Rating Level (Parental Lock) ..... 22

Setting the Digital Output ............................. 22

Custom Setup Operation

Custom Setup Operation .............................. 23

Setting the CD Play Mode ............................ 23

Setting the Video CD Play Mode ................. 23

Setting the Pause Mode ................................ 23

Setting the Downmix Mode .......................... 23

Wireless Headphone

Headphone Receivers ...................................... 24

Operation ......................................................... 24

Battery Installation .......................................... 24

Installation and Connections

WARNING

WARNING ................................................ 25

CAUTION ................................................. 25

PRECAUTIONS .......................................25

Connections ..................................................... 26

Mount Side ...................................................... 27

Dome Light Wire ............................................. 27

System Connections ........................................ 28

Information

List of Language Codes .................................. 29

List of Country Codes ..................................... 30

In Case of Difﬁculty ........................................ 32

System Indication ............................................ 33

Accessories ...................................................... 34

Speciﬁcations .................................................. 34

2-EN

Operating Instructions

WARNING

This symbol means important instructions. Failure to heed them can result in serious injury or death.

DO NOT WATCH VIDEO WHILE DRIVING.

Watching the video may distract the driver from looking ahead of the vehicle and cause an accident.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result in an accident.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISE WHILE DRIVING.

Failure to do so may result in an accident.

MINIMIZE DISPLAY VIEWING WHILE DRIVING.

Viewing the display may distract the driver from looking ahead of the vehicle and cause an accident.

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, ﬁre or electric shock.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may result in ﬁre, etc.

INSTALL THE PRODUCT CORRECTLY SO THAT THE DRIVER CANNOT WATCH TV/VIDEO UNLESS THE VEHICLE IS STOPPED AND THE EMERGENCY BRAKE IS APPLIED.

It is dangerous (and illegal in many states) for the driver to watch the TV/Video while driving the vehicle. The driver may be distracted from looking ahead and an accident could occur. If the product is not installed correctly, the driver will be able to watch the TV/Video while driving the vehicle and may be distracted from looking ahead causing an accident. The driver or other people could be severely injured.

CAUTION

This symbol means important instructions. Failure to heed them can result in injury or material property damage.

HALT USE IMMEDIATELY IF A PROBLEM APPEARS.

Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for repairing.

DO NOT MIX NEW BATTERIES WITH OLD BATTERIES. INSERT WITH THE CORRECT BATTERY POLARITY.

When inserting the batteries, be sure to observe proper polarity (+ and –) as instructed. Rupture or chemical leakage from the battery may cause ﬁre or personal injury.

KEEP FINGERS AWAY WHILE THE MOTORIZED FRONT PANEL OR MOVING MONITOR IS IN MOTION.

Failure to do so may result in personal injury or damage to the product.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician immediately.

USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES.

Failure to do so may result in ﬁre or electric shock.

DO NOT BLOCK VENTS OR RADIATOR PANELS.

Doing so may cause heat to build up inside and may result in ﬁre.

USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.

Use for other than its designed application may result in ﬁre, electric shock or other injury.

DO NOT PLACE HANDS, FINGERS OR FOREIGN OBJECTS IN INSERTION SLOTS OR GAPS.

Doing so may result in personal injury or damage to the product.

CAUTION

CAUTION-Laser radiation when open, DO NOT STARE INTO BEAM

(Bottom side of player)

3-EN

PRECAUTIONS

Product Cleaning

Use a soft dry cloth for periodic cleaning of the product. For more severe stains, please dampen the cloth with water only. Anything else has the chance of dissolving the paint or damaging the plastic.

Temperature

Do not operate your unit in ambient temperature above +70°C (+158°F) or below -20°C (-4°F).

Moisture Condensation

You may notice the disc playback sound wavering due to condensation. If this happens, remove the disc from the player and wait about an hour for the moisture to evaporate.

Fuse Replacement

When replacing the fuse(s), the replacement must be of the same amperage as shown on the fuse holder. If the fuse(s) blows more than once, carefully check all electrical connections for shorted circuitry. Also have your vehicle’s voltage regulator checked.

Damaged Disc

Do not attempt to play cracked, warped, or damaged discs. Playing a bad disc could severely damage the playback mechanism.

Maintenance

If you have problems, do not attempt to repair the unit yourself. Return it to your Alpine dealer or the nearest Alpine Service Station for servicing.

Inserting Discs

Your player accepts only one disc at a time for playback. Do not attempt to load more than one disc.

Make sure the label side is facing up when you insert the disc. Press

to eject any disc that is inserted incorrectly.

Playing a disc while driving on a very bumpy road may result in skips, but this will not scratch the disc or damage the player.

New Discs

As a protective measure to prevent the disc from jamming, press

to eject any disc with irregular surface or inserted incorrectly. When a new disc is inserted into the player and ejected after initial loading, using your ﬁnger, feel around the inside of the center hole and outside edge of the disc. If you feel any small bumps or irregularities, this could inhibit proper loading of the disc. To remove the bumps, rub the inside edge of the hole and outside edge of the disc with a ball-point pen or other such instrument, then insert the disc again.

Center Hole

Bumps

Center Hole

New Disc

Outside (Bumps)

Irregular Shaped Discs

Be sure to use round shaped discs only for this unit and never use any special shaped discs.

Use of special shaped discs may cause damage to the mechanism.

Characteristics of LCD Panel

• After turning the system off, a slight ghost of the image will remain temporarily. This is an effect peculiar to LCD technology and is normal.

• Under cold temperature conditions, the screen may lose contrast temporarily. After a short warm-up period, it will return to normal.

• The LCD panel is manufactured using an extremely high precision manufacturing technology. Its effective pixel ratio is over 99.99%. This means that 0.01% of the pixels could be either always ON or OFF.

Using Wireless Headphones

If ACC or the monitor's power source is turned off, a loud noise is produced through the headphones. Be sure to remove the wireless headphones from your ears before you turn the monitor off.

Never Attempt the Following

Do not grip or pull out the disc while it is being pulled back into the player by the automatic reloading mechanism.

Do not attempt to insert a disc into the unit when the unit power is off.

Installation Location

Make sure the PKG-RSE2 will not be installed in a location subjected to:

• Direct sun and heat

• High humidity and water

• Excessive dust

• Excessive vibrations

Correct Handling

Do not drop the disc while handling. Hold the disc so you will not leave ﬁngerprints on the surface. Do not afﬁx tape, paper, or gummed labels to the disc. Do not write on the disc.

CORRECT

INCORRECT CORRECT

4-EN

Disc Cleaning

Fingerprints, dust, or soil on the surface of the disc could cause the DVD player to skip. For routine cleaning, wipe the playing surface with a clean, soft cloth from the center of the disc to the outer edge. If the surface is heavily soiled, dampen a clean, soft cloth in a solution of mild neutral detergent before cleaning the disc.

Disc Accessories

There are various accessories available on the market for protecting the disc surface and improving sound quality. However, most of them will inﬂuence the thickness and/or diameter of the disc. Using such accessories can cause operational problems. We recommend not using these accessories on discs played in Alpine DVD players.

Discs playable on this unit

Playable Discs

The discs listed below can be played on this unit.

Mark (logo)

DVD

Video

Recorded

content

Audio

Video

(Moving

pictures)

Disc size

12 cm*

8 cm

Max. playing time

One-sided disc Approx. 4 hours

Two-sided disc Approx. 8 hours

One-sided disc Approx. 80 Minutes

Two-sided disc Approx. 160 Minutes

Disc StabilizerTransparent Sheet

Video

Music

Audio

Video

(Moving

pictures)

Audio

12 cm

8 cm

12 cm

8 cm

(CD single)

Approx. 74 Minutes

Approx. 20 Minutes

Approx. 74 Minutes

Approx. 20 Minutes

* Two-layer DVD disc compatible

5-EN

Discs that cannot be played

DVD-ROMs, DVD-RAMs, DVD + Rs, DVD + RWs, CD-ROMs, photo CDs, etc.

DVD region number (playable region number)

All discs have a region number. This DVD player will play back discs ﬁt with each region. Check your region number listed below.

Region Countries

All Regions

On handling compact discs (CD/CD-R/CD-RW)

• Do not touch the surface.

• Do not expose the disc to direct sunlight.

• Do not afﬁx stickers or labels.

• Clean the disc when it is dusty.

• Make sure that the disc is smooth and ﬂat.

• Do not use commercially available disc accessories.

Do not leave the disc in the car or the unit for a long time.

Never expose the disc to direct sunlight.

Heat and humidity may damage the disc and you may not be able to play it again.

United States of America,

Canada

Europe, including France,

Greece, Turkey, Egypt, Ara-

bia, Japan and South Africa

Korea, Thailand, Vietnam,

Borneo and Indonesia

Australia and New Zealand,

Mexico, the Caribbean and

South America

India, Africa, Russia and

former USSR countries

Peoples Republic of China

Video CDs

This DVD unit is compatible with playback control (PBC) compatible video CDs (version 2.0).

“PBC” is a function by which you can use menu screens recorded on the disc to ﬁnd the scene you want to watch and view various types of information in dialog style.

Using compact discs (CD/CD-R/CD-RW)

If you use unspeciﬁed compact discs, correct performance cannot be guaranteed. You can play CD-Rs (CD-Recordable)/CD-RWs (CDReWritable) which have been recorded only on audio devices.

• Some of the following discs may not play on this unit: Flawed discs, discs with ﬁngerprints, discs exposed to extreme

temperatures or sunlight (e.g., left in the car or this unit), discs recorded under unstable conditions, discs on which a recording failed or a re-recording was attempted, copy-protected CDs which do not conform to the audio CD industry standard.

To customers using CD-R/CD-RW

• If a CD-R/CD-RW cannot be played back, make sure the last recording session was closed (ﬁnalized).

• Finalize the CD-R/CD-RW if necessary, and attempt playback again.

Using DVD-Rs/DVD-RWs

• This unit is compatible only with discs recorded in the DVDVideo mode. Discs recorded in the DVD-VR mode cannot be played back.

• Note that discs not ﬁnalized (processed to enable to play on playback-only DVD players) cannot be played on this DVD player.

• Some discs may not play back, depending on the recording device. (This unit has a copy protection function. Discs copied illegally will not be played back. Some ﬁles recorded by a software using an improper recording system may be recognized as illegally copied.)

• In the following cases, the disc may not play on this unit: discs recorded by certain DVD recorders, certain irregular

discs, ﬂawed discs, dirty discs, when the pickup lens of this DVD player is dirty, or when moisture condensation has occurred inside the unit.

• Be sure to follow all cautions included with your DVD-Rs/ DVD-RWs discs.

• Do not put stickers, seals, or tape on the label side of DVD- Rs/ DVD-RWs.

• Compared to the regular discs, DVD-Rs/DVD-RWs are more affected by heat, moisture, and direct sunlight. If left in a car, etc., damage may occur and it might not play on this unit.

Disc terminology

Title

If titles are programmed for the DVD, these are the largest units of division of the information recorded on the disc.

Chapter

Each Title may also be divided into smaller divisions, called chapters. These can be speciﬁc scenes or musical selections.

• This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

• Manufactured under license from Dolby Laboratories. “Dolby,”

“Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS2.0” are trademarks of Digital Theater Systems, inc.

6-EN

Getting Started

When Using the Remote Control

• Point the remote control at the remote sensor within about 2 meters.

• It may not be possible to operate the remote control if the remote control sensor is exposed to direct sunlight.

• The remote control is a small, lightweight precision device. To avoid damage, short battery life, operational errors and poor response, observe the following.

- Do not subject the remote control to excessive

shock.

- Do not put in a trouser pocket.

- Keep away from food, moisture and dirt.

- Do not place in direct sunshine.

When you use Remote Control for the ﬁ rst time, pull the plastic tape before using the remote control.

Remote Control Battery Replacement

Battery type: AAA battery or equivalent.

3 Closing the cover

Slide the cover as illustrated until a click is heard.

Warning

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

1 Opening the battery case

Pull up the battery cover while pressing in the direction of the arrow.

2 Replacing the battery

Put the battery in the case with the (+) indication upward as shown in the illustration.

• Placing a battery in backwards way may cause a malfunction.

7-EN

Overhead Monitor

Eject Button

Power

Disc-In Slot

Disc-In LED

IR Transmitter and Receiver

IR transmitter sends the sound to the Headphone. IR receiver receives the signal from the remote control.

Eject Button

Pressing Eject button unloads Disc. If the ignition key is set to ACC or ON, a disc can be removed even when the power is OFF.

Disc-In LED

While a disc is in DVD player and the power is on, Disc-In LED light turns on.

IR Transmitter and Receiver

LCD Monitor Panel

Front Passenger Access Switch

Game Port

Luminance Sensor

White LED Dome Light

Panel Open Switch

Dome Light Switch

Front Control Keys

LCD Monitor Panel

This is a 10.2 inch, Wide VGA, Active Matrix LCD. In addition, an Infrared Wireless Headphone Transmitter is located on top of the LCD panel.

Monitor Open Button

Press Monitor Open Button to release the Monitor Panel. The Panel will drop down slightly allowing you to fully open to its 90 degree or greater position. To close, ﬁrmly press the LCD Monitor Panel back up into the housing until a click is heard.

White LED Dome Light

White LED Dome Light connection has polarity. Be cautious when installing the monitor. Refer to Dome Light Connection (Page 27).

Dome Light Switch

Dome light switch turns on/off the dome light. When the switch is set to Door, the dome light turns on when the door is open.

Front Control Keys

Blue, back-lit button illuminates when the overhead monitor main power is on. DVD overhead monitor and other devices can be controlled by using these buttons.

Front Passenger Control Buttons

: FM modulator ON/OFF switch The monitor’s DVD sound is transmitted to the radio’s FM Tuner, when FM button is on. The radio must be tuned to the proper frequency. The FM transmitter function in the System menu must be ON to use the FM modulator.

: Play/pause and power switch The front passenger can play/pause the DVD. It also allows turning on the unit. The unit can be turned off by pressing and holding this switch.

Remote Control

RUE-4159 is a universal remote control which works for Built-in DVD, Overhead monitor and other 5 devices. Refer the key map for the function buttons of each device. (page 9)

8-EN

Key Map of Remote Control Function

RUE-4159 Remote Control Key Assignment

KEY FUNCTION OHM DVD/

1 MONITOR POWER 2 DEVICE POWER 3 MUTE 4 DIMMER 5 VISUAL EQ 6 DVD 7 AUX1 8 AUX2 9 DEVICE MODE: EXT-DVD 10 DEVICE MODE: DVD-HU 11 DEVICE MODE: TV TUNER 12 DEVICE MODE: DVB-T 13 DEVICE MODE: ISDB-T

14 MEMORY FOR DEVICE MODE: MEM 15 NUMERIC KEY: 1

NUMERIC KEY: 2 NUMERIC KEY: 3 NUMERIC KEY: 4 NUMERIC KEY: 5 NUMERIC KEY: 6 NUMERIC KEY: 7 NUMERIC KEY: 8 NUMERIC KEY: 9

16 NUMERIC KEY: 0/10

DVD / DVD-HU / DVB-T / TV= 0, ISDBT=10

17 NUMERIC KEY: 11 (+10)

DVD / DVD-HU = +10

18 NUMERIC KEY: 12 (CLR)

DVD= CLR 19 SETUP 20 DISP (INFO)

DVB-T= INFO 21 TOP.M (EPG)

ISDB / DVB-T= EPG 22 ENTER 23 MENU (DVD SETUP) 24

▲ ✔✔✔✔✔

UP:

DN: ▼ ✔✔✔✔✔

LT:

RT: 25 RETURN (EXIT)

ISDB-T=RETURN DVB-T= EXIT 26

Skip or Fast FW: 27

Skip or Fast BW: 28

CHANNEL UP: CH

CHANNEL DOWN: CH ▼ ✔✔✔ 29

PLAY/PAUSE: 30

31 SCAN 32 REPEAT 33 AUDIO 34 SUB.T (DATA) (TXT)

35 ANGLE (1SEG)

■ (BACK)

STOP:

DVB-T= BACK

ISDB-T= DATA DVB-T= TXT

ISDB-T= 1/13 Seg

NOTE *: (P&H) Press & Hold

▲ ✔✔✔

EXE-DVD

✔

✔✔✔✔✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔

✔

✔✔✔✔✔

✔✔

+10 +10 11

CLR 12

MENU (P&H) * MENU (P&H) *

✔

✔✔✔

✔✔

✔✔✔✔✔

✔✔✔✔

✔✔✔✔✔ ✔✔✔✔✔

✔✔✔

✔✔

✔✔ ✔

✔✔

DVD-HU ISDB-T

(Japan only)

EPG EPG

Preset UP Favorite UP Preset UP

Preset DN Favorite DN Preset DN

DATA TXT

1/13 Seg

DVB-T

(Europe only)

TV Tuner

✔✔

INFO

EXIT

BACK

✔✔

9-EN

Basic Operations

Loading and Unloading Discs

Turn on the power before loading and unloading discs.

EJECT

SELECT

POWER MUTE

MONITOR SETUP

POWER

Top Front Side

Front Control Keys

DVD, AUX1, AUX2

DIMMER

Visual EQ

Remote Control

Loading discs

Insert the disc with the label side facing upwards.

Once the disc is partially inserted, it is drawn in automatically. Playback starts.

• If the ignition key is on ACC or ON, a disc can be inserted even when the power is OFF.

• For two-sided DVDs, play one side of the disc to the end, then unload the disc, turn it over and reload it to play the other side.

• Never insert map discs for navigation purposes as they could damage the equipment.

• If wrong disc, upside-down discs or dirty discs have been inserted, “DISC ERROR” is displayed. Press

and eject the disc.

Unloading discs

Press .

Be sure to remove the disc.

Turning Power ON/OFF

The power state of the monitor is memorized when Ignition/ACC is turned off. When Ignition/ACC is turned back on, the monitor returns to the memorized power state (either ON or OFF), including DVD playback position. .

Front Control Keys

1 Press POWER to turn ON. 2 To turn off the power, press and hold POWER

again.

• While the power is ON, press POWER to activate the Mute function.

Remote Control

1 Press POWER to turn ON. 2 To turn off the power, press POWER again

Front Passenger Controls

1 Press PLAY/PAUSE button to turn ON. 2 To turn off the power, press and hold PLAY/

PAUSE.

PLAY/PAUSE

• If the disc is not removed within a few moments, it will be reloaded automatically.

• If the ignition key is set to ACC or ON, a disc can be removed even when the power is OFF. After removing the disc, the power turns OFF again automatically.

• During ACC OFF or while the disc is being loaded (“LOADING” is displayed), the disc will not be ejected even if you press

Audio Mute Function

Front Control Keys

1 While the power is ON, press POWER to activate

the Mute function.

2 Press POWER again turn it OFF the Mute function.

Remote Control Press MUTE to turn it ON and OFF.

10-EN

Adjusting the Volume

Volume can be controlled from the headphone or your own radio volume function.

1 Turn on POWER on the headphone. 2 Adjust the volume level by turning clockwise for

louder and counter-clockwise for lower on the headphone.

Refer to Wireless Headphone (Page 24)

Switching the Source

Front Control Keys

1 Press SELECT to change each source. 2 Press SELECT to cycle through the different

sources.

Remote Control

Press DVD, AUX1 or AUX2 to change each source directly.

• OSD (On Screen Display) will be turned off automatically, when not operating more than 6 seconds.

• To connect the device to AUX1 and AUX2, see page 28.

• When the source is changed, the device remembers the scene where playback stopped.

• The device mode of the remote control is automatically shifted to the assigned device, when AUX1 or AUX2 is pressed.

Selecting the Backlight Brightness

The brightness of the LCD panel’s backlighting is adjustable to more closely match the vehicle’s interior lighting. This makes the screen easier to view.

1 Press DIMMER. 2 Press DIMMER to cycle through the OSD as AUTO,

LOW and HIGH. (Default: HIGH)

Device Control

Device modes (TV, DVB-T, ISDB-T, DVD-HU and EXT-DVD) are available on the remote control by pressing the device control.

AUX1

AUX2

DEVICE BUTTON

(TV, DVB-T, ISDB-T, DVD-HU and EXT-DVD)

MEMORY

Memorizing Device Control

You can map the device function on AUX1 and AUX2. Once the device is memorized in the source (AUX1 or AUX2), the remote control will be automatically switched to the memorized device mode at the next time AUX1 or AUX2 is pressed.

1 Press AUX1 or AUX2. 2 Select one of following devices you want to assign,

TV/DVB-T/ISDB-T/DVD-HU/EXT-DVD.

3 Press MEMORY key to store the device on the

source.

• Each step should be made within 6 seconds, otherwise OSD (On Screen Display) will be automatically turned off.

Selecting Source Name from Remote Control

When you proceed the above step with the remote control pointed toward the monitor, the device source name on OSD can be automatically shifted without entering Setup menu.

SOURCE NAME

For setting Dimmer level, refer to page 15.

Instant Change of Visual EQ

1 Press V EQ. on the remote control. 2 Press V EQ. to switch to the different mode.

11-EN

DVD

The instruction includes Built-In DVD, EXT-DVD, DVD-HD. DVD player can be also used for CD/CDR/CD-RW.

SELECT MENU

DVD

EXT-DVD

DVD-HU

TOP.M

▲▼

DISPLAY REPEAT

number

keys

(0 to 9)

+10 is available for Built-in DVD, EXT-DVD and DVD-HU.

CLEAR is available only for Built-in DVD and EXT-DVD.

Playing DVD/Video CD

Caution

• Not all functions will operate for every DVD. See the individual DVD’s instructions for details on the features supported.

• Fingerprints on a disc may adversely affect playback. If a problem occurs, remove the disc and check for ﬁ ngerprints on the playback side. Clean the disc if necessary.

• When using the remote control, be careful to press one button at time. Pressing multiple buttons at the same time may cause erroneous operation.

• If you switch the power or ignition key OFF during playback, playback will continue where you left off when you resume playback.

• If you try to perform an invalid operation (based on the type of disc being played), the following mark is displayed on the monitor screen:

• A disc type must match the setting of TV System under Audio & Screen menu. If a wrong type disc is inserted, the message "VIDEO SIGNAL SYSTEM IS NOT CORRECT" is displayed, and playback is not available.

ENT

■

Front Control Keys

ENTER

RETURN

■

CLEAR +10

Remote Control

DVD Auto Play

The main movie will play automatically without pressing Play or Enter button, when DVD is inserted, if AUTO or SKIP mode is selected on DVD Auto Play under System menu. See page 20 for detail.

If a menu screen appears

On DVDs and video CDs, menu screens may appear automatically, when DVD Auto Play is set to NORMAL. Perform the operation described below to start playback.

• For many discs, the menu screen can also be displayed by pressing MENU.

DVD menu

Press

▲, ▼, or to select the desired item, then

press ENTER.

• For some discs it is possible to select items directly from the menu screen using the number keys (“0” to “9”).

Video CD menu

Use the number keys (“0” to “9”) to select the desired number, then press ENTER.

• The menu screen does not appear when the PBC function is turned off. In this case, set VCD PLAY MODE to turn on the PBC function. For details, Refer to “Setting the Video CD Play Mode” (page 23).

Stopping Playback (PRE-STOP)

Press ■ during playback to stop playback. That position is stored in memory.

1 Press ■ during playback.

“PRE-STOP” is displayed.

2 Press in the PRE-STOP mode.

Playback starts from the position at which it was stopped.

• For some discs, the position at which playback was stopped may not be accurate.

Stopping Playback

Press ■ twice during playback.

“STOP” is displayed, and playback stops.

• Playback starts from the beginning when playback is stopped.

is pressed while

Insert a disc with the label side facing up.

To load discs, see “Loading and Unloading Discs” on page 10. Playback starts.

• The reverse side of a double-sided DVD will not be played automatically. Remove the disc, turn it over, and reinsert it.

• It may take some time before playback starts after loading a disc.

12-EN

Fast-forwarding/Fast-reversing

Slow Motion Playback

1 During playback, press and hold (fast-reverse)

(fast-forward).

When pressed for more than 1 second, the disc is forwarded/reversed at double speed. When held in 5 more seconds, the disc is forwarded/ reversed at 8 times the normal speed.

2 Release or to return to normal playback.

• No sound appears during fast-forward/fast-reverse.

• Fast-forwarding/fast-reversing of a Video CD is only functional if

the disc incorporates PBC (playback control).

• For DVDs and video CDs with playback control (PBC), the menu

screen may reappear during fast-forwarding/fast-reversing.

Finding the Beginning of Chapters or Tracks

During playback, press or .

The chapter/track switches each time the button is pressed, and playback of the selected chapter/track starts.

: Press this to start playback from the beginning of

the following chapter or track.

: Press this to start playback from the beginning of

the current chapter or track. Press beginning of a previous chapter or track.

• Some DVDs do not have chapters.

• The beginning of a track may not be found on the Video CD

equipped with PBC (playback control). Set VCD PLAY MODE to turn the PBC function off. Refer to “Setting the video CD Play Mode” (page 23).

Supplementary explanation

“Chapters” are divisions of movies or musical selections on DVDs. “Tracks” are divisions of movies or musical selections on video and music CDs.

repeatedly to start playback from the

Playing Still Frames (pausing)

1 During playback, press . 2 Press to resume playback.

• No sound is played during the still mode.

• The image or sound may stop temporarily when playback starts

from the pause mode, This is not a malfunction.

• When

appears temporarily.

on Front Passenger Control is pressed, blue screen

Frame-by-frame Playback

1 In the pause mode, press or .

The picture advances or reverses by one frame each time the button is pressed.

2 Press to resume normal playback.

• No sound is played during frame-by-frame playback.

• For video CD, reverse frame-by-frame playback is not available.

1 Press and hold or while in the pause

mode to set 1/8 normal speed slow motion playback mode/reverse slow motion playback mode. Hold for a further 5 seconds to set half speed.

2 Release or to pause, and press to

playback.

• No sound is played during slow motion playback/reverse slow motion playback.

• Slow playback/reverse slow playback is not available when playing back a slide show.

• 1/2, 1/8 are approximate speeds. The actual speed differs from disc to disc.

• For video CD, reverse slow motion playback is not available.

Searching by Title Number (DVD only)

Use this function to easily ﬁnd positions on the DVD using the DVD’s title.

1 When playback stops, input the number of the title

you want to play using the number keys (“0” to “9”).

2 Press ENTER.

Playback starts from the selected title number.

• This function cannot be used on discs on which no title numbers are recorded.

• Press CLR to delete the last digit in the title number. Press and hold CLR for at least 2 seconds to clear all title numbers.

• Press RETURN to cancel the title search mode and resume normal playback.

• The playback starts automatically for two digit title numbers even if ENTER in procedure 2 is not pressed.

• Playback starts from the beginning of the chapter/track number in the state of PRE-STOP.

Searching Directly by Chapter or Track Number

Use this function to easily move to the beginning of the chapters or tracks on the disc.

1 During playback or pre-stop, input the number of

chapter or track you desire by using the number keys (“0” to “9”).

2 Press ENTER.

Playback starts from the selected chapter or track.

• This function cannot be used on discs on which no chapter numbers are recorded.

• The beginning of a track number cannot be directly found on the Video CD equipped with PBC (playback control). Set VCD PLAY MODE to turn the PBC function off. Refer to “Setting the video CD Play Mode” (page 23).

• Depending on the number of digits input, playback may start automatically even if ENTER is not pressed in step 2.

• Press CLR to delete the last digit in the chapter/track number. Press and hold CLR for at least 2 seconds to clear "Chapter" and "Track" numbers.

• Press RETURN to cancel the chapter/track search mode and resume normal playback.

13-EN

Chapter/Track/Title Repeat Playback

Use this function to play the disc’s titles, chapters or tracks repeatedly.

During playback, press REPEAT.

The repeat mode switches each time the button is pressed.

DVD

Switching the Angle (DVD only)

On DVDs in which scenes have been ﬁlmed from multiple angles, the angle can be switched during playback.

During playback, press ANGLE.

The angle switches between the angles recorded on the disc, each time the button is pressed.

REPEAT CHAPTER

REPEAT TITLE

REPEAT OFF

VIDEO CD

REPEAT TRACK

REPEAT DISC

• The track/disc repeat modes cannot be used on video CDs with playback control (PBC). Set VCD PLAY MODE to turn the PBC function off. Refer to “Setting the video CD Play Mode” (page 23).

• For some discs it is not possible to switch the repeat mode.

The chapter is played repeatedly.

The title is played repeatedly.

The mode returns to normal playback. (Factory default)

The track is played repeatedly.

The entire disc is played repeatedly (Factory default)

Switching the Audio Tracks

DVDs can have up to 8 different audio tracks. These alternate tracks can be switched during playback.

During playback, press AUDIO.

The sound switches between the alternate audio tracks recorded on the disc each time the button is pressed.

• The selected alternate track becomes the default setting every time the power is turned on or the disc is replaced. If the disc does not include that track, the disc's default language is selected instead.

• Not all discs will allow changing the alternate audio tracks during playback. In these cases, select audio tracks from the DVDs menu.

• There may be a delay before the selected alternate track begins to play.

• Some time may be required for the angle to change.

• Depending on the disc, the angle may switch in one of two ways.

- Seamless: The angle switches smoothly.

- Non-seamless: When the angle is switched, a still picture is displayed ﬁ rst, after which the angle switches.

Switching the Subtitles (subtitle language) (DVD only)

With multiple subtitle language DVDs, the subtitle language can be switched during playback, or subtitles can be hidden.

During playback, press SUBTITLE.

The subtitle switches between the languages recorded on the disc and OFF each time the button is pressed.

• There may be a delay before the selected subtitle appears.

• No all discs will allow changing the subtitles during playback. In these cases, select subtitles from the DVD's menu.

• The selected subtitle language becomes the default setting every time the power is turned on or the disc is replaced. If the disc does not include that language, the disc's default language is selected instead.

• For some discs, the subtitles will be displayed even when this is set to off.

Tips

Switching from the disc menu.

For some discs, the audio language, angle and subtitles can be switched from the disc menu.

1 Press

, select the item, then press

2 Press

▲, ▼,or

the press (For some discs, they can be selected using the

number keys

angle menu is displayed.)

ENTER

to select the language or angle,

"0" to "9" while the language or the

ENT

Video CDs with multiplex audio

During playback, press AUDIO.

The left and right channels will be output as shown in the ﬁ gure below, each time the button is pressed.

LR LL RR LR

14-EN

Displaying the Disc Status (DVD only)

Use the procedure described below to display the status (title number, chapter number, etc.) of the currently playing DVD on the monitor screen.

During playback, press DISPLAY.

The playback status is displayed.

The playback status display closes when DISPLAY is pressed again.

TV system

Playback disk

Current title

number

Playback status

Repeat setting

(Default setting

- repeat off)

Audio recording

system

Current subtitle

language

(NTSC or PAL)

Current angle number

Current subtitle number

Current chapter number

Chapter playback time

Current audio number

TV Tuner Control

To control TV tuner from the Front Controls Keys or the remote control, set source name to TV in the System Setup. Or refer to Device Control. (page 11)

• Refer to ALPINE TV Tuner Operation Manual for details.

SCAN

PRESET ▼

PRESET ▲

Front Control Keys

Displaying the Disc Status (Video CD only)

Use the procedure described below to obtain an on-screen display of the status (track number, etc.) of the currently playing video CD on the monitor screen.

During playback, press DISPLAY.

The playback status is displayed.

The playback status display closes when DISPLAY is pressed again.

TV system

Playback disk

Current track

number

Playback status

Repeat setting

(Default setting

- repeat disc)

Playback control

(PBC)

• When PBC is set to ON, the current track number and track playback time is not displayed.

(NTSC or PAL)

Track playback time

PRESET ▼

number

keys

(0 to 9)

▼

CH▲ SCAN PRESET

▲

Remote Control

Selecting Preset Channel

Front Control Keys

Press or to select preset channel memorized by ■ on the Front Control Keys.

Remote Control

Press or to select preset channel memorized by SCAN on the remote control.

Selecting and Seeking Channel Manually

Front Control Keys

Press or to select one channel at a time on the Front Control Keys. Press and hold or to seek the next available channel.

Remote Control

Press CH ▲ or CH ▼ to select one channel at a time on the remote control. Press and hold CH ▲ or CH ▼ to seek the next available channel.

Memorizing Channel

Press SCAN on the remote control or ■ on the Front Control Keys to memorize the receivable channels in the entire TV broadcast band.

15-EN

DVB-T Control

ISDB-T Control

This function is available only for Europe. To control DVB-T from the Front Control Keys, set source name to DVB-T in the System Setup. To set up DVB-T on the remote control, refer to Device Control. (page 11)

• Refer to TUE-T200DVB, DVB-T Operation Manual for details.

FAVORITE ▼

keys (0 to 9)

EPG

▲▼

INFO

AUDIO

TXT

number

EXIT

▼

▼▲ENT

EPG

FAVORITE ▼

Front Control Keys

FAVORITE ▲

DVB-T

MENU ENTER

EXIT SCAN

▲

FAVORITE

BACK

This function is available only for Japan. To control ISDB-T from the Front Control Keys, set source name to ISDB-T in the System Setup. To set up ISDB-T on the remote control, refer to Device Control. (page 11)

• Refer to TUE-T300, ISDB-T Operation Manual for details.

RETURN

ENTER

EPG

▲▼

DISP

CH▼

PRESET

▲

DATA

▼▲ ENT

▼

EPG

PRESET ▼

PRESET ▲

Front Control Keys

ISDB-T

RETURN

CH▲

PRESET 1/13 SEG

number keys (1 to 12)

▲

16-EN

Remote Control

Monitor Setup

• “OFF” will change to “CUSTOM”, when any of the picture mode (Brightness, Color, Tint, Contrast and Sharpness) has been adjusted

Adjusting Picture

Visual EQ, Brightness, color, tint, contrast and sharpness are adjustable.

• Each source is independently adjustable.

• Make adjustments within 6 seconds, otherwise the OSD (On Screen Display) will turn off automatically.

• After adjusting, the “OFF” setting in Visual EQ changes to “CUSTOM”. After resetting the unit, “CUSTOM” changes back to “OFF”

1 Press SETUP button on the remote control.

Or press and hold the SELECT button on the Front Control Keys for at least 2 seconds to open SETUP screen. The PICTURE setting menu is highlighted.

SELECT

Front Control Keys

SETUP

• NIGHT MOVIE, SOFT, SHARP and HIGH CONT. are ﬁ xed values. They cannot be set manually. If the picture mode is changed, they automatically change to CUSTOM mode.

• To return OFF mode, press RESET on the picture mode, or change values of BRIGHT, COLOR, TINT, CONTRAST and SHARPNESS to 0 manually.

3 Wait 6 seconds until OSD disappears; the

adjustment will be saved automatically.

Adjusting the Brightness

2 Press ▲ or ▼ and select BRIGHT. 3 Press or to adjust the brightness. Brightness

can be adjusted from –15 (MIN) to +15 (MAX).

4 Wait 6 seconds until OSD disappears; the

adjustment will be saved automatically.

Remote Control

VISUAL EQ Operation

You can select a mode suitable for the subject image.

2 To change VISUAL EQ, press or to cycle

through the OSD as OFF, NIGHT MOVIE, SOFT, SHARP and HIGH CONT. (Default: OFF)

VISUAL EQ mode (manufacturer’s settings) selection (VISUAL EQ MODE)

OFF: Normal Setting (Visual EQ OFF) NIGHT MOVIE: Suitable for movies in which dark

scenes frequently appear.

SOFT: Suitable for CGs and animated

ﬁlms.

SHARP: Suitable for old movies where

images are not clearly shown.

HIGH CONT.: Suitable for recent movies.

Adjusting the Color Density

2 Press ▲ or ▼ and select COLOR. 3 Press or to adjust the color density. Change

depth can be adjusted from –15 (MIN) to +15 (MAX).

4 Wait 6 seconds until OSD disappears; the

adjustment will be saved automatically.

17-EN

Adjusting the Tint

2 Press ▲ or ▼ and select TINT. 3 Press or to adjust the tint. Tint tone can be

adjusted from G15 (G MAX) to R15 (R MAX).

Resetting the Picture Adjustment

2 Press ▲ or ▼ and select RESET.

4 Wait 6 seconds until OSD disappears; the

adjustment will be saved automatically.

Adjusting the Contrast

2 Press ▲ or ▼ and select CONTRAST. 3 Press or to adjust the contrast. Contrast can

be adjusted from –15 (LOW) to +15 (HIGH).

4 Wait 6 seconds until OSD disappears; the

adjustment will be saved automatically.

Adjusting the Sharpness

2 Press ▲ or ▼ and select SHARPNESS. 3 Press or to adjust the screen quality. Screen

quality can be adjusted from -15 (SOFT) to +15 (HARD).

3 Press or

• If you do not press or within 6 seconds, OSD disappears

and the previous adjustments will not be reset.

o reset the picture adjustments.

Setting Audio & Screen

Each source has different menu. Depending on the selection of source, setting menu changes.

• Each source can be adjustable individually.

• Adjusting should be made within 6 seconds, otherwise OSD (On Screen Display) will be automatically turned off.

1 Press and hold SELECT for at least 2 seconds to

show the SETUP menu on Front Control Keys. Or Press SETUP button on Remote Control.

SELECT

Front Control Keys

4 Wait 6 seconds until OSD disappears; the

adjustment will be saved automatically.

18-EN

SETUP

2 Press SELECT/SETUP to switch to

AUDIO&SCREEN setting menu from PICTURE setting menu. To change each item, press

Remote Control

▲ or ▼

Setting the Source Name

Setting the Screen Modes

3 Press ▲ or ▼ and select SOURCE NAME.

The currently selected source name

The currently selected source displays on Source Name menu

Video Signal menu is for AUX1 only

DVD:

Source name of DVD can not be changed to other names.

AUX 1:

Press or ISDB-T/TV/GAME/USER* (Default: AUX1)

AUX 2:

Press or to select AUX2/EX-DVD/DVD-HU/DVB-T/ ISDB-T/TV/GAME/USER* (Default: AUX2)

Customizing Source Name

Your desired OSD source name can be deﬁned up to 6 characters.

o select AUX1/EX-DVD/DVD-HU/DVB-T/

4 Press or to select USER. 5 Press ENTER key. Character setting menu

appears.

6 Press ▲, ▼, or and ENTER key to select the

character “A-Z”, “0-9”, “-“, space and “.”.

“DEL”: Delete one character at a time. “CLR”: Clear entire characters. “OK”: Conﬁ rm source name and exit

from character setting menu.

Display mode on the screen can be adjusted to Wide, Cinema and Normal. (Default: WIDE)

3 Press or to select WIDE/CINEMA/NORMAL

WIDE Normal images are expanded uniformly in the horizontal direction and are displayed over the entire screen.

CINEMA Normal images are expanded in the horizontal and vertical directions. The top and bottom of the image are cut off. This mode is suited for 16:9 cinema size images.

• If no key is pressed within 6 seconds, OSD disappears and the source name will not be changed.

Setting the Auto Level Control

Auto Level Control adjusts the sound volume automatically. This function balances sound volume for all sources.

3 Press or to turn ON/OFF Auto Level Control.

(Default: ON)

NORMAL

Normal image (4:3)

4 Wait 6 seconds until OSD disappears; the

adjustment will be saved automatically.

Setting the TV System

Broadcast TV System can be manually switched.

3 Press or

AUTO)

Setting the Video Signal

3 Press or

(Default: Composite)

Video Signal selection menu is only available in AUX1 source. AUX1 must be connected with either Composite cable or S-Video cable. You can not connect both cables at the same time. It may cause noise on the screen. Refer to System Connection (Page 28)

to select AUTO/NTSC/PAL. (Default:

to select Composite/S-Video.

19-EN

Setting System Control

IR transmitter, FM transmitter, FM frequency, dimmer and beep can be adjusted for all available sources.

• Once this adjustment is made, all sources are affected.

SELECT ENT

Front Control Keys

SETUP

Remote Control

1 Press and hold SELECT for at least 2 seconds to

show the SETUP menu on Front Control Keys. Or Press SETUP button on Remote Control.

2 Press SELECT/SETUP to switch to SYSTEM

setting menu from AUDIO&SCREEN setting menu.

Setting the Dimmer

4 Press or to select AUTO/LOW/HIGH. (Default:

AUTO)

AUTO adjusts the LCD backlight brightness automatically by sensing the ambient light from the luminance sensor.

Setting the Dimmer Low Level

4 Press or to select low level of Dimmer

between 0 (min.) to 15 (max.). 15 (max.) is the same brightness level with HIGH on Dimmer menu.

Setting the Beep

4 Press or to turn on/off beep sound. (Default:

ON)

Setting the DVD Auto Play

4 Press or to select NORMAL/AUTO/SKIP.

NORMAL: Stay on the menu until the user input. AUTO: Play movie after 6 seconds on the menu. SKIP: Play movie Immediately. It will skip

previews and the menu.

• This setting is only available before inserting a disc, or when in stop mode.

• To activate SKIP mode, a disc must be ejected and reloaded after setting. (Note: SKIP mode can not be activated, when a disc is inserted or reloaded while Alpine logo is shown on the screen monitor.)

• This function is not available on some discs.

3 Press ▲ or ▼ to change each item.

Setting the IR Transmitter

4 Press or to select A/B/OFF. (Default: A)

Setting the FM Modulator

4 Press or to select FM Radio region (OFF/USA/

EUR/JPN). (Default: OFF)

Setting the FM Frequency

4 Press or to select desired FM Radio

Frequencies between 88.1 MHz to 92.1 MHz for USA and Europe, and 88.1 MHz to 90.0 MHz for Japan. (Default: 89.1 MHz)

• USA frequency step is 0.2MHz and Europe and Japan is

0.1MHz.

Resetting to the Factory Default

4 Press ENTER Key, the system changes to Factory

Default System Setting. Entire settings include Picture, Visual EQ, Display Mode are also reset. DVD Setup values will not be affected.

20-EN

DVD Setup

DVD SETUP

▲▼

number keys (0 to 9)

MENU and DVD SETUP are the same button.

DVD Setup Operation

The following steps 1 to 4 are common to each of the DVD settings described here. Refer to each section for details.

1 Press and hold DVD SETUP before inserting a

disc, or when in stop mode.

The setup menu appears on the monitor.

2 Press ▲ or ▼ to select the desired setting item,

then press ENTER.

Further items will be displayed.

ENTER

RETURN

■

Setting the language

The audio language, subtitle language and menu language can be set according to your preferences. Once set, this becomes the default language. This function is convenient when you always want to listen in English. (Not all discs allow changing the default language. If not, the factory default language applies.)

Setting item: Language Further setting items: AUDIO / SUBTITLE / MENU

AUDIO:

Set the audio track language.

SUBTITLE:

Set the language of the subtitles displayed on the screen.

MENU:

Set the language used for the menus (title menu, etc.).

Setting contents:

/ ENGLISH / JAPANESE / GERMAN / SPANISH

AUTO / FRENCH / ITALIAN / PORTUGUESE / RUSSIAN / CHINESE / OTHERS

Press , , or to select the desired language, then press

ENTER.

1 AUTO:

The disc is played with the audio language or subtitle language set as the priority language for the disc.

2 OTHERS:

Set this to play the disc with a language other than one

of the languages displayed. Press ENTER then use the number keys “0” to “9” to input the 4-digit language code. Then press ENTER again. For the language codes, refer to “List of Language Codes” (page 23).

• If you change the language setting when the disc is inside, the setting is decided with one of the following operations.

-Disc eject

-Turn OFF the main unit

• To temporarily change the language of the current disc, either do so from the DVD menu or using the operation described in the section "Switching the audio tracks" (page 14).

• If the disc does not include the selected language, the disc’s default language is set.

• Languages set upon shipment from the factory: Audio language : AUTO Subtitle language : AUTO Menu language : AUTO

• Press RETURN to return to the previous display.

Setting items:

LANGUAGES / TV SCREEN / COUNTRY CODE / PARENTAL / DIGITAL OUT / CUSTOM SETUP*1

*1 Refer to “Custom Setup” on page 23.

3 Press ▲ or ▼ to change the setting item, then

press ENTER.

4 Press and hold DVD SETUP.

The settings are stored and the setup mode is deactivated.

• When settings are changed, old settings are overwritten. Make a note of the current settings before making changes. If the vehicle’s battery is disconnected, the settings will be cleared and will return to the factory settings.

Setting the TV Screen

Use the procedure described below to set the output screen according to the type of TV monitor being used.

Setting item: TV SCREEN Setting contents: 16:9 (WIDE) / 4:3 (LB) / 4:3 (PS)

• For some discs, the picture may not be set to the selected screen size. (For details, refer to the explanation on the disc’s jacket.)

• Press RETURN to return to the previous screen.

Continued

21-EN

16 : 9 WIDE

Select this when connected to a wide screen TV. This is selected upon shipment from the factory.

4 : 3 LB (LETTER BOX)

Select this when connected to a conventional 4 : 3 size (normal TV aspect ratio) monitor. There may be black bands visible at the top and bottom of the screen (when playing a 16 : 9 size movie). The width of these stripes will depend upon the original aspect ratio of the theatre release of the movie.

4 : 3 PS (PAN- SCAN)

Select this when connected to a conventional 4 : 3 size monitor. The picture will ﬁ ll the entire TV screen. However, due to the mismatch in aspect ratio, parts of the movie at the extreme left and right sides will not be visible (when playing a 16 : 9 size movie).

Setting the Country Code

Set the country number of which you want to set the rating level (Parental lock).

Setting item: COUNTRY CODE Setting contents: CODE

▲ or ▼ to select “COUNTRY CODE,” then press

1 Press

ENTER. “COUNTRY CODE” will be reset.

COUNTRY CODE

2 Use the number keys “0” to “9” to input the 4-digit

country code, then press ENTER.

Example: United States “8583” is input

COUNTRY CODE 8 5 8 3

- - - -

• If the input code is wrong, the unit returns to the country code input display, after display “CODE ERROR” for 5 seconds.

• For the country codes, refer to “List of Country Codes” (Pages 30 and 31).

• Can be erased one digit at a time each time CLR is pressed. Press and hold CLR for at least 2 seconds to delete all digits.

• Press RETURN to return to the previous screen.

Setting the Rating Level (Parental Lock)

Use this function to restrict the viewing of movies to children of appropriate age levels only.

Setting item: PARENTAL Setting contents: PASSWORD

▲ or ▼ to select “PARENTAL,” then press ENTER.

1 Press

The password input mode is activated.

2 Use the number keys “0” to “9” to input the 4-digit

password, then press ENTER.

PASSWORD

Input numbers are displayed as “✽.“ The default password is 1111 upon shipment from the factory. The restriction level (PARENTAL LEVEL) input display appears.

✽✽✽✽

• Can be erased one digit at a time each time CLR is pressed. Press and hold CLR for at least 2 seconds to delete all digits.

• Press RETURN to return to the previous screen.

• If the password is wrong, the unit displays “PASSWORD ERROR” for 5 seconds. It then returns to the password input display where the password may be reentered.

3 Press , , or to select the rating level (1 to 8), then

press ENTER.

Select “OFF” to cancel the parental lock or if you do not want to set a rating level. The lower the number, the higher the rating level.

• Press RETURN to return to the previous display.

4 Press DVD SETUP.

The settings are stored and the setup mode is deactivated.

• If you want to change the password, select “CHANGE PASSWORD,” then input the new password (4 digits).

• Write down the password on a piece of paper and store the piece of paper somewhere in case you forget it.

• On unrated DVDs, playback will not be restricted even if the rating level is set.

• Once set, this rating level remains in memory until changed. To enable the play of discs of higher rating levels or to cancel the parental lock, the setting must be changed.

• Not all DVDs provide a Parental Lock feature. If you are unsure about a DVD, play it ﬁ rst to conﬁ rm. Do not leave DVDs accessible to young children for whom you deem them inappropriate.

Tips

• Changing the rating level temporarily

Some discs may request that you change the rating level set in the default settings during playback. In this case, the message appears on the monitor screen “PARENTAL LEVEL CHANGE OK?”

• To change parental level and play, press ENTER.

The password input mode is displayed. Input the 4-digit password in “Setting the Rating Level (Parental Lock)” you set, then press ENTER.

• To play without changing the parental level, press ■.

(When ■ is pressed, playback will be at the parental level set with “Setting the Rating Level (Parental Lock).”)

22-EN

Setting the Digital Output

Digital output is not available on this Built-in DVD 10.2 inch overhead monitor, PKG-RSE2. It will not affect the playback, if you change the setting.

Custom Setup Operation

The following steps (1 through 5) are common to each of the mode settings. Once the mode is selected under the CUSTOM SETUP menu, refer to the section for that mode for details.

1 Press DVD SETUP before inserting a disc, or when

in stop mode.

The setup menu appears on the monitor.

2 Press ▲ or ▼ to select “CUSTOM SETUP,” then

press ENTER.

3 Press ▲ or ▼ to select your desired setting item,

then press ENTER.

CUSTOM SETUP items: CD PLAY MODE / VCD PLAY MODE / PAUSE MODE / DOWNMIX MODE

Setting the Video CD Play Mode

When playing a Playback Control (PBC) enabled video CD, you can choose to set PBC ON or OFF.

Setting item: VCD PLAY MODE Setting contents: PBC ON / PBC OFF

PBC ON: The PBC menu is displayed. PBC OFF: The PBC menu is not displayed.

The initial setting at the factory is PBC ON.

Setting the Pause Mode

In pause mode, screen blurring may occur. To overcome this, set AUTO/FIELD/FRAME accordingly.

Setting item: PAUSE MODE Setting contents: AUTO / FIELD / FRAME

If you experience blurring during pause mode, set to FIELD or FRAME. The initial setting at the factory is AUTO.

Setting the Downmix Mode

This function applies to Dolby Digital, DTS stream sound.

Setting item: DOWNMIX MODE Setting contents: STEREO / SURROUND ENCODED

STEREO: Stereo Downmix SURROUND ENCODED: Surround compatible Downmix

The initial setting at the factory is SURROUND ENCODED.

4 Press ▲ or ▼ to change the setting item, then

press ENTER.

5 Press DVD SETUP.

The settings are stored and the setup mode is deactivated.

• Press RETURN to return to the previous display.

Setting the CD Play Mode

The unit can be set to play only the audio data on discs containing music data.

Setting item: CD PLAY MODE Setting contents: CD-DA / COMPRESSED AUDIO

CD-DA: Only CD data can be played back.

The initial setting at the factory is CD DA.

• Compressed audio is not supported on this Built-in DVD 10.2 inch overhead monitor, PKG-RSE2. Please do not change this setting.

23-EN

Wireless Headphone

Headphone Receivers

1) Infrared Sensors; Receive signal from the transmitter.

2) Battery Cover

3) Volume Control

4) Power Switch

5) Power Indicator LED

Operation

Read carefully to prevent damage to the headphone or your ears:

WARNING: Before turning on the power, remove headphones and turn the volume down as low as possible.

1) Be sure the batteries are properly installed in the headphones.

2) Turn the headphones volume completely down before placing it on your ears and turning on the power.

3) Turn on the headphone power and adjust the headphone volume to a comfortable level (You can increase the audio source volume if needed).

Battery Installation

Place two AAA batteries into the battery compartment of the headphone(s), making sure that the battery polarity is correct.

24-EN

Installation and Connections

Before installing or connecting the unit, please read the following and pages 3 and 4 of this manual thoroughly for proper use.

Warning

MAKE THE CORRECT CONNECTIONS.

Failure to make the proper connections may result in ﬁre or product damage.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may result in ﬁre, etc.

BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL.

Failure to do so may result in electric shock or injury due to electrical shorts.

DO NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS.

Arrange wiring and cables in compliance with the manual to prevent obstructions when driving. Cables or wiring that obstruct or hang up on places such as the steering wheel, gear lever, brake pedals, etc., can be extremely hazardous.

DO NOT SPLICE INTO ELECTRICAL CABLES.

Never cut away cable insulation to supply power to other equipment. Doing so will exceed the current carrying capacity of the wire and result in ﬁre or electric shock.

DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING HOLES.

When drilling holes in the chassis for installation, take precautions so as not to contact, damage or obstruct pipes, fuel lines, tanks or electrical wiring. Failure to take such precautions may result in ﬁre.

DO NOT USE BOLTS OR NUTS IN THE BRAKE OR STEERING SYSTEMS TO MAKE GROUND CONNECTIONS.

Bolts or nuts used for the brake or steering systems (or any other safety-related system), or tanks should NEVER be used for installations or ground connections. Using such parts could disable control of the vehicle and cause ﬁre, etc.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician immediately.

DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER VEHICLE OPERATION, SUCH AS THE STEERING WHEEL OR SHIFT LEVER.

Doing so may obstruct forward vision or hamper movement, etc., and result in a serious accident.

Caution

HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS.

The wiring and installation of this unit requires special technical skill and experience. To ensure safety, always contact the dealer where you purchased this product to have the work done.

USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM SECURELY.

Be sure to use only the speciﬁed accessory parts. Use of other than designated parts may damage this unit internally or may not securely install the unit in place. This may cause parts to become loose resulting in hazards or product failure.

ARRANGE THE WIRING SO IT IS NOT CRIMPED OR PINCHED BY A SHARP METAL EDGE.

Route the cables and wiring away from moving parts (like the seat rails) or sharp or pointed edges. This will prevent crimping and damage to the wiring. If wiring passes through a hole in metal, use a rubber grommet to prevent the wires insulation from being cut by the metal edge of the hole.

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST.

Avoid installing the unit in locations with high incidence of moisture or dust. Moisture or dust that penetrates into this unit may result in product failure.

Precautions

• Be sure to disconnect the cable from the (–) battery post before

installing your PKG-RSE2. This will reduce any chance of damage to the unit in case of a short-circuit.

• Be sure to connect the color coded leads according to

the diagram. Incorrect connections may cause the unit to malfunction or damage to the vehicle's electrical system.

• When making connections to the vehicle's electrical system,

be aware of the factory installed components (e.g. on-board computer). Do not tap into these leads to provide power for this unit. When connecting the PKG-RSE2 to the fuse box, make sure the fuse for the intended circuit of the PKG-RSE2 has the appropriate amperage. Failure to do so may result in damage to the unit and/or the vehicle. When in doubt, consult your ALPINE dealer.

• The PKG-RSE2 uses female RCA-type jacks for connection to

other units (e.g. ampliﬁer) having RCA connectors. You may need an adaptor to connect other units. If so, please contact your authorized ALPINE dealer for assistance.

IMPORTANT

Please record the serial number of your unit in the space provided below and keep it as a permanent record. The serial number plate is located on the bottom of the unit.

SERIAL NUMBER: INSTALLATION DATE: INSTALLATION TECHNICIAN: PLACE OF PURCHASE:

25-EN

Connections

Power Connector

ALPINE's PKG-RSE2 needs the following power connections to assure proper operation of the monitor.

AV Connector 1 (AUX1)

1) BATT Yellow •

2) ACC Red •

(Switched 12V, ignition)

3) GND Black •

4) DOOR Green •

AUX IN 1 (VIDEO) Yellow •

of other video products (AV head unit or TV Tuner)

AUX IN 1 (AUDIO L) White (L) •

AUX IN 1 (AUDIO R)

unit or TV Tuner with audio output connectors.

Red (R)

POWER +12V Red •

line, which is red. It controls turning the power ON/OFF for the ALPINE video products correspond to PKG-RSE2 power.

REMO OUT White/Brown • (AUX 1)

TV tuner or DVD-HU, connect to each REMOTE IN.

Battery Lead

Connect this lead to the positive (+) post of the vehicle’s battery.

ACC

Connect this line to the vehicle’s ACC line.

GND

Connect this line to the vehicle’s GND line.

Door

Connect this lead to the vehicle’s door

Video Input Connector

This connector is used in combination with the video inputs

Audio Input Connectors

These connectors are used in combination with a head

Power Control

Connect this lead to any ALPINE video source product's ACC

Remote Out 1

Corresponds to AUX 1. To control ALPINE DVD player,

AV Connector 2 (AUX2)

REMOTE IN White/Brown •

from DVD-HU or LCD monitor in the front area of the vehicle, connect this line to the ALPINE DVD-HU or LCD monitor REMOTE OUT.

S-VIDEO Blue/Brown •

input at the same time. It may cause noise on the screen. Refer to Video Signal setting (page 19)

AUX OUT (VIDEO) Yellow •

of other video products (AV head unit or LCD monitor)

AUX OUT (AUDIO L) White (L) •

AUX OUT (AUDIO R)

Red (R)

LCD monitor with audio input connectors.

AUX IN 2 (VIDEO) Yellow •

of other video products (AV head unit or TV Tuner)

AUX IN 2 (AUDIO L) White (L) •

AUX IN 2 (AUDIO R)

Red (R)

Remote In

To control ALPINE PKG-RSE2, DVD player or TV tuner

S-Video Input

You can not use Composite Video Input and S-Video

Video Output Connector

This connector is used in combination with the video inputs

Audio Output Connectors

These connectors are used in combination with a head unit or

Video Input Connector

This connector is used in combination with the video inputs

Audio Input Connectors

These connectors are used in combination with a head unit or TV Tuner with audio output connectors.

REMO OUT (AUX 2) White/Brown •

TV tuner or DVD-HU, connect to each REMOTE IN.

Remote Out 2

Corresponds to AUX 2. To control ALPINE DVD player,

26-EN

Mount Side

The direction of AV connector ports

AV Connector 2

AV Connector 1

Power Connector

Dome Light Wire

Dome light wire connects the built-in Dome Light to the cable from the vehicle’s Dome Light Switch.

Polarity change switch is located on the top surface that mounts into the headliner.

FM Switching Box Connector

Dome Light Polarity

The detail of dome light polarity switch

Vehicle Door polarity depends on the vehicle type. The polarity can be changed by the “Door SW polarity” switch. (Default: Negative Switched System)

Polarity +: When door open, door signal is 12V Polarity -: When door open, door signal is GND

PKG-RSE2

27-EN

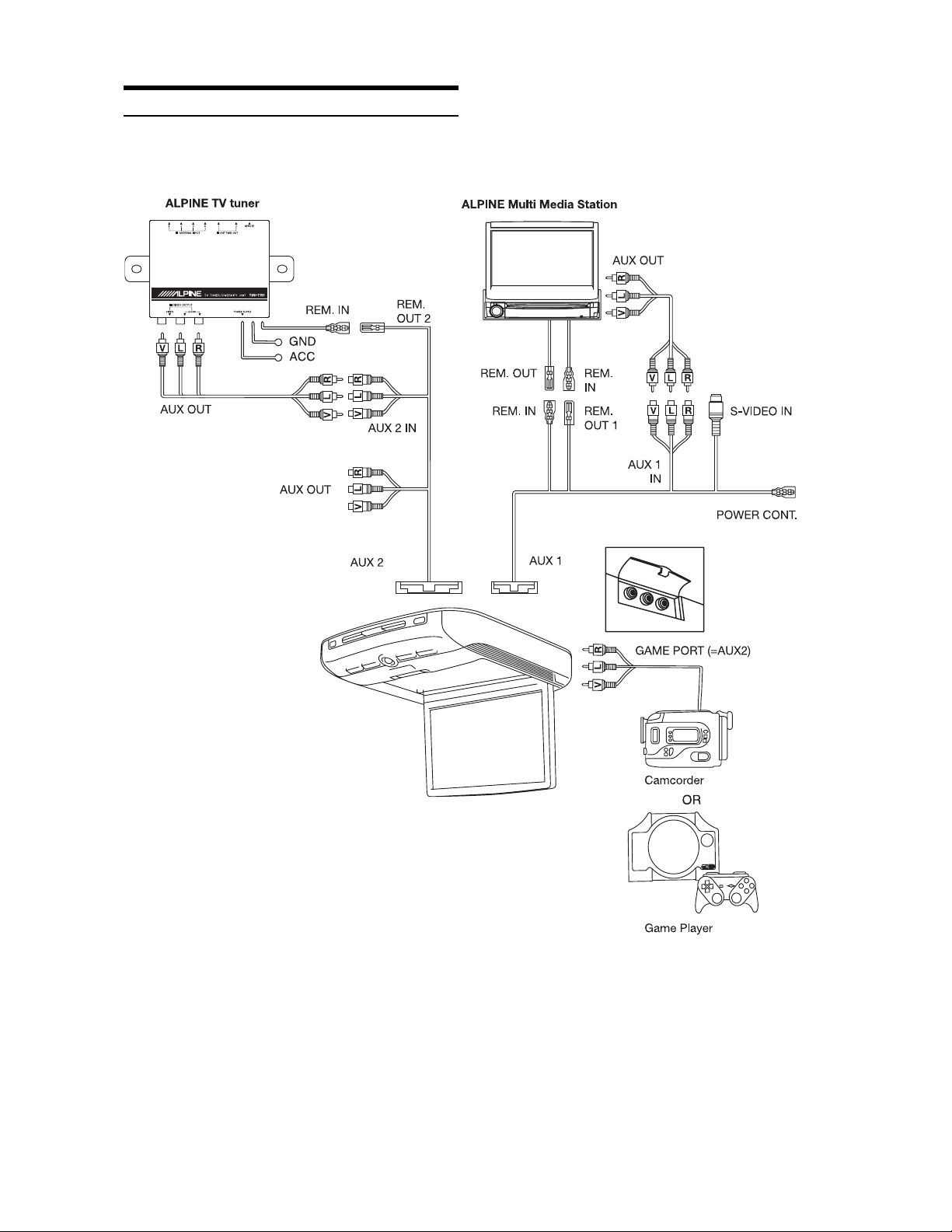

System Connections

28-EN

PKG-RSE2 DVD Built-In

Overhead Monitor

When the game port and AUX2 are connected at the same time, the game port has a priority.

Information

List of Language Codes

(For details, see page 21.)

Abbreviation Code Language

AA 6565 Afar AB 6566 Abkhazian

AF 6570 Afrikaans AM 6577 Amharic AR 6582 Arabic

AS 6583 Assamese

AY 6589 Aymara

AZ 6590 Azerbaijani BA 6665 Bashkir

BE 6669 Byelorussian BG 6671 Bulgarian BH 6672 Bihari

BI 6673 Bislama BN 6678 Bengali, Bangla BO 6679 Tibetan BR 6682 Breton CA 6765 Catalan CO 6779 Corsican CS 6783 Czech CY 6789 Welsh DA 6865 Danish DE 6869 German

DZ 6890 Bhutani

EL 6976 Greek EN 6978 English EO 6979 Esperanto

ES 6983 Spanish

ET 6984 Estonian EU 6985 Basque

FA 7065 Persian

FI 7073 Finnish

FJ 7074 Fiji FO 7079 Faroese

FR 7082 French

FY 7089 Frisian GA 7165 Irish GD 7168 Scots Gaelic GL 7176 Galician GN 7178 Guarani GU 7185 Gujarati HA 7265 Hausa

HI 7273 Hindi HR 7282 Croatian HU 7285 Hungarian HY 7289 Armenian

IA 7365 Interlingua

Abbreviation Code Language

IE 7369 Interlingue IK 7375 Inupiak IN 7378 Indonesian IS 7383 Icelandic

IT 7384 Italian IW 7387 Hebrew JA 7465 Japanese

JI 7473 Yiddish

JW 7487 Javanese KA 7565 Georgian KK 7575 Kazakh

KL 7576 Greenlandic

KM 7577 Cambodian KN 7578 Kannada KO 7579 Korean KS 7583 98145.451 KU 7585 Kurdish KY 7589 Kirghiz

LA 7665 Latin

LN 7678 Lingala LO 7679 Laothian

LT 7684 Lithuanian LV 7686 Latvian, Lettish

MG 7771 Malagasy

MI 7773 Maori

MK 7775 Macedonian ML 7776 Malayalam MN 7778 Mongolian MO 7779 Moldavian MR 7782 Marathi MS 7783 Malay MT 7784 Maltese MY 7789 Burmese NA 7865 Nauru NE 7869 Nepali NL 7876 Dutch NO 7879 Norwegian OC 7967 Occitan OM 7977 (Afan) Oromo OR 7982 Oriya

PA 8065 Punjabi PL 8076 Polish

PS 8083 Pashto, Pushto

PT 8084 Portuguese

QU 8185 Quechua RM 8277 Rhaeto-Romance

Abbreviation Code Language

RN 8278 Kirundi RO 8279 Romanian RU 8285 Russian RW 8287 Kinyarwanda

SA 8365 Sanskrit SD 8368 Sindhi

SG 8371 Sangho

SH 8372 Serbo-Croatian

SI 8373 Singhalese SK 8375 Slovak SL 8376 Slovenian

SM 8377 Samoan

SN 8378 Shona

SO 8379 Somali SQ 8381 Albanian

SR 8382 Serbian SS 8383 Siswati ST 8384 Sesotho SU 8385 Sundanese SV 8386 Swedish

SW 8387 Swahili

TA 8465 Tamil TE 8469 Telugu TG 8471 Tajik TH 8472 Thai

TI 8473 Tigrinya

TK 8475 Turkmen

TL 8476 Tagalog TN 8478 Setswana TO 8479 Tonga TR 8482 Turkish TS 8483 Tsonga

TT 8484 Tatar

TW 8487 Twi

UK 8575 Ukrainian

UR 8582 Urdu

UZ 8590 Uzbek

VI 8673 Vietnamese

VO 8679 Volapuk

WO 8779 Wolof

XH 8872 Xhosa

YO 8979 Yoruba

ZH 9072 Chinese ZU 9085 Zulu

29-EN

List of Country Codes

(For details, see page 22.)

Abbreviation Code Country

AD 6568 Andorra

AE 6569 United Arab Emirates AF 6570 Afghanistan

AG 6571 Antigua and Barbuda

AI 6573 Anguilla

AL 6576 Albania AM 6577 Armenia AN 6578 Netherlands Antilles AO 6579 Angola AQ 6581 Antarctica AR 6582 Argentina

AS 6583 American Samoa

AT 6584 Austria AU 6585 Australia AW 6587 Aruba

AZ 6590 Azerbaijan BA 6665 BB 6666 Barbados BD 6668 Bangladesh

BE 6669 Belgium

BF 6670 Burkina Faso BG 6671 Bulgaria BH 6672 Bahrain

BI 6673 Burundi

BJ 6674 Benin BM 6677 Bermuda BN 6678 Brunei Darussalam BO 6679 Bolivia BR 6682 Brazil BS 6683 Bahamas

BT 6684 Bhutan

BV 6686 Bouvet Island BW 6687 Botswana

BY 6689 Belarus

BZ 6690 Belize CA 6765 Canada CC 6767 CD 6768 Congo, the Demo-

CF 6770 CG 6771 Congo CH 6772 Switzerland

CI 6773 Cote dílvoire

CK 6775 Cook Islands

CL 6776 Chile CM 6777 Cameroon CN 6778 China CO 6779 Colombia CR 6782 Costa Rica CU 6785 Cuba CV 6786 Cape Verde

CX 6788 Christmas Island CY 6789 Cyprus

CZ 6790 Czech Republic

DE 6869 Germany

DJ 6874 Djibouti DK 6875 Denmark

Bosnia and Herzegovina

Cocos (Keeling) Islands

cratic Republic of the Central African Republic

Abbreviation Code Country

DM 6877 Dominica

DO 6879 Dominican Republic DZ 6890 Algeria EC 6967 Ecuador

EE 6969 Estonia EG 6971 Egypt EH 6972 Western Sahara ER 6982 Eritrea

ES 6983 Spain

ET 6984 Ethiopia

FI 7073 Finland FJ 7074 Fiji FK 7075 Falkland Islands

FM 7077 FO 7079 Faroe Islands

FR 7082 France

GA 7165 Gabon GB 7166 United Kingdom GD 7168 Grenada GE 7169 Georgia GF 7170 French Guiana GH 7172 Ghana

GI 7173 Gibraltar

GL 7176 Greenland

GM 7177 Gambia

GN 7178 Guinea GP 7180 Guadeloupe GQ 7181 Equatorial Guinea GR 7182 Greece GS 7183

GT 7184 Guatemala GU 7185 Guam

GW 7187 Guinea-Bissau

GY 7189 Guyana HK 7275 Hong Kong

HM 7277 Heard Island and

HN 7278 Honduras HR 7282 Croatia HT 7284 Haiti HU 7285 Hungary

ID 7368 Indonesia

IE 7369 Ireland

IL 7376 Israel

IN 7378 India

IO 7379

IQ 7381 Iraq

IR 7382

IS 7383 Iceland

IT 7384 Italy

JM 7477 Jamaica JO 7479 Jordan

JP 7480 Japan

KE 7569 Kenya KG 7571 Kyrgyzstan KH 7572 Cambodia

Micronesia, Federated States of

South Georgia and the South Sandwich Islands

McDonald Islands

British Indian Ocean Territory

Iran, Islamic Republic of

Abbreviation Code Country

KI 7573 Kiribati KM 7577 Comoros KN 7578 Saint Kitts and Nevis

KP 7580 Korea, Democratic

KR 7582 Korea, Republic of KW 7587 Kuwait

KY 7589 Cayman Islands KZ 7590 Kazakstan LA 7665

LB 7666 Lebanon LC 7667 Saint Lucia

LI 7673 Liechtenstein

LK 7675 Sri Lanka LR 7682 Liberia LS 7683 Lesotho

LT 7684 Lithuania

LU 7685 Luxembourg

LV 7686 Latvia

LY 7689 MA 7765 Morocco MC 7767 Monaco MD 7768 Moldova, Republic of MG 7771 Madagascar MH 7772 Marshall Islands MK 7775

ML 7776 Mali MM 7777 Myanmar MN 7778 Mongolia MO 7779 Macau MP 7780 MQ 7781 Martinique MR 7782 Mauritania MS 7783 Montserrat MT 7784 Malta MU 7785 Mauritius MV 7786 Maldives

MW 7787 Malawi

MX 7788 Mexico MY 7789 Malaysia MZ 7790 Mozambique NA 7865 Namibia NC 7867 New Caledonia NE 7869 Niger

NF 7870 Norfolk Island

NG 7871 Nigeria

NI 7873 Nicaragua

NL 7876 Netherlands NO 7879 Norway NP 7880 Nepal NR 7882 Nauru NU 7885 Niue

NZ 7890 New Zealand

OM 7977 Oman

PA 8065 Panama

People’s Republic of

Lao Peopleís Democratic Republic

Libyan Arab Jamahiriya

Macedonia, The former Yugoslav Republic of

Northern Mariana Islands

30-EN

Abbreviation Code Country

PE 8069 Peru

PF 8070 French Polynesia PG 8071 Papua New Guinea PH 8072 Philippines PK 8075 Pakistan

PL 8076 Poland PM 8077 PN 8078 Pitcairn PR 8082 Puerto Rico

PT 8084 Portugal

PW 8087 Palau

PY 8089 Paraguay QA 8165 Qatar RE 8269 Reunion RO 8279 Romania RU 8285 Russian Federation

RW 8287 Rwanda

SA 8365 Saudi Arabia SB 8366 Solomon Islands SC 8367 Seychelles SD 8368 Sudan

SE 8369 Sweden SG 8371 Singapore SH 8372 Saint Helena

SI 8373 Slovenia

Saint Pierre and Miquelon

Abbreviation Code Country

SJ 8374

SK 8375 Slovakia

SL 8376 Sierra Leone SM 8377 San Marino SN 8378 Senegal SO 8379 Somalia SR 8382 Suriname

ST 8384 SV 8386 El Salvador SY 8389 Syrian Arab Republic SZ 8390 Swaziland TC 8467 TD 8468 Chad

TF 8470 TG 8471 Togo TH 8472 Thailand

TJ 8474 Tajikistan TK 8475 Tokelau TM 8477 Turkmenistan TN 8478 Tunisia TO 8479 Tonga

TP 8480 East Timor TR 8482 Turkey

TT 8484 Trinidad and Tobago

TV 8486 Tuvalu

Svalbard and Jan Mayen

Sao Tome and Principe

Turks and Caicos Islands

French Southern Territories

Abbreviation Code Country

TW 8487

TZ 8490

UA 8565 UG 8571 Uganda UM 8577

US 8583 United States

UY 8589 Uruguay

UZ 8590 Uzbekistan

VA 8665

VC 8667 Saint Vincent and the

VE 8669 Venezuela VG 8671 Virgin Island, British

VI 8673 Virgin Islands, U.S VN 8678 Viet Nam VU 8685 Vanuatu

WF 8770 Wallis and Futuna WS 8783 Samoa

YE 8969 Yemen YT 8984 Mayotte YU 8985 Yugoslavia ZA 9065 South Africa

ZM 9077 Zambia ZW 9087 Zimbabwe

Taiwan, Province of China Tanzania, United Republic of Ukraine

United States Minor Outlying Islands

Holy See (Vatican City State)

Grenadines

31-EN

In Case of Difﬁ culty

If you encounter a problem, please turn the power off, then on again. If the unit is still not functioning normally, please review the items in the following checklist. This guide will help you isolate the problem if the unit is at fault. Otherwise, make sure the rest of your system is properly connected or consult your authorized Alpine dealer.

No function or display.

• Vehicle's ignition is off.

- If connected following the instructions, the unit will not operate with the vehicles ignition off.

• Improper power lead connections.

- Check power lead connections.

• No fuse or blown fuse.

- Replace the fuse on the battery lead of the unit with the proper value.

• Vehicle’s battery is weak.

- Check the voltage of vehicle’s battery.

Disc playback sound is wavering.

• Moisture condensation in the disc unit.

- Allow enough time for the condensation to evaporate (about 1 hour).

Disc insertion not possible.

• A disc is already in the DVD player.

- Eject the disc and remove it.

• The disc is being improperly inserted.

- Re-insert the disc following the instructions in the "Loading and Unloading Discs" section.

Unable to fast forward or reverse the disc.

• The disc has been damaged.

- Eject the disc and discard it; using a damaged disc in your unit can cause damage to the mechanism.

Disc playback sound skips due to vibration.

• Improper mounting of the unit.

- Securely re-mount the unit.

• The disc is very dirty.

- Clean the disc.

• The disc has scratches.

- Change the disc.

• The pick-up lens is dirty.

- Do not use a commercial available lens cleaner disc. Consult your nearest ALPINE dealer.

Disc playback sound skips without vibration.

• Dirty or scratched disc.

- Clean the disc; damaged disc should be replaced.

CD-R/CD-RW playback not possible.

• Close session (ﬁnalization) has not been performed.

- Perform ﬁnalization and attempt playback again.

Error displays

• Mechanical error

- Press

Unit does not operate.

• Monitor's power is not turned on.

- Turn on the monitor's power.

• Condensation

- Wait a while (about 1 hour) for the condensation to dry.

. After the error indication disappears, insert the disc again. If the above-mentioned solution does not solve the problem, consult your nearest ALPINE dealer.

No picture is produced.

• Monitor's mode is not switched to the mode you want to see.

- Switch to the mode you want to see.

• Monitor's parking brake cord is not connected.

- Connect the monitor's parking brake cord and set the parking brake. (For details, refer to the monitor's instructions.)

• Monitor's parking brake is not set.

- Connect the monitor's parking brake cord and set the parking brake. (For details, refer to the monitor's instructions.)

Playback does not start.

• Disc is loaded upside-down.

- Check the disc and load it with the labeled side facing upward.

• The disc is dirty.

- Clean the disc.

• A disc not able to playback with this unit is loaded.

- Check if the disc is able to be played back.

• Parental lock is set.

- Cancel the parental lock or change the rating level.

• Setup menu is displayed.

- Press SETUP to turn the menu off.

Picture is unclear or noisy.

• Disc is being fast-forwarded or fast-reversed.

- The picture may be unclear, but this is normal.

• Vehicle's battery power is weak.

- Check the battery power and wiring. (The unit may malfunction if the battery power is under 11 volts with a load applied.)

• Monitor's ﬂuorescent tube is worn out.

- Replace the monitor's ﬂuorescent tube.

Image stops sometimes.

• Disc is scratched.

- Replace with a non-scratched disc.

No picture display.

• Brightness control is set for minimum brightness control.

- Adjust the brightness.

• Incorrect setting of the mode.

- Switch to the correct mode.

- Check the connection to the source unit.

- Check the power of the source unit.

• Incorrect or open connection with the Monitor, AV interface

unit.

- Check the connection and remedy.

Picture color is poor.

• Brightness/Color/Tint/Contrast/Sharpness control are not set to

the proper positions.

- Check each control.

Spots or dotted lines/stripes appear.

• Caused by neon signs, high-voltage power lines, CB

transmitter, other vehicle’s ignition plugs, etc.

- Change the location of your vehicle.

Unit does not operate.

• Monitor’s power is not turned on.

- Turn on the monitor’s power.

Due to continuous product improvement, speciﬁ cations and design are subject to change without notice.

32-EN

System Indication

DISC ERROR

LOADING ERROR

• Mechanism error.

1) Press

and eject the disc.

If the disc does not eject, press and hold

for at least 3 seconds and eject the disc. If the disc still does not eject, consult your Alpine dealer.

2) When the error indication remains after ejecting, press again. If the error indication still does not turn off after pressing

a few times, consult your Alpine dealer.

• The temperature in the car is too low.

- Raise the temperature in the car to normal temperature.

NO DISC

• No disc is inserted.

- Insert a disc.

• Although a disc is inserted, "NO DISC" is displayed and the

unit does not start to play or eject the disc.

- To remove the disc, press and hold

for at least 3 seconds.

EJECT ERROR

• Mechanism error.

1) Press

and eject the disc.

If the disc does not eject, press and hold

for at least 3 seconds and eject the disc. If the disc still does not eject, consult your Alpine dealer.

2) When the error indication remains after ejecting, press again. If the error indication still does not turn off after pressing

a few times, consult your Alpine dealer.

VIDEO SIGNAL SYSTEM IS

NOT CORRECT

• PAL disc is loaded.

- Load an NTSC disc.

• Remote control operation is not possible.

- For some discs or playing modes, certain operations are not possible. This is not a malfunction.

REGIONAL CODE

VIOLATION

• Disc does not match regional code number.

- Load a disc that matches the regional code number.

HI-TEMP

• Protective circuit is activated at high temperature.

- The indicator will disappear when the temperature returns to within operation range.

- Leave the power OFF until the temperature decreases and then turn the power ON again.

33-EN

Accessories

Speciﬁ cations

Check accessory parts.

AV Connector 1 AV Connector 2 Power Connector

X 1 X 1 X 1

RUE-4159 Universal Remote Control

Trim Ring*2

AAA Battery

SHS-N100 Single Source Wireless IR Headphone

X 1 X 1 X 1

Screws (for Installation Bracket)

X 1 X 4 X 6

FM Switching Box Document

Installation Bracket*1

Screws (for Trim Ring)

Video Display System NTSC/PAL Compatibility

DISPLAY SCREEN

Size 10.2” Width 221mm (8.70”) Height 132mm (5.20”) Aspect Ratio 16:9 Type Transparent type TN

Liquid Crystal Display System TFT-LCD, Active Matrix Number of Elements 800(W) x 480(H) x 3

1.152M pixels (VGA) Effective Number of 99.9% or more Elements Back Light Cold Cathode Fluorescent

Lamp

GENERAL

Operating Voltage 10 – 16 V DC

(Typical: 12V)

Power Consumption 2.35A (MAX)

1.60A (TYP)

140mA (Stand by) Video Input 1.0V p-p 75ohm Audio Input 2.0V rms (max) IR Transmitter CH A: 2.3MHz / 2.8MHz

CH B: 3.2 MHz / 3.8MHz FM Modulator 8.1MHz - 92.1MHz

PLL Frequency

Synthesizer Operating Temperature -4 ˚F to +158 ˚F (-20 ˚C

to + 70 ˚C)

X 4 X 1 X 1

Built-in DVD Overhead Monitor

X 1

Installation of Bracket and Trim Ring

MONITOR

Width 305 mm (12.01”) Depth 305 mm (12.01”) Height 52 mm (2.05”) Weight 2.27Kg (5.0lbs)

ACCESSORIES

Weight 1.22Kg (2.7lbs)

CAUTION

CAUTION-Laser radiation when open, DO NOT STARE INTO BEAM

(Bottom side of player)

x 4 x 6

*1 Installation Bracket is used to stabilize the monitor at the time

of installing the monitor. Ask ALPINE dealer for detail.

*2 Trim Ring is used to make the monitor suitable to your vehicles

34-EN

ceiling shape at the time of installing the monitor. Ask ALPINE dealer for detail.

GARANTIE LIMITÉE

Fidèles à leur engagement de ne fournir que des produits de qualité, ALPINE ÉLECTRONIQUE DE L’AMÉRIQUE INC, et ALPINE ÉLECTRONIQUE DU CANADA, INC. (Alpine) sont heureuses de vous offrir cette garantie. Nous vous suggérons de le lire attentivement et en entier. Si vous avez la moindre question, veuillez contacter l’un de nos concessionnaires ou appeler directement Alpine aux numéros listés ci-dessous.

●PRODUITS COUVERTS PAR LA GARANTIE:

Cette garantie couvre les produits audio/visuel de voiture et les accessoires connexes (“le produit”). Elle ne couvre les produits que dans le pays où ils ont été achetés.

●DURÉE DE LA GARANTIE

Cette garantie est en vigueur pendant un an à partir de la date du premier achat du client.

●PERSONNES PROTÉGÉES PAR LA GARANTIE

Seul l’acheteur original du produit, s’il résisde aux États-Unis, à Porto Rico ou au Canada, peut se prévaloir de la garantie.

●CE QUI EST COUVERT

Cette garantie couvre tous les défauts de matériaux et de fabrication (pièces et main d’oeuvre) du produit.

●CE QUI N’EST PAS COUVERT

Cette garantie ne couvre pas ce qui suit:

1 Les dommages survenus durant le transport des produits

renvoyés à Alpine pour être réparés (les réclamations doivent être adressées au transporteur);

2 Tout dégât provoqué par accident, abus, négligence,

usage inapproprié, mauvais raccordement, mauvaise utilisation ou par le non-respect des instructions indiquées dans le manuel de l’utilisateur.

3 Les dommages dus à la force majeure, notamment aux

tremblements de terre, au feu, aux inondations, aux tempêtes ou aux autres cataclysmes naturels;

4 Les frais ou les dépenses relatifs à l’enlèvement ou à la

réinstallation du produit;

5 Les services rendus par une personne, physique ou

morale non autorisée;

6 Les produits dont le numéro de série a été effacé, modiﬁ é

ou retiré;

7 Les produits qui ont été adaptés ou modiﬁ és sans le

consentement d’Alpine;

8 Les produits qui ne sont pas distribués par Alpine aux

Etats-Unis, à Porto Rico ou au Canada;

9 Les produits qui n’ont pas été achetés par l’entremise

d’un concessionnaire Alpine autorisé;

●COMMENT SE PRÉVALOIR DE LA GARANTIE

1 Il vous faut remettre le produit nécessitant des réparations

à un centre de service autorisé Alpine ou à Alpine même et en assumer les frais de transport. Alpine a le choix entre réparer le produit ou le remplacer par un produit neuf ou révisé, le tout sans frais pour vous. Si les réparations sont couvertes par la garantie et si le produit a été envoyé à un centre de service Alpine ou à Alpine, le paiement des frais de réexpédition du produit incombe Alpine.

2 Vous devez donner une description détaillée des

problèmes qui sont à l’origine de votre demande de réparation.

3 Vous devez joindre la preuve de votre achat du produit. 4 Vous devez emballer soigneusement le produit pour

éviter tout dommage durant son transport. Pour éviter la perte de l’envoi, il est conseillé de choisir un transporteur qui propose un service de suivi des envois.

●LIMITATION DES GARANTIES TACITES

LA DURÉE DE TOUTES LES GARANTIES TACITES, Y COMPRIS LA GARANTIE D’ADAPTATION À L’UTILISATION ET LA GARANTIE DE QUALITÉ LOYALE ET MARCHANDE, EST LIMITÉE À CELLE DE LA GARANTIE EXPRESSE DÉTERMINÉE CI-DESSUS. PERSONNE N’EST AUTORISÉ À ENGAGER AUTREMENT LA RESPONSABILITÉ D’ALPINE EN VERTU DE LA VENTE D’UN PRODUIT.

●EXCLUSIONS DE LA GARANTIE

ALPINE STIPULE EXPRESSÉMENT QU’ELLE N’EST PAS RESPONSABLE DES DOMMAGES-INTÉRÊTS ET DOMMAGES INDIRECTS PROVOQUÉS PAR LE PRODUIT. LES DOMMAGES-INTÉRÊTS SONT LES FRAIS DE TRANSPORT DU PRODUIT VERS UN CENTRE DE SERVICE ALPINE, LA PERTE DE TEMPS DE L’ACHETEUR ORIGINAL, LA PERTE D’UTILISATION DU PRODUIT, LES BILLETS D’AUTOBUS, LA LOCATION DE VOITURES ET TOUS LES AUTRES FRAIS LIÉS À LA GARDE DU PRODUIT. LES DOMMAGES INDIRECTS SONT LES FRAIS DE RÉPARATION OU DE REMPLACEMENT D’AUTRES BIENS ENDOMMAGÉS SUITE AU MAUVAIS FONCTIONNEMENT DU PRODUIT. LES RECOURS PRÉVUS PAR LES PRÉSENTES EXCLUENT ET REMPLACENT TOUTE AUTRE FORME DE RECOURS.

●LIEN ENTRE LA GARANTIE ET LA LOI

La garantie vous donne des droits spéciﬁ ques, mais vous pouvez aussi jouir d’autres droits, qui varient d’un état ou d’une province à l’autre. En outre, certains états et certaines provinces interdisent de limiter la durée des garanties tacites ou d’exclure les dommages accessoires ou indirects. Dans ce cas, les limites et les exclusions de la garantie peuvent ne pas s’appliquer à vous.

●CLAUSE APPLICABLE AU CANADA SEULEMENT

Pour que la garantie soit valable, il faut qu’un centre d’installation autorisé ait installé le système audio pour l’auto dans votre véhicule et qu’il ait ensuite apposé son cachet sur la garantie.

●NUMÉROS D’APPEL DU SERVICE À LA CLIENTÈLE

Si vous avez besoin de nos services, veuillez appeler Alpine aux numéros ci-dessous pour le centre de service autorisé Alpine le plus proche.

AUDIO DE VOITURE 1-800-ALPINE-1 (1-800-257-4631) NAVIGATION 1-888-NAV-HELP (1-888-628-4357)

Ou visitez notre site Web à l’adresse http://www.alpineusa.com

ALPINE ÉLECTRONIQUE DE L’AMÉRIQUE, INC., 19145 Gramercy Place, Torrance, California 90501, U.S.A. ALPINE ÉLECTRONIQUE DU CANADA, INC., 777 Supertest Road, Toronto, Ontario M3J 2M9, Canada

N’envoyez aucun produit à ces adresses. Appelez notre numéro gratuit ou visitez notre site Web si vous recherchez un centre de service.

LIMITED WARRANTY

ALPINE ELECTRONICS OF AMERICA, INC. AND ALPINE OF CANADA INC. ("Alpine"), are dedicated to quality craftsmanship and are pleased to offer this Warranty. We suggest that you read it thoroughly. Should you have any questions, please contact your Dealer or contact Alpine at one of the telephone numbers listed below.

●PRODUCTS COVERED:

This Warranty covers Car Audio Products and Related Accessories ("the product"). Products purchased in the Canada are covered only in the Canada. Products purchased in the U.S.A. are covered only in the U.S.A.

●LENGTH OF WARRANTY:

This Warranty is in effect for one year from the date of the ﬁ rst consumer purchase.

●WHO IS COVERED:

This Warranty only covers the original purchaser of the product, who must reside in the United States, Puerto Rico or Canada.

●WHAT IS COVERED:

This Warranty covers defects in materials or workmanship (parts and labor) in the product.

●WHAT IS NOT COVERED:

This Warranty does not cover the following: 1 Damage occurring during shipment of the product to

Alpine for repair (claims must be presented to the carrier).

2 Damage caused by accident or abuse, including

burned voice coils caused by over-driving the speaker (ampliﬁ er level is turned up and driven into distortion or clipping). Speaker mechanical failure (e.g. punctures, tears or rips). Cracked or damaged LCD panels. Dropped or damaged hard drives.

3 Damage caused by negligence, misuse, improper

operation or failure to follow instructions contained in the Owner's manual.

4 Damage caused by act of God, including without

limitation, earthquake, ﬁ re, ﬂ ood, storms or other acts of nature. Any cost or expense related to the removal or reinstallation of the product.

5 Service performed by an unauthorized person,

company or association.

6 Any product which has the serial number defaced,

altered or removed.

7 Any product which has been adjusted, altered or

modiﬁ ed without Alpine's consent.

8 Any product not distributed by Alpine within the United

States, Puerto Rico or Canada.

9 Any product not purchased from an Authorized Alpine

Dealer.

●HOW TO OBTAIN WARRANTY SERVICE:

1 You are responsible for delivery of the product to an

Authorized Alpine Service Center or Alpine for repair and for payment of any initial shipping charges. Alpine will, at its option, repair or replace the product with a new or reconditioned product without charge. If the repairs are covered by the warranty, and if the product was shipped to an Authorized Alpine Service Center or Alpine, Alpine will pay the return shipping charges.

2 You should provide a detailed description of the

problem(s) for which service is required.

3 You must supply proof of your purchase of the

product.

4 You must package the product securely to avoid

damage during shipment. To prevent lost packages it is recommended to use a carrier that provides a tracking service.

●HOW WE LIMIT IMPLIED WARRANTIES:

ANY IMPLIED WARRANTIES INCLUDING FITNESS FOR USE AND MERCHANTABILITY ARE LIMITED IN DURATION TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE AND NO PERSON IS AUTHORIZED TO ASSUME FOR ALPINE ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THE PRODUCT.

●HOW WE EXCLUDE CERTAIN DAMAGES:

ALPINE EXPRESSLY DISCLAIMS LIABILITY FOR INCIDENTAL AND CONSEQUENTIAL DAMAGES CAUSED BY THE PRODUCT. THE TERM "INCIDENTAL DAMAGES" REFERS TO EXPENSES OF TRANSPORTING THE PRODUCT TO THE ALPINE SERVICE CENTER, LOSS OF THE ORIGINAL PURCHASER'S TIME, LOSS OF THE USE OF THE PRODUCT, BUS FARES, CAR RENTALS OR OTHERS COSTS RELATING TO THE CARE AND CUSTODY OF THE PRODUCT. THE TERM "CONSEQUENTIAL DAMAGES" REFERS TO THE COST OF REPAIRING OR REPLACING OTHER PROPERTY WHICH IS DAMAGED WHEN THIS PRODUCT DOES NOT WORK PROPERLY. THE REMEDIES PROVIDED UNDER THIS WARRANTY ARE EXCLUSIVE AND IN LIEU OF ALL OTHERS.

●HOW STATE/PROVINCIAL LAW RELATES TO THE WARRANTY:

This Warranty gives you speciﬁ c legal rights, and you may also have other rights which vary from state to state and province to province. In addition, some states/ provinces do not allow limitations on how long an implied warranty lasts, and some do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, limitations as to these matters contained herein may not apply to you.

●IN CANADA ONLY:

This Warranty is not valid unless your Alpine car audio product has been installed in your vehicle by an Authorized Installation Center, and this warranty stamped upon installation by the installation center.

●HOW TO CONTACT CUSTOMER SERVICE:

Should the product require service, please call the following number for your nearest Authorized Alpine Service Center.

CAR AUDIO 1-800-ALPINE-1 (1-800-257-4631) NAVIGATION

Or visit our website at; http://www.alpine-usa.com

1-888-NAV-HELP (1-888-628-4357)

ALPINE ELECTRONICS OF AMERICA, INC., 19145 Gramercy Place, Torrance, California 90501, U.S.A. ALPINE ELECTRONICS OF CANADA, INC., 777 Supertest Road, Toronto, Ontario M3J 2M9, Canada

Do not send products to these addresses. Call the toll free telephone number or visit the website to locate a service center.

Alpine PKG-RSE2 User Manual 2

Specifications and Main Features

Frequently Asked Questions

User Manual

Device Control

TV Tuner Control

Monitor Setup

DVD Setup

Dome Light Wire

System Connections
