Alpine IVA-W502R, IVA-W505R User Manual

FOR CAR USE ONLY/NUR FÜR AUTOMOBIL GEBRAUCH/POUR APPLICATION AUTOMOBILE UNIQUEMENT/PARA USO EN AUTOMÓVILES/SOLO PER L’UTILIZZO IN AUTOMOBILE/ENDAST FÖR BILBRUK/ALLEEN VOOR GEBRUIK IN DE AUTO/

ТОЛЬКО

ДЛЯ ИСПОЛЬЗОВАНИЯ В АВТОМОБИЛЯХ/DO UŻYCIA TYLKO W SAMOCHODZIE/ΓΙΑ ΧΡΗΣΗ ΜΟΝΟ ΣΕ ΑΥΤΟΚΙΝΗΤΟ

Mobile Media Station

IVA-W505R IVA-W502R

DIGITAL VIDEO

• OWNER’S MANUAL Please read before using this equipment.

• BEDIENUNGSANLEITUNG Lesen Sie diese Bedienungsanleitung bitte vor Gebrauch des Gerätes.

• MODE D’EMPLOI Veuillez lire avant d’utiliser cet appareil.

• MANUAL DE OPERACIÓN Léalo antes de utilizar este equipo.

• ISTRUZIONI PER L’USO Si prega di leggere prima di utilizzare il attrezzatura.

• ANVÄNDARHANDLEDNING Innan du använder utrustningen bör du läsa igenom denna användarhandledning.

• GEBRUIKERSHANDLEIDING Lees deze aanwijzingen aandachtig alvorens dit toestel te gebruiken.

• РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ

Прочтите настоящее руководство перед началом использования оборудования.

• INSTRUKCJA OBSŁUGI Prosimy zapoznać się z tą instrukcją przed przystąpieniem do użytkowania urządzenia.

• ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΤΗ Παρακαλούμε διαβάστε το πριν χρησιμοποιήσετε τη συσκευή.

ALPINE ELECTRONICS MARKETING, INC.

1-1-8 Nishi Gotanda,

Shinagawa-ku,

Tokyo 141-0031, Japan

Phone 03-5496-8231

ALPINE ELECTRONICS OF AMERICA, INC.

19145 Gramercy Place, Torrance,

California 90501, U.S.A.

Phone 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF CANADA, INC.

777 Supertest Road, Toronto,

Ontario M3J 2M9, Canada

Phone 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

161-165 Princes Highway, Hallam

Victoria 3803, Australia

Phone 03-8787-1200

ALPINE ELECTRONICS GmbH

Frankfurter Ring 117, 80807 München, Germany

Fletchamstead Highway, Coventry CV4 9TW, U.K.

B.P. 50016, 95945 Roissy Charles de Gaulle

Phone 089-32 42 640

ALPINE ELECTRONICS OF U.K. LTD.

Alpine House

Phone 0870-33 33 763

ALPINE ELECTRONICS FRANCE S.A.R.L.

(RCS PONTOISE B 338 101 280)

98, Rue de la Belle Etoile, Z.I. Paris Nord Il,

Cedex, France

Phone 01-48638989

ALPINE ITALIA S.p.A.

Viale C. Colombo 8, 20090 Trezzano

Sul Naviglio (MI), Italy

Phone 02-484781

ALPINE ELECTRONICS DE ESPAÑA, S.A.

Portal de Gamarra 36, Pabellón, 32

01013 Vitoria (Alava)-APDO 133, Spain

Phone 945-283588

ALPINE ELECTRONICS (BENELUX) GmbH

Leuvensesteenweg 510-B6,

1930 Zaventem, Belgium

Phone 02-725-13 15

68-12118Z55-B

ENGLISH

Contents Operating Instructions

WARNING

WARNING ................................................. 5

CAUTION .................................................. 5

PRECAUTIONS ........................................ 6

Discs Playable on This Unit ................... 7

Getting Started

Accessory List ................................................ 11

Location of Controls ...................................... 11

Turning Power On or Off ............................... 11

Inserting/Ejecting a Disc ................................ 12

Adjusting the Monitor Viewing Angle ........... 12

Adjusting the Volume ..................................... 12

How to view the Display ................................ 13

Soft button operation .................................. 13

Recalling the Source ................................... 13

Displaying the Numeric Keypad Input

Screen ...................................................... 14

Selecting the Display Style ......................... 14

Radio

Listening to the Radio .................................... 15

Presetting Stations Manually .......................... 15

Presetting Stations Automatically .................. 15

Tuning to Preset Stations ................................ 15

RDS Operation

Turning AF (Alternative Frequencies)

On or Off ..................................................... 16

Receiving Traffic Information ........................ 16

PTY (Programme Type) Tuning ..................... 16

Receiving Traffic Information While

Playing CD or Radio ................................... 17

Priority News .................................................. 17

Displaying Radio Text .................................... 17

CD/MP3/WMA/AAC

Playback ......................................................... 18

Repeat Play ..................................................... 18

M.I.X. (Random Play) ....................................18

Selecting Folders

(concerning MP3/WMA/AAC) ...................18

About MP3/WMA/AAC .................................19

DVD/Video CD

Playing a Disc .................................................21

To display the DVD mode screen ...............21

If a menu screen appears .............................21

Displaying the Top Menu Screen ...............22

Displaying the Menu Screen ......................22

Displaying the Menu Operation Mode

Screen ......................................................22

Searching by Programme ...............................23

Searching by Playlist ......................................23

Stopping Playback (PRE STOP) ....................23

Stopping Playback .........................................23

Fast-forwarding/Fast-reversing ......................23

Finding the Beginnings of Chapters/Tracks/

Files ............................................................23

Playing Still Frames (Pausing) .......................24

Forward/reverse frame-by-frame Playback ....24

Slow Motion Playback ...................................24

Selecting Programme (SKIP) .........................24

Selecting Playlist (SKIP) ...............................24

Selecting Folders ............................................24

Repeat Playback .............................................24

Searching by Title/Group/Programme/Playlist/

Folder Number ............................................25

Searching Directly by Chapter, Track or File

Number .......................................................25

Switching the Angle .......................................26

Scroll to Move the Page Forward or Back .....26

Switching the Audio Tracks ...........................26

Switching the Subtitles

(Subtitle Language) ....................................26

Switching from the disc menu .......................27

Displaying the Disc Status for

DVD/Video CD ..........................................27

About DivX® ..................................................27

Other Useful Features

Adjusting the Audio ........................................27

Search Function ..............................................28

1-EN

Rear Entertainment Function .......................... 29

Switching Display Modes ............................... 29

Switching the Visual Source Only

(Simultaneous Function) ............................. 30

Cancelling the Simultaneous Function ........ 30

Blackout Mode On and Off ............................30

Setup

DVD Setup

DVD Setup Operation ..................................... 30

Changing the language setting .................... 31

Setting of the Menu Language .................... 31

Setting of the Audio Language ...................31

Setting of the Subtitle Language ................. 31

Changing the Country Code Setting ........... 31

Setting the Rating Level (Parental Lock) .... 31

Changing the Digital Output Setting ........... 32

Setting the Downmix Mode ........................ 34

Setting the TV Screen Mode .......................34

Setting of the Bonus Code ..........................34

Setting of the DVD-Audio Playback

Mode .......................................................34

Playing MP3/WMA/AAC Data

(FILE PLAY MODE) .............................. 35

Setting the compressed File Playback

Data ..........................................................35

Displaying DivX® Disc Information .......... 35

Setting the Video CD Play Mode ................ 35

RADIO Setup

Radio Setup Operation ....................................35

RDS Time Display ......................................35

Adjusting Source Signal Levels .................. 35

PI SEEK Setting ..........................................36

Receiving RDS Regional (Local)

Stations .....................................................36

Switching the Display Language of PTY

(Programme Type) ................................... 36

Setting PTY31 (Emergency Broadcast)

Reception .................................................36

DISPLAY Setup

Display Setup Operation ................................. 36

Setting the Brightness of the

Backlighting .............................................37

Adjusting the Minimum Level of

Backlight ..................................................37

Switching Background Textures ................. 37

Setting Automatic Background Textures ....37

Switching the Font Back Display Colour .... 37

Adjusting the Touch Panel ..........................37

GENERAL Setup

General Setup Operation ................................ 38

Displaying the Time ....................................38

Setting the Time ..........................................38

Setting Daylight Saving Time ..................... 38

Demonstration Function .............................. 38

Sound (Beep) Guide Function ..................... 38

Setting the Scroll ......................................... 38

Switching to the Russian Font .....................38

Adjusting the Dimmer of Button Lighting

at Night ....................................................38

SYSTEM Setup

System Setup Operation .................................39

Setting the External Device Interrupt

Mode ........................................................39

Setting the Interrupt Icon Display ............... 39

Switching the function of the remote

sensor .......................................................39

Setting the Rear Camera Input .................... 40

Setting the Navigation Mode .......................40

Setting the Navigation Interruption ............. 40

Setting the AUX Mode ................................40

Adjusting the External Input Audio

Level ........................................................ 40

Switching the Visual Input Signal

System ......................................................40

Setting the Picture Output ........................... 40

Setting the Bluetooth Connection

(BLUETOOTH IN) ..................................41

Setting the USB Adapter to ON/OFF .......... 41

Setting the VISUAL Soft Button ................ 41

Setting the OPTION Button on the Unit .....41

Setting the Digital Output ........................... 41

Setting the AUX+ Mode ..............................41

Adjusting the AUX+ Audio Level .............. 41

L.L.C. (Linear Luminance Control) Setup

L.L.C. Setting Operation ................................ 42

Picture Quality Darkness Adjustment

Function (L.L.C.) .....................................42

Selecting the VISUAL EQ Mode

(Maker’s setting) ...................................... 42

Adjusting Brightness ...................................42

Adjusting Colour of Picture ........................ 42

Adjusting Tint of Picture ............................. 43

Adjusting Image Contrast ...........................43

Adjusting Picture Quality ............................ 43

Storing VISUAL EQ ................................... 43

Data Download

Downloading the BACKGROUND data ........43

2-EN

External Audio Processor (Optional)

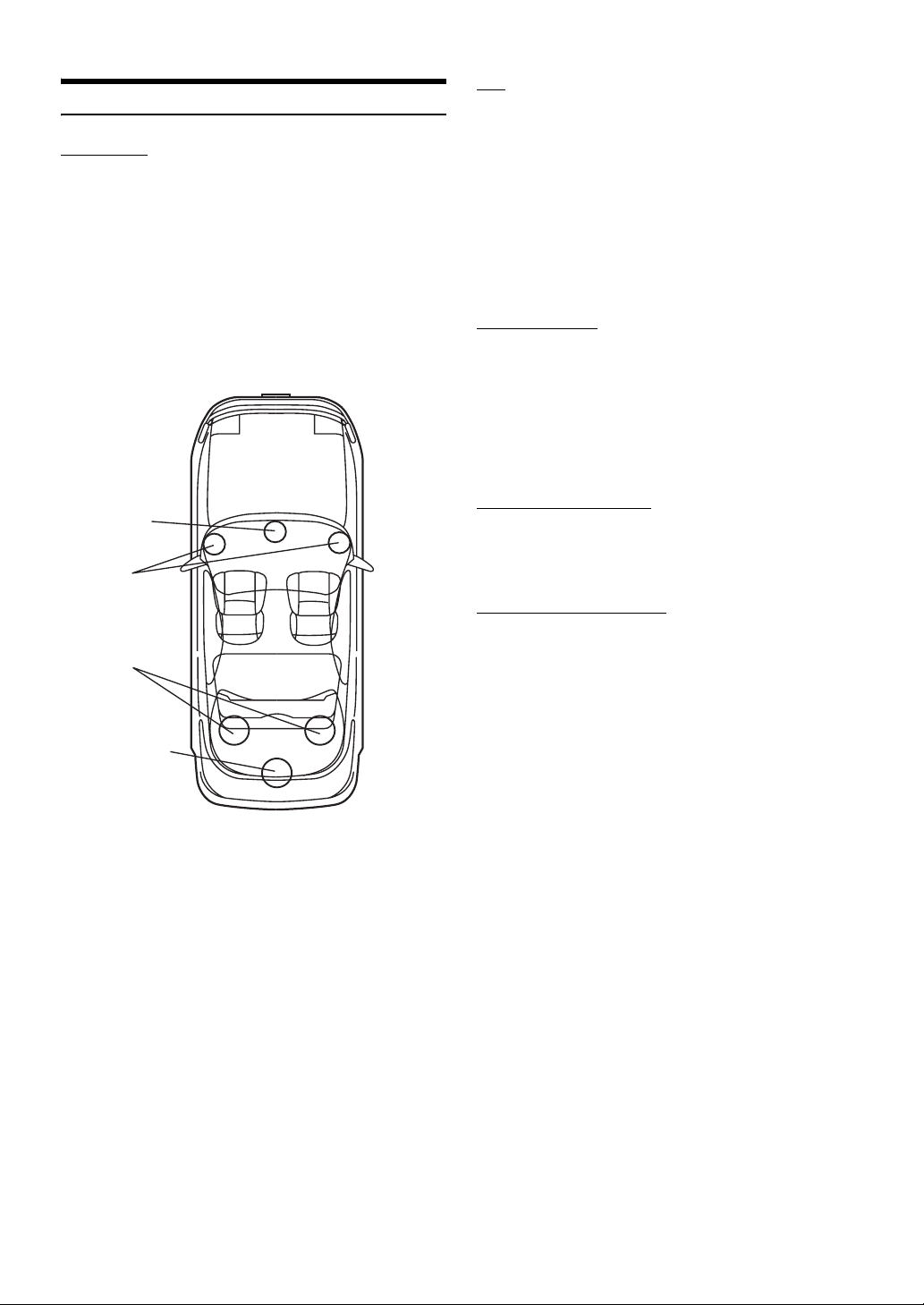

Adjustment Procedure for Dolby Surround .... 44

Setting the A.PROCESSOR ........................... 45

Setting the MX Mode of External Audio

Processor ..................................................45

Setting Bass Sound Control ........................45

Using the Pro Logic II Mode ......................45

X-OVER Adjustment .................................. 46

Performing Time Correction Manually

(T.CORR) .................................................46

Phase Switching ..........................................47

Graphic Equalizer Adjustments ..................47

Parametric Equalizer Adjustments .............. 47

Setting the Speakers ....................................48

Setting of Dolby Digital .............................. 48

Speaker Setup .............................................. 49

Adjusting the DVD Level ............................ 49

Linear PCM Setting .....................................49

Storing Settings in the Memory ...................... 49

Calling up the Preset Memory ........................ 49

IMPRINT Operation (Optional)

Changing MultEQ mode ................................. 50

Adjusting Sound Setting in Manual Mode .....50

Equalizer Presets (F-EQ) .............................50

Setting the Response Slope for the High

Range Speaker (TW SETUP) .................. 51

Setting the MX Level

(MEDIA XPANDER) .............................. 51

Adjusting the Parametric Equalizer Curve

(P-EQ) ......................................................51

Adjusting the Graphic Equalizer Curve

(G-EQ) .....................................................52

Setting the Time Correction Unit

(T.CORR PARAMETER) ........................52

Adjusting the Time Correction

(T.CORR) .................................................52

Adjusting the Crossover Settings

(X-OVER) ................................................ 52

Storing Settings in the Memory ...................... 53

Calling up the Preset Memory ........................ 53

Setting the Subwoofer .................................... 53

Adjusting the Subwoofer Level ...................53

Setting the Subwoofer System ....................53

Setting the Subwoofer Phase ....................... 53

Setting the Subwoofer Channel ................... 53

About Time Correction ...................................54

About the Crossover ....................................... 55

About IMPRINT .............................................56

Navigation System (Optional)

Switching the Navigation Screen

(Optional) .................................................... 57

Portable Navigation System Operation

(Optional) .................................................... 57

If the Built-in Dock is used for

IVA-W505R ............................................. 57

If an Optional Docking Station is used for

IVA-W505R ............................................. 57

Auxiliary Device (Optional)

Operating Auxiliary Devices (Optional) ........58

TUE-T200DVB Operation (Optional)

Operating the TUE-T200DVB (Optional) ...... 58

Changer (Optional)

Controlling CD Changer (Optional) ............... 59

Multi-Changer Selection (Optional) ............... 59

USB Adapter Operation (Optional)

Controlling USB (Optional) ........................... 60

USB Memory (Optional)

BANK Function (USB memory only) ............ 60

Playback ..........................................................61

Repeat Play ..................................................... 61

Random Play Shuffle (M.I.X.) ..................... 61

Searching for a desired Song .......................... 61

Searching by artist name ............................. 62

Selecting Playlist/Artist/Album/Genre/

Composer .................................................... 62

Select the desired Folder (Folder up/down) .... 62

Creating the playlist from the Artist/Album

information of the current song ................... 62

About MP3/WMA/AAC File of

USB Memory .............................................. 62

iPod® (Optional)

Playback ..........................................................63

Searching for a desired Song .......................... 63

Searching by artist name ............................. 64

Direct Search Function ...................................64

Selecting Playlist/Artist/Album/Genre/

Composer/Category ..................................... 64

Random Play Shuffle (M.I.X.) ....................... 64

Repeat Play ..................................................... 65

3-EN

Information

About DVDs ...................................................65

Terminology .................................................... 66

List of Language Codes ..................................67

List of Country Codes ..................................... 68

In Case of Difficulty .......................................70

Specifications ..................................................74

Installation and Connections

Warning .................................................. 75

Caution ................................................... 75

Precautions ............................................ 75

Installation ......................................................76

Connections ....................................................79

System Example ............................................. 82

4-EN

Operating Instructions

KEEP SMALL OBJECTS SUCH AS BOLTS OR SCREWS OUT

WARNING

OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician immediately.

WARNING

This symbol means important instructions. Failure to heed them can result in serious injury or death.

INSTALL THE PRODUCT CORRECTLY SO THAT THE DRIVER CANNOT WATCH TV/VIDEO UNLESS THE VEHICLE IS STOPPED AND THE EMERGENCY BRAKE IS APPLIED.

It is dangerous for the driver to watch TV/Video while driving a vehicle. Installing this product incorrectly enables the driver to watch TV/Video while driving. This may cause a distraction, preventing the driver from looking ahead, thus causing an accident. The driver or other people could be severely injured.

DO NOT WATCH VIDEO WHILE DRIVING.

Watching the video may distract the driver from looking ahead of the vehicle and cause an accident.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result in an accident.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISES WHILE DRIVING.

Excessive volume levels that obscure sounds such as emergency vehicle sirens or road warning signals (train crossings, etc.) can be dangerous and may result in an accident. LISTENING AT LOUD VOLUME LEVELS IN A CAR MAY ALSO CAUSE HEARING DAMAGE.

USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES.

Failure to do so may result in fire or electric shock.

DO NOT BLOCK VENTS OR RADIATOR PANELS.

Doing so may cause heat to build up inside and may result in fire.

USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.

Use for other than its designed application may result in fire, electric shock or other injury.

DO NOT PLACE HANDS, FINGERS OR FOREIGN OBJECTS IN INSERTION SLOTS OR GAPS.

Doing so may result in personal injury or damage to the product.

CAUTION

This symbol means important instructions. Failure to heed them can result in injury or material property damage.

HALT USE IMMEDIATELY IF A PROBLEM APPEARS.

Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Centre for repairing.

KEEP FINGERS AWAY WHILE THE MOTORIZED FRONT PANEL OR MOVING MONITOR IS IN MOTION.

Failure to do so may result in personal injury or damage to the product.

MINIMIZE DISPLAY VIEWING WHILE DRIVING.

Viewing the display may distract the driver from looking ahead of the vehicle and cause an accident.

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, fire or electric shock.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may result in fire, etc.

5-EN

PRECAUTIONS

CORRECT

Product Cleaning

Use a soft dry cloth for periodic cleaning of the product. For more severe stains, please dampen the cloth with water only. Anything else has the chance of dissolving the paint or damaging the plastic.

Temperature

Be sure the temperature inside the vehicle is between +45°C (+113°F) and 0°C (+32°F) before turning your unit on.

Moisture Condensation

You may notice the disc playback sound wavering due to condensation. If this happens, remove the disc from the player and wait about an hour for the moisture to evaporate.

New Discs

To prevent the CD from jamming, “DISC ERROR” is displayed if discs with irregular surfaces are inserted or if discs are inserted incorrectly. When a new disc is ejected immediately after initial loading, use your finger to feel around the inside of the centre hole and outside edge of the disc. If you feel any small bumps or irregularities, this could inhibit proper loading of the disc. To remove the bumps, rub the inside edge of the hole and outside edge of the disc with a ballpoint pen or other such instrument, then insert the disc again.

Centre Hole

Bumps

Centre Hole

New Disc

Outside (Bumps)

Damaged Disc

Do not attempt to play cracked, warped, or damaged discs. Playing a bad disc could severely damage the playback mechanism.

Maintenance

If you have problems, do not attempt to repair the unit yourself. Return it to your Alpine dealer or the nearest Alpine Service Station for servicing.

Never Attempt the Following

Do not grip or pull out the disc while it is being pulled back into the player by the automatic reloading mechanism. Do not attempt to insert a disc into the unit when the unit power is off.

Inserting Discs

Your player accepts only one disc at a time for playback. Do not attempt to load more than one disc. Make sure the label side is facing up when you insert the disc. “DISC ERROR” will be displayed on your player if you insert a disc incorrectly. If “DISC ERROR” continues to be displayed even though the disc has been inserted correctly, push the RESET switch with a pointed object such as a ballpoint pen. Playing a disc while driving on a very bumpy road may result in skips, but this will not scratch the disc or damage the player.

Irregular Shaped Discs

Be sure to use round shaped discs only for this unit and never use any special shaped discs. Use of special shaped discs may cause damage to the mechanism.

Installation Location

Make sure the IVA-W505R/IVA-W502R will not be installed in a location subjected to:

• Direct sun and heat

• High humidity and water

• Excessive dust

• Excessive vibrations

Correct Handling

Do not drop the disc while handling. Hold the disc so you will not leave fingerprints on the surface. Do not affix tape, paper, or gummed labels to the disc. Do not write on the disc.

INCORRECT CORRECT

Disc Cleaning

Fingerprints, dust, or soil on the surface of the disc could cause the DVD player to skip. For routine cleaning, wipe the playing surface with a clean, soft cloth from the centre of the disc to the outer edge. If the surface is heavily soiled, dampen a clean, soft cloth in a solution of mild neutral detergent before cleaning the disc.

6-EN

Disc Accessories

There are various accessories available on the market for protecting the disc surface and improving sound quality. However, most of them will influence the thickness and/or diameter of the disc. Using such accessories can cause operational problems. We recommend not using these accessories on discs played in Alpine DVD players.

Discs Playable on This Unit

Playable Discs

The discs listed below can be played on this unit.

Mark (logo) Recorded Content Disc size

12 cm*

DVD Video Audio + Video

8 cm

Transparent Sheet Disc Stabilizer

• After turning the system off, a slight ghost of the image will remain temporarily. This is an effect peculiar to LCD technology and is normal.

• In cold temperature conditions, the screen may lose contrast temporarily. After a short warm-up period, it will return to normal.

Alpine products equipped with the Ai-NET bus, connected to the IVA-W505R/IVA-W502R, can be operated from the IVA-W505R/ IVA-W502R. Depending on the products connected, the functions and displays will vary. For details, consult your Alpine dealer.

Operation of some of the functions of this unit is very complex. Because of this, it was deemed necessary to place these functions into a special screen. This will restrict operation of these functions to times when the vehicle is parked. This ensures the focus of the driver’s attention will be on the road and not on the IVA-W505R/ IVA-W502R. This has been done for the safety of the driver and passengers. Audio Processor Adjustments cannot be made if the car is moving. The car must be parked and the parking brake must be engaged for the procedure described in the Owner’s Manual to be valid. The warning “CAN’T OPERATE WHILE DRIVING” will be displayed if any attempts are made to perform these operations while driving.

• The IVA-W505R/IVA-W502R draws minimal current even when its

power switch is turned off. If the switched power (ignition) lead of the IVA-W505R/IVA-W502R is connected directly to the positive (+) post of the vehicle’s battery, the battery may be discharged. An SPST (Single-Pole, Single-Throw) switch (sold separately) can be added to simplify this procedure. Then, you can simply place it in the OFF position when you leave the vehicle. Turn the SPST switch back ON before using the IVA-W505R/IVA-W502R. For connecting the SPST switch, refer to the “Connection Diagram of SPST Switch (Sold Separately)” (page 78). If the power (ignition) lead is unswitched, it must be disconnected from the battery post should the vehicle be left unused for an extended period of time.

12 cm*

DVD Audio Audio + Video

DIGITAL VIDEO

(CD single)

Audio + Video

Video CD Audio + Video

Music CD Audio

DivX

* Two-layer DVD disc compatible

The formatted discs listed below can be played on this unit.

CD Format

MP3 Format (“mp3”)

WMA Format (“wma”)

AAC Format (“aac”, “m4a”)

DVD Video Format

DVD-VR Format

DivX Format (“avi”, “divx”)

Video CD Format

CD-R/

CD-RW

DVD-R/

DVD-RW

DVD+R/

DVD+RW

• Discs that are not finalised cannot be played back.

8 cm

12 cm

8 cm

12 cm

8 cm

12 cm

8 cm

7-EN

Discs that cannot be played

DVD-ROMs, DVD-RAMs, CD-ROMs (excluding MP3/WMA/ AAC files), photo CDs, etc.

DualDisc

This unit is not compatible with DualDisc. Using a DualDisc may cause unit malfunction, and may cause disc damage when the disc is inserted/ejected.

DVD region number (playable region number)

This DVD player will play back any disc whose region number is 2 (or All). DVDs with a region number other than those listed below, cannot be played on this DVD player.

ALL

Video CDs

This DVD head unit is compatible with playback control (PBC) compatible Video CDs (version 2.0). “PBC” is a function by which you can use menu screens recorded on the disc to find the scene you want to watch and view various types of information in dialog style.

Using compact discs (CD/CD-R/CD-RW)

If you use unspecified compact discs, correct performance cannot be guaranteed. You can play CD-Rs (CD-Recordables)/CD-RWs (CDReWritables) which have been recorded only on audio devices. You can also play CD-Rs/CD-RWs containing MP3/WMA/AAC formatted audio files.

• Some of the following discs may not play on this unit: Flawed discs, discs with fingerprints, discs exposed to extreme temperatures or sunlight (e.g., left in the car or this unit), discs recorded under unstable conditions, discs on which a recording failed or a re-recording was attempted, copy-protected CDs which do not conform to the audio CD industry standard.

• Use discs with MP3/WMA/AAC files written in a format compliant with this unit. For details, see

To customers using CD-R/CD-RW

• If a CD-R/CD-RW cannot be played back, make sure the last recording session was closed (finalized).

• Finalize the CD-R/CD-RW if necessary, and attempt playback again.

pages 19 and 20.

Tips for making your own CDs

The IVA-W505R/IVA-W502R plays DVD Video, DVD Audio, Video CD, Audio CD and has a built in MP3/WMA/AAC decoder.

The following information is designed to help you create your own music CDs (either Audio CD or MP3/WMA/AAC encoded CD-R/ RW files).

What is the difference between an Audio and MP3/WMA/AAC CD?

An Audio CD is the same format as the commercial CDs you buy in the store (also known as CD-DA). MP3 (MPEG-1 Audio Layer

3)/WMA (Windows Media Audio)/AAC (Advanced Audio Coding) is a data file that uses a compression scheme to reduce the size of the music file*.

Hybrid Audio CD and Data (MP3/WMA/AAC) CD-R/RW discs:

The IVA-W505R/IVA-W502R can read either sector on the disc. Choose CD-DA to play the CD audio section or MP3/WMA/AAC to play the MP3/WMA/AAC section*.

Multisession CD-R/RW:

Once a recording has been stopped, this is considered one session. If the disc is not closed (finalized), additional data may be added. Once this additional data has been recorded, this becomes a “multisession” CD. The IVA-W505R/IVA-W502R can only read multisession DATA Formatted discs (MP3/WMA/AAC files - Not Audio CD files).

Properly formatted MP3/WMA/AAC Discs:

Use ISO9660 formatting to insure proper playback. You may use standard ISO naming Level 1 (8.3 DOS standard), Level 2 (32 characters) or Joliet (Windows or Macintosh long filenames) file naming conventions*.

* Please consult the Owner’s manual for additional information.

On handling compact discs (CD/CD-R/CD-RW)

• Do not touch the surface.

• Do not expose the disc to direct sunlight.

• Do not affix stickers or labels.

• Clean the disc when it is dusty.

• Make sure that the disc is smooth and flat.

• Do not use commercially available disc accessories.

Do not leave the disc in the car or the unit for a long time. Never expose the disc to direct sunlight.

Heat and humidity may damage the disc and you may not be able to play it again.

8-EN

Using DVD-Rs/DVD-RWs/DVD+Rs/DVD+RWs

• This unit is compatible with discs recorded in the standard DVD-Video and DVD-VR (DVD-R/DVD-RW only) formats.

• Note that discs not finalized (processed to enable to play on playback-only DVD players) cannot be played on this DVD player.

• Some discs may not play back, depending on the recording device and disc format.

• Discs or files utilizing copy protection, may not be playable. Some recording systems may not properly format copied files to enable proper playback.

• In the following cases, the disc may not play on this unit: discs recorded by certain DVD recorders, certain irregular discs, flawed discs, dirty discs, when the pickup lens of this DVD player is dirty, or when moisture condensation has occurred inside the unit.

• Be sure to follow all cautions included with your DVD-Rs/ DVD-RWs/DVD+Rs/DVD+RWs discs.

• Do not put stickers, seals, or tape on the label side of DVD-Rs/ DVD-RWs/DVD+Rs/DVD+RWs.

• Compared to the regular discs, DVD-Rs/DVD-RWs/DVD+Rs/ DVD+RWs are more affected by heat, moisture, and direct sunlight. If left in a car, etc., damage may occur and it might not play on this unit.

• The operable temperature range for disc playback is as follows: DVD-R/DVD-RW: -25 ~ +70°C DVD+R/DVD+RW: +5 ~ +55°C

Disc terminology

Title

If titles are programmed for the DVD, these are the largest units of division of the information recorded on the disc.

Chapter

Each Title may also be divided into smaller divisions, called chapters. These can be specific scenes or musical selections.

Protecting the USB connector

• Only an iPod, USB memory or Portable audio player can be connected to the USB connector on this unit. Correct performance using other USB products cannot be guaranteed.

• If the USB connector is used, be sure to use only the supplied connector cable with the unit. A USB hub is not supported.

• Depending on the connected USB memory device, the unit may not function or some functions may not be performed.

• The audio file format that can be played back on the unit is MP3/WMA/AAC.

• Artist/song name, etc., can be displayed, however characters may not be correctly displayed.

CAUTION

Alpine accepts no responsibility for lost data, etc., even if data, etc., is lost while using this product.

On Handling USB Memory

• This unit can control a memory storage device that supports the USB Mass Storage Class (MSC) protocol. Playable audio file formats are MP3, WMA and AAC.

• USB memory function is not guaranteed. Use USB memory according to the terms of agreement. Read the USB memory Owner’s Manual thoroughly.

• Avoid usage or storage in the following locations:

Anywhere in the car exposed to direct sunlight or high temperatures. Anywhere the possibility of high humidity or corrosive substances are present.

• Fix the USB memory in a location where driver operation will not be hindered.

• USB memory may not function correctly at high or low temperature.

• Use only certified USB memory. Note that even certified USB memory, may not function correctly depending on its type or state.

• Depending on the settings of the USB memory type, memory state or encoding software, the unit may not play back or display properly.

• Files protected by DRM (Digital Rights Management), cannot be played back on this unit. These include AAC formatted files purchased from the iTunes Store and WMA or other files with some form of copyright protection.

• USB memory may take time to start playback. If there is a particular file other than audio in the USB memory, it may take considerable time before the file is played back or searched.

• The unit can play back “mp3”, “wma” or “m4a” file extensions.

• Do not add the above extensions to a file other than audio data. This non-audio data will not be recognized. The resulting playback may contain noise that can damage speakers and/or amplifiers.

• It is recommended to back up important data on a personal computer.

• Do not remove the USB device while playback is in progress. Change SOURCE to something other than USB, then remove the USB device to prevent possible damage to its memory.

9-EN

On Handling Portable audio player

• The unit can control a Portable audio player with the USB interface. Playable audio file formats are MP3 and WMA.

• Portable audio player function is not guaranteed. Use Portable audio player according to the terms of agreement. Read the Portable audio player Owner’s Manual thoroughly.

• Avoid usage or storage in the following locations:

Anywhere in the car exposed to direct sunlight or high temperatures. Anywhere the possibility of high humidity or corrosive substances are present.

• Fix the Portable audio player in a location where driver operation will not be hindered.

• Portable audio player may not function correctly at high or low temperature.

• Depending on the settings of the Portable audio player type, memory state or encoding software, the unit may not play back or display properly.

• If the Portable audio player has an MSC/MTP setting, set to MTP.

• A Portable audio player in which data is stored by USB Mass Storage may not be playable on the unit.

• Depending on the Portable audio player settings, USB Mass Storage may be supported. For setting, refer to the Owner’s Manual of the player.

• The unit can play back MP3/WMA files synchronized by Windows Media Player (Ver. 10 or 11), and are then forwarded to the player. The “mp3” or “wma” extensions are playable.

• If data is not synchronized by Windows Media Player and is forwarded in another way, the unit may not be able to correctly play back the files.

• WMDRM10 is supported by the unit.

• A file that is copy-protected (copyright protection) cannot be played back.

• It is recommended to back up important data on a personal computer.

• Do not remove the USB device while playback is in progress. Change SOURCE to something other than USB, then remove the USB device to prevent possible damage to its memory.

• This product incorporates copyright protection technology that

is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

• Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS 2.0 + Digital Out are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved.

• Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

• “MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.”

• “Supply of this product only conveys a license for private,noncommercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenuegeneration) real time broadcasting (terrestrial, satellite, cable and/or any other media), broadcasting/streaming via internet, intranets and/or other networks or in other electronic content distribution systems, such as pay-audio or audio-on-demand applications. An independent license for such use is required. For details, please visit http://www.mp3licensing.com”

• Audyssey MultEQ XT is a registered trademark of Audyssey Laboratories Inc.

• L.L.C. (Linear Luminance Control) uses technology provided by

Apical Limited, U.K.

10-EN

Getting Started

Accessory List

• Head unit .............................................................................1

• Power cable.........................................................................1

• Mounting sleeve ..................................................................1

• Bracket key..........................................................................2

• Flush Head Screw (M5 x 8) .................................................6

• Screw (M5 × 8) ....................................................................8

• Rubber Cap .........................................................................1

• Hex Bolt .............................................................................1

• Face plate ...........................................................................1

• Mounting Position Seal ........................................................2

• Slot Securing Screw (M2 x 4) (IVA-W505R only)* ...............2

• Pre OUT Cable ....................................................................1

• AUX I/O Cable .....................................................................1

• AV extension cable .............................................................1

• USB extension cable ...........................................................1

• USB 30P cable ....................................................................1

• Owner’s Manual.............................................................1 set

* To customers who do not use an optional portable navigation:

If necessary, secure the slot panel with this screw.

IMPRINT/AUDIO button

Press to recall the IMPRINT operation screen. (When the optional IMPRINT audio processor (PXA-H100) is connected.) Pressing and holding for at least 2 seconds will recall the AUDIO SETUP screen.

SOURCE/ button

Turns the power on. Press and hold for at least 2 seconds to turn the power off. Recalls the SOURCE selection screen.

OPEN button

IVA-W505R: Recalls the EJECT/TILT screen. If the disc does not eject after touching [EJECT] of DISC, press and hold OPEN for at least 3 seconds. IVA-W502R: Ejects a disc. If the disc does not eject after pressing OPEN, press and hold OPEN for at least 3 seconds.

RESET switch

Be sure to press the RESET switch when using the unit for the first time, after installing the CD changer, after changing the car battery, etc. Turn off the unit power, press RESET with a ballpoint pen or similar pointed object.

IVA-W505R: DOCK indicator

Lights when a portable navigation device is inserted into the unit.

IVA-W502R: DISC indicator

Lights when a disc is inserted into the unit.

Optional Remote Control Interface Box

This unit is operable using the vehicle’s secondary radio controls. An Alpine Remote Control Interface Box (optional) is required. For details, contact your Alpine dealer.

Location of Controls

Remote Sensor

Point the optional remote control transmitter towards the remote sensor within a range of 2 meters.

/ button

Press to adjust the volume.

TA bu t t o n

Turns the T. INFO mode ON or OFF. Press again to cancel the T. INFO mode when the T. INFO mode is turned on.

(OPTION) button

Press to recall the setting which is set in “Setting the VISUAL Soft Button” (page 41). If “V. SEL” is set, the VISUAL SETUP screen will be recalled. If “TEL” is set, the TEL Bluetooth screen will be recalled (when the optional Bluetooth Box is connected).

About the button descriptions used in this Owner’s Manual

• The buttons found on the face of the unit are expressed in bold

(e.g. SOURCE/ ). The buttons found on the touch-screen display are shown in bold within brackets, [ ] (e.g. [SOURCE]).

• This Owner’s Manual explains mainly the function of soft

buttons, when a soft button and a unit button have the same function.

Turning Power On or Off

Some of this unit’s functions cannot be performed while the vehicle is in motion. Be sure to stop your vehicle in a safe location and apply the parking brake, before attempting these operations.

Press SOURCE/ to turn on the unit.

• The unit can be turned on by pressing any button. However, the IVA-W502R cannot be turned on even if OPEN is pressed.

Press and hold SOURCE/ for at least 2 seconds to turn off the unit.

• Some operation of the unit cannot be performed while the vehicle is in motion. In this case, be sure to first stop your vehicle and apply the parking brake, then perform the operation.

• The IVA-W505R/IVA-W502R is a precision device. With gentle handling, its unique capabilities can be enjoyed for a long time.

11-EN

Inserting/Ejecting a Disc

Adjusting the Monitor Viewing Angle

IVA-W505R:

Press OPEN on the unit.

The display changes to the EJECT/TILT screen.

Insert a disc:

Touch [OPEN] on the EJECT/TILT screen. The movable monitor will open, then insert a disc into the disc slot. Inserting a disc will close the monitor automatically.

Disc Slot

Eject the disc:

Touch [EJECT] of DISC on the EJECT/TILT screen. The movable monitor will open. Then the disc is ejected.

Touch [CLOSE] on the EJECT/TILT screen.

The movable monitor will close.

IVA-W502R:

Insert the disc: Press OPEN.

The movable monitor will open. Insert disc in to Disc slot part.

Eject the disc: Press OPEN again.

Disc is ejected.

• Touching [ ] returns to the earlier main source screen

(IVA-W505R only).

• Do not apply shock to the movable monitor when it is open as it may

result in malfunction of the unit.

• The monitor may be dim during low temperature and immediately

after turning on the power. The brightness will return to normal as time elapses.

• The monitor will stop at the set tilt angle when closing.

CAUTION

Keep hands (or any other object) away from the monitor while it is opening or closing to avoid damage or injury. The back of the movable monitor will get very warm under normal operating conditions. This is not a malfunction. Do not touch.

Adjust the monitor’s angle for better visibility.

IVA-W505R:

Press OPEN on the unit.

The display changes to the EJECT/TILT screen.

Touc h [ ] or [ ] of TILT to adjust the desired monitor angle.

The monitor angle can be adjusted in 5 stages.

Touc h [ ] to return to the previous screen.

IVA-W502R:

Touc h [SETUP] for the selected source on the main screen.

The setup selection screen is displayed.

Touc h [DISPLAY SETUP].

Touc h [ ] or [ ] of TILT to adjust the desired monitor angle.

Pressing the buttons changes the screen angle by 5 stages.

Touc h [ ] to return to the previous screen.

• This function is adjustable while driving.

• If the monitor touches an obstacle while the angle is being adjusted,

it will stop immediately.

• The screen colour will vary when viewed at certain angles. Adjust the screen angle for the best viewing position.

• If the voltage of the vehicle’s battery power is low, the screen may blink when the screen angle is changed. This is normal and not a malfunction.

• Touching and holding [ ] for at least 2 seconds will change to the main source screen.

Adjusting the Volume

Adjust the volume by pressing or .

Volume decreases/increases continuously by pressing and holding or . Volume: 0 - 35

• The MUTE function can be performed by using the optional remote control.

12-EN

How to view the Display

Soft button operation

• Be sure to touch the button lightly with the pad of your finger on the

display to protect the display.

• If you touch a button and there is no reaction, remove your finger

from the display, and try again.

About the button descriptions used in this Owner’s Manual

• Soft buttons, ones found in the display, are shown in bold

enclosed in brackets, [ ] (e.g. [SOURCE]).

• Whenever a soft button and a head unit button have the same

function, the explanations in this Owner’s Manual will describe the function of the soft button.

Touc h [RADIO].

The screen changes to the Radio mode main display.

Display example for FM Radio main screen

Recalling the Source

Here is an example explanation for the Radio mode display on how to recall a source.

Touch [SOURCE] on the main screen.

The SOURCE selection screen is displayed.

Display example for SOURCE selection screen

Changes to VISUAL selection screen.

Set to VISUAL in “Setting the VISUAL Soft Button” on page 41.

Changes to SETUP selection screen. Changes to main source screen. Displays source modes that can be selected

(The kind of source modes that are displayed varies depending on connection and setting).

Returns to the previous screen. Changes to the REAR selection screen when “Setting the Picture Output” (page 40) is set to ON. The information about the current source.

e.g. The DISC image, Track NO. and Track time will be displayed in DISC mode.

Changes to the SOURCE selection screen (to Step 1 screen) Displays the source name, such as radio band, etc., that is selected Changes the display style, refer to “Selecting the Display Style” (page 14). Displays time and volume level Function Guide:

The function guide display varies depending on each source. The contents of the function guide change by touching [P1/2]*, [P1/3]* or [P1/4]* on the function guide, and many other operations can be performed.

* Display may vary depending on the connected devices.

Touc h [SOURCE] on the main source screen to change to another source screen, and select the desired source from the SOURCE selection screen.

• After 5 seconds of each operation in the visual mode, the screen changes to the visual screen only. To display the main source screen, touch the display panel, then touch [ESC] on the screen. The SOURCE selection screen appears by touching [SOURCE] on the changed main source screen.

13-EN

Displaying the Numeric Keypad Input Screen

The numeric keypad input screen is displayed when the DVD mode is selected for searching a title or chapter. It can also be used for entering a country code or password for DVD setup item.

Touch [10KEY] on the main source screen.

Touch the desired numeric key.

Display example for numeric keypad

Operation buttons of this area can be used while displaying the numeric keypad input screen. Input screen area Closes numeric keypad input screen All input numbers will be deleted Previous number will be deleted Input number is confirmed Numeric keypad The numeric keypad input screen closes when the area is touched while displayed.

Touch [ENT] to confirm your entry.

Selecting the Display Style

You can change the style of display by touching [Style] in normal mode of every source.

Style 1 (Initial) Style 2

Display example for iPod main screen

Changes to the L .L .C. adjustment screen (Only for visual source) directly, refer to page 42. Changes to the Bass*1,Treble*1 and Subwoofer*2 Level adjustment screen directly. When an optional external audio processor with the MEDIA XPANDER function is connected to this unit and Defeat is set to OFF, MEDIA XPANDER level may be also adjusted directly.

• If the optional IMPRINT audio processor (PXA-H100) is

connected, MultEQ must also be set to OFF to adjust the MEDIA XPANDER directly.

*1Adjustment cannot be performed when DEFEAT is set to ON.

(page 28).

*2Adjustment cannot be performed when SUBWOOFER is set to OFF

(page 28).

Displays the next 5 songs’ name (Only for the USB AUDIO and iPod mode).

Displays the image of the current source.

• If the playing song contains artwork, the artwork can be displayed in (Only for USB AUDIO*3 and iPod*4 mode).

*3 USB memory is connected by using USB connector and only JPEG

or BMP (565 formatted only) pictures that are smaller than 80KB can be displayed.

*4iPod is connected by using the USB connector.

14-EN

Radio

Display example for FM Radio main screen

[SOURCE] button: Refer to page 13 [VISUAL] button: Displays the VISUAL selection screen [SETUP] button: Displays the SETUP selection screen [Style] button: Refer to page 14 [DX SEEK]*1 button: Displays the tuning mode selection

list.

[PTY SEARCH]*2 button: Search for a station by PTY

(Programme Type) Tuning, refer to “PTY (Programme Type) Tuning” ( Displays the preset number/frequency

*1The button displays the current tuning mode. *2The button displays only when the tuning mode of PTY is selected.

Listening to the Radio

Touch [SOURCE] on the main source screen.

The SOURCE selection screen is displayed.

Touch [RADIO].

The radio mode is activated and the display changes to the Radio Mode screen.

page 16).

Presetting Stations Manually

Tune in a desired radio station you wish to store in the preset memory by manual or automatic seek tuning.

Touc h [P1/2] to change the function guide.

Touch and hold any one of the preset buttons [P.SET 1] through [P.SET 6] for at least 2 seconds.

The selected station is stored.

Repeat the procedure to store up to 5 other stations onto the same band.

To use this procedure for other bands, simply select the desired band and repeat the procedure.

A total of 30 stations can be stored in the preset memory (6 stations for each band; FM1, FM2, FM3, MW or LW).

• If a preset memory has already been set in the same preset number, it

will be cleared and the new station will be memorized.

Presetting Stations Automatically

The tuner can automatically seek and store 6 strong stations in the selected band in order of signal strength.

After selecting the desired band, touch [A.MEMO].

The tuner automatically seeks and stores 6 strong stations into [P.SET 1] to [P.SET 6] in order of signal strength. When the automatic storing has been completed, the tuner goes to the station stored in [P.SET 1].

• If no stations are stored, the tuner will return to the original station

you were listening to before the automatic storing procedure began.

Tuning to Preset Stations

You can tune in the preset stations in memory on each band using the preset number.

Touch [BAND] to select the desired radio band.

Each press changes the bands as follows:

FM-1 FM-2 FM-3 MW LW FM-1

Touch [DX SEEK] to choose the tuning mode.

DX SEEK Local SEEK MANUAL PTY

• There are two modes you can select for auto tuning, DX and

Local:

- DX (Distance) mode ;

Both strong and weak stations will be tuned in.

- Local mode ;

Only strong stations will be tuned in. The initial setting is DX.

Touch [ ], [ ] or [ ], [ ] to change the radio frequency up or down respectively.

In manual mode, touch and hold to change the frequency continuously.

After selecting the desired band, touch [P1/2] to change the function guide.

Touch any one of the preset buttons [P.SET 1] through [P.SET 6] that has a station stored to it.

The preset station is received.

15-EN

RDS Operation

Turning AF (Alternative Frequencies) On or Off

The RDS (Radio Data System) is a radio information system using the 57 kHz subcarrier of regular FM broadcast. The RDS allows you to receive a variety of information such as traffic information, station names, and to automatically re-tune to a stronger transmitter that is broadcasting the same programme.

Touch [SETUP] on the main source screen.

The SETUP selection screen is displayed.

Touch [SOURCE SETUP].

The source setup screen appears.

Touch [ ] of RDS SETUP.

The display changes to the RDS mode screen.

Touch [AF] to select the AF (Alternative Frequency) ON or OFF mode.

• RDS SETUP mode will not be displayed when the band of radio is set

to MW or LW.

• When the AF ON mode is selected, the unit automatically tunes to a

strong signal station in the AF list.

• Use the AF OFF mode when automatic re-tuning is not required.

Touch [ ] to return to the previous screen.

Tips

• If the unit receives the PTY31 (Emergency Broadcast) signal, the unit

will show “ALARM” in the display only when PTY31 is set to on. For operation, refer to “Setting PTY31 (Emergency Broadcast) Reception” (page 36).

• The RDS digital data includes the following:

PI Programme Identification

PS Programme Service Name

AF List of Alternative Frequencies

TP Traffic Programme

TA Traffic Announcement

PTY Programme Type

EON Enhanced Other Networks

• Refer to page 36 about “PI SEEK Setting”, “Receiving RDS

Regional (Local) Stations”, “Switching the Display Language of PTY (Programme Type)” and “Setting PTY31 (Emergency Broadcast) Reception”.

Receiving Traffic Information

Press TA to turn on the Traffic Information mode.

When the traffic information station is tuned in, the TA indicator lights up.

Traffic information is heard only when it is being broadcast. If traffic information is not being broadcast, the unit is set in the standby mode. When a traffic information broadcast begins, the unit automatically receives it and the display shows “Traffic Info”.

When traffic information broadcast is over, the unit will automatically set in the standby mode.

• If the traffic information broadcast signal falls below a certain level,

the unit remains in the receiving mode for 1 minute. If the signal remains below a certain level for over 70 seconds, “TA” blink light up in the display.

• If you do not want to listen to the traffic information being received,

press TA to skip that traffic information message. The T. INFO mode will remain in the ON position to receive the next traffic information message.

• If the volume level is changed while receiving traffic information, the

changed volume level will be memorised. When traffic information is received next time, the volume level will be automatically adjusted to the level memorised.

PTY (Programme Type) Tuning

RDS SETUP mode

Touc h [PTY SEARCH] on the screen.

FM Radio mode

Touc h [DX SEEK]* to choose the PTY tuning mode.

The PTY mode is activated. The Programme Type of the station being currently received will be displayed.

Touc h [ ] or [ ] after activating the PTY mode to choose the desired programme type while “PTY” (programme type) is displayed.

Each press scrolls the programme type by one.

Touc h [PTY SEARCH] after selecting the programme type to start searching for a station of the selected programme type.

If no station is found, “NO PTY” will be displayed.

* The button displays the current tuning mode.

16-EN

Receiving Traffic Information While Playing CD or Radio

The example explained here is how to receive the traffic information broadcast during CD playback.

In the CD mode, press TA to turn on the Traffic information mode.

The unit automatically starts to search the receivable traffic broadcasts.

When the traffic information broadcast is searched out, the CD mode is switched to the Radio mode and the unit receives the traffic information broadcast.

• When the traffic information broadcast starts, the unit automatically mutes the CD.

• When the traffic information broadcast finishes, the unit automatically returns to the original source you were playing before the traffic information broadcast began.

• The receiver is equipped with the EON (Enhanced Other Networks)

function so if the station being received does not broadcast the traffic information, the receiver automatically tunes in the related station that broadcasts the traffic information.

When the traffic information broadcast has finished, the unit returns to the CD mode.

CD/MP3/WMA/AAC

Display example for MP3/WMA/AAC main screen

[SOURCE] button: Refer to page 13 [VISUAL] button: Displays the VISUAL selection screen [SETUP] button: Displays the SETUP selection screen [Style] button: Refer to page 14 [ ] button: Refer to page 28 CD:

Displays the Track text*1/Disc text*1.

• If there is neither Track nor Disc name information, “NO TEXT” will

be displayed.

Priority News

This function allows you to preset to give priority to the News programme. You will never miss the News programme as the unit automatically gives priority to the News programme whenever it begins broadcasting, and interrupts the programme you are currently listening. This feature is functional when your unit is set to a mode other than the LW and MW modes.

Touch [NEWS] to activate the PRIORITY NEWS mode.

The “NEWS” indicator appears in the display. Touch [NEWS] again to deactivate the Priority News mode and return to the programme you were previously listening.

Touch [ ] to return to the previous screen.

Displaying Radio Text

Text messages from a radio station can be displayed.

Tune in a radio station that transmits text messages.

Touch [INFO.] in the FM radio mode to activate the Radio Text mode.

The display shows “WAIT” for a few seconds.

To deactivate the Radio Text mode, touch [INFO.].

• If there is no receivable text message or the unit cannot receive a text

message properly, the display shows “NO TEXT”.

MP3/WMA/AAC:

After displaying the file name in the upper line, the track name is displayed if there is ID3 tag information. After displaying the folder name in the lower line, the album name/artist name are displayed if there is ID3 tag information.

CD:

Displays the disc number*2/track number/elapsed time.

MP3/WMA/AAC:

Displays the disc number*3/folder number/track number/ elapsed playback time.

*1Displayed when a CD text disc is inserted. *2Displayed when a CD changer is connected. *3Displayed when an MP3 compatible CD changer is connected.

17-EN

Playback

Repeat Play

Touch [SOURCE] on the main source screen.

The SOURCE selection screen is displayed.

Touch [DISC].

The display shows the DISC mode screen.

When a CD/MP3/WMA/AAC is inserted into the DISC SLOT of the IVA-W505R/IVA-W502R, with the label side facing up, the unit starts to play the CD/MP3/WMA/AAC.

Touch [ ] or [ ] to select the desired track (file).

Returning to the beginning of the current track (file):

Touch [ ].

Fast reverse :

Touch and hold [ ].

Advancing to the beginning of the next track (file) :

Touch [ ].

Fast forward :

Touch and hold [ ].

To pause playback

Touch [ / ]. Touching [ / ] again will resume playback.

To eject the disc

IVA-W505R: Refer to “Inserting/Ejecting a Disc” (page 12). IVA-W502R: Press OPEN.

• The IVA-W505R/IVA-W502R model includes a built-in MP3/WMA/

AAC unit. You can play CD-ROMs, CD-Rs, and CD-RWs containing MP3/WMA/AAC files on this unit. Use the format compliant with this unit. For further information about playing or storing MP3/WMA/AAC files, refer to pages 19 and 20 before using the unit.

• WMA format files that are protected by DRM (Digital Rights

Management), AAC format files that have been purchased from iTunes Music Store and files that are copy-protected (copyright protection) cannot be played back on this unit.

• The unit can play discs containing both audio data and MP3/WMA/

AAC data.

• The track display for CD audio data playback is the track numbers

recorded on the disc.

• Three-inch (8 cm) CDs can be used.

• “Playing MP3/WMA/AAC Data (FILE PLAY MODE)” is mentioned

on page 35.

• If an MP3/WMA/AAC disc with many files and folders is played, it

takes a little longer than normal to start playback.

• Touch [ ] to activate the search mode. For operations, refer to

“Search Function” on page 28. However, the search mode function does not work in the CD changer mode.

• The playback time may not be correctly displayed when a VBR

(Variable Bit Rate) recorded file is played back.

Touch [ ] to play back repeatedly the track currently being played.

The track (file) will be played repeatedly.

Touch [ ] again and select OFF to deactivate Repeat play.

CD: RPT RPT DISC*1 (off) RPT

MP3/WMA/AAC:

1 Touch [P1/2]*3 to change the function guide. 2 Touch [ ] and select the desired Repeat play.

RPT RPT FLDR*2 RPT DISC*1 (off) RPT

*1If a CD Changer or an MP3 compatible CD changer is connected

and the RPT DISC mode is selected, the unit repeatedly plays back

all tracks (files) on the disc selected. *2Only files in a folder are repeatedly played back. *3Display may vary depending on the connected devices.

M.I.X. (Random Play)

Touch [ ] during playback.

The tracks (files) on the disc will be played back in a random sequence.

To cancel M.I.X. play, touch [ ].

CD: M.I.X. M.I.X. ALL*1 (off) M.I.X.

MP3/WMA/AAC:

1 Touch [P1/2]*4 to change the function guide. 2 Touch [ ] and select the desired M.I.X. play.

M.I.X. FLDR*3 M.I.X.*2 (off) M.I.X. FLDR*

*1If a CD Changer equipped with the M.I.X. ALL function is connected,

M.I.X. ALL will also be selectable.

In this mode, the tracks on all the CDs in the current magazine will

be included in the random playback sequence. *2If an MP3 compatible CD changer is connected, all files in a disc are

played back in random sequence, and playback shifts to the next disc. *3Only files in a folder are played back in random sequence in the

M.I.X. FLDR mode. *4Display may vary depending on the connected devices.

• If the search mode (page 28) is activated, the M.I.X. play mode will

be cancelled.

Selecting Folders (concerning MP3/ WMA/AAC)

Touch FOLDER [ ] or [ ] to select the folder.

18-EN

About MP3/WMA/AAC

CAUTION

Except for private use, duplicating audio data (including MP3/ WMA/AAC data) or distributing, transferring, or copying it, whether for free or for a fee, without permission of the copyright holder is strictly prohibited by the Copyright Act and by international treaty.

What is MP3?

MP3, whose official name is “MPEG-1, 2, 2.5 Audio Layer 3”, is a compression standard prescribed by the ISO, the International Standardization Organization and MPEG which is a joint activity institution of the IEC.

MP3 files contain compressed audio data. MP3 encoding is capable of compressing audio data at extremely high ratios, reducing the size of music files to as much as one-tenth their original size. This is achieved while still maintaining near CD quality. The MP3 format realizes such high compression ratios by eliminating the sounds that are either inaudible to the human ear or masked by other sounds.

What is AAC?

AAC is the abbreviation for “Advanced Audio Coding”, and is a basic format of audio compression used by MPEG2 or MPEG4.

What is WMA?

WMA, or “Windows Media™ Audio,” is compressed audio data. WMA is similar to MP3 audio data and can achieve CD quality sound with small file sizes.

Method for creating MP3/WMA/AAC files

Audio data is compressed using software with MP3/WMA/AAC codecs. For details on creating MP3/WMA/AAC files, refer to the user’s manual for that software. MP3/WMA/AAC files that are playable on this device have the file extensions. MP3: “mp3” WMA: “wma” (ver. 7.1, 8, 9, 9.1 and 9.2 are supported) AAC: “m4a” WMA is not supported for the following files. Windows Media Audio Professional, Windows Media Audio 9 Voice or Windows Media Audio 9 Pro Lossless.

There are many different versions of the AAC format. Confirm that the software being used conforms to the acceptable formats listed above. It’s possible that the format may be unplayable even though the extension is valid. Playback of AAC files encoded by iTunes is supported.

Supported playback sampling rates and bit rates

ID3 tags/WMA tags

If tag data is in an MP3/WMA/AAC file, this device can display the title (track title), artist name, and album name ID3 tag/WMA tag data (maximum 128 characters). This device can only display single-byte alphanumeric characters and the underscore. For non-supported characters, “NO SUPPORT” is displayed. The number of characters may be limited, or not correctly displayed, depending on the tag information.

Playing back MP3/WMA/AAC

MP3/WMA/AAC files are prepared, then written to a CD-R, CD-RW (DVD-R/DVD-RW) using CD-R writing software. A disc can hold up to 1024 files/256 folders (including Root Folders), and the maximum number of folders is 255. Playback may not be performed if a disc exceeds the limitations described above.

Media supported

The media that this device can play back are CD-ROMs, CD-Rs, and CD-RWs, DVD-Rs and DVD-RWs.

Corresponding File Systems

This device supports discs formatted with ISO9660 Level 1 or Level 2.

Under the ISO9660 standard, there are some restrictions to remember.

The maximum nested folder depth is 8 (including the root directory). The number of characters for a folder/file name is limited.

Valid characters for folder/file names are letters A-Z (all caps), numbers 0-9, and ‘_’ (underscore).

This device can play back discs in Joliet, Romeo, etc., and other standards that conform to ISO9660. However, sometimes the file names, folder names, etc., are not displayed correctly.

Formats supported

This device supports CD-ROM XA, Mixed Mode CD, Enhanced CD (CD-Extra) and Multi-Session. This device cannot correctly play back discs recorded with Track At Once or packet writing.

Order of files

Files are played back in the order that the writing software writes them to the disc. Therefore, the playback order may not be what’s expected. Verity the writing order in the software’s documentation. The playback order of the folders and files is as follows. (The following numbers may differ from actually displayed numbers.)

MP3

Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz,

Bit rates: 32 - 320 kbps

WMA

Sampling rates: 48 kHz, 44.1 kHz, 32 kHz

Bit rates: 48 - 192 kbps

AAC

Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz,

Bit rates: 16 - 320 kbps

This device may not play back correctly depending on sampling rates.

16 kHz, 12 kHz, 11.025 kHz, 8 kHz

19-EN

DVD/Video CD

Root Folder

Folder MP3/WMA/AAC File

Terminology

Bit rate

This is the “sound” compression rate specified for encoding. The higher the bit rate, the higher the sound quality, but also the larger the files.

Sampling rate

This value shows how many times per second the data is sampled (recorded). For example, music CDs use a sampling rate of 44.1 kHz, so the sound is sampled (recorded) 44,100 times per second. The higher the sampling rate, the higher the sound quality, but also the larger the volume of data.

Encoding

Converting music CDs, WAVE (AIFF) files, and other sound files into the specified audio compression format.

Tag

Song information such as track titles, artist names, album names, etc., written into MP3/WMA/AAC files.

Root folder

The root folder (or root directory) is found at the top of the file system. The root folder contains all folders and files. It is created automatically for all burned discs.

Display example for DVD Video main screen

[SOURCE] button: Refer to page 13 [VISUAL] button: Displays the VISUAL selection screen [SETUP] button: Displays the SETUP selection screen [Style] button: Refer to page 14

Displays the disc (DVD VIDEO, DVD AUDIO, PROGRAM/PLAYLIST (DVD-VR), VIDEO CD) being played back.

Displays tag information for DivX®.

Displays the title number/chapter number/elapsed playback time for a DVD Video. Displays the group number/track number/elapsed playback time for a DVD Audio. Displays the programme or playlist number/chapter number/elapsed playback time for a DVD-VR. Displays the track number/elapsed playback time for a Video CD (When PBC is turned off). Displays the folder number/file number/elapsed playback time for a DivX

• If [ ] on the DivX® mode screen is touched, the search list screen is

displayed. Refer to “Search Function” (page 28).

• Some operations cannot be carried out depending on the disc or

playback screen.

• Displays of the function guide [P1/2], etc., may vary depending on

the connected device(s).

Disc types that can be used for each heading are represented by the following marks.

DVD Commercial Video discs (used for the distribution of movies, etc.) or a DVD-R/DVDRW, DVD+R/DVD+RW recorded in a video mode can be used. Including a disc recorded with both DVD video and DVD audio data, played back when “VIDEO” is set in “Setting of the DVDAudio Playback Mode” (page 34).

DVD Commercial Audio discs can be used.

20-EN

DVD-R/DVD-RW discs recorded in DVD-VR mode can be used.

Video CD discs can be used.

CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/ DVD+RW discs that are recorded in the

DivX

mode can be used.

Playing a Disc

IVA-W505R/IVA-W502R has a built-in DVD player. When an optional Alpine DVD/Video CD/CD player (or DVD changer) is connected to the IVA-W505R/IVA-W502R IVA-W502R (except some operations).

WARNING It is dangerous (and illegal in many states) for the driver to watch the DVD/TV/Video while driving the vehicle. The driver may be distracted from looking ahead and an accident could occur.

Install the IVA-W505R/IVA-W502R correctly so that the driver cannot watch DVD/TV/Video unless the vehicle is stopped and the emergency brake is applied.

If the IVA-W505R/IVA-W502R is not installed correctly, the driver will be able to watch the DVD/TV/Video while driving the vehicle and may be distracted from looking ahead causing an accident. The driver or other people could be severely injured.

To display the DVD mode screen

• If you try to activate the auxiliary device while driving, the display

will show the warning-PICTURE OFF FOR YOUR SAFETY.

Caution

• Not all functions will operate for every DVD. See the

individual DVD’s instructions for details on the features supported.

• Fingerprints on a disc may adversely affect

playback. If a problem occurs, remove the disc and check for fingerprints on the playback side. Clean the disc if necessary.

• If you switch the power or Ignition key OFF or

change sources during playback, playback will continue where you left off when you resume playback.

• If you try to perform an invalid operation (based on

the type of disc being played), the following mark is displayed on the monitor screen:

, you can control it from the IVA-W505R/

• Play Position Memory Function Even if you turn power off or switch the Ignition key to OFF during playback or change the source, playback will continue from the point where playback stopped when the power is turned ON again.

Touc h [SOURCE] on the main source screen.

The SOURCE selection screen is displayed.

Touc h [DISC].

The display shows the DISC mode screen. Insert a disc with the label side facing up. The unit starts to play the disc.

When an optional Alpine DVD player is connected: Insert a disc into the DVD/Video CD/CD player, the player starts playing.

• The operation screen changes to the visual screen in the DVD or

Video CD mode for 5 seconds after an operation has been performed. Touch the display panel to display the operation screen again.

• The display mode can be changed by touching [WIDE].

For operation, see “Switching Display Modes” on page 29.

To eject the disc

IVA-W505R: Refer to “Inserting/Ejecting a Disc” (page 12). IVA-W502R: Press OPEN.

• The reverse side of a double-sided DVD will not be played

automatically. Remove the disc, turn it over, and reinsert it.

• Do not insert discs containing maps for the navigation system. Doing

so could result in damage.

• Refer also to “DVD Setup” (pages 30 to 35).

• Be sure the remote input lead is connected to the remote output lead

of this unit when a DVD changer or DVD player is connected. If not correctly connected, touch operation cannot be performed.

• To return to the previous screen during Video CD playback (when

PBC is set to ON), touch [ ] after touching [P1/2] of the function guide. However, the function may vary depending on the disc.

• “CAN’T DOWNMIX” is displayed when a Downmix (multi-channel

signals are mixed into 2ch) prohibited section of a DVD-Audio disc is played. In this case, only the Lch/Rch recorded on the disc is output as sound. (The sound of Centre speaker, L-surround speaker, Rsurround speaker, and Subwoofer is not output.)

• While “INDEX READING” is displayed by DivX®, the fast-

forwarding/fast-reversing and repeat functions, etc. cannot be used.

If a menu screen appears

On DVDs and Video CDs with playback control (PBC), menu screens may appear automatically. If this happens, perform the operation described below to start playback.

• To play back a DVD-Audio disc, set “VCAP” in “Setting of the DVD-

Audio Playback Mode” (page 34).

Direct Menu Operations

1 Touch the DVD menu directly.

• Some operations cannot be performed depending on the disc.

21-EN

Menu Operations

1 Touch [KEY].

The menu operation mode will be displayed.

Touch [RETURN] to return to the previous display.

2 Select a desired menu item by touching [ ], [ ], [ ] or

[ ].

3 Touch [ENTER] to confirm the selected item.

Numeric Keypad Input Operations

When PBC is turned OFF, the menu screen is not displayed. Turn it ON to display the screen. (See “Setting the Video CD Play Mode” on page 35.)

1 Touch [P1/2] in the Video CD mode to change the

function guide.

2 Touch [10KEY].

The numeric keypad is displayed. 3 Touch and input a desired number. 4 Touch [ENT] to confirm.

Displaying the Top Menu Screen

When a DVD contains two or more titles, the top menu screen appears.

Touch [TOP MENU] on the DVD mode main screen.

The top menu screen appears.

• To perform necessary operations, see “If a menu screen appears” on

page 21.

• To play back a DVD-Audio disc, set “VCAP” in “Setting of the DVD-

Audio Playback Mode” (page 34).

Displaying the Menu Screen

With a DVD having two or more menus, a menu screen will appear for the programmes available, in addition to the main programmes.

Touch [MENU] on the DVD mode main screen.

The menu screen appears.

• To perform necessary operations, see “If a menu screen appears” on

page 21.

1 Touch [KEY].

The menu operation mode appears.

2 Touch [KEY] again.

The numeric keypad input mode screen appears.

The numeric keypad input screen closes when the area is touched while displayed.

Touch [] to close the numeric keypad input screen.

3 Touch a desired number. 4 Touch [ENT] on the numeric keypad mode screen to

confirm your selection.

Displaying the Menu Operation Mode Screen

Touc h [P1/2]* on the DVD mode main screen.

The function guide changes.

* Touch [P1/3] to play back the DVD-Audio disc.

Touc h [MENU CONT].

The menu operation mode screen appears.

• For further operation, see “If a menu screen appears” on page 21.

• To play back a DVD-Audio disc, set “VCAP” in “Setting of the DVD-

Audio Playback Mode” (page 34).

22-EN

Searching by Programme

Touch [TOP MENU] on the DVD mode main screen while playing a DVD-VR disc.

The programme search list screen is displayed.

Touch [ ] of the programme you want to play.

The selected programme is played back, and then returns to the DVD mode main screen.

Searching by Playlist

Touch [MENU] on the DVD mode main screen while playing DVD-VR disc.

The playlist search list screen is displayed.

Touch [ ] of the playlist you want to play.

The selected playlist is played back, and then returns to the DVD mode main screen.

• Only discs containing a Playlist can be operated.

Fast-forwarding/Fast-reversing

DVD-Video, DVD-VR, Video-CD, DVD-Audio (VCAP mode)*, DivX

During playback, touch and hold [ ] (Fastreverse) or [ ] (Fast-forward).

When touched and held for more than 1 second, the disc is forwarded/reversed at double speed. When held for 5 more seconds or longer, the disc is forwarded/reversed at 8 times the normal speed. When held for 10 seconds or longer, the disc is forwarded/reversed at 21 times the normal speed.

DVD-Audio (VOFF mode)*:

During playback, touch and hold [ ] (Fastreverse) or [ ] (Fast-forward).

Stop touching [ ] or [ ] to return to normal playback.

Stopping Playback (PRE STOP)

Press the stop button during playback to stop playback. That position is stored in the memory.

Touch [ ] once during playback.

“PRE STOP” is displayed.

Touch [ / ] in the PRE STOP mode.

Playback starts from the position at which it was stopped.

• For some discs, the position at which playback was stopped may not

be accurate.

• To play back a DVD-Audio disc, set “VCAP” in “Setting of the DVD-

Audio Playback Mode” (page 34).

Stopping Playback

Touc h [ ] twice or touch and hold [ ] for at least 2 seconds during playback.

“STOP” is displayed, and playback stops.

• Playback starts from the beginning when [ / ] is touched while

playback is stopped.

* When “VCAP” or “VOFF” is set in “Setting of the DVD-Audio

Playback Mode” (page 34).

• No sound is played back during fast-forwarding/fast-reversing.

• For DVDs and Video CDs with playback control (PBC), the menu

screen may reappear during fast-forwarding/fast-reversing.

• This operation may not be possible on certain discs.

Finding the Beginnings of Chapters/ Tracks/Files

During playback, touch [ ] or [ ].

The chapter/track/file switches each time the button is touched, and playback of the selected chapter/track/file starts.

:Touch this to start playback from the beginning of the

following chapter, track or file.

:Touch this to start playback from the beginning of the

current chapter, track or file.

• Some DVDs do not have chapters.

• Be sure to turn PBC off before starting the search. (See “Setting the

Video CD Play Mode” on page 35.)

Supplementary explanations

“Chapters” are divisions of movies or musical selections on DVDs. “Tra cks ” are divisions of movies or musical selections on Video CD, DVD Audio and music CDs. “Group” associates a track (one song) with other tracks stored on a DVD-Audio. Group playback differs, depending on the disc. “Playlist” specifies a range of images and their playback order.

Only discs containing a Playlist can be used.

23-EN

Playing Still Frames (Pausing)

During playback, touch [ / ].

Touch [ / ] to resume playback.

• No sound is played during the still frame mode.

• The image or sound may stop temporarily when playback starts from

the pause mode. This is not a malfunction.

Selecting Playlist (SKIP)

Touc h [P1/3] twice while playing a DVD-VR disc.

The PLAYLIST function guide is displayed.

Touc h PLAYLIST* [ ] or [ ] to select a playlist.

* To switch the function guide display PROGRAM [ ] or [ ] to

PLAYLIST [ ] or [ ], play back the playlist. For details, refer to “Searching by Playlist” (page 23).

Forward/reverse frame-by-frame Playback

In the pause mode, touch [ ] or [ ].

The picture advances or reverses by one frame each time the button is touched.

Touch [ / ] to return to normal mode.

• No sound is output during forward/reverse frame-by-frame playback.

• Reverse frame-by-frame cannot be carried out on the DVD-VR and

Video CD.

Slow Motion Playback

When [ ] or [ ] is touched and held while in the pause mode, the 1/8th speed slow motion playback mode is set. When held in for 5 more seconds, the slow motion speed switches to 1/2 the normal speed.

Stop touching [ ] or [ ] to pause, and touch [ / ] to play back.

• No sound is played during slow motion playback.

• Reverse slow motion playback is not available on the DVD-VR and

Video CD.

• 1/2, 1/8 are approximate speeds. The actual speed differs from disc to

disc.

Selecting Programme (SKIP)

Touch [P1/3] twice while playing a DVD-VR disc.

The PROGRAM function guide is displayed.

Touch PROGRAM* [ ] or [ ] to select a programme.

* To switch the function guide display PLAYLIST [ ] or [ ] to

PROGRAM [ ] or [ ], play back the programme. For details, refer to “Searching by Programme” (page 23).

Selecting Folders

Touch FOLDER [ ] or [] to select the folder.

Repeat Playback

Use this function to play the disc’s titles, chapters or tracks, etc., repeatedly.

DVD Video

Touch [] on the touchscreen.

The repeat mode switches every time the button is touched.

REPEAT

REPEAT TITLE

REPEAT OFF

• Display may vary depending on the connected devices.

• The REPEAT mode is always turned off when [ ] is touched and

held for at least 2 seconds.

Video CD

During playback, touch [] on the touchscreen.

The repeat mode switches every time the button is touched.

REPEAT

REPEAT DISC

REPEAT OFF

* Displayed only in the changer mode.

• Display may vary depending on the connected devices.

• The track/disc repeat modes cannot be used on Video CDs with

playback control (PBC). These modes can be carried out after turning PBC off. See “Setting the Video CD Play Mode” on page 35.

• For some discs it is not possible to switch the repeat mode.

The chapter is played repeatedly.

The title is played repeatedly.

Playback returns to normal mode.

The track is played repeatedly.

The disc is played repeatedly.

Playback does not repeat.

24-EN

DVD Audio

DivX

Touc h [] on the touchscreen.

The repeat mode switches every time the button is touched.

VCAP mode*1:

REPEAT

REPEAT GROUP

REPEAT OFF

VOFF mode*1:

RPT

RPT GROUP

(off)

*1When “VCAP” or “VOFF” is set in “Setting of the DVD-Audio

Playback Mode” (page 34).

DVD-VR

Touc h [] on the touchscreen.

The repeat mode switches every time the button is touched.

The Programme mode*2:

REPEAT

REPEAT PROGRAM

REPEAT DISC

The Playlist mode*2:

REPEAT

REPEAT PLAYLIST

REPEAT DISC

*2To switch the Programme mode display to the Playlist mode display

on the DVD mode main screen, play back via programme or playlist search. Refer to “Searching by Programme” or “Searching by Playlist” (page 23).

• Only discs containing a Playlist can be displayed.

The track is played repeatedly.

The group is played repeatedly.

Playback returns to normal mode.

The track is played repeatedly.

The group is played repeatedly.

The disc is played repeatedly.

The chapter is played repeatedly.

The programme is played repeatedly.

All programmes are played repeatedly.

The chapter is played repeatedly.

The playlist is played repeatedly.

All playlists are played repeatedly.

During playback, touch [P1/2].

The function guide changes.

Touc h [ ].

The repeat mode switches every time the button is touched.

REPEAT

REPEAT FOLDER

REPEAT DISC (OFF)

• The REPEAT mode is always turned off when [ ] is touched and

held for at least 2 seconds.

The file is played repeatedly.

The folder is played repeatedly.

The disc is played repeatedly.

Searching by Title/Group/Programme/ Playlist/Folder Number

Use this function to easily find positions on the DVD using the DVD’s titles, groups, programmes or playlists.

Touc h [P1/2]* while playback is stopped.

The function guide appears.

* Touch [P1/3] while playing a DVD-Audio or DVD-VR disc.

Touc h [10KEY].

The numeric keypad input mode screen appears.

Enter a desired title, group, programme or playlist by touching its title, group, programme or playlist number.

See page 22 for operation of the numeric keypad.

Confirm your selection by touching [ENT].

Playback will start from the title number selected.

• To switch the Programme mode display to the Playlist mode display

on the DVD mode main screen, play back via programme or playlist search. Refer to “Searching by Programme” or “Searching by Playlist” (page 23).

• This function cannot be used on discs on which no title numbers are

recorded.

• Playback starts from the beginning of the chapter/track number in the

state of PRE STOP.

• Some disc may not accept any operation.

Searching Directly by Chapter, Track or File Number

Use this function to easily move to the beginnings of the chapters, tracks or files on the disc.

Touc h [P1/2]* in any mode other than stop mode.

The function guide will appear.

* Touch [P1/3] while playing a DVD-VR disc or DVD-Audio disc.

Touc h [10KEY].

The numeric keypad input mode screen will appear.

25-EN

Touch and enter the chapter or track number you want to play.

See page 22 for operation of the numeric keypad.

Touch [ENT] to confirm your selection.

Playback will start from the selected chapter or track.

• This function is not available for a disc on which chapters or tracks

are not stored.

• Be sure to turn PBC off before starting the search. (See “Setting the

Video CD Play Mode” on page 35.)

• For a Video CD disc, a track number can be selected even in the stop

mode.

Switching the Angle

On DVDs in which scenes have been filmed from multiple angles, the angle can be switched during playback.

During playback, touch [P1/2]*.

The function guide changes.

* Touch [P1/3] while playing a DVD-Audio.

Touch [ANGLE].

The angle switches between the angles recorded on the disc every time the button is touched.

• Some time may be required for the angle to change.

• Depending on the disc, the angle may switch in one of two ways.

- Seamless: The angle switches smoothly.

- Non-seamless: When the angle is switched, a still picture is

displayed first, after which the angle switches.

• To play back a DVD-Audio disc, set “VCAP” in “Setting of the DVD-

Audio Playback Mode” (page 34).

Switching the Audio Tracks

DVDs with multiplex audio or audio languages allow switching the sound during playback.

During playback, touch [P1/2]*1.

*1 The display differs according to the disc (mode).

Touc h [AUDIO].

The sound switches between the alternate audio tracks recorded on the disc every time the button is touched.

• The alternate track selected becomes the default setting every time

the power is turned on or the disc is replaced. If the disc does not include that track, the disc’s default language is selected instead.

• Not all discs will allow changing the alternate audio tracks during

playback. In these cases, select audio tracks from the DVDs menu.

• There may be a delay before the selected alternate track begins to

play.

Video CDs or DVD-VR disc with multiplex audio

During playback, touch [P1/2]*2.

The function guide changes.

*2Touch [P1/3] while playing a DVD-VR disc.

Touc h [AUDIO]*3.

The left and right channels will be output as shown below, each time the button is touched.

*3Touch [AUDIO] for at least 2 seconds to switch while playing a

DVD-VR disc.

AUDIO LL AUDIO RR AUDIO LR AUDIO LL

Scroll to Move the Page Forward or Back

“Page” is a still image stored on a DVD-Audio disc.

Touch [P1/3] twice while playing a DVD-Audio disc in VCAP mode*.

* To play back a DVD-Audio disc when “VCAP” is set in “Setting of

the DVD-Audio Playback Mode” (page 34).

Touch PAGE [ ] or [ ].

The display switches. Touch and hold to display the home page.

• For DVD-Audio discs without Pages, depending on the DVD-Audio

disc, the “Page” function may not be operable if images are in slide show form.

Switching the Subtitles (Subtitle Language)

With DVDs on which multiple subtitle languages are recorded, the subtitle language can be switched during playback; moreover, subtitles can be hidden.

During playback, touch [P1/2]*.

The function guide changes.

* Touch [P1/3] while playing a DVD-Audio or DVD-VR disc.

Touc h [SUBT.].

Touching this button repeatedly selects sequentially the subtitle languages recorded on the disc, and then turns the subtitles OFF.

• To play back a DVD-Audio disc, set “VCAP” in “Setting of the DVD-

Audio Playback Mode” (page 34).

• There may be a delay before the selected subtitle appears.

• Not all discs will allow changing the subtitles during playback. In

these cases, select subtitles from the DVDs menu.

• The subtitle language selected becomes the default setting every time

the power is turned on or the disc is replaced. If the disc does not include that language, the disc’s default language is selected instead. However, the subtitle language may differ depending on the disc.

• For some discs, the subtitles will be displayed even when this is set to

OFF. However, the subtitle language may differ depending on the disc.

• Switches the subtitles ON/OFF while playing a DVD-VR disc.

26-EN

Switching from the disc menu

Other Useful

For some discs, the audio language, angle and subtitles can be switched from the disc menu.

Touch [MENU] or [TOP MENU] to display the menu.

Select an item to confirm it.

See “If a menu screen appears” on page 21.

• To play back a DVD-Audio disc, set “VCAP” in “Setting of the DVD-

Audio Playback Mode” (page 34).

Displaying the Disc Status for DVD/Video CD

Use the procedure described below to display the status (title number, chapter number, group number, etc.) of the currently playing DVD or of the currently playing Video CD (track number, etc.) on the monitor.

During playback, touch the display panel.

The operation menu screen is displayed.

Touch [ESC] within 5 seconds.

The display status is displayed for 5 seconds.

• To play back a DVD-Audio disc, set “VCAP” in “Setting of the DVD-

Audio Playback Mode” (page 34).

About DivX

DivX® is a codec (software) programme to compress moving images while maintaining image quality using a highly advanced compression ratio and operating speed.

• Official DivX® Certified product

• Plays all versions of DivX® video (including DivX® 5) with standard playback of DivX

• DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license

The unit can play back CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/ DVD+RW discs that are recorded in the DivX® mode with extension “avi” or “divx”.

media files

Features

Adjusting the Audio

Touc h [SETUP] on the main source screen.

The SETUP selection screen is displayed.

Touc h [AUDIO SETUP].

The AUDIO SETUP screen appears.

Display Example for Audio Adjustment Screen

• Touching [ ] or [ ] will scroll the list one line at a time. Touching [ ] or [ ] will scroll the list one page at a time.

• Touching [ESC] will change to the main source screen.

• The A.PROCESSOR menu items will differ depending on which

optional audio processor is connected. The IMPRINT audio processor (PXA-H100) or External Audio processors may be used. For details, refer to “IMPRINT Operation (Optional)” (page 50) or “External Audio Processor (Optional)” (page 44).

Adjusting Balance/Fader

Touch [ ] of BALANCE/FADER, the adjusting screen of BALANCE/FADER will be displayed.

Display Example for BALANCE/FADER Screen

The optimum size for DivX® disc playback is as follows:

Screen Size: 32 to 720 pixel (horizontal) × 32 to 576 pixel

With an aspect ratio other than 16:9, black bars may be displayed on the left and right sides, or at the top and bottom of the screen.

Image bit rate: “average 4 Mbps, Peak 8 Mbps”

The following audio recording systems are supported.

MPEG1 Layer II 64 to 384 kbps MPEG1 Layer III 32 to 320 kbps MPEG2 Layer III 8 to 160 kbps MPEG2.5 Layer III 8 to 160 kbps Dolby Digital 64 to 448 kbps (Max. 5.1ch)

(vertical)

Home

Theater Profile supported

Adjusting the Fader

Touch [F] or [R] to adjust the volume of the front and rear speakers.

Setting range: F15 to R15

• If an IMPRINT audio processor (PXA-H100) is connected to this unit and you have set the 2.2ch (3WAY)/4.2ch (FRONT/REAR/SUBW.) switch of the IMPRINT audio processor (PXA-H100) to 2.2ch (3WAY), you cannot adjust the FADER mode. For details, refer to the Owner’s Manual of PXA-H100.

Adjusting the Balance

Touch [L] or [R] to adjust the sound volume of the left and right speakers.

Setting range: L15 to R15

27-EN

Adjusting the Balance/Fader Directly

Touch and move [ ] to a desired setting.

Or touch a desired setting range, and [ ] will move to that location. Touch [L] or [R] of Balance and [F] or [R] of Fader for fine-tuning.

Turning Defeat ON or OFF

Touc h [ ] to display the DEFEAT adjusting screen.

Touch [ ] or [ ] of DEFEAT to set to ON or OFF. If you set the defeat to ON, MX of an external audio processor is turned OFF and EQ is returned to the initial setting.

Adjusting NAV. MIX Level

Touc h [ ] or [ ] of NAV. MIX LEVEL to adjust the volume of navigation interruption.

Setting range: 0 to 15

• This adjustment becomes available when NAV. MIX is turned on in

“Setting the Navigation Interruption” (page 40).

• The setting navigation interruption is not displayed if an external

audio processor not compatible with NAV. MIX is connected.

Adjusting the Subwoofer Level

Touc h [ ] or [ ] of SUBWOOFER to set the subwoofer ON/OFF.

Touch [ ] to display the SUBWOOFER output adjusting screen after setting the SUBWOOFER to ON. Touch [ ] or [ ] to adjust the SUBWOOFER output.

Setting range: 0 to 15

• When an external processor is connected, the display changes from

“SUBWOOFER” to the “SUBW. LV” item. You can change the subwoofer output level between 0 and 15 by touching [ ] or [ ].

• The SUBWOOFER SYSTEM, SUBWOOFER PHASE and

SUBWOOFER CHANNEL may be set when an optional IMPRINT audio processor (PXA-H100) is connected, SUBWOOFER is set to ON, and MultEQ OFF mode is selected. For details, refer to “Setting the Subwoofer” on page 53.

Adjusting H.P.F. (Highpass Filter)

Touc h [ ] to display the H.P.F. adjusting screen.

Touch [ ] or [ ] of the desired speaker.

Setting range: OFF, 80 Hz, 120 Hz, 160 Hz

• Select OFF when no adjustment is required.

• When an external processor or IMPRINT audio processor

(PXA-H100) is connected, the display changes from “H.P.F.” to the “A.PROCESSOR” item. For “A.PROCESSOR” operation, refer to “External Audio Processor (Optional)” on page 44 or “IMPRINT Operation (Optional)” on page 50.

Adjusting Bass/Treble

You can change the bass/treble frequency emphasis to create your own tonal preference.

Touch [ ] to display the Bass/Treble adjusting screen. Touch [ ] or [ ] on the scroll bar to scroll the setup items line by line.

• Adjustment cannot be performed when an external audio processor is

connected and DEFEAT is set to ON.

Setting the Bass level

You can emphasize or weaken the bass frequency.

Touch [ ] or [ ] of BASS LEVEL to select the desired bass level.

Setting range: –7 to +7

Setting the Bass Centre Frequency

The displayed bass frequency is emphasized.

Touch [ ] or [ ] of BASS FREQ to select the desired bass centre frequency.

Setting range: 60 Hz, 80 Hz, 100 Hz, 200 Hz

Setting the Bass Bandwidth

Changes the boosted bass bandwidth to wide or narrow. A wider setting will boost a wide range of frequencies above and below the centre frequency. A narrower setting will boost only frequencies near the centre frequency.

Touch [ ] or [ ] of BASS BANDWIDTH to select the desired bass band width.

Setting range: WIDE1 to WIDE4

• The bass level settings will be individually memorized for each source (FM, MW, LW, CD, etc.) until the setting is changed. The bass frequency and bass bandwidth settings adjusted for one source are effective for all other sources (FM, MW, LW, CD etc.).

Setting the treble level

You can emphasize the treble frequency.

Touch [ ] or [ ] of TREBLE LEVEL to select the desired treble level.

Setting range: –7 to +7

Setting the Treble Centre Frequency

The displayed treble frequency is emphasized.

Touch [ ] or [ ] of TREBLE FREQ to select the desired treble centre frequency.

Setting range:10 kHz, 12.5 kHz, 15 kHz, 17.5 kHz

• The treble level settings will be individually memorized for each source (FM, MW, LW, CD, etc.) until the setting is changed. The Treble frequency settings adjusted for one source are effective for all other sources (FM, MW, LW, CD, etc.).

Setting the Loudness

Loudness introduces a special low- and high-frequency emphasis at low listening levels. This compensates for the ear’s decreased sensitivity to bass and treble sound.

Touch [ ] or [ ] of LOUDNESS to set to ON or OFF.

Search Function

Touc h [ ] on the function guide while in the CD, MP3/WMA/AAC or DivX® mode.

Search list screen is displayed.

Select a desired track or folder

Touch [ ] for direct playback.

When a hierarchical list is prepared, [ ] will be displayed. Touch [ ] to display the respective hierarchy list screens.

28-EN

Display Example for Search Screen

[ ] is displayed if there is a hierarchical list. Select directly by touching [ ], and its track (or folder/ file) is played back. Scroll the list one line at a time by touching [ ] or [ ]. Scroll the list one page at a time by touching [ ] or [ ]. Touch [ ] to return to the previous list screen.

• The search function does not work on the DVD, Video CD or CD

changer. If [TOP MENU] or [MENU] is touched in the DVD-VR mode, the unit changes to the search function. Refer to“Searching by Programme”and “Searching by Playlist” (page 23).

• A folder list is displayed only during MP3/WMA/AAC playback when

the DVD player (DVA-5210) or changer compatible with MP3 is connected.

Internal CD player mode

1 The track list* screen appears.

2 Touch [ ] of a desired track text*.

The selected track will be played back.

* If the CD is text compatible only.

• “TRACK” is displayed in the track text list if there is no text on

the disc.

Internal MP3/WMA/AAC/DivX Player/external MP3compatible DVD Player/Changer Mode

1 The folder list screen appears.

Select a desired folder and then touch [ ]. ([ ] appears only when a file is present in the selected folder.) The file list screen is displayed.

• Touch [ ] to play back the folder directly.

2 Touch [ ] of a desired file name.

The selected file will be played back.

Rear Entertainment Function

The rear entertainment function independently routes different sources to the front and the rear inside a car. For example, while listening to the radio or other audio source in the front, DVD can be enjoyed in the rear with the optional rear monitor and headphones.

Touc h [SOURCE] on the main source screen.

The SOURCE selection screen is displayed.

Touc h [RSE].

Rear Select display appears.

• Touching [MAIN] on the REAR selection screen will change to the main source screen.

Touch the desired source such as visual (auxiliary input, built-in DVD) to select.

• Touch [OFF] to cancel the rear entertainment function.

• When the “Setting the AUX Mode” (page 40) is set to OFF, the

auxiliary source is not displayed.

Switching Display Modes

While your vehicle is parked, touch [WIDE] on the visual source screen.

Each touch changes the display modes as follows:

MODE 1 MODE 2 MODE 3 MODE 1 (WIDE) (CINEMA) (NORMAL) (WIDE)

In Mode 1 (Wide), the monitor displays a normal picture wider to fit in a wide-screen monitor by evenly stretching out the picture horizontally.

In Mode 2 (Cinema), the monitor displays a normal picture by stretching out the picture horizontally and vertically. This mode is good for displaying a cinema type picture at the 16:9 ratio.

In Mode 3 (Normal), the monitor displays a normal picture at the centre of the screen with a vertical black band at each side.

29-EN

Switching the Visual Source Only (Simultaneous Function)

Setup

You can watch the video portion of another source while listening to the current source.

Touch [VISUAL] on the audio source screen.

The VISUAL selection screen appears.

Touch a desired visual source.

The visual source is switched to the selected one.

Cancelling the Simultaneous Function

Touch the visual screen to display the main control.

Touch [ESC].

Touch [VISUAL] within 5 seconds.

The VISUAL selection screen appears.

Touch [NORMAL].

The simultaneous function is cancelled.

• To make the setting, set to “Setting the VISUAL Soft Button”

(page 41).

• If a DVD player is connected, you can receive the DVD picture/

sound. DVD changer (DHA-S680P) is connected: Press and hold V.OUT on the remote control supplied with the DVD player or DVD changer for more than 2 seconds. The picture and sound of the DVD will be output. The DVA-5210 or DVD changer (DHA-S690) is connected: Press V.OUT on the remote control (included with the DVA-5210 or DHA-S690) to output DVD picture/sound.

• The simultaneous function cannot be used when the Audio source is

in the navigation mode. When NAV. is set in “Setting the VISUAL Soft Button” (page 41), only the navigation screen can be recalled.

DVD Setup

DVD Setup Operation

The Parking Brake must be engaged to access the DVD mode screen. Attempting to access this screen while driving will display the warning-CAN’T OPERATE WHILE DRIVING.

The DVD Setup operation can be carried out after removing the disc from the unit.

The following steps 1 to 5 are common operations to each “Setting item” of DVD Setup. Refer to each section for details.

Touc h [SETUP] on the main source screen.

The SETUP selection screen is displayed.

Touc h [SOURCE SETUP].

The SOURCE SETUP screen appears.

Touc h [ ] of DVD SETUP.

The DVD setup screen appears.

Touc h [ ], [ ] or [ ] etc., of the desired item to change its setting.

Setting items:

MENU LANGUAGE / AUDIO LANGUAGE / SUBT. LANGUAGE / COUNTRY CODE / PARENTAL / DIGITAL OUT MODE / DOWNMIX MODE / TV SCREEN / BONUS CODE / DVD-A SETUP / FILE PLAY MODE / DVD PLAY MODE / DivX INFO. / PBC

Blackout Mode On and Off

When Blackout mode is turned on, the monitor display will turn off to reduce power consumption. This additional power enhances the sound quality.

Touch [VISUAL] on the main source screen.

The VISUAL selection screen is displayed.

Touch [OFF].

The backlit-display portion goes out.

Touch [OFF] again to cancel the display backlight.

• To make the setting, set to VISUAL in “Setting the VISUAL Soft

Button” (page 41).

• If any button on the unit is pressed during Blackout mode, the

function will be displayed for 5 seconds to show the operation before returning to Blackout mode.

30-EN

Display example for DVD setup screen

Touch [ ] or [ ] to set a desired language. Touch [CODE] to display the numeric keypad input screen. Touch [ ] or [ ] to scroll a setting item list by one Line. Touch

[ ] or [ ]

to scroll a setting item list by one page.

The numeric keypad input screen closes when the area is touched while displayed. Numeric keypad input screen The numeric keypad is used if you want to play back in a language other than that displayed, or to input your parental lock password, etc.

Touch [ ] to return to the previous screen.

Touch and hold [ ] for at least 2 seconds to return to the main source screen that was displayed before the setup operation was started.

• Immediately after changing the settings of DVD mode (while the

system is writing data automatically) do not turn the ignition key (engine key) to OFF. Otherwise, the settings may not be changed.

Changing the language setting

The audio language, subtitle language and menu language can be set according to your preferences. Once set, this becomes the default language. This function is convenient when you always want to listen in English. (The language setting is not effective on some discs. If not, the default language is set from the factory.)

• When the settings are changed, the old settings are overwritten.

Make a note of the current settings before making changes. The memory is cleared when the vehicle’s battery is disconnected.

• To temporarily change the language of the current disc, either do so

from the DVD menu or by using the operation described in the section “Switching the Audio Tracks” (page 26).

• If the disc does not include the selected language, the disc’s default

language is set.

Setting of the Menu Language

Set the language used for the menus (title menu, etc.).

Setting item: MENU LANGUAGE Setting contents: AUTO / EN / JP / DE / ES / FR / IT / SE / RU / CN

• When “AUTO” is selected, the primary menu language among the

recorded ones is played.

Setting of the Audio Language

Set the audio language produced from the speakers.

Setting item: AUDIO LANGUAGE Setting contents: AUTO / EN / JP / DE / ES / FR / IT / SE / RU / CN

• When “AUTO” is selected, the primary audio language among the

recorded ones is played.

Setting of the Subtitle Language

Set the language of the subtitles displayed on the screen.

Setting item: SUBT. LANGUAGE Setting contents: AUTO / EN / JP / DE / ES / FR / IT / SE / RU / CN

• When “AUTO” is selected, the primary subtitle language among the recorded ones is played.

To play in a language other than those displayed

1 Touch [CODE].

The numeric keypad screen is displayed.

2 Touch the 4-digit numeral of the language number.

As for the language number, refer to “List of Language Codes” (page 67).

3 Touch [ENT] to memorize the number.

Changing the Country Code Setting

Set the country number of which you want to set the rating level (Parental lock).

Setting item: COUNTRY CODE Setting contents: AUTO / OTHER

AUTO: The primary country code among those recorded is

played.

OTHER: The setting content changes to “OTHER” if the desired

country code is input.

• When the settings are changed, the old settings are overwritten. Make a note of the current settings before making changes. The settings are cleared when the vehicle’s battery is disconnected.

1 Touch [CODE]. 2 Touch [ALL DEL] or [BS].

Delete the displayed country number.

3 Touch the 4-digit country code.

As for the country number, refer to “List of Country Codes” (pages 68 and 69).

4 Touch [ENT] to memorize the code.

Setting the Rating Level (Parental Lock)

This function can help restrict the viewing of movies to children of appropriate age levels only.

Setting item: PARENTAL Setting content: INPUT

• When the settings are changed, the old settings are overwritten. Make a note of the current settings before making changes. The memory is cleared when the vehicle’s battery is disconnected.

• On unrated DVDs, playback will not be restricted even if the rating level is set.

• If you want to play back DVD software with the parental lock feature and its use is currently restricted, change the rating level and the country number in order to play back the DVD.

• Once set, this rating level remains in memory until changed. To enable playback of discs of higher rating levels or to cancel the parental lock, the setting must be changed.

• Not all DVDs provide a Parental Lock feature. If you are unsure about a DVD, play it first to confirm. Do not leave DVDs accessible to young children for whom you deem them inappropriate.

31-EN

1 Touch [INPUT].

The numeric keypad screen is displayed.

2 Touch the numeric keypad to input a 4-digit password.

The initial number is 1111. Input number are displayed as “*”.

3 Touch [ENT] to memorize the number.

The PARENTAL screen appears.

Set the rating level of PARENTAL

4 Touch [ ] of PARENTAL to turn on. 5 Touch [ ] or [ ] of PARENTAL LEVEL to select the rating

level (1 to 8). Select “OFF” to cancel the parental lock or if you do not want to set a rating level. The smaller the number, the higher the rating level.

6 Touch [ ] to return to the previous screen.

Changing the password

4 Touch [INPUT] of PASSWORD CHANGE.

The numeric keypad screen is displayed.

5 Touch the input screen to enter a new 4-digit password.

• Keep a note of the number somewhere safe in case you should

forget it.

6 Touch [ENT] to memorize the number. 7 Touch [ ] to return to the previous screen.

Changing the rating level temporarily

Some discs may request that you change the rating level set in the default settings during playback. In this case, the message appears on the monitor screen “PARENTAL LEVEL CHANGE OK? [YES] [NO].”

If this screen appears, change the level as follows:

• To change parental level and play, touch [YES].

When [YES] is touched, the numeric keypad input screen is displayed. Input the 4-digit password in “Setting the Rating Level (Parental Lock)” you set, then touch [ENT].

• To play without changing the parental level, touch [NO].

(When [NO] is touched, playback will be at the parental level set in “Setting the Rating Level (Parental Lock).”)

Changing the Digital Output Setting

Use the following procedure to set the digital audio signal output from the IVA-W505R/IVA-W502R.

Setting item: DIGITAL OUT MODE Setting contents: AUTO / LPCM

AUTO : The digital output is switched automatically according

to the type of audio signals being played. Be sure to select “AUTO” when you want to connect a digital audio processor and play Dolby Digital audio. “AUTO” is the factory setting.

LPCM: The audio signals recorded on the disc are converted

to 48 kHz/16 bit (for DVDs) or 44.1 kHz (for Video CDs and CDs) linear PCM audio signals for output.

32-EN

Audio output/Optical digital audio output

Disc Audio recording format Digital output setting

Format Fs Q

LPCM

44.1/176.4kHz 16/20/24bit AUTO or LPCM 44.1kHz, 16bit, LPCM

(DVD SETUP)

(CD-DA,

DVD-V, DVD-A,

DVD-VR)

PPCM

(DVD-A)

48/96/192kHz 16/20/24bit AUTO or LPCM 48kHz, 16bit, LPCM 2ch

44.1/88.2/

16/20/24bit AUTO or LPCM Not output OK

176.4kHz

48/96/192kHz 16/20/24bit

Dolby Digital

48kHz 16/18/20bit LPCM 48kHz, 16bit, Decoded

(-EX)

(DVD-V, DVD-A,

DVD-VR)

DTS (-ES)

44.1kHz 16/20/24bit LPCM 44.1kHz, 16bit Decoded

(CD-DA,

DVD-V, DVD-A)

48/96kHz 16/20/24bit LPCM 48kHz, 16bit, Decoded

MPEG1Layer II

44.1kHz 16bit LPCM 44.1kHz, 16bit,

(VCD, DVD-V,

DVD-A,

DVD-VR)

48kHz 16bit LPCM 48kHz, 16bit, Decoded

MPEG2Layer II

44.1kHz 16bit LPCM 44.1kHz, 16bit,

(DVD-V, DVD-A,

DVD-VR)

48kHz 16bit LPCM 48kHz, 16bit, Decoded

MPEG1/2/

32kHz 16bit AUTO or LPCM 32kHz, 16bit, Decoded

2.5Layer III

(MP3, WMA)

44.1kHz 16bit AUTO or LPCM 44.1kHz, 16bit,

48kHz 16bit AUTO or LPCM 48kHz, 16bit, Decoded

* Not output when playing back a DVD-Audio.

Optical digital audio

output

2ch (2ch Downmix)

(2ch Downmix)

2ch (2ch Downmix)

AUTO Auto (Max 7.1ch)

2ch (2ch Downmix)

AUTO Auto (Max 6.1ch)

2ch (2ch Downmix)

AUTO Auto (Max 6.1ch)

Decoded 2ch

AUTO Auto

2ch (2ch Downmix)

AUTO Auto (Max 5.1ch)

Decoded 2ch

AUTO Auto

2ch (2ch Downmix)

AUTO Auto (Max 5.1ch)

2ch

Decoded 2ch

2ch

Analog audio output

(Ai-NET, RCA output)

33-EN

Setting the Downmix Mode

This function applies to Dolby Digital, DTS stream sound.

Setting item: DOWNMIX MODE Setting contents: SURROUND / STEREO

SURROUND: Surround compatible Downmix STEREO: Stereo Downmix

Setting the TV Screen Mode

Use the procedure described below to modify the output screen according to the type of TV monitor (rear monitor) being used. This setting can also be applied for the IVA-W505R/IVA-W502R. If the rear monitor is not connected, the screen setting is 16:9.

Setting item: TV SCREEN Setting contents: 4:3 LB / 4:3 PS / 16:9

• For some discs, the picture may not be set to the selected screen size.

(For details, refer to the explanation on the disc’s jacket.)

4:3 LETTER BOX:

Select this when connected to a conventional 4:3 size (normal TV aspect ratio) monitor. There may be black stripes visible at the top and bottom of the screen (when playing a 16:9 size movie). The width of these stripes will depend upon the original aspect ratio of the theatrical release of the movie.

16:9 WIDE:

Select this when connected to a wide screen TV. This is the factory setting.

Setting of the Bonus Code

Some DVD-Audio discs include bonus group. The 4 digit code for the bonus group can be memorized. Refer to the information on the jacket, etc., of the disc, for the code number.

Setting item: BONUS CODE Setting content: CODE

Touc h [CODE].

The 10 key input screen is displayed.

Input the 4 digit code number given on the jacket of the disc, etc.

Touc h [ENT] to memorize the number.

• If the code number of the bonus group differs from the code number you set in this section, the 10 key input screen automatically appears in the display. If a new code number is input, this code number will be replaced.

4:3 PAN-SCAN:

Select this when connected to a conventional 4:3 size monitor. The picture will fill the entire TV screen. However, due to the mismatch in aspect ratio, parts of the movie at the extreme left and right sides will not be visible (when playing a 16:9 size movie).

Setting of the DVD-Audio Playback Mode

To playback the DVD Audio Disc, you have a choice of 3 different settings. If the disc containing DVD Video and Audio, set VCAP (Video Capable Audio Player) or VOFF (Video OFF) to playback the DVD Audio.

Setting item: DVD-A SETUP Setting contents: VIDEO / VCAP / VOFF

VIDEO: Only DVD Video is played back if the disc contains

VCAP: DVD Audio is played back with Video. VOFF : DVD Audio is played back without Video.

DVD Video and Audio.

34-EN

Playing MP3/WMA/AAC Data (FILE PLAY MODE)

When using discs containing both audio data and MP3/WMA/AAC data.

Setting item: FILE PLAY MODE Setting contents: CD / CMPM

CD: Plays only the audio data on discs containing both

audio data and MP3/WMA/AAC data.

CMPM: Plays only the MP3/WMA/AAC files on discs containing

both audio data and MP3/WMA/AAC data.

• Insert the disc when playback is stopped and remove the disc from

the unit before setting.

• When an MP3-compatible CD changer is used, this setting cannot be

applied.

Setting the compressed File Playback Data

If a disc containing both a compressed video file and a compressed audio file is used, you have a choose to play back only a video or only audio.

Setting item: DVD PLAY MODE Setting contents: AUDIO / VIDEO

AUDIO: Only AUDIO data is played back. VIDEO: Only VIDEO data is played back.

Displaying DivX® Disc Information

Setting item: DivX INFO.

If [ ] of DivX INFO. is touched, a DivX® file registered code is displayed.

Setting the Video CD Play Mode

When playing a Playback Control (PBC) enabled Video CD, you can choose to set PBC ON or OFF.

Setting item: PBC Setting contents: OFF / ON

OFF: The PBC menu is not displayed. ON: The PBC menu is displayed.

RADIO Setup

Radio Setup Operation

The Parking Brake must be engaged to access the RADIO mode screen. Attempting to access this screen while driving will display the warning-CAN’T OPERATE WHILE DRIVING.

The following steps 1 to 5 are common operations to each “Setting item” of Radio Setup. Refer to each section for details.

Touc h [SETUP] on the main source screen.

The SETUP selection screen is displayed.

Touc h [SOURCE SETUP].

The SOURCE SETUP screen appears.

Touc h [ ] of RADIO SETUP.

The RADIO setup screen appears.

Touc h [ ] or [ ] of the desired item to change its setting.

Setting items:

RDS CLOCK DISP / FM LEVEL / PI SEEK / RDS REGIONAL / PTY LANGUAGE / PTY31

Touc h [ ] to return to the previous screen.

Touch and hold [ ] for at least 2 seconds to return to the main source screen that was displayed before the setup operation was started.

RDS Time Display

When ON is selected, the clock is adjusted automatically based on the time data sent from the RDS broadcast.

Setting item: RDS CLOCK DISP Setting contents: OFF / ON

OFF: To adjust it manually. ON: Adjust the clock automatically based on the time data. In

this case, the clock cannot be adjusted manually.

Adjusting Source Signal Levels

If the difference in volume level between the CD and FM radio is too great, adjust the FM signal level as follows.

Setting item: FM LEVEL Setting contents: LOW / HIGH

35-EN

PI SEEK Setting

Setting item: PI SEEK Setting contents: OFF / AUTO

Receiving RDS Regional (Local) Stations

DISPLAY Setup

Display Setup Operation

When OFF is selected, the unit automatically keeps receiving the related local RDS station.

Setting item: RDS REGIONAL Setting contents: OFF / ON

Switching the Display Language of PTY (Programme Type)

You can select one of the patterns of the display languages.

Setting item: PTY LANGUAGE Setting contents: GB / NL / F / D / I / E

Setting PTY31 (Emergency Broadcast) Reception

PTY31 (Emergency Broadcast) reception can be set to ON/OFF.

Setting item: PTY31 Setting contents: OFF / ON

• The unit automatically gives priority to an Emergency Broadcast

whenever it begins, and interrupts the programme you are currently listening to when PTY31 is set to on.

• The unit will show “ALARM” in the display during PTY31 reception.

The Parking Brake must be engaged to access the DISPLAY mode screen. Attempting to access this screen while driving will display the warning-CAN’T OPERATE WHILE DRIVING.

The following steps 1 to 4 are common operations to each “Setting item” of DISPLAY Setup. Refer to each section for details.

Touc h [SETUP] on the main source screen.

The SETUP selection screen is displayed.

Touc h [DISPLAY SETUP].

The DISPLAY SETUP screen appears.

Touc h [ ], [ ] or [ ] etc., of the desired item to change its setting.

Setting items:

TILT*1 / DIMMER / DIMMER LOW LEVEL / BACKGROUND / AUTO BACKGROUND / DATA DOWNLOAD*2 / BASE COLOR / SCREEN ALIGNMENT

*1 IVA-W502R only:

For operation, refer to “Adjusting the Monitor Viewing Angle” on page 12.

*2Refer to “Downloading the BACKGROUND data” on page 43.

Touc h [ ] to return to the previous screen.

Touch and hold [ ] for at least 2 seconds to return to the main source screen that was displayed before the setup operation was started.

• Immediately after changing the settings of Display Mode (While the system is writing data automatically) do not turn the ignition key (engine key) to OFF. Otherwise, the settings may not be changed.

36-EN

Setting the Brightness of the Backlighting

Setting Automatic Background Textures

Backlighting is provided by a fluorescent light built into the liquid crystal panel. The illumination control adjusts the brightness of the backlighting based on the car ambient lighting for easier viewing.

Setting item: DIMMER Setting contents: OFF / ON / AUTO

OFF: Deactivate Auto Dimmer mode to keep the background

ON: Keep the background illumination of the monitor dark. AUTO : Adjust the brightness of the background illumination of

• When ON or AUTO is set, the setting is also applied for the button

lighting in “Adjusting the Dimmer of Button Lighting at Night” (page 38).

illumination of the monitor bright.

the monitor automatically to the brightness of the car interior.

Adjusting the Minimum Level of Backlight

You can adjust the brightness of the backlight (LOW). This function could be used, for instance, to change the screen brightness while travelling at night.

Setting item: DIMMER LOW LEVEL Setting content: -15 to +15

You can adjust the level between MIN (-15) and MAX (+15). When it reaches the minimum or maximum point, the display shows “MIN” or “MAX” respectively.

Switching Background Textures

You have a choice of background textures you can set.

Setting item: BACKGROUND Setting contents: MODE1 / MODE2 / MODE3

* MODE3 is the black screen background supplied on this unit and

can’t be replaced by “Downloading the BACKGROUND data”.

• This operation can be carried out after removing the disc from the

unit or when playback of the disc has stopped.

• Wallpapers downloaded from “Downloading the BACKGROUND

data” (page 43) are recalled.

• When you select a source other than the built-in disc on this unit, and

the built-in disc is selected on the rear monitor connected to the unit, background textures cannot be displayed on the unit.

• When an error message is displayed (ERROR, etc.), background

textures selected by this setting cannot be displayed on the unit.

The background texture will automatically change each time the ignition key is turned off and turned back on again.

Setting item: AUTO BACKGROUND Setting contents: OFF / ON

OFF: Turn off the Auto Background Texture Scroll mode. ON: Turn on the Auto Background Texture Scroll mode.

The background textures will scroll when the ignition key is turned off once and turned back on again as follows:

MODE1 MODE2 MODE3 MODE1

• Wallpapers downloaded from “Downloading the BACKGROUND data” (page 43) are recalled.

Switching the Font Back Display Colour

You can choose from 4 different display colours for the font back (source title, shortcut display, etc.).

Setting item: BASE COLOR Setting contents: BLUE / RED / GREEN / AMBER

Adjusting the Touch Panel

Adjustment becomes necessary when the display position on the LCD and the touch position on the touch panel do not match.

Setting item: SCREEN ALIGNMENT Setting contents: / RESET

1 Touch [ ] of SCREEN ALIGNMENT.

The adjustment screen appears.

2 Accurately touch the mark provided in the lower left

corner of the screen. The screen changes to the adjustment screen.

3 Accurately touch the mark provided in the upper right

corner of the screen. This completes adjustment, and returns to the DISPLAY setup mode screen.

• If you have touched a location other than the mark, touch

[RESET] to restore the adjustment screen to the initial setting.

• If you touch [ ] on the adjustment screen, no adjustment is done and the DISPLAY setup screen is restored.

37-EN

GENERAL Setup

General Setup Operation

The Parking Brake must be engaged to access the GENERAL mode screen. Attempting to access this screen while driving will display the warning-CAN’T OPERATE WHILE DRIVING.

The following steps 1 to 4 are common operations to each “Setting item” of GENERAL Setup. Refer to each section for details.

Touch [SETUP] on the main source screen.

The SETUP selection screen is displayed.

Touch [GENERAL SETUP].

The GENERAL SETUP screen appears.

Touch [ ], [ ] or [ ] etc., of the desired item to change its setting.

Setting items:

CLOCK / CLOCK ADJUST / DAYLIGHT SAVING TIME / DEMONSTRATION / BEEP / AUTO SCROLL / LANGUAGE SELECT / LED DIMMER LEVEL

Touch [ ] to return to the previous screen.

Touch and hold [ ] for at least 2 seconds to return to the main source screen that was displayed before the setup operation was started.

• Immediately after changing the settings of General Mode (While the

system is writing data automatically) do not turn the ignition key (engine key) to OFF. Otherwise, the settings may not be changed.

Demonstration Function

This unit is equipped with a demonstration function capable of showing basic operations of respective sources on the monitor display.

Setting item: DEMONSTRATION Setting contents: OFF / ON

OFF: Turns off the demonstration mode. ON: Turns on the demonstration mode to show the basic

operations.

• The demonstration operation is automatically repeated until the function is turned off.

Sound (Beep) Guide Function

Setting item: BEEP Setting contents: OFF / ON

OFF: Deactivate the Sound Guide mode. The sound guide

ON: Activate the Sound Guide mode.

beep will not be produced when a button on the unit is pressed.

Setting the Scroll

Scroll display is available if CD text, folder name, file name or tag information is entered.

Setting item: AUTO SCROLL Setting contents: OFF / ON

OFF: Turns off the AUTO scroll mode. Scroll display is done

once as a track is changed.

ON: Turns on the AUTO scroll mode. Scroll display is

repeated as long as the mode is turned on.

• The display scrolls on the unit when the screen is filled up.

• Song, artist and album name, etc. scrolls when an iPod is connected.

Displaying the Time

The clock indication on the monitor display is turned on or off respectively.

Setting item: CLOCK Setting contents: OFF / ON

Setting the Time

Setting item: CLOCK ADJUST Further setting items : HOUR / MINUTE / TIME ADJUST Setting contents: 0-23 / 0-59 / RESET

HOUR: Adjust the hour. MINUTE: Adjust the minute. RESET: If the clock shows less than 30 minutes past, the

• The clock-adjusting mode is cancelled when the power is turned off,

when [ ] or [ESC] is touched.

• Clock adjustment can be made when “RDS Time Display” (page 35 )

is set to OFF.

minute will be “: 0”; more than 30, the hour advances.

Setting Daylight Saving Time

Setting item: DAYLIGHT SAVING TIME Setting contents: OFF / ON

OFF: Return to the ordinary time. ON: Place the Summer Time mode ON. The time advances by

one hour.

Switching to the Russian Font

Two types of font can be selected.

Setting item: LANGUAGE SELECT Setting contents: MODE1 / MODE2 / MODE3

MODE1: Normal Font Display (ISO8859-1). MODE2: Russian Font Display (WINDOWS-1251)

You cannot use this font for display in RDS, Tuner mode.

MODE3: European Font Display (WINDOWS-1252)

Adjusting the Dimmer of Button Lighting at Night

You can adjust the brightness of the button lighting at night with the dimmer.

Setting item: LED DIMMER LEVEL Setting level: -2 to +2

38-EN

SYSTEM Setup

System Setup Operation

The Parking Brake must be engaged to access the SYSTEM mode screen. Attempting to access this screen while driving will display the warning-CAN’T OPERATE WHILE DRIVING.

The following steps 1 to 4 are common operations to each “Setting item” of SYSTEM Setup. Refer to each section for details.

Setting the External Device Interrupt Mode

If an Alpine Ai-NET Interrupt Box (NVE-K200) is connected to the IVA-W505R/IVA-W502R, an Auxiliary Source will be allowed to interrupt the current audio source. For example, you can listen to the voice guidance of your navigation system when it occurs even while you are playing a CD or DVD. The CD/DVD player will be automatically muted during voice guidance. For further details, please refer to the manual for NVE-K200.

Setting item: IN INT. MUTE Setting contents: OFF / ON

OFF: The volume level can be adjusted in Interrupt mode. ON: Sound will not be output. The icon that is set in “Setting

the Interrupt Icon Display” is displayed.

Touch [SETUP] on the main source screen.

The SETUP selection screen is displayed.

Touch [SYSTEM SETUP].

The SYSTEM SETUP screen appears.

Touch [ ] or [ ] etc., of the desired item to change its setting.

Setting items:

IN INT. MUTE*1 / IN INT. ICON / REMOTE SENSOR*2 / CAMERA IN / NAV. IN / NAV. MIX*3 / AUX IN / AUX IN LEVEL*4 / AUX IN SIGNAL USB ADAPTER / VISUAL KEY*5 / OPTION KEY / OPTICAL OUT / AUX+ IN / AUX+ LEVEL

Displayed only when BLUETOOTH IN is OFF.

When ON is set in “Setting the Picture Output” (page 40), the item is displayed.

When ON is set in “Setting the Navigation Mode” (page 40), the item is displayed.

Not displayed when OFF is set in “Setting the AUX Mode” (page 40).

Not displayed when OFF is set in “Setting the Navigation Mode” (page 40).

Not displayed when OFF is set in “Setting the AUX+ Mode” (page 41).

Touch [ ] to return to the previous screen.

Touch and hold [ ] for at least 2 seconds to return to the main source screen that was displayed before the setup operation was started.

• Immediately after changing the settings of System Mode (while the

system is writing data automatically) do not turn the ignition key (engine key) to OFF. Otherwise, the settings may not be changed.

/ AUX OUT / BLUETOOTH IN /

• The auxiliary device being connected must have an Interrupt wire with a negative trigger for this function to operate automatically. Otherwise, a separate switch needs to be added to switch it manually.

Setting the Interrupt Icon Display

The unit can display the icon of an external device, such as a telephone, whenever a phone call comes in to tell you there is a phone call.

Setting item: IN INT. ICON Setting contents: INT / TEL

INT: The INT icon appears on the display. TEL: When the external device (telephone) sends the interrupt

signal, the telephone icon appears on the display.

Switching the function of the remote sensor

For optional remote control operation, the remote sensor of the external device (monitor, etc.) can be switched, as you prefer.

Setting item: REMOTE SENSOR Setting contents: FRONT / REAR

FRONT: The remote sensor of this unit is effective. REAR: The remote sensor of the external monitor

• If a touch panel rear monitor (connected to the Alpine rear monitor output via the Monitor control lead) is touched, the command is executed regardless of the remote control sensor switch setting. Note, however, that the remote control sensor that has been set takes priority if it has been 5 seconds since last touching the panel.

• When an optional DVD changer or DVD player is connected, and the remote control sensor is set to REAR, some soft button operations ( [ ] STOP, etc.) cannot be performed. In this case, set the remote control sensor to FRONT.

connected to AUX OUT of this unit becomes effective. The remote control operates the source connected to the AUX OUT terminals.

39-EN

Setting the Rear Camera Input

Setting the AUX Mode

With a rear camera connected, rear view video is output to the monitor.

Setting item: CAMERA IN Setting contents: OFF / NTSC/PAL

OFF: The CAMERA source is not displayed on the

VISUAL selection screen.

NTSC/PAL: Even if the shift lever is not set to reverse (R), the

rear pictures are output by selecting the CAMERA source.

• By shifting to reverse (R), the rear pictures are output.

This function is effective when the reverse wire is properly connected.

• To apply the setting, set to VISUAL “Setting the VISUAL Soft Button”

(page 41).

Setting the Navigation Mode

When you connect an optional navigation equipment, set it to ON.

Setting item: NAV. IN Setting contents: OFF / ON

OFF: Navigation source is not displayed. The settings related

to the navigation can not be changed from this unit.

ON: Navigation source is displayed.

Setting the Navigation Interruption

With an Alpine navigation system connected to the IVA-W505R/ IVA-W502R, the voice guidance of the navigation system will be mixed with the radio or CD play.

Setting item: NAV. MIX Setting contents: OFF / ON

OFF: The navigation interruption mode is turned off. ON: The navigation interruption mode is on.

Setting item: AUX IN Setting contents: OFF / ON / DVD / GAME / TV / DVB-T / EXT. DVD / NAV.

OFF: AUX source is not displayed. ON: AUX source is displayed.

• OFF is not displayed when the optional DVD player or DVD changer is connected. During SYSTEM setup, although the AUX name can be changed, it is not displayed on the source selection screen.

• When OFF is selected, the settings related to AUX cannot be changed from this unit.

• The selected source name is displayed instead of AUX source name. Select SOURCE to switch to the guide function of each mode.

• Only when an Alpine TV tuner is connected, you can operate the displayed function guide from this unit.

Adjusting the External Input Audio Level

After setting to ON in “Setting the AUX Mode”, this setting can be carried out.

Setting item: AUX IN LEVEL Setting contents: LOW / HIGH

LOW: Decreases the external input audio level. HIGH: Increases the external input audio level.

Switching the Visual Input Signal System

After setting to ON in “Setting the AUX Mode”, this setting can be carried out.

Setting item: AUX IN SIGNAL Setting contents: NTSC / PAL

• The video input type can be changed.

See “Adjusting NAV. MIX Level” under “Adjusting the Audio” on page 28 to set the navigation interruption volume level.

• The volume level for voice prompts during navigation guidance is set

by adjusting the volume while the prompts are announced. When the announcement finishes, the normal audio volume and the previous audio screen are restored. The voice prompt volume is always at or below the current listening volume. If a navigation announcement cuts in while adjusting the audio level, it always resets to the current level regardless of the audio level setting.

• This setting is effective when NAV. IN of SYSTEM list screen is ON.

Setting the Picture Output

Outputs the picture of the source selected on the IVA-W505R/ IVA-W502R connected to the rear monitor.

Setting item: AUX OUT Setting contents: OFF / ON

OFF: The “RSE” item is not displayed on the SOURCE

selection screen.

ON: The “RSE” item is displayed on the SOURCE selection

screen. Touch [RSE] to change to the REAR selection screen, and then touch the desired source. The selected source picture is output on the rear monitor.

40-EN

Setting the Bluetooth Connection (BLUETOOTH IN)

Setting item: BLUETOOTH IN Setting contents: OFF / NAV. (IVA-W505R only) / ADAPTER

OFF: Select to ignore any external interrupts. NAV.:

(IVA-W505R only)

ADAPTER

• The setting cannot be made when “Setting the External Device

Interrupt Mode” (page 39) is set to ON.

• For details on Bluetooth operation, refer to the Owner’s Manual of

the Bluetooth Box.

• If the Bluetooth Box compatible with the Voice Dial function is

connected, the Voice Dial function can be used.

Select when the optional portable navigation is connected. The TEL screen of the portable navigation is displayed.

: Select when the optional Bluetooth box is

connected. The TEL screen of the Bluetooth is displayed. When an external interruption occurs, the display changes to the TEL screen.

Setting the USB Adapter to ON/OFF

If a USB Adapter is to be used, set to ON.

Setting item: USB ADAPTER Setting contents: OFF / ON

OFF: Does not display the USB source name on the SOURCE

selection screen.

ON: Displays the USB source name on the SOURCE selection

screen.

• If ON is set even when a CD changer is connected, the source name

on the SOURCE selection screen will change from CD CHG to USB.

Setting the VISUAL Soft Button

Setting item: VISUAL KEY Setting contents: VISUAL / NAV.

VISUAL: Recalls the VISUAL selection screen by touching

[VISUAL].

NAV.: Switches directly to the navigation screen by touching

[VISUAL].

Setting the Digital Output

To connect an audio processor using the optical digital output, set to “ON” by the following procedure.

Setting item: OPTICAL OUT Setting contents: OFF / ON

• Afterwards, set ACC to OFF once, then turn it ON again. The setting of Digital Output is decided.

Setting the AUX+ Mode

An external device (such as a portable music player) can be connected to the iPod Direct connector of this unit. An iPod Direct/RCA Interface cable (optional) is required. A portable music device and an iPod cannot be connected to the iPod Direct connector at the same time.

Setting item: AUX+ IN Setting contents: OFF / ON

OFF: AUX+ source is not displayed. ON: AUX+ source is displayed.

• When OFF is selected, the settings related to AUX+ cannot be changed from this unit.

• Only when an Alpine TV tuner is connected, you can operate the displayed function guide from this unit.

Adjusting the AUX+ Audio Level

After setting to ON in “Setting the AUX+ Mode”, this setting can be carried out.

Setting item: AUX+ LEVEL Setting contents: LOW / HIGH

LOW: Decreases the external input audio level. HIGH: Increases the external input audio level.

Setting the OPTION Button on the Unit

The unit’s (OPTION) button function can be changed.

Setting item: OPTION KEY Setting contents: V. SEL / TEL

V. SEL: Press (OPTION) to recall the V. SEL screen. TEL: If you press (OPTION) when the Bluetooth Box is

connected, the Bluetooth TEL screen will be recalled.

41-EN

L.L.C. (Linear Luminance Control) Setup

L.L.C. Setting Operation

The Parking Brake must be engaged to access the L.L.C. mode screen. Attempting to access this screen while driving will display the warning-CAN’T OPERATE WHILE DRIVING.

The following steps 1 to 4 are common operations to each “Setting item” of L.L.C. Setup. Refer to each section for details.

Touch [SETUP] on the main source screen.

The SETUP selection screen is displayed.

Touch [L.L.C. SETUP].

The L.L.C. SETUP screen appears.

Touch [ ] or [ ] etc., of the desired item to change its setting.

Setting items:

L.L.C.* VISUAL EQ* BRIGHT COLOR* TINT* CONTRAST SHARP* USER MEMORY*

* The setting is available in the visual source mode (except navigation

screen).

Touch [ ] to return to the previous screen.

Touch and hold [ ] for at least 2 seconds to return to the main source screen that was displayed before the setup operation was started.

• Only one setting item can be displayed on each page, you can select

the desired brightness, picture tint, etc. through the screen shown.

Picture Quality Darkness Adjustment Function (L.L.C.)

This function allows picture darkness (brighter black/deeper black) of a dark scene to be adjusted.

Setting item: L.L.C. Setting contents: OFF / 1 / 2 / 3 / 4 / 5

You can adjust the level of picture adjustment effectiveness between 1 and 5.

12 345

Darker Brightness Darkness Balance Brighter

Selecting the VISUAL EQ Mode (Maker’s setting)

You can select a mode suitable for the subject image.

Setting item: VISUAL EQ Setting contents: OFF (FLAT) / NIGHT M. / SOFT / SHARP / CONTRAST / P-1 / P-2

OFF (FLAT): Initial Setting NIGHT M.: Suitable for movies in which dark scenes

SOFT: Suitable for CGs and animated films. SHARP: Suitable for old movies where images are not

CONTRAST: Suitable for recent movies. P-1: Recalls the VISUAL EQ mode being stored on

P-2: Recalls the VISUAL EQ mode being saved on

• To return to the initial setting after selecting any one of the setting contents (NIGHT M. to CONTRAST) and adjusting a desired brightness, picture tint, etc., set this function to OFF.

• If your desired brightness, picture tint, etc., are adjusted after selecting any one of the setting contents (NIGHT M. to CONTRAST), “CUSTOM” is displayed.

frequently appear.

clearly shown.

preset No.P-1 from “Storing VISUAL EQ” (

page 43).

preset No.P-2 from “Storing VISUAL EQ” (

page 43).

Adjusting Brightness

Setting item: BRIGHT Setting content: -15 ~ +15

You can adjust the brightness between MIN (–15) and MAX (+15). When it reaches the minimum or maximum point, the display shows “MIN” or “MAX” respectively.

• When any Visual EQ Preset is selected, the brightness is automatically adjusted according to the car’s interior lighting as long as AUTO is set in “Setting the Brightness of the Backlighting” (page 37).

Adjusting Colour of Picture

Setting item: COLOR Setting content: -15 ~ +15

You can adjust the colour between MIN (–15) and MAX (+15). When it reaches the minimum or maximum point, the display shows “MIN” or “MAX” respectively.

• Colour adjustment can be made only in the navigation, DVD, Video CD, AUX modes.

• Colour adjustment cannot be made if a Navigation system with the RGB feature is connected.

42-EN

Adjusting Tint of Picture

Setting item: TINT Setting content: G15 ~ R15

Adjust the colour from G15 to R15. “G MAX” or “R MAX” is displayed at the maximum of each colour.

• Tint adjustment can be made only in the navigation, DVD, Video CD,

AUX mode s.

• Tint adjustment cannot be made if a Navigation system with the RGB

feature is connected.

• When setting PAL, you cannot adjust the TINT.

Adjusting Image Contrast

Setting item: CONTRAST Setting content: -15 to +15

Contrast adjustment range is -15 to +15. “LOW” and “HIGH” appear as the minimum and maximum values specified.

Adjusting Picture Quality

Setting item: SHARP Setting content: -15 to +15

Picture quality adjustment range is -15 to +15. “SOF T” and “HARD” appear as the minimum and maximum values specified.

• Picture quality adjustment can be made only in the navigation, DVD,

Video CD, AUX modes.

• Picture quality adjustment cannot be made if a Navigation system

with the RGB feature is connected.

Storing VISUAL EQ

You can store the settings made for “Adjusting Image Brightness, Tint, Depth, Picture Quality and Contrast.”

Setting item: USER MEMORY Setting contents: P-1 / P-2

1 After completing “Adjusting Brightness, Tint, Depth,

Picture Quality, and Contrast” (pages 42, 43), touch [ ] or [ ] of USER MEMORY and then select preset No. “P-1” or “P-2” to which the settings are to be stored.

2 After selecting a preset No., touch [MEMORY].

The adjusted VISUAL EQ mode is stored by the above operations.

• You can recall the VISUAL EQ mode stored here from P-1 or P-2 of

“Selecting the VISUAL EQ Mode (Maker’s setting)” (page 42).

Data Download

Downloading the BACKGROUND data

You can download data (from Alpine’s website) to a CD-R/CD-RW (data is written in the root folder), and store the data to the IVA-W505R/ IVA-W502R. To start BACKGROUND download, access the URL below and follow the on-screen instructions.

http://www.alpine.com or http://www.alpine-europe.com or http://www.alpine.com.au

Insert the CD-R/CD-RW disc containing the data you need.

Touc h [ ] or [ ] of DATA DOWNLOAD, then select USER1 or USER2.

The selected wallpaper can be changed.

Touc h [ ] of DATA DOWNLOAD.

Data search of the disc starts. After completing the data search, the file selection screen of Data Download is displayed.

Touc h [ ] or [ ] to select the desired file name.

Touc h [MEMORY].

Data download starts. When data downloading has completed correctly, the screen returns to the DATA DOWNLOAD screen.

Touching [ ] returns to the previous screen.

Touch and hold [ ] for at least 2 seconds returns to the earlier main source screen.

• For details about procedures of download, see ALPINE’s Web site.

• If data is newly downloaded, the data overwrites the previous data.

• The downloaded data will not be deleted even when the battery

power cord is removed.

• You can recall a wallpaper in “Switching Background Textures” (page 37), or “Setting Automatic Background Textures” (page 37).

• When download has completed, remove the disc.

43-EN

External Audio

Adjustment Procedure for Dolby Surround

Processor (Optional)

A compatible, external audio processor is operable from this unit when connected. Some audio processors may require a wired controller. The explanations below use the PXA-H700/PXA-H701 as an example. Refer to the operating instructions of the audio processor for more details.

• The adjustments or settings performed on the connected audio

processor cannot be operated properly from this unit.

• The setting “Setting the Speakers”, “Setting Bass Sound Control”,

and “Graphic Equalizer Adjustments” are not available if the MRAD550 is connected. Additionally, if the MRA-F350 is connected, the following setting “Setting the MX mode of the External Audio Processor” is not available. Also, the setting content differs between the PXA-H700 and PXA-H701.

• This unit cannot be connected to the PXA-H510 and PXA-H900.

The Parking Brake must be engaged to access the Audio Processor mode screen. Attempting to access this screen while driving will display the warning-CAN’T OPERATE WHILE DRIVING.

Make the adjustments described below in order to reproduce Dolby Digital and DTS sound with greater accuracy.

Adjustment procedure

Speaker Setup (page 49)

(Turning the speakers to be used on and off and setting their response)

Adjusting the speaker levels (page 48)

(Adjusting the signal output level to the various speakers)

Mixing bass sound to the rear channel

(page 48)

(Achieving smooth sound in the rear seat by mixing the front audio signals with the rear speaker signals)

Adjusting the acoustic image (page 48)

(Adjusting the acoustic image to achieve a sound as if the centre speaker were directly in front of the listener)

44-EN

Achieving powerful high volume sound

(page 48)

(Achieving energetic sound with even greater power, like the sound in a movie theater)

Adjusting the DVD Level (page 49)

(Adjust the volume (signal level) in the Dolby Digital, Pro Logic II, DTS and PCM modes)

Storing Settings in the Memory (page 49)

(Storing all the settings and adjustments made on the IVA-W505R/IVA-W502R (not only the above settings/ adjusts) in the memory)

In case of combining the Automatic adjustments etc.

We recommend to make the Automatic adjustments before the Dolby Surround adjustments.

Setting the A.PROCESSOR

Check that Defeat mode is off (page 28).

Touch [SETUP] on the main source screen.

The SETUP selection screen is displayed.

Touch [AUDIO SETUP].

The AUDIO SETUP screen appears.

Touch [ ] of A.PROCESSOR.

The A.PROCESSOR list screen appears.

Touch [ ] , [ ] or [ ] etc., of the desired item to change its setting.

Setting items: MEDIA XPANDER / BASS SOUND CONT. / DOLBY PLII/ REAR FILL / X-OVER / T.CORR / PHASE / G-EQ / P-EQ / SPEAKER SELECT / MULTI CH SETUP / SPEAKER SETUP / DVD LEVEL / PCM MODE

• Touching [ESC] will change to the main source screen.

• Touching [ ] to return to the previous screen.

Setting the MX Mode of External Audio Processor

Before performing the operations below, set MX (Media Xpander) mode of the PXA-H700 to “AUTO” when the PXA-H700 is connected.

Setting item: MEDIA XPANDER

MX AUX (OFF, CMPM MX, MOVIE MX, MUSIC MX)

Choose the MX mode (CMPM, MUSIC, or MOVIE) that corresponds to the media connected.

• The contents of MX set here is reflected to PXA-H700 or PXA-H701.

• When OFF is selected, MX effect of each MX mode will be OFF.

• Each music source, such as radio, CD and MP3 can have its own MX

setting.

• MX mode does not function when MX is ON for MW, LW radio.

• MX CMPM is applied for MP3/WMA/AAC and iPod.

• The MX setting can be performed only when a source is currently

selected.

Setting Bass Sound Control

Setting item: BASS SOUND CONT.

Setting Bass Compressor

You can adjust the sound of low frequencies as desired.

Touch [ ] or [ ] of BASS COMP. to select the desired mode.

Bass sound is emphasized more as the mode is sequentially switched as MODE 1 2 3, offering you vivid low frequencies. Select OFF when the setting is not necessary.

Setting Bass Focus

Using the previously specified delay number (time difference) allows you to set a time difference between the front-rear/left-right speakers. Namely, it enables a time correction based on your preference. With an initial delay of 0.05 ms for each of the 0 to 400 steps, audible time correction can be achieved.

Select ON or OFF of MX by touching [ ] or [ ] of MEDIA XPANDER.

OFF: Turns off the MX effect of every music source. ON: Turns on the specified MX mode.

Touch [ ] after setting to ON.

The MEDIA XPANDER setup screen appears.

Touch [ ] or [ ] of the desired MX mode.

• Music source (such as radio broadcasts and CDs, excluding MW, LW

radio) level can be set.

MX CD (OFF, CD MX 1 to 3)

CD mode processes a large quantity of data. This data is used to reproduce the sound cleanly by making use of the data quantity.

MX CMPM (OFF, CMPM MX 1 to 3)

This corrects information that was omitted at the time of compression. This reproduces a well-balanced sound close to the original.

MX FM (OFF, FM MX 1 to 3)

The medium to high frequencies become more clear, and produces well balanced sound in all the bands.

MX DVD (OFF, MOVIE MX 1 to 2)

The dialog portion of the video is reproduced more clearly.

(DVD MUSIC)

This disc contains a large quantity of data such as music clip. MX uses this data to reproduce the sound accurately.

Set the delay number in the front and rear, and on the right and left of the desired speaker by touching the respective [

• Any setting in Bass Focus is applied in time correction, too (page 46).

] or [ ] button.

Using the Pro Logic II Mode

Pro Logic processing can be conducted on the music signals recorded on two channels to achieve Dolby Pro Logic II surround sound. For two-channel Dolby Digital and DTS signals, there is also a “REAR FILL” function for outputting the signals of the front channel to the rear channel.

Setting item: DOLBY PLII/REAR FILL

Touch [ ] or [ ] of DOLBY PLII/REAR to select the desired mode.

PL II MOVIE: Suits the stereo TV shows and all programmes

PL II MUSIC: Can be used for all stereo music recordings, and

OFF: Turns DOLBY PL II function to OFF.

encoded in Dolby Surround. It improves the sound field directivity to near that of discrete

5.1-channel sound.

provides a wide, deep sound field.

45-EN

If PL II MUSIC is selected, the centre width can be adjusted with following operations.

This function offers the optimum vocal position by adjusting the centre channel position between the centre speaker and the L/R speaker. (The adjustments established in “Adjusting the acoustic image (BI-PHANTOM)” ( this function is activated.)

Touch [ ] or [ ] of CENTER WIDTH CONT. to adjust the level. The level can be adjusted between 0 to +7. When the level increases, the centre channel position moves from the centre speaker position to both sides. Touch [OFF] of CENTER WIDTH CONT. to turn off the centre width control.

• This adjustment is effective when the setting of the centre speaker is

SMALL or LARGE in the speaker setup settings (page 49).

• “REAR FILL” function:

Depending on the input signals, the sound may only be output from the front speakers. In this case, the “REAR FILL” function can be used to output signals from the rear speakers as well.

• Avoid stopping, pausing, switching the disc, cueing, fast-forwarding

or switching the audio channel of this unit while making this adjustment. The setting is cancelled if the Decode mode is switched.

• This adjustment is ineffective when the speaker is set CENTER to

OFF in “Setting the Speakers” (page 48).

• This function only works with two-channel signals. This operation is

ineffective when 5.1-channel DTS or Dolby Digital signals are input.

• If the setting of REAR FILL is made when REAR MIX is ON, sound is

unchanged in the rear fill setting because REAR MIX is given priority during 2 channel decoder other than linear PCM.

• For linear PCM signals, the voice is output from the rear speaker

regardless of the REAR FILL and REAR MIX setting.

page 48) are ineffective while

X-OVER Adjustment

Setting item: X-OVER

Touch [ ] or [ ] of X-OVER to select L+R or L/R.

L+R: Sets the same adjustment values for the left and right

channels.

L/R: Different adjustment values can be set for the left and

right channels.

Touch [ ] of X-OVER.

A speaker list on the X-OVER screen is displayed.

Touch [ ] of the speaker to be adjusted.

The screen changes to the X-OVER screen to be adjusted.

Adjust the crossover to your preference.

Selecting the Cut-Off Frequency

Touch [ ] or [ ] of FREQ., then select the cut-off frequency (crossover point).

The adjustable bandwidth differs depending on the speaker (channel).

Adjusting the Level

Touch [ ] or [ ] of LEVEL, then adjust the HPF or LPF level.

Adjusting the Slope

Touch [ ] or [ ] of SLOPE, then adjust the HPF or LPF slope.

• When the speaker is set to the “OFF” mode, the X-OVER for that speaker cannot be set. Refer to “Setting the Speakers” (page 48).

• Check the playback frequencies of the connected speakers before adjusting.

• In order to protect the speakers, there is no OFF setting for the subwoofer low pass filter (the slope remains the same).

• The HPF cannot be set SLOPE to OFF if Tweeter (TW) is selected for FRONT1 . Or, only the subwoofer is adjustable if STEREO is selected for the subwoofer.

Performing Time Correction Manually (T.CORR)

Because of the particular conditions inside the vehicle, there can be major differences in the distances between the various speakers and the listening position. It is possible to calculate the optimum correction values and eliminate the time error at the listening position yourself using this function.

Setting item: T.CORR

Sit in the listening position (the driver’s seat, for example) and measure the distance (in meters) between your head and the various speakers.

Calculate the difference in distance between the farthest speaker and the other speakers.

L = (distance of farthest speaker)

– (distance of other speakers)

Divide the distances calculated for the different speakers by the speed of sound (343 m/s temperature 20°C).

This value is the time correction value for the various speakers.

Concrete examples

Calculating the time correction value for the front left speaker on the diagram below.

Conditions: Distance between farthest speaker and listening position:

2.25 m (88-3/4")

Distance between front left speaker and listening position:

0.5 m (20")

Calculation:

L = 2.25 m (88-3/4") – 0.5 m (20")= 1.75 m (68-3/4")

Compensation time = 1.75 ÷ 343 x 1000 = 5.1 (ms)

46-EN

In other words, setting the time correction value for the front left speaker to 5.1 (ms) sets a virtual distance matching the distance to the farthest speaker.

5.1ms

0.5m

2.25m

Setting item: G-EQ

Select L+R or L/R by touching [ ] or [ ] of G-EQ.

L+R: Sets the same adjustment values for the left and right

channels.

L/R: Different adjustment values can be set for the left and

right channels.

When parametric EQ is adjusted, this setting will be turned off.

Touc h [ ] of G-EQ.

The G-EQ list screen appears.

Touc h [ ] of the desired speaker (channel).

The G-EQ adjustment screen appears.

Adjust the G-EQ to your preference.

The sound is uneven because the distance between the listening position and the different speakers is different. The difference in the distance between the front left and rear right speakers is 1.75 meters (68-3/4").

Touch [ ] or [ ] of T.CORR.

Select L+R or L/R.

L+R: Sets the same adjustment values for the left and right

channels.

L/R: Different adjustment values can be set for the left and

right channels.

Touch [ ] of T.CORR.

The T.CORR adjustment screen appears.

Adjust the time correction value (0.00 ~ 20.00ms) of a desired speaker by touching the respective [ [ ] button (1 step = 0.05ms).

• When the speaker is set to the “OFF” mode, the TCR for that

speaker cannot be set. Refer to “Setting the Speakers” (page 48).

• The adjustment value for FRONT2 (Speakers) which is adjusted in

time correction, is also applied to the front speakers in “Setting Bass Focus” (page 45).

• The adjustment (AUTO TCR) cannot be automatically set on this

unit.

Time correction eliminates the difference between the time required for the sound from the different speakers to reach the listening position. Setting the time correction of the front left speaker to 5.1 ms makes it possible to coordinate the distance from the listening position to the speaker.

] or

Phase Switching

Setting item: PHASE

Adjusting the Level

Touch [ ] or [ ] of the desired frequency to adjust the level.

• When the speaker is set to the “OFF” mode, the graphic equalizer for that speaker cannot be set. Refer to “Setting the Speakers” (page 48).

• Check the playable frequency ranges of the connected speakers before making the equalizer adjustments. If the speaker’s playable frequency range is 55 Hz to 30 kHz, for example, adjusting the 40 Hz or 20 Hz band has no effect. Additionally, you may overload and damage the speakers.

• When graphic EQ is adjusted, the adjustment for parametric EQ becomes ineffective.

Parametric Equalizer Adjustments

The frequency bands of the graphic equalizer are fixed. This makes it very difficult to correct for undesired peaks and dips at specific frequencies. The parametric equalizer’s centre frequency can be tuned to these specific frequencies. Then, the bandwidth (Q) and level are fine-tuned, independently, to make the necessary corrections. The parametric equalizer function is an advanced tool for serious audiophiles.

Setting item: P-EQ

Select L+R or L/R by touching [ ] or [ ] of P-EQ.

L+R: Sets the same adjustment values for the left and right

channels.

L/R: Different adjustment values can be set for the left and

right channels.

When graphic EQ is adjusted, this setting will be turned off.

Touc h [ ] of P-EQ.

The P-EQ list screen appears.

Touc h [ ] of the desired speaker (channel).

The P-EQ adjustment screen appears.

Switch the phase (0° or 180°) by touching [ ] or [ ] of the desired speaker.

Graphic Equalizer Adjustments

The graphic equalizer allows you to modify the sound using 31 bands each for the front (left and right), rear (left and right) and centre speakers. An additional 10 bands are available for the subwoofer. This allows you to customize the sound to suit your taste.

Adjust the P-EQ to your preference.

Selecting the Band

Touch [ ] or [ ] of BAND to select the desired band.

47-EN

Adjusting the Frequency

Touch [ ] or [ ] of FREQ. to adjust the frequency of the selected band.

Adjusting the Level

Touch [ ] or [ ] of LEVEL to adjust the level of the selected band.

Setting the Bandwidth

Touch [ ] or [ ] of Q to select the bandwidth.

• When the speaker is set to the “OFF” mode, the parametric

equalizer for that speaker cannot be set. Refer to “Setting the Speakers” (page 48).

• It is not possible to adjust the frequencies of adjacent bands within 7

steps.

• Check the playable frequency ranges of the connected speakers

before making the equalizer adjustments. If the speaker’s playable frequency range is 55 Hz to 30 kHz, for example, adjusting the 40 Hz or 20 Hz band has no effect. Additionally, you may overload and damage the speakers.

• When the parametric EQ is adjusted, the adjustment for graphic EQ

becomes ineffective.

Setting the Speakers

Setting item: SPEAKER SELECT

Set the connected speaker by touching the respective

[

] or [ ] button.

FRONT1: OFF/FULL (Full Range)/TW (Tweeter) FRONT2: OFF/ON REAR: OFF/ON CENTER: OFF/ON SUBW.: OFF/MONO/STEREO

• Set the speaker which is not connected to OFF.

• Settings above can be carried out even when the speaker is set to

OFF in “Speaker Setup” (page 49).

• To use the subwoofer in MONO with PXA-H700 or PXA-H701

connected, connect the subwoofer to the subwoofer output terminal of PXA-H700 or PXA-H701.

Setting of Dolby Digital

Setting item: MULTI CH SETUP

Adjusting the acoustic image (BI-PHANTOM)

In most installations, the centre speaker must be placed directly between the front passenger and driver. Using this function, the centre channel information is distributed to the left and right speakers. This creates an acoustic image simulating a centre speaker directly in front of each listener. Adjusting the centre width in PL II MUSIC (see “Using the Pro Logic II Mode” on page 45), makes this function ineffective.

• Avoid stopping, pausing, switching the disc, cueing, fast-forwarding

or switching the audio channel of this unit while making this adjustment. The setting is cancelled if the Decode mode is switched.

Touch [ ] or [ ] of BI-PHANTOM to adjust the level. The level can be adjusted within the range of -5 to +5. The higher the level, the more the position of the centre speaker is shifted to the sides. The BI-PHANTOM function is turned off by touching [OFF].

• This adjustment is effective when the setting of the centre speaker to

SMALL or LARGE in the speaker setup settings.

• This adjustment is ineffective when the speaker is set CENTER to

OFF in “Setting the Speakers” (page 48).

Mixing bass sound to the rear channel (REAR MIX)

This function mixes the front channel audio signals to the audio signals output from the rear speakers, improving the sound in the vehicle’s rear seat.

• Avoid stopping, pausing, switching the disc, cueing, fast-forwarding

or switching the audio channel of this unit while making this adjustment. The setting is cancelled if the Decode mode is switched.

Touch [ ] or [ ] of REAR MIX to adjust the level. The level can adjusted in five steps: -6, -3, 0, +3 and +6. The higher the level, the more bass is output from the rear speakers. (The effect differs according to the software (DVD, etc.).) The REAR MIX function is turned off by touching [OFF].

• This adjustment is ineffective when the rear speaker setup setting is set to “OFF”.

• For linear PCM signals, the voice is output from the rear speaker regardless of the REAR FILL and REAR MIX setting.

Achieving powerful high volume sound (LISTENING MODE)

With Dolby Digital, the dynamic range is compressed so that powerful sound can be achieved at regular volume levels. This compression can be cancelled to achieve an energetic sound with even greater power, like the sound in a movie theater. This function works only in the Dolby Digital mode.

Touch [ ] or [ ] of LISTENING MODE to select STD or MAX.

STD: For powerful sound at regular volume levels MAX.: For powerful sound at high volumes

• Keep the volume to a level at which sounds outside the vehicle can still be heard.

Adjusting the speaker levels (OUTPUT LEVEL)

The test tones help to make the volume adjustments of the different speakers. When levels are equal, a strong sense of presence can be heard from the different speakers at the listening position.

• Avoid stopping, pausing, switching the disc, cueing, fast-forwarding

or switching the audio channel of this unit while making this adjustment. The setting is cancelled if the decode mode is switched.

1 Touch [ON] of OUTPUT LEVEL.

Test tone output is repeated for each of the different speaker channels. They will be repeated in the order shown below. If no operation is performed for 2 seconds, the channel switches to the next channel.

Left Centre Right Right Surround Left Surround Left

2 While the test tone is being produced from the speakers,

touch [ ] or [ ] of OUTPUT LEVEL balance the output from all the speakers.

• The adjustment range for the different speakers is –10 dB - +10 dB.

• Adjust based on the front speakers.

3 Touch [ON] again to turn off.

• If a speaker is set to off mode, that speaker’s level adjustment cannot

be made. Refer to “Speaker Setup” (page 49).

48-EN

Speaker Setup

Linear PCM Setting

The PXA-H700 or PXA-H701 can be set according to the playable frequency range of your speakers. Check the playable frequency range of the speakers (not including the subwoofer) before performing this operation to verify whether the speakers can play low frequencies (of about 80 Hz or less).

• Avoid stopping, pausing, switching the disc, cueing, fast-forwarding

or switching the audio channel of this unit while making this adjustment. The setting is cancelled if Decode mode is switched.

Setting item: SPEAKER SETUP

Select the speaker characteristic by touching [ ], [ ] of the desired speaker setting.

OFF*1: When no speaker is connected. SMALL: When a speaker that cannot play low frequencies

LARGE*2: When a speaker that can play low frequencies

It is not possible to set the front speakers to “OFF”.

If the front speakers are set to “SMALL”, the rear and centre speakers cannot be set to “LARGE”.

• The subwoofer can be set only to ON/OFF.

• If the centre speaker is turned “OFF”, the centre channel’s audio

signals are added to the audio signals output from the front speakers.

• If you set the speaker response to “OFF”, also set the speaker setting

to “OFF” (page 48).

• Perform the setup for all the speakers (“Front”, “Centre” ,“Rear”

and “Subwoofer”). If not, the sound may not be balanced.

• When centre is set to “OFF”, the setting is ineffective even if centre

is set with this function.

• Through changing the settings on each speaker, a change in the

output of the other speakers may occur due to the setting requirements.

• When using the PRO LOGIC II, if the rear speaker is set to

“LARGE”, then there will be no output from the subwoofer.

(80 Hz or less) is connected.

Adjusting the DVD Level

The output when playing discs recorded in linear PCM can be set to 2 or 3 channels.

Setting item: PCM MODE

Touch [ ] or [ ] of PCM MODE to select 2CH or 3CH.

2CH: 2ch output (L/R) 3CH: 3ch output (L/R/CENTER)

• This adjustment is ineffective when the speaker is set CENTER to

OFF in “Setting the Speakers” (page 48).

Storing Settings in the Memory

Adjustment or setting contents can be stored. Contents that can be stored vary depends on the audio processor used.

Touc h [MEMORY] on the A.PROCESSOR list display.

Within 5 seconds, touch any one of the preset buttons [P.SET A.PROCESSOR list screen.

The setting contents are stored.

• The stored contents will not be deleted even when the battery power

cord is detached.

1] through [P.SET 6] on the

Calling up the Preset Memory

Touch any one of the preset buttons [P.SET 1] through [P.SET

6] on the A.PROCESSOR list display to select

the preset memory.

• It takes a few moments to call up the preset memory.

The volume (signal level) for Dolby Digital, Dolby PL II, DTS and PCM modes can be set.

• Avoid stopping, pausing, switching the disc, cueing, fast-forwarding

or switching the audio channel of this unit while making this adjustment. The setting is cancelled if the Decode mode is switched.

Setting item: DVD LEVEL

Adjust the level by touching [ ] or [ ] of the desired adjusting mode.

The level can be adjusted in the range of –5 dB to +5 dB.

49-EN

IMPRINT Operation (Optional)

Alpine introduces IMPRINT - the world’s first technology that thoroughly eliminates in-car acoustic problems that normally degrade sound quality, which enables us to experience music the way the artist intended, refer to “About IMPRINT” (page 56). When the IMPRINT audio processor (PXA-H100) (sold separately) is connected to this unit, MultEQ and the following sound adjustment can be performed.

Adjusting Sound Setting in Manual Mode

You can change these sound settings to create your own preference when the MultEQ mode is set to OFF (Manual Mode).

Use steps 1 to 5 to select one of the Sound menu modes to modify. See the applicable section below for details about the selected item.

Check whether the Defeat mode is off.

Touc h [SETUP] on the main source screen.

The SETUP selection screen is displayed.

The Parking Brake must be engaged to access the IMPRINT mode screen. Attempting to access this screen while driving will display the warning-CAN’T OPERATE WHILE DRIVING.

Changing MultEQ mode

MultEQ, developed by Audyssey Labs, automatically corrects the audio for the listening environment. The system is optimized for selected positions in the vehicle. To accomplish this, MultEQ must take measurements of the vehicles response characteristics. For details on the set up procedure, consult your authorized Alpine dealer.

Press IMPRINT of the unit, the MultEQ mode selection screen will be displayed.

Touch [ ] or [ ] to change the setting.

Setting contents: OFF / CURVE 1/CURVE 2

OFF: Adjusting the audio settings manually to create your

CURVE1/ CURVE2:

• The Curve mode can be selected only when curve 1 and curve 2 are

stored.

•

When MultEQ is set to CURVE 1 or CURVE 2, MEDIA XPANDER, XOVER, T.CORR, SUBWOOFER PHASE, SUBWOOFER SYSTEM, SUBWOOFER CHANNEL, TW SETUP, P-EQ, G-EQ and F-EQ can not be adjusted.

own preference.

Correcting the audio for the listening environment automatically.

Touc h [AUDIO SETUP].

The AUDIO SETUP screen appears.

Touc h [A.PROCESSOR].

The A.PROCESSOR SETUP screen appears.

Touc h [ ], [ ] or [ ], etc., of the desired item to change its setting.

Setting items: MEDIA XPANDER / X-OVER / T.CORR / T.CORR PARAMETER / G-EQ / P-EQ / F-EQ / TW SETUP*

* This function can be operable only when PXA-H100 (sold

separately) is connected and 2.2ch (3WAY) mode is set. For details, refer to the Owner’s Manual of PXA-H100.

• Touching [ESC] will change to the main source screen.

• Touching [ ] to return to the previous screen.

• Media Xpander, F-EQ, P-EQ and G-EQ Adjustment are inoperable

when Defeat is set to ON.

Equalizer Presets (F-EQ)

10 typical equalizer settings and 6 user’s preset setting are preset at the factory for a variety of musical source material.

Setting item: F-EQ

Touc h [ ] of F-EQ.

The F-EQ setup screen appears.

Touc h [ ] or [ ] of the desired type to set to ON.

Flat / Pops / Rock / News / Jazz&Blues / Electrical Dance / Hip Hop&Rap / Easy Listening / Country / Classical / User1 / User2 / User3 / User4 / User5 / User6

• Only one type can be set to ON.

• By selecting User’s 1 to 6, you can recall the stored preset number in

“Adjusting the Graphic Equalizer Curve (G-EQ)” (page 52) or “Adjusting the Parametric Equalizer Curve (P-EQ)” (page 51) .

50-EN

Setting the Response Slope for the High Range Speaker (TW SETUP)

Depending on the response characteristics of the speaker, care should be taken when setting the response slope of the high range speaker to FLAT in 2.2ch (3WAY) mode (see “Adjusting the Crossover Settings (X-OVER)” on page 52), as speaker damage may result.

Setting item: TW SETUP

Touch [ ] or [ ] of TW SETUP to select Maker’s or User’s.

Maker’s: As protection from possible speaker damage, FLAT

User’s: The FLAT setting is possible in 2.2ch (3WAY) mode.

• The TW Setup mode can only be selected if the FRONT/REAR/

SUBW. (4.2CH)/3WAY (2.2CH) switch on the IMPRINT audio processor (PXA-H100) is set to 3WAY (2.2CH).

cannot be set for the response slope of the high range speaker in 2.2ch (3WAY) mode.

Setting the MX Level (MEDIA XPANDER)

MX (Media Xpander) makes vocals or instruments sound distinct regardless of the music source. The FM radio, CD, USB memory and iPod, will be able to reproduce the music clearly even in cars with a lot of road noise.

Setting item: MEDIA XPANDER

Touc h [ ] or [ ] of MEDIA XPANDER to select ON or OFF.

OFF: Turns off the MX effect of every music source. ON: Turns on the specified MX mode.

Touch [ ] after setting to ON.

The MEDIA XPANDER setup screen appears.

Touch [ ] or [ ] of the desired MX mode.

• Music source (such as radio broadcasts and CDs, excluding MW, LW

radio) level can be set.

MX CD (OFF, CD MX 1 to 3)

CD mode processes a large quantity of data. This data is used to reproduce the sound cleanly by making use of the data quantity.

MX CMPM (OFF, CMPM MX 1 to 3)

This corrects information that was omitted at the time of compression. This reproduces a well-balanced sound close to the original.

MX FM (OFF, FM MX 1 to 3)

The medium to high frequencies become more clear, and produces well balanced sound in all the bands.

MX DVD (OFF, MOVIE MX 1 to 2)

The dialog portion of the video is reproduced more clearly.

(DVD MUSIC)

This disc contains a large quantity of data such as music clip. MX uses this data to reproduce the sound accurately.

MX AUX (OFF, CMPM MX, MOVIE MX, MUSIC MX)

Choose the MX mode (CMPM, MUSIC, or MOVIE) that corresponds to the media connected.

• When OFF is selected, MX effect of each MX mode will be OFF.

• Each music source, such as radio, CD and MP3 can have its own MX

setting.

• MX mode does not function when MX is ON for MW, LW radio.

• MX CMPM is applied for MP3/WMA/AAC and iPod.

• The MX setting can be performed only when a source is currently

selected.

Adjusting the Parametric Equalizer Curve (P-EQ)

You can modify the Equalizer settings to create a response curve more appealing to your personal taste.

Setting item: P-EQ

Select L+R by touching [ ] of P-EQ.

When graphic EQ is set to L+R, this setting will be turned off.

Touc h [ ] of P-EQ after selecting L+R.

The P-EQ list screen appears.

Adjust the P-EQ to your preference.

Adjusting the Band

Touch [ ] or [ ] of BAND to select the band to be adjusted.

BAND 1 / BAND 2 / BAND 3 / BAND 4 / BAND 5

Adjusting the Frequency

Touch [ ] or [ ] of FREQ. to adjust the frequency of the selected band.

Adjustable frequency bands: 20 Hz to 20 kHz (in 1/3 octave steps)

Band-1: 20 Hz~80 Hz (63 Hz) Band-2: 50 Hz~200 Hz (150 Hz) Band-3: 125 Hz~3.2 kHz (400 Hz) Band-4: 315 Hz~8 kHz (1 kHz) Band-5: 800 Hz~20 kHz (2.5 kHz)

Adjusting the Level

Touch [ ] or [ ] of LEVEL to adjust the level of selected band.

Adjustable level: –6 to +6 dB

Setting the Bandwidth

Touch [ ] or [ ] of Q. to select the bandwidth.

Adjustable bandwidth: 1, 1.5, 3

To adjust another band, repeat step 3 and adjust all bands.

• The frequencies of adjacent bands cannot be adjusted within 4 steps.

• While adjusting the Parametric EQ, you should consider the

frequency response of the connected speakers.

• When the parametric EQ is adjusted, the adjustment for graphic EQ

becomes ineffective.

51-EN

Adjusting the Graphic Equalizer Curve (G-EQ)

You can modify the equalizer settings to create a response curve more appealing to your personal taste.

Setting item: G-EQ

Select L+R by touching [ ] of G-EQ.

When parametric EQ is set to L+R, this setting will be turned off.

Touch [ ] of G-EQ after selecting L+R.

The G-EQ list screen appears.

Adjust the G-EQ to your preference.

Adjusting the Band

Touch [ ] or [ ] of BAND to select the band to be adjusted.

BAND-1 (63 Hz) / BAND-2 (150 Hz) / BAND-3 (400 Hz) / BAND-4 (1 kHz) / BAND-5 (2.5 kHz) / BAND-6 (6.3 kHz) / BAND-7 (17.5 kHz)

Adjusting the Level

Touch [ ] or [ ] of LEVEL to adjust the level of selected band.

Adjustable output level: –6 to +6 dB

To adjust another band, repeat step 3, and then adjust all bands.

• When graphic EQ is adjusted, the adjustment for parametric EQ

becomes ineffective.

Setting the Time Correction Unit (T.CORR PAR AM ET ER )

You can change the unit, (cm or inch) of time correction. Touch [ ] or [ ] of T.CORR PARAMETER to select cm or Inch.

Setting item: T.CORR PARAMETER

cm Inch

cm: The unit of time correction is cm. Inch: The unit of time correction is Inch.

Adjusting the Time Correction (T.CORR)

Before performing the following procedures, refer to “About Time Correction” (page 54).

Setting item: T.CORR

Touch [ ] of T.CORR.

The T.CORR adjustment screen appears.

Adjusting the Crossover Settings (X-OVER)

Before performing the following procedures, refer to “About the Crossover” (page 55).

Setting item: X-OVER

Touc h [ ] or [ ] of X-OVER to select L+R or L/R.

L+R: Sets the same adjustment values for the left and right

channels.

L/R: Different adjustment values can be set for the left and

right channels.

Touc h [ ] of X-OVER.

A speaker list on the X-OVER screen is displayed.

Touc h [ ] of the band to be adjusted.

The screen changes to the X-OVER screen to be adjusted.

4.2ch (FRONT/REAR/SUBW.) System

4.2ch (FRONT/REAR/SUBW.) System / (L+R)

setting contents:

LOW (SUB-W) / MID (REAR) / HIGH (FRONT)

4.2ch (FRONT/REAR/SUBW.) System / (L/R)

setting contents:

LOW (SUB-W)-L / LOW (SUB-W)-R / MID (REAR)-L / MID (REAR)-R / HIGH (FRONT)-L / HIGH (FRONT)-R

Adjust the crossover to your preference.

Selecting the Cut-Off Frequency

Touch [ ] or [ ] of FREQ., then select the cut-off frequency (crossover point).

The adjustable bandwidth differs depending on the speaker (channel).

4.2ch (FRONT/REAR/SUBW.) System

Setting contents:

LOW (SUB-W) 20 Hz~200Hz MID (REAR) 20 Hz~200Hz HIGH (FRONT) 20 Hz~200Hz

Adjusting the Slope

Touch [ ] or [ ] of SLOPE, then adjust the HPF or LPF slope.

Adjustable slope: FLAT, –6 dB/oct., –12 dB/oct., –18 dB/oct.,

Adjusting the Level

Touch [ ] or [ ] of LEVEL, then adjust the HPF or LPF level.

Adjustable output level: -12 to 0 dB.

–24 dB/oct.

Adjust the distance (0.0 to 336.6 cm) of a desired speaker by touching the respective [ button.

L = (distance to farthest speaker) – (distance to other

speakers)

Refer to “Time Correction Value List” on page 54.

Repeat step 2 to set another speaker.

By setting these values to make its sound reach the listening position at the same time as the sound of other speakers.

] or [ ]

52-EN

Repeat steps 3 to 4 to make adjustment to the other bands.

2.2ch (3WAY) System

2.2ch (3WAY) System / (L+R)

Setting contents:

LOW / MID-L / MID-H / HIGH

2.2ch (3WAY) System / (L/R)

Setting contents:

LOW-L / LOW-R / MID-L-L / MID-L-R / MID-H-L / MID-H-R / HIGH-L / HIGH-R

Adjust the crossover to your preference.

Selecting the Cut-Off Frequency

Touch [ ] or [ ] of FREQ., then select the cut-off frequency (crossover point).

The adjustable bandwidth differs depending on the speaker (channel).

2.2ch (3WAY) System

Setting contents:

LOW / MID-L 20 Hz~200 Hz MID-H 20 Hz~20 kHz HIGH (1 kHz~20 kHz)*1/(20 Hz~20 kHz)*

*1When Maker’s is selected, refer to “Setting the Response Slope for

the High Range Speaker (TW SETUP)” (page 51).

*2When User’s is selected, refer to“Setting the Response Slope for the

High Range Speaker (TW SETUP)” (page 51).

Adjusting the Level

Touch [ ] or [ ] of LEVEL, then adjust the HPF or LPF level.

Adjustable output level: –12 to 0 dB.

Adjusting the Slope

Touch [ ] or [ ] of SLOPE, then adjust the HPF or LPF slope.

Adjustable slope: FLAT*, –6 dB/oct., –12 dB/oct., –18 dB/oct.,

* FLAT can be set for the HIGH slope only when User’s is selected in

“Setting the Response Slope for the High Range Speaker (TW SETUP)” (page 51). Depending on the response characteristics of the speaker, care should be taken when setting the response slope to FLAT, as speaker damage may result. With this unit, a message is displayed when the response slope for the high range speaker is set to FLAT.

Repeat steps 3 to 4 to make adjustment to the other bands.

• While adjusting the X-OVER, you should consider the frequency

response of the connected speakers.

• About the 2.2ch (3WAY)/4.2ch (FRONT/REAR/SUBW.) system

You can switch the system mode with the 2.2ch (3WAY)/4.2ch (FRONT/REAR/SUBW.) switch on the PXA-H100. For details, refer to the Owner’s Manual of PXA-H100.

–24 dB/oct.

Storing Settings in the Memory

Adjustment or setting contents of X-OVER, T.CORR and P/G-EQ can be stored. Contents that can be stored vary depends on the audio processor used.

Check whether the Defeat mode is off.

Touch [MEMORY] on the A.PROCESSOR list display.

Within 5 seconds, touch any one of the preset buttons [P.SET A.PROCESSOR list screen.

The setting contents are stored.

• The stored contents will not be deleted even when the battery power

cord is detached.

• This operation cannot be performed when a typical equalizer setting

(e.g. pops) is selected in “Equalizer Presets (F-EQ)” (page 50).

1] through [P.SET 6] on the

Calling up the Preset Memory

Check whether the Defeat mode is off.

Touch any one of the preset buttons [P.SET 1] through [P.SET display to select the preset memory.

• It takes a few moments to call up the preset memory.

6] on the A.PROCESSOR list

Setting the Subwoofer

Touc h [SETUP] on the main source screen.

The SETUP selection screen is displayed.

Touc h [AUDIO SETUP].

The AUDIO SETUP screen appears.

Touc h [ ] or [ ] of SUBWOOFER to set the subwoofer ON/OFF.

Touc h [ ] of SUBWOOFER after setting the SUBWOOFER to ON.

The SUBWOOFER SETUP screen appears.

Setting items: LEVEL / PHASE / SYSTEM / CHANNEL

Adjusting the Subwoofer Level

Touch [ ] or [ ] of LEVEL to adjust the SUBWOOFER output.

Setting range: 0 to 15

Setting the Subwoofer System

When the subwoofer is on, you can select either System 1 or System 2 for the desired subwoofer effect.

Touch [ ] or [ ] of SYSTEM to select SYSTEM 1 or SYSTEM 2

SYSTEM 1 :Subwoofer level changes according to the main

SYSTEM 2 :Subwoofer level change is different from the main

Setting the Subwoofer Phase

Touch [ ] or [ ] of PHASE to select 0° or 180°

The subwoofer output phase is toggled SUBWOOFER NORMAL (0°) or SUBWOOFER REVERSE (180°).

Setting the Subwoofer Channel

You can set the subwoofer output to stereo or monaural. Make sure to set the correct output for your subwoofer type.

Touch [ ] or [ ] of CHANNEL to select STEREO or MONO.

STEREO: Subwoofer stereo (L/R) output MONO: Subwoofer monaural output

volume setting.

volume setting. For example, even at low volume settings, the subwoofer is still audible.

53-EN

About Time Correction

The distance between the listener and the speakers in a car vary widely due to the complex speaker placement. This difference in the distances from the speakers to the listener creates a shift in the sounds image and frequency characteristics. This is caused by the time delay between the sound reaching the listener’s right versus the left ear. To correct this, this unit is able to delay the audio signal to the speakers closest to the listener. This effectively creates a perception of increased distance for those speakers. The listener can be placed at an equal distance between the left and right speakers for optimum staging. The adjustment will be made for each speaker in 3.4cm steps.

Example 1. Listening Position: Front Left Seat

Adjust the time correction level of the front left speaker to a high value and the rear right to zero or a low value.

5.1ms

0.5m

2.25m

The sound is not balanced because the distance between the listening position and the various speakers is different. The difference in distance between the front left speaker and the rear right speaker is 1.75 m (68-7/8"). Here we calculate the time correction value for the front left speaker in the diagram on the above.

Conditions: Farthest Speaker – listening position : 2.25 m (88-9/16") Front left speaker – listening position : 0.5 m (19-11/16") Calculation: L = 2.25 m – 0.5 m = 1.75 m (68-7/8") Time correction = 1.75 ÷ 343*1 × 1000 = 5.1 (ms)

*1Speed of sound: 343 m/s (765 mph) at 20°C

In other words, giving the front left speaker a time correction value of

5.1 ms makes it seem as if its distance from the listener is the same as the distance to the farthest speaker.

Time correction eliminates the differences in the time required for the sound to reach the listening position. The time of the front left speaker is corrected by 5.1 ms so that its sound reaches the listening position at the same time as the sound of other speakers.

Example 2. Listening Position: All Seats

Adjust the time correction level of each speaker to almost the same level.

Sit in the listening position (driver’s seat, etc.) and measure the distance (in meters) between your head and the various speakers.

Calculate the difference between the distance correction value to the farthest speaker and the other speakers.

L = (distance to farthest speaker) – (distance to other

speakers)

These values are the time correction values for the different speakers. Setting these values to make each sound reach the listening position at the same time as the sound of other speakers.

Time Correction Value List

Time

Delay

Number

0 0.0 0.0 0.0 51 5.1 173.4 68.3

1 0.1 3.4 1.3 52 5.2 176.8 69.7

2 0.2 6.8 2.7 53 5.3 180.2 71.0

3 0.3 10.2 4.0 54 5.4 183.6 72.4

4 0.4 13.6 5.4 55 5.5 187.0 73.7

5 0.5 17.0 6.7 56 5.6 190.4 75.0

6 0.6 20.4 8.0 57 5.7 193.8 76.4

7 0.7 23.8 9.4 58 5.8 197.2 77.7

8 0.8 27.2 10.7 59 5.9 200.6 79.1

9 0.9 30.6 12.1 60 6.0 204.0 80.4

10 1.0 34.0 13.4 61 6.1 207.4 81.7

11 1.1 37.4 14.7 62 6.2 210.8 83.1

12 1.2 40.8 16.1 63 6.3 214.2 84.4

13 1.3 44.2 17.4 64 6.4 217.6 85.8

14 1.4 47.6 18.8 65 6.5 221.0 87.1

15 1.5 51.0 20.1 66 6.6 224.4 88.4

16 1.6 54.4 21.4 67 6.7 227.8 89.8

17 1.7 57.8 22.8 68 6.8 231.2 91.1

18 1.8 61.2 24.1 69 6.9 234.6 92.5

19 1.9 64.6 25.5 70 7.0 238.0 93.8

20 2.0 68.0 26.8 71 7.1 241.4 95.1

21 2.1 71.4 28.1 72 7.2 244.8 96.5

22 2.2 74.8 29.5 73 7.3 248.2 97.8

23 2.3 78.2 30.8 74 7.4 251.6 99.2

24 2.4 81.6 32.2 75 7.5 255.0 100.5

25 2.5 85.0 33.5 76 7.6 258.4 101.8

26 2.6 88.4 34.8 77 7.7 261.8 103.2

27 2.7 91.8 36.2 78 7.8 265.2 104.5

28 2.8 95.2 37.5 79 7.9 268.6 105.9

29 2.9 98.6 38.9 80 8.0 272.0 107.2

30 3.0 102.0 40.2 81 8.1 275.4 108.5

31 3.1 105.4 41.5 82 8.2 278.8 109.9

32 3.2 108.8 42.9 83 8.3 282.2 111.2

33 3.3 112.2 44.2 84 8.4 285.6 112.6

34 3.4 115.6 45.6 85 8.5 289.0 113.9

35 3.5 119.0 46.9 86 8.6 292.4 115.2

36 3.6 122.4 48.2 87 8.7 295.8 116.6

37 3.7 125.8 49.6 88 8.8 299.2 117.9

38 3.8 129.2 50.9 89 8.9 302.6 119.3

39 3.9 132.6 52.3 90 9.0 306.0 120.6

40 4.0 136.0 53.6 91 9.1 309.4 121.9

41 4.1 139.4 54.9 92 9.2 312.8 123.3

42 4.2 142.8 56.3 93 9.3 316.2 124.6

43 4.3 146.2 57.6 94 9.4 319.6 126.0

44 4.4 149.6 59.0 95 9.5 323.0 127.3

45 4.5 153.0 60.3 96 9.6 326.4 128.6

46 4.6 156.4 61.6 97 9.7 329.8 130.0

47 4.7 159.8 63.0 98 9.8 333.2 131.3

48 4.8 163.2 64.3 99 9.9 336.6 132.7

49 4.9 166.6 65.7

50 5.0 170.0 67.0

Difference

(ms)

Distance

(cm)

Distance

(inch)

Number

Delay

Time

Difference

(ms)

Distance

(cm)

Distance

(inch)

54-EN

About the Crossover

Level adjusting (0 to –12 dB)

Output frequency range

Crossover (X-OVER):

This unit is equipped with an active crossover. The crossover limits the frequencies delivered to the outputs. Each channel is controlled independently. Thus, each speaker pair can be driven by the frequencies for which they have been optimally designed. The crossover adjusts the HPF (high pass filter) or LPF (low pass filter) of each band, and also the slope (how fast the filter rolls off the highs or lows). Adjustments should be made according to the reproduction characteristics of the speakers. Depending on the speakers, a passive network may not be necessary. If you are unsure about this point, please consult your authorized Alpine dealer.

4.2ch (FRONT/REAR/SUBW.) mode

Cut-off frequency (1/3 octave steps)

HPF LPF HPF LPF

Slope

Level

FLAT, 6,

Low range speaker

----

20 Hz 200 Hz

----

12, 18, 24 dB/

0 to

–12 dB

oct.

Rear high range speaker

Front high range speaker

20 Hz 200 Hz

Low range High range

----

FLAT, 6,

12, 18,

24 dB/oct.

FLAT, 6,

12, 18,

24 dB/oct.

----

0 to

–12 dB

0 to

–12 dB

Slope FLAT

Slope adjusting

20 Hz

HPF cut-off frequency

(Different from actual display)

LPF cut-off frequency

• HPF (high pass filter): Cuts the lower frequencies and allows the

higher frequencies to pass.

• LPF (low pass filter): Cuts the higher frequencies and allows the

lower frequencies to pass.

• Slope: The level change (in dB) for a frequency change of one octave.

• The higher the slope value, the steeper the slope becomes.

• Adjust the slope to FLAT to bypass the HP or LP filters.

• Do not use a tweeter without the HPF on or set to a low frequency, as

it may cause damage to the speaker due to the low frequency content.

• You cannot adjust the crossover frequency higher than the HPF or

lower than the LPF.

• Adjustment should be made according to the recommended crossover

frequency of the connected speakers. Determine the recommended crossover frequency of the speakers. Adjusting to a frequency range outside that recommended may cause damage to the speakers. For the recommended crossover frequencies of Alpine speakers, refer to the respective Owner’s Manual. We are not responsible for damage or malfunction of speakers caused by using the crossover outside the recommended value.

(Different from actual display)

2.2ch (3WAY) mode

Low range speaker

Mid range speaker

High range speaker

* Only when selecting User’s in “Setting the Response Slope for the

Cut-off frequency (1/3 octave steps)

HPF LPF HPF LPF

20 Hz -

---200 Hz

----

FLAT, 6, 12, 18, 24 dB/oct.

FLAT* 6, 12, 18, 24 dB/oct.

20 Hz 200 Hz

1 kHz 20 kHz, (20 Hz ~ 20 kHz)*

20 Hz 20 kHz

Slope

----

FLAT, 6, 12, 18, 24 dB/oct.

----

Level

0 to –12 dB

High Range Speaker (TW SETUP)” (page 51).

Low range Mid range High range

(Different from actual display)

55-EN
