Alpine IDA-X001 User Manual

FOR CAR USE ONLY/NUR FÜR AUTOMOBIL GEBRAUCH/POUR APPLICATION AUTOMOBILE UNIQUEMENT/ PARA USO EN AUTOMÓVILES/SOLO PER L’UTILIZZO IN AUTOMOBILE/ENDAST FÖR BILBRUK

Digital Media Receiver

iDA-X001

• OWNER’S MANUAL Please read before using this equipment.

• BEDIENUNGSANLEITUNG Lesen Sie diese Bedienungsanleitung bitte vor Gebrauch des Gerätes.

ALPINE ELECTRONICS MARKETING, INC.

1-1-8 Nishi Gotanda,

Shinagawa-ku,

Tokyo 141-00 31, Japan

Phone 03-5496-8231

ALPINE ELECTRONICS OF AMERICA, INC.

19145 Gramercy Place, Torrance,

California 90501, U.S.A.

Phone 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF CANADA, INC.

777 Supertest Road, Toronto,

Ontario M3J 2M9, Canada

Phone 1-800-ALPINE-1 (1-800-257-4631)

• MODE D’EMPLOI Veuillez lire avant d’utiliser cet appareil.

• MANUAL DE OPERACIÓN Léalo antes de utilizar este equipo.

• ISTRUZIONI PER L’USO Si prega di leggere prima di utilizzare il attrezzatura.

• ANVÄNDARHANDLEDNING Innan du använder utrustningen bör du läsa igenom denna användarhandledning.

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

161-165 Princes Highway, Hallam

Victoria 3803, Australia

Phone 03-8787-1200

ALPINE ELECTRONICS GmbH

Frankfurter Ring 117, 80807 München, Germany

Fletchamstead Highway, Coventry CV4 9TW, U.K.

B.P. 50016, 95945 Roissy Charles de Gaulle

Phone 089-32 42 640

ALPINE ELECTRONICS OF U.K. LTD.

Alpine House

Phone 0870-33 33 763

ALPINE ELECTRONICS FRANCE S.A.R.L.

(RCS PONTOISE B 338 101 280)

98, Rue de la Belle Etoile, Z.I. Paris Nord Il,

Cedex, France

Phone 01-48638989

ALPINE ITALIA S.p.A.

Viale C. Colombo 8, 20090 Trezzano

Sul Naviglio (MI), Italy

Phone 02-484781

ALPINE ELECTRONICS DE ESPAÑA, S.A.

Portal de Gamarra 36, Pabellón, 32

01013 Vitoria (Alava)-APDO 133, Spain

Phone 945-283588

ALPINE ELECTRONICS (BENELUX) GmbH

Leuvensesteenweg 510-B6,

1930 Zaventem, Belgium

Phone 02-725-13 15

68-08564Z51-A

Contents Operating Instructions

WARNING

WARNING ................................................. 3

CAUTION .................................................. 3

PRECAUTIONS ........................................ 3

Center Jog Dial Operation ............... 5

Getting Started

Accessory List .................................................. 6

Turning Power On and Off ............................... 6

Detaching and Attaching the Front Panel ........ 6

Initial System Start-Up ..................................... 6

Adjusting Volume ............................................. 6

Lowering Volume Quickly ............................... 7

Setting the Time and Calendar ......................... 7

Displaying the Calendar/Time .......................... 7

Radio

How to View the Display ................................. 8

Listening to Radio ............................................ 8

Presetting Stations Manually ............................ 8

Presetting Stations Automatically .................... 8

Tuning to Preset Stations .................................. 8

RDS

Setting RDS Reception Mode and Receiving

RDS Stations ................................................. 9

Receiving RDS Regional (Local) Stations ....... 9

PI SEEK Setting ............................................... 9

Setting PTY31 (Emergency Broadcast)

reception ...................................................... 10

Setting the Time to automatically Adjust ....... 10

Receiving Traffic Information ........................ 10

PTY (Programme Type) Tuning ..................... 10

Receiving Traffic Information While Playing

iPod or Radio .............................................. 11

Priority News .................................................. 11

Displaying Radio Text .................................... 11

ENGLISH

iPod

How to View the Display ................................12

Playback .......................................................... 12

Searching for a desired Song/Title ..................13

Page Skip Function/Initial Skip Function

(USB connection only) ................................ 13

Search Position Memory

(USB connection only) ................................ 13

Random Play Shuffle .....................................14

Random Play Shuffle All ...............................14

Repeat Play .....................................................14

Changing the Display ..................................... 14

USB memory/Changer

How to View the Display ................................15

Playback .......................................................... 16

Selecting a Disc (Changer) (Optional) ...........16

Multi-Changer Selection (Optional) ............... 16

Repeat Play .....................................................17

M.I.X. (Random Play) .................................... 17

File/Folder Name Search

(concerning MP3/WMA/AAC) ...................18

About MP3/WMA/AAC ................................. 18

Sound Setting

Adjusting Bass/Treble/

Balance (Between Left and Right)/

Fader (Between Front and Rear) .................20

Setting the MX mode ...................................... 20

Equalizer Presets .............................................21

Setting the Subwoofer ..................................... 21

Operating the External Audio Processor ........21

1-EN

SETUP

Bluetooth Setting

Setting the Bluetooth Connection .................... 22

General Setting

Setting the Clock Display (Clock Mode) ......... 22

Setting of Calendar Display Pattern Switching

(Calendar Type) ............................................ 22

Connecting an MP3 Changer (Play Mode) ...... 22

Sound (Beep) Guide Function ......................... 22

Turning Mute Mode On/Off (Int Mute) ........... 23

Setting Tone Defeat for External Devices

(Int Audio) .................................................... 23

Setting the Changer Name (CHG Name) ........ 23

Setting the AUX Mode (V-Link) ..................... 23

Setting the AUX+ Mode .................................. 23

AUX+ Audio Level Adjustment

(AUX+ IN GAIN) ........................................ 23

Connecting to an External Amplifier (P.IC) .... 23

Setting the Language Font ............................... 23

Demonstration .................................................. 23

Setting Adaptive Steering Remote Control ...... 24

Display Setting

Changing Lighting Colour (Illumination) ........ 24

Dimmer Control ............................................... 24

Setting the Display Dimmer (Dimmer Level) ..24

Scroll Setting (Text Scroll) .............................. 24

Switching the Display Type (BGV Select) ...... 24

Downloading the Wallpaper

(BGV Download) ......................................... 24

iPod Setting

iPod Search Mode Setting ................................ 25

Tuner Setting

Adjusting Source Signal Levels ....................... 25

Information

In Case of Difficulty .......................................26

Specifications .................................................. 28

Installation and Connections

Warning .................................................. 29

Caution ................................................... 29

Precautions ............................................ 29

Installation ...................................................... 30

Connections .................................................... 32

2-EN

Operating Instructions

WARNING

This symbol means important instructions. Failure to heed them can result in serious injury or death.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result in an accident.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISES WHILE DRIVING.

Excessive volume levels that obscure sounds such as emergency vehicle sirens or road warning signals (train crossings, etc.) can be dangerous and may result in an accident. LISTENING AT LOUD VOLUME LEVELS IN A CAR MAY ALSO CAUSE HEARING DAMAGE.

MINIMIZE DISPLAY VIEWING WHILE DRIVING.

Viewing the display may distract the driver from looking ahead of the vehicle and cause an accident.

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, fire or electric shock.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may result in fire, etc.

KEEP SMALL OBJECTS SUCH AS BOLTS OR SCREWS OUT OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician immediately.

USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES.

Failure to do so may result in fire or electric shock.

DO NOT BLOCK VENTS OR RADIATOR PANELS.

Doing so may cause heat to build up inside and may result in fire.

USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.

Use for other than its designed application may result in fire, electric shock or other injury.

CAUTION

This symbol means important instructions. Failure to heed them can result in injury or material property damage.

HALT USE IMMEDIATELY IF A PROBLEM APPEARS.

Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for repairing.

DO NOT MIX NEW BATTERIES WITH OLD BATTERIES. INSERT WITH THE CORRECT BATTERY POLARITY.

When inserting the batteries, be sure to observe proper polarity (+

and –) as instructed. Rupture or chemical leakage from the

battery may cause fire or personal injury.

PRECAUTIONS

Product Cleaning

Use a soft dry cloth for periodic cleaning of the product. For more severe stains, please dampen the cloth with water only. Anything else has the chance of dissolving the paint or damaging the plastic.

Temperature

Be sure the temperature inside the vehicle is between +60°C (+140°F) and –10°C (+14°F) before turning your unit on.

Maintenance

If you have problems, do not attempt to repair the unit yourself. Return it to your Alpine dealer or the nearest Alpine Service Station for servicing.

Installation Location

Make sure the iDA-X001 will not be installed in a location subjected to:

• Direct sun and heat

• High humidity and water

• Excessive dust

• Excessive vibrations

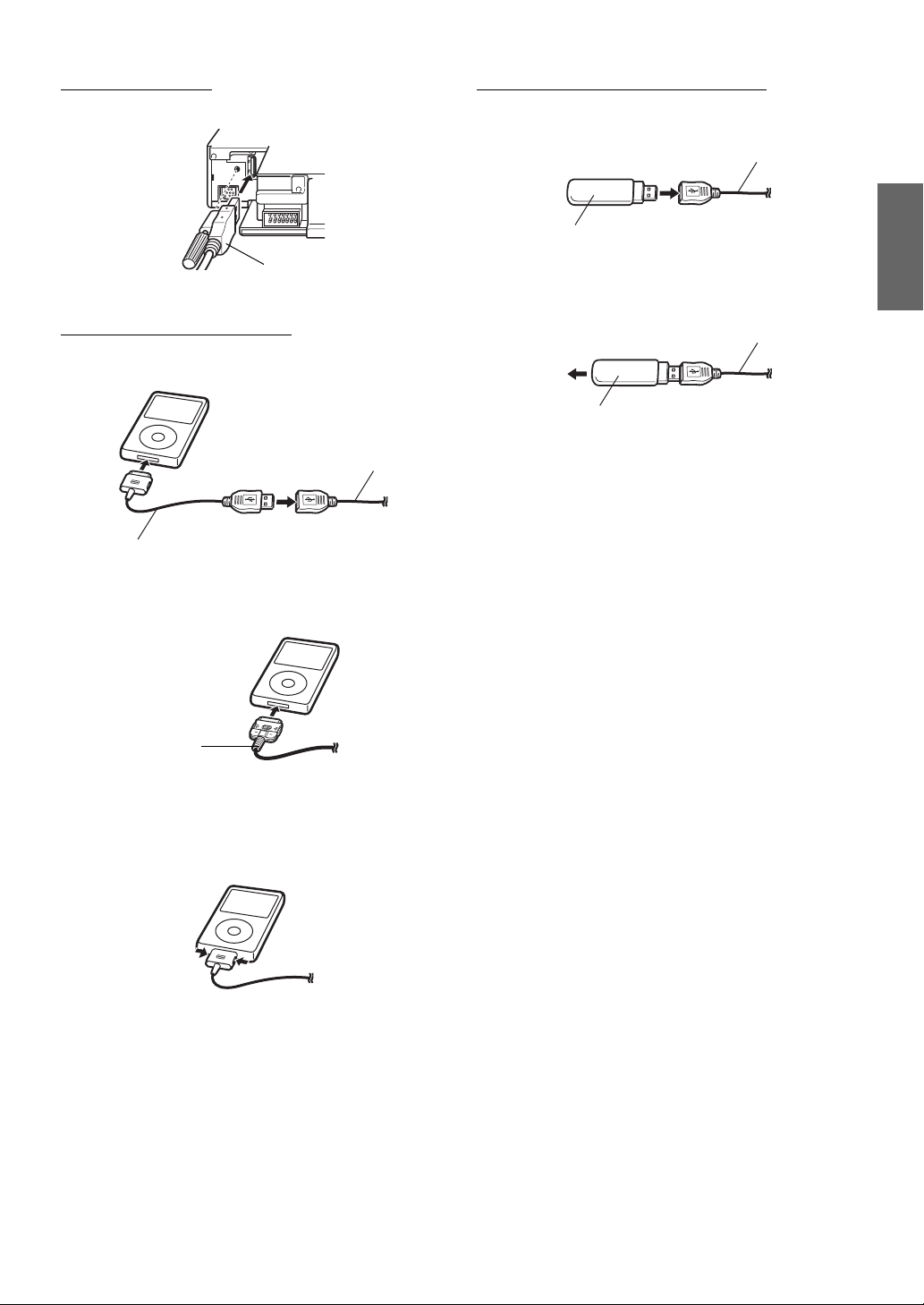

Protecting the USB connector

• Only an iPod or USB memory can be connected to the USB connector on this unit. Correct performance using other USB products cannot be guaranteed.

• If the USB connector is used, be sure to use only the supplied connector cable with the unit. A USB hub is not supported.

• Depending on the connected USB memory device, the unit may not function or some functions may not be performed.

• The audio file format that can be played back on the unit is MP3/ WMA/AAC.

• Artist/song name, etc., can be displayed, however characters may not be correctly displayed.

3-EN

CAUTION

Alpine accepts no responsibility for lost data, etc., even if data, etc., is lost while using this product.

On Handling USB Memory

• To prevent malfunction or damage, note the following points. Read the USB memory Owner’s Manual thoroughly. Do not touch the terminals by hand or metal. Do not subject USB memory to excessive shock. Do not bend, drop, disassemble, modify or soak in the water.

• Avoid usage or storage in the following locations: Anywhere in the car exposed to direct sunlight or high temperatures. Anywhere the possibility of high humidity or corrosive substances are present.

• Fix the USB memory in a location where driver operation will not be hindered.

• USB memory may not function correctly at high or low temperature.

• Use only certified USB memory. Note that even certified USB memory, may not function correctly depending on its type or state.

• USB memory function is not guaranteed. Use USB memory according to the terms of agreement.

• Depending on the settings of the USB memory type, memory state or encoding software, the unit may not play back or display properly.

• A file that is copy-protected (copyright protection) cannot be played back.

• USB memory may take time to start playback. If there is a particular file other than audio in the USB memory, it may take considerable time before the file is played back or searched.

• The unit can play back “mp3,” “wma” or “m4a” file extensions.

• Do not add the above extensions to a file other than audio data. This non-audio data will not be recognized. The resulting playback may contain noise that can damage speakers and/or amplifiers.

• It is recommended to back up important data on a personal computer.

• Do not remove the USB device while playback is in progress. Change SOURCE to something other than USB, then remove the USB device to prevent possible damage to its memory.

• “Uni-Type™” is the trademark registered by LIM Corporation

Ltd.

• Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

• Apple, the Apple logo, iPod and iTunes are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.

• “MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.”

• “Supply of this product only conveys a license for private, noncommercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenuegeneration) real time broadcasting (terrestrial, satellite, cable and/or any other media), broadcasting/streaming via internet, intranets and/or other networks or in other electronic content distribution systems, such as pay-audio or audio-on-demand applications. An independent license for such use is required. For details, please visit http://www.mp3licensing.com”

• “Uni-Type™” is a style of Universal design font developed by a joint reserch between LIM Corporation Ltd., and Chiba University Faculty of Engineering.

4-EN

Center Jog Dial Operation

Center Jog Dial

Turn the Center Jog Dial left or right.

aTurn the Center Jog Dial one step. If “Sound (Beep)

Guide Function” is set to On (see page 22), a beep sounds as this operation is performed. The explanation in the Manual described as “Turn the Center Jog Dial” describes the above operation. The Center Jog Dial returns to its original position when it is released. Additionally, turning the Center Jog Dial one step, and then turning and holding it for a moment without releasing it is expressed as “Turn the Center Jog Dial one step and hold.”

bBy turning the Center Jog Dial and holding it for a

moment without releasing, you can change the number and items continuously. This operation is expressed as “Turn the Center Jog Dial two steps and hold.” If “Sound (Beep) Guide Function” is set to On (see page 22), a beep sounds twice as this operation is performed. The Center Jog Dial returns to the original position when it is released.

5-EN

Attaching

Getting Started

SOURCE/

ENT

BACK VIEW

Accessory List

• Digital Media receiver........................................................1

• Power cable........................................................................1

• Mounting sleeve.................................................................1

• Carrying case .....................................................................1

• Front frame.........................................................................1

• USB cable ...........................................................................1

• iPod Dock interface cable .................................................1

• Rubber Cap ........................................................................1

• Hex Bolt ..............................................................................1

• Screw (M5x8)......................................................................4

• Owner’s Manual .......................................................... 1 set

Turning Power On and Off

FUNC./SETUP

Center Jog Dial

Insert the right side of the front panel into the main unit. Align the groove on the front panel with the projections on the main unit.

Push the left side of the front panel until it locks firmly into the main unit.

• Before attaching the front panel, make sure that there is no dirt or

dust on the connector terminals and no foreign object between the front panel and the main unit.

• Attach the front panel carefully. Hold the panel by its sides to avoid

pushing any buttons by mistake.

Initial System Start-Up

Be sure to press the RESET switch when using the unit for the first time, after changing the car battery, etc.

Turn off the unit power.

Press (Release) to remove the front panel.

Press RESET with a ballpoint pen or similar pointed object.

Press SOURCE/ to turn on the unit.

• The unit can be turned on by pressing any other button except

(Release) and VIEW. The unit is also automatically turned on if

an iPod (USB connection) or USB memory is connected.

Press and hold SOURCE/ for at least 2 seconds to turn off the unit.

Detaching and Attaching the Front Panel

Detaching

Turn off the unit power.

Press (Release) at the lower left side until the front panel pops out.

Grasp the left side of the front panel and pull it out.

• The front panel may become hot in normal usage (especially the connector terminals on the back of the front panel.) This is not a malfunction.

• To protect the front panel, place it in the supplied carrying case.

Adjusting Volume

Turn the Center Jog Dial until the desired sound is obtained.

• If the Center Jog Dial is repeatedly turned clockwise/counter-

clockwise one step and held, the volume will increase/decrease incrementally, a step at a time. If the Center Jog Dial is turned two steps and held, the volume will change increase/decrease at a faster rate.

6-EN

Lowering Volume Quickly

Activating the Audio Mute function will instantly lower the volume level by 20 dB.

Press to activate the MUTE mode.

The audio level will decrease by about 20 dB.

Pressing again will bring the audio back to its previous level.

• During MUTE, the volume display blinks.

Setting the Time and Calendar

Press and hold to activate the SETUP selection mode

Turn the Center Jog Dial to select the General mode, and then press ENT.

Bluetooth General Display iPod Tune r

Turn the Center Jog Dial to select Clock Adjust, and then press ENT.

The calendar setting mode is activated. When the year is set, proceed step 5.

Turn the Center Jog Dial to select year, month, day, hour or minutes to be set.

FUNC./SETUP

for at least 2 seconds

• Selecting any tuner or iPod function while in the clock priority mode

will interrupt the time display momentarily. The function selected will be displayed for about 5 seconds before the time returns to the display.

• When the RDS mode is set, radio text can be displayed. Refer to

“Displaying Radio Text” (page 11).

• If an iPod is connected via USB, the album cover screen can be

displayed. Refer to “Changing the Display” (page 14).

Controllable With Remote Control

Point the optional remote control transmitter at the remote control sensor.

Remote control sensor

Press ENT.

The year setting mode is activated, and the year blinks. (When “year” is set)

Turn the Center Jog Dial to set year, and then press ENT.

The setting for year is complete. (When “year” is set)

Repeat steps 4 to 6 above to set month, day, hour and minutes.

Press and hold return to normal mode.

• Only when Auto Clock is set to OFF, can the setting be made. Refer to “Setting the Time to automatically Adjust” (page 10).

• Pressing BACK during the procedure will return to the previous mode.

• If the Center Jog Dial is turned two steps and held, the number changes continuously.

BACK

for at least 2 seconds to

Displaying the Calendar/Time

Press VIEW.

The calendar/time is displayed. Pressing VIEW again will return to normal mode.

7-EN

Radio

SOURCE/

BAND/TA

TUNE/A.ME PRESET

How to View the Display

Center Jog Dial

ENT

Presetting Stations Manually

Select the radio band and tune in a desired radio station you wish to store in the preset memory.

Press PRESET.

The Preset screen is displayed.

Turn the Center Jog Dial to select the preset number.

Press and hold ENT for at least 2 seconds.

The selected station is stored. The display shows the band, preset number and station frequency memorized.

• A total of 30 stations can be stored in the preset memory (6 stations

for each band; FM-1, FM-2, FM-3, MW and LW).

• If you store a station in a preset memory which already has a station,

the current station will be cleared and replaced with the new station.

1 Mode display 2Preset number 3 Volume 4 Tuning mode 5 Frequency 6 RDS indicator

Listening to Radio

Press SOURCE/ to select TUNER mode.

Press BAND/TA repeatedly until the desired radio band is displayed.

FM-1 FM-2 FM-3 MW LW FM-1

Press TUNE/A.ME to select the tuning mode.

DX (Distance mode) Local (Local mode) Manual (Manual mode) DX (Distance mode)

• The initial mode is Distance mode.

Distance mode:

Both strong and weak stations will be automatically tuned in (Automatic Seek Tuning).

Local mode:

Only strong stations will be automatically tuned in (Automatic Seek Tuning).

Manual mode:

The frequency is manually tuned in steps (Manual tuning).

Presetting Stations Automatically

Press BAND/TA repeatedly until the desired radio band is displayed.

Press and hold TUNE/A.ME for at least 2 seconds.

“Auto Memory” is displayed while the automatic memory is in progress. The tuner will automatically seek and store 6 strong stations in the selected band. They will be stored 1 to 6 in order of signal strength. When the automatic memory has been completed, the tuner goes to the station stored in preset location No.1.

• If no stations are stored, the tuner will return to the original station

you were listening to before the auto memory procedure began.

Tuning to Preset Stations

Press BAND/TA repeatedly until the desired band is displayed.

Press PRESET.

The Preset screen is displayed.

Turn the Center Jog Dial to select a radio station.

Press ENT.

The display shows the band, preset number and frequency of the station selected.

Press or to tune in the desired station.

Holding down or will change the frequency continuously.

8-EN

RDS

Center Jog Dial VIEW

BAND/TA FUNC./SETUP

Setting RDS Reception Mode and Receiving RDS Stations

The RDS (Radio Data System) is a radio information system using the 57 kHz subcarrier of regular FM broadcast. The RDS allows you to receive a variety of information such as traffic information, station names, and to automatically re-tune to a stronger transmitter that is broadcasting the same programme.

Press FUNC./SETUP to activate the Function mode.

Press ENT to select the AF (Alternative Frequency) mode.

Turn the Center Jog Dial to select On, and press ENT.

Press FUNC./SETUP to activate the RDS mode.

• When the “Setting PTY31 (Emergency Broadcast) reception” (refer to page 10) is set to on, if the unit receives the PTY31 (Emergency Broadcast) signal, the unit will show “ALARM” in the display automatically.

The RDS digital data includes the following:

ENT

BACK

PI Programme Identification PS Programme Service Name AF List of Alternative Frequencies TP Traffic Programme TA Traffic Announcement PTY Programme Type EON Enhanced Other Networks

Receiving RDS Regional (Local) Stations

Press and hold FUNC./SETUP for at least 2 seconds to activate the SETUP selection mode.

Turn the Center Jog Dial to select the Tuner mode, and then press ENT.

Bluetooth General Display iPod Tuner

Press ENT to select Regional.

Turn the Center Jog Dial to select On or Off, and then press ENT.

In the Off mode, the unit automatically keeps receiving the related local RDS station.

Press and hold BACK for at least 2 seconds to return to normal mode.

• Pressing BACK during the procedure will return to the previous

mode.

PI SEEK Setting

Press and hold FUNC./SETUP for at least 2 seconds to activate the SETUP selection mode.

Turn the Center Jog Dial to select the Tuner mode, and then press ENT.

Bluetooth General Display iPod Tuner

Turn the Center Jog Dial to select PI Seek and then press ENT.

Turn the Center Jog Dial to select On or Off, and then press ENT.

Press and hold BACK for at least 2 seconds to return to normal mode.

• Pressing BACK during the procedure will return to the previous

mode.

9-EN

+ 24 hidden pages
