CDE-7828E/
CDE-7826E
FM/AM Compact Disc Receiver
• OWNER'S MANUAL
Please read this manual to maximize your enjoyment of the outstanding performance and feature
capabilities of the equipment, then retain the
manual for future reference.
R
35W x 4
R
E
T
•
•
B
S
A
A
L
B
•
F
•
L
PWR
A
D
O
V
■
R
E
W
O
P
MODE
LOUD
C
O
N
T
R
O
L
UPDN
A. MEMO
A
U
D
I
O
TUNE
COMPACT
DIGITAL AUDIO
123
M.I.X. RPT SCAN
456
CT H M
TUNER
D.A.P.
BAND
CLOCK
DISP
REPEAT
D.A.P.
DISC
M.I.X.
CD RECEIVER
35
CDE-7828E
WATTS x
4
ST
DX
AMPLIFIER
SEEK
LOUD
(CDE-7828E)
1
English
2
English
Precautions
Warning
DO NOT DISASSEMBLE OR ALTER
Attempts to disassemble or alter may lead
to an accident, fire and/or electric shock.
KEEP SMALL ARTICLES OUT OF THE
REACH OF CHILDREN
Store small articles (screws, etc.) in places
not accessible to children. If swallowed,
consult a physician immediately.
USE THE CORRECT AMPERE RATING
WHEN REPLACING FUSES
Replace fuses only with fuses of the same
ampere rating. Failure to do so may result
in a fire and/or damage to the vehicle.
HALT USE IMMEDIATELY IF A PROBLEM APPEARS
When problems appear, stop using the
system immediately and contact the
dealer from whom you purchased the
equipment. Some problems which may
warrant immediate attention include a lack
of sound, noxious odors or smoke being
emitted from the unit, or foreign objects
dropped inside the unit.
DO NOT OPERATE THE REMOTE
CONTROL WHILE DRIVING
Do not change settings while driving. If
operation requiring a prolonged view of
the display is required, stop the vehicle in
a safe location before attempting operation.
3
English
Precautions
Caution
DO NOT RAISE THE VOLUME EXCESSIVELY
Keep the volume at a level where you can
still hear outside noises while driving.
Driving while unable to hear outside
sounds could cause an accident.
DO NOT USE THIS EQUIPMENT
OUTSIDE THE VEHICLE
Do not use this equipment for purposes
other than those listed for a vehicle.
Failure to do so may result in an electric
shock or an injury.
KEEP FOREIGN OBJECTS OUT OF THE
CD COMPARTMENT SLOT
Keep any foreign objects, including
fingers, out of the CD compartment slot.
4
STOP THE VEHICLE BEFORE
CARRYING OUT ANY OPERATION
THAT COULD INTERFERE WITH YOUR
DRIVING
If loading or unloading a CD interferes with
your driving, stop the vehicle in a safe
location before attempting operation.
English
Contents
Page
6 .......................................................................Precautions
9 ................................................... Detachable Front Panel
Basic Operation
10 ...................................................... Initial System Start-up
10 ............................................... Turning Power On and Off
11 ............................................Non Fading Pre-Out (N.F.P.)
On and Off
12 ........................................ Adjusting Volume/Bass/Treble/
Balance/Fader
13 ................................................. Turning Loudness On/Off
Radio Operation
14 ..................................................................Manual Tuning
15 .................................................... Automatic Seek Tuning
16 ....................................Manual Storing of Station Presets
17 .............................. Automatic Memory of Station Presets
18 .....................................Storing into Direct Access Preset
(D.A.P.) Band
19 ................................................. Tuning to Preset Stations
CD Operation
20 ......................................................Inserting/Ejecting Disc
20 ....................................................Normal Play and Pause
21 ............................ Track/Elapsed Time Display Switching
21 ......................................................... Music Sensor (Skip)
22 ............................................ Fast Forward and Backward
22 ......................................................................Repeat Play
23 ....................................................... M.I.X. (Random Play)
23 ..........................................................Scanning Programs
Clock Operation
24 ................................................................Displaying Time
25 ..................................................................... Setting Time
26 .........................................................................Disc Care
27 ........................................................In Case of Difficulty
30 ................................................................. Specifications
5
+60°C
–10°C
English
Precautions
Thermal Protection Circuit
Be sure the temperature inside the vehicle is
between +60°C (+140°F) and –10°C (+14°F)
before attempting to play a disc. If the
temperature is over +60°C (+140°F), the
protection circuit functions to stop the CD
player, and "---H" is displayed.
Moisture Condensation
You may notice the CD playback sound
wavering due to condensation. If this happens,
remove the disc from the player and wait about
an hour for the moisture to evaporate.
Damaged Disc
Do not attempt to play cracked, warped, or
damaged discs. Playing a bad disc could
severely damage the playback mechanism.
6
Never attempt the Following
Do not grip or pull out the disc while it is being
pulled back into the player by the automatic
reloading mechanism.
Do not attempt to insert a disc into the unit
when the unit power is off.
Maintenance
If you have problems, do not attempt to repair
the unit yourself. Return it to your Alpine dealer
or the nearest Alpine Service Station for
servicing.
Bumps
Center Hole
English
Precautions
Inserting Discs
Your player accepts only one disc at a time for
playback. Do not attempt to load more than one
disc.
Make sure the label side is facing up when you
insert the disc. Your player will automatically
eject any disc that is inserted incorrectly. If the
player continues to eject a correctly inserted
disc, push the Reset switch (located behind the
detachable front panel) with a pointed object
such as a ball-point pen.
Playing a disc while driving on a very bumpy
road may result in skips, but this will not scratch
the disc or damage the player.
New Discs
As a protective measure, the CD player will
automatically eject discs that have either been
inserted incorrectly or have irregular surfaces. If
a new disc is ejected immediately after loading,
use your finger to feel around the outer edge of
the CD and its center hole. If you feel any small
bumps or irregularities, this could inhibit proper
loading of the disc. To remove the bumps, rub
the inside edge of the hole and outside edge of
the disc with a ball-point pen or other such
instrument, then insert the disc again.
Center Hole
New Disc
Outside (Bumps)
7
English
Precautions
Installation Location
Make sure the CDE-7828E/CDE-7826E player/
receiver will not be exposed to:
• Direct sun and heat
• High humidity
• Excessive dust
• Excessive vibrations
Handling the Detachable
Front Panel
• Do not expose to rain or water.
• Do not drop or apply shock.
8
English
Detachable Front
English
Panel
1
1
2
3
2
Detaching the Front Panel
PWR
1
2
Press the PWR button to turn off the power.
Press the release button until the front panel
pops out.
Grasp the left side of the front panel and pull it
out.
Note: To protect the front panel, place it in
the supplied carrying case.
Attaching the Front Panel
1. First, insert the right side of the front panel
into the main unit. Align the 2 small holes on
the front panel with the 2 projections on the
main unit.
2. Push the left side of the front panel until it
locks firmly into the main unit.
Note: Before attaching the front panel, make
sure that there is no dirt or dust on the
connector terminals and no foreign
objects between the front panel and main
unit.
9
Basic Operation
English
1
1
1
Initial System Start-Up
Immediately after installing or applying power to
the unit, it should be initialized. To do this, first,
remove the detachable front panel. Behind the
front panel, to the left of the connector, is a
small hole. Using a pencil or other pointed
object, press the red Reset button mounted
behind this hole to complete the initialization
procedure.
1
Turning Power On and Off
PWR
Press the PWR button to turn on the unit.
Note: The unit can be turned on by pressing
any button except the eject ( h ) and
CLOCK buttons, or by inserting a
compact disc.
10
Press the PWR button again to turn off the unit.
PWR
Basic Operation
English
1
1
On
oF
nFP
nFP
Non Fading Pre-Out
(N.F.P.) On and Off
Press and hold the eject (h) button for at least 3
seconds.
With each press, N.F.P. is toggled On or Off.
N.F.P. ON: In this position, the Pre-Output will
not be affected by the fader. This is
ideal for driving a subwoofer
amplifier.
N.F.P. OFF:Returns to normal fader mode.
Note: Set the N.F.P. to OFF unless the
subwoofer is used.
11
Basic Operation
Adjusting Volume/Bass/
Treble/Balance/Fader
English
1
2
MODE
LOUD
VOL
BAS
TRE
BAL
FAd
Press and release the MODE/LOUD button
repeatedly to choose the desired mode.
Note: If the or button is not pressed in 5
seconds after selecting the BAS, TRE,
BAL and FAd modes, the unit automatically returns to the VOL mode.
Press the button or until the desired
sound is obtained in each mode.
Notes:
• These buttons have a "Dual Speed"
function. Pressing the button for a short
time will change the level slowly. Pressing
the buttons for a long time will change the
level quickly.
• The BASS and TREBLE settings for each
source (FM, AM and CD) are automatically
memorized. These settings remain until
you manually change them.
12
1
MODE
LOUD
LOUD
English
Basic Operation

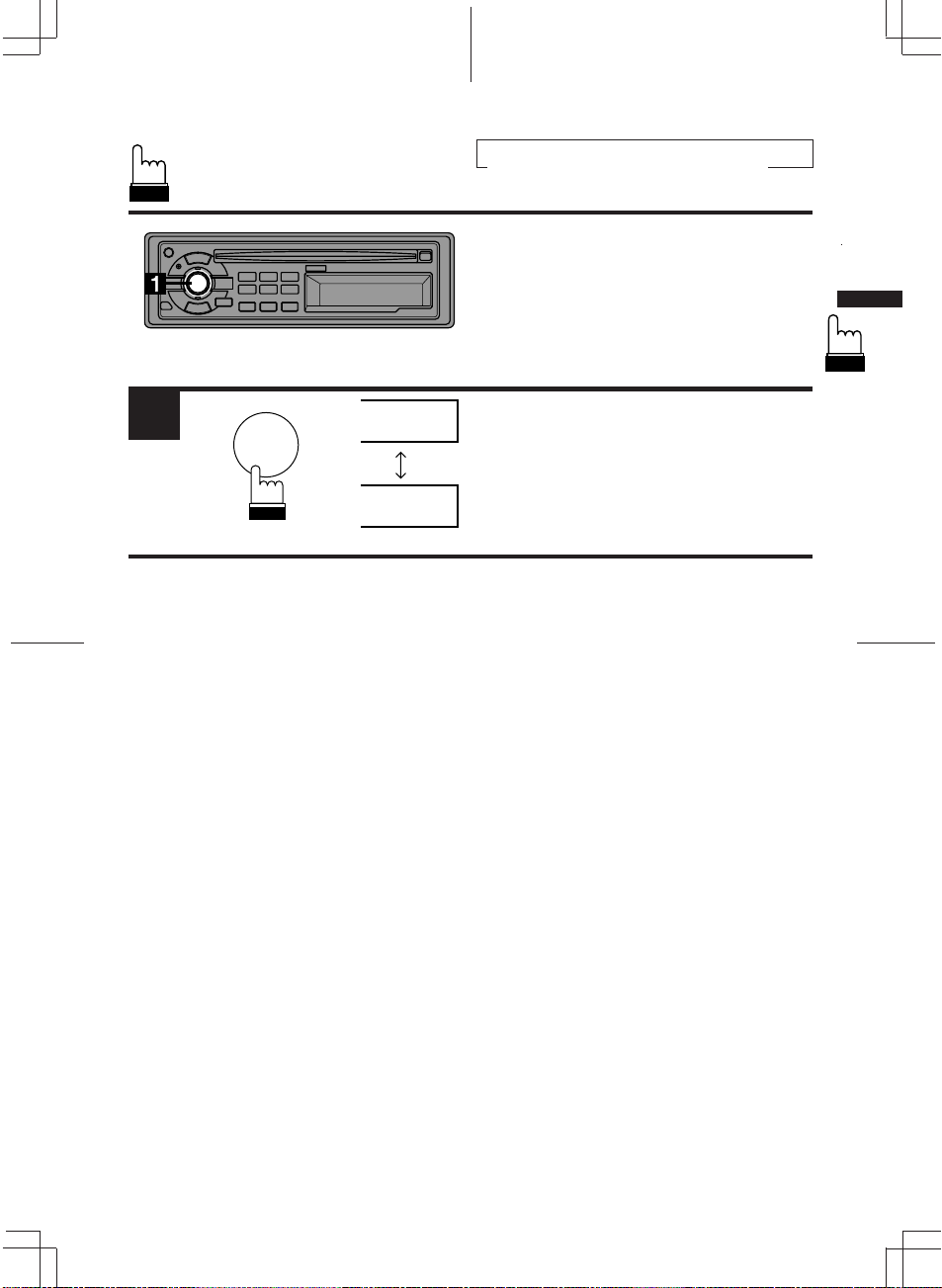

Turning Loudness On/Off
Loudness introduces a special low- and highfrequency emphasis at low listening levels to
compensate for the ear's decreased sensitivity
to bass and treble sound.
Press and hold the MODE/LOUD button for at
least 2 seconds to activate or deactivate the
loudness mode.
13
English
Radio Operation
3
1
2
3
TUNE
A. MEMO
2
TUNER
BAND
1
F1
F2
AM
F1
DX
90.1
SEEK
SEEK
MAnu
UPDN
Manual Tuning
Press the TUNER/BAND button repeatedly until
the desired radio band is displayed.
Press the TUNE/A. MEMO button repeatedly
until "MAnu" is displayed.
Note: Initial mode is DX SEEK.
Press the DN (c) or UP (f) button to move
downward or upward one step respectively until
the desired station frequency is displayed.
14
Réception
radio
3
Operación de la
Radio Operation
radio
English
1
2
3
TUNE
A. MEMO
2
TUNER
BAND
1
F1
F2
AM
DX
SEEK
SEEK
MAnu
F1
90.1
UPDN
Automatic Seek Tuning
Press the TUNER/BAND button repeatedly until
the desired radio band is displayed.
Press the TUNE/A. MEMO button to illuminate
the DX indicator in the display. With the DX
mode activated, both strong and weak stations
will be tuned in the Auto-Seek operation.
Press the TUNE/A. MEMO button again to
return to the local mode. The DX indicator will
turn off and only strong radio stations will be
tuned.
Press and release the DN (c) or UP (f)
button to automatically seek a station downward or upward respectively.
Note: The ST indicator appears on the display
when a Stereo FM station is tuned in. If
this signal becomes weak, the ST
indicator will turn off. During this time, the
unit gradually switches from stereo to
mono to reduce noise. As soon as the
signal becomes strong enough, the unit
switches back to the stereo mode.
15
1
1
123
M.I.X. RPT SCAN
456
CT H M
English
Radio Operation
Manual Storing of Station
Presets
1. Tune in the desired radio station you wish to
store in the preset memory.
2. Press and hold any one of the preset
buttons (1 through 6) for at least 2 seconds.
The frequency display will begin to blink.
3. Press the preset button into which you wish
to store the station while the display is
blinking (within 5 seconds).
The display stops blinking to indicate that
the station has been memorized. The preset
number is also displayed.
4. Repeat the procedure to store 5 other
stations onto the same band. Use this
procedure for other bands.
16
A total of 24 stations can be stored in the preset
memory (6 stations for each band; FM1, FM2,
AM and D.A.P.).
Note: If a preset memory has already been set
in the same preset location, it will be
cleared and the new station will be
memorized.
Réception
radio
2
Operación de la
Radio Operation
radio
English
Automatic Memory of
1
Station Presets
1
2
TUNER
BAND
TUNE
A. MEMO
F1
F2
AM
Press the TUNER/BAND button until the
desired radio band is displayed.
Press and hold the TUNE/A. MEMO button for
at least 2 seconds.
The tuner will automatically seek and store 6
strong stations in the selected band in order of
signal strength.
When the automatic storing has been completed, the tuner goes to the station stored in
the preset location No. 1.
Note: If no stations are stored, the tuner will
return to the original station you were
listening to before the auto storing
procedure began.
17
Radio Operation
English
1
1
D.A.P.
D.A.P.
Storing into Direct Access
Preset (D.A.P.) Band
A combination of radio stations in any band (up
to 6 stations) can be manually preset into the
D.A.P. band.
Press the D.A.P. button until the D.A.P.
indicator appears.
Press the BAND button to select FM or AM.
The selected band will be displayed.
To memorize stations onto the D.A.P. band,
follow the steps for the automatic or Manual
Storing of Station Presets section above.
Note: When using the Automatic Memory
function with D.A.P., the first 4 presets
will be filled with FM stations and the last
2 are filled with AM stations.
Press the D.A.P. button until the D.A.P.
indicator disappears to cancel the D.A.P. mode.
18
Réception
radio
2
Operación de la
Radio Operation
radio
English
1
2
1
TUNER
BAND
123
M.I.X. RPT SCAN
456
CT H M
FM
D.A.P.
1
F1
F2
AM
90.1
Tuning to Preset Stations
Press the TUNER/BAND button repeatedly until
the desired band is displayed.
To select the D.A.P. band, press the button until
the D.A.P. indicator appears.
Press the station preset button that has your
desired radio station in memory. The display
shows the preset number, band and frequency
of the station.
19
1
21
LOAd
English
CD Operation
Inserting/Ejecting Disc
Insert a CD half way into the slot with the label
side facing up. The player automatically draws
the disc into the disc compartment.
The DISC indicator appears to show that a disc
is loaded.
Note: Three-inch (8 cm) CD's can not be used.
2
1
2
Press the eject button (h) when you want to
EJEC
eject the CD.
Normal Play and Pause
2
DISC
DISC
1
Insert a CD. The CD player begins playback
from the first track on the disc. The display
shows the track number. When the last track is
played back the player returns to the first track
and begins playback from that point.
PAU
T-01
Press the DISC (k) button to temporarily stop
CD playback.
To resume playback, press the DISC (k)
button again.
20
English
CD Operation
Track/Elapsed Time
1
Display Switching
1
1
1
CLOCK DISP
DN
UP
T-03
8'35
T-04
T-04
T-03
T-04
Press and hold the CLOCK/DISP button for
at least 2 second to alternate between the
Track Number and Elapsed Time displays.
Music Sensor (Skip)
Momentarily press the DN (c) button once to
return to the beginning of the current track. If
you wish to access a track further back,
repeatedly press until you reach the desired
track. (The example shows the Music Sensor
operation starting from track No. 4.)
Press the UP (f) button once to advance to
the beginning of the next track. If you wish to
access a track further ahead, press repeatedly
until the desired track is reached.
T-05
Note: The music sensor feature is functional in
the play or pause mode.
21
English
CD Operation
1
Fast Forward and Backward
1
1
RPT
UPDN
Press and hold the DN (c) or UP (f) button to
quickly move backward or forward until you
reach the desired section of the track.
1
Repeat Play
Press the RPT button to play back repeatedly
2
REPEAT
the track being played. The REPEAT indicator
appears and the track will be played repeatedly.
Press the RPT button again to deactivate the
repeat play.
22
English
CD Operation
1
M.I.X. (Random Play)
1
1
M.I.X.
SCAN
M.I.X.
1
Press the M.I.X. button in the play or pause
mode. The M.I.X. indicator will illuminate and
the tracks on the disc will be played back in a
random sequence. Each track on the disc will
be played once. The player will then create a
new random sequence and begin playing. This
will continue until the M.I.X. mode is canceled.
To cancel M.I.X. play, press the M.I.X. button
again.
1
Scanning Programs
Press the SCAN button to activate the Scan
3
T-01
T-02
T-03
mode. The first 10 seconds of each track will
be played back in succession.
Press the SCAN button again to deactivate the
Scan mode.
23
1.@
CD Operation
Clock Operation
Displaying Time
English
English
1
2
CLOCK
CLOCK
12:00
Press the CLOCK button to display the time.
The unit displays the time.
Note: Selecting any tuner or CD function while
in the Clock mode will interrupt the time
display momentarily. The function
selected will be displayed for about 5
seconds before the time returns to the
display. The time will be displayed even
with power to the head unit turned off, as
long as the ignition key is on.
Press the CLOCK button to turn off the time
and to show other functions.
24
1
2
CT
CLOCK
4
English
English
Clock Operation
CD Operation
432
Setting Time
1
Press and hold the CLOCK button for at least 3
12:30
12:00
seconds. The time indication will begin to blink.
Press the CT button while the time indication is
blinking to set seconds to "0".
3
4
5
H
6
M
9:00
9:35
9:35
Example: To adjust to 9:35
Press the "H" button to adjust the hours while
the time indication is blinking.
Press the "M" button to adjust the minutes while
the time indication is blinking. The time
indication will stop blinking 5 seconds after the
last adjustment. The time will automatically be
set.
25
Disc Care
English
CORRECT
INCORRECT CORRECT
Correct Handling
Do not drop the disc while handling. Hold the
disc so you will not leave fingerprints on the
surface. Do not affix tape, paper, or gummed
labels on the disc. Do not write on the disc.
Disc Cleaning
Fingerprints, dust, or soil on the surface of the
disc could cause the CD player to skip. For
routine cleaning, wipe the playing surface with
a clean, soft cloth from the centre of the disc to
the outer edge. If the surface is heavily soiled,
dampen a clean soft cloth in a solution of mild
neutral detergent before cleaning the disc.
26
Transparent Sheet
Disc Stabilizer
Disc Accessories
There are various accessories available on the
market for protecting the disc surface and
improving sound quality. However, most of
them will influence the thickness and/or
diameter of the disc. Using such accessories
can cause the disc to be out of standard
specifications and may create operational
problems. We recommend not using these
accessories on discs played in Alpine CD
players.
In Case of Difficulty
If you encounter a problem, please review the
items in the following check list. This guide will
help you isolate the problem if the unit is at
fault. Otherwise, make sure the rest of your
system is properly connected or consult your
authorized Alpine dealer.
Initial Turn-on After
Installation
English
Symptom
No function or display.
Cause and Solution
• Car's ignition is off.
– If connected per instructions, the unit will
not operate with the car's ignition off.
• Improper connection of power leads.
– Check connections of the power leads.
• Blown fuse.
– Check the fuses on the Battery leads;
replace with the proper value if
necessary.
• Internal micro-computer malfunctioned due
to interference noise etc.
– Press the Reset button with a ball-point
pen or other pointed article.
27
In Case of Difficulty
Radio Mode
English
Symptom
Unable to receive stations.
Unable to tune stations in the seek mode.
Broadcast is noisy.
Cause and Solution
• No antenna or open connection in cable.
– Make sure the antenna is properly
connected; replace the antenna or cable
if necessary.
• You are in a weak signal area.
– Make sure the tuner is in the DX mode.
• If the area you are in is not known to be a
weak signal area, the antenna may not be
grounded and connected properly.
– Check your antenna connections; make
sure the antenna is properly grounded at
its mounting location.
• The antenna may not be the proper length.
– Make sure the antenna is fully extended;
if broken, replace the antenna with a new
one.
• The antenna is not the proper length.
– Extend the antenna fully; replace it if it is
broken.
• The antenna is poorly grounded.
– Make sure the antenna is grounded
properly at its mounting location.
28
In Case of Difficulty
CD Mode
English
Symptom
CD insertion not possible.
Unable to Fast-Forward or Backward.
Sound skips due to vibration.
Sound skips without vibration.
Cause and Solution
• There is a CD already in the transport.
– Eject the CD in transport and remove it.
• The CD is being improperly inserted.
– Make sure the CD is being inserted per
instruction in the Owner's Manual.
• The CD has been damaged.
– Eject the CD and discard; using a
damaged CD in your unit can cause
damage to the transport.
• Improper mounting.
– Securely re-mount the unit.
• Disc is very dirty.
– Clean the disc.
• Disc has scratches.
– Change the disc.
• Dirty or scratched disc.
– Clean the disc: damaged discs should be
replaced.
29
English
Specifications
FM TUNER SECTION
Tuning Range ...................................................................................................... 87.5 – 108.0 MHz
Mono Usable Sensitivity............................................................................ 9.3 dBf (0.8µV/75 ohms)
50 dB Quieting Sensitivity ........................................................................13.5 dBf (1.3µV/75 ohms)
Alternate Channel Selectivity .................................................................................................. 80 dB
Signal-to-Noise Ratio .............................................................................................................. 65 dB
Stereo Separation ................................................................................................................... 35 dB
Capture Ratio......................................................................................................................... 2.0 dB
AM TUNER SECTION
Tuning Range ........................................................................................................ 531 – 1,602 kHz
Usable Sensitivity..................................................................................................... 22.5µV/27.0 dB
CD SECTION
Frequency Response* .................................................................................. 5 – 20,000 Hz (±1 dB)
Wow & Flutter (% WRMS)* ........................................................................Below measurable limits
Total Harmonic Distortion* ...................................................................................0.008% (at 1 kHz)
Dynamic Range* ..................................................................................................... 95 dB (at 1 kHz)
Signal-to-Noise Ratio*............................................................................................................. 95 dB
Channel Separation*...............................................................................................85 dB (at 1 kHz)
30
English
Specifications
GENERAL
Power Requirement ...................................................................... 14.4V DC (11 – 16V (allowable))
Maximum Power Output ..................................................................................................... 35W x 4
Pre-Output Voltage ..............................................................................................500 mV/10k ohms
Note: The above spec is used for reference
only. Actual output will be greater than
2.0V (before clipping).
Bass ........................................................................................................................±15 dB at 30 Hz
Treble .................................................................................................................... ±10 dB at 10 kHz
Weight ................................................................................................................. 1.5 kg (3 lbs. 5 oz)
CHASSIS SIZE
Width ............................................................................................................................. 178mm (7")
Height............................................................................................................................... 50mm (2")
Depth .............................................................................................................................152mm (6")
NOSEPIECE SIZE
Width ........................................................................................................................170mm (6-3/4")
Height..................................................................................................................... 46mm (1-13/16")
Depth ........................................................................................................................18mm (11/16")
* Measured at internal amp input stage.
Note: Due to product improvement, specifications
and design are subject to change without
notice.
31
Note
English
32
Loading...
